1 Introduction

The introduction of multi-core processors marked the end to an era dominated by a constant increase of clock-rate, following Moore’s law. Today, even the strategy to increase performance through higher core-counts is facing physical limitations. In addition, the performance increase results in power consumption issues which are currently one of the main limitations for the transition from petascale systems to next-generation exascale systems. Hence, the metric for measuring performance improvement of computational platforms has changed from absolute FLOPS numbers to FLOPS per Watt and FLOPS per surface unit of hardware.

Thus, rather than having CPU-based supercomputers a growing trend goes towards integrating a wide range of specialized (co-)processors into traditional supercomputers. These specialized architectures can outperform general purpose platforms while requiring lower energy consumption and less real estate. A study of energy consumption in data centers [9] has revealed the impact that efficient computer platforms can have in the worldwide energy consumption. This study analyzed historical energy consumption data for the periods 2000-2005 and 2005-2010. The study results showed that in 2005 data centers used 0.97% of the total electricity consumption of the world, while in 2010 this value increased to 1.3% instead of the expected 2.2%, according to the trends from the period 2000-2005. The study explained the reduction from 2.2% down to 1.3% as a consequence of the increasing use of energy-efficient computational platforms, showing the economic impact of using greener architectures.

However, integrating different specialized devices increases the degree of heterogeneity of the system. On the other hand, compilers typically optimize code for only one (homogeneous) destination infrastructure at a time, requiring the developer to manually adapt the program in order to be executed on hybrid architectures. As a result, the high degree of heterogeneity limits programmability of such systems to a few experts, and significantly reduces portability of the application onto different resource infrastructures.

// ABSTR: [3, 0, 0, 0, 0, 0, 1, 0, 0, 1, 1, 3, 2, 4, 0]
int dead_rows = K / 2;
int dead_cols = K / 2;
int normal_factor = K * K;
for (r = 0; r < N - K + 1; r++) {
  for (c = 0; c < N - K + 1; c++) {
    sum = 0;
    for (i = 0; i < K; i++) {
      for (j = 0; j < K; j++) {
        sum += input_image[r+i][c+j] * kernel[i][j];
      }
    }
    output_image[r+dead_rows][c+dead_cols] = (sum / normal_factor);
  }
 }
Listing 1: Initial code.

Opening the access of heterogeneous platforms to a wider spectrum of users is an important issue to be tackled. In past decades, different scientific areas showed an enormous advance and development thanks to the use of massive parallel architectures to implement in-silico models. The use of “virtual labs” through computational platforms allowed a better understanding of the physical phenomena under study, investigate a much wider range of solutions, and drastically reduce the cost with respect to performing real experiments. The computational requirements of scientific and industrial applications are pushing a driving the development of exascale systems. For that reason, new programming models, tools and compilers are required in order to open the access of exascale systems to a wider programming community, enabling translational research to enhance human welfare.

In order to ease the programmability of heterogeneous platforms, we have proposed [18, 17] a rule-based transformation system which can help developers to convert architecture-neutral code into code which can be deployed onto different specific architectures. While the mentioned transformation system is capable of performing sound program transformations, it lacked an automatic method to guide the transformation process. This paper describes a machine learning-based approach to learn transformation strategies from existing examples and to guide that system by using these strategies.

Rule-based transformation systems pose different problems, like the explosion in the number of states to be explored, arising from the application of transformation rules in an arbitrary order or the definition of a stop criteria for the transformation system. For the latter we propose the use of classification trees and for the former we propose a novel approach based on reinforcement learning. Both approaches use code abstractions to effectively capture relevant features of a given code. In order to illustrate the approach, Listing 1 shows code performing a 2D convolution with its associated abstraction at the top of the listing (see Section 4 for a description of the code abstraction). The code in Listing 1 is well suited to be parallelized, by adding OpenMP pragmas, for a multi-core CPU. However, different code transformations, altering different code abstractions features, are required to ease the translation to different target platforms like GPUs or FPGAs. For example, by coalescing the two outer loops, obtaining a linear iteration space, or by transforming the data layout of 2D arrays into 1D arrays, we obtain a sequential code easier to map onto the two platforms mentioned before (see Section 5.3

). The code features to be transformed are represented in the abstraction vector in Listing

1 through the first element (maximum loop depth), the twelfth element (number of non-1D arrays) and the fourteenth element (total number of loops). Our approach learns different sequences of code transformations that change the relevant abstraction features and obtain, for the example in Listing 1, a code performing a 2D convolution within a for loop with a linear iteration space, using 1D arrays. We have performed a preliminary evaluation of the approach obtaining promising results that demonstrate the suitability of the approach for this type of transformation systems.

The rest of the paper is organized as follows: Section 2 reviews previous work in the field of program transformation systems in general and previous approaches using machine learning techniques. Section 3 describes the toolchain where our machine learning-based approach is integrated. Section 4 describes the abstraction of code defined in order to apply machine learning methods. Section 5 describes the methods used to learn program transformation strategies. Section 6 presents some preliminary results and, finally, Section 7 summarizes the conclusions and proposes future work.

2 State of the Art

Rule-based program transformation systems support the formulation of basic code transformation steps as generic rules and arrange their automatic application. This scheme offers the flexibility of splitting complex code transformations into small steps, admitting efficient implementations that can scale to large programs. By adding more rules, the transformation system can also increase its capabilities in a scalable way. Rule-based systems also allow to decouple the definition of transformation steps (i.e. rule applications) from the strategies followed to apply the rules. This decoupling provides more flexibility to try different transformation strategies and select the best one according to the purpose of the system

[3, 15]. Rule-based transformation has been used before to generate code for different computational platforms.

The transformation of C-like programs and its compilation into synchronous architectures, like FPGAs, and asynchronous platforms, like multi-core CPUs, has been addressed before [4]. However, the input language of this approach (Handel-C) is meant to specify synchronous systems, thus limiting its applicability to this type of systems. A completely different approach is to use linear algebra to transform the mathematical specification of concrete scientific algorithms [7, 6, 5]. Here, the starting point is a mathematical formula and, once the formula is transformed, code is generated for the resulting expression. However, a reasonable acceleration over hand-tuned code happens only for algorithms within that concrete domain, and applying the ideas to other contexts does not seem straightforward.

Machine learning techniques have been already used in the field of compilation and program transformation [10, 13, 2]. All these approaches share the same principles as they obtain an abstract representation of the input programs in order to apply machine learning methods. Nevertheless, previous approaches target some specific architectures limiting the applicability of the approach and making it not suitable for heterogeneous platforms. In our approach, we obtain program abstractions in order to enable the machine learning-guided transformation and compilation of a program written in C for heterogeneous systems. Additionally, none of the previous works have explored the use of reinforcement learning methods [8] in the field of program transformation and compilation.

3 Program Transformation Toolchain for Heterogeneous systems

In this work we propose the automatic learning of transformation strategies for a rule-based transformation toolchain [18, 17]. This type of systems offer a higher flexibility over compilation infrastructures where the code transformations and optimizations are embedded in the compilation engine [16].

The rule-based transformation toolchain mentioned before [18, 17] defines a process consisting of two main stages (Fig. 1). In the one, input C code is transformed into semantically equivalent C code which is better suited for a given platform. It basically reshapes the input code taking into account syntactic/semantic restrictions of the compiler/programming models of each target platform (e.g. if the target compiler does not accept general if-then-else statements, the input code will be transformed to remove them if possible, without modifying the program semantics). In this phase, transformation rules, written in a C-like DSL and working at the abstract syntax tree (AST) level, rewrite input code which matches a pattern and fulfills some semantic conditions, into resulting code which is expressed as a template in the rewriting rule. Since at each step several rules can generally be applied at several code locations, this first phase defines a search space exploration problem where the states correspond to the different configurations of code obtained from the application of rules, and the transitions among states correspond to the applied rules. The usually large number of applicable rules and code locations where they can be applied causes a combinatorial explosion of the number of states.

Initial code

Ready code

GPGPU (OpenCL)

Translated code

OpenMP

MPI

FPGA (MaxJ)

Transformation

Translation

Structure, S2S, properties

Glue code, calls to libraries

Figure 1: Stages of the transformation tool.

The second phase of the toolchain consists of a translation process which generates code for a given platform taking as input the code generated in the first phase. This platform-specific code is fed to a platform-specific compiler. This second phase poses another problem: determine when code being subject to the transformation process is ready for the translation phase, i.e. when the transformation process can stop. Since some platforms might require a long compilation process (taking up to tens of hours for some FPGA compilers, for example, for moderate-sized programs), the toolchain should translate and compile only code that is likely to be successfully compiled on a given target platform, rather than trying to compile every single code obtained during the transformation phase. Additionally, when considering the first and second phases together, the intermediate code states obtained in the transformation sequences of the first phase might not improve monotonically non-functional metrics (e.g. execution time, energy consumption, etc.), but still produce code with better performance in the second phase.

Given the nature of the problems associated with the transformation toolchain, we propose the use of different machine learning techniques to effectively guide the transformation process. Concretely, we have used reinforcement learning methods to learn transformation strategies that take into account the non-monotonic behavior of the transformation sequences, and we have used classification methods to learn appropriate states that can be translated and compiled in the target platforms. Machine learning techniques require descriptions of the problem domain; therefore, we compute an abstract representation of the input programs and the intermediate code generated during the transformation process.

4 Mapping Code to Abstraction

As mentioned in before, machine learning operates on descriptions of the problem domain (C code, in our case). We use code abstractions as descriptions; these should be rich enough to reflect the changes performed by the transformation rules at the AST level. For that reason, we include in the abstractions quantitative descriptions involving features like AST patterns, control flow, data layout, data dependencies, etc. The current code abstraction consists of a vector of features (described later) which capture traits which are modified by the transformation rules and also reflect code patterns that match the syntactic/semantic restrictions of target compiler/programming models.

These abstractions are generated through a code analysis tool that parses the AST to extract the features mentioned before, implementing a function

that maps codes to abstractions. The tool has been implemented in Python using the pycparser333https://github.com/eliben/pycparser module and can extract feature information either by directly analyzing the code or by parsing code annotations provided by the user or by third-party analyzers. These match those supported by the transformation engine [18]:

  • Maximum nested loop depth: Depth of nested for loops. A value of means that no nested loops are present, means that there are two nested loops, and so on.

  • Number of function calls: Number of function calls present in the analyzed code.

  • Number of array writes shifted in bodies of for loops: This feature counts the number of array accesses with positive offset according to the following pattern: a for loop which performs multiple write accesses to the same array in the same iteration, some (but not all) of which use a positive offset with respect to the loop iteration variable.

    Listing 2 illustrates this feature. It would take a value of 1 for the code on the left, since for each iteration there are multiple write accesses to v[] and one of them has positive offset (because of the index i+1). For the code on the right, this feature takes a value 0, since for each iteration only position i+1 is written to: there is no position written to with a non-positive offset. Detecting writes with this characteristic is necessary since this pattern would fail to compile directly for a FPGA.

    for(i=1;i<N;i+=2) {         for(i=0;i<N-1;i++) {
       v[i] = v[i-1];              aux = i*i;
       v[i+1] = v[i-1]*i;          v[i+1] = aux;
    }                           }
    Listing 2: Array writes shifted.
    for(j=0;j<N;j++) {
       for(i=0;i<size(v);i++)
          update(v,i);
       clean(v);
    }
    Listing 3: Static loop limits.
  • Irregular loops: This feature takes a binary value and informs whether there are loops containing or not statements that alter the regular flow of a structured program (e.g., there are break or continue statements).

  • Global variables: This binary feature states if any global variable is written or not within the fragment of code of interest.

  • if statements: This feature counts the number of if statements within the piece of code analyzed.

  • Static limits of for loops: This feature captures whether some for loop in the analyzed code has a non-static iteration limit, i.e. if it can change between executions of the loop. Listing 3 shows an example where the upper limit of the innermost loop is non-static, since it might change for each iteration of the outer loop if elements of v are removed by function clean.

  • Iteration independent loop: This feature counts the number of for loops in the analyzed code which do not have carried dependencies across iterations. This information is obtained from annotations provided by the user or by external code analyzers.

  • Any for loop with loop_schedule: This feature detects patterns where two nested loops are used to iterate over an array split in fragments. This code pattern is detected through an annotation that can be inserted either by the user or by the transformation tool after applying a loop scheduling transformation. Listing 4 shows an example of loop_schedule where array v is accessed in chunks of size N.

    #pragma stml loop_schedule
    for(j=0; j<M; j++) {
       w[j] = 0;
       for(i=0;i<N;i++)
          w[j] += v[j*N+i];
    }
    Listing 4: Loop with schedule pattern.
    aux = 0;
    for(j=0; j<N; j++) {
       w[j] = v[aux];
       aux++;
    }
    Listing 5: Aux. variable array index.
  • Number of loop-invariant variables: This feature quantifies the number of variables that are assigned outside a for loop and are not modified inside it.

  • Number of loop hoisted variable modifications: This feature is used to count the number of variables that are assigned values outside a for loop and are modified within the loop.

  • Number of non-1D array: This feature counts the number of arrays in the code with two or more dimensions.

  • Number of auxiliary variables to access arrays: This feature counts the number of auxiliary variables used to index an array. If a variable used as array index is not one of the iteration variables of the for loops that iterate over the array, then it is considered as an auxiliary index variable. Listing 5 shows a simple example where the aux variable is used to index the array v instead of using the iteration variable j of the for loop.

  • Total number of for loops: This feature counts the total number of for loops, either nested or non-nested. For example, this feature takes the value 2 for the code in Listing 4.

  • Non-normalized for loops: This feature counts the number of non-normalized for loops. A for loop is considered normalized iff its iteration step is .

The features described above were sufficient to obtain preliminary results for a set of use cases (Section 6). However, we plan to increase the vector of features as the set of rules and use cases grows.

5 Automatic Learning of Transformation Heuristics

As mentioned before, two outstanding problems faced by the transformation engine are dealing with efficiently finding transformation sequences in a very large (even infinite) state space with a non-monotonic fitness function and deciding when to stop searching, since there is no a-priori general way to determine that an optimum (in the sense of the most efficient possible code) state has been reached. Our approach uses classification trees to solve the latter and reinforcement learning to solve the former. We will describe our approaches in the next sections.

5.1 Classification Trees

In machine learning and statistics, classification is the problem of identifying the category to which a new observation belongs among a set of pre-defined categories. Classification is done on the basis of a training set of data containing observations for which it is known to which category they belong

[11]

. Different approaches can be used to classify. We have decided to start evaluating the adequacy of classification trees for our problem since it performs feature selection without complex data preparation.

A classification tree is a simple representation to classify examples according to a set of input features. The input features should have finite discrete domains and there is a single target variable called the classification

feature. Each element of the domain of the target variable is called a class. In a classification tree each internal (non-leaf) node is labeled with an input feature and each leaf node is labeled with a class or a probability distribution over the classes. Thus, a tree can be learned by splitting the source data set into subsets based on values of input features. This process is recursively repeated on each derived subset. The recursion is completed when the subset of data in a node has the same value for the target variable, or when splitting no longer improves the predictions. The source data typically comes in records of the form

The dependent variable, , is the target variable that the classification tree generalizes in order to be able to classify new observations. The vector x is composed of the input features , used for the classification. In this context, the source input data for our problem is composed of the vectors of the abstractions described in Section 4, i.e., in our case. The domain of the target variable can take values among the four different final platforms we currently support: FPGA, GPU, Shared-Memory CPU (SM-CPU) and Distributed-Memory CPU (DM-CPU). Since a given code and its associated abstraction might be well suited for more than one platform, we compute the number of classes for our target variable as , where is the number of target platforms. Thus, we obtain classes.

The classes obtained for the target variable make it possible to define the final states of the transformation stage of the toolchain described in Section 3, which will also serve to define the final states for the reinforcement learning algorithm that is described next. The classification-based learning described in this section has been implemented using the Python library Scikit-learn [12]. This library implements several machine learning algorithms, provides good support and ample documentation, and is widely used in the scientific community.

5.2 Reinforcement Learning

Reinforcement learning [11] is an area of machine learning concerned with how software agents ought to take actions in an environment to maximize some notion of cumulative reward. A reinforcement learning agent interacts with its environment in discrete time steps. At each time , the agent receives an observation which typically includes the reward . It then chooses an action from the set of available actions, which is subsequently sent to the environment. The environment moves from the current state to a new state providing the reward associated with the transition . The goal of a reinforcement learning agent is to collect as much reward as possible.

According to the previous description, reinforcement learning seems well suited to represent the optimization process of a programmer or a compiler, since it typically consists of iteratively improving an initial program in discrete steps, where code changes correspond to actions and code versions obtained during the optimization process correspond to states. Moreover, code is typically evaluated after every change, often according to some non-functional properties such as execution time, memory consumption speedup factor, …The result of these evaluations can be easily translated into rewards and penalties that support the learning process.

The result of the learning process of the agent is a state-action table (Fig. 3) which will eventually contain values for each combination of states and actions. These values are scores for the expected profit to be obtained from applying action to state . This table is initially filled in with a default value and is iteratively updated following a learning process which we briefly describe below.

The process of reinforcement learning is based on a set of predetermined transformation sequences which are assumed to be models to learn from. Each sequence is composed of a set of states and the actions which transform one state into the next one. The final state of each transformation sequence has a different reward value which in our case is related with the performance of the final code corresponding to state in the sequence (better performance gives higher rewards). The training phase of reinforcement learning consists of an iterative, stochastic process in which states (i.e. code abstractions) from the training set are randomly selected. For each state a learning episode is started by selecting the action with the highest value in for that and moving to a new state according to transition . From state the same transition process is repeated to advance in the learning episode until a final state is reached or a given number of episode steps is performed. When the episode terminates, the values in corresponding to the states and actions of the visited sequence are updated according to (1), where is the initial value of for state and action . Note that (resp. ) is not the -th state in some fixed ordering of states, but the -th state in the temporal ordering of states in the sequence used to learn.

(1)
Figure 2: RL function definitions.

The final states in (1) are defined based on the classification described in Section 5.1. Two additional parameters appear in (1): the learning rate , and the discount factor . The learning rate determines to what extent the newly acquired information will override the old information. A factor of 0 will make the agent not learn anything, while a factor of 1 would make the agent consider only the most recent information. The discount factor implements the concept of delayed reward by determining the importance of future rewards. A factor of 0 will make the agent opportunistic by considering only current rewards, while a factor close to 1 will make it strive for long-term rewards. If the discount factor reaches or exceeds 1, the values in may diverge [11].

SM

SM

SM

A

Concrete code

Code abstraction

}

States Code Abstractions

}

Actions = Rules
Figure 3: State-Action table for code, code abstraction, and rules.

In order to use the reinforcement learning state-action in our setting, we need to define some mappings. The abstraction of a concrete piece of code is provided by function (described in Section 4). Code abstractions and transformation rules must be mapped to states and actions, respectively, in order to index the state-action table. This mapping is done through functions and (Fig. 2). Based on the mapping of abstractions and rules defined, the reinforcement learning state-action table of (1) can also be modeled as a function (see Fig. 2).

Using functions , , and , the strategy of the transformation toolchain for selecting rules at each transformation step can be modeled with function , defined in Fig. 2. This function takes as input a given code and selects the transformation rule associated to action that maximizes the value provided by for the state associated to input code . Thus, the rule selection strategy is modeled by function defined in Fig. 2.

The operator in function may return, by definition, the empty set, a singleton, or a set containing multiple elements. However, in our problem, parameters and as well as the reward values appearing in (1) can be tuned to ensure that a single rule is returned, thus avoiding a non-deterministic function. Section 6 gives further details on how we selected their values.

The relationships among the code, its abstraction, the rules, and the contents of the state-action matrix are depicted in Fig. 3. Table is used as follows: for a concrete code we find its abstraction . Let us assume . From the row corresponding to in matrix we obtain the column with the highest value (in our example, , in blue and boldface). Column corresponds to rule , which is expected to give the most promising code when applied to a code state whose abstraction is (in our case it would be ). Rule would be applied to to give . If corresponds to a final state, the procedure finishes. Otherwise, we repeat the procedure taking as input and finding again a rule to transform .

In order to implement the reinforcement learning-based module in charge of learning heuristics for program transformation we have used the Python library PyBrain [14]. This library adopts a modular structure separating in classes the different concepts present in reinforcement learning, such as the environment, the observations and rewards, the actions, etc. This modularity allowed us to extend the different classes and ease their adaptation to our problem. The PyBrain library also provides flexibility to configure the different parameters of the reinforcement learning algorithm.

5.3 A Simple Example

We will use a 2D convolution kernel as an example to show the resulting state-action table obtained after learning from a simple transformation sequence with five states and two transformation rules. The first rule () considered in the example transforms a non-1D array into a 1D array. The second rule () performs a collapse of two nested for loops producing a single loop. The initial, intermediate and final codes obtained from the application of these rules is described below. Listing 6 through Listing 9 highlights changes in code using this style to indicate the portion of the code that will be changed after rule application and code highlighted using this style indicates the code resulting after applying a transformation rule.

// ABSTR: [3, 0, 0, 0, 0, 0, 1, 0, 0, 1, 1, 2, 2, 4, 0]
int dead_rows = K / 2;
int dead_cols = K / 2;
int normal_factor = K * K;
for (r = 0; r < N - K + 1; r++) {
  for (c = 0; c < N - K + 1; c++) {
    sum = 0;
    for (i = 0; i < K; i++) {
      for (j = 0; j < K; j++) {
        sum += input_image[(r+i)*(N - K + 1) + (c+j)] * kernel[i][j];
      }
    }
    output_image[r+dead_rows][c+dead_cols] = (sum / normal_factor);
  }
 }
Listing 6: Transformation step 1.
// ABSTR: [3, 0, 0, 0, 0, 0, 1, 0, 0, 1, 1, 1, 2, 4, 0]
int dead_rows = K / 2;
int dead_cols = K / 2;
int normal_factor = K * K;
for (r = 0; r < N - K + 1; r++) {
  for (c = 0; c < N - K + 1; c++) {
    sum = 0;
    for (i = 0; i < K; i++) {
      for (j = 0; j < K; j++) {
        sum += input_image[(r+i)*(N - K + 1) + (c+j)] *  kernel[i*K+j];
      }
    }
    output_image[r+dead_rows][c+dead_cols] = (sum / normal_factor);
  }
 }
Listing 7: Transformation step 2.

Listing 1 shows the initial code and the associated vector of features, as a code comment, according to the description in Section 4. Listing 6 shows the result of applying rule to the code in Listing 1. The array input_image is transformed into a 1-D array and the vector of features associated to code is changed accordingly. Listing 7 shows the result of applying again rule to the code in Listing 6. The array kernel is then transformed into a 1-D array and the feature vector is updated. Listing 8 shows the result of applying rule to the code in Listing 7. Again, the array output_image is transformed into a 1-D array and the vector of features updated. Listing 9 shows the result of applying rule to the code in Listing 8. The two outermost loops are collapsed into one for loop, but keeping an iteration space with the same number of iterations. Note that the code abstraction reflects the change, since the number of loops has decreased by one.

17.03718317 16.21544456
17.25327145 16.80486418
17.51541052 16.7189079
16.72942327 17.78007298
1. 1. -

Figure 4: Values learned for table.

Fig. 4 shows a table with the resulting values of the state-action table () for the transformation sequence described before. Fig. 4 has as many rows as states obtained from the evaluation of for each code , where is the initial code and is the final code classified as ready-code for an FPGA. Fig. 4 shows the learned sequence composed of four steps: three consecutive applications of rule and one application of rule . The values in for this sequence are highlighted in blue, and they decrease from the state , with the highest reward, down to the initial state . This decay behavior is caused by the discount factor () introduced in (1). It should be noted that the values in for the final states are not updated by the recursive expression in (1). Thus, the final state keeps the initial value of 1. It should be noted that numerical values in table shown in Fig. 4 are obtained as the result of an iterative and stochastic learning process as defined in (1) and using parameter values described in Section 6.

The example used in this section shows the transformation of a piece of C code. However, the fact that the machine learning methods used work on program abstractions makes the approach generic and suitable for other imperative languages (e.g., FORTRAN, which is also widely used in scientific computing). The application of the approach to other languages would require changes to the tool described in Section 4 in order to account for some specific syntactical patterns of a particular programming language. Nevertheless, most of the abstraction features identified and described in Section 4 are also applicable to other imperative languages since they capture common aspects like control flow, data layout, data dependencies, etc.

6 Results

We will present now some results obtained using machine learning-based transformation strategies. We will first show evidence to support our claim, made in Section 5.2, regarding the non-monotonic behavior of non-functional properties for transformation sequences and, second, we will evaluate the applicability of reinforcement learning to learn from these non-monotonic sequences.

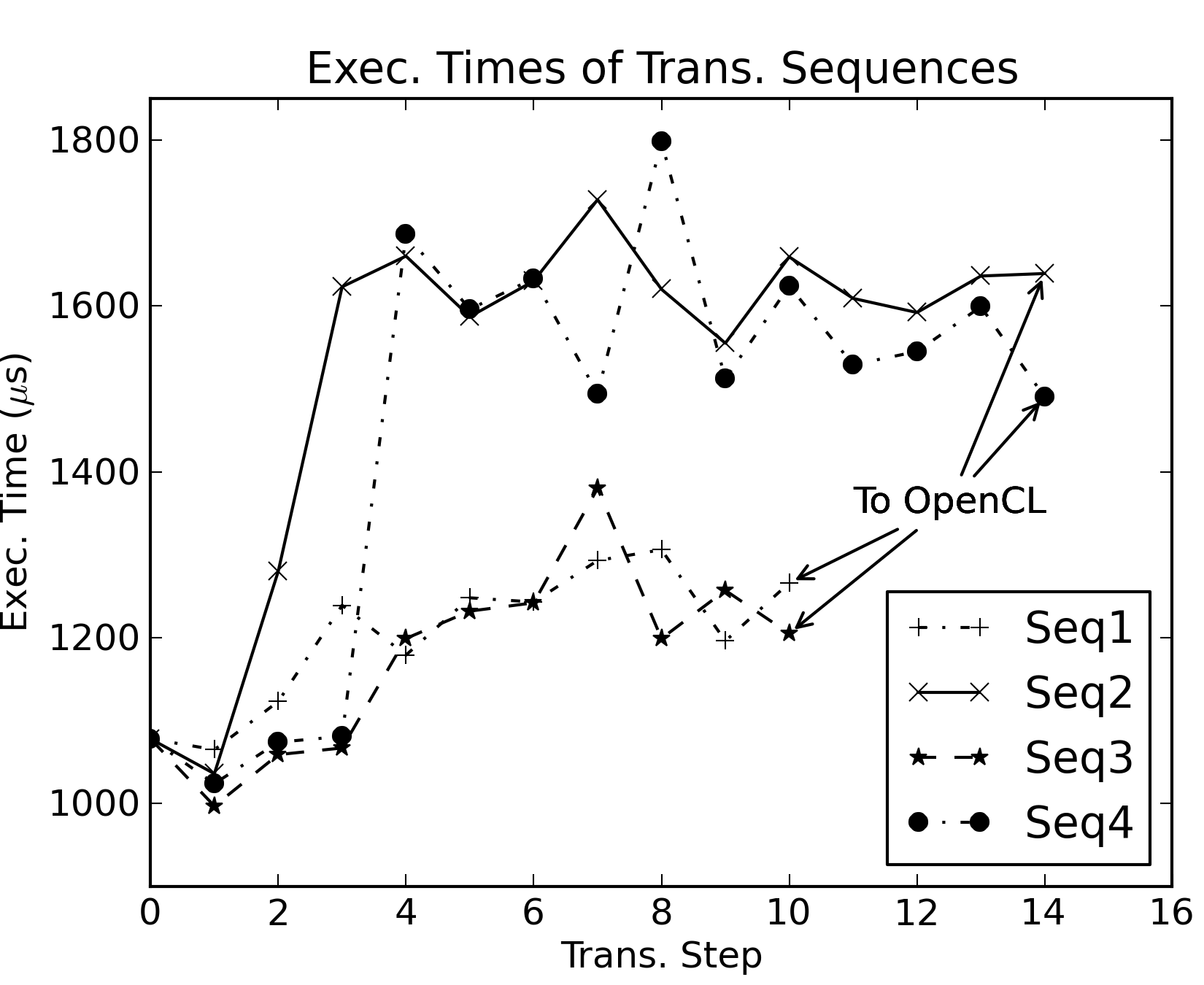

Figure 5: Execution times for transformation sequences (on a CPU).

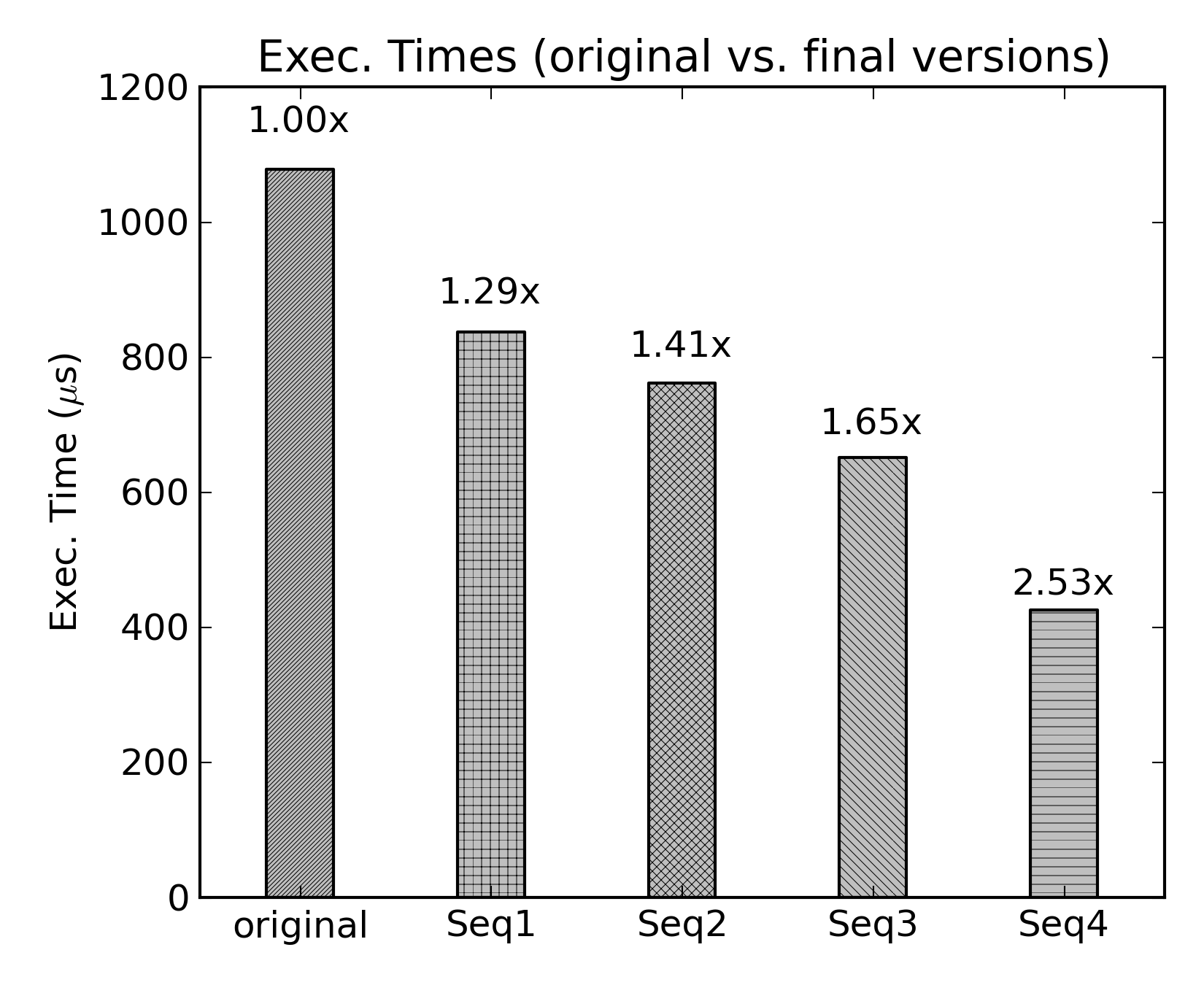

Figure 6: Execution times for OpenCL versions (on a GPU).

Non-monotonicity has two sides: on one side while transforming (sequential) code to a shape better suited to some final platform, the efficiency observed in a CPU for a good sequence can increase and decrease. On the other side, the final code which extracts the best performance on a CPU is not necessarily the most efficient on the final platform. In order to show this behavior we have identified four different transformation sequences for a use case which performs image compression using the discrete cosine transform. Each of the identified sequences finally produces C code with a shape adequate to be mechanically translated to OpenCL and executed on a GPU. We have measured the average execution time of 30 runs for each intermediate state of each sequence. It can be seen (Fig. 6) that these execution times do not change monotonically. As expected, we also obtain different sequential codes ready to be translated to OpenCL and with different execution times (still on a CPU).

As a second step, we have measured the performance of the OpenCL version generated from the final state of each sequence. Fig. 6 shows the execution times of the original sequential program and OpenCL versions as well as the speedup of each OpenCL version with respect to the sequential program (on top of each bar). The OpenCL code obtained from sequence 4 is the fastest one, with a 2.53 speedup factor w.r.t. the initial code on a CPU. However, looking at Fig. 6, sequence 4 was not the fastest one on the CPU —it was in fact the second slowest one. Looking together at Fig. 6 and 6, it is easy to see that there is no clear correlation between the non-functional property measured (execution time) of each final sequential code and the performance of the corresponding OpenCL version. Based on these results it can be concluded that an effective method must be used to discover and learn the uncorrelated relation between final sequential codes and parallel versions for a range of target platforms. We have decided to base our approach on reinforcement learning, since it is driven by final performance measurements rather than on intermediate values which can lead to sub-optimal results.

We have also performed a preliminary evaluation of reinforcement learning as a technique to learn and then guide a rule-based program transformation tool. We have selected four use cases and identified different transformation sequences leading to code that can be mechanically translated to OpenCL and executed on a GPU. These four cases and their transformation sequences have been used as training set. The cases in the training set are the image compression program (compress), mentioned before in Fig. 6 and 6, an image filter that splits the different color channels of a given RGB input image in different images (rgbFilter), the detection of edges in an image using a Sobel filter (edgeDetect) and another one performing image segmentation given a threshold value (threshold).

Once the training set is defined, the reinforcement learning process requires tuning the two parameters in (1): the learning rate () and the discount factor (). For this purpose, an empirical study was performed in which parameter values leading to transformation sequences providing the fastest OpenCL versions were selected. As an outcome, a value of 0.5 was used for and 0.6 for . Also, reward values have been chosen in order to give a higher reinforcement to those sequences leading to final codes with better performance. In our example, the reward values used for the best sequences of each use case application are substantially higher, with a ratio of 1:100, with respect to the rest of transformation sequences.

After training, three different use case applications were used as prediction set. We have selected applications that share code patterns with the examples in the prediction set. This matches the idea that sets of transformation rules can very naturally depend on the application domain, and therefore it makes sense that the training sets also belong to the same domain. The applications in the prediction set were mechanically transformed according to the previously learned sequences and finally translated by hand into OpenCL. Independently, OpenCL versions of the initial C code were manually written to provide a comparison with what a programmer would do. The evaluation of the reinforcement learning approach was made by comparing the performance of the hand-coded versions with that of the versions mechanically generated.

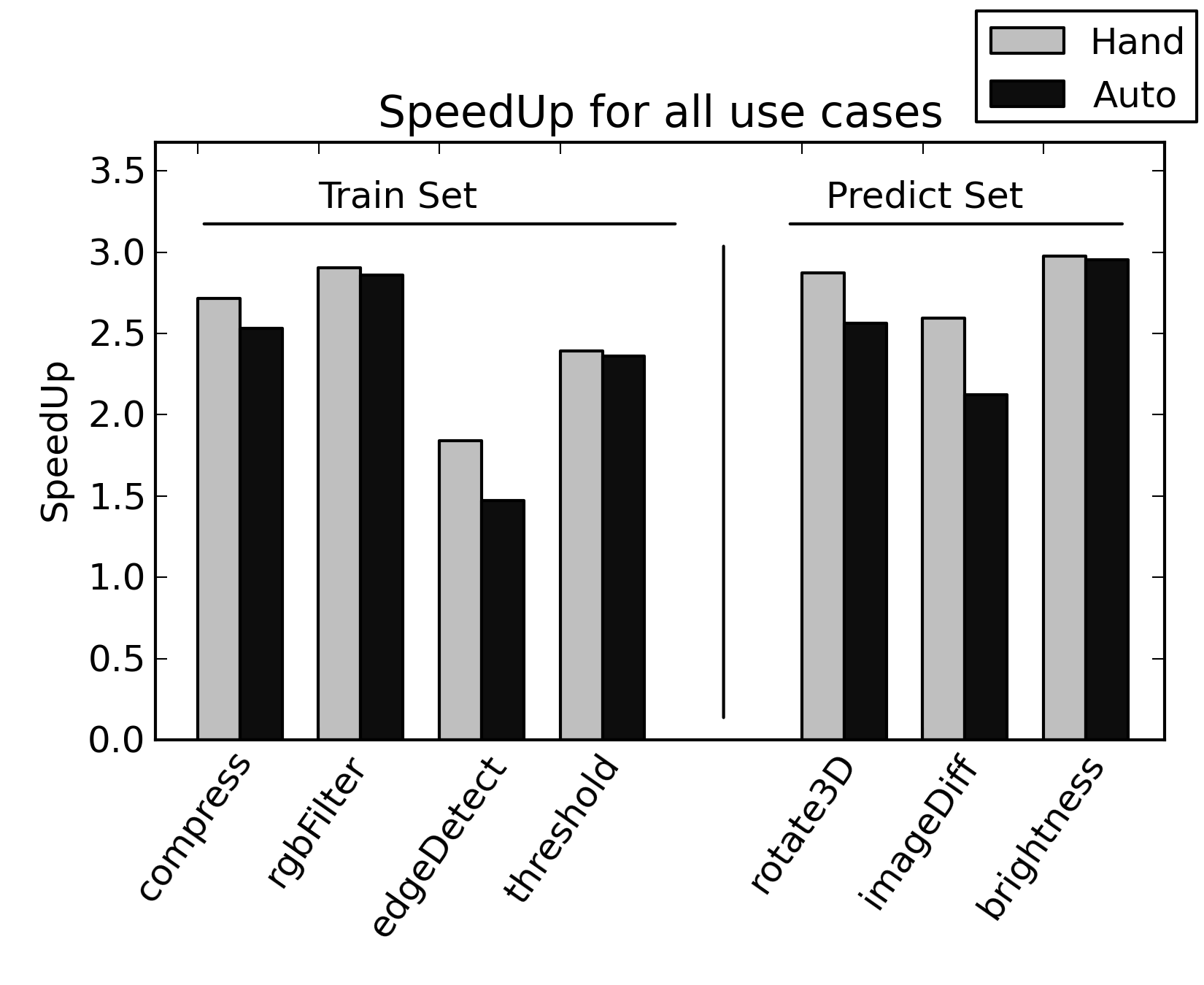

Figure 7: Speed up for train and prediction sets.

Fig. 7 shows the results obtained for the training and prediction sets in terms of speedup of the OpenCL versions w.r.t. the original sequential program. By comparing the results for the training and the prediction sets we can assess the behavior of the transformation system after the learning phase. Looking at results in Fig. 7 we can see that the transformation sequences leads to code that provide acceleration factors comparable to those of the manually coded versions. Although this preliminary evaluation is based on a small sample, it shows that our approach seems promising in tackling the problem of deciding strategies for rule-based program transformation systems.

The results in this section show a preliminary, but very positive, evaluation for the generation of code for GPU platforms. We believe that the same approach can be followed in order to target different platforms which are present in heterogeneous systems. In this way, a separate state-action table can be used for learning adequate transformation sequences for each target platform and rewards would be assigned based on the performance of the final code generated for each platform.

7 Conclusions and Future Work

We have proposed a machine learning-based approach to learn heuristics for guiding the code transformation process of a rule-based program transformation system [18, 17]. This type of systems pose a number of problems, such as state explosion, arising from the application of transformation rules in an arbitrary order or the definition of a stop criteria. For the latter we have proposed the use of classification trees and for the former we have proposed a novel approach based on reinforcement learning. We have also performed a preliminary evaluation of the approach, which provided promising results that demonstrate the suitability of the approach for this type of transformation systems.

As future work, we plan to continue expanding the set of use cases for training the different machine learning techniques used. As a consequence, we expect to enrich the code features identified to obtain program abstractions in order to capture new code patterns.

New transformation sequences for the learning set can be automatically synthesized by swapping commutative rules in existing sequences, doing a sort of inverse of the partial order reduction used in model checking algorithms. While this may enrich the training set, it may also introduce unwanted noise, and therefore we need to evaluate this possibility carefully.

We also expect that the increase in the training set will result in better prediction outcomes, but it will also increase the complexity of efficiently using the learning techniques. In the case of reinforcement learning, having more learning cases results in a bigger state space. For that reason we foresee using common methods to reduce the number of states like clustering or principal component analysis techniques. We also plan to explore other features of reinforcement learning like the use of different learning rates for different states or transformation sequences in order to learn and converge faster towards transformed codes providing final versions with better performance.

We also plan to define multi-objective reinforcement learning rewards based on different non-functional properties like energy consumption, resource usage, etc. and even a combination of them. This future line would make it possible to define transformation strategies that try to optimize different aspects and generate, for example, a final code among the fastest ones that consumes the least amount of energy. Also, the introduction of weights into the multi-objective rewards would offer programmers the flexibility to select which non-functional property or set of properties they want to focus on for generating the final code.
