I Introduction

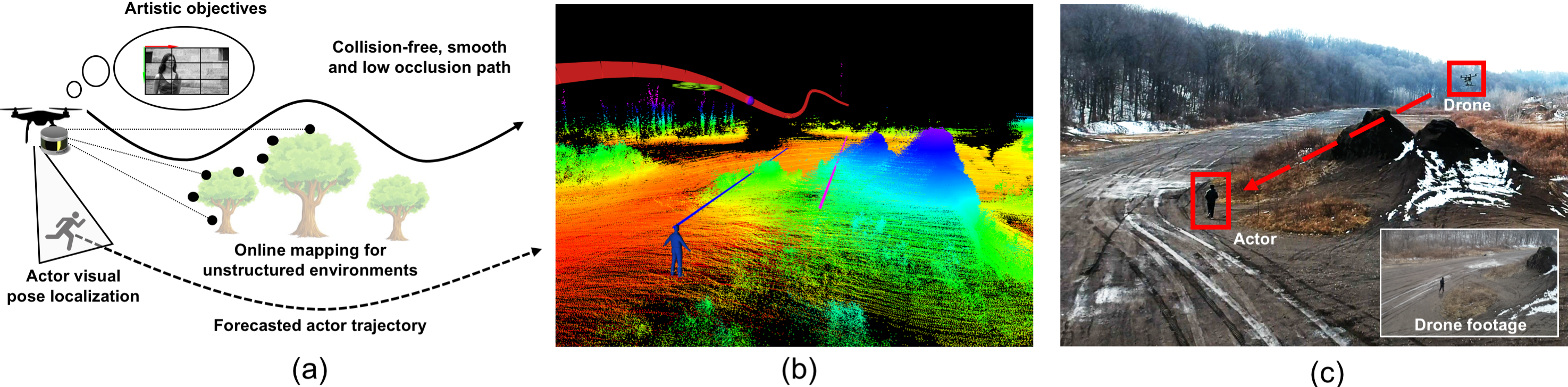

Fig. 1: Aerial cinematographer: a) The UAV forecasts the actor’s motion using camera-based localization, maps the environment with a LiDAR, reasons about artistic guidelines, and plans a smooth, collision-free trajectory while avoiding occlusions. b) Accumulated point cloud during field test overlaid with actor’s motion forecast (blue), desired cinematography guideline (pink), and optimized trajectory (red). c) Third-person view of scene and final drone image.

In this paper, we address the problem of autonomous cinematography using unmanned aerial vehicles (UAVs). Specifically, we focus on scenarios where an UAV must film an actor moving through an unknown environment at high speeds, in an unscripted manner. Filming dynamic actors among clutter is extremely challenging, even for experienced pilots. It takes high attention and effort to simultaneously predict how the scene is going to evolve, control the UAV, avoid obstacles and reach desired viewpoints. Towards solving this problem, we present a complete system that can autonomously handle the real-life constraints involved in aerial cinematography: tracking the actor, mapping out the surrounding terrain and planning maneuvers to capture high quality, artistic shots.

Consider the typical filming scenario in Fig 1. The UAV must accomplish a number of tasks. First, it must estimate the actor’s pose using an onboard camera and forecast their future motion. The pose estimation should be robust to changing viewpoints, backgrounds and lighting conditions. Accurate forecasting is key for anticipating events which require changing camera viewpoints. Secondly, the UAV must remain safe as it flies through through new environments. Safety requires explicit modelling of environmental uncertainty. Finally, the UAV must capture high quality videos which require maximizing a set of artistic guidelines. The key challenge is that all these tasks must be done in real-time under limited onboard computational resources.

There is a rich history of work in autonomous aerial filming that tackles these challenges in part. For instance, several works focus on artistic guidelines [1, 2, 3, 4] but often rely on perfect actor localization through a high-precision RTK GNSS or a motion-capture system. Additionally, while the majority of work in the area deals with collisions between UAV and actors[2, 1, 5], the environment is not factored in. While there are several successful commercial products, they too have certain limitations to either low speed and low clutter regimes (e.g. DJI Mavic [6]) or shorter planning horizons (e.g. Skydio R1 [7]). Even our previous work [8], despite handling environmental occlusions and collisions, assumes a prior elevation map and uses GPS to localize the actor. Such simplifications impose restrictions on the diversity of scenarios that the system can handle.

We address these challenges by building upon previous work that formulates the problem as an efficient real-time trajectory optimization [8]. We make a key observation: we don’t need prior ground-truth information about the scene; our onboard sensors suffice to attain good performance. However, sensor data is noisy and needs to be processed in real-time; we develop robust and efficient algorithms to do so. To tackle actor localization, we use a visual tracking system. To map the environment, we use a long-range LiDAR and process it incrementally to build a signed distance field of the environment. Using these two, we plan over long horizons in unknown environments to film fast dynamic actors according to artistic guidelines.

In summary, our main contributions in this paper are threefold:

  1. We develop an incremental signed distance transform algorithm for large-scale real-time environment mapping (Section IV-B);

  2. We develop a complete system for autonomous cinematography that includes visual actor localization, online mapping, and efficient trajectory optimization that can deal with noisy measurements (Section IV);

  3. We offer extensive quantitative and qualitative performance evaluations of our system both in simulation and field tests, while also comparing performance changes with scenarios with full map and actor knowledge (Section V).

Ii Problem Formulation

The overall task is to control a UAV to film an actor who is moving through an unknown environment. We formulate this as a trajectory optimization problem where the cost function measures shot quality, environmental occlusion of the actor, jerkiness of motion and safety. This cost function depends on the environment and the actor, both of which must be sensed on-the-fly. The changing nature of environment and actor trajectory also demands re-planning at a high frequency.

Let be the trajectory of the UAV, i.e., . Let be the trajectory of the actor, . The state of the actor, as sensed by onboard cameras, is fed into a prediction module that computes (Section IV-A).

Let grid

be a voxel occupancy grid that maps every point in space to a probability of occupancy. Let

be the signed distance values of a point to the nearest obstacle. Positive sign is for points in free space, and negative sign is for points either in occupied or unknown space, which we assume to be potentially inside an obstacle. The UAV senses the environment with the onboard LiDAR, updates grid , and then updates (Section IV-B).

We briefly touch upon the four components of the cost function (refer to Section IV-C for mathematical expressions).

  1. Smoothness : Penalizes jerky motions that may lead to camera blur and unstable flight;

  2. Shot quality : Penalizes poor viewpoint angles and scales that deviate from the artistic guidelines

  3. Safety : Penalizes proximity to obstacles that are unsafe for the UAV.

  4. Occlusion : Penalizes occlusion of the actor by obstacles in the environment.

The objective is to minimize subject to initial boundary constraints .

(1)

The solution is then tracked by the UAV.

Iii Related Work

Virtual cinematography

Camera control in virtual cinematography has been extensively examined by the computer graphics community as reviewed by [9]. These methods typically reason about the utility of a viewpoint in isolation, following artistic principles and composition rules [10, 11] and employ either optimization-based approaches to find good viewpoints or reactive approaches to track the virtual actor. The focus is typically on through-the-lens control where a virtual camera is manipulated while maintaining focus on certain image features [12, 13, 14, 15]. However, virtual cinematography is free of several real-world limitations such as robot physics constraints and assumes full knowledge of the map.

Autonomous aerial cinematography

Several contributions on aerial cinematography focus on keyframe navigation. [16, 17, 18, 19, 20] provide user interface tools to re-time and connect static aerial viewpoints to provide smooth and dynamically feasible trajectories, as well as a visually pleasing images. [21] use key-frames defined on the image itself instead of world coordinates.

Other works focus on tracking dynamic targets, and employ a diverse set of techniques for actor localization and navigation. For example, [5, 22] detect the skeleton of targets from visual input, while others approaches rely on off-board actor localization methods from either motion-capture systems or GPS sensors [1, 3, 2, 4, 8]. These approaches have a varying level of complexity: [8, 4] can avoid obstacles and occlusions with the environment and with actors, while other approaches only handle collisions and occlusions caused by actors. We note differences in onboard versus off-board computing, and we observe distinct trajectory generation methods randing from trajectory optimization to search-based planners. Different contributions are summarized in Table I. It is important to notice that none of the previous approaches provide a solution for online environment mapping.


0cmRef
map
0.6cmOnline
localiz.
0.6cmActor
comp.
0.9cmOnboard
occl.
0cmAvoids
obst.
0cmAvoids
plan
[3]
[1] Actor
[2] Actor Actor
[4]

[22]
Actor
[5] Actor
[8] Vision
Ours

TABLE I: Comparison of dynamic aerial cinematography systems

Online environment mapping

Dealing with imperfect representations of the world becomes a bottleneck for viewpoint optimization in physical environments. As the world is sensed online, it is usually incrementally mapped using voxel occupancy maps [23]. To evaluate a viewpoint, methods typically raycast on such maps, which can be very expensive [24, 25]. Recent advances in mapping have led to better representations that can incrementally compute the truncated signed distance field (TSDF) [26, 27], i.e. return the distance and gradient to nearest object surface for a query. TSDFs are a suitable abstraction layer for planning approaches and have already been used to efficiently compute collision-free trajectories for UAVs [28, 29].

Visual target state estimation

Accurate object state estimation with monocular cameras is critical to many robot applications, including autonomous aerial filming. Deep networks have shown success in detecting objects [30, 31] and estimating 3D heading [32, 33] with several efficient architectures developed specifically for mobile applications [34, 35]

. However, many models do not generalize well to other tasks (e.g., aerial filming) due to data mismatch in terms of angles and scales. Our recent work in semi-supervised learning shows promise in increasing model generalizability with little labeled data by leveraging temporal continuity in training videos

[36].

Our work exploits synergies at the confluence of several domains of research to develop an aerial cinematography platform that can follow dynamic targets in unknown and unstructured environments, as detailed next in our approach.

Iv Approach

We now detail our approach for each sub-system of the aerial cinematography platform. At a high-level, three main sub-systems operate together: (A) Vision, required for localizing the target’s position and orientation and for recording the final UAV’s footage; (B) Mapping, required for creating an environment representation; and (C) Planning, which combines the actor’s pose and the environment to calculate the UAV trajectory. Fig. 2 shows a system diagram.

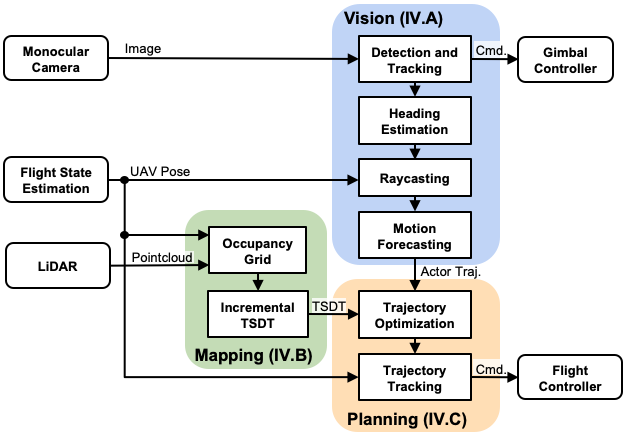

Fig. 2: System architecture. Vision subsystem controls camera’s orientation and forecasts the actor trajectory using monocular images. Mapping receives LiDAR pointclouds to incrementally calculate a truncated signed distance transform (TSDT). Planning uses the map, the drone’s state estimation and actor’s forecast to generate trajectories for the flight controller.

Iv-a Vision sub-system

We use only monocular images from the UAV’s gimbal and the UAV’s own state estimation to forecast the actor’s trajectory in the world frame. The vision sub-system counts with four main steps: actor bounding box detection and tracking, heading angle estimation; global ray-casting, and finally a filtering stage. Figure 3 summarizes the pipeline.

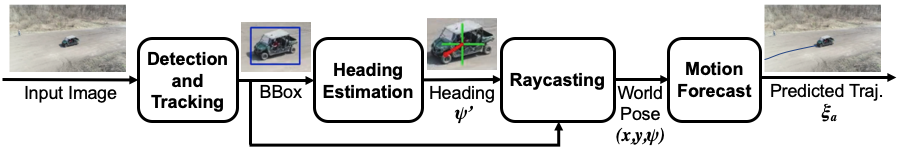

Fig. 3:

Vision sub-system. We detect and track the actor’s bounding box, estimate its heading, and project its pose to world coordinates. A Kalman Filter predicts the actor’s forecasted trajectory

.

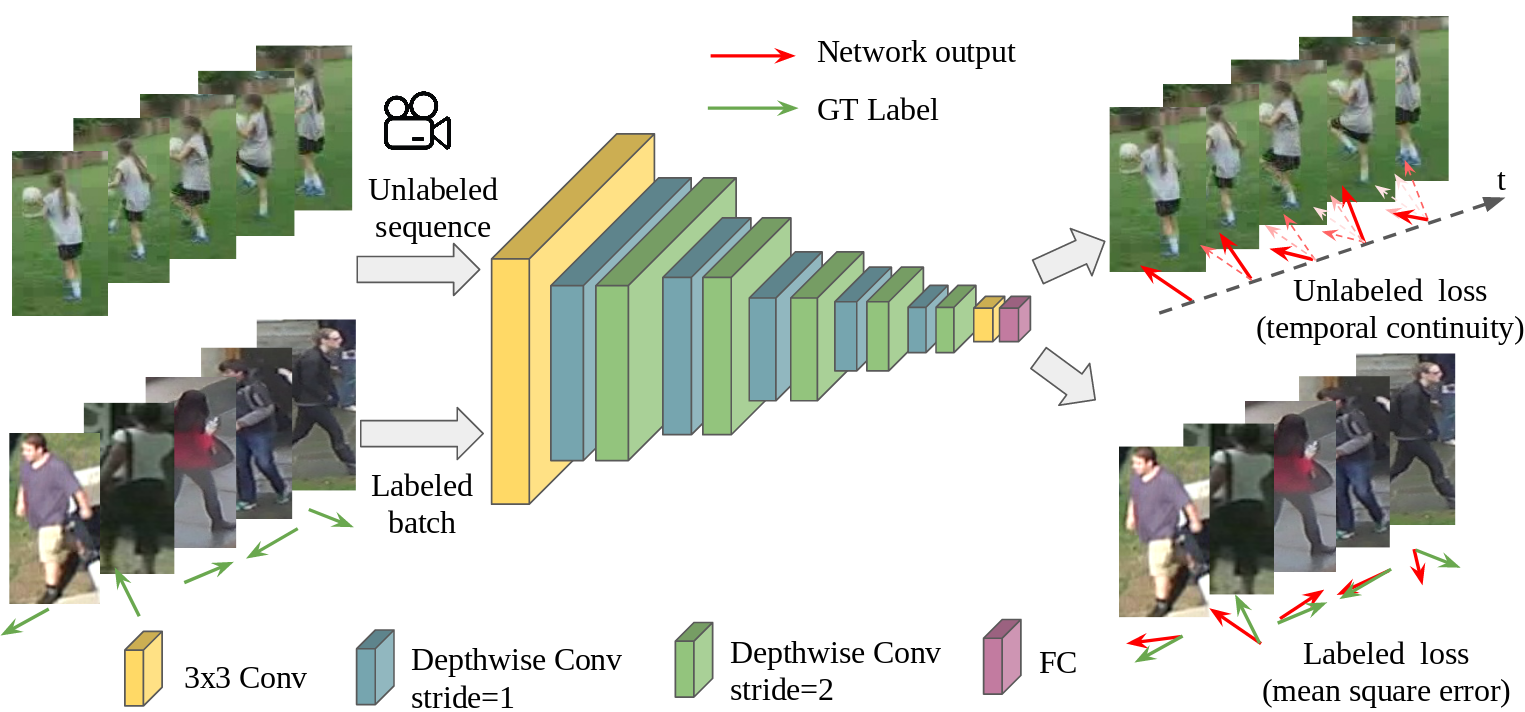

Fig. 4: Heading detection network structure, from [36]. We leverage temporal continuity between frames to train a heading direction regressor with a small labeled dataset.

a) Detection and tracking: Our detection module is based on the MobileNet network architecture, due to its low memory usage and fast inference speed, which are well-suited for real-time applications on an onboard computer. We use the same network structure as detailed in our previous work [36]. Our model is further trained with COCO [37] and fine-tuned on a custom aerial filming dataset. We limit the detection categories to person, car, bicycle, and motorcycle, which commonly appear in aerial filming. After a successful detection we use Kernelized Correlation Filters [38] to track the template over the next incoming frames. We actively position the independent camera gimbal with a PD controller to frame the actor on the desired screen position, following the commanded artistic principles (Fig. 5).

b) Heading Estimation: Accurate heading angle estimation is vital for the UAV to follow the correct shot type (front, back, left, right). As discussed in [36], human 2D pose estimation has been widely studied [39, 40], but 3D heading direction cannot be trivially recovered directly from 2D points because depth remains undefined. Therefore, we use the model architecture from [36] (Fig. 4), which takes as input a bounding box image, and outputs the cosine and sine values of the heading angle. This network uses a double loss during training, summing both errors in heading direction and temporal continuity. The latter loss is particularly useful to train the regressor on small datasets, following a semi-supervised approach.

c) Ray-casting: Given the actor’s bounding box and heading estimate on image space, we project the center-bottom of the bounding box onto the world’s ground plane and transform the actor’s heading using the camera’s state estimation to obtain the actor’s position and heading in world coordinates.

d) Motion Forecasting: The current actor pose updates a Kalman Filter (KF) to forecast the actor’s trajectory . We use separate KF models for people and vehicle dynamics.

Iv-B Mapping sub-system

As explained in Section II, the motion planner uses signed distance values in the optimization cost functions. The role of the mapping is to register LiDAR points from the onboard sensor, update the occupancy grid , and incrementally update the signed distance :

a) LiDAR registration: We receive approximately points per second from the laser mounted at the bottom of the aircraft. We register the points in the world coordinate system using a rigid body transform between sensor and the aircraft plus the UAV’s state estimation, which fuses GPS, barometer, internal IMUs and accelerometers. For each point we also store the corresponding sensor coordinate, used for the occupancy grid update.

b) Occupancy grid update: Points can represent either a hit (successful return) or a miss (return too far or too close from the sensor). We filter all expected misses caused by the aircraft’s structure, and then probabilistically update all voxels from between the sensor and LiDAR point. In practice, we use a grid size of , with square voxels that store an integer value between as the occupancy probability. Algorithm 1 covers the update process.

Initialize ,  changed voxels
 Initialize ,  probabilistic updates
1 for each voxel between and  do
2        ;
3        if  was occupied or unknown and now is free then
4               Append(,);
5               for each unknown neighbor of  do
6                      Append(,)
7               end for
8
9        end if
10       if  is the endpoint and is true then
11               ;
12               if  was free or unknown and now is occupied then
13                      Append(,)
14               end if
15
16        end if
17
18 end for
return ,
Algorithm 1 Update (, , )

c) Incremental distance transform update: An important assumption we make in this work is that all unknown voxels are considered occupied (negative value) in the sign calculation of . Despite being pessimistic, this is a necessary assumption given the aerial cinematography occlusion cost function detailed in Section IV-C. Without this assumption, there is no way one can distinguish free regions from voxels which are inside of large obstacles and that would never be updated with sensor readings, making it impossible to evaluate the severity of occlusions.

As seen in Algorithm 1, voxel state changes are stored in and during the update. We use these changed cells as input to an incremental truncated signed distance transform (iTSDT) algorithm, modified from [29]. This algorithm stores a separate data structure from , where all cells are considered initially free, and as voxel changes arrive, it incrementally updates using an efficient wavefront expansion technique.

The original iTSDT algorithm [29] only calculated the distance between each free cell and its closest occupied neighbor. Since our problem requires a signed version of DT, we introduced two major modifications. First, we only represent the borders of obstacles as occupied in the data structure. As seen in lines of Algorithm 1, border voxels are defined as all the unknown neighbors from a voxel that just became free, or when a cell becomes occupied (lines ). Second, when evaluating , we query the value of to attribute the sign, differentiating free (positive) from unknown or occupied (negative) cells.

Iv-C Planning sub-system

We want trajectories which are smooth, capture high quality viewpoints, avoid occlusion and are safe. Given the real-time nature of our problem, we desire fast convergence to locally optimal solutions rather than globally optimality taking a long time to obtain a solution. A popular approach is to cast the problem as an unconstrained optimization and apply covariant gradient descent [41]. This is a quasi-Newton approach where some of the objectives have analytic Hessians that are easy to invert and are well-conditioned. Hence such methods exhibit fast convergence while being stable and computationally inexpensive.

For this implementation, we use a waypoint parameterization of trajectories, i.e., . The heading dimension is set to always point the drone from towards . We design a set of differentiable cost functions as follows:

Smoothness

We measure smoothness as the cumulative derivatives of the trajectory. Let be a discrete difference operator. The smoothness cost is:

(2)

where is a weight for different orders, and is the number of orders. We set . Note that smoothness is a quadratic objective where the Hessian is analytic.

Shot quality

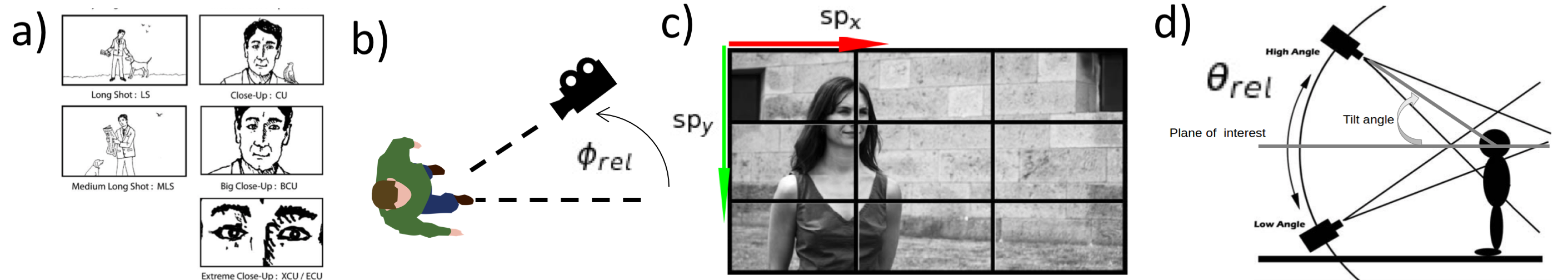

Fig. 5: Shot parameters for shot quality cost function, adapted from [11]: a) shot scale corresponds to the size of the projection of the actor on the screen; b) line of action angle ; c) screen position of the actor projection ; d) tilt angle

Written in a quadratic form, shot quality measures the average squared distance between and an ideal trajectory that only considers positioning via cinematography parameters. can be computed analytically: for each point in the actor motion prediction, the ideal drone position lies on a sphere centered at with radius defined by the shot scale, relative yaw angle and relative tilt angle (Fig. 5):

(3)
(4)

Safety

Given the online map , we can obtain the TSDT as described in Section IV-B. We adopt a cost function from [41] that penalizes proximity to obstacles:

(5)

We can then define the safety cost function (similar to [41])

(6)

Occlusion avoidance

Even though the concept of occlusion is binary, i.e, we either have or don’t have visibility of the actor, a major contribution of our past work [8] was defining a differentiable cost that expresses a viewpoint’s occlusion intensity among arbitrary obstacle shapes. Mathematically, we define occlusion as the integral of the TSDT cost over a 2D manifold connecting both trajectories and . The manifold is built by connecting each drone-actor position pair in time using the path .

(7)

Our objective is to minimize the total cost function (Eq. 1). We do so by covariant gradient descent, using the gradient of the cost function , and a analytic approximation of the Hessian :

(8)

This step is repeated till convergence. We follow conventional stopping criteria for descent algorithms, and limit the maximum number of iterations. Note that we only perform the matrix inversion once, outside of the main optimization loop, rendering good convergence rates [8]. We use the current trajectory as initialization for the next planning problem.

V Experiments

V-a Experimental setup

Our platform is a DJI M210 drone, shown in Figure 6. All processing is done with a NVIDIA Jetson TX2, with 8GB of RAM and 6 CPU cores. An independently controlled gimbal DJI Zenmuse X4S records high-resolution images. Our laser sensor is a Velodyne Puck VLP-16 Lite, with vertical field of view and 100m max range.

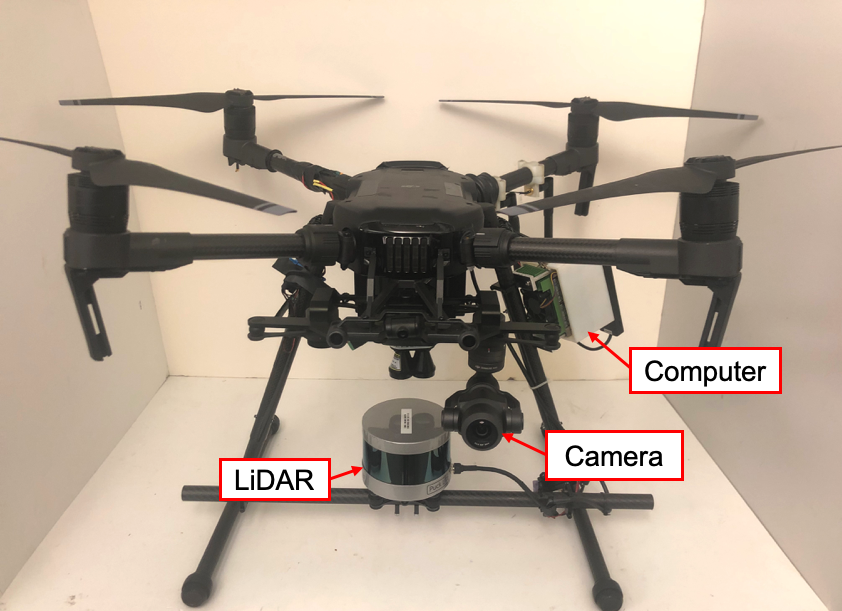

Fig. 6: System hardware: DJI M210 drone, Nvidia TX2 computer, VLP16 LiDAR and Zenmuse X4S camera gimbal.

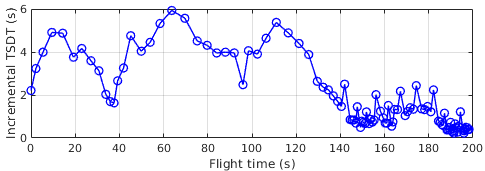

Fig. 7: Incremental distance transform compute time over flight time. The first operations take significantly more time because of our map initialization scheme where all cells are initially considered as unknown instead of free. After the first minute of flight incremental mapping is significantly faster.

V-B Field test results

Visual actor localization

We validate the precision of our pose and heading estimation modules in two experiments where the drone hovers and visually tracks the actor. First, the actor walks between two points over a straight line, and we compare the estimated and ground truth path lengths. Second, the actor walks on a circle at the center of a football field, and we verify the errors in estimated positioning and heading direction. Fig. 8 summarizes our findings.

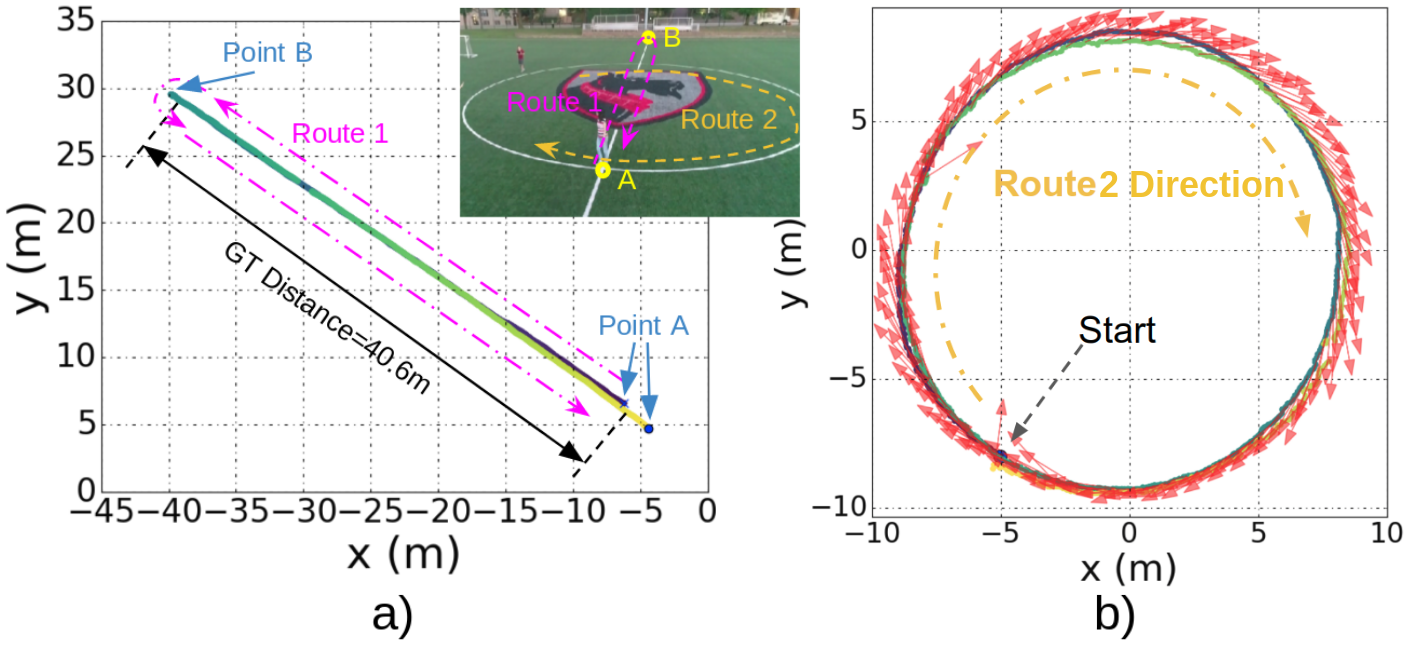

Fig. 8: Pose and heading estimation results. a) Actor walks on a straight line from points A-B-A. Ground-truth trajectory length is 40.6m, while the estimated motion length is 42.3m. b) The actor walks along a circle. Ground-truth diameter is 18.3m, while the estimated diameter from ray casting is 18.7m. Heading estimation appears tangential to the ground circle.

Integrated field experiments

We test the real-time performance of our integrated system in several field test experiments. We use our algorithms in unknown and unstructured environments outdoors, following different types of shots and tracking different types of actors (people and bicycles) at both low and high speeds in unscripted scenes. Fig. 9 summarizes the most representative shots, and the supplementary video shows the final footages collected, along with visualizations of point clouds and the online map.

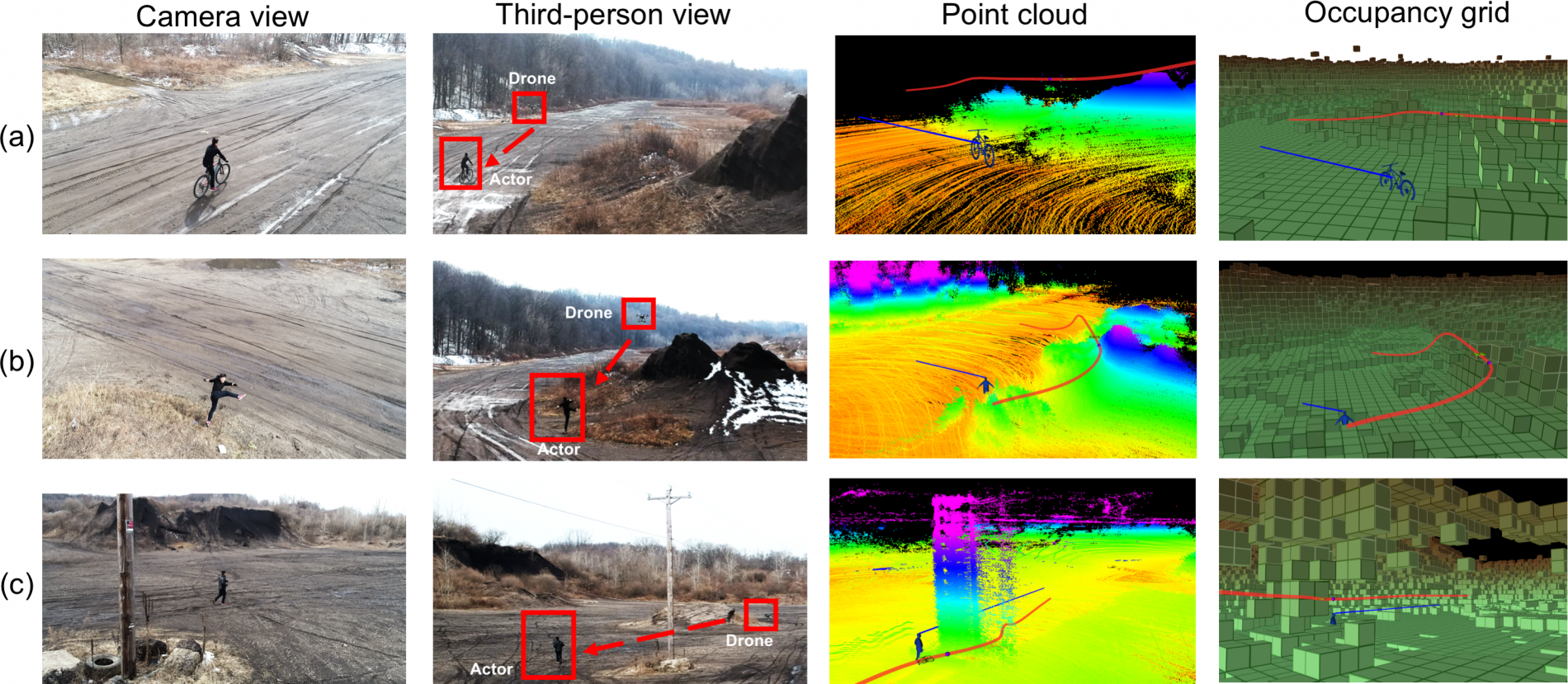

Fig. 9: Field results: a) side shot following biker, b) circling shot around dancer, c) side shot following runner. The UAV trajectory (red) tracks the actor’s forecasted motion (blue), and stays safe while avoiding occlusions from obstacles. We display accumulated point clouds of LiDAR hits and the occupancy grid. Note that LiDAR registration is noisy close to the pole in row (c) due to large electromagnetic interference of wires with the UAV’s compass.

System statistics

We summarize our system’s runtime performance statistics in Table II, and discuss online mapping details in Fig. 7.

0.2cmSystem 1.0cmModule
Thread (%) 2.0cmRAM (MB) 2.0cmRuntime (ms)
Detection 57 2160 145
Vision Tracking 24 25 14.4
Heading 24 1768 13.9
KF 8 80 0.207
Grid 22 48 36.8
Mapping TSDF 91 810 100-6000
LiDAR 24 9 NA
Planning Planner 98 789 198
DJI SDK 89 40 NA
TABLE II: System statistics

V-C Performance comparison with full information knowledge

An important hypothesis behind our system we can operate with a noisy estimate of the actor’s location and a partially known map with insignificant loss in performance. We compare our system with three assumptions present in previous work:

Ground-truth obstacles vs. online map

We compare average planning costs between results from a real-life test where the planner operated while mapping the environment in real time with planning results with the same actor trajectory but with full knowledge of the map beforehand. Results are averaged over 140 s of flight and approximately 700 planning problems. Table III shows a small increase in average planning costs, and Fig 10a shows that qualitatively both trajectories differ minimally. The planning time, however, doubles in the online mapping case due to extra load on CPU.

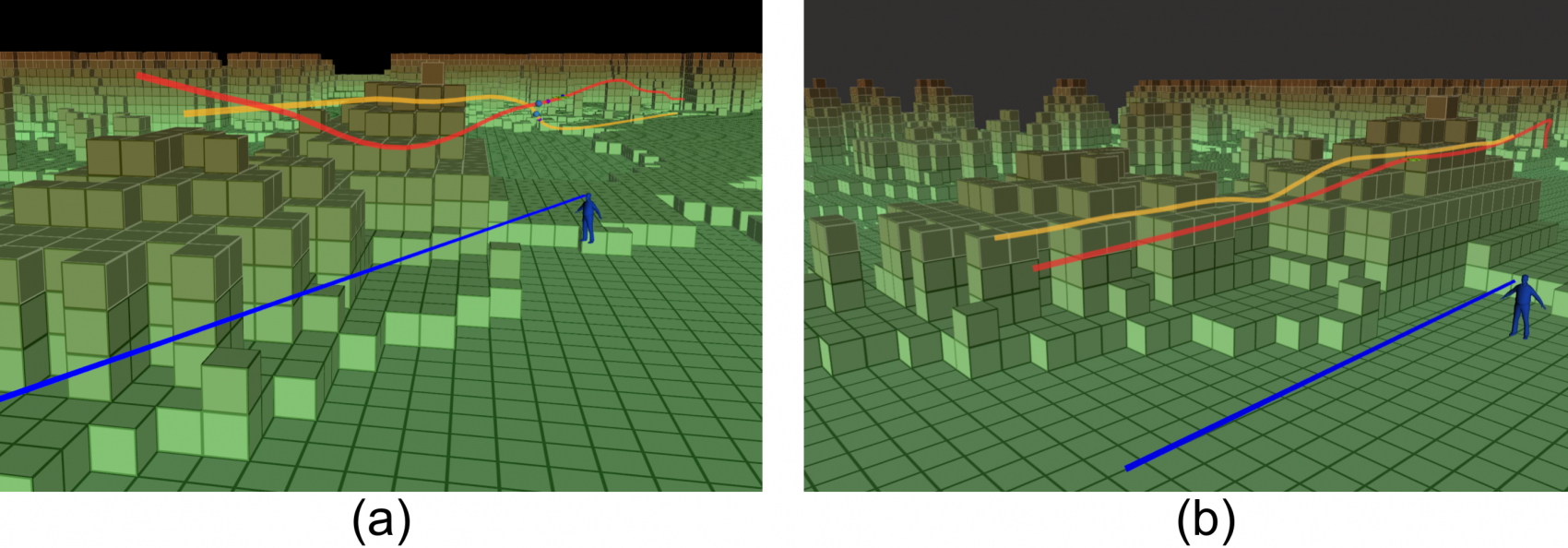

Fig. 10: Performance comparisons. a) Planning with full knowledge of the map (yellow) versus with online mapping (red), displayed over ground truth map grid. Online map trajectory is less smooth due to a imperfect LiDAR registration and new obstacle discoveries as flight progresses. b) Planning with perfect ground truth of actor’s location versus noisy actor estimate with artificial noise of 1m amplitude. The planner is able to handle noisy actor localization well due to smoothness cost terms, with final trajectory similar to ground-truth case.
2.5cmPlanning Condition
time(ms) 1.5cmAvg. cost 1.5cmMedian cost
Ground-truth map 32.1 0.1022 0.0603
Online map 69.0 0.1102 0.0825
Ground-truth actor 36.5 0.0539 0.0475
Noise in actor 30.2 0.1276 0.0953
TABLE III: Performance comparisons

Ground-truth actor versus noisy estimate

We compare the performance between simulated flights where the planner has full knowledge of the actor’s position versus artificially noisy estimates with 1m amplitude. Results are also averaged over 140 s of flight and approximately 700 planning problems, and are displayed on Table III. The large cost difference is due to the shot quality cost, which relies on the actor’s position forecast and is severely penalized by the noise. However, if compared with the actor’s ground-truth trajectory, the difference in cost would be significantly smaller, as seen by the proximity of both final trajectories in Fig 10b. These results offer insight on the importance of our smoothness cost function when handling the noisy visual actor localization.

Height map assumption vs. 3D map

As seen in Fig. 9c, our current system is capable of avoiding unstructured obstacles in 3D environments such as wires and poles. This capability is a significant improvement over our previous work [8], which used a height map assumption.

Vi Conclusion

We present a complete system for autonomous aerial cinematography that can localize and track actors in unknown and unstructured environments with onboard computing in real time. Our platform uses a monocular visual input to localize the actor’s position, and a custom-trained network to estimate the actor’s heading direction. Additionally, it maps the world using a LiDAR and incrementally updates a signed distance map. Both of these are used by a camera trajectory planner that produces smooth and artistic trajectories while avoiding obstacles and occlusions. We evaluate the system extensively in different real-world tasks with multiple shot types and varying terrains.

We are actively working on a number of directions based on lessons learned from field trials. Our current approach assumes a static environment. Even though the our mapping can tolerate motion, a principled approach would track moving objects and forecast their motion. The TSDT is expensive to maintain because every-time unknown space is cleared, a large update is computed. We are looking into a just-in-time update that processes only the subset of the map queried by the planner, which is often quite small.

Currently, we do not close the loop between the image captured and the model used by the planner. Identifying model errors, such as actor forecasting or camera calibration, in an online fashion is a challenging next step. The system may also lose the actor due to tracking failures or sudden course changes. An exploration behavior to reacquire the actor is essential for robustness.

Acknowledgment

We thank Mirko Gschwindt, Xiangwei Wang, Greg Armstrong for the assistance in field experiments and robot construction.
