Toward Learning Context-Dependent Tasks from Demonstration for Tendon-Driven Surgical Robots

10/15/2021
by   Yixuan Huang, et al.
THE UNIVERSITY OF UTAH
0

Tendon-driven robots, a type of continuum robot, have the potential to reduce the invasiveness of surgery by enabling access to difficult-to-reach anatomical targets. In the future, the automation of surgical tasks for these robots may help reduce surgeon strain in the face of a rapidly growing population. However, directly encoding surgical tasks and their associated context for these robots is infeasible. In this work we take steps toward a system that is able to learn to successfully perform context-dependent surgical tasks by learning directly from a set of expert demonstrations. We present three models trained on the demonstrations conditioned on a vector encoding the context of the demonstration. We then use these models to plan and execute motions for the tendon-driven robot similar to the demonstrations for novel context not seen in the training set. We demonstrate the efficacy of our method on three surgery-inspired tasks.

READ FULL TEXT VIEW PDF

page 1

page 4

page 5

page 6

02/04/2019

Learning Soft Tissue Dynamics in Image Space for Automated Bimanual Tissue Manipulation with Surgical Robots

In this paper, reinforcement learning and learning from demonstration in...
03/31/2021

Ergodic imitation: Learning from what to do and what not to do

With growing access to versatile robotics, it is beneficial for end user...
01/28/2019

Context-aware Monitoring in Robotic Surgery

Robotic-assisted minimally invasive surgery (MIS) has enabled procedures...
03/13/2019

Cleaning tasks knowledge transfer between heterogeneous robots: a deep learning approach

Nowadays, autonomous service robots are becoming an important topic in r...
03/01/2022

Runtime Detection of Executional Errors in Robot-Assisted Surgery

Despite significant developments in the design of surgical robots and au...

I introduction

Continuum robots, capable of taking curvilinear shapes, are a promising paradigm in minimally invasive surgery [1]. These robots are generally small in form and can curve around anatomical structures in the body enabling expressive motion and the ability to work in complex anatomy where surgical sites would be difficult to access with traditional straight instruments [1, 2]. Tendon-driven continuum robots are generally constructed of a long flexible backbone with tendons routed down their length through disks affixed to the backbone. These tendons are then robotically actuated at the robot’s base to change the shape of the backbone [3, 4, 5]. Typically these tendons are routed straight down the backbone, producing constant curvature segments when pulled, however more complex tendon routing enables more complex shapes and expressive motion from the robot [6, 7]. With such non-linear tendon routing, the complex actuation of these robots makes automating their motion difficult.

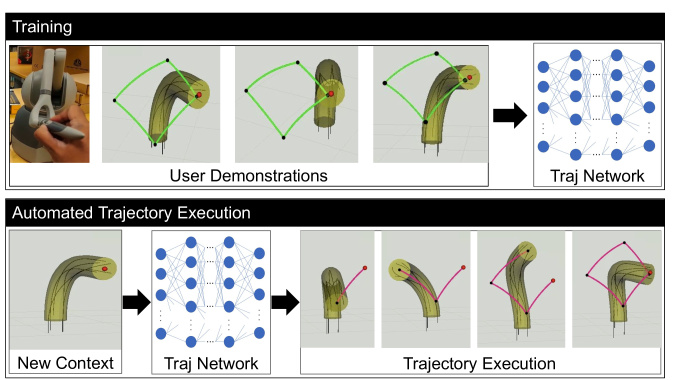

Fig. 1: Our method learns to perform tasks for a tendon-driven continuum robot from human demonstrations. Using a haptic input device, a human controls the robot to perform a task, such as moving the tip along a rectangular space curve (green). This is done multiple times with different contexts. In our approach, we use these demonstrations to train a trajectory network which enables the robot to perform the task for a novel context, such as in a new location or with differing scale (pink).

Automating surgical-tasks is particularly challenging, even for more traditional robot types, due to the complex nature of encoding the tasks and their constraints into the automation system [8]. Further, the way in which the task should be executed varies based on the context, e.g., features of the patient’s specific anatomy. In this work, we take significant steps toward addressing these challenges by presenting a method that learns to perform tasks, dependent on context, from a set of human-performed expert demonstrations. We collect expert demonstrations of task execution using a teleoperated complex-routed tendon-driven robot, in scenarios where context variables differ. Our method then learns how the task execution varied with respect to the context from these demonstrations and is then capable of performing the task in environments where the context differs from the scenarios seen during training, e.g., when task relevant features are in new locations, task-relevant geometry has changed, etc.

To do so, we leverage aspects of Learning from Demonstration (LfD) [9, 10] and contextual learning [11, 12]

. This enables our method to learn to perform tasks from surgeon demonstrations without explicitly encoding the desired robot motion or encoding how it should change based on the context. We collect a small set of expert demonstrations using a teleoperation system, in which a haptic device is used to control a tendon-driven robot in simulated medical scenarios as the task is completed by the expert user, where context is varied between demonstrations. These demonstrations are then used to train a learned model that takes as input context variables and outputs a work-space trajectory, i.e., an ordered sequence of tip motions for the robot to perform, which is then executed on the robot via iterative inverse kinematic control. We learn, evaluate, and compare three different models within our framework: (i) a linear approach, (ii) a non-linear kernel-based approach, and (iii) a feed-forward neural network. Our approach, once trained on the expert demonstrations, is capable of producing trajectories that successfully perform the demonstrated task in novel situations (contexts) not seen during training (see Fig.

1).

We demonstrate the efficacy of our method on three surgery-inspired tasks. In the first two, we show the ability to trace expert-demonstrated curves, via a sequence of points—first on the surface of a plane and second on the surface of spheres—as proxy tasks for learning to cut the surface of tissue in specific ways with, e.g., electrocautery or laser ablation. As context we vary the start-location of the desired curves as well as geometric aspects of the environment, e.g., the width/height of the plane and the radii of the spheres. In both cases, the curve the robot is tracing and the geometric constraints (i.e., staying on the surface of the sphere or plane), as encoded by the expert-generated robot motion, are learned entirely from the demonstrations and the context. Our third task is inspired by pleuroscopy, a procedure in which a clinician is operating an endoscope between the chest wall and a collapsed lung [13]. Our method learns from demonstrations to navigate inside the pleural space, segmented from a real patient, and successfully trace a curve on the surface of the anatomy even when changing the position and scale of the anatomy with respect to the robot.

We evaluate the performance of our method with the three learned model approaches, varying parameters such as the neural network architecture and the number of expert demonstrations. Notably, the neural network approach demonstrates performance close to human-level in some cases with relatively few demonstrations.

In this work, we take significant steps toward the automation of context-dependent surgical tasks learned from demonstration, removing the need to directly encode the tasks and their constraints. This work represents the first use of contextual learning for producing complex trajectories for surgical robots and the first instance of LfD in continuum robots. We show that with a relatively small number of demonstrations our learning-based method is capable of inferring the context-dependent task and its constraints solely from the demonstrations. Once trained, our method is then able to perform the learned task, adhering to the learned constraints, in novel context/situations not seen during the demonstrations.

Ii Related work

Continuum robots have been proposed for a variety of medical tasks [1]. Tendon-driven robots are one example of a continuum robot with promising potential medical applications [3, 4, 5]. Complex routing of the tendons enable these robots to take a variety of complex shapes as the tendons are actuated as well as achieve desired stiffness properties [6, 7]. In this work, we consider a tendon-driven robot with straight and helically routed tendons and utilize a version of the state-of-the-art kinematic model presented in [6], chosen for its ability to model the robot’s shape given complex tendon routings.

Learning from Demonstration (LfD) is a branch of machine learning in which autonomous task execution is learned from task-specific human demonstrations

[9, 10]. LfD has shown impressive performance on non-medical robots and tasks including manipulation [14, 15], autonomous driving [16, 17], and bipedal robot locomotion [18]. Compared to traditional planning and control methods, LfD directly learns to successfully perform tasks from human demonstrations without the need to explicitly encode task specifics or constraints. Thus LfD is a particularly promising paradigm for tasks that are difficult to encode.

In the medical domain, LfD has been applied in a variety of ways. For instance, van den Berg et al. present an apprenticeship learning approach to solve a two-handed knot tying task [19]. Murali et al. propose a learning-by-observation approach for autonomous multilateral medical tasks [20]. Kim et al. propose to leverage LfD to achieve automation of tool-navigation tasks in retinal surgery [21]. LfD has also been applied to provide therapy for patients [22] and to assist children with cerebral impairments [23]. However, LfD has not yet been applied to the automation of surgical tasks for continuum robots, which is the subject of this work.

Machine learning methods have been applied to solving other problems for continuum robots. For instance, data-driven approaches have been applied to learn the inverse kinematics of tendon-drive robots [24, 25]. Data-driven methods have also been applied to concentric tube robots, used in learning the forward and inverse kinematics [26, 27], the complete shape [28]

, and in estimating tip-contact forces

[29]. Further, Iyengar et al. [30]

leverage deep reinforcement learning to control concentric tube robots, a method distinct from LfD.

Contextual learning has been applied to a variety of robotics tasks in other domains. For instance, Kumar et al. [12] formulate a multi-finger grasping task as a contextual policy search problem. Kober et al. [11] propose to generalize elementary movements by changing the meta-parameters of primitives in a context learning framework.

In this work, we build upon existing LfD and contextual learning methods from other robotics domains. This enables our method to learn context-dependent surgical tasks for tendon-driven robots.

Iii Problem Definition

We consider a tendon-driven robot with tendons that travel down the length of the robot with arbitrary routing. Each tendon can be pulled at the robot’s base changing the tendon’s tension and affecting the shape of the robot according to its routing, with the tension of tendon defined as , a maximum tension value. The robot can also be inserted and retracted, with its insertion length defined as , the maximum insertion length of the robot. The robot is also capable of being rotated at its base, with its rotation defined as .

A configuration for the robot then is defined as the vector with configuration space . A configuration can then be mapped to the robot’s shape, including its tip pose, using the forward kinematics (FK) function, and tip pose mapped to a configuration via inverse kinematics (IK).

We next define a workspace trajectory consisting of 3D waypoints for the robot’s tip as an ordered sequence Leveraging IK, we can then define a corresponding trajectory in configuration space as of

waypoint configurations, assuming the trajectory is executed via linear interpolation in configuration space between the waypoint configurations.

We formulate our problem as a context learning problem. Specifically, we consider the execution of tasks that can be defined as a desired motion of the robot’s tip with respect to a context variable , where generally is a vector of relevant scalar context values, e.g., the location of task-relevant objects and/or values identifying geometric properties of the robot’s environment. For this work, we consider as input given by the user.

We define a demonstration as a trajectory of reachable 3D robot tip positions paired with an instantiation of the context variable, for which the trajectory was gathered via human demonstration with known context. The problem is then given a set of demonstrations as input as well as a new context, not before seen during the demonstrations, to output a configuration-space trajectory that performs the task, consistent with the demonstrations, under the new context.

Iv Approach

We first collect demonstrations from a human that solve a specific task under varying contexts. This produces a set of trajectory-context pairs, for a given task, and from which we can learn to generalize to new context.

We compare three models for learning from the demonstrations to solve the context-dependent task learning problem. In the first, we leverage a linear ridge regression model to define a linear mapping between the context variables and a workspace trajectory, with weights learned from the demonstrations. In the second, we replace the linear mapping with a non-linear mapping–utilizing a radial basis function kernel model. The third model we present is a neural network to map the context vector to a workspace trajectory. For all three models, once trained, we take the workspace trajectory predicted for the test-time context and use iterative inverse kinematics to produce a configuration-space trajectory that completes the task with the tendon-driven robot.

Iv-a Human Demonstration Collection

In order to learn to autonomously execute the task, we collect a set of human demonstrations in the form of a sequence of robot tip positions. Via a teleoperation setup, we provide a simulation environment in which a human moves the desired tip of the robot using a haptic input device, and the robot shape is interactively updated using IK (see Fig. 1).

For each demonstration we vary the environment, corresponding to a change in the context variable , and ask the user to demonstrate the task. To do so, the human moves the tip of the simulated tendon-driven robot through the virtual environment. We enable this by mapping the haptic-device tip position into the virtual environment and solving for a configuration that places the tip of the tendon-driven robot as close as possible to that position via IK. We specifically leverage the FK model presented in [6] to enable damped least squares iterative inverse kinematics [31]. The user then records a sequence of robot tip positions that perform the desired task. This produces one demonstration that pairs the environment, encoded via the context variable, to the trajectory. We collect such demonstrations each with different context variables .

For the three models for learning, we choose to map the context to the demonstrations’ tip positions, rather than the configurations themselves. We do so in order to reduce the complexity of the learning problem and to not require the methods to learn the tendon-driven robot’s complex kinematics. However, the tip positions in the collected demonstrations come from a simulated robot and its kinematics in order to ensure that the demonstrations contain only feasible robot tip positions.

Iv-B Learning to Map Context to a Trajectory

We present three models that learn from the demonstrations and output a tip-space trajectory given a specific environmental context.

Linear Ridge Regression

For our first model, we utilize a linear ridge regression method [32]. We define a linear mapping between a context vector, , and an associated predicted tip-space trajectory via: , where is the context variable and is a weight matrix to be learned. The dimension of is , where is the size of and is the number of waypoints in the trajectory.

In order to learn from the demonstrations, we optimize for the weights by solving:

(1)

where is the i demonstration trajectory, is the associated context, and is the total number of demonstrations for the task.

Kernel Ridge Regression

We next present a model that replaces the linear mapping with a non-linear mapping via radial basis function (RBF) kernels [33, 34, 35]. Similar to the linear method, this method maps the context vector to a tip-space trajectory , however we leverage a non-linear feature transform on top of the raw context variable, . Here again is the context variable and is a weight matrix to be learned.

We define the feature transform function, as the vector of kernel evaluations on the context variable , where is the j kernel center and is the total number of kernels. We use the radial basis function kernel for all features

(2)

with the kernel centers spaced throughout the context space. We learn the weights by solving the kernelized form of the ridge regression loss:

(3)

where is the i demonstration trajectory, is the associated context, and D is the total number of demonstrations.

Neural Trajectory Network

Finally, we present a neural-network model to map the context to the tip-space trajectory. Specifically, we utilize a feed forward neural network with a rectified linear unit (ReLU) activation function that takes the context as input and outputs the tip-space trajectory as a vector of size

via , where is the neural network with learned parameters .

We train the network on the demonstrations to optimize

via a Mean Squared Error (MSE) loss function:

(4)

where is the i output from the trajectory network (with input ), is the i demonstration trajectory and is the number of demonstrations each with waypoints.

Iv-C Task-Space Trajectory to Execution on the Robot

Each of the three models outputs a task-space trajectory for a given context, however we must execute this trajectory on the robot. To do so we leverage the IK function to produce the trajectory in configuration space, , that closely follows the workspace trajectory .

V Experimental Results

We demonstrate our method and evaluate its efficacy with three surgery-inspired tasks. In the first, our method learns to trace a self-intersecting “eight” shaped curve on the surface of a plane, where the widths and heights of the desired curves vary. In the second, our method learns to trace a curve on the surface of two adjacent spheres with differing and varying radii, moving from the surface of one to the surface of the other. These two tasks are inspired by the application of electrocautery or thermal ablation on the surface of curved or flat anatomy. In the third, we place the robot in a simulated pleuroscopy scenario [36, 37] in a pleural volume segmented from a real patient. In this environment our method learns to trace a specific curve on the surface of the pleural anatomy, where the anatomy’s position and size relative to the robot varies.

V-a Learning to Trace a Curve on a Plane

In this task we evaluate the ability of our method to learn to trace a closed, “eight” curve on a plane (see Fig. 2), inspired by the application of energy-based ablation.

(a)

(b)
Fig. 2: Visualization of the eight task. (a) The green trajectory represents a training trajectory gathered via demonstration and the pink trajectory represents a curve generated by the trajectory network approach given new context. (b) the robot configurations tracing the curve.

We consider a robot of length m with a

m radius. The robot is routed with three straight tendons, distributed evenly around the backbone, and two helical tendons oppositely wrapped. Both helically routed tendons make 0.64 revolutions from the base to the tip, routed in opposite directions. Here we disable the robot’s insertion/retraction and rotation degrees of freedom and leverage tendon tension only to control the robot.

For this task, we define the context as the starting point of the curve on the plane, defined as , as well as the width and height parameters of the desired curve, such that as shown in Fig. 2. We augment the context with the scalar as we find it enables the learning of scalar bias for the models.

To collect demonstrations with varying context, we sample uniformly at random 50 context variables with sampled from an m by m planar rectangle in the robot’s workspace, from the range mm, and from mm. For each sampled context variable, we collect a demonstration via the haptic device where a human moves the tip of the robot in the desired motion starting at , with the scale of the curve defined by and .

As the goal is to learn to trace the curve consistently with respect to the context variable, in order to evaluate performance we must first define a reference curve based on the demonstrations. The ideal curve varies as the context varies, making it difficult to evaluate accuracy, however in this specific task we can express the curve as a function of the context variable via scaling. Specifically, since we utilize width and height as aspects of the context variable, we can scale each demonstration to a single reference scale using and . Given a specific trajectory , we compute a corresponding trajectory in the reference context via

. This enables us to scale the demonstrations based on their specific context into a single reference context. However, as the demonstrations were performed by a human, even in the reference context these curves deviate from each other to some extent. We produce a single reference curve from these demonstrations by averaging the displacement of each waypoint on the curves in the reference context. This reference curve, along with a quantification of the variance in the demonstrations with respect to this curve will be used to compare and validate the output of our method—we wish for the method to exhibit similar variance to the demonstrations.

To evaluate our method’s performance for each learning approach, we compare the robot’s tip curve generated by the three versions of our method with this reference curve. To do so, we utilize discrete Fréchet distance [38], a common metric for measuring the similarity between two 3-D space curves. The goal then is for the method to produce robot motions that move the robot’s tip, with respect to the context variable, in a way as similar to the reference curve as possible, ideally producing Fréchet distance values that are comparable to the distances between the individual demonstrations and the reference curve.

We first leverage this task to set the hyperparameters of the three learning approaches. Under varying hyperparameters we train each model on

demonstrations. We then randomly sample 50 new context variables (from the same planar rectangle and the same , ranges from which we sampled the demonstrations) and evaluate our method’s performance in the scenarios defined by the new context. For the linear ridge regression model, we choose from . We use the linear ridge regression implementation in scikit-learn [39] and find via grid search the best performance when . For the RBF kernel model, we choose from and . For this model we utilize the scikit-learn [39] implementation of kernel ridge regression and find via grid search the best performance when and . The scikit-learn implementation utilizes kernel centers, i.e., the number of demonstrations, and each kernel center is set to one of the demonstrations’ context variables, i.e., . For the trajectory network model, we investigate the effect of varying the neural network architecture, i.e., the number of hidden layers and the width of the hidden layers, on the method’s performance. We evaluate a range of architectures, as shown in Table I

, and find that a network with 2 hidden layers of 128 neurons each performs the best. These parameters are used for all subsequent experiments.

Hidden layer architecture: number of hidden layers width of hidden layers
216 232 264 2128 332 364 3128
0.0306 0.0183 0.0288 0.0211 0.0120 0.0092 0.0098 0.0065 0.0134 0.0068 0.0112 0.00614 0.0137 0.0069
TABLE I: Average Fréchet distance to the reference trajectory for the eight task, under varying architectures (mean std in meters).

We evaluate the performance of our method utilizing the three model classes as the number of demonstrations increases in Fig. 3. We train the three models on a subset of 50 demonstrations. For each trained model, for each number of demonstrations, we randomly sample 50 context variables from the same ranges as sampled for the demonstrations and evaluate the performance of the approach via the discrete Fréchet distance compared to the reference trajectory. As can be seen in Fig. 3, all models generally improve with more training data, with the non-linear approaches outperforming the linear approach, and comparable performance between the RBF approach and the trajectory network. Notably, the performance of our method using the trajectory network when trained on 50 demonstrations produces values with variance comparable to the variance exhibited by the human demonstrations themselves.

Fig. 3:

Efficacy of our method using various learning approaches versus number of demonstrations. Bars are the mean with error bars showing standard deviation.

V-B Learning to Trace a Curve on the Surface of Spheres

Similarly inspired by energy-based ablation, but on the surface of curved anatomy, in this task our method learns to trace a specific curve on the surface of two adjacent, vertically stacked spheres with differing radii (see Fig. 4).

(a)

(b)

(c)
Fig. 4: Visualization of the double sphere task. (a) The curve (green) traced by a human teleoperating the robot–one of the training demonstrations. (b-c) Two views of the robot tracing a curve (pink) generated by our method using the trajectory network approach under new context.

For this task we utilize the same robot described in Sec. V-A. We define the context as the start point of the curve, again denoted , and the radii of the two spheres, and , such that .

As the specifics of this task make it more difficult to generate a reference curve as in the previous task, here we evaluate the method’s performance against specific human demonstrations. We generate 20 training demonstrations and 10 demonstrations to be used for testing. For each we randomly sample from a m by m plane in the robot’s workspace, and separately sample the two radii from the range (m, m). For each of the 30 randomly generated contexts we task a human to trace a curve on the sphere surfaces via teleoperating the robot, with the spheres visible in the user interface (see Fig. 4). We then train the three learning approaches on the 20 training demonstrations.

For each of the 10 test cases, we then task the learned models with generating target curves to be traced via IK and compare the traced curves with the human generated one. Fig. 4 shows the task, an example of a training demonstration, and an example of the curve traced by the method utilizing the trajectory network approach. We show the quantitative results for the three approaches on the 10 test cases in Fig. 5. Here we see that our method utilizing the kernel-based model outperforms the one using the linear approach, while the method utilizing the trajectory network model outperforms both.

Fig. 5: A comparison of the different learning approaches on the double sphere task and the anatomical task.

V-C Learning to Trace the Surface of Anatomy

Next we demonstrate a proof of concept of our method’s ability to learn to trace the surface of patient anatomy in a simulated pleuroscopy task (see Fig. 6). We use a simulation environment generated from a CT scan of a real patient undergoing this procedure, segmenting the boundaries of the air in the patient’s pleural space using 3D Slicer [40]. We then simulate the tendon-driven robot operating inside the air volume in the patient’s chest, between the chest wall and the collapsed lung.

(a)

(b)

(c)
Fig. 6: Anatomical environment scenario and task. (a) The anatomical environment was segmented from a pleural effusion CT scan via 3D Slicer [40]. (b,c) Two different viewpoints of the trajectory network tracing the learned curve on the interior surface of the anatomical environment. The arrows show the start direction.

In this task, we consider a slightly different tendon robot design, which is m in length and m in radius. We consider only one linearly routed tendon, with two oppositely routed helical tendons, 1.59 revolutions from base to tip. We enable insertion/retraction as well as rotation for this task.

We define the context here as the anatomy’s position relative to the robot’s base, encoded via , which is also the start point for the curve; as well as the scale of the anatomy relative to the robot’s size, denoted as , such that . This choice of context is meant to simulate variation in the anatomy and in the robot’s insertion pose into the pleural space.

We collect 20 training demonstrations and 10 test demonstrations wherein a human moves the robot in the pleural space to trace a diamond-shaped curve, first in one direction and then the reverse, on the interior surface of the anatomy (see Fig. 6). For each of the demonstrations the context is randomly sampled as , a multiplicative factor applied to the scale of the patient’s segmented anatomy, and being perturbed from a nominal point with the perturbation sampled via mm. We then train the learning approaches on the 20 training demonstrations.

We then use each of our models to generate target curves given the context provided for the 10 test demonstrations. We compare the curve traced from the learned model with the human traced curves for those demonstrations. The comparison results are shown in Fig. 5. Here we see that again the RBF kernel approach outperforms the linear approach, while the trajectory network approach outperforms both. An example curve traced by the trajectory network approach is shown in pink in Fig. 6b and c.

Vi Discussion

In this work we take significant steps toward the automation of context-aware tendon-driven robot surgical tasks learned from human demonstrations. We do so via a method leveraging learned models trained on demonstrations of the tasks where the context of the task was varied during the demonstrations. The method is then able to perform the task successfully in situations unseen during training, e.g., when task relevant features are in a different location or given a different scale. Our method performs best when utilizing a neural network-based model to generate target trajectories on two of the three surgery-inspired tasks, with the kernel-based model performing comparably in one of the tasks. We also note that the trajectory network approach exhibits near-human-level performance in many cases.

In this work, we provide the method with the context variables as input. However it is our intention, and a natural next step, to instead learn the context variables directly from the observed environment, e.g., learned from an endoscopic camera view or medical imaging. We also intend to apply this concept to other continuum robots, such as concentric tube robots. Along those lines, we intend to move further toward clinically applicable settings and tasks and utilize physical robots beyond simulation.

Acknowledgment

The authors thank the group of D. Caleb Rucker for assistance with the tendon-driven robot kinematics, Dr. Chakravarthy Reddy for clinical insights, and Rahul Benny for assistance with visualization. This work was partially supported by NSF Awards #2024778 and #2133027.
