TORQUE: A Reading Comprehension Dataset of Temporal Ordering Questions

05/01/2020 ∙ by Qiang Ning, et al. ∙ USC Information Sciences Institute University of Pennsylvania Allen Institute for Artificial Intelligence 0

A critical part of reading is being able to understand the temporal relationships between events described in a passage of text, even when those relationships are not explicitly stated. However, current machine reading comprehension benchmarks have practically no questions that test temporal phenomena, so systems trained on these benchmarks have no capacity to answer questions such as "what happened before/after [some event]?" We introduce TORQUE, a new English reading comprehension benchmark built on 3.2k news snippets with 21k human-generated questions querying temporal relationships. Results show that RoBERTa-large achieves an exact-match score of 51 test set of TORQUE, about 30

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 13

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Time is important for understanding events and stories described in natural language text such as news articles, social media, financial reports, and electronic health records (Verhagen et al., 2007, 2010; UzZaman et al., 2013; Minard et al., 2015; Bethard et al., 2016, 2017; Laparra et al., 2018). For instance, “he won the championship yesterday” is different from “he will win the championship tomorrow”

: he may be celebrating if he has already won it, while if he has not, he is probably still preparing for the game tomorrow.

The exact time when some event happens is often implicit in text. For instance, if we read that a woman is “expecting the birth of her first child”, we know that the birth is in the future, while if she is “mourning the death of her mother”, the death is in the past. These relationships between an event and a time point (e.g., won the championship yesterday) or between two events (e.g., “expecting” is before “birth” and “mourning” is after “death”) are called temporal relations Pustejovsky et al. (2003).

This work studies reading comprehension for temporal relations, i.e., given a piece of text, a computer needs to answer temporal relation questions (Fig. 1). This problem is studied very little in reading comprehension Rajpurkar et al. (2016, 2018); Dua et al. (2019); Dasigi et al. (2019); Lin et al. (2019), and existing systems are hence brittle when handling questions in Torque (Table 1).

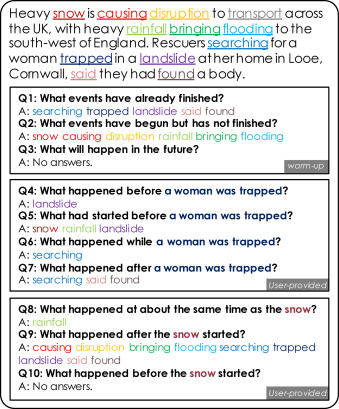

Figure 1: Example annotation of Torque. Events are single tokens highlighted in color and contrast questions are grouped.

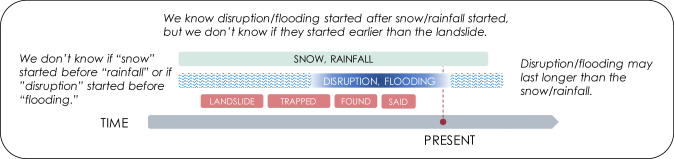

Figure 2: Timeline of the passage in Fig. 1.
Question BERT (SQuAD) BERT (SQuAD 2.0)
What happened before a woman was trapped? a landslide a landslide
What happened after a woman was trapped? they had found a body a landslide
What happened while a woman was trapped? a landslide a landslide
What happened before the snow started? landslide heavy rainfall …landslide
What happened after the snow started? flooding to …England heavy rainfall …England
What happened during the snow? a landslide landslide
What happened before the rescuers found a body? a landslide a landslide
What happened after the rescuers found a body? Rescuers searching …Cornwall landslide
What happened during the rescue? a landslide they had found a body
Table 1: System output of some example questions on temporal relations. Training dataset in parenthesis.

Reading comprehension for temporal relationships has the following challenges. First, it requires event understanding, which is rare for reading comprehension datasets. For the example in Fig. 1, SQuAD Rajpurkar et al. (2016) and most other datasets largely only require an understanding of the predicate-argument structure, and would ask questions like “what was a woman trapped in?” But a temporal relation question would be “what started before a woman was trapped?” To answer it, the system needs to identify events (e.g., landslide is an event and “body” is not), the time of these events (e.g., landslide is a correct answer, while said is not because of the time that the two events happen), and look at the entire passage rather than the local predicate-argument structures within a sentence (e.g., snow and rainfall are correct answers from the sentence before “a woman trapped”).

Second, there are many events in a typical passage of text, so temporal relation questions typically query more than one relationship at the same time. This means that a question can have multiple answers (e.g., “what happened after the landslide?”), or no answers, because the question may be beyond the time scope (e.g., “what happened before the snow started?”).

Third, temporal relations queried by natural language questions are often sensitive to a few key words such as before, after, and start. Those questions can easily be changed to make contrasting questions with dramatically different answers. Models that are not sensitive to these small changes in question words will perform poorly on this task, as shown in Table 1.

In this paper, we present Torque, the first reading comprehension benchmark that specifically targets these challenging phenomena. We trained crowd workers to label events in text, and to write and answer questions that query temporal relationships between these events. During data collection, we had workers write questions with contrasting changes to the temporal key words, to give a comprehensive test of a machine’s temporal reasoning ability and minimize the effect of any data collection artifacts Gardner et al. (2020). We annotated 3.2k text snippets randomly selected from the TempEval3 dataset UzZaman et al. (2013). In total, Torque has 25k events and 21k user-generated and fully answered temporal relation questions. Both the events and question-answer (QA) pairs from 20% of Torque were further validated by additional crowd workers, which we use for evaluation. Results show that RoBERTa-large Liu et al. (2019) achieves 51% in exact-match (EM) on Torque after fine-tuning, about 30% behind human performance, indicating that more investigation is needed to better solve this problem.

2 Definitions

2.1 Events

As temporal relations are relationships between events, we first define events. Generally speaking, an event involves a predicate and its arguments ACE (2005); Mitamura et al. (2015). When studying time, events were defined as actions/states triggered by verbs, adjectives, and nominals Pustejovsky et al. (2003). Later works on event and time have largely followed this definition, e.g., TempEval Verhagen et al. (2007), TimeBank-Dense Chambers et al. (2014), RED O’Gorman et al. (2016), and MATRES Ning et al. (2018b).

This work follows this line of event definition and uses event and event trigger interchangeably. We define an event to be either a verb or a noun (e.g., trapped and landslide in Fig. 1). Specifically, in copular constructions, we choose to label the verb as the event, instead of an adjective or preposition. This allows us to give a consistent treatment of “she was on the east coast yesterday” and “she was happy”, which we can easily teach to crowd workers.

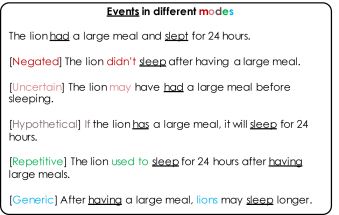

Figure 3: Various modes of events that prior work needed to categorize. Section 3 shows that they can be handled naturally without explicit categorization.

Note that events expressed in text are not always factual. They can be negated, uncertain, hypothetical, or have other associated modalities (see Fig. 3). Prior work dealing with events often tried to categorize and label these various aspects because they were crucial for determining temporal relations. Sometimes certain categories were even dropped due to annotation difficulties Pustejovsky et al. (2003); O’Gorman et al. (2016); Ning et al. (2018b). In this work, we simply have people label all events, no matter their modality, and use natural language to describe relations between them, as discussed in Sec. 3.

2.2 Temporal Relations

Temporal relations describe the relationship between two events with respect to time, or between one event and a fixed time point (e.g., yesterday).111We could also include relationships between two fixed time points (e.g., compare 2011-03-24 with 2011-04-05), but these are mostly trivial, so we do not discuss them further. We can use a triplet, , to represent this relationship, where and are events or time points, and is a temporal relation. For example, the first sentence in Fig. 3 expresses a temporal relation (had, happened before, slept).

Figure 4: Thirteen possible relations between two time intervals and . When one cannot uniquely determine a label, one chooses vague.

In previous works, every event is assumed to be associated with a time interval . When comparing two events, there were 13 possible relations to choose from (see Fig. 4) Allen (1984). However, there are still many relations that cannot be expressed because the assumption that every event has a time interval is inaccurate: The time scope of an event may be fuzzy, an event can have a non-factual modality, or events can be repetitive and invoke multiple intervals (see Fig. 5). To better handle these phenomena, we move away from the fixed set of relations used in prior work and instead use natural language to annotate the relationships between events, as described in the next section.

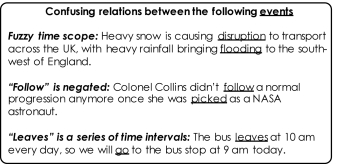

Figure 5: It is confusing to label these relations using a fixed set of relations: they are not simply before or after, but they can be fuzzy, can have modalities as events, and/or need multiple time intervals to represent.

3 Natural Language Annotation of Temporal Relations

Motivated by recent works He et al. (2015); Michael et al. (2017); Levy et al. (2017); Gardner et al. (2019b), we propose using natural language question answering as an annotation format for temporal relations. Recalling that we denote a temporal relation between two events as , we use to denote a temporal relation question. We instantiate these temporal relation questions using natural language. For instance, (?, happened before, slept) means “what happened before a lion slept?” We then expect as an answer the set of all events in the passage such that holds, assuming for any deictic expression or the time point when the passage was written, and assuming that the passage is true.

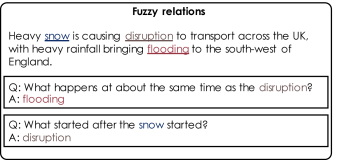

Figure 6: Fuzzy relations that used to be difficult to represent using a predefined label set can be captured naturally in a reading comprehension task.

3.1 Advantages

Studying temporal relations as a reading comprehension task gives us the flexibility to handle many of the aforementioned difficulties. First, fuzzy relations can be described by natural language questions (after all, the relations are expressed in natural language in the first place). In Fig. 6, disruption and flooding are at about the same time, but we do not know for sure which one is earlier, so we have to choose vague in the predefined label set. Similarly for snow and disruption, we do not know which one ends earlier and have to choose vague. In contrast, the QA pairs in Fig. 6 can naturally capture these fuzzy relations.

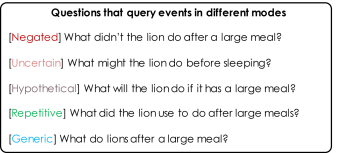

Figure 7: Events in different modes can be distinguished using natural language questions.

Second, natural language questions can conveniently incorporate different modes of events. Figure 7 shows examples of not before, probably before, before under some conditions, often before, and generally before, which accurately describe the relation between various modes of “having a meal” and “sleeping” in Fig. 3. In contrast, if we could only choose one label, we must choose before for all these relations, although these relations are actually different. For instance, a repetitive event may be a series of intervals rather than a single one, and often before is very different from before (Fig. 8).

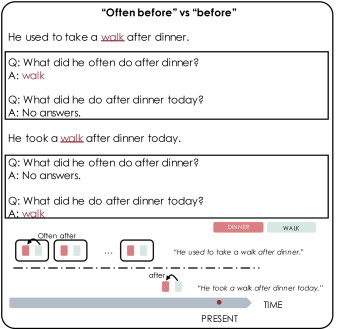

Figure 8: A repetitive event needs multiple time intervals and conveys very different semantics.

Third, a major issue that prior works wanted to address was deciding when two events should have a relation Cassidy et al. (2014); Mostafazadeh et al. (2016); O’Gorman et al. (2016); Ning et al. (2018b). To avoid asking for relations that do not exist, prior works needed to explicitly annotate certain properties of events as a preprocessing step, but it still remains difficult to have a theory explaining, for instance, why hit can compare to expected and crisis, but not to gains. Interestingly, when we annotate temporal relations in natural language, the annotator naturally avoids event pairs that do not have relations. For instance, for the sentences in Fig. 9, one will not ask questions like “what happened after the service industries are hardest hit?” or “what happened after a passerby reported the body?” Instead, natural questions will be “what was expected to happen when the crisis hit America?” and “what was supposed to happen after a passerby called the police?” The format of natural language questions bypasses the need for explicit annotation of properties of events or other theories.

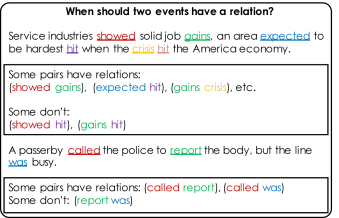

Figure 9: It remains unclear how to determine if two events should have a temporal relation.

3.2 Penalize Shortcuts by Contrast Sets

Natural language questions give us many benefits in describing fuzzy relations and incorporating various temporal phenomena. However, this setup also increases the risk of leading to trivial solutions Gardner et al. (2019a). As Fig. 10 shows, there are two events ate and went in the text. Since ate is already mentioned in the question, the answer of went seems a trivial option without the need to understand the underlying relationship. To address this issue, we create contrast questions which slightly modify the original questions, but dramatically change the answers, so that shortcuts are penalized. Specifically, for an existing question (e.g., “what happened after he ate his breakfast?”), one should keep using and change (e.g., “what happened before/shortly after/… he ate his breakfast?”), or modify it to ask about the start/end time (e.g., “what happened after he started eating his breakfast?” or “what would finish after he ate his breakfast?”). We also instructed workers to make sure that the answers to the new question are different from the original one to avoid trivial modifications (e.g., changing “what happened” to “what occurred”).

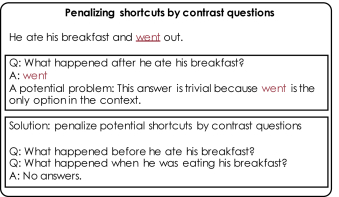

Figure 10: Penalize potential shortcuts by providing contrast questions.

4 Data Collection

We used Amazon Mechanical Turk to build Torque, a reading comprehension dataset of temporal ordering questions. Following prior work, we focus on passages that consist of two contiguous sentences, as this is sufficient to capture the vast majority of non-trivial temporal relations Ning et al. (2017), and it greatly simplifies the annotation. We took all the articles used in the TempEval3 (TE3) workshop (2.8k articles) UzZaman et al. (2013) and created a pool of 26k two-sentence passages. Given a passage randomly selected from this pool, the annotation process for crowd workers was as follows.

  1. [leftmargin=0.4cm,itemsep=1pt,parsep=0pt]

  2. Label all the events

  3. Repeatedly do the following222The stopping criterion is discussed in Sec. 4.2.

    1. [leftmargin=0.6cm,itemsep=0mm]

    2. Ask a temporal relation question and point out all the answers from the list of events

    3. Modify the temporal relation to create one or more new questions and answer them.

The annotation guideline are public.333https://qatmr-qualification.github.io/ and https://qatmr.github.io/ In the following sections, we further discuss issues of quality control and crowdsourcing cost.

4.1 Quality Control

We used three quality control strategies: qualification, pilot, and validation.

Qualification We designed a separate qualification task where crowd workers were trained and tested on three individual capabilities: labeling events, asking temporal relation questions, and question-answering. They were tested on problems randomly selected from a pool designed by us. A crowd worker was considered level-1 qualified if they could pass the test within three attempts. In practice, roughly 1 out of 3 workers passed our qualification test.

Pilot We then asked level-1 crowd workers to do a small amount of the real task. We manually checked the annotations and gave feedback to them. Those who passed this inspection were called level-2 workers, and only they could work on the large-scale real task. Roughly 1 out of 3 pilot submissions received a level-2 qualification. In the end, there were 63 level-2 annotators, and 60 of them actually worked on our large-scale task.

Validation We randomly selected 20% of the articles from Torque for further validation. We first validated the events by 4 different level-2 annotators (with the original annotator, there were in total 5 different humans). We also intentionally added noise to the original event list so that the validators must carefully identify wrong events. The final event list was determined by aggregating all 5 humans using majority vote. Second, we validated the answers in the same portion of the data. Two level-2 workers were asked to verify the initial annotator’s answers; we again added noise to the answer list as a quality control for the validators. Instead of using majority vote as we did for events, the final answers from all workers are considered correct. We did not do additional validation for the questions themselves, as a manual inspection found the quality to be very high already, with no bad questions in a random sample of 100.

4.2 Cost

In each job of the main task (as known as a “HIT” on MTurk), we presented 3 passages. The crowd worker could decide to use some or all of them. For each passage a worker decided to use, they needed to label the events, answer 3 hard-coded warm-up questions, and then ask and answer at least 12 questions (including contrast questions). The final reward is a base pay of $6 plus $0.5 for each extra question. Crowd workers thus had the incentive to (1) use fewer passages so that they can do event labeling and warm-up questions fewer times, (2) modify questions instead of asking from scratch, and (3) ask extra questions in each job. All these incentives were for more coverage of the temporal phenomena in each passage. In practice, crowd workers on average used 2 passages in each HIT. Validating the events in each passage and the answers to a specific question both cost $0.1. In total, Torque cost $15k to create for an average of $0.70 per question.

5 Torque Statistics

Type Subtype Example %
Standard “What happened before Bush gave four key speeches?” 53%
Fuzzy begin only “What started before Mr. Fournier was prohibited from organizing his own defense?” 15%
overlap only “What events were occurring during the competition?” 10%
end only “What will end after he is elected?” 1%
Modality uncertain “What might happen after the FTSE 100 index was quoted 9.6 points lower?” 10%
negation “What has not taken place before the official figures show something?” 5%
hypothetical “What event will happen if the scheme is broadened?” 2%
repetitive “What usually happens after common shares are acquired?” 1%
Misc. participant “What did Hass do before he went to work as a spy?” 4%
opinion “What should happen in the future according to Obama’s opinion?” 3%
intention “What did Morales want to happen after Washington had a program to eradicate coca?” 1%
Table 2: Temporal phenomena in Torque. “Standard” are those that can be directly captured by the previous single-interval-based label set, while other types cannot. Percentages are based on manual inspection of a random sample of 200 questions from Torque; some questions can have multiple types.

In Torque we collected 3.2k passage annotations (50 tokens/passage),444Since the passages were selected randomly with replacement, there are 2.9k unique passages in total. 24.9k events (7.9 events/passage), and 21.2k user-provided questions (half of them were labeled by crowd workers as modifications of existing ones). Every passage also comes with 3 hard-coded warm-up questions asking which events in the passage had already happened, were ongoing, or were still in the future (the 3 warm-up questions form a contrast set, where we treat the first one as “original” and the other two as “modified”). Table 3 shows some basic statistics of Torque.

Q Q/P A A/Q
Overall 30.7k 9.7 65.0k 2.1
Warm-up 9.5k 3 21.6k 2.3
Original 3.2k 1 12.8k 4.0
Modified 6.3k 2 8.8k 1.4
User-provided 21.2k 6.7 43.4k 2.1
Original 10.6k 3.4 25.1k 2.4
Modified 10.6k 3.3 18.3k 1.7
Table 3: Columns from left to right: questions, questions per passage, answers, and answers per question. Modified is a subset of questions that is created by slightly modifying an original question.

In a random sample of 200 questions in the test set of Torque, we found 94 questions querying about relations that cannot be directly represented by the previous single-interval-based labels. Table 2 gives example questions capturing these phenomena. More analysis of the event, answer, and workload distributions are in the appendix.

5.1 Quality

To validate the event annotations, we took the events provided by the initial annotator, added noise, and asked different workers to validate. We also trained an auxiliary event detection model using RoBERTa-large and added its predictions as event candidates. This tells us about the quality of events in Torque in two ways. First, the Worker Agreement with Aggregate (WAWA) F here is 94.2%; that is, compare the majority-vote with all annotators, and perform micro-average on all instances. Second, if an event candidate is labeled by both the initial annotator and the model, then almost all of them (99.4%) are kept by the validators; if neither the initial annotator nor the model labeled a candidate, the candidate is almost surely removed (0.8%). As validators did not know which ones were noise or not beforehand, this indicates that the validators could identify noise terms reliably.

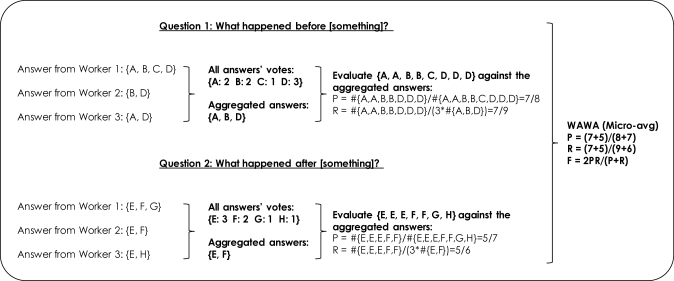

Similarly, the WAWA F of the answer annotations is 84.7%, slightly lower than that for events, which is expected because temporal relation QA is intuitively harder. Results show that 12.3% of the randomly added answer candidates were labeled as correct answers by the validators. We manually inspected 100 questions and found 11.6% of the added noise terms were correct answers (very close to 12.3%), indicating that the validators were actually doing a good job in answer validation. More details of the metrics and the quality of annotations can be found in the appendix.

6 Experiment

We split Torque into train (80% of all the questions), dev (5%), and test (15%) and these three parts do not have the same articles. To solve Torque in an end-to-end fashion, the model here takes as input a passage and a question, then looks at every token in the passage and makes a binary classification of whether this token is an answer to the question or not. Specifically, we fine-tuned BERT Devlin et al. (2019) and RoBERTa Liu et al. (2019) (both “base” and “large”) on the training set of Torque. We fixed batch size = 6 (each instance is a tuple of one passage, one question, and all its answers) with gradient accumulation step = 2 in all experiments. We selected the learning rate (from

), the training epoch (within 10), and the random seed (from 3 arbitrary ones) based on performance on the dev set of

Torque

. To compute an estimate of human performance, one author answered 100 questions from the test set.

Both the human performance and system performances are shown in Table 4. We report the standard macro F and exact-match (EM) metrics in question answering, and also EM consistency, the percentage of contrast question sets for which a model’s predictions match exactly to all questions in a group Gardner et al. (2020). We see warm-up questions are easier than user-provided ones because warm-up questions focus on easier phenomena of past/ongoing/future events. In addition, RoBERTa-large is expectedly the best system, but still far behind human performance, trailing by about 30% in EM.

Dev Test
Overall Warm-up questions User-provided
F EM C F EM C F EM C F EM C
Human - - - 95.3 84.5 82.5 95.7 89.7 90.9 95.1 82.4 79.3
BERT-base 67.6 39.6 24.3 67.2 39.8 23.6 72.9 46.2 28.8 64.8 37.1 21.3
BERT-large 72.8 46.0 30.7 71.9 45.9 29.1 75.0 50.1 30.3 70.6 44.1 28.5
RoBERTa-base 72.2 44.5 28.7 72.6 45.7 29.9 75.4 48.8 32.3 71.4 44.4 28.8
RoBERTa-large 75.7 50.4 36.0 75.2 51.1 34.5 77.3 54.3 36.1 74.3 49.8 33.8
Table 4: Human/system performance on the test set of Torque. System performance is averaged from 3 runs; all std. dev. were and those in [1%, 4%] are underlined. C (consistency) is the percentage of contrast groups for which a model’s predictions have for all questions in a group Gardner et al. (2020).

We further downsampled the training data to test the performance of RoBERTa. We find that with 10% of the original training data, RoBERTa fails to learn anything meaningful and simply predicts “not an answer” for all tokens. With 50% of the training data, RoBERTa is slightly lower than but already comparable to that of using the entire training set. This means that the learning curve on Torque is already flat and the current size of Torque may not be the bottleneck for its low performance. More investigations into system modeling are needed to better solve Torque.

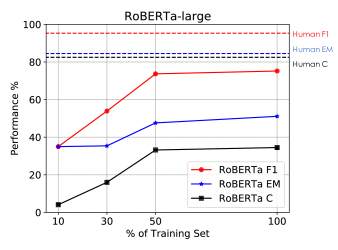

Figure 11: RoBERTa-large with different percentage of training data. Human performance in dashed lines.

7 Related Work

The study of time is to understand when, how long, and how often things happen. While how long and how often usually require temporal common sense knowledge Vempala et al. (2018); Zhou et al. (2019, 2020), the problem of when often boils down to extracting the temporal relations.

Modeling. Research on temporal relations often focuses on algorithmic improvement, such as structured inference Do et al. (2012); Chambers et al. (2014); Ning et al. (2018a), structured learning Leeuwenberg and Moens (2017); Ning et al. (2017)

, and neural networks

Dligach et al. (2017); Lin et al. (2017); Tourille et al. (2017); Cheng and Miyao (2017); Meng and Rumshisky (2018); Leeuwenberg and Moens (2018); Ning et al. (2019).

Formalisms. The approach that prior works took to handle the aforementioned temporal phenemona was to define formalisms such as the different modes of events (Fig. 3), different time axes for events Ning et al. (2018b), and specific rules to follow when there is confusion. For example, Bethard et al. (2007); Ning et al. (2018b) focused on a limited set of temporal phenomena and achieved high inter-annotator agreements (IAA), while Cassidy et al. (2014); Styler IV et al. (2014); O’Gorman et al. (2016) aimed at covering more phenomena but suffered from low IAAs even between NLP researchers.

QA as annotation. A natural choice is then to cast temporal relation understanding as a reading comprehension (RC) problem. The QA-TempEval workshop, albeit its name, is actually not studying temporal relations in an RC setting Llorens et al. (2015). This work is motivated by the philosophy in QA-SRL He et al. (2015) and QAMR Michael et al. (2017), where QA pairs were used as representations for predicate-argument structures. In zero-shot relation extraction (RE), they reduced relation slot filling to an RC problem so as to build very large distant training data and improve zero-shot learning performance Levy et al. (2017). However, our work differs from zero-shot RE since it centers around entities, while Torque is about events; the way to ask and answer questions in zero-shot RE and in Torque is thus significantly different.

8 Conclusion

Understanding temporal ordering of events is critical in reading comprehension, but existing works have studied very little about it. This paper presents Torque, a new English reading comprehension dataset of temporal ordering questions on 3.2k news snippets. These questions include 9.5k hard-coded questions asking which events had happened, were ongoing, or were still in the future, and 21.2k human-generated questions querying more complex phenomena than the hard-coded ones. We argue that studying temporal relations as a reading comprehension task allows for more convenient representation of these temporal phenomena than is possible in conventional formalisms. Results show that even a state-of-the-art language model, RoBERTa-large, falls behind human performance on Torque by a large margin, necessitating more investigation on improving reading comprehension on temporal relationships in the future.

References

  • ACE (2005) 2005. The ACE 2005 (ACE 05) Evaluation Plan. Technical report.
  • Allen (1984) James F Allen. 1984. Towards a general theory of action and time. Artificial Intelligence, 23(2):123–154.
  • Bethard et al. (2007) Steven Bethard, James H Martin, and Sara Klingenstein. 2007. Timelines from text: Identification of syntactic temporal relations. In IEEE International Conference on Semantic Computing (ICSC), pages 11–18.
  • Bethard et al. (2016) Steven Bethard, Guergana Savova, Wei-Te Chen, Leon Derczynski, James Pustejovsky, and Marc Verhagen. 2016. SemEval-2016 Task 12: Clinical TempEval. In Proceedings of the 10th International Workshop on Semantic Evaluation (SemEval-2016), pages 1052–1062, San Diego, California. Association for Computational Linguistics.
  • Bethard et al. (2017) Steven Bethard, Guergana Savova, Martha Palmer, and James Pustejovsky. 2017. Semeval-2017 task 12: Clinical tempeval. In Proceedings of the 11th International Workshop on Semantic Evaluation (SemEval-2017), pages 565–572. Association for Computational Linguistics.
  • Cassidy et al. (2014) Taylor Cassidy, Bill McDowell, Nathanel Chambers, and Steven Bethard. 2014. An annotation framework for dense event ordering. In Proceedings of the Annual Meeting of the Association for Computational Linguistics (ACL), pages 501–506.
  • Chambers et al. (2014) Nathanael Chambers, Taylor Cassidy, Bill McDowell, and Steven Bethard. 2014. Dense event ordering with a multi-pass architecture. Transactions of the Association for Computational Linguistics (TACL), 2:273–284.
  • Cheng and Miyao (2017) Fei Cheng and Yusuke Miyao. 2017. Classifying temporal relations by bidirectional LSTM over dependency paths. In Proceedings of the Annual Meeting of the Association for Computational Linguistics (ACL), volume 2, pages 1–6.
  • Dasigi et al. (2019) Pradeep Dasigi, Nelson F. Liu, Ana Marasović, Noah A. Smith, and Matt Gardner. 2019. Quoref: A reading comprehension dataset with questions requiring coreferential reasoning. In

    Proceedings of the Conference on Empirical Methods in Natural Language Processing (EMNLP)

    , pages 5925–5932.
  • Devlin et al. (2019) Jacob Devlin, Ming-Wei Chang, Kenton Lee, and Kristina Toutanova. 2019. BERT: Pre-training of deep bidirectional transformers for language understanding. In Proceedings of the Conference of the North American Chapter of the Association for Computational Linguistics (NAACL).
  • Dligach et al. (2017) Dmitriy Dligach, Timothy Miller, Chen Lin, Steven Bethard, and Guergana Savova. 2017. Neural temporal relation extraction. In Proceedings of the Conference of the European Chapter of the Association for Computational Linguistics (EACL), volume 2, pages 746–751.
  • Do et al. (2012) Quang Do, Wei Lu, and Dan Roth. 2012. Joint inference for event timeline construction. In Proceedings of the Conference on Empirical Methods in Natural Language Processing (EMNLP).
  • Dua et al. (2019) Dheeru Dua, Yizhong Wang, Pradeep Dasigi, Gabriel Stanovsky, Sameer Singh, and Matt Gardner. 2019. DROP: A reading comprehension benchmark requiring discrete reasoning over paragraphs. In Proceedings of the Conference of the North American Chapter of the Association for Computational Linguistics (NAACL).
  • Gardner et al. (2020) Matt Gardner, Yoav Artzi, Victoria Basmova, Jonathan Berant, Ben Bogin, Sihao Chen, et al. 2020. Evaluating nlp models via contrast sets. arXiv preprint arXiv:2004.02709.
  • Gardner et al. (2019a) Matt Gardner, Jonathan Berant, Hannaneh Hajishirzi, Alon Talmor, and Sewon Min. 2019a. On making reading comprehension more comprehensive.
  • Gardner et al. (2019b) Matt Gardner, Jonathan Berant, Hannaneh Hajishirzi, Alon Talmor, and Sewon Min. 2019b. Question answering is a format; when is it useful? arXiv preprint arXiv:1909.11291.
  • Geva et al. (2019) Mor Geva, Yoav Goldberg, and Jonathan Berant. 2019. Are we modeling the task or the annotator? an investigation of annotator bias in natural language understanding datasets. In Proceedings of the Conference on Empirical Methods in Natural Language Processing (EMNLP).
  • He et al. (2015) Luheng He, Mike Lewis, and Luke Zettlemoyer. 2015. Question-answer driven semantic role labeling: Using natural language to annotate natural language. In Proceedings of the Conference on Empirical Methods in Natural Language Processing (EMNLP), pages 643–653.
  • Laparra et al. (2018) Egoitz Laparra, Dongfang Xu, Ahmed Elsayed, Steven Bethard, and Martha Palmer. 2018. SemEval 2018 task 6: Parsing time normalizations. In Proceedings of The 12th International Workshop on Semantic Evaluation, pages 88–96.
  • Leeuwenberg and Moens (2018) Artuur Leeuwenberg and Marie-Francine Moens. 2018. Temporal information extraction by predicting relative time-lines. Proceedings of the Conference on Empirical Methods in Natural Language Processing (EMNLP).
  • Leeuwenberg and Moens (2017) Tuur Leeuwenberg and Marie-Francine Moens. 2017. Structured learning for temporal relation extraction from clinical records. In Proceedings of the 15th Conference of the European Chapter of the Association for Computational Linguistics.
  • Levy et al. (2017) Omer Levy, Minjoon Seo, Eunsol Choi, and Luke Zettlemoyer. 2017. Zero-shot relation extraction via reading comprehension. In Proceedings of the SIGNLL Conference on Computational Natural Language Learning (CoNLL), pages 333–342.
  • Lin et al. (2017) Chen Lin, Timothy Miller, Dmitriy Dligach, Steven Bethard, and Guergana Savova. 2017.

    Representations of time expressions for temporal relation extraction with convolutional neural networks.

    BioNLP 2017, pages 322–327.
  • Lin et al. (2019) Kevin Lin, Oyvind Tafjord, Peter Clark, and Matt Gardner. 2019. Reasoning over paragraph effects in situations. In Proceedings of the 2nd Workshop on Machine Reading for Question Answering, pages 58–62.
  • Liu et al. (2019) Yinhan Liu, Myle Ott, Naman Goyal, Jingfei Du, Mandar Joshi, Danqi Chen, Omer Levy, Mike Lewis, Luke Zettlemoyer, and Veselin Stoyanov. 2019. RoBERTa: A robustly optimized BERT pretraining approach. arXiv preprint arXiv:1907.11692.
  • Llorens et al. (2015) Hector Llorens, Nathanael Chambers, Naushad UzZaman, Nasrin Mostafazadeh, James Allen, and James Pustejovsky. 2015. SemEval-2015 Task 5: QA TEMPEVAL - evaluating temporal information understanding with question answering. In Proceedings of the 9th International Workshop on Semantic Evaluation (SemEval 2015), pages 792–800.
  • Meng and Rumshisky (2018) Yuanliang Meng and Anna Rumshisky. 2018. Context-aware neural model for temporal information extraction. In Proceedings of the Annual Meeting of the Association for Computational Linguistics (ACL), volume 1, pages 527–536.
  • Michael et al. (2017) Julian Michael, Gabriel Stanovsky, Luheng He, Ido Dagan, and Luke Zettlemoyer. 2017. Crowdsourcing question-answer meaning representations. arXiv preprint arXiv:1711.05885.
  • Minard et al. (2015) Anne-Lyse Minard, Manuela Speranza, Eneko Agirre, Itziar Aldabe, Marieke van Erp, Bernardo Magnini, German Rigau, Ruben Urizar, and Fondazione Bruno Kessler. 2015. SemEval-2015 Task 4: TimeLine: Cross-document event ordering. In Proceedings of the 9th International Workshop on Semantic Evaluation (SemEval 2015), pages 778–786.
  • Mitamura et al. (2015) T. Mitamura, Y. Yamakawa, S. Holm, Z. Song, A. Bies, S. Kulick, and S. Strassel. 2015. Event nugget annotation: Processes and issues. In Proceedings of the Workshop on Events at NAACL-HLT.
  • Mostafazadeh et al. (2016) Nasrin Mostafazadeh, Alyson Grealish, Nathanael Chambers, James Allen, and Lucy Vanderwende. 2016. CaTeRS: Causal and temporal relation scheme for semantic annotation of event structures. In Proceedings of the 4th Workshop on Events: Definition, Detection, Coreference, and Representation, pages 51–61.
  • Ning et al. (2017) Qiang Ning, Zhili Feng, and Dan Roth. 2017. A structured learning approach to temporal relation extraction. In Proceedings of the Conference on Empirical Methods in Natural Language Processing (EMNLP), pages 1038–1048, Copenhagen, Denmark. Association for Computational Linguistics.
  • Ning et al. (2018a) Qiang Ning, Zhili Feng, Hao Wu, and Dan Roth. 2018a. Joint reasoning for temporal and causal relations. In Proceedings of the Annual Meeting of the Association for Computational Linguistics (ACL), pages 2278–2288. Association for Computational Linguistics.
  • Ning et al. (2019) Qiang Ning, Sanjay Subramanian, and Dan Roth. 2019. An Improved Neural Baseline for Temporal Relation Extraction. In Proceedings of the Conference on Empirical Methods in Natural Language Processing (EMNLP).
  • Ning et al. (2018b) Qiang Ning, Hao Wu, and Dan Roth. 2018b. A multi-axis annotation scheme for event temporal relations. In Proceedings of the Annual Meeting of the Association for Computational Linguistics (ACL), pages 1318–1328. Association for Computational Linguistics.
  • O’Gorman et al. (2016) Tim O’Gorman, Kristin Wright-Bettner, and Martha Palmer. 2016. Richer Event Description: Integrating event coreference with temporal, causal and bridging annotation. In Proceedings of the 2nd Workshop on Computing News Storylines (CNS 2016), pages 47–56, Austin, Texas. Association for Computational Linguistics.
  • Pustejovsky et al. (2003) James Pustejovsky, Patrick Hanks, Roser Sauri, Andrew See, Robert Gaizauskas, Andrea Setzer, Dragomir Radev, Beth Sundheim, David Day, Lisa Ferro, et al. 2003. The TIMEBANK corpus. In Corpus Linguistics, page 40.
  • Rajpurkar et al. (2018) Pranav Rajpurkar, Robin Jia, and Percy Liang. 2018. Know what you don’t know: Unanswerable questions for SQuAD. In Proceedings of the Annual Meeting of the Association for Computational Linguistics (ACL), pages 784–789.
  • Rajpurkar et al. (2016) Pranav Rajpurkar, Jian Zhang, Konstantin Lopyrev, and Percy Liang. 2016. SQuAD: 100,000+ questions for machine comprehension of text. In Proceedings of the Conference on Empirical Methods in Natural Language Processing (EMNLP), pages 2383–2392.
  • Semega et al. (2019) Jessica Semega, Melissa Kollar, John Creamer, and Abinash Mohanty. 2019. Income and Poverty in the United States: 2018. U.S. Department of Commerce.
  • Styler IV et al. (2014) William F Styler IV, Steven Bethard, Sean Finan, Martha Palmer, Sameer Pradhan, Piet C de Groen, Brad Erickson, Timothy Miller, Chen Lin, Guergana Savova, et al. 2014. Temporal annotation in the clinical domain. Transactions of the Association for Computational Linguistics (TACL), 2:143.
  • Tourille et al. (2017) Julien Tourille, Olivier Ferret, Aurelie Neveol, and Xavier Tannier. 2017. Neural architecture for temporal relation extraction: A Bi-LSTM approach for detecting narrative containers. In Proceedings of the Annual Meeting of the Association for Computational Linguistics (ACL), volume 2, pages 224–230.
  • UzZaman et al. (2013) Naushad UzZaman, Hector Llorens, James Allen, Leon Derczynski, Marc Verhagen, and James Pustejovsky. 2013. SemEval-2013 Task 1: TEMPEVAL-3: Evaluating time expressions, events, and temporal relations. Proceedings of the Joint Conference on Lexical and Computational Semantics (*SEM), 2:1–9.
  • Vempala et al. (2018) Alakananda Vempala, Eduardo Blanco, and Alexis Palmer. 2018. Determining event durations: Models and error analysis. In Proceedings of the Conference of the North American Chapter of the Association for Computational Linguistics (NAACL), volume 2, pages 164–168.
  • Verhagen et al. (2007) Marc Verhagen, Robert Gaizauskas, Frank Schilder, Mark Hepple, Graham Katz, and James Pustejovsky. 2007. SemEval-2007 Task 15: TempEval temporal relation identification. In Proceedings of the 4th International Workshop on Semantic Evaluations, pages 75–80. Association for Computational Linguistics.
  • Verhagen et al. (2010) Marc Verhagen, Roser Sauri, Tommaso Caselli, and James Pustejovsky. 2010. SemEval-2010 Task 13: TempEval-2. In Proceedings of the 5th International Workshop on Semantic Evaluation, pages 57–62. Association for Computational Linguistics.
  • Zhou et al. (2019) Ben Zhou, Daniel Khashabi, Qiang Ning, and Dan Roth. 2019. “Going on a vacation” takes longer than “Going for a walk”: A Study of Temporal Commonsense Understanding. In Proceedings of the Conference on Empirical Methods in Natural Language Processing (EMNLP).
  • Zhou et al. (2020) Ben Zhou, Qiang Ning, Daniel Khashabi, and Dan Roth. 2020. Temporal Common Sense Acquisition with Minimal Supervision. In Proceedings of the Annual Meeting of the Association for Computational Linguistics (ACL).

Appendix

Appendix A Event Distribution

As we mentioned in Sec. 5, Torque has 24.9k events over 3.2k passages. Figure 12

shows the histogram of the number of events in all these passages. We can see it roughly follows a Gaussian distribution with the mean at around 7-8 events per passage.

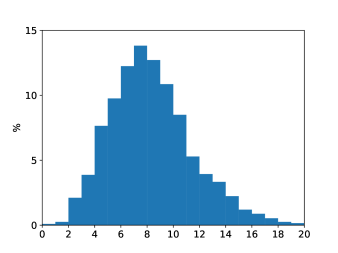

Figure 12: Histogram of the number of events in all passages in Torque.

Figure 13 further shows the 50 most common events in Torque. Unsurprisingly, the most common events are reporting verbs (e.g., “say”, “tell”, “report”, and “announce”) and copular verbs. Other common events such as “meeting”, “killed”, “visit”, and “war” are also expected given that the passages of Torque were taken from news articles.

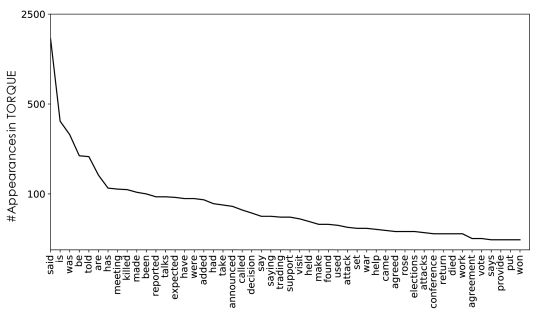

Figure 13: Fifty most common event triggers in Torque. Note the y-axis is in log scale.

Appendix B Question Prefix Distribution

Figure 14 shows a sunburst visualization of the questions provided by crowd workers in Torque, including both their original questions and their modifications. Specifically, Fig. 14a shows that almost all of the questions start with “what.” The small portion of questions that do not start with “what” are cases where crowd workers switch the order of how they ask. One example of these was “Before making his statement to the Sunday Mirror, what did the author do?” Figure 14a also shows the most common following words of “what.”

Figures 14b-c further show the distribution of questions starting with “what happened” and “what will.” We can see that when asking things in the past, people ask more about “what happened before/after” than “what happened while/during,” while when asking things in the future, people ask much more about “what will happen after” than “what will happen before.”

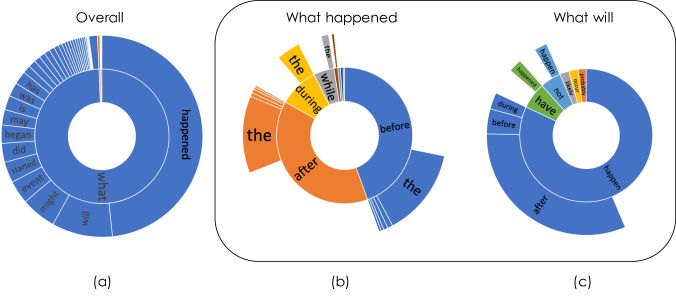

Figure 14: Prefix distribution of user-provided questions.

Appendix C Answer Distribution

The distribution of the number of answers to each question is shown in the figure below, where we divide the questions into 4 categories: the original warm-up questions, the modified warm-up questions , the original user questions, and the modified user questions. Note for each passage, there are 3 warm-up questions and they are all hard-coded when crowd workers worked on them. We are treating the first one (i.e., “What events have already finished?”) as the original and the other two as modified (i.e., “What events have begun but have not finished?” and “What will happen in the future?”).

We can see that in both the warm-up and the user questions, “modified” has a larger portion of questions with no answers at all as compared to the “original.” This effect is very significant for warm-up questions because in news articles, most of the events were in the past. As for the user-provided questions, the percentage of no-answer questions is higher in “modified,” but it is not as drastic as for the warm-up question. This because we only required that the modified question should have different answers from the original one; many of those questions sill have answers after modification.

Appendix D Workload Distribution Among Workers

As each annotator may be biased to only ask questions in a certain way, it is important to make sure that the entire dataset is not labeled by only a few annotators Geva et al. (2019). Figure 15a shows the contribution of each crowd worker to Torque and we can see even the rightmost worker only provided 5%. Figure 15b further adopts the notion of Gini Index to show the dispersion.555A high Gini Index here means the data were provided by a small group of workers. The Gini Index of family incomes in the United States was 0.49 in 2018 Semega et al. (2019). The Gini index of Torque is 0.42.

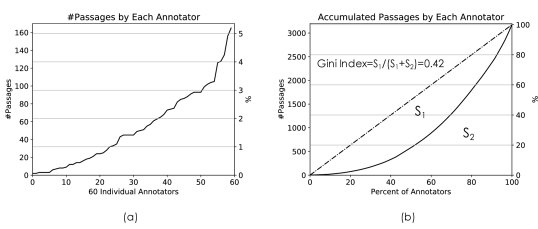

Figure 15: If every annotator provided the same number of passages (i.e., perfect equality), the curve would be the straight dashed line and the Gini Index would be 0. If one person provided all the annotations, the Gini Index is 1.

Appendix E Worker Agreement With Aggregate

In Sec. 5 we described the worker agreement with aggregate (WAWA) metric for measuring the inter-annotator agreement (IAA) between crowd workers of Torque. This WAWA metric is explained in the figure below. It is to first get an aggregated answer set from multiple workers (we used majority vote as the aggregate function), then compare each worker with the aggregated answer set, and finally compute the micro-average across multiple workers and multiple questions.

Figure 16: Explanation of the worker agreement with aggregate (WAWA) metric.

Tables 5 and 6 show the quality of event annotations and question-answering annotations, respectively. In both of them, the IAA are using the WAWA metric explained above; the “Init Annotator” rows are a slight modification of WAWA, which means that all workers are used when aggregating those answers, but only the first annotator is compared against the aggregated answer set. Table 5 further shows the agreement between the init annotator and an event detection model, which we have described in Sec. 5.

P R F
IAA (WAWA) 94.3% 94.1% 94.2%
Init Annotator 94.9% 89.8% 92.3%
Init Annotator
Yes No
Model Yes 99.4% 82.0%
No 64.1% 0.8%
Table 5: Inter-annotator agreement (IAA) of the event annotations in Torque. Above: compare the aggregated event list with either all the annotators or the initial annotator. Below: how many candidates in each category were successfully added into the aggregated event list.
P R F
IAA (WAWA) 82.3% 87.3% 84.7%
Init Annotator 91.3% 82.2% 86.5%
Table 6: IAA of the answer annotations in Torque.
