Topological mixture estimation

by   Steve Huntsman, et al.
BAE Systems

Density functions that represent sample data are often multimodal, i.e. they exhibit more than one maximum. Typically this behavior is taken to indicate that the underlying data deserves a more detailed representation as a mixture of densities with individually simpler structure. The usual specification of a component density is quite restrictive, with log-concave the most general case considered in the literature, and Gaussian the overwhelmingly typical case. It is also necessary to determine the number of mixture components a priori, and much art is devoted to this. Here, we introduce topological mixture estimation, a completely nonparametric and computationally efficient solution to the one-dimensional problem where mixture components need only be unimodal. We repeatedly perturb the unimodal decomposition of Baryshnikov and Ghrist to produce a topologically and information-theoretically optimal unimodal mixture. We also detail a smoothing process that optimally exploits topological persistence of the unimodal category in a natural way when working directly with sample data. Finally, we illustrate these techniques through examples.



There are no comments yet.


page 7

page 8


From Adaptive Kernel Density Estimation to Sparse Mixture Models

We introduce a balloon estimator in a generalized expectation-maximizati...

Nonparametric Estimation of Probability Density Functions of Random Persistence Diagrams

We introduce a nonparametric way to estimate the global probability dens...

Adaptive nonparametric estimation of a component density in a two-class mixture model

A two-class mixture model, where the density of one of the components is...

Maximum Likelihood Estimation of a Semiparametric Two-component Mixture Model using Log-concave Approximation

Motivated by studies in biological sciences to detect differentially exp...

Hyperspherical Dirac Mixture Reapproximation

We propose a novel scheme for efficient Dirac mixture modeling of distri...

Minimal Unimodal Decompositions on Trees

The decomposition of a density function on a domain into a minimal sum o...

Extending the Patra-Sen Approach to Estimating the Background Component in a Two-Component Mixture Model

Patra and Sen (2016) consider a two-component mixture model, where one c...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction


denote a suitable space of continuous probability densities (henceforth merely called densities) on

. A mixture on with components is a pair , where ; we write , and note that cannot have any components equal to zero. The corresponding mixture density is . The Jensen-Shannon divergence of is HarremoesBriet


where and is the entropy of .


is the mutual information between the random variables

and . Since mutual information is always nonnegative, the same is true of . The concavity of gives the same result, i.e. . If and

then is easy to show that .

We say that a density is unimodal if is either empty or contractible (within itself, or equivalently, has the homotopy type of a point) for all : for , this simply means that any nonempty sets are intervals. We call a mixture unimodal iff each of the component densities is unimodal. The unimodal category is the least integer such that there exists a unimodal mixture with components satisfying : in this event we write . The unimodal category is a topological invariant that generalizes the geometric category and is related to the Lusternik-Schnirelmann category BaryshnikovGhrist ; Ghrist .

The preceding constructions naturally lead us to consider the unimodal Jensen-Shannon divergence


as a simultaneous measure of both the topological and information-theoretical complexity of , and


as an information-theoretically optimal topological mixture estimate (TME). The natural questions are if such an estimate exists (is the supremum attained?), is unique, and if so, how to perform TME in practice. In this paper we address these questions for the case , and we demonstrate the utility of TME in examples (see Figures 4 and 5).

Ii Related work

While density estimation enables various clustering techniques LiRayLindsay ; AzzaliniMenardi , mixture estimation is altogether more powerful than clustering: e.g., it is possible to have mixture components that significantly and meaningfully overlap. For example, a cluster with a bimodal density will usually be considered as arising from two unimodal mixture components that are of interest in their own right. In this light and in view of its totally nonparametric nature, our approach can be seen as particularly powerful, particularly when coupled with topological density estimation and deblurring/reblurring (see §VII and §VIII).

Still, even for clustering (even in one dimension, where an optimal solution to -means can be computed efficiently WangSong ; NielsenNock ; GronlundEtAl ), determining the number of clusters in data Mirkin is as much an art as a science. All of the techniques we are aware of either require some ad hoc determination to be made, require auxiliary information (e.g., TibshiraniWaltherHastie ) or are parametric in at least a limited sense (e.g., SugarJames ). While a parametric approach allows likelihoods and thus various information criteria BurnhamAnderson or their ilk to be computed for automatically determining the number of clusters, this comes at the cost of a very strong modeling assumption, and the criteria values themselves are difficult to compare meaningfully MelnykovMaitra .

These shortcomings–including determining the number of mixture components–carry over to the more difficult problem of mixture estimation. McLachlanPeel ; McLachlanRathnayake ; MelnykovMaitra As an example, an ad hoc and empirically derived unimodal mixture estimation technique that requires one of a few common functional forms for the mixture components has been recently employed in MintsHekker

. Univariate model-based mixtures of skew distributions admit EM-type algorithms and can outperform Gaussian mixture models

LinLeeHsieh ; BassoEtAl : though these generalize to the multivariate case quite effectively (see, e.g., LeeMcLachlan ), the EM-type algorithms are generically vulnerable to becoming trapped in local minima without good initial parameter values, and they require some model selection criterion to determine the number of mixture components (though the parameter learning and model selection steps can be integrated as in FigueiredoJain ). A Bayesian nonparametric mixture model that incorporates many–but not arbitrary–unimodal distributions is considered in RodriguezWalker . Principled work has been done on estimating mixtures of log-concave distributions Walther ; ChanEtAl describes how densities of discrete unimodal mixtures can be estimated. However, actually estimating generic unimodal mixtures themselves appears to be unaddressed in the literature, even in one dimension. Indeed, even estimating individual modes and their associated uncertainties or significances has only been addressed recently GenoveseEtAl ; Mukhopadhyay .

Iii Outline

Given , the “sweep” algorithm of BaryshnikovGhrist yields . We will show how to repeatedly perturb to obtain (3) using two key lemmas. The first lemma, that is convex under perturbations of that preserve , is the subject of §IV. The second lemma, a characterization of perturbations of two components of a piecewise affine and continuous (or piecewise constant) mixture that preserve the predicate (i.e., that preserve unimodality and the mixture density), is the subject of §V. Together, these results entail that greedy unimodality- and density-preserving local perturbations of pairs of mixture components converge to (3). The proof in §VI is scarcely more involved than the preceding statement once the lemmas are in hand. Next, in §VII we review the related technique of topological density estimation (TDE) before showing in §VIII how blurring and deblurring mixture estimates can usefully couple TDE and TME. Finally, in §IX we produce examples of TME in action.

Iv Convexity

The following lemma shows that is convex as we gradually shift part of one mixture component to another.

Lemma. Let . The function defined by




Proof. The statement as well as the proof of the lemma can be simplified with a bit of extra notation. Define

Now , so


Furthermore, if we write , , , and , then

It is well known that is a concave functional: from this it follows that


as claimed.

V Preserving unimodality

Suppose that is a unimodal mixture on with . We would like to determine how we can perturb two components of this mixture so that the result is still unimodal and yields the same density. In the event that the mixture is piecewise affine and continuous (or piecewise constant) the space of permissible perturbations can be characterized by the following

Lemma. For , let be such that there are integers satisfying and


(That is, is a nonnegative, nontrivial unimodal sequence.) Then for and ,


Similarly, for ,


Proof (sketch). We first sketch ((8),). Nonegativity follows from . Unimodality follows from a series of trivial checks for the cases , , , and : the remaining cases , , and follow from symmetry. For example, in the case , we only need to show that .

A sketch of ((8),) amounts to using the same cases and symmetry argument to perform equally trivial checks. For example, in the case , we have .

The proof of (9) is mostly similar to that of (8): the key difference here is that any argument adjacent to or at a point where the maximum is attained can have its value increased arbitrarily without affecting unimodality (or nonnegativity).

The example in figure 1 is probably more illuminating than filling in the details of the proof sketch above.

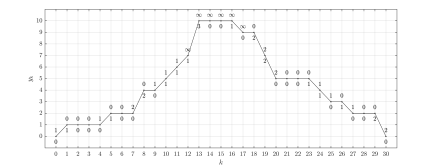

Figure 1: A unimodal sequence with unimodality-saturating perturbations respectively indicated above and below.

Vi Algorithm

Theorem. Let and be piecewise constant (or affine) over each . Then there is an efficient algorithm to compute (3).

Proof. First, compute via the “sweep” algorithm of BaryshnikovGhrist . Then, for each and pair of mixture components, compute the largest possible local perturbation of the mixture according to the lemma in §V. By the lemma in §IV, choosing a resulting maximal value of and repeating the perturbation-evaluation procedure gives the desired result in iterations. This result is unique by convexity.

Vii Topological density estimation

The obvious situation of practical interest for TME is that a density has been obtained from a preliminary estimation process involving some sample data. There is a natural approach to this preliminary estimation process called topological density estimation (TDE) Huntsman that naturally dovetails with (and as it happens, inspired) TME.

We recall the basic idea here. Given a kernel and sample data for , and for each proposed bandwidth

, we compute the kernel density estimate

Silverman ; Chen


where . Next, we compute


and estimate the unimodal category of the PDF that is sampled from via


where denotes an appropriate measure (nominally counting measure or the pushforward of Lebesgue measure under the transformation ).

That is, (12) gives the most prevalent (and usually in practice, also topologically persistent Ghrist ; Oudot ) value of the unimodal category, i.e., this is a topologically robust estimate of the number of components required to produce the PDF that is sampled from as a mixture. While any element of is a bandwidth consistent with the estimate (12), we typically make the more detailed nominal specification


TDE turns out to be very computationally efficient relative to the traditional technique of cross-validation (CV). On highly multimodal densities, TDE is competitive or at least reasonably performing relative to CV and other nonparametric density estimation approaches with respect to traditional statistical evaluation criteria. Moreover, TDE outperforms other approaches when qualitative criteria such as the number of local maxima and the unimodal category itself are considered (see Figures 2 and 3). In practice, such qualitative criteria are generally of paramount importance. For example, precisely estimating the shape of a density is generally less important than determining if it has two or more clearly separable modes.

As an illustration, consider , and the family of distributions


for and , and where here is the standard Gaussian density: see Figure 2. Exhaustive details relating to the evaluation of TDE on this family and other densities are presented in the software package and test suite BAE : here, we content ourselves with the performance data for (14) shown in Figure 3.

Figure 2: The densities in (14) for and over the interval . Rows are indexed by and columns are indexed by ; the upper left panel shows and the lower right panel shows .
Figure 3: (L) Pseudotransparency plots of performance measures relating to the unimodal category for the family (14) depicted in Figure 2 for sample points using a Gaussian kernel. Data for CV is shown in red, while data for TDE is shown in blue. Each panel represents data on a particular performance measure (left, ucat for TDE alone; middle, ucat for CV alone; right, the empirical probability that the estimate of ucat is correct) and value of (top, ; middle, ; bottom, ), with varying from 1 to 10. (R) As in the left panel, but for the number of local maxima instead of the unimodal category.

TDE has the very useful feature (shared by essentially no high-performing density estimation technique other than CV) that it requires no free parameters or assumptions. Indeed, TDE can be used to evaluate its own suitability: for unimodal distributions, it is clearly not an ideal choice–but it is good at detecting this situation in the first place. Furthermore, TDE is very efficient computationally.

In situtations of practical interest, it is tempting to couple TDE and TME in the obvious way: i.e., perform them sequentially and indepdently. This yields a completely nonparametric estimate of a mixture from sample data alone. However, there is a better way to couple these techniques, as we shall see in the sequel.

Viii Blurring and deblurring

viii.1 Blurring

Recall that a log-concave function is unimodal, and moreover that a function is log-concave iff its convolutions with unimodal functions are identically unimodal. BertinCuculescuTheodorescu ; Ibragimov ; KeilsonGerber This observation naturally leads to the following question: if , how good of an approximation to the distribution must a log-concave density be in order to have ? In particular, suppose that is a Gaussian density: what bandwidth must it have? An answer to this question of how much blurring a minimal unimodal mixture model can sustain defines a topological scale (viz., the persistence of the unimodal category under blurring) that we proceed to illustrate in light of TDE.

In this paragraph we assume that is the standard Gaussian density, so that and . Write for the bandwidth obtained via TDE, whether via the nominal specification (13) or any other: by construction we have that . Now if , then . In order to have , it must be that , i.e.,


In particular, we have the weaker inequality involving a purely topological scale:


The preceding considerations generalize straightforwardly if we define , where once again is a generic kernel. This generalizes (11) so long as we associate sample data with a uniform average of distributions. Under reasonable conditions, we can write , and it is easy to see that the analogous bound is


Of course, (17) merely restates the triviality that the blurred mixture ceases to be minimal precisely when the number of mixture components exceeds the unimodal category of the mixture density. Meanwhile, the special case furnished by TDE with the standard Gaussian kernel affords sufficient structure for a slightly less trivial statement.

viii.2 Deblurring/reblurring

The considerations of §VIII.1 suggest how to couple TDE and TME in a much more effective way than performing them sequentially and independently. The idea is to use a Gaussian kernel and instead of (13), pick the bandwidth


and then perform TME; finally, convolve the results with where


This preserves the result of TDE while giving a smoother, less artificial, and more practically useful mixture estimate than the information theoretically optimal result.

Of course, a similar tactic can be performed directly on a density by considering its Fourier deconvolution , where

denotes the Fourier transform and

is as in (17): however, any a priori justification for such a tactic is necessarily context-dependent in general, and our experience suggests that its implementation would be delicate and/or prone to aliasing. Nevertheless, this would be particularly desirable in the context of heavy-tailed distributions, where kernel density estimation requires much larger sample sizes in order to achieve acceptable results. In this context it would also be worth considering the use of a symmetric stable density ZolotarevUchaikin ; Nolan (e.g., a Cauchy density) as a kernel with the aim of recapturing the essence of (19).

Ix Examples

We present two phenomenologically illustrative examples. First, in Figure 4 we consider the waiting times between eruptions of the Old Faithful geyser from the data set in Hardle . Then, in Figure 5 we consider the Sloan Digitial Sky Survey color indices accessed from the VizieR database OchsenbeinBauerMarcout at and discussed in AnEtAl .

Figure 4: TME applied to waiting times between eruptions of the Old Faithful geyser. Left panels, from top to bottom: area plots of unimodal decompositions obtained by (top) the “sweep algorithm” of BaryshnikovGhrist on a topological density estimate with bandwidth given by (13); (second from top) the result of (3) on a topological density estimate with bandwidth given by (13); (second from bottom) the result of (3) on a topological density estimate with bandwidth given by (18); (bottom) the convolution of the mixture in the preceding panel with a Gaussian kernel with bandwidth given by (19). Note that three of the four mixture estimates have the same density, but that the deblurred density is different (this is why we have used the “*” annotation for this case). Right panels: line plots of the same decompositions.
Figure 5: TME applied to color indices from AnEtAl . Panels are otherwise as in Figure 4.

As suggested, several phenomena are readily apparent from these examples. First, mixtures obtained via the sweep algorithm are manifestly parity-dependent, i.e., the direction of sweeping matters; second, mixtures obtained via TME alone exhibit artificial anti-overlapping behavior; third, deblurring followed by reblurring preserves unimodality, the overall density, a topologically persistent invariant (viz., the unimodal category) and the spirit of information-theoretical optimality while producing an obviously better behaved mixture; fourth and finally, the various techniques involved here can significantly shift classification/decision boundaries based on the dominance of various mixture components.

While the data in Figure 4 is at least qualitatively approximated by a two-component Gaussian mixture, it is clear that a three-component Gaussian mixture cannot capture the highly oscillatory behavior of the density in Figure 5. Indeed, this example illustrates how such oscillatory behavior can actually arise from a unimodal mixture with many fewer components than might naively appear to be required.

Figure 6 shows that there are strong and independent grounds to conclude that the color index data of Figure 5 is produced by a unimodal mixture of three components, with componentwise modes as suggested by TME, and furthermore that CV undersmooths this data. For each density estimate shown, each componentwise extremum of the corresponding mixture (3) is virtually identical to one of the local extrema of the density estimate itself: this is a consequence of the anti-overlapping tendency described above.

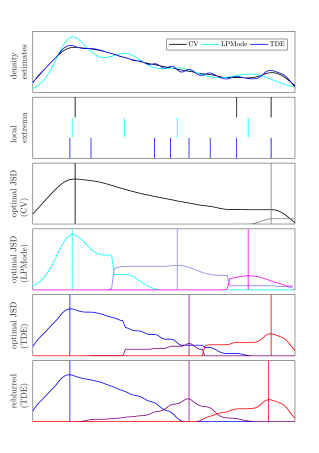

Figure 6: Structural analyses of the color index data from Figure 5. Top panel: density estimates obtained via CV, the default LPMode algorithm of Mukhopadhyay (kindly provided by its author), and TDE. Second panel from top: the local extrema of the density estimates above. Third through fifth panels from top: the result of (3) on the CV, LPMode, and topological density estimates, respectively, with extrema of components indicated. Bottom panel: the reblurred mixture from the bottom left panel of Figure 5, with extrema of components additionally indicated.
