Topic Transferable Table Question Answering

09/15/2021 ∙ by Saneem Ahmed Chemmengath, et al. ∙ ibm 0

Weakly-supervised table question-answering(TableQA) models have achieved state-of-art performance by using pre-trained BERT transformer to jointly encoding a question and a table to produce structured query for the question. However, in practical settings TableQA systems are deployed over table corpora having topic and word distributions quite distinct from BERT's pretraining corpus. In this work we simulate the practical topic shift scenario by designing novel challenge benchmarks WikiSQL-TS and WikiTQ-TS, consisting of train-dev-test splits in five distinct topic groups, based on the popular WikiSQL and WikiTableQuestions datasets. We empirically show that, despite pre-training on large open-domain text, performance of models degrades significantly when they are evaluated on unseen topics. In response, we propose T3QA (Topic Transferable Table Question Answering) a pragmatic adaptation framework for TableQA comprising of: (1) topic-specific vocabulary injection into BERT, (2) a novel text-to-text transformer generator (such as T5, GPT2) based natural language question generation pipeline focused on generating topic specific training data, and (3) a logical form reranker. We show that T3QA provides a reasonably good baseline for our topic shift benchmarks. We believe our topic split benchmarks will lead to robust TableQA solutions that are better suited for practical deployment.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Documents, particularly in enterprise settings, often contain valuable tabular information (e.g., financial, sales/marketing, HR). Natural language question answering systems over a table (or TableQA) have an additional complexity of understanding the tabular structure including row/column headers compared to the more widely-studied passage-based reading comprehension (RC) problem. Further, TableQA may involve complex questions with multi-cell or aggregate answers.

Most of the TableQA systems use semantic parsing approaches that utilizes language encoders to produce an intermediate logical form from the natural language question which is executed that over the tabular data to get the answer. While some systems Zhong et al. (2017) were fully supervised, needing pairs of questions and logical forms as training data, more recent systems Pasupat and Liang (2015); Krishnamurthy et al. (2017); Dasigi et al. (2019) rely only on the answer as weak supervision and search for a correct logical form. The current best TableQA systems Herzig et al. (2020); Yin et al. (2020) capitalize on advances in language modeling, such as BERT, and extend it to encode table representations as well. They are shown to produce excellent results on popular benchmarks such as WikiSQL Zhong et al. (2017) and WikiTableQuestions(WikiTQ) Pasupat and Liang (2015).

Party Candidate Votes
Conservatives Andrew Turner 32,717
Liberal Democrats Anthony Rowlands 19,739
Labour Mark Chiverton 11,484
UK Independence Michael Tarrant 2,352
Independent Edward Corby 551

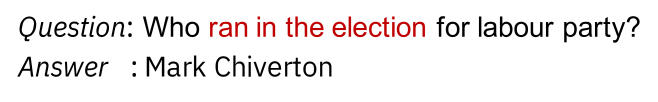

Figure 1: Topic-sensitive representations are important to infer that, in the context of the topic politics, the query span “ran in the election” should be linked to the “Candidate” column in the table.
Figure 2: Overview of the proposed T3QA framework for weakly-supervised TableQA.

With increasing prevalence of text analytics as a centrally-trained service that serves diverse customers, practical QA systems will encounter tables and questions from topics which they may not have necessarily seen during training. It is critical that the language understanding and parsing capabilities of these QA models arising from their training regime are sufficiently robust to answer questions over tables from such unseen topics.

As we show later in this paper, the existing approaches degrade significantly when exposed to questions from topics not seen during training (i.e., topic-shift).222Topic shift may be regarded as a case of domain shift studied in the ML community. However, here we refrain from referring to the proposed topic-driven splits as “domains” due to the open-domain nature of these datasets and the pre-training data used to build these models. To examine this phenomenon, we first instrument and dissect the performance of these recent systems under topic shift. In particular, we experiment with TaBERT Yin et al. (2020), which is a weakly supervised TableQA model which encodes the table and question using BERT-encoder and outputs a logical form using an LSTM decoder. In the example shown in Figure 1, topic shift may cause poor generalization for specific terminology or token usage across unseen topics.

We introduce a novel experimental protocol to highlight the difficulties of topic shift in the context of two well-known Wikipedia-based TableQA datasets: WikiSQL Zhong et al. (2017) and WikiTableQuestions Pasupat and Liang (2015). Despite recent transformer-based TableQA models being pre-trained with open-domain data, including Wikipedia itself, we observe a performance drop of 5–6% when test instances arise from topics not seen during training.

To address this challenge, we next propose a novel T3QA framework for TableQA training that leads to greater cross-topic robustness. Our approach uses only unlabeled documents with tables from the never-seen topic (which we interchangeably call the target topic), without any hand-created (question,logical form) pairs in the target topic. Specifically, we first extend the vocabulary of BERT for the new topic. Next, it uses a powerful text-to-text transfer transformer module to generate synthetic questions for the target topic. A pragmatic question generator first samples SQL queries of various types from the target topic table and transcribes them to natural language questions which is then used to finetune the TableQA model on target topic. Finally, T3QA improves the performance of the TableQA model with a post-hoc logical form re-ranker, aided by entity linking. The proposed improvements are applicable to any semantic parsing style TableQA with transformer encoders and is shown to confer generally cumulative improvements in our experiments. To the best of our knowledge, this is the first paper to tackle the TableQA problem in such a zero-shot setting with respect to target topics.

The main contributions of this work are:

  • This is the first work to address the phenomenon of topic shift in Table Question Answering systems.

  • We create novel experimental protocol on 2 existing TableQA datasets to study the effects of topic shift. (WikiSQL-TS and WikiTQ-TS)

  • We propose new methods that uses unlabeled text and tables from target topic to create TableQA models which are more robust to topic shift.

2 Related work

Topics Member sub-topics from Wikipedia WikiSQL-TS WikiTQ-TS
Train Dev Test Train Dev Test
Politics
Crime, Geography, Government, Law, Military, Policy,
Politics, Society, World
7728 1236 2314 1836 545 580
Culture
Entertainment, Events, History, Human
behavior, Humanities, Life, Culture, Mass media,
Music, Organizations
11804 1734 3198 2180 502 691
Sports Sports 26090 4016 7242 4867 1195 1848
People People 6548 861 1957 1946 420 743
Misc
Academic disciplines, Business, Concepts, Economy,
Education, Energy, Engineering, Food and Drink, Health,
Industry, Knowledge, Language, Mathematics, Mind,
Objects, Philosophy, Religion, Nature,
Science and technology, Universe
3059 395 852 1032 357 438
Table 1: Statistics of the proposed WikiSQL-TS and WikiTQ-TS benchmarks per topic.

Most TableQA systems take a semantic parsing view Pasupat and Liang (2015); Zhong et al. (2017); Liang et al. (2017) for question understanding and produce a logical form of the natural language question. Fully-supervised approaches, such as by Zhong et al. (2017) need pairs of questions and logical form for training. However, obtaining logical form annotations for questions at scale is expensive. A simpler, cheaper alternative is to collect only question-answer pairs as weak supervision Pasupat and Liang (2015); Krishnamurthy et al. (2017); Dasigi et al. (2019). Such systems search for the correct logical forms under syntactic and semantic constraints that produce the correct answer. Weak supervision is challenging, owing to the large search space that includes many possible spurious logical forms Guu et al. (2017) that may produce the target answer but not an accurate logical transformation of the natural question.

Recent TableQA systems Herzig et al. (2020); Yin et al. (2020); Glass et al. (2021) extend BERT to encode the entire table including headers, rows and columns. They aim to learn a table-embedding representation that can capture correlations between question keywords and target cell of the table. TAPAS Herzig et al. (2020) and RCI Glass et al. (2021) are designed to answer a question by predicting the correct cells in the table in a truly end-to-end manner. TaBERT Yin et al. (2020) is a powerful encoder developed specifically for the TableQA task. TaBERT jointly encodes a natural language question and the table, implicitly creating (i) entity links between question tokens and table-content, and (ii) relationship between table cells, derived from its structure. To generate the structured query, the encoding obtained from TaBERT is coupled with a memory augmented semantic parsing approach (MAPO) Liang et al. (2018).

Question generation (QG) (Liu et al., 2020; Sultan et al., 2020; Shakeri et al., 2020) has been widely explored in reading comprehension (RC) task to reduce the burden of annotating large volumes of Q-A pairs given a context paragraph. Recently, Puri et al. (2020)

used GPT-2

Radford et al. (2019) to generate synthetic data for RC, showing that synthetic data alone is sufficient to obtain state-of-art on the SQUAD1.1 dataset. For the QG task in TableQA, systems proposed by Benmalek et al. (2019); Guo et al. (2018); Serban et al. (2016) utilize the structure of intermediate logical forms (e.g., SQL) to generate natural language questions. However, none of these QG methods utilize the additional context like table headers, structure and semantics of the tables or the nuances of different possible question types like complex aggregations. To the best of our knowledge, our approach is the first to generate questions specifically for TableQA with the assistance of a logical query and large pre-trained multitask transformers.

Domain adaptation approaches in QA (Lee et al., 2019; Ganin et al., 2016) have so far mostly used adversarial learning with an aim to identify domain agnostic features, including in RC applications Wang et al. (2019); Cao et al. (2020). However, for the TableQA systems using BERT-style language models with vast pre-training, topic shifts remain an unexplored problem.

3 T3QA framework

To our knowledge, this is the first work to explore TableQA in unseen topic setting. Consequently, no public topic-sliced TableQA dataset is available. We introduce a topic-shift benchmark by creating new splits in existing popular TableQA datasets: WikiSQL Zhong et al. (2017) and WikiTQ Pasupat and Liang (2015). The benchmark creation process is described in Section 3.1. Then, we introduce the proposed framework (illustrated in Figure 2) to help TableQA system cope with topic shift. Section 3.2 describes the topic specific vocabulary extension for BERT, followed by Question Generation in target topic in Section 3.3 and reranking logical forms in Section  3.4.

3.1 TableQA topic-shift benchmark

To create a topic-shift TableQA benchmark out of existing datasets, topics have to be assigned to every instance. Once topics are assigned, we create train-test splits with topic shift. I.e., train instances and test instances come from non-overlapping sets of topics. TableQA instances are triplets of the form {table, question, answer}. For the datasets WikiSQL and WikiTQ, these tables are taken from Wikipedia articles. WikiSQL has 24,241 tables taken from 15,258 articles and WikiTQ has 2,108 tables from 2,104 articles.

The Wikipedia category graph (WCG) is a dense graph organized in a taxonomy-like structure. For the Wikipedia articles corresponding to tables in WikiSQL and WikiTQ, we found that they are connected to 16000+ categories in WCG on an average. Among the Wikipedia Category:Main topic articles, Wikipedia articles were connected to 38+ out of 42 categories in WCG.

We use category information from Wikipedia articles to identify topics for each of the article and then transfer those topics to the corresponding tables. The main steps are listed below; details can be found in Appendix B.

  • [nosep,leftmargin=*]

  • We identify 42 main Wikipedia categories.

  • For each table, we locate the Wikipedia article containing it.

  • From the page, we follow category ancestor links until we reach one or more main categories.

  • In case of multiple candidates, we choose one based on the traversed path length and the number of paths between the candidate and the article.

We cannot take an arbitrary subset of topics for train and the rest for test split to create a topic-shift protocol, because many topics are strongly related to others. For example, topic Entertainment is more strongly related to Music than to Law. To avoid this problem, we cluster these Wikipedia main topics into groups such that similar topics fall in the same group. Using a clustering procedure described in Appendix B, we arrive at 5 high-level topic groups: Politics, Culture, Sports, People and Miscellaneous.

Table 1 gives the membership of each topic group and the number of instances in WikiSQL and WikiTQ dataset per topic. For ease of discussion, we will be calling the five topic groups as topics from now on. For both datasets, we create five leave-one-out topic-shift experiment protocols where in each topic becomes the test set, called the target topic and the rest four the training set is called the source topic(s).

In our protocol, for training, apart from the instances from source topic, we also provide tables and document from the target topic. Documents are the text crawled from the target topic articles from Wikipedia. Collecting unlabeled tables and text data for a target topic is inexpensive. We name these datasets WikiSQL-TS (WikiSQL with topic shift) and WikiTQ-TS.

3.2 Topic specific BERT vocabulary extension

Sub word segmentation in BERT has a potential risk of segmenting named entities or in general unseen words in the target corpus. Vocabulary extension ensures that topic specific words are encoded in entirety and avoids splitting into sub-words. Our goal is to finetune BERT with extended vocabulary on topic specific target corpus to learn topic sensitive contextual representation. So we add frequent topic-specific words to encourage the BERT encoder to learn better topic sensitive representation, which is crucial for better query understanding and query-table entity linking.

3.3 Table-question generation

In our proposed topic-shift experiment protocol with the training set from source topic, unlabeled tables and free text from target topic are provided in the training phase. We propose to use tables from the target topic to generate synthetic question-answer pairs and use these augmented instances for training the TableQA model. Unlike question generation from text, a great deal of additional control is available when generating questions from tables. Similar to Guo et al. (2018), we first sample SQL queries from a given table, and then use a text-to-text transformers (T5) Raffel et al. (2020) based sequence-to-sequence model to transcribe the SQL query to a natural language question.

algocf[!h]

3.3.1 SQL sampling

For generating synthetic SQL queries from a given table T, we have designed a focused and controllable SQL query generation mechanism presented in Algorithm LABEL:algo:sqlgen. Our approach is similar to Zhong et al. (2017) but unlike the existing approaches, we use guidance from target query syntax to offer much more control over the type of natural language questions being generated. We also use additional context such as table header, target answer cell to help the model generate more meaningful questions suitable for T3QA

. We sample the query type (simple retrieval vs. aggregations) and associated where clauses from a distribution that matches the prior probability distribution of training data, if that is available. Sampling of query type and number of where clauses is important to mitigate the risk of learning a biased model that cannot generalize for more complex queries with more than 2 where clauses, as reported by

Guo et al. (2018).

The generated SQL queries are checked for various aspects of semantic quality, beyond mere syntactic correctness in typical rule based generations. WikiSQL has a known imitation: even an incorrect SQL query can produce the same answer as the gold SQL query. To avoid such cases, we make two important checks: (1) The WHERE clauses in the generated SQL queries must all be mandatory to produce the correct answer. i.e., dropping a WHERE clause should not produce the expected answer and (2) a generated SQL query with an aggregation must have at least 2 rows to aggregate on and therefore, dropping the aggregation will not produce the expected answer. These quality checks ensure that the generated synthetic SQL queries are fit to be used in TableQA training pipeline.

Figure 3: Generating synthetic questions on target topics using only tables. Special tokens are shown in colored font.
Type Ground truth SQL Generated Question Ground truth question
SELECT Rounds WHERE Chassis = b195 What round has a car with a b195 chassis? Which rounds had the B195 chassis?
Lookup SELECT College WHERE Player = Paul Seiler What college does Paul Seiler play for? What college has Paul Seiler as a player?
SELECT Date WHERE Attendance > 20,066 AND Home = Tampa Bay On what date was the attendance more than 20,066 at Tampa Bay? When has an Attendance larger than 20,066 in tampa bay?
SELECT SUM(Attendance) WHERE Date = May 31 How many people attended the May 31 game? How many people attended the game on May 31?
Aggregate SELECT MAX(Mpix) WHERE Aspect Ratio = 2:1 AND Height < 1536 AND Width < 2048 What is the highest Mpix with an Aspect Ratio of 2:1, a Height smaller than 1536, and a Width smaller than 2048? What camera has the highest Mpix with an aspect ratio of 2:1, a height less than 1536, and a width smaller than 2048?
SELECT AVG(Score) WHERE Player = Lee Westwood What is Lee Westwood’s average score? What is the average score with lee westwood as the player?
Table 2: Ground truth SQL queries with generated questions (using T5 based QG module) and gold questions
Operation Sampled SQL Generated Question
SELECT SELECT Production code WHERE Written by = José Rivera what is the production code for the episode written by José rivera?
SELECT Average WHERE Rank by average > 3 AND Number of dances=17 what is the average for a rank by average larger than 3 and 17 dances?
MAX SELECT MAX(SEATS) WHERE Kit/Factory = Factory can you tell me the highest seats that has the kit/factory of factory?
SELECT MAX(YEAR) WHERE WINS = 70 AND Manager = Jim Beauchamp what is the most recent year of the team with 70 wins and manager Jim Beauchamp?
MIN SELECT MIN(Rank) WHERE Nationality = RUS which rank is the lowest one that has a nationality ofrus?
SELECT MIN(Televote Points) WHERE Panel Points = 0 which Televote points is the lowest one that has panels pointss of 0?
SUM SELECT SUM(Game) WHERE Team = Baltimore what is the sum of game, when team is Baltimore?
SELECT SUM(Division) WHERE Year < 2011 AND Playoffs = Did not qualify what is the total number of division(s), when year is less than 2011, and when playoffs did not qualify?
AVG SELECT AVG(Digital PSIP) WHERE Network = Omni Television which digital PSIP has a network of Omni television?
SELECT AVG(Attendance) WHERE Week < 5 what was the average attendance before week 5?
Table 3: Synthetic questions generated on sampled SQLs with SELECT and various aggregate functions on WikiSQL-TS tables. Observe that the quality of questions is generally better with SELECT operation than aggregate ones. The reason for this might be that the data used to train QG module includes more SELECT questions.

3.3.2 T5 transfer learning for QG

For question generation in the TableQA setup, it is more intuitive to create SQL queries first and then use the structure of the SQL query to translate it to a natural language question. Previously, Guo et al. (2018) and Benmalek et al. (2019) used LSTM-based sequence to sequence models for direct question generation from tables. However, we hypothesize that apart from SQL queries, using answers and column headers with the help of transformer based models, can be more effective.

For our question generation module we have used unified text-to-text transformers (T5) Raffel et al. (2020), which is popular for its constrained text generation capabilities for multiple tasks such as translation and summarization. To leverage this capability of T5 for generating natural language questions from SQL queries, we encode a SQL query in a specific text format. We also pass the answer of the SQL query and the column headers of table to T5 as we observe that using these two sets of extra information along with the SQL query helps in generating better questions, especially with "Wh" words. As illustrated in Figure 3, the generated SQL query with answer and column headers are encoded into a specific sequence before passing onto T5 model. Special separator tokens are used to demarcate different parts of the input sequence: [S] to specify the main column and operation, [W] demarcates elements in a WHERE clause, [A] marks the answer, [C] and [CS] show the beginning of set of column headers and separation between them, respectively.

In this example, one can observe that although the SQL query do not have any term on day or date, our QG module was able to add “What day”. Furthermore, ill-formed and unnatural questions generated by T5 model are filtered out using a pretrained GPT-2 model Radford et al. (2019). We removed questions with the highest perplexity scores before passing the rest to the TableQA training module.

For training the QG module, we use SQL queries and questions provided with the WikiSQL dataset. In our experiments, only query+question pairs from the source topics are used to train the question generation module and synthetic questions are generated for the target topic.

We are able to produce high-quality questions using this T5 transcription. Table 2 shows a few example of generated questions from ground truth SQL and Table 3 on sampled SQLs. Observe that the model is able to generate lookup questions, multiple conditions, and aggregate questions of high quality. It is interesting to see that for the first example in Table 2, T5 model included the term car

in the question even though it was not available in the SQL query, probably taking the clue from

chassis. Some questions created from sampled SQLs for WikiTQ tables is provided in Appendix C.

3.4 Reranking logical forms

We analysed the logical forms predicted by TaBERT model in WikiSQL-TS and observed that the top logical forms often do not have the correct column headers and cell values. In fact, in WikiSQL-TS there is a 15–20% greater chance of finding a correct prediction from the top-5 predicted logical form than the top 1.

We propose to use a classifier, Gboost

Friedman (2002) to rerank the predicted top-5 logical form. Given a logical form and table-question pair we create a set of features on which a classifier is trained to give higher score to the correct logical form.

The logical form-question pair which gives the correct prediction is labelled as +ve and wrong predictions as -ve. We use the predicted logical forms for source topic dev set to train this classifier and in the inference step while predicting for target topic, the logical form which got highest score by the classifier is selected.

3.4.1 Features for logical form reranker

Two sets of features are extracted for the reranker: (1) entity linking based features, (2) logical form based features.

Entity linking based features: This captures matches between query fragments and table elements. Our system of entity linking using string matching also finds partial matches. Partial matches happen when only a part of column name or cell value appear in the question. Another scenario is when token in the question partially matches with multiple entities in the table. We create three feature separately for cell values and column headers.
Number of linked entities in logical form which appear partially or fully in question.
Sum of ratio of tokens matched with entities in logical form. If the questions has word States and corresponding entity in table is United States, then the ratio would be 0.5.
Sum of a measure of certainty in entity linking. if the question token partially matches with multiple entities in table then certainty is less. If the question has word United and there are three entities in the table United Kingdom, United States and United Arab Emirates, then we assign certainty score as 1/3.

Only logical form features:
Probability score of logical form given by the TableQA model
Length of answer obtained by using this logical form. Length here doesn’t mean the number of characters but number of cells in prediction.
If ‘count’ is present in the logical form
If ‘select’ is present in the logical form
Number of where clauses.
If columns are repeated in the logical form.

4 Experiments and Analysis

Here we describe key details of the experimental setup, the models compared and evaluation techniques. We also provide a thorough analysis of the results to highlight the key takeaways.

4.1 Setup

We consider WikiSQL-TS and WikiTQ-TS for our experiments with topic assignments as described in Section 3.1. The larger WikiSQL-TS dataset consists of tables, questions and corresponding ground truth SQL queries, whereas WikiTQ-TS contains only natural language questions and answers. The five topics are 1) Politics 2) Culture 3) Sports 4) People and 5) Miscellaneous. Table 1 captures some interesting statistics about the topic split benchmark created from WikiSQL. All experiments are conducted in a leave-one-out (LOO) fashion where the target topic examples are withheld. For example, if the target topic is Politics then the model is trained using the train set and dev set of Culture, Sports, People, Misc and evaluated on test set of Politics. Further, a composite dev set is curated by adding equal number of synthetically generated questions from the target topic to the dev set of source topics.

4.2 Models

We perform all experiments using a variant of TaBERT+MAPO333https://tinyurl.com/cveejzr6  architecture, with the underlying BERT model initialized with bert-base-uncased. TaBERT+MAPO uses standard BERT as table-question encoder and MAPO Liang et al. (2018) as the base semantic parser. +MAPO uses topic specific pre-trained BERT encoder (as described in section 3.2). Similar to the base model, this model use MAPO as the base semantic parser. TaBERT+MAPO+QG uses an extended training set with question answer pairs generated from the proposed QG model to train the TaBERT+MAPO model. +MAPO+QG uses an initialized BERT encoder parameters with topic specific pre-trained BERT and add question-answer pairs generated by our QG model to train the +MAPO model.

Topic TaBERT TaBERT
TaBERT
+QG
TaBERT
+QG
TaBERT
+QG
+Reranker
Politics 61.71 64.95 64.26 66.12 70.22
Culture 64.89 66.10 69.32 69.88 72.63
Sports 62.10 62.70 63.03 63.83 66.5
People 60.34 61.93 63.10 66.27 70.87
Misc 61.85 59.03 64.31 64.43 69.60
Table 4: Performance on WikiSQL-TS benchmark. Here, TaBERT means TaBERT+MAPO and TaBERT means TaBERT+MAPO. All numbers are in %.

Table Question Generation (QG): We use the T5 implementation of Wolf et al. (2019) for question generation, intialized with t5-base and finetuned using SQL and corresponding questions from WikiSQL dataset. To ensure that the target topic is not leaked through the T5 model, we trained five topic-specific T5 models, one for each leave-one-out group by considering only SQL-question pairs from the source topic only. As WikiTQ-TS does not have ground truth SQL queries included in the dataset, we use T5 trained on WikiSQL-TS to generate synthetic questions. We use a batch-size of 10 with a learning rate of .

Implementation details: We build upon the existing code base for TaBERT+MAPO  released by Yin et al. (2020) and use as the encoder for tables and questions. We use topic-specific vocabulary (explained in Section 3.2

) for BERT’s tokenizer and train it using MLM (masked language model) objective for 3 epochs with

=0.15 chance of masking a topic-specific high frequency (occurring more than 15 times in target topic corpus) token . We optimize BERT parameters using Adam optimizer with learning rate of .

All numbers reported are from the test fold, fixing system parameters and model selection with best performance on the corresponding composite dev set. Further details and the dataset are provided in the supplementary material.

Topic Number of WHERE clauses
1 2 3 4
Politics 2.11 12.24 6.66 15.00
Culture 0.85 8.93 4.89 5.00
Sports 0.96 6.81 5.20 -3.89
People 1.65 9.52 11.03 6.25
Misc 1.71 13.00 10.00 33.34
Table 5: Change in performance in WikiSQL-TS after applying Reranker to TaBERT+MAPO+QG, across number of WHERE clauses. All numbers are in absolute %.
Topic
TaBERT+MAPO +MAPO+QG+Reranker
overall select count min max sum avg overall select count min max sum avg
Politics 61.71 62.82 66.17 53.28 58.64 46.26 60.21 70.22 73.90 60.59 70.98 56.57 56.71 65.59
Culture 64.89 64.47 70.62 62.74 65.56 62.66 60.71 72.63 74.50 65.01 69.53 69.93 64.0 63.09
Sports 62.10 61.60 57.16 69.55 72.09 54.14 62.07 66.5 67.06 45.45 78.85 74.39 67.15 69.41
People 60.34 59.10 66.92 60.71 69.56 50.72 73.33 70.87 72.55 60.0 72.82 65.17 60.86 73.33
Misc 61.85 60.8 65.0 72.34 76.19 44.82 55.17 69.60 69.76 66.25 95.23 74.46 44.82 51.72
Table 6: Performance on WikiSQL Topic specific benchmark across various question types. The largest group, select, is shown in bold. Largest improvement is shown as . All numbers are in absolute %.

4.3 Results and Analysis

WikiSQL-TS: +MAPO improves over TaBERT+MAPO for four out of five test topics by an average of 1.66%, showing the advantage of vocabulary extension (Table 4). In addition to supplying the topic-specific sense of vocabulary, fine tuning also avoids introducing word-pieces that adversely affect topic-specific language understanding. For instance, for the topic culture the whole word ‘rockstar’ is added to the vocabulary rather than the word-pieces ‘rocks’, ‘##tar’. We implement vocabulary extension by using the 1000 placeholders in BERT’s vocabulary, accommodating high frequency words from the target topic corpus .

Further, TaBERT+MAPO+QG significantly outperforms TaBERT+MAPO and also +MAPO when finetuned with target topic samples obtained from QG (after careful filtering). In WikiSQL-TS, QG also improves the performance of +MAPO, though relevant vocabulary was already added to BERT, suggesting additional benefits of QG in T3QA framework. While vocabulary extension ensures topical tokens are encoded, QG improves implicit linking between question and table header tokens within the joint encoding of question-table. The largest improvement of 10.53% and 7.74% is obtained for People and Culture respectively. Moreover, TaBERT+MAPO+QG  out-performs an in-topic performance of 64.07% and 67% with 66.27% and 69.88% (details in Appendix D), showing that the unseen topic performance can be substantially improved with only auxiliary text and tables from documents without explicitly annotated table, question, and answer tuples.

As mentioned, Misc is a topic chimera with a mixed individual statistics, hence an explicit injection of frequent vocabulary does not significantly improve +MAPO over TaBERT+MAPO. However, TaBERT+MAPO+QG outperforms +MAPO by 5.4% due to QG, suggesting that the improvement from both methods are disjoint. Further, Question generation, though conditioned on the table and topic specific text is not supplied with the topic vocabulary. We also observe that the composite dev set with 50% real questions and 50% questions generated on tables from target topic improves performance. Tables 4 & 5 take the advantage of ground truth SQL queries to further dissect the performance along question types and number of WHERE clauses.

Topic TaBERT TaBERT
TaBERT
+QG
TaBERT
+QG
TaBERT
+QG
+Reranker
Politics 40.52 41.03 41.55 41.38 43.79
Culture 36.03 38.49 38.49 37.05 39.50
Sports 37.55 37.5 37.93 39.12 41.50
People 35.94 37.69 37.42 36.61 39.30
Misc 38.58 40.64 41.10 40.18 42.23
Table 7: Performance on WikiTQ-TS benchmark. Here, TaBERT means TaBERT+MAPO and TaBERT means TaBERT+MAPO. All numbers are in %.

Number of Where clauses: As described previously, performance of TaBERT+MAPO is substantially affected by the number of WHERE clauses in the ground truth logical form (also observed by Guo et al. (2018)), see Appendix A. Table 5, shows that performance improvement by “Reranker" is significantly higher for more than 1 WHERE clause. This might have happened because TaBERT+MAPO  prefers to decode shorter logical forms, whereas the reranker prioritizes logical forms with more linked entities present from the question.

WikiSQL question types: Table 4 breaks down the performance of TaBERT+MAPO+QG  based on the question types labels obtained from the dataset ground truth only for analysis. The improvement, viewed from the lens of question types is more significant with average gain in SELECT-style queries at 9.76%. Aggregate (count, min/max, sum, avg) questions are more challenging to generate as the answer is not present in the table. Consequently, the performance improvement with QG is less significant for these question types.

WikiTQ-TS: WikiTQ-TS is a smaller dataset and contains more complex questions (negatives, implicit nested query) compared to WikiSQL-TS. Correspondingly, there is also less topic specific text to pretrain the TaBERT encoder. Despite these limitations, we observe in Table 7 that TaBERT with vocabulary extension and pretraining shows overall improvement. We resort to using synthetic questions generated from QG model of WikiSQL-TS, due to unavailability of ground truth SQL queries in WikiTQ. Hence, the generated questions are often different in structure from the ground truth questions. Samples of real and generated questions are in Table 8 of Appendix C. Despite this difference in question distribution we see TaBERT+QG consistently performs better than the baseline. We provide an analysis of the perplexity scores from TaBERT and TaBERT on the generated questions in Appendix G. Ultimately, the proposed T3QA framework significantly improves performance in all target domains.

5 Conclusion

This paper introduces the problem of TableQA for unseen topics. We propose novel topic split benchmarks over WikiSQL and WikiTQ and highlight the drop in performance of TaBERT+MAPO, even when TaBERT is pretrained on a large open domain corpora. We show that significant gains in performance can be achieved by (i) extending the vocabulary of BERT with topic-specific tokens (ii) fine-tuning the model with our proposed constrained question generation which transcribes SQL into natural language, (iii) re-ranking logical forms based on features associated with entity linking and logical form structure. We believe that the proposed benchmark can be used by the community for building and evaluating robust TableQA models for practical settings.

References

  • R. Benmalek, M. Khabsa, S. Desu, C. Cardie, and M. Banko (2019) Keeping notes: conditional natural language generation with a scratchpad encoder. In Proceedings of the 57th Annual Meeting of the Association for Computational Linguistics, pp. 4157–4167. Cited by: §2, §3.3.2.
  • Y. Cao, M. Fang, B. Yu, and J. T. Zhou (2020) Unsupervised domain adaptation on reading comprehension. External Links: 1911.06137 Cited by: §2.
  • P. Dasigi, M. Gardner, S. Murty, L. Zettlemoyer, and E. Hovy (2019) Iterative search for weakly supervised semantic parsing. In Proceedings of the 2019 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, Volume 1 (Long and Short Papers), Minneapolis, Minnesota, pp. 2669–2680. External Links: Link, Document Cited by: §1, §2.
  • I. S. Dhillon (2001) Co-clustering documents and words using bipartite spectral graph partitioning. In Proceedings of the seventh ACM SIGKDD international conference on Knowledge discovery and data mining, pp. 269–274. Cited by: Appendix B.
  • J. H. Friedman (2002)

    Stochastic gradient boosting

    .
    Computational statistics & data analysis 38 (4), pp. 367–378. Cited by: §3.4.
  • Y. Ganin, E. Ustinova, H. Ajakan, P. Germain, H. Larochelle, F. Laviolette, M. Marchand, and V. Lempitsky (2016)

    Domain-adversarial training of neural networks

    .
    External Links: 1505.07818 Cited by: §2.
  • M. Glass, M. Canim, A. Gliozzo, S. Chemmengath, V. Kumar, R. Chakravarti, A. Sil, F. Pan, S. Bharadwaj, and N. R. Fauceglia (2021) Capturing row and column semantics in transformer based question answering over tables. In Proceedings of the 2021 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, pp. 1212–1224. Cited by: §2.
  • D. Guo, Y. Sun, D. Tang, N. Duan, J. Yin, H. Chi, J. Cao, P. Chen, and M. Zhou (2018) Question generation from sql queries improves neural semantic parsing. In

    Proceedings of the 2018 Conference on Empirical Methods in Natural Language Processing

    ,
    pp. 1597–1607. Cited by: §2, §3.3.1, §3.3.2, §3.3, §4.3.
  • K. Guu, P. Pasupat, E. Z. Liu, and P. Liang (2017)

    From language to programs: bridging reinforcement learning and maximum marginal likelihood

    .
    External Links: 1704.07926 Cited by: §2.
  • J. Herzig, P. K. Nowak, T. Müller, F. Piccinno, and J. M. Eisenschlos (2020) TAPAS: weakly supervised table parsing via pre-training. External Links: 2004.02349 Cited by: §1, §2.
  • J. Krishnamurthy, P. Dasigi, and M. Gardner (2017) Neural semantic parsing with type constraints for semi-structured tables. In Proceedings of the 2017 Conference on Empirical Methods in Natural Language Processing, Copenhagen, Denmark, pp. 1516–1526. External Links: Link, Document Cited by: §1, §2.
  • S. Lee, D. Kim, and J. Park (2019) Domain-agnostic question-answering with adversarial training. External Links: 1910.09342 Cited by: §2.
  • C. Liang, J. Berant, Q. Le, K. Forbus, and N. Lao (2017)

    Neural symbolic machines: learning semantic parsers on freebase with weak supervision

    .
    In Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pp. 23–33. Cited by: §2.
  • C. Liang, M. Norouzi, J. Berant, Q. V. Le, and N. Lao (2018) Memory augmented policy optimization for program synthesis and semantic parsing. In Advances in Neural Information Processing Systems, pp. 9994–10006. Cited by: §2, §4.2.
  • B. Liu, H. Wei, D. Niu, H. Chen, and Y. He (2020) Asking questions the human way: scalable question-answer generation from text corpus. Proceedings of The Web Conference 2020. External Links: ISBN 9781450370233, Link, Document Cited by: §2.
  • P. Pasupat and P. Liang (2015) Compositional semantic parsing on semi-structured tables. External Links: 1508.00305 Cited by: §1, §1, §2, §3.
  • R. Puri, R. Spring, M. Patwary, M. Shoeybi, and B. Catanzaro (2020) Training question answering models from synthetic data. External Links: 2002.09599 Cited by: §2.
  • A. Radford, J. Wu, R. Child, D. Luan, D. Amodei, and I. Sutskever (2019) Language models are unsupervised multitask learners. OpenAI blog 1 (8), pp. 9. Cited by: §2, §3.3.2.
  • C. Raffel, N. Shazeer, A. Roberts, K. Lee, S. Narang, M. Matena, Y. Zhou, W. Li, and P. J. Liu (2020)

    Exploring the limits of transfer learning with a unified text-to-text transformer

    .
    External Links: 1910.10683 Cited by: §3.3.2, §3.3.
  • I. V. Serban, A. Garcia-Duran, C. Gulcehre, S. Ahn, S. Chandar, A. Courville, and Y. Bengio (2016)

    Generating factoid questions with recurrent neural networks: the 30m factoid question-answer corpus

    .
    In Proceedings of the 54th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pp. 588–598. Cited by: §2.
  • S. Shakeri, C. N. dos Santos, H. Zhu, P. Ng, F. Nan, Z. Wang, R. Nallapati, and B. Xiang (2020) End-to-end synthetic data generation for domain adaptation of question answering systems. External Links: 2010.06028 Cited by: §2.
  • M. A. Sultan, S. Chandel, R. Fernandez Astudillo, and V. Castelli (2020) On the importance of diversity in question generation for QA. In Proceedings of the 58th Annual Meeting of the Association for Computational Linguistics, Online, pp. 5651–5656. External Links: Link, Document Cited by: §2.
  • H. Wang, Z. Gan, X. Liu, J. Liu, J. Gao, and H. Wang (2019) Adversarial domain adaptation for machine reading comprehension. In Proceedings of the 2019 Conference on Empirical Methods in Natural Language Processing and the 9th International Joint Conference on Natural Language Processing (EMNLP-IJCNLP), Hong Kong, China, pp. 2510–2520. External Links: Link, Document Cited by: §2.
  • T. Wolf, L. Debut, V. Sanh, J. Chaumond, C. Delangue, A. Moi, P. Cistac, T. Rault, R. Louf, M. Funtowicz, et al. (2019) HuggingFace’s transformers: state-of-the-art natural language processing. ArXiv, pp. arXiv–1910. Cited by: §4.2.
  • P. Yin, G. Neubig, W. Yih, and S. Riedel (2020) TaBERT: pretraining for joint understanding of textual and tabular data. In Annual Conference of the Association for Computational Linguistics (ACL), External Links: Link Cited by: §1, §4.2.
  • P. Yin, G. Neubig, W. Yih, and S. Riedel (2020) TaBERT: pretraining for joint understanding of textual and tabular data. External Links: 2005.08314 Cited by: Appendix F, §1, §2.
  • T. Zesch and I. Gurevych (2007) Analysis of the wikipedia category graph for nlp applications. In Proceedings of the Second Workshop on TextGraphs: Graph-Based Algorithms for Natural Language Processing, pp. 1–8. Cited by: Appendix B.
  • V. Zhong, C. Xiong, and R. Socher (2017) Seq2SQL: generating structured queries from natural language using reinforcement learning. External Links: 1709.00103 Cited by: §1, §1, §2, §3.3.1, §3.

Appendix A TaBERT performance on WikiSQL

We analyse accuracy of TaBERT model on WikiSQL in terms of the number of WHERE clauses, which are skewed as shown in Fig.

4(a). In Fig. 4(b), we observe that accuracy decreases when ground truth SQL has a larger number of WHERE clauses. Interestingly, we observe in Fig. 4(c) and (d) that even though the model achieves 30% to 40% accuracy for 2–4 WHERE clauses, the predicted logical form still produced one WHERE clause. This shows that, for many questions, wrong or incomplete logical forms can produce correct answers.

Figure 4: WHERE clause analysis on TaBERT+MAPO performance on SELECT questions in WikiSQL test set (not topic shift): (a) Frequency of questions in different number of WHERE clauses buckets; (b) Accuracy achieved in each WHERE bucket; (c) Average number of conditions in predicted logical forms; (d) Average number of conditions in predicted logical forms which produces correct answers.

Appendix B Topic-shift benchmark details

Continuing from Section 3.1, this section provides more details about the creation of the topic shift benchmark datasets. Each Wikipedia article is tagged with a set of categories and each category is further tagged with a set of parent categories, and those to their parent categories, and so on. The whole set of Wikipedia categories are organized in a taxonomy-like structure called Wikipedia Category Graph (WCG) Zesch and Gurevych (2007). These categories range from specific topics such as "Major League Soccer awards" to general topics such as "Human Nature". To have categories of similar granularity, we use the 42 categories listed in Wikipedia Category:Main topic articles444https://w.wiki/458k as topics.

To assign a unique category to a Wikipedia article, we proceed as follows:

For each Table , we extract the Wikipedia Article which contains Table .
We start with the category of and traverse the hierarchical categories till we reach one (or more) of the 42 categories listed in Wikipedia Category:Main topic articles.
If multiple main topic categories can be reached from , we take the category which is reached via the shortest path (in terms of number of hierarchical categories traversed from ) and assign that as the category for table .
If there are multiple main topic categories which can be reached with the same length of shortest path, we consider the number of different paths between the main topic category and as the tie breaker to assign the topic for .

Now we describe the method used to cluster categories into topics. For every article we identify five categories closest to the article in Wikipedia Category Graph. We then compute the Jaccard similarity between two topics as the ratio of number of common articles between topics (in the first-5 list) to the total number of articles assigned to both topic. Using this similarity, we apply spectral co-clustering Dhillon (2001) to form five topic groups.

To verify the coherence of the five topic groups, we performed a vocab overlap exercise. For questions in WikiTQ, we find the 100 most frequent words in the test set of each of the topics. Then we measure how many of these frequent words appeared in the train set of each of these topics. Table 9 shows the that word overlap is large within clusters.

Test/Train Politics Culture Sports People Misc
Politics 88 73 74 72 64
Culture 79 87 89 85 69
Sports 67 72 100 81 50
People 66 78 88 93 55
Misc 74 73 74 72 68
Table 9: Percent vocabulary match within and across topics (category groups/clusters).

Appendix C Questions generation for target topics

Table 8 compares ground truth questions with that of generated questions for the same table from WikiSQL-TS. One can see that even template of questions in real dataset is very different and often tougher than the generated ones. Question generator being trained on WikiSQL-TS dataset with much simple questions might be the reason for this phenomenon.

Appendix D Performance when topics are seen

We further analyse the performance of the model in both seen-topic training (when the topic specific train set is available), against the unseen topic train (when the topic specific train set is not used during training). In Table 10, we present results in both training setups.

Topic Seen Topic Unseen Topic
Politics 65.52 61.71
Culture 67.26 64.88
Sports 63.14 62.10
People 64.07 60.34
Misc 63.14 61.85
Table 10: Drop in performance due to topic shift in WikiSQL-TS. (Numbers are percentages.)

Appendix E Additional Experiments

Table 11 shows the absolute values corresponding to Table 6. in the paper. The performance of both models is lower for questions with larger WHERE clauses. Table 12 summarizes the answer accuracy of TaBERT+MAPO +QG +Reranker and TaBERT+MAPO across number of where clauses in the ground truth logical forms.

Topic Number of WHERE clauses
1 2 3 4
Politics 75.78/73.67 58.36/46.12 51.66/45.0 40.0/25.0
Culture 77.52/76.67 61.23/52.30 52.44/47.55 55.0/50.0
Sports 71.26/70.30 57.62/50.81 56.26/51.06 48.05/51.94
People 77.61/75.96 61.37/51.85 58.82/47.79 25.0/18.75
Misc 75.17/73.46 57.0/44.0 54.0/44.0 66.67/33.33
Table 11: WikiSQL-TS  performance for TaBERT+MAPO +QG+Reranker and TaBERT+MAPO+QG (seperated by ‘/’) across number of WHERE clauses in the ground truth logical forms. All numbers are in %.
Topic Number of WHERE clauses
1 2 3 4
Politics 75.78/67.61 58.36/46.94 51.66/48.33 40.0/40.0
Culture 77.52/71.36 61.23/46.46 52.44/51.05 55.0/35.0
Sports 71.26/67.78 57.62/50.66 56.26/53.9 48.05/44.16
People 77.61/69.55 61.37/44.62 58.82/45.59 25.0/37.5
Misc 75.17/70.58 57.0/40.5 54.0/46.0 66.67/66.67
Table 12: WikiSQL-TS performance for TaBERT+MAPO +QG +Reranker and TaBERT+MAPO (separated by ‘/’) across number of WHERE clauses in the ground truth logical forms.

Appendix F Training details

We train all TaBERT+MAPO  variants for 10 epochs on 4 Tesla V100 GPUs using mixed precision training555https://github.com/NVIDIA/apex

. For training TaBERT+MAPO , we set batch size to 10, number of explore samples 10 and other hyperparameters are kept same as

Yin et al. (2020). We build upon codebase666https://github.com/pcyin/pytorch_neural_symbolic_machines released by Yin et al. (2020). The hyper-parameters (where not mentioned explicitly) are the same are the original code. We include all the data splits and predictions from our best model as supplementary material with the paper. These will be released publicly upon acceptance. The experimentation requires for 5 topics, we performed 6 variations of the model. We performed search over 4 sets of hyper-parameters, primarily on the composition of generated vs. real questions.

Appendix G TaBERT vs. TaBERT perplexity of generated questions for WikiTQ-TS

We compute the perplexity scores over a subset of 50 generated questions used in the experiments using both TaBERT and TaBERT language models. Note that TaBERT is pretrained on large open domain set whereas TaBERT was further fine-tuned on topic specific documents closely related to the tables of target domain. As shown in Table 13, the average perplexity score from TaBERT is larger than TaBERT. This indicates that the generated questions are not aligned to the topic in the case of WikiTQ-TS. This is due to the lack of any training examples for specific to the dataset, as mentioned in Section 4.3. Future work on topic-specific question generation may address this issue.

Topic TaBERT TaBERT
Politics 1.088 1.112
Culture 1.099 1.142
Sports 1.084 1.134
People 1.109 1.164
Misc 1.104 1.153
Table 13: The average perplexity scores of a subset of generated questions from TaBERT and TaBERT for WikiTQ-TS

We suspect that this might be the reason why TaBERT+QG does not outperform TaBERT+QG in the case of WikiTQ-TS (Table 7). However, we obtain best performance via the overall T3QA framework.
