Three dimensional blind image deconvolution for fluorescence microscopy using generative adversarial networks

04/19/2019
by   Soonam Lee, et al.
0

Due to image blurring image deconvolution is often used for studying biological structures in fluorescence microscopy. Fluorescence microscopy image volumes inherently suffer from intensity inhomogeneity, blur, and are corrupted by various types of noise which exacerbate image quality at deeper tissue depth. Therefore, quantitative analysis of fluorescence microscopy in deeper tissue still remains a challenge. This paper presents a three dimensional blind image deconvolution method for fluorescence microscopy using 3-way spatially constrained cycle-consistent adversarial networks. The restored volumes of the proposed deconvolution method and other well-known deconvolution methods, denoising methods, and an inhomogeneity correction method are visually and numerically evaluated. Experimental results indicate that the proposed method can restore and improve the quality of blurred and noisy deep depth microscopy image visually and quantitatively.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

page 5

02/10/2018

Tubule segmentation of fluorescence microscopy images based on convolutional neural networks with inhomogeneity correction

Fluorescence microscopy has become a widely used tool for studying vario...
09/04/2018

Computational multifocal microscopy

Despite recent advances, high performance single-shot 3D microscopy rema...
07/07/2019

Adaptive Weighting Depth-variant Deconvolution of Fluorescence Microscopy Images with Convolutional Neural Network

Fluorescence microscopy plays an important role in biomedical research. ...
04/05/2019

Blind Deconvolution Microscopy Using Cycle Consistent CNN with Explicit PSF Layer

Deconvolution microscopy has been extensively used to improve the resolu...
01/12/2022

De-Noising of Photoacoustic Microscopy Images by Deep Learning

As a hybrid imaging technology, photoacoustic microscopy (PAM) imaging s...
06/29/2021

RCNN-SliceNet: A Slice and Cluster Approach for Nuclei Centroid Detection in Three-Dimensional Fluorescence Microscopy Images

Robust and accurate nuclei centroid detection is important for the under...
08/26/2019

CycleGAN with a Blur Kernel for Deconvolution Microscopy: Optimal Transport Geometry

Deconvolution microscopy has been extensively used to improve the resolu...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Fluorescence microscopy is a modality that allows imaging of subcellular structures from live specimens [1, 2]. During this image acquisition process, large datasets of 3D microscopy image volumes are generated. The quantitative analysis of the fluorescence microscopy volume is hampered by light diffraction, distortion created by lens aberrations in different directions, complex variation of biological structures [3]. The image acquisition process can be typically modeled as the convolution of the observed objects with a 3D point spread function (PSF) followed by degradation from noise such as Poisson noise and Gaussian noise [4]. These limitations result in anisotropic, inhomogeneous background, blurry (out-of-focus), and noisy image volume with poor edge details which aggravate the image quality poorer in depth [5].

There has been various approaches to improve 3D fluorescence microscopy images quality. One popular approach is known as image deconvolution which “inverts” the convolution process to restore the original microscopy image volume [6]. Richard-Lucy (RL) deconvolution [7, 8] which maximizes the likelihood distribution based on a Poisson noise assumption for confocal microscopy was proposed. This RL deconvolution was further extended in [9]

that incorporated the total variation as a regularization term in the cost function. Since the PSF is usually not known, blind deconvolution which estimates the PSF and the original image simultaneously is favorable

[10]. Blind deconvolution using RL deconvolution was described in [11]. A pupil model for the PSF was presented in [12]

and the PSF was estimated using machine learning approaches in

[13]. Sparse coding to learn 2D features for coarse resolution along the depth axis to mitigate anisotropic issues was presented in [14].

Another approach to achieve better image quality stems from image denoising research. One example is Poisson noise removal using a combination of the Haar wavelet and the linear expansion of thresholds (PURE-LET) proposed in [15]. This PURE-LET approach was extended further to 3D widefield microscopy in [16]

. Additionally, a denoising and deblurring method for Poisson noise corrupted data using variance stabilizing transforms (VST) was described in

[17]. Meanwhile, a 3D inhomogeneity correction method that combines 3D active contours segmentation was presented in [18].

Convolutional neural network (CNN) has been popular to address various problems in medical image analysis and computer vision such as image denoising, image segmentation, and image registration [19]. There are few papers that focus on image deconvolution in fluorescence microscopy using CNNs. One example is an anisotropic fluorescence microscopy restoration method using a CNN [20]. Later, semi-blind spatially-variant deconvolution in optical microscopy with a local PSF using a CNN was described in [10]. More recently, generative adversarial networks has gradually gained interest in medical imaging especially for medical image analysis [21]. One of the useful architectures for medical image is a cycle-consistent adversarial networks (CycleGAN) [22]

which learns image-to-image translation without having paired images (actual groundtruth images). This CycleGAN was utilized for CT denoising by an analogy of mapping low dose phase images to high dose phase images to improve image quality

[23]. Additionally, this CycleGAN was further extended by [24] incorporating a spatial constrained term to minimize misalignment between synthetically generated binary volume and corresponding synthetic microscopy volume to achieve better segmentation results.

In this paper, we present a new approach to restore various biological structures in 3D microscopy images in deeper tissue without knowing the 3D PSF using a spatially constrained CycleGAN (SpCycleGAN) [24]. We train and inference the SpCycleGAN in three directions along with , , and sections (-Way SpCycleGAN) to incorporate 3D information inspired by [25, 26]. These restored -way microscopy images are then averaged and evaluated with three different image quality metrics. Our datasets consist of Hoechst labeled nuclei and a phalloidin labeled filamentous actin collected from a rat kidney using two-photon microscopy. The goal is to restore blurred and noisy 3D microscopy images to the level of well-defined images so that the deeper depth tissues can be used for biological study.

2 Proposed Method

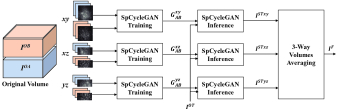

Figure 1: Block diagram of the proposed deconvolution method using a -Way SpCycleGAN
