I Introduction

Safe beyond Visual Line-Of-Sight (VLOS) operations are critical to enhancing the utility of Unmanned Aerial Vehicles in large-scale, outdoor operations. Typically, reliance on Global Navigation Satellite Systems (GNSS) for navigation in most low-cost commercial UAVs mean the authorisation to do so from government regulators is rare. Jamming, interference and accuracy concerns mean that Global Positioning System (GPS) alone cannot be relied on in cases of close-proximity, safety-critical or high-value operations. In this paper, we present a complete vision-only route-following system for the autonomous navigation of UAVs, and demonstrate its use as a functional backup system for GPS-only navigation. Using this system allows the vehicle to navigate home visually in case of primary navigation system failure, without reliance on any external infrastructure, or inertial sensing for the vision-based components.

Visual Teach and Repeat (VT&R) is a path-following algorithm capable of autonomously driving a robot by following a previously traversed route [1]

. Using visual feature matches from a live view to a locally metric map of 3D points allows the robot to estimate a path offset and send corrections to a path-following controller

[2]. Traditionally, VT&R is used on wheeled vehicles [5], with applications over constrained paths where external navigation infrastructure is unreliable or not available, e.g., factory floors, orchards, mines, urban road networks, and exploratory search-and-return missions. Using VT&R on aerial platforms has a number of unique use cases: just-in-time deliveries between warehouses, where flight paths are generally restricted to a few, high-frequency routes; monitoring of sensitive assets such as property borders or high-value infrastructure; and autonomous patrol in close-proximity environments, where poor sky view and jamming are notable concerns. Significantly, we want the vehicle to be able to autonomously and safely return to the take-off location at any time by using vision to localise to a map generated during the outbound path, all during a single flight.

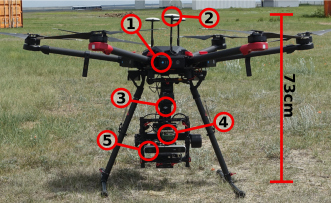

Fig. 1: The experimental setup for Visual Teach & Repeat on our multirotor UAV: (1) DJI Matrice 600 Pro vehicle platform, (2) DJI A3 triple-redundant GPS module, (3) DJI Ronin-MX 3-axis gimbal, (4) NVIDIA Tegra TX2, (5) StereoLabs ZED camera.

In this paper, we adapt the traditional VT&R methodology to suit these target use cases and apply our VT&R 2.0 system [5] on-board a multirotor UAV (Fig. 1) to demonstrate closed-loop operation. We show results of live localisation at speeds up to 15 m/s (55 km/h) at low altitude (5-25 metres) in winds up to 8 m/s, and demonstrate vision-based path-following control for the return segment of a just-taught outbound path. The novel work of this paper includes 1) demonstration of the VT&R framework on a new platform, a UAV with gimballed camera, 2) a thorough analysis of localisation performance and 3) presentation of a new path-following controller for multirotor UAVs, all in a wide range of outdoor test scenarios.

The rest of this paper is outlined as follows: Section II examines similar work in visual route following for ground vehicles and UAVs, and explores recent work in autonomous vision-based navigation of UAVs. Section III describes the VT&R methodology for application on our target UAV, including the VT&R framework, localisation algorithm and gimbal and vehicle controllers. Section IV describes the experimental setup to test the airborne VT&R framework, as well as description of datasets, field tests and results. The paper is concluded in Section V.

Ii Previous Work

VT&R and similar route-based navigation algorithms have a rich history on ground platforms [3, 1, 4, 2], with the most recent extension adapted to include multiple experiences, increasing the autonomous performance time from a few days to several months [5]. On UAVs, there are now several demonstrations of teach-and-repeat style algorithms from the authors of this paper and others [6, 7, 8, 9].

Our previous work, demonstrating the localisation performance of VT&R on fixed-wing UAVs [7] and integration of a gimballed camera on a ground vehicle [10], is the lead-up to this work. While there are few examples using a gimbaled camera on ground vehicles, a number of examples exist in demonstrations on UAVs [11, 12, 13, 14, 15]. This discrepency can most likely be attributed to the larger dynamic motions of UAVs, where the utility of a gimbal is highly justified to ensure smooth sensor motion. In all the above cases, however, only two-axis gimbals are utilised. In our setup, we use an off-the-shelf three-axis gimbal to attenuate motion in all three rotational axes.

The approach that is closest conceptually to our work, with specific application on UAVs, is [9]. Despite not being framed as a ‘teach-and-repeat’ technique, this system presents a demonstration of such a method on a UAV using a visual-inertial framework with weak GPS priors to assist initialisation of localisation and inform loop closures. Our work differs in that it requires no offline map building (the map is built on-board in real time) and does not require inertial sensors or external infrastructure such as GPS for the perception component of the system.

Beyond the VT&R paradigm, there is a rich demonstration of vision-based navigation on UAVs in recent years [16]. While most older demonstrations incorporate stereo camera systems for scale, they suffer from poor (i.e., small) baseline-to-depth ratios at higher altitudes. Recent advances in Inertial Measurement Unit (IMU) technology have allowed the use of loosely [17, 18, 19] and tightly coupled [20, 21, 22] visual-inertial systems using both monocular and stereo cameras [23], and with impressive demonstrations of dynamic maneuvers at high speed [24] in indoor, small scale setups. The majority of large scale demonstrations using these systems, however, often exist as a full Simultaneous Localisation and Mapping (SLAM) framework [25, 26], incorporating exploration and globally metric 3D maps as a method of accurate survey. In contrast, VT&R takes a locally metric approach for map building, and leverages a human operator for the initial ‘demonstration’ task, circumventing the difficult tasks of autonomous exploration and loop-closures.

Iii Methodology

In this paper, we use our well-established VT&R 2.0 software system as presented in [5], including the extension of a gimbaled camera [10]. However, we adapt this system for use on a multirotor UAV specifically for the purposes of emergency return. Instead of teach and repeat phases, we implement functionally similar learn and return phases.

During the learn phase, the UAV flies using autonomous GPS waypoint following or human operator control. During this phase, the VT&R algorithm performs passive Visual Odometry (VO), inserting the visual observations from this privileged experience into a relative map of pose and scene structure, effectively ‘learning’ the route. Following a primary navigation systems failure, the UAV should enter the return phase, and, without reliance on GPS or other external sensing, autonomously re-follow the route home in the reverse direction. In addition to performing the same VO as in learn, it performs a localisation using a local segment from the learnt path. The vehicle follows the learnt path by sending high-frequency localisation updates (relative position and orientation with respect to the map) to a path-following controller. Once the vehicle returns to the start point, it hovers until taken over by a human controller. To be clear, in this paper we only simulate GPS failures, by manually commanding the vehicle to enter the return phase during flight.

In the following sections, we describe our VT&R system, including the architecture of the system, the visual navigation algorithm, and gimbal and path-following controllers.

Iii-a System Overview

The architecture of the VT&R system for the multirotor UAV is shown in Fig. 2. All processing, including visual navigation, localisation, planning and control occurs on-board the UAV on the primary computer (Fig. 1). This computer directly interfaces with the on-board camera via Universal Serial Bus (USB) 3.0, which provides grayscale stereo images for visual navigation. This computer also interfaces with the on-board autopilot via a serial Transistor-Transistor Logic (TTL) connection, which provides vehicle data (gimbal state, autopilot state, etc.) and the interface for sending control commands. A long-range, low-bandwidth 900 Mhz wireless link is used to communicate with the primary on-board computer from a ground station. The ground station computer is utilized only for status monitoring and sending of high-level control commands. These commands consist of manual state transition requests (switching from learn to return), obtaining flight control authority from the autopilot, and initiating GPS waypoint missions.

The VT&R software system consists of several interacting components (Fig. 2): 1) VO, 2) windowed refinement, 3) visual localisation, 4) a state machine, 5) gimbal and path-following controllers and 6) a safety monitor. Each system operates in a separate thread or process, interacting through the transfer of data caches (a packet of new and derived data, including images, processed features and estimated transforms) and through the use of a Google Protobuf backend for disk storage. Memory managers ensure that stale data is written to disk to reduce Random Access Memory (RAM) utilisation, and is pre-emptively re-loaded during the return phase to ensure localisation can proceed without waiting for disk access. The Robot Operating System (ROS) is used to run the safety monitor and interface to the autopilot and camera. The adapted VT&R state machine for multirotor UAVs controls the high-level state that the system is in (usually learn or return).

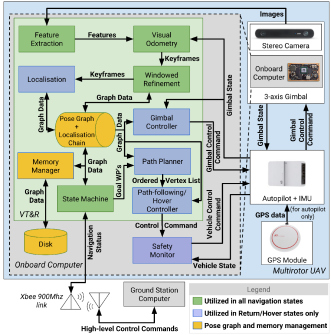

Fig. 2: The architecture of the VT&R system for multirotor UAVs.

A safety monitor runs as an independent process to ensure safe operation of the vehicle in case of system failure. It performs a sanity check control and localisation data, in addition to a watchdog functionality on the control commands and state data both from VT&R and the autopilot. Any monitored command or state data that is delayed by more than a preconfigured timeout triggers a safety failure, forcing the vehicle to release software control and revert to manual pilot control.

In the following sections, the visual system, path-following and hover controllers are described in more detail.

Iii-B Visual System

The visual system consists of seperate threads for feature extraction, pose estimation (

VO), refinement and localisation, using images captured by a stereo camera to estimate both pose updates and localisation to the path during the return.

Iii-B1 Visual Odometry

During both the learn and return phases, image pairs are captured by a calibrated stereo camera at a frame rate of 15 Hz, while the gimbal state (read as roll-, pitch-, and yaw-axis angular positions) is captured at 10 Hz. The gimbal state gives the pose of the camera in the vehicle frame by compounding the captured gimbal angles through a series of transforms with known translations extracted from 3D vehicle models. We denote the vehicle-to-sensor (camera) transform at time as .

For each stereo image pair captured at time , Speeded-Up Robust Features (SURF) features are extracted, descriptors generated and landmarks triangulated. Landmarks are triangulated from both the stereo pair and from motion to account for both close proximity and extremely large depths depending on altitude, similar to [22]. Each feature in this latest frame-pair is matched to the last keyframe via SURF descriptor matching on the Graphics Processing Unit (GPU). The raw matches are then passed through a Maximum Likelihood Estimation SAmple Consensus (MLESAC) robust estimator to find the relative transform to the last keyframe. Finally, this transform is optimised using our Simultaneous Trajectory Estimation And Mapping (STEAM) bundle adjustment engine [27], keeping landmarks fixed.

After this process, if the number of inliers drops below a minimum count or the motion (translation or rotation) exceeds a threshold, the frame is set as a keyframe and the features, new landmarks, and vehicle-to-sensor transform at that time are stored in a vertex in a pose graph for future retrieval. The relative transform is stored as an edge to the previous vertex. Windowed bundle adjustment (termed windowed refinement) is then performed on the last 5-10 vertices. This VO plus bundle adjustment process generates a dead-reckoned set of linked poses that represent the path. During the learn phase, this set of poses and edges is marked as ‘privileged’. Naturally, incremental translational and rotational errors compound during this process, causing the global map to be distorted. However, VT&R depends on the graph being only locally metric in the region to which the vehicle is localized. For a more thorough explanation of this component, we direct the reader to our previous work [5].

Iii-B2 Visual Localisation

During the return phase, while the vehicle flies in reverse, an additional thread performs visual matching to the local map of 3D points in the graph to estimate the path-following error (Fig. 3), which is used by a path-following controller to keep the vehicle on the path.

To enable this process, the localisation chain is used to keep track of important vertices in the graph and their respective transforms. We use a ‘tree’ model to name vertices in the chain, going from the trunk vertex (defined as the closest vertex spatially on the privileged path), through the branch (the closest vertex on the privileged path with a successfully MLESAC estimated transform), twig (the corresponding vertex on the current path) and leaf (latest live vertex) vertices. These can be seen in Fig. 3. We use the notation and to refer to the trunk, branch, twig and leaf vertices, respectively.

At every step of VO (i.e., on every successfully estimated frame, not just keyframes) the localisation chain is updated with the estimated transform from trunk to leaf, (or in Fig. 3). The leaf is updated every step and, if necessary, the trunk vertex is updated to the closest estimated privileged vertex to the leaf.

Upon insertion of a new VO keyframe as a vertex in the graph, the localisation thread attempts to estimate a new transform from branch to twig. This process follows four separate stages: i) landmark migration, ii) landmark matching, iii) pose estimation, iv) optimisation. First, the nearest privileged vertex (the trunk) is used as the base vertex to generate a local window of privileged vertices that contain potentially matchable landmarks. Using the transforms on the privileged edges, the landmarks in this window are transformed to the trunk to generate a locally metric set of 3D points with a common origin111While our previous work incorporates features and points from multiple experiences (i.e., multiple traverses), the learn-return framework by definition only uses a single experience: the privileged one..

Following a similar process to VO, features in the latest non-privileged vertex (the leaf) are matched using their SURF descriptors to all descriptors of the migrated landmarks, which are then passed through a MLESAC robust estimator to estimate the relative transform from trunk to leaf, ( in Fig. 3). Finally, the transform is optimised while leaving all landmarks fixed. The localisation chain is then updated to reflect this fresh transform estimate, and the new branch to twig is set . The path-following controller can query the localisation chain at any time to get the best estimate of , facilitating control at high speed even with significant delays from visual localisation.

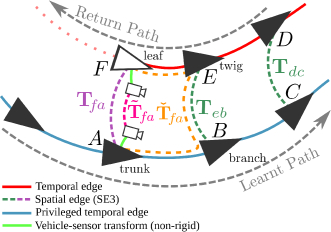

Fig. 3: During the return phase, the vehicle follows the learned route in reverse. The localisation chain updates the estimated localisation transform at each VO update. Upon creation of a new vertex , visual localisation inserts the new edge . The gimbal controller minimises orientation error of , which includes vehicle-to-sensor transform, , and . The uncertainties and some estimated transforms are omitted here for clarity.

Iii-C Gimbal Controller

Use of a gimbal decouples the visual perspective from the roll/pitch-to-move actuation of multirotor UAVs. This significantly improves the robustness of VT&R in the air by adding extra degrees of actuation to the visual servoing problem. During fast, dynamic maneuvers, a gimballed camera system will be able to outperform a static camera system by decoupling the aircraft motion from the camera view. In addition, maintaining a consistent roll ensures that generally unstable point features are tracked more consistently.

During the learn phase, gimbal control is not performed by VT&R, but left open-loop such that the gimbal internal controller performs stabilisation of roll and pitch, and smoothes yaw that follows the vehicle yaw. The value of this sensor-to-vehicle transform (Fig. 3) is recorded at each new vertex, corresponding to time . During the return, the gimbal is actively controlled by VT&R for the pitch and yaw axes. The gimbal is commanded to reduce orientation error between the current (leaf) view and nearest privileged (trunk) view, ( in Fig. 3), as knowledge of the transform between the current and the privileged poses is known via the localisation chain such that:

(1)

using the sensor-to-vehicle transforms captured at vertices and . is updated in the localisation chain at every frame.

Iii-D Path-Following controller

A path-following controller is implemented for vehicle control during the return phase to keep the vehicle as close as possible to the outbound path while mainitaining a suitable target velocity.

To enhance robustness to environmental disturbances and system delays, we consider a path-following approach, which, in contrast to trajectory tracking, prioritizes spatial error over temporal error [28]. By extending the approach in [28] to a VT&R framework, we achieve simple multirotor path-following. This is done by converting a standard P-D tracking control to select the spatially closest reference point on the path at each control time step (50 Hz).

We obtain a translational velocity estimate using STEAM trajectory generation [27], which fits a constant velocity trajectory through the previous path vertexes.

Vt&r Path-Following Reference

We generate a path by connecting a straight-line through successive privileged vertices. To do this, we use the localization chain to obtain a transform from the next privileged vertex to the trunk . From this we can extract the position of the next privileged vertex with respect to the trunk using

At each time step, we determine the reference position by projecting our current multi-rotor position onto the straight-line segment connecting the trunk to the next privileged vertex using:

We obtain a reference velocity , where the magnitude is a user-selected parameter , in the direction of the next privileged vertex using:

Control Design

Our path-following control is designed to send commands where is a commanded -velocity, is a command yaw rate, and and are commanded pitch and roll, respectively. The -velocity command is designed using a P-D controller:

(2)

where and are tuned damping ratio and time constant. The current yaw, , with respect to the trunk is determined from the rotation matrix, . As seen in (3), a P-controller (with tuned time constant ) is used to correct for any yaw-mismatch between the leaf and the trunk:

(3)

As in [29], lateral-motion control commands are determined by first designing translational acceleration commands using P-D control:

(4a)
(4b)

where and are tuned damping ratio and time constant. Assuming small lateral acceleration () and using standard feedback linearization, these linear acceleration commands are transformed into pitch and roll commands:

(5a)
(5b)

where is the gravitational constant.

Iv Experiments

To evaluate the performance of the airborne VT&R algorithm, a number of outdoor experiments were performed on-board the target UAV.

In the first experiment, we evaluate the performance of the localisation algorithm under GPS control using the described gimbal controller. Specifically, we test the performance of the localisation algorithm and gimbal controller under deliberately challenging conditions, including high-speed, dynamic flight and high learn vs return positional error. For this experiment, we deliberately exclude the vehicle controller to isolate the performance of the subcomponents of the algorithm. In the second experiment, we perform closed-loop control with the aforementioned path-following controller developed for full 6-DOF vehicle motion. This system is evaluated over several runs, showing the full system operating. The experimental setup is described in the following subsection.

Iv-a Experimental Setup

For these experiments, we use a DJI Matrice 600 Pro, with attached Ronin-MX gimbal (Fig. 1). This system has a take-off weight of approximately 10kg, and maximum span rotor-tip-to-tip of 1.64m. Control is provided by a DJI A3 triple redundant autopilot. On-board this system is an NVIDIA Tegra TX2 module (6 ARM cores + 256 core Pascal GPU) and StereoLabs ZED stereo camera connected via USB, both mounted in the stabilised platform of the Ronin-MX gimbal. The Matrice 600 Pro provides state information to VT&R running on-board the TX2, including gimbal encoder positions and GPS status, while the ZED camera provides grayscale imagery with resolution at 15 Hz. The Tegra TX2 runs NVIDIA L4T v28.2, a variant of Ubuntu 16.04 for ARM architectures.

The primary location used for the experiments in this paper is a simulated village at the Defence Research & Development Canada (DRDC) Suffield Research Centre in southern Alberta, Canada. The Suffield location consists of a number of shipping containers placed to emulate buildings and narrow alleys in flat grassland, suited to a simulated patrol scenario.

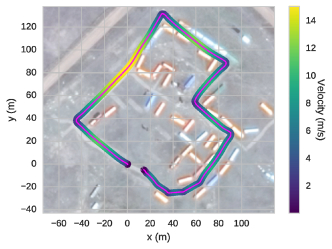

Fig. 4: Overview of the trajectory flown at the DRDC Suffield Research Centre, shown in magenta. Velocity profile for a target 15 m/s commanded speed overlaid.

Iv-B Localization Performance Evaluation

In these experiments, we evaluate the combined performance of the localisation algorithm and gimbal controller to successfully localise the vehicle under increasingly difficult operational conditons. We test this in two ways: increasing target velocity of the vehicle, and deliberately offset altitudes on the outbound and return paths. The first test shows the performance under increasingly dynamic maneuvers of the vehicle, inducing rapid perspective change and poor path tracking, which must be attenuated by the gimbal controller. The second test shows the performance of the localisation algorithm with intentionally poor perspective. We deliberately do not use the vehicle controller in these tests to decouple and isolate the performance of the localisation algorithm and gimbal controller.

Iv-B1 Increasing Target Velocity

For this experiment, the aircraft is autonomously flown at 12m Above Ground Level (AGL) along the path depicted in Fig. 4 in a clockwise direction. VT&R is placed into learn mode, before the outbound route is flown under autonomous control, by uploading a waypoint mission to the Matrice 600 autopilot. Once the vehicle reaches the end of the loop, VT&R is switched to return mode, and the aircraft is again autonomously commanded to return along the same path by following the waypoints in reverse. During this return stage, the gimbal is actively controlled by VT&R to reduce orientation errors caused by path-following discrepencies generated by the GPS-based controller.

The route is flown at increasingly fast target speeds, 3, 7, 8, 10, 12 and 15m/s, on both the learn and return stages. While the vehicle reaches this speed during only parts of this path, the average speed also increases with each pass. A typical speed profile for the path at 15m/s target speed is shown in Fig. 4.

Fig. 5

shows the median and variance of the localisation inliers recorded along the return path for each of the target speeds. This figure shows that even at the highest commanded speed (15m/s), localization performance remains similar to those examples at lower speeds. At 15m/s some localisation failures occur, but the majority of these can be attributed to failures of the hardware gimbal controller during a segment of the path.

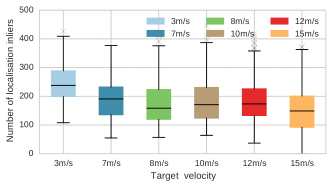

Fig. 5: Localisation performance is comparable with increasing target (and average) velocity, where learn and return phases are conducted at the same speed.

Iv-B2 Increasing Height Error

For this experiment, the aircraft is again autonomously flown at 12m AGL during the learn stage along the path depicted in Fig. 4 in a clockwise direction at a nominal speed of 7 m/s. The total length of the path is approx. 450m. Once the vehicle reaches the end of the loop, VT&R is switched to return mode, and the aircraft is again autonomously commanded to return along the same path by following the waypoints in reverse at the same 7 m/s target speed. In this case, however, we vary the altitude at which the aircraft returns, to test the robustness of the gimbal controller and ability of the algorithm with large positional offsets. In these experiments, we show the localisation inliers along the path with target return heights of 12, 14, 16 and 18m, respectively (Fig. 6).

Fig. 6: Successful localisation occurs with significantly increasing altitude difference between learn (12 m) and return phases (tested at 12, 14, 16 and 18 m, but the average (green) shows decline at more extreme (50%) differences.

In Fig. 6, localisation performance is still high, with an average of 100 inliers per keyframe, even at altitude differences of 6m, or 50%. While some of this performance can be attributed to perspective due to the altitude, a significant component can be attributed to the gimbal compensating for the reduced image overlap that would be present on a static camera. Importantly, however, the average inliers does drop significantly, and more interestingly, reduces in variance. This is likely due to the enhanced viewpoint overlap (of the learnt path) at higher altitudes, meaning positional errors have less effect on maintaining observability of all landmarks during localisation.

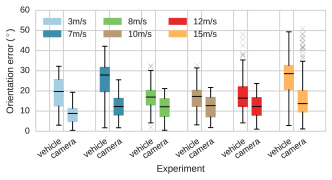

Fig. 7: While vehicle attitude error increases in both median and variance with increasing target velocity, the gimbal controller maintains a consistent camera orientation between learn and return regardless of target speed.

Finally, Fig. 7 shows the utility of the gimbal in minimising perspective error caused by differing vehicle attitudes between learn and return. Due to the pitch-to-move nature of multirotor systems, accelerations and decelerations cause the vehicle attitude to differ between these two passes of the path. For a static camera system, these differences can cause performance degradation due to poor image overlap. Using a gimbal with active control to minimise camera orientation can minimise this effect. Fig. 7 shows the magnitude of orientation error for two separate localisation transforms at each speed profile (read as a pair) taken from the estimated localisation chain as estimated from the visual pipeline: in the vehicle frame (, or in Fig. 3) on the left, and in the camera frame ( in Fig. 3) on the right. As can be seen at all speed profiles, the gimbal succeeds in minimising the orientation of the localisation transform, and this performance is relatively consistent with increasing speed. In this scenario, the target speeds of the learn and return phases are the same for each speed profile, meaning there will be some consistency in orientation in both phases. With differing speed profiles, we would expect the observed utility of the gimballed camera to increase further.

Iv-B3 Execution Time

Fig. 8 shows the average execution time for the seperate processes in the VT&R software on-board the Tegra TX2. While feature extraction and VO process every image pair at an approximate speed of 66ms (15 Hz), windowed refinement only runs on generation of a keyframe, and localisation runs after this process is complete. Feature extraction and matching are all performed on the GPU. Using this threaded setup allows VT&R to run online.

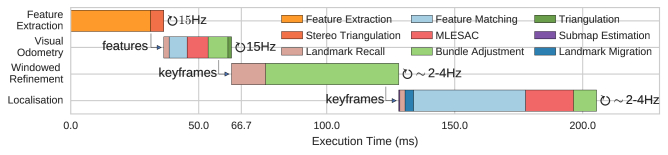

Fig. 8: Average execution times for the visual pipelines on the TX2 during a misison, seperated by thread of execution. Once one thread is finished processing, it is able to process the next image and its data products.

Iv-C Full VT&R Evaluation

In this experiment, we evaluate the performance of the full closed-loop VT&R system, using GPS navigation during the learn phase, and switching to the presented path-following controller for the return phase. Over three separate trials, each consisting of a single flight, we traverse the path shown in Fig. 4 in a clockwise direction at an altitude of 12m AGL, before returning in an anticlockwise direction at the same altitude (attempting to minimise all positional errors) at a target speed of 3m/s.

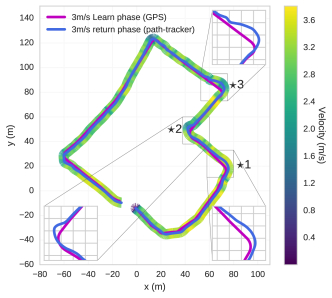

Fig. 9: The outbound (GPS, magenta) and return (controller, blue) paths during a single trial. For the majority of the path, the controller maintains less than 1.5m cross-track (y-z) error. Some offset is seen on sharp turns.

In all three trials, VT&R was able to complete the return phase of flight under path-following control over an approximately 2 minute period. Fig. 9 shows the path for one of these trials. The outbound path under GPS control is shown in magenta, while the return path under path-following control is shown in blue. Figs. 10 and 11 show the normalised cross-track error (in Y and Z, using the vision-based estimate) and number of inlier matches respectively. Specific segments of the path are highlighted in the inset figures of Fig. 9 and annotated with numbers that correlate to those in Figs. 10-11.

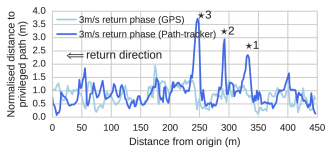

Fig. 10: Path-following error is of a similar order to that for GPS over the majority of the path using our controller, according to the localisation transform estimated by VT&R.

The positional error is less than 1.5m over most of the path using the path-following controller, and is comparable to a return trajectory under GPS control, showing the strong performance of a simple vision-based path-following controller compared to this primary sensor. In specific sections such as corners, however, cross-track error increases to a maximum of 3.6 m. This can be attributed to the simplicity of the controller, as curvature of the path is not accounted for, and velocity error is weighted higher than cross-track error.

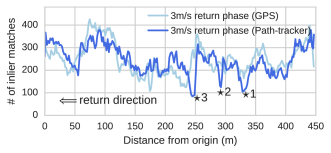

Fig. 11: The number of localization inliers while using our path-following controller is of a similar order to that for GPS over the majority of the path.

Additonally, localisation performance is strong over the full trajectory, with no localisation failures, even at the highlighted corner points. The average performance over the trajectory is again comparable to a return phase under GPS control.

V Conclusions

In this paper, a full VT&R system for emergency return of a multirotor UAV has been presented. Using 15 Hz imagery from a gimbal-stabilised stereo camera to build a map online during a commanded learn phase, we have demonstrated autonomous return of the vehicle by matching landmarks back to a live view for autonomous path-following control with equivalent path-following errors to the on-board GPS system. In addition, we have demonstrated the robustness of the gimbal-stabilised system to high-speeds and large positional errors.

Future work will include the development of a more advanced path-tracking controller that uses path curvature to minimise cross-track errors, and testing in a multi-experience framework over a long-term experiment.

Acknowledgment

This work was funded by Smart Computing for Innovation Consortium (SOSCIP), Defense Research and Development Canada (DRDC), Drone Delivery Canada (DDC), Natural Sciences and Engineering Research Council of Canada (NSERC) and the Centre for Aerial Robotics Research and Education (CARRE), University of Toronto.
