1 Benchmark Description

VLSAT-1111https://cadp.inria.fr/resources/vlsat is a collection of 100 SAT formulas, which are listed in Table 1. All these formulas are satisfiable and have been designed to accept a large number of models. Each formula is provided as a a separate file, expressed in Conjunctive Normal Form and encoded in the DIMACS-CNF format222http://www.satcompetition.org/2009/format-benchmarks2009.html. Each file is then compressed using bzip2 to save disk space and allow faster downloads. The 100 formulas require 2.1 gigabytes of disk space and 419 megabytes when compressed using bzip2.

no. variables clauses
1 10 17
2 12 16
3 14 19
4 15 23
5 16 24
6 18 21
7 18 49
8 21 40
9 24 34
10 24 56
11 27 54
12 28 56
13 30 58
14 32 84
15 33 116
16 35 82
17 38 53
18 40 108
19 44 91
20 44 167
21 48 128
22 51 194
23 54 99
24 54 270
25 56 270
26 60 178
27 64 152
28 68 161
29 72 186
30 75 367
31 80 178
32 81 333
33 85 377
34 90 316
no. variables clauses
35 93 409
36 96 611
37 102 481
38 108 345
39 112 238
40 117 328
41 120 724
42 120 1016
43 130 393
44 135 510
45 140 1371
46 144 648
47 153 714
48 160 1028
49 168 722
50 170 1247
51 185 1132
52 195 899
53 196 1092
54 210 1275
55 222 1477
56 228 3437
57 240 1624
58 252 3132
59 264 1474
60 272 1898
61 288 2066
62 304 2782
63 315 3608
64 336 2394
65 354 3239
66 378 1893
67 400 1580
no. variables clauses
68 402 10,189
69 418 3119
70 448 7592
71 476 1523
72 496 18,680
73 510 9201
74 584 28,218
75 588 8050
76 652 29,387
77 702 5565
78 735 23,842
79 810 22,731
80 900 15,616
81 992 13,641
82 1104 75,598
83 1200 31,325
84 1365 26,963
85 1600 31,240
86 1984 60,716
87 2289 274,818
88 2450 58,066
89 3480 149,734
90 3920 93,576
91 4114 186,615
92 5184 184,104
93 6954 399,521
94 9588 392,364
95 14,847 1,769,105
96 15,498 838,393
97 22,110 2,753,207
98 49,200 7,490,695
99 227,046 49,947,755
100 4,114,810 3,879,649,625
Table 1: List of VLSAT-1 formulas

2 Scientific Context

These formulas have been generated as a by-product of our recent work [1] on the decomposition of Petri nets into networks of automata, a problem that has been around since the early 70s. Concretely, we developed a tool chain that takes as input a Petri net (which must be ordinary, safe, and hopefully not too large) and produces as output a network of automata that execute concurrently and synchronize using shared transitions. Precisely, this network is expressed as a Nested-Unit Petri Net (NUPN) [4], i.e., an extension of a Petri net, in which places are grouped into sets (called units) that denote sequential components. A NUPN provides a proper structuration of its underlying Petri net, and enables formal verification tools to be more efficient in terms of memory and CPU time. Hence, the NUPN concept has been implemented in many tools and adopted by software competitions, such the Model Checking Contest333https://mcc.lip6.fr [7, 6] and the Rigorous Examination of Reactive Systems challenge444http://rers-challenge.org [5, 8]. Each NUPN generated by our tool chain is flat, meaning that its units are not recursively nested in each other, and unit-safe, meaning that each unit has at most one execution token at a time.

Our tool chain works by reformulating concurrency constraints on Petri nets as logical problems, which can be later solved using third-party software, such as SAT solvers, SMT solvers, and tools for graph colouring and finding maximal cliques [1]. We applied our approach to a large collection of more than 12,000 Petri nets from multiple sources, many of which related to industrial problems, such as communication protocols, distributed systems, and hardware circuits. We thus generated a huge collection of SAT formulas, from which we carefully selected a subset of 100 formulas for VLSAT. Figure 1 shows the scalability of our benchmark suite, which properly represents the diversity of our experiments.

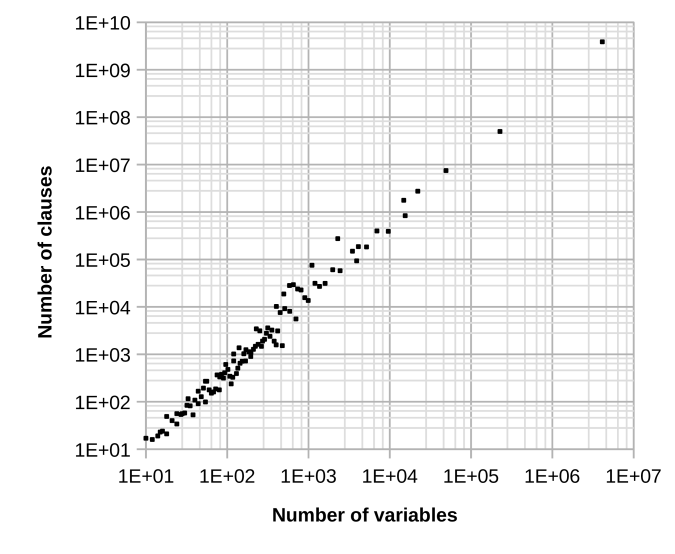

Figure 1: Dispersion of the VLSAT formulas

3 Structure of VLSAT Formulas

Each of our formulas was produced for a particular Petri net. A formula depends on three factors:

  • the set of the places of the Petri net;

  • a concurrency relation defined over such that is the two places and may simultaneously have an execution token; and

  • a chosen number of units.

A formula expresses whether there exists a partition of into subsets () such that, for each , and for any two places and of , . A model of this formula is thus an allocation of places into units, i.e., a valid decomposition of the Petri net. The value of is chosen large enough so that the formula is satisfiable, i.e., at least one decomposition exists. This can also be seen as an instance of the graph coloring problem, in which colors are to be used for the graph with vertices defined by the places of and edges defined by the concurrency relation.

More precisely, each formula was generated as follows. For each place and each unit , we created a propositional variable that is true iff place belongs to unit . We then added constraints over these variables:

  • For each unit and each two places and such that and , where is a bijection from places names to the interval , we added the constraint to express that two concurrent places cannot be in the same unit.

  • For each place , we could have added the constraint to express that belongs to at least one unit, but this constraint was too loose and allowed similar solutions, just by permuting unit names. We thus replaced this constraint by a stricter one that breaks the symmetry between units: for each place , we added the refined constraint , where is a bijection from unit names to the interval .

Application

The VLSAT-1 benchmarks are licensed under the CC-BY Creative Commons Attribution 4.0 International License555License terms available from http://creativecommons.org/licenses/by/4.0.

Some of the VLSAT-1 formulas have been reused (after some scrambling) in the Instances Track 1 of the Model Counting 2020 Competition [2, 3].
