1 Introduction
Machine Learning/Data Mining (ML/DM) and Constraint Programming (CP) are central to many application problems. ML is concerned with learning functions/patterns characterizing some training data whereas CP is concerned with finding solutions to problems subject to constraints and possibly an optimization function.
The problem with current technology is that the problems of data analysis and constraint satisfaction/optimization have almost always been studied independently and in isolation. Indeed, there exist a wide variety of successful approaches to analysing data in the field of ML, DM and statistics, and at the same time, advanced techniques for addressing constraint satisfaction and optimization problems have been developed in the CP community. Over the past decade a limited number of isolated studies on specific cases has indicated that significant benefits can be obtained by connecting these two fields [EpsteinF01, XuHHL08, RaedtGN08, BessiereHO09, KhiariBC10, CoqueryJSS12], but so far a truly general, integrated and crossdisciplinary approach is missing.
CP technology is used to solve many types of problems, such as power companies generating and distributing electricity, hospitals planning their surgeries, and public transportation companies scheduling buses. Despite the availability of effective and scalable solvers, current approaches are still unsatisfactory. The reason is when using CP technology to solve these applications, the constraints and criteria, that is, the model, must be statically specified. However, in reality often this model needs to be revised over time. The revision can be needed to reflect changes in the environment due to external events that impact the problem. The revision can also be needed because the execution of the solution generated by the model has modified the characteristics of the problem. Finally the revision can be needed simply because the original model did not capture correctly the problem. Observing the impact of the solution allows us to correct or improve the model. Therefore, there is an urgent need for improving and revising a model over time based on data that is continuously gathered about the performance of the solutions and the environment they are used in.
Exploiting gathered data to modify the model is difficult and labor intensive with stateoftheart solvers, as these solvers do not support DM and ML. As a consequence, the data that is being gathered today in order to monitor the quality of the produced solutions and to help evaluating the effect of possible adjustments to the constraints or optimization criteria, is not fully exploited when changes in a schedule or plan are needed. Hence, schedules and plans that are produced are often suboptimal. This, in turn, leads to a waste of resources. Instead of using data passively, data should be actively analysed in order to discover and update the underlying regularities, constraints and criteria that govern the data.
In this paper, we propose and formalize the new framework of inductive constraint programming. This framework is based on what we call the Inductive Constraint Programming loop, which is an interaction between a machine learning component (ML) and a constraint programming component (CP). The ML observes the world and extracts patterns. The CP solves a constraint satisfaction or optimization problem using these patterns and whose solution is applied to the world. We assume the world changes over time, possibly due to the impact of applying our solution. This process is repeated in a loop. Inductive constraint programming will serve the longterm vision of easiertouse and more effective tools for resource optimization and task scheduling.
2 Background
In this section we introduce the basic concepts used later in the paper. We briefly define and explain what is a constraint problem and a learning problem.
2.1 Constraint problem
The central notion in constraint programming is the constraint. A constraint is a Boolean function whose scope is a set of (integer) variables. Depending on whether the function returns true or false for a given input assignment of its variables, the constraint accepts or rejects the assignment. For instance, the constraint specifies that any combination of values for variables and has to be such that the sum of and equals . Based on the notion of constraint, we define constraint network and solver.
A constraint network is composed of: a set of variables taking values in domain . These variables are subject to constraints in the set . The optional evaluation function takes as input an assignment on and returns a cost for it. A solution (optionally best solution) of is a tuple in satisfying all the constraints in (optionally minimizing ). A solver takes as input a constraint network and returns a solution/best solution or failure in case no solution satisfying all the constraints exists.
There exist several languages/formats for specifying a constraint
problem to be given to a solver for solving.
Take for instance the Sudoku problem.
Figure 1 expresses Sudoku as a constraint satisfaction
problem, using a pseudoMiniZinc language [minizinc].
Line 1
defines an input
matrix start containing the prefilled cells of the Sudoku.
Line 2
defines the matrix puzzle of
variables that will contain the solution of the Sudoku.
Lines 45
put equality constraints between the prefilled cells in
the input matrix start and the matrix of variables puzzle.
Lines 78
post an alldifferent constraint on every row of puzzle.
alldifferent(xi  i in 1..n) is a global constraint that specifies
that variables x1..xn must all take different values.
Lines 1011
do the same for the columns.
Lines 1315
is a bit more tricky as it has to play with the indices
of the subsquares to post the allfdifferent constraints on the
variables of every subsquare in puzzle.
Finally, line 16
calls the solver on the instance.
2.2 Learning problem
In machine learning, the goal is to learn a hypothesis that explains the observed data. The data typically consists of a set of training examples
, which are assumed to be independent and identically distributed. Different learning methods differ largely in the type of examples to learn from, and the type of hypothesis they want to learn. The most popular learning setting is supervised learning, where each example in
is accompanied by a label that should be predicted. One can then search for a linear function over the examples that best predicts the labels, or for a decision tree that does so. More formally, we define the learning task as follows:A learning problem is composed of a set of examples, a hypothesis space , the target function
that one wants to learn, and a loss function
that measures the quality of a hypothesis w.r.t. dataset and the target hypothesis . The task is to find a hypothesis that minimizes the loss.For example, given realvalued data and realvalued labels identified by target function , where
, the goal of linear regression is to learn a linear function
with coefficients that minimizes the sum of squared errors between the predicted value and the observed value: . Many other loss functions and hypothesis spaces have been defined in the literature.A range of machine learning methods such as (linear) regression and support vector machines can be expressed as standard optimisation problems (often unconstrained), where the goal is to find an assignment to function parameters such that the loss is minimized. In practice, usually specialised solving methods are used.
3 Inductive Constraint Programming Loop
The inductive constraint programming loop will cope with changes in the world by iteratively solving a learning problem and a constraint problem. The loop is composed of several components that interact with each other through writing and reading operations. A visualization of the loop is given in Figure 2. We introduce each of the elements in the loop in turn.
The CP component is composed of a constraint network ( is optional), a constraint solver Xsolve, and a Solutions repository. Xsolve generates solutions of , or good/best solutions of according to , that it writes in the Solutions repository. In case Xsolve is not able to produce any solution to be applied to the world, the CP component notifies the ML component by sending information about the failure.
The ML component is composed of a learning problem , a learner XLearn, and a Patterns repository. XLearn learns hypotheses (typically one) and writes them in the Patterns repository.
The World component is composed of a world , an evaluation function , and a Observations repository. The world can have its own independent behavior, dynamically changing under the effect of time and the effect of applying solutions of the Solutions repository. The solutions are evaluated by the function and this feedback is stored in the Observations repository.

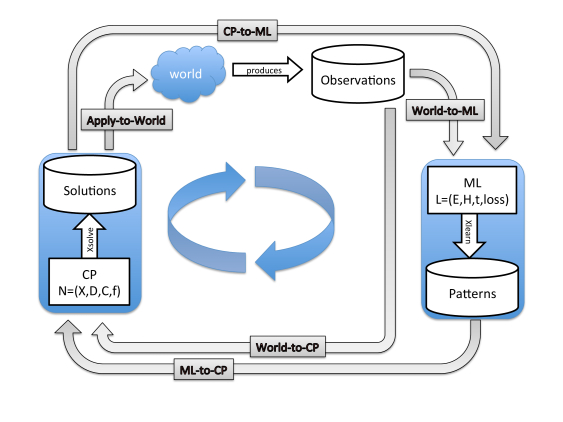

Now that we have defined the basis of the inductive constraint programming loop, we need to define the way the CP component, the ML component and the world interact with each other. They interact through a set of reading/writing functions.
An inductive constraint programming loop is composed of a world , a CP component , and an ML component . The loop uses the following channels of communication:

function WorldtoML reads data and evaluations from the Observations repository and updates the learning problem , that will be used by XLearn to learn a hypothesis ;

function CPtoML is used to send feedback from the CP component to the ML component when Xsolve cannot find any satisfactory solution to be applied to the world;

function WorldtoCP reads data from the Observations repository that can be used to directly update the constraint network used by Xsolve;

function MLtoCP reads patterns from the Patterns repository and updates the constraint network used by Xsolve to produce solutions;

function ApplytoWorld takes solutions in the Solutions repository and applies them to the world, if possible.
The following pseudo code demonstrates how these communication channels are used in the inductive constraint programming loop:
Initially, WorldtoML is used to gather training data to the ML component. These data can be feedback from previous executions of solutions of the CP component on the world. The solution of the previous cycle can also directly be used as well, through CPtoML. This is especially useful if the previous solution could not be applied to the world, for example because the learned patterns lead to an inconsistency. Using the output of WorldtoML and CPtoML, the learning problem can then be constructed, specific to the learner at hand. Next, the learner is applied to and patterns are obtained. These patterns can be weights of an objective function, constraints, or any other type of structural information that is part of the CP problem.
A similar process then happens for the CP component, the network is constructed using the output of WorldtoCP and MLtoCP, after which the solving method is used and solutions are obtained.
These solutions are then applied to the world using ApplytoWorld. As mentioned before, it may be that the found solution (or nonsolution) is not applicable to the world. In that case, a new iteration of the loop is started immediately which bypasses the world. Otherwise the solutions are applied to the world, after which a new cycle with new observations can be started.
We can observe that there is no direct link between the ML component and the world. Our framework is indeed devoted to solving combinatorial problems such as scheduling and routing, revising them based on feedback from the world; it does not aim to only classify or predict events in the world.
4 Illustrative Example
To illustrate the inductive constraint programming loop we will use a scheduling setting that occurs in hospitals. This setting includes an ML component, a CP component and a world component.
We will first describe the CP component. In this component we focus on a task scheduling problem. The treatment of a patient typically involves the execution of various tasks on this patient, such as executing scans, taking blood tests, operating the patient, physiotherapeutic sessions, and so on. These tasks need to be executed in a welldefined order, and require the use of the resources of the hospital for a certain amount of time. The overall scheduling problem is how to schedule these tasks in the shortest amount of time possible, using the limited resources of the hospital.
Important parameters of this scheduling problem hence include the resources available in the hospital and the tasks that need to be executed. For each task, it is important which resources need to be used, how many such resources are needed, and for how long they need to be used.
Whereas for many patients it is clear which procedures need to be followed before the patient can be discharged from the hospital, this is not the case for the duration of these tasks: depending on parameters such as age or health conditions, a certain task may take much longer for one patient than for another patient.
The task of the ML component is to address this challenge: its task is to predict how long a task is estimated to take for a patient. This task involves solving a regression problem as identified earlier: for each given task for a patient, we need to predict its duration, which is a real number.
The world component executes the schedules; it produces data about patients and observations concerning the true durations of tasks.
Clearly, as the tasks are executed in the hospital, the predicted durations may differ from the actual durations. Furthermore, new patients and hence new tasks arrive. This means that the hospital needs to schedule tasks on a regular basis. The patient data that is collected during each such iteration can here be used to improve the quality of the predicted task durations. This makes it a good example of the inductive constraint programming loop. Within this loop, we can distinguish the following components and functions:

function WorldtoML reads historical patient data and historical task durations for these patients; furthermore, it reads the patients that are currently in the hospital and the tasks that need to be executed for these patients;

the ML component predicts the durations for the tasks that need to be executed, using the historical data;

function MLtoCP reads the learned durations and updates the CP network accordingly;

function WorldtoCP reads the tasks that need to be executed from the world, as well as the resources available in the hospital;

the CP component solves the updated scheduling problem;

function ApplytoWorld applies the resulting schedule in the world.
In this example, the function CPtoML is not used; it could be used, for instance, if there is a preference to schedule nurses and doctors in similar teams or with similar load or timebreaks from daytoday.
Both components can be formalized using a CP language, such as the MiniZinc language mentioned earlier. Figure 3 shows MiniZinc code for the task scheduling problem. In this model, the parameters of the problem setting are reflected as follows:

the
dur
array represents the durations of all the tasks, as predicted by the ML component (line3
);
the
prev
array indicates for each task which task needs to be executed before this task; note that we assume that there is a dummy first task that precedes all tasks (line4
);
the
cap
array represents the capacity of the resources available (line7
);
the
use
array represents how many resources of each type need to be used to execute a certain task (line8
).
The variables that need to be found are the start
variables
(line 11
), which indicate at which times the tasks need to be
executed. The constant max_time
represents the latest time at which a task may still start, this could be specified for each task separately as well.
The constraints are twofold:

the constraint on line
14
is acumulative
constraint; for a given resource, it ensures for each time point that the use of the resource is within the capacity bound of that resource. Note that thecumulative
constraint is a builtin constraint available in the MiniZinc language. Constraints that can involve any number of variables are called global constraints. They can capture complex structural constraints of the problem. Global constraints are an essential part of the efficiency of CP models.
the constraint on line
17
ensures that a task only executes after the task that should precede it has finished.
The optimization criterion is to minimize the makespan, that is,
to assign the start
variables so that the total amount of time
used by the schedule is minimum (line 19
).
To predict the durations of the tasks in the hospital, a regression task needs to be solved. Many different models can be made for this regression task, each corresponding to learning a different type of regression model. Arguably the most simple regression model is the linear model, in which the task duration prediction is based on a linear combination of the characteristics of the patient on which the task is executed.
The problem of learning such a regression model is formalized in Figure 4. Variables X
and Y
represent the training data, where X
contains the descriptive attributes of various tasks and Y
the historical durations of these tasks; variable W
represents the weights of the features that we are learning.
Based on these weights, we can calculate an error for the predictions; line 10
calculates a weighted linear combination for each training example, using the weights W
; this prediction is used in line 12
to calculate an error for each example. Line 15
minimizes the error over all examples, where line 17
defines that the errors for the individual examples are combined by summing the squared errors.
The scheduling model and the machine learning model together define both components of the inductive constraint programming loop. We here demonstrated how a declarative, unified language could be used to model both the learning problem and the solving problem. While a single language for both the learning and solving is an appealing prospect, it is not a requirement for the applicability of the inductive constraint programming loop.
5 Other Examples
We now briefly describe a number of other problems that can be captured in the inductive constraint programming loop. For each of them, we define the problem, and then define the interactions between the world, the ML component, and the CP component. The first three problems we describe (optimizing bus schedules, car pooling, and energyaware data centers) are real world problems that can be expressed in a neat and efficient way through the inductive constraint programming loop. The two last (constraint acquisition and portfolio selection) are existing academic problems that can be seen with a new eye through the inductive constraint programming loop.
5.1 Optimizing bus schedules
In order to improve human mobility, the region of Pisa plans to take into account information about the trajectories of people taking their car in order to improve the public transportation system. The problem is composed of two parts. The first one consists in tracking the GPS localisation of cell phones to understand the way people commute in the Pisa region. The second part consists in optimising bus schedules to meet as much as possible the requirements of these people. The problem is dynamic as the implementation of the generated bus schedule will affect the way people commute, which should be observed again, and so on. Such a problem can be represented in the inductive constraint programming loop framework.
The world is observed through the GPS localisation of cells phones in the region of Pisa and is represented by a set of trajectories of individuals. An evaluation of the traffic quality is provided by the function. is based on a measure of the amount of traffic jams generated by the traffic. All these observations are stored in the Observations repository. The function WorldtoML reads observations that are given as input to the ML component. The ML component uses these observations to learn patterns from the trajectories and from the quality evaluation of the traffic. These learned patterns on the trajectories/time slots are written in the Patterns repository. The CP component contains a constraint network that models the problem of generating good bus schedules for the region of Pisa, that is, bus schedules that cover as much as possible trajectories of people at the time they need them. It is parameterized by the weight of each trajectory/time slot. The values of these parameters are computed by the function MLtoCP based on the input from Patterns. The output of the CP component is a new bus schedule that is written in the Solutions repository to be applied to the world by function ApplytoWorld. The process can loop for ever. Figure 5 shows the loop solving this problem.
5.2 Carpooling
The carpooling application is aimed at proposing carpooling matches to a set of users participating to the service, based on their actual mobility (the trips they performed with their private cars) and any information about which kind of match proposals are likely to be accepted by a user. This problem can be modelled in the inductive constraint programming loop framework.
The world is observed through a set of raw trajectories for each user, describing the recent mobility of that user. The function returns the response of each user to the previous carpooling solution offered to her (accepted, rejected, will reject next time). All these data are written in the Observations repository. The function WorldtoML simply reads this information and sends it to the ML component, which will perform some mining operations to produce a temporally labelled weighted oriented graph , where there exists an edge if and only if user can give a lift to user . Each edge is labelled with the time
the lift can take place, and a probability
of having the match proposal being accepted by both and . The graph is written in the Patterns repository. MLtoCP reads this graph and encodes it as a constraint network. The observation of the world also provides other information useful to the carpooling system, e.g. the number of passengers that can be hosted in the user’s vehicle. The function WorldtoCP reads this information and directly sends it to the CP component, which will add the relevant constraints in the network. For each user , a constraint defining the maximum capacity of the vehicle of user wil be added. The CP component solves the network to find the best solution. This solution is a carpooling assignment that maximizes the reduction of cars and the likelihood of acceptance by users. It is written in the Solutions repository, then proposed to the users. Figure 6 shows the loop solving this problem.5.3 Energyaware Data Centres
The aim is to improve the energyefficiency of datacenters. Consider a cloud computing service, where customers contract to run computing services (tasks) throughout the day. Tasks are assigned to machines within the data centre and require a certain amount of resources for the duration which they run. The aim is to schedule these tasks such that the overall cost of energy used is minimized. However this is complicated by the fact that large electricity consumers, like a data centre, will typically pay a variable price for their electricity, which is not known in advance. In Ireland for example, the price is not known until four days after. The price may also fluctuate significantly throughout the day, which provides the opportunity to reduce the energy use during peak periods and instead perform the work during cheaper periods. This requires a forecast of the price ahead of time and to produce a schedule of the tasks based on the forecasted price data.
This application was the focus of the first inductive CP Challenge^{1}^{1}1http://iconchallenge.insightcentre.org/ and is modeled in the inductive constraint programming loop as follows. The world consists of a number of elements: the wide range of factors which affect the energy market, like weather conditions, producers/consumers of electricity, etc; and customers of the data center who contract the various workloads. WorldtoCP gives to the CP component the tasks to be scheduled at the next turn; WorldtoML takes input from the world to produce a hypothesis modeling the electricity price. MLtoCP incorporates this forecast to produce a solution to the scheduling problem minimizing the forecast energy cost. ApplytoWorld takes this schedule and applies it to the world. As time progresses and the world changes WorldtoML will need to evolve the forecast model, and subsequently the schedule, to take account of factors affecting the energy price. Figure 7 shows the loop solving this problem.
Here, the machine learning is applied once and the outcome is directly used by the CP program. An alternative, proposed by Tulabandhula and Rudin [TulabandhulaRu13], is to do the machine learning while taking the operational cost (the outcome of the CP problem with the learned weights) into account. This can be achieved by making the operational cost a part of the loss function of the ML problem. One can then repeatedly iterate between solving the ML and CP component, before applying the found schedule in the world.
5.4 Constraint acquisition
Modeling a problem as a constraint network requires expertise in constraint programming. If we want novices to use constraint programming, we need automatic constraint acquisition systems that assist the user in the modeling task. CONACQ is such a system [besetalIJCAI07queries]. CONACQ interacts with a user to learn a target constraint network that represents the problem of the user. We describe how CONACQ can be implemented as an instance of the inductive constraint programming loop.
The world involves a set of examples defined on a set of objects/variables . An example is an assignment of a value to each of the variables in . Examples are produced by the CP component or by the world itself. The evaluation function is the user herself, who evaluates the quality of examples. In CONACQ the quality is either true or false, depending on if the example is a solution of the target constraint network or not. The examples and their evaluation are written in the Observations repository. WorldtoML simply reads the classified examples from Observations and gives them to the ML component. The hypotheses space used by the ML component is defined by the language of constraints used to express the target network. When reading examples from Observations, the ML component updates –if needed– the hypothesis in the form of a set of constraints that correctly classify the examples. These learned constraints are written in the Patterns repository. Based on the learned constraints, the ML component generates other constraints that implement the followed query strategy (e.g., nearmiss). These constraints together with the learned constraints are sent to the CP component via the MLtoCP function. The CP component solves the network built with all the constraints provided by the ML component and generates new solutions that are stored in the Solutions repository. ApplytoWorld sends the solutions from the repository to the world to be classified by the user/ function. In case the constraint network has no solution that can be provided to the world, the CPtoML function notifies the ML component that it was not able to generate a satisfactory query, possibly with some reasons of failure such as an inconsistent set of constraints. Figure 8 shows the loop solving this problem.
5.5 Portfolio selection
An algorithm portfolio contains a number of algorithms or solvers which are all suitable for solving the same kind of problem, but have different performance characteristics. The aim is to, given a problem instance to solve, determine the best solver for that particular problem, where “best” is defined according to an applicationspecific metric. Algorithm portfolios have been shown to achieve significant performance improvements over individual algorithms. One prominent application area of these techniques is constraint programming.
Within the inductive constraint programming loop, this problem can be modelled as a data mining problem that takes its data from runs of CP solvers. The world consists of the performance data of CP solvers on CP instances. WorldtoML reads this performance information and the ML component learns a model that describes the predicted performance of CP solvers on CP instances and allows to determine the best CP solver for a particular CP instance. When a new CP instance to be solved appears in the world, WorldtoML and WorldtoCP read it. WorldtoML sends it to the ML component, which classifies it and writes the classification in the Patterns repository. WorldtoCP sends the CP instance to be solved to the CP component. MLtoCP reads in the Patterns repository the classification provided by the ML component to decide which solver to use. The selected solver then solves the instance and generates a new data point in the world through the ApplytoWorld function. This new world can lead the ML component to update the predictive model, and so forth. Figure 9 shows the loop solving this problem.
6 Conclusion
After a brief introduction to constraint programming and machine learning, we have introduced the framework of inductive constraint programming. The key idea in the inductive constraint programming loop is that the CP and ML components interact with each other and with the world in order to adapt the solutions to changes in the world. This is an essential need in problems that change under the effect of time, or problems that are influenced by the application of a previous solution. It is also very effective for problems that are only partially specified and where the ML component learns from observation of applying a partial solution, e.g. in the case of constraint acquisition. We have presented multiple examples of the use of inductive constraint programming loop in real world problem settings. Many other settings exist, and as more and more often learning methods are used for producing schedules and other operational plans, the need for a framework that can adapt to changes in the world will increase.
