The Heterogeneity Hypothesis: Finding Layer-Wise Dissimilated Network Architecture

06/29/2020 ∙ by Yawei Li, et al. ∙ ETH Zurich 8

In this paper, we tackle the problem of convolutional neural network design. Instead of focusing on the overall architecture design, we investigate a design space that is usually overlooked, adjusting the channel configurations of predefined networks. We find that this adjustment can be achieved by pruning widened baseline networks and leads to superior performance. Base on that, we articulate the “heterogeneity hypothesis”: with the same training protocol, there exists a layer-wise dissimilated network architecture (LW-DNA) that can outperform the original network with regular channel configurations under lower level of model complexity. The LW-DNA models are identified without added computational cost and training time compared with the original network. This constraint leads to controlled experiment which directs the focus to the importance of layer-wise specific channel configurations. Multiple sources of hints relate the benefits of LW-DNA models to overfitting, the relative relationship between model complexity and dataset size. Experiments are conducted on various networks and datasets for image classification, visual tracking and image restoration. The resultant LW-DNA models consistently outperform the compared baseline models.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 14

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Since the advent of deep learning era, convolutional neural network (CNN)

lecun1998gradient design has replaced the role of feature design in various computer vision tasks. Recently, neural network design has also evolved from manual design simonyan2014very ; he2016deep ; huang2017densely to neural architecture search (NAS) liu2019darts ; tan2019mnasnet and semi-automation yang2018netadapt ; howard2019searching ; radosavovic2020designing . State-of-the-art network designs focus on discovering the overall network architecture with regularly repeated convolutional layers. The repetition continues until the next stage of the network, e.g. the pooling operation. This has been the golden standard of current CNN design and been confirmed by some research. For example, Ma et al. mentioned that a network should have equal channel width ma2018shufflenet . But their analysis is limited to minimizing the memory access cost given the FLOPs for a single pointwise convolution.

The motivation of this paper kind of contradicts the previous design heuristics. In this paper, we investigate a design space that is usually overlooked and not fully explored,

i.e. adjusting the layer-wise channel configurations. We try to answer three questions: i) whether there exists a layer-wise specific channel configuration that can outperform the original one; ii) how to identify it efficiently; iii) if there exists such an advantageous channel configuration, why it can beat the regular configuration.

Hints from network pruning. Recent network pruning methods shed lights on the existence of the advantageous layer-wise specific networks liu2019metapruning ; li2020dhp . Those methods can result in pruned networks with layer-wise specific channel configurations. Some works liu2019metapruning report accuracy gain of the pruned network over the width-scaled version of ResNet and MobileNets he2016deep ; howard2017mobilenets ; sandler2018mobilenetv2 . However, since the advantageous networks are identified in a network compression sense, thus with accuracy drop compared with the uncompressed network, it still remains unknown whether there exists a layer-wise specific network that can compete with the original one. A recent work li2020dhp

reports accuracy gain over uncompressed MobileNets on Tiny-ImageNet. Yet, further investigation on larger dataset is not conducted. Moreover, the pruned network are usually derived with training protocols different from that used for the baseline network,

e.g. additional searching stage, larger batch size, or prolonged fine-tuning stage. It remains unknown how the layer-wise specific channel configurations benefit the network. Based on the discussion, we state the heterogeneity hypothesis as follows.

The Heterogeneity Hypothesis: For a CNN, when trained with exactly the same training protocol (e.g.

number of epochs, batch size, learning rate schedule), there exist a layer-wise dissimilated network architecture (LW-DNA) that can outperform the original network with regular layer-wise channel configurations under lower level of model complexity in term of FLOPs and parameters.

To be specific, we aim at adjusting the channel numbers of the convolutional layers in predefined CNNs. The other layer configurations such as kernel size and stride are not changed. Formally, consider an

-layer CNN , where is the channel configuration of all of the convolutional layers, denotes the parameters in the network, and is the input of the network. The heterogeneity hypothesis implies that there is a new channel configuration such that the new architecture performs no worse than the original one. After the adjustment, the channel configurations could be either larger or smaller than the original .

The focus of this paper is network architectures. Thus, to validate the advantage of LW-DNA models, controlled experiments should be conducted to exclude the influence of other factors other than network architecture. To do that, in addition to controlling influencing factors such as the optimizer and the training protocol, the identification procedure of LW-DNA should also be minimized to avoid additional computational cost and training time. This constraint leads to the following problem.

Problem Statement: If the heterogeneity hypothesis is valid, how can we efficiently and reliably find a LW-DNA model for a CNN without any added computational cost and training time?

Efficiency and reliability are the core constraints of the problem and should be kept in mind when designing the adjustment algorithm and criterion. An efficient adjustment algorithm that can discover LW-DNA models without added computational cost and training time should be developed. And a reliable adjustment criterion which can be robustly applied to different baseline network architectures and datasets should be devised. On the one hand, adjusting the channel configuration of a network involves a pruning criterion that diminishes and a growing criterion that enlarges . But there is no reliable criterion to decide where to grow a network merely based on the information from the predefined architecture. The lack of such a growing criterion makes the problem seemingly intractable. On the other hand, growing from a smaller architecture has the same effect of pruning a larger one. Thus, the lack of a proper growing criterion is circumvented by starting from a larger version of a network. In short, the adjustment problem in a smaller space is cast into a pruning problem in a larger space. Efficient pruning algorithm and reliable pruning criterion are developed.

Identifying LW-DNA.

The larger space is derived by widening the baseline network. A channel configuration residing in the space is identified by an efficient pruning algorithm. The recent developed DHP hypernetwork li2020dhp

is utilized as the identifying agent. With the agent, the less significant channels in the convolutional layers of the widened network are greedily pruned. This is done by removing the corresponding elements of the input latent vectors of the hypernetwork according to the vectors’ gradients at initialization

lee2018snip . The pruning criterion, i.e. pruning wrt gradients at initialization, minimizes the pruning procedure to the computation of only one random bath. This solves the stated problem, i.e. identifying a better channel configuration without added computational cost and training time. More details and rationales about the choice of the LW-DNA identifying procedure are given in Sec. 3. In short, the identifying procedure proceeds as follows.

  1. [leftmargin=*]

  2. Reparameterize the widened baseline network with hypernetworks. The outputs of the hypernetworks act as the weight parameters of the baseline network.

  3. Compute the gradients of the hypernetwork input, i.e. the latent vectors, with one random batch.

  4. Prune the latent vectors greedily according to the magnitude of their gradients.

  5. Compute the weight parameters with the pruned latent vectors.

  6. Train the resultant network from scratch with the same training protocol as the baseline network.

The hypernetworks are removed after the computation of the pruned weight parameters. The computed weight parameters are used as the trainable parameters during the training stage.

Explaining the benefits of LW-DNA. We try to identify LW-DNA versions of various state-of-the-art networks on three vision tasks including image classification he2016deep ; huang2017densely ; howard2017mobilenets ; sandler2018mobilenetv2 ; howard2019searching ; tan2019mnasnet ; tan2019efficientnet ; radosavovic2020designing , image restoration ledig2016photo ; lim2017enhanced ; zhang2017beyond ; ronneberger2015unet , and visual tracking bhat2019learning . Interestingly, the identified LW-DNA models are consistently better than the baseline even with lower level of model complexity in terms of FLOPs and number of parameters. We try to explain the phenomenon from several perspectives.

  1. [leftmargin=*]

  2. The CNNs are redundant. Thus, it is possible to shoot a layer-wise specific channel configuration comparable with the baseline under lower model complexity budgets.

  3. Some layers of the LW-DNA model have more channels than the baseline. There is a tendency that the lower layers are strengthened with more channels. It might be those layers that play the essential role in improving the network accuracy.

  4. The accuracy gain of LW-DNA model might be related to model overfitting. We derive this conjecture from several observations. I. By comparing the training and testing curve of LW-DNA model and the baseline in Fig. 2, we find that towards the end of the training, the identified LW-DNA models shoot a higher training error but lower testing error, i.e. improved generalization. This phenomenon is consistent across different datasets. This also matches the observations from the pioneering unstructured pruning, i.e. optimal brain damage and optimal brain surgeon that try to improve network generalization lecun1990optimal ; hassibi1993second . II. The accuracy gain of LW-DNA model is larger on smaller datasets (Tiny-ImageNet) which is easier to be overfitted compared with larger datasets (ImageNet). III. On the same dataset (ImageNet), it is easier to identify a LW-DNA model version for larger networks (i.e. ResNet50) than for smaller networks (i.e. MobileNetV3).

Contributions. The contributions of this paper are summarized as follows.

  1. [leftmargin=*]

  2. We demonstrate that it is possible to identify a superior version of a network by only adjusting the channel configuration of the network. This validates the possibility of network pruning working as a complementary searching mechanism to semi- or fully automated neural architecture search.

  3. We propose a method that can identify an LW-DNA candidate network without added computational cost and training time compared with the baseline network.

  4. We try to explain the reason for the improved performance of LW-DNA by observing the experimental results.

2 Related Work

The lottery ticket hypothesis. The heterogeneity hypothesis is reminiscent of the lottery ticket hypothesis frankle2018lottery , which addresses the existence of sparse subnetworks that can match the test accuracy of randomly-initialized dense networks. The winning ticket is identified by greedily pruning single elements of weight parameters with smallest magnitude. The unstructured pruning breaks the dynamical isometry in the network lee2019signal . The core problem is the trainability of the sparse subnetworks and the gradient flow in the subnetworks lee2019signal . On the contrary, the heterogeneity hypothesis focuses on adjusting the channel configuration of the network. Since the weight elements of an entire channel is pruned together, there is no irregular kernel in the pruned network. Gradient flow is no longer a problem in this scenario.

NAS. NAS automatizes neural network design by searching in the design space zoph2017nas ; liu2018nas ; pham2018efficient . Earlier works consume lots of computation zoph2017nas ; liu2018nas . Recent developments accelerate the searching procedure by introducing differentiability into the optimization process liu2019darts . After the searching stage, the derived cells are repeated to construct the final network. Thus, the final network still has a regular architecture. In this paper, we try to adjust the channel configuration of the network, which can be regarded as a complementary method to NAS.

Hypernetworks Hypernetworks are actually a kind of reparameterization of the backbone network ha2017hypernetworks . Hypernetworks generates the weight parameters of the backbone network. The input of hypernetworks can be either static or dependent on the feature maps of the backbone network. In this sense, hypernetworks fall in the paradigm of meta learning. Recent developments bring hypernetworks to network pruning liu2019metapruning ; li2020dhp . Earlier hypernetwork designs are just a stack of two linear layers. Thus, the outputs are fixed, which should be cropped before being used as weights of the backbone network. The recent DHP hypernetwork li2020dhp can adapt the outputs according the length of the input latent vectors. This design naturally suits the task of network pruning. This is one of the reason why we select the DHP hypernetwork as the pruning agent.

Network pruning. Network pruning removes unimportant weight parameters in the network lecun1990optimal ; hassibi1993second ; han2015deep ; li2017pruning ; li2020group ; lee2018snip ; li2020dhp . Among them, the most relevant are the DHP hypernetworks mentioned above and single-shot pruning lee2018joint ; lee2019signal . Since we want to purely investigate the importance of the architecture of the identified network, the other factors such as training protocol should be excluded. The pruning procedure should also be simplified as much as possible. Inspired by lee2018snip ; lee2019signal , the widened network is pruned at initialization according to gradients. The pruning procedure only needs one random batch.

3 Methodology

Figure 1: Illustration of the configuration space. The proposed method identifies layer-specific channel configurations within the enlarged and constrained subspace . Compared with searching with in the constrained neighborhood of , the enlarged configuration space makes it possible to develop straightforward pruning criterion.

3.1 Problem formulation

Configuration space and configuration vector. Consider an -layer CNN whose channels are summarized as a configuration vector in a configuration space (See Fig. 1). The dimension of the configuration vectors depends on the number of convolutional layers in the network. State-of-the-art network architecture search methods identify an overall network architecture with fixed configuration vectors. The configuration vectors are regular and dependent on each other in the sense that most of the elements are repeated. For example, for the image classification networks, the golden standard is to repeat the building block with the same configuration until the reduction of spatial dimension of the feature map. Some efficient designs for mobile devices introduce a width multiplier to adapt to constrained resource requirements, which results in a scaled configuration vector .

Configuration vector adjustment. Since the configuration vector is manually fixed, it is not guaranteed to be optimal. In this paper, we explore in the new design space, i.e. the configuration space. The aim is to demonstrate that there is an irregular configuration vector that can compete with the original one under reduced model complexity. An algorithm needs to adjust the elements of the configuration vector while controlling the model complexity. This operation is actually searching in the neighborhood of of the vector. After the adjustment, an element can be either enlarged or diminished, which corresponds to growing or pruning the -th layer of the network. Current research focuses on how to prune a network because it is straightforward to develop a pruning criterion based on the predefined architecture. But a pruning algorithm can only explore a subspace of the neighborhood. The lack of a convincing growing criterion makes the configuration vector adjustment problem seemingly intractable.

We circumvent this problem by introducing a larger searching space which is obtained by widening the width of the network with a width multiplier . The new searching space is a hyperrectangle delimited by the zero vector and the up-scaled configuration vector in the high-dimensional space, i.e. . The searching algorithm then starts from the up-scaled vector and reduces the value of its -th elements greedily according to the significance of the channels in the corresponding convolutional layer. This process at its core is pruning the widened networks. Thus, in this paper, the identification of the irregular configuration vector, i.e. the corresponding LW-DNA models is cast as a pruning problem in the larger space. As explained in Sec. 1, the pruning procedure consists of five steps, i.e. i) constructing hypernetworks for the widened baseline network, ii) computing the gradients of the latent vectors, iii) pruning the latent vectors according to the gradients, iv) computing the pruned weights parameters, and v) training the resultant network from scratch. And in the following, we explain some of the key steps in detail.

3.2 LW-DNA identifying agent

Recent research on network pruning reveals the fact that automatic network pruning can be regarded as fine-grained architecture search methods liu2019rethinking ; liu2019metapruning ; li2020dhp . Inspired by that, the automatic network pruner is utilized as the identifying agent of LW-DNA. In this paper, the employed agent is the DHP hypernetwork that is tailored to the problem of network pruning considering its several merits li2020dhp . The DHP hypernetworks bring network pruning into a latent space. The pruning of a channel is equivalent to deleting a single element of the latent vector. It provides a straightforward extension of single-shot pruning lee2018snip to channel pruning (See Subsec 3.3). The latent vector sharing mechanism makes it possible to deal with various state-of-the-art networks.

As in Subsec. 3.1, the -layer CNN is widened and brought to a larger configuration space . Consider the -th convolutional layer of the CNN. The dimension of the weight parameter is , where , , and denotes the output channel, input channel, and kernel size of the layer. For the simplicity of notation, let and in the following. A latent vector is attached to every layer of the CNN and for the -th layer . The latent vector controls the output channel of the layer and removing an element of the latent vector is equivalent to pruning an output channel of the layer. Since the output channel of the current layer acts as the input channel of the next layer, the latent vectors are shared between consecutive layers. The hypernetwork takes as input the latent vector of the previous layer and the current layer. It computes a latent matrix, i.e.  . Then every element of the latent matrix is transformed to a vector by two consecutive linear operations, i.e.

(1)

where and . Note that and are unique for each element and for the simplicity of notation the subscript

is omitted. The output could be assembled into a 3D tensor

which can be used as the weight parameter of the convolutional layer. The latent matrix acts as a handle for pruning. For example, if a single element of the latent vector is nullified, the entire row of the latent matrix is masked out. As a result, the corresponding output channel is removed, thus achieving the effect of network pruning. For a better understanding, the demo code of the hypernetwork is attached in the supplementary.

3.3 Pruning criterion

Instead of using proximal gradient descent (PGD) to sparsify the latent vectors, we propose to prune the latent vectors according to their gradients right after the initialization of the hypernetwork. That is, the pruning criterion is defined as , where

is the loss function of the task,

takes the absolute value. Elements with small criterion values are pruned. The choice of the pruning criterion is based on the following considerations.

Pruning at initialization. The solution to the proximal operator with regularization, i.e. the soft-thresholding operator, shows that PGD tends to diminish the elements of the latent vectors with the approximately consistent speed. As a results, the final magnitude of the elements has some kind of relationship with the initial magnitude. That is, if the initialization of an element is large, it is likely that the final magnitude is still relatively large and the element is kept after pruning. This is confirmed by the experiment. The distribution of the latent vectors during the PGD optimization is shown in the supplementary. As shown there, the final distribution is related to the initialization. Thus, it becomes reasonable to prune the latent vectors at initialization.

Pruning according to gradients. Proximal gradient might result in unbalanced pruning. For example, in Table 1, for the DHP results on MobileNetV2, the number of parameters increases despite the reduction of FLOPs. This is because larger percentage of channels in the lower layers are pruned, which account for more FLOPs but less parameters compared with those in the higher layers. At initialization of the hypernetwork, the range of the gradients of the latent vectors are relatively balanced across the layers. Thus, gradients are chosen as the pruning criterion.

Justification of the collaboration between hypernetwork and pruning at initialization. Pruning at initialization is inspired by single-shot pruning of weight elements lee2018snip . But the pruning criterion, i.e. the normalized gradient magnitude, is single element oriented. Structured pruning aims at nullifying an entire filter. It remains to be explored how to transform the heuristics of unstructured single-shot pruning to structured pruning. The hypernetworks provide such a connection. By resorting to hypernetworks, the pruning procedure is transformed into the latent space. Deleting an element of the latent vector is equivalent to pruning a channel in the network. Thus, pruning the latent vectors according to their gradients is a natural transferring of the single-shot pruning heuristics.

Additional benefit. The additional benefit is that this pruning procedure is simple enough without sophisticated designs. Because only one random batch from the dataset is need. Thus, exactly the same training protocol can be utilized for the baseline network and the identified LW-DNA model. This consistence makes it possible to identify the importance of the architecture of LW-DNA models while controlling the other factors.

Thus, the pruning procedure first computes the gradients of the latent vectors with respect to only one random batch. The derived gradients are used as the pruning metric. All of the latent vectors are greedily and jointly pruned according to the magnitude of the gradients.

3.4 Knowledge distillation

For image classification, besides the cross-entropy loss function, a distillation term is also used, i.e.

(2)

where is the cross-entropy loss function, is the softmax function, is the class label, and

are the logit outputs of LW-DNA model and the teacher

hinton2015distilling . We use fixed parameters and . The teacher is the pretrained widened version of the baseline network. Knowledge distillation is not used for experiments on ImageNet because the execution of the teacher network in this case also consumes considerable time and GPU resources.

3.5 Constraining model complexity

Model complexity is measured in terms of FLOP and parameter count. The target is to shoot a model that has both fewer FLOPs and parameters while achieving improved accuracy. Yet, the two metrics are not always consistent with each other. For example, when the FLOPs target is set, a parameter over-pruned model might be observed in some of the experiments, which could lead to inferior performance. Thus, a new hyper-parameter is introduced which controls the minimum percentage of remaining channels in convolutional layers. In this way, the search space is a confined subspace of the original search space , i.e. . For image classification networks, a similar hyper-parameter for the final linear layers is also introduced. The two hyper-parameters and are termed convolutional percentage and linear percentage in this paper, respectively. During the pruning, the FLOP budget is fixed. By tuning the hyper-parameters and , the algorithm is able to find networks with the same FLOPs but varying parameter budgets.

3.6 Difference from pruning works

This paper is different from the previous pruning works in the following aspects. Aim. The aim of this paper is to identify a version of predefined network with improved accuracy and slightly reduced model complexity. Previous pruning works aim at improving the efficiency of networks and they bring accuracy drop for the pruned networks. Method. Pruning criterion for unstructured pruning is transferred to structured pruning by the collaboration of hypernetworks and gradient criterion. There is no computational overhead for the channel pruning method used in this paper. Interpretation. This paper tries to interpret where the benefit of the slightly reduced models comes from, which is not done by recent pruning works.

4 Experimental Results


Dataset
Network Method Top-1 Error (%) FLOPs [G] / Ratio (%) Params [M] / Ratio (%)

ImageNet deng2009imagenet
ResNet50 he2016deep Baseline 23.28 4.1177 / 100.0 25.557 / 100.0
LW-DNA 23.00 3.7307 / 90.60 23.741 / 92.90
RegNet radosavovic2020designing X-4.0GF Baseline 23.05 4.0005 / 100.0 22.118 / 100.0
LW-DNA 22.74 3.8199 / 95.49 15.285 / 69.10
MobileNetV3 howard2019searching small Baseline 34.91 0.0612 / 100.0 3.108 / 100.0
LW-DNA 34.84 0.0605 / 98.86 3.049 / 98.11

Tiny-ImageNet
MobileNetV1 howard2017mobilenets Baseline 51.87 0.0478 / 100.0 3.412 / 100.0
Baseline KD 48.00 0.0478 / 100.0 3.412 / 100.0
DHP KD 46.70 0.0474 / 99.16 2.267 / 66.43
LW-DNA 46.44 0.0460 / 96.23 1.265 / 37.08
MobileNetV2 sandler2018mobilenetv2 Baseline 44.38 0.0930 / 100.0 2.480 / 100.0
Baseline KD 41.25 0.0930 / 100.0 2.480 / 100.0
DHP KD 41.06 0.0896 / 96.34 2.662 / 107.34
LW-DNA 40.74 0.0872 / 93.76 2.230 / 89.90

MnasNet tan2019mnasnet Baseline 51.79 0.0271 / 100.0 3.359 / 100.0
Baseline KD 48.17 0.0271 / 100.0 3.359 / 100.0
DHP KD 48.10 0.0264 / 97.42 2.512 / 74.79
LW-DNA 46.85 0.0250 / 92.25 1.258 / 37.45

CIFAR100
RegNet radosavovic2020designing Y-400MF Baseline 21.65 0.4585 / 100.0 3.947 / 100.0
Baseline KD 18.71 0.4585 / 100.0 3.947 / 100.0
LW-DNA 18.65 0.4468 / 97.45 2.466 / 62.48
EfficientNet tan2019efficientnet Baseline 20.74 0.4161 / 100.0 4.136 / 100.0
Baseline KD 19.73 0.4161 / 100.0 4.136 / 100.0
LW-DNA 19.54 0.3850 / 92.53 2.121 / 51.28
DenseNet40 huang2017densely Baseline 26.00 0.2901 / 100.0 1.100 / 100.0
Baseline KD 22.84 0.2901 / 100.0 1.100 / 100.0
LW-DNA 22.46 0.2638 / 90.93 1.016 / 92.35

CIFAR10 krizhevsky2009learning
ResNet56 he2016deep Baseline 5.74 0.1274 / 100.0 0.856 / 100.0
Baseline KD 5.73 0.1274 / 100.0 0.856 / 100.0
LW-DNA 5.49 0.1262 / 99.06 0.536 / 62.62

Table 1: Image classification results. Baseline and Baseline KD denote the original network trained without and with knowledge distillation respectively. DHP-KD is the DHP version trained with knowledge distillation.

The experimental results are shown in this section. We try to identify LW-DNA for various state-of-the-art networks including ResNet he2016deep , RegNet radosavovic2020designing , MobileNets howard2017mobilenets ; sandler2018mobilenetv2 ; howard2019searching , EfficientNet tan2019efficientnet , MnasNet tan2019mnasnet , DenseNet huang2017densely , SRResNet ledig2016photo , EDSR lim2017enhanced , DnCNN zhang2017beyond , and U-Net ronneberger2015unet . The identified LW-DNA model and the baseline network are trained with exactly the same training protocol. The details of the training protocol for different tasks are given in the supplementary. For image classification on CIFAR krizhevsky2009learning and Tiny-ImageNetdeng2009imagenet , knowledge distillation hinton2015distilling is also used for some of the experiments (Baseline KD, DHP KD li2020dhp , and LW-DNA model).

Image classification. The results of image classification networks are compared in Table 1. A complete version of the results is given in the supplementary. We have several key observations from the results. I. The identified LW-DNA models outperform the original network (denoted as Baseline or Baseline KD when knowledge distillation is used) with lower model complexity in terms of both FLOPs and number of parameters. This is a direct support for the Heterogeneity Hypothesis. II. The accuracy of the baseline network can be improved by knowledge distillation. Yet, the improved baseline still performs worse than LW-DNA. This shows the robustness of LW-DNA, i.e. not affected by a specific training technique. III. The improvement of LW-DNA scales up to large-scale datasets, i.e. ImageNet. For the ImageNet experiment, we set and by the ablation study on Tiny-ImageNet shown in the supplementary. This hyper-parameter combination works well across the three investigated networks. The success on ImageNet and the robustness of the hyper-parameters imply the wide existence of LW-DNA models and the ease of finding them.

(a) ResNet50, ImageNet.
(b) RegNet-4GF, ImageNet.
(c) MobileNetV1, Tiny-ImageNet.

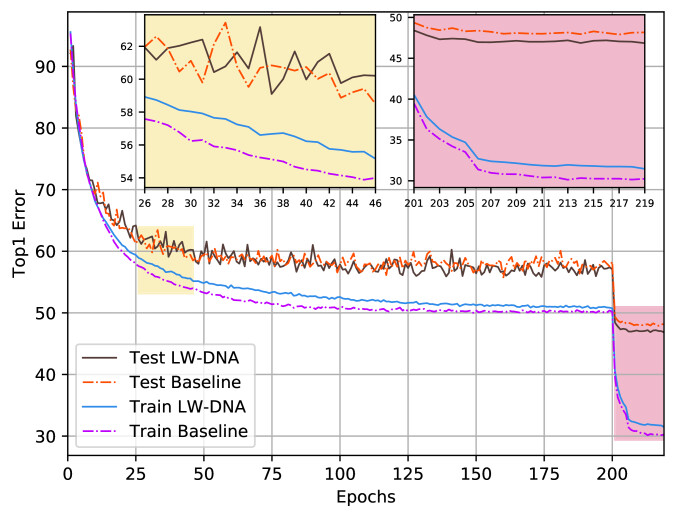

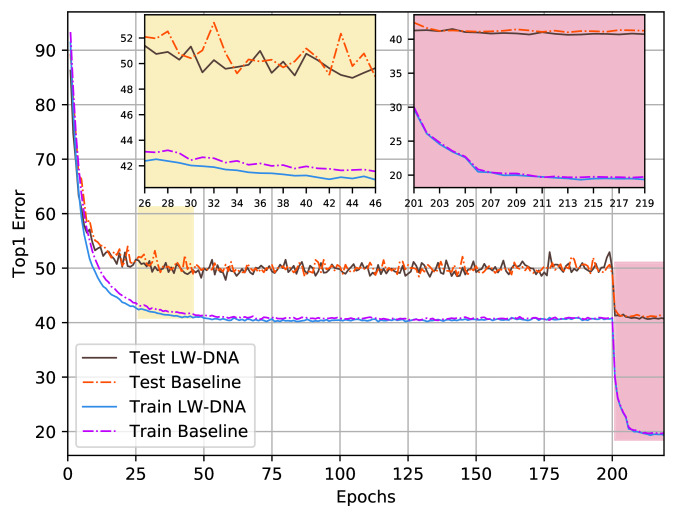

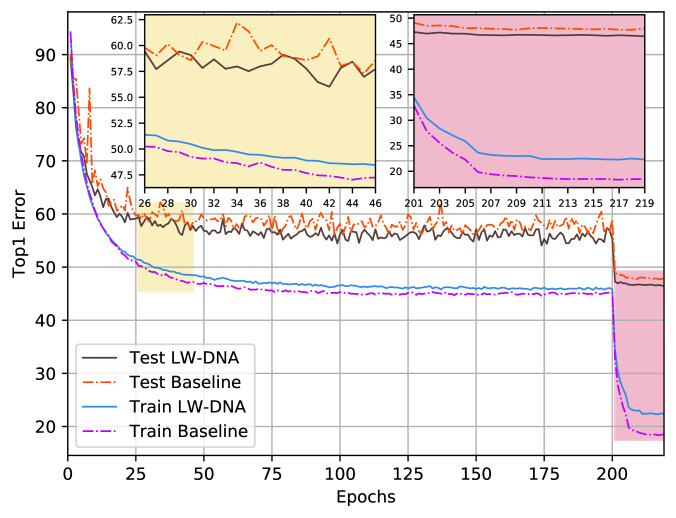

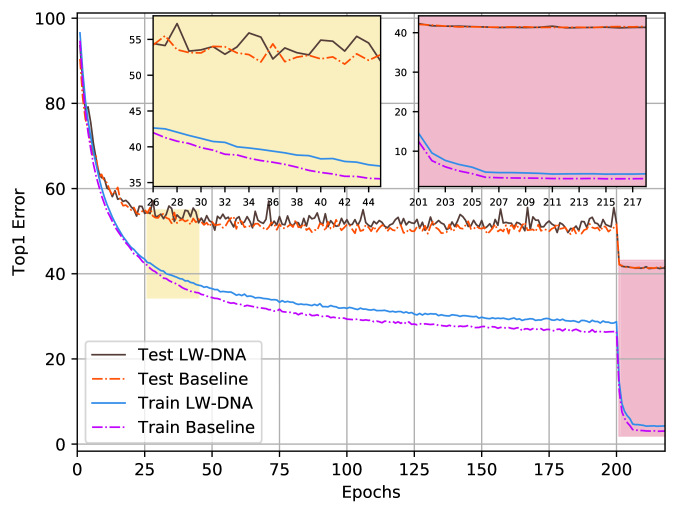

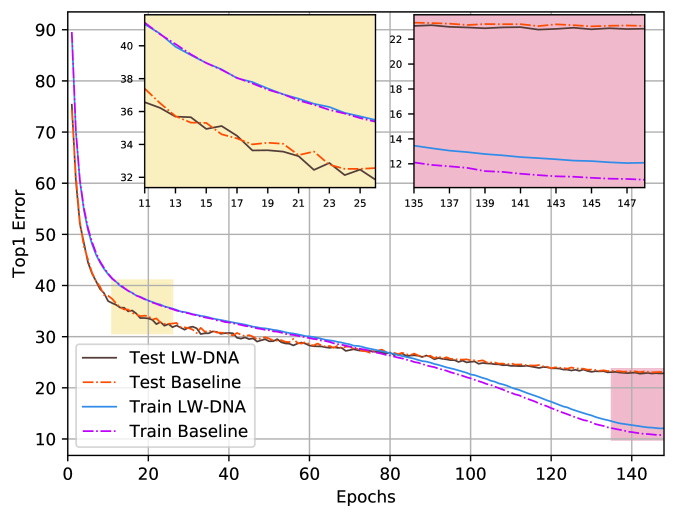

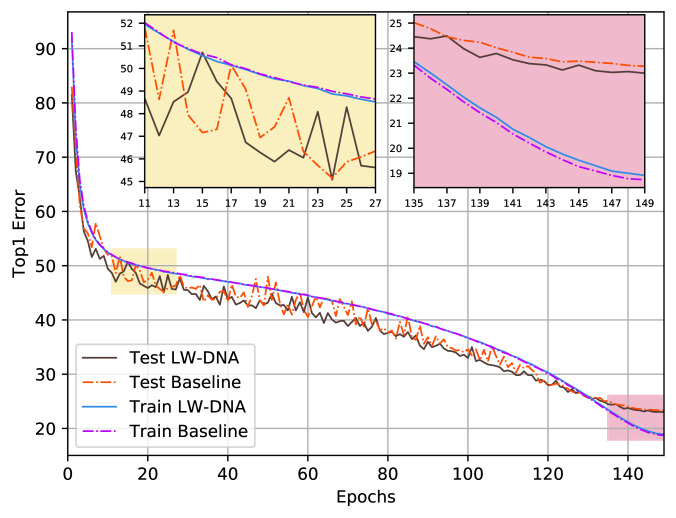

Figure 2: Training and testing log of the LW-DNA models and the baseline models.
(a) ResNet50, ImageNet.
(b) RegNet-4GF, ImageNet.
(c) MobileNetV2, Tiny-ImageNet.
(d) MobileNetV1, Tiny-ImageNet.

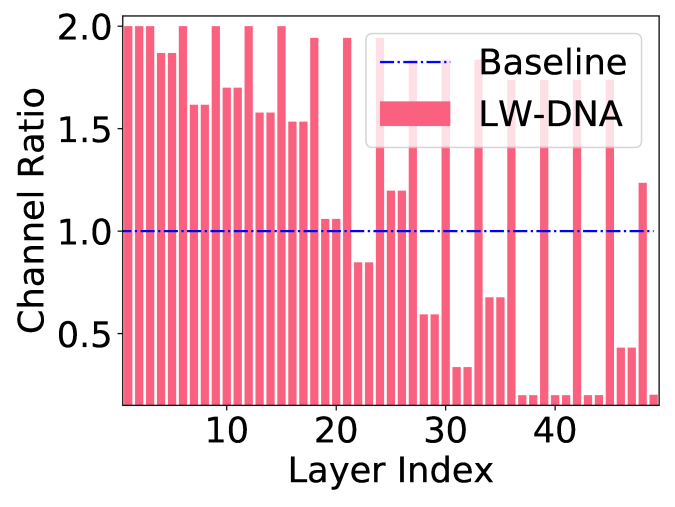

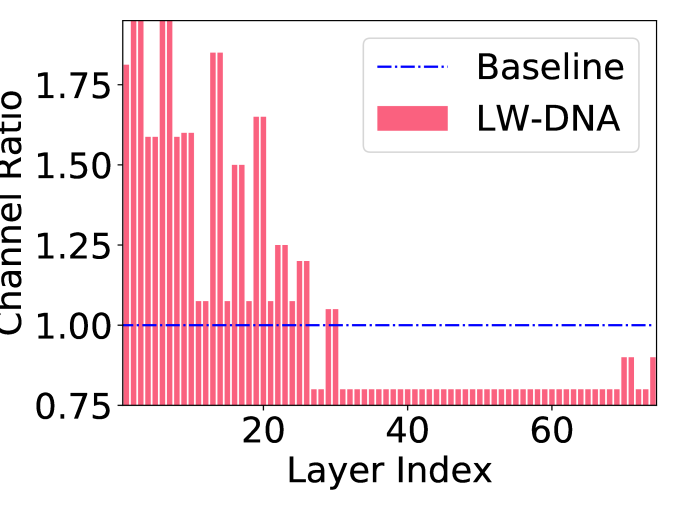

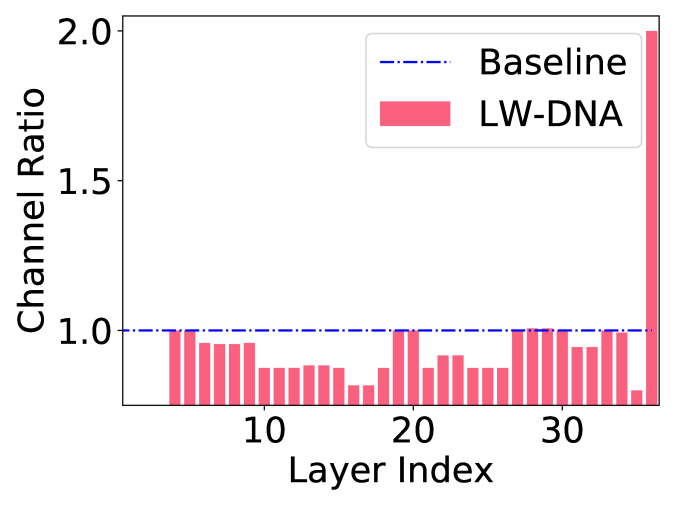

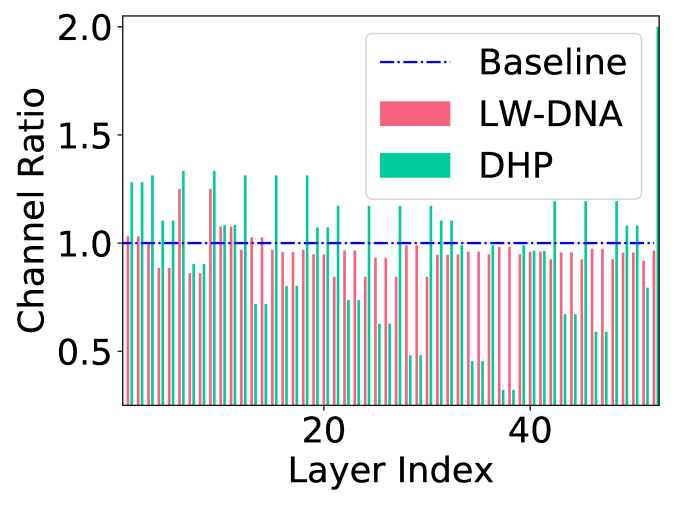

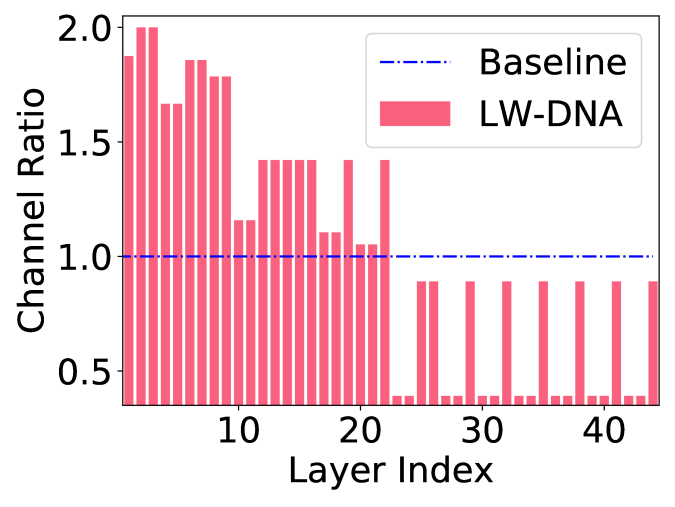

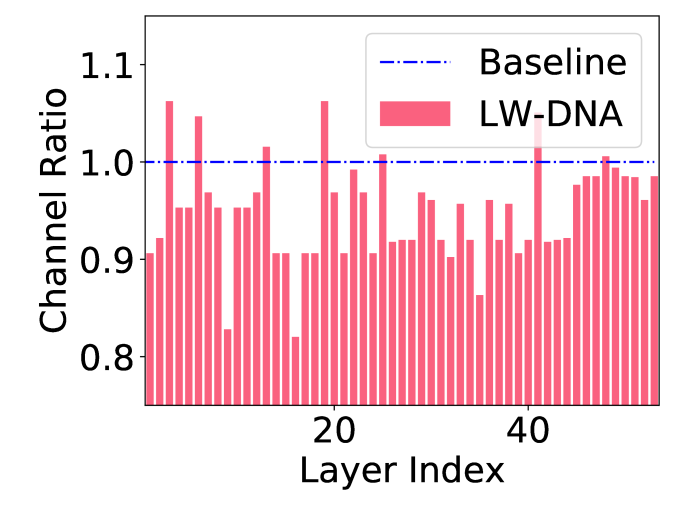

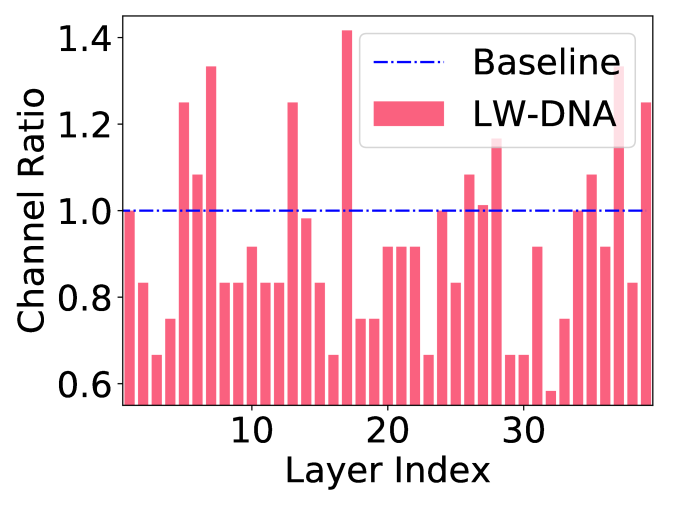

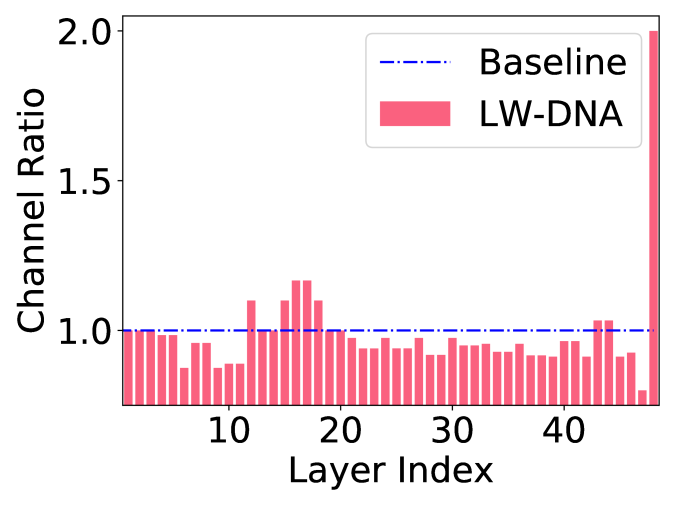

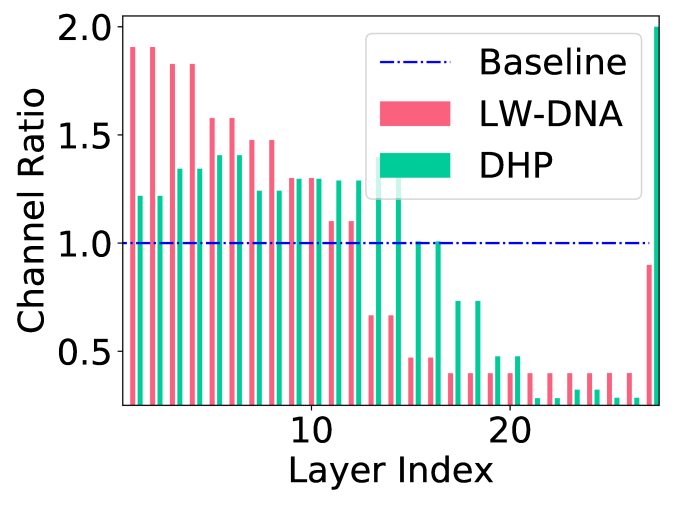

Figure 3: Percentage of remaining output channels of LW-DNA models over the baseline network.

The benefits of LW-DNA models are analyzed by several observations of the experimental results. I. The percentage of remaining channels is shown in Fig. 3. Some layers of the LW-DNA networks are strengthened. This might contribute to the improved performance of LW-DNA. II. As shown in Fig. 2, towards the end of the training, the LW-DNA models shoot a lower test error with increased training error. The improved generalization on the test set comes with reduced model complexity and lower training accuracy. This phenomenon is consistent with the pioneering unstructured pruning methods lecun1990optimal ; hassibi1993second that try to balance model complexity and overfitting. The same phenomenon on both unstructured pruning and structured pruning points to a common underlying factor. III. The accuracy gain of LW-DNA on Tiny-ImageNet is larger than ImageNet. As known, smaller datasets are easier to be overfitted. IV. On ImageNet, it is easier to identify LW-DNA models for ResNet50 and RegNet than MobileNetV3. Since the larger models ResNet50 and RegNet contain more redundancy, it is easier for them to overfit the dataset. Based on the above observations, we conjecture that the improvement of LW-DNA model might be related to model overfitting.

Visual tracking. To validate the generalization ability of the identified LW-DNA, we apply the LW-DNA and baseline version of ResNet50 to visual tracking. State-of-the-art tracking workflow DiMP bhat2019learning is used as the test bed. For a fair comparison, the LW-DNA and the baseline are trained with the same protocol. They are first pretrained on ImageNet then finetuned following the DiMP workflow. In Table 3, the networks are compared on two datasets, i.e. TrackingNet muller2018trackingnet and LaSOT fan2019lasot . On the smaller dataset TrackingNet, LW-DNA version slightly beats the baseline while on the larger dataset LaSOT, LW-DNA outperforms the baseline elegantly. The success plot on LaSOT is shown in Fig. 3. As shown there, DiMP-LW-DNA is consistently better than DiMP-Baseline and other state-of-the-art tracking methods across the range of overlap threshold. In conclusion, the results show that the benefits of LW-DNA can be transferred to other vision tasks.

Image Restoration. Table 4

shows the results on super-resolution networks. For EDSR, the LW-DNA models perform better than the baseline but with significant reduction of model complexity. On the large test dataset Urban100 and DIV2K, the LW-DNA model of EDSR leads to nearly 0.1dB PSNR gain over the baseline. For SRResNet, LW-DNA achieves slightly reduction of model complexity without drop of PSNR. More results on image denoising are shown in the supplementary. In conclusion, the results

validate the existence of LW-DNA models for low-level vision networks.

Metric DiMP-Baseline DiMP-LW-DNA
TrackingNet muller2018trackingnet
Precision 68.06 68.27
Norm. Prec. (%) 79.70 79.64
Success (AUC) (%) 73.77 73.83
LaSOT fan2019lasot
Precision 54.97 57.30
Norm. Prec. (%) 63.70 65.82
Success (AUC) (%) 55.87 57.43

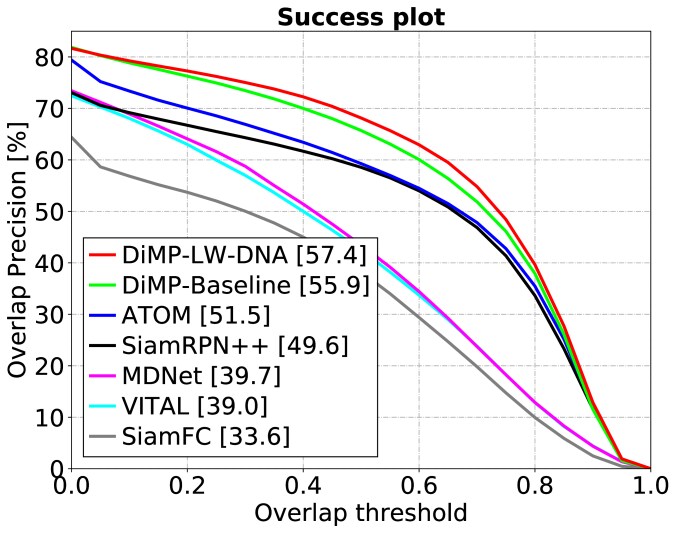

Table 3: Success plot on the LaSOT dataset for visual tracking.
Table 2: Tracking test results. DiMP-LW-DNA and DiMP-Baseline use the identified LW-DNA and baseline version of ResNet50, respectively.
Network Method PSNR FLOPs / Ratio (%) Params / Ratio (%)
Set5 bevilacqua2012low Set14 zeyde2010single B100 MartinFTM01 Urban100 Huang-CVPR-2015 DIV2K Agustsson_2017_CVPR_Workshops
SRResNet ledig2016photo Baseline 32.02 28.50 27.52 25.88 28.84 32.81 / 100.0 1.53 / 100.0
LW-DNA 32.07 28.51 27.52 25.88 28.85 28.79 / 87.75 1.36 / 88.43
EDSR lim2017enhanced Baseline 32.10 28.55 27.55 26.02 28.93 90.37 / 100.0 3.70 / 100.0
LW-DNA 32.13 28.61 27.59 26.09 28.99 55.44 / 61.34 2.84 / 76.94
Table 4: Results on single image super-resolution networks. The upscaling factor is .

5 Conclusion

In this paper, we state the heterogeneity hypothesis which in essence is the existence of LW-DNA models for predefined network architecture. We try to validate the hypothesis by empirical studies. In order to single out the importance of the network architecture, the training protocol is kept the same for the baseline and the LW-DNA models. This is achieved by converting the problem of identifying LW-DNA to a pruning problem and designing an efficient pruning algorithm. The experiments on various network architectures and vision tasks demonstrate the benefits of the identified LW-DNA models. In addition, by observing the experimental results, we conjecture that the advantage of the LW-DNA model might be related to model overfitting.
