The Dynamic Geometry of Interaction Machine: A Token-Guided Graph Rewriter

02/28/2018 ∙ by Koko Muroya, et al. ∙ University of Birmingham 0

In implementing evaluation strategies of the lambda-calculus, both correctness and efficiency of implementation are valid concerns. While the notion of correctness is determined by the evaluation strategy, regarding efficiency there is a larger design space that can be explored, in particular the trade-off between space versus time efficiency. We contribute to the study of this trade-off by the introduction of an abstract machine, inspired by Girard's Geometry of Interaction (GoI), a machine combining token passing and graph rewriting. We show soundness and completeness of our abstract machine, called the Dynamic GoI Machine (DGoIM), with respect to three evaluations: call-by-need, left-to-right call-by-value, and right-to-left call-by-value. Analysing time cost of its execution classifies the machine as "efficient" in Accattoli's taxonomy of abstract machines.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1. Introduction

The lambda-calculus is a simple yet rich model of computation, relying on a single mechanism to activate a function in computation, beta-reduction, that replaces function arguments with actual input. While in the lambda-calculus itself beta-reduction can be applied in an unrestricted way, it is evaluation strategies that determine the way beta-reduction is applied when the lambda-calculus is used as a programming language. Evaluation strategies often imply how intermediate results are copied, discarded, cached or reused. For example, everything is repeatedly evaluated as many times as requested in the call-by-name strategy. In the call-by-need strategy, once a function requests its input, the input is evaluated and the result is cached for later use. The call-by-value strategy evaluates function input and caches the result even if the function does not require the input.

The implementation of any evaluation strategy must be correct, first of all, i.e. it has to produce results as stipulated by the strategy. Once correctness is assured, the next concern is efficiency. One may prefer better space efficiency, or better time efficiency, and it is well known that one can be traded off for the other. For example, time efficiency can be improved by caching more intermediate results, which increases space cost. Conversely, bounding space requires repeating computations, which adds to the time cost. Whereas correctness is well defined for any evaluation strategy, there is a certain freedom in managing efficiency. The challenge here is how to produce a unified framework which is flexible enough to analyse and guide the choices required by this trade-off. Recent studies by Accattoli et al. [AD16, ABM14, Acc17] clearly establish classes of efficiency for a given evaluation strategy. They characterise efficiency by means of the number of beta-reduction applications required by the strategy, and introduce two efficiency classes, namely “efficient” and “reasonable”. The expected efficiency of an abstract machine gives us a starting point to quantitatively analyse the trade-offs required in an implementation.

1.1. Token-Passing GoI

We employ Girard’s Geometry of Interaction (GoI) [Gir89], a semantics of linear logic proofs, as a framework for studying the trade-off between time and space efficiency. In particular we focus on the token-passing style of GoI, which gives abstract machines for the lambda-calculus, pioneered by Danos and Regnier [DR96] and Mackie [Mac95]. These machines evaluate a term of the lambda-calculus by translating the term to a graph, a network of simple transducers, which executes by passing a data-carrying token around.

Token-passing GoI decomposes higher-order computation into local token actions, or low-level interactions of simple components. It can give strikingly innovative implementation techniques for functional programs, such as Mackie’s Geometry of Implementation compiler [Mac95], Ghica’s Geometry of Synthesis (GoS) high-level synthesis tool [Ghi07], and Schöpp’s resource-aware program transformation to a low-level language [Sch14b]. The interaction-based approach is also convenient for the complexity analysis of programs, e.g. Dal Lago and Schöpp’s IntML type system of logarithmic-space evaluation [DS16], and Dal Lago et al.’s linear dependent type system of polynomial-time evaluation [DG11, DP12].

Fixed-space execution is essential for GoS, since in the case of digital circuits the memory footprint of the program must be known at compile-time, and fixed. Using a restricted version of the call-by-name language Idealised Algol [GS11] not only the graph, but also the token itself can be given a fixed size. Surprisingly, this technique also allows the compilation of recursive programs [GSS11]. The GoS compiler shows both the usefulness of the GoI as a guideline for unconventional compilation and the natural affinity between its space-efficient abstract machine and call-by-name evaluation. The practical considerations match the prior theoretical understanding of this connection [DR96].

The token passed around a graph simulates graph rewriting without actually rewriting, which is in fact an extremal instance of the trade-off we mentioned above. Token-passing GoI keeps the underlying graph fixed and use the data stored in the token to route it. It therefore favours space efficiency at the cost of time efficiency. The same computation is repeated when, instead, intermediate results could have been cached by saving copies of certain sub-graphs representing values.

1.2. Interleaving Token Passing with Graph Rewriting

Our intention is to lift the token-passing GoI to a framework to analyse the trade-off of efficiency, by strategically interleaving it with graph rewriting. We present the framework as an abstract machine that interleaves token passing with graph rewriting. The machine, called the Dynamic GoI Machine (DGoIM), is defined as a state transition system with transitions for token passing as well as transitions for graph rewriting. The key idea is that the token holds control over graph rewriting, by visiting redexes and triggering the rewrite transitions.

Graph rewriting offers fine control over caching and sharing intermediate results. Through graph rewriting, the DGoIM can reduce sub-graphs visited by the token, avoiding repeated token actions and improving time efficiency. However, fetching cached results can increase the size of the graph. In short, introduction of graph rewriting sacrifices space while favouring time efficiency. We expect the flexibility given by a fine-grained control over interleaving will enable a careful balance between space and time efficiency.

As a first step in our exploration of the flexibility of this machine, we consider the two extremal cases of interleaving. The first extremal case is “passes-only”, in which the DGoIM never triggers graph rewriting, yielding an ordinary token-passing abstract machine. As a typical example, the -term is evaluated like this:

  1. A token enters the graph on the left at the bottom open edge.

  2. A token visits and goes through the left sub-graph .

  3. Whenever a token detects an occurrence of the variable in , it traverses the right sub-graph , then returns carrying information about the resulting value of .

  4. A token finally exits the graph at the bottom open edge.

Step 3 is repeated whenever the argument needs to be re-evaluated. This passes-only strategy of interleaving corresponds to call-by-name evaluation.

The other extreme is “rewrites-first”, in which the DGoIM interleaves token passing with as much, and as early, graph rewriting as possible, guided by the token. This corresponds to both call-by-value and call-by-need evaluations, with different trajectories of the token. In the case of left-to-right call-by-value, the token enters the graph from the bottom, traverses the left-hand-side sub-graph, which happens to be already a value, then visits the sub-graph even before the bound variable is used in a call. The token causes rewrites while traversing the sub-graph , and when it exits, it leaves behind a graph corresponding to a value such that reduces to . For right-to-left call-by-value, the token visits the sub-graph straightaway after entering the whole graph, reduces the sub-graph , to the graph of the value , and visits the left-hand-side sub-graph. The difference with call-by-need is that the token visits and reduces the sub-graph only when the variable is encountered in .

In our framework, all these three evaluations involve similar tactics for caching intermediate results. Different trajectories of the token realise their only difference, which is the timing of cache creation. Cached values are fetched in the same way: namely, if repeated evaluation is required, then the sub-graph corresponding now to the value is copied. One copy can be further rewritten, if needed, while the original is kept for later reference.

1.3. Contributions

This work presents a token-guided graph-rewriting abstract machine for call-by-need, left-to-right call-by-value, and right-to-left call-by-value evaluations. The abstract machine is given by the rewrites-first strategy of the DGoIM, which turns out to be as natural as the passes-only strategy for call-by-name evaluation. It switches the evaluations, by simply having different nodes that correspond to the three different evaluations, rather than modifying the behaviour of a single node to suite different evaluation demands. This can be seen as a case study illustrating the flexibility of the DGoIM, which is achieved through controlled interleaving of rewriting and token-passing, and through changing graph representations of terms.

We prove the soundness and completeness of the extended machine with respect to the three evaluations separately, using a “sub-machine” semantics, where the word “sub” indicates both a focus on substitution and its status as an intermediate representation. The sub-machine semantics is based on Sinot’s “token-passing” semantics [Sin05, Sin06] that makes explicit the two main tasks of abstract machines: searching redexes and substituting variables.

The time-cost analysis classifies the machine as “efficient” in Accattoli’s taxonomy of abstract machines [Acc17]. We follow Accattoli et al.’s general methodology for quantitative analysis of abstract machines [ABM14, Acc17], however the method cannot be used “off the shelf”. Our machine is a more refined transition system with more transition steps, and therefore does not satisfy one of their assumptions [Acc17, Sec. 3], which requires one-to-one correspondence of transition steps. We overcome this technical difficulty by building a weak simulation of the sub-machine semantics, which is also used in the proof of soundness and completeness. The sub-machine semantics resembles Danvy and Zerny’s storeless abstract machine [DZ13], to which the general recipe of cost analysis does apply.

Finally, an on-line visualiser111 Link to the on-line visualiser: https://koko-m.github.io/GoI-Visualiser/ is implemented, in which our machine can be executed on arbitrary closed (untyped) lambda-terms. The visualiser also supports some existing abstract machines based on the token-passing GoI, which will be discussed later, to illustrate various resource usage of abstract machines.

2. A Term Calculus with Sub-Machine Semantics

We use an untyped term calculus that accommodates three evaluation strategies of the lambda-calculus, by dedicated constructors for function application: namely, (call-by-need), (left-to-right call-by-value) and (right-to-left call-by-value). The term calculus uses all strategies so that we do not have to present three almost identical calculi. But we are not interested in their interaction, but in each strategy separately. In the rest of the paper, we therefore assume that each term contains function applications of a single strategy. As shown in the top of Fig. 1, the calculus accommodates explicit substitutions . A term with no explicit substitutions is said to be “pure”.

The sub-machine semantics is used to establish the soundness of the graph-rewriting abstract machine. It is an adaptation of Sinot’s lambda-term rewriting system [Sin05, Sin06], used to analyse a token-guided rewriting system for interaction nets. It imitates an abstract machine by explicitly searching for a redex and decomposing the meta-level substitution into on-demand linear substitution, also resembling a storeless abstract machine (e.g. [DMMZ12, Fig. 8]). However the semantics is still too “abstract” to be considered an abstract machine, in the sense that it works modulo alpha-equivalence to avoid variable captures.

Fig. 1 defines the sub-machine semantics of our calculus. It is given by labelled relations between enriched terms . In an enriched term , a sub-term is not plugged directly into the evaluation context, but into a “window” which makes it syntactically obvious where the reduction context is situated. Forgetting the window turns an enriched term into an ordinary term. Basic rules are labelled with , or . The basic rules (2), (5) and (8), labelled with , apply beta-reduction and delay substitution of a bound variable. Substitution is done one by one, and on demand, by the basic rule (10) with label . Each application of the basic rule (10) replaces exactly one bound variable with a value, and keeps a copy of the value for later use. All other basic rules, with label , search for a redex by moving the window without changing the underlying term. Finally, reduction is defined by congruence of basic rules with respect to evaluation contexts, and labelled accordingly. Any basic rules and reductions are indeed between enriched terms, because the window is never duplicated or discarded.

Terms
Values
Answer contexts
Evaluation contexts
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
Figure 1. ”Sub-Machine” Operational Semantics

An evaluation of a pure term (i.e. a term with no explicit substitution) is a sequence of reductions starting from , which is simply . In any evaluation, a sub-term in the window is always pure.

3. The Token-Guided Graph-Rewriting Machine

In the initial presentation of this work [MG17a], we used proof nets of the multiplicative and exponential fragment of linear logic [Gir87] to implement the call-by-need evaluation strategy. Aiming additionally at two call-by-value evaluation strategies, we here use graphs that are closer to syntax trees but are still augmented with the -box structures taken from proof nets. Moving towards syntax trees allows us to accommodate two call-by-value evaluations in a uniform way. The -box structures specify duplicable sub-graphs, and help time-cost analysis of implementations.

A graph is given by a set of nodes and a set of directed edges. Nodes are classified into proper nodes and link nodes. Each edge is directed, and at least one of its two endpoints is a link node. An interface of a graph is given by two sets of link nodes, namely input and output. Each link node is a source of at most one edge, and a target of at most one edge. Input links are the only links that are not a target of any edge, and output links are the only ones that are not a source of any edge. When a graph has input link nodes and output link nodes, we sometimes write to emphasise its interface. If a graph has exactly one input, we refer to the input link node as “root”.

The idea of using link nodes, as distinguished from proper nodes, comes from a graphical formalisation of string diagrams [Kis12].222 Our link nodes should not be confused with the terminology “link”, which refers to a counterpart of our proper nodes, of proof nets. String diagrams consist of “boxes” that are connected to each other by “wires”, and may have dangling or looping wires. In the formalisation, boxes are modelled by “box-vertices” (corresponding to proper nodes in our case), and wires are modelled by consecutive edges connected via “wire-vertices” (corresponding to link nodes in our case). It is link nodes that allow dangling or looping wires to be properly modelled. The segmentation of wires into edges can introduce an arbitrary number of consecutive link nodes, however these consecutive link nodes are identified by the notion of “wire homeomorphism”. We will later discuss these consecutive link nodes, from the perspective of the graph-rewriting machine. From now on we simply call a proper node “node”, and a link node “link”.

In drawing graphs, we follow the convention that input links are placed at the bottom and output links are at the top, and links are usually not drawn explicitly. The latter point means that edges are simply drawn from a node to a node, with intermediate links omitted. In particular if an edge is connected to an interface link, the edge is drawn as an open edge missing an endpoint. Additionally, we use a bold-stroke edge/node to represent a bunch of parallel edges/nodes.

Nodes are labelled, and a node with a label is called an “-node”. We use two sorts of labels. One sort corresponds to the constructors of the calculus presented in Sec. 2, namely (abstraction), (call-by-need application), (left-to-right call-by-value application) and (right-to-left call-by-value application). These three application nodes are the novelty of this work. The token, travelling in a graph, reacts to these nodes in different ways, and hence implements different evaluation orders. We believe that this is a more extensible way to accommodate different evaluation orders, than to let the token react to the same node in different ways depending on situation. The other sort consists of , , and for any natural number , used in the management of copying sub-graphs. This sort is inspired by proof nets of the multiplicative and exponential fragment of linear logic [Gir87], and -nodes generalise the standard binary contraction and subsume weakening.

Figure 2. Graph Nodes

The number of input/output and incoming/outgoing edges for a node is determined by the label, as indicated in Fig. 2. We distinguish two outputs of an application node (, or ), calling one “composition output” and the other “argument output” (cf. [AG09]). A bullet in the figure specifies a function output. The dashed box indicates a sub-graph (“-box”) that is connected to one -node (“principal door”) and -nodes (“auxiliary doors”). This -box structure, taken from proof nets, assists the management of duplication of sub-graphs by specifying those that can be copied.333 Our formalisation of graphs is based on the view of proof nets as string diagrams, and hence of -boxes as functorial boxes [Mel06].

We define a graph-rewriting abstract machine as a labelled transition system between graph states. [Graph states] A graph state is formed of a graph with its distinguished link , and token data that consists of:

  • a direction defined by ,

  • a rewrite flag defined by ,

  • a computation stack defined by , and

  • a box stack defined by , where is any link of the graph .

The distinguished link is called the “position” of the token. The token reacts to a node in a graph using its data, which determines its path. Given a graph with root , the initial state on it is given by , and the final state on it is given by . An execution on a graph is a sequence of transitions starting from the initial state .

Each transition between graph states is labelled by either , or . Transitions are deterministic, and classified into pass transitions that search for redexes and trigger rewriting, and rewrite transitions that actually rewrite a graph as soon as a redex is found.

A pass transition , always labelled with , applies to a state whose rewrite flag is . It simply moves the token over one node, and updates its data by modifying the top elements of stacks, while keeping an underlying graph unchanged. When the token passes a -node or a -node, a rewrite flag is changed to or , which triggers rewrite transitions. Fig. 3 defines pass transitions, by showing only the relevant node for each transition. The position of the token is drawn as a black triangle, pointing towards the direction of the token. In the figure, , and is a natural number. The pass transition over a -node pushes the old position , a link drawn as a bullet, to a box stack.

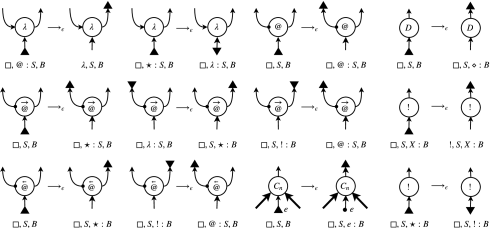

Figure 3. Pass Transitions

The way the token reacts to application nodes (, and ) corresponds to the way the window moves in evaluating these function applications in the sub-machine semantics (Fig. 1). When the token moves on to the composition output of an application node, the top element of a computational stack is either or . The element makes the token return from a -node, which corresponds to reducing the function part of application to a value (i.e. abstraction). The element lets the token proceed at a -node, raises the rewrite flag , and hence triggers a rewrite transition that corresponds to beta-reduction. The call-by-value application nodes ( and ) send the token to their argument output, pushing the element to a box stack. This makes the token bounce at a -node and return to the application node, which corresponds to evaluating the argument part of function application to a value. Finally, pass transitions through -nodes, -nodes and -nodes prepare copying of values, and eventually raise the rewrite flag that triggers on-demand duplication.

A rewrite transition , labelled with , applies to a state whose rewrite flag is either or . It changes a specific sub-graph while keeping its interface, changes the position accordingly, and pops an element from a box stack. Fig. 4 defines rewrite transitions by showing a sub-graph (“redex”) to be rewritten. Before we go through each rewrite transition, we note that rewrite transitions are not exhaustive in general, as a graph may not match a redex even though a rewrite flag is raised. However we will see that there is no failure of transitions in implementing the term calculus.

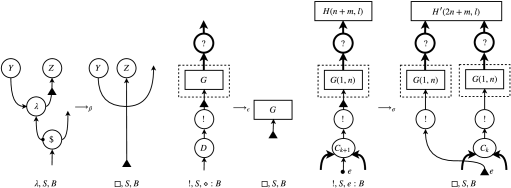

Figure 4. Rewrite Transitions

The first rewrite transition in Fig. 4, with label , occurs when a rewrite flag is . It implements beta-reduction by eliminating a pair of an abstraction node () and an application node ( in the figure). Outputs of the -node are required to be connected to arbitrary nodes (labelled with and in the figure), so that edges between links are not introduced. The other rewrite transitions are for the rewrite flag , and they together realise the copying process of a sub-graph (namely a -box). The second rewrite transition in Fig. 4, labelled with , finishes off each copying process by eliminating all doors of the -box . It replaces the interface of with output links of the auxiliary doors and the input link of the -node, which is the new position of the token, and pops the top element of a box stack. Again, no edge between links are introduced.

The last rewrite transition in the figure, with label , actually copies a -box. It requires the top element of the old box stack to be one of input links of the -node (where is a natural number). The link is popped from the box stack and becomes the new position of the token, and the -node becomes a -node by keeping all the inputs except for the link . The sub-graph must consist of parallel -nodes that altogether have inputs. Among these inputs, must be connected to auxiliary doors of the -box , and must be connected to nodes that are not in the redex. The sub-graph is turned into by introducing inputs to these -nodes as follows: if an auxiliary door of the -box is connected to a -node in , two copies of the auxiliary door are both connected to the corresponding -node in . Therefore the two sub-graphs consist of the same number of -nodes, whose indegrees are possibly increased. The inputs, connected to nodes outside a redex, are kept unchanged. Fig. 5 shows an example where copying of the graph turns the graph into .

Figure 5. Example of Rewrite Transition

All pass and rewrite transitions are well-defined. The following “sub-graph” property is essential in time-cost analysis, because it bounds the size of duplicable sub-graphs (i.e. -boxes) in an execution. [Sub-graph property] For any execution , each -box of the graph appears as a sub-graph of the initial graph .

Proof.

Rewrite transitions can only copy or discard a -box, and cannot introduce, expand or reduce a single -box. Therefore, any -box of has to be already a -box of the initial graph . ∎

When a graph has an edge between links, the token is just passed along. With this pass transition over a link at hand, the equivalence relation between graphs that identifies consecutive links with a single link—so-called “wire homeomorphism” [Kis12]—lifts to a weak bisimulation between graph states. Therefore, behaviourally, we can safely ignore consecutive links. From the perspective of time-cost analysis, we benefit from the fact that rewrite transitions are designed not to introduce any edge between links. This means, by assuming that an execution starts with a graph with no consecutive links, we can analyse time cost of the execution without caring the extra pass transition over a link.

4. Implementation of Evaluation Strategies

The implementation of the term calculus, by means of the dynamic GoI, starts with translating (enriched) terms into graphs. The definition of the translation uses multisets of variables, to track how many times each variable occurs in a term. We assume that terms are alpha-converted in a form in which all binders introduce distinct variables. [Multiset] The empty multiset is denoted by , and the sum of two multisets and is denoted by . We write if the multiplicity of in a multiset is . Removing all from a multiset yields the multiset , e.g. . We abuse the notation and refer to a multiset of a finite number of ’s, simply as . [Free variables] The map of terms to multisets of variables is inductively defined as below, where :

For a multiset of variables, the map of evaluation contexts to multisets of variables is defined by:

A term is said be closed if . Consequences of the above definition are the following equations, where is not captured in .

We give translations of terms, answer contexts, and evaluation contexts separately. Fig. 8 and Fig. 8 define two mutually recursive translations and , the first one for terms and answer contexts, and the second one for evaluation contexts. In the figures, , and is the multiplicity of . The general form of the translations is as shown right.

The annotation of bold-stroke edges means each edge of a bunch is labelled with an element of the annotating multiset, in a one-to-one manner. In particular if a bold-stroke edge is annotated by a variable , all edges in the bunch are annotated by the variable . These annotations are only used to define the translations, and are subsequently ignored during execution.

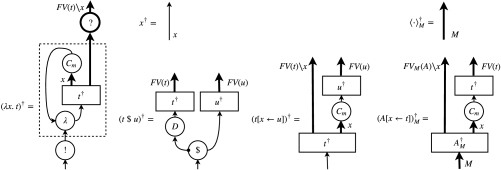

Figure 6. Inductive Translation of Terms and Answer Contexts

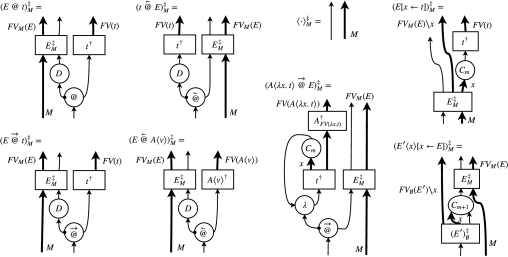

Figure 7. Inductive Translation of Evaluation Contexts

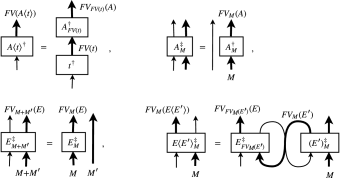

Figure 8. Decompositions of Translations

The translations are based on the so-called “call-by-value” translation of linear logic to intuitionistic logic (e.g. [MOTW99]). Only the translation of abstraction can be accompanied by a -box, which captures the fact that only values (i.e. abstractions) can be duplicated (see the basic rule (10) in Fig. 1). Note that only one -node is introduced for each bound variable. This is vital to achieve constant cost in looking up a variable, namely in realising the basic rule (9) in Fig. 1.

The two mutually recursive translations and are related by the decompositions in Fig. 8, which can be checked by straightforward induction. In the third decomposition, is not captured in . Note that, in general, the translation of a term in an evaluation context cannot be decomposed into translations and . This is because a translation lacks a -box structure, compared to a translation .

The inductive translations lift to a binary relation between closed enriched terms and graph states. [Binary relation ] The binary relation is defined by , where: (i) is a closed enriched term, and is given by with no edges between links, and (ii) there is an execution such that the position appears only in the last state of the sequence. A special case is , which relates the starting points of an evaluation and an execution. We require the graph to have no edges between links, which is based on the discussion at the end of Sec. 3 and essential for time-cost analysis. Although the definition of the translations relies on edges between links (e.g. the translation ), we can safely replace any consecutive links in the composition of translations and with a single link, and yield the graph with no consecutive links.

The binary relation gives a weak simulation of the sub-machine semantics by the graph-rewriting machine. The weakness, i.e. the extra transitions compared with reductions, comes from the locality of pass transitions and the bureaucracy of managing -boxes. [Weak simulation with global bound]

  1. If and hold, then there exists a number and a graph state such that and .

  2. If holds, then the graph state is initial, from which only the transition is possible.

Proof outline.

The second half of the theorem is straightforward. For the first half, Fig. 9, Fig. 10 and Fig. 11 illustrate how the graph-rewriting machine simulates each reduction of the sub-machine semantics. Annotations of edges are omitted. The figures altogether include ten sequences of translations , whose only first and last graph states are shown. Each sequence simulates a single reduction , and is preceded by a number (i.e. (1)) that corresponds to a basic rule applied by the reduction (see Fig. 1). Some sequences involve equations that apply the four decomposition properties of the translations and , which are given earlier in this section. These equations rely on the fact that reductions with labels and work modulo alpha-equivalence to avoid name captures. This means that (i) free variables of (resp. ) are never captured by in the reduction (2) (resp. (5) and (8)), (ii) the variable is never captured by or , and (iii) free variables of are never captured by . Especially in simulation of the reduction (9), the variable is not captured by the evaluation context , and therefore the first token position is in fact an input of the -node. ∎

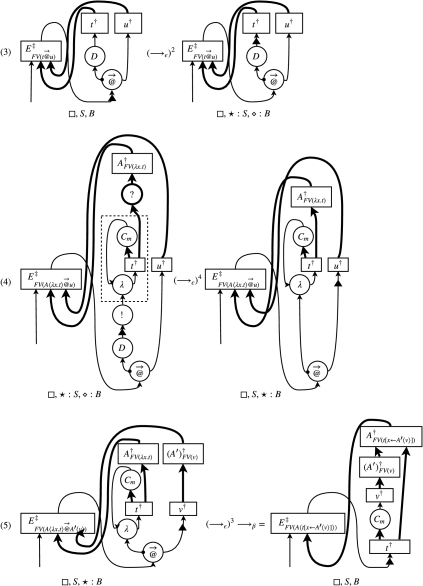

Figure 9. Illustration of Simulation: Left-to-Right Call-by-Value Application

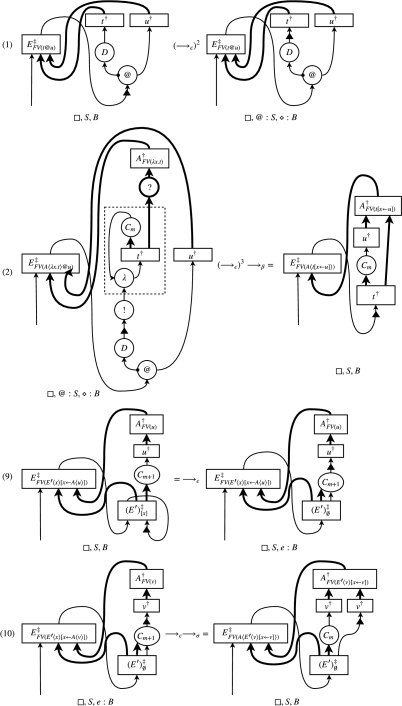

Figure 10. Illustration of Simulation: Call-by-Need Application and Explicit Substitutions

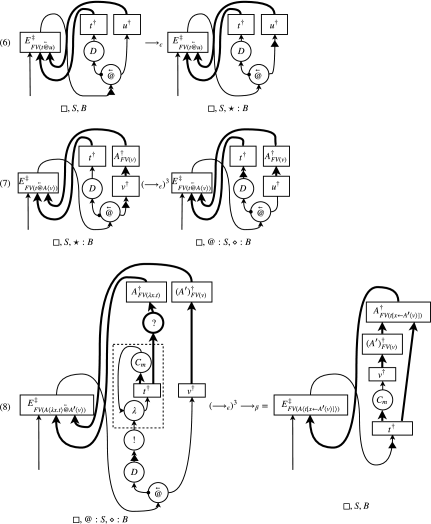

Figure 11. Illustration of Simulation: Right-to-Left Call-by-Value Application

5. Time-Cost Analysis

We analyse how time-efficiently the token-guided graph-rewriting machine implements evaluation strategies, following the methodology developed by Accattoli et al. [ABM14, AS14, Acc17]. The time-cost analysis focuses on how efficiently an abstract machine implements an evaluation strategy. In other words, we are not interested in minimising the number of -reduction steps simulated by an abstract machine. Our aim is to see if the number of transitions of an abstract machine is “reasonable”, compared to the number of necessary -reduction steps determined by a given evaluation strategy.

Accattoli’s methodology assumes that an abstract machine has three groups of transitions: 1) “-transitions” that correspond to -reduction in which substitution is delayed, 2) transitions perform substitution, and 3) other “overhead” transitions. We incorporate this classification using the labels , and of transitions.

Another assumption of the methodology is that, each step of -reduction is simulated by a single transition of an abstract machine, and so is substitution of each occurrence of a variable. This is satisfied by many known abstract machines, including Danvy and Zerny’s storeless abstract machine [DZ13] that our sub-machine semantics resembles, however not by the token-guided graph-rewriting abstract machine. The machine has “finer” transitions and can take several transitions to simulate a single step of reduction, as we can observe in Thm. 8. In spite of this mismatch we can still follow the methodology, thanks to the weak simulation . It discloses what transitions of the token-guided graph-rewriting machine exactly correspond to -reduction and substitution, and gives a concrete number of overhead transitions that the machine needs to simulate -reduction and substitution.

The methodology of time-cost analysis has four steps: (I) bound the number of transitions required in implementing evaluation strategies, (II) estimate time cost of each transition, (III) bound overall time cost of implementing evaluation strategies, by multiplying the number of transitions with time cost for each transition, and finally (IV) classify the abstract machine according to its execution time cost. Consider now the following taxonomy of abstract machines introduced in

[Acc17]. [classes of abstract machines [Acc17, Def. 7.1]]

  1. An abstract machine is efficient if its execution time cost is linear in both the input size and the number of -transitions.

  2. An abstract machine is reasonable if its execution time cost is polynomial in the input size and the number of -transitions.

  3. An abstract machine is unreasonable if it is not reasonable.

In our case, the input size is given by the size of the term , inductively defined by:

The number of -transitions is simply the number of transitions labelled with , which in fact corresponds to the number of reductions labelled with , thanks to Thm. 8.

Given an evaluation , the number of occurrences of a label is denoted by . The sub-machine semantics comes with the following quantitative bounds. For any evaluation that terminates, the number of reductions is bounded by and

Proof outline.

A term uses a single evaluation strategy, either call-by-need, left-to-right call-by-value, or right-to-left call-by-value. The proof is by developing the one-to-one correspondence between an evaluation by the sub-machine semantics and a “derivation” in the linear substitution calculus. This goes in the same way Accattoli et al. analyse various abstract machines [ABM14], especially the proof of the second equation [ABM14, Thm. 11.3 & Thm. 11.5]. The first equation is a direct application of the bounds about the linear substitution calculus [AS14, Cor. 1 & Thm. 2]. ∎

We use the same notation , as for an evaluation, to denote the number of occurrences of each label in an execution . Additionally the number of rewrite transitions with the label is denoted by . The following proposition completes the first step of the cost analysis. [Soundness & completeness, with number bounds] For any pure closed term , an evaluation terminates with the enriched term if and only if an execution terminates with the graph . Moreover the number of transitions is bounded by , , , .

Proof.

This proposition is a direct consequence of Thm. 8 and Prop. 5, except for the last bound. The last bound of follows from the fact that each rewrite transition labelled with is always preceded by one rewrite transition labelled with . ∎

The next step in the cost analysis is to estimate the time cost of each transition. We assume that graphs are implemented in the following way. Each link is given by two pointers to its child and its parent, and each node is given by its label and pointers to its outputs. Abstraction nodes () and application nodes (, and ) have two pointers that are distinguished, and all the other nodes have only one pointer to their unique output. Additionally each -node has pointers to inputs of its associated -nodes, to represent a -box structure. Accordingly, a position of the token is a pointer to a link, a direction and a rewrite flag are two symbols, a computation stack is a stack of symbols, and finally a box stack is a stack of symbols and pointers to links.

Using these assumptions of implementation, we estimate time cost of each transition. All pass transitions have constant cost. Each pass transition looks up one node and its outputs (that are either one or two) next to the current position, and involves a fixed number of elements of the token data. Rewrite transitions with the label have constant cost, as they change a constant number of nodes and links, and only a rewrite flag of the token data. Rewrite transitions with the label remove a -box structure, and hence have cost bounded by the number of the auxiliary doors. Finally, rewrite transitions with the label copy a -box structure. Copying cost is bounded by the size of the -box, i.e. the number of nodes and links in the -box. Updating cost of the sub-graph (see Fig. 4) is bounded by the number of auxiliary doors, that is less than the size of the copied -box. The assumption about the implementation of graphs enables us to conclude updating cost of the -node is constant.

With the results of the previous two steps, we can now give the overall time cost of executions and classify our abstract machine. [Soundness & completeness, with cost bounds] For any pure closed term , an evaluation terminates with the enriched term if and only if an execution terminates with the graph . The overall time cost of the execution is bounded by .

Proof.

Non-constant cost of rewrite transitions are either the number of auxiliary doors of a -box or the size of a -box. The former can be bounded by the latter, which is no more than the size of the initial graph , by Lem. 5. The size of the initial graph can be bounded by the size of the initial term. Therefore any non-constant cost of each rewrite transition, in the execution , can be also bounded by . By Prop. 5, the overall time cost of rewrite transitions labelled with is , and that of the other rewrite transitions and pass transitions is . ∎

The token-guided graph-rewriting machine is an efficient abstract machine implementing call-by-need, left-to-right call-by-value and right-to-left call-by-value evaluation strategies, in the sense of Def. 5.

Cor. 5 classifies the graph-rewriting machine as not just “reasonable”, but in fact “efficient”. In terms of token passing, this efficiency benefits from the graphical representation of environments (i.e. explicit substitutions in our setting). The graphical representation is in such a way that each bound variable is associated with exactly one -node, which is ensured by the translations and and the rewrite transition . Excluding any two sequentially-connected -nodes is essential to achieve the “efficient” classification, because it yields the constant cost to look up a bound variable and its associated computation.

As for graph rewriting, the “efficient” classification shows that introduction of graph rewriting to token passing does not bring in any inefficiencies. In our setting, graph rewriting brings in two kinds of non-constant cost. One is duplication cost of a sub-graph, which is indicated by a -box, and the other is elimination cost of a -box that delimits abstraction. Unlike the duplication cost, the elimination cost leads to non-trivial cost that abstract machines in the literature usually do not have. Namely, our graph-rewriting machine simulates a -reduction step, in which an abstraction constructor is eliminated and substitution is delayed, at the non-constant cost depending on the size of the abstraction. The time-cost analysis confirms that the duplication cost and the unusual elimination cost have the same impact, on the overall time cost, as the cost of token passing. What is vital here is the sub-graph property (Lem. 5), which ensures that the cost of each duplication and elimination of a -box is always linear in the input size.

6. Rewriting vs. Jumping

The starting point of our development is the GoI-style token-passing abstract machines for call-by-name evaluation, given by Danos and Regnier [DR96], and by Mackie [Mac95]. Fig. 12 recalls these token-passing machines as a version of the DGoIM with the passes-only interleaving strategy (i.e. the DGoIM with only pass transitions). It follows the convention of Fig. 3, but a black triangle in the figure points along (resp. against) the direction of the edge if the token direction is (resp. ). Note that this version uses different token data, to which we will come back later.

Token data consists of: a direction defined by , a computation stack defined by , and a box stack and an environment stack , both defined by , using exponential signatures where is any link of the underlying graph. Pass transitions: Given a term with the call-by-need function application () abused, a successful execution starts at the root of the translation , and ends at the root of the translation , for some sub-value of the term . The value indicates the evaluation result.

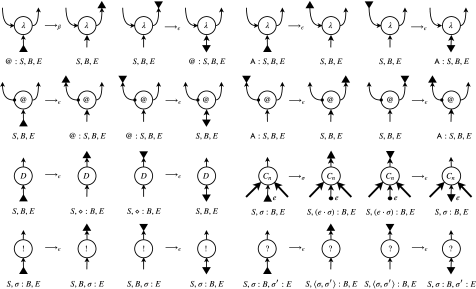

Figure 12. Passes-Only DGoIM for Call-by-Name [DR96, Mac95]

Token-passing GoI keeps the underlying graph fixed, and re-evaluates a term by repeating token moves. It therefore favours space efficiency at the cost of time efficiency. Repeating token actions poses a challenge for evaluations in which duplicated computation must not lead to repeated evaluation, especially call-by-value evaluation [FM02, Sch14a, HMH14, DFVY15]. Moreover, in call-by-value repeating token actions raises the additional technical challenge of avoiding repeating any associated computational effects [Sch11, MHH16, DFVY17]. A partial solution to this conundrum is to focus on the soundness of the equational theory, while deliberately ignoring the time costs [MHH16]. Introduction of graph reduction, the key idea of the DGoIM, is one total solution in the sense that it avoids repeated token moves and also improves time efficiency of token-passing GoI. Another such solution in the literature is introduction of jumps. We discuss how these two solutions affect machine design and space efficiency.

The most greedy way of introducing graph reduction, namely the rewrites-first interleaving we studied in this work, simplifies machine design in terms of the variety of pass transitions and token data. First, some token moves turn irrelevant to an execution. This is why Fig. 3 for the rewrites-first interleaving has fewer pass transitions than Fig. 12 for the passes-only interleaving. Certain nodes, like ‘’, always get eliminated before visited by the token, in the rewrites-first interleaving. Accordingly, token data can be simplified. The box stack and the environment stack used in Fig. 12 are integrated to the single box stack used in Fig. 3. The integrated stack does not need to carry the exponential signatures. They make sure that the token exits -boxes appropriately in the token-passing GoI, by maintaining binary tree structures, but the token never exits -boxes with the rewrites-first interleaving. Although the rewrites-first interleaving simplifies token data, rewriting itself, especially duplication of sub-graphs, becomes the source of space-inefficiency.

A jumping mechanism can be added on top of the token-passing GoI, and enables the token to jump along the path it would otherwise follow step-by-step. Although no quantitative analysis is provided, it gives time-efficient implementations of evaluation strategies, namely of call-by-name evaluation [DR96] and call-by-value evaluation [FM02]. Jumping can reduce the variety of pass transitions, like rewriting, by letting some nodes always be jumped over. Making a jump is just changing the token position, so jumping can be described as a variation of pass transitions, unlike rewriting. However, introduction of jumping rather complicates token data. Namely it requires partial duplications of token data, which not only complicates machine design but also damages space efficiency. The duplications effectively represent virtual copies of sub-graphs, and accumulate during an execution. Tracking virtual copies is the trade-off of keeping the underlying graph fixed. Some jumps that do not involve virtual copies can be described as a form of graph rewriting that eliminates nodes.

Token data consists of: a direction defined by , a computation stack defined by , and a box stack and an environment stack , both defined by , where is any link of the underlying graph. Pass transitions: Jump transition: , where the old position is the output of a -node: . Given a term with the call-by-need function application () abused, a successful execution starts at the root of the translation , and ends at the root of the translation , for some sub-value of the term . The value indicates the evaluation result.

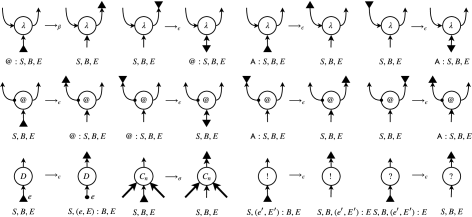

Figure 13. Passes-Only DGoIM plus Jumping for Call-by-Name [DR96]

Finally, we give a quantitative comparison of space usage between rewriting and jumping. As a case study, we focus on implementations of call-by-name/need evaluation, namely on the passes-only DGoIM recalled in Fig. 12, our rewrites-first DGoIM, and the passes-only DGoIM equipped with jumping that we will recall in Fig. 13. A similar comparison is possible for left-to-right call-by-value evaluation, between our rewrites-first DGoIM and the jumping machine given by Fernández and Mackie [FM02].

Fig. 13 recalls Danos and Regnier’s token-passing machine equipped with jumping [DR96], which is proved to be isomorphic to the Krivine abstract machine [Kri07] for call-by-name evaluation. The machine has pass transitions as well as the jump transition that lets the token jump to a remote position. Compared with the token-passing GoI (Fig. 12), pass transitions for nodes related to -boxes are reduced and changed, so that the jumping mechanism imitates rewrites involving -boxes. The token remembers its old position, together with its current environment stack, when passing a -node upwards. The token uses this information and make a jump back in the jump transition, in which the token exits a -box at the principal door (-node) and changes its position to the remembered link .

The quantitative comparison, whose result is stated below, shows partial duplication of token data impacts space usage much more than duplication of sub-graphs, and therefore rewriting has asymptotically better space usage than jumping. After transitions from an initial state of a graph of size , space usage of three versions of the DGoIM is bounded as in the table below.

machines token-passing only rewriting added jumping added
(Fig. 12) (Fig. 3 & Fig. 4) (Fig. 13)
evaluations implemented call-by-name call-by-need call-by-name
size of graph
size of token position
size of token data
Proof.

The size of the underlying graph after transitions can be estimated using the size of the initial graph. Our rewrites-first DGoIM is the only one that changes the underlying graph during an execution. Thanks to the sub-graph property (Lem. 5), the size can be bounded as , where is the number of -labelled transitions in the transitions. In the token-passing machines with and without jumping (Fig. 12 and Fig. 13), clearly . In any of the three machine, the token position can be represented in the size of .

Next estimation is of token data. Because stacks can have a link of the underlying graph as an element, the size of token data after transitions depends on . Both in the token-passing machine (Fig. 12) and our rewrites-first DGoIM, at most one element is pushed in each transition. Therefore the size of token data is bounded by . On the other hand, in the jumping machine (Fig. 13), the size of token data, especially the box stack and the environment stack, can grow exponentially because of the partial duplication. Therefore token data has the size . For example, a term with many -expansions, like , causes exponential grow of the box stack in the jumping machine. ∎

7. Related Work and Conclusion

In an abstract machine of any functional programming language, computations assigned to variables have to be stored for later use. Potentially multiple, conflicting, computations can be assigned to a single variable, primarily because of multiple uses of a function with different arguments. Different solutions to this conflict lead to different representations of the storage, some of which are examined by Accattoli and Barras [AB17] from the perspective of time-cost analysis. We recall a few solutions below that seem relevant to our token-guided graph-rewriting.

One solution is to allow at most one assignment to each variable. This is typically achieved by renaming bound variables during execution, possibly symbolically. Examples for call-by-need evaluation are Sestoft’s abstract machines [Ses97], and the storeless and store-based abstract machines studied by Danvy and Zerny [DZ13]. Our graph-rewriting abstract machine gives another example, as shown by the simulation of the sub-machine semantics that resembles the storeless abstract machine mentioned above. Variable renaming is trivial in our machine, thanks to the use of graphs in which variables are represented by mere edges.

Another solution is to allow multiple assignments to a variable, with restricted visibility. The common approach is to pair a sub-term with its own “environment” that maps its free variables to their assigned computations, forming a so-called “closure”. Conflicting assignments are distributed to distinct localised environments. Examples include Cregut’s lazy variant [Cré07] of Krivine’s abstract machine for call-by-need evaluation, and Landin’s SECD machine [Lan64] for call-by-value evaluation. Fernández and Siafakas [FS09] refine this approach for call-by-name and call-by-value evaluations, based on closed reduction [FMS05], which restricts beta-reduction to closed function arguments. This suggests that the approach with localised environments can be modelled in our setting by implementing closed reduction. The implementation would require an extension of rewrite transitions and a different strategy to trigger them, namely to eliminate auxiliary doors of a -box.

Finally, Fernández and Siafakas [FS09] propose another approach to multiple assignments, in which multiple assignments are augmented with binary strings so that each occurrence of a variable can only refer to one of them. This approach is inspired by the token-passing GoI, namely a token-passing abstract machine for call-by-value evaluation, designed by Fernández and Mackie [FM02]. The augmenting binary strings come from paths of trees of binary contractions, which are used by the token-passing machine to represent shared assignments. In our graph-rewriting machine, trees of binary contractions are replaced with single generalised contraction nodes of arbitrary arity, to achieve time efficiency. Therefore, the counterpart of the paths over binary contractions is simply connections over single generalised contraction nodes.

To wrap up, we introduced the DGoIM, which can interleave token-passing GoI with graph rewriting, using the token-passing as a guide. As a case study, we showed how the DGoIM with the rewrites-first interleaving can time-efficiently implement three evaluations: call-by-need, left-to-right call-by-value and right-to-left call-by-value. These evaluations have different control over caching intermediate results. The difference boils down to different routing of the token in the DGoIM, which is achieved by simply switching graph representations (namely, nodes modelling function application) of terms.

The idea of using the token as a guide of graph rewriting was also proposed by Sinot [Sin05, Sin06] for interaction nets. He shows how using a token can make the rewriting system implement the call-by-name, call-by-need and call-by-value evaluation strategies. Our development in this work can be seen as a realisation of the rewriting system as an abstract machine, in particular with explicit control over copying sub-graphs.

The token-guided graph rewriting is a flexible framework in which we can carry out the study of space-time trade-off in abstract machines for various evaluation strategies of the lambda-calculus. Our focus in this work was primarily on time efficiency. This is to complement existing work on operational semantics given by token-passing GoI, which usually achieves space efficiency, and also to confirm that introduction of graph rewriting to the semantics does not bring in any hidden inefficiencies. We believe that further refinements, not only of the interleaving strategies of token routing and graph reduction, but also of the graph representation, can be formulated to serve particular objectives in the space-time execution efficiency trade-off, such as full lazy evaluation, as hinted by Sinot [Sin05].

As a final remark, the flexibility of our framework also allows us to handle the operational semantics of exotic language features, especially data-flow features. One such feature is to turn a parameterised data-flow network into an ordinary function that takes parameters as an argument and returns the network, which we model using the token-guided graph rewriting [CDG18]

. This feature can assist a common programming idiom of machine learning tasks, in which a data-flow network is constructed as a program, and then modified at run-time by updating values of parameters embedded into the network.
