The DKU Replay Detection System for the ASVspoof 2019 Challenge: On Data Augmentation, Feature Representation, Classification, and Fusion

by   Weicheng Cai, et al.
Duke Kunshan University

This paper describes our DKU replay detection system for the ASVspoof 2019 challenge. The goal is to develop spoofing countermeasure for automatic speaker recognition in physical access scenario. We leverage the countermeasure system pipeline from four aspects, including the data augmentation, feature representation, classification, and fusion. First, we introduce an utterance-level deep learning framework for anti-spoofing. It receives the variable-length feature sequence and outputs the utterance-level scores directly. Based on the framework, we try out various kinds of input feature representations extracted from either the magnitude spectrum or phase spectrum. Besides, we also perform the data augmentation strategy by applying the speed perturbation on the raw waveform. Our best single system employs a residual neural network trained by the speed-perturbed group delay gram. It achieves EER of 1.04 Finally, using the simple average score from several single systems can further improve the performance. EER of 0.24 evaluation set is obtained for our primary system.



There are no comments yet.


page 1

page 2

page 3

page 4


A Study On Data Augmentation In Voice Anti-Spoofing

In this paper, we perform an in-depth study of how data augmentation tec...

Deep Residual Neural Networks for Audio Spoofing Detection

The state-of-art models for speech synthesis and voice conversion are ca...

A Study of Using Cepstrogram for Countermeasure Against Replay Attacks

In this paper, we investigate the properties of the cepstrogram and demo...

Synthetic speech detection using meta-learning with prototypical loss

Recent works on speech spoofing countermeasures still lack generalizatio...

A study on the role of subsidiary information in replay attack spoofing detection

In this study, we analyze the role of various categories of subsidiary i...

Attentive Filtering Networks for Audio Replay Attack Detection

An attacker may use a variety of techniques to fool an automatic speaker...

RawBoost: A Raw Data Boosting and Augmentation Method applied to Automatic Speaker Verification Anti-Spoofing

This paper introduces RawBoost, a data boosting and augmentation method ...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Automatic speaker verification (ASV) refers to automatically accept or reject a claimed identity by analyzing speech utterances, and nowadays it is widely used in real-world biometric authentication applications [1, 2, 3]. Recently, a growing number of studies have confirmed the severe vulnerability of state-of-the-art ASV systems under a diverse range of intentional fraudulent attacks on various databases [4, 5, 6]. The initiative of the series ASVspoof challenge aims to promote the development of spoofing countermeasure studies [7]. The task in previous ASVspoof 2015 challenge was to discriminate genuine human speech from speech produced using text-to-speech and voice conversion attacks [8]. The ASVspoof 2017 challenge is to assess audio replay spoof attack detection “in the wild”, and the spoofing recordings are created from real uncontrolled replay setup [9, 10, 11].

The ASVspoof 2019 challenge extends the previous challenge in several directions [12]. In this paper, we only focus on the replay detection sub-task in the physical access scenario. A controlled setup in the form of replay attacks simulated using a range of real replay devices and carefully controlled acoustic conditions are adopted. The goal is to develop countermeasure systems that can distinguish between bona fide and the spoofed speech by replay.

Recently, the Gaussian Mixture Model (GMM) classifier trained with constant Q cepstral coefficient (CQCC) feature has been the benchmark for various anti-spoofing tasks

[13, 14]. The CQCC feature is a perceptually-inspired time-frequency analysis extracted from a constant-Q transform (CQT) [15, 16]

. The GMM is an unsupervised generative model and is widely used to depict the probability distribution of audio features. It assumes that all frames of features are independent and identically distributed, and features are grouped to estimate the parameters of GMM in the training stage. Given the GMM classifier, the final utterance-level scores are derived by averaging the frame-level log-likelihood altogether.

Although the CQCC-GMM official baseline is an effective spoofing countermeasure, there remains much potential to improve. Previous work in [17, 18, 19]

have investigated the efficiency of deep learning approach compared to the GMM classifier. Various kinds of feature representation other than CQCC, such as short-time Fourier transform (STFT) gram

[18], group delay gram (GD gram) [19] are also explored and show superior performance. Besides, Cai et al. have also demonstrated that suitable data augmentation (DA) can also significantly improve the replay detection system performance [20].

Taking the DKU system for ASVspoof 2019 challenge as the pivot, we aim to explore the countermeasure system in physical access scenario from the following four aspects, including the data augmentation, feature representation, classification, and fusion. First, we introduce an utterance-level deep learning framework for anti-spoofing. Considering the variable-length nature of speech, the deep neural network (DNN) receives a feature sequence of arbitration duration and outputs the utterance-level posteriors directly. Based on the framework, we try out various kinds of input feature representations from either magnitude spectrum or phase spectrum. They include the CQCC, linear frequency cepstral coefficients (LFCC), inverted Mel-frequency cepstral coefficients (IMFCC), STFT gram, and GD gram. Besides, we also perform a simple yet effective DA strategy by applying the speed perturbation on the raw waveform to increase the quantity of training data.

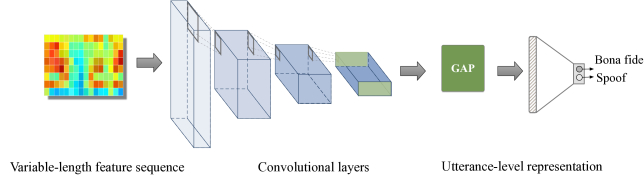

Figure 1: Utterance-level DNN framework for anti-spoofing. It accepts input data sequence with variable length, and produces an utterance-level result directly from the output of the DNN.

2 Methods

2.1 Utterance-level DNN framework

All of our systems are built upon a unified utterance-level DNN framework. We first use the approach for the task of speaker and language recognition in previous works [21, 22, 23]. As demonstrated in Fig. 1, the DNN framework accepts variable-length feature sequence and produces an utterance-level result from the output unit directly.

The network structure here is somewhat similar to that one in [19]

. However, there exist two main differences: (i) the input feature sequence is first either truncated or padded to a fixed length along the time axis, and then further resized to a

“image” before feeding into the DNN in [19]. In contrast, we employ a variable-length training strategy, and in the testing stage, the raw full-length feature sequences are fed into our DNN directly. (ii) the training procedure in [19]

contains the complicated two-stage flow. Both of the two-stage networks rely on a pre-trained model from the large-scale Imagenet

[24] dataset. In contrast, we train a single DNN from scratch only using the ASVspoof 2019 training set.

We first transform the raw waveform into a frame-level feature sequence based on hand-crafted filters. The output sequence of feature extraction is a matrix of size

, where is the feature dimension along the frequency axis, and denotes the frame length along the time axis.

As depicted in Fig. 1

, we use a deep convolutional neural network (CNN) to further transform the raw feature into a high-level abstract representation. For a given feature sequence of size

, typically, the CNN learned descriptions are a three-dimensional tensor block of shape

, where denotes the number of channels, and denotes the height and width of the feature maps. Generally, and are much smaller than the original and , since we have many downsample operations within the CNN structure.

The CNN acts as a local pattern extractor, and the learned representation by CNN is still with temporal order. The remaining question is: how to aggregate the whole sequence together over time? Concerning about that, we adopt a global average pooling (GAP) layer on the top of CNN [25]. Given CNN learned feature maps , the GAP layer accumulates mean statistics along with the time–frequency axis, and the corresponding output is defined as:


Therefore, we get fixed-dimensional utterance-level representation from the output of GAP.

We further process the utterance-level representation through a fully-connected feed-forward network and build an output layer on top. The two units in the output layer are represented as bona fide and spoof categories. We can optimize the whole countermeasure system in an end-to-end manner with a cross-entropy loss. The final utterance-level score can be directly fetched from the DNN output.

2.2 Feature representation

In this section, we investigate different input feature representations upon the introduced DNN framework in Section 2.1.

2.2.1 Cqcc

The CQCC feature is obtained by perceptually-aware CQT coupled with traditional cepstral analysis. It is reported to be sensitive to the general form of spoofing attack, and yields superior performance among various kinds of features [16]. More details of CQCC can be found in [14].

2.2.2 Lfcc

The official baseline systems adopt the CQCC feature as well as the LFCC feature.

LFCC is a kind of cepstral features based on triangle filterbank similar to the widely-used Mel-frequency cepstral coefficients (MFCC). It is extracted the same way as MFCC, but the filters are in the same triangular shape rather than on mel scale. Therefore, LFCC might have better resolution in the higher frequency region [26].

2.2.3 Imfcc

IMCC is also a kind of filter bank based cepstral features. The difference with MFCC is that IMFCC uses filters that are linearly placed in “inverted-mel” scale, which lays more stress on the high-frequency region [26].

2.2.4 STFT gram

Let be a given speech sequence and its STFT after applying a window on the speech signal . can be expressed as


where corresponds to the short-time magnitude spectrum and corresponds to the phase spectrum.

The square of the magnitude spectrum is called the STFT power spectrum. We adopt the logarithm of the power spectrum as the STFT gram.

2.2.5 Group delay gram

Most spectral features are derived from the STFT magnitude spectrum, while the short-time phase spectrum is not used, considering that the fact that the human ear is phase “deaf”. However, the phase spectrum has been used for various speech processing tasks including synthetic speech detection and audio replay detection recently [27, 28, 29, 19]. Paliwal et al. have shown that deviations in the phase that are not linear are important for perception [30], and deviations in phase can be represented using the group delay function.


where the phase spectrum of a signal is defined as a continuous function of . The group delay function can also be computed from the signal as in [28] using


where and refer to the real and imaginary parts of the Fourier transform. and are the Fourier transforms of and , respectively.

2.2.6 Joint gram

Regarding that the speech signal is completely characterized by both the short-time magnitude and phase spectrum, here we combine that STFT gram and GD gram together to form a new feature representation. Typically, we can consider the input feature sequence as a “image”, where 1 denotes the image channel, denotes the image height, denotes the image width. Thus the joint gram is formed as a two-channel “image”. For example, given separated STFT gram and JD gram of size from the same utterance, a joint gram of size is formed as the DNN input.

2.3 Data augmentation

DA, which is a common strategy adopted to increase the quantity of training data, has been shown to be effective for neural network training to make robust predictions. Many methods such as the x-vector system rely on external datasets/resource to perform data augmentation. However, external speech data is strictly forbidden for the ASVspoof 2019 challenge. Considering that, we adopt the DA strategy by applying a simple speed perturbation. Specifically, we apply standard 3-way speed perturbation using factors of 0.9, 1.0 and 1.1

[31]. After that, we have training data of 3 times the original for both bona fide and spoof category.

2.4 Model selection and fusion

Ideally, we can use the development dataset to select the best DNN checkpoint and then train the ensemble parameter on the development set for fusion. However, the evaluation plan indicates that we should submit both development and evaluation set scores. If we do so, the performance on the development set will be overfitting and lead to a rather low error rate.

Regarding this fact, we treat the development set the same as the evaluation set. This means that we only use the training set for both DNN training and system fusion. Since we have no separated validation set, the converged model after the last optimization step is selected for evaluation. As for the system fusion, we only adopt a simple score-level average operation to get the final ensemble score.

max width=0.99 Layer Input size Output size Structure #Params Conv1

, stride 1

144 Res1 3 Res2 4 Res3 6 Res4 3 GAP 128 Pooling 0 FC Fully-connected 4K Output 2 Fully-connected 66

Table 1: Detailed network structure and number of parameters for each module. It downsamples at the last three blocks (Res2, Res3, and Res4) using stride=2 for their first convolutional layer. The total number of parameters is about 1.33M.

3 Experiments

3.1 Data protocol and evaluation metrics

We strictly respect the official protocols defined in the evaluation plan and submit both development and evaluation set scores. We have training utterances altogether, including bona fide audio and spoofed audio from various replay conditions.

The primary metric is the minimum normalized tandem decision cost function (min-tDCF) defined by the organizer [32]. An alternative equal error rate (EER) is adopted as a secondary metric.

3.2 Feature extraction

The LFCC feature, CQCC feature, as well as the GMM classifier, is exactly followed the official baseline provided by the organizer.

For IMFCC feature, 20-dimensional static coefficients are augmented with their delta and double delta coefficients, making 60-dimensional IMFCC feature vectors.

For STFT gram and GD gram, the FFT bins are set to . The frame length is ms, with a frameshift ms. Finally, we get feature vector for each frame.

3.3 Network setup

To get higher-level abstract representation, we design a deep CNN based on the well-known residual neural network (ResNet) [33]. We adopt the ResNet-34 backbone, but our network is slightly “thin” that the output channels of the front-end ResNet are only up to , which leads to a small number of total parameters. The core modules and the corresponding parameters are described in Table 1

. We use batch normalization followed by the ReLU activation functions after every convolutional layer. The convolutional layer is all with kernels of


We adopt the common stochastic gradient descent (SGD) algorithm with momentum

and weight decay 1e-4. The learning rate is set to , , and is switched when the training loss plateaus. In the training stage, the model is trained with a mini-batch size of . We design a data loader to generate the variable-length training examples on the fly. For each training step, an integer within interval is randomly generated, and each data in the mini-batch is truncated or extended to frames. Therefore, a dynamic mini-batch of data with the shape of is generated prior to each training step, where is the input feature dimension, and is a batch-wise variable number indicating the frame length.

We choose the output from the bona fide unit as our final score. In the testing stage, the full-length feature sequence is directly fed into the network, without any truncate or padding operation. Due to the fact that utterances may have arbitrary durations, we feed the testing audio to the trained network one by one.

Feature Classifier EER(%) min-tDCF
CQCC GMM 9.87 0.1953
CQCC ResNet 4.77 0.1127
LFCC GMM 11.96 0.2554
LFCC ResNet 2.62 0.0609
Table 2: Comparison of different classifiers on the development set
Feature EER(%) min-tDCF
CQCC 4.77 0.1127
LFCC 2.62 0.0609
IMFCC 3.66 0.0890
STFT gram 4.11 0.1070
GD gram 1.81 0.0467
Table 3: Comparison of different types of feature on the development set
Feature DA EER(%) min-tDCF
STFT gram 4.11 0.1070
STFT gram 3.35 0.0904
GD gram 1.81 0.0467
GD gram 1.03 0.0265
Table 4: Effect of the DA strategy on the development set
ID System DA Dev Eval
1 CQCC–GMM 9.87/0.1953 11.04/0.2454
2 LFCC–GMM 11.96/0.2554 13.54/0.3017
3 LFCC–ResNet 2.62/0.0609 N/R
4 IMFCC–ResNet 3.66/0.0890 N/R
5 STFT gram–ResNet 3.35/0.0904 N/R
6 GD gram–ResNet 1.81/0.0467 1.79/0.0439
7 GD gram–ResNet 1.03/0.0265 1.08/0.0282
8 Joint gram–ResNet 1.14/0.0209 1.23/0.0305
Fusion 3+4+5+6+7+8 0.24/0.0064 0.66/0.0168
Table 5: Overall performance on both the development set and the evaluation set. EER are written before the slash, min-tDCF are behind. N/R: Not Reported.

3.4 Results on back-end classification

To compare the back-end classifier, we fix the front-end feature representation as CQCC/LFCC in this section. From Table 2, we can see that no matter for CQCC or LFCC feature, the ResNet classifier based on our introduced utterance-level DNN framework is significantly superior to the baseline GMM classifier. Therefore, we fix the back-end classifier as the ResNet model for the following experiments.

3.5 Results on front-end feature representation

In this section, we fix the ResNet back-end classifiers and perform experiments on different types front-end feature representations. From Table 3, we can see that the performance of the countermeasure system strongly depends on the choice of the feature representation. The GD gram based on the phase spectrum yields the best among the investigated five features.

3.6 Results on data augmentation

The results in Table 4 show the effectiveness of the DA based on speed perturbation strategy. 18% relative EER reduction is achieved on the development set for the STFT gram system, and 48% for the GD gram system.

3.7 Results on fusion and generalization

Table 5 shows the system performance on both the development and the evaluation set. Since only four systems can be submitted at most, some system performance on the evaluation set could not be reported at this stage. Our best GD gram–ResNet system achieves relative 90% EER reduction as well as min-tDCF on both development set and evaluation set. Finally, using the simple average score from several single systems can further improve the performance. EER of 0.24% on the development set and 0.66% on the evaluation set is obtained for our primary system. This reveals the complementariness of the system outputs from classifiers trained with different features.

The performance on the development set and evaluation set are very close, reveals the robustness of our proposed system.

4 Conclusion

In this paper, we take the DKU system for ASVspoof 2019 challenge as the pivot and explore the design of the countermeasure system against replay attack through data augmentation, feature representation, classification, and fusion. First, we utilize a ResNet back-end classifier based on the introduced utterance-level deep learning framework. Second, we investigate various kinds of front-end feature representations and find that the GD gram based on the phase spectrum is pretty effective for replay detection. Moreover, a simple data augmentation based on speed perturbation can also significantly improve the performance, especially for the GD gram–ResNet system. Finally, both the single and primary fusion systems dramatically decrease the EER and min-tDCF on not only on the development set but also on the evaluation set.
