I Introduction

The scale and complexity of integrated circuits (IC) continue to grow thanks to the ever advanced semiconductor technologies. However, the associated large volume of test data to retain satisfactory test coverage leads to significant test cost. To mitigate this issue, a large amount of test compression techniques were proposed in the literature [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11]. Nowadays, the mainstream technique is to store the compressed test patterns on the automated test equipment (ATE) and expand them on-chip before loading onto scan chains.

At the same time, with the continuous downscaling of transistor size, the circuit in scan test mode may behave quite differently from that in functional mode. In particular, scan test patterns could induce much higher switching activities than functional patterns, leading to unnecessary test yield loss. To address this critical problem, it is essential to consider the problem of test data compression and the problem of low power test together. Consequently, various low power test data compression solutions were proposed [12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22]. Among these works, the design of low power test controller has been widely adopted by commercial tools. The basic idea is to use a control block to output gating (masking) signals to scan chains such that they can be either connected with the decompressor or fed by a constant value of () on a per pattern basis [13].

Both test compression and low power test control techniques exploit the fact that scan test patterns often feature a large portion of unspecified bits. Consequently, we could use a decoder (instantiated as LFSR reseeding structure [14, 16] or XORNet [13, 15]) with a small number of control bits to obtain the gating signals in low power test controller. Take XORNet in [13, 15] as an example (see Fig. 1), the gating signal for a specific scan chain is the XOR-ed output from certain control bits. When we need to drive the scan chains with specified bits from the decompressor, the control bits should be configured in a way that the gating signals for these scan chains are all ’s. The remaining gating signals are determined by both the XORNet structure and the other control bits.

In order to minimize the impact of the linear dependency between different gating signals, the conventional XORNet design will evenly distribute the scan chains to certain XORNet control bits (e.g., [23, 13, 2]. Such configuration implicitly assumes uniform XOR operand setting and equal encoding capacity of each scan chain. In practice, different scan chains in a circuit have distinct encoding requirements and they also vary among circuits. Consequently, the number of control bits is usually set conservatively high to ensure high encoding capability (e.g., control bits for a circuit with scan chains), leading to sub-optimal controller design.

In this paper, we take the above issue into consideration and propose a testability-aware low power controller design with evolutionary learning techniques. The proposed method implicitly extracts testability information via applying genetic algorithm (GA) on the sampled test cubes, and customizes XORNet-based low power controllers for different circuits under test. The proposed GA-guided XORNet design outperforms existing solutions by a significant margin across different settings.

The contributions of this paper are summarized as follows:

  • We use fault sampling to generate sampled test cubes and extract the scan chain usage distribution that embeds testability information.

  • We propose to apply the genetic algorithm on sampled test cubes to explore a better XORNet structure for the low power test controller design. The genetic algorithm operations are designed specifically for XORNet structures.

  • We apply GA-guided XORNet design as the low power test controller for various industrial circuits and our experimental results show significant improvements in terms of test coverage, test time and control bit count.

We organize the remainder of this paper as follows. We review related works in Section II. Section III introduces the conventional XOR-based low power test controller design, which motivates the proposed genetic algorithm for XORNet designs presented in Section IV. Then, Section V presents our experimental results on various industrial circuits. Finally, Section VI concludes this paper.

Ii Related Works

In this work, we focus on scan shift power reduction and we discuss previous work in Section II-A. Then, Section II-B introduces preliminaries of evolutionary learning algorithms.

Ii-a Low-Power Test Data Compression

Generally speaking, low shift-power testing techniques can be categorized into ATPG-based and DFT-based solutions.

ATPG-based techniques (e.g.

, test vector reordering

[19], adjacent filling [24], X-filling ATPG [25, 26]) try to minimize test patterns’ switching activities during test generation. However, these techniques are not friendly with test compression and hence are rarely used for shift power reduction in practice. DFT-based low power test solutions, on the other hand, add design-for-test (DFT) hardware to reduce circuit switching activities during testing. Representative techniques include scan chain partitioning and modification [27, 20], clock gating [21], test point insertion [28], adaptive power scaling [29], and low power controller design [14, 13]. Among them, low power controller can be easily integrated into the test compression environment and is widely adopted in the industry. To be specific, the low power test controller is usually an LFSR-based or XORNet-based encoder, which expands the control bits into gating signals for every scan chain. The gating signals are AND-ed or OR-ed with the decompressed scan data for test power reduction. One example XORNet-based low power controller design is illustrated in Fig. 1. In this paper, we consider the above low power test compression architecture and try to improve its efficiency.

Fig. 1: The XORNet-based Low Power Test Compression Architecture [13]

Ii-B Evolutionary Learning Algorithm

Inspired by biological evolution, the common idea behind variants of evolutionary learning algorithms [30, 31, 32, 33] is the same: given a population of individuals within some environment that has limited resources, competition for those resources causes natural selection. Among different evolutionary learning algorithms, genetic algorithm [34, 35, 36] is arguably the most popular one, which has been widely used for many optimization problems. Given an optimization problem, a population of candidate solutions is evolved towards better solutions. The solutions are in the form of strings of numbers, which is similar to chromosomes in genes, and can be mutated and altered. In order to evaluate the performance of different solutions, the fitness of the population is defined and serves as the optimization objective. The evolution usually starts from a population of randomly generated individuals and then steps into an iterative process. In each generation, the fitness function is applied to every individual; Based on these fitness values, potentially better candidates are stochastically chosen as the mating parents to seed the next generation. The recombination (i.e., crossover) and possibly randomly mutation are performed to produce new candidates. The new generation of candidate solutions is then used in the next iteration of the algorithm. This process is repeated until a candidate with sufficient quality is found or a previously set computational limit is reached.

Iii XORNet-Based Low Power Controller Design

The binary vector of a test cube, wherein the dimension indicates the scan chain being specified (value 1) or not (value 0), represents the usage of scan chains. We use a XORNet to encode into compressed representation as the control bits, which will be loaded into the control register before decompression (See Fig. 1). The XORNet is a binary matrix, , defined by (the notation here means that the control bit is the operand of XOR for the scan chain). The row vector denotes the operands for the scan chain. The control bits represents the controlling signal for XORNet, while the expanded scan chain gating signal is the decoded signal from XORNet. Here we have the following step to get the control signals for test cubes:

(1)

The XORSolver uses the Gauss-Jordan method, except that we consider the finite field of integers modulo . Note that we only solve the equations with the output being . What’s more, when the system has more than one solution, the unspecified control bits are random-filled. On the other hand, if the system has no solution, it counts as a failure case.

If the system is solvable, we can decode the control signals by XOR and , and get the gating signal , wherein the entry with value indicates the scan chain is driven by decompressor (i.e., the scan chain is activated/enabled):

(2)

The design goal of the XORNet-based low power controller is to minimize the power consumption as much as possible, within the minor loss of fault coverage. Usually, the power dissipation should meet the pre-defined requirements so that the overheating problem can be avoided during testing. To model the problem, we formally define a few indicators as follows.

Firstly, during ATPG, XORNet may fail to encode the test cubes. Specifically, the failure cases happen when the system has no solution. We define Unsolvable (UNS) as the number of failure cases of XORNet encoding for a given test cube set:

(3)

It should be noted that when all gating signals are decoded by ( is an integer) of control bits, there is no UNS. The reason is that when all control bits are set with , the XOR outputs of ones must be , causing all scan chains are activated.

Then we consider the cases where the power consumption exceeds the user-defined limit. Toggling the internal value of scan cell directly consumes power in scan testing. Because the excessive power during testing will cause circuit damaged, the ATPG process should specify a peak value as maximum instantaneous power consumption. To measure the shift cycle power in load and unload phases, we follow the definition of scan cell transition rate in [37], denoted as the Transition Rate at clock cycle :

(4)

For example, one scan chain consists of 5 scan cells with internal states and we assume the current internal states . In the next clock cycle, scan cell is loaded , the internal states should be . The scan cells and take falling transition from to , the scan cells takes rising transition from to , and other cells keep the state in the last clock cycle. Therefore, there are transition cells among total cells, the transition rate at clock is . The upper limit of is defined as Maximum Transition Rate (), which is determined by the user. If the transition rate of a test cube at any cycle is larger than , this test cube is counted as a High Power (HP) cube. The loss of test coverage is caused by discarding such HP cubes.

Evaluating transition rate for each test cube for all clock cycles is time-consuming. To efficiently estimate the power consumption, we use the ratio of the activated scan chains to the total number of scan chains to approximate the power consumption, named as

Scan Chain Activated Rate (SCA).

(5)

We then define Scan Chain Activated Exceeding Counts (SCAE) as the number of test cubes which exceeding the SCA limit, and the as the average scan chain activated rate for a given test cube set.

(6)
(7)

When a test cube activates too many scan chains or it cannot be encoded by the XORNet, the test cube is regarded as Unsuccessfully Encoding (UE) cube. The number of UE is the sum of SCAE and UNS, which can be calculated as:

(8)

Not double to say, the primary objective of XORNet-based low power controller is to reduce the cases which violate the power requirements as much as possible. However, the conventional XORNet design is merely random and conservative. For example, given a circuit design with scan chains, () control bits will be assigned for XORNet, and control bits are connected randomly to one scan chain, i.e.:

(9)

The random seed to generate XORNet is set as the number of scan chains by convention. Also, different scan chains in a circuit have distinct encoding requirements and they also vary among circuits. So the number of control bits is usually set conservatively high so that the low power controller does not cause high loss of test coverage. For example, control bits are allocated for a circuit with scan chains in the industrial tool.

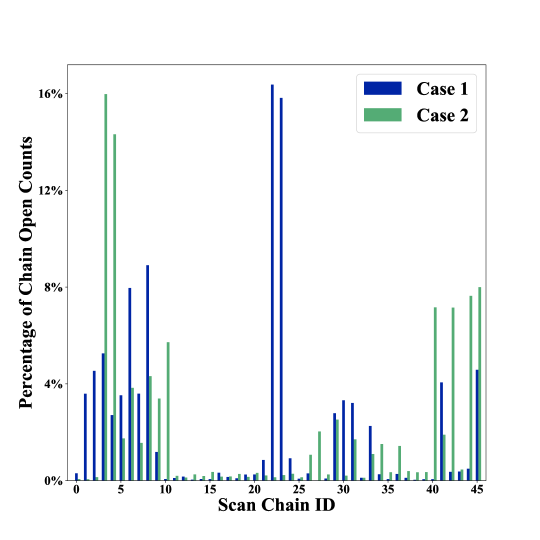

Fig. 2: The Distribution of Activated Scan Chains

Although such XORNet design is simple, it ignores circuit-specific testability characteristics and can be sub-optimal due to this fact. For example, the design of circuit is non-uniform, resulting in uneven distribution of scan chain usage. we analyze two test cases with the same number of scan chains. As shown in the Fig. 2

, high variance of scan chain usage on a certain case is observed. As for the Case 1, some scan chains can be frequently used, and consume around

of total specified chain counts, while some other scan chains are activated for less than times. What’s more, the distribution of specified scan chain counts for two cases varies significantly. To be specific, the usage peak value appears on scan chain #22 and #23 for the Case 1, but those scan chains are merely used in Case 2. In the following discussion, the distributions of scan chain usage are regarded as one form of circuit testability properties.

In general, different circuits maintain different testability properties, which implies a unitary XORNet design is unsatisfactory. In this case, we need different control strengths for different scan chains. If a sufficient number of in-distribution scan chains sampled from a specific circuit are available, then in principle, Learning-based approach should be able to extract the underlying patterns and produce a better XORNet structure for this circuit.

Due to the logical properties of XOR operation, XORNet is neither differentiable, nor is its coding ability directly related to the number of control bits. Consequently, conventional optimization methods cannot be directly applied to XORNet design. For example, the gradient descent method cannot deal with the XOR encoding optimization problem. In this paper, we propose an evolutionary-learning-guided approach to search XORNet structure, which is elaborated in Section IV.

Iv Genetic Algorithm for XORNet

To realize the idea of customizing XORNets for different circuits in practice, we take the idea of genetic algorithm, one of the evolutionary learning approaches, with the following two reasons:

  • One row of XORNet matrix corresponds to the XOR operand settings for one scan chain. Different rows are independent and do not interfere with each other. Consequently we can modify XORNet at the row level. If two XORNets are given, we can randomly exchange rows of two matrices and obtain a new XORNet. Such procedure can be modeled as the crossover operation in GA.

  • For the scan chain, its control bits are determined by entries being of ( is the row of XORNet matrix ). To explore different setting of control bits for the scan chain, one can flip the entries of . Such entry-wise operation can be regarded as one variation of mutation in GA.

To this end, we propose to use GA for searching better XORNet structure in low power controller design. Fig. 3 shows the overview of the GA pipeline and the GA learning procedure is illustrated in Algorithm 1. We elaborate the GA for XORNet-based low power controller design in the following sub-sections.

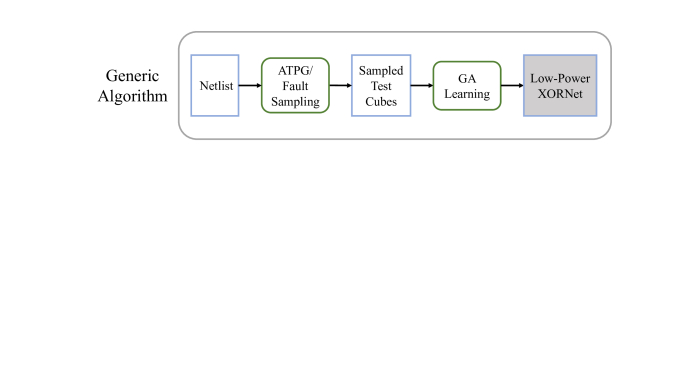

Fig. 3: Overview of GA Pipeline.
Input: Sampled Test Cubes , # of Scan Chain , # of Control Bits , # of Individuals , # of Parents , # of Parents , # of generations , Mutation ratio , Coefficient .
Output: XORNet searched by GA.
/* Initialize Population */
1 ;
2 ;
/* Define Fitness Function */
3 ;
4 while  do
       /* Fitness Calculation */
5       ;
       /* Select Parents to Mating Pool */
6       ;
       /* CrossOver */
7       ;
       /* Mutation */
8       ;
       /* New Population */
9       ;
10       ;
11
12 end while
/* Best XORNet */
13 ;
return ;
Algorithm 1 GA Learning for Low-Power Test Compression

Iv-a Data Preparation

To enable GA learning, we have to prepare a pool of test cubes , which approximates the distribution of test cubes in ATPG pipeline. As the XORNet structure is to be determined, the final circuit netlist is not available during the GA training stage, hence we cannot directly run ATPG and sample the exact test tubes. As the low-power controller occupies only a small part of the final circuit, we consider applying fault sampling on the original circuit netlist. Specifically, we randomly select a small subset of faults (less than of the total faults) and run ATPG, extract their scan chain usage information, and use them as the training dataset for GA learning. The key observation is that a small portion of faults are already sufficient to reflect the statistic of scan chain usage and is able to help GA search a better XORNet structure than conventional XORNet.

Iv-B GA Specifications

Iv-B1 Population Initialization

The population consists of multiple XORNet set , wherein each XORNet matrix represents an individual solution. Because the number of ’s directly affects the hardware overhead of XORNet (The more 1’s, the larger the area), we restrict the sparsity of so that on average there are control bits being the operands for each scan chain. In other words, entries of are ’s and the remaining entries are set as . Through this initialization method, we ensure that the area of XORNet searched by the GA is comparable to the one by the previous works.

The most significant factor affecting the search space is the size of population. With more individual solutions in the population, we have more diversity in the searching space. But with too many individuals the convergence speed may be slow. In our experiments, we observe that setting the population size as is enough to get a desired results across different test circuits.

Iv-B2 Fitness Function for Low-Power Test Design

The objective of GA learning has two-fold: Firstly, we want to improve the XORNet encoding capacity so that it can merge more test cubes during ATPG. From this aspect, we use (defined in Eq. 8) as indicators, which is the number of failure cases of XORNet encoding and validation of the power requirement. Note that in order to efficiently estimate the power consumption, instead of the transition power, we use defined in Eq. 6. Secondly, except for the use-defined power limit, we also want the average power during test to be as low as possible. Thus, (defined in Eq. 7) should be minimized. Based on the above considerations, we set the fitness function as the sum of and , and use GA learning to minimize such fitness function, as shown in Eq. 10. In our experiments, we set coefficient as to scale up the range of from to .

(10)

Iv-B3 Mating

To select the individuals as parents to generate children (offspring), we evaluate each individual on test cube set and put the ones with low fitness into the mating pool. The utility function (line 6 in Algorithm 1) ranks the fitness of individuals from the lowest to the highest and selects the top XORNets with the size of ( in our experiments) accordingly. The set being selected is the mating pool for generating children.

Iv-B4 Crossover

As discussed before, each row of individuals is independent for XORNet decoding. Consequently, To re-combine two XORNets, one feasible way is to do crossover operation at the row level. Specifically, given two row vectors and (the superscript indicates the identity of parent individual) from the parent and the parent , one of then is randomly picked and designated as , the row of children XORNet :

(11)
Fig. 4: GA Operations

The illustration of crossover is shown in Fig. 4(a). Such crossover results in the rows of either from or from . It gives the chance that the children inherit good XORNet connection settings from both parents and perform better than parents.

Iv-B5 Mutation

In order to get better solutions, we use mutation to slightly alter the obtained children solutions. As the representation of solution is all binary, bit-flip fits well to XORNet mutation. As shown in Fig. 4(b), given the

row of children XORNet, we select the positions of elements to be flipped with the probability of

(set as in our experiments):

(12)

After crossover and mutation, we combine the parent set and the children set together as the new generation. Then GA steps into the next evolution iteration. The learning stops when the fitness value of generations is converged or GA runs for predefined generations. At last, the XORNet with the lowest fitness value is selected as the final output (line 12 in Algorithm 1).

Iv-C Low-Power Requirements

So far, we discuss a stand-alone XORNet as the decoder. The implicit power limit, in this case, is that the decoded test stimuli toggles 25.0% test cells randomly on average, as the probability of output of XOR gate being is . When users require more stringent power consumption limit, previous works add AND gates to control the probability of scan chain being activated. To be specific, a XORNet and a ANDNet are combined together so that two outputs from XOR gates are ANDed to get the final output. The proposed GA scheme can be easily generalized to these cases, wherein we fix the ANDNet and let GA search for XORNet .

V Experiments

V-a Circuit Datasets and Baselines

=50.0% =30.0%
ID # Gate # Chain # Cell CBC PC TC CBC PC TC
C1 86,917 33 328 9 1,263 98.57% 16 1,323 97.97%
C2 121,259 46 358 11 2,260 96.01% 23 2,539 95.82%
C3 782,934 81 329 20 10,893 97.05% 40 13,426 96.91%
C4 54,930 100 360 25 5,171 94.79% 50 2,027 88.35%
C5 107,438 128 328 25 1,393 99.47% 64 1,154 97.80%
C6 136,112 380 40 76 3,850 93.80% 190 3,876 94.05%
C7 91,115 400 31 80 2,471 98.10% 200 2,540 98.00%
C8 104,155 413 330 82 661 99.56% 82 656 99.51%
C9 86,915 500 25 100 2,451 98.59% 250 2,558 98.49%
C10 136,872 760 20 114 3,952 93.66% 152 3,952 93.66%
TABLE I: Testing circuit characteristics (CBC: Control Bit Counts, PC: Pattern Counts, TC: Test Coverage)

We compare the proposed testability-aware XORNet design searched by GA with the standard XORNet design adopted by commercial tools on 10 industrial circuit designs, ranging in size from to gates. Table I summarizes the circuit characteristics including the number of gates (# Gate), the number of scan chains (# Chain), the maximum number of scan cells for each scan chain (# Cell). Besides, we consider the test compression with two low power requirements: maximum transition rates and , which represents the peak shift cycle power limit. When the shift cycle power limit is , the one-level of XORNet structure is deployed. When the shift cycle power limit is , the two-level XORNet structure is deployed.

With two different transition rates, two types of conventional XORNet are generated as baselines. In our experiments, we use the number of scan chains as the random seed to generate the XORNets. Therefore, two different circuits with the same number of scan chains share the same XORNet-based low power controller design.

To detect multiple faults with a single test pattern, we consider the incremental merging scheme. To be specific, the ATPG procedure generates some test cubes, and some eligible test cubes are incrementally merged into a test pattern to cover other faults as much as possible without losing any test coverage. Such procedure is executed only if the merging pattern activates scan chains less than the maximum SCA.

As shown in the second and third columns in Table I, we report the control bit counts (CBC) of test compression structures, ATPG pattern counts (PC) and test coverage (TC) when the conventional XORNet is used as the low power controller.

V-B GA Hyper-parameters and Fitness Function Convergence

We try different hyper-parameter settings for GA and observe that as long as the population size is set to be relatively large (i.e., ), the fitness function will easily be converged. Consequently, the GA hyper-parameters for experimental results shown in this section are all set as the same as follows: number of generations , population size , number of parents for mating pool , number of children , mutation ratio , coefficient .

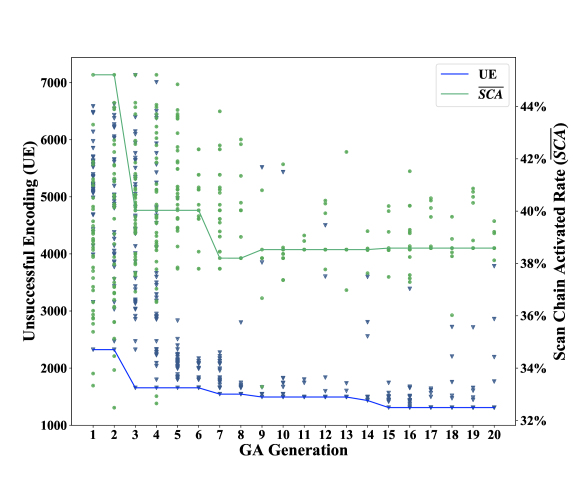

In Fig. 5, we sample one circuit (C1) and trace the fitness function values during evolution. Note that a similar trend of fitness value on other circuits is observed. As the fitness function has two components (blue dots) and (green dots), we show them independently in the figure. In each generation (-axis), the fitness values (-axis) for all XORNet solutions are demonstrated, while the fitness values of the best individuals for all generations are connected as line charts (See the blue line and green line in the figure). As can be observed in this figure, both and go down and converge within generations. Because we prioritize optimization in our fitness function, it can be seen in the figure that the final XORNet solution has a minimum , and may have sub-optimal .

Fig. 5: Tracing of the Fitness Function during GA Evolution

V-C Effectiveness of GA on XORNet Design

As demonstrated in Fig. 2, different circuits exhibit different testability properties. The testability-aware low power XORNet takes these properties into account by applying genetic algorithm on sampled test cubes, thus improve the encoding capability for a specific circuit. In this subsection, we demonstrate the effectiveness of GA in terms of the test coverage, testing time and the number of control bits.

V-C1 Improve Test Coverage

The low power controller encoding process is trying to find a qualified solution of linear equations that all pre-specific gating signals should be assigned the correct value after decoding. At the same time, the number of activated scan chains by gating signals cannot exceed the maximum SCA, otherwise, the test cube will be counted as HP and be dropped during ATPG.

Table II compares GA-guided XORNet with baselines w.r.t the test coverage. We list four circuits (C1-C4) with HP after coupling the low power test compression structure, while the other cases (C5-C10) are ignored because they have no HP. When the maximum transition rate , the GA learned encoding XORNet can reduce almost all HP and improve by test coverage at most. When , the GA-guided XORNet improves test coverage up to . Comparing with the conventional XORNet, the average TC on circuits increase by and under two different low power limits, which is significant.

Overall, compared with the conventional low power test compression structure, with embedded testability information, the GA-guided low power controller can avoid activating more than necessary scan chains for the test cubes which are regarded as HP on the former structure. Therefore, the GA learned controller can improve the test coverage.

ID TC Baseline TC Improve
C1

50.0%

98.57% 98.63% 0.06%
C2 96.01% 97.26% 1.25%
C3 97.05% 99.16% 2.11%
C4 94.79% 96.37% 1.58%
Average 1.25%
C1

30.0%

97.97% 98.50% 0.53%
C2 95.82% 96.16% 0.34%
C3 96.91% 97.54% 0.63%
C4 88.35% 88.57% 0.22%
Average 0.43%
TABLE II: ATPG Test Coverage

V-C2 Reduce Testing Time under The Same Coverage

The design of test compression structure targets reducing test data volume and testing time. In this testability-aware low power test compression structure, the controller keeps the current control bits during shifting each test pattern. For each pattern, the load values should be shifted in bits by bits. Thus, the total testing cycle indicating testing time is noted as:

(13)

The constant represents the number of configuration bits for test pattern decompression, which is determined by circuit size. is the number of input channels of test compression structure, and all circuits are configured with the same . The CBC, # Cell and PC are shown in Table I. The low power controller needs cycles to configure the control register and testing register and cycles to shift in the current test pattern.

To ensure that the same volume of faults are covered when testing the circuits with the conventional and testability-aware low power compression structures, the new test cubes will be generated until the ATPG process reaches the target test coverage. The target test coverages for each circuit with two maximum transition rates are set as the two columns under TC in Table I respectively. Table III shows that the testability-aware low power test compression structure can reduce at most and pattern counts with and . According to the Eq. 13, without modifying the low power controller structure, the variation of total testing cycles is only related to the pattern counts, i.e. reduce and testing cycles. On average, the evolutionary testing compression approach save and testing time when the maximum transition rates are and , respectively.

From the above, the GA-guided low power controller can reduce the number of activated scan chains for most test cubes. Thus, the incremental merging process is carried out more times until reaching the maximum SCA. More test cubes can be merged into a test pattern and the pattern counts (PC) can be reduced.

ID PC* PC Cycles* Cycles Reduction
C1

50.0%

1,263 1,192 440,787 416,008 5.62%
C2 2,260 1,856 861,060 707,136 17.88%
C3 10,893 8,320 3,954,159 3,020,160 23.62%
C4 5,171 5,094 2,073,571 2,042,694 1.49%
C5 1,393 1,387 526,554 524,286 0.43%
C6 3,850 3,646 739,200 700,032 5.30%
C7 2,471 2,444 471,961 466,804 1.09%
C8 661 362 327,195 179,190 45.23%
C9 2,451 2,427 551,475 546,075 0.98%
C10 3,952 3,944 980,096 978,112 0.20%
Average 10.18%
C1

30.0%

1,323 1,145 470,988 407,620 13.45%
C2 2,539 2,516 997,827 988,788 0.91%
C3 13,426 11,391 5,142,158 4,362,753 15.16%
C4 2,027 1,994 863,502 849,444 1.63%
C5 1,154 1,018 481,218 424,506 11.79%
C6 3,876 3,772 1,186,056 1,154,232 2.68%
C7 2,540 2,423 789,940 753,553 4.61%
C8 656 654 324,720 323,730 0.30%
C9 2,558 2,367 959,250 887,625 7.47%
C10 3,952 3,838 1,130,272 1,097,668 2.88%
Average 6.09%
  • Baseline: Test with the conventional XORNet

TABLE III: ATPG Pattern Counts

V-C3 Reduce Control Bit Counts to Reduce Testing Time

Different from the conventional XORNets, as XORNets generated by GA utilizes testability properties, the latter can use fewer control bits to reach the same test coverage. We try to reduce the control bit counts to save testing cycles further. To explore the influence of CBC reduction on test coverage and XORNet encoding capability, we take the cases with relatively high TC and more # Chain as examples (i.e. C8 and C9) in Table IV. The target test coverage for C8 and C9 are set to and respectively, and the minimum control bit counts have been reduced by and , which means the testability-aware network only takes about of original control bit counts to achieve the same coding capability with the randomly connected XOR encoding network. It should be noted that when CBC is excessively reduced, the test coverage cannot meet the target test coverage. Therefore, the minimum CBCs for C8 and C9 are and respectively.

However, the total testing cycle is determined by pattern counts, the longest scan chain and the circuit structure, as the cycles metrics Eq. 13. By restricting the number of control bits, the XORNet encoding capability decreases and fewer test cubes are merged into a pattern, so that it will lead to the increase of pattern counts to consume testing time. For example, if the CBC of C8 is reduced by (from to ), the test cycle reduction does not reach the optimal value. We observe that the XORNet with CBC reduction has minimal testing cycles, as shown in Figure 6.

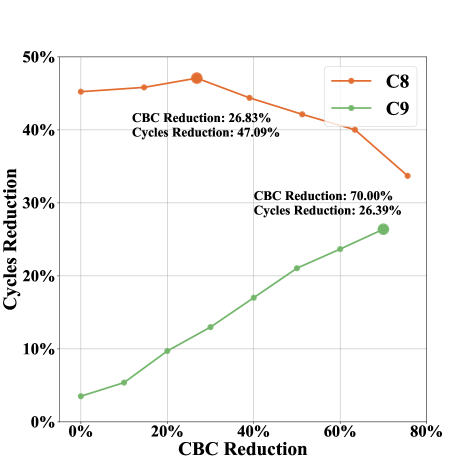

Fig. 6: Testing Cycles Reduction with CBC

It is not recommended that reducing control bits for circuits that have few scan chains and CBC, because the reduction of CBC compression structures may activate more percentage of scan chains so that exceed the maximum SCA. Restricting control bit strategy is more suitable for circuits with more scan chains. Therefore, the circuits (C1-C4) whose CBCs are less than are not considered. According to the above analysis of C8 and C9, the low power controller with the least CBC may not reach the minimal testing cycles. In the Table V, we generate the testability-aware low power test compression structures for the circuits and configure fewer control bits to further reduce the testing time at most. The best results are saving and testing time by reducing control bits when the maximum transition rate is and , respectively. When , the testability-aware approach can reduce CBC to save about testing cycles on average. Besides, for more power consumption limited situations , GA can reduce testing cycles by decreasing about CBC.

ID CBC Reduction PC TC Cycles Reduction
C8 82* 661 99.56% 327,195
82 0.00% 362 99.56% 179,190 45.23%
70 14.63% 367 99.56% 177,261 45.82%
60 26.83% 366 99.56% 173,118 47.09%
50 39.02% 393 99.56% 181,959 44.39%
40 51.22% 418 99.56% 189,354 42.13%
30 63.41% 443 99.56% 196,249 40.02%
20 75.61% 501 99.56% 216,933 33.70%
10 87.80% 649 99.48% 274,527 16.10%
C9 100* 2,451 98.57% 551,475
100 0.00% 2,365 98.57% 532,125 3.51%
90 10.00% 2,427 98.57% 521,805 5.38%
80 20.00% 2,429 98.57% 497,945 9.71%
70 30.00% 2,461 98.57% 479,895 12.98%
60 40.00% 2,474 98.57% 457,690 17.01%
50 50.00% 2,488 98.57% 435,400 21.05%
40 60.00% 2,551 98.57% 420,915 23.67%
30 70.00% 2,619 98.57% 405,945 26.39%
20 80.00% 2,691 98.44% 390,195 29.25%
  • Baseline: Test with the conventional XORNet

TABLE IV: Reduce Control Bit Counts
ID CBC Baseline CBC Reduction PC Baseline PC Reduction Cycles Baseline Cycles Reduction
C5

50.0%

25 20 20.00% 1,393 1,402 -0.65% 526,554 522,946 0.69%
C6 76 40 47.37% 3,850 3,648 5.25% 739,200 569,088 23.01%
C7 80 60 25.00% 2,471 2,493 -0.89% 471,961 426,303 9.67%
C8 82 60 26.83% 661 366 44.63% 327,195 173,118 47.09%
C9 100 30 70.00% 2,451 2,619 -6.85% 551,475 405,945 26.39%
C10 114 50 56.14% 3,952 4,001 -1.24% 980,096 736,184 24.89%
Average 46.99% 4.77% 20.78%
C5

30.0%

64 55 14.06% 1,154 946 18.02% 481,218 385,968 19.79%
C6 190 110 42.11% 3,876 3,793 2.14% 1,186,056 857,218 27.73%
C7 200 160 20.00% 2,540 2,556 -0.63% 789,940 692,676 12.31%
C8 82 40 51.22% 656 683 -4.12% 324,720 309,399 4.72%
C9 250 100 60.00% 2,558 2,724 -6.49% 959,250 612,900 36.11%
C10 152 110 27.63% 3,952 3,902 1.27% 1,130,272 952,088 15.76%
Average 35.84% 1.70% 19.40%
TABLE V: Reduce Control Bit Counts

V-D GA-guided XORNet Analysis

In this section, we explore and analyze why GA-guided XORNet outperforms conventional XORNet from the perspective of control bit connection and scan chain activated frequency during ATPG.

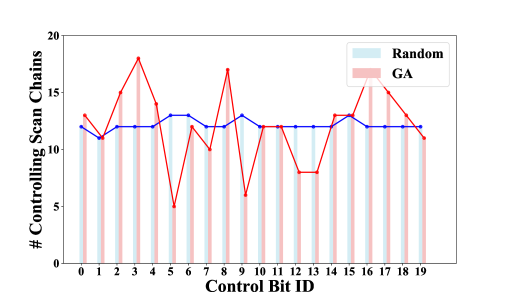

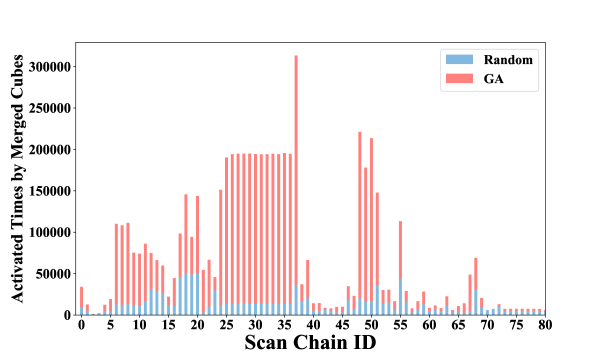

Firstly, we show the number of scan chains controlled by each control bits for case C3 in Fig. 7. As in the XORNet-based low power controller, the control bits are expanded into final gating signals for scan chains. Usually, the number of control bits is much less than the number of scan chains. In other words, one control bit will participate in the control of multiple scan chains. As can be observed from this figure, the conventional XORNet (the blue line) is configured randomly and each encoding bit controls a similar number of scan chains (i.e., around 12). On the contrary, the GA-guided XORNet (the red line) can differentiate different scan chain (i.e. a control bit can control 18 at most and 5 at least) and assign different numbers of control bits for each scan chain. Such results are in line with our expectation as GA-guided XORNet can exert different control strengths on different scan chains.

Fig. 7: Number of Scan Chains Controller by Each Control Bit
Fig. 8: The Activated Times of Each Scan Chains

Secondly, to show more evidence of better encoding capacity obtained from GA-guided XORNet, we count which scan chain needs to be activated by successfully merged cubes during incremental merging. This indicator directly corresponds to the test coverage and reflects the coding ability of XORNet. The more activated times of scan chains, the more test cubes are generated and merged successfully which are able to detect more faults and improve the test coverage. In order to show the GA-guided XORNet advantage clearly, we take the case (C3) with the largest test coverage improvement as an example. As shown in Figure 8, GA-guided XORNet (the red bar) constantly outperforms the conventional XORNet (the blue bar) regarding the activated times of scan chain during ATPG. The relative improvement is essentially large on some scan chains (e.g., scan chain #37), which shows the benefit of GA-guided XORNet. Similar improvements are emerging in other cases.

To sum up, GA-guided XORNet is able to extract the testability properties from sampled test cubes, and rearrange the control bit connections so that the encoding capacity outperform conventional XORNet by a significant margin.

Vi Conclusions

In this paper, we propose to use an evolutionary learning algorithm to improve the performance of low power test compression. By applying the genetic algorithm on sampled test cubes to extract testability information, and further employing XORNet searched by genetic algorithm as the low power controller, the proposed design can achieve better encoding capacity of XORNet. The empirical results show that the GA-guided XORNet can improve test coverage by up to and when the maximum transition rate is and , respectively. Meanwhile, the testability-aware low power controller allows merging more test cubes, which effectively decreases the testing time by with and with on average. Restricting the number of control bits can further reduce the testing cycles by and on average when the maximum transition rate is and , respectively. In conclusion, compared with the conventional low power controller, the testability-aware controller consisting of GA-guided XORNet can improve the test coverage and reduce testing cycles without loss of fault coverage.

References

  • [1] J. Rajski, J. Tyszer, M. Kassab, N. Mukherjee, R. Thompson, K.-H. Tsai, A. Hertwig, N. Tamarapalli, G. Mrugalski, G. Eide et al., “Embedded deterministic test for low cost manufacturing test,” in Proceedings. International Test Conference.   IEEE, 2002, pp. 301–310.
  • [2] J. Rajski, J. Tyszer, M. Kassab, and N. Mukherjee, “Embedded deterministic test,” IEEE transactions on computer-aided design of integrated circuits and systems, vol. 23, no. 5, pp. 776–792, 2004.
  • [3] A. Chandra and K. Chakrabarty, “Frequency-directed run-length (fdr) codes with application to system-on-a-chip test data compression,” in Proceedings 19th IEEE VLSI Test Symposium. VTS 2001.   IEEE, 2001, pp. 42–47.
  • [4] B. Koneman, “Lfsr-coded test patterns for scan designs,” in Proc. European Test Conf., March 1993, 1993, pp. 237–242.
  • [5] A. Chandra and K. Chakrabarty, “Test data compression for system-on-a-chip using golomb codes,” in Proceedings 18th IEEE VLSI Test Symposium.   IEEE, 2000, pp. 113–120.
  • [6] H.-G. Liang, S. Hellebrand, and H.-J. Wunderlich, “Two-dimensional test data compression for scan-based deterministic bist,” Journal of Electronic Testing, vol. 18, no. 2, pp. 159–170, 2002.
  • [7] P. T. Gonciari, B. M. Al-Hashimi, and N. Nicolici, “Variable-length input huffman coding for system-on-a-chip test,” IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, vol. 22, no. 6, pp. 783–796, 2003.
  • [8] S. Hellebrand, H.-G. Liang, and H.-J. Wunderlich, “A mixed mode bist scheme based on reseeding of folding counters,” Journal of Electronic Testing, vol. 17, no. 3, pp. 341–349, 2001.
  • [9] R. Dorsch and H.-J. Wunderlich, “Tailoring atpg for embedded testing,” in Proceedings International Test Conference 2001 (Cat. No. 01CH37260).   IEEE, 2001, pp. 530–537.
  • [10] D. Das and N. A. Touba, “Reducing test data volume using external/lbist hybrid test patterns,” in Proceedings International Test Conference 2000 (IEEE Cat. No. 00CH37159).   IEEE, 2000, pp. 115–122.
  • [11] I. Bayraktaroglu and A. Orailoglu, “Test volume and application time reduction through scan chain concealment,” in Proceedings of the 38th Annual Design Automation Conference, 2001, pp. 151–155.
  • [12] S. Bhatia, “Low power compression architecture,” in 2010 28th VLSI Test Symposium (VTS).   IEEE, 2010, pp. 183–187.
  • [13] D. Czysz, M. Kassab, X. Lin, G. Mrugalski, J. Rajski, and J. Tyszer, “Low power scan shift and capture in the edt environment,” in 2008 IEEE International Test Conference.   IEEE, 2008, pp. 1–10.
  • [14] J. Lee and N. A. Touba, “Low power test data compression based on lfsr reseeding,” in IEEE International Conference on Computer Design: VLSI in Computers and Processors, 2004. ICCD 2004. Proceedings.   IEEE, 2004, pp. 180–185.
  • [15] E. K. Moghaddam, J. Rajski, S. M. Reddy, X. Lin, N. Mukherjee, and M. Kassab, “Low capture power at-speed test in edt environment,” in 2010 IEEE International Test Conference.   IEEE, 2010, pp. 1–10.
  • [16] P. M. Rosinger, B. M. Al-Hashimi, and N. Nicolici, “Low power mixed-mode bist based on mask pattern generation using dual lfsr re-seeding,” in Proceedings. IEEE International Conference on Computer Design: VLSI in Computers and Processors.   IEEE, 2002, pp. 474–479.
  • [17] G. Sowmiya, P. Premalatha, A. Rajaram, S. Saravanan, and R. V. Sai, “Design and analysis of scan power reduction based on linear feedback shift register reseeding,” in 2013 IEEE Conference on Information & Communication Technologies.   IEEE, 2013, pp. 638–641.
  • [18] K. Y. Cho, S. Mitra, and E. J. McCluskey, “California scan architecture for high quality and low power testing,” in 2007 IEEE International Test Conference.   IEEE, 2007, pp. 1–10.
  • [19] V. Dabholkar, S. Chakravarty, I. Pomeranz, and S. Reddy, “Techniques for minimizing power dissipation in scan and combinational circuits during test application,” IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, vol. 17, no. 12, pp. 1325–1333, 1998.
  • [20] Y. Bonhomme, P. Girard, L. Guiller, C. Landrault, and S. Pravossoudovitch, “Efficient scan chain design for power minimization during scan testing under routing constraint,” in ITC: International Test Conference, 2003, pp. 488–493.
  • [21] ——, “A gated clock scheme for low power scan testing of logic ics or embedded cores,” in Proceedings 10th Asian Test Symposium.   IEEE, 2001, pp. 253–258.
  • [22] T.-C. Huang and K.-J. Lee, “Reduction of power consumption in scan-based circuits during test application by an input control technique,” IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, vol. 20, no. 7, pp. 911–917, 2001.
  • [23] G. Mrugalski, J. Tyszer, and J. Rajski, “Linear independence as evaluation criterion for two-dimensional test pattern generators,” in Proceedings 18th IEEE VLSI Test Symposium.   IEEE, 2000, pp. 377–386.
  • [24] K. M. Butler, J. Saxena, A. Jain, T. Fryars, J. Lewis, and G. Hetherington, “Minimizing power consumption in scan testing: Pattern generation and dft techniques,” in 2004 International Conferce on Test.   IEEE, 2004, pp. 355–364.
  • [25] M.-F. Wu, K.-S. Hu, and J.-L. Huang, “An efficient peak power reduction technique for scan testing,” in 16th Asian Test Symposium (ATS 2007).   IEEE, 2007, pp. 111–114.
  • [26] X. Wen, K. Miyase, T. Suzuki, Y. Yamato, S. Kajihara, L.-T. Wang, and K. K. Saluja, “A highly-guided x-filling method for effective low-capture-power scan test generation,” in 2006 International Conference on Computer Design.   IEEE, 2006, pp. 251–258.
  • [27] P. Rosinger, B. M. Al-Hashimi, and N. Nicolici, “Scan architecture with mutually exclusive scan segment activation for shift-and capture-power reduction,” IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, vol. 23, no. 7, pp. 1142–1153, 2004.
  • [28] M. ElShoukry, M. Tehranipoor, and C. Ravikumar, “Partial gating optimization for power reduction during test application,” in 14th Asian Test Symposium (ATS’05).   IEEE, 2005, pp. 242–247.
  • [29] V. Devanathan, C. Ravikumar, R. Mehrotra, and V. Kamakoti, “Pmscan: A power-managed scan for simultaneous reduction of dynamic and leakage power during scan test,” in 2007 IEEE International Test Conference.   IEEE, 2007, pp. 1–9.
  • [30]

    P. J. Angeline, G. M. Saunders, and J. B. Pollack, “An evolutionary algorithm that constructs recurrent neural networks,”

    IEEE transactions on Neural Networks

    , vol. 5, no. 1, pp. 54–65, 1994.
  • [31] K. Deb, A. Anand, and D. Joshi, “A computationally efficient evolutionary algorithm for real-parameter optimization,” Evolutionary computation, vol. 10, no. 4, pp. 371–395, 2002.
  • [32] A. E. Eiben and J. E. Smith, “What is an evolutionary algorithm?” in Introduction to Evolutionary Computing.   Springer, 2015, pp. 25–48.
  • [33] J. Cohoon, J. Kairo, and J. Lienig, “Evolutionary algorithms for the physical design of vlsi circuits,” in Advances in Evolutionary Computing.   Springer, 2003, pp. 683–711.
  • [34] M. Patrascu, A. F. Stancu, and F. Pop, “Helga: a heterogeneous encoding lifelike genetic algorithm for population evolution modeling and simulation,” Soft Computing, vol. 18, no. 12, pp. 2565–2576, 2014.
  • [35] A. E. Eiben, P.-E. Raue, and Z. Ruttkay, “Genetic algorithms with multi-parent recombination,” in International conference on parallel problem solving from nature.   Springer, 1994, pp. 78–87.
  • [36] C.-K. Ting, “On the mean convergence time of multi-parent genetic algorithms without selection,” in European Conference on Artificial Life.   Springer, 2005, pp. 403–412.
  • [37] K.-H. Tsai, Y. Huang, W.-T. Cheng, T.-P. Tai, and A. Kifli, “Test cycle power optimization for scan-based designs,” in 2010 IEEE International Test Conference.   IEEE, 2010, pp. 1–10.
