properties. Deep learning (DL), Dictionary (DICT), Prototype (PROTO), AGing pattErn Subspace (AGES), Composition (COMP), Probabilistic Graphical Models (PGM), Log-likelihood (LL), Adversarial (ADV)
Face age progression is known as the problem of aesthetically predicting individual faces at different ages. Aesthetically synthesizing faces of a subject at different development stages is a very challenging task. Human aging is very complicated and differs from one individual to the next. Both intrinsic factors such as heredity, gender, and ethnicity, and extrinsic factors, i.e. environment and living styles, jointly contribute to this process and create large aging variations between individuals. As illustrated in Figure 1, given a face of a subject at the age of 34 , a set of closely related family faces has to be provided to a forensic artist as references to generate multiple outputs of his faces at 40’s, 50’s, 60’s, and 70’s.
In recent years, automatic age progression has become a prominent topic and attracted considerable interest from the computer vision community. The conventional methods[6, 12, 16, 23] simulated face aging by adopting parametric linear models such as Active Appearance Models (AAMs) and 3D Morphable Models (3DMM) to interpret the face geometry and appearance before combining with physical rules or anthropology prior knowledge. Some other approaches [20, 3, 10] predefined some prototypes and transferred the difference between them to produce age-progressed face images. However, since face aging is a non-linear process, these linear models have lots of difficulties and the quality of their synthesized results is still limited. Recently, deep learning based models [15, 26] have also come into place and produced more plausible results. In
, Recurrent Neural Networks (RNN) are used to model the intermediate states between two consecutive age groups for better aging transition. However, it still has the limitations of producing blurry results by the use of a fixed reconstruction loss function, i.e.-norm. Meanwhile, with the advantages of graphical models, the Temporal Restricted Boltzmann Machines (TRBM) has shown its potential in the age progression task . However, its partition function is intractable and needs some approximations during training process.
1.1 Contributions of this Work
This paper presents a novel generative probabilistic model, named Temporal Non-Volume Preserving (TNVP) transformation, for age progression. This modeling approach enjoys the strengths of both probabilistic graphical models to produce better image synthesis quality by avoiding the regular reconstruction loss function, and deep residual networks (ResNet)  to improve the highly non-linear feature generation. The proposed TNVP guarantees a tractable log-likelihood density estimation, exact inference and evaluation for embedding the feature transformations between faces in consecutive age groups.

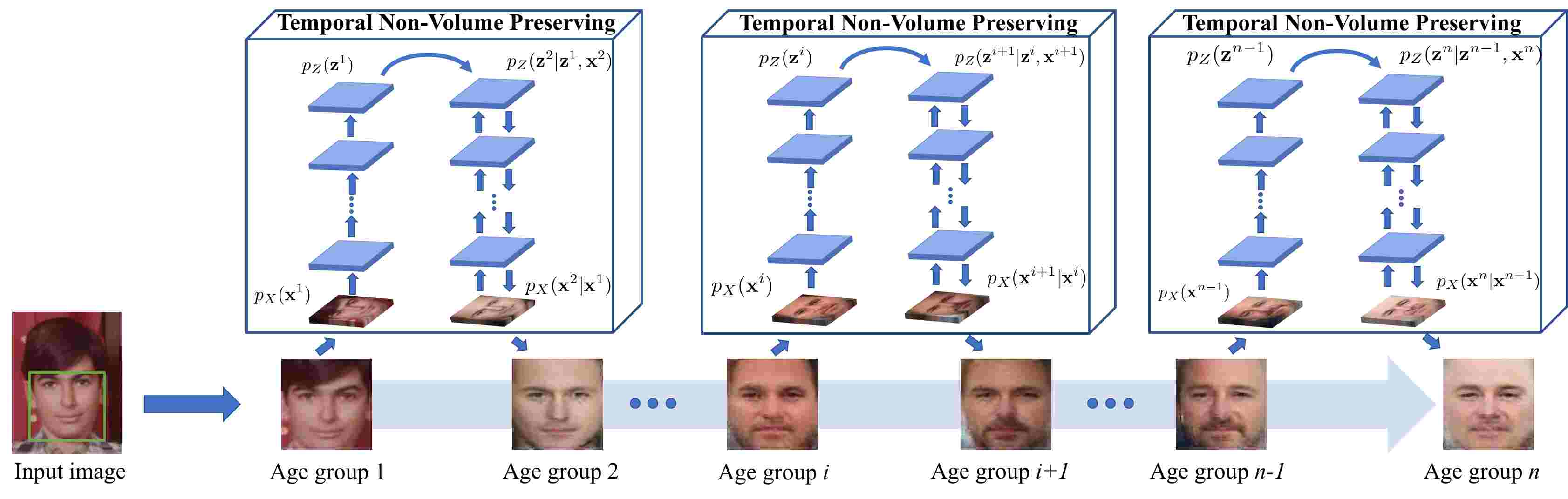

In our framework, the long-term face aging is first considered as a composition of short-term stages. Then our TNVP models are constructed to capture the facial aging features transforming between two successive age groups. By incorporating the design of ResNet
based Convolutional Neural Network (CNN) layers in the structure, our TNVP is able to efficiently capture the non-linear facial aging feature related variance. In addition, it can be robustly employed on face images in the wild without strict alignments or any complicated preprocessing steps. Finally, the connections between latent variables of our TNVP can act as “memory” and contribute to produce a smooth age progression between faces while preserving the identity throughout the transitions.
In summary, the novelties of our approach are three-fold. (1) We propose a novel generative probabilistic models with tractable density function to capture the non-linear age variances. (2) The aging transformation can be effectively modeled using our TNVP. Similar to other probabilistic models, our TNVP is more advanced in term of embedding the complex aging process. (3) Unlike previous aging approaches that suffer from a burdensome preprocessing to produce the dense correspondence between faces, our model is able to synthesize realistic faces given any input face in the wild. Table 1 compares the properties between our TNVP approach and other age progression methods.
2 Related Work
This section reviews various age progression approaches which can be divided into four groups: prototyping, modeling, reconstructing, and deep learning-based approaches.
Prototyping approaches use the age prototypes to synthesize new face images. The average faces of people in the same age group are used as the prototypes . The input image can be transformed into the age-progressed face by adding the differences between the prototypes of two age groups . Recently, Kemelmacher-Shlizerman et al.  proposed to construct sharper average prototype faces from a large-scale set of images in combining with subspace alignment and illumination normalization.
Modeling-based approaches represent facial shape and appearance via a set of parameters and model facial aging process via aging functions. Lanitis et al.  and Pattersons et al.  proposed to use AAMs parameters together with four aging functions for modeling both general and specific aging processes. Luu et al.  incorporated common facial features of siblings and parents to age progression. Geng et al.  proposed an AGing pattErn Subspace (AGES) approach to construct a subspace for aging patterns as a chronological sequence of face images. Later, Tsai et al.  improved the stability of AGES by adding subject’s characteristics clue. Suo et al. [24, 23]
modeled a face using a three-layer And-Or Graph (AOG) of smaller parts, i.e. eyes, nose, mouth, etc. and learned the aging process for each part by applying a Markov chain.
Reconstructing-based methods reconstruct the aging face from the combination of an aging basis in each group. Shu et al.  proposed to build aging coupled dictionaries (CDL) to represent personalized aging pattern by preserving personalized facial features. Yang et al.  proposed to model person-specific and age-specific factors separately via sparse representation hidden factor analysis (HFA).
Recently, deep learning-based approaches are being developed to exploit the power of deep learning methods. Duong et al.  employed Temporal Restricted Boltzmann Machines (TRBM) to model the non-linear aging process with geometry constraints and spatial DBMs to model a sequence of reference faces and wrinkles of adult faces. Similarly, Wang et al.
modeled aging sequences using a recurrent neural network with a two-layer gated recurrent unit (GRU). Conditional Generative Adversarial Networks (cGAN) is also applied to synthesize aged images in.
3 Our Proposed Method
The proposed TNVP age-progression architecture consists of three main steps. (1) Preprocessing; (2) Face variation modeling via mapping functions; and (3) Aging transformation embedding. With the structure of the mapping function, our TNVP model is tractable and highly non-linear. It is optimized using a log-likelihood objective function that produces sharper age-progressed faces compared to the regular -norm based reconstruction models. Figure 2 illustrates our TNVP-based age progression architecture.
Figure 3 compares our preprocessing step with other recent age progression approaches, including Illumination Aware Age Progression (IAAP) , RNN based , and TRBM based Age Progression  models. In those approaches, burdensome face normalization steps are applied to obtain the dense correspondence between faces. The use of a large number of landmark points makes them highly depend on the stability of landmarking methods that are challenged in the wild conditions. Moreover, masking the faces with a predefined template requires a separate shape adjustment for each age group in later steps.
In our method, given an image, the facial region is simply detected and aligned according to fixed positions of four landmark points, i.e. two eyes and two mouth corners. By avoiding complicated preprocessing steps, our proposed architecture has two advantages. Firstly, a small number of landmark points, i.e. only four points, leverages the dependency to the quality of any landmarking method. Therefore, it helps to increase the robustness of the system. Secondly, parts of the image background are still included, and thus it implicitly embed the shape information during the modeling process. From the experimental results, one can easily notice the change of the face shape when moving from one age group to the next.
3.2 Face Aging Modeling
Let be the image domain and be observed variables encoding the texture of face images at age group and , respectively. In order to embed the aging transformation between these faces, we first define a bijection mapping function from the image space to a latent space and then model the relationship between these latent variables. Formally, let define a bijection from an observed variable to its corresponding latent variable and be an aging transformation function modeling the relationships between variables in latent space. As illustrated in Figure 4, the relationships between variables are defined as in Eqn. (1).
where define the bijections of and to their latent variables, respectively. denotes the summation of and . present the parameters of functions and , respectively. Indeed, given a face image in age group
, the probability density function can be formulated as in Eqn. (2).
where and are the distribution of conditional on and the distribution of conditional on , respectively. In Eqn. (2), the second equality is obtained using the change of variable formula. is the Jacobian. Using this formulation, instead of estimating the density of a sample conditional on directly in the complicated high-dimensional space , the assigned task can be accomplished by computing the density of its corresponding latent point given associated with the Jacobian determinant . There are some recent efforts to achieve the tractable inference process via approximations  or specific functional forms [5, 7, 13]. Section 3.3 introduces a non-linear bijection function that enables the exact and tractable mapping from the image space to a latent space where the density of its latent variables can be computed exactly and efficiently. As a result, the density evaluation of the whole model becomes exact and tractable.
3.3 Mapping function as CNN layers
In general, a bijection function between two high-dimensional domains, i.e. image and latent spaces, usually produces a large Jacobian matrix and is expensive for its determinant computation. Therefore, in order to enable the tractable property for with lower computational cost, is presented as a composition tractable mapping unit where each unit can be represented as a combination of several convolutional layers. Then the bijection function can be formulated as a deep convolutional neural network.

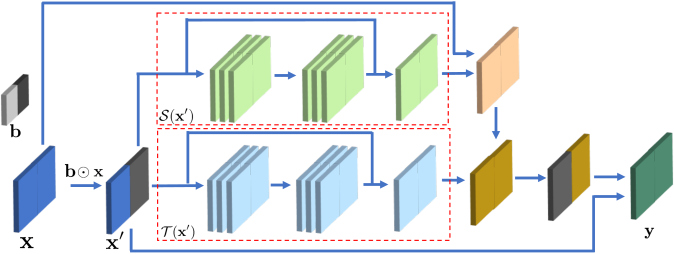

3.3.1 Mapping unit
Given an input , a unit defines a mapping between to an intermediate latent state as in Eqn. (3).
where ; denotes the Hadamard product; is a binary mask where the first elements of is set to one and the rest is zero; and represent the scale and the translation functions, respectively. The Jacobian of this transformation unit is given by
where is the diagonal matrix such that is their diagonal elements. This form of provides two nice properties for the mapping unit . Firstly, since the Jacobian matrix is triangular, its determinant can be efficiently computed as,
where . This property also introduces the tractable feature for . Secondly, the Jacobian of the two functions and are not required in the computation of . Therefore, any non-linear function can be chosen for and . From this property, the functions and are set up as a composition of CNN layers in ResNet (i.e. residual networks)  style with skip connections. This way, high level features can be extracted during the mapping process and improve the generative capability of the proposed model. Figure 5 illustrates the structure of a mapping unit . The inverse function is also derived as

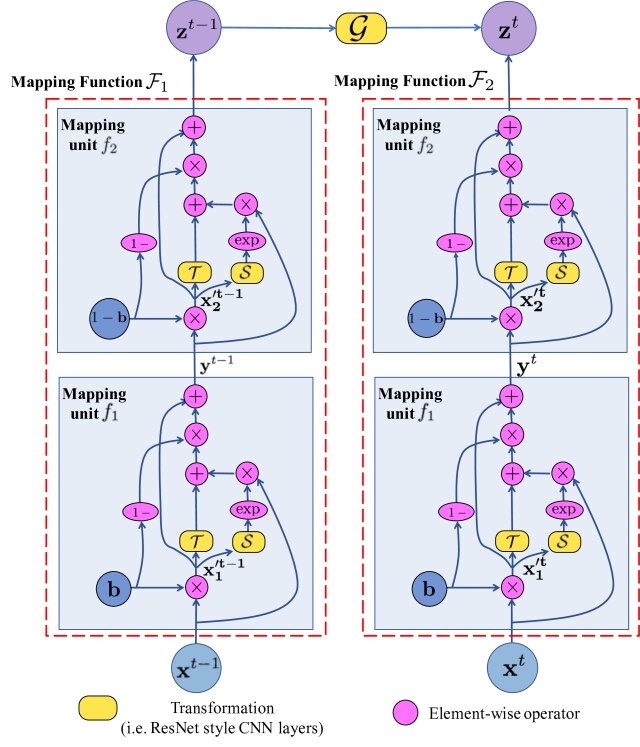

3.3.2 Mapping function
The bijection mapping function is formulated by composing a sequence of mapping units .
The Jacobian of is no more difficult than its units and still remains tractable.
Similarly, the derivations of its determinant and inverse are
Since each mapping unit leaves part of its input unchanged (i.e. due to the zero-part of the mask ), we alternatively change the binary mask to in the sequence so that every component of can be jointed through the mapping process. As mentioned in the previous section, since each mapping unit is set up as a composition of CNN layers, the bijection with the form of Eqn. (7) becomes a deep convolutional networks that maps its observed variable in to a latent variable in .
3.4 The aging transform embedding
In the previous section, we present the invertible mapping function between a data distribution and a latent distribution . In general,
can be chosen as a prior probability distribution such that it is simple to compute and its latent variable
is easily sampled. In our system, a Gaussian distribution is chosen for, but our proposed model can still work well with any other prior distributions. Since the connections between and
embed the relationship between variables of different Gaussian distributions, we further assume that their joint distribution is a Gaussian. The transformationbetween and is formulated as,
where is the transform parameters representing connecting weights of latent-to-latent interactions and the bias. From Eqn. (1) and Figure 4, the latent variable is computed from two sources: (1) the mapping from observed variable defined by and (2) the aging transformation from defined by . The joint distribution is given by
3.5 Model Learning
The parameters of the model are optimized to maximize the log-likelihood:
From Eqn. (2), the log-likelihood can be computed as
). Then the Stochastic Gradient Descent (SGD) algorithm is applied to optimal parameter values.
3.6 Model Properties
Tractability and Invertibility: With the specific structure of the bijection , our proposed graphical model has the capability of modeling arbitrary complex data distributions while keeping the inference process tractable. Furthermore, from Eqns. (6) and (9), the mapping function is invertible. Therefore, both inference (i.e. mapping from image to latent space) and generation (i.e. from latent to image space) are exact and efficient.
Flexibility: as presented in Section 3.3.1, our proposed model introduces the freedom of choosing the functions and for their structures. Therefore, different types of deep learning models can be easily exploited to further improve the generative capability of the proposed TNVP. In addition, from Eqn. (3), the binary mask also provides the flexibility for our model if we consider this as a template during the mapping process. Several masks can be used in different levels of mapping units to fully exploit the structure of the data distribution of the image domain .
Although our TNVP shares some similar features with RBM and its family such as TRBM,
the log-likelihood estimation of TNVP is tractable while that in RBM is intractable and requires some approximations during training process. Compared to other methods, our TNVP also shows its advantages in high-quality synthesized faces (by avoiding the reconstruction error as in Variational Autoencoder
Variational Autoencoder) and efficient training process (i.e. avoid maintaining a good balance between generator and discriminator as in case of GANs).
4 Experimental Results
We train our TNVP system using AginG Faces in the Wild (AGFW)  and a subset of the Cross-Age Celebrity Dataset (CACD) . Two other public aging databases, i.e. FG-NET  and MORPH , are used for testing.
AginG Faces in the Wild (AGFW): consists of 18,685 images that covers faces from 10 to 64 years old. On average, after dividing into 11 age groups with the span of 5 years, each group contains 1700 images.
Cross-Age Celebrity Dataset (CACD) is a large-scale dataset with 163446 images of 2000 celebrities. The age range is from 14 to 62 years old.
FG-NET is a common aging database that consists of 1002 images of 82 subjects and has the age range from 0 to 69. Each face is manually annotated with 68 landmarks.
MORPH includes two albums, i.e. MORPH-I and MORPH-II. The former consists of 1690 images of 515 subjects and the latter provides a set of 55134 photos from 13000 subjects. We use MORPH-I for our experiments.
4.2 Implementation details
In order to train our TNVP age progression model, we first select a subset of 572 celebrities from CACD as in the training protocol of
. All images of these subjects are then classified into 11 age groups ranging from 10 to 65 with the age span of 5 years. Next, the aging sequences for each subject are constructed by collecting and combining all image pairs that cover two successive age groups of that subject. This process results in 6437 training sequences. All training images from these sequences and the AGFW dataset are then preprocessed as presented in Section3.1. After that, a two-step training process is applied to train our TNVP age progression model. In the first step, using faces from AGFW, all mapping functions (i.e.
) are pretrained to obtain the capability of face interpretation and high-level feature extraction. Then in the later step, our TNVP model is employed to learn the aging transformation between faces presented in the face sequences.
For the model configuration, the number of units for each mapping function is set to 10. In each mapping unit , two Residual Networks with rectifier non-linearity and skip connections are set up for the two transformations and . Each of them contains 2 residual blocks with 32 feature maps. The convolutional filter size is set to
. The training time for TNVP model is 18.75 hours using a machine of Core i7-6700 @3.4GHz CPU, 64.00 GB RAM and a single NVIDIA GTX Titan X GPU and TensorFlow environment. The training batch size is 64.
4.3 Age Progression
After training, our TNVP age progression system is applied to all faces over 10 years old from FG-NET and MORPH. As illustrated in Figure 6, given input faces at different ages, our TNVP is able to synthesize realistic age-progressed faces in different age ranges. Notice that none of the images in FG-NET or MORPH is presented in the training data. From these results, one can easily see that our TNVP not only efficiently embed the specific aging information of each age group to the input faces but also robustly handles in-the-wild variations such as expressions, illumination, and poses. Particularly, beards and wrinkles naturally appear in the age-progressed faces around the ages of 30-49 and over 50, respectively. The face shape is also implicitly handled in our model and changes according to different individuals and age groups. Moreover, by avoiding the reconstruction loss and taking the advantages of maximizing log-likelihood, sharper synthesized results with aging details are produced by our proposed model. We compare our synthesized results with other recent age progression works whose results are publicly available such as IAAP , TRBM-based model  in Figure 7. The real faces of the subjects at target ages are provided for reference. Other approaches, i.e. Exemplar based Age Progression (EAP)  and Craniofacial Growth (CGAP) model , are also included for further comparisons. Notice that since our TNVP model is trained using the faces ranging from 10 to 64 years old, we choose the ones with ages close to 10 years old during the comparison. These results again show the advantages of our TNVP model in term of efficiently handling the non-linear variations and aging embedding.
4.4 Age-Invariant face verification
In this experiment, we validate the effectiveness of our TNVP model by showing the performance gain for cross-age face verification using our age-progressed faces. In both testing protocols, i.e. small-scale with images pairs from FG-NET and large-scale benchmark on Megaface Challenge 1, our aged faces have show that they can provide improvement on top of the face recognition model without re-train it on cross-age databases. We employ the deep face recognition model , named Center Loss (CL), which is among the state-of-the-art for this experiment.
Under the small-scale protocol, in FG-NET database, we randomly pick 1052 image pairs with the age gap larger than 10 years of either the same or different person. This set is denoted as A consisting of a positive list of 526 image pairs of the same person and a negative list of 526 image pairs of two different subjects. From each image pair of set A, using the face with younger age, we synthesize an age-progressed face image at the age of the older one using our proposed TNVP model. This forms a new matching pair, i.e. the aged face vs. the original face at older age. Applying this process for all pairs of set A, we obtain a new set denoted as set . To compare with IAAP  and TRBM  methods, we also construct two other sets of image pairs similarly and denote them as set and , respectively. Then, the False Rejection Rate-False Acceptance Rate (FRR-FAR) is computed and plotted under the Receiver Operating Characteristic (ROC) curves for all methods (Fig. 7(a)). Our method achieves an improvement of on matching performance over the original pair (set A) while IAAP and TRBM slightly increase the rates.
In addition, the advantages of our model is also experimented on the large-scale Megaface  challenge 1 with the FGNET test set. Practical face recognition models should achieve high performance against having gallery set of millions of distractors and probe set of people at various ages. In this testing, 4 billion pairs are generated between the probe and gallery sets where the gallery includes one million distractors. Thus, only improvements on Rank-1 identification rate with one million distractors gallery and verification rate at low FAR are meaningful .
Table 2 shows the results of rank-1 identification results with one million distractors. As shown in Fig. 7(b), Rank-1 identification accuracy drops when the number of distractors increases. The TAR-FAR and ROC curves111The results of other methods are provided in MegaFace website. are presented in Fig. 7(c). From these results, using our aged face images not only improve face verification results by compared to the original model in  but also outperform most of the models trained with a small training set. The model from DeepSense achieves the best performance under the cross-age training set while the original model trained solely on CASIA WebFace dataset  having M images with no cross-age information. We achieve better performance on top of this original model by simply synthesizing aged images without re-training.
|CL + TNVP||Small||N||47.72%|
This paper has presented a novel generative probabilistic model with a tractable density function for age progression. The model inherits the strengths of both probabilistic graphical model and recent advances of ResNet. The non-linear age-related variance and the aging transformation between age groups are efficiently captured. Given the log-likelihood objective function, high-quality age-progressed faces can be produced. In addition to a simple preprocessing step, geometric constraints are implicitly embedded during the learning process. The evaluations in both quality of synthesized faces and cross-age verification showed the robustness of our TNVP.
-  FG-NET Aging Database. http://www.fgnet.rsunit.com.
-  G. Antipov, M. Baccouche, and J.-L. Dugelay. Face aging with conditional generative adversarial networks. arXiv preprint arXiv:1702.01983, 2017.
-  D. M. Burt and D. I. Perrett. Perception of age in adult caucasian male faces: Computer graphic manipulation of shape and colour information. Proceedings of the Royal Society of London B: Biological Sciences, 259(1355):137–143, 1995.
-  B.-C. Chen, C.-S. Chen, and W. H. Hsu. Cross-age reference coding for age-invariant face recognition and retrieval. In ECCV, 2014.
-  L. Dinh, J. Sohl-Dickstein, and S. Bengio. Density estimation using real nvp. arXiv preprint arXiv:1605.08803, 2016.
-  X. Geng, Z.-H. Zhou, and K. Smith-Miles. Automatic age estimation based on facial aging patterns. PAMI, 29(12):2234–2240, 2007.
-  M. Germain, K. Gregor, I. Murray, and H. Larochelle. Made: Masked autoencoder for distribution estimation. In ICML, pages 881–889, 2015.
-  K. He, X. Zhang, S. Ren, and J. Sun. Deep residual learning for image recognition. In CVPR, June 2016.
-  I. Kemelmacher-Shlizerman, S. M. Seitz, D. Miller, and E. Brossard. The megaface benchmark: 1 million faces for recognition at scale. In CVPR, 2016.
-  I. Kemelmacher-Shlizerman, S. Suwajanakorn, and S. M. Seitz. Illumination-aware age progression. In CVPR, pages 3334–3341. IEEE, 2014.
-  D. P. Kingma and M. Welling. Auto-encoding variational bayes. arXiv preprint arXiv:1312.6114, 2013.
-  A. Lanitis, C. J. Taylor, and T. F. Cootes. Toward automatic simulation of aging effects on face images. PAMI, 24(4):442–455, 2002.
-  H. Larochelle and I. Murray. The neural autoregressive distribution estimator. In AISTATS, volume 1, page 2, 2011.
-  K. Luu, C. Suen, T. Bui, and J. K. Ricanek. Automatic child-face age-progression based on heritability factors of familial faces. In BIdS, pages 1–6. IEEE, 2009.
-  C. Nhan Duong, K. Luu, K. Gia Quach, and T. D. Bui. Longitudinal face modeling via temporal deep restricted boltzmann machines. In CVPR, June 2016.
-  E. Patterson, K. Ricanek, M. Albert, and E. Boone. Automatic representation of adult aging in facial images. In Proc. IASTED Int’l Conf. Visualization, Imaging, and Image Processing, pages 171–176, 2006.
-  E. Patterson, A. Sethuram, M. Albert, and K. Ricanek. Comparison of synthetic face aging to age progression by forensic sketch artist. In IASTED International Conference on Visualization, Imaging, and Image Processing, Palma de Mallorca, Spain, 2007.
-  N. Ramanathan and R. Chellappa. Modeling age progression in young faces. In CVPR, volume 1, pages 387–394. IEEE, 2006.
-  K. Ricanek Jr and T. Tesafaye. Morph: A longitudinal image database of normal adult age-progression. In FGR 2006., pages 341–345. IEEE, 2006.
-  D. Rowland, D. Perrett, et al. Manipulating facial appearance through shape and color. Computer Graphics and Applications, IEEE, 15(5):70–76, 1995.
-  C.-T. Shen, W.-H. Lu, S.-W. Shih, and H.-Y. M. Liao. Exemplar-based age progression prediction in children faces. In ISM, pages 123–128. IEEE, 2011.
-  X. Shu, J. Tang, H. Lai, L. Liu, and S. Yan. Personalized age progression with aging dictionary. In ICCV, December 2015.
-  J. Suo, X. Chen, S. Shan, W. Gao, and Q. Dai. A concatenational graph evolution aging model. PAMI, 34(11):2083–2096, 2012.
-  J. Suo, S.-C. Zhu, S. Shan, and X. Chen. A compositional and dynamic model for face aging. PAMI, 32(3):385–401, 2010.
-  M.-H. Tsai, Y.-K. Liao, and I.-C. Lin. Human face aging with guided prediction and detail synthesis. Multimedia tools and applications, 72(1):801–824, 2014.
-  W. Wang, Z. Cui, Y. Yan, J. Feng, S. Yan, X. Shu, and N. Sebe. Recurrent face aging. In CVPR, pages 2378–2386, 2016.
-  Y. Wen, K. Zhang, Z. Li, and Y. Qiao. A discriminative feature learning approach for deep face recognition. In ECCV, pages 499–515. Springer, 2016.
-  H. Yang, D. Huang, Y. Wang, H. Wang, and Y. Tang. Face aging effect simulation using hidden factor analysis joint sparse representation. TIP, 25(6):2493–2507, 2016.
-  D. Yi, Z. Lei, S. Liao, and S. Z. Li. Learning face representation from scratch. arXiv preprint arXiv:1411.7923, 2014.
