1 Introduction

Modeling transport in porous media is highly important in various applications including water resources management and extraction of fossil fuels. Predicting flow and transport in aquifers and reservoirs plays an important role in managing these resources. A significant factor influencing transport is the heterogeneity of the flow field, which results from the underlying heterogeneity of the conductivity field. Transport in such heterogeneous domains displays non-Fickian characteristics such as long tails for the first arrival time probability density function (PDF) and non-Gaussian spatial distributions

(Berkowitz et al., 2006; Bouchaud and Georges, 1990; Edery et al., 2014). Capturing this non-Fickian behavior is particularly important for predictions of contaminant transport in water resources. For example, in water resources management long tails of the arrival time PDF can have a major impact on the contamination of drinking water, and therefore efficient predictions of the spatial extents of contaminant plumes is key (Nowak et al., 2012; Moslehi and de Barros, 2017; Ghorbanidehno et al., 2015; Li et al., 2015; Ghorbanidehno et al., 2017).

Past studies have provided a range of models for predicting this non-Fickian transport. The continuous time random walk (CTRW) formalism offers a framework to study anomalous transport through disordered media and networks (Berkowitz et al., 2006; Fiori et al., 2015). However, in most studies where this approach is used, velocity correlation between successive tracer particle jumps are neglected. The time domain random walk method (TDRW), which is conceptually similar to the CTRW method, directly calculates the arrival time of a particle cloud at a given location (Banton et al., 1997; Bodin et al., 2003). Similar to CTRW, consecutive velocities resulting from the TDRW method are independent of each other. Detailed studies of transport have shown conclusively that particle velocities in mass conservative flow fields are correlated (Graham and McLaughlin, 1989; Le Borgne et al., 2007). To account for this correlation, Markov velocity models have been developed. These models can be divided into three main groups of temporal, spatial, and mixed (temporal and spatial) models based on the variables chosen to index the stochastic velocity process.

Le Borgne et al. (2008a)

proposed discrete Markov chains for modeling the velocity process and tested the Markov assumption for the longitudinal component of the velocity of tracer particles in heterogeneous porous media. They studied transition probabilities for the velocity process in time and space and concluded that spatial Markov models can characterize the velocity field, but in their study temporal models were found to be unfit for this task. A one-dimensional spatial Markov model was then used in

(Le Borgne et al., 2008b) to successfully model transport in heterogeneous domains. Kang et al. (2011, 2015a, 2015b) extended the spatial Markov model framework to two dimensions and performed several studies on random lattice networks. The spatial Markov model was also applied to the velocity field resulting from simulation of flow in the pore space of real rock and to disordered fracture networks (Kang et al., 2014, 2017). Meyer et al. used a temporal Markov model and successfully modeled particle dispersion in two-dimensional cases using stochastic differential equations (Meyer and Tchelepi, 2010). This framework was then used to model the joint velocity-concentration PDF (Meyer et al., 2010). In another study, Meyer and Saggini (2016) provided a framework for testing the Markov hypothesis for the velocity of tracer particles. Mixed temporal and spatial models have also been proposed. Meyer et al. (2013) proposed a set of SDEs for modeling transport in exponential permeability fields with a velocity process in time and an angle process in space. More recently, another mixed set of SDEs were proposed to model the velocity process resulting from direct numerical simulation (DNS) of flow and transport in the pore-space of real rocks (Meyer and Bijeljic, 2016).

Although temporal Markov velocity models have been shown to perform well in several studies, four important gaps remain in the literature regarding the validity and potential of temporal Markov velocity models. First, the temporal Markov models that have been successfully applied for modeling transport in porous media are stochastic differential equations (SDEs) with specific drift and diffusion terms. The drift and diffusion functions vary for different studies and are constructed for the specific problem in each study (e.g. compare Meyer and Tchelepi, 2010; Meyer and Bijeljic, 2016). In this work we use discrete Markov chains which do not require modeling the functional form of the drift and diffusion terms.

Second, we apply temporal Markov chains to model networks with perfect mixing at the nodes which covers an important gap in the available literature. In two dimensions, particle tracking through a network is fundamentally different from particle tracking in continuum scale (whether the continuum scale is the pore-space of a rock or a permeability field). All the previous works on temporal velocity models have investigated transport in porous media at the continuum scale, where different streamlines cannot cross. However, in network models which are the subject of this paper, streamlines do cross. At the continuum scale, the ensemble plume in two-dimensional domains will asymptotically stop spreading in the transverse direction (Attinger et al., 2004)

; however, the second moment of the ensemble plume in networks do not necessarily reach an asymptote

(Kang et al., 2011). A temporal Markov model designed for two-dimensional continuum scale problems (such as (Meyer and Tchelepi, 2010)) cannot be applied to networks without modification.
Third, the networks used to describe realistic porous media are in many cases unstructured (Blunt et al., 2002; Dong and Blunt, 2009; Khayrat and Jenny, 2016; Mehmani and Tchelepi, 2017) and having simple efficient transport models for these networks is of great value. In addition to network models, recent developments in non-local models for flow in porous media also call for simple transport models that are general enough for cases with distributions of link lengths and transmissibilities (Delgoshaie et al., 2015; Jenny and Meyer, 2016). Here the proposed temporal models are applied to both structured and unstructured networks.
Finally, a main argument against temporal Markov models with small average time steps is their inability to capture the slow portions of the particle trajectories (Le Borgne et al., 2008a; Meyer and Saggini, 2016)

. In this work we show that temporal Markov models with small time steps can be improved by adding information about the number of repetitions for a velocity vector to their state definition.


In summary, here we study the performance of discrete temporal Markov models on random lattice networks. These networks are chosen to compare the performance of temporal Markov models with existing correlated spatial models (Kang et al., 2011). Temporal Markov models are used to model transport in both structured and unstructured networks, and we show that these models can yield accurate results in both cases. In contrast to spatial Markov models, the temporal models proposed here do not require any modification for simulating transport in unstructured networks. Moreover, we show that by combining multiple velocity transitions, temporal Markov models can be more efficient compared with correlated CTRW with a jump extent equal to the network link length (Kang et al., 2011). Compared to temporal SDEs with specific drift and diffusion functions (Meyer and Tchelepi, 2010; Meyer et al., 2013), the models presented here contain significantly fewer modeling assumptions, which makes them easier to apply to new problems (e.g. with a different permeability correlation structure). Finally, a novel way of enriching the state space for temporal Markov models is discussed to reduce errors by accounting for velocity persistence when modeling very slow transitions. The range of applicability of discrete temporal Markov models is studied by quantifying the model prediction error for the spatial distribution of the particle plume and first passage time distributions.

2 The single-phase transport problem

In both pore- and Darcy-scale problems, networks can be used for transport modeling. A network is defined by a set of nodes and a set of links connecting these nodes. The transmissibility of the links, determines the strength of the connection between two nodes. One can assume a linear relationship similar to Darcy’s law for the fluid flux between the nodes and , , where and are the flow potentials, is the connectivity of the link between the two nodes and is the length of the link. By defining as the transmissibility of the link, the flux is the product of the link transmissibility and the potential difference between the two nodes.

Once the fluxes in the links are known, one can simulate the transport of a passive tracer by particle tracking. At each node the particle randomly chooses a link carrying flux out of that node with a probability proportional to the flux in that link and travels along the selected link until it arrives at a new node.
The movement of the particles can be modeled by a set of Langevin equations describing the particle movement in space and time. In most studies, this set of Langevin equations has been stated in either of two different ways, and these different prospects have led to Markov models in time and in space for the particle velocity.

In general, one can consider the velocity of a particle after it has moved a distance , which may or may not be equal to the network link length or the grid spacing. On a structured network, this would correspond to saving the velocity after each transition to a new link. We refer to the resulting velocity process as a spatial velocity process. The resulting Langevin equations are

(1)

Here, the subscript refers to the th displacement of length . Knowing all the previous velocity vectors, the location of a particle can be found by using Equations (1). In published studies on applications of spatial Markovian models on structured networks, spatial velocity processes are usually defined by consecutive displacements of a particle to new nodes. One can also consider the average velocity of a particle in consecutive time steps of size . This is referred to as a temporal velocity process. The Langevin equations for a temporal velocity process are

(2)

Here, refers to the end of the th time step. In the next section, we discuss the Markov processes that have been introduced to efficiently integrate the Langevin eqautions (1) and (2).

3 The Markov hypothesis

In order to efficiently integrate the Langevin equations (1) and (2), Markovianity is assumed for the velocity of the particles. The Markov hypothesis for the stochastic velocity process, , assumes that the next state of the particle velocity depends on the current state and is statistically independent of the rest of the history of the process. That is,

(3)

To model transport using the Markov hypothesis, the transition probabilities between different velocity states,

, needs to be estimated. In two dimensions, the particle velocity is a vector in

, and the state space for a Markov model would be infinite.
One approach to model this process is to use discrete bins for the velocity vector and find a discrete transition matrix between these bins. This is the approach taken by Kang et al. (2011) for spatial Markov models and Le Borgne et al. (2008a, b) for both temporal and spatial Markov models. An alternative approach, explored by Meyer and Tchelepi (2010), is to use SDEs to describe the velocity process. One important difference between the studies by Le Borgne et al. and Meyer et al. is that in the latter works is not directly modeled, and the process is characterized using analytic drift and diffusion functions for an SDE. An advantage of using SDEs is that explicit binning is not required for the velocity classes. On the other hand, more insight is needed to choose functions that can properly characterize the velocity process. Functional representations have also been used in the context of spatial Markov models (Kang et al., 2016; Painter and Cvetkovic, 2005) to reduce the number of model parameters.

Although temporal Markov models have been used to accurately model transport in porous media, there is still a valid argument against the applicability of these models in the presence of very low velocities and the verification of the Markov property for discrete temporal Markov models. Here we address these limitations and study their influence in modeling transport in random networks.

4 Particle tracking problem setup

In this section, a particle tracking setup is described to illustrate the concepts discussed so far. We study the evolution of particle plumes in structured random networks of the form shown in Fig. 1. In order to compare the performance of the temporal Markov model with spatial Markov models, the problem setup is chosen identical to the study performed by Kang et al. (2011).

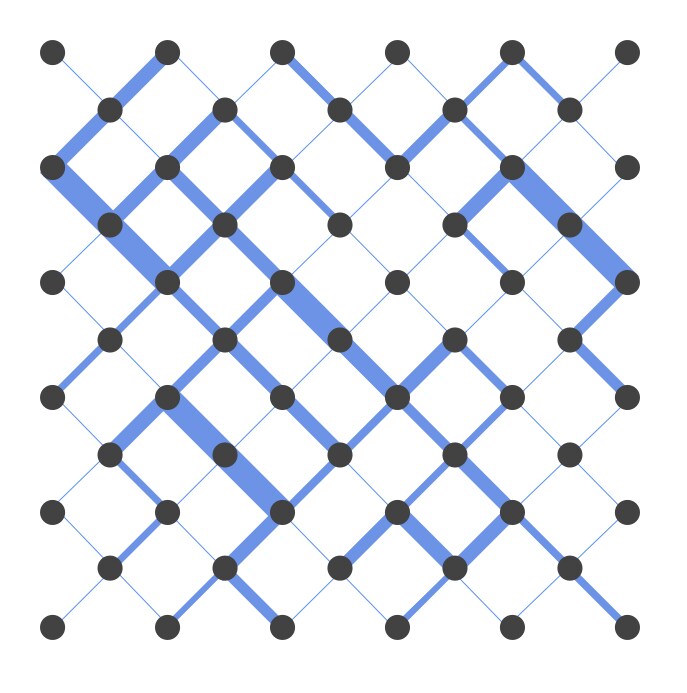

Figure 1: Schematic of a porous medium. Adapted from Kang et al. (2011).

The considered network has nodes and the link length, , is equal for all links. All links are oriented at radians with respect to the horizontal direction. In each realization of this structured network tracer particles are injected in the center of the left boundary and tracked in the domain and

such realization are considered. No-flow boundary conditions are set on the top and bottom of the domain, and a mean pressure gradient is imposed by setting the pressure at the left and right boundaries. Each realization of the medium is obtained by drawing the transmissibility of each link independently from a log-normal distribution with variance

. The flow problem is first solved for each realization and the velocity field is obtained. We then simulate the transport of a passive tracer using particle tracking. Here, diffusion inside the links is neglected and perfect mixing is assumed inside the nodes. At each node, the particle randomly chooses a link carrying flux out of that node with a probability proportional to the flux in that link.

The outputs of this particle tracking procedure are and and , where and are the position coordinates of particle after transitions and is the elapsed time to get to that position. Given these trajectories for all particles, we can obtain the ensemble concentration of the contaminant at a given time less than , which is the largest time where none of the particles has left the domain. Alternatively, one can obtain the distribution of the first passage time (FPT) for a certain plane.

To describe the average movement of the particle plume we analyze the Lagrangian statistics of the particles along each trajectory. As described in the previous section, we assume the velocity process is stationary and model the velocity of the particles, , by a Markov process. One can use the velocities obtained directly from the MC transport simulations . That is,

(4)

A Markov model based on these velocities would allow us to efficiently march particles with length steps equal to . This would correspond to a spatial Markov model. One can imagine that is typically much smaller than the length scales of practical interest, and we might not be interested in the details of the particle path after each transition to a new node in the network. In the next section the proposed temporal Markov model is discussed.

5 Stencil method: the temporal Markov model

A temporal Markov model for the velocity process described in the previous section would require computing the average particle velocity in a sequence of given time intervals. If the averaging time step is larger than the mean time required for one transition, by combining multiple transitions together, averaging will increase the numerical efficiency of the temporal Markov model. Moreover, there is no distinction between structured and unstructured networks when obtaining the average velocity process; therefore, averaging would also generalize the model to unstructured networks. We refer to the averaging time step, , as the stencil time.

We represent the average velocity over a time period of in polar coordinates by its magnitude and the angle between its direction and the unit vector in the direction. Here the subscript refers to the ’th time step. The average velocity and average angle are divided into discrete classes as follows:

(5)

where and are the number of velocity magnitude and angle classes. As previously suggested in (Meyer and Tchelepi, 2010; Kang et al., 2011), in order to better represent slow transitions we use the logarithm of velocity magnitude for the definition of classes. The state of a particle velocity is defined by a -pair. We refer to this temporal model as the velocity-angle stencil method, or the stencil method.

Similar to the polar Markovian velocity process (PMVP)  (Meyer et al., 2013; Dünser and Meyer, 2016), the velocity-angle stencil is based on polar coordinates. Unlike the PMVP, the velocity and angle processes are not considered separately, i.e., they are jointly modeled by one stochastic process in time. Moreover, the PMVP is a combination of a spatial and a temporal SDE. The stencil method is a discrete temporal Markov chain. The advantage of using a discrete Markov chains is that no assumptions are needed for the functional form of the transition probabilities.

Compared to the correlated spatial models that follow every particle transition on the network (e.g., the one by Kang et al. (2011)), the velocity-angle stencil method has two limitations. First, since we are using average trajectories, collisions (velocity transitions) do not coincide with the nodes of the underlying physical network. In order to inform the model about the exact location of the collision, a new variable, , can be added to track the time between the end of every averaging instant and the next collision event. This idea has been discussed in Jenny and Meyer (2016) and it is not discussed further here. Another limitation of the velocity-angle stencil is its inaccuracy in case of very slow transitions, i.e., if . This has been noted previously in (Le Borgne et al., 2008a; Meyer and Saggini, 2016). Averaging such time steps would result in many consecutive steps where the velocity state would remain unchanged. However, using the velocity-angle stencil, the particle is allowed to change its velocity after every , and this could limit the persistence of the low velocities and make the model less accurate. Figure 2 shows the trajectory of two sample particles and the averaged trajectories for the same particles for the same number of jumps. The circled section illustrates an example of a particle experiencing a relatively low velocity.

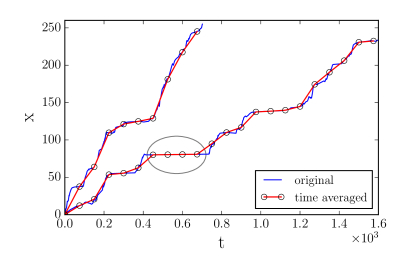

Figure 2: Sample trajectory of two particles. Solid blue: original particle path, markers: trajectory resulting from average velocities. The circled area illustrates an example of a particle experiencing a relatively low velocity.

Next, we discuss a method for overcoming the limitation due to very slow transition by enriching the state space of the stencil model. When averaging the particle trajectories with a stencil time step , the number of repetitions, denoted by , during a time step is known. This information can be added to the definition of the particle state. By having the collision frequency in the state definition, it becomes possible to accurately model particles that stay in a low-velocity state for long time intervals. With this new state definition, the attributes of the particle state are . We refer to this model as the extended velocity-angle stencil method or the extended stencil method.

6 Model calibration and validation of the Markov property

Similar to Kang et al. (2011), we use equal probability bins for the log-velocity classes. Due to averaging, the angle process takes continuous values in and will include values that do not coincide with the initial network link directions. We use equal-width bins for the velocity angle classes. In the extended stencil method, for each observed frequency in the input data, a separate class was allocated for the corresponding pair. We refer to the discrete transition matrix for the stencil method as . This is the probability of encountering the state after transitions, assuming that we started from the state . Similarly is the discrete transition matrix for the extended stencil method. Both transition matrices were obtained by counting the observed transitions in the particle tracking simulation results, which corresponds to the maximum likelihood estimation of the transition probabilities. We also define the aggregate velocity transition matrix , which defines the probability of encountering velocity class after transitions starting from velocity class , and the aggregate angle transition matrix , which is defined in a similar way. The mean transition time observed in the particle tracking data, , is considered as a time scale.

The aggregate velocity and angle transition matrices for one transition with for the stencil method and the extended stencil method are shown in Figs. 3 and 4. The transition matrices for these two models will be different, since repeating pairs are counted as a transition to the same state in the stencil method, which is not the case for the extended velocity-angle stencil. The resulting aggregate transition matrices are almost identical except for the lower left corner of the velocity transition matrices. Provided that a Markov process can closely model transitions between different states, we expect that the Chapman-Kolmogorov relation (Resnick, 2013) holds for these transitions. We perform a test to compare the m-step aggregate transition matrices for and with the m-fold product of the corresponding one-step transition matrices. The aggregate five-step velocity transition matrix and the aggregate five-step angle transition matrix are compared to and from the stencil method in Figs. 5 and 6 for . The same comparison is performed for the extended-stencil method and presented in Figs. 7 and 8. As can be seen from these four figures, the Chapman-Kolmogorov relation approximately holds for all angles and for velocity classes with .

A column-wise comparison of the aggregate angle transition matrices for an angle in the second quarter () is shown in Fig. 9. Since the mean-flow directions is from left to right (), there are not that many sample paths with velocity angles close to or . This explains the noise observed in the aggregate angle transition matrices of Figs. 3 and 4. The column-wise comparison of the aggregate velocity transition matrices for a low velocity class () and a high velocity class () are shown in Figs. 10 and 11. Although there is a clear deviation from Markovianity for both the stencil method and the extended stencil method, these results suggest that enriching the state space of the Markov model would result in significantly better predictions of transitions from extremely low velocity values. This is best illustrated in Fig. 10. The extended velocity-angle stencil also improves the predicted lag five transitions from a fast velocity class to slow velocity classes as seen in Fig. 11.

Similar comparisons were performed for larger stencil times, , for both the stencil method and the extended stencil method. For these larger stencil times both models lead to smaller errors in predicting the five-step transition probabilities. This is expected, since with larger stencil times we are combining more transitions and consecutive transitions become less correlated and hence less challenging to predict for the Markov models. In the limit of we expect the average velocity distribution to converge to an equilibrium distribution and every column of the transition matrices would be equal to the corresponding equilibrium distribution. Hence, for very large the one-point distribution of would be sufficient for modeling dispersion. The choice of would also depend on the temporal resolution of interest. The range of stencil times where a correlated stencil is required for accurate predictions of contaminant transport is further discussed in section 7.

For , both the velocity-angle stencil and the extended velocity-angle stencil lead to errors in predicting the transition probabilities for a larger set of velocity classes. However, from a computational point of view we are not interested in these stencil times, since by combining very few transitions, only small speed-ups can be expected compared to correlated spatial models. In case we are interested in these smaller time steps, the right tool has already been developed (correlated CTRW). The resulting plumes and first passage time curves predicted by these smaller stencil times are included in section 7.

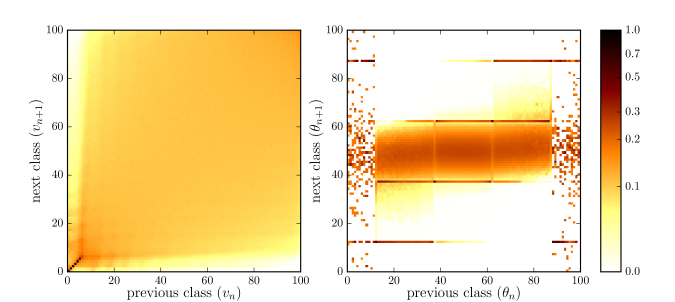

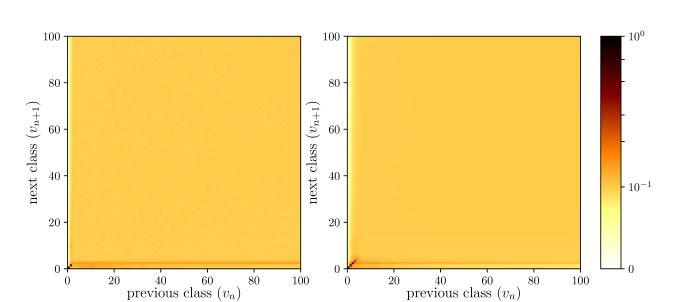

Figure 3: Left: aggregate velocity transition matrix for , ; right: aggregate angle transition matrix for , for the velocity-angle stencil for . The square root of the values are plotted in logarithmic scale.

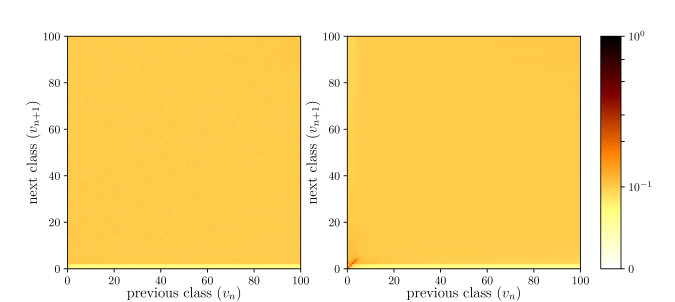

Figure 4: Left: aggregate velocity transition matrix for , ; right: aggregate angle transition matrix for , for the extended velocity-angle stencil for . The square root of the values are plotted in logarithmic scale.

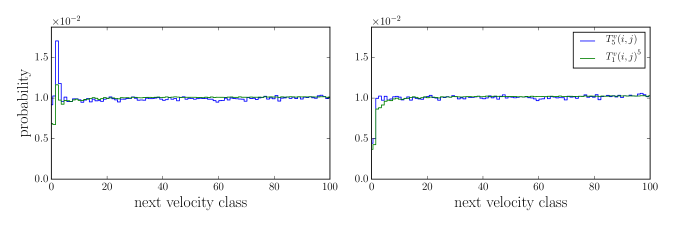

Figure 5: Verification of the Chapman-Kolmogorov relation for velocity-magnitude classes for the stencil method for ; left: ; right: . The square root of the values are plotted in logarithmic scale.
Figure 6: Verification of the Chapman-Kolmogorov relation for the velocity-angle classes for the stencil method for ; left: ; right: . The square root of the values are plotted in logarithmic scale.
Figure 7: Verification of the Chapman-Kolmogorov relation for velocity-magnitude classes for the extended stencil method for ; left: ; right: . The square root of the values are plotted in logarithmic scale.
Figure 8: Verification of the Chapman-Kolmogorov relation for the velocity-angle classes for the extended stencil method for ; left: ; right: . The square root of the values are plotted in logarithmic scale.

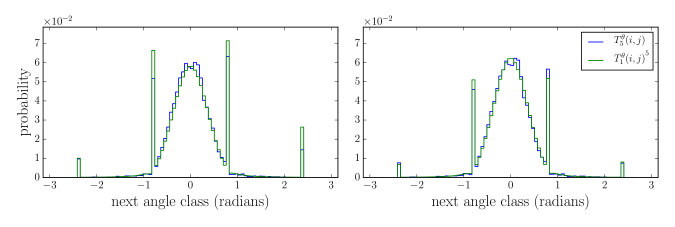

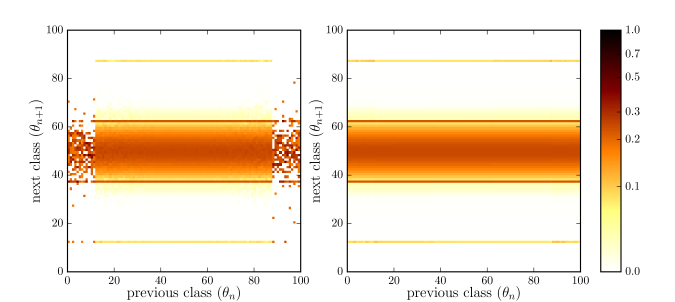

Figure 9: Column-wise comparison of and for an initial angle in the second quarter with for ; left: stencil method; right: extended stencil method.

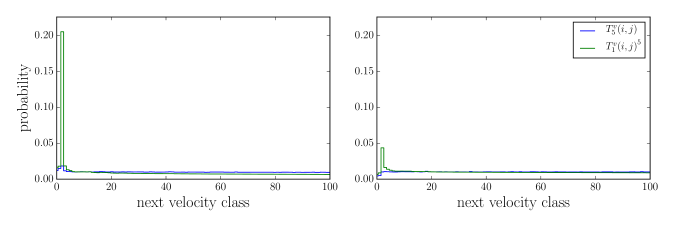

Figure 10: Column-wise comparison of and for a slow initial velocity class with for ; left: stencil method; right: extended stencil method.
Figure 11: Column-wise comparison of and for a fast initial velocity class with for ; left: stencil method; right: extended stencil method.

The results presented in this section indicate that the transition probabilities of the MC data are not strictly Markovian for any , which is consistent with the findings of Le Borgne et al. (2008a). However, we do not expect an exact Markovian structure in the MC results to begin with. For example, the MC results indicate that in every realization there are fast paths between the two ends of the domain, and knowing the full history of the velocity of a particle would improve our prediction of whether that particle is in a preferential path or not. This clearly indicates that the velocity process is not strictly Markovian. Therefore, although verifying the Chapman-Kolmogorov relation gives us useful intuition about the value of a Markov assumption for this problem, the usefulness of this assumption needs to be judged by the predictive power of the model and the error induced due to this assumption. In the next section, numerical results from both stencil models are presented and compared to the particle ensemble from the particle tracking simulations.

7 Numerical results

Different velocity-angle stencils and extended velocity-angle stencils were obtained for different averaging times and the average transport in the network was compared with the predictions of the stencil methods. The performance of the stencil models were compared to an implementation of the correlated CTRW method. The code for generating the MC data and performing these comparisons is available at https://github.com/amirdel/dispersion-random-network (Delgoshaie, 2018). First, we present results for . The results for smaller and larger time steps are discussed afterwards.

First, we consider the velocity-angle stencil. Figs. 12 and 13 show the particle plume and the predicted plume by the velocity-angle stencil at dimensionless times and , respectively. As these figures suggest, the stencil model captures the distribution of the tracer with great accuracy and the non-Gaussian characteristics of the plume are well captured using this simpler model. The same contaminant plume was also simulated with the extended stencil model. In Fig. 14 the results from both models are compared to the reference concentration distributions from the particle tracking simulations. Both models capture the spreading of the plume accurately for different times in both longitudinal and transverse directions. When magnifying the slow tail of the plume in Fig. 15, it is observed that the extended stencil captures this slow tail better than the velocity-angle stencil.

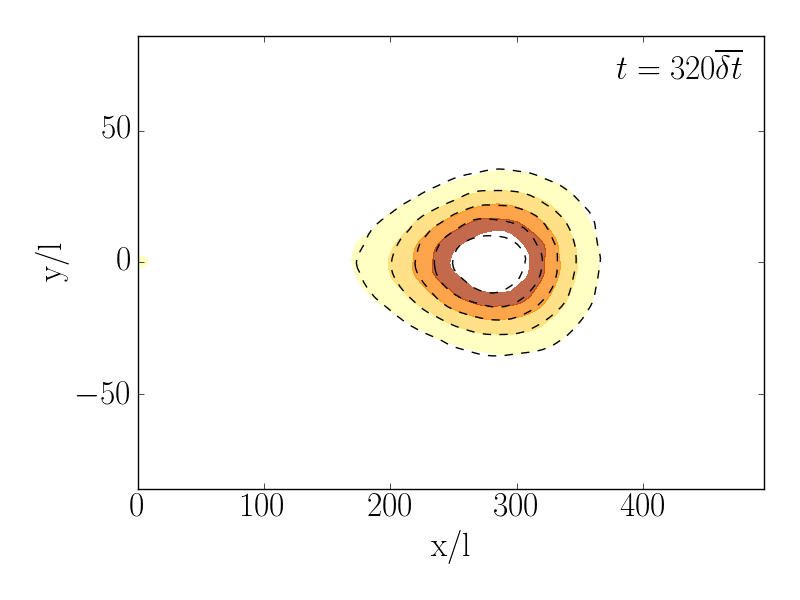

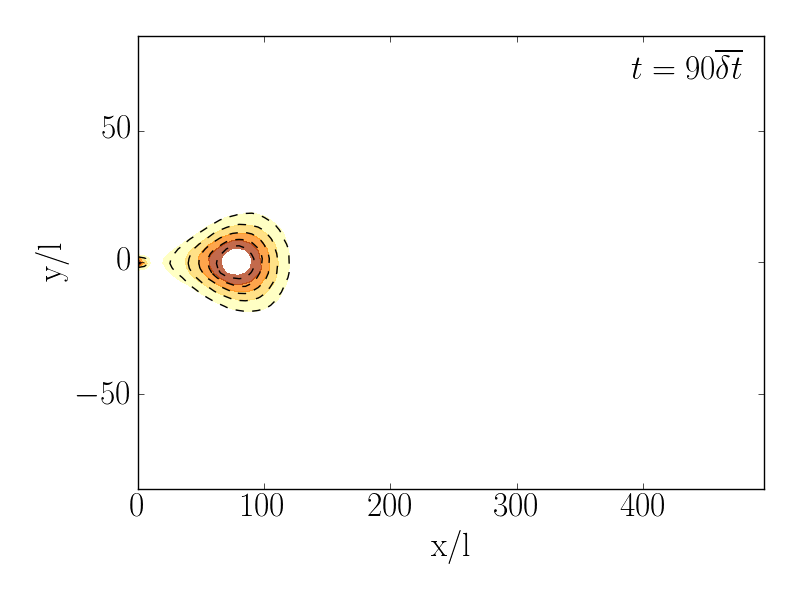

Figure 12: Contaminant concentration at non-dimensional time . Comparison of the velocity-angle stencil (dashed lines) with the reference particle tracking data (filled contour map) for the same contour levels.
Figure 13: Contaminant concentration at non-dimensional time . Comparison of the velocity-angle stencil (dashed lines) with the reference particle tracking data (filled contour map) for the same contour levels.

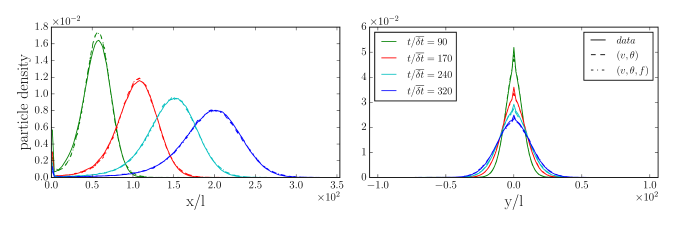

Figure 14: Comparison of plume concentration at different times: particle tracking data (solid lines), velocity-angle stencil (dashed lines), extended velocity-angle stencil (dash dots). Stencil time is for both models.

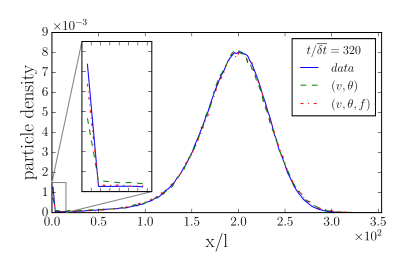

Figure 15: Comparison of plume concentration at : particle tracking data (solid lines), velocity-angle stencil (dashed lines), extended velocity-angle stencil (dash dots). Inset: zooming on the slow tail of the plume.

The second central moment of the particle plume or the mean square displacement (MSD), with respect to the plume center of mass in the longitudinal directions obtained from the temporal Markovian models is compared to the MSD obtained from the ensemble plume in Fig. 16. It can be observed that the predictions from both models are very similar. A closer inspection (inset of Fig. 16) illustrates that the extended stencil method improves the predictions of the longitudinal MSD. A similar comparison is shown for the transverse direction in Fig. 17. The results show that using the extended class definition does not improve the predictions of the second moment in the transverse direction.

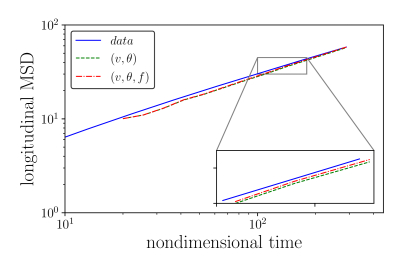

Figure 16: Comparison of longitudinal mean square difference of the plume at different times: particle tracking data (solid lines), velocity-angle stencil (dashed lines), extended velocity-angle stencil (dash dots). Stencil time is for both models.

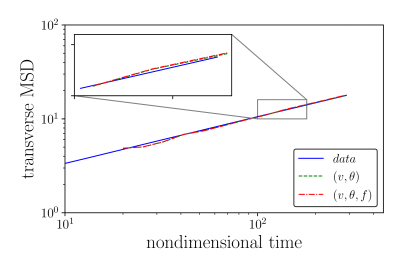

Figure 17: Comparison of traverse mean square difference of the plume for different times: particle tracking data (solid lines), velocity-angle stencil (dashed lines), extended velocity-angle stencil (dash dots). Stencil time is for both models.

Another important feature of anomalous transport is the long tail in first passage time (FPT) distributions. Figure 18 shows the comparison of the FPT for non-dimensional length , where is the target plane and is the domain length. The long tail of the first passage time CDF is well captured by both stencil models. This comparison was performed for , and , and the predictions from both models are accurate for all three planes. A closer inspection of the FPT curve (Fig. 18) illustrates that the extended class definition improves the prediction of the FPT distribution.

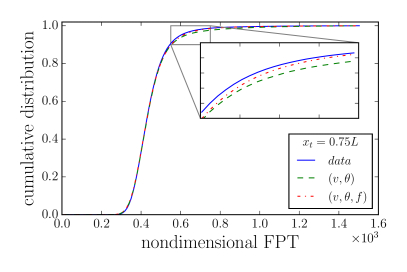

Figure 18: First passage time CDF for : particle tracking data (solid lines), velocity-angle stencil (dashed lines), extended velocity-angle stencil (dash dots) for .

Although the extended stencil results in more accurate predictions for , the improvements can be better observed for smaller stencil times. Figure 19 indicates that there is a significant difference between the predictions of the stencil model and the extended stencil model for a wide range of first passages times. Most notably, the slow tail of the FPT curve is captured well with the extended stencil method even for very small stencil times. Hence, by using the extended stencil we were able to expand the range of accuracy of temporal Markov models to smaller time steps. In Fig. 20 the plumes predicted by the two stencil models are compared for small stencil times. Although the predictions are not as accurate as in the case with , for there still is a good agreement between the model predictions and the MC simulation results. For smaller stencil times, the extended velocity-angle stencil leads to smaller errors, especially for the slow tail of the plume.

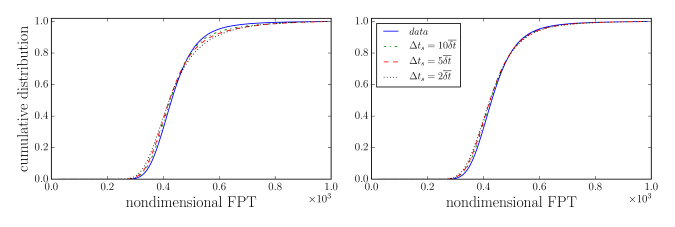

Figure 19: First passage time CDF for for different stencil times; left: stencil method; right: extended stencil method.

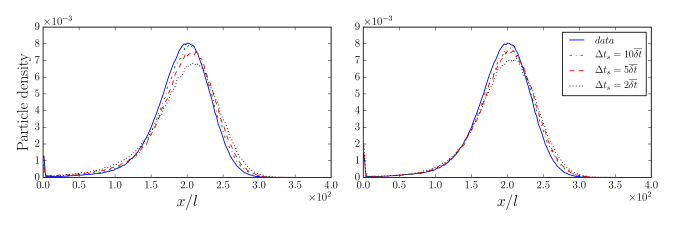

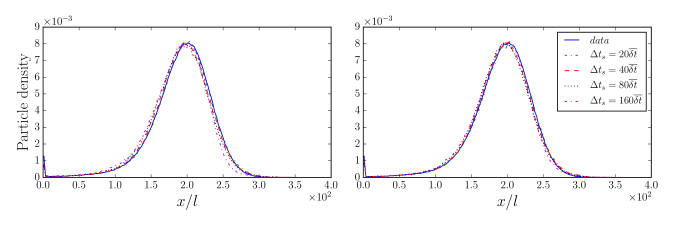

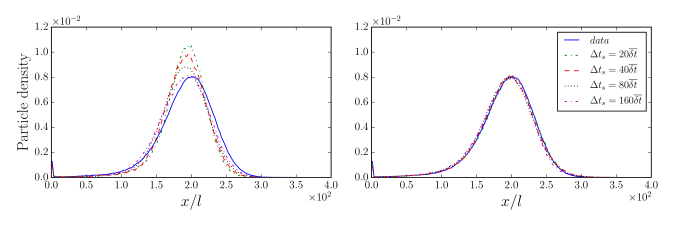

Figure 20: Particle density at for different stencil times; left: stencil method; right: extended stencil method.

Given the same MC simulation data, with larger averaging windows there would be fewer velocity transitions along every streamline and converging to the correct discrete transition matrix would become harder. Figures 21 and 22 show the predicted plume and the FPT curve for equal to , , , times for both stencil methods. As can be seen in these figures, both models make similar predictions and capture the dispersion process well for stencil times up to . For the largest stencil time () the extended stencil clearly leads to more accurate predictions. One should note that for very large stencil times, the MC data is not sufficient to obtain statistical convergence of the transition matrices. This is due to having only a few velocity transitions per particle trajectory. However, the extended stencil by construction can capture the extremely slow tail of the plume more accurately; this advantage is reflected in the predicted probability densities and FPT curves.

On the other hand, with larger stencil times the average velocities would become less correlated. One can argue that with very large stencil times, using a correlated random walk model would no longer be necessary and independent spatial increments would be sufficient for modeling the dispersion process at very low temporal resolutions. Figures 23 and 24 compare the results of using an uncorrelated temporal random walk for predicting the FPT and the particle concentration PDF with the results of the extended stencil model. These results suggest that for a wide range of stencil times () considering the velocity correlation is indeed necessary for making accurate predictions.

Figure 21: Predicted plume concentration for different values of ; left: stencil method; right: extended stencil method.

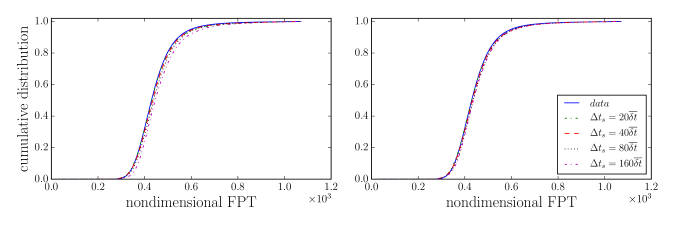

Figure 22: FPT curve for different values of ; left: stencil method; right: extended stencil method.
Figure 23: Predicted plume concentration for different values of , left: using uncorrelated average velocities; right: extended stencil method.
Figure 24: FPT curve for different values of , left: using uncorrelated average velocities; right: extended stencil method.

The computational cost of the stencil method was compared to correlated CTRW with spatial transitions that are equal to the link lengths in the network (Kang et al., 2011). The cost is computed by counting the average number of velocity transitions along a particle trajectory before exiting the domain. A stencil model with , with , leads to times less collisions compared with following every transition to a new node; therefore, it is times computationally more efficient. For temporal models with , the stencil method is less accurate than correlated CTRW and does not offer significant computational gains.
The transition matrices for both the stencil method and the extended stencil method are stored in sparse format which results in efficient use of memory. For more details regarding the model implementation please refer to the provided repository.

8 Application to unstructured networks

The proposed stencil methods require no further generalizations to model transport in unstructured networks. In contrast, published correlated spatial models used for simulating transport in structured networks are different from the models applied to unstructured networks. In (Kang et al., 2014), independent spatial Markov processes are used for each spatial dimension, and in (Kang et al., 2017) the analysis of unstructured fracture networks is limited to the projection of the particle velocities on the longitudinal direction. Here we illustrate that the proposed temporal models are readily applicable to unstructured cases. To this end, unstructured networks were generated by randomly perturbing the nodes in the structured network used in the previous section. Normal random perturbations were added independently in the horizontal and vertical directions. A schematic of such a resulting unstructured network is shown in Fig. 25. This procedure would result in unstructured networks with a truncated Gaussian link length distribution. The link length distribution for four such networks are depicted in Fig. 26.

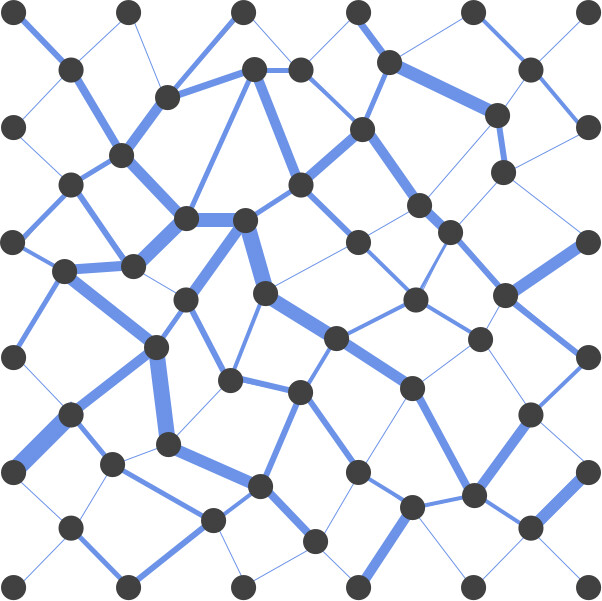

Figure 25: Schematic of an unstructured network generated by adding normal random perturbations to a zig zag structured network.

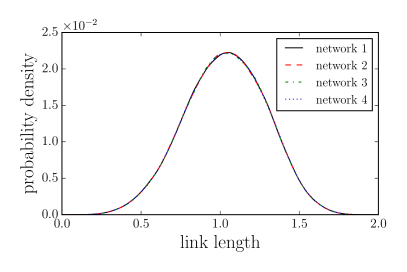

Figure 26: Link length distribution from four realizations of the studied random unstructured network.

The same particle tracking problem described in section 4 was performed on realizations of these unstructured networks and the problem was also modeled using both the velocity-angle and the extended velocity-angle stencils. Figures 27 and 28 show the plume spreading for two different times. These results show that the stencil model can also be used to accurately predict contaminant plume spreading in unstructured networks. Figure 29 shows that the early and late particle arrival times are also captured accurately for this test case.

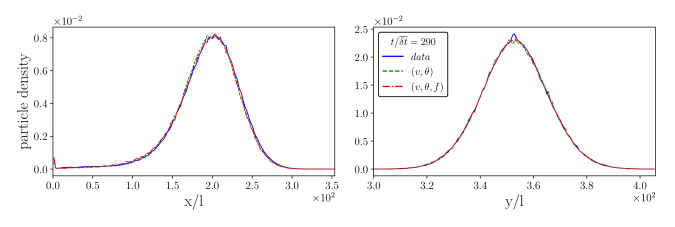

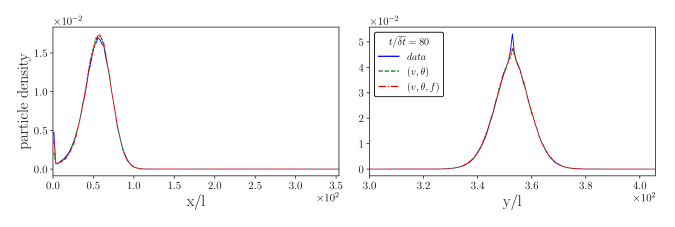

Figure 27: Longitudinal (left) and transverse (right) distributions of the plume at for the unstructured random network test case with .
Figure 28: Same as Fig. 27, at a later time.

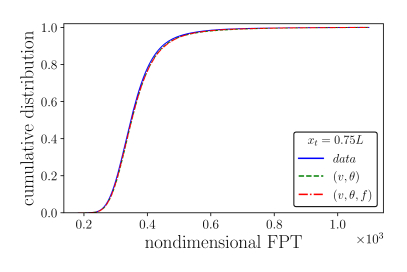

Figure 29: First passage time CDF for for the unstructured random network example.

9 Conclusions

In this work, we showed that temporal Markov models can be used to model transport in random networks with good accuracy for a wide range of stencil times. Although it is known that using temporal Markov models can lead to wrong transition rates both from and to low-velocity states, it was shown that the error induced due to this fact is in many cases small, and can be further reduced by using the extended velocity-angle stencil. We were able to improve the results obtained by temporal Markov models by enriching the state space of the model to include information on the number of repetitions of a given velocity class and extend the range of applicability of these models to smaller time steps. The extended stencil enhanced the accuracy of predicting the slow tail of the contaminant plume, the CDF of first passage time, and the evolution of the second central moment of the plume in the longitudinal direction. We also showed that discrete temporal Markov models can be used to model transport in unstructured networks without any further modification. Moreover, since many node transitions can be treated collectively in one stencil step, the proposed stencil method is more efficient than simulating particle evolution based on following every transition to a new node. Compared to previously proposed temporal Markov models based on SDEs, the models proposed here make significantly fewer modeling assumptions. Applying the stencil method to correlated heterogeneous fields will be the subject of further studies.
