Temporal CSI Correlation in Mixed RF/FSO Cooperative Relaying Systems Under Joint Effects of HPA Nonlinearities and IQ Imbalance

by   Elyes Balti, et al.
Howard University

In this paper, we present the performance analysis of mixed RF/FSO system with multiple relays. To select the best relay, we adopt partial relay selection with outdated CSI wherein we investigate the effect of the temporal correlation of the channels. Unlike the vast majority of work, we introduce the impairments to the relays and the destination and we compare the performance against conventional RF relaying systems. We further derive the expressions of the outage probability and the ergodic capacity as well as the bounds to unpack engineering insights into the system robustness.


page 1

page 2

page 3

page 4


Uplink Non-Orthogonal Multiple Access over Mixed RF-FSO Systems

In this paper, we consider a relay-assisted uplink non-orthogonal multip...

Error Rate and Ergodic Capacity of RF-FSO System with Partial Relay Selection in the Presence of Pointing Errors

This paper presents an analysis of a multiple dual-hop relaying system, ...

Mixed RF-VLC Relaying Systems for Interference-Sensitive Mobile Applications

Due to their Radio-Frequency (RF) immunity, Visible Light Communications...

Exact Outage Probability Analysis of the Mixed RF/FSO System With Variable-Gain Relays

This paper presents a unified analysis of the mixed radio-frequency (RF)...

On the Intercept Probability and Secure Outage Analysis of Mixed (α-κ-μ)-shadowed and Málaga Turbulent Model

This work deals with the secrecy performance analysis of a dual-hop RF-F...

Outage Probability Analysis of Uplink NOMA over Ultra-High-Speed FSO-Backhauled Systems

In this paper, we consider a relay-assisted uplink non-orthogonal multip...

I Introduction

Wireless optical communications also known as Free-Space Optic (FSO) is considered as the key stone for the next generation of wireless communication since it has recently gained enormous attention for the vast majority of the most well-known networking applications such as fiber backup, disaster recoveries and redundant links [uysal]. The main advantages of employing the FSO is to reduce the power consumption and provide higher bandwidth. Moreover, FSO becomes as an alternative or a complementary to the RF communication as it overcomes the problems of the spectrum scarcity and its license access to free frequency band. In this context, many previous attempts have leveraged some these advantages by introducing the FSO into classical systems to be called Mixed Radio-Frequency (RF)/FSO systems [soleiman, joint, tractable]. This new system architecture reduces not only the interference level but also it offers full duplex Gigabit Ethernet throughput and high network security [fd1]. Although the literature has shown the superiority of the mixed RF/FSO systems over the classical RF systems, they still suffer from the reliability scarcity and power efficient coverage. To overtake this difficulty, previous research attempts have proposed cooperative relaying techniques hybridized with the mixed RF/FSO systems since it improves not only the capacity of the wireless system but also it offers high Quality of Service (QoS). Recently, this new efficient system model has attracted considerable attention in particular using various relaying schemes. The most common used relaying techniques are Quantize-and-Encode [quantizeencode], Decode-and-Forward [tractable] and Amplify-and-Forward [neji2]. In practice, however, the hardware (source, relays, destination) are susceptible to impairments, e.g., High Power Amplifier (HPA) nonlinearities [17] phase noise [19] and In Phase and Quadrature (IQ) imbalance [20]. Due to its low quality and price, the relay suffers from the nonlinear Power Amplifier (PA) impairment which is caused primarily by the non-linear amplification of the signal that may cause a distortion and a phase rotation of the signal. The most common nonlinear HPA model are Traveling Wave Tube Amplifier (TWTA), Soft Envelope Limiter (SEL) [22] and Ideal Soft Limiter Amplifier (ISLA) [23]. Maletic et al. [22] concluded that the SEL has less severe impact on the system performance than the TWTA model. Furthermore, there are few attempts [2] considering mixed RF/FSO system affected by a general model of impairments but they did not specify the type/nature of the hardware impairments. In this work, we propose a mixed RF/FSO system with multiple relays employing Fixed Gain (FG) relaying. Since the channels are subject to time selectivity due to the mobility and Doppler spread, we assume partial relay selection (PRS) based on the outdated Channel State Information (CSI) of the first hop [2]. Besides, we assume that the relays are vulnerable to either SEL or TWTA impairments while the destination suffers from IQ imbalance. The rest of this paper is organized as follows: the system model is presented in Section II. The analysis of the outage probability and the ergodic capacity is provided in Sections III and IV, respectively. Section V discusses the numerical and simulation results while the concluding remarks and the future directions are given in Section VI.

Ii System Model

The system consists of a source () communicating with a destination () though parallel relays shown by Fig. 1. For a given transmission, periodically receives the CSIs ( for of the first hop from the N relays and sorts them in an increasing order of magnitude as follows: . The perfect scenario is to select the best relay (m = N) but this best one is not always available. In this case, will select the next best available relay. Consequently, the PRS protocol selects the m-th worst or -th best relay

. Given that the feedback is delayed due to the time selectivity caused by the mobility and Doppler spread, the CSI at the time of selection is different from the CSI at the instant of transmission. In this case, outdated CSI should be assumed instead of perfect CSI estimation. Hence, the instantaneous CSI used for relay selection

and the instantaneous CSI used for transmission are correlated with the temporal correlation .

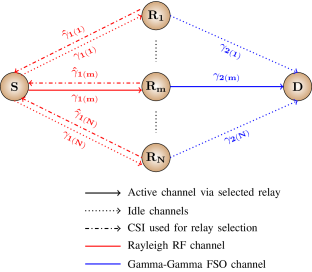

Fig. 1: Mixed RF/FSO system with partial relay selection

The received signal at the -th relay is given by


where is the information signal, is the RF fading between and and (0, ) is the Additive White Gaussian Noise (AWGN).

Ii-a High Power Amplifier nonlinearities at the relays

The PA nonlinearities impairment is introduced to the relays. The amplification of the signal happens in two time slots. In the first slot, the received signal at the relay is amplified by a proper gain as . The gain can be defined as


where is the expectation operator, is the average transmitted power from and is the mean power of the signal at the output of the relay block. In the second time slot, the signal passes through a nonlinear circuit .
The PA of the relay is assumed to be memoryless. A memoryless PA is characterized by both Amplitude to Amplitude (AM/AM) and Amplitude to Phase (AM/PM) characteristics. The functions AM/AM and AM/PM transform the signal distortion respectively to and and then the output signal of the nonlinear PA circuit is given by


The characteristic functions of the SEL and TWTA impairments models are respectively given by

[joint]. From a given saturation level , the relay’s PA operates at an input back-off (IBO), which is defined by IBO = . According to Bussgang Linearization Theory [17], the output of the nonlinear PA circuit linearly depends on both the linear scale of the input signal and a nonlinear distortion

which is uncorrelated with the input signal and follows the circularly complex Gaussian random variable

. Then, the AM/AM characteristic can be expressed as follows


Note that and for SEL and TWTA are given by [joint]. Then at the relay , the RF amplified signal is converted to an optical one which is given by [2]


where is the electrical-to-optical conversion coefficient.

Ii-B In Phase and Quadrature Imbalance at the destination

In case of perfect IQ mismatch, the received signal at the destination can be expressed as follows


where is the optical irradiance between the relay and , is the optical-to-electrical conversion coefficient, and (0, ) is the AWGN.
Given that the destination is affected by IQ imbalance, the received signal is given by


where is called the mirror signal introduced by the IQ imbalance at and the coefficients and are respectively given by


where and are respectively the phase and the magnitude imbalance. This impairment is modeled by the Image-Leakage Ratio (ILR), which is given by .
For an ideal , , and ILR = 0.

Ii-C Channels Models

Since the RF channels are subject to correlated Rayleigh fading, the Cumulative Distribution Function (CDF) of the instantaneous RF

SNR is given by [2, Eq. (9)]


Since the instantaneous SNR

experiences Gamma-Gamma fading, the Probability Density Function (PDF) is given by


where is the Meijer-G function, and are respectively the small-scale and large-scale of the scattering process in the atmospheric environment. These parameters are given by



is called Rytov variance which is a metric of the atmospheric turbulence intensity.

Ii-D End-to-end signal-to-noise-plus-distortion ratio (SNDR)

The average SNR of the first hop is given by


While the average SNR 111The average SNR is defined as , while the average electrical SNR is given by . Therefore, the relation between the average SNR and the average electrical SNR is trivial given that , where is the scintillation index [scin]. of the second hop can be expressed as


where is the average electrical SNR given by


According to [22, Eq. (16)], the end-to-end SNDR is given by


where is given by [2, Eq. (10)] and the term is defined as the ratio between the received SNR and the average transmitted SNDR at the relay which is given by


Iii Outage Probability

Iii-a Exact Analysis

The outage probability is defined as the probability that the SNDR falls below a given outage threshold . It can be written as follows


where is the CDF of the SNDR.

Theorem 1.

Under joint effects of HPA nonlinearities and IQ imbalance, the outage probability is given by (20) if , otherwise, it is equal to 1.


where .


After transforming the exponential into Meijer-G function and applying the identity [24, Eq. (], the outage is derived as (20). ∎

Iii-B High SNR Analysis

Using [24, Eq. (] to expand the Meijer-G function in (20) at high SNR, the expansion is given by


where is the

-th element of the vector


Iii-C Diversity Analysis

Given that the outage performance saturates at high SNR by the floor caused by the hardware impairments, it is trivial to conclude that the diversity gain is equal to zero. For an ideal hardware and after expanding the Meijer-G function at high SNR, it can be shown that the diversity gain is given by


Iv Ergodic Capacity

Iv-a Exact Analysis

The ergodic capacity, expressed in bits/s/Hz, is defined as the maximum error-free data transferred by the system channel. It can be written as follows


where for intensity modulation and direct detection (IMDD). The capacity can be calculated by deriving the PDF of the SNDR. However, an exact closed-form of Eq. (23) is not tractable due to the presence of mathematical terms related to the hardware impairments. Thereby, the numerical integration can be performed to evaluate the exact capacity.

Iv-B Approximation

In spite of the difficulty to calculate an exact closed-form of the EC, we can derive a simpler expression by referring to the approximation given by [22, Eq. (27)]


Although Eq. (24) has no theoretical foundations, it provides with a tight bound on the capacity.

Iv-C Bound I

For high SNR values, the SNDR converges to defined by

Corollary 1.

Suppose that and converge to infinity and the electrical and optical channels are independent, the ergodic capacity converges to a capacity ceiling defined by


Since the SNDR converges to as the average SNRs of the first and second hops largely increase, the Dominated Convergence Theorem allows to move the limit inside the logarithm function. ∎

Iv-D Bound II

If the relaying system is linear, i.e, the system is only impaired by IQ imbalance, the SNDR and the average capacity are saturated at the high SNR regime as follows

Corollary 2.

For linear relaying, the system capacity under IQ imbalance is bounded at high SNR by


Iv-E Jensen Bound

To further characterize the ergodic capacity, it is possible to derive the expression of the upper bound stated by the following Theorem.

Theorem 2.

For asymmetric (Rayleigh/Gamma-Gamma) fading channels, the ergodic capacity under joint effects of HPA nonlinearities and IQ imbalance is bounded by


where is given by


After some mathematical manipulations, is given by


where and .

V Numerical results

This Section presents the analytical and numerical222For all cases, realizations of the random variables were generated to perform the Monte Carlo simulation in MATLAB. results of the outage probability and ergodic capacity obtained from the mathematical expressions derived in the previous Sections. Unless otherwise stated, we assume that the outage threshold ( dB), the temporal correlation (), the number of relay (), the rank of selected relay (), and the Rytov variance (). The dependence of the outage on the joint effects of the HPA nonlinearities and IQ imbalance is illustrated by Fig. 2. In Fig. 1(a)

, we observe that the system is vulnerable to the HPA nonlinearities distortion wherein the outage saturates when the IBO, which is the maximum power delivered by the PA, is very low and vice versa. In fact, when the IBO is lower, the PA is unable to provide sufficient power to the relay to amplify the signal which in turn causes signal clipping resulting in information losses and higher outage. In other terms, the PA devices are nonlinear devices and high power amplification may introduce clipping which is translated in frequency domain as spectral regrowth which in turn causes interference between the adjacent subcarriers or aliasing resulting in information losses. The same analysis follows for the effect of the

ILR on the outage which is illustrated by Fig. 1(b). We observe that the system performance gets much better for low ILR and vice versa. In fact, the ILR measures the severity of the mismatch at the receiver and as long as the mismatch is pronounced, the outage is higher.

Fig. 2: Performance results of the outage probability at SNR = -10 dB: Fig. 1(a) illustrates the impacts of the IBO range on the outage while the ILR is fixed at -15 dB. Fig. 1(b) provides the effects of the ILR range on the outage while the IBO is fixed at 0 dB.

Fig. 3 illustrates the joint effects of HPA nonlinearities and IQ imbalance on the outage and ergodic capacity from different perspectives. In Fig. 2(a), we observe that the impact of the hardware impairments is not significant at low SNR, however, this impact becomes remarkable at high SNR wherein the distortion creates an irreducible outage floor. Besides, we note that the introduction of the wireless optical signaling and multiple relays decreases the outage much lower than the conventional RF relaying systems [22] at low SNR. At high SNR, even though both systems are saturated by the outage floor, the proposed system achieves better outage due to the higher diversity order compared to the conventional RF system. The same conclusion can be drawn from Fig. 2(b) wherein the capacity is saturated at high SNR by a ceiling created by the hardware impairments. We further note that the TWTA introduces more severe deterioration to the system compared to SEL and this result has been confirmed by related works.

Fig. 3: Performance results: Fig. 2(a) illustrates a comparison between the SEL and TWTA and their effects on the outage. Fig. 2(b) presents the impacts of the HPA nonlinearities and IQ imbalance on the spectral efficiency.

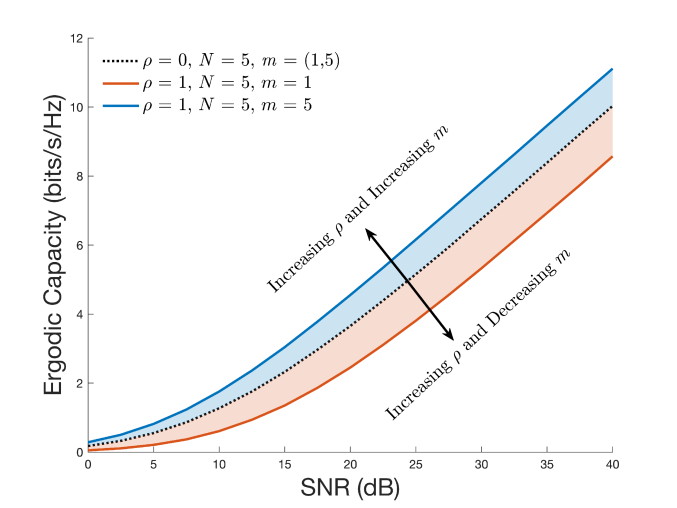

Fig. 4: Performance results: Impacts of the temporal correlation and the rank of the selected relay on the spectral efficiency.

Fig. 4 provides the dependence of the temporal correlation and the rank of the selected relay on the ergodic capacity. Given that the CSI are sorted in increasing order, then the performance improves with the rank of the selected relay. However, this improvement is achieved only when the CSIs are completely correlated (

), i.e., the CSIs at the moments of relay selection and transmission are roughly the same. In other terms, the channels are slowly varying in time. Inversely, if the channels are uncorrelated (

), i.e., the channels are rapidly varying in time, the source does not have any knowledge about the channels conditions and hence the rank does not reflect the best relay selection, i.e., the higher the rank is, the worse the performances are.

Vi Conclusion

In this work, we provided the analysis of various models of impairments and their effects on the system performance. We introduced the SEL and TWTA as HPA nonlinearities affecting the relays and we assume that the destination is impaired by IQ imbalance. We investigated the effects of these hardware imperfections on the outage and capacity and we concluded that the system performs better as the IBO increases and the ILR decreases. Moreover, it turned out that the TWTA has more severe impact on the system performance than the SEL model. Furthermore, even though the performance deteriorates under the effects of the imperfections, we noted that the introduction of the FSO technique and multiple relays makes the mixed RF/FSO system more resilient to the hardware impairments than the conventional RF relaying systems. Besides, we illustrated the performance degradation by the hardware impairments as a form of irreducible outage floor as well as the capacity ceiling at high SNR. Finally, we investigated the impact of the temporal CSI correlation and we concluded that the performance improvement is conditioned upon the channels correlation.
