. Similarly, using batch normalization, Ioffe & Szegedy
reduce the degrees of freedom in the weight space. This encourages us to explore more ways to regularise such large models by designing problem-specific regularizers.
A popular approach for regularisation is to introduce sparsity into the model . However existing schemes of introducing sparsity in deep networks generally cannot be trained in a end-to-end manner and require a complex alternating schemes of optimization [24, 19]. Moreover, in most of these methods (including dropout) the sparse feature maps lack spatial structure. Based on the application domain it might be possible to leverage prior knowledge to introduce structure to the sparsity. Depth-based instance recognition is one such application where we have a complete 3D scan of an object during training and the goal is to recognize it under different viewpoints in challenging 2.5D test scenes. We take advantage of this prior information by employing an intermediate template layer to introduce structure to the sparse feature maps. We call this new architecture TemplateNet and derive weight update equations to train it in an end-to-end manner. We show that with the additional regularisation of the template layer, templateNet outperforms existing state-of-the-art methods in depth based instance recognition.
In addition to introducing sparsity, observing the output of a template layer allows us to visualize the learnt features of an object. This is a more natural way of visualizing learnt features as compared to existing methods which either use redundant layers 27].
In summary our main contributions in this paper are:
For the task of instance recognition, using a template layer we impose structure on the sparse activations of feature maps. This regularises the network and improves its performance without additional parametrization.
The output of template layer can be used to visualize the learnt features for an object.
2 Literature Review
The advancement in sensor technology [20, 8] coupled with real time reconstruction systems  has resulted in depth data being readily available. Encouraged by this several methods on instance recognition using depth data have been proposed. One of the most popular is that of Hinterstoisser et al.  which uses surface normals from depth images together with edge orientations from RGB images as template features. Using a fast matching scheme the authors match thousands of such template features from different viewpoints of the object to robustly detect the presence of an object. However the lack of discriminative training leads to poor performance in presence of similar looking clutter.
Brachmann et al.
, use a random forest to perform a per pixel object pose prediction. Using an energy minimization scheme they compute the final pose and location of an object in the scene. In contrast to their multi-stage approach we use end-to-end learning to detect both the location and pose of an object. In rather than using discriminative training, Tejani et al. use co-training with hough forest. This avoids the need for background/negative training data. However during testing it requires multiple passes over the trained forest to predict the location and pose of the object. Moreover, in the absence of negative data it is unclear how this method can perform in the presence of similar looking clutter. In  using soft labelled random forest (slRF) , Bonde et al. perform discriminative learning on the manually designed features of  and show impressive performance under heavy as well as similar looking clutter using only the depth data. With CNN’s  driving recent advances in computer vision we explore its use in depth based instance recognition for performing feature learning. As our experiments show (section 4), we need to regularise the CNN to compete with existing methods.
Sparsity has been widely used for better regularisation in both shallow architectures  as well as in deep architectures . A popular approach to enforce sparsity in deep architectures is to use an norm penalty on the filter weights. Ranzato et al. showed that better structured filters are obtained by enforcing sparsity on the output of the filters (or feature maps) rather than the filter weights . To achieve this they use a sparsifying logistic
which converts the intermediate feature maps to a sparse vector. However this results in a non-trivial cost function requiring a complex alternating optimization scheme for computing weight updates. We propose an alternate manner of introducing sparsity by using the template layer. We exploit the nature of the instance recognition problems by using prior knowledge of the object shape to introduce structure to the sparse activations of feature maps. This results in weight updates that can be easily computed for the entire network using the chain rule, thus allowing us to train the network in an end-to-end manner (section3.1.3). Our proposed network outperforms existing methods on challenging publicly available datasets.

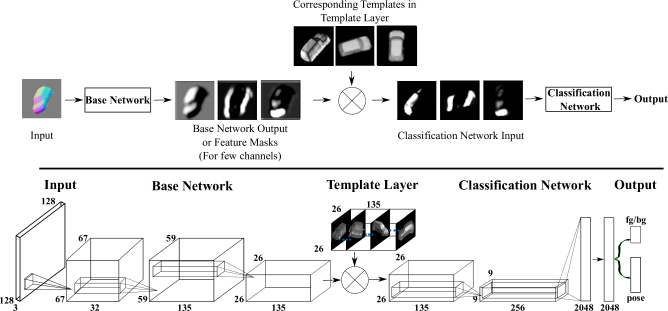

Figure 1 (top pane) presents the architecture of templateNet. The templateNet essentially contains three components: the base network, the template layer and the classification network. The base network and the classification network contain standard convolutional layers (or fully connected layers). On the other hand, a template layer is essentially an element wise multiplicative layer having one-to-one connection with the base networks output. To better motivate the function of each component in a templateNet we first draw connections to existing methods in literature for instance recognition.

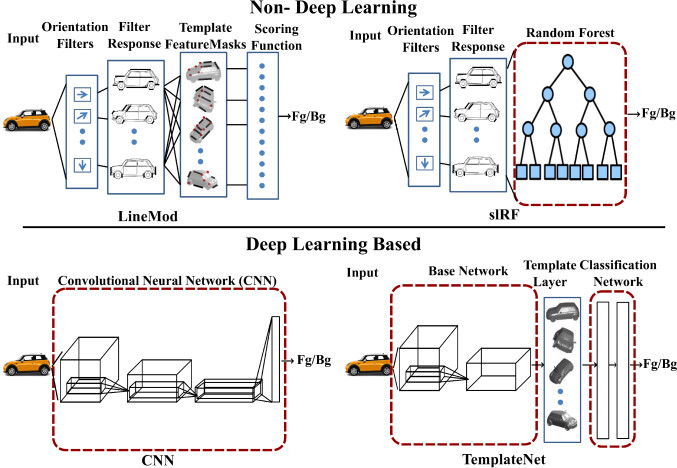

Figure 2 shows the block diagram representations of different approaches. The top left pane shows the block diagram for LineMod  which consists of four blocks. In LineMod, given the input, it is first filtered using a manually designed orientation filter bank. These filtered responses are then matched with object template feature masks which are manually designed and tuned to highlight sparse discriminative
features (such as edges or corners) for each template of an object. Finally, either using a learnt classifier or a scoring function, the input is classified as foreground or background. As these blocks are manually designed we have a good understanding of this system and how it learns to recognize different objects.
The top right pane shows the block diagram of the slRF-based instance recognition system of  where the discriminative features (or feature masks) are learnt across different templates. Visualizing the features used by the split nodes gives an understanding of the learnt feature masks. Bottom left pane shows the block diagram of a typical feed-forward CNN. Here an end-to-end system is used to learn the filter banks as well. Although methods have been proposed to visualize these deep networks [32, 27] they either require redundant layers or additional optimization steps.
In templateNet, shown in the bottom right pane of figure 2
, we split the deep neural network into two separate networks with an additional template layer inserted between them (figure1). The base network learns the orientation filters and the feature masks for templates. Ideally, we want these feature mask to be sparse and contain only the discriminative features. However, rather than enforcing sparsity on the feature masks we use the template layer as a sparsity inducing module. The weights of a template layer correspond to different template views of the object. As these templates have structured shapes they force the template layer output to also contain structure in their sparse activation (figure 1 and 3). This is in contrast to  which does not enforce any spatial structure to their sparse feature maps. Finally, the classification network uses these sparse maps as input to make the predictions.

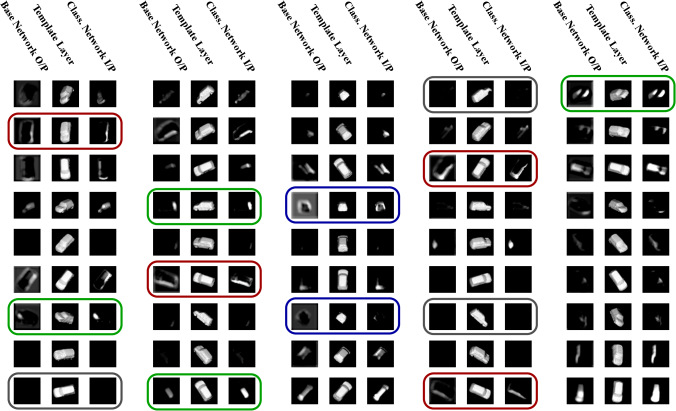

Visualizing the template layer output is an intuitive way to understand the learnt features. Figure 3 shows these learnt responses for each template in the template layer of object class Mini in the dataset Desk3D . The first column in each pane shows the learnt feature masks which is the output of base network. The second column shows the templates used in the fixed template layer. The final column is the rectified linear output of the element wise product between first two columns and is the input for the classification network. We also highlight some of the intuitive features learnt by this network such as edge orientation (shown in red) and surface orientation (shown in green). For clarity, in each row, the input used in the base network was the same as that in the corresponding template layer. Similar results were observed with different inputs. In the next section we explain the various aspects of training the templateNet.
3.1 Depth-based Instance recognition
Given the depth image of a scene, various maps such as height from ground plane, angle with gravity vector, curvature  can be computed to be used as input. However, here we follow existing methods on instance recognition which show state-of-the-art performance using surface normal features [10, 2]. These features can be efficiently computed using depth maps. We normalize each channel of the surface normal (x,y,z) in the range of and use it as our input. The template layers weights are also given by the surface normals of the corresponding template view. We use 45 different viewpoints (5 along yaw, 3 along pitch and 3 along roll) for each channel giving a total of () templates in the template layer.
As we use calibrated depth sensors we can leverage the physical dimensions encoded in a depth image to avoid searching over multiple window sizes. For this reason, using the camera calibration matrix, we compute the world co-ordinates from a depth image. We then perform orthogonal projections of the scene to get its orthoPatch. The resulting orthoPatch encodes the physical dimensions to a fixed scale thus removing the need to search over multiple scales.
During training, we use a 3D model of the object and project it from different viewpoints. We simulate background clutter by randomly adding other objects along with floor before computing its orthoPatch. To improve robustness we also add random shifts. We crop this to dimension and simulate such views to get the foreground (fg) training data. For background (bg) training data we use orthopatches from frames of video sequences containing random clutter to obtain the final training set .
Most methods in depth-based instance recognition rely on ICP
or its robust versions to get the final pose estimate of an object. Their primary focus is on having a good prediction for ICP initialization. We use a similar scheme and treat pose as a classification task rather than regression. To this end, we uniformly quantize object viewpoints into 16 pose classes with the goal of predicting the closest pose class. We thus have a(poses + background) pose classification task. As a test-object pose could be between two quantized pose classes rather than forcing the network to assign a specific quantized pose we use soft-labels . This helps to better explain simulated poses that are not close to any single pose class. Soft labels for each simulated example are assigned based on the deviation of its canonical rotational matrix
to the identity matrix. For example, if represents the canonical rotation matrix which takes the simulated view to the quantized pose, then its distance is given by: where is a identity matrix and is the Frobenius norm. The soft labels are then given by: . The final label vector is normalized to get the soft labels.
During testing, the sum of predicted labels across all quantized pose classes is used to estimate the foreground probability (). However, as we show later in our experiments, using this as the labels for training is not an optimal approach for detection. This is because a model learnt with only the pose classification cost does not explicitly maximize foreground probability.
In order to address both tasks of fg-bg and pose classification we take inspiration from the work of transforming auto-encoders . We use a two-headed model with one head predicting the fg-bg probability which is invariant over the viewing domain. The other head predicts pose class probability which varies uniformly over the viewing domain and is similar to their instantiation parameters. This explicitly introduces the fg-bg objective into the cost function. The final cost function is given by the cross entropy as:
Here the first term is the cross entropy for fg-bg classification with taking binary values (superscript indicating fg-bg) and the second term is for pose classification with given by the soft labels (superscript indicating pose). are the parameters of the network. We suppress the superscript from the second equation for clarity. acts as the reweighing term to normalize the two cost functions. The resulting model with a mixed objective outperforms other single headed models that consider fg-bg and pose separately.
The individual components in templateNet can be formulated as:
Base network can be simplified as a single convolutional layer with non-linearity:
Template layer can be formulated as a multiplicative layer with non-linearity:
can be approximated as a softmax layer:
where, x is the input, , and ,b are the filter weights and biases, are the templates (or scaling factors),
is the non-linearity (ReLU),is the softmax function and p is the final predicted probability. Thus the parameters of the network are . We use the mixed cross entropy cost (equation (1)) as our cost function for training. We start from the classification network where the predicted probability is given as:
Subscripts and are used to index the components of a vector (bold lower case variables) or the columns of a matrix (upper case variables). Using the cross entropies per example term () from (1) (summation over is independent of ), the partial derivatives for classification network with respect to fg-bg cost are given by:
The derivatives with respect to pose cost are the same with the additional reweighing term . Partial derivatives with respect to the input z is given by:
Using chain rule we compute the partials derivatives with the template layer as:
where, is the derivative of ReLU which is equal to one for positive values and zero otherwise. Finally the partial derivatives with respect to masked response network parameters are given by:
In the current work we do not update the and set . However in future we could use (3) to update the template layer weights as well. To enforce sparsity an additional term such as penalizing might be needed. As the template layer weights are fixed it does not result in any additional training parameters. We train the templateNet in an end-to-end way similar to a typical CNN.
In this section we analyse the effect of different settings of templateNet and
use them as a guide for further experiments in section 4.

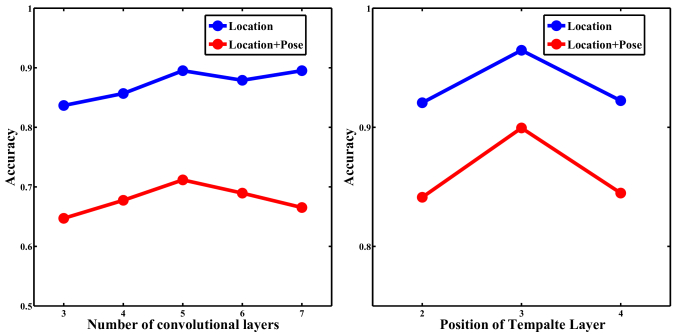

Number of Convolutional layers: We test the effect of increasing the number of convolutional layers using the two headed network for a typical CNN. Figure 4 (left pane) compares the performance for class Kettle in Desk3D. We use the same training protocol of hardmining for all settings, i.e starting with a random subset of training data
followed by hard-mining after every 5-10 epochs for a total of 50 epochs. From the plot we observe the performance to start overfitting after five layers. Following these results we use five convolutional layers with two fully-connected layer as our base model for all other experiments.
Depth of Template layer: As a template layer is essentially a multiplicative layer it can be placed between any two convolutional layers. We experiment by placing the template layer at different depths in the five-layered CNN. Figure 4 (right pane) compares the resulting performance. Having more convolutional layers before the template layer leads to a larger non-linearity and hence more complex features to be learnt resulting in an improved performance. However as the template layer moves further from the input its regularisation effect on the initial filters reduces and the performance degrades. We found the templateNet performs best when the template layer is placed after the third convolutional layer in the five layered CNN. Figure 1 (bottom pane) shows the final architecture of templateNet.
First layer filters: The left pane of figure 5 shows the learnt filters in the first layer of our five-layered CNN. The noisy and unstructured first layer filters in the five-layered CNN can be accounted for by two factors: a) the model is over-parametrized; b) the model is not well regularised. However, from figure 4 (left pane) we observe that the test error decreases with an increase in number of layers (or parameters). This suggests that over-parametrization is not the primary cause and that the model is not well regularised. In comparison, the sparsity induced by the template layer regularises the templateNet and forces the filters to explain the data better making them structured and less noisy . We observe this effect in figure 5 (right pane).
4 Experiments and Results
Several datasets exist in the literature for testing instance recognition
algorithms [17, 4, 30]. Of these we choose the Desk3D
and the ACCV3D  datasets. Unlike other datasets
the Desk3D dataset contains separate scenarios to test the performance of the
recognition algorithms under different challenges of similar looking
distractors, pose change, clutter and occlusion. The controlled test cases
allows us to better analyse each algorithm to estimate their performance under
real world conditions. However ,this dataset is of a limited size and for this
reason we also experiment with the ACCV3D dataset which is the largest publicly
available labelled dataset covering large range of pose variations with
clutter and multiple object shapes.
Benchmarks: Two different benchmarks are used to quantify and compare different settings. We use the state-of-the-art slRF method  together with the depth-based LineMod  as our base benchmarks. Since LineMod learns templates for RGB and depth separately, removing one modality does not affect the other. For reference we also report results from depth+HoG based DPM .
Testing Modality: We follow the same testing modality
as . We consider an object to be correctly
localized if the predicted centre is within:
radius of the ground truth. For pose classification we
consider pose to be correctly classified if the predicted pose class
given by: i.e,
largest pose probability is either the closest or second closest quantized pose
to the ground truth.
||DPM ||LineMod||slRF ||CNN3||CNN3||CNN5||templateNet||templateNet|
4.1 Experiments on Desk3D
The Desk3D dataset contains a total of six objects with 400-500 test scenes each. The test scenes are obtained by fusing few consecutive frames () using . Figure 6 shows PR curves for the four different scenarios in Desk3D. Figure 6 (a) compares the performance on scenario 1 which consists of similar looking distractors. As the templateNet performs feature learning it outperforms other methods which use manually designed features. In figure 6 (b) we compare the performance for the low clutter and high pose variations stetting (scenario 2). TemplateNet is more confident for large pose variations and we observe a high precision for over 50% recall rates. A similar improvement is observed even with large cluttered background of scenario 3 (figure 6 (c)). Due to a better separation between foreground-background the templateNet is more confident even with large cluttered background giving high precision at large recalls.

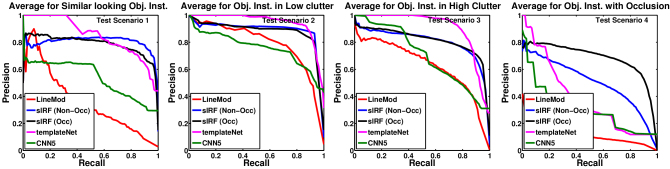

In all three scenarios (6 a,b and c) the five layered CNN performs the worst compared to other benchmarks indicating a need for better regularisation. The templateNet achieves this using the sparsity inducing template layer resulting in the best performance.
Table 1 lists the accuracies of different settings for non-occluded scenes. For fairness we do not add dropouts in any of the architectures. The use of a mixed cost helps improve performance over a pose classification cost. This is because a model trained with the pose only cost does not explicitly maximize the foreground probability. With an increase in the number of layers the performance improves and saturates around five convolutional layers (figure 4). Using better regularisation our templateNet outperforms all others in four out of six objects and achieves the best overall accuracy. We also experiment with the width of the template layer i.e, number of templates used. As the number of templates increases we increase the representation power/dimensions of template layer while still regularising the network due to sparse activations. This leads to an improved performance of the network seen in the last column of table 1 albeit at a higher computational cost. For this reason we only report these results for reference.
The only scenario where templateNet suffers is under occlusion (figure 6 (d)). Using occlusion information the slRF outperforms templateNet when objects are partially occluded. In future using occlusion information could help the templateNet handle partially occluded scenes.
4.2 Experiments on ACCV3D

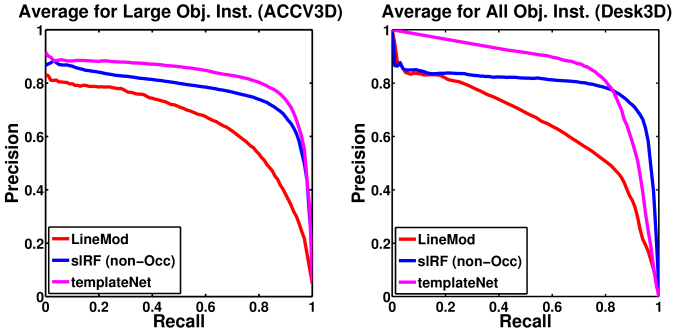

The ACCV3D dataset contains different objects each with over test scenes covering a range of poses. However we only experiment with large objects (bounding box cc). This is because due to low sensor resolution the smaller objects do not have enough discriminative features and perform poorly. This observations is also consistent with the results of . As our simulated training examples do not contain any noise modelling our system is not robust to raw depth images which contain boundary and quantization noise together with missing depth values. For this reason we use the depth in-painting technique proposed in  to smooth the raw depth images and use them as our input.
|Object||LineMod ||slRF ||templateNet|
|L||L + P||L||L + P||L||L + P|
In this section we discuss some of the limitations of the current architecture and suggest possible directions to address these drawbacks.
In the current work, templateNet does not reuse the bottom level features requiring one netwrok per object. This could be addressed by having multiple template layers working in parallel with an additional group sparsity penalty  on them. This would limit the number of template layers being active while reusing the existing layers making it more efficient and scalable.
The other drawback as shown in our experiments (section 4.1) is its poor performance in occluded scenes. With the use of spatial transformers  we could detect salient parts to perform part based recognition to address this limitation. Nevertheless, templateNet outperforms existing works on all other challenges of instance recognition using only depth data.
We presented a new deep architecture called templateNet for depth-based object instance recognition. The new architecture used prior knowledge of object shapes to introduce sparsity on the feature maps. This was achieved without any additional parametrization of training by using an intermediate template layer. The sparse feature maps implicitly regularised the network resulting in structured filter weights. By visualizing the output of a template layer we get an intuition of the learnt discriminative features for an object. We derived the weight updates needed to train the templateNet in an end-to-end manner. We evaluated its performance on challenging scenarios of Desk3D as well as on the largest publicly available ACCV3D dataset. We showed that the template layer helped improve performance over a traditional convolutional neural network and outperforms existing state-of-the-art methods.
This research was supported by the Boeing Company. We gratefully acknowledge Paul Davies for his inputs in making this work useful to the industry.
