1 Introduction

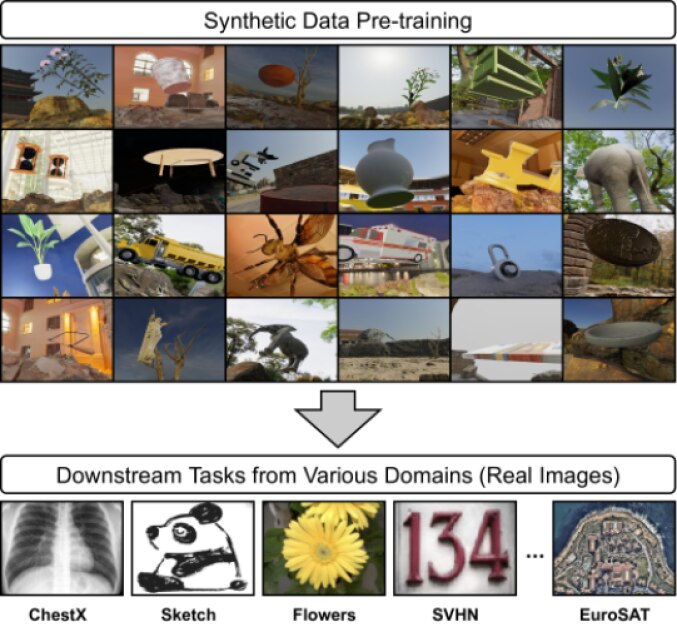

Figure 1: We explore how synthetic data can be effectively used for training models that can transfer to a wide range of downstream tasks from various domains. Is a universal pre-trained model for all downstream tasks, the best approach?

Using large-scale labeled (like ImageNet [10]) or weakly-labeled (like JFT-300M [5, 19], Instagram-3.5B [36]

) datasets collected from the web has been the go-to approach for pre-training classifiers for

downstream tasks with a relative scarcity of labeled data. Prior works have demonstrated that as we move to bigger datasets for pre-training, downstream accuracy improves on average [58, 36]. However, large-scale real image datasets bear the additional cost of curating labels, in addition to other concerns like privacy or copyright. Furthermore, large datasets like JFT-300M and Instagram-3.5B are not publicly available posing a bottleneck in reproducibility and fair comparison of algorithms.

Synthetic images generated via graphics engines provide an alternative quelling a substantial portion of these concerns. With 3D models and scenes, potentially infinite images can be generated by varying various scene or image-capture parameters. Although synthetic data has been used for transfer learning in various specialized tasks

[57, 50, 61, 2], there has not been prior research dedicated to its transferability to a range of different recognition tasks from different domains (see Fig. 1). In conducting this first of its kind (to the best of our knowledge) study, we first ask the question : for synthetic pretraining for different downstream classification tasks, does a one-size-fits-all solution (i.e., a universal pre-trained model for all tasks) work well?

With graphics engines, we can control various simulation parameters (lighting, pose, materials, etc.), and so in an experiment, we introduced more variations successively from different parameters into a pretraining dataset of 100k synthetic images from 237 different classes (as many categories as are available in Three-D-World [12]). We pre-trained a ResNet-50 [17] on these, and evaluated this backbone with linear probing on different downstream tasks. The results are in Table 1

. We see that some parameters like random object materials results in improved performance for some downstream tasks like SVHN and DTD, while it hurts performance for other tasks like EuroSAT and Sketch. In general different pre-training data properties seem to favor different downstream tasks.



Pretraining Data
Variations
Downstream Accuracy
EuroSAT SVHN Sketch DTD
Pose 87.01 28.49 37.89 37.39
+Lighting 88.57 32.36 38.81 40.32
+Blur 90.20 35.58 35.53 37.66
+Materials 84.54 44.84 30.81 38.51
+Background 80.44 29.93 14.60 32.39



Table 1: Downstream task accuracies using linear probing with a Resnet-50 backbone pretrained on synthetic datasets with different varying parameters (successively added). We see different simulation parameters have different effects on downstream tasks.

To maximize the benefit of pre-training, different optimal simulation parameters can be found for each specific downstream tasks. Because of the combinatorially large set of different simulation parameter configurations, a brute force search is out of the question. However, this might still suggest that some, presumably expensive, learning process is needed for each downstream task for an optimal synthetic image set for pre-training. We show this is not the case.

We introduce Task2Sim, a unified model that maps a downstream task representation to optimal simulation parameters for pre-training data generation to maximize downstream accuracy. Using vector representations for a set of downstream tasks (in the form of Task2Vec

[1]), we train Task2Sim to find and thus learn a mapping to optimal parameters for each task from the set. Once trained on this set of “seen” tasks, Task2Sim can also use Task2Vec representations of novel “unseen” tasks to predict simulation parameters that would be best for their pre-training datasets. This efficient one-shot prediction for novel tasks is of significant practical value, if developed as an end-user application that can automatically generate and provide pre-training data, given some downstream examples.

Our extensive experiments using downstream classification datasets show that on seen tasks, given a number of images per category, Task2Sim’s output parameters generate pre-training datasets that are much better for downstream performance than approaches like domain randomization [77, 2, 26] that are not task-adaptive. Moreover, we show Task2Sim also generalizes well to unseen tasks, maintaining an edge over non-adaptive approaches while being competitive with Imagenet pre-training.

In summary, (i) We address a novel, and very practical, problem—how to optimally leverage synthetic data to task-adaptively pre-train deep learning models for transfer to diverse downstream tasks. To the best of our knowledge, this is the first time such a problem is being addressed in transfer learning research. (ii) We propose Task2Sim, a unified parametric model that learns to map Task2Vec representations of downstream tasks to simulation parameters for optimal pre-training. (iii) Task2Sim can generalize to novel “unseen” tasks, not encountered during training, a feature of significant practical value as an application. (iv) We provide a thorough analysis of the behavior of downstream accuracy with different sizes of pre-training data (in classes, object-meshes or simply images) and with different downstream evaluation methods.

2 Related Work

Training with Synthetic Data. Methods that learn from synthetic data have been extensively studied since the early days of computer vision [41, 33]. In recent years, many approaches that rely on synthetic data representations have been proposed for image classification [38, 12], object detection [45, 46], semantic segmentation [69, 52], action recognition [63, 51], visual reasoning [23], and embodied perception [55, 28, 74]. Unlike previous work, we focus on a different problem: how to build task-adaptive pre-trained models from synthetic data that can transfer to a wide range of downstream datasets from various domains.

Figure 2: Illustration of our proposed approach. Given a batch of tasks represented by Task2Vec representations, our approach (Task2Sim) aims to map these representations to optimal simulation parameters for generating a dataset of synthetic images. The downstream classifier’s accuracy for the set of tasks is then used as a reward to update Task2Sim’s parameters. Once trained, Task2Sim can be used not only for “seen” tasks but also can be used in one-shot to generate simulation parameters for novel “unseen” tasks.

Synthetic to Real Transfer. The majority of methods proposed to bridge the reality gap (between simulation and real data) are based on domain adaptation [8]. These include reconstruction-based techniques, using encoder-decoder models or GANs to improve the realism of synthetic data [49, 20, 56], discrepancy-based methods, designed to align features between the two domains [53, 80], and adversarial approaches, which rely on a domain discriminator to encourage domain-independent feature learning [47, 14, 62]. Contrasting from these techniques, our work aims at building pre-trained models from synthetic data and does not assume the same label set for source and target domains. The most prevalent approach in a setting similar to ours, is domain randomization [61, 46, 77, 2, 26], which learns pre-trained models from datasets generated by randomly varying simulator parameters. In contrast, Task2Sim learns simulator parameters to generate synthetic datasets that maximize transfer learning performance.

Optimization of Simulator Parameters. Recently, a few approaches have been proposed to learn synthetic data generation by optimizing simulator parameters [54, 27, 76, 3]. SPIRAL [13] and AVO [35] minimize the distance between distributions of simulated data and real data. Learning to Simulate [54] optimizes simulator parameters using policy gradients that maximize validation accuracy for a specific task, while Auto-Sim [3] speeds up the search process using a differentiable approximation of the objective. Meta-Sim [24, 11] learns to modify attributes obtained from probabilistic scene grammars for data generation. These methods are specifically tailored to applications in autonomous driving, whereas our goal is to transfer synthetic data representations to a wide range of downstream tasks. Notably, our proposed approach is significantly different from previous methods, as it maps task representations to simulation parameters through a unified parametric model, enabling one-shot synthetic data generation, even for unseen tasks, without requiring expensive training.

Conditional Computation.

Our approach is also related to dynamic neural network models that adaptively change computation depending on the input

[16]. These methods have been effectively used to skip computation in deep neural networks conditioned on the input [72, 68, 64], perform adaptive fine-tuning [15], and dynamically allocate computation across frames for efficient video analysis [73, 37]. In particular, Adashare [59] learns different computational pathways for each task within a single multi-task network model, with the goal of improving efficiency and minimizing negative interference in multi-task learning. In contrast, our approach learns different data simulation pathways (by adaptively deciding which rendering parameters to use) for each task, using a single parametric model, with the goal of generating task-specific pre-training data.

3 Proposed Approach

Our goal is to create a unified model that maps task representations (e.g., obtained using task2vec [1]) to simulation parameters, which are in turn used to render synthetic pre-training datasets for not only tasks that are seen during training, but also novel tasks. This is a challenging problem, as the number of possible simulation parameter configurations is combinatorially large, making a brute-force approach infeasible when the number of parameters grows.

3.1 Overview

Figure 2 shows an overview of our approach. During training, a batch of “seen” tasks is provided as input. Their task2vec vector representations are fed as input to Task2Sim, which is a parametric model (shared across all tasks) mapping these downstream task2vecs to simulation parameters, such as lighting direction, amount of blur, background variability, etc. These parameters are then used by a data generator, in our implementation, built using the Three-D-World platform [12], to generate a dataset of synthetic images. A classifier model then gets pre-trained on these synthetic images, and the backbone subsequently used for evaluation on specific downstream task. The classifier’s accuracy on this task is used as a reward to update Task2Sim’s parameters. Once trained, Task2Sim can also be used to efficiently predict simulation parameters in one-shot for “unseen” tasks that it has not encountered during training.

3.2 Task2Sim Model

Let us denote Task2Sim’s parameters with . Given the task2vec representation of a downstream task as input, Task2Sim outputs simulation parameters . The model consists of output heads, one for each simulation parameter. In the following discussion, just as in our experiments, each simulation parameter is discretized to a few levels to limit the space of possible outputs. Each head outputs a categorical distribution , where is the number of discrete values for parameter , and , a standard -simplex. The set of argmax outputs is the set of simulation parameter values used for synthetic data generation. In the following, we drop annotating the dependence of and on and when clear.

3.3 Task2Sim Training

Since Task2Sim aims to maximize downstream accuracy post pre-training, we use this accuracy as the reward in our training optimization111Note that our rewards depend only on the task2vec input and the output action and do not involve any states, and thus our problem can be considered similar to a stateless-RL or contextual bandits problem [31]. Note that this downstream accuracy is a non-differentiable function of the output simulation parameters (assuming any simulation engine can be used as a black box) and hence direct gradient-based optimization cannot be used to train Task2Sim. Instead, we use REINFORCE [71], to approximate gradients of downstream task performance with respect to model parameters .

Task2Sim’s outputs represent a distribution over “actions” corresponding to different values of the set of simulation parameters.

is the probability of picking action

, under policy . Remember that the output is a function of the parameters and the task representation . To train the model, we maximize the expected reward under its policy, defined as

(1)

where is the space of all outputs and is the reward when parameter values corresponding to action are chosen. Since reward is the downstream accuracy, . Using the REINFORCE rule, we have

(2)
(3)

where the 2nd step comes from linearity of the derivative. In practice, we use a point estimate of the above expectation at a sample

( being some exploration noise added to the Task2Sim output distribution) with a self-critical baseline following [48]:

(4)

where, as a reminder is the set of the distribution argmax parameter values from the Task2Sim model heads.

A pseudo-code of our approach is shown in Algorithm 1. Specifically, we update the model parameters using minibatches of tasks sampled from a set of “seen” tasks. Similar to [43]

, we also employ self-imitation learning biased towards actions found to have better rewards. This is done by keeping track of the best action encountered in the learning process and using it for additional updates to the model, besides the ones in Line

1 of Algorithm 1. Furthermore, we use the test accuracy of a 5-nearest neighbors classifier operating on features generated by the pretrained backbone as a proxy for downstream task performance since it is computationally much faster than other common evaluation criteria used in transfer learning, e.g., linear probing or full-network finetuning. Our experiments well demonstrate that this proxy evaluation measure indeed correlates with, and thus, helps in final downstream performance with linear probing or full-network finetuning.

1Input: Set of “seen” downstream tasks represented by task2vecs .
2 Given initial Task2Sim parameters and initial noise level
3 Initialize the maximum reward action for each seen task
4 for  do
5       Set noise level
6       Sample minibatch of size from
7       Get Task2Sim output distributions
8       Sample outputs
9       Get Rewards by generating a synthetic dataset with parameters , pre-training a backbone on it, and getting the 5-NN downstream accuracy using this backbone
10       Update if
11       Get point estimates of reward gradients for each task in minibatch using Eq. 4
12
13       for  do
             // Self Imitation
14             Get reward gradient estimates from Eq. 4 for
15
16       end for
17
18 end for
Output: Trained model with parameters .
Algorithm 1 Training Task2Sim

4 Experiments

4.1 Details

Downstream Tasks Used. We use a set of 20 classification tasks for our experiments with Task2Sim. We use the 12 tasks from [22] as the set of “seen” tasks for our model and a separate set of 8 tasks as the “unseen” set (details of all datasets are in Appendix G). All our tasks can be broadly categorized into the following 6 classes (S:seen, U:unseen):

  • Natural Images : CropDisease(S)[39], Flowers102(S)[42], DeepWeeds(S)[44], CUB(U)[65]

  • Aerial Images : EuroSAT(S)[18], Resisc45(S)[4], AID(U)[75], CactusAerial(U)[34]

  • Symbolic Images : SVHN(S)[40], Omniglot(S)[30], USPS(U)[21]

  • Medical Images : ISIC(S)[7], ChestX(S)[67], ChestXPneumonia(U)[25]

  • Illustrative Images: Kaokore(S)[60], Sketch(S)[66], Pacs-C(U), Pacs-S(U)[32]

  • Texture Images: DTD(S)[6], FMD(U)[81]

Task2Sim details.

We used a Resnet-18 probe network to generate 9600-dimensional Task2Vec representations of downstream tasks. The Task2Sim model is a multi-layer perceptron with 2 hidden layers, having ReLU activations. The model shares its first two layers for all

heads, and branches after that. It is trained for 1000 epochs on seen tasks, with a batch-size 4 and 5 self-imitation steps (

i.e. and ). A Resnet-50 model was used for pre-training and downstream evaluation for Task2Sim’s rewards. Details or pre-training and evaluation procedures are in Appendix F.

Synthetic Data Generation. We use Three-D-World (TDW) [12] for synthetic image generation. The platform provides 2322 different object models from 237 different classes, 57 of which overlap with Imagenet. Using TDW, we generate synthetic images of single objects from the aforementioned set (see Fig 1 for examples).

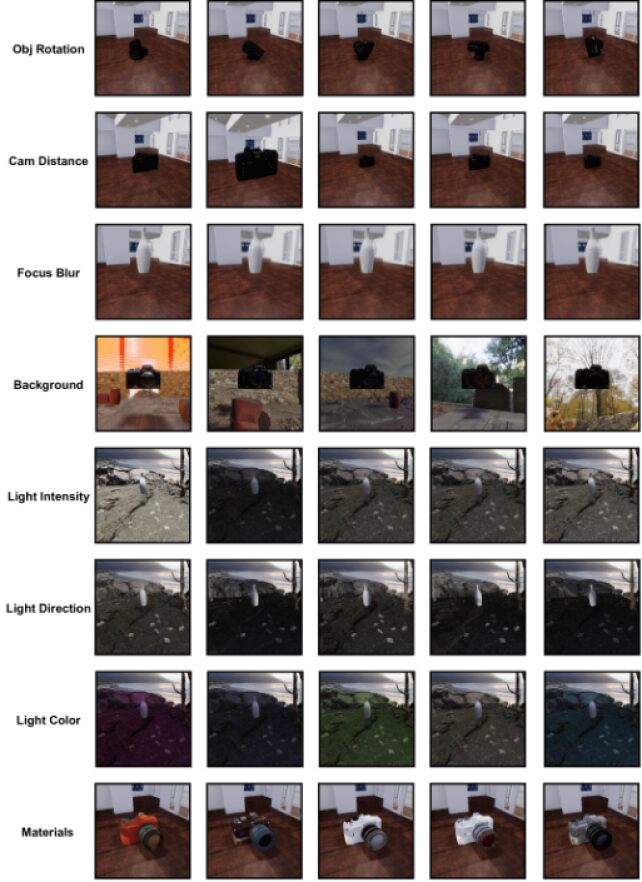

In this paper, we experiment with a parameterization of the pretraining dataset where and (using terminology from Sec 3). The 8 parameters are:

  • Object Rotation : If , multiple poses of an object are shown in the dataset, else, an object appears in a canonical pose in each image.

  • Object Distance (from camera) : If , object distance from the camera is varied randomly within a certain range, else, it is kept fixed.

  • Lighting Intensity : If , intensity of the main lighting source (sun-like point light source at a distance) is varied, else it is fixed.

  • Lighting Color : If , RGB color of the main lighting source is varied, else it is fixed.

  • Lighting Direction : If , the direction of the main light source is varied, else it is a constant.

  • Focus Blur : If , camera focus point and aperture are randomly perturbed to induce blurriness in the image, else, all image contents are always in focus.

  • Background : If , background of the object changes in each image, else it is held fixed.

  • Materials : If , in each image, each component of an object is given a random material out of 140 different materials, else objects have their default materials.

Thus, in our experiments, the controller decides for each of the above 8 parameters, whether or not different variations of it, would exhibit in the dataset. For speed of dataset generation while training Task2Sim, we used a subset of 780 objects with simple meshes, from 100 different categories and generated 400 images per category for pre-training.

4.2 Task2Sim Results

Baselines. We compared Task2Sim’s downstream performance with the following baselines (pre-training datasets): (1) Random : For each downstream dataset, chooses a random 8-length bit string as the set of simulation parameters. (2) Domain Randomization : Uses a 1 in each simulation parameter, thus using all variations from simulation in each image. (3) Imagenet : Uses a subset of Imagenet with equal number of classes and images as other baselines222We also compared pre-training using Imagenet with 1K classes and an equal number of images, but this was poorer on average in downstream performance than the subset with fewer classes. Tables 2, 3 and Figures 3, 4 do not include it for succinctness. (4) Scratch : Does not involve any pre-training of the classifier’s feature extractor, training a randomly initialized classifier, with only downstream task data.



Average Downstream Accuracy — Seen Tasks
100 classes / 40k images 237 classes / 100k images
Pretraining Dataset
5NN
Linear Probing
Finetuning
Linear Probing
Finetuning



Scratch - - 64.85 - 64.85
Random 25.30 54.06 70.77 55.14 72.18
Domain Randomization 19.42 35.31 62.96 45.31 68.51
Imagenet 28.91 63.12 74.26 68.44 77.61
Task2Sim 30.46 62.70 75.34 62.71 76.87



Table 2: Comparing the downstream accuracy on seen tasks for the Task2Sim chosen pretraining dataset and other baselines. Simulation parameters found on seen tasks by Task2Sim generates synthetic pretraining data that is better for downstream tasks than other approaches like using Random simulation parameters or Domain Randomization. Pre-training with Task2Sim’s data is also competitive with pre-training on images from Imagenet. Imagenet has been subsampled to the same number of classes and images as indicated at the top of the column. boldface=highest, underline= highest in column.



Average Downstream Accuracy — Unseen Tasks
100 classes / 40k images 237 classes / 100k images
Pretraining Dataset
5NN
Linear Probing
Finetuning
Linear Probing
Finetuning



Scratch - - 76.86 - 76.86
Random 51.80 74.68 83.97 74.11 83.49
Domain Randomization 45.06 56.96 72.64 69.12 78.15
Imagenet 54.12 75.47 84.78 81.33 87.84
Task2Sim 53.06 79.25 87.05 82.05 88.77



Table 3: Comparing the downstream accuracy on unseen tasks for the controller chosen pretraining dataset and other baselines. Task2Sim also generalizes well to “unseen” tasks, not encountered during training, maintaining an edge over other synthetic data, while still being competitive with Imagenet. Imagenet subsampled as in Table 2. boldface=highest, underline= highest in column.

Performance on seen tasks. Table 2 shows accuracies averaged over 12 seen downstream tasks for Task2Sim and all baselines using different evaluation methods for a Resnet-50 backbone. For the last two columns, we included all objects of TDW from 237 categories, and kept the number of images at roughly 400 per class, resulting in about 100k images total, regenerating a new dataset with the simulation parameters corresponding to the different synthetic image generation methods. On average, over the 12 seen tasks, simulation parameters that Task2Sim finds are better than Domain Randomization and Random selection and are competitive with Imagenet pre-training, both for the subset of classes that Task2Sim is trained using, and when a larger set of classes is used. Fig 3 shows accuracies for the 12 seen datasets for different methods, on the 237 category 100k image pre-training set.

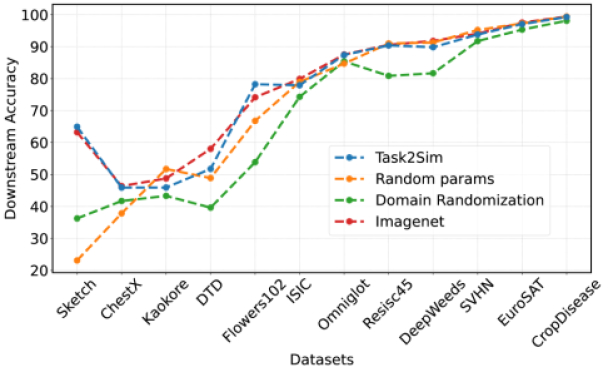

Figure 3: Performance of Task2Sim vs baselines on 12 seen tasks for 237 class / 100k image pre-training datasets evaluated with full-network finetuning. Best viewed in color.

Performance on unseen tasks. Table 3 shows the average downstream accuracy over 8 unseen datasets, of a Resnet-50 pretrained on different datasets and evaluated in different ways. We see that Task2Sim generalizes well, and is still better than Domain Randomization and Random simulation parameter selection. Moreover, it is marginally better on average than Imagenet pretraining for these tasks. Fig 4 shows the accuracies from the last column of Table 3 over the 8 individual unseen tasks.

Figure 4: Performance of Task2Sim vs baselines on 8 unseen tasks for 237 class / 100k image pre-training datasets evaluated with full-network finetuning. Best viewed in color.

4.3 Analysis

Task2Sim outputs. Fig 5 shows the output distribution from the trained Task2Sim model for different seen and unseen tasks. Each output shows the probability assigned by the model to the output 1 in that particular simulation parameter. From the outputs, we see the model determines that in general for the set of tasks considered, it is better to see a single pose of objects rather than multiple poses, and that it is better to have scene lighting intensity variations in different images than have lighting of constant intensity in all images. In general, adding material variability was determined to be worse for most datasets, except for SVHN. Comparing predictions for seen vs unseen tasks, we see that Task2Sim does its best to generalize to unseen tasks by relating them to the seen tasks. For e.g., outputs for ChestXPneumonia are similar to ChestX, while outputs of CactusAerial are similar to those of EuroSAT, both being aerial/satellite image datasets. A similar trend is also seen in PacsS and Sketch both of which contain hand-sketches, and for CUB and CropDisease, both natural image datasets.

Figure 5: Task2Sim outputs for different seen and unseen tasks. Values shown are predicted probability of value 1 in the specific simulation parameters. Best viewed in color.

Another inspection shows Task2Sim makes decisions that are quite logical for certain tasks. For instance, Task2Sim turns off the “Light Color” parameter for CUB. Here, color plays a major role in distinguishing different birds, thus needing a classifier representation that should not be invariant to color changes. Indeed, from Fig 9, we see that the neighbors of Task2Sim are of similar colors.

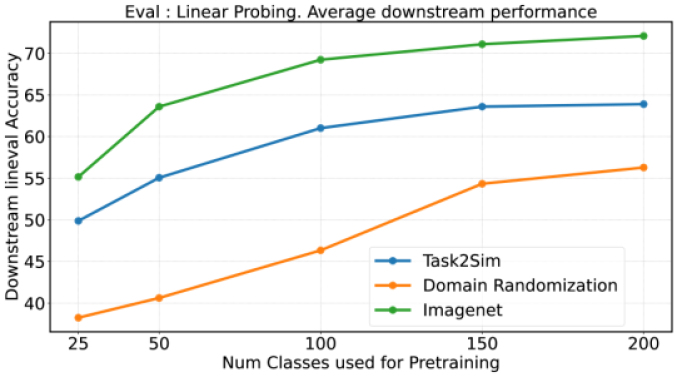

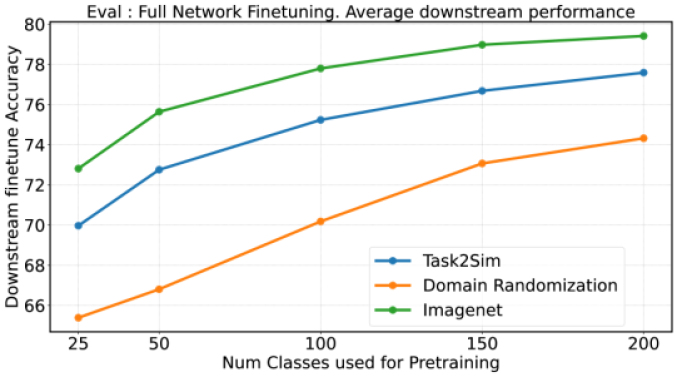

Figure 6: Avg performance over 12 seen tasks at different number of classes for pre-training. All methods improve performance at similar rates with the addition of more classes.

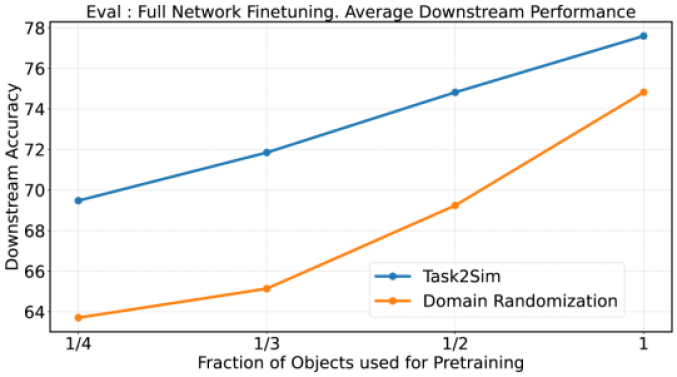

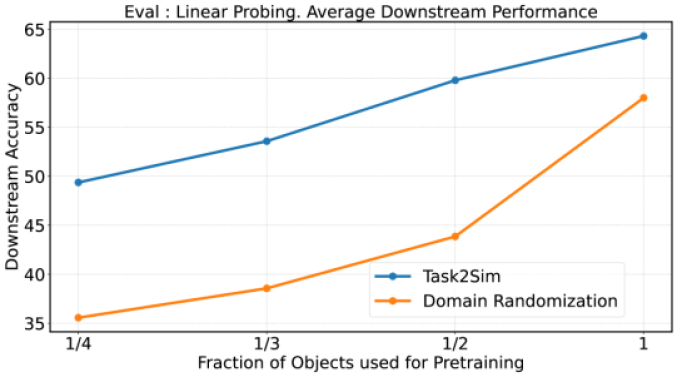

Figure 7: Avg performance over 12 seen tasks at different number of object meshes used per category for generating synthetic pretraining data. Both methods of synthetic data generation improve performance with addition of more objects with Domain Randomization improving at a slightly higher rate.

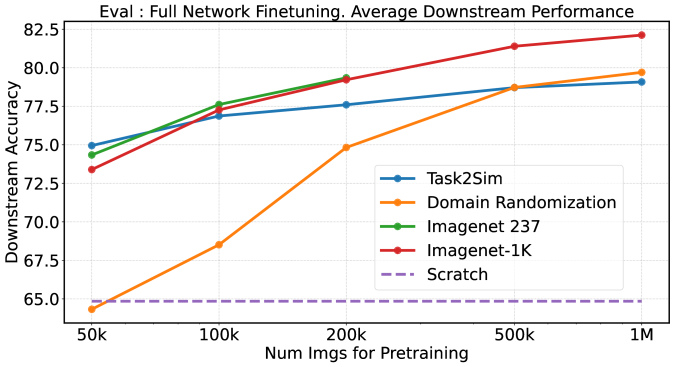

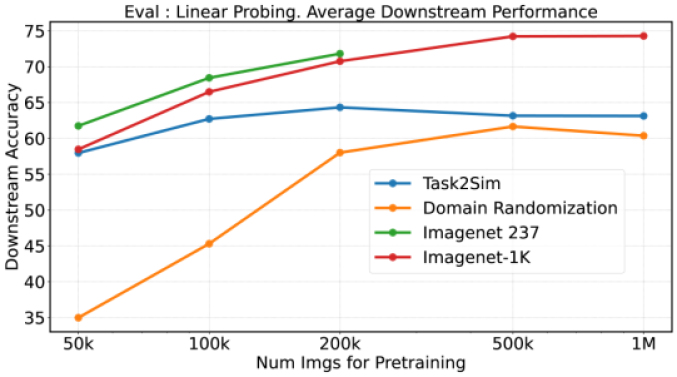

Figure 8: Task2Sim performance (avg over 12 seen tasks) vs other methods at different number of images for pretraining. Task2Sim is highly effective at fewer images. Increasing the number of images improves performance for all methods, reaching a saturation at a high enough number. See Sec 4.3 for more discussion.

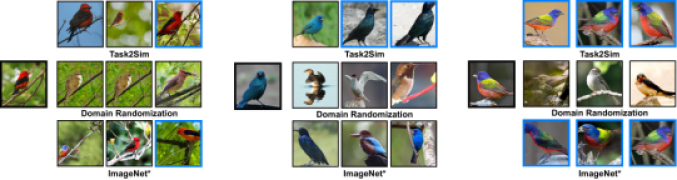

Figure 9: 3 nearest neighbors of three test examples from the CUB dataset based on different pretrained feature representations (top: Task2Sim, middle: domain randomization, bottom: ImageNet*). Neighbors with a blue box share the same class with the anchor image on the left. For Task2Sim, similar to Imagenet, the neighbors are of similar color which suggests that the pretrained representation captures color similarity which can be crucial for identifying different bird species. Best viewed in color.

Effect of number of pretraining classes. In Fig 6, we plot the average accuracy with full network finetuning on the 12 seen downstream tasks. On the x-axis, we vary the number of classes used for pre-training, with 1000 images per class on average (200 classes=200k images). We see all pre-training methods improve with more classes (and correspondingly more images) at about similar rates. Task2Sim stays better than Domain Randomization and competitive with (about 2% shy of) pre-training with an equivalent subset (in number of classes and images) of Imagenet.

Effect of number of different objects per class. In TDW, we have 2322 object meshes from 237 different categories. In Fig 7, we vary the number of object meshes used per category. The point right-most on the x-axis has 200k images with all objects used, and moving to the left, the number of images reduces proportionately as a fraction of these objects are used (the number of categories being the same). We find that with increasing number of different objects used for each category, Domain Randomization improves downstream performance at a slightly higher rate than Task2Sim.

Effect of number of pretraining images. In Fig 8, we show average downstream task accuracy, for the 12 seen tasks, with different number of images used for pretraining. All methods, except Imagenet-1K and Scratch, use 237 image categories, with synthetic datasets using all available object models. Imagenet-237 is a subset of Imagenet-1K containing 237 categories that were randomly picked. We see Task2Sim is highly effective in the regime where fewer images are available for pre-training, and is even slightly better than pre-training with Imagenet at 50k images. It maintains its advantage over non-adaptive pretraining up to a significant extrapolation of 500k images, having only trained using smaller datasets (of 100 classes and 40k images). At 1M images, it is still competitive with Imagenet pre-training and is much better than training from scratch.

We also observe that all methods improve when more pre-training images are available, although the rate of improvement decreases as we move along positive X-direction. Initially, Domain Randomization improves at a higher rate than Task2Sim and at 1M pretraining images, matches its performance. This is likely because at a higher number of images, even when there are all variations possible from simulation in each image (corresponding to Domain Randomization), the deep feature extractor grows robust to the variations which may not add any value to the representation for specific downstream tasks.

Our hypothesis is that at a fixed number of categories there may exist some point in number of pre-training images when the above robustness can be good enough to match Task2Sim’s downstream performance. With a 237-category limit from TDW and using the set of variations from our 8 chosen parameters, 1M images seems to be this point. As the number of classes increases, this point shifts towards higher number of images. As evidence, consider Fig 6, where we see that as more classes of objects are added with more data, different methods improve at similar rates. Moving further along positive X, if this holds with more classes, Task2Sim maintains its edge over Domain Randomization even at higher numbers of images. This suggests a non-adaptive pre-training method like Domain Randomization has potential to be as effective on average as Task2Sim, but only at the cost of more pre-training images. However, this cost would keep increasing as pre-training data encompasses more object categories, and would be unknown without experimentation.

For additional results and discussion, we refer readers to the Appendix.

5 Conclusion

We saw the approach that is optimal for downstream performance in using synthetic data for pre-training is to specifically adapt the synthetic data to different downstream tasks. In this paper, we parameterized our synthetic data via different simulation parameters from graphics engines, and introduced Task2Sim, which learns to map downstream task representations to optimal simulation parameters for synthetic pretraining data for the task. We showed Task2Sim can be trained on a set of “seen” tasks and can then generalize to novel “unseen” tasks predicting parameters for them in one-shot, making it highly practical for synthetic pre-training data generation.

Limitations. However, in this paper, we constrained our demonstration to a relatively low number of datasets and simulation parameters, limited by data generation, pre-training and evaluation speed. If these processes can be made more efficient, in future work, we can expect to use more simulation parameters (with possibly more discrete options or even real-valued ranges), and use more datasets for training Task2Sim, allowing it to be more effective in deployment as a practical application.

While a large portion of contemporary representation learning research focuses on self-supervision to avoid using labels, we hope our demonstration with Task2Sim motivates further research in using simulated data from graphics engines for this purpose, with focus on adaptive generation for downstream application.

Acknowledgements

This material is based upon work supported by the Defense Advanced Research Projects Agency (DARPA) under Contract No. FA8750-19-C-1001. Any opinions, findings and conclusions or recommendations expressed in this material are those of the author(s) and do not necessarily reflect the views of the Defense Advanced Research Projects Agency (DARPA). This work was also supported by Army Research Office Grant W911NF2110246, National Science Foundation grants CCF-2007350 and CCF-1955981, and the Hariri institute at Boston University.

We would like to thank the developers of TDW—Seth Alter, Abhishek Bhandwaldar and Jeremy Schwartz, for their assistance with the platform and its use.

References

  • [1] Alessandro Achille, Michael Lam, Rahul Tewari, Avinash Ravichandran, Subhransu Maji, Charless C Fowlkes, Stefano Soatto, and Pietro Perona. Task2vec: Task embedding for meta-learning. In ICCV, 2019.
  • [2] Peter Anderson, Ayush Shrivastava, Joanne Truong, Arjun Majumdar, Devi Parikh, Dhruv Batra, and Stefan Lee. Sim-to-real transfer for vision-and-language navigation. In CoRL, 2021.
  • [3] Harkirat Singh Behl, Atilim Güneş Baydin, Ran Gal, Philip HS Torr, and Vibhav Vineet. Autosimulate:(quickly) learning synthetic data generation. In ECCV, 2020.
  • [4] Gong Cheng, Junwei Han, and Xiaoqiang Lu.

    Remote sensing image scene classification: Benchmark and state of the art.

    Proceedings of the IEEE, 105(10):1865–1883, 2017.
  • [5] François Chollet. Xception: Deep learning with depthwise separable convolutions. In

    Proceedings of the IEEE conference on computer vision and pattern recognition

    , pages 1251–1258, 2017.
  • [6] Mircea Cimpoi, Subhransu Maji, Iasonas Kokkinos, Sammy Mohamed, and Andrea Vedaldi. Describing textures in the wild. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 3606–3613, 2014.
  • [7] Noel Codella, Veronica Rotemberg, Philipp Tschandl, M Emre Celebi, Stephen Dusza, David Gutman, Brian Helba, Aadi Kalloo, Konstantinos Liopyris, Michael Marchetti, et al. Skin lesion analysis toward melanoma detection 2018: A challenge hosted by the international skin imaging collaboration (isic). arXiv preprint arXiv:1902.03368, 2019.
  • [8] Gabriela Csurka. Domain adaptation for visual applications: A comprehensive survey. arXiv preprint arXiv:1702.05374, 2017.
  • [9] Ekin D Cubuk, Barret Zoph, Jonathon Shlens, and Quoc V Le. Randaugment: Practical automated data augmentation with a reduced search space. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition Workshops, pages 702–703, 2020.
  • [10] Jia Deng, Wei Dong, Richard Socher, Li-Jia Li, Kai Li, and Li Fei-Fei. Imagenet: A large-scale hierarchical image database. In 2009 IEEE conference on computer vision and pattern recognition, pages 248–255. Ieee, 2009.
  • [11] Jeevan Devaranjan, Amlan Kar, and Sanja Fidler.

    Meta-sim2: Unsupervised learning of scene structure for synthetic data generation.

    In ECCV, 2020.
  • [12] Chuang Gan, Jeremy Schwartz, Seth Alter, Martin Schrimpf, James Traer, Julian De Freitas, Jonas Kubilius, Abhishek Bhandwaldar, Nick Haber, Megumi Sano, et al. Threedworld: A platform for interactive multi-modal physical simulation. In NeurIPS, Datasets Track, 2021.
  • [13] Yaroslav Ganin, Tejas Kulkarni, Igor Babuschkin, SM Ali Eslami, and Oriol Vinyals. Synthesizing programs for images using reinforced adversarial learning. In ICML, 2018.
  • [14] Yaroslav Ganin, Evgeniya Ustinova, Hana Ajakan, Pascal Germain, Hugo Larochelle, François Laviolette, Mario Marchand, and Victor Lempitsky. Domain-adversarial training of neural networks.

    The Journal of Machine Learning Research

    , 17(1):2096–2030, 2016.
  • [15] Yunhui Guo, Honghui Shi, Abhishek Kumar, Kristen Grauman, Tajana Rosing, and Rogerio Feris. Spottune: transfer learning through adaptive fine-tuning. In CVPR, 2019.
  • [16] Yizeng Han, Gao Huang, Shiji Song, Le Yang, Honghui Wang, and Yulin Wang. Dynamic neural networks: A survey. arXiv preprint arXiv:2102.04906, 2021.
  • [17] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pages 770–778, 2016.
  • [18] Patrick Helber, Benjamin Bischke, Andreas Dengel, and Damian Borth. Eurosat: A novel dataset and deep learning benchmark for land use and land cover classification. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 12(7):2217–2226, 2019.
  • [19] Geoffrey Hinton, Oriol Vinyals, and Jeff Dean. Distilling the knowledge in a neural network. arXiv preprint arXiv:1503.02531, 2015.
  • [20] Judy Hoffman, Eric Tzeng, Taesung Park, Jun-Yan Zhu, Phillip Isola, Kate Saenko, Alexei Efros, and Trevor Darrell. Cycada: Cycle-consistent adversarial domain adaptation. In ICML, 2018.
  • [21] Jonathan J. Hull. A database for handwritten text recognition research. IEEE Transactions on pattern analysis and machine intelligence, 16(5):550–554, 1994.
  • [22] Ashraful Islam, Chun-Fu Chen, Rameswar Panda, Leonid Karlinsky, Richard Radke, and Rogerio Feris. A broad study on the transferability of visual representations with contrastive learning. arXiv preprint arXiv:2103.13517, 2021.
  • [23] Justin Johnson, Bharath Hariharan, Laurens Van Der Maaten, Li Fei-Fei, C Lawrence Zitnick, and Ross Girshick. Clevr: A diagnostic dataset for compositional language and elementary visual reasoning. In CVPR, 2017.
  • [24] Amlan Kar, Aayush Prakash, Ming-Yu Liu, Eric Cameracci, Justin Yuan, Matt Rusiniak, David Acuna, Antonio Torralba, and Sanja Fidler. Meta-sim: Learning to generate synthetic datasets. In ICCV, 2019.
  • [25] Daniel S Kermany, Michael Goldbaum, Wenjia Cai, Carolina CS Valentim, Huiying Liang, Sally L Baxter, Alex McKeown, Ge Yang, Xiaokang Wu, Fangbing Yan, et al. Identifying medical diagnoses and treatable diseases by image-based deep learning. Cell, 172(5):1122–1131, 2018.
  • [26] Rawal Khirodkar, Donghyun Yoo, and Kris Kitani.

    Domain randomization for scene-specific car detection and pose estimation.

    In WACV, 2019.
  • [27] Seung Wook Kim, Jonah Philion, Antonio Torralba, and Sanja Fidler. Drivegan: Towards a controllable high-quality neural simulation. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, pages 5820–5829, 2021.
  • [28] Eric Kolve, Roozbeh Mottaghi, Winson Han, Eli VanderBilt, Luca Weihs, Alvaro Herrasti, Daniel Gordon, Yuke Zhu, Abhinav Gupta, and Ali Farhadi. Ai2-thor: An interactive 3d environment for visual ai. arXiv preprint arXiv:1712.05474, 2017.
  • [29] Simon Kornblith, Mohammad Norouzi, Honglak Lee, and Geoffrey Hinton. Similarity of neural network representations revisited. In International Conference on Machine Learning, pages 3519–3529. PMLR, 2019.
  • [30] Brenden M Lake, Ruslan Salakhutdinov, and Joshua B Tenenbaum. Human-level concept learning through probabilistic program induction. Science, 350(6266):1332–1338, 2015.
  • [31] John Langford and Tong Zhang. Epoch-greedy algorithm for multi-armed bandits with side information. Advances in Neural Information Processing Systems (NIPS 2007), 20:1, 2007.
  • [32] Da Li, Yongxin Yang, Yi-Zhe Song, and Timothy M Hospedales. Deeper, broader and artier domain generalization. In Proceedings of the IEEE international conference on computer vision, pages 5542–5550, 2017.
  • [33] James J Little and Alessandro Verri. Analysis of differential and matching methods for optical flow. 1988.
  • [34] Efren López-Jiménez, Juan Irving Vasquez-Gomez, Miguel Angel Sanchez-Acevedo, Juan Carlos Herrera-Lozada, and Abril Valeria Uriarte-Arcia. Columnar cactus recognition in aerial images using a deep learning approach. Ecological Informatics, 52:131–138, 2019.
  • [35] Gilles Louppe, Joeri Hermans, and Kyle Cranmer. Adversarial variational optimization of non-differentiable simulators. In AISTATS, 2019.
  • [36] Dhruv Mahajan, Ross Girshick, Vignesh Ramanathan, Kaiming He, Manohar Paluri, Yixuan Li, Ashwin Bharambe, and Laurens Van Der Maaten. Exploring the limits of weakly supervised pretraining. In Proceedings of the European conference on computer vision (ECCV), pages 181–196, 2018.
  • [37] Yue Meng, Chung-Ching Lin, Rameswar Panda, Prasanna Sattigeri, Leonid Karlinsky, Aude Oliva, Kate Saenko, and Rogerio Feris. Ar-net: Adaptive frame resolution for efficient action recognition. In ECCV, 2020.
  • [38] Hiroaki Mikami, Kenji Fukumizu, Shogo Murai, Shuji Suzuki, Yuta Kikuchi, Taiji Suzuki, Shin-ichi Maeda, and Kohei Hayashi. A scaling law for synthetic-to-real transfer: How much is your pre-training effective? arXiv preprint arXiv:2108.11018, 2021.
  • [39] Sharada P Mohanty, David P Hughes, and Marcel Salathé. Using deep learning for image-based plant disease detection. Frontiers in plant science, 7:1419, 2016.
  • [40] Yuval Netzer, Tao Wang, Adam Coates, Alessandro Bissacco, Bo Wu, and Andrew Ng. Reading digits in natural images with unsupervised feature learning. NIPS Workshop on Deep Learning and Unsupervised Feature Learning 2011, pages 722–729, 2011.
  • [41] Ramakant Nevatia and Thomas O Binford. Description and recognition of curved objects. Artificial intelligence, 8(1):77–98, 1977.
  • [42] Maria-Elena Nilsback and Andrew Zisserman. Automated flower classification over a large number of classes. In 2008 Sixth Indian Conference on Computer Vision, Graphics & Image Processing, pages 722–729. IEEE, 2008.
  • [43] Junhyuk Oh, Yijie Guo, Satinder Singh, and Honglak Lee. Self-imitation learning. In International Conference on Machine Learning, pages 3878–3887. PMLR, 2018.
  • [44] Alex Olsen, Dmitry A. Konovalov, Bronson Philippa, Peter Ridd, Jake C. Wood, Jamie Johns, Wesley Banks, Benjamin Girgenti, Owen Kenny, James Whinney, Brendan Calvert, Mostafa Rahimi Azghadi, and Ronald D. White. DeepWeeds: A Multiclass Weed Species Image Dataset for Deep Learning. Scientific Reports, 9(2058), 2 2019.
  • [45] Xingchao Peng, Baochen Sun, Karim Ali, and Kate Saenko. Learning deep object detectors from 3d models. In ICCV, 2015.
  • [46] Aayush Prakash, Shaad Boochoon, Mark Brophy, David Acuna, Eric Cameracci, Gavriel State, Omer Shapira, and Stan Birchfield. Structured domain randomization: Bridging the reality gap by context-aware synthetic data. In ICRA, 2019.
  • [47] Zhongzheng Ren and Yong Jae Lee. Cross-domain self-supervised multi-task feature learning using synthetic imagery. In CVPR, 2018.
  • [48] Steven J Rennie, Etienne Marcheret, Youssef Mroueh, Jerret Ross, and Vaibhava Goel.

    Self-critical sequence training for image captioning.

    In Proceedings of the IEEE conference on computer vision and pattern recognition, pages 7008–7024, 2017.
  • [49] Stephan R Richter, Hassan Abu AlHaija, and Vladlen Koltun. Enhancing photorealism enhancement. arXiv preprint arXiv:2105.04619, 2021.
  • [50] Stephan R Richter, Vibhav Vineet, Stefan Roth, and Vladlen Koltun. Playing for data: Ground truth from computer games. In European conference on computer vision, pages 102–118. Springer, 2016.
  • [51] Cesar Roberto de Souza, Adrien Gaidon, Yohann Cabon, and Antonio Manuel Lopez. Procedural generation of videos to train deep action recognition networks. In CVPR, 2017.
  • [52] German Ros, Laura Sellart, Joanna Materzynska, David Vazquez, and Antonio M Lopez. The synthia dataset: A large collection of synthetic images for semantic segmentation of urban scenes. In CVPR, 2016.
  • [53] Artem Rozantsev, Mathieu Salzmann, and Pascal Fua. Beyond sharing weights for deep domain adaptation. IEEE transactions on pattern analysis and machine intelligence, 41(4), 2018.
  • [54] Nataniel Ruiz, Samuel Schulter, and Manmohan Chandraker. Learning to simulate. In ICLR, 2019.
  • [55] Manolis Savva, Abhishek Kadian, Oleksandr Maksymets, Yili Zhao, Erik Wijmans, Bhavana Jain, Julian Straub, Jia Liu, Vladlen Koltun, Jitendra Malik, et al. Habitat: A platform for embodied ai research. In ICCV, 2019.
  • [56] Ashish Shrivastava, Tomas Pfister, Oncel Tuzel, Joshua Susskind, Wenda Wang, and Russell Webb. Learning from simulated and unsupervised images through adversarial training. In CVPR, 2017.
  • [57] Hao Su, Charles R Qi, Yangyan Li, and Leonidas J Guibas. Render for cnn: Viewpoint estimation in images using cnns trained with rendered 3d model views. In Proceedings of the IEEE International Conference on Computer Vision, pages 2686–2694, 2015.
  • [58] Chen Sun, Abhinav Shrivastava, Saurabh Singh, and Abhinav Gupta. Revisiting unreasonable effectiveness of data in deep learning era. In Proceedings of the IEEE international conference on computer vision, pages 843–852, 2017.
  • [59] Ximeng Sun, Rameswar Panda, Rogerio Feris, and Kate Saenko. Adashare: Learning what to share for efficient deep multi-task learning. In NeurIPS, 2020.
  • [60] Yingtao Tian, Chikahiko Suzuki, Tarin Clanuwat, Mikel Bober-Irizar, Alex Lamb, and Asanobu Kitamoto. Kaokore: A pre-modern japanese art facial expression dataset. arXiv preprint arXiv:2002.08595, 2020.
  • [61] Josh Tobin, Rachel Fong, Alex Ray, Jonas Schneider, Wojciech Zaremba, and Pieter Abbeel. Domain randomization for transferring deep neural networks from simulation to the real world. In IROS, 2017.
  • [62] Eric Tzeng, Judy Hoffman, Kate Saenko, and Trevor Darrell. Adversarial discriminative domain adaptation. In CVPR, 2017.
  • [63] Gül Varol, Ivan Laptev, Cordelia Schmid, and Andrew Zisserman. Synthetic humans for action recognition from unseen viewpoints. International Journal of Computer Vision, 129(7):2264–2287, 2021.
  • [64] Andreas Veit and Serge Belongie. Convolutional networks with adaptive inference graphs. In ECCV, 2018.
  • [65] C. Wah, S. Branson, P. Welinder, P. Perona, and S. Belongie. The Caltech-UCSD Birds-200-2011 Dataset. Technical report, 2011.
  • [66] Haohan Wang, Songwei Ge, Eric P. Xing, and Zachary C. Lipton. Learning robust global representations by penalizing local predictive power. arXiv preprint arXiv:1905.13549, 2019.
  • [67] Xiaosong Wang, Yifan Peng, Le Lu, Zhiyong Lu, Mohammadhadi Bagheri, and Ronald M Summers. Chestx-ray8: Hospital-scale chest x-ray database and benchmarks on weakly-supervised classification and localization of common thorax diseases. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 2097–2106, 2017.
  • [68] Xin Wang, Fisher Yu, Zi-Yi Dou, Trevor Darrell, and Joseph E Gonzalez. Skipnet: Learning dynamic routing in convolutional networks. In ECCV, 2018.
  • [69] Zhonghao Wang, Mo Yu, Yunchao Wei, Rogerio Feris, Jinjun Xiong, Wen-mei Hwu, Thomas S Huang, and Honghui Shi. Differential treatment for stuff and things: A simple unsupervised domain adaptation method for semantic segmentation. In CVPR, 2020.
  • [70] Ross Wightman. Pytorch image models. https://github.com/rwightman/pytorch-image-models, 2019.
  • [71] Ronald J Williams.

    Simple statistical gradient-following algorithms for connectionist reinforcement learning.

    Machine learning, 8(3):229–256, 1992.
  • [72] Zuxuan Wu, Tushar Nagarajan, Abhishek Kumar, Steven Rennie, Larry S Davis, Kristen Grauman, and Rogerio Feris. Blockdrop: Dynamic inference paths in residual networks. In CVPR, 2018.
  • [73] Zuxuan Wu, Caiming Xiong, Chih-Yao Ma, Richard Socher, and Larry S Davis. Adaframe: Adaptive frame selection for fast video recognition. In CVPR, 2019.
  • [74] Fei Xia, Amir R Zamir, Zhiyang He, Alexander Sax, Jitendra Malik, and Silvio Savarese. Gibson env: Real-world perception for embodied agents. In CVPR, 2018.
  • [75] Gui-Song Xia, Jingwen Hu, Fan Hu, Baoguang Shi, Xiang Bai, Yanfei Zhong, Liangpei Zhang, and Xiaoqiang Lu. Aid: A benchmark data set for performance evaluation of aerial scene classification. IEEE Transactions on Geoscience and Remote Sensing, 55(7):3965–3981, 2017.
  • [76] Dawei Yang and Jia Deng. Learning to generate 3d training data through hybrid gradient. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, pages 779–789, 2020.
  • [77] Xiangyu Yue, Yang Zhang, Sicheng Zhao, Alberto Sangiovanni-Vincentelli, Kurt Keutzer, and Boqing Gong. Domain randomization and pyramid consistency: Simulation-to-real generalization without accessing target domain data. In ICCV, 2019.
  • [78] Sangdoo Yun, Dongyoon Han, Seong Joon Oh, Sanghyuk Chun, Junsuk Choe, and Youngjoon Yoo. Cutmix: Regularization strategy to train strong classifiers with localizable features. In Proceedings of the IEEE/CVF International Conference on Computer Vision, pages 6023–6032, 2019.
  • [79] Hongyi Zhang, Moustapha Cisse, Yann N Dauphin, and David Lopez-Paz. mixup: Beyond empirical risk minimization. arXiv preprint arXiv:1710.09412, 2017.
  • [80] Yang Zhang, Philip David, Hassan Foroosh, and Boqing Gong. A curriculum domain adaptation approach to the semantic segmentation of urban scenes. IEEE transactions on pattern analysis and machine intelligence, 42(8):1823–1841, 2019.
  • [81] Yide Zhang, Yinhao Zhu, Evan Nichols, Qingfei Wang, Siyuan Zhang, Cody Smith, and Scott Howard. A poisson-gaussian denoising dataset with real fluorescence microscopy images. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, pages 11710–11718, 2019.

Appendices

Appendix A Task2Vec

We used Task2Vec [1] representations for downstream tasks for our Task2Sim model. Task2Vec of a task consists of diagonal elements of the Fisher information matrix (FIM) of the outputs with respect to the network parameters over the distribution of downstream task examples (Refer to Sec. 2 of [1] for more details). For this purpose, following [1], we used a single Imagenet pre-trained probe network with only the classifier layer trained on specific tasks (using the training set of examples for that task). In our experiments, a Resnet-18 probe network was used, resulting in a 9600-dimensional Task2Vec task representation.

How much downstream data do we need access to? In the case of models pre-trained using an approach that is not task-adaptive, there is no need to access any downstream data while pre-training. Given that task-adaptive approaches need a downstream task representation we used Task2Vec. Here, following [1] we used all labeled examples from the training set of the downstream task to represent its distribution (in computing the FIM). However, we show that the FIM can be estimated by using fewer examples from the downstream task and the resulting Task2Vec vectors can be used to train Task2Sim with no degradation in performance (see Tab. 4). This property also makes Task2Sim more practical since a user need not wait to collect labels for all data pertaining to their downstream application in order to generate pre-training data using Task2Sim.

Fraction of data
used for Task2Vec
Avg Downstream Acc.
Seen Tasks Unseen Tasks
100% 30.46 53.06
50% 30.69 52.70
20% 30.72 53.11
10% 31.18 53.57
Table 4: Average downstream performance (evaluated with 5NN classifier and using 40k images from 100 classes for pre-training) over seen and unseen tasks using different fractions of downstream training data (randomly subsampled) used to compute Task2Vec task representations for Task2Sim model. Task2Sim performance does not degrade when fewer downstream examples are used for computing Task2Vec.

Appendix B Similarity between Learned Features

Figure 10: CKA similarities between features from backbones trained on different pre-training datasets (with 100k images from 237 classes). Similarities have been computed using features output at different stages of the Resnet-50 model. We notice that features at earlier stages across all methods of pre-training are quite similar and only later in the Resnet, do they start differentiating. We also observe that Task2Sim’s features are more similar to Imagenet than those produced by pre-training with Domain Randomization.

We used centered kernel alignment (CKA) [29] to find the similarity between features learned by the Resnet-50 backbone pre-trained on different image sets containing 100k images from 237 classes. Fig 10, shows these similarities computed using the output features at different stages of the backbone (Stages 1-4 are intermediate outputs after different convolutional blocks in the resnet).

A few interesting phenomena surface: Task2Sim features (i.e. features produced by a model pre-trained on Task2Sim generated dataset) are more similar to Imagenet features, than Domain Randomization. Thus Task2Sim in some manner, mimics features learned on real images better.

We can also see that features early on in the network are largely similar across all kinds of pre-training and they only start differentiating at later stages, suggesting high similarity in lower level features (e.g. edges, curves, textures, etc.) across different pre-training datasets. Also, as might be expected, features post downstream finetuning are more similar to each other than before, while still quite far away from being identical.

Appendix C Additional Results

c.1 Effect of Different Backbones

Figure 11: Effect of different backbones on average seen task performance (237 classes, 100k pre-training images). Best viewed in color.
Figure 12: Effect of different backbones on average unseen task performance (237 classes, 100k pre-training images). Best viewed in color.

In Figs 11 and 12, we show the average downstream performance over the seen and unseen tasks respectively, using different Resnet backbones (of different sizes). For this study, we used the same pre-training procedure across all backbones. We see that typically methods improve average downstream performance with the use of a larger backbone in the classifier. When moving from Resnet-50 to Renet-101, this trend changes in the case of pre-training with data generated using Task2Sim, indicating that a larger backbone overfit to this data, while it did not do so for data with Domain Randomization or from Imagenet. This indicates Task2Sim chose the optimal diversity in data for training a Resnet-50 backbone, and a larger backbone can overfit to it (at least while using the same pre-training procedure without additional regularization).

c.2 Task2Sim Results—Linear Probing

Figure 13: Performance of Task2Sim vs baselines on 12 seen tasks and 8 unseen tasks for 237 class / 100k image pre-training datasets evaluated with linear probing. Best viewed in color.

Fig 13 shows the downstream accuracy with linear probing for different seen and unseen datasets where pre-training dataset has 100k images from all 237 classes. These complement Figs. 3 and 4, where downstream evaluation used full network finetuning.

c.3 Varying Pre-training Data Size

Figure 14: Avg performance with linear probing over 12 seen tasks at different number of classes for pre-training. All methods improve performance at similar rates with the addition of more classes.
Figure 15: Avg performance with linear probing over 12 seen tasks at different number of object meshes used per category for generating synthetic pretraining data. Both methods of synthetic data generation improve performance with addition of more objects with Domain Randomization improving at a slightly higher rate.
Figure 16: Task2Sim performance (avg over 12 seen tasks) vs other methods using linear probing for evaluation at different number of images for pretraining. Task2Sim is highly effective at fewer images. Increasing the number of images improves performance for all methods. Towards higher number of images in the case of linear probing we see methods not only reach a saturation but also exhibit some overfitting to pre-training data. Also, Domain Randomization stops improving in this case (evaluation with linear probing) before it can match Task2Sim performance.

Linear Probing. Figs 14, 15 and 16 are counterparts (with downstream evaluation done with linear probing) of Figs. 6, 7 and 8 respectively. We see that primarily similar findings as the main paper hold and in Fig 14, different backbones improve at a similar rate with more classes (and images for pre-training). In Fig 15, we see that both methods of synthetic pre-training improve their features with more object models, with Domain Randomization improving at a slightly higher rate.

In Fig 16 we see some differences: There is a more severe saturating behavior of downstream performance, which even decreases by a little after a certain point for the synthetic pre-training data. This is likely because the feature extractor overfits to the pre-training task and a linear classifier on these features cannot perform as well. Both from Fig 14 and from the curve for Imagenet-1K in Fig 16 we see that this saturating/overfitting behavior is somewhat alleviated by more classes in pre-training data. Another observation of note in Fig 16 is that the feature extractor pre-trained on Domain Randomization starts overfitting before it matches the performance of Task2Sim. With Fig 8, we mentioned that with more images a non-adaptive approach like domain randomization could improve its performance faster and sometimes equal a task-adaptive approach like Task2Sim. Fig 16 indicates that although a non-adaptive approach may improve faster, it may not always match the performance of its adaptive counterpart.

Unseen Tasks. Figs 18, 19 and 20 show the effect of the above variations averaged over unseen tasks. We can see that similar trends hold in this case, as in the case of seen datasets.

Appendix D Societal Impact

In the introduction, we discussed model pre-training using large real image datasets was what paved the way for a gamut of transfer learning research. Using real images is however riddled with curation costs and others concerns around privacy, copyright, ethical usage, etc. The fact that downstream performance on average correlates positively with the size of pre-training data, created a race for curating bigger datasets. Corporations with large resources are able to invest in such large-scale curation and create datasets for their exclusive use (e.g. JFT-300M [5, 19], or Instagram-3.5B [36]), which are unavailable to a range of research on downstream applications.

Using synthetic data for pre-training can drastically reduce these costs, because potentially infinite images can be rendered once 3D models and scenes are available, by varying various simulation parameters. In this paper, we demonstrated that the optimal use of such a simulation engine can be found in restricting certain variations, and that different restrictions benefit different downstream tasks. Our Task2Sim approach, can be used as the basis for a pre-training data generator, which as an end-user application can allow research on a wide range of downstream applications to have access to the benefits of pre-training on large-scale scale data. This does not create any direct impacts on average individuals, but could do so through the advancement in downstream applications. One particular case, as an example, could be the advancement in visual recognition systems in the medical domain, possibly making the diagnosis of illnesses faster and cheaper.

Appendix E Synthetic Image Generation

Figure 17: Examples of variations using different simulation parameters. Best viewed in color and under zoom.

We used Three-D-World (TDW) [12] for synthetic image generation. It is a platform built using the Unity3D engine, and besides a python interface, provides asset bundles which include 3D object models, interactive 3D scenes, and HDRI skyboxes (360 images of real scenes accompanied with lighting information). TDW is available under a BSD 2-Clause ”Simplified” License.

For our implementation, we used all 2322 object models from 237 different classes available in TDW. We use a generator that imports one object into a simple scene with an HDRI-skybox background. It then, changes different properties of the scene/object/camera based on 8 simulation parameters as mentioned in Sec. 4.1. Whenever different variations corresponding to a simulation parameter are to be included, values are chosen uniformly at random within an appropriate range (via a careful choice of the extremes). Fig 17 has 8 rows corresponding to each of the simulation parameters used for Task2Sim. Each row shows using 5 images, the variations corresponding to its specific simulation parameter.

Generating 1M images using our generator with all 2322 objects, takes around 12 hours on an Nvidia Tesla-V100 GPU. Given the number of objects we used in our implementation, a bottleneck in image generation is the speed of loading object meshes into Unity3D. Hence, we used a subset of 780 objects from 100 classes with relatively simpler meshes, for generating the data used for training Task2Sim. The 8 parameters we used result in a total of different possibilities and so we pre-generated these 256 sets of 40k images each for faster and smoother training of the Task2Sim model. Each of these 256 sets took 30 mins to generate on a Tesla-V100 GPU.

Appendix F Training and Evaluation

We based our implementation of different classifiers for pre-training and downstream evaluation on pytorch-image-models [70]. For all experiments except those in Sec C.1, we used a Resnet-50 backbone for our classifier. For all datasets while pre-training, we used the following parameters : we trained for 100 epochs using an AdamW optimizer, using a learning rate 0.001 and a batch size of 1024. The learning rate used a linear warmup for 20 epochs and a cosine annealing schedule following warmup. We use regularization methods like label-smoothing, cutmix [78] and mixup [79] following a training strategy from [70]. We used image augmentation in the form of RandAugment [9] while pre-training.

For downstream evaluation, we followed a procedure similar to [22]

. For both evaluations using linear probing and full-network finetuning, we used 50 epochs of training using an SGD optimizer with learning rate decayed by a tenth at 25 and 37 epochs. No additional regularizers or data augmentation approaches were used. For each downstream task, we did a coarse hyperparameter grid-search over learning rate

, optimizer weight decay and training batch size . We found by comparing backbones pre-trained on Imagenet and a large synthetic set generated with Domain Randomization, that with the above grid, for each specific downstream task and evaluation method, a particular set of hyperparameters worked best irrespective of the pre-training data. This was found using a separate validation split created from the downstream training set with 30% of the examples. Given this finding, we fixed these hyperparameters for a given downstream task and evaluation method for all remaining experiments.

Appendix G Details of Downstream Tasks

Table 5 shows the number of classes in each of the 20 downstream tasks we used. It also shows the number of images in the training and test splits for each.

Category Dataset Train Size Test Size Classes
Natural CropDisease [39] 43456 10849 38
Flowers [42] 1020 6149 102
DeepWeeds [44] 12252 5257 9
CUB [65] 5994 5794 200
Satellite EuroSAT [18] 18900 8100 10
Resisc45 [4] 22005 9495 45
AID [75] 6993 3007 30
CactusAerial [34] 17500 4000 2
Symbolic Omniglot [30] 9226 3954 1623
SVHN [40] 73257 26032 10
USPS [21] 7291 2007 10
Medical ISIC [7] 7007 3008 7
ChestX [67] 18090 7758 7
ChestXPneumonia [25] 5216 624 2
Illustrative Kaokore [60] 6568 821 8
Sketch [66] 35000 15889 1000
PACS-C [32] 2107 237 7
PACS-S [32] 3531 398 7
Texture DTD [6] 3760 1880 47
FMD [81] 1400 600 10
Table 5: Number of classes in each downstream task and number of images in each training and test split.
Figure 18: Downstream performance (avg over 8 unseen tasks) with different number of classes for pre-training. Best viewed in color.
Figure 19: Downstream performance (avg over 8 unseen tasks) with different number of objects for pre-training. Best viewed in color.
Figure 20: Downstream performance (avg over 8 unseen tasks) with different number of images for pre-training. Best viewed in color.
