Different frameworks for implementing parallel data analytics have been developed by the HPC (MPI, OpenMP) and Big Data communities (Spark, Dask) . MPI is the most widely used programming abstraction on HPC resources. MPI assumes a SPMD execution model where each process executes the same program; communication and synchronization need explicit implementation. Big Data frameworks like Spark utilize higher-level MapReduce-style programming models avoiding explicit implementations of communication. While MPI is well-suited for tightly-coupled, compute-centric algorithms, Big Data frameworks are designed for loosely-coupled, data-parallel algorithms.
Task-parallel applications are parallelized by partitioning the work into a set of self-contained units of compute, which require small amounts of coordination. Depending on the application, these tasks can be independent, i. e., with no interprocess communication, or coupled with varying degrees of data and compute dependencies. Big Data applications exploit task parallelism for data-parallel parts (e. g., map operations), but also require some coupling, viz., for computation of aggregates (the reduce operation). The MapReduce  abstraction popularized this important execution pattern. Typically, the reduce operation includes shuffling of intermediate data from a set of nodes to node(s) where the reduce operation executes. Big Data frameworks started adopting different HPC techniques to efficiently support interprocess communication, e. g. efficient shuffle operations  and other forms of communication .
are two well-known Big Data frameworks. Both provide high-level MapReduce abstractions and are optimized for parallel processing of large data volumes, interactive analytics and machine learning. Their runtime engines can automatically partition data, generate parallel tasks, and execute them on a cluster of nodes. In addition, Spark offers in-memory capabilities that allows the caching of data that is read multiple times, making it particularly suited for interactive analytics and iterative machine learning algorithms. Dask also provides a MapReduce API (Dask Bags). Further, Dask’s API is more versatile and allows custom task DAGs and parallel vector/matrix computations.
The attempt is not to determine which approach is better (big data versus HPC), but how to provide the ”best of both” to a diverse set of applications [4, 7]. Several recent publications have applied HPC techniques to advance traditional Big Data applications and big data analytic frameworks . The converse problem, viz., the application of big data frameworks to traditional HPC analytics applications, has received less attention. In this paper, we investigate the data analysis requirements of Molecular Dynamics (MD) applications. MD simulations are significant consumers of supercomputing cycles, producing immense amounts of data: a typical MD simulation of physical systems of O(100,000) atoms can produce from O(10) to O(1000) GBs of data . In addition to being the prototypical HPC application, there is increasingly a need for the analysis to be integrated with the simulations to drive the next stages of the simulation (analysis-driven-simulation) .
In this paper, we investigate three frameworks and their suitability for implementing MD trajectory analysis algorithms. In addition to Spark and Dask, two Big Data frameworks, we investigate RADICAL-Pilot , a Pilot-Job  framework designed for implementing task-parallel applications on HPC. MD trajectories are time series of atoms/particles positions and velocities, which are analyzed using different statistical methods to infer certain properties, e. g. the relationship between distinct trajectories, frames within a trajectory etc. Many of these algorithms can be expressed using simple task abstractions or MapReduce . Thus, the selected frameworks are promising candidates for MD analysis applications.
The paper makes the following contributions: it (i) characterizes and explains the behaviour of different MDAnalysis algorithms on these frameworks, (ii) evaluates the performance differences with respect to the architectures of these frameworks, and (iii) provides a conceptual basis for comparing the abstraction, capabilities and performance of these frameworks.
This paper is organized as follows: Section II discusses the Molecular Dynamics analysis algorithms under investigation, and tries to characterize them using the Big Data ogres classification ontology . Section III, provides a description of the different frameworks that were used for evaluation. Section IV provides a description of the implementation of the MD algorithms on top of RADICAL-Pilot, Spark and Dask, as well as a performance evaluation and a discussion of findings. Section V reviews different of MD analysis frameworks in particular with respect to their ability to support scalable analytics of large volume MD trajectories. The paper concludes with a summary and discussion of future work in section VI.
Ii Molecular Dynamics Analysis Applications
Some of the commonly used algorithms in the analysis of MD trajectories are Root Mean Square Deviation (RMSD), Pairwise Distances (PD), Path Similarity (PS), Sub-setting, “Leaflet Identification”. RMSD is used to identify the deviation of atoms’ positions between frames produced by a MD simulation. PD and PS methods calculate distances based on different metrics either between atoms or trajectories. Sub-setting methods are used to isolate parts of interest of MD simulation. Leaflet identification methods provide information about groups of atoms in space; named after the common use case of identifying the two lipid leaflets in lipid bilayer. All these methods, in some way, read and process the whole physical system generated via simulations. The analysis done reduces the data to either a number or matrix.
We discuss in more detail two of these methods and their implementation in MDAnalysis [14, 15]. Specifically, we discuss a Path Similarity algorithm using the Hausdorff distance and a Leaflet Identification method. In addition, we explore the applications’ Ogres Facets and Views  which will provide a more systematic characterization.
MDAnalysis is a Python library [14, 15] to analyze time series of atom coordinates. It is based on existing PyData tools, such as NumPy, and provides a comprehensive environment for filtering, transforming and analyzing MD trajectories.
Ii-A1 Path Similarity Analysis (PSA): Hausdorff Distance
Path Similarity Analysis (PSA)  is used to quantify the similarity between two trajectories based on the properties of a distance metric. The Hausdorff Distance is an example of such a metric. Each trajectory is represented as a two dimensional array. The first dimension is a frame of the trajectory and the second is position of the atoms, in 3-dimensional space.
Algorithm 1 shows the PSA: Hausdorff Distance algorithm over multiple number of trajectories. We apply a 2-dimensional data partitioning over the output matrix in order to parallelize this algorithm. The partitioning is shown in algorithm 2. The Hausdorff metric we employ is based on a brute-force algorithm. Recently, an algorithm that uses early break was introduced  to speedup the execution. However, we are not aware of a parallel implementation of this algorithm.
Ii-A2 Leaflet Finder
Algorithm 3 describes the Leaflet Finder algorithms as presented in . It can be used to identify the outer and inner leaflets of a lipid membrane of arbitrary shape from trajectory information provided by simulations. The algorithm consists of two stages: first, a graph connecting particles based on threshold distance (the cutoff) is constructed. In the second stage the connected components of the graph are computed. The largest and second largest subgraph are the leaflets.
Ii-B Application Characterization Using Big Data Ogres
|Algorithm||Execution View||Data Source & Style||Problem Architecture View||Processing View|
|PSA||, Large Input/Small Output, NumPy & Python Arithmetic Libraries, Runtime||HPC Simulations, Permanent Data, Lustre, produced & stored by simulations||Embarrassingly Parallel||Linear Algebra Kernels|
|Leaflet Finder||Pairwise Distance: . Tree-based Nearest Neighbor Construction: , Search: . Connected Components: . Similar I/O, Small intermediate Data, NumPy & Python Arithmetic Libraries, Runtime, Graphs||HPC Simulations, Permanent Data, Lustre, produced & stored by simulations||MapReduce||Graph Algorithm, Linear Algebra Kernels|
The Big Data Ogres  provide a framework for understanding and characterizing the data-intensive applications. Ogres are organized into 4 classification dimensions, the views. The possible features of a view are called facets. The combination of the facets from different views define an Ogre. Ogres comprise of four views: 1. execution, 2. data source & style, 3. processing and 4. problem architecture. The execution view describes aspects, such as the I/O, memory and compute ratios, whether computations are iterative, and the 5 V’s of Big Data. The data source & style view discusses the way input data are collected, stored and accessed. The processing view describes algorithms and kernels used for computation. The problem architecture view, describes the application architecture needed to support the application.
Table I summarizes the characteristics of the two MDAnalysis algorithms. The PSA Hausdorff Distance is embarrassingly parallel and uses some linear algebra kernels for calculations. It has complexity (problem architecture and processing views). Its input data volume is medium to large while the output is small. Specific execution environments, such as HPC nodes, and Python arithmetic libraries, e.g., NumPy, are used (execution view). The input data are produced by HPC simulations. It is typically stored on HPC storage systems, such as parallel filesystem like Lustre (data source & style view).
The Leaflet Finder execution view can be described as follows. The application comprises of multiple stages with different complexities: The first stage is the identification of the neighboring atoms. There are different implementation alternatives: (i) computation of the pairwise distance between all atoms (); (ii) utilizing a tree-based nearest neighbor (Construction: , Query: ). In both alternatives the input data volume is medium size and the output of this stage is smaller than the input. The complexity of connected components is: (: Vertices, : Edges), i. e. it greatly depends on the characteristics of the graph (in particular its sparsity).
The application typically uses HPC nodes as the execution environment, NumPy arrays, and runtime as performance metric. It uses matrices to represent the physical system and the distance matrix. The output data representation is a graph, i. e., a set of connected atoms that make up the leaflet. The Leaflet Finder can be efficiently implemented using the MapReduce abstraction (problem architecture view). The map phase determines adjacent atoms, and the reduce phase computes the connected components. Furthermore, it uses graph algorithms and linear algebra kernels, characteristics which are processing view facets. The data source & style view facets are the same as the PSA algorithm.
Iii Background of Evaluated Frameworks
The landscape of frameworks for data-intensive applications is manifold [7, 1] and has been extensively studied in the context of scientific  applications. In this section, we investigate the suitability of frameworks, such as Spark , Dask  and RADICAL-Pilot , for molecular dynamics data analytics.
MapReduce  and the open source Hadoop implementation pioneered the concept of combining a simple functional API with a powerful distributed computing engine that exploits data locality to allow optimal I/O performance. It is widely recognized that MapReduce is inefficient for interactive workloads and iterative machine learning algorithms [5, 19]. Spark and Dask are more modern systems providing richer APIs, caching and other capabilities critical for analytics applications. RADICAL-Pilot is a Pilot-Job framework  that supports task-level parallelism on HPC resources. It has been successfully utilized for adding a parallelization level on top of HPC applications based on MPI.
As described in , these frameworks typically comprise of several distinct layers, e. g., for accessing the cluster scheduler, for framework-level scheduling and higher-level abstractions. On top of these low-level resource management capabilities various higher-level abstractions can be provided, e. g., high-level MapReduce-inspired functional APIs. These then provide the foundation for analytics abstractions, such as Dataframes and machine learning capabilities. Figure 1 visualizes the different components of RADICAL-Pilot, Spark and Dask. In the following, we describe each framework in detail.
Spark  is a distributed computing framework that extends the MapReduce programming model  providing a richer set of transformations on top of the resilient distributed dataset (RDD) abstraction . RDDs are cached in-memory making Spark well suitable for iterative machine learning applications that need to cache a working set of data across multiple stages. PySpark provides a comprehensive Python API to Spark.
A Spark job consists of multiple stages; a stage comprises of a set of tasks that can be executed without communication (e. g., map) and an action (e. g., reduce, groupby). After each action a new stage is started. The DAGScheduler is responsible for translating the logical execution plan specified via RDD transformation to a physical plan.
The Spark distributed execution engine handles the low-level details of task execution based on the specified lineage of RDD transformations. The framework handles parallelism (e. g., by RDDs partitioning) and generates dataflow graph (referred to as DAG) that is executed according to the specified dependencies. Transformation are not scheduled for execution until the data they generate are needed by an action. Actions are Spark instructions that do an operation over a dataset. Execution of jobs is triggered by actions.
Spark can read data from different data sources, e. g., HDFS, blob storage (such S3), parallel and local filesystems. While Spark caches loaded data in memory, it is capable of offloading to disk when an executor has not sufficient memory available to hold all the data of its assigned partition. Persisted RDDs remain in memory unless it is specified to use the disk either complementary or as the single target. In addition, Spark writes to disk data that are used in a shuffle. As a result, it allows quick access to those data when transmitted to another executor. Finally, Spark provides a set of actions that allow to directly write text files, Hadoop sequence files or object files to the local filesystem, HDFS or any other filesystem that supports Hadoop. In addition to RDDs, Spark supports higher-level API for processing structured data, such as dataframes, Spark-SQL, datasets, and for streaming data.
Dask  provides a Python-based parallel computing library, which is designed to inter-operate and to parallelize native Python code written for NumPy and Pandas. In contrast to Spark, Dask also provides a lower-level task API (the delayed API) that allows the user to construct arbitrary graphs. Dask is written in Python and does not require a JVM avoiding some of the inefficiencies of PySpark, e. g., the necessity to move data from the Java/Scala to Python interpreter.
In addition to the low-level task API, Dask offers three higher-level abstractions: bags, arrays and dataframes. Dask Arrays are collection of independent NumPy arrays organized as a grid. Dask Bags are similar to Spark RDDs and are used to analyze semi-structured data, like JSON files. Dask Dataframe is a distributed collection of Pandas dataframes that can be analyzed in parallel.
In addition, Dask offers three schedulers: multithreading, multiprocessing and distributed. The multithreaded and multiprocessing schedulers can be used only on a single node and the parallel execution is done through threads or processes respectively. The distributed scheduler creates a cluster with a scheduling process and multiple worker processes. A client process creates and communicates a DAG to the scheduler. The scheduler assigns tasks to workers.
RADICAL-Pilot  is a Pilot-Job framework , implemented in Python, which allows concurrent task execution on HPC resources. The user can define a set of Compute-Units (CU) - the abstraction used to define a task along with its dependencies - which are submitted to RADICAL-Pilot. RADICAL-Pilot then schedules these CUs to be executed under the acquired resources. RADICAL-Pilot uses the existing environment of the resource to execute tasks. Any data communication between tasks is done via the use of the underlying parallel filesystem, e.g., Lustre. Task execution coordination and communication is done through a database (MongoDB).
|Languages||Python||Java, Scala, Python, R||Python|
|Functional Abstraction||-||RDD API||Bag|
|Higher-Level Abstractions||EnTK ||Dataframe, ML Pipeline, MLlib ||Dataframe, Arrays for block computations|
|Resource Management||Pilot-Job||Spark Execution Engines||Dask Distributed Scheduler|
|Scheduler||Individual Tasks||Stage-oriented DAG||DAG|
|Caching||-||RDD are in-memory cached||-|
|Shuffle||-||hash/sort-based shuffle||hash/sort-based shuffle|
|Limitations||no shuffle, filesystem-based communication||high overheads for Python tasks (serialization)||Dask Array can not deal with dynamic output shapes|
Table II summarizes the properties of these frameworks with respect to abstractions and runtime properties provided to create and execute parallel data applications.
API and Abstractions
RADICAL-Pilot provides a low-level API for scheduling tasks onto resources. While this API can be used to implement high-level capabilities, e. g. MapReduce , they are not provided out-of-the box. Both Spark and Dask provide higher-level abstractions: Dask’s APIs are generally lower-level than the comparable Spark APIs, e. g., it allows the specification of arbitrary task DAGs. Further, the data partition size needs to be manually specified (via the block size). However, in many cases it is also necessary to fine-tune the parallelism in Spark by specifying the number of partitions.
Another important consideration is the availability of high-level abstractions. Higher-level tools for RADICAL-Pilot, such as the Ensemble Toolkit (EnTK)  are designed for workflows involving compute-intensive tasks. For Spark and Dask a set of high-level data-oriented abstractions exist, such as Dataframes and machine learning APIs.
Both Spark and Dask create a Direct Acyclic Graph (DAG) based on the specified transformations, which is then executed using the execution engine. Spark jobs are separated into stages. Once all tasks in a stage are completed, the scheduler moves to the next stage.
Dask’s DAGs are represented by a tree where each node is a task. Leaf tasks do not depend on other task for the execution. Dask starts executing leaf tasks; tasks are executed as soon as their dependencies are satisfied. When a task is reached with unsatisfied dependencies, the scheduler executes the dependent task first. In contrast to Spark, the Dask scheduler does not rely on synchronizations points that the Spark stage-oriented scheduler introduces. RADICAL-Pilot does provide a DAG execution engine and requires the execution order to be specified explicitly, i. e. the user needs to describe, submit and synchronize tasks.
Suitability for MDAnalysis Algorithms
Trajectory analysis methods are often embarrassingly or pleasingly parallel, i. e., they are ideally suited for task management and functional MapReduce APIs. For example, PS methods typically require a single pass over the data and return a set of values that correspond to a relationship between frames or trajectories. They can easily be expressed as a bag of independent tasks using a task management API and a map-only application in a MapReduce-style API.
The Leaflet Finder is more complex and requires two stages: (i) in the edge discovery stage atoms that have a distance smaller than a defined cutoff are connected to a graph, and (ii) in the connected components stage it computes the connected components on this graph. While it is possible to implement Leaflet Finder with a simple task-management API, the MapReduce programming model enables the developer to express this problem more efficiently with a map for computing and filtering the distance and a reduce phase for computing the graph. The data movement or shuffling required between the map and reduce phase is medium as the number of edges represents a fraction of the input data.
Iv Experiments and Discussion
In this section, we characterize the performance of RADICAL-Pilot, Spark and Dask. In section IV-A we evaluate the task throughput using a synthetic workload. In sections IV-B and IV-C we evaluate the performance of two algorithms from the MDAnalysis library: Hausdorff Distance and LeafletFinder using different real-world datasets. We investigate: (i) what capabilities and abstractions of the frameworks are needed to efficiently express these algorithms, (ii) what architectural approaches can be used to implement these algorithms with these frameworks, and (ii) the performance trade-offs of these frameworks.
The experiments were executed on the XSEDE Supercomputers: Comet and Wrangler. SDSC Comet is a 2.7 PFlop/s cluster with 24 Haswell cores/node and 128 GB memory/node (6,400 nodes). TACC Wrangler is a cluster optimized for data-intensive computing; it has 48 cores/node and 128 GB memory/node (120 nodes). Experiments were carried using RADICAL-Pilot and the Pilot-Spark  extension, which allows the efficient management of Spark clusters on HPC infrastructures using a common interface for resource management. For Dask, we utilize a set of custom scripts to start the Dask cluster. We used RADICAL-Pilot 0.46.3rc, Spark 2.2.0, Dask 0.14.1 and Dask Distributed 1.16.3.
Iv-a Frameworks Evaluation
As data-parallelism often involves a large number of short-running tasks, task throughput is a critical metric to assess the different frameworks. To evaluate the throughput we use zero workload tasks (/bin/hostname), We submit an increasing number of such tasks to RADICAL-Pilot, Spark and Dask and measure the execution time.
For RADICAL-Pilot, all tasks were submitted as bulk CUs. The RADICAL-Pilot backend database was running on the same node to avoid larger communication latencies. For Spark, we created an RDD with as many partitions as the number of tasks – each partition is mapped to a task by Spark. For Dask, we created tasks using delayed functions that were executed using the Distributed scheduler. We utilized Wrangler and Comet for this experiment.

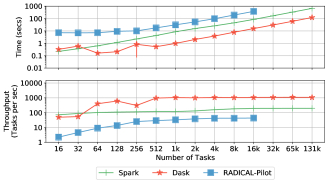

The results are shown in Figure 2. Dask needed the least time to schedule and execute the assigned tasks, followed by Spark and RADICAL-Pilot. Dask and Spark quickly reach their maximum throughput, which is sustained while the number of tasks is increasing. RADICAL-Pilot showed the worst throughput and scalability mainly due to some architectural limitations, e. g., the reliance on MongoDB to communicate between the Pilot-Manager and Agents. Thus, we were not able to scale RADICAL-Pilot to more 32k or more tasks.

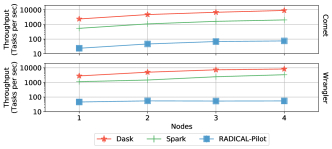

Figure 3 illustrate the throughput when scaling to multiple nodes measured by submitting . Dask’s throughput on all three resources increases almost linearly to the number of nodes. Spark’s throughput is an order of magnitude lower than Dask’s. RADICAL-Pilot’s throughput plateaus at below 100 task/sec.
Iv-B Path Similarity: Hausdorff Distance
The Hausdorff distance algorithm is embarrassingly parallel and can be implement using simple task-level parallelism or a map only MapReduce application. The input data, i. e. a set of trajectory files, is equally distributed over the cores, generating one task per core. Each task reads its respective input files in parallel, executes and writes the result to a file.
For RADICAL-Pilot we define a Compute-Unit for each task and execute them using a Pilot-Job. For Spark, we create an RDD with one partition per task. The tasks are executes in a map function. In Dask the tasks are defined as delayed functions.
The experiments were executed on Comet and Wrangler. The dataset used consists of three different atom count trajectories: small (3,341 atoms/frame), medium (6,682 atoms/frame) and large (13,364 atoms/frame). Each trajectory has 102 frames and 128 trajectories of each size were used.

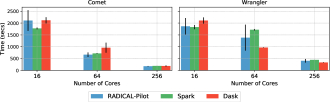

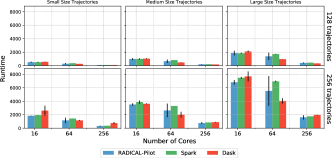

Figure 4 shows the runtime for 128 trajectories and 256 trajectories on Wrangler. Figure 5 compares the execution times between Comet and Wrangler for the large trajectories. We see that the frameworks have similar performance on both systems. As a result, moving the execution between resources will not affect the performance of the frameworks apart from the expected difference due to hardware differences.
RADICAL-Pilot, Spark and Dask have similar performance when they are used to execute algorithms that are pleasingly parallel. In all cases the overheads are comparable low in relation to the overall runtime. All frameworks achieved similar speedups as the number of cores increased. RADICAL-Pilot had the largest overheads because it creates links to files for moving data. In addition, RADICAL-Pilot large deviation is due to sensitivity to communication delays with the database. In summary, all three frameworks provide appropriate abstractions and runtime performance for embarrassingly parallel algorithms. In this case aspects such as programmability and integrate-ability are the most important considerations, e. g., both RADICAL-Pilot and Dask are native Python frameworks making the integration with MDAnalysis easier and more efficient than with other frameworks.
Iv-C Leaflet Finder
Broadcast and 1-D Partitioning: Use of the RDD API (broadcast) and Dask Bag API (scatter) to distribute data to all nodes. The physical system is broadcasted and partitioned through a RDD. A map function calculates the edge list using the cdist function of SciPy . This list is collected by the master process and the connected components are calculated.
Task API and 2-D Partitioning: Data management is done outside of the data-parallel framework, i. e., outside of Spark and Dask. The framework is used solely for task scheduling. The data are pre-partitioned in 2-D partitions and passed to a map function that calculates the pairwise distance and the edge list. Results are collected and the connected components are calculated
Parallel Connected Components (Parallel-CC): Data are managed as in approach 2. Each map task performs the pairwise-distance and connected components computations. The reduce phase joins the calculated graph components into one, if there is at least one common node.
Tree-based Nearest Neighbor and Parallel-Connected Components (Tree-Search): This approach is different to approach 3 only on the way edge discovery in the map phase is implemented. A tree-structure containing all atoms is created which is then used to query for adjacent atoms.
We use four physical systems with , , and atoms withand , , and edges in the graphs respectively. The experiments were conducted on Wrangler where we utilized up to 256 cores. The data is partitioned into 1024 parts so that 1024 tasks are used during the edge discovery phase. The only exception is with Approach 3 and the atoms dataset. Due to cdist’s memory footprint – uses double precision floating point internally – the data is partitioned into parts, and thus tasks.

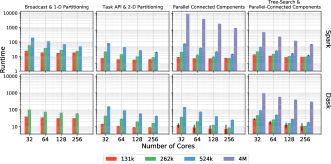

Figure 7 shows the runtimes for all datasets for Spark and Dask. The RADICAL-Pilot performance is illustrated in Figure 9. In the following we analyze the performance of the architectural approaches and used frameworks in detail.
Iv-C1 Broadcast and 1-D Partitioning

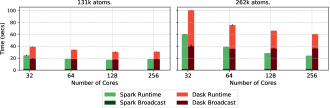

Approach 1 utilizes a broadcast to distribute the data to all nodes, which is only supported by Spark and Dask. All nodes maintain a complete copy of the dataset. Each map task will then compute the pairwise distance on its partition. We use 1-D partitioning. Figure 8 shows the detailed results: as expected the usage of a broadcast has severe limitations. It only scales up to atoms for Dask and atoms for Spark on Wrangler. Another observation is that Dask’s broadcast implementation is slower than the one of Spark. The main reason is that Spark is the more mature framework with a more optimized communication subsystem. Nevertheless, the limited scalability of this approach due to the need to retain the entire dataset in memory renders it only usable for small datasets. It shows the worst performance of all four approaches.
Iv-C2 Task-API and 2-D Partitioning
Approach 2 attempts to overcome the limitations of approach 1, in particular the broadcast and the 1-D partitioning. A 2-D block partitioning is essential, as it evenly distributes the compute and more efficiently utilizes the available memory. Unfortunately, 2-D partitioning is not well supported by Spark and Dask. Spark’s RDDs are optimized for data-parallel applications with 1-D partitioning. While the Dask distributed array supports 2-D block partitioning, it cannot be used for the Leaflet finder. The main reason is that Dask’s map_block is always required to return an array of the same size, i. e., the pairwise distance cannot be computed without storing points in memory and then running a reduce which requires the shuffling of these points. Thus, we implemented a 2-D partitioning outside of RADICAL-Pilot, Spark and Dask. Each task will work on a 2-D pre-partitioned, rectangular part of the input data.

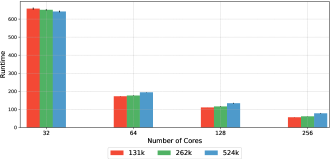

The runtimes of approach 2 are shown in Figure 7 for Spark and Dask and in Figure 9 for RADICAL-Pilot. As expected this approach overcomes the limitations of approach 1 and can easily scale to larger datasets (e. g., 524k atoms) while improving the overall runtime. However, we were not able to scale this implementation to the 4M dataset. For RADICAL-Pilot we observed significant task management overheads (see also section IV-A). This is a limitation of RADICAL-Pilot with respect to managing large numbers of tasks. This is particularly visible when the scenario was run on a single node with 32 cores. As more resources for the RADICAL-Pilot agent become available in the scenarios with more than 64 cores the performance improves dramatically.
Iv-C3 Parallel Connected Components
Another important aspect is the communication between the edge discovery and the connected components stage. For the atoms dataset the output of the edge discovery phase is . To reduce the amount of data that needs to be shuffled, we refined the algorithm to compute the connected components on the partial dataset in the map phase. The connected components are then merged in the reduce phase. This reduces the amount of shuffle data by more than (e. g., to for Spark and for Dask). Figure 7 shows the improvements in the runtimes, by for both Spark and Dask. Further, we were able to run very large datasets, such as the 4M dataset, using this architectural approach.
Another bottleneck of the previous approaches is the edge discovery via brute-force calculation of the distances between all pairs of atoms. In approach 4 we replace the pairwise distance function with a tree-based, nearest neighbor search algorithm, in particular BallTree . The algorithm has two stages: (i) construction of a tree and (ii) the querying tree for neighboring atoms. Using the tree-search the complexity of the problem can be reduced from to a log complexity. For our implementation we use the BallTree implementation of Scikit-Learn .
Figure 7 illustrates the performance of the implementation. For small datasets, i. e., and atoms, approach 2 is faster than the tree-based approach, since the number of points is too small. For the large dataset, the tree approach is faster. In addition, the tree algorithm has a smaller memory footprint than cdist. This allows us to scale to larger problems, e. g., a atoms and edges dataset without changing the total number of tasks or other optimizations.
Iv-D Conceptual Framework and Discussion
|Hausdorff Distance||Leaflet Finder||Leaflet Finder||Leaflet Finder||Leaflet Finder|
|Broadcast and 1-D||Task API and 2-D||Parallel Connected Components||Tree-based Edge Discovery|
|Approach 1||Approach 2||Approach 3||Approach 4|
|Map||Path Similarity||Edge Discovery via Pairwise Distance||Edge Discovery via Pairwise Distance||Edge Discovery via Pairwise Distance and Partial Connected Components||Edge Discovery via Tree-based Algorithm and Partial Connected Components|
|Shuffle||no||Edge List ()||Edge List ()||Partial Connected components ()||Partial Connected components ()|
|Reduce||no||Connect Components||Connected Components||Joined Connected Components||Joined Connected Components|
In this section we provide a conceptual framework that allows application developers to carefully select a framework according to their requirements (e. g., computational and I/O characteristics). Thus, it is important to understand both the properties of the application and Big Data frameworks: Table III summarizes how the two algorithms can be implemented using the well-known MapReduce abstraction. Table IV illustrates the criteria of the conceptual framework and ranks the three frameworks.
Iv-D1 Application Perspective
We have shown that it is possible to implement analytics applications for MD trajectory data using all three frameworks. The performance critically depends on implementation aspects, such as the computational complexity, and the amount of data that needs to be shuffled across the network. For embarrassingly parallel applications, such as the path similarity analysis, with coarse grained tasks, the choice of the framework does not have a large influence on the performance. Thus, other aspects, such as programmability and integrate-ability become more important. For fine-grained data parallelism, a Big Data framework, such as Spark and Dask, clearly outperforms RADICAL-Pilot. If some coupling is introduced, i. e. communication between the tasks is required, e. g., a reduce, the usage of Spark becomes advantageous. However, the integrating Spark with other tools needs to be carefully considered: the integration of Python tools, e. g. MDAnalysis, often causes overheads due to the frequent need for serialization and copying data between the Python and Java space.
|Large Number of Tasks||–||++||++|
Iv-D2 Framework Perspective
RADICAL-Pilot is particularly suited for HPC applications, e. g., ensembles of parallel MPI applications. It has some scalability limitations with respect to supporting large numbers of tasks as often found in data-intensive workloads. Further, the file staging implementation of RADICAL-Pilot is not suitable for supporting the data exchange patterns, in particular shuffling, required for these applications. However, with the ability to efficiently run MPI and Spark applications alongside on the same resource makes RADICAL-Pilot particularly suitable for scenarios where different programming paradigms need to be combined.
Dask provides a highly flexible, low-latency task management and excellent support for parallelization of Python libraries. While the communication subsystem of Dask showed some weaknesses in particular visible in the broadcast and shuffle performance: the broadcast (Leaflet Finder approach 1) and shuffle (Leaflet Finder approaches 2-4) performance for larger problems is significantly better for Spark than Dask.
Spark needs to be particularly considered for shuffle-intensive and machine learning applications: (i) the in-memory caching mechanism is particularly suited for iterative algorithms that maintain a static set of points in-memory and conduct multiple passes on the set, (ii) MLlib  provides several scalable, parallel machine learning algorithms.
V Related Work
MD analysis algorithms were until recently executed serially and parallelization was not straightforward. During the last years several frameworks emerged providing parallel algorithms for analyzing MD trajectories. Some of those frameworks are CPPTRAJ , HiMach , Pteros 2.0 , MDTraj , and nMoldyn-3 . We compare these frameworks with our approach over the parallelization techniques used. Any performance, functionality or usability comparison is more suited for a literature review. We show, to the best of our knowledge, the efforts being done for parallelizing MD analysis algorithms.
CPPTRAJ  provides several analysis algorithms parallelized through MPI and OpenMP. MPI is being used to parallelize the execution over the frame of a single trajectory or each trajectory in an ensemble of trajectories. OpenMP is used to parallelize the execution of compute intensive algorithms.
HiMach  was developed by D. E. Shaw Research group to provide a parallel analysis framework for MD simulations, extends Google’s MapReduce. HiMach API defines trajectories, does per frame data acquisition (Map) and cross-frame analysis (Reduce). HiMach’s runtime is responsible to parallelize and distribute Map and Reduce phases to resources. Data transfers are done through a communication protocol created specifically for HiMach.
Pteros-2.0  is a open-source library that is used for modeling and analyzing MD trajectories, providing a plugin for each supported algorithm. The execution is done by a user defined driver application, which setups trajectory I/O and frame dispatch for analysis. It offers a C++ and Python API. Pteros 2.0 parallelizes computational intensive algorithms by using OpenMP and Multithreading. As a result, it is bounded to execute on a single node, making any analysis execution highly dependent on memory size. Through RADICAL-Pilot, Spark and Dask, we avoided the need to recompile every time there is a change to the underlying resource, ensuring the application’s execution.
MDTraj  is a Python package for analyzing MD trajectories. It links MD data and Python statistical and visualization software. MDTraj proposes parallelizing the execution by using the parallel package of IPython as a wrapper along with an out-of-core trajectory reading method. Our approach support of data analysis frameworks allows data parallelization on any level of the execution, not only in data read.
nMoldyn-3  parallelizes the execution through a Master/Worker architecture. The master or client defines analysis tasks, submits them to a task manager, which then are executed by the worker process. In addition, it provides adaptability allowing on-the-fly addition of resources, and execution fault tolerance when worker processes disconnect.
In contrast, our approach utilizes more general purpose frameworks for parallelization. Because they provide higher level abstractions, e.g machine learning, any integration with other data analysis methods can be fast and easier. In addition, resource acquisition and management is done transparently.
Vi Conclusion and Future Work
In this paper, we investigated the use of different programming abstractions and frameworks for the implementation of a range of algorithms for molecular dynamics trajectory analysis. We conducted an in-depth analysis of the application characteristics and assessed the architectures of RADICAL-Pilot, Spark and Dask. We provide a conceptual framework that enables application developers to qualitatively evaluate Big Data frameworks with respect to their application requirements. Our benchmarks enable them to quantitatively assess framework performance as well as the expected performance of different implementation alternatives.
While the task abstractions provided by all frameworks are well-suited for implementing all use cases, the high-level MapReduce programming model provided by Spark and Dask provides several advantages: it is easier to use and efficiently support common data exchange patterns, such as the shuffling of data between the map and reduce stage. In our benchmarks Spark outperforms Dask in communication-intensive tasks, such as broadcasts and shuffles. Further, the in-memory RDD abstraction is great for iterative algorithms (as many machine learning algorithms). Dask provides more versatile low-level and high-level APIs and integrates better with the PyData ecosystems. RADICAL-Pilot does not provide a MapReduce API, but is well suited for coarse-grained task-level parallelism and for cases where HPC and analytics framework need to be integrated. We also identified severe limitation in Dask and Spark: while both frameworks provide some support for linear algebra – both provide abstractions for distributed array – these proofed not flexible enough for implementing the all-pairs patterns efficiently requiring significant workarounds in the implementation and the utilization of out-of-framework functions to read and partition the input data.
In the future, we will further improve the performance of the presented algorithms, e. g., by reducing the memory and computation footprint, data transfer sizes between stages, by optimizing filesystem usage. To better support PyData tools from RADICAL-Pilot, we plan to extend the Pilot-Abstraction to support Dask and other Big Data frameworks. Further, we will refine the RADICAL-Pilot task execution engine to meet the requirement of data analytics application and devise task execution strategies that can mitigate with issues occurring at large scale, such as stragglers. Another area of research, is dynamic resource management and the ability to dynamically scale the resource pool (e. g., by adding or removing nodes) to meet the requirements of a specific application stage.
Acknowledgements We thank Andre Merzky and Thomas Cheatham for useful discussions. This work is funded by NSF 1443054 and 1440677. Computational resources were provided by NSF XRAC award TG-MCB090174.
