Tagging like Humans: Diverse and Distinct Image Annotation

03/31/2018 ∙ by Baoyuan Wu, et al. ∙ King Abdullah University of Science and Technology Tencent University at Albany Columbia University 0

In this work we propose a new automatic image annotation model, dubbed diverse and distinct image annotation (D2IA). The generative model D2IA is inspired by the ensemble of human annotations, which create semantically relevant, yet distinct and diverse tags. In D2IA, we generate a relevant and distinct tag subset, in which the tags are relevant to the image contents and semantically distinct to each other, using sequential sampling from a determinantal point process (DPP) model. Multiple such tag subsets that cover diverse semantic aspects or diverse semantic levels of the image contents are generated by randomly perturbing the DPP sampling process. We leverage a generative adversarial network (GAN) model to train D2IA. Extensive experiments including quantitative and qualitative comparisons, as well as human subject studies, on two benchmark datasets demonstrate that the proposed model can produce more diverse and distinct tags than the state-of-the-arts.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 2

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Image annotation is one of the fundamental tasks of computer vision with many applications in image retrieval, caption generation and visual recognition. Given an input image, an image annotator outputs a set of keywords (tags) that are relevant to the content of the image. Albeit an impressive progress has been made by current image annotation algorithms, to date, most of them

[31, 26, 12] focus on the relevancy of the obtained tags to the image with little consideration to their inter-dependencies. As a result, algorithmically generated tags for an image are relevant but at the same time less informative, with redundancy among the obtained tags, e.g., one state-of-the-art image annotation algorithm ML-MG [26] generates tautology ‘people’ and ‘person’ for the image in Fig. 1(f).

This is different from how human annotators work. We illustrate this using an annotation task involving three human annotators (identified as A1,A2 and A3). Each annotator was asked to independently annotate the first test images in the IAPRTC-12 dataset [8] with the requirement of “describing the main contents of one image using as few tags as possible”. One example of the annotation results is presented in Fig. 1. Note that individual human annotators tend to use semantically distinct tags (see Fig. 1 (b)-(d)), and the semantic redundancy among tags is lower than that among the tags generated by the annotation algorithm ML-MG [26] (see Fig. 1(f)). Improving the semantic distinctiveness of generated tags has been studied in recent work [23], which uses a determinant point process (DPP) model [10] to produce tags with less semantic redundancies. The annotation result of running this algorithm on the example image is shown in Fig. 1(g).

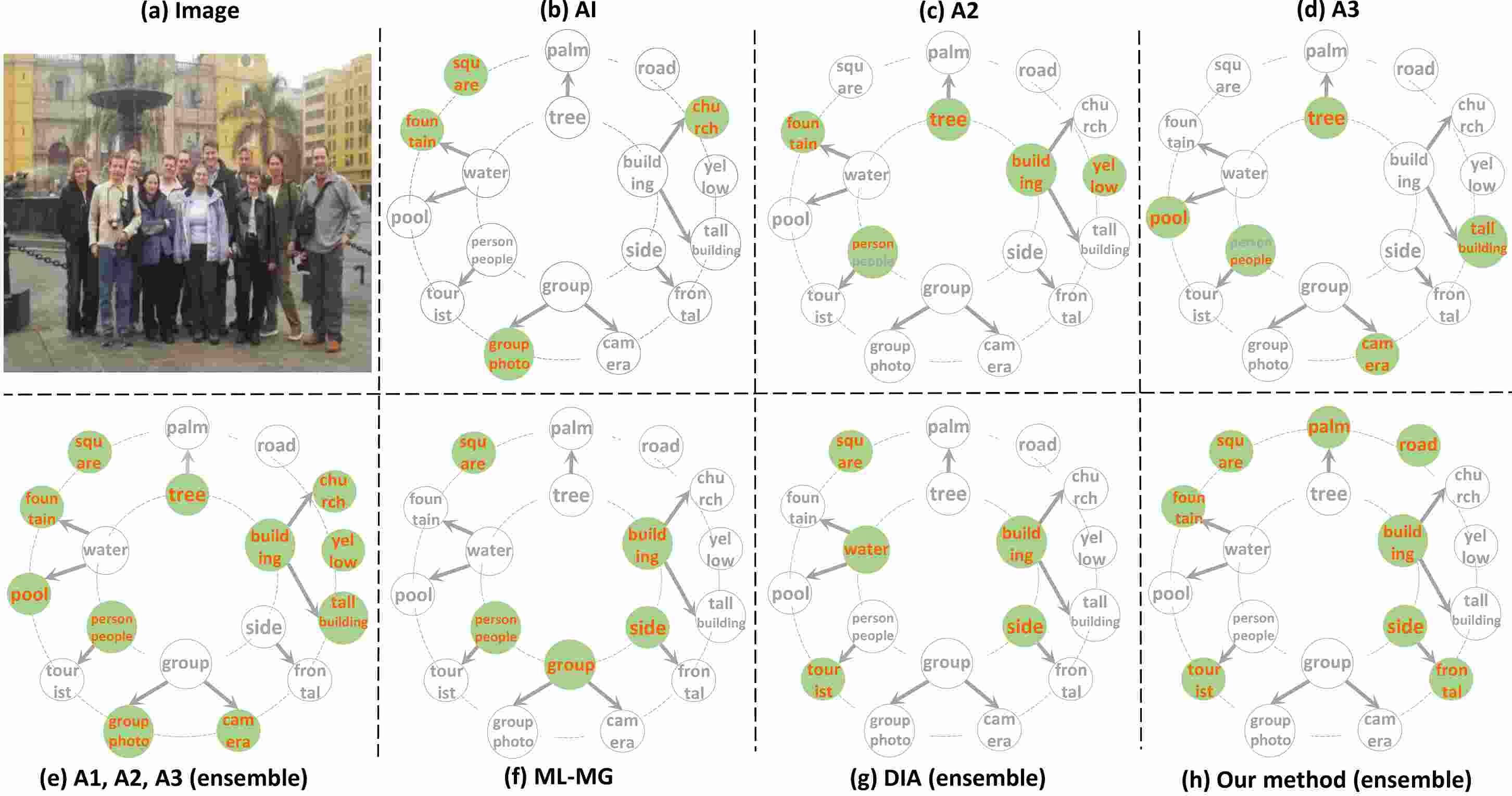

Figure 1: An example illustrating the diversity and distinctiveness in image annotation. The image (a) is from IAPRTC-12 [8]. We present the tagging results from 3 independent human annotators (v)-(d), identified as A1, A2, A3, respectively, as well as their ensemble result (e). We also present the results of some automatic annotation methods. ML-MG [26] (f) is a standard annotation method that requires the relevant tags. DIA (ensemble) [23] (g) indicates that we repeat the sampling of DIA for 3 times, with the requirement that each subset includes at most 5 tags, and then combine these 3 subsets to one ensemble subset. Similarly, we obtain the ensemble subset of our method (h). In each graph, nodes are candidate tags and the arrows connect parent and child tags in the semantic hierarchy. This figure is better viewed in color.

However, such results still lack in one aspect when comparing with the annotations from the ensemble of human annotators (see Fig. 1(e)). The collective annotations from human annotators also tend to be diverse, consisting of tags that cover more semantic elements of the image. For instance, different human annotators tend to use tags across different abstract levels, such as ‘church’ vs. ‘building’, to describe the image. Furthermore, different human annotators usually focus on different parts or elements of the image. For example, A1 describes the scene as ‘square’, A2 notices the ‘yellow’ color of the building, while A3 finds the ‘camera’ worn on the chest of people.

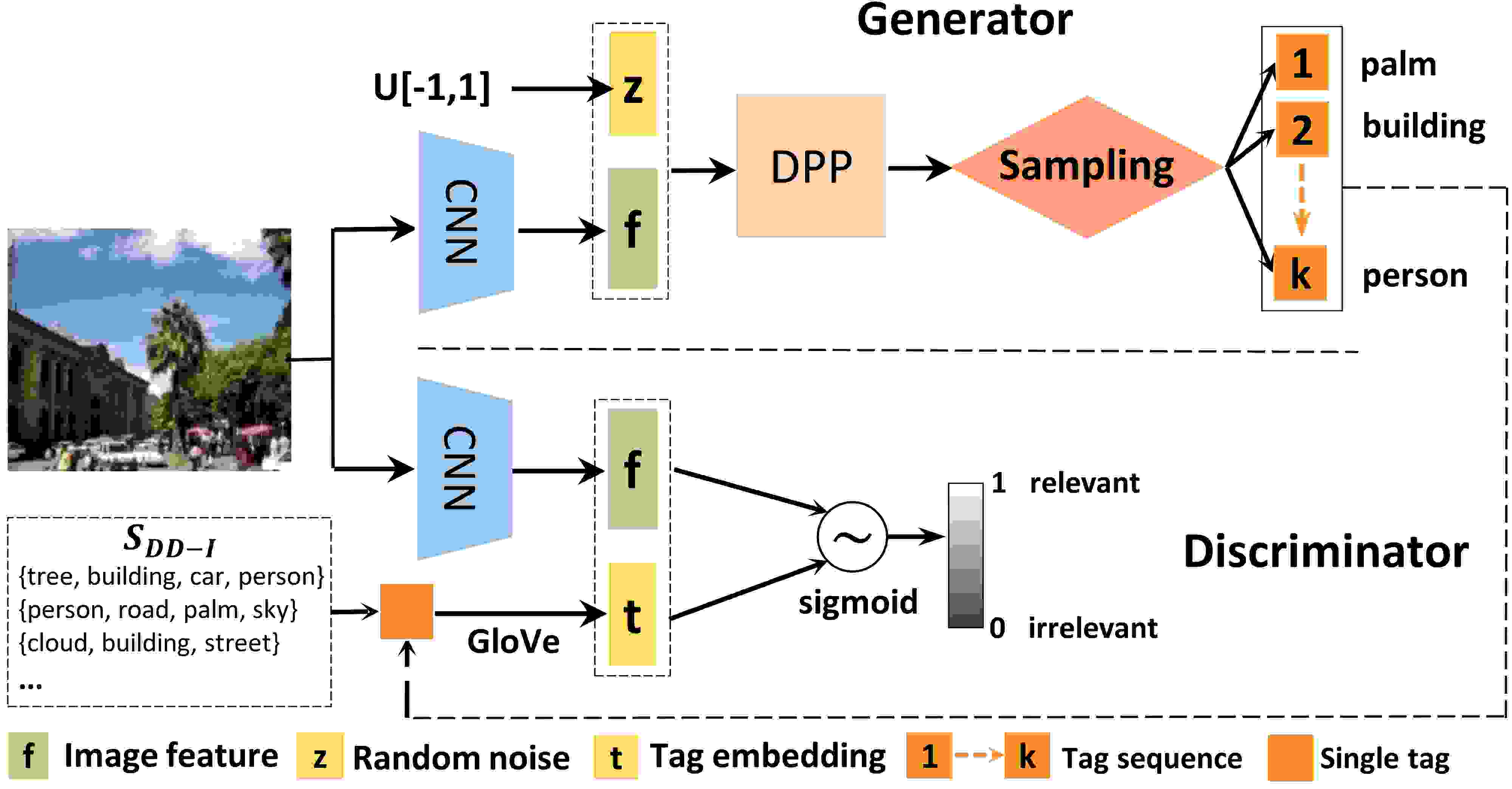

Figure 2: A schematic illustration of the structure of the proposed DIA-GAN model. indicates the ground-truth set of diverse and distinct tag subsets for the image , which will be defined in the Section 3.

In this work, we propose a novel image annotation model, namely diverse and distinct image annotation (D

IA), which aims to improve the diversity and distinctiveness of the tags for an image by learning a generative model of tags from multiple human annotators. The distinctiveness enforces the semantic redundancy among the tags in the same subset to be small, while the diversity encourages different tag subsets to cover different aspects or different semantic levels of the image contents. Specifically, this generative model first maps the concatenation of the image feature vector and a random noise vector to a posterior probability with respect to all candidate tags, and then incorporates it into a determinantal point process (DPP) model

[10] to generate a distinct tag subset by sequential sampling. Utilizing multiple random noise vectors for the same image, multiple diverse tag subsets are sampled.

We train DIA as the generator in a generative adversarial network (GAN) model [7] given a large amount of human annotation data, which is subsequently referred to as DIA-GAN. The discriminator of D

IA-GAN is a neural network measuring the relevance between the image feature and the tag subset that aims to distinguish the generated tag subsets and the ground-truth tag subsets from human annotators. The general structure of D

IA-GAN model is shown in Fig. 2. The proposed DIA-GAN is trained by alternative optimization of the generator and discriminator while fixing the other until convergence.

One characteristic of the D

IA-GAN model is that its generator includes a sampling step which is not easy to optimize directly using gradient based optimization methods. Inspired by reinforcement learning algorithms, we develop a method based on the

policy gradient (PG) algorithm, where we model the discrete sampling with a differentiable policy function (a neural network), and devise a reward to encourage the generated tag subset to match the image content as close as possible. Incorporating the policy gradient algorithm in the training of DIA-GAN, we can effectively obtain the generative model for tags conditioned on the image. As shown in Fig. 1(h), using the trained generator of DIA-GAN can produce diverse and distinct tags that are closer to those generated from the ensemble of multiple human annotators (Fig. 1(e)).

The main contributions of this work are four-fold. (1) We develop a new image annotation method, namely diverse and distinct image annotator (DIA), to create relevant, yet distinct and diverse annotations for an image, which are more similar to tags provided by different human annotators for the same image; (2) we formulate the problem as learning a probabilistic generative model of tags conditioned on the image content, which exploits a DPP model to ensure distinctiveness and conducts random perturbations to improve diversity of the generated tags; (3) the generative model is adversarially trained using a specially designed GAN model that we term as DIA-GAN; (4) in the training of DIA-GAN we use the policy gradient algorithm to handle the discrete sampling process in the generative model. We perform experimental evaluations on ESP Game [20] and IAPRTC-12 [8] image annotation datasets, and subject studies based on human annotators for the quality of the generated tags. The evaluation results show that the tag set produced by DIA-GAN is more diverse and distinct when comparing with those generated by the state-of-the-art methods.

2 Related Work

Existing image annotation methods fall into two general categories: they either generate all tags simultaneously using multi-label learning, or predict tags sequentially using sequence generation. The majority of existing image annotation methods are in the first category. They mainly differ in designing different loss functions or exploring different class dependencies. Typical loss functions include square loss

[31, 22], ranking loss [6, 12], cross-entropy loss [33]), etc. Commonly used class dependencies include class co-occurrence [25, 28, 13], mutual exclusion [2, 29], class cardinality [27], sparse and low rank [24], and semantic hierarchy [26]. Besides, some multi-label learning methods consider different learning settings, such as multi-label learning with missing labels [25, 28]

, label propagation in semi-supervised learning

[15, 5, 4]

and transfer learning

[18] settings. A thorough review of multi-label learning based image annotation methods can be found in [32].

Our method falls into the second category, which generates tags in a sequential manner. This can better employ the inter-dependencies of the tags. Many methods in this category are built on sequential models, such as recurrent neural networks (RNNs), which work in coordination with convolutional neural networks (CNNs) to exploit their representation power for images. The main difference of these works lies in designing an interface between CNN and RNN. In

[9]

, features extracted by a CNN model were used as the hidden states of a RNN. In

[21], the CNN features were integrated with the output of a RNN. In [14], the predictions of a CNN were used as the hidden states of a RNN, and the ground-truth tags of images were used to supervise the training of the CNN. Not directly using the output layer of a RNN, the work in [11] utilized the Fisher vector derived from the gradient of the RNN, as the feature representation.

Although RNN is a suitable model for the sequential image annotation task for its ability to implicitly encode the dependencies among tags, it is not easy to explicitly embed some prior knowledge about the tag dependencies like semantic hierarchy [26] or mutual exclusion [2] in the RNN model. To remedy this issue, the recent work of DIA [23] formulated the sequential prediction as a sampling process based on a determinantal point process (DPP) [10]. DIA encodes the class co-occurrence into the learning process, and incorporates the semantic hierarchy into the sampling process. Another important difference between DIA and the RNN-based methods is that the former explicitly embeds the negative correlations among tags i.e., avoiding using semantically similar tags for the same image, while RNN-based methods typically ignore such negative corrlations. The main reason is that the objective of DIA is to describe an image with a few diverse and relevant tags, while most other methods tend to predict most relevant tags.

Our proposed model DIA-GAN is inspired by DIA, and both are developed based on the observations of human annotations. Yet, there are several significant differences between them. The most important difference is in their objectives. DIA aims to simulate a single human annotator to use semantically distinct tags for an image, while DIA-GAN aims to simulate multiple human annotators simultaneously to capture the diversity among human annotators. They are also different in the training process, which will be reviewed in the Section 4. Besides, in DIA [23], ‘diverse/diversity’ refers to the semantic difference between tags in the same tag subset, to which we use the word ‘distinct/distinctiveness’ for the same meaning in this work. We use ‘diverse/diversity’ to indicate the semantic difference between multiple tag subsets for the same image.

3 Background

Weighted semantic paths. Weighted semantic paths [23] are constructed based on the semantic hierarchy and synonyms [26] among all candidate tags. To construct a weighted semantic path, we treat each tag as a node, and the synonyms are merged into one node. Then, starting from each leaf node in the semantic hierarchy, we connect its direct parent node and repeat this connection process, until the root node is achieved. All tags that are visited in this process form the weighted semantic path of the leaf tag. The weight of each tag in the semantic path is computed inversely proportional to the node layer (the layer number starts from 0 at leaf nodes) and the number of descendants of each node. As such, the weight of the tag with more specified information will be larger. A brief example of the weighted semantic paths is shown in Fig. 3. We use to denote the semantic paths of set of all candidate tags. indicates the semantic paths of the tag subset . represents the weighted semantic paths of all ground-truth tags of image .

Diverse and distinct tag subsets. Given an image and its ground-truth semantic paths , a tag subset is distinct if there are no tags being sampled from the same semantic path. An example of the distinct tag subset is shown in Fig. 3: includes 3 semantic paths with 7 tags, such as or . A tag set is diverse if it includes multiple distinct tag subsets. These subsets cover different contents of the image, due to two possible reasons, including 1) they describe different contents of the image, and 2) they describe the same content but at different semantic levels. As shown in Fig. 3, we can construct a diverse set of distinct tag subsets like . Furthermore, we can construct all possible distinct tag subsets (ignoring the subset with a single tag) to obtain the complete diverse set of distinct tag subsets, referred to as . Specifically, for the subset with 2 tags, we will pick 2 paths out of 3 and sample one tag from each picked path. Then we obtain in total 16 distinct subsets. For the subset with 3 tags, we sample one tag from each semantic path, leading to 12 distinct subsets. will be used as the ground-truth to train the proposed model.

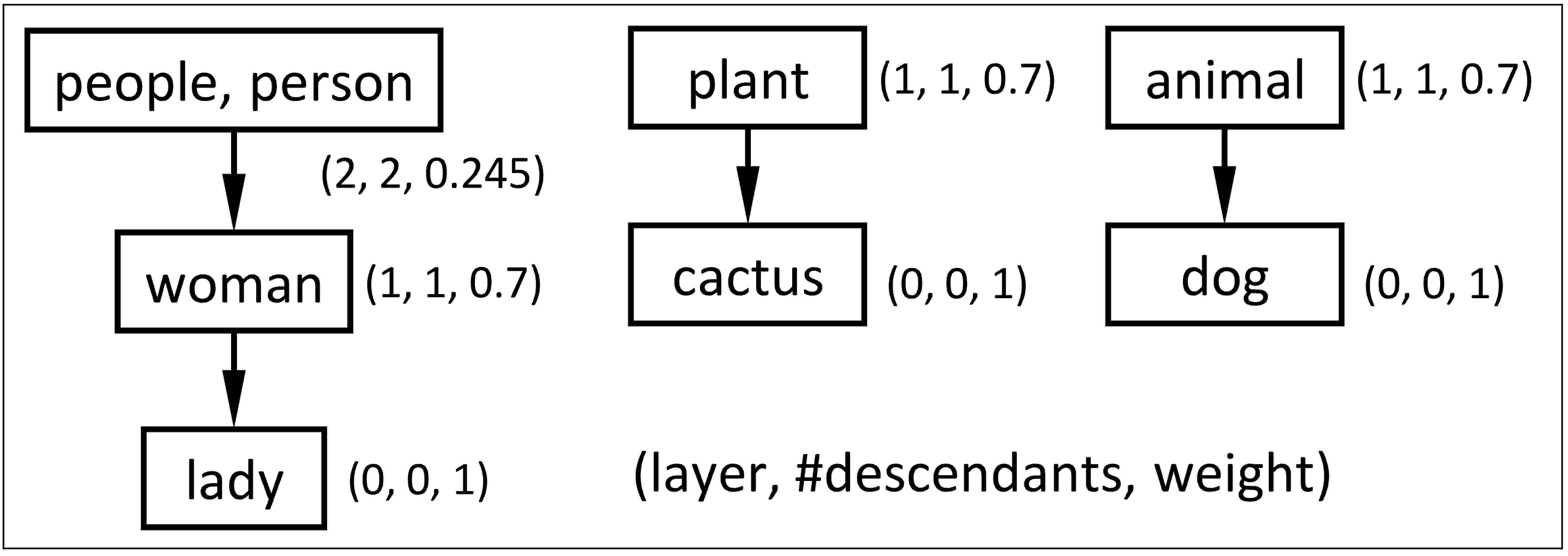

Figure 3: A brief example of the weighted semantic paths. The word in box indicates the tag. The arrow tells that tag is the semantic parent of tag . The bracket close to each box denotes the corresponding (node layer, number of descendants, tag weight). Boxes connected by arrows construct a semantic path.

Conditional DPP. We use a conditional determinantal point process (DPP) model to measure the probability of the tag subset , derived from the ground set given a feature of the image . The DPP model is formulated as

(1)

where is a positive semi-definite kernel matrix.

indicates the identity matrix. For clarity, the parameters of

and (1) have been omitted. The sub-matrix is constructed by extracting the rows and columns corresponding to the tag indexes in . For example, assuming and , then . indicates the determinant of . It encodes the negative correlations among the tags in the subset .

Learning the kernel matrix directly is often difficult, especially when is large. To alleviate this problem, we decompose as , where the scalar indicates the individual score with respect to tag , and . The vector corresponds to the direction of tag , with , and can be used to construct the semantic similarity matrix with . With this decomposition, we can learn and separately. More details of DPP can be found in [10]. In this work, is pre-computed as:

(2)

where the tag representation is derived from the GloVe algorithm [17]. indicates the inner product of two vectors, while denotes the norm of a vector.

k-DPP sampling with weighted semantic paths. k-DPP sampling [10] is a sequential sampling process to obtain a tag subset with at most tags, according to the distribution (1) and the weighted semantic paths . It is denoted as subsequently. Specifically, in each sampling step, the newly sampled tag will be checked whether it is from the same semantic path with any previously sampled tags. If not, it is included into the tag subset; if yes, it is abandoned and we go on sampling the next tag, until tags are obtained. The whole sampling process is repeated multiple times to obtain different tag subsets. Then the subset with the largest tag weight summation is picked as the final output. Note that a larger weight summation indicates more semantic information. Since the tag weight is pre-defined when introducing the weighted semantic paths, it is an objective criterion to pick the subset.

4 DIA-GAN Model

Given an image , we aim to generate a diverse tag set including multiple distinct tag subsets relevant to the image content, as well as an ensemble tag subset of these distinct subsets, which could provide a comprehensive description of . These tags are sampled from a generative model conditioned on the image, and we use a conditional GAN (CGAN) [16, 30, 1] to train it, with the generator part being our model and a discriminator , as shown in Fig. 2. Specifically, conditioned on , projects one noise vector to one distinct tag subset , and uses different noise vectors to ensure diverse/different tag subsets. serves as an adversary of , aiming to distinguish the generated tag subsets using from the ground-truth ones .

4.1 Generator

The tag subset with can be generated from the generator , according to the input image and a noise vector , as follows:

(3)

The above generator is a composite function with two parts. The inner part

is a CNN based soft classifier.

represents the output vector of the fully-connected layer of a CNN model, and denotes the concatenation of two vectors and .

is the sigmoid function.

indicates the element-wise square root of vector . The parameter matrix and the bias parameter map the feature vector

to the logit vector. The trainable parameter

includes and the parameters of . The noise vector

is sampled from the uniform distribution

. The outer part is the k-DPP sampling with weighted semantic paths (see Section 3). Using as the quality term and utilizing the pre-defined similarity matrix , then a conditional DPP model can be constructed as described in Section 3.

4.2 Discriminator

evaluates the relevance of image and tag subset : it outputs a value in , with meaning the highest relevance and being the least relevant. Specifically, is constructed as follows: first, as described in Section 3, each tag is represented by a vector derived from the GloVe algorithm [17]. Then, we formulate as

(4)

where denotes the output vector of the fully-connected layer of a CNN model (different from that used in the generator). includes and the parameters of in the CNN model.

4.3 Conditional GAN

Following the general training procedure, we learn DIA-GAN by iterating two steps until convergence: (1) fixing the discriminator and optimizing the generator using (5), as shown in Section 4.3.1; (2) fixing and optimizing using (8), as shown in Section 4.3.2.

4.3.1 Optimizing

Given , we learn by

(5)

For clarity, we only show the case with one training image in the above formulation. Due to the discrete sampling process in , we cannot optimize (5) using any existing continuous optimization algorithm. To address this issue, we view the sequential generation of tags as controlled by a continuous policy function, which weighs different choices of the next tag based on the image and tags already generated. As such, we can use the policy gradient (PG) algorithm in reinforcement learning for its optimization. Given a sampled tag subset from , the original objective function of (5) is approximated by a continuous function. Specifically, we denote , where indicates the sampling order, and its subset includes the first tags in . Then, with an instantialized sampled from , the approximated function is formulated as

(6)

where denotes the relative complement of with respect to . indicates the posterior probability, and . The reward function encourages the content of and the tags to be consistent, and is defined as

(7)

Compared to a full PG objective function, in (6) we have replaced the return with the immediate reward , and the policy probability with the decomposed likelihood . Consequently, it is easy to compute the gradient , which will be used in the stochastic gradient ascent algorithm and back-propagation [19] to update .

When generating during training, we repeat the sampling process multiple times to obtain different subsets. Then, as the ground-truth set for each training image is available, the semantic F score (see Section 5) for each generated subset can be computed, and the one with the largest F

score will be used to update parameters. This process encourages the model to generate tag subsets more consistent with the evaluation metric.

4.3.2 Optimizing

Utilizing the generated tag subset from the fixed generator , we learn by

(8)

where semantic score measures the relevance between the tag subset and the content of . If we set the trade-off parameter , then (8) is equivalent to the objective used in the standard GAN model. For , (8) also encourages the updated to be close to the semantic score . We can then compute the gradient of (8) with respect to , and use the stochastic gradient ascent algorithm and back-propagation [19] to update .

5 Experiments

5.1 Experimental Settings

Datasets. We adopt two benchmark datasets, ESP Game [20] and IAPRTC-12 [8] for evaluation. One important reason for choosing these two datasets is that they have complete weighted semantic paths of all candidate tags , the ground-truth weighted semantic paths of each image , the image features and the trained DIA model, provided by the authors of [23] and available on GitHub111Downloaded from https://github.com/wubaoyuan/DIA. Since the weighted semantic paths are important to our method, these two datasets facilitate its evaluation. Specifically, in ESP Game, there are 18689 train images, 2081 test images, 268 candidate classes, 106 semantic paths corresponding to all candidate tags, and the feature dimension is 597; in IAPRTC-12, there are 17495 train images, 1957 test images, 291 candidate classes, 139 semantic paths of all candidate tags, and the feature dimension is 536.

Model training. We firstly fix the CNN models in both and as the VGG-F model222Downloaded from http://www.vlfeat.org/matconvnet/pretrained/

pre-trained on ImageNet

[3]. Then we initialize the columns of the fully-connected parameter matrix (see Eq. (3)) that corresponds to the image feature using the trained DIA model, while the columns corresponding to the noise vector and the bias parameter are randomly initialized. We pre-train by setting in Eq. (8), i.e., only using the F scores of ground-truth subsets and the fake subsets generated by the initialized with being the zero vector. The corresponding pre-training parameters are: batch size

, epochs

, learning rate , weight decay . With the initialized and the pre-trained , we fine-tune the DIA-GAN model using the following parameters: batch size , epochs , the learning rates of and are set to and respectively, both learning rates are decayed by in every 10 epochs, weight decay , and . Besides, if there are a few long paths (i.e., many tags in a semantic path) in , the number of subsets in , i.e., , could be very large. In ESP Game and IAPRTC-12, the largest is up to 4000, though for most images are smaller than 30. If is too large, the training of the discriminator (see Eq. (8)) will be slow. Thus, we set a upper bound for in training, if , then we randomly choose 10 subsets from to update

. The implementation adopts Tensorflow 1.2.0 and Python 2.7.

Evaluation metrics. To evaluate the distinctiveness and relevance of the predicted tag subset, three semantic metrics, including semantic precision, recall and F1, are proposed in [23], according to the weighted semantic paths. They are denoted as P, R and F respectively. Specifically, given a predicted subset , the corresponding semantic paths and the ground-truth semantic paths , P computes the proportion of the true semantic paths in , and R computes the proportion of the true semantic paths in that are also included in , and F. The tag weight in each path is also considered when computes the proportion. Please refer to [23] for the detailed definition.

Comparisons. We compare with two state-of-the-art image annotation methods, including ML-MG333Downloaded from https://sites.google.com/site/baoyuanwu2015/home [26] and DIA444Downloaded from https://github.com/wubaoyuan/DIA [23]. The reason we compare with them is that both of them and the proposed method utilize the semantic hierarchy and the weighted semantic paths, but with different usages. We also compare with another state-of-the-art multi-label learning method, called LEML555Downloaded from http://www.cs.utexas.edu/ rofuyu/ [31], which doesn’t utilize the semantic hierarchy. Since both ML-MG and LEML do not consider the semantic distinctiveness among tags, their predicted tag subsets are likely to include semantic redundancies. As reported in [23], the evaluation scores using the semantic metrics (i.e., P, R and F) of ML-MG and LEML’s predictions are much lower than DIA. Hence it is not relevant to compare with the original results of ML-MG and LEML. Instead, we combine the predictions of ML-MG and LEML with the DPP-sampling that is also used in DIA and our method. Specifically, the square root of posterior probabilities with respect to all candidate tags produced by ML-MG are used as the quality vector (see Section 3); as there are negative scores in the predictions of LEML, we normalize all predicted scores to to obtain the posterior probabilities. Then combining with the similarity matrix , a DPP distribution is constructed to sampling a distinct tag subset. The obtained results denoted as MLMG-DPP and LEML-DPP respectively.

5.2 Quantitative Results

As all compared methods (MLMG-DPP, LEML-DPP and DIA) and the proposed method DIA-GAN sample DPP models to generate tag subsets, we can generate multiple tag subsets using each method for each image. Specifically, MLMG-DPP and DIA generates 10 random tag subsets for each image. The weight of each tag subset is computed by summing the weights of all tags in the subset. Then we construct two outputs: the single subset, which picks the subset with the largest weight from these 10 subsets; and the ensemble subset, which merges 5 tag subsets with top-5 largest weights among 10 subsets into one unique tag subset. The evaluations of the single subset reflect the performance of distinctiveness of the compared methods. The evaluations of the ensemble subset measure the performance of both diversity and distinctiveness. Larger distinctiveness of the ensemble subset indicates higher diversity among the consisting subsets of this ensemble subset. Besides, we present two cases by limiting the size of each tag subset to 3 and 5, respectively.

evaluation metric 3 tags 5 tags
target method P R F P R F

LEML-DPP [31]

34.64 25.21 27.76 29.24 35.05 30.29

single

MLMG-DPP [26]

37.18 27.71 30.05 33.85 38.91 34.30

subset

DIA [23]

41.44 31.00 33.61 34.99 40.92 35.78

D-GAN

42.96 32.34 34.93 35.04 41.50 36.06

LEML-DPP [31]

34.62 38.09 34.32 29.04 46.61 34.02

ensemble

MLMG-DPP [26]

30.44 34.88 30.70 28.99 43.46 33.05

subset

DIA [23]

35.73 33.53 32.39 32.62 40.86 34.31

D-GAN

36.73 42.44 36.71 31.28 48.74 35.82
Table 1: Results () evaluated by semantic metrics on ESP Game. The higher value indicates the better performance, and the best result in each column is highlighted in bold.
evaluation metric 3 tags 5 tags
target method P R F P R F

LEML-DPP [31]

41.42 24.39 29.00 37.06 32.86 32.98
single

MLMG-DPP [26]

40.93 24.29 28.61 37.06 33.68 33.29
subset

DIA [23]

42.65 25.07 29.87 37.83 34.62 34.11

D-GAN

43.57 26.22 31.04 37.31 35.35 34.41

LEML-DPP [31]

35.22 32.75 31.86 32.28 39.89 33.74
ensemble

MLMG-DPP [26]

33.71 32.00 30.64 31.91 40.11 33.49
subset

DIA [23]

35.73 33.53 32.39 32.62 40.86 34.31

D-GAN

35.49 39.06 34.44 32.50 44.98 35.34
Table 2: Results () evaluated by semantic metrics on IAPRTC-12. The higher value indicates the better performance, and the best result in each column is highlighted in bold.

The quantitative results on ESP Game are shown in Table 1. For single subset evaluations, DIA-GAN shows the best performance evaluated by all metrics for both 3 and 5 tags, while MLMG-DPP and LEML-DPP perform worst in all cases. The reason is that the learning of ML-MG/LEML and the DPP sampling are independent. For ML-MG, it enforces the ancestor tags to be ranked before its descendant tags, while the distinctiveness is not considered. There is much semantic redundancy in the top-k tags of ML-MG, which is likely to include fewer semantic paths than the ones of DIA and DIA-GAN. Hence, although DPP sampling can produce a distinct tag subset from the top-k candidate tags, it covers fewer semantic concept (remember that one semantic path represents one semantic concept) than DIA and DIA-GAN. For LEML, it treats each tag equally when training, totally ignoring the semantic distinctiveness. It is not surprising that LEML-DPP also covers fewer semantic concepts than DIA and DIA-GAN. In contrast, both DIA and DIA-GAN take into account the semantic distinctiveness in learning. However, there are several significant differences between their training processes. Firstly, the DPP sampling is independent with the model training in DIA, while the generated subset by DPP sampling is used to updated the model parameter in DIA-GAN. Secondly, DIA learns from the ground-truth complete tag list, and the semantic distinctiveness is indirectly embedded into the learning process through the similarity matrix . In contrast, DIA-GAN learns from the ground-truth distinct tag subsets. Thirdly, the model training of DIA is independent of the evaluation metric F, which plays the important role in the training process of DIA-GAN. These differences are the causes that DIA-GAN produces more semantically distinct tag subsets than DIA. Specifically, in the case of 3 tags, the relative improvements of DIA-GAN over DIA are at P, R and F, respectively; while being and in the case of 5 tags. In addition, the improvement decreases as the size limit of tag subset increases. The reason is that DIA-GAN may include more irrelevant tags, as the random noise combined with the image feature not only brings in diversity, but also uncertainty. Note that due to the randomness of sampling, the results of single subset by DIA presented here are slightly different with those reported in [23].

In terms of the evaluation of the ensemble subsets, the improvement of DIA-GAN over three compared methods is more significant. This is because all three compared methods sample multiple tag subsets from a fixed DPP distribution, while DIA-GAN generates multiple tag subsets from different DPP distributions with the random perturbations. As such, the diversity among the tag subsets generated by DIA-GAN is expected to be higher than those corresponding to three compared methods. Subsequently, the ensemble subset of DIA-GAN is likely to cover more relevant semantic paths than those of other methods. It is supported by the comparison through the evaluation by R: the relative improvement of DIA-GAN over DIA is in the case of 3 tags, while in the case of 5 tags. It is encouraging that the P scores of DIA-GAN are also comparable with those of DIA. It demonstrates that training using GAN reduces the likelihood to include irrelevant semantic paths due to the uncertainty of the noise vector , because GAN encourages the generated tag subsets to be close to the ground-truth diverse and distinct tag subsets. Specifically, in the case of 3 tags, the relative improvements of DIA-GAN over DIA are for P, R and F, respectively; the corresponding improvements are in the case of 5 tags.

The results on IAPRTC-12 are summarized in Table 2. In the case of single subset with 3 tags, the relative improvements of DIA-GAN over DIA are for P, R and F, respectively; In the case of single subset with 5 tags, the corresponding improvements are . In the case of ensemble subset and 3 tags, the corresponding improvements are . In the case of ensemble subset and 5 tags, the corresponding improvements are . The comparisons on above two benchmark datasets verify that DIA-GAN produces more semantically diverse and distinct tag subsets than the compared MLMG-DPP and DIA methods. Some qualitative results will be presented in the supplementary material.

5.3 Subject Study

Since the diversity and distinctiveness are subjective concepts, we also conduct human subject studies to compare the results of DIA and D-GAN on these two criterion. Specifically, for each test image, we run DIA 10 times to obtain 10 tag subsets, and then the set including 3 subsets with the largest weights are picked as the final output. For D-GAN, we firstly generate 10 random noise vectors . With each noise vector, we conduct the DPP sampling in for 10 times to obtain 10 subsets, out of which we pick the one with the largest weight as the tag subset corresponding to this noise vector. Then from the obtained 10 subsets, we again pick 3 subsets with the largest weights to form the output set of D-GAN. For each test image, we present these two sets of tag subsets with the corresponding image to 5 human evaluators. The only instruction to the subjects is to determine “which set describes this image more comprehensively”. Besides, we notice that if two sets are very similar, or if they both are irrelevant to the image content, human evaluators may pick one randomly. To reduce such randomness, we filter the test images using the following criterion: firstly we combine the subsets in each set to an ensemble subset; if the F scores of both ensemble subsets are larger than 0.2, and the gap between this two scores is larger than , then this image is used in subject studies. Finally, the numbers of test images used in subject studies are: ESP Game, in the case of 3 tags, and in the case of of 5 tags; IAPRTC-12, in the case of 3 tags, and in the case of of 5 tags. We also present the comparison results using the F to evaluate the compared two ensemble subsets. The consistency between the F evaluation and the human evaluation is also computed. The subject study results on ESP Game are summarized in Table 3. With human evaluation, DIA-GAN is judged better at of all evaluated images over DIA in the case of 3 tags, and in the case of 5 tags. With F evaluation, DIA-GAN outperforms DIA at in the case of 3 tags, and in the case of5 tags. Both evaluation results suggest the improvement of DIA-GAN over DIA. Besides, the results of these two evaluations are consistent (i.e., their decisions of which set is better are same) at of all evaluated images of the case of 3 tags, while of the case of 5 tags. It demonstrates that the evaluation using F is relatively reliable. The same trend is also observed for the results obtained on the IAPRTC-12 dataset (Table 4).

Moreover, in the supplementary material, we will present a detailed analysis about human annotations conducted on partial images of IAPRTC-12. It not only shows that DIA-GAN produces more human-like tags than DIA, but also discusses the difference between DIA-GAN and human annotators, and how to shrink that difference.

tags
3 tags 5 tags
metric

DIA

DIA-GAN



total

DIA

DIA-GAN



total

wins



wins

wins



wins

human evaluation

135    240    375 120    204    324
F 125    250    375 112    212    324
consistency 62    177 65    157
Table 3: Subject study results on ESP Game. Note that the entry ‘62’ corresponding to the row ‘consistency’ and the column ‘DIA wins’ indicates that both human evaluation and F evaluation decide that the predicted tags of DIA are better than those of DIA-GAN at 62 images. Similarly, human evaluation and F evaluation have the same decision that the results of DIA-GAN are better than those of DIA at 177 images. Hence, two evaluations have the same decision (i.e., consistent) on images, and the consistency rate among all evaluated images are .

tags
3 tags 5 tags
metric

DIA

DIA-GAN



total

DIA

DIA-GAN



total

wins



wins

wins



wins

human evaluation

129    213    342 123    183    306
F 141    201    342 123    183    306
consistency 82    154 58    118
Table 4: Subject study results on IAPRTC-12.

6 Conclusion

In this work, we have proposed a new image annotation method, called diverse and distinct image annotation (DIA), to simulate the diversity and distinctiveness of the tags generated by human annotators. DIA is formulated as a sequential generative model, in which the image feature is firstly incorporated into a determinantal point process (DPP) model that also encodes the weighted semantic paths, from which a sequence of distinct tags are generated by sampling. The diversity among the generated multiple tag subsets is ensured by sampling the DPP model with random noise perturbations to the image feature. In addition, we adopt the generative adversarial network (GAN) model to train the generative model DIA, and employ the policy gradient algorithm to handle the training difficulty due to the discrete DPP sampling in DIA. Experimental results and human subject studies on benchmark datasets demonstrate that the diverse and distinct tag subsets generated by the proposed method can provide more comprehensive descriptions of the image contents than those generated by the state-of-the-art methods.

Acknowledgements: This work is supported by Tencent AI Lab. The participation of Bernard Ghanem is supported by the King Abdullah University of Science and Technology (KAUST) Office of Sponsored Research. The participation of Siwei Lyu is partially supported by National Science Foundation National Robotics Initiative (NRI) Grant (IIS-1537257) and National Science Foundation of China Project Number 61771341.
