A report published in 2018 (206) gives the results of an analysis performed on data about the events and related factors that led to crashes of small road vehicles from 2005 to 2007 across the USA. It indicates that the critical reasons for these crashes are likely attributable to the driver (in of the cases), the vehicle (), the environment (), and unknown causes (). An overwhelming proportion of these crashes is thus due to human error. It is widely recognized that most of them could be avoided by constantly monitoring the driver (236; 4), and by taking proper, timely actions when necessary.
Monitoring the driver is thus critically important, and this applies to all vehicles, with the exception of those that are fully autonomous, i.e., where the driver does not control the vehicle under any circumstances. Given that the average driver will not own a fully-autonomous vehicle for decades to come, “DMdriver monitoringdriver monitoring (DM)111The list of all abbreviations and their definitions appears in Section A, in the Appendix.” will remain critically important during all this time.
This paper focuses on the topic of DM, which is usefully viewed as consisting of two successive steps. In the first, one characterizes the driver, or more precisely the state of the driver, and, in the second, one decides what safety actions to take based on this characterization. For example, in the monitoring of drowsiness, the first step might compute the level of drowsiness, whereas the second might check whether this level is at, or will soon reach, a critical level. More generally, the decision process should ideally fuse the various characterization parameters available and predict the future state of the driver based on them. This paper focuses almost exclusively on the characterization of the state of the driver, i.e., on the first step in DM, which is also the one that is almost exclusively considered in the literature.
By “state of the driver” or “driver state”, we mean, in a loose way, the state, or situation, that the driver is in from various perspectives, in particular physical, physiological, psychological, and behavioral. To deal with this driver state in a manageable, modular way, we consider a specific number of distinct facets (such as drowsiness) of this driver state, which we call “driver (sub)states”. In the sequel, “state” thus refers either to the global state of the driver or to one of its facets, or substates. This paper covers the main (sub)states of drowsiness, mental workload, distraction, emotions, and under the influence, which emerge as being the most significant ones in the literature.
The core of the paper focuses on the characterization of each of these (sub)states, using indicators (of this state) and sensors (to access the values of these indicators in real time and in real driving conditions). In the example of the (sub)state of drowsiness, an indicator thereof is the eye-blink rate, and it can be accessed using a camera.
DM is important, whether the vehicle is equipped with some form of “DAdriving automationdriving automation (DA)” (except for full automation) or not. In future vehicles, DA and DM will need to increasingly interact, and they will need to be designed and implemented in a synergistic way. While the paper focuses on DM (and, more precisely, on its characterization part), it considers and describes, at a high-level, how DM and DA interact at the various, standard levels of DA.
As suggested by its title, the paper comprises two main phases: (1) it reports on a systematic survey of the state of the art of DM (as of early 2021), (2) it provides a synthesis of the many characterization techniques of DM. This synthesis leads to an innovative, structured, polychotomous view of the recent developments in the characterization part of DM. In a nutshell, this view is provided by two interlocked tables that involve the main driver (sub)states, the indicators of these states, and the sensors allowing access to the values of these indicators. The polychotomy presented should prove useful to researchers, equipment providers, and vehicle manufacturers for organizing their approach concerning the characterization and monitoring of the state of the driver.
Section 2 describes the standard levels of DA, and the role played by DM for each. Section 3 indicates the strategy for, and the results of, our survey of the literature on DM. Section 4 describes the rationale and strategy for expressing the characterization of the driver state as much as possible in terms of the triad of the (sub)states, indicators, and sensors. Section 5 provides our innovative, structured, polychotomous view of the characterization part of DM. Sections 6 to 10 successively describe the five driver (sub)states that the survey revealed as being the most important. Section 11 summarizes and concludes.
2 Driving automation and driver monitoring
In autonomous vehicles—also called self-driving or fully-automated vehicles—DM plays a critical role as long as the automation allows the driver to have some control over the vehicle. This section describes the interaction between DM and DA in the context of the six levels of DA defined by the SAESociety of Automotive EngineersSociety of Automotive Engineers (SAE) International (185), ranging from 0 (no automation) to 5 (full automation).
Table 1, inspired by the SAE J3016 Levels of Driving Automation Graphic, describes the role of each of the three key actors in the driving task, namely the driver, the DSdriver supportdriver-support (DS) features, and the ADautomated drivingautomated-driving (AD) features, at each of the six SAE levels. We also integrated into this table a fourth actor, i.e., DM, as its role is crucial at all levels except the highest, to ensure that the state of the driver allows him/her 222We use the inclusive pronoun “he/she” and adjective “his/her” to refer to the driver. to perform the driving task safely, when applicable.
|Actors||No driving automation||Driver assistance||Partial driving automation||Conditional driving automation||High driving automation||Full driving automation|
|Driver||Driving and supervising DS features||Driving when AD features request it||Driving (if desired) when AD features reach their limits||/|
|Driver-support (DS) features||Warning and temporary support||Lateral or longitudinal support||Lateral and longitudinal support||/|
|Automated- driving (AD) features||/||Driving when AD features permit it||Driving|
|Driver monitoring (DM)||Monitoring||Monitoring with relevant indicators||Monitoring fallback- ready driver||Monitoring when driver in control||/|
We now discuss some terminology. In Section 1, we introduced the term “driving automation (DA)” (as a convenient, companion term for DM) and, in the previous paragraph, the SAE-suggested term “automated driving (AD)”. While these two terms seem to further add to a jumble of terms and abbreviations, they both appear in the literature through their corresponding systems, i.e., the “DASdriving-automation systemdriving-automation system (DAS)” and “ADSautomated-driving systemautomated-driving system (ADS)”. An ADS is a system consisting of the AD features, and a DAS is a system that includes, among other things, both DS features and AD features. One could also view the DS features as constituting a system, but this is not needed here.
In future vehicles with progressively increasing degrees of automation, the development of DASs and, in particular, ADSsshould go hand-in-hand with the development of DMSdriver-monitoring systemdriver-monitoring systems (DMSs). The next four paragraphs complement the information in Table 1.
At Levels 0 to 2, the driver is responsible for the driving task, and he/she may be aided by a variable number of DS features such as automatic emergency braking, adaptive cruise control, and lane centering. At Level 1, the DS features execute the subtask of controlling either the lateral motion or the longitudinal motion of the vehicle (but not both), expecting the driver to perform the rest of the driving task. At Level 2, the DS features execute the subtasks of controlling both the lateral motion and the longitudinal motion, expecting the driver to complete the OEDRobject and event detection and responseobject-and-event-detection-and-response (OEDR) subtask and to supervise these features. At Levels 0 to 2, a DMS should thus be used continuously. At Levels 1 and 2, for monitoring the state of the driver, a vehicle-related indicator of driving performance should be either avoided or used only when compatible with the DS features that are engaged. The speed cannot, for instance, be used as an indicator of the driver state when an adaptive cruise control is regulating this speed. As more and more DS features are introduced in vehicles, vehicle-related indicators of driving performance become less and less relevant for monitoring the state of the driver, whereas, driver-related parameters (both physiological and behavioral) remain reliable indicators.
At any of Levels 3 to 5, and when the corresponding AD features are engaged, the driver is no longer in charge of the driving task and does not need to supervise them. Additionally, at Level 3, and at any time, the driver must, however, be fallback-ready, namely, ready to take over the control of his/her vehicle when the AD features request it (i.e., ask for it). A DMS should, therefore, be capable of (1) assessing whether the current state of the driver allows him/her to take over the control of his/her vehicle if requested now or in the near future, and of (2) monitoring his/her state as long as he/she is in control. El Khatib et al. (51) discuss the potential need for a DMS even when the vehicle is in control and does not require the driver to supervise the driving or to monitor the driving environment. Whenever the driver has the option of, e.g., engaging in some entertainment activity, he/she must be prepared to regain control in due course. Therefore, at Level 3, despite that the driver is allowed to perform a secondary task, a DMS is still necessary to ensure that the driver is ready to take control at any time. Although the findings of various studies are sometimes contradictory, Johns et al. (91) suggest that it may be beneficial for the driver to maintain a certain level of mental workload while his/her vehicle is operated by a DAS, as this could lead to better performance during a transfer of control from automated to manual.
At Level 4, the AD features can only drive the vehicle under limited conditions, but they will not require the driver to respond within some specified time delay to a take-over request. The ODDoperational design domainoperational design domain (ODD) specifies the conditions under which the DAS is specifically designed to operate, including, but not limited to, (1) environmental, geographical, and time-of-day restrictions, and/or (2) the requisite presence or absence of certain traffic or roadway characteristics. Still at Level 4, the AD features are capable of automatically (1) performing a fallback of the driving task and (2) reaching a minimal-risk condition (e.g., parking the car) if the driver neither intervenes nor takes over the driving task within the delay. If the driver decides to respond to the take-over request, one can assume that the DMS would check that his/her state allows for this, even though theSAE J3016 does not say so explicitly.
At Level 5, the driving is fully automated under all possible conditions, and no DMS is required as the driver is never in control, and becomes, in effect, a passenger of the vehicle.
3 Survey of literature on driver monitoring
This section describes our survey of the literature on DM and DMSs. The subsections below successively describe (1) our strategy for building an initial set of references, (2) some conclusions drawn from these references, (3) the design of a table for organizing them, (4) comments about the content of this table, and (5,6) trends observable in it or in some references. The analysis performed here guides the developments in subsequent sections.

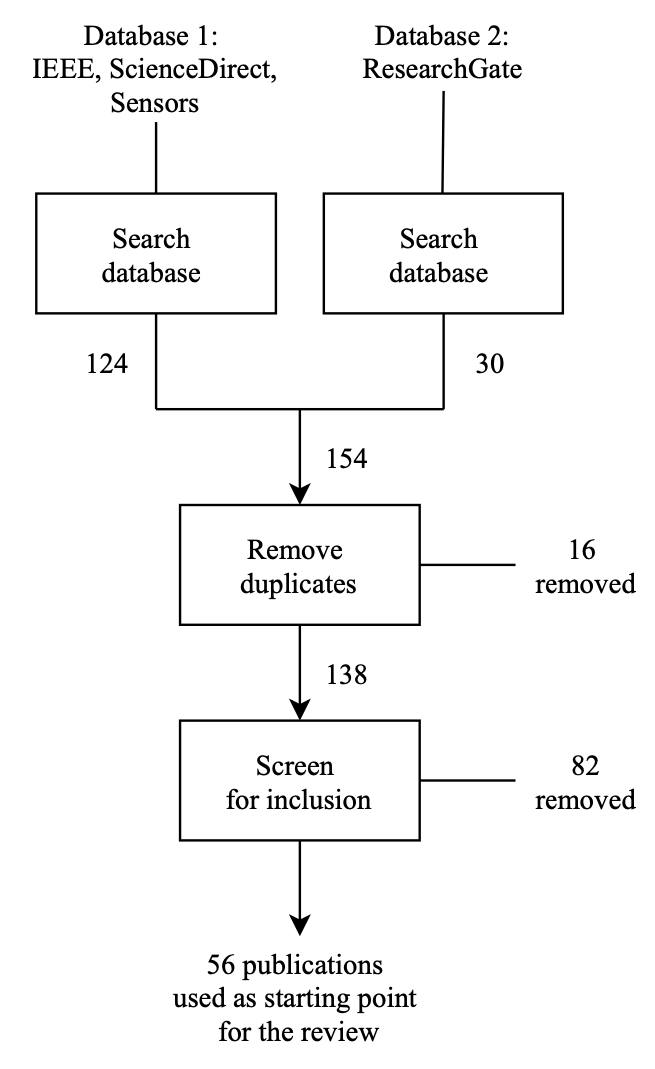

3.1 Strategy for building an initial set of references, and number of these
Our search focused on surveys, reviews, and similar studies about DM and DMSs. We independently performed two searches during February 2021. The first focused on publications from IEEE, ScienceDirect, and Sensors, and the second on publications from ResearchGate; these four databases appeared well-suited for providing a useful set of initial references. We used the search engine specific to each database and a boolean query equivalent to (“survey” OR “review”) AND (“driver” OR “driving”) AND (“detection” OR “detecting” OR “behavior” OR “state” OR “monitoring”). We limited the search to publications in English, and did not place any constraint on the dates of publication. The two searches yielded and items, respectively. After removing duplicates, we obtained a set of references. We manually screened these, and only kept the ones satisfying the two criteria of (1) being in scientific journals or conference proceedings, and (2) providing a survey, review, or similar study of one or more aspects of the domain of interest. This screening led to references, which appear in the first column of Table 2333A version of Table 2 suitable for printing appears in Appendix B., and in the References section, which contains additional references quoted later.
3.2 Conclusions from preliminary analysis of initial references
The preliminary analysis of the initial references led to the following high-level conclusions:
To characterize the (global) state of a driver, one should consider the five main substates of drowsiness, mental workload, distraction, emotions, and under the influence.
A wide variety of parameters, which we call “indicators”, are used to characterize each of these substates, and some indicators are applicable to more than one substate.
Ideally, a DMS should monitor not only the driver, but also the (driven) vehicle and the (driving) environment.
A value for each indicator is obtained by processing data (mainly signals and images) obtained from sensors “observing” the driver, the vehicle, and the environment.
A DMS generally involves one or more types and/or instances of each of the following: substate, indicator, and sensor.
These conclusions guided the structuring and writing of the bulk of the paper.
When the context is clear, we use “state” for the global state and each of the five substates. The phrase “state i” and the plural “states” imply that one is talking about one substate and several substates, respectively.
3.3 Design of structure of table organizing the initial references
We used the above conclusions to design the structure of a table—namely Table 2—for organizing the initial references in a useful way, in particular for the later synthesis in this paper.
|Drowsiness||Mental workload||Distraction||Emotions||Under the influence||Driver||Vehicle||Environment||Driver||Vehicle||Environment|
|Ahir and Gohokar (2)||V||ext cam|
|Alluhaibi et al. (6)||V||V||ang||speech||V*|
|Arun et al. (13)||V||V||sim|
|Balandong et al. (18)||V||V||elec||sim|
|Chacon-Murguia and Prieto-Resendiz (28)||V||radar||real|
|Chan et al. (29)||V||real|
|Chhabra et al. (31)||V||V||alc||breath||wheel||road||V*|
|Chowdhury et al. (32)||V||sim|
|Chung et al. (34)||stress||speech||V||V|
|Coetzer and Hancke (35)||V||brain||cam||V|
|Dababneh and El-Gindy (37)||V||road||radar|
|Dahiphale and Rao (38)||V||V||wheel||cam||real|
|Dong et al. (44)||V||V||V||cam||V||real|
|El Khatib et al. (51)||V||cam||V*|
|Ghandour et al. (65)||stress||V|
|Hecht et al. (78)||V||V||V||V|
|Kaplan et al. (96)||V||V||V|
|Kaye et al. (98)||V||stress||V|
|Khan and Lee (99)||V||wea d||real|
|Kumari and Kumar (107)||V||V||cam|
|Lal and Craig (108)||V||cam||sim|
|Laouz et al. (109)||V||V||ext cam||real|
|Leonhardt et al. (114)||real|
|Liu et al. (126)||V||cam||V||real|
|Marquart et al. (132)||V||pupil||V||eye t|
|Marina Martinez et al. (130)||ang||V*|
|Mashru and Gandhi (135)||V||V||sim|
|Melnicuk et al. (141)||V||V||cog||V*||real|
|Mittal et al. (146)||V||V||V||ext cam||real|
|Murugan et al. (151)||V||V||V||sim|
|Nair et al. (153)||V||V||alc||lane||V||radar|
|Němcová et al. (160)||V||stress||V|
|Ngxande et al. (156)||V||cam|
|Oviedo-Trespalacios et al. (164)||V||V||gaze|
|Papantoniou et al. (167)||V||V||V||cam|
|Pratama et al. (174)||V||V||ext cam|
|Ramzan et al. (176)||V||V|
|Sahayadhas et al. (186)||V||V||V|
|Scott-Parker (195)||V||traf||eye t||ext cam|
|Shameen et al. (198)||V||brain||elec||sim|
|Sigari et al. (202)||V||cam||real|
|Sikander and Anwar (203)||V||V||real|
|Singh and Kathuria (205)||V||V||V||V||pupil||V||real|
|Subbaiah et al. (213)||V||cam|
|Tu et al. (219)||V||V|
|Ukwuoma and Bo (220)||V||real|
|Vilaca et al. (225)||V||V||brain||V||ext cam|
|Vismaya and Saritha (227)||V|
|Wang et al. (229)||V||lane|
|Welch et al. (230)||V|
|Yusoff et al. (244)||V||eye t|
|Zhang et al. (248)||V||cam||ext cam|
The references are listed in the first column, labelled “References”, by alphabetical order of first author. The three megacolumns following the first column successively correspond to the three key items above, and are accordingly labelled “States”, “Indicators”, and “Sensors”. The last column, labelled “Tests”, indicates whether the technique or system described in a reference was tested in the laboratory, or in real conditions (“in the wild”), or both.
The “States” megacolumn is divided into columns corresponding to the (sub)states of interest. Each of the “Indicators” and “Sensors” megacolumns is divided into columns corresponding to the previously-listed items that a DMS should ideally monitor, i.e., the driver, vehicle, and environment. The column corresponding to the indicators for the driver is further divided into subcolumns corresponding to the qualifiers “physiological”, “behavioral”, and “subjective”. Some other columns could be further subdivided, such as for “Distraction”, but the table deals with such additional subdivisions in a different way.
3.4 Description of content of table of references
We successively describe the three megacolumns of Table 2.
For each of the papers, we indicate which particular (sub)state(s) it addresses. If a paper addresses drowsiness, we place the checkmark “V” in the corresponding column, and similarly for mental workload. For the three other states, we either use a general “V” or give more specific information, often via an abbreviation. There are four types of distraction, i.e., manual, visual, auditory, and cognitive, respectively abbreviated via man, vis, aud, and cog. These types are self-explanatory, but they are addressed later. For emotions, we indicate the type, i.e., stress or anger (ang). For under the influence, we also indicate the type; in all cases, it turns out to be alcohol (alc).
As an example, the second paper, by Alluhaibi et al. (6), addresses drowsiness, distraction, and the emotion of anger.
The indicator(s) used by a paper is (are) indicated in the same way as above.
The sensor(s) used by a paper is (are) indicated in a similar, but not identical, way. If a sensor is embedded in a mobile device (typically a smartphone), rather than in the vehicle, we add a “*”, leading to for a camera/microphone of a mobile device. In the vehicle column, “V” indicates that the sensor is integrated in the vehicle, whereas “V*” indicates that it is part of a mobile device. For example, the vehicle speed can be obtained via the CANcontroller area network controller-area-network (CAN) system/bus or a mobile device.
|aud||auditory||blink||blink dynamics||cam||camera||sim||simulated conditions|
|man||manual||brain||brain activity||eye t||eye tracker|
|Emotions||EDA||electrodermal activity||saf b||safety belt|
|ang||anger||facial||facial expressions||ste w||steering wheel|
|Under the influence||hands||hands parameters||Environment|
|alc||alcohol||HR||heart rate/activity||ext cam||external camera|
3.5 Trends observable in table
Table 2 reveals the following trends.
Drowsiness is the most covered state (with references among the total of ), distraction is the second most covered (with references), and more than one (sub)state is considered in only references.
Indicators are widely used in most references, in various numbers and combinations. Subjective indicators are not frequent (which is to be expected given the constraints of real-time operation). While several authors, such as Dong et al. (44) and Sahayadhas et al. (186), emphasize the importance of the environment and of its various characteristics (e.g., road type, weather conditions, and traffic density), few references (and, specifically, only ) take it into account.
While the three “Sensors” columns seem well filled, several references either neglect to talk about the sensor(s) they use, or cover them in an incomplete way. Some references give a list of indicators, but do not say which sensor(s) to use to get access to them. References simply saying that, e.g., drowsiness can be measured via a camera or an eye tracker do not help the reader. Indeed, these devices can be head- or dashboard-mounted, and they can provide access to a variety of indicators such as blink dynamics, PERCLOS, and gaze parameters.
Many systems are tested in real conditions, perhaps after initial development and validation in a simulator. Many papers do not, however, document systematically the test conditions for each method that they describe.
3.6 Other trends observable in references
Other trends are not directly observable in Table 2, but can be identified in some individual references.
Experts agree that there does not exist any globally-accepted definition for each of the first four states that we decided to consider. For example, even though many authors try to give a proper definition for drowsiness, there remains a lot of confusion and inconsistencies about the concepts of drowsiness and fatigue, and the difference between them. There is thus a need to define, as precisely as possible, what the first four states are, and this is done in the sequel.
In the more recent references, one sees a trend, growing with time, in the use of mobile devices, and in particular of smartphones (6; 29; 31; 51; 95; 96; 130; 141; 153; 219). A smartphone is relatively low-cost, and one can easily link it to a DMS. This DMS can then use the data provided by the smartphone’s many sensors, such as its inertial devices, microphones, cameras, and navigation system(s). A smartphone can also receive data from wearable sensors (e.g., from a smartwatch), which can provide information such as heart rate (HR), skin temperature, and electrodermal activity (EDA). A smartphone can also be used for its processing unit.
4 Driver-state characterization via triad of states, indicators, and sensors
Our survey of the field of DM and DMSs led us to the idea of synthesizing this field in terms of the three key components of states, indicators, and sensors. The next two subsections discuss the first two components, and the third subsection brings all three components into a system BDblock diagramblock diagram (BD).
Our survey convinced us that the (global) state of a driver should be characterized along at least the five dimensions—called here states—of drowsiness, mental workload, distraction, emotions, and under the influence.
One goal of a DMS is to determine the levels of one or more of these states in real time, nearly continuously, and, preferably, in a non-invasive way. We use “level” in a very general sense. The level can take several forms, such as a numerical value or a label. The numerical value can be on a continuous scale or on a discrete scale. A label can be the most likely (output) class of a classifier together with its probability, likelihood, or equivalent. A level can be binary, e.g., 0 and 1, or “alert” and “drowsy”. The levels of one or more of the five states can then be used to issue alerts or take safety actions; this is, however, not the object of this paper.
The first four states present a formidable challenge in that they are not defined in a precise way and cannot be measured directly, by contrast with, say, physical quantities such as voltage and power. The fifth state can be defined precisely, at least in the case of alcohol, but the measurement of its level requires asking the driver to blow in a breathalyzer and/or to submit to a blood test, both of which can be performed neither in real time nor non-invasively. In short, for all practical purposes, one cannot directly measure or obtain the level of any of the five states in any simple way. This is the reason for having recourse to “indicators” of each of these states.
While one may have an intuitive idea of what an indicator is, it is useful to define, as precisely as possible, what it is. In a nutshell, an indicator must be well defined, and there must be a clear procedure for computing its values (at a succession of time instants) based on input data provided by one or more sensors.
For the purpose of this paper, a “quantity” or “item” is called an indicator for a given (sub)state if it satisfies all of the following conditions:
it has a precise definition based on science (e.g., physics, mechanics, chemistry, biology, physiology);
it can be measured, or characterized in some way, with real-time constraint when necessary, based upon data obtained from relevant sensors available in the application of interest;
it must take values (such as numbers or labels) within a pre-specified domain, and these values must preferably correspond to physical units (such as seconds or Hertz);
it is not a unique and full descriptor of the state;
it is recognized, in the literature, as being linked, in some meaningful way, to the state or trend thereof;
it is possibly useful with respect to one or more related, or unrelated, states;
it is reproducible, meaning that its value is always the same for fixed data.
For example, the eye-blink rate (i.e., the blink rate of the left or right pair of eyelids) is scientifically recognized as being indicative of drowsiness. This parameter obeys all conditions above, and is thus an indicator of drowsiness.
Similarly to the level of a state, we talk about the value of an indicator. We use both “value” and “level” simply as a way to implicitly communicate wether one is talking about an indicator or a state. Ultimately, a set of values of the indicators of a state must be converted into a level of this state. The conversion may require the use of an advanced, validated algorithm.
Indicators are generally imperfect. In most cases, an indicator cannot be guaranteed to be fully correlated with a related state. Due to the presence of complex interrelationships between each (sub)state and its indicators, it is important to use as many indicators as possible to promote a valid and reliable interpretation of the (sub)state of the driver and, ultimately, of the (global) state of the driver. An example follows. The HRheart rateheart rate (HR) is known to be an indicator of drowsiness. But, imagine that one relies solely on the HR to monitor drowsiness, and that the driver must suddenly brake to avoid an accident. Inevitably, this will cause his/her HR to undergo important variations. These particular variations have, however, no direct link with his/her level of drowsiness. Thus, while it is true that the HR is an indicator of drowsiness, one cannot rely on it alone to provide a reliable level of drowsiness. The environment, among other things, needs to be considered.
The values of indicators are obtained through algorithms applied to data collected via sensors.
4.3 System view of characterization of a (sub)state

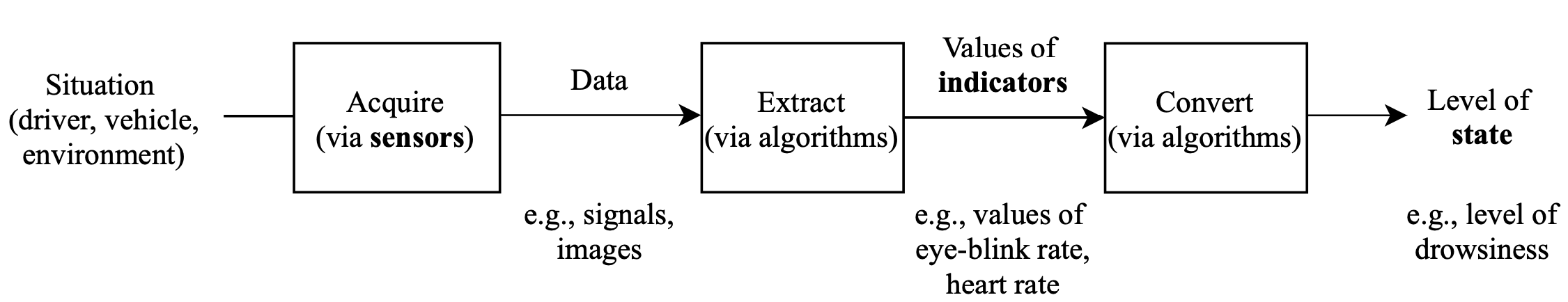

Figure 2 shows a system BD that uses the terminology introduced above, i.e., sensors, indicators (and values thereof), and states (and levels thereof). The BD is drawn for a single, generic state, and one must specialize it for each of the five states of interest (or others).
The BD is self-explanatory. The input is the situation of interest (with the driver, vehicle, and environment). One or more sensors acquire data, typically signals and images. Algorithms extract the values of the indicators that are deemed relevant for the state of interest. Other algorithms convert these values into a level of the state. The three successive subsystems are labelled with the operation they perform, i.e., acquire, extract, and convert. The input and output of each subsystem should ideally be viewed as being functions of time.
If several states are used simultaneously, the value of a given indicator can be used to compute the level of any state that this indicator relates to.
5 Synthesis of driver-state characterization via two interlocked tables
The previous section shows the key role played by the triad of states, indicators, and sensors (also emphasized in Figure 2) in driver-state characterization, which is the first of two key steps in DM, and the object of this paper. The present section describes our approach to synthesize, in terms of this triad, the techniques for driver-state characterization found in the literature.
Our approach aims at answering, in a simple, visual way, the two following questions: (1) For a given state, what indicator(s) can one use? (2) For a given indicator, what sensor(s) can one use? We achieve this goal by naturally providing two tables (or matrices) of “states vs indicators” and “sensors vs indicators”. These two tables can be viewed as being two-dimensional (2D) views of a 3D table (or array) of “states vs indicators vs sensors”, as illustrated in Figure 3, where the positions shown for the three dimensions and for the “dihedral” they subtend make the tables on the right appear in numerical order from top to bottom. The figure shows visually that the tables share the “Indicators” dimension, and are thereby interlocked. It gives a simplified representation of each of the tables that are progressively filled in Sections 6-10, i.e., Tables 4 and 5.
5.1 Preview of two key tables

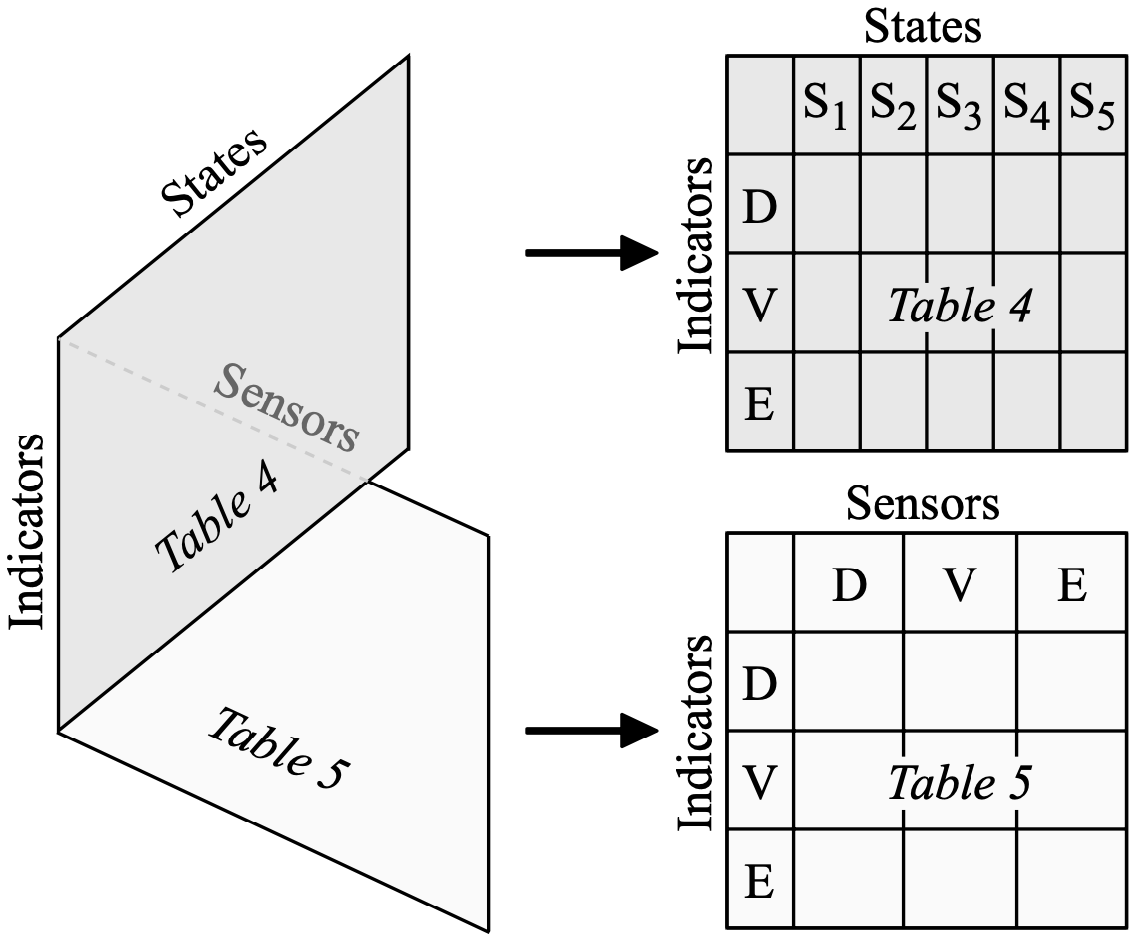

In Table 2, the megacolumn “Indicators” is partitioned into the three columns “Driver”, “Vehicle”, and “Environment”. Figure 3 shows, via the simplified representations, that Tables 4 and 5 are also partitioned in this way, but in megarows and with the corresponding abbreviations D, V, and E. In Table 2, the megacolumn “Sensors” is partitioned in the same way as the megacolum “Indicators”. This is reflected in Figure 3 by the partitioning of Table 5 into the megacolumns D, V, and E. The figure shows that Table 4 is partitioned into the five megacolumns corresponding to the five states, denoted here by , where stands for “State i”. This quoted phrase appears at the beginning of the titles of the next five sections, with the successive values of i.
Each lowest-level cell in both tables is destined to contain , , or more related references.
The pair of tables allows one to answer other questions such as: (1) If one invests in the calculation of an indicator for a particular state, what other state(s) can this indicator be useful for? (2) If one invests in a particular sensor for a particular state, what other state(s) can this sensor be useful for?
5.2 Further subdivision of rows and columns
The rows and columns of Tables 4 and 5 are further divided as follows. The D-megarows of Tables 4 and 5 are subdivided as the D-megacolumns of Table 2 are, i.e., into the rows “Physiological”, “Behavioral”, and “Subjective”.
The D-megacolumns of Table 5 are subdivided in a way that does not already appear in Table 2, i.e., into the columns “Seat”, “Steering wheel”, “Safety belt”, “Internal camera”, “Internal microphone”, and “Wearable”. Observe that the D-megarows and D-megacolumns are not subdivided in the same way, even though they correspond to the driver.
The V- and E- rows and columns are also further divided as necessary.
5.3 Categories of indicators and sensors
We give examples of the various categories of indicators and sensors that are further discussed in the next five sections. Below, we use the self-explanatory terminology of “X-based indicators” and “X-centric sensors”, where X can be replaced by driver (or D), vehicle (or V), or environment (or E).
D-based indicators relate to the driver. They include physiological indicators (e.g., heart activity, brain activity, electrodermal activity (EDA)), behavioral indicators (e.g., eye blinks, gaze direction, hands positions), and subjective indicators (which are not suited for real-world operation, but can be used for validation at some point in the development of a DMS).
V-based indicators relate to how the driver control his/her vehicle, for example, how he/she controls the speed, steers, and brakes.
E-based indicators relate to the environment, viewed here as consisting of three parts: (1) the outside environment (outside of vehicle), (2) the inside environment (inside of vehicle), and (3) the contextual environment (independent of the previous two). Examples of characteristics of these parts of the environment are, respectively, (1) the road type, weather conditions, and traffic density, (2) the temperature and noise, and (3) the time of day and day of year. Each of these characteristics (e.g., road type) can be used as an E-based indicator.
Some D-centric sensors are placed in the seat (e.g., radar for breathing activity), steering wheel (e.g., electrodes for electrocardiogram (ECG)), and safety belt (e.g., MImagnetic inductionmagnetic induction (MI) sensors). Some D-centric sensors, in particular cameras (e.g., RGB) and microphones, are appropriately placed in the cockpit to monitor the driver. We qualify these sensors of “internal”, to distinguish them from similar sensors monitoring the external environment, and qualified of “external”. Some D-centric sensors are wearables (e.g., a smartwatch measuring HR and/or skin temperature). Since the aim is to monitor the state of the driver, we assume throughout this paper that the seat, safety belt, and similar items are related to the driver.
V-centric sensors are mostly sensors—whether integrated in the vehicle or not—that allow for the acquisition of vehicle parameters such as speed, steering angle, and braking level. Such parameters are often obtained via the CAN bus. Sensors (e.g., accelerometers, gyroscopes) built into recent mobile devices can, however, also provide some of this information.
E-centric sensors are sensors that allow for the acquisition of parameters related to the environment. Cameras and radars can provide, for example, information about the driving scene.
5.4 Preview of next five sections
The next five sections successively cover the five selected states in detail. In general, each section defines a state, the indicators that characterize it, and the sensors that allow access to them, and progressively fills Tables 4 and 5 with relevant references.
At the end of the last of these five sections, both tables are complete. They, together with the explanations in the five sections, constitute the main contribution of this paper.
6 State 1: Drowsiness
We provide a detailed description of (the state of) “drowsiness”, and we then present the indicators and sensors that can be used to characterize it.
Johns (88) appears to have given the earliest, accurate definition of drowsiness, i.e., the state of being drowsy. Massoz (137) provides useful, recent information about this state. Drowsiness is an intermediate arousal state between wakefulness and sleep, i.e., between being awake and being asleep; it thus refers to a state just before potential sleep. A drowsy person has both a difficulty to stay awake and a strong inclination to sleep. It is a continuous, fluctuating state of (1) reduced awareness of the “here and now” (89) and (2) impaired cognitive and/or psychomotor performance. It is often the result of a monotonous activity, such as a long drive on a monotonous road. It can have a detrimental effect on the safety of driving. For example, in the USA in 2018, there were fatal accidents due to drowsiness for a total of people killed in motor vehicle crashes and, in 2019, these numbers were vs (155). It can be viewed as a state of basic physiological need like hunger and thirst, i.e., as an indication that one needs to sleep. It can be considered to be synonymous with sleepiness, somnolence, and sleepening, the latter being a less common term meaning “entry into sleep” (36).
Drowsiness is, however, not synonymous with fatigue. These are two distinct physiological states that are often confused, even in the scientific literature. Fatigue corresponds to the feeling of being tired or exhausted as a result of long periods of physical activity and/or cognitive activity. It is characterized by an increasing difficulty to accomplish an effort linked to a task. It can be considered to be synonymous with tiredness. Talking about fatigue helps one to further narrow down what drowsiness is and is not.
May and Baldwin (139) suggest that, for driving, one should distinguish between SRsleep-relatedsleep-related (SR) fatigue and TRtask-relatedtask-related (TR) fatigue, based on the causing factors. SR fatigue can be caused by sleep deprivation, long wakefulness, and time of day (with effect of circadian rhythm), while TR fatigue can be caused by certain characteristics of driving, like task demand and duration, even in the absence of SR fatigue. These suggested subcategories of fatigue clearly intersect with drowsiness, but it is difficult to say exactly how.
Fatigue can be alleviated by taking a break (without necessarily sleeping), while drowsiness can be alleviated by sleeping, even by taking a nap or a power nap. One can be drowsy without being fatigued and vice-versa, and one can be both. Fatigue and drowsiness both lead to decrements in performance. In practice, it is difficult to distinguish between them, and even more to quantify how much of a decrement is due to each of them individually, especially in real time and non-invasively. Their indicators appear to be mostly the same. In the driving context, one focuses on monitoring drowsiness, with the main goal of preventing the driver from falling asleep at the wheel.
We start with the driver-based indicators, divided into the three categories of physiological, behavioral, and subjective indicators.
The most substantial changes in physiology associated with changes in the LoDlevel of drowsinesslevel of drowsiness (LoD) lie in the brain activity as measured by the EEGelectroencephalographyelectroencephalogram (EEG). Tantisatirapong et al. (214) model EEG signals using the fBMfractal Brownian motionfractal Brownian motion (fBm) random process. They carried out experiments in a driving simulator, and considered the three time periods of before, during, and after sleep, where they mimic sleep by asking the driver to close his/her eyes, pretending to try to fall asleep. They saw corresponding changes in the computed fractal dimension (related, for self-replicating random processes, to the Hurst exponent), which allows them to classify the driver as alert or drowsy. They conclude that the fractal dimension of an EEG signal is a promising indicator of drowsiness. Changes in physiology also manifest themselves in the heart activity, as measured by the ECG. Indeed, as drowsiness increases, the HR decreases and the HRVheart rate variabilityheart rate variability (HRV) increases (224). However, HRV data vary both between individuals and over time for each individual, depending on both internal and external factors. Therefore, the many confounding factors that also influence HRV must be accounted for in order to use HRV as an indicator of drowsiness (172). The breathing activity is an indicator of drowsiness, as changes in breathing rate or inspiration-to-expiration ratio occur during the transition from wakefulness to drowsiness (100). Drowsiness leads to changes in EDA, also called skin conductance or GSRgalvanic skin responsegalvanic skin response (GSR), which relates to the electrical resistance measured via electrodes placed on the surface of the skin. The skin resistance fluctuates with sweating, the level of which is controlled by the sympathetic nervous system, which autonomously regulates emotional states such as drowsiness (145). The pupil diameter instability has been linked to drowsiness. Indeed, several studies found that the pupil diameter fluctuates at a low frequency and with a high amplitude whenever a subject reports being drowsy (127; 159; 235).
Eye behavior is a good indicator of drowsiness. In a clinical setting, one traditionally characterizes this behavior by EOGelectrooculographyelectrooculography (EOG) (26), which implies the use of electrodes. In operational settings where a non-invasive characterization is highly desirable, one generally uses video sequences of the eye(s) and applies image-analysis methods to them. The dynamics of eye closures (in particular, long and slow closures) is recognized as a strong and reliable indicator of drowsiness (193). The most-standard indicator of spontaneous eye closure is the PERCLOSpercentage of closurepercentage of closure (PERCLOS) (41; 42; 234). It is usually defined as the proportion of time (over a given time window) that the eyelids cover at least (or ) of the pupils. As the LoD increases, the eye closures become slower and longer, and the upper eyelid droops, and all of this contributes to an increase in PERCLOS. Other reliable, standard indicators include mean blink duration (10; 193), mean blink frequency or interval (124; 193), and eye closing and reopening speeds (193). Recently, Hultman et al. (83)
used electrophysiological data obtained by EOG and EEG to detect drowsiness with deep neural networks, and found that, for driver-drowsiness classification, EOG data (and, more precisely, the related blink data) are more informative than EEG data.
All the above elements constitute objective indicators of drowsiness. Besides these, there are subjective indicators, consisting of questionnaires and self-reports. While they are not suitable for real-time characterization of drowsiness, they can be used to validate other indicators, as ground truth to train models, and/or to evaluate the performances of systems. These subjective indicators include the KSSKarolinska sleepiness scaleKarolinska sleepiness scale (KSS) (5), the SSSStanford sleepiness scaleStanford sleepiness scale (SSS) (80), and the VASvisual analog scalevisual analog scale (VAS) (147).
The above information allows one to fill the cells of Table 4 at the intersection of the “Drowsiness” column and the “Driver” megarow. The latter lists a total of fourteen indicators. We stress that these may or may not be relevant for each of the five states.
A cell (at the lowest level) in the heart of Table 4 is either empty or filled with one or more related reference(s). For example, this table shows that we found three significant references about “pupil diameter” as an indicator of drowsiness, i.e., (127; 159; 235), while we found no significant reference about “gaze parameters” as an indicator of drowsiness. The table shows, however, that we found references reporting that this last indicator is useful for the state of emotions (discussed later).
As should be clear from this discussion, the finer hierarchical partitioning of Tables 4 and 5 into the lowest-level columns and rows is progressively obtained from the developments in Sections 3 to 10.
We now consider the vehicle-based indicators. In the literature, they are often called measures of driving performance, the latter being known to degrade with increasing drowsiness (53; 102; 233). These indicators characterize the driving behavior. Common such indicators include speed, lateral control (or lane discipline), braking behavior, and wheel steering. These last indicators are found in the central part of Table 4, next to the “Vehicle” header.
The main vehicle-based indicator of drowsiness is the SDLPstandard deviation of lane positionstandard deviation of lane position (SDLP) (66; 121; 125; 222). As the term suggests, SDLP measures the driver’s ability to stay centered in his/her lane. Drowsiness can also produce greater variability in driving speed (12). Another important vehicle-based indicator is the SWMsteering wheel movementsteering wheel movement (SWM) (121). It has been shown that a drowsy driver makes fewer small SWMs and more large ones. When a driver loses concentration, the vehicle begins to drift away from the center of the lane, but, when the driver notices the drift, he/she compensates by large SWMs toward the lane center (217).
Jacobé de Naurois et al. (86) conducted a study in a driving simulator, using different ANNartificial neural networkartificial neural networks (ANNs) based on various data, to detect drowsiness and predict when a driver will reach a given LoD. The data used are either (1) driver-based, physiological indicators (HR, breathing rate) and behavioral indicators (blinks, PERCLOS, head pose), or (2) vehicle-based indicators (lane deviation, steering wheel angle, acceleration, speed). The results of the study show that the best performance is obtained with behavioral data, successively followed by physiological data and vehicle data, for both detection and prediction.
Most real-time, drowsiness-monitoring systems characterize the LoD at the “present” time using sensor data located in a sliding time window butting against this present time. Therefore, this LoD corresponds, not to the present, but to roughly the center of the window, thus several seconds, or tens of seconds, in the past. If this “present” LoD is above a dangerous level, it may be too late for the driver or the vehicle to take proper action. Given that, at , it takes about to get out of lane (then possibly hitting an obstacle), predictions just to into the future would already help. It is thus crucial to be able to predict (1) the future evolution of the LoD and (2) the associated risks.
Ebrahimbabaie (47) and Ebrahimbabaie and Verly (48) developed and tested a prediction system that (1) takes as input a discrete-time, validated LoD signal consisting of the past LoD values produced at regular intervals, up to just before the present time, as in (56; 55)
(discussed later), and (2) produces as output several types of predictions. Treating the LoD signal as a realization of an underlying RPrandom processrandom process (RP), the authors investigate the use of the RPs called AR(I)MAautoregressive (integrated) moving average“autoregressive (integrated) moving average (AR(I)MA)” (from time-series analysis) and GBMgeometric Brownian motion“geometric Brownian motion (GBM)” (found almost exclusively in finance). They show that the LoD signal can generally be modeled as AR(I)MA and GBM within each position of the sliding window (thus locally), they estimate the parameters of the model for each position of the window, and they use them to make predictions of one or more of the following three types: future values of LoD signal, first hitting time (of a critical LoD threshold), and survival probability.
We emphasize that “to predict” means “to tell beforehand”, and thus, in the present context, to use past data to compute now a quantity that describes some future situation. In the literature, this “future situation” often turns out to be a “present situation”, so that no prediction is performed.
The above information allows one to fill, in Table 4, the relevant cells of the “Drowsiness” column and the “Vehicle” megarow.
Note that there are no entries in the “Environment” megarow of the “Drowsiness” column, which means that we did not find any significant technique that uses one or more indicators related to one of the three parts of the environment listed in Section 5.3
(i.e., outside, inside, and contextual) to determine the level of drowsiness of the driver. Some papers attempt to use the time of day to try to capture the moments of the day where drowsiness tends to peak. While the monotonicity of a road is known to increase driver drowsiness, we have not found any paper using environment-based indicators of road monotonicity (e.g., road geometry or traffic density), and describing a way to give values to such indicators based upon available data. As an aside, studies of drowsiness in a driving simulator often use night driving and monotonous conditions to place the driver in a situation conducive to drowsiness.
Similarly to the indicators, we first address the driver-centric sensors.
In a vehicle, the HR can be monitored using electrodes that can be placed at various locations, including the steering wheel (conductive electrodes (204)) and the seat (capacitive electrodes (113)). ECG monitoring using steering-wheel-based approaches is a feasible option for HR tracking, but requires both hands to touch two different conductive parts of the steering wheel.
BCGballistocardiographyBallistocardiography (BCG) also allows for monitoring the cardiac activity unobtrusively. The underlying sensing concept uses strain-gauge BCG sensors in the seat or in the safety belt to detect both the cardiac activity and the respiratory activity of the driver (239). However, the vehicle vibrations make it difficult to use this sensor in real driving conditions.
Information about the cardiac activity can be obtained using a camera looking at the driver, in particular using PPGphotoplethysmographyphotoplethysmography (PPG) imaging (250).
Radar-based methods mainly provide information about movement, which can of course be caused by both the cardiac activity and the respiratory activity. Various sensor locations are possible, including integration into the safety belt, the steering wheel, and the backrest of the seat (85; 192).
Thermal imaging is a tool for analyzing respiration (or breathing) non-intrusively. Kiashari et al. (100) present a method for the evaluation of driver drowsiness based on thermal imaging of the face. Indeed, temperature changes in the region below the nose and nostrils, caused by inspiration and expiration, can be detected by this imaging modality. The procedure (1) uses a sequence of IRinfraredinfrared (IR) images444Unless indicated otherwise, infrared (IR) means long-wave IR (LWIR), i.e., with wavelengths of . LWIR is the “thermal” range of IR. to produce a corresponding discrete-time signal of respiration, and (2) extracts respiration information from it. The value of each successive signal sample is the mean of the pixels in a rectangular window of fixed size, representing the respiration region in the corresponding IR image, adjusted frame-to-frame using a tracker. The initial respiration region is determined based on the temporal variations of the first few seconds of the sequence, and the region is tracked from frame-to-frame by using the technique of “spatio-temporal context learning” (249)
, which is based on a Bayesian framework, and models the statistical correlation between (1) the target (i.e., the tracked region) and (2) its surrounding regions, based on the low-level characteristics of the image (i.e., the intensity and position of each pixel). The extracted information is the respiration rate and the inspiration-to-expiration ratio. A classifier uses these rate and ratio to classify the driver as awake or drowsy. A SVMsupport vector machinesupport vector machine (SVM) classifier and a KNNk-nearest neighbors
-nearest neighbors (KNN) classifier are used, and the first does result in the best performance.
François (55) and François et al. (56) describe a POGphotooculographyphotooculographic (POG) system that illuminates one eye with eye-safe IR light and uses as input a sequence of images of this eye acquired by a monochrome camera that is also sensitive in this IR range, and is head-mounted or dashboard-mounted. A large number of ocular parameters, linked to the movements of the eyelids (including blinks) and eyeball (including saccades), are extracted from each video frame and combined into an LoD value, thus producing an LoD signal. The output was validated using EEG, EOG, EMGelectromyographyEMG, and reaction times. The head-mounted system is available commercially as the Drowsimeter R100.
Using a camera, Massoz et al. (138) characterize drowsiness by using a multi-timescale system that is both accurate and responsive. The system extracts, via CNNconvolutional neural networkconvolutional neural networks (CNNs), features related to eye-closure dynamics at four timescales, i.e., using four time windows of four different lengths. Accuracy is achieved at the longest timescales, whereas responsiveness is achieved at the shortest ones. The system produces, from any 1-min sequence of face images, four binary LoDs with diverse trades-offs between accuracy and responsiveness. Massoz et al. (138) also investigate the combination of these four LoDs into a single LoD, which is more convenient for operational use.
Zin et al. (254)
classify driver drowsiness by using a feature-extraction method, the PERCLOS parameter, and an SVM classifier.
EDA is measured through electrodes placed on the skin of a person. It can thus be measured through a wearable such as a smartwatch. Concerning the other, relevant, physiological, driver-based indicators, (1) it is challenging to get the pupil diameter in real conditions because of issues with illumination conditions and camera resolution, among others reasons, and (2) it is nearly impossible, as of this writing, to characterize the brain activity in real time and in a non-intrusive, reliable way.
Teyeb et al. (215) measure vigilance based on a video approach calculating eye-closure duration and estimating head posture. Teyeb et al. (216) monitor drowsiness by analyzing, via pressure sensors installed in the driver seat, the changes in pressure distribution resulting from the driver’s body moving about in this seat. The authors suggest that the techniques of these two papers can be usefully combined into a multi-parameter system.
Bergasa et al. (21) present a system to characterize drowsiness in real time using images of the driver and extracting from them the six visual parameters of PERCLOS, eye-closure duration, blink frequency, nodding frequency, fixed gaze, and face pose. Using a camera, Baccour et al. (15) and Dreißig et al. (45) monitor driver drowsiness based on eye blinks and head movements.
Vehicle-based indicators can be collected in two main ways. Standard indicators such as speed, acceleration, and steering wheel angle, can be extracted from CAN-bus data (116; 60). The CAN bus enables intra-vehicle communications, linking the vehicle sensors, warning lights, and ECUelectronic control unitelectronic control units (ECUs). More advanced indicators can be obtained in appropriately-equipped vehicles (27; 60). For example, speed and acceleration can be obtained via an IMUinertial measurement unitinertial measurement unit (IMU), and following distance via a forward-looking radar.
Since SDLP is considered to be a vehicle-based indicator of driver drowsiness, one can quantify this indicator by examining the lane discipline, i.e., the behavior of the vehicle in its lane. This is traditionally done by using cameras (mounted inside, behind the windshield, typically integrated beside the rear-view mirror) (11) and/or laser sensors (mounted at the front of the vehicle) to track the lane-delimiting lines when present. However, one can also use the rumble strips (also called sleeper lines, audible lines, or alert strips) when present. While these are designed to produce an audible, acoustic signal intended to be sensed directly by the driver (as an urgent warning or wake-up call), one could imagine using microphones and/or vibration sensors to transform this acoustic/mechanical signal into an electrical signal that is then analyzed via signal processing.
Bakker et al. (17)
describe a video-based system for detecting drowsiness in real time. It uses computer vision and machine learning (ML), and was developed and evaluated using naturalistic-driving data. It has two stages. The first extracts, using data from the last 5 minutes, (1) driver-based indicators (e.g., blink duration, PERCLOS, gaze direction, head pose, facial expressions) using an IR camera looking at the driver’s face, and (2) vehicle-based indicators (e.g., lane positions, lane departures, lane changes) using an IR camera looking at the scene ahead. This stage mostly uses pre-trained, DNNdeep neural networkdeep-neural-network (DNN) models. All indicators—also called deep features in DNNs—are inputs to the second stage, which outputs an LoD, either binary (alert or drowsy) or regression-like. This stage uses one KNN classifier, trained and validated using KSS ratings as ground truth for the LoD, and personalized for each driver by weighting more his/her data during training, thereby leading to higher performance during operation.
7 State 2: Mental workload
We provide a detailed description of (the state of) “mental workload”, and we then present the indicators and sensors that can be used to characterize it.
Mental workload, also known as cognitive555The present paper considers “mental” and “cognitive” as being synonyms. (work)load (or simply as driver workload in the driving context), is one of the most important variables in psychology, ergonomics, and human factors for understanding performance. This psychological state is, however, challenging to monitor continuously (131).
A commonly-used definition of mental workload is the one proposed by Hart and Staveland (76). They define mental workload as the cost incurred by a person to achieve a particular level of performance in the execution of a task. It is thus the portion of an individual’s mental capacity—necessarily limited—that is required by the demands of this task (23; 161), i.e., the ratio between the resources required to perform it and the available resources of the person doing it (188; 232).
In the literature on mental workload, one often finds references to another state called cognitive distraction. Mental workload and cognitive distraction are two different concepts, even if they can be linked when a driver performs secondary tasks while driving. Cognitive distraction increases the mental workload of a driver. An increase in mental workload is, however, not in itself an indication of cognitive distraction. First, mental workload can increase in the absence of distraction, for example, when a driver is focusing to execute the primary task of driving correctly and safely. Second, mental workload can increase significantly with an increasing complexity of the driving environment (191). Cognitive distraction is further considered later as a particular category of (the state of) distraction.
Mental workload and stress are also linked since an increasing mental workload usually induces some stress in the driver.
In the driving context, visual tasks and mental tasks are closely linked. Indeed, while driving, a driver is constantly perceiving his/her driving environment and analyzing what he/she sees in order to make the right decisions whenever required, for example, scanning a crossroad and simultaneously judging the time and space relationships of other road users to decide when it is safe to cross an intersection. Therefore, it is logical that many researchers use eye-related parameters (e.g., blinks, fixations, and pupil diameter) to assess the mental workload of a driver (132).
Among the driver-based, physiological indicators, EDA (94), HR (61), and HRV (169) are often used as indicators of mental workload. HR increases as a task gets more difficult (182) or if other tasks are added (54). EEG is also a valuable indicator for studying mental workload because it records the electrical activity of the brain itself, but it is complex to analyze (101). The pupil diameter is considered to be an indicator of mental workload (61; 105; 173). Indeed, Yokoyama et al. (241) indicate that the mental workload of a driver may be predicted from the slow fluctuations of the pupil diameter in daylight driving. All physiological parameters mentioned in this paragraph are, however, also influenced by other aspects of the mental and physical situation of the driver (e.g., drowsiness and TR fatigue) and by environmental situation (e.g., illumination and temperature).
Among the driver-based, behavioral indicators, Fridman et al. (59) have shown that the visual scanning by a driver decreases with an increasing mental workload. Furthermore, since the interval of time between saccades has been shown to decrease as the task complexity increases, saccades may be a valuable indicator of mental workload (122; 140).
Subjective measures of mental workload exist, like the NASA TLXNASA task load indexNASA task load index (NASA TLX) (76), which is a workload questionnaire for self-report, and the RSMErating scale mental effortrating scale mental effort (RSME).
Driving performance can diminish as a result of an increase in mental workload. The vehicle-based indicators which are the most sensitive to such an increase are SDLP and SWM (191).
Palasek et al. (166) use the driving environment to estimate the attentional demand required from the driver to drive. The features extracted from the analysis of the driving environment are thus indicators of the mental workload of the driver.
The above information allows one to fill, in Table 4, the relevant cells of the “Mental workload” column.
Cameras are often used in the literature to characterize mental workload as they are particularly well suited to extract driver-based, behavioral indicators and are non-invasive.
Fridman et al. (59)
describe a system for characterizing, non-invasively, via a camera facing the driver, what they call his/her CLcognitive loadcognitive load (CL). The system exploits the well-documented, experimental observation that the angular distribution of gaze direction (often characterized by the 2D pupil position) tends to become more concentrated, especially vertically, when the CL increases. Using video imagery, the system classifies the CL of the driver into one of the three CL levels (low, medium, high), as he/she engages in activities other than the primary task of driving, such as a conversation or the adjustment of the infotainment system. The system extracts, from a 90-frame, 6-second video clip, via computer vision, the face and the region of one eye of the driver. It then uses one of two methods: (1) mainly AAMactive appearance modelactive appearance models (AAMs) for the face, eyelids, and pupil (when visible) to produce a sequence of pupil 2D positions, and (2) one HMMhidden Markov modelhidden Markov model (HMM) for each of the three CL levels. The second method uses a single 3D CNN with three output classes corresponding to these levels. The two methods thus rely on a sequence of pupil positions and on a sequence of eye images, respectively. The output of the system is one of the three CL levels.
In order to develop this system, the authors first acquired training data in real-driving conditions while imposing on the driver a secondary task of a given CL level. This imposition of a given CL level while performing a primary task (here driving) is commonly achieved in the literature through the standard “-back” task, where the three values of , i.e., , , and , are viewed as corresponding to low, medium, and high CL. For the -back task, a sequence of numbers is dictated to the subject, who is asked, for each number, whether it matches the one dictated positions earlier in the sequence. For example, for , the subject must indicate whether the current number is the same as the one he/she heard 2 steps before, all this while he/she performs the primary task, here driving.
The authors indicate (1) that the differences in cognitive loading for the three levels have been validated using, among others, physiological measurements (e.g., HR, EDA, and pupil diameter), self-report ratings, and detection-response tasks, and (2) that these levels have been found to cover the usual range of secondary tasks while driving, such as manipulating a radio or a navigation system.
It is noteworthy that the data used for building the system was acquired through real driving, during which the driver repeatedly performed -back tasks, while a camera was recording his/her face and surrounding area, this by contrast with the many other developments made using a driving simulator, in highly controlled conditions, and difficult to implement in real-life conditions.
The authors indicate that, while they use the term “cognitive load”, the literature often uses synonyms like “cognitive workload”, “driver workload”, and “workload”.
Musabini and Chetitah (152) describe another system that is also based on eye-gaze dispersion. They use a camera facing the driver, produce a heatmap representing the gaze activity, and train an SVM classifier to estimate the mental workload based on the features extracted from this representation.
Le et al. (110) characterize the mental workload based on the involuntary eye movements of the driver, resulting from head vibrations due to changing road conditions. They report that, as the mental workload increases, these involuntarily eye movements become abnormal, resulting in a mismatch between the actual eye movements measured via an eye-tracking device and the predicted eye movements resulting from a VOR+OKR model666VOR and OKR are the abbreviations of vestibular-ocular reflex and optokinetic response.. For each driver, the VOR parameters are estimated during the first
of driving in condition of normal mental workload, whereas the parameter in the OKR model is fixed. The hypothesis of abnormal eye movements while driving under mental workload was validated using a t-test analysis. Different levels of mental workload were induced in a driving simulator using the-back task.
Palasek et al. (166) use an external camera recording the driving environment to estimate the attentional demand using attentive-driving models. Indeed, the task of driving can sometimes require the processing of large amounts of visual information from the driving environment, resulting in an overload of the perceptual systems of a human being. Furthermore, traffic density is known to increase the mental workload (71), so that urban environments lead to a higher mental workload than rural and highway environments do (243), all other conditions being equal.
8 State 3: Distraction
By contrast with the two previous sections, we start with some background information (up to Section 8.1) on the state of distraction.
The globally accepted definition of driver distraction follows: it is a diversion of attention, away from activities critical for safe driving (the primary task) and toward a competing activity (178; 180).
Inattention, sometimes used—mistakenly—as a synonym of distraction, is defined as a diminished attention to activities that are critical for accomplishing a primary task, but not necessarily in the presence of a competing activity (180). Therefore, driver distraction is one particular form of driver inattention (181). Inattention is a broader term as it can be caused, for example, by drowsiness. It indeed occurs in a wide range of situations in which the driver fails to attend to the demands of driving, such as when a desire to sleep overcomes a drowsy driver.
Driver distraction can be caused by any cognitive process such as daydreaming, mind wandering, logical and mathematical problem solving, decision making, using any kind of in-vehicle system, for example, for entertainment, navigation, communication (including a cell phone), and any other activity that may affect the driver’s attention to driving (7). It is helpful to distinguish between four types of distractions (44; 67): (1) manual distraction (e.g., manually adjusting the volume of the radio), (2) visual distraction (e.g., looking away from the road), (3) auditory distraction (e.g., answering a ringing cell phone), and (4) cognitive distraction (e.g., being lost in thought). Several distracting activities may, however, involve more than one type of distraction (e.g., talking on the phone while driving creates at least an auditory distraction and a cognitive distraction, under the assumption that a hands-free system is used, thereby avoiding manual distraction).
When distracted, the driver looses awareness of the current driving situation. Being aware of a situation (whether for driving or for some other activity) is often called SAsituational awarenesssituational awareness (SA). A loss of SA while driving results in a reduction of vigilance and in an increase of the risk of accident. In driving, a major aspect of SA is the ability to scan the driving environment and to sense dangers, challenges, and opportunities, in order to maintain the ability to drive safely. As a driver moves through the environment, he/she must—to avoid getting into an accident—identify the relevant information in rapidly changing traffic conditions (e.g., distance to other vehicles, closing speed), and be prepared to react to suddenly-appearing events (e.g., braking because of an obstacle, obeying a road sign). To achieve SA, a driver must thus perceive correctly his/her driving environment (46), be attentive, and have a working memory (232). It follows that any distraction that harms the driver’s attention may adversely impact SA (97).
Kircher and Ahlström (103) argue that existing definitions of distraction have limitations because they are difficult to operationalize, and they are either unreasonably strict and inflexible or suffering from hindsight bias, the latter meaning that one needs to know the outcome of the situation to be able (1) to tell what the driver should have paid attention to and, then, (2) to judge whether he/she was distracted or not. The authors are also concerned that distraction-detection algorithms (1) do not take into account the complexity of a situation, and (2) generally cover only EOReyes-off-roadeyes-off-road (EOR) and engagement in non-driving related activities (NDRA). They thus developed a theory, named MiRA (minimum required attention), that defines the attention of a driver in his/her driving environment, based on the notion of SA. Instead of trying to assess distraction directly, one does it indirectly, by first trying to assess attention. Recall that distraction is a form of inattention.
According to the MiRA theory, a driver is considered attentive at any time when he/she samples sufficient information to meet the demands of the driving environment. This means that a driver should be classified as distracted only if he/she does not fulfill the minimum attentional requirements to have sufficient SA. This occurs when the driver does not sample enough information, whether or not simultaneously performing an additional task. This theory thus acknowledges (1) that a driver has some spare capacity at his/her disposal in the less complex driving environments, and (2) that some glances toward targets other than the roadway in front of him/her may, in some situations, be needed for the driving task (like looking at, or for, a vehicle coming from each of the branches at a crossroad). This means that EOR and engagement in NDRA do not necessarily lead to driver distraction.
The MiRA theory does not conform to the traditional types of distraction (manual, visual, auditory, cognitive) as it does not prescribe what sensory channel a certain piece of information must be acquired through.
In an attempt to operationalize the MiRA theory, Ahlström et al. (3) present an algorithm for detecting driver distraction that is context dependent and uses (1) eye-tracking data registered in the same coordinate system as an accompanying model of the surrounding environment and (2) multiple buffers. Each buffer is linked to a corresponding glance target of relevance. Such targets include: windshield, left and right windows, (rear-view) mirrors, and instrument cluster. Some targets and their buffers are always present (like the roadway ahead via the windshield, and behind via the mirrors), while some other targets and their buffers appear as a function of encountered traffic-regulation indications and infrastructural features. Each buffer is periodically updated, and its update rate can vary in time according to requirements that are either “static” (e.g., the presence of a specific on-ramp that requires one to monitor the sides and mirrors) or “dynamic” (e.g., a reduced speed that lessens the need to monitor the speedometer). At each scheduled update time, a buffer is incremented if the driver looks at the corresponding target, and decremented otherwise; this is a way of quantifying the “sampling” (of the environment) performed by the driver. A buffer running empty is an indication that the driver is not sampling enough the corresponding target; he/she is then considered to be inattentive (independently of which buffer has run empty). Until declared inattentive, he/she is considered attentive.
This completes the background information on the state of distraction. We now successively consider the four types of distraction. For each of the four corresponding substates, we provide a detailed description, and we then present the indicators and sensors that can be used to characterize it.
8.1 State 3.1: Manual distraction
Manual distraction, also called biomechanical distraction, occurs when the driver is taking one or both of his/her hands off the steering wheel. The driver may do so to answer a call or send a text message, grab food and eat, or grab a beverage and drink, all while driving. According to the NHTSANational Highway Traffic Safety AdministrationNational Highway Traffic Safety Administration (NHTSA), texting while driving is the most alarming distraction. It is mainly due to manual distraction, but, inevitably, it also includes both visual distraction and cognitive distraction.
Unsurprisingly, the best indicator used to detect manual distraction is the behavior of the driver’s hands, mainly through their positions and movements. For safe driving, these hands are expected to be, most of the time, exclusively on the steering wheel, the gearshift, or the turn-signal lever. On the contrary, a hand using a phone, adjusting the radio, or trying to grab something on the passenger seat indicates a manual distraction (218).
Vehicle-based indicators can also be used, as shown in (118). Using naturalistic-driving data, the authors studied the correlation between (1) performance metrics linked to the steering-wheel behavior and to the vehicle speed, and (2) manual and visual driver distractions induced, for example, by texting. They found a good correlation between the steering movements and the manual-visual distraction of the driver.
The above information allows one to fill, in Table 4, the relevant cells of the “Manual distraction” column.
The most common solution to analyze the behavior of the driver’s hands is to use a camera placed inside the vehicle, usually near the central mirror, looking down in the direction of the driver.
Le et al. (111, 112) propose an approach to detecting (111) and classifying (112) human-hand regions in a vehicle using CNNs. Their technique for hands detection is robust in difficult conditions caused, for example, by occlusions, low resolution, and/or variations of illumination.
Using deep CNNs, Yan et al. (240) classify six actions involving the driver’s hands, i.e., calling, eating, smoking, keeping hands on the steering wheel, operating the gearshift, and playing on the phone. Similarly, both Baheti et al. (16) and Masood et al. (136) use ten classes to detect when the driver is engaged in activities other than safe driving, and to identify the cause of distraction.
8.2 State 3.2: Visual distraction
Visual distraction occurs when the driver is looking away from the road scene, even for a split second. It is often called EOR, and is one of the most common distractions for a driver. Examples of activities causing EOR are (1) adjusting devices in the vehicle (like a radio or navigation system), (2) looking towards other seats, (3) regarding a new message on the phone or glancing at the phone to see who is calling, and (4) looking outside when there is a distraction by the roadside. All generally result in the driver not looking straight ahead, which is what he/she needs to be doing for safe driving.
The gaze is the main indicator used to detect a visual distraction of a driver. The duration of EOR is probably the most-used metric. The longer the EOR duration is, the lower the SA of the driver is, and the higher the visual distraction of the driver is (242). The glance pattern and the mean glance duration are other metrics (178).
Sometimes, the head direction is used to approximate the gaze direction in order to characterize the driver visual distraction (57; 58). For example, Fridman et al. (57) classify driver gaze regions on the sole basis of the head pose of the driver. Fridman et al. (58) compare classifications of driver gaze using either head pose alone or both head pose and eye gaze. They classify, based on facial images, the focus of the attention of the driver using
gaze regions (road, center stack, instrument cluster, rear-view mirror, left, and right). To do so, they consecutively perform face detection, face alignment, pupil detection, feature extraction and normalization, classification, and decision pruning.Vicente et al. (223) similarly classify the driver gaze, but use regions instead of .
Visual distraction can also be inferred using vehicle-based indicators such as wheel steering, braking behavior, and speed. Indeed, a driver generally slows down when distracted by a visual stimulus (52; 244), and visual distraction impairs lateral control because the driver needs to compensate for errors made when taking his/her eyes off the road, which leads to larger deviations in lane positioning (119; 244). Such deviations have various causes, including drowsiness and visual distraction. This re-emphasizes the need to use as many indicators as possible. This also explains why more and more vehicles are equipped with systems that keep the vehicle within its lane whenever possible.
The above information allows one to fill, in Table 4, the relevant cells of the “Visual Distraction” column.
In order to monitor driver visual distraction, one mainly uses at least one camera facing the driver, thus as for manual distraction. The camera can be placed in various positions as long as the head pose and/or gaze of the driver can be obtained.
Naqvi et al. (154) use a NIRnear-infrarednear-infrared (NIR) camera (with wavelengths of
) placed in the dashboard in conjunction with a deep-learning-based gaze detection system, classifying the driver gaze intogaze zones.
Mukherjee and Robertson (148), similarly to Fridman et al. (57), present a CNN-based model to estimate human head pose and to classify human gaze direction. They use, however, low-resolution RGB-DRGB-depthRGB-depth (RGB-D), thus with a camera providing depth information.
8.3 State 3.3: Auditory distraction
Auditory distraction occurs when some sound prevents the driver from making the best use of his/her hearing, because his/her attention is drawn to the source of the sound. Hearing a phone ringing, listening to a passenger, listening to music, and following navigation instructions can all lead to auditory distraction.
This component of driver distraction is the least studied in the literature, likely because (1) it is often accompanied by at least one other more-easily detectable source of distraction falling among the other three types, and (2) it poses lower safety risks in comparison to the other types of distraction, in particular visual distraction (207).
The literature does not appear to introduce the concept of “auditory indicators”, which would characterize (1) the sounds captured both inside and outside of the vehicle, and, preferably, (2) the distraction they create. By using several microphones (including arrays thereof), and techniques for separating audio sources (226), one could imagine breaking down and localizing the various sources of sounds both inside and outside the vehicle.
When the driver appears to be auditorily distracted, there occur changes in pupil diameter (67; 93) and blink frequency (67; 73). Brain activity (EEG) (194) can also be used as an indicator of auditory distraction. Sonnleitner et al. (209) describe the impact of an auditory secondary task on a driver during a primary driving task, and show changes in braking reaction and brain activity.
The above information allows one to fill, in Table 4, the relevant cells of the “Auditory distraction” column.
As already indicated, obtaining the pupil diameter is challenging in real conditions due to illumination conditions and/or camera resolution, among others. Furthermore, brain activity cannot, at this time, be measured both in real time and in a non-intrusive, reliable way. Blink frequency can, however, be monitored via a camera, and braking behavior via the CAN bus.
Although microphones and, even better, arrays thereof, both inside and outside the vehicle, would be natural sensors to provide values for auditory indicators, we did not find any references considering such sensors for characterizing auditory distraction. One can also envision using the microphone(s) of a smartphone linked to a DMS.
The above information did not lead to the addition of any reference to Table 5.
8.4 State 3.4: Cognitive distraction
In the context of driving, cognitive distraction is defined by NHTSA (158) as the mental workload associated with a task that involves thinking about something other than the (primary) driving task. A driver who is cognitively distracted due to a secondary task, such as mind wandering, experiences an increase in his/her mental workload (the state discussed in Section 7). The characterization of his/her cognitive distraction could therefore be achieved (1) by examining how his/her mental workload evolves over time and (2) by finding characteristics of this evolution allowing one to decide whether or not it is caused by cognitive distraction. The monitoring of cognitive distraction is thus, before all, a monitoring of the mental workload and/or its time variations. Section 7 shows that there are (1) many ways to characterize mental workload, and (2) many indicators thereof. The challenge is to be able to pinpoint the components of, or changes in, the mental workload that are due to distraction.
Cognitive distraction occurs when a driver is thinking about something that is not related to the driving task. In the driving context, while visual distraction can be summarized by EOR, cognitive distraction can similarly be viewed as MORmind-off-road“mind-off-road” (MOR). While it is relatively easy to monitor EOR (with a camera facing the driver), it is difficult to monitor MOR. It has, however, been shown that, when a driver is cognitively distracted, his/her visual behavior is impacted. Mind-wandering and daydreaming are two causes of cognitive distraction.
As cognitive distraction induces mental workload, the indicators allowing one to detect and characterize these two states are similar, if not identical. Therefore, it is difficult, if not impossible, to distinguish, in the driving context (as well as others), between these two states since they have nearly the same influences on the indicators.
Among the four types of distractions, cognitive distraction has proven to be the most difficult to detect and characterize. This is because it happens inside the brain, and, obviously, “observing” the brain of a driver is more challenging than observing his/her hands and eye(s).
As for visual distraction, cognitive distraction can be characterized by indicators of both driving performance and eye movements (122), including (1) vehicle-based indicators, such as speed (177), wheel steering (119), lane discipline (119; 177; 211), and braking behavior (72), and (2) driver-based, behavioral indicators, such as gaze parameters (e.g., fixation duration, glance frequency, and gaze distribution) (72; 120; 208; 212) and head orientation. A driver makes significantly fewer high-speed saccadic eye movements and spends less time looking to the relevant periphery for impending hazards with increasing complexity of the secondary task(s). He/She also spends less time checking his/her instruments and mirrors (72).
Cognitive distraction can also be measured through a variety of driver-based, physiological indicators. Among these, brain activity (210) and pupil diameter may be the most convincing. Studies of EDA and HR show only weak relationships between these indicators and cognitive distraction (244).
Among the subjective measures, the NASA TLX (76) is commonly used in driving-distraction studies even though it is a subjective measure of mental workload, and, thus, not a measure specific to cognitive distraction.
The above information allows one to fill, in Table 4, the relevant cells of the “Cognitive distraction” column.
Since the main indicators of cognitive distraction are driving performance and gaze parameters, the main sensors to characterize it are vehicle-centric sensors, and cameras.
The above information did not lead to the addition of any reference to Table 5.
9 State 4: Emotions
We provide a detailed description of (the state of) “emotions”, and we then present the indicators and sensors that can be used to characterize it.
While the concept of emotions is familiar to most people, it is difficult to define. Emotions are associated with a strong feeling deriving from one’s circumstances, mood, and/or relationships with other people. In the driving context, the emotions most commonly monitored for safety purposes are stress and anger, as they have a negative impact on driving, and create dangers (82; 170).
Stress is a state of physical, emotional, or psychological tension resulting from adverse or demanding circumstances. In biology, stress is defined as a state of homeostasis being challenged due to a stressor (128).
Anger is a strong feeling of annoyance, displeasure, and/or hostility. It is a common negative emotion in the context of driving, where it is often called road rage (81).
Emotion recognition is currently a hot topic in the field of affective computing, and is gaining interest in the field of ADASadvanced driver-assistance systemadvanced driver-assistance systems (ADASs). To recognize emotions, one can use various behavioral features, for example, speech (64) and facial expressions (49; 184).
Among the driver-based indicators of both stress and anger, physiological indicators are commonly used. Stress causes physiological responses (43), such as variations or modifications in HR (43; 77; 40; 253), breathing activity (43; 77), blood pressure, EDA (77; 40; 200), and pupil activity (168). The two physiological features that exhibit the highest correlations with driver stress are HR and EDA (77).
For anger in the driving context, Wan et al. (228) suggest to identify it based on physiological indicators such as HR, EDA, breathing rate, and EEG, with the obvious, current, practical limitations for the latter.
The SAMself-assessment manikinself-assessment manikin (SAM) (25) is a subjective assessment technique to characterize emotions.
The above information allows one to fill, in Table 4, the relevant cells of the “Emotions” column.
The development of wearable devices with physiological sensors facilitates the recognition of emotions in real-driving conditions, thus outside of a laboratory context.
Facial expressions constitute a good indicator of emotions. The analysis and recognition of facial expressions is currently a field of great interest in scientific research (115; 252). Facial expressions can be monitored in a vehicle via the use of a camera facing the driver (62; 87; 142). Indeed, Jeong and Ko (87) recently developed an algorithm for monitoring the emotions of a driver based on the analysis of facial expressions. Using DNNs performing FERfacial-expression recognitionfacial-expression recognition (FER), they can identify—in real time and in real-driving situations—anger, disgust, fear, happiness, sadness, and surprise. A smartphone with a camera facing the user can be used for FER, here for estimating his/her emotional state (142).
FIRfar infraredFar-infrared (FIR) imaging (with wavelengths of ), also called IRTinfrared thermographyinfrared thermography (IRT), can be used to quantify stress and emotions by monitoring the breathing activity (150). This can be done via the use of an IRT camera facing the driver.
The recognition of emotions can also be done using wearable sensors (175) such as the E4 wristband, which is a wearable research device that provides the means to acquire physiological data in real time. Many studies (68; 162; 197) have indeed shown that one can detect stress by using the physiological data that this device provides, in particular HR and EDA data.
Bořil et al. (24) developed a stress detector employing a combination of the driver’s speech and some CAN-bus parameters, mainly the steering-wheel angle and the speed. Basu et al. (19) review various methods (that are not specific to the field of driving) for recognizing emotions from speech. Zhang et al. (251) explore how to utilize a deep CNN for the same purpose.
10 State 5: Under the influence
We provide a detailed description of (the state of) “under the influence”, and we then present the indicators and sensors that can be used to characterize it.
DUIdriving under the influenceDriving under the influence (DUI)—also called DWIdriving while intoxicateddriving while intoxicated (DWI) and impaired driving—refers to the driving of a vehicle by a person who has consumed a quantity of alcohol or drugs (including prescription medication) that causes him/her to function in an impaired way. If the impaired driving is due only to alcohol, one also talks about drunk driving. While DUI is obviously dangerous, it is also illegal in most countries to drive under the influence of alcohol, cannabis (or marijuana), opioids, methamphetamines, and any potentially-impairing drug (e.g., a psychoactive drug), whether prescribed or over-the-counter.
A psychoactive drug, also called a psychotropic drug, is a chemical substance that changes a person’s mental state and results in alterations in perception, mood, and/or consciousness. Based on their effects, psychoactive drugs can be classified into the three main categories of stimulants, depressants, and hallucinogens (129; 247). Yet, some drugs may fall under different categories at different times (for example, cannabis is both a depressant drug and a hallucinogen drug). Stimulants (e.g., methamphetamines, cocaine) speed up the activity of the central nervous system, often resulting in the user feeling more alert, euphoric, and energetic. Depressants (e.g., heroin) slow down the activity of the central nervous system, often resulting in the user feeling more relaxed, sleepier, and insensitive to pain. Hallucinogens (e.g., LSD) are psychoactive substances that alter human sensory perceptions in such a way that the user perceives a distorted reality in which time, space, colors, and forms are altered.
The substances that are most frequently detected in impaired drivers are alcohol followed by cannabis. Studies have shown that more than one-third of adults and more than half of teenagers admit to DUI of alcohol at some point in their lives (8). Alcohol is a depressant drug that affects the central nervous system and slows down brain functions. Any amount of alcohol can affect a person’s abilities (1) by degrading attention, perception, information processing skills, memory, reasoning, coordination, motor skills, and reaction time, and (2) by altering the five senses and the emotions (9; 14; 163; 63). A person’s alcohol level is measured by the weight of the alcohol in a specified volume of blood, called BACblood alcohol concentrationblood alcohol concentration (BAC) and measured in grams of alcohol per deciliter (g/dL) of blood. According to NHTSA, the effects of alcohol vary with BAC in the way shown in Table 8, in Appendix C, and the risk of having an accident after consuming alcohol increases exponentially as a function of BAC. For example, every additional g of alcohol per deciliter (dL) of blood multiplies by four the risk of accident (8). According to the World Health Organization (231), best practice for drunk–driving laws includes a BAC limit of for the general population and of for young or novice drivers. Although studies show considerable differences among individuals regarding their responses to alcohol consumption (33), young drivers experience significantly stronger effects, putting them at greater risk of accidents (171; 246). Hangovers, i.e., the after-effects occurring as a result of heavy drinking and as the BAC subsequently approaches zero, are, however, known to also affect the performance of daily-life tasks, such as driving, by impairing cognitive functions, such as memory, psychomotor speed, and sustained attention (69; 221).
Several physiological indicators are used to monitor DUI such as heart activity (163; 165), breathing activity (165), body temperature (163; 183), and pupil diameter (183). Alcohol is known to increase HR and breathing rate (165). Cannabis is known to increase HR and breathing difficulty. Alcohol increases the activity of arteries and other blood vessels, therefore increasing the temperature of the face of a drunk person (183). The variations of temperature are visible on the nose, eyebrows, chin, and forehead. When people drink alcohol, their irises become darker, because the sclera is replete with blood vessels that increase in temperature with alcohol consumption. In a sober person, the temperatures of the sclera and the iris are the same, but with alcohol intoxication, the temperature of the sclera increases compared to the one of the iris because of the denser blood-vessel network in the sclera.
Behavioral indicators of DUI include parameters of gaze (due to the impairment of some visual functions) and of slurred speech (165). Drunk speakers may use prosodic contours differently from sober speakers, using more or less speech emphasis. Drunk speakers may pronounce words differently, choose certain pronunciation variants more frequently than others, and may even select more frequently certain words, the latter affecting the phonotactic patterns (189).
NHTSA (157) defines four categories of cues to predict that a driver is DUI, namely problems in (1) maintaining proper lane position (e.g., weaving, drifting, swerving), (2) controlling speed and brakes (e.g., varying speed, abnormally driving at low speed, stopping beyond a limit line), (3) maintaining vigilance (e.g., driving erroneously in opposing lanes, responding slowly to traffic signals), and (4) exercising proper judgment (e.g., following too closely, turning illegally). In congruence with the indication by NHTSA that a drunk driver is prone to weaving, drifting, and swerving (and thus to having difficulty keeping his/her vehicle in the center of the lane), an increase in SDLP is recognized in the literature to be an indicator of DUI of alcohol (84; 133; 144) and hangovers (221). Speed and acceleration are other indicators, as drunk drivers often experience difficulty in keeping an appropriate speed, with abrupt accelerations or decelerations, erratic brakings, and jerky stops (84; 144).
The above information allows one to fill, in Table 4, the relevant cells of the “Under the influence” column.
In police operations, alcohol levels are typically measured with a breathalyzer using air exhaled through the mouth. The amount of alcohol in breath can then be used to determine the BAC (165). If this BAC is above the legally authorized value, the results can, if desired, be confirmed by a blood test. With just microliter (L) of collected blood, one can, not only measure the BAC precisely, but also identify and quantify substances that are of interest in the context of drug-impaired driving (92). Many people, however, drive under the influence without necessarily being stopped and checked by police every time they do so.
To solve the issue of DUI, the literature commonly suggests the use of ignition-interlock devices (14; 30; 179). When a driver enters his/her vehicle, he/she must provide a breath sample, and an alcohol sensor then determines whether he/she is drunk (i.e., has a BAC above a specified threshold). If this is the case, the ignition-control system prevents the driver from starting the engine. Ignition-interlock devices are usually installed in the vehicles of people with prior DUI convictions and in long-haul, commercial vehicles, for example, trucks and buses (8). This solution does not, however, allow for the real-time monitoring of the state of the driver, and does not prevent the driver from drinking alcohol after starting the engine.
To counter this problem, Sakairi (187) developed a system using a water-cluster-detecting (WCD) breath sensor that can detect breath from a distance of about , allowing one to monitor the driver’s alcohol level while he/she is operating his/her vehicle. The sensor detects breath by separating positively-charged water clusters in breath from negatively-charged ones by using an electric field and by measuring the two corresponding electric currents.
The detection of individuals DUI of alcohol can also be achieved based on the heart activity. Indeed, Kojima et al. (104) and Murata et al. (149) constructed a seat incorporating an air-pack sensor that monitors, via a body-trunk plethysmogram, both the heart activity and the breathing activity. The analysis, during , of the extracted body-trunk plethysmogram signal, called the air-pack pulse wave, reveals differences due to the consumption of alcohol, allowing one to distinguish between sobriety and intoxication. Wu et al. (237, 238) propose to use a wearable ECG sensor, and an SVM to classify the corresponding ECG data as sober or intoxicated.
Recognizing whether drivers are DUI of alcohol can also be achieved using a camera that acquires IR images (79; 106; 143). For an intoxicated person, vessels on the forehead become more active so that, in an IR image, the intensities of the pixels in this region are affected accordingly. Menon et al. (143)
developed a system that uses IR images of the driver’s face in order to classify him/her as sober or drunk. The system successively (1) locates the face using a CNN, and (2) performs the binary classification based on differences in blood temperatures at 22 points on the face of the driver using a supervised-learning-classification algorithm based on a probabilistic model called Gaussian-mixture model.
Rosero-Montalvo et al. (183) introduce a non-invasive system incorporating a gas sensor, a temperature sensor, and a camera to identify a person having alcohol in the blood, through supervised classification of the data from (1) the two sensors and (2) the results of the analysis of the camera output via computer vision. The authors use the concentration of alcohol in the vehicle environment, the facial temperature of the driver, and the diameters of his/her pupils.
According to NHTSA and its four, above-mentioned cues that a driver is DUI, vehicle-based indicators and related vehicle-centric sensors are of interest. Relevant CAN-bus parameters, and indicators such as wheel steering and lane discipline, are widely used to detect instances of DUI (22; 50; 75; 74; 117; 201). Harkous et al. (75) identify drunk-driving behaviors using HMMs based on vehicle-sensors data, available via the CAN bus. They use wheel-steering parameters, speed, and lateral position as indicators. They found that longitudinal-acceleration sensors achieve the best average classification accuracy for distinguishing between sobriety and intoxication. Harkous and Artail (74) extend the above work by replacing each HMM by a RNNrecurrent neural networkrecurrent neural network (RNN). Likewise, Berri and Osório (22) use features such as speed, acceleration, braking, steering wheel angle, distance to the center lane, and geometry of the road (straight or curved) to detect DUI of alcohol. Their system can also be used to detect the presence of any psychoactive drug that can cause a driver to have abnormal driving behaviors. To detect an intoxicated driver, Dai et al. (39) describe a solution that only requires a mobile phone placed in the vehicle. Using the phone’s accelerometers, they analyze the longitudinal and lateral accelerations of the vehicle to detect any abnormal or dangerous driving maneuvers typically related to DUI of alcohol.
|Drowsiness||Mental workload||Distraction||Emotions||Under the influence|
|Heart activity||(86; 172; 224)||(54; 61; 169; 182)||(244)||(40; 43; 77; 253; 228)||(163; 165)|
|Breathing activity||(100; 86)||(43; 77; 228)||(165)|
|Brain activity||(5)||(101)||(194; 209)||(210)||(228)|
|Electrodermal activity||(145)||(94)||(244)||(40; 77; 200; 228)|
|Body temperature||(163; 183)|
|Pupil diameter||(127; 159; 235)||(61; 105; 132; 173; 241)||(67; 93)||(168)||(183)|
|Gaze parameters||(17)||(59; 110; 122; 132; 140)||(58; 178; 223; 242)||(72; 120; 208; 212)||(165)|
|Blink dynamics||(10; 17; 83; 86; 124; 193)||(132)||(67; 73)||(168)|
|PERCLOS||(17; 41; 42; 86; 234)||(132)|
|Facial expressions||(17)||(49; 184)|
|Body posture||(17; 86)||(57; 58)|
|Speech||(64; 24)||(165; 189)|
|Subjective||(5; 80; 147)||(76)||(76)||(25)|
|Wheel steering||(86; 121; 217)||(191)||(118)||(118)||(119)||(24)|
|Lane discipline||(17; 66; 86; 121; 222)||(191)||(119; 244)||(119; 177; 211)||(84; 133; 144; 221)|
|Speed||(12; 86)||(52; 244)||(177)||(24)||(84; 144)|
|Traffic density||(71; 166)|
|Seat||Steering wheel||Safety belt||Internal camera||Internal microphone||Wearable||CAN bus||External camera||Radar|
|Heart activity||(104; 113; 149; 239)||(204)||(85)||(250)||(68; 162; 197; 238; 237)|
|Breathing activity||(100; 150)|
|Electrodermal activity||(68; 162; 197)|
|Body temperature||(79; 106; 143)|
|Pupil diameter||(183; 241)|
|Gaze parameters||(17; 21; 58; 59; 110; 148; 152; 154; 223)|
|Blink dynamics||(15; 17; 21; 45; 56; 138; 215)|
|PERCLOS||(17; 21; 254)|
|Facial expressions||(17; 62; 87; 142)|
|Body posture||(216)||(15; 17; 21; 45; 215)|
|Hands parameters||(16; 112; 111; 136; 240)|
|Speech||(64; 19; 24; 251)|
|Wheel steering||(22; 60; 75; 74; 116; 117; 201)|
|Lane discipline||(22; 74; 75; 201)||(11; 17)|
|Braking behavior||(22; 60; 116)|
|Speed||(22; 60; 74; 75; 116)|
11 Summary and conclusion
This paper focuses on the characterization of the state of a driver, which is the first key step for driver monitoring (DM) and driver monitoring systems (DMSs). It surveys (in Section 3) the relevant scientific and technical literature on driver-state characterization, and subsequently provides a synthesis (in Sections 4-10) of the main, published techniques for this characterization.
The survey yielded publications in scientific/technical journals and conference proceedings. Their examination led to the conclusion that the state of a driver should be characterized according to five main dimensions—called here “(sub)states ”—of drowsiness, mental workload, distraction (further subdivided into four types qualified of manual, visual, auditory, and cognitive), emotions, and under the influence.
In comparison with standard physical quantities, such as voltage and power, these states are not well defined and/or are very difficult—if at all possible—to quantify or to label, not only in a validated way, but also in real time and non-invasively, as is required in the driving context. The only reasonable approach, found almost universally in the literature, is to have recourse to indicators (of each of these states), the value of which can be obtained in a practical and validated way. Examples of indicators are the eye-blink rate, the standard deviation of lane departure (SDLP), and the outside temperature. The values of many indicators (but not all) are obtained by applying algorithms, often complex, to data (typically signals and images) collected from sensors.
The last paragraph brings to light the three ingredients that, in our view, lie at the heart of DM and DMSs, i.e., the triad of states, indicators (of these states), and sensors (providing data, which are the source of the values of these indicators). Figure 2 links these three ingredients.
Our survey confirmed the intuition that one should monitor, not only the driver (D), but also the (driven) vehicle (V) and the (driving) environment (E). Accordingly, we partitioned both the indicators and the sensors into D, V, and E categories, leading to the phrases “X-based indicators” and “X-centric sensors”, where X can be D, V, or E. For the D-based indicators, we further distinguished between three types: physiological, behavioral, and subjective. The three examples of indicators given earlier correspond to D, V, and E, respectively.
The major outcome of the paper is the pair of interlocked tables “states vs indicators” (Table 4) and “sensors vs indicators” (Table 5), where each cell contains zero, one, or more references. These tables bring together, in an organized way, most of the useful information found in the literature, up to the time of this writing, about driver-state characterization, for DM and DMSs. These tables constitute an up-to-date, at-a-glance, visual reference guide for anyone active in this field. They provide immediate answers to key questions that arise in the design of DMSs, such as the four questions posed in Section 5.
The pair of tables and the references they contain lead to the following main conclusions:
Each state can be inferred from several indicators (which are often far from perfect), thereby encouraging multimodal fusion.
The internal camera (possibly with several instances) appears to be the most-commonly-used sensor.
Wearable sensors (e.g., smartwatches) are increasingly used to obtain driver-based, physiological indicators and vehicle-based indicators.
Environment-based indicators are often ignored, even though there is an agreement that they should be used.
Driver-based, subjective indicators, although sometimes alluded to, cannot be used in real driving, but are essential for the validation of some indicators of some states.
Brain activity is a recognized indicator of several states, but cannot be accessed today in a non-invasive, reliable, and inexpensive way in real driving.
Several methods for characterizing each of the 5 states use, without surprise, techniques of MLmachine learningmachine learning (ML) and, especially, of deep learning.
The term “predict(ion)” often refers to a present state rather than to a future state, and few papers describe techniques “to tell beforehand”, for example, the future values of indicators and levels of states.
The next two paragraphs respectively elaborate on the last two points.
For driving safety, it is paramount that the processing and decisions made by any algorithm used in a vehicle, including for DM, be fully explainable (to a human being) at the time of design and certification of this algorithm. Most algorithms using ML do not, however, have this necessary feature of explainability, or interpretability, and this is certainly the case for ML-based algorithms that would learn on-the-fly during one or more trips. Therefore, while ML algorithms and, especially deep-learning algorithms, often provide stellar performances on specific datasets in comparison with other types of algorithms, they will almost certainly not be acceptable to an equipment provider or a vehicle manufacturer. There is, however, a trend toward designing ML algorithms that produce results that can be explained (123; 245). The above remarks apply not only to ML but also to any approach whose operation cannot be explained simply. Our framework, which implies the use of indicators and states, supports the desired explainability. It indeed prevents any algorithm from going, in one fell swoop, from (nearly-)raw sensor data to driver characterization, by forcing it to estimate both the values of indicators and the levels of states, as a stepping stone toward the ultimate characterization of the state of a driver.
The literature on DM focuses almost exclusively on characterizing the “present” state of the driver. We use quotes because the characterization is typically based on data from the recent past, for example, in a window that extends over several tens of seconds and butts against almost the present time. This results in a characterization of the “recent-past” state of the driver. If the driver is in control, a DMS using this characterization may not have sufficient lead time to take proper emergency action (to issue an alarm and/or to take back the control) and, if the vehicle is in control, such a DMS may hand the control over to the driver even though he/she might be falling asleep or getting distracted in a few tens of seconds or more. A major missing link in current DMS research and development is thus the true prediction of the future state of the driver, at least a few tens of seconds into the future.
On the one hand, Tables 4 and 5 show, at a glance, which areas of driver-state characterization have been the object of research and with what intensity (as measured by the number of references listed in each cell). For example, Table 4 shows that significant research has been performed to analyze the emotions of the driver using the driver-based, physiological indicators of heart rate, breathing activity, and electrodermal activity. On the other hand, the two tables show, also at a glance, where little or no research has been performed to date, thereby suggesting new, potentially-fruitful research areas. The two tables should thus prove to be a rich source of information for both research and product development.
Starting from a set of initial references, our exploration of the field of DM led us to examine a total of references. While our criss-crossing of the field, at several different times, led us to identify many relevant publications, our search cannot, obviously, be exhaustive. In any case, the two histograms of “number of references vs year” of Figure 4 (for the and references, respectively) constitute a clue that the research activity in DM has been accelerating over the past decade.
The methodology used in this paper can be applied to update the tables at various times in the future to take into accounts new developments. This can be done by adding and/or removing rows, columns, and/or references, as appropriate.
Characterizing the state of a driver and, more generally, DM will remain important despite the progressive increase in vehicle automation. SAE Level 3 enables vehicles to drive by themselves under certain conditions such as on a highway and in sunny weather, but a driver must still be present and able to take back the control of the vehicle at any time and in a relatively short lapse of time. In order to ensure that the driver is able to take back the control, technologies for monitoring the state of the driver will become even more critical. These technologies are also needed to monitor the driver during the time he/she is driving, and to possibly allow the vehicle to take back the control if necessary.
Currently, some vehicle manufacturers offer DMSs based on the behavior of the driver and/or the behavior of the vehicle, such as the detection of steering-wheel movements and lane deviations, respectively. These systems can be useful in current vehicles with automation up to (SAE) Level , but will become obsolete at higher levels of automation. Indeed, when a vehicle drives autonomously, monitoring its behavior does not give any information about the state of the driver, and technologies that directly monitor both the driver and the driving environment are a necessity as long as the driver is involved in the driving task, at least partially.
To date, the development of driving-automation systems (DASs) has moved at a faster pace than has the development of DMSs. This is, in major part, a consequence of the long-held belief by some automotive-industry players that they would be able to easily leapfrog Levels 3 and 4, and move on directly to Level 5, where there is no need to monitor the driver. But, most experts now agree that it will be decades before most privately-owned vehicles are fully automated, if ever. Along the long and winding road to Level 5, the automotive industry will need to significantly boost the research on, and the development of, DMSs. For Levels 3 and 4, the same industry will need to develop automated-driving systems (ADSs) and DMSs in full synergy. The future could thus not be brighter for the field of DM and DMSs.
This work was supported in part by the European Regional Development Fund (ERDF).
Conflict of interest
The authors declare no conflict of interest.
- Aaronson et al. (2007) L. Aaronson, C. Teel, V. Cassmeyer, G. Neuberger, L. Pallikkathayil, J. Pierce, A. Press, P. Williams, and A. Wingate. Defining and measuring fatigue. Journal of Nursing Scholarship, 31(1):45–50, June 2007. doi: 10.1111/j.1547-5069.1999.tb00420.x. URL https://doi.org/10.1111/j.1547-5069.1999.tb00420.x.
- Ahir and Gohokar (2019) A. Ahir and V. Gohokar. Driver inattention monitoring system: A review. In International Conference on Innovative Trends and Advances in Engineering and Technology (ICITAET), pages 188–194, Shegoaon, India, December 2019. IEEE. doi: 10.1109/ICITAET47105.2019.9170249. URL https://doi.org/10.1109/ICITAET47105.2019.9170249.
- Ahlström et al. (2021) C. Ahlström, G. Georgoulas, and K. Kircher. Towards a context-dependent multi-buffer driver distraction detection algorithm. IEEE Transactions on Intelligent Transportation Systems, 2021. doi: 10.1109/TITS.2021.3060168. URL https://doi.org/10.1109/TITS.2021.3060168.
- Aidman et al. (2015) E. Aidman, C. Chadunow, K. Johnson, and J. Reece. Real-time driver drowsiness feedback improves driver alertness and self-reported driving performance. Accident Analysis & Prevention, 81:8–13, August 2015. doi: 10.1016/j.aap.2015.03.041. URL https://doi.org/10.1016/j.aap.2015.03.041.
- Åkerstedt and Gillberg (1990) T. Åkerstedt and M. Gillberg. Subjective and objective sleepiness in the active individual. International Journal of Neuroscience, 52(1-2):29–37, June 1990. doi: 10.3109/00207459008994241. URL https://doi.org/10.3109/00207459008994241.
- Alluhaibi et al. (2018) S. Alluhaibi, M. Al-Din, and A. Moyaid. Driver behavior detection techniques: A survey. International Journal of Applied Engineering Research, 13(11):8856–8861, 2018. URL https://www.ripublication.com/Volume/ijaerv13n11.htm.
- Almahasneh et al. (2014) H. Almahasneh, W.-T. Chooi, N. Kamel, and A. Malik. Deep in thought while driving: An EEG study on drivers’ cognitive distraction. Transportation Research Part F: Traffic Psychology and Behaviour, 26, Part A:218–226, September 2014. doi: 10.1016/j.trf.2014.08.001. URL https://doi.org/10.1016/j.trf.2014.08.001.
- Alonso (2019) F. Alonso. Driving under the influence, volume 1, pages 392–394. SAGE, September 2019. doi: 10.4135/9781483392240.n130. URL https://doi.org/10.4135/9781483392240.n130.
- Alonso et al. (2015) F. Alonso, J. Pastor, L. Montoro, and C. Esteban. Driving under the influence of alcohol: frequency, reasons, perceived risk and punishment. Substance Abuse Treatment, Prevention, and Policy, 10(11):1–9, March 2015. doi: 10.1186/s13011-015-0007-4. URL https://doi.org/10.1186/s13011-015-0007-4.
- Anund et al. (2008) A. Anund, G. Kecklund, B. Peters, Å. Forsman, L. Arne, and T. Åkerstedt. Driver impairment at night and its relation to physiological sleepiness. Scandinavian Journal of Work, Environment & Health, 34(2):142–150, April 2008. doi: 10.5271/sjweh.1193. URL https://doi.org/10.5271/sjweh.1193.
- Apostoloff and Zelinsky (2003) N. Apostoloff and A. Zelinsky. Robust vision based lane tracking using multiple cues and particle filtering. In IEEE Intelligent Vehicles Symposium. Proceedings (Cat. No.03TH8683), pages 558–563, Columbus, Ohio, USA, June 2003. doi: 10.1109/IVS.2003.1212973. URL https://doi.org/10.1109/IVS.2003.1212973.
- Arnedt et al. (2000) J. Arnedt, G. Wilde, P. Munt, and A. MacLean. Simulated driving performance following prolonged wakefulness and alcohol consumption: separate and combined contributions to impairment. Journal of Sleep Research, 9(3):233–241, September 2000. doi: 10.1046/j.1365-2869.2000.00216.x. URL https://doi.org/10.1046/j.1365-2869.2000.00216.x.
- Arun et al. (2012) S. Arun, K. Sundaraj, and M. Murugappan. Driver inattention detection methods: A review. In IEEE Conference on Sustainable Utilization and Development in Engineering and Technology (STUDENT), pages 1–6, Kuala Lumpur, Malaysia, October 2012. doi: 10.1109/STUDENT.2012.6408351. URL https://doi.org/10.1109/STUDENT.2012.6408351.
- Attia et al. (2016) H. Attia, M. Takruri, and H. Ali. Electronic monitoring and protection system for drunk driver based on breath sample testing. In International Conference on Electronic Devices, Systems and Applications (ICEDSA), pages 1–4, Ras Al Khaimah, United Arab Emirates, December 2016. IEEE. doi: 10.1109/ICEDSA.2016.7818477. URL https://doi.org/10.1109/ICEDSA.2016.7818477.
Baccour et al. (2020)
M. Baccour, F. Driewer, T. Schack, and E. Kasneci.
Camera-based driver drowsiness state classification using logistic regression models.In IEEE International Conference on Systems, Man, and Cybernetics (SMC), pages 1–8, Toronto, Ontario, Canada, October 2020. IEEE. doi: 10.1109/SMC42975.2020.9282918. URL https://doi.org/10.1109/SMC42975.2020.9282918.
Baheti et al. (2018)
B. Baheti, S. Gajre, and S. Talbar.
Detection of distracted driver using convolutional neural network.In
IEEE International Conference on Computer Vision and Pattern Recognition Workshops (CVPRW), pages 1032–1038, Salt Lake City, Utah, USA, June 2018. doi: 10.1109/CVPRW.2018.00150. URL https://doi.org/10.1109/CVPRW.2018.00150.
- Bakker et al. (2021) B. Bakker, B. Zabłocki, A. Baker, V. Riethmeister, B. Marx, G. Iyer, A. Anund, and C. Ahlström. A multi-stage, multi-feature machine learning approach to detect driver sleepiness in naturalistic road driving conditions. IEEE Transactions on Intelligent Transportation Systems, Early access:1–10, June 2021. doi: 10.1109/TITS.2021.3090272. URL https://doi.org/10.1109/TITS.2021.3090272.
- Balandong et al. (2018) R. Balandong, R. Ahmad, M. Saad, and A. Malik. A review on EEG-based automatic sleepiness detection systems for driver. IEEE Access, 6:22908–22919, December 2018. doi: 10.1109/ACCESS.2018.2811723. URL https://doi.org/10.1109/ACCESS.2018.2811723.
- Basu et al. (2017) S. Basu, J. Chakraborty, A. Bagb, and Md. Aftabuddin. A review on emotion recognition using speech. In International Conference on Inventive Communication and Computational Technologies (ICICCT), pages 109–114, Coimbatore, India, March 2017. doi: 10.1109/ICICCT.2017.7975169. URL https://doi.org/10.1109/ICICCT.2017.7975169.
- Begum (2013) S. Begum. Intelligent driver monitoring systems based on physiological sensor signals: A review. In International Conference on Intelligent Transportation Systems (ITSC), pages 282–289, The Hague, The Netherlands, October 2013. IEEE. doi: 10.1109/ITSC.2013.6728246. URL https://doi.org/10.1109/ITSC.2013.6728246.
- Bergasa et al. (2006) L. Bergasa, J. Nuevo, M. Sotelo, R. Barea, and M. Lopez. Real-time system for monitoring driver vigilance. IEEE Transactions on Intelligent Transportation Systems, 7(1):63–77, 2006. doi: 10.1109/TITS.2006.869598. URL https://dx.doi.org/10.1109/TITS.2006.869598.
- Berri and Osório (2018) R. Berri and F. Osório. A nonintrusive system for detecting drunk drivers in modern vehicles. In Brazilian Conference on Intelligent Systems (BRACIS), pages 73–78, São Paulo, Brazil, October 2018. IEEE. doi: 10.1109/BRACIS.2018.00021. URL https:/doi.org/10.1109/BRACIS.2018.00021.
- Borghini et al. (2014) G. Borghini, L. Astolfi, G. Vecchiato, D. Mattia, and F. Babiloni. Measuring neurophysiological signals in aircraft pilots and car drivers for the assessment of mental workload, fatigue and drowsiness. Neuroscience & Biobehavioral Reviews, 44:58–75, July 2014. doi: 10.1016/j.neubiorev.2012.10.003. URL https://doi.org/10.1016/j.neubiorev.2012.10.003.
- Bořil et al. (2012) H. Bořil, P. Boyraz, and J. Hansen. Towards multimodal driver’s stress detection. In Digital Signal Processing for In-Vehicle Systems and Safety, pages 3–19. Springer, New York City, New York, USA, 2012. doi: 10.1007/978-1-4419-9607-7˙1. URL https://doi.org/10.1007/978-1-4419-9607-7_1.
- Bradley and Lang (1994) M. Bradley and P. Lang. Measuring emotion: the self-assessment manikin and the semantic differential. Journal of Behavior Therapy and Experimental Psychiatry, 25(1):49–59, 1994. doi: 10.1016/0005-7916(94)90063-9. URL https://doi.org/10.1016/0005-7916(94)90063-9.
- Brown et al. (2006) M. Brown, M. Marmor, Vaegan, E. Zrenner, M. Brigell, and M. Bach. ISCEV standard for clinical electro-oculography (EOG) 2006. Documenta Ophthalmologica, 113:205–212, November 2006. doi: 10.1007/s10633-006-9030-0. URL https://doi.org/10.1007/s10633-006-9030-0.
- Campbell (2012) K. Campbell. The SHRP 2 naturalistic driving study. TR News, 282:30–35, September 2012. URL https://insight.shrp2nds.us/documents/shrp2_background.pdf.
- Chacon-Murguia and Prieto-Resendiz (2015) M. Chacon-Murguia and C. Prieto-Resendiz. Detecting driver drowsiness: A survey of system designs and technology. IEEE Consumer Electronics Magazine, 4(4):107–119, October 2015. doi: 10.1109/MCE.2015.2463373. URL https://doi.org/10.1109/MCE.2015.2463373.
- Chan et al. (2020) T. Chan, C. Chin, H. Chen, and X. Zhong. A comprehensive review of driver behavior analysis utilizing smartphones. IEEE Transactions on Intelligent Transportation Systems, 21(10):4444–4475, 2020. doi: 10.1109/TITS.2019.2940481. URL https://doi.org/10.1109/TITS.2019.2940481.
- Charniya and Nair (2017) N. Charniya and V. Nair. Drunk driving and drowsiness detection. In International Conference on Intelligent Computing and Control (I2C2), pages 1–6, Coimbatore, India, June 2017. IEEE. doi: 10.1109/I2C2.2017.8321811. URL https://doi.org/10.1109/I2C2.2017.8321811.
Chhabra et al. (2017)
R. Chhabra, S. Verma, and C. R. Krishna.
A survey on driver behavior detection techniques for intelligent
International Conference on Cloud Computing, Data Science & Engineering – Confluence, pages 36–41, Noida, India, January 2017. IEEE. doi: 10.1109/CONFLUENCE.2017.7943120. URL https://doi.org/10.1109/CONFLUENCE.2017.7943120.
- Chowdhury et al. (2018) A. Chowdhury, R. Shankaran, M. Kavakli, and M. M. Haque. Sensor applications and physiological features in drivers’ drowsiness detection: A review. IEEE Sensors Journal, 18(8):3055–3067, April 2018. doi: 10.1109/JSEN.2018.2807245. URL https://doi.org/10.1109/JSEN.2018.2807245.
- Christoforou et al. (2013) Z. Christoforou, M. Karlaftis, and G. Yannis. Reaction times of young alcohol-impaired drivers. Accident Analysis & Prevention, 61:54–62, December 2013. doi: 10.1016/j.aap.2012.12.030. URL https://doi.org/10.1016/j.aap.2012.12.030.
- Chung et al. (2019) W.-Y. Chung, T.-W. Chong, and B.-G. Lee. Methods to detect and reduce driver stress: A review. International Journal of Automotive Technology, 20(5):1051–1063, October 2019. doi: 10.1007/s12239-019-0099-3. URL https://doi.org/10.1007/s12239-019-0099-3.
- Coetzer and Hancke (2009) R. Coetzer and G. Hancke. Driver fatigue fetection: A survey. In AFRICON, pages 1–6, Nairobi, Kenya, September 2009. IEEE. doi: 10.1109/AFRCON.2009.5308101. URL https://doi.org/10.1109/AFRCON.2009.5308101.
- Critchley (1992) M. Critchley. On sleepening. Clinical Neurology and Neurosurgery, 94:121–122, 1992. doi: 10.1016/0303-8467(92)90044-4. URL https://doi.org/10.1016/0303-8467(92)90044-4.
- Dababneh and El-Gindy (2015) L. Dababneh and M. El-Gindy. Driver vigilance level detection systems: A literature survey. International Journal of Vehicle Performance (IJVP), 2(1):1–29, 2015. doi: 10.1504/IJVP.2015.074120. URL https://doi.org/10.1504/IJVP.2015.074120.
- Dahiphale and Rao (2015) V. Dahiphale and S. Rao. A review paper on portable driver monitoring system for teal time fatigue. In International Conference on Computing Communication Control and Automation, pages 558–560, Pune, India, February 2015. IEEE. doi: 10.1109/ICCUBEA.2015.115. URL https://doi.org/10.1109/ICCUBEA.2015.115.
- Dai et al. (2010) J. Dai, J. Teng, X. Bai, Z. Shen, and D. Xuan. Mobile phone based drunk driving detection. In International ICST Conference on Pervasive Computing Technologies for Healthcare, pages 1–8, Munich, Germany, March 2010. doi: 10.4108/ICST.PERVASIVEHEALTH2010.8901. URL https://doi.org/10.4108/ICST.PERVASIVEHEALTH2010.8901.
- de Santos Sierra et al. (2011) A. de Santos Sierra, C. Ávila, G. del Pozo, and J. Casanova. Stress detection by means of stress physiological template. In World Congress on Nature and Biologically Inspired Computing, pages 131–136, Salamanca, Spain, October 2011. IEEE. doi: 10.1109/NaBIC.2011.6089448. URL https://doi.org/10.1109/NaBIC.2011.6089448.
- Dinges et al. (1998a) D. Dinges, M. Mallis, G. Maislin, and J. Powell. Evaluation of techniques for ocular measurement as an index of fatigue and the basis for alertness management. Technical Report DOT HS 808 762, National Highway Traffic Safety Administration, Washington, District of Columbia, USA, April 1998a.
- Dinges et al. (1998b) D. Dinges, M. Mallis, G. Maislin, and J. Powell. PERCLOS, a valid psychophysiological measure of alertness as assessed by psychomotor vigilance. Technical Report FHWA-MCRT-98-006, FHWA, Washington, District of Columbia, USA, October 1998b.
- Diverrez et al. (2016) J.-M. Diverrez, N. Martin, and N. Pallamin. Stress interface inducer, a way to generate stress in laboratory conditions. In International Conference on Methods and Techniques in Behavioral Research (Measuring Behavior), pages 25–27, Dublin, Ireland, May 2016. URL https://hal.archives-ouvertes.fr/hal-01525678.
- Dong et al. (2011) Y. Dong, Z. Hu, K. Uchimura, and N. Murayama. Driver inattention monitoring system for intelligent vehicles: A review. IEEE Transactions on Intelligent Transportation Systems, 12(2):596–614, June 2011. doi: 10.1109/TITS.2010.2092770. URL https://doi.org/10.1109/TITS.2010.2092770.
- Dreißig et al. (2020) M. Dreißig, M. Baccour, T. Schäck, and E. Kasneci. Driver drowsiness classification based on eye blink and head movement features using the k-NN algorithm. In Symposium Series on Computational Intelligence (SSCI), pages 889–896, Canberra, Australia, December 2020. IEEE. doi: 10.1109/SSCI47803.2020.9308133. URL https://doi.org/10.1109/SSCI47803.2020.9308133.
- Durso and Gronlund (1999) F. Durso and S. Gronlund. Situation awareness, pages 283–314. John Wiley & Sons Ltd, 1999.
- Ebrahimbabaie (2020) P. Ebrahimbabaie. Prediction of risk of an event using sensor signals, with application to the prevention of driving accidents due to drowsiness. PhD thesis, University of Liège, Belgium, December 2020. URL https://orbi.uliege.be/handle/2268/250646.
- Ebrahimbabaie and Verly (2018) P. Ebrahimbabaie and J. Verly. Excellent potential of geometric Brownian motion (GBM) as a random process model for level of drowsiness signals. In International Joint Conference on Biomedical Engineering Systems and Technologies - BIOSIGNAL, pages 105–112, Madeira, Portugal, 2018. SciTePress. doi: 10.5220/0006545101050112. URL https://doi.org/10.5220/0006545101050112.
- Ekman (1993) P. Ekman. Facial expression and emotion. American Psychologist, 48(4):384–392, April 1993. doi: 10.1037/0003-066X.48.4.384. URL https://doi.org/10.1037/0003-066X.48.4.384.
- El Basiouni El Masri et al. (2017) A. El Basiouni El Masri, H. Artail, and H. Akkary. Toward self-policing: detecting drunk driving behaviors through sampling CAN bus data. In International Conference on Electrical and Computing Technologies and Applications (ICECTA), pages 1–5, Ras Al Khaimah, United Arab Emirates, November 2017. IEEE. doi: 10.1109/ICECTA.2017.8252037. URL https://doi.org/10.1109/ICECTA.2017.8252037.
- El Khatib et al. (2020) A. El Khatib, C. Ou, and F. Karray. Driver inattention detection in the context of next-generation autonomous vehicles design: A survey. IEEE Transactions on Intelligent Transportation Systems, 21(11):4483–4496, November 2020. doi: 10.1109/TITS.2019.2940874. URL https://doi.org/10.1109/TITS.2019.2940874.
- Engström and Markkula (2007) J. Engström and G. Markkula. Effects of visual and cognitive distraction on lane change test performance. In International Driving Symposium on Human Factors in Driver Assessment, pages 199–205, Stevenson, Washington, USA, July 2007. doi: 10.17077/drivingassessment.1237. URL https://doi.org/10.17077/drivingassessment.1237.
- Forsman et al. (2013) P. Forsman, B. Vila, R. Short, C. Mott, and H. Van Dongen. Efficient driver drowsiness detection at moderate levels of drowsiness. Accident Analysis & Prevention, 50(Supplement C):341–350, 2013. doi: 10.1016/j.aap.2012.05.005. URL http://www.sciencedirect.com/science/article/pii/S0001457512001571.
- Fournier et al. (1999) L. Fournier, G. Wilson, and C. Swain. Electrophysiological, behavioral, and subjective indexes of workload when performing multiple tasks: manipulations of task difficulty and training. International Journal of Psychophysiology, 31(2):129–145, 1999. doi: 10.1016/s0167-8760(98)00049-x. URL https://doi.org/10.1016/s0167-8760(98)00049-x.
- François (2018) C. François. Development and validation of algorithms for automatic and real-time characterization of drowsiness. PhD thesis, University of Liège, Belgium, October 2018. URL https://orbi.uliege.be/bitstream/2268/228889/1/DoctoralThesis_ClementineFrancois_October2018.pdf.
- François et al. (2016) C. François, T. Hoyoux, T. Langohr, J. Wertz, and J. Verly. Tests of a new drowsiness characterization and monitoring system based on ocular parameters. International Journal of Environmental Research and Public Health, 13(2):174, January 2016. doi: 10.3390/ijerph13020174. URL https://doi.org/10.3390/ijerph13020174.
- Fridman et al. (2016a) L. Fridman, P. Langhans, J. Lee, and B. Reimer. Driver gaze region estimation without use of eye movement. IEEE Transactions on Intelligent Transportation Systems, 31(3):49–56, May 2016a. doi: 10.1109/MIS.2016.47. URL http://doi.org/10.1109/MIS.2016.47.
- Fridman et al. (2016b) L. Fridman, J. Lee, B. Reimer, and T. Victor. ‘Owl’ and ‘Lizard’: patterns of head pose and eye pose in driver gaze classification. IET Computer Vision, 10(4):308–313, 2016b. doi: 10.1049/iet-cvi.2015.0296. URL http://doi.org/10.1049/iet-cvi.2015.0296.
- Fridman et al. (2018) L. Fridman, B. Reimer, B. Mehler, and W. Freeman. Cognitive load estimation in the wild. In Proceedings of the 2018 CHI Conference on Human Factors in Computing Systems, pages 1–9, Montréal, Canada, April 2018. ACM. doi: 10.1145/3173574.3174226. URL https://doi.org/10.1145/3173574.3174226.
- Fridman et al. (2019) L. Fridman, D. Brown, M. Glazer, W. Angell, S. Dodd, B. Jenik, J. Terwilliger, A. Patsekin, J. Kindelsberger, L. Ding, S. Seaman, A. Mehler, A. Sipperley, A. Pettinato, B. Seppelt, L. Angell, B. Mehler, and B. Reimer. MIT advanced vehicle technology study: large-scale naturalistic driving study of driver behavior and interaction with automation. IEEE Access, 7:102021–102038, July 2019. doi: 10.1109/ACCESS.2019.2926040. URL https://doi.org/10.1109/ACCESS.2019.2926040.
- Gable et al. (2015) T. Gable, A. Kun, B. Walker, and R. Winton. Comparing heart rate and pupil size as objective measures of workload in the driving context: initial look. In Adjunct Proceedings of the 7th International Conference on Automotive User Interfaces and Interactive Vehicular Applications, pages 20–25, Nottingham, England, UK, September 2015. ACM. doi: 10.1145/2809730.2809745. URL https://doi.org/10.1145/2809730.2809745.
- Gao et al. (2014) H. Gao, A. Yüce, and J.-P. Thiran. Detecting emotional stress from facial expressions for driving safety. In IEEE International Conference on Image Processing (ICIP), pages 5961–5965, Paris, France, October 2014. doi: 10.1109/ICIP.2014.7026203. URL https://doi.org/10.1109/ICIP.2014.7026203.
- Garrisson et al. (2021) H. Garrisson, A. Scholey, E. Ogden, and S. Benson. The effects of alcohol intoxication on cognitive functions critical for driving: A systematic review. Accident Analysis & Prevention, 154:1–11, May 2021. doi: 10.1016/j.aap.2021.106052. URL https://doi.org/10.1016/j.aap.2021.106052.
- Gavrilescu and Vizireanu (2019) M. Gavrilescu and N. Vizireanu. Feedforward neural network-based architecture for predicting emotions from speech. Data, 4(3):1–23, July 2019. doi: 10.3390/data4030101. URL https://doi.org/10.3390/data4030101.
- Ghandour et al. (2020) R. Ghandour, B. Neji, A. El-Rifaie, and Z. Al Barakeh. Driver distraction and stress detection systems: A review. International Journal of Engineering and Applied Sciences (IJEAS), 7(4), April 2020. doi: 10.31873/IJEAS.7.04.10. URL https://doi.org/10.31873/IJEAS.7.04.10.
- Godthelp et al. (1984) H. Godthelp, P. Milgram, and G. Blaauw. The development of a time-related measure to describe driving strategy. Human Factors, 26(3):257–268, June 1984. doi: 10.1177/001872088402600302.
- Gonçalves and Bengler (2015) J. Gonçalves and K. Bengler. Driver state monitoring systems–transferable knowledge manual driving to HAD. Procedia Manufacturing, 3:3011–3016, 2015. doi: 10.1016/j.promfg.2015.07.845. URL https://doi.org/10.1016/j.promfg.2015.07.845.
Gouverneur et al. (2017)
P. Gouverneur, J. Jaworek-Korjakowska, L. Köping, K. Shirahama,
P. Kleczek, and M. Grzegorzek.
Classification of physiological data for emotion recognition.
International Conference on Artificial Intelligence and Soft Computing (ICAISC), volume 10245 of Lecture Notes in Computer Science, pages 619–627. Springer, May 2017. doi: 10.1007/978-3-319-59063-9˙55. URL https://doi.org/10.1007/978-3-319-59063-9_55.
- Gunn et al. (2018) C. Gunn, M. Mackus, C. Griffin, M. Munafò, and S. Adams. A systematic review of the next-day effects of heavy alcohol consumption on cognitive performance. Addiction, 113(12):2182–2193, August 2018. doi: 10.1111/add.14404. URL https://doi.org/10.1111/add.14404.
- Gutiérrez et al. (2021) J. Gutiérrez, V. Rodríguez, and S. Martin. Comprehensive review of vision-based fall detection systems. Sensors, 21(3):1–50, February 2021. doi: 10.3390/s21030947. URL https://doi.org/10.3390/s21030947.
- Hao et al. (2007) X. Hao, Z. Wang, F. Yang, Y. Wang, Y. Guo, and K. Zhang. The effect of traffic on situation awareness and mental workload: simulator-based study. In International Conference on Engineering Psychology and Cognitive Ergonomics (EPCE), pages 288–296. Springer, 2007. doi: 10.1007/978-3-540-73331-7˙31. URL https://doi.org/10.1007/978-3-540-73331-7_31.
- Harbluk et al. (2007) J. Harbluk, Y. Noy, P. Trbovich, and M. Eizenman. An on-road assessment of cognitive distraction: impacts on drivers’ visual behavior and braking performance. Accident Analysis & Prevention, 39(2):372–379, March 2007. doi: 10.1016/j.aap.2006.08.013. URL https://doi.org/10.1016/j.aap.2006.08.013.
- Hargutt and Kruger (2000) V. Hargutt and H. Kruger. Eyelid movements and their predictive value for fatigue stages. In International Conference on Traffic and Transport Psychology (ICTTP), Bern, Switzerland, September 2000.
- Harkous and Artail (2019) H. Harkous and H. Artail. A two-stage machine learning method for highly-accurate drunk driving detection. In International Conference on Wireless and Mobile Computing, Networking and Communications (WiMob), pages 1–6, Barcelona, Spain, October 2019. IEEE. doi: 10.1109/WiMOB.2019.8923366. URL https://doi.org/10.1109/WiMOB.2019.8923366.
Harkous et al. (2018)
H. Harkous, C. Bardawil, H. Artail, and N. Daher.
Application of hidden Markov model on car sensors for detecting drunk drivers.In IEEE International Multidisciplinary Conference on Engineering Technology (IMCET), pages 1–6, Beirut, Lebanon, November 2018. IEEE. doi: 10.1109/IMCET.2018.8603030. URL https://doi.org/10.1109/IMCET.2018.8603030.
- Hart and Staveland (1988) S. Hart and L. Staveland. Development of NASA-TLX (Task Load Index): results of empirical and theoretical research. Advances in Psychology, 52:139–183, 1988. doi: 10.1016/s0166-4115(08)62386-9. URL http://doi.org/10.1016/s0166-4115(08)62386-9.
- Healey and Picard (2005) J. Healey and R. Picard. Detecting stress during real-world driving tasks using physiological sensors. IEEE Transactions on Intelligent Transportation Systems, 6(2):156–166, June 2005. doi: 10.1109/TITS.2005.848368. URL https://doi.org/10.1109/TITS.2005.848368.
- Hecht et al. (2018) T. Hecht, A. Feldhütter, J. Radlmayr, Y. Nakano, Y. Miki, C. Henle, and K. Bengler. A review of driver state monitoring systems in the context of automated driving. In Congress of the International Ergonomics Association (IEA), pages 398–408, Florence, Italy, August 2018. Springer. doi: 10.1007/978-3-319-96074-6˙43. URL https://doi.org/10.1007/978-3-319-96074-6_43.
- Hermosilla et al. (2018) G. Hermosilla, J. Verdugo, G. Farias, E. Vera, F. Pizarro, and M. Machuca. Face recognition and drunk classification using infrared face images. Journal of Sensors, 2018:1–8, January 2018. doi: 10.1155/2018/5813514. URL https://doi.org/10.1155/2018/5813514.
- Hoddes et al. (1973) E. Hoddes, V. Zarcone, H. Smythe, R. Phillips, and W. Dement. Quantification of sleepiness: A new approach. Psychophysiology, 10(4):431–436, July 1973. doi: 10.1111/j.1469-8986.1973.tb00801.x.
- Hu et al. (2018) H. Hu, Z. Zhu, Z. Gao, and R. Zheng. Analysis on biosignal characteristics to evaluate road rage of younger drivers: A driving simulator study. In IEEE Intelligent Vehicles Symposium, volume IV, pages 156–161, Changshu, China, June 2018. IEEE. doi: 10.1109/IVS.2018.8500444. URL https://doi.org/10.1109/IVS.2018.8500444.
- Hu et al. (2013) T.-Y. Hu, X. Xie, and J. Li. Negative or positive? the effect of emotion and mood on risky driving. Transportation Research Part F: Traffic Psychology and Behaviour, 16:29–40, January 2013. doi: 10.1016/j.trf.2012.08.009. URL https://doi.org/10.1016/j.trf.2012.08.009.
- Hultman et al. (2021) M. Hultman, I. Johansson, F. Lindqvist, and C. Ahlström. Driver sleepiness detection with deep neural networks using electrophysiological data. Physiological Measurement, 42(3), 2021. doi: 10.1088/1361-6579/abe91e. URL https://doi.org/10.1088/1361-6579/abe91e.
- Irwin et al. (2017) C. Irwin, E. Iudakhina, B. Desbrow, and D. McCartney. Effects of acute alcohol consumption on measures of simulated driving: A systematic review and meta-analysis. Accident Analysis & Prevention, 102:248–266, May 2017. doi: 10.1016/j.aap.2017.03.001. URL https://doi.org/10.1016/j.aap.2017.03.001.
- Izumi et al. (2017) S. Izumi, D. Matsunaga, R. Nakamura, H. Kawaguchi, and M. Yoshimoto. A contact-less heart rate sensor system for driver health monitoring, 2017.
- Jacobé de Naurois et al. (2019) C. Jacobé de Naurois, C. Bourdin, A. Stratulat, E. Diaz, and J.-L. Vercher. Detection and prediction of driver drowsiness using artificial neural network models. Accident Analysis & Prevention, 126:95–104, May 2019. doi: 10.1016/j.aap.2017.11.038. URL https://doi.org/10.1016/j.aap.2017.11.038.
- Jeong and Ko (2018) M. Jeong and B. Ko. Driver’s facial expression recognition in real-time for safe driving. Sensors, 18(12):1–17, 2018. doi: 10.3390/s18124270. URL https://doi.org/10.3390/s18124270.
- Johns (2000) M. Johns. A sleep physiologist’s view of the drowsy driver. Transportation Research Part F: Traffic Psychology and Behaviour, 3(4):241–249, December 2000. doi: 10.1016/S1369-8478(01)00008-0. URL https://doi.org/10.1016/S1369-8478(01)00008-0.
- Johns (2001) M. Johns. Assessing the drowsiness of drivers, 2001. Unpublished report commissioned by VicRoads.
- Johns et al. (2005) M. Johns, A. Tucker, and R. Chapman. Monitoring the drowsiness of drivers: A new method based on the velocity of eyelid movements. In World Congress on Intelligent Transport Systems, pages 1–16, San Francisco, California, USA, November 2005.
- Johns et al. (2014) M. Johns, S. Sibi, and W. Ju. Effect of cognitive load in autonomous vehicles on driver performance during transfer of control. In Adjunct Proceedings of the 6th International Conference on Automotive User Interfaces and Interactive Vehicular Applications, AutomotiveUI ’14, pages 1–4, Seattle, Washington, USA, September 2014. Association for Computing Machinery. doi: 10.1145/2667239.2667296. URL https://doi.org/10.1145/2667239.2667296.
- Joye et al. (2020) T. Joye, K. Rocher, J. Déglon, J. Sidibé, B. Favrat, M. Augsburger, and A. Thomas. Driving under the influence of drugs: A single parallel monitoring-based quantification approach on whole blood. Frontiers in Chemistry, 8:1–10, August 2020. doi: 10.3389/fchem.2020.00626. URL https://doi.org/10.3389/fchem.2020.00626.
- Kahneman et al. (1969) D. Kahneman, B. Tursky, D. Shapiro, and A. Crider. Pupillary, heart rate, and skin resistance changes during a mental task. Journal of Experimental Psychology, 79(1):164–167, January 1969. doi: 10.1037/h0026952. URL https://doi.org/10.1037/h0026952.
- Kajiwara (2014) S. Kajiwara. Evaluation of driver’s mental workload by facial temperature and electrodermal activity under simulated driving conditions. International Journal of Automative Technology, 15(1):65–70, 2014. doi: 10.1007/s12239-014-0007-9. URL https://doi.org/10.1007/s12239-014-0007-9.
- Kang (2013) H. Kang. Various approaches for driver and driving behavior monitoring: A review. In IEEE International Conference on Computer Vision Workshops (ICCV Workshops), pages 616–623, Sydney, NSW, Australia, December 2013. doi: 10.1109/ICCVW.2013.85. URL https://doi.org/10.1109/ICCVW.2013.85.
- Kaplan et al. (2015) S. Kaplan, M. Guvensan, A. Yavuz, and Y. Karalurt. Driver behavior analysis for safe driving: A survey. IEEE Transactions on Intelligent Transportation Systems, 16(6):3017–3032, 2015. doi: 10.1109/TITS.2015.2462084. URL https://dx.doi.org/10.1109/TITS.2015.2462084.
- Kass et al. (2007) S. Kass, K. Cole, and C. Stanny. Effects of distraction and experience on situation awareness and simulated driving. Transportation Research Part F: Traffic Psychology and Behaviour, 10(4):321–329, July 2007. doi: 10.1016/j.trf.2006.12.002. URL https://doi.org/10.1016/j.trf.2006.12.002.
- Kaye et al. (2018) S.-A. Kaye, I. Lewis, and J. Freeman. Comparison of self-report and objective measures of driving behavior and road safety: A systematic review. Journal of Safety Research, 65:141–151, June 2018. doi: 10.1016/j.jsr.2018.02.012. URL https://doi.org/10.1016/j.jsr.2018.02.012.
- Khan and Lee (2019) M. Khan and S. Lee. A comprehensive survey of driving monitoring and assistance systems. Sensors, 19(11):1–32, June 2019. doi: 10.3390/s19112574. URL https://dx.doi.org/10.3390/s19112574.
- Kiashari et al. (2020) S. Kiashari, A. Nahvi, H. Bakhoda, A. Homayounfard, and M. Tashakori. Evaluation of driver drowsiness using respiration analysis by thermal imaging on a driving simulator. Multimedia Tools and Applications, 79:17793–17815, July 2020. doi: 10.1007/s11042-020-08696-x. URL https://doi.org/10.1007/s11042-020-08696-x.
- Kim et al. (2013) J. Kim, C. Jeong, M. Jung, J. Park, and D. Jung. Highly reliable driving workload analysis using driver electroencephalogram (EEG) activities during driving. International Journal of Automative Technology, 14(6):965–970, 2013. doi: 10.1007/s12239-013-0106-z. URL https://doi.org/10.1007/s12239-013-0106-z.
- Kircher et al. (2002) A. Kircher, M. Uddman, and J. Sandin. Vehicle control and drowsiness. Technical report, VTI, Linköping, Sweden, May 2002.
- Kircher and Ahlström (2016) K. Kircher and C. Ahlström. Minimum required attention: a human-centered approach to driver inattention. Human Factors, 59(3):471–484, October 2016. doi: 10.1177/0018720816672756. URL https://doi.org/10.1177/0018720816672756.
- Kojima et al. (2009) S. Kojima, S. Maeda, Y. Ogura, E. Fujita, K. Murata, T. Kamei, T. Tsuji, S. Kaneko, and M. Yoshizumi. Noninvasive biological sensor system for detection of drunk driving. In International Conference on Information Technology and Applications in Biomedicine (ITAB), pages 1–4, Larnaka, Cyprus, November 2009. IEEE. doi: 10.1109/ITAB.2009.5394324. URL https://doi.org/10.1109/ITAB.2009.5394324.
- Kosch et al. (2018) T. Kosch, M. Hassib, D. Buschek, and A. Schmidt. Look into my eyes: using pupil dilation to estimate mental workload for task complexity adaptation. In Extended Abstracts of the CHI Conference on Human Factors in Computing Systems, pages 1–6, Montréal, Canada, April 2018. ACM. doi: 10.1145/3170427.3188643. URL https://doi.org/10.1145/3170427.3188643.
- Koukiou and Anastassopoulos (2018) G. Koukiou and V. Anastassopoulos. Local difference patterns for drunk person identification. Multimedia Tools and Applications, 77:9293–9305, April 2018. doi: 10.1007/s11042-017-4892-6. URL https://doi.org/10.1007/s11042-017-4892-6.
- Kumari and Kumar (2017) B. Kumari and P. Kumar. A survey on drowsy driver detection system. In International Conference on Big Data Analytics and Computational Intelligence (ICBDAC), pages 272–279, Chirala, India, March 2017. IEEE. doi: 10.1109/ICBDACI.2017.8070847. URL https://doi.org/10.1109/ICBDACI.2017.8070847.
- Lal and Craig (2001) S. Lal and A. Craig. A critical review of the psychophysiology of driver fatigue. Biological Psychology, 55(3):173–194, February 2001. doi: 10.1016/S0301-0511(00)00085-5. URL https://doi.org/10.1016/S0301-0511(00)00085-5.
- Laouz et al. (2020) H. Laouz, S. Ayad, and L. Terrissa. Literature review on driverś drowsiness and fatigue detection. In International Conference on Intelligent Systems and Computer Vision (ISCV), pages 1–7, Fez, Morocco, June 2020. IEEE. doi: 10.1109/ISCV49265.2020.9204306. URL https://doi.org/10.1109/ISCV49265.2020.9204306.
- Le et al. (2020) A. Le, T. Suzuki, and H. Aoki. Evaluating driver cognitive distraction by eye tracking: From simulator to driving. Transportation Research Interdisciplinary Perspectives, 4:1–7, March 2020. doi: 10.1016/j.trip.2019.100087. URL https://doi.org/10.1016/j.trip.2019.100087.
- Le et al. (2016) T. Le, C. Zhu, Y. Zheng, K. Luu, and M. Savvides. Robust hand detection in vehicles. In IEEE International Conference on Pattern Recognition (ICPR), pages 573–578, Cancun, Mexico, December 2016. doi: 10.1109/ICPR.2016.7899695. URL https://doi.org/10.1109/ICPR.2016.7899695.
- Le et al. (2017) T. Le, K. Quach, C. Zhu, C. Duong, K. Luu, and M. Savvides. Robust hand detection and classification in vehicles and in the wild. In IEEE International Conference on Computer Vision and Pattern Recognition Workshops (CVPRW), pages 39–46, Honolulu, Hawaii, USA, 2017. IEEE. doi: 10.1109/CVPRW.2017.159. URL https://doi.org/10.1109/CVPRW.2017.159.
- Leicht et al. (2015) L. Leicht, E. Skobel, M. Mathissen, S. Leonhardt, S. Weyer, T. Wartzek, S. Reith, W. Möhler, and D. Teichmann. Capacitive ECG recording and beat-to-beat interval estimation after major cardiac event. In Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBC), pages 7614–7617, Milan, Italy, August 2015. IEEE. doi: 10.1109/EMBC.2015.7320155. URL https://doi.org/10.1109/EMBC.2015.7320155.
- Leonhardt et al. (2018) S. Leonhardt, L. Leicht, and D. Teichmann. Unobtrusive vital sign monitoring in automotive environments - a review. Sensors, 18(9):1–38, September 2018. doi: 10.3390/s18093080. URL https://doi.org/10.3390/s18093080.
- Li et al. (2017a) H. Li, J. Sun, Z. Xu, and L. Chen. Multimodal 2D+3D facial expression recognition with deep fusion convolutional neural network. IEEE Transactions on Multimedia, 19(12):2816–2831, December 2017a. doi: 10.1109/TMM.2017.2713408. URL https://doi.org/10.1109/TMM.2017.2713408.
- Li et al. (2008) R. Li, C. Liu, and F. Luo. A design for automotive CAN bus monitoring system. In IEEE Vehicle Power and Propulsion Conference, pages 1–5, Harbin, China, September 2008. IEEE. doi: 10.1109/VPPC.2008.4677544. URL https://doi.org/10.1109/VPPC.2008.4677544.
- Li et al. (2015) Z. Li, X. Jin, and X. Zhao. Drunk driving detection based on classification of multivariate time series. Journal of Safety Research, 54:61–67, September 2015. doi: 10.1016/j.jsr.2015.06.007. URL https://doi.org/10.1016/j.jsr.2015.06.007.
- Li et al. (2017b) Z. Li, S. Bao, I. Kolmanovsky, and X. Yin. Visual-manual distraction detection using driving performance indicators with naturalistic driving data. IEEE Transactions on Intelligent Transportation Systems, 19(8):2528–2535, August 2017b. doi: 10.1109/TITS.2017.2754467. URL https://doi.org/10.1109/TITS.2017.2754467.
- Liang and Lee (2010) Y. Liang and J. Lee. Combining cognitive and visual distraction: less than the sum of its parts. Accident Analysis & Prevention, 42(3):881–890, May 2010. doi: 10.1016/j.aap.2009.05.001. URL http://doi.org/10.1016/j.aap.2009.05.001.
Liang et al. (2007)
Y. Liang, M. Reyes, and J. Lee.
Real-time detection of driver cognitive distraction using support vector machines.IEEE Transactions on Intelligent Transportation Systems, 8(2):340–350, June 2007. doi: 10.1109/TITS.2007.895298. URL https://doi.org/10.1109/TITS.2007.895298.
- Liang et al. (2019) Y. Liang, W. Horrey, M. Howard, M. Lee, C. Anderson, M. Shreeve, C. O’Brien, and C. Czeisler. Prediction of drowsiness events in night shift workers during morning driving. Accident Analysis & Prevention, 126:105–114, May 2019. doi: 10.1016/j.aap.2017.11.004. URL https://www.sciencedirect.com/science/article/pii/S0001457517303913.
- Liao et al. (2016) Y. Liao, S. Li, W. Wang, Y. Wang, G. Li, and B. Cheng. Detection of driver cognitive distraction: A comparison study of stop-controlled intersection and speed-limited highway. IEEE Transactions on Intelligent Transportation Systems, 17(6):1628–1637, June 2016. doi: 10.1109/TITS.2015.2506602. URL https://doi.org/10.1109/TITS.2015.2506602.
- Linardatos et al. (2021) P. Linardatos, V. Papastefanopoulos, and S. Kotsiantis. Explainable AI: A review of machine learning interpretability methods. Entropy, 23(1):1–45, 2021. doi: 10.3390/e23010018. URL https://doi.org/10.3390/e23010018.
- Lisper et al. (1986) H.-O. Lisper, H. Laurell, and J. van Loon. Relation between time to falling asleep behind the wheel on a closed track and changes in subsidiary reaction time during prolonged driving on a motorway. Ergonomics, 29(3):445–453, 1986. doi: 10.1080/00140138608968278. URL https://doi.org/10.1080/00140138608968278.
- Liu et al. (2009) C. Liu, S. Hosking, and M. Lenné. Predicting driver drowsiness using vehicle measures: recent insights and future challenges. Journal of Safety Research, 40(4):239–245, August 2009. doi: 10.1016/j.jsr.2009.04.005. URL https://doi.org/10.1016/j.jsr.2009.04.005.
- Liu et al. (2019) F. Liu, X. Li, T. Lv, and F. Xu. A review of driver fatigue detection: progress and prospect. In IEEE International Conference on Consumer Electronics (ICCE), pages 1–6, Las Vegas, Nevada, USA, January 2019. IEEE. doi: 10.1109/ICCE.2019.8662098. URL https://doi.org/10.1109/ICCE.2019.8662098.
- Lowenstein et al. (1963) O. Lowenstein, R. Feinberg, and I. Loewenfeld. Pupillary movements during acute and chronic fatigue: A new test for the objective evaluation of tiredness. Investigative Ophthalmology & Visual Science, 2(2):138–157, April 1963.
- Lu et al. (2021) S. Lu, F. Wei, and G. Li. The evolution of the concept of stress and the framework of the stress system. Cell Stress, 5(6):76–85, April 2021. doi: 10.15698/cst2021.06.250. URL https://doi.org/10.15698/cst2021.06.250.
- Marillier and Verstraete (2019) M. Marillier and A. Verstraete. Driving under the influence of drugs. WIREs Forensic Science, 1(3):1–24, January 2019. doi: 10.1002/wfs2.1326. URL https://doi.org/10.1002/wfs2.1326.
- Marina Martinez et al. (2018) C. Marina Martinez, M. Heucke, F. Wang, B. Gao, and D. Cao. Driving style recognition for intelligent vehicle control and advanced driver assistance: A survey. IEEE Transactions on Intelligent Transportation Systems, 19(3):666–676, 2018. doi: 10.1109/TITS.2017.2706978. URL https://dx.doi.org/10.1109/TITS.2017.2706978.
- Marquart and de Winter (2015) G. Marquart and J. de Winter. Workload assessment for mental arithmetic tasks using the task-evoked pupillary response. PeerJ Computer Science, 1:1–20, August 2015. ISSN 2376-5992. doi: 10.7717/peerj-cs.16. URL https://doi.org/10.7717/peerj-cs.16.
- Marquart et al. (2015) G. Marquart, C. Cabrall, and J. de Winter. Review of eye-related measures of drivers’ mental workload. Procedia Manufacturing, 3:2854–2861, 2015. ISSN 2351-9789. doi: /10.1016/j.promfg.2015.07.783. URL https://doi.org/10.1016/j.promfg.2015.07.783.
- Martin et al. (2013) T. Martin, P. Solbeck, D. Mayers, R. Langille, Y. Buczek, and M. Pelletier. A review of alcohol-impaired driving: the role of blood alcohol concentration and complexity of the driving task. Journal of Forensic Sciences, 58(5):1238–1250, September 2013. doi: 10.1111/1556-4029.12227. URL https://doi.org/10.1111/1556-4029.12227.
- Mashko (2015) A. Mashko. Review of approaches to the problem of driver fatigue and drowsiness. In Smart Cities Symposium Prague (SCSP), pages 1–5, Prague, Czech Republic, June 2015. IEEE. doi: 10.1109/SCSP.2015.7181569. URL https://doi.org/10.1109/SCSP.2015.7181569.
- Mashru and Gandhi (2018) D. Mashru and V. Gandhi. Detection of a drowsy state of the driver on road using wearable sensors: A survey. In International Conference on Inventive Communication and Computational Technologies (ICICCT), pages 691–695, Coimbatore, India, April 2018. IEEE. doi: 10.1109/ICICCT.2018.8473245. URL https://doi.org/10.1109/ICICCT.2018.8473245.
- Masood et al. (2020) S. Masood, A. Rai, A. Aggarwal, M. Doja, and M. Ahmad. Detecting distraction of drivers using convolutional neural network. Pattern Recognition Letters, 139:79–85, November 2020. doi: 10.1016/j.patrec.2017.12.023. URL https://doi.org/10.1016/j.patrec.2017.12.023.
- Massoz (2019) Q. Massoz. Non-invasive, automatic, and real-time characterization of drowsiness based on eye closure dynamics. PhD thesis, University of Liège, Belgium, April 2019. URL https://orbi.uliege.be/handle/2268/233355.
- Massoz et al. (2018) Q. Massoz, J. Verly, and M. Van Droogenbroeck. Multi-timescale drowsiness characterization based on a video of a driver’s face. Sensors, 18(9):1–17, August 2018. ISSN 1424-8220. doi: 10.3390/s18092801. URL http://doi.org/10.3390/s18092801.
- May and Baldwin (2008) J. May and C. Baldwin. Driver fatigue: the importance of identifying causal factors of fatigue when considering detection and countermeasure technologies. Transportation Research Part F: Traffic Psychology and Behaviour, 12(3):218–224, May 2008. doi: 10.1016/j.trf.2008.11.005. URL https://doi.org/10.1016/j.trf.2008.11.005.
- May et al. (1990) J. May, R. Kennedy, M. Williams, W. Dunlap, and J. Brannan. Eye movement indices of mental workload. Acta Psychologica, 75(1):75–89, October 1990. doi: 10.1016/0001-6918(90)90067-P. URL https://doi.org/10.1016/0001-6918(90)90067-P.
- Melnicuk et al. (2016) V. Melnicuk, S. Birrell, E. Crundall, and P. Jennings. Towards hybrid driver state monitoring: review, future perspectives and the role of consumer electronics. In IEEE Intelligent Vehicles Symposium, volume IV, pages 1392–1397, Gothenburg, Sweden, June 2016. IEEE. doi: 10.1109/IVS.2016.7535572. URL https://doi.org/10.1109/IVS.2016.7535572.
- Melnicuk et al. (2017) V. Melnicuk, S. Birrell, E. Crundall, and P. Jennings. Employing consumer electronic devices in physiological and emotional evaluation of common driving activities. In IEEE Intelligent Vehicles Symposium, volume IV, pages 1529–1534, Los Angeles, California, USA, June 2017. doi: 10.1109/IVS.2017.7995926. URL https://doi.org/10.1109/IVS.2017.7995926.
- Menon et al. (2019) S. Menon, J. Swathi, S. Anit, A. Nair, and S. Sarath. Driver face recognition and sober drunk classification using thermal images. In International Conference on Communication and Signal Processing (ICCSP), pages 400–404, Chennai, India, April 2019. IEEE. doi: 10.1109/ICCSP.2019.8697908. URL https://doi.org/10.1109/ICCSP.2019.8697908.
- Mets et al. (2011) M. Mets, E. Kuipers, L. de Senerpont Domis, M. Leenders, B. Olivier, and J. Verster. Effects of alcohol on highway driving in the STISIM driving simulator. Human Psychopharmacology: Clinical and Experimental, 26(6):434–439, August 2011. doi: 10.1002/hup.1226. URL https://doi.org/10.1002/hup.1226.
- Michael et al. (2012) L. Michael, S. Passmann, and R. Becker. Electrodermal lability as an indicator for subjective sleepiness during total sleep deprivation. Journal of Sleep Research, 21(4):470–478, August 2012. doi: 10.1111/j.1365-2869.2011.00984.x. URL https://onlinelibrary.wiley.com/doi/abs/10.1111/j.1365-2869.2011.00984.x.
- Mittal et al. (2016) A. Mittal, K. Kumar, S. Dhamija, and M. Kaur. Head movement-based driver drowsiness detection: A review of state-of-art techniques. In IEEE International Conference on Engineering and Technology (ICETECH), pages 903–908, Coimbatore, India, March 2016. doi: 10.1109/ICETECH.2016.7569378. URL https://doi.org/10.1109/ICETECH.2016.7569378.
- Monk (1989) T. Monk. A visual analogue scale technique to measure global vigor and affect. Psychiatry Research, 27(1):89–99, January 1989. ISSN 0165-1781. doi: 10.1016/0165-1781(89)90013-9. URL http://www.sciencedirect.com/science/article/pii/0165178189900139.
- Mukherjee and Robertson (2015) S. Mukherjee and N. Robertson. Deep head pose: gaze-direction estimation in multimodal video. IEEE Transactions on Multimedia, 17(11):2094–2107, November 2015. doi: 10.1109/TMM.2015.2482819. URL https://doi.org/10.1109/TMM.2015.2482819.
- Murata et al. (2011) K. Murata, E. Fujita, S. Kojima, S. Maeda, Y. Ogura, T. Kamei, T. Tsuji, S. Kaneko, M. Yoshizumi, and N. Suzuki. Noninvasive biological sensor system for detection of drunk driving. IEEE Transactions on Information Technology in Biomedicine, 15(1):19–25, January 2011. doi: 10.1109/TITB.2010.2091646. URL https://doi.org/10.1109/TITB.2010.2091646.
- Murthy et al. (2004) R. Murthy, I. Pavlidis, and P. Tsiamyrtzis. Touchless monitoring of breathing function. In Annual International Conference of the IEEE Engineering in Medicine and Biology Society, pages 1196–1199, San Francisco, California, USA, 2004. doi: 10.1109/IEMBS.2004.1403382. URL https://doi.org/10.1109/IEMBS.2004.1403382.
- Murugan et al. (2019) S. Murugan, J. Selvaraj, and A. Sahayadhas. Analysis of different measures to detect driver states: A review. In IEEE International Conference on System, Computation, Automation and Networking (ICSCAN), pages 1–6, Pondicherry, India, March 2019. doi: 10.1109/ICSCAN.2019.8878844. URL https://doi.org/10.1109/ICSCAN.2019.8878844.
- Musabini and Chetitah (2020) A. Musabini and M. Chetitah. Heatmap-based method for estimating drivers’ cognitive distraction. CoRR, abs/2005.14136, May 2020. URL https://arxiv.org/abs/2005.14136.
- Nair et al. (2016) I. Nair, N. Ebrahimkutty, B. Priyanka, M. Sreeja, and D. Gopu. A survey on driver fatigue-drowsiness detection system. International Journal of Engineering and Computer Science, 5(11):19237–19240, November 2016. doi: 10.18535/ijecs/v5i11.92. URL http://www.ijecs.in/index.php/ijecs/article/view/3093.
- Naqvi et al. (2018) R. Naqvi, M. Arsalan, G. Batchuluun, H. Yoon, and K. Park. Deep learning-based gaze detection system for automobile drivers using a NIR camera sensor. Sensors, 18(2):1–34, February 2018. doi: 10.3390/s18020456. URL https://doi.org/10.3390/s18020456.
- National Center for Statistics and Analysis (2020) National Center for Statistics and Analysis. Overview of motor vehicle crashes in 2019. Technical report, National Highway Traffic Safety Administration, Washington, District of Columbia, USA, December 2020. Traffic Safety Facts Research Note. Report No. DOT HS 813 060.
- Ngxande et al. (2017) M. Ngxande, J. Tapamo, and M. Burke. Driver drowsiness detection using behavioral measures and machine learning techniques: A review of state-of-art techniques. In Pattern Recognition Association of South Africa and Robotics and Mechatronics (PRASA-RobMech), pages 156–161, Bloemfontein, South Africa, November 2017. IEEE. doi: 10.1109/RoboMech.2017.8261140. URL https://doi.org/10.1109/RoboMech.2017.8261140.
- NHTSA (1998) NHTSA. The visual detection of DWI motorists. Technical Report DOT HS 808 677, National Highway Traffic Safety Administration, 1998.
- NHTSA (2010) NHTSA. Overview of the National Highway Traffic Safety Administration’s driver distraction program. Technical report, National Highway Traffic Safety Administration, Washington, District of Columbia, USA, April 2010. DOT HS 811 299.
- Nishiyama et al. (2007) J. Nishiyama, K. Tanida, M. Kusumi, and Y. Hirata. The pupil as a possible premonitor of drowsiness. In Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBC), pages 1586–1589, Lyon, France, August 2007. IEEE. doi: 10.1109/IEMBS.2007.4352608.
- Němcová et al. (2021) A. Němcová, V. Svozilová, K. Bucsuházy, R. Smišek, M. Mézl, B. Hesko, M. Belák, M. Bilik, P. Maxera, M. Seitl, T. Dominik, M. Semela, M. Šucha, and R. Kolář. Multimodal features for detection of driver stress and fatigue: review. IEEE Transactions on Intelligent Transportation Systems, 22(6):3214–3233, June 2021. doi: 10.1109/TITS.2020.2977762. URL https://doi.org/10.1109/TITS.2020.2977762.
- O’Donnel and Eggemeier (1986) R. O’Donnel and F. Eggemeier. Workload assessment methodology, chapter 42, pages 1–49. Wiley, 1986.
- Ollander et al. (2016) S. Ollander, C. Godin, A. Campagne, and S. Charbonnier. A comparison of wearable and stationary sensors for stress detection. In IEEE International Conference on Systems, Man, and Cybernetics (SMC), pages 4362–4366, Budapest, Hungary, October 2016. IEEE. doi: 10.1109/SMC.2016.7844917. URL https://doi.org/10.1109/SMC.2016.7844917.
- Oscar-Berman et al. (1997) M. Oscar-Berman, B. Shagrin, D. Evert, and C. Epstein. Impairments of brain and behavior: the neurological effects of alcohol. Alcohol Health and Research World, 21(1):65–75, 1997. URL https://pubmed.ncbi.nlm.nih.gov/15706764/.
- Oviedo-Trespalacios et al. (2016) O. Oviedo-Trespalacios, M. Haque, M. King, and S. Washington. Understanding the i
