1 Introduction

Off-policy evaluation (OPE), which aims to estimate the online/true performance111In this paper, we will use online performance and true performance interchangeably. of a policy using only pre-collected historical data generated by other policies, is critical to many real-world applications, in which evaluating a poorly performed policy online might be prohibitively expensive (e.g., in trading, advertising, traffic control) or even dangerous (e.g., in robotics, autonomous vehicles, drug trials).

Existing OPE methods can be roughly categorized into three classes: distribution correction based Thomas et al. (2015); Liu et al. (2018); Hanna et al. (2019); Xie et al. (2019); Nachum et al. (2019); Zhang et al. (2020); Nachum and Dai (2020); Yang et al. (2020); Kostrikov and Nachum (2020), model estimation based Mannor et al. (2004); Thomas and Brunskill (2016); Hanna et al. (2017); Zhang et al. (2021), and Q-estimation based Le et al. (2019); Munos et al. (2016); Harutyunyan et al. (2016); Precup (2000); Farajtabar et al. (2018) methods. While those methods are based on different assumptions and with different formulations, most of them (1) focus on precisely estimating the expected return of a target policy using pre-collected historical data, and (2) perform unsupervised estimation without directly leveraging the online performance of previously deployed policies.

We notice that there are some mismatches between the settings of those OPE methods and the OPE problem in real-world applications. First, in many applications, we do not need to estimate the exact true performance of a target policy; instead, what we need is to compare the true performance of a set of candidate policies and identify the best one which will then be deployed into real-world systems. That is, correct ranking of policies rather than precise return estimation is the goal of off-policy evaluation. Second, in real-world applications, we usually know the true performance of polices that have been deployed into real-world systems and interacted with real-world users. Such information is not well exploited in today’s OPE methods.

Based on these observations, in this work, we define a new problem, supervised off-policy ranking (SOPR for short), which is different from previous OPE in two aspects. First, in SOPR, the true performance of a set of pre-collected policies is available in addition to offline-policy trajectory data. Second, SOPR aims to correctly rank new policies, rather than accurately estimate the expected returns of the policies.

A straightforward way to rank policies is to first use a scoring model to score each policy and then rank them based on their scores. Following this idea, we propose a supervised learning based method to train a scoring model. The scoring model takes logged states in historical data and the actions taken offline by a policy as raw features. Considering that there might be plenty of states in pre-collected data, we first adopt k-means clustering to cluster similar states, use a Transformer encoder to encode state-action pairs in each cluster, then another Transformer encoder to encode information of those clusters, and finally map the outputs of the second encoder to a score by a multi-layer perceptron (MLP). That is, our scoring model consists of two Transformer encoders and a MLP, which are jointly trained to correctly rank the pre-collected policies with known performance. Our method is named as SOPR-T, where “T” stands for Transformer based model.

Experiments on multiple Mujoco games and different types of D4RL datasets Fu et al. (2020) show that our SOPR-T outperforms strong baseline OPE methods in terms of both effectiveness (including rank correlation and the performance gap between the ground-truth top 3 policies and the identified top 3 policies) and stability.

The main contributions of this work are summarized as follows:

  • [leftmargin=*]

  • We point out that OPE should focus on policy ranking rather than exactly estimating the returns of policies, which simplifies the task of OPE.

  • According to our knowledge, we are the first to introduce supervised learning into OPE. We only take a preliminary step towards supervised OPE in this work and define the problem of supervised off-policy ranking. We hope that our work can inspire more solid work along this direction.

  • We propose a Transformer encoder based hierarchical model for policy scoring. Experiments demonstrate the effectiveness and stability of our method. Our code and data have been released 222https://github.com/SOPR-T/SOPR-T.

2 Related Work

Distribution correction based methods aim to correct the distribution shift of data from the behavior data distribution to the target data distribution. These methods leverage importance sampling (IS) to correct the weight of reward used to calculate the average return. Early methods mainly focus on the distribution correction of a trajectory or truncated trajectory, such as trajectory-wise IS, step-wise IS, and normalized (weighted) step-wise IS Thomas et al. (2015); Voloshin et al. (2019)

. Because of involving the multiplication of IS weights over time steps, these methods suffer from large variance. Even though using weight normalization, the estimation variance is still too large

Levine et al. (2020). Recently, more studies focus on correcting the stationary state distribution Liu et al. (2018); Xie et al. (2019); Nachum et al. (2019); Zhang et al. (2020); Nachum and Dai (2020); Yang et al. (2020). However, not matter using which kind of distribution correction, if the coverage of dataset against the target dataset is small, big estimation error is inevitable.

Instead of only leveraging data in the given dataset, model-based methods estimate the environment model including a state transition distribution and a reward function, and generate data using the the simulated environment and the target policy Mannor et al. (2004); Hanna et al. (2017); Zhang et al. (2021)

. Then, the expected return of the target policy can be estimated using the returns of Monte-Carlo (MC) rollouts in the simulated environment. Recently, model-based reinforcement learning (RL) has achieved a lot of progress in terms of data efficiency and model estimation accuracy

Janner et al. (2019); Voloshin et al. (2021); Kaiser et al. (2019). However, these works focus on online RL, where the estimation bias can be reduced by collecting more data from the environment. In contrast, the dataset is static in OPE. Thus, for the state-action pairs that are within the distribution of the target data but out of the distribution of the given dataset, traditional model-based methods may generate large estimation error in terms of both reward and state transition. Moreover, for the model-based methods that resort to MC rollouts to estimate the return, one-step erroneous transition estimation may cause a great estimation error.

Q-estimation based OPE methods estimate a Q-function by leveraging Bellman expectation backup operator Sutton and Barto (2018) iteratively based on the off-policy data. A representative method is Fitted Q evaluation (FQE) Le et al. (2019)

, which learns a neural network to approximate the Q function of the target policy. However, FQE suffers large uncertainty about the value of the unseen state-action pairs. Moreover, evaluating each target policy needs a training procedure, which is time-consuming. Another important branch of OPE study is doubly robust (DR) OPE

Thomas and Brunskill (2016); Dudík et al. (2011); Jiang and Li (2016), which combines reward function estimation or Q-function estimation with IS. Theoretical analysis proves that if either the behavior policy estimate or the reward or Q estimate is accurate, the DR estimate will be close to the true value. However, IS-based, model-based, and Q-estimation-based methods all have drawbacks that cannot be offset by each other.

Off-Policy Classification (OPC) based OPE method Irpan et al. (2019) aims at the same goal with our work, i.e. to rank several candidate policies. OPC does not estimate the expected return of a policy but instead uses a statistic to measure the success rate of the actions generated by the policy. However, OPC needs to leverage a Q-function and thus its performance is limited by the performance of Q-function learning. In addition, a recent work Paine et al. (2020) demonstrated that using either some offline RL algorithms or FQE to learn a Q-function in OPC performs worse than FQE in most cases.

Offline RL also involves OPE problem. Good policy evaluation can tell how good the current learned policy is and the direction to improve the policy, which is important for offline RL. Actually, the critic in the actor-critic learning architecture plays the role of policy evaluation. Some works Fujimoto et al. (2019a, b); Kumar et al. (2019); Boehmke et al. (2020) focus on mitigating the extrapolation error caused by the distribution mismatch between the bootstrapping actions (used in the critic learning) and the actions in the dataset. A common method is to constrain the distribution of the data that can be visited by the learned policy from being mismatched with the dataset. However, the performance of the resulting policy is also limited by this kind of constraint. Particularly, when the distribution of the dataset is distant from that corresponding to the optimal policy, the aforementioned constraint will severely hinder policy optimization.

3 The Problem of Supervised Off-policy Ranking

In this section, we first give some notations and then formally describe the problem of supervised off-policy ranking.

We consider OPE in a Markov Decision Process (MDP) defined by a tuple

. and denote state and action space. and are state transition distribution and reward function. is a discount factor. The expected return of a policy is defined as , where , , and is the time horizon of the MDP.

The goal of OPE is to evaluate a policy without running it in the environment. Traditional OPE methods estimate the expected return of a policy by leveraging a pre-collected dataset , where , composed of trajectories, which are generated by some other policies (usually called behavioral policy).

In many real-world applications where we need to evaluate a policy offline before deploying it into online systems, in addition to the pre-collected dataset, we can also collect a set of previously deployed policies and their true performance after being deployed into online systems. Clearly, those information is helpful for off-policy evaluation, but unfortunately was ignored in previous OPE methods. In this work, we define a new kind of OPE problem, the supervised OPE problem, as below.

Definition 1

Supervised Off-policy Evaluation: given a pre-collected dataset with trajectories and a set of pre-collected policies with known performance, estimate the performance of a target policy or a set of target policies without interacting with the environment.

Comparing with previously studied OPE problems, our new problem has more information available, the set of pre-collected policies

with known performance, which can serve as supervision while we build an OPE model/method. This is why we call this problem “supervised" OPE, as we have label information (i.e., the true performance) for some policies available in training. In contrast, previous OPE methods can be viewed as unsupervised learning, since they do not directly learn from the online performance of pre-collected policies. In real-world applications such as advertising and recommendation systems, we can get the true performance of previously deployed polices by observing and counting user click behaviors.

In real-world applications we often need to compare a set of candidate policies and choose a good one from them, where what we really need is the correct ordering of a set of policies, rather than the exact value/performance of each policy. Thus, we define a variant of the supervised OPE problem, which is called supervised off-policy ranking.

Definition 2

Supervised Off-policy Ranking: given a pre-collected dataset with trajectories and a set of pre-collected policies together with their relative goodness, rank a set of target policies without interacting with the environment.

It is not difficult to see that policy ranking is relatively easier than policy evaluation, since accurate evaluations of policies inherently implies correct ranking of them, but correct ranking does not need accurate evaluations. In the following parts of this paper, we focus on supervised off-policy ranking (SOPR), considering its practical value and simplicity.

4 Our Method

We introduce our method for SOPR in this section, which trains a scoring model to score and rank target policies. We start with introducing policy representation (Section  4.1

), and then loss function and training pipeline (Section

4.2).

4.1 Policy Representation

Policies can be of very different formats: a policy can be a set of expert designed rules, a linear function of states, decision trees over states, or deep neural networks, e.g., convolutional neural networks, recurrent neural networks, and attention based networks. To map a policy to a score, the first question to answer is how to represent policy with very diverse formats.

To handle all kinds of policies, we should leverage their shared points rather than differences. Obviously, we cannot use the internal parameters of policies, because different policies may have different numbers of parameters and some policy may even do not have parameters. Fortunately, all the policies for the same task or game share the same input space, the state space , and the same output space . Therefore, we propose to build the representation of a policy upon state action pairs.

Let denote the set of all the states in the pre-collected data . For a policy to rank, we let it take actions for all the states in and obtain a dataset , where . Now, any policy can be represented by a dataset in the same format. 333For simplicity of description, we consider deterministic policies here. For stochastic policies, we can use the distribution over actions for a state and get a dataset .

Now the question becomes how to map a set of points/pairs444Each state action pair can be viewed as a point in a high-dimensional space. to a score that indicates the goodness of the policy . Following Kool et al. (2018); Nazari et al. (2018); Bello et al. (2016); Xin et al. (2020); Vinyals et al. (2015), we use a Transformer encoder Vaswani et al. (2017)

to encode all those points. In particular, we first project each point into an embedding vector, then use a few self-attention layers to get high level representations of those points, aggregate them by average pooling to get the representation vector of the dataset (and thus the policy), and finally linearly project the vector to a score.

A computational challenge is that there could be millions of states in pre-collected historical data. It is impossible for Transformer to handle such a large scale of data. Our solution is to down sample the states and encode the state action pairs in a hierarchical way as follows:

  1. [leftmargin=*]

  2. Randomly sample a sub set of states from and cluster them into clusters by k-means.

  3. Let a policy take actions over states in and obtain a set of state action pairs.

  4. Use a low-level Transformer encoder to encode all the state action pairs in a cluster and get a vector representation by average pooling for each cluster.

  5. Use a high-level Transformer encoder to encode all the clusters and get a vector representation by average pooling for the policy.

  6. Linearly project the vector in the above step to a score.

Figure 1 illustrates our scoring function. Since our scoring function is based on Transformer, we name our method SOPR-T. Let denote our scoring function with parameter , which maps a policy together with a state set to a score.

4.2 Pairwise Loss and Learning Algorithm

As aforementioned, the goal of SOPR is to rank a set of policies correctly. We adopt a pairwise ranking loss following Burges et al. (2005):

(1)

where is the parameter of our scoring function to learn, and are two policies with order : means is worse than , means is better than , and means that the two policies perform similarly.

It is not difficult to get that if to minimize the loss, the scoring function needs to correctly rank two policies, i.e., consistent with the ranking of their true performance.

The complete training algorithm is shown in Algorithm 1. Note that, in training, we sample multiple sub sets of states in the manner similar to mini-batch training. In inference, we also sample multiple sub sets, compute a score using the well trained scoring function over each sub set for a test policy, and use the averaged score over those sub sets as the final score of the policy.

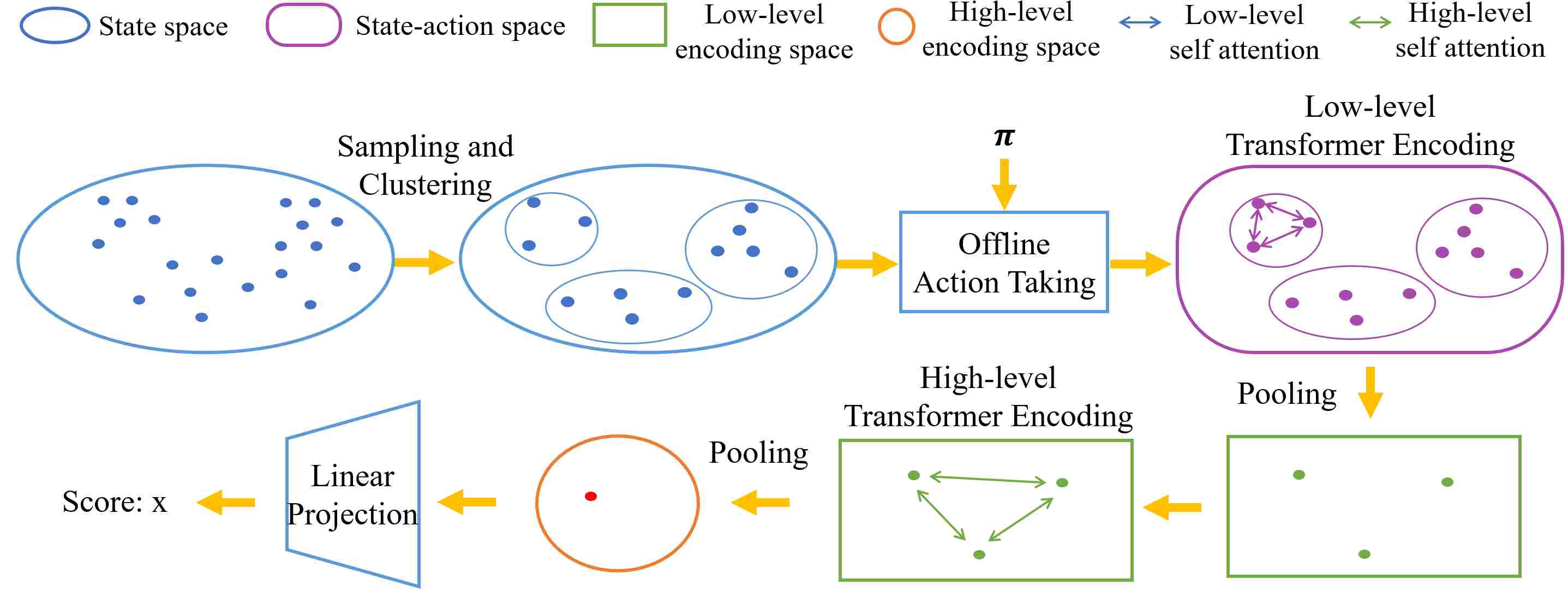

Figure 1: Illustration of our scoring model.
1:Input: State dataset , training policy set , and pairwise ranking label .
2:Initialize the scoring model .
3:for iteration in  do
4:     Sample a sub set of states from .
5:
6:     Compute the score as described in Section 4.2 for all the policies.
7:     Perform gradient update to minimize the ranking loss for each pair of policy and .
8:end for
Algorithm 1 Pairwise ranking based SOPR-T

4.3 Discussions

We make some discussions about our algorithm in this subsection.

One may notice that we use only the states in the pre-collected historical data , while most previous OPE methods use both the states and immediate rewards in . There are several considerations for only using states. First, a new policy to be evaluated usually takes actions different from behavioral policies that generated the historical data, and is not available for a state with a new action . Thus, we do not directly use immediate rewards in this work. Second, as we study the problem of SOPR, we have a set of training policies with known performance available. The performance information of those policies is more reliable and direct signal for supervised learning than immediate rewards, since it comes from the online interactions with real-world systems and directly indicates the goodness of a policy. Third, consider the following formulation of the expected return of a policy,

(2)

where denotes the stationary distribution under . Note that, only depends on policy , while is the same across all policies for the same task/game. Therefore, to rank different policies for a task, the more important part is , rather than the immediate rewards.

While we focus on off-policy ranking in this work, our proposed scoring model can be easily applied to OPE. For this purpose, we need the true performance of training polices, and only performance ranking is not enough. Given the true performance of training policies, we can train the scoring model by minimizing the gap between the true performance and predicted performance of a policy.

5 Experiments

We compare SOPR-T with different kinds of baseline OPE methods on various tasks, including evaluating policies learned by different algorithms, in different games, and with different kinds of datasets.

Metrics

We evaluate SOPR-T and baseline OPE methods with two metrics, i.e., Spearman’s rank correlation coefficient and normalized Regret@k to reflect their performance of ranking candidate policies, which is aligned with a related work Paine et al. (2020). Specifically, Spearman’s rank correlation is the Pearson correlation between the ground truth rank sequence and the evaluated rank sequence of the candidate policies. Normalized Regret@k is the normalized performance gap between the truly best policy of all candidate policies and the truly best policy of the ranked top k policies, i.e., , where and are the ground truth performance of the truly best and the truly worst policy of all candidate policies, respectively. is the ground truth performance of the truly best policy of the ranked top k policies. We use in our experiments.

Baselines

We compare SOPR-T with four representative baseline OPE methods, i.e., Fitted Q-Evaluation (FQE) Le et al. (2019), DualDICE Nachum et al. (2019), model-based estimation (MB), and weighted importance sampling (IW). We leveraged a popular implementation 555https://github.com/google-research/google-research/tree/master/policy_eval of these baseline OPE algorithms.

Tasks and Datasets

We evaluate SOPR-T and baseline OPE methods on D4RL dataset 666https://github.com/rail-berkeley/d4rl Fu et al. (2020) which is commonly used in offline RL studies. Specifically, we use 12 tasks of three Mujoco games, i.e., Hopper-v2, HalfCheetah-v2, and Walker2d-v2, and four types of datasets for each game, i.e., expert, medium, medium-replay (m-replay for short), and full-replay (f-replay for short). The expert and medium datasets are collected by a single expert and medium policy, respectively. The two policies are trained with Soft Actor-Critic (SAC) algorithm Haarnoja et al. (2018) online, and the medium policy only achieves 1/3 performance of the expert policy. The full-replay and medium-replay datasets contain all the data collected during the training of the expert and medium policy previously mentioned, respectively.

Training Set and Validation Set

Training set and validation set consist of policies and their rank labels. The policies are collected during online SAC training. For each game, we collect 50 policy snapshots during the training process and get their performance by online evaluation using 100 Monte-Carlo rollouts in the real environment. After the training process is finished, we randomly select 30 policies to form training policy set and another 10 policies to form validation policy set. The remaining 10 policies are used to form a test policy set. We will provide a detailed description of the test policy set later. Note that, in the training phase of SOPR-T, only the rank of the policies are used as labels.

Test Set

In each task, we use two kinds of test policy sets to simulate two kinds of OPE cases.

In Test Set I, we investigate the capability of SOPR-T and baseline OPE methods to rank and select good policies in offline RL settings. Specifically, Test Set I is composed of policies collected by running 3 popular offline RL algorithms, BEAR Kumar et al. (2019), CQL Kumar et al. (2020), and CRR Wang et al. (2020). The implementation of the three algorithms is based on a public codebase 777https://github.com/takuseno/d3rlpy. For each task, we run each algorithm until convergence and collect policy snapshots during training. To get the ground truth rank labels of the performance of these policies, we also evaluate the performance of each policy using 100 Monte-Carlo rollouts in the real environment, and use the rank of the performance as rank labels. Then, we mix these policies and select 10 policies whose performance are evenly spaced in the performance range of all policies. In this way, the selected polices have diverse performance. In addition, mixing policies generated by different algorithms to form a test policy set is aligned with the practical cases where the sources of policies are various and unknown.

In Test Set II, we investigate the capability of SOPR-T to rank policies that are approximately within the distribution of training policies. Because in practice, such as production development and update, the updated policies and the previously evaluated policies usually have many common properties. Therefore, it can be assumed that the policies to be evaluated and the policies that have been evaluated are in two similar distributions. To simulate this case in experiments, we leverage the 10 policies mentioned in the description of training policy set to form Test Set II. Because the 10 policies and the training policies are uniformly sampled from the same policy set, they are approximately within the same distribution.

5.1 Performance on Offline Learned Policies

We first evaluate SOPR-T and baseline OPE methods on Test Set I. In the evaluation process, we use 3 random seeds for each experiment. Due to space limitation, we only present the results on the Hopper game here (Fig.2.(a) and (b)), and other results can be found in Appendix A.3. As we can see from Fig.2.(a) and (b), SOPR-T achieves higher rank correlation coefficient and smaller regret value than baselines, which means SOPR-T can rank different policies with higher accuracy and also figure out good policies from the candidate policies. In addition, SOPR-T performs the most stably. That is, SOPR-T does not have negative correlation results in all the tasks, whereas each of the baseline OPE method has one or more negative rank correlation results. Though in Walker2d and Halfcheetah (shown in Appendix A.3), SOPR-T does not hold consistent superiority, it still performs the most stably. Fig.2.(c) and (d) show the overall performance of all five methods (SOPR-T and four OPE baselines) in 12 tasks. As we can see from the results, SOPR-T has the top performance of rank correlation in 5 tasks and the top performance of regret value in 6 tasks, both of which are the highest among all methods.

Figure 2: Performance of ranking two kinds of policy sets. The top row: offline learned policies (Test Set I). The bottom row: in-distribution policies (Test Set II). The left two columns are results (rank correlation and regret@3) on 4 types of datasets of the Hopper game. The right two columns are overall performance of 5 methods over 12 tasks.

5.2 Performance on In-Distribution Policies

Then, we evaluate SOPR-T and OPE baselines on Test Set II. As aforementioned, policies in Test Set II obey a similar distribution with training policies. In addition, because these policies are collected during online training, they are irrelevant to the datasets, which is aligned with many practical cases where the policies to be evaluated are not designed or learned based on the dataset. We also run SOPR-T and each baseline OPE algorithm with 3 different seeds. Results are shown in Fig.2 (the second row) and Appendix A.4. The results demonstrate that SOPR-T outperforms baseline OPE methods dramatically in almost all the tasks. The overall results over 12 tasks are shown in Fig.2. (g) and (f). SOPR-T achieves the top performance of rank correlation in 10 out of 12 tasks and the top performance of regret value in all the 12 tasks.

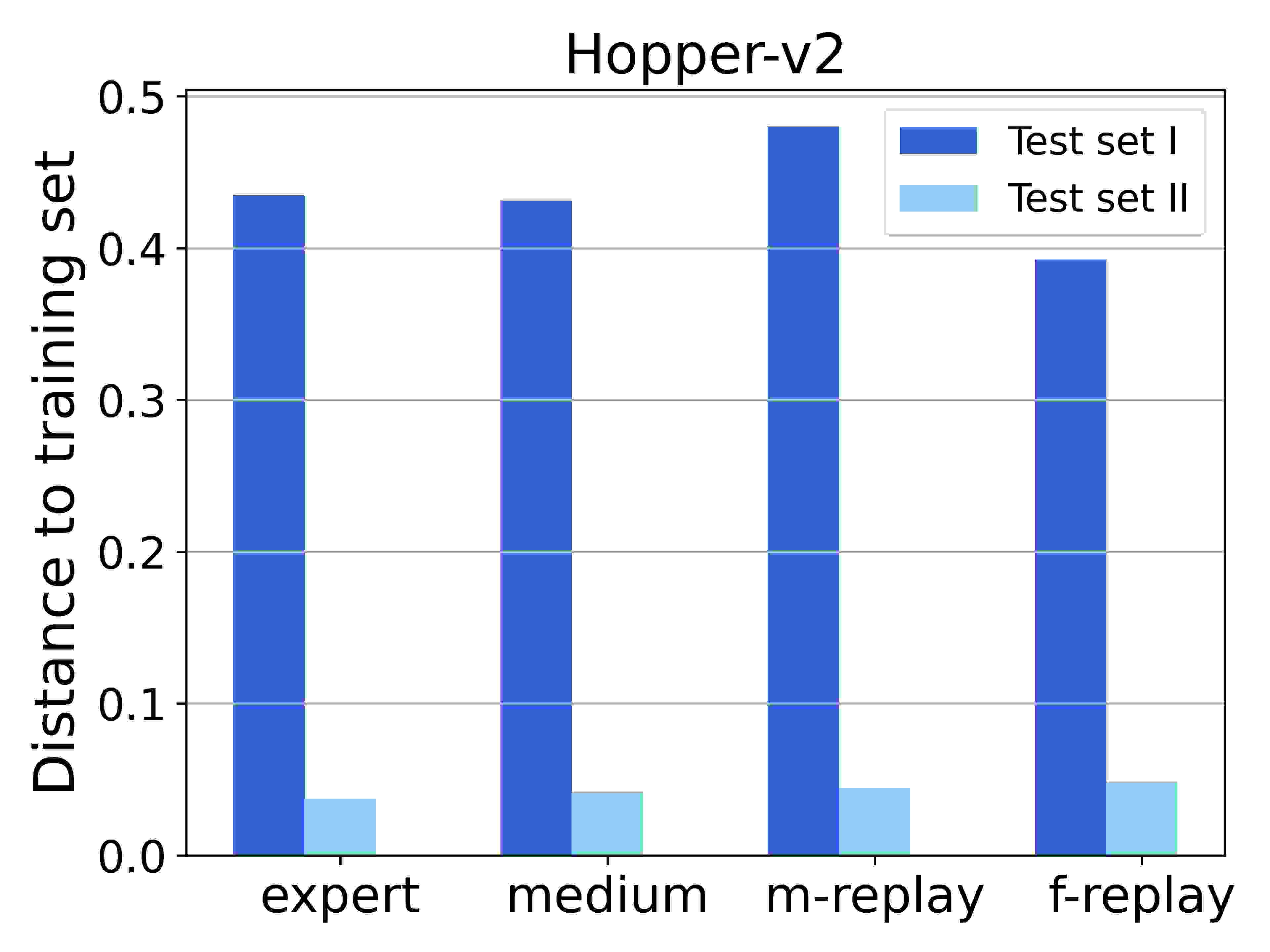

Figure 3: Distance between training and test policy sets

Compared with the results of ranking offline learned policies, the performance of SOPR-T on ranking in-distribution policies improves. To justify that the performance of SOPR-T is affected by the distribution difference between the training policy set and test policy set, we measure the distribution distance between the two policy sets by:

where is the number of states in the dataset, , and are the number of policies in the training set and test set, respectively. Distance results are shown in Fig.3 and Appendix A.4. As can be seen, the distance between Test Set I and the training policy set is much larger than the distance between Test Set II and the training policy set.

5.3 Further Studies

We further conduct a set of experiments to better understand our algorithm.

Effect of Data Size

We investigate the sensibility of SOPR-T and baseline OPE methods to the size of dataset. For each task, we sample different number of data from the original dataset in trajectory form. For the expert and medium datasets (composed of data collected by a single policy), trajectories are sampled randomly. For the medium-replay dataset (composed of all data during training SAC in sequence), we fetch data sequentially. Note that, in this experiment, we use three datasets, i.e., expert, medium, and medium-replay, as we suppose the first part of data in the full-replay dataset is similar to the medium-replay dataset. We set the number of data (states for SOPR-T, tuples for baseline OPE methods) as 4k, 8k, 16k, and 32k. Note that, in the original datasets, the size of data is not identical among different tasks, but all of them contain more than 200k data. Due to space limitation, we only show the overall performance of all the methods in 9 tasks corresponding to 16k data in Fig.4. We can observe that, when using much less data, SOPR-T still outperforms baseline OPE methods. In Appendix A.5, Fig.12 shows average performance of each method with different data size. The results indicate that SOPR-T is robust with different data size. Even with very small data size like 4k, SOPR-T still performs well. Additionally, SOPR-T outperforms baseline OPE methods consistently.

Figure 4: Overall performance when the size of dataset is 16k. (a) and (b) correspond to Test Set I. (c) and (d) correspond to Test Set II.

Effect of Transformer Encoder

We investigate the effect of using Transformer encoder to encode state action pairs. To this end, we replace Transformer encoder with MLP encoder. We name the MLP-based SOPR as SOPR-MLP. The number of hidden layers and units of hidden layers in MLP encoder is aligned with Transformer encoder used in SOPR-T. Details of training and inference methods are also the same as SOPR-T.

Figure 5: Performance comparison between SOPR-T and SOPR-MLP with Test Set I in Hopper.

We compare the performance of SOPR-MLP and SOPR-T also with two test policy sets. Results of ranking Test Set I in 4 tasks (Hopper) are shown in Fig.5. Other results are shown in Appendix A.5. As can be seen from the results, SOPR-T outperforms SOPR-MLP in most of the tasks. Specifically, when ranking Test Set I, SOPR-T achieves higher rank correlation in 8 out of 12 tasks and lower or the same (zero) regret value in 9 out of 12 tasks. For Test Set II, SOPR-T achieves higher rank correlation in 9 out of 12 tasks, and lower or the same (zero) regret value in all the tasks. It demonstrates that the Transformer encoder is superior to MLP in terms of encoding state action pairs and representing policies in our SOPR method.

Performance Variance

Figure 6: Standard deviation of SOPR-T with different number of sub datasets in inference.

In this part, we investigate the performance variance of SOPR-T in inference. Especially, we want to see the variance of SOPR-T with small data in inference. In many real-world applications, the inference speed of policy ranking matters a lot. Although our SOPR-T is efficient due to its end-to-end scoring model, we would also like to investigate whether SOPR-T can use less data in inference than that used in the training phase in order to reduce inference time. To this end, in inference, we sample different number (1, 5, 10, 50, 100, and 200) of sub datasets for SOPR-T to compute an average score for each policy, and then leverage the scores of different policies to rank them. The size of each sub dataset is the same as the batch size of training, which is provided in Appendix A.1. Given the number of sub datasets, the variance of rank correlation/regret value is computed by using five results on five random sets of sub datasets.

The relationship between the variance of rank correlation/regret value and the number of sampled sub datasets is shown in Fig.6 (Hopper) and Appendix A.5. As can be seen from the results, when using different number of sub datasets in inference, even using only one sub dataset, the standard deviations of both rank correlation and regret of SOPR-T are small. As the number of sub datasets increases, the standard deviation decreases gradually, and thus SOPR-T achieves more stable performance.

6 Conclusions and Future Work

In this work, we defined a new problem, supervised off-policy ranking (SOPR), which aims to score target policies for the purpose of correct ranking instead of precise return estimation, by leveraging a set of training policies with known performance (ranking) in addition to the off-policy data. We proposed a method to learn a Transformer based scoring function, which first represents a policy to be evaluated by a set of state action pairs and then maps such a set to a score indicating the goodness of the policy. The scoring function is trained by minimizing pairwise ranking loss. Experiments demonstrate the effectiveness and stability of SOPR-T over strong baseline OPE methods in terms of both rank correlation and regret value.

As a newly defined problem, our work is just a first and very preliminary step towards solving it. There are many possible future directions to explore. First, beyond the state-action pair-based representations in this work, how to better represent a policy? For example, considering the existence of many OPE methods, the values of a policy estimated by those methods can be used to represent the policy, and one can conduct supervised learning to combine the estimations of those methods. Furthermore, the policy values estimated by those OPE methods can serve as features and enhance the representations of a policy adopted in this work. Second, we employed a Transformer based scoring function in this work. It is interesting to explore other possibilities for the scoring function. Third, we used the pairwise loss in our algorithm. There are other ranking losses (e.g., listwise loss Cao et al. (2007)) which are worth trying. Fourth, since we conducted supervised learning, a limitation of our algorithm is that its effectiveness will be heavily impacted by the quality of training policies. We will study and quantify the impact of the quality of training policies. Fifth, as a supervised learning problem, there are many theoretical questions to answer Vapnik (1999, 2013). For example, is a learning algorithm consistent for supervised OPE or supervised OPR? What is the rate of convergence of a learning algorithm? What is the generalization bound of a learning algorithm? We hope that our work can inspire more research along the direction of OPE/OPR.
