1 Introduction

Finely-labelled data are crucial to the success of supervised and semi-supervised approaches to classification algorithms. In particular, common deep learning approaches (Bishop, 1995; LeCun et al., 2015) typically require a great number of data samples to train effectively (Krizhevsky et al., 2012; Rolnick et al., 2017). In this work, a sample refers to a section taken from a larger time-series dataset of audio. Often, these datasets lack large quantities of fine labels as producing them is extremely costly (requiring exact marking of start and stop times). The common distribution of data in these domains is such that there are small quantities of expertly-labelled (finely) data, large quantities of weakly (coarsely) labelled data, and a large volume of unlabelled data. Here, weak labels refer to labels that indicate one or more events are present in the sample, although do not contain the information as to the event frequency nor the exact location of occurrence(s) (illustrated in Section 2.2, Fig. 2). Our goal therefore is to improve classification performance in domains with variable quality datasets.

Our key contribution is as follows. We propose a framework that combines the strengths of both traditional algorithms and deep learning methods, to perform multi-resolution Bayesian bootstrapping. We obtain probabilistic labels for pseudo-fine labels, generated from weak labels, which can then be used to train a neural network. For the label refinement from weak to fine we use a Kernel Density Estimator (KDE).

The remainder of the paper is organised as follows. Section 2 discusses the structure of the framework as well as the baseline classifiers we test against. Section 3 describes the datasets we use and the details of the experiments carried out. Section 4 presents the experimental results, while Section 5 concludes.

2 Methodology

2.1 Framework Overview

Our framework is separated into an inner and outer classifier in cascade as in Figure 1. For the inner classifier we extract features from the finely and weakly-labelled audio data using the two-sample Kolgomogrov-Smirnov test for features of a log-mel spectrogram (Section 2.2). We train our inner classifier, the Gaussian KDE (Section 2.3), on the finely-labelled data and predict on the weakly-labelled data.

For the outer classifier we extract the feature vectors from an unlabelled audio dataset using the log-mel spectrogram. We then train our outer classifier, a CNN, (Section

2.4) on the finely-labelled data and the resulting pseudo-finely labelled data output by the Gaussian KDE. The details of our data and problem are found in Section 3. Code will be made available on

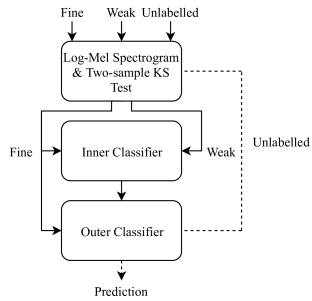

Figure 1:

Framework comprising a feature extraction & selection layer, an inner classifier and an outer classifier. The arrows represent data flows.

2.2 Feature Extraction and Selection

The CNN uses the log-mel spectrogram (as in Fig. 2) as it has recently become the gold standard in feature representation for audio data (Hayashi et al., 2017; Kong et al., 2019).

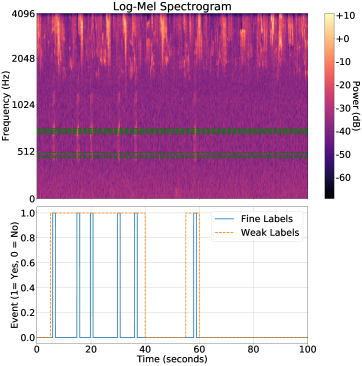

Figure 2: From top to bottom: Log-mel spectrogram of seconds of audio data at a signal-to-noise ratio of dB. The KS-selected features are shown as green dashed lines; The corresponding fine and weak labels for the above log-mel spectrogram.

The input signal is divided into second windows and we compute log-mel filterbank features. Thus, for a given seconds of audio input, the feature extraction method produces a output.

The two-sample Kolmogorov-Smirnov (KS) test (Ivanov et al., 2012)

is a non-parametric test for the equality of continuous, one-dimensional probability distributions that can be used to compare two samples. This measure of similarity is provided by the Kolmogorov-Smirnov statistic which quantifies a distance between the empirical distribution functions of the two samples. We use the KS test to select a subset of the

log-mel features, that are maximally different between the two classes to feed into the classifiers. We choose features with the largest KS statistics. Fig. 2 illustrates that the process to find maximally different feature pairs, correctly chooses frequencies of interest. For example, if the noise file is concentrated in high frequencies (as in Fig. 2

), the KS feature selection process chooses lower harmonics of the training signal (a mosquito flying tone) as features to feed to the algorithms. Conversely, for low-frequency dominated noise, higher audible harmonics of the event signal are identified.

2.3 Gaussian Kernel Density Estimation

Kernel density estimation (KDE) or Parzen estimation (Scott, 2015; Parzen et al., 1962) is a non-parametric method for estimating a

-dimensional probability density function

from a finite sample , , by convolving the empirical density function with a kernel function.

We then use Bayes’ theorem to calculate the posterior over class


where is the KDE per class , with representing the event class and the noise class (i.e. non-event).

2.4 Convolutional Neural Network

With our scarce data environment we use a CNN and dropout with probability (Srivastava et al., 2014). Our proposed architecture, given in Fig. 3, consists of an input layer connected sequentially to a single convolutional layer and a fully connected layer. The CNN is trained for epochs with SGD (Bottou et al., 2010), and all activations are ReLUs. We use this particular architecture due to constraints in data size (Kiskin et al., 2018) and therefore have few layers and fewer parameters to learn.

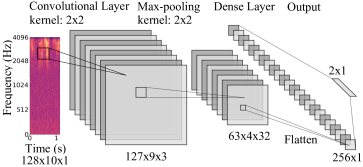

Figure 3: The CNN architecture. Spectrogram of mosquito recording fed as input to convolutional layer with filters and kernel

. Generated feature maps are down-sampled by a max-pooling layer from

to . It is then connected to a dense layer with neurons and finally the output with neurons.

2.5 Traditional Classifier Baselines

We compare our inner classifier, the Gaussian KDE, with more traditional classifiers that are widely used in machine learning: Linear Discriminant Analysis (LDA), Gaussian Naïve Bayes (GNB), support vector machines using a radial basis function kernel (RBF-SVM), random forests (RF) and a multilayer perceptron (MLP).

3 Experiments

3.1 Description of Datasets

The most common scenario where mixed quality labels can be found is in crowd-sourcing tasks (Cartwright et al., 2019; Deng et al., 2009; Lin et al., 2014), or any challenge where data collection is expensive. The HumBug (Zooniverse, 2019), (Li et al., 2017) project utilises crowd-sourcing, forming the main motivation for this research, as well as the basis for our signal111The overall goal of HumBug is real-time mosquito species recognition to identify potential malaria vectors in order to deliver intervention solutions effectively.. The event signal consists of a stationary real mosquito audio recording with a duration of second. The noise file is a non-stationary section of ambient forest sound. The event signal is placed randomly throughout the noise file at varying signal-to-noise ratios (SNRs), to create quantifiable data for prototyping algorithms. There is a class imbalance of second of event to seconds of noise in the finely-labelled data and this is propagated to the weakly-labelled and unlabelled datasets. We include seconds of expert, finely-labelled data, seconds of weakly-labelled data, and a further seconds of unlabelled test data. To report performance metrics, we create synthetic labels at a resolution of seconds for the finely-labelled data, and on the order of seconds for the weakly-labelled data. We choose seconds as to allow the labeller to have temporal context when classifying audio as an event or non-event. As the listener is presented randomly sampled (or actively sampled (Houlsby et al., 2011; Naghshvar et al., 2012)) sections of audio data, a section much shorter than seconds would make the task of tuning into each new example very difficult due to the absence of a reference signal.

3.2 Experimental Design

We evaluate our inner model against the baseline classifiers with two experiments and finally test the overall performance of the framework utilising the outputs of the various inner classifiers. We make the assumption that the accuracy of the weak labels is . Therefore, all the classifiers predict over the coarse class labelled data only. Additionally, the priors we use in Eq. 1 for our Gaussian KDE model are set such that . This is to reflect that, since the audio sample is weakly labelled , each data point is equally likely to be in fine class or .

Generative models, such as the Gaussian KDE obtain a performance boost from the additional information provided by the coarse class data as this allows it to better model the class distribution. Conversely, discriminative models such as the SVM, RF and MLP take a hit in performance because the decision boundary that they create over-fits to the class data points due to the increased class imbalance. We therefore train the LDA, GNB, SVM, RF and MLP on the finely-labelled data only, whereas the Gaussian KDE is trained on both the finely-labelled data and the coarse class data.

4 Classification Performance

For each SNR we run iterations, varying the time location of the injected signals, as well as the random seed of the algorithms. After applying median filtering, with a filter window of ms, we see the results in Fig. 4. The F-score gradually increases as expected from the threshold of detection to more audible SNRs. The decay of performance at the lower SNRs can be partially accounted for by the two-sample KS test used for feature selection failing to choose features of interest due to the increased noise floor. We observe a significant benefit to using the Gaussian KDE, which when combined with temporal averaging helps recover the dynamic nature of the signal (namely that there is correlation between neighbouring values in the time-series).

Figure 4: From left to right: Boxplots showing results of first two experiments, grouped by SNR. LDA, SVM, RF and MLP are trained on finely-labelled data only whilst the Gaussian KDE is trained on the finely-labelled data and coarse class data.

Fig. 4 shows that the Gaussian KDE predicts better calibrated probabilities than the other baseline classifiers. This is shown by applying rejection (Bishop, 1995; Hanczar and Dougherty, 2008) in addition to the median filtering. The rejection window for the output probabilities is . The Gaussian KDE improves significantly in performance, especially at the lower SNRs; however it should be noted that the F-score is evaluated on the remaining data after rejection. The Gaussian KDE rejects a large proportion of the data at lower SNRs, showing that the probabilities are at either extremes only when the model is confident in its predictions.

The final experiment tests the overall framework with input to a CNN from pseudo-finely labelled data with median filtering and rejection applied. Table LABEL:table:CNNResults shows that using the framework in conjunction with any of the inner classifiers outputs outperforms a regular CNN trained on the coarse data. Furthermore, training the CNN on the output of the Gaussian KDE significantly improves detection of events by

over the best baseline system, the CNN(GNB). We also show that using the strongest inner classifier (KDE) alone results in vastly lower precision and recall scores to the bootstrapping approach advocated here, which sees an improvement of

to the F-score gained by incorporating the CNN into the pipeline with the KDE.

Classifier F-score Precision Recall
CNN(KDE) 0.729 0.034 0.719 0.029 0.744 0.031
Table 1: CNN outer classifier: Metrics reported as means

one standard deviation at an SNR of

dB for iterations

5 Conclusions & Further Work

5.1 Conclusions

This paper proposes a novel framework utilising a Gaussian KDE for super-resolving weakly-labelled data to be fed into a CNN to predict over unlabelled data. Our framework is evaluated on synthetic data and achieves an improvement of in F-score over the best baseline system. We thus highlight the value label super-resolution provides in domains with only small quantities of finely-labelled data, a problem in the literature that is only sparsely addressed to date.

5.2 Further Work

To leverage the probabilistic labels outputted by the inner classifier, a suitable candidate for the outer classifier is a loss-calibrated Bayesian neural network (LC-BNN). This combines the benefits of deep learning with principled Bayesian probability theory

(Cobb et al., 2018).

Due to computational limitations, optimisation of the hyper-parameters was infeasible. Future work plans to use Bayesian Optimisation (Snoek et al., 2012) for this tuning.

Finally, following the promising results of this paper, the next step is application to real datasets.
