1 Introduction
We address a general class of binary pairwise nonsubmodular energies, which are widely used in applications like segmentation, stereo, inpainting, deconvolution, and many others. Without loss of generality, the corresponding binary energies can be transformed into the form^{2}^{2}2Note that such transformations are up to a constant.
(1)
where
is a vector of binary indicator variables defined on pixels
, vector represents unary potentials, and symmetric matrix represents pairwise potentials. Note that in many practical applications matrix is sparse since elements for all noninteracting pairs of pixels. We seek solutions to the following integer quadratic optimization problem(2)
When energy (1) is submodular, i.e. , globally optimal solution for (2) can be found in a loworder polynomial time using graph cuts [3]. The general nonsubmodular case of problem (2) is NP hard.
1.1 Standard linearization methods
Integer quadratic programming problems is a wellknown challenging optimization problem with extensive literature in the combinatorial optimization community,
e.g. see [15, 9, 3]. It often appears in computer vision where it can be addressed with many methods including spectral and semidefinite programming relaxations, e.g. see [19, 12].(a) global linearization  (b) local linearization
Methods for solving (2) based on LP relaxations, e.g. QPBO [21] and TRWS [13], are considered among the most powerful in computer vision [11]. They approach integer quadratic problem (2) by global linearization of the objective function at a cost of introducing a large number of additional variables and linear constraints. These methods attempt to optimize the relaxed LP or its dual. However, the integer solution can differ from the relaxed solution circled in Fig.1(a). This is a wellknown integrality gap
problem. Most heuristics for extracting an integer solution from the relaxed solution have no
a priori quality guarantees.Our work is more closely related to local linearization techniques for approximating (2), e.g. parallel ICM, IPFP [16], and other similar methods [6]. Parallel ICM iteratively linearizes energy around current solution using Taylor expansion and makes a step by computing an integer minimizer of the corresponding linear approximation, see Fig.1(b). However, similarly to Newton’s methods, this approach often gets stuck in bad local minima by making too large steps regardless of the quality of the approximation. IPFP attempts to escape such minima by reducing the step size. It explores the continuous line between integer minimizer and current solution and finds optimal relaxed solution with respect to the original quadratic energy. Similarly to the global linearization methods, see Fig.1(a), such continuous solutions give no quality guarantees with respect to the original integer problem (2).
1.2 Overview of submodularization
Linearization has been a popular approximation approach to integer quadratic problem (1)(2), but it often requires relaxation leading to the integrality gap problem. We propose a different approximation approach, which we refer to as submodularization. The main idea is to use submodular approximations of energy (1). We propose several approximation schemes that keep submodular terms in (1) and linearize nonsubmodular potentials in different ways leading to very different optimization algorithms. Standard truncation of nonsubmodular pairwise terms^{3}^{3}3 Truncation is known to give low quality results, e.g. Fig.4, Tab.1. and some existing techniques for highorder energies [10, 17, 22, 2] can be seen as submodularization examples, as discussed later. Common properties of submodularization methods is that they compute globally optimal integer solutions of the approximation and do not need to leave the domain of discrete solutions avoiding integrality gaps. Sumbodularization can be seen as a generalization of local linearization methods since it uses more accurate higherorder approximations.
One way to linearize nonsubmodular terms in (1) is to compute their Taylor expansion around current solution . Taylor’s approach is similar to IPFP [16], but they linearize all terms including submodular ones. In contrast to IPFP, our overall approximation of at is not linear; it belongs to a more general class of submodular functions. Such nonlinear approximations are more accurate while still permitting efficient optimization in the integer domain.
We also propose a different mechanism for controlling the step size. Instead of exploring relaxed solutions on continuous interval in Fig.1b, we compute integer intermediate solutions by minimizing local submodular approximation over under additional distance constraints . Thus, our approach avoids integrality gap issues. For example, even linear approximation model in Fig.1b can produce solution if Humming distance constraint is imposed. This local submodularization approach to (1)(2) fits a general trust region framework [8, 25, 19, 10] and we refer to it as LSATR.
Our paper also proposes a different local submodularization approach to (1)(2) based on the general auxiliary function framework [14, 17, 2]^{4}^{4}4Auxiliary functions are also called surrogate functions or upperbounds. The corresponding approximate optimization technique is also known as the majorizeminimize principle [14]. . Instead of Taylor expansion, nonsubmodular terms in are approximated by linear upper bounds specific to current solution . Combining them with submodular terms in gives a submodular upperbound approximation, a.k.a. an auxiliary function, for that can be globally minimized within integer solutions. This approach does not require to control the step sizes as the global minimizer of an auxiliary function is guaranteed to decrease the original energy . Throughout the paper we refer to this type of local submodular approximation approach as LSAAUX.
Some auxiliary functions were previously proposed in the context of highorder energies [17, 2]. For example, [17] divided the energy into submodular and supermodular parts and replaced the latter with a certain permutationbased linear upperbound. The corresponding auxiliary function allows polynomialtime solvers. However, experiments in [22] (Sec. 3.2) demonstrated limited accuracy of the permutationbased bounds [17] on highorder segmentation problems. Recently, Jensen inequality was used in [2] to derive linear upper bounds for several important classes of highorder terms that gave practically useful approximation results. Our LSAAUX method is first to apply auxiliary function approach to arbitrary (nonsubmodular) pairwise energies. We discuss all possible linear upper bounds for pairwise terms and study several specific cases. One of them corresponds to the permutation bounds [17] and is denoted by LSAAUXP.
Recently both trust region [8, 25, 19] and auxiliary function [14] frameworks proved to work well for optimization of energies with highorder regional terms [10, 2]. They derive specific linear [10] or upper bound [2] approximations for nonlinear cardinality potentials, KL and other distances between segment and target appearance models. To the best of our knowledge, we are the first to develop trust region and auxiliary function methods for integer quadratic optimization problems (1)(2).
Our contributions can be summarized as follows:
A general submodularization framework for solving integer quadratic optimization problems (1)(2) based on local submodular approximations (LSA). Unlike global linearization methods, LSA constructs an approximation model without additional variables. Unlike local linearization methods, LSA uses a more accurate approximation functional.
In contrast to the majority of standard approximation methods, LSA avoids integrality gap issue by working strictly within the domain of discrete solutions.
2 Description of LSA Algorithms
In this section we discuss our framework in detail. Section 2.1 derives local submodular approximations and describes how to incorporate them in the trust region framework. Section 2.2 briefly reviews auxiliary function framework and shows how to derive local auxiliary bounds.
(a) supermodular potential  (b) “Taylor” based local linearizations  (c) Upperbound linearization
at four distinct configurations of binary variables
. These costs can be plotted as four 3D points , , , in (ac). We need to approximate supermodular potential with a linear function (plane or unary potentials). LSATR: one way to derive a local linear approximation is to take Taylor expansion of over relaxed variables , see the continuous plot in (a). At first, this idea may sound strange since there are infinitely many other continuous functions that agree with , , , but have completely different derivatives, e.g. . However, Taylor expansions of bilinear function can be motivated geometrically. As shown in (b), Taylorbased local linear approximation of at any fixed integer configuration (e.g. blue plane at , green at , orange at , and striped at ) coincides with discrete pairwise potential not only at point but also with two other closest integer configurations. Overall, each of those planes passes exactly through three out of four points , , , . LSAAUX: another approach to justify a local linear approximation for nonsubmodular pairwise potential could be based on upper bounds passing through a current configuration. For example, the green or orange planes in (b) are the tightest linear upper bounds at configurations and , correspondingly. When current configuration is either or then one can choose either orange or green plane in (b), or anything inbetween, e.g. the purple plane passing though and in (c).2.1 LsaTr
Trust region methods are a class of iterative optimization algorithms. In each iteration, an approximate model of the optimization problem is constructed near the current solution . The model is only accurate within a small region around the current solution called “trust region”. The approximate model is then globally optimized within the trust region to obtain a candidate solution. This step is called trust region subproblem. The size of the trust region is adjusted in each iteration based on the quality of the current approximation. For a detailed review of trust region framework see [25].
Below we provide details for our trust region approach to the binary pairwise energy optimization (see pseudocode in Algorithm 1). The goal is to minimize in (1). This energy can be decomposed into submodular and supermodular parts such that
where matrix with negative elements represents the set of submodular pairwise potentials and matrix with positive elements represents supermodular potentials. Given the current solution energy can be approximated by submodular function
(3)
where . The last two terms in (3) are the firstorder Taylor expansion of supermodular part .
While the use of Taylor expansion may seem strange in the context of functions of integer variables, Figure 2(a,b) illustrates its geometric motivation. Consider individual pairwise supermodular potentials in
Coincidentally, Taylor expansion of each relaxed supermodular potential produces a linear approximation (planes in b) that agrees with at three out of four possible discrete configurations (points A,B,C,D).
The standard trust region subproblem is to minimize approximation within the region defined by step size
(4)
Hamming, , and other useful metrics can be represented by a sum of unary potentials [5]. However, optimization problem (4) is NPhard even for unary metrics^{5}^{5}5By a reduction to the balanced cut problem.. One can solve Lagrangian dual of (4) by iterative sequence of graph cuts as in [23], but the corresponding duality gap may be large and the optimum for (4) is not guaranteed.
Instead of (4) we use a simpler formulation of the trust region subproblem proposed in [10]. It is based on unconstrained optimization of submodular Lagrangian
(5)
where parameter controls the trust region size indirectly. Each iteration of LSATR solves (5) for some fixed and adaptively changes for the next iteration (Alg.1 line 1), as motivated by empirical inverse proportionality relation between and discussed in [10].
Once a candidate solution is obtained, the quality of the approximation is measured using the ratio between the actual and predicted reduction in energy. Based on this ratio, the solution is updated in line 1 and the step size (or ) is adjusted in line 1. It is common to set the parameter in line 1 to zero, meaning that any candidate solution that decreases the actual energy gets accepted. The parameter in line 1 is usually set to 0.25 [25]. Reduction ratio above this value corresponds to good approximation model allowing increase in the trust region size.
2.2 LsaAux
Bound optimization techniques are a class of iterative optimization algorithms constructing and optimizing upper bounds, a.k.a. auxiliary functions, for energy . It is assumed that those bounds are easier to optimize than the original energy . Given a current solution , the function is an auxiliary function of if it satisfies the following conditions:
(6a)
(6b)
To approximate minimization of , one can iteratively minimize a sequence of auxiliary functions:
(7)
Using (6a), (6b), and (7), it is straightforward to prove that the solutions in (7) correspond to a sequence of decreasing energy values . Namely,
The main challenge in bound optimization approach is designing an appropriate auxiliary function satisfying conditions (6a) and (6b). However, in case of integer quadratic optimization problem (1)(2), it is fairly straightforward to design an upper bound for nonsubmodular energy . As in Sec.2.1, we do not need to approximate the submodular part and we can easily find a linear upper bound for as follows.
Similarly to Sec.2.1, consider supermodular pairwise potentials for individual pairs of neighboring pixels according to
(8)
where each is defined by scalar . As shown in Figure 2(b,c), each pairwise potential can be bound above by linear function
for some positive scalars and . Assuming current solution , the table below specifies linear upper bounds (planes) for four possible discrete configurations
upper bound  plane in Fig.2(b,c)

(0,0)  purple
(0,1)  green
(1,0)  orange
(1,1)  purple
As clear from Fig.2(b,c), there are many other possible linear upper bounds for pairwise terms . Interestingly, the “permutation” approach to highorder supermodular terms in [17] reduces to linear upper bounds for where each configuration (0,0) or (1,1) selects either orange or green plane randomly (depending on a permutation). Our tests showed inferior performance of such bounds for pairwise energies. The upper bounds using purple planes for (0,0) and (1,1), as in the table, work better in practice.
Summing upper bounds for all pairwise potentials in (8) using linear terms in this table gives an overall linear upper bound for supermodular part of energy (1)
(9)
where vector consists of elements
and is the current solution configuration for all pixels. Defining our auxiliary function as
(10)
and using inequality (9) we satisfy condition (6a)
Since then our auxiliary function (10) also satisfies condition (6b)
Function is submodular. Thus, we can globally optimize it in each iterations guaranteeing energy decrease.
3 Applications
Below we apply our method in several applications such as binary deconvolution, segmentation with repulsion, curvature regularization and inpainting. We report results for both LSATR and LSAAUX frameworks and compare to existing state of the art methods such as QPBO [21], LBP [20], IPFP [16], TRWS and SRMP [13] in terms of energy and running time^{6}^{6}6We used http://pub.ist.ac.at/vnk/software.html code for SRMP and www.robots.ox.ac.uk/ojw code for QPBO, TRWS, and LBP. The corresponding version of LPB is sequential without damping.. For the sake of completeness, and to demonstrate the advantage of nonlinear submodular approximations over linear approximations, we also compare to a version of LSATR where both submodular and supermodular terms are linearized, denoted by LSATRL. In the following experiments, all local approximation methods, e.g. IPFP, LSAAUX, LSAAUXP, LSATR, LSATRL are initialized with the entire domain assigned to the foreground. All global linearization methods, e.g. TRWS, SRMP and LBP, are run for 50, 100, 1000 and 5000 iterations. For QPBO results, unlabeled pixels are shown in gray color. Running time is shown in logscale for clarity.
3.1 Binary Deconvolution

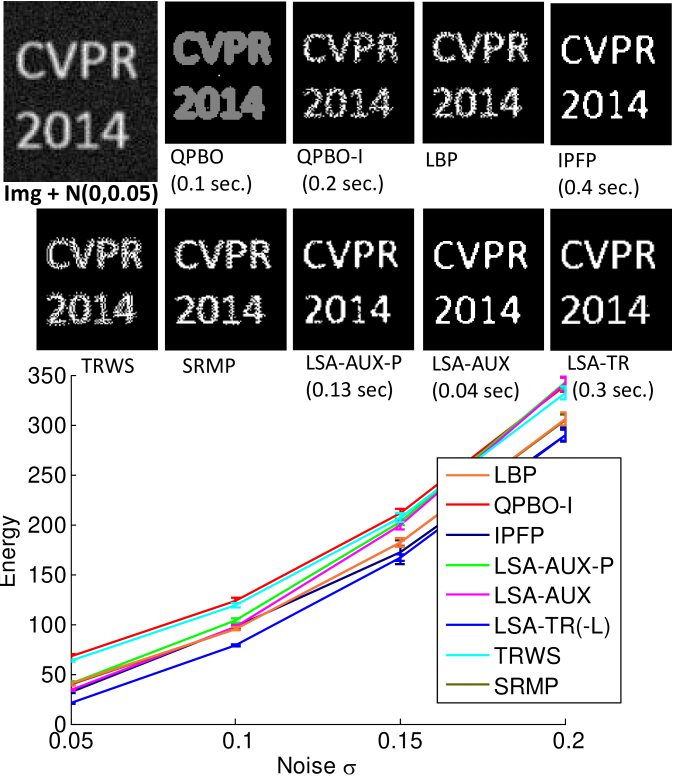

Figures 3 (topleft) shows a binary image after convolution with a uniform and adding Gaussian noise (). The goal of binary deconvolution is to recover the original binary image and the energy is defined as
(11)
Here denotes the neighborhood window around pixel and all pairwise interactions are supermodular. We did not use length regularization, since it would make the energy easier to optimize. Fig. 3 demonstrates the performance of our approach (LSATR/LSAAUX) and compares to standard optimization methods such as QPBO, LBP, IPFP, TRWS and SRMP. In this case LSATRL and LSATR are identical since energy (11) has no submodular pairwise terms. The bottom of Fig. 3 shows the mean energy as a function of noise level . For each experiment the results are averaged over ten instances of random noise. The mean time is reported for the experiments with .
3.2 Segmentation with Repulsion
In this section we consider segmentation with attraction and repulsion pairwise potentials. Adding repulsion is similar to correlation clustering [1], where data points either attract or repulse each other. Using negative repulsion in segmentation can avoid the bias of submodular length regularizer to shortcutting, whereby elongated structures are shortened to avoid high length penalty. Figure 4 (topleft) shows an example of an angiogram image with elongated structures. We use 16neighborhood system and the pairwise potentials are defined as follows:
Here dist(p,q) denotes the distance between image pixels and and is the difference in their respective intensities (see pairwise potentials in Fig. 4, bottomleft). The constant is used to make neighboring pixels with similar intensities attract and repulse otherwise. Being supermodular, repulsions potentials make the segmentation energy more difficult to optimize, but are capable to extract thin elongated structures. To demonstrate the usefulness of “repulsion” potentials we also show segmentation results with graphcut a la BoykovJolly [4] where negative pairwise potentials were removed/truncated (topright).
3.3 Curvature
Below we apply our optimization method to curvature regularization. We focus on the curvature model proposed in [7]. The model is defined in terms of 4neighborhood system and accounts for 90 degrees angles. In combination with appearance terms, the model yields discrete binary energy that has both submodular and nonsubmodular pairwise potentials. Originally, the authors of [7] proposed using QPBO for optimization of the curvature regularizer. We show that our method significantly outperforms QPBO and other stateoftheart optimization techniques, especially with large regularizer weights.

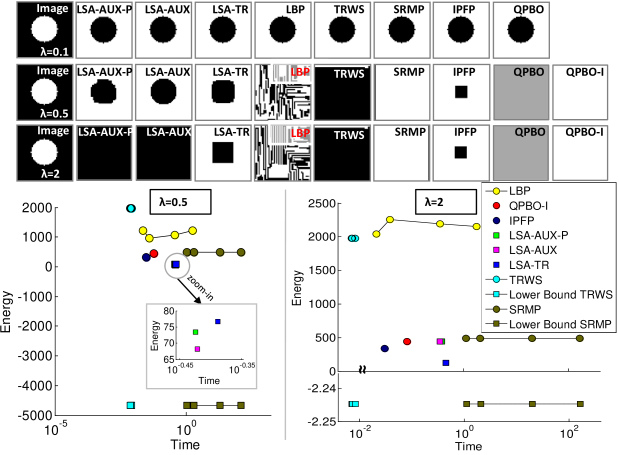

First we deliberately choose a toy example (white circle on a black background, see Fig. 5) where we know what an optimal solution should look like. When using 4neighborhood system, as the weight of the curvature regularizer increases, the solution should minimize the number of 90 degrees angles (corners) while maximizing the appearance terms. Therefore, when the weight of curvature regularizer is high, the solution should look more like a square than a circle. Consider the segmentation results in Fig. 5. With low curvature weight, i.e., , all compared methods perform equally well (see Fig. 5 top row). In this case appearance data terms are strong compared to the nonsubmodular pairwise terms. However, when we increase the curvature weight and set or there is a significant difference between the optimization methods both in terms of the energy and the resulting solutions (see Fig. 5 middle and bottom).

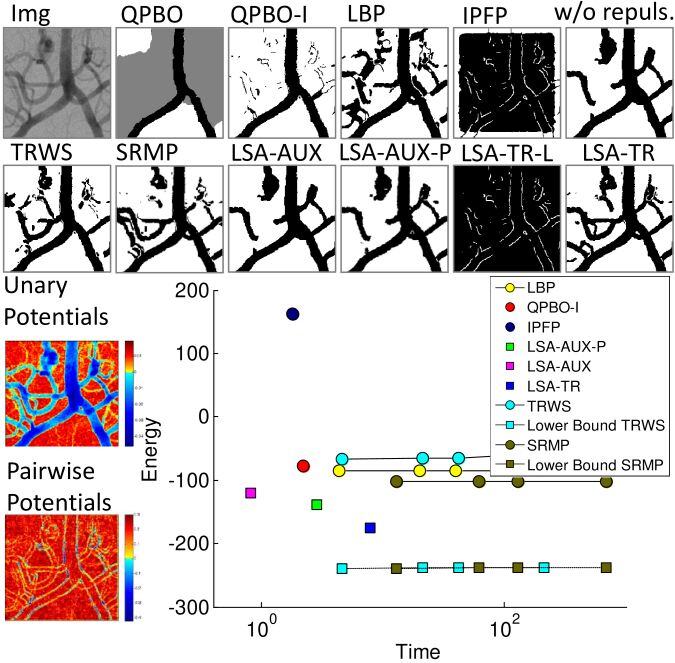

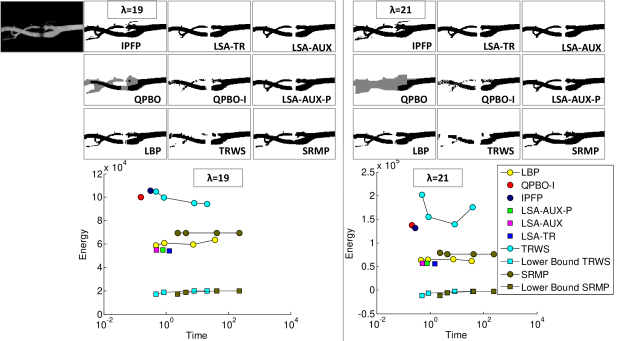

Next, we selected an angiogram image example from [7] and evaluate the performance^{7}^{7}7For QPBO, we only run QPBOI and do not use other postprocessing heuristics as suggested in [7], since the number of unlabeled pixel might be significant when the regularization is strong. of the optimization methods with two values of regularizer weight and (see Fig. 7). Although the weight did not change significantly, the quality of the segmentation deteriorated for all global linearization methods, namely QPBO, TRWS, LBP. The proposed methods LSATR and LSAAUX seem to be robust with respect to the weight of the supermodular part of the energy.
3.4 Chinese Characters Inpainting

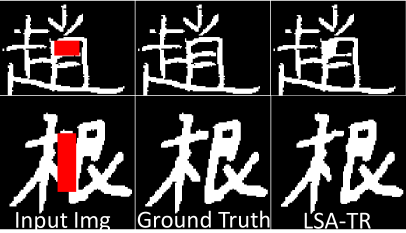

Below we consider the task of inpainting in binary images of Chinese characters, dtfchinesechar [11]. We used a set of pretrained unary and pairwise potentials provided by the authors with the dataset. While each pixel variable has only two possible labels, the topology of the resulting graph and the nonsubmodularity of its pairwise potentials makes this problem challenging. Figure 6 shows two examples of inpainting. Table 1 reports the performance of our LSATR and LSAAUX methods on this problem and compares to other standard optimization methods reported in [11], as well as, to truncation of nonsubmodular terms. LSATR is ranked second, but runs three orders of magnitudes faster.




Rank
MCBC  2053.89 sec  49550.1  85  1
BPS (LBP)  72.85 sec  49537.08  18  3
ILP  3580.93 sec  49536.59  8  6
QPBO  0.16 sec  49501.95  0  8
SA  NaN sec  49533.08  13  4
TRWS  0.13 sec  49496.84  2  7
TRWSLF  2106.94 sec  49519.44  11  5
Truncation  0.06 sec  16089.2  0  8
LSAAUX  0.30 sec  49515.95  0  8
LSAAUXP  0.16 sec  49516.63  0  8
LSATR  0.21 sec  49547.61  35  2
4 Conclusions and Future Work
There are additional applications (beyond the scope of this paper) that can benefit from efficient optimization of binary nonsubmodular pairwise energies. For instance, our experiments show that our approach can improve nonsubmodular expansion and fusion moves for multilabel energies. Moreover, while our paper focuses on pairwise interactions, our approach naturally extends to highorder potentials that appear in computer vision problems such as curvature regularization, convexity shape prior, visibility and silhouette consistency in multiview reconstruction. In the companion paper [18] we apply our method for optimization of a new highly accurate curvature regularization model. The model yields energy with triple clique interactions and our method achieves stateoftheart performance.
Acknowledgments
We greatly thank V. Kolmogorov and our anonymous reviewers for their thorough feedback. We also thank Canadian granting agency NSERC for its continued support.
References
 [1] N. Bansal, A. Blum, and S. Chawla. Correlation clustering. In Machine Learning, volume 56, pages 89–113, 2004.

[2]
I. Ben Ayed, L. Gorelick, and Y. Boykov.
Auxiliary cuts for general classes of higher order functionals.
In
IEEE conference on Computer Vision and Pattern Recognition (CVPR)
, pages 1304–1311, Portland, Oregon, June 2013.  [3] E. Boros and P. L. Hammer. Pseudoboolean optimization. Discrete Applied Mathematics, 123:2002, 2001.
 [4] Y. Boykov and M.P. Jolly. Interactive graph cuts for optimal boundary and region segmentation of objects in nd images. In IEEE International Conference on Computer Vision (ICCV), number 105112, 2001.
 [5] Y. Boykov, V. Kolmogorov, D. Cremers, and A. Delong. An integral solution to surface evolution PDEs via GeoCuts. In European Conf. on Comp. Vision (ECCV).
 [6] W. Brendel and S. Todorovic. Segmentation as maximumweight independent set. In Neural Information Processing Systems (NIPS), pages 307–315, 2010.
 [7] N. ElZehiry and L. Grady. Fast global optimization of curvature. In IEEE conference on Computer Vision and Pattern Recognition (CVPR), number 32573264, 2010.
 [8] R. Fletcher. Practical Meth. of Opt. Wiley & Sons, 1987.
 [9] M. Goemans and D. Wiliamson. Improved approximation algorithms for maximum cut and satisfiability problem using semidefinite problem. ACM, 42(6):1115–1145, 1995.
 [10] L. Gorelick, F. R. Schmidt, and Y. Boykov. Fast trust region for segmentation. In IEEE conference on Computer Vision and Pattern Recognition (CVPR), pages 1714–1721, Portland, Oregon, June 2013.
 [11] J. H. Kappes, B. Andres, F. A. Hamprecht, C. Schnorr, S. Nowozin, D. Batra, S. Kim, B. X. Kausler, J. Lellmann, N. Komodakis, and C. Rother. A comparative study of modern inference techniques for discrete energy minimization problem. In IEEE conference on Computer Vision and Pattern Recognition (CVPR), pages 1328–1335, 2013.
 [12] J. Keuchel, C. Schnörr, C. Schellewald, and D. Cremers. Binary partitioning, perceptual grouping, and restoration with semidefinite programming. 25(11):1364–1379, 2003.
 [13] V. Kolmogorov and T. Schoenemann. Generalized seq. treereweighted message passing. arXiv:1205.6352, 2012.
 [14] K. Lange, D. R. Hunter, and I. Yang. Optimization transfer using surrogate objective functions. Journal of Computational and Graphical Statistics, 9(1):1–20, 2000.
 [15] R. Lazimy. Mixed integer quadratic programming. Mathematical Programming, 22:332–349, 1982.
 [16] M. Leordeanu, M. Hebert, and R. Sukthankar. An integer projected fixed point method for graph matching and map inference. In Neural Information Processing Systems (NIPS), pages 1114–1122, 2009.
 [17] M. Narasimhan and J. A. Bilmes. A submodularsupermodular procedure with applications to discriminative structure learning. In UAI, pages 404–412, 2005.
 [18] C. Nieuwenhuis, E. Toeppe, L. Gorelick, O. Veksler, and Y. Boykov. Efficient Squared Curvature. In IEEE conf. on Comp. Vision and Pattern Recognition (CVPR), 2014.
 [19] C. Olsson, A. Eriksson, and F. Kahl. Improved spectral relaxation methods for binary quadratic optimization problems. Comp. Vis. & Image Underst., 112(1):3–13, 2008.

[20]
J. Pearl.
Reverend bayes on inference engines: A distributed hierarchical
approach.
In
National Conference on Artificial Intelligence
, pages 133–136, 1982.  [21] C. Rother, V. Kolmogorov, V. Lempitsky, and M. Szummer. Optimizing binary MRFs via extended roof duality. In IEEE conference on Computer Vision and Pattern Recognition (CVPR), pages 1–8, 2007.
 [22] C. Rother, V. Kolmogorov, T. Minka, and A. Blake. Cosegmentation of Image Pairs by Histogram Matching  Incorporating a Global Constraint into MRFs. In Computer Vision and Pattern Recognition (CVPR), pages 993 – 1000, 2006.
 [23] J. Ulen, P. Strandmark, and F. Kahl. An efficient optimization framework for multiregion segmentation based on Lagrangian duality. IEEE Transactions on Medical Imaging, 32(2):178–188, 2013.
 [24] M. J. Wainwright and M. I. Jordan. Graphical models, exponential families, and variational inference. Foundations and Trends in Machine Learning, 1(12):1–305, 2008.
 [25] Y. Yuan. A review of trust region algorithms for optimization. In Proceedings of the Fourth International Congress on Industrial & Applied Mathematics (ICIAM), 1999.
