1 Introduction

Over the past few decades, major advances have been made in weather forecasts on time scales of days to about a week Lorenc (1986); Simmons and Hollingsworth (2002b); National Research Council (2010); National Academies of Sciences (2016). Similarly, major advances have been made in seasonal forecasts on time scales of 2-9 months Barnston et al. (2012). However, making high quality forecasts of key climate variables such as temperature and precipitation on sub-seasonal time scales, defined here as the time range between 2-8 weeks, has long been a gap in operational forecasting National Academies of Sciences (2016). Skillful climate forecasts at sub-seasonal time scales would be of immense societal value, and would have an impact in a wide variety of domains including agricultural productivity, hydrology and water resource management, emergency planning for extreme climate, etc. Pomeroy et al. (2002); Klemm and McPherson (2017). The importance of sub-seasonal climate forecasting (SSF) has been discussed in great detail in two recent high profile reports from the National Academy of Sciences (NAS) National Research Council (2010); National Academies of Sciences (2016). Despite the scientific, societal, and financial importance of SSF, the progress on the problem has been limited Braman et al. (2013); de Perez and Mason (2014) since it has attracted less attention compared to weather and seasonal climate prediction. Also, SSF is relatively more difficult compared to weather or seasonal forecasting due to limited predictive information from land and ocean, and virtually no predictive information from the atmosphere, which forms the basis of numerical weather prediction (NWP) The National Oceanic and Atmospheric Administration (2018); Simmons and Hollingsworth (2002a) (Figure 1(a)).

There exists great potential to advance sub-seasonal prediction using machine learning techniques, which has revolutionized statistical prediction in many other fields. Due in large part to this potential promise, a recently concluded real-time forecasting competition called the Sub-Seasonal Climate Forecast Rodeo, was sponsored by the Bureau of Reclamation in partnership with NOAA, USGS, and the U.S. Army Corps of Engineers Hwang et al. (2019). However, such forecasting problem, regardless of its exact application, is non-trivial due to the nature of high-dimensionality and strong spatial correlation within climate data. Besides, sub-seasonal forecasting does not lie in the big data regime: about 40 years of reliable data exists for all climate variables, with each day corresponding to one data point, which totals less than 20,000 data points. Furthermore, different seasons have different predictive relations, and many climate variables have strong temporal correlations on daily time scales, further reducing the effective data size. Therefore, it is worth to investigate the capability of Machine Learning (ML), especially the black-box Deep Learning (DL) models on SSF. To the best of our knowledge, no DL model has yet been properly applied to the specific application of SSF.

(a) Sources of Predictability
(b) MIC
(c) Results of FNN and CNN
Figure 1: (a) Sources of predictability at different forecast time scales. Atmosphere is most predictive at weather time scales, whereas for SSF, land and ocean are considered as important sources of predictability The National Oceanic and Atmospheric Administration (2018). (b) Maximum information coefficient (MIC) Reshef et al. (2011) between temperature of week 3 & 4 and week -2 & -1. Small MICs (

) at a majority of locations indicate little information shared between the most recent date and the forecasting target. (c) Predictive skills (cosine similarity) of Fully connected Neural Networks (FNN) and Convolutional Neural Networks (CNN) for temperature prediction over 2017-2018. Positive values closer to 1 (green) indicate better predictive skills.

In this paper, we perform a comprehensive empirical study on ML approaches for SSF and discuss the challenges and advancements. Our main contributions in this paper are as follows:

  • [leftmargin=*]

  • We illustrate the difficulty of SSF due to the complex physical couplings and the unique nature of climate data mentioned above.

  • We show that suitable ML models, e.g., XGBoost, to some extent, capture predictability for sub-seasonal time scales from climate data, and persistently outperform existing approaches in climate science, such as climatology and the damped persistence model.

  • We demonstrate that even though DL models are not the obvious winner, they still show promising results with demonstrated improvements from careful architectural choices. With further improvements, DL models present a great potential topic for future research.

  • We find ML models intend to select climate variables from sources that are believed to be more useful in SSF: ocean (especially indices based on climatic oscillations such as El Niño) and land (soil moisture) are the most predictive, and atmospheric covariates are not considered helpful.

Organization of the paper. We start with a review of related work in section 2. Section 3 provides a formal definition of the sub-seasonal climate forecasting. Next, we briefly discuss ML approaches we plan to investigate (section 4) followed by details on data and experimental setup (section 5). Subsequently, section 6 presents experimental results, comparing the predictive skills over 10 ML models, including several DL models. Finally, We end the paper with the conclusion in section 7.

2 Related Work

Although statistical models were used for weather prediction before the 1970s Frederik Nebeker (1995), since the 1980s weather forecasting has been carried out using mainly physics-based dynamic system models Barnston et al. (2012). More recently, there is a surge of application for ML approaches to both short-term weather forecasting Cofıno et al. (2002); Grover et al. (2015); Radhika and Shashi (2009), and longer-term climate prediction Badr et al. (2014); Cohen et al. (2019). However, little attention has been paid on forecasting with sub-seasonal time scale. Lack of skillful forecasts Robertson et al. (2015), the sub-seasonal time scale has been considered as a “predictability desert” Vitart et al. (2012). Due to the drastically development of statistical prediction in many other fields, ML techniques are great potentials to advance sub-seasonal prediction. For instance, interest and advances have been seen in developing the high-dimensional sparse models and variants which are suitable for spatial-temporal climate data Goncalves et al. (2014, 2016, 2017); DelSole and Banerjee (2017); He et al. (2019). Such models have been successfully applied to certain problems, e.g., predicting land temperature using oceanic climate data DelSole and Banerjee (2017); He et al. (2019). Recently, promising progresses Hwang et al. (2019); He et al. (2019) have been seen on applying ML algorithms to solve SSF.

Since SSF can be formulated as a sequential modeling problem Sutskever et al. (2014); Venugopalan et al. (2015), bringing the core strength of DL-based sequential modeling, a thriving research area, has the maximum potential for a transformation in climate forecasting Ham et al. (2019); Reichstein et al. (2019); Schneider et al. (2017)

. In the past decade, recurrent neural network (RNN)

Funahashi and Nakamura (1993)

, and long short-term memory (LSTM) models

Gers et al. (2000), are two of the most popular sequential models and have been successfully applied in language modeling and other seq-to-seq tasks Sundermeyer et al. (2012). Starting from Sutskever et al. (2014); Srivastava et al. (2015), the encoder-decoder structure with RNN or LSTM has become one of the most competitive algorithms for sequence transduction. The variants of such model that incorporate mechanisms like convolution Xingjian et al. (2015); Shi et al. (2017) or attention mechanisms Bahdanau et al. (2015) have achieved remarkable breakthroughs for audio synthesis, word-level language modeling, and machine translation Vaswani et al. (2017).

3 Sub-seasonal Climate Forecasting

Problem statement. In this paper, we focus on building temperature forecasting models at the forecast horizon of 15-28 days ahead, i.e., the average daily temperature of week 3 & 4. The geographic region of interest is the US mainland (latitudes 25N-49N and longitude 76W-133W) at a 2 by 2 resolution (197 grid points). For covariates, we consider climate variables, such as sea surface temperature, soil moistures, and geopotential height, etc., that can indicate the status of the three main components, i.e., land, ocean, and atmosphere. Table 1 provides a detailed description.

Type Climate variable Description Unit Spatial coverage Data Source

Spatial-temporal

tmp2m Daily average temperature at 2 meters C US mainland CPC Global Daily Temperature Fan and Van den Dool (2008)

sm Monthly Soil Moisture mm CPC Soil Moisture  Huang et al. (1996); Van den Dool et al. (2003); Fan and van den Dool (2004)
sst Daily sea surface temperature C North Pacific & Atlantic Ocean

Optimum Interpolation

SST (OISST) Reynolds et al. (2007)
rhum Daily relative humidity near the surface (sigma level 0.995) US mainland and North Pacific & Atlantic Ocean Atmospheric Research Reanalysis Dataset Kalnay et al. (1996)
slp Daily pressure at sea level Pa
hgt10 & hgt500 Daily geopotential height at 10mb and 500mb m


Temporal

MEI Bimonthly multivariate ENSO index NA NA NOAA ESRL MEI.v2  Zimmerman et al. (2016)
Niño 1+2, 3, 3.4, 4 Weekly Oceanic Niño Index (ONI) NOAA National Weather Service, CPC  Reynolds et al. (2007)
NAO Daily North Atlantic Oscillation index NOAA National Weather Service, CPC  Barnston and Livezey (1987); Van den Dool et al. (2000)
MJO phase & amplitude Madden-Julian Oscillation index Australian Government BoM Wheeler and Hendon (2004)
Table 1: Description of climate variables and their data sources.

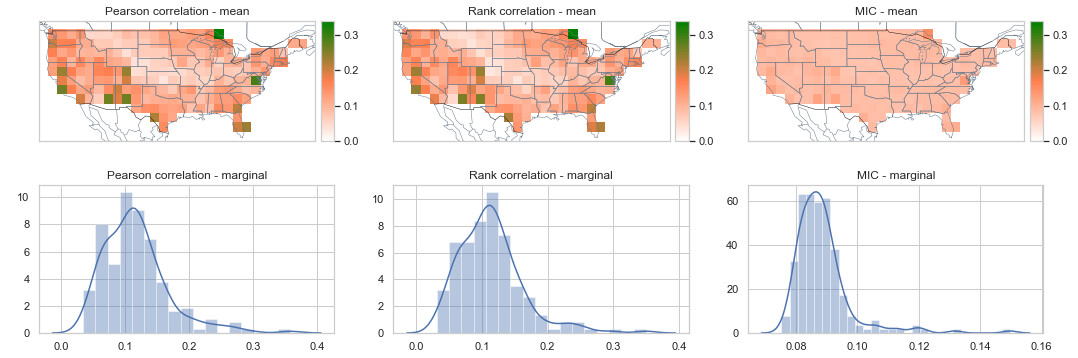

Difficulty of the problem. To illustrate the challenge of SSF, we measure the dependence between the normalized average temperature of week -2 & -1 (0-14 days in the past) and week 3 & 4 (15-28 days in the “future") at each grid by maximum information coefficient (MIC) Reshef et al. (2011), a value between . A small MIC value close to 0 indicates a weak dependence. More specifically, we apply moving block bootstrap Kunsch (1989) to time series of 2-week average temperature at each grid point from 1986 to 2018, with the block size of 365 days. The top panel in Figure 1(b) illustrates the average MIC from 100 bootstrap over the US mainland, and the marginal distribution of all locations is shown at bottom. Small MIC values (), which indicates little predictive information shared between the most recent data and the forecasting target, to some extent, demonstrate how difficult SSF is.

From a ML perspective, applying black-box DL approaches naively to SSF is less likely to work due to the limited number of samples, and the high-dimensional and spatial-temporally correlated features. Figure 1

(c) shows the performance of two vanilla DL models: fully connected neural networks (FNN) with ReLU activation and convolutional neural networks (CNN), in terms of the cosine similarity between the prediction and the ground truth at each location over 2017-2018. For most locations, their cosine similarities are either negative or close to zero. In addition, we evaluate 10 ML models with suitable hyper-parameter tuning using another metric called relative

(see formal definition in Appendix A), which compares the predictive skill of a model to the best constant prediction based on climatology, the 30 year average from historical training data. Most of the models do not get even positive relative (details are presented in Appendix A), indicating that they perform no better than the long term average. Such results are another good indication that accurate SSF is hard to achieve.

4 Methods

Notation. Let denote a date and denote a location. The target variable at time is denoted as , where represents the number of target locations. More specifically, is the normalized average temperature over time to , i.e., weeks 3&4 (details on normalization can be found in section 5). denotes the -dimensional covariates designed for time t and location , which is also denoted as if the covariates are shared by all locations .

ML (non-DL) Models. We compare the following ML (non-DL) models with DL models.

  • [leftmargin=*]

  • MultiLLR Hwang et al. (2019).

    MultiLLR introduces a multitask feature selection algorithm to remove the irrelevant predictors and integrates the remaining predictors linearly. For a location

    and target date , its coefficient

    is estimated by

    , where is the temporal span around the target date’s day of the year and is the corresponding weight.

  • AutoKNN Hwang et al. (2019). An auto-regression model with weighted temporally local samples, and where the auto-regression lags were selected via a multitask k-nearest neighbor criterion. It only takes historical measurements of the target variable as input, and the similarity between two dates is measured by the mean cosine similarity of the historical anomalies preceding the candidate dates.

  • Multitask Lasso Tibshirani (1996); Jalali et al. (2013). It assumes , where

    is a Gaussian noise vector and

    is the coefficient matrix for all locations. With samples, is estimated by with and . is a penalty parameter and the corresponding penalty term is computed as .

  • Gradient Boosted Trees (XGBoost) Friedman (2001); Chen and Guestrin (2016). A functional gradient boosting algorithm using regression tree as its week learner. The algorithm starts with one weak learner and iteratively adds new weak learners to approximate functional gradients. The final ensemble model is constructed by a weighted summation of all weak learners. It is implemented using the Python package XGBoost.

  • SOTA Climate Baseline. We consider two baselines from climate science perspective, both are Least Square (LS) linear regression models Weisberg (2005). The first model has predictors as climate indices, such as NAO index and niño indices, which are used to monitor ocean conditions. The predictor of the second model is the most recent anomaly of the target variable, i.e., anomaly temperature of week -2 & -1, with which the model, also known as damped persistence Van den Dool et al. (2007)

    in climate science, is essentially a first-order autoregressive model.

(a) Encoder (LSTM)-Decoder (FNN)
(b) CNN-LSTM
Figure 2: Architectures of the designed DL models. (a) Encoder (LSTM)-Decoder (FNN) includes a few LSTM layers as the Encoder, and two fully connected layers as the Decoder. (b) CNN-LSTM consists of a few convolutional layers followed by an LSTM.

DL Models. As shown in Figure 1(c), it is hard for vanilla deep learning models like FNN and CNN to achieve high prediction accuracy. Therefore, we design two variants of DL models to further improve the performance, namely Encoder (LSTM)-Decoder (FNN) and CNN-LSTM.

  • [leftmargin=*]

  • Encoder (LSTM)-Decoder (FNN).

    Inspired by Autoencoder widely used in sequential modeling

    Sutskever et al. (2014), we design the Encoder (LSTM)-Decoder (FNN) model, of which the architecture is shown in Figure 2

    (a). Input of the model is features extracted spatially from covariates using unsupervised methods like Principal Component Analysis (PCA). The temporal components of covariates are handled by feeding features of each historical date into an LSTM Encoder recurrently. Then, the output of each date from LSTM is sent jointly to a two-layer FNN network using ReLU as an activation function. The output of the FNN Decoder is the predicted average temperature of week 3 & 4 over all target locations.

  • CNN-LSTM. The proposed CNN-LSTM model directly learns the representations from the spatial-temporal data using CNN components LeCun et al. (1998). Shown in Figure 2(b), CNN extracts features for each climate variable at all historical dates separately. Then, the extracted features from the same date are collected and fed into an LSTM model recurrently. The temperature prediction for all target locations is done by an FNN layer taking the output of the LSTM’s last layer from the latest input.

5 Data and Experimental Setup

Data description. Climate agencies across the world maintain multiple datasets with different formats and resolutions. Climate variables (Table 1) have been collected from diverse data sources and converted into a consistent format. Temporal variables, e.g., Niño indices, are interpolated to a daily resolution, and spatial-temporal variables are interpolated to a spatial resolution of by .

Preprocessing. For spatial-temporal variables, we first extract the top 10 principal components (PCs) as features based on PC loadings from 1986 to 2016 (for details, refer to Appendix B

). Next, we de-seasonalize the data by z-scoring at each location and each date with the corresponding mean and standard deviation of the corresponding day of the year over 1986-2016 separately. Note that both training and test sets are z-scored using the mean and standard deviations of the same 30-year historical data. Temporal variables, e.g., Niño indices, are directly used without normalization.

Feature set construction. We combine the PCs of spatial-temporal covariates with temporal covariates into a sequential feature set, which consists not only covariates of the target date, but also covariates of the , , and day previous from the target date, as well as the day of the year of the target date in the past 2 years and both the historical past and future dates around the day of the year of the target date in the past 2 years (see Appendix B for a detailed example).

Evaluation pipeline. Predictive models are created independently for each month in 2017 and 2018. To mimic a live system, we generate 105 test dates during 2017-2018, one for each week, and group them into 24 test sets by their month of the year. Given a test set, our evaluation pipeline consists of two parts: (1) “5-fold” training-validation pairs for hyper-parameter tuning, based on a “sliding-window” strategy designed for time-series data. Each validation set uses the data from the same month of the year as the test set, and we create 5 such set from dates in the past 5 years. Their corresponding training sets contain 10 years of data before each validation set; (2) the training-test pair, where the training set, including 30-year data in the past, ends 28 days before the first date in the test set. We share more explanations, including a pictorial example, in Appendix B.

Evaluation metrics. Forecasts are evaluated by cosine similarity, a widely used metric in weather forecasting, between , a vector of predicted values, and , the corresponding ground truth. It is computed as , where denotes the inner product between the two vectors. If represents the predicted values for a period of time at one location, it becomes temporal cosine similarity which assesses the prediction skill at a specific location. Whereas, if contains the predicted values for all target locations at one date, it becomes spatial cosine similarity measuring the prediction skill at that date. To get a better intuition, one can view spatial and temporal cosine similarity as spatial and temporal correlation respectively, measured between two centered vectors.

6 Experimental results

We compare the predictive skills of 10 ML models on SSF over the US mainland. In addition, we discuss a few aspects that impact the ML models the most, and the evolution of our DL models.

6.1 Results of all methods

Temporal results. Table 2

lists the mean, the median, the 0.25 quantile, the 0.75 quantile, and their corresponding standard errors of spatial cosine similarity of all methods. Additional results based on relative

can be found in Appendix C. XGBoost, Encoder (LSTM)+Decoder (FNN) and Lasso accomplish higher predictive skills than other presented methods, and can outperform climatology and two climate baseline models, i.e., LS with NAO & Niño, and damped persistence. Overall, XGBoost achieves the highest predictive skill in terms of both the mean and the median, demonstrating its predictive power. Surprisingly, linear regression with a proper feature set has good predictive performance. Even though DL models are not the obvious winner, with careful architectural selections, they still show promising results.

Model Mean(se) Median (se) 0.25 quantile (se) 0.75 quantile (se)
Temporally Global Dataset
XGBoost - one day 0.3044(0.03) 0.3447(0.05) 0.0252(0.05) 0.5905(0.04)
Lasso - one day 0.2499(0.04) 0.2554(0.06) -0.0224(0.05) 0.5604(0.06)
Encoder (LSTM)-Decoder (FNN) 0.2616 (0.04) 0.2995 (0.07) -0.0719 (0.06) 0.6310 (0.05)
FNN 0.0792(0.01) 0.0920(0.02) 0.0085(0.02) 0.1655(0.02)
CNN 0.1688(0.04) 0.2324(0.06) -0.0662(0.06) 0.4768(0.04)
CNN-LSTM 0.1743(0.04) 0.2867(0.06) -0.1225(0.07) 0.5148(0.04)
LS with NAO & Niño 0.2415(0.03) 0.3169(0.04) 0.0454(0.05) 0.4624(0.03)
Damped persistence 0.2009(0.04) 0.2310(0.06) -0.0884(0.06) 0.5335(0.05))
MultiLLR 0.0684 (0.03) 0.1046 (0.05) -0.1764 (0.06) 0.3156 (0.04)
AutoKNN 0.1457 (0.03) 0.1744 (0.05) -0.1018 (0.06) 0.4000 (0.04)
Temporally Local Dataset
XGBoost - one day 0.1965(0.04) 0.2345(0.05) -0.0636(0.06) 0.5178(0.05)
Lasso - one day 0.1631(0.04) 0.2087(0.06) -0.1178(0.05) 0.5059(0.05)
Encoder (LSTM)-Decoder (FNN) 0.1277 (0.04) 0.1272 (0.06) -0.1558 (0.06) 0.4971 (0.06)
Table 2: Comparison of spatial cosine similarity of tmp2m forecasting for test sets over 2017-2018. Models achieve better performance using temporally global set compared to temporally local set. XGBoost and Encoder (LSTM)-Decoder (FNN) have the best performance.

Spatial results. Figure 3 shows the temporal cosine similarity of all methods evaluated on test sets described in section 5. Among all methods, XGBoost and the Encoder (LSTM)-Decoder (FNN) achieve the overall best performance, regarding the number of locations with positive temporal cosine similarity. Qualitatively, coastal and south regions, in general, are easier to predict compared to inland regions (e.g., Midwest). Such a phenomenon might be explained by the influence of the slow-moving component, i.e., Pacific and Atlantic Ocean. Such component exhibits inertia or memory, in which anomalous condition can take relatively long period of time to decay. However, each model has its own favorable and disadvantageous regions. For example, XGBoost and Lasso do poorly in Montana, Wyoming, and Idaho, while Encoder (LSTM)-Decoder (FNN) performs much better on those regions. The observations naturally imply that the ensemble of multiple models is a promising future direction.

Comparison with the state-of-the-art methods. MultiLLR and AutoKNN are two state-of-the-art methods designed for SSF on western US Hwang et al. (2019). Both methods have shown good forecasting performance on the original target region. However, over the inland region (Midwest), Northeast, and South region, the methods perform not so well (Figure 3). To be fair, even though a similar set of climate variables have been used in our work compared to the original paper Hwang et al. (2019), how we prepossess the data and construct the feature set are slightly different. Such differences may lead to relatively poor performance for these two methods, especially for MultiLLR.

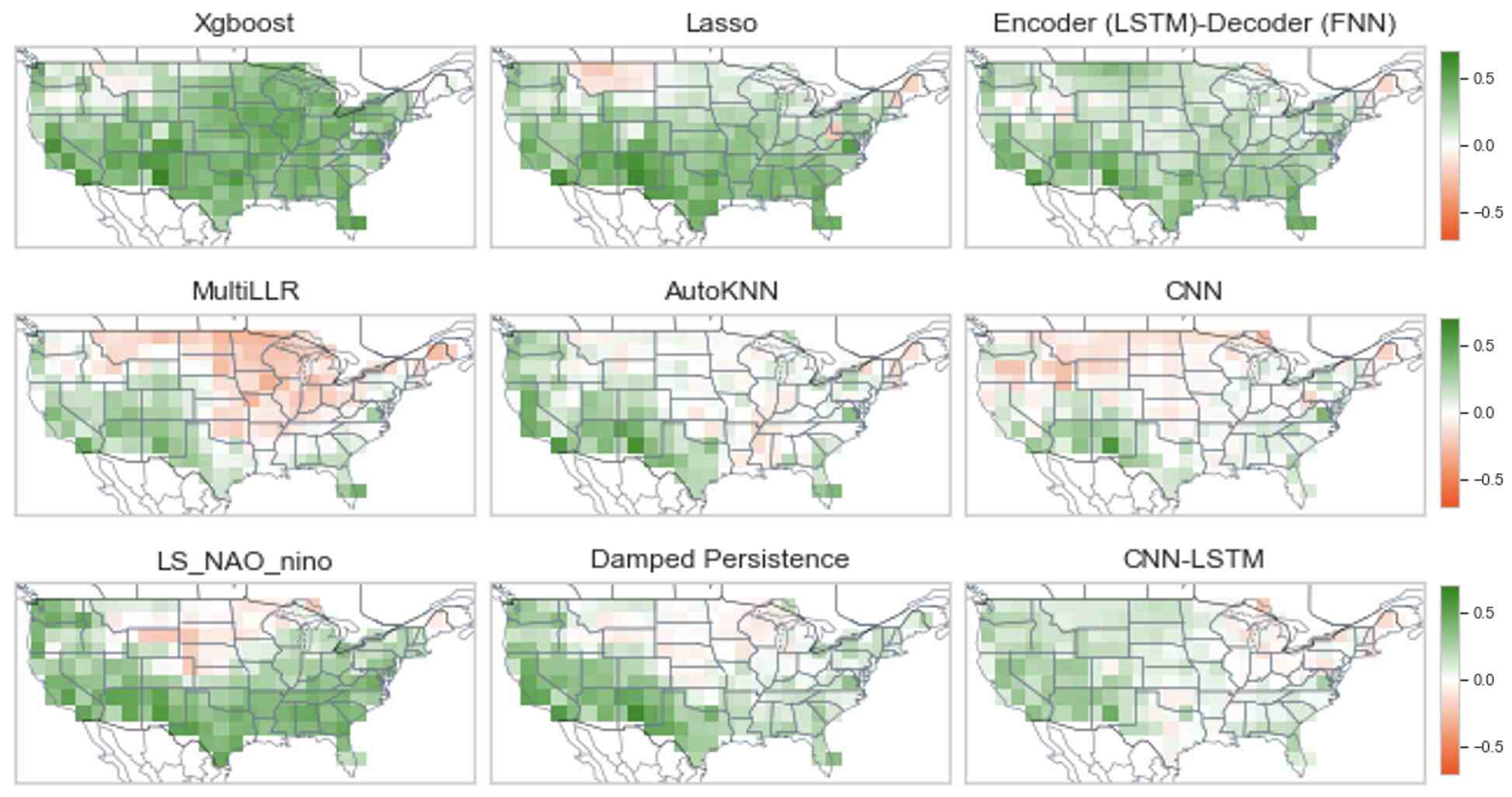

Figure 3: Temporal cosine similarity over the US mainland of ML models discussed in section 4 for temperature prediction over 2017-2018. Large positive values (green) closer to 1 indicates better predictive skills. Overall, XGBoost and Encoder (LSTM)-Decoder (FNN) perform the best. Qualitatively, coastal and south regions are easier to predict than inland regions (e.g., Midwest).

6.2 Analysis and Exploration

We analyze and explore several important aspects that could influence the performance of ML models.

Temporally “local” vs. “global” dataset. Our training set consists of continuous dates over the past 30 years, which we refer to as the temporally “global” dataset. Another way to construct the training set is to only consider a temporal neighborhood of the test date. For instance, to build a predictive model to forecast June, 2017, the training set can only contains dates in June (from earlier years), and months that are close to June, e.g., April, May, July, and August, over the past 30 years. Such a construction assumes different seasons have different predictive relations, and to predict temperature in summer, the predictive model better not use data from winter. We name such dataset as a temporally “local” dataset. A comparison between the “global” and “local” datasets has been listed in Table 2 where a significant drop in cosine similarity can be noticed when using “local” dataset for all of our best predictors, including XGBoost, Lasso, and Encoder (LSTM)-Decoder (FNN). We suspect such performance drop from “global” to “local” dataset may come from the additional temporal constraint on training set which further reduces the number of effective samples.

Feature importance. At sub-seasonal time scales, climate scientists believe The National Oceanic and Atmospheric Administration (2018); Delsole and Tippett (2017) that land and ocean are the important sources of predictability, while the impact of atmosphere is limited (Figure 1 (a)). We study which covariate(s) are important, considered by ML models, based on the feature importance score. In particular, we compute the feature importance score from 2 ML models, XGBoost and Lasso (Figure 4). For XGBoost, the importance score is computed using the average information gain across all tree node a feature/covariate splits, while for Lasso, we simply count the non-zero coefficients of each model. The reported feature importance score is the average over 24 models (one per month in 2017-2018). We provide additional ways of measuring feature importance, e.g., Shapley value Lipovetsky and Conklin (2001), in Appendix C. Among all covariates, soil moisture ( row from the top) is the variable that has constantly been selected by both models. Another set of important covariates is the family of Niño indices. A LS model using those indices alone as predictors performs fairly well (Table2). Sea surface temperatures (of Pacific and Atlantic) are also commonly selected. Such observations indicate that ML models pick up ocean-based covariates, some land-based covariates, and almost entirely ignore the atmosphere-related covariates, which are well aligned with domain knowledge The National Oceanic and Atmospheric Administration (2018); Delsole and Tippett (2017).

The influence of feature sequence length. To adapt the usage of LSTM, we construct a sequential feature set, which consists not only the target date, but also 17 other dates preceding the target date. However, other ML models, e.g., XGBoost and Lasso, which are not designed to handle sequential data, experience a drastic performance drop when we include more information from the past. More precisely, by including covariates from the full historical sequence, the performance of XGBoost drops approximately 50% compared to the XGBoost model using covariates from the most recent date only. A possible explanation for such performance degradation, as we increase the feature sequence length, is that both models weight covariates from different dates exactly the same without considering temporal information, thus more noise has been introduced. In Appendix C, we provide a more detailed comparison among results obtained from various sequence lengths.

(a) XGBoost
(b) Lasso
Figure 4: Feature importance scores computed from (a) XGBoost and (b) Lasso. Darker color means a covariate is of the higher importance. The first 8 rows contains the top 10 principal components (PCs) extracted from 8 spatial-temporal covariates respectively, and the last row includes all the temporal indices. Land component, e.g., soil moisture ( row from the top) and ocean components, e.g., sst (Pacific and Atlantic) and some climate indices are the most commonly selected covariates.

6.3 What happened with DL models?

As discussed in section 3, applying black-box DL models naively does not work well for SSF. The improvement (Table  2), as we evolve from FNN to CNN-LSTM, and finally to Encoder (LSTM)-Decoder (FNN), demonstrates how the network architecture plays an important role, and leaves us plenty of space for further advancement. Below we focus on the discussion of feature representation, and the architecture design for sequence modeling. More discussion is included in Appendix C.

Feature representation: CNN vs. PCA. Since SSF can be considered as a spatial-temporal prediction problem, CNN LeCun et al. (1998) is a natural choice to handle the spatial aspect of each climate covariate by viewing it as a map, and can be applied as a “supervised” way for learning feature representation. However, our results imply that models with CNN has limited predictive skills regarding both spatial and temporal cosine similarity. CNN, while doing convolution using a small kernel, mainly focus on spatially localized regions. However, the strong spatial correlation of climate variables restricts the effectiveness of CNN kernels on feature extraction. Meanwhile, PCA, termed Empirical Orthogonal Functions (EOF) Lorenz (1956); Von Storch and Zwiers (2001) in climate science, is a commonly used “unsupervised” feature representation method, which focuses on low-rank modeling of spatial covariance structure revealing spatial connection. Our results (Table 2) illustrate that PCA-based models have higher predictive skills than CNN-based models, verifying that PCA is a better technique for feature extraction in SSF.

Sequential modeling: Encoder-Decoder. With features extracted by PCA, we formulate SSF as a sequential modeling problem Sutskever et al. (2014), where the input is the covariates sequence described in section 5, and the output is the target variable. Due to its immense success in sequential modeling Srivastava et al. (2015); Venugopalan et al. (2015), the standard Encoder-Decoder, where both Encoder and Decoder are LSTM Hochreiter and Schmidhuber (1997), is the first architecture we investigate. Unfortunately, the model does not perform well and suffers from over-fitting, possibly caused by overly complex architecture. To reduce the model complexity, we replace the LSTM Decoder with an FNN Decoder which takes only the last step of the output sequence from the Encoder. Such change leads to an immediate boost of predictive performance. However, the input of the FNN Decoder mainly contains information encoded from the latest day in the input sequence and can only embed limited amount of historical information owing to the recurrent architecture of LSTM. To further improve the performance, we adjust the connection between Encoder and Decoder, such that FNN Decoder takes every step of the output sequence from LSTM Encoder, which makes a better use of historical information. Eventually, this architecture achieves the best performance among all investigated Encoder-Decoder variants (see a detailed comparisons in Appendix C).

7 Conclusion

In this paper, we investigate the great potential to advance sub-seasonal climate forecasting using ML techniques. SSF, the skillful forecasts of temperature on the time range between 2-8 weeks, is a challenging task due to the complex coupling among atmosphere, land and ocean, and the unique nature of climate data. We conduct a comprehensive analysis of 10 different ML models, including a few DL models. Empirical results show the gradient boosting model XGBoost, the DL model Encoder (LSTM)-Decoder (FNN), and linear models, such as Lasso, consistently outperform state-of-the-art forecasts. XGBoost has the highest skill over all models, and demonstrates its predictive power. ML models are capable of picking the climate variables from important sources of predictability in SSF, identified by climate scientists. In addition, DL models, with demonstrated improvements from careful architectural choices, are great potentials for future research.

8 Broader Impact

Skillful (i.e., accurate) climate forecasts on sub-seasonal time scales would have immense societal value. For instance, sub-seasonal forecasts of temperature and precipitation could be used to assist farmers in determining planting dates, irrigation needs, expected market conditions, anticipating pests and disease, and assessing the need for insurance. Emergency and disaster-relief supplies can take weeks or months to pre-stage, so skillful forecasts of areas that are likely to experience extreme weather a few weeks in advance could save lives. More generally, skillful sub-seasonal forecasts also would have beneficial impacts on agricultural productivity, hydrology and water resource management, transportation and aviation systems, emergency planning for extreme climate such as Atlantic hurricanes and midwestern tornadoes, among others Pomeroy et al. (2002); Klemm and McPherson (2017). Inaccurate spatial-temporal forecasts associated with extreme weather events and associated disaster relief planning can be expensive both in terms of loss of human lives as well as financial impact. On a more steady state basis, water resource management and planning agricultural activities can be made considerably more precise and cost effective with skillful sub-seasonal climate forecasts.

Acknowledgement

The research was supported by NSF grants OAC-1934634, IIS-1908104, IIS-1563950, IIS-1447566, IIS-1447574, IIS-1422557, CCF-1451986.
