I Introduction

In recent years, there has been an increase in the demand for mobile communication systems and the evolution of these systems have focused, as a priority, on the increase in throughput. However, in scenarios predicted for the future generation of mobile communications, such as machine-to-machine communication (M2M), Internet of Things (IoT), tactile Internet and wireless regional area networks (WRAN), there are characteristics that clearly go beyond the high data rates [1]. The challenges posed by these scenarios require: low power consumption, which makes it a problem for the synchronization of orthogonal frequency division multiplexing (OFDM) systems to maintain orthogonality between the sub-carriers; short bursts of data, which prohibit the use of a cyclic prefix (CP) in all symbols due to low spectral efficiency; and the high out-of-band (OOB) emission of OFDM that is an issue for dynamic and opportunistic spectrum access.

Due to these requirements, Generalized Frequency Division Multiplexing (GFDM) [1] has been proposed for the air interface of 5G networks. The flexibility of GFDM allows it to cover CP-OFDM as a special case. However, filtering of subcarriers results in non-orthogonal waveforms, inter-symbol interference (ISI) and inter-carrier interference (ICI). The Unique Word (UW) concept has been proposed for OFDM in [2] along with an optimized receiver concept. Since CP is random, its only function is to avoid the interference caused by the channel delay. The UW, being deterministic, if a non null UW is used, can be used also for synchronization and channel estimation. Many studies with UW have shown that a significant gain in bit error rate (BER) over OFDM can be obtained [2, 3, 8].

In this work, we propose the use of UW in GFDM systems which results in UW-GFDM systems. We devise a signal model of a UW-GFDM system considering a single UW and multiple UWs. We then develop an LMMSE receive filter for signal reception of the proposed UW-GFDM system. Simulations show that the proposed UW-GFDM system outperforms prior work. The paper is organized as follows: in Section II, a description of the signal model of the UW-GFDM system is given; Section III describes the UW-GFDM system design; the results of the simulations are presented in Section IV and in the Section V, some conclusions are drawn.

Ii Proposed Signal Model

In the proposed UW-GFDM systems, the input to the system is a binary sequence organized in a vector

of length , where is the order of modulation, is the length of the data vector used in the GFDM sub-symbol and is the number of time slots that make up one GFDM block.

The first step is the mapper, where the binary sequence is mapped into a complex valued sequence , according to the mapping scheme adopted. In this work, we use the frequency-shift offset quadrature amplitude modulation (FS-OQAM) [7] that can be exploited to address non-orthogonal conditions. Afterwards, the sequence of length obtained with the modulation of each group of bits is added to redundant subcarriers, so that , where is the number of subcarriers per GFDM sub-symbol.

Then, the resulting sequence of length is reshaped by serial-to-parallel conversion to a matrix with dimensions . To obtain interference-free transmission, each element of the matrix is transmitted with its real and imaginary part using symmetric, real-valued, half Nyquist prototype filter with the offset of samples from each other and phase rotation of radians among adjacent subcarriers and sub-symbols, given by

(1)

where is the time index and .

The resulting GFDM signal can be described by

(2)

Before transmitting the signal a UW with length or multiple UWs are added in order to preserve the circulant structure and to make frequency domain equalization possible at the receiver. Afterwards, the signal is converted to the analog domain and transmitted.

At the receiver, the received signal is described by

(3)

where , denotes the impulse response of the channel, is the transmitted signal with addition of the UW, and is a additive white Gaussian noise.

At the receiver, the signal is converted from the analog to the digital domain, followed by the removal of the UW and equalized by

(4)

The received data can be described by

(5)

and,

(6)

where denotes circular convolution with period , and represents or .

The received symbol vector is obtained by applying the parallel to serial converter, the Wiener smoothing operation and extracting the data part of the signal . After that, the data part of the signal is demapped into the detected bit vector . The block diagram of the proposed UW-GFDM system is shown in fig. 1.

Fig. 1: GFDM block diagram

Iii Design of the UW-GFDM System

In this section, we detail the design of UW-GFDM systems [9]. The framing of UW is made by introducing a predefined sequence which shall form the tail of the data vector in the time domain . Therefore, the sequence assumes the form aiming to add the UW of length L in the time domain and to obtain [3].

In the first step, in order to get the vector structure in time domain, a reduction of the number of data subcarriers is made and a set of redundant subcarriers is added, in the frequency domain. In case of multiple UWs in GFDM systems, the matrix with data and redundant subcarriers, can be constructed as:

(7)

where is a permutation matrix, and are the matrices of data and redundant subcarriers, respectively.

The GFDM and can be organized in a modulation matrices structured according to:

(8)

where is a column vector containing the samples from with equal to or in (1).

The matrices and have dimensions x with an approximately diagonal block structure, according to:

(9)

where .

With these observations, we can write each symbol of the transmitted GFDM block as:

(10)

where

(11)

Writing each result of with four sub-matrices , it is possible to write , where .

Due to the real-orthogonality between the matrices and , i.e., , a code word can be obtained for each symbol of the GFDM block by

(12)

where

is the identity matrix and

can be interpreted as a UW code generator matrix. Another interpretation is that introduces correlations in the vector of frequency domain samples of a GFDM block.

In the second step, is added to the GFDM frame. The choice of (m) is made to optimize particular needs in GFDM systems, like synchronization, system parameter estimation purposes or BER gain. The symbols of can be placed in one or more symbols of a GFDM block, in a specific pattern, in order to optimize the UW autocorrelation properties. The UW sequences can be obtained by many ways, among which we highlight: the generalized Barker sequence[4] and a CAZAC sequence (Constant Amplitude, Zero Autocorrelation) [5] that are often used for channel estimation, frequency offset estimation and timing synchronization (not investigated in this work); or , which introduces a systematic complex valued block code structure within the sequence of subcarriers. Note that the gain due to the exploitation of correlations in frequency domain can be regarded as coding gain.

At the receiver, after performing the equalization and the time-frequency conversion, observing the influence of the UW on the received symbol, we can write the received vector as:

(13)

where , and .

To eliminate the influence of the UW by subtracting from , we can consider that the channel matrix or at least an estimate of do such that , we can apply the Bayesian Gauss-Markov theorem [10] to minimize the cost function , with , obtaining the LMMSE estimator for as given by

(14)

with the noise covariance matrix , and with . Recalling that , the estimated data vector can be written as

(15)

where represents a Wiener smoothing matrix given by

(16)

The smoothing operation exploits the correlations between subcarrier symbols which have been introduced by (12) at the transmitter and act as a noise reduction operation on the subcarriers. Other interference cancellation techniques [11, 12, 13, 14, 15, 16, 17, 21, 23, 24, 19, 20, 22, 24, 25, 26, 27, 28, 31, 30, 31, 32, 33]. can also be examined for receive processing.

The design of the pulse shaping filter of GFDM strongly influences the spectral properties of the signal and the error rate. In this work, we use the Root Raised Cosine (RRC) with the Meyer auxiliary function proposed in [1] and described by

(17)

where is a truncated function that is used to describe the roll-off area defined by in the frequency domain. The th subcarrier is centered at the normalized frequency and describes the overlap of the subcarriers. The function used here is the Meyer auxiliary function [6]. The use of this function as the argument of a RRC pulse shape defined in time improves spectrum properties [7].

The only increase of the computational complexity at UW-GFDM in comparison to the CP-GFDM is the computation of the codeword by (12), whose computational cost is and in the smoothing by (15), with .

Iv Simulations results

To validate the UW-GFDM proposal, simulations were performed comparing its performance with the CP-GFDM concept and with the UW-OFDM and CP-OFDM systems, whose performances are already widely known. In this work, we consider perfect synchronization, perfect knowledge of the channel by the receiver and . The simulations were performed with the parameters listed in Table I.

Systems UW-GFDM CP-GFDM
Number of subcarriers [K] 64 64
Data subcarriers [] 48 64
Redundant subcarriers [] 16 0
Length of UW and CP [] 16 16
Number of time slots [ M] 4 4
Pulse shaping filter [G] RRC RRC
Roll-off factor []
Modulation subcarriers FS-OQAM FS-OQAM
TABLE I: Simulation Parameters for the GFDM Systems

The CP-OFDM and UW-OFDM are simulated with the same parameters as CP-GFDM and UW-GFDM, respectively, except for the pulse shaping filter that is not used. The indexes of the 16 redundant subcarriers are chosen as in [8]. This choice, with an appropriately constructed matrix , provides minimum energy on the redundant subcarriers on average.

In the first example, we observe the performance in a channel that typically represents the WRAN scenarios [34]. These scenarios should be investigated for 5G systems. The channel has been modeled as a tapped delay line, whose power delay profile is ()[dB] for the delays ()[

s], each tap with Gaussian distribution, and is considered constant during a GFDM block period. In order to provide a simple way of equalization, the length of UW and the CP was set to

samples. In Fig. 2, we can observe that the curves UW-GFDM-all and UW-OFDM show a similar performance and approximately 1.2 dB in better than CP-OFDM and CP-OFDM. It is also possible to observe that the use of a single UW in the first symbol of the GFDM block already reduces the required by approximately 0.5 dB for the same BER.

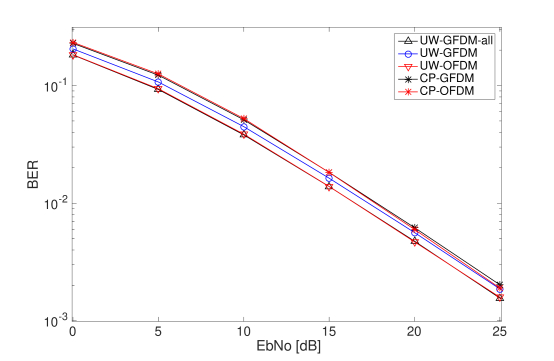

Fig. 2: BER performance of GFDM and OFDM system with Rayleigh channel

In the second example, we can observe that the out-of-band (OOB) emission is not degraded by using the UW, and GFDM maintains its performance around 10 dB better than OFDM, as it had been observed in CP-GFDM and shown in Fig. 3.

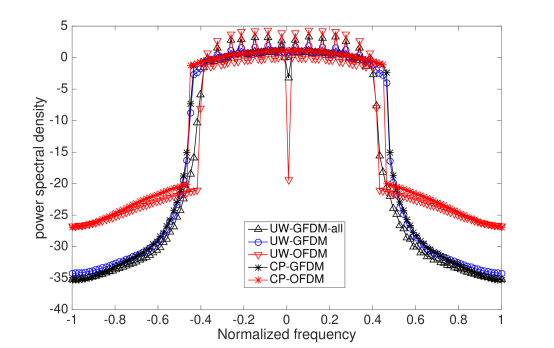

Fig. 3: OOB performance of GFDM and OFDM system

An important observation is that the peak-to-average power ratio (PAPR) performance of UW-GFDM is comparable to CP-OFDM and CP-GFDM systems using FS-OQAM modulation.

In the last example, we compare the normalized throughput () of the systems, calculated by

(18)

where is the block error rate. These comparisons allow us to observe how much the inclusion of redundant subcarriers affects the throughput in relation to the system with CP. Fig. 4 shows that the CP-GFDM and UW-GFDM have a comparable throughput (UW-GFDM is slightly better for low values), and both are higher than CP-OFDM. Observing the curves UW-GFDM-all and UW-OFDM, we can conclude that the use of UW in all sub-symbols of the GFDM block reduces the throughput significantly.

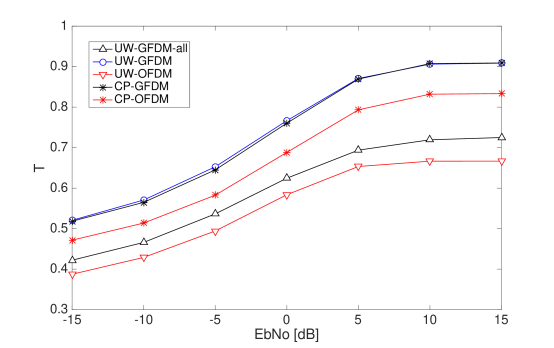

Fig. 4: Throughput performance of GFDM and OFDM system

V Conclusions

In this work, we have introduced the concept of UW in GFDM systems. The guard interval is built by a UW instead of cyclic prefixes. This approach significantly reduces the noise on the subcarriers, maintaining the OOB obtained with the pulse shape filter in GFDM, and increases the throughput as compared to UW-OFDM and CP-OFDM, if applied to only one or a few block sub-symbols. The use of UW in GFDM requires the application of a modulation that allows orthogonality between the subcarriers, and the possibility of the UW for synchronization and channel estimation purposes requires the use of a nonzero UW that is orthogonal to the subcarriers of the GFDM sub-symbol. The proposed UW-GFDM approach outperforms CP-GFDM, UW-OFDM and CP-OFDM in all examples.
