The industry is producing an explosion of varied and creative hardware accelerator architectures [6, 9, 14, 15, 22, 24, 36]. Designs tend to be optimized for specific goals, such as power efficiency or performance, and often breed even more specialized architectures for very targeted use cases, such as the MAERI . To take advantage of these innovative designs, ML software must be optimized to target the specialized hardware.
1.1 Kernel Libraries
Algorithmic developments aimed at improving accuracy, training or inference performance, regularization, and more continue to progress rapidly [27, 35]. Nevertheless, these typically retain the same regularities that make specialized ML architectures feasible, and could in principle be efficiently run on ML accelerators. However, the traditional kernel library approach requires a kernel for each hardware-network architectural feature pair, creating a combinatorial explosion of optimization work that is infeasible with the rapid growth of both hardware and algorithm designs.
One way to achieve all these optimizations is to write an extensively customized kernel to account for each supported machine learning operation and each materially different input and output shape on each supported hardware platform. As new hardware architectures develop, new kernels must be written for all supported operations. If new operations are devised, they must be added to each hardware target. This coupling creates a maintenance nightmare; decoupling them via automatic code generation, where the hardware configuration is separate from both the optimization passes and the operations themselves, would be ideal. Unfortunately, general-purpose compilers are not aware of the regularities of ML workloads (as discussed in section 2), and so the required optimizations are intractable.
LLVM  is a community-driven compiler infrastructure that demonstrates features we want in a compiler for ML workloads. Its suite of optimization and transformation passes applied to a consistent IR makes it possible to optimize workloads in a progressive and modular fashion. Direct transformation of the IR allows for deeper changes than those available to a model maintaining some fixed structure along with a modifiable implementation or interpretation. Moreover, an excellent community of experts with varying priorities actively contributes to the ecosystem. Unfortunately, and despite these benefits, LLVM is still general purpose and cannot be directly used to compile high performance ML code.
Special-purpose optimization and compilation techniques have also been developed. Loop nest transformation and compilation algorithms [16, 20], including the development of the polyhedral model [1, 34], optimize constrained loop nests via tiling and data layout transformations. Frameworks for extracting fine-grained parallelism in traditional workloads and applying such polyhedral techniques, including Polly  and PLuTo , have proven beneficial. However, these techniques have not been sufficient to achieve peak performance for many ML workloads .
Various frameworks, including URUK , Halide , and Tiramisu  separate loop nest semantics from execution order via a scheduling language. TVM  also does this, building on Halide by creating a tensor expression language and adopting a “decoupled” scheduling approach that allows for hardware-specific optimizations. The result is a cleaner separation of expertise between network architecture and hardware design; see for example Liu et al.  on optimizing for CPUs in TVM. AutoTVM
introduces automatic selection of a schedule from a schedule search space using a deep learning approach with transfer learning. This means hardware-specific optimizations can be written with a focus on getting the right structure (whether to try tiling, whether to try different memory layouts (and which), whether to try tensorization, etc.) without needing to manually experiment with the exact parameters for these optimizations. These schedule spaces are still coupled to both the operation and the hardware architecture.
Relay  is an IR for tensor expressions used in the TVM stack. While its functionality has some overlap with Stripe (transformations enabling tensorization, for example), it is mostly a higher level IR than Stripe; many of its tasks are represented in Tile in the PlaidML stack (automatic differentiation for example) or even at the graph level.
nGraph  provides optimization opportunities at the graph level, where the network-to-device compilation can be managed with a series of “subgraphs”. Since graphs can be managed at this level in both a static and dynamic manner, the performance increase can be used to further accelerate training workloads, or (as is the more common use case for nGraph) to output inference computations in environments where low-latency is important. nGraph may be used in conjunction with PlaidML (see section 3.4) to provide complementary graph optimizations.
Glow  offers graph compilation and does not generate code for operations like GEMMs or convolutions, instead relying on kernel libraries or accelerator-specific compilers.
We propose a compiler structured along the same lines as LLVM: it lowers source code to an intermediate representation (IR) and selects and parameterizes a list of optimization passes from a common pool; these passes are then iteratively applied to the IR; and only after all have been applied is the IR code lowered to hardware-specific instructions. A key innovation of our proposed compiler is the IR, called Stripe, which abstracts to a granularity fine enough to represent the full new functionality available on ML accelerators and coarse enough to allow automatic compilation of high performance ML code.
Stripe is built to represent tensor operations via the Nested Polyhedral Model (Section 3.1). This model nests polyhedra in the sense that, for each point in a parent polyhedron, a child polyhedron is defined. This nesting naturally represents tiling, partitioning, tensorization, and other “blocking” operations. It also allows assignment of nested polyhedra to nested memory units, giving the compiler a way to match the compute structure to the caching structure for multilevel hardware topologies.
At the same time, when this hardware-based complexity is not needed, Stripe does not require it to be specified. Stripe code representing a single tensor operation can be represented as an unnested polyhedron, and a network can be represented as a list of polyhedra. This allows straightforward lowering to Stripe from a language that uses a syntax directly representing mathematical formulas for the tensor operations (PlaidML’s Tile language, for example). The representation is then transformed through a series of optimization passes to divide and rewrite these basic polyhedra into nested polyhedra appropriate for maximizing performance on the hardware target.
We see several key advantages to Stripe. Foremost, Stripe removes the combinatorial explosion of engineering work from the interaction between growth in accelerators and growth in operations. The classic compiler approach of Stripe means that algorithms can be written on a per-operation basis and optimizations can be written on a per-architecture basis; notably, neither must be written based on both the operation and the hardware architecture. Even with a schedule-space autotuning approach like AutoTVM, schedule spaces must be written for each combination of operation type and architecture type. For kernel libraries, manually-engineered code must also include hardware and operation parameters (see Figure 1).
Stripe’s compiler provides modular and extensible optimization passes, allowing novel optimizations without requiring redevelopment of existing optimizations. Stripe’s optimization passes are generic and parameterized, enabling reuse across any hardware target for which the pass is beneficial. Stripe’s nested polyhedral model naturally represents memory hierarchies of nested and potentially-heterogeneous depth, thereby supporting complex hardware topologies. The compilation model of Stripe doesn’t require physical hardware or even a cycle-accurate model, just a selection of optimization passes with appropriate parameters; in contrast to autotuning approaches this allows software-hardware codesign early in the development cycle and at relatively low cost.
2 Requirements of Current Machine Learning Execution
To successfully produce high-performance code, an ML compiler must first analyze, accurately, any defining features in the dataflow and then perform tractable optimizations to target complex hardware topologies based on those features. Most ML frameworks today that proffer state-of-the-art performance do not have a compiler that satisfies these requirements, and thus instead use expansive kernel libraries.
2.1 Data Use Analysis
Analyzing the performance of a machine learning workload with any degree of accuracy requires clear analysis of data usage. Particularly important are how much data is used (i.e., Is dataflow split into appropriately sized chunks for the memory units being used?) and which data is used (i.e., What produces and depends on this data? How much reuse is possible if the data is retained at various levels of the memory hierarchy?). Tracking details such as these in a general-purpose compiler can be extremely challenging, and even limited solutions are important research areas.
Machine learning workloads are typically highly structured in several ways that provide key clues for how our analysis should proceed. ML workloads have few control dependencies (exceptions are generally minimal and straightforward: reversing the non-padding portion of a sequence in a recurrent network may depend on the length of the sequence, for example). Thus, we can calculate, rather than estimate, what data will need to be used or reused. Moreover, the calculations necessary to track data dependency and aliasing for machine learning workloads are often reasonably straightforward and tractable. The natural representation of data is typically a tensor with several dimensions of various sizes. The operations performed generally access input and output tensors in a highly regular manner; specifically, an iteration space of indexes can be defined, and all tensor accesses can be defined as affine polynomials in terms of indexes in the iteration space. Additionally, intra-operation dependencies most frequently take the form of commutative and associative aggregations, such as the sum of a multiply-accumulate or the max of a maxpool.
2.2 Complex Hardware Topologies
Appropriately distributing ML tasks to accelerators requires optimizations not typically required in the CPU or GPU cases, nor are they required at the same level of generality. A GPU may need explicit memory movement between internal compute units, though it is unlikely to need this across multiple levels of memory hierarchy or multiple memory partitions. A CPU might need vectorization to use vector instructions, but it is unlikely to have compute units that operateonly on tensorized data. Partitioning work amongst multiple heterogeneous hardware units may also be necessary to appropriately distribute an ML workload.
Supporting even one accelerator will very likely require memory management at multiple levels and distribution of work to compute units with varied capabilities. With a kernel library, utilization of these features will be written directly into the kernel. With a compiler, optimizations appropriate to these features will be automatically generated. An optimization that decides which data should be moved from larger distant memory to smaller closer memory (at whatever level of the overall hierarchy these memory units reside) readily generalizes to multiple accelerator architectures. Similarly, an optimization that can distribute work to heterogeneous compute units of varied complexity will generalize to varied accelerator architectures.
A hardware runtime will still be necessary, even with a compiler. However, with the compiler performing general machine learning optimizations targeted to the hardware architecture, the runtime can be developed in a low-level, hardware-facing manner without requiring optimizations for specific ML tasks.
2.3 Tractable Optimizations
The patterns of control flow and data use in machine learning workloads make optimization easier, not harder. Many optimizations become tractable, and indeed necessary, to achieve state-of-the-art performance. In both programmer-managed and automatically-cached memory scenarios, data should be loaded in a manner that maximizes reuse and takes full use of available space without spilling – this usually involves division into multiple and distinct levels of memory. Often there are hardware-specific instructions requiring exact stencil sizes, especially on accelerators. Where multiple hardware units are available, the work must be appropriately balanced, even when the units provide heterogeneous functionality. Finally, complex scheduling problems arise from doing all of this in a context with deep chains of massive and mostly parallel operations.
Large tensors may need to be split into smaller tiles to optimize cache reuse. Autotiling must evaluate the performance of potential tilings and split loops into tiles accordingly. The autotiling pass drives many Stripe design choices and will be discussed in further detail in Section 3.3.
Advanced instructions or specialized compute units may require data in a specific layout. Code that could take advantage of these instructions or compute units if its data were transposed must be found, and the transposition performed.
The microarchitecture may need a specific tile size (stencil), in addition to the required dimension-order for its data layout. Code that could use specialized instructions or compute units if the data matched a specific stencil must be found, and that data must be reshaped to the stencil.
Banking and Partitioning
It may be useful for multiple compute units to work in parallel on different portions of the same data. For operations that can be run in parallel in this way, the relevant tensors must be partitioned into different compute unit-specific caches or into different banks to enable this parallel work without conflict.
To maximize cache reuse, it may be better to perform multiple operations on only one or a few tiles of data before proceeding to other data. Code may include a series of loops that could potentially share the same outer loop and internally perform those operations in serial. The relative performance of such a fusion must be compared to other possible fusions (or no fusion at all); where a fusion is valuable, the code must be rewritten to a fused form.
Scalarization and Memory Localization
Transient intermediates produced in registers may not need to be stored into memory and reloaded into registers. Temporary memory may only be needed in inner portions of the memory hierarchy. Memory allocation must be pulled inside loops where legal and semantically equivalent, and unnecessary stores and loads must be found and eliminated.
Operations reading and writing logical tensor data must be rewritten to access physical device memory. This requires assigning physical memory locations for logical tensor data, scheduling data movement to and from the physical memories accessible to compute units, and reordering the operations to take advantage of data locality.
Separating Interior and Boundary Tiles
Some workloads do not evenly divide into tiles, or they might have special boundary conditions or other irregularities that do not affect most tiles, but that must be considered nonetheless. These irregularities are best handled separately from the general tiles.
3 Stripe Design & Implementation
The Stripe IR is designed to provide both a level and type of granularity appropriate to optimizing machine learning tasks. In Section 3.1 we discuss the Nested Polyhedral Model, which provides the theoretical underpinnings for Stripe. In Section 3.2 we describe the Stripe IR, discussing how it implements the Nested Polyhedral Model, and how this implementation enables important optimizations. In Section 3.3 we detail how autotiling is performed when compiling Stripe, and demonstrate how optimization passes function with Stripe.
3.1 Nested Polyhedral Model
3.1.1 The Polyhedral Model
An integer polyhedron is a set of all such that
where and .
Note that this definition is not equivalent to the definition sometimes used of an integer polyhedron as a set of satisfying (e.g. in Bondhugula et al. ); instead, it is the intersection of a lattice with a real convex polyhedron. For convenience, we will use the term “polyhedron” to refer specifically to bounded integer polyhedra that are subsets of .
The polyhedral model [1, 11, 12, 25, 34] is a model for performing iterative computations over an index space defined by a polyhedron, with dependencies between steps generally also defined. This paper will not go into detail on this model; an overview can be found in Girbal et al. . Instead, we will develop a nested polyhedral model of iterative computation that most notably differs from the polyhedral model in its dependency structure.
3.1.2 Parallel Polyhedral Blocks
In the Nested Polyhedral Model, there are no dependencies between iterations, with the possible exception of reduction dependencies. This is specified more precisely in Definition 2.
A parallel polyhedral block consists of a polyhedron called the iteration space, a map from points in to lists of statements, a set of I/O buffers , and a map from buffers of to associative and commutative operations called the aggregation operations satisfying the following:
Statements in may only read or write to buffers in or to internally-scoped temporaries that are not shared between iterations. A single statement list may have arbitrary dependencies between its statements and is interpreted as running serially.
If the statements for iteration write to a buffer element , no statements for , may read from this buffer element .
When a buffer element is written to by statements in statement lists for multiple index values , the value written to is
where are the values for computed by the statement lists and is the aggregation operation associated with .
When a buffer element is written to by the statements in statement list for exactly one iteration , then the value computed for element by is written to , regardless of the aggregation operation.
Imposing these dependency restrictions makes it more straightforward to parallelize execution over different elements of the iteration space. The only necessary additions to the statements in involve how to handle aggregation (i.e. adding aggregation operations and temporary storage for intermediate results—and even this may be unnecessary if, for example, the aggregations can be made atomic). At the same time, the statements within a block are semantically serial (although they may, of course, be executed in parallel if the compiler can determine that doing so is equivalent to serial execution), and thus within a block (intra-block) statements may have complex dependencies (except insofar as they modify the externally-visible buffers in ).
Note that as defined, a parallel polyhedral block need not demonstrate the regularities common to machine learning workloads. Such blocks can involve statements with complex control dependencies (they are restricted in what buffer elements they can read or write by other iterations); they make no restrictions requiring affine data access patterns; they can have statement lists that are altogether unrelated for different iteration indexes. This makes verifying that the dependency conditions are satisfied challenging, especially for optimization passes that automatically rewrite the parallel polyhedral block to code that must be proven semantically equivalent. Moreover, utilizing specialized hardware can be challenging. For example, if the statements differ between every iteration index, utilizing SIMD hardware effectively is essentially impossible. Additional restrictions Stripe makes to match ML workloads to hardware and to make execution efficient are discussed in Section 3.2.
3.1.3 Nested Polyhedral Model
The Nested Polyhedral Model is built from parallel polyhedral blocks by defining one or more statements of a parallel polyhedral block to be the execution of another parallel polyhedral block.
Ensuring that the dependency conditions of Definition 2 are satisfied will almost always require the inner parallel polyhedral block to depend on the iteration indexes of the outer block. Stripe accomplishes this by offsetting memory accesses in the inner block based on the iteration indexes of the outer block (as well as of the inner block). See Figure 2 for examples of the resulting access patterns; as illustrated, this readily represents “block” access patterns (such as those arising from vectorization, tensorization, tiling, and partitioning).
This nesting of parallel polyhedral blocks can be extended to as many levels as appropriate for the problem, creating a hierarchy of parallelizable code. Figure 3 illustrates what regions of a tensor might be accessed in a multilevel nest of parallel polyhedral blocks constructed from partitioning, tiling, and tensorization passes to target a hardware architecture.
3.2 Structure of Stripe
Stripe represents parallel polyhedral blocks with the block structure. A Stripe block captures the polyhedral iteration space by specifying a list of index names, a range for each index, and a list of affine constraints on the indexes. There is a single statement list that does not vary between iteration indexes. The statements do access different buffer elements in different iterations, and statements that are themselves blocks may have their inner iteration space modified based on the outer iteration. With the restriction to a single statement list, assigning work to SIMD hardware becomes efficient. The I/O buffers of a Stripe block are explicitly declared, along with an aggregation operation for each buffer. Stripe includes an assign aggregation operation that indicates it is illegal for values in the buffer to be written to by multiple iterations.
Buffer accesses in Stripe are affine functions of the iteration indexes, potentially including indexes of all parent blocks. This makes aliasing analysis much easier, which is critical for verifying that all properties of a parallel polyhedral block remain satisfied after an automatic rewrite. Analysis is also simplified by requiring any parent index used to be explicitly passed to the child block.
Stripe statements can be another block, an intrinsic, or a special function. An intrinsic works with scalar values: it can read or write a scalar from a buffer (using a buffer access that is an affine polynomial of index values as described above), or perform simple operations on scalars, such as addition or a trig function. Special functions perform complex operations on tensors that are inappropriate to represent as blocks of operations on scalars, e.g. scatter or gather.
Operations expressed as scalars in Stripe are not always performed by manipulating scalars at the hardware level (e.g. due to vectorization). For situations where blocks of scalar statements have appropriate semantics that translate in whole to hardware instructions, Stripe includes tags which signal to optimizations passes and the lowerer that a chunk of code is intended to be lowered in certain way. Tags are more general than just this use case: any element of Stripe code may be given an arbitrary set of strings which are its tags. These tags have no semantic meaning (in the sense that they do not change the expected program output), but instead provide additional information to Stripe optimization passes and the hardware abstraction layer. Other use cases for tags include storing results from analysis passes to avoid repeating the analysis in later passes where such recomputation may be expensive or challenging.
To clarify the memory access of a block, all buffers used in a block must be explicitly declared, and the scope of a buffer is limited to the block it is declared in. In particular, buffers are not in scope within child blocks unless explicitly passed to the child. Stripe uses refinements
to declare passing a buffer to a child block. The refinement declares whether the child buffer is to be used for input, output, or both, and indicates what subregion of the parent block is represented—child buffers do not have to bring the entire parent buffer into scope in the child block. Typically they don’t, which enables verification of parallelizability of the nested polyhedral structure. A refinement also describes the memory layout of the child buffer, indicating the size and stride (i.e. memory layout) of each dimension. Passing only these restricted views to inner blocks naturally represents memory and compute structures for optimizations like tiling and vectorization.
Refinements may also include the hardware location of the buffer: the name of the memory unit (e.g. “SRAM”), a bank number (if applicable) which may be determined from the iteration indexes if appropriate, and a memory address. Buffer locations are not required, and hardware-specific optimization passes will need to be run before it is possible to set buffer locations sensibly. Specifying buffer locations allows for more precise analysis of available resources and is a crucial step for devices with programmer-controlled memory.
Blocks may contain multiple statements, and these statements must be executed as if in serial. However, when the compiler can verify that parallel execution would not change the semantics, this parallel execution is allowed. A scheduling pass is used on multi-statement blocks to construct a directed acyclic graph of dependencies between the statements. Where applicable, information about the memory access patterns of statements (e.g. from child block refinements) is used to determine if statements are independent. This can be especially important for partitioning of work into heterogeneous units, where distinct block structures are needed for the different units.
Stripe allows arbitrary integer polyhedra to be used as the iteration spaces of blocks. However, its syntax encourages the use of rectilinear constraints by requiring a range to be specified for each index and optionally allowing additional non-rectilinear constraints. This structure models the almost-rectilinear nature of common operations like convolutions with boundary conditions. Maintaining as much rectilinearity of constraints as possible in the IR is valuable, as hardware targets often perform better on rectilinear iteration spaces but need to handle tasks that are not perfectly rectilinear.
One minor divergence of the implementation of Stripe from theoretical parallel polyhedral blocks as specified in Definition 2 is that aggregation operations may be only approximately associative and commutative (floating point addition is a common aggregation operation that only approximately has these properties, for example). In such situations, executing a Stripe program is ill-defined and nondeterministic; however, this nondeterminism typically leads to negligible errors in practice for the same reasons floating point errors are typically negligible. In situations where this nondeterminism cannot be safely ignored, fixed point or integer types may be used instead.
To illustrate how Stripe IR automates effective optimizations, let’s consider one of the key optimization passes: autotiling. Machine learning operations are routinely too large and must be split into pieces (“tiles”) that fit into local resources. The autotiling optimization pass determines the shape of these tiles that brings the overall operation’s performance closest to the roofline  implied by the available compute and I/O bandwidth. Depending on the hardware target, several costs may need to be considered, including the amount of memory reuse, whether the tile shape evenly divides all dimensions of all tensors (and how large any overflow is), whether any reductions have been split to multiple tiles and the relative cost of computing those reductions later, and the interaction of the cache width with the layout of each tensor as restricted by the tile shape.
In architectures with automatic caching, this tiling optimization improves cache performance by selecting tile sizes where full tiles can fit into cache simultaneously, maximizing cache hits. In architectures requiring explicit memory transfers, tiling determines what data will be transferred, with the tile size ensuring that all data fits in the inner memory and that the inner memory is efficiently filled to maximize reuse. In architectures with queue-based multiprocessing, tiling breaks operations into workgroups effectively.
The autotiling optimization for Stripe explores a space of tile sizes using a cost function that models the potential performance impacts described above (an example of this is illustrated in Figure 4
). Several constraints can exclude tile sizes from the space to be explored: for instance, the total memory used may not exceed the total available memory; also, if the operation is already applied to dimensioned blocks (from an earlier vectorization or tensorization pass, for example), then the tile size must be an even multiple of this size. Search-space heuristics, such as only considering power-of-2 dimensions to optionally improve compile performance, may also constrain the tile sizes considered.
The design of the Stripe IR makes it straightforward to rewrite blocks to introduce an intermediate block of the selected tile size (example code produced by such rewriting is provided in Figure 5). In the basic case, simply splitting the index ranges such that the inner iteration space shape matches the selected tile size, and the outer iteration space shape is the quotient of the original index ranges, and passing the tensors into the inner block with appropriate offsets will create an effective rewrite. The common complexities of tiling that arise in ML workloads are also readily represented:

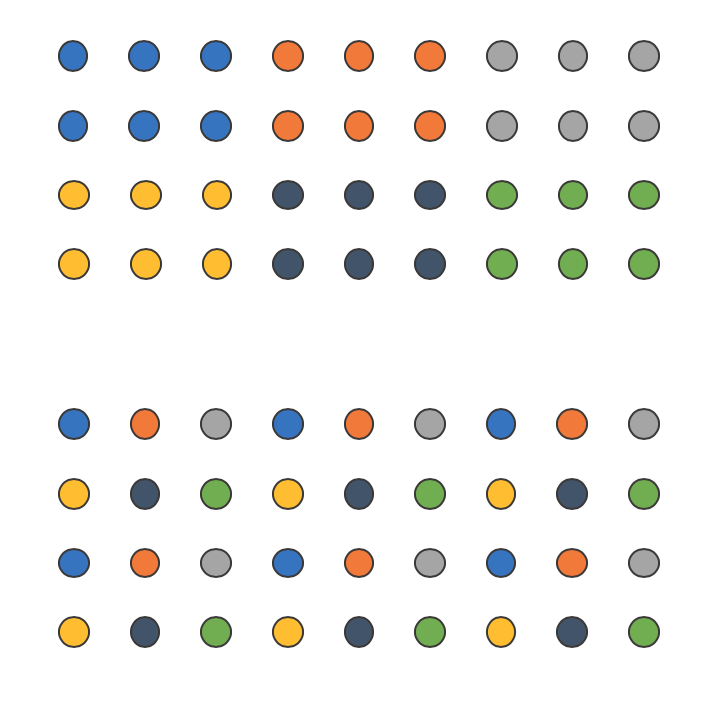

When different coordinates in an output tensor need to read from the same coordinates on an input tensor along large dimensions (e.g. for a non-pointwise convolution), the required iteration space will be polyhedral and not perfectly rectilinear. Constraints representing the boundary / “halo” conditions define such an iteration space.
For regions that are already not perfectly rectilinear, the existing constraints can be pulled into the inner block to maintain the same polyhedral structure.
When the optimal tile size does not evenly divide a dimension, round up the computed quotient for the outer block (causing an overflow). Then remove the overflow by adding a constraint based on both the outer and inner index value to not perform any calculations in the out-of-bounds overflow region that this introduced.

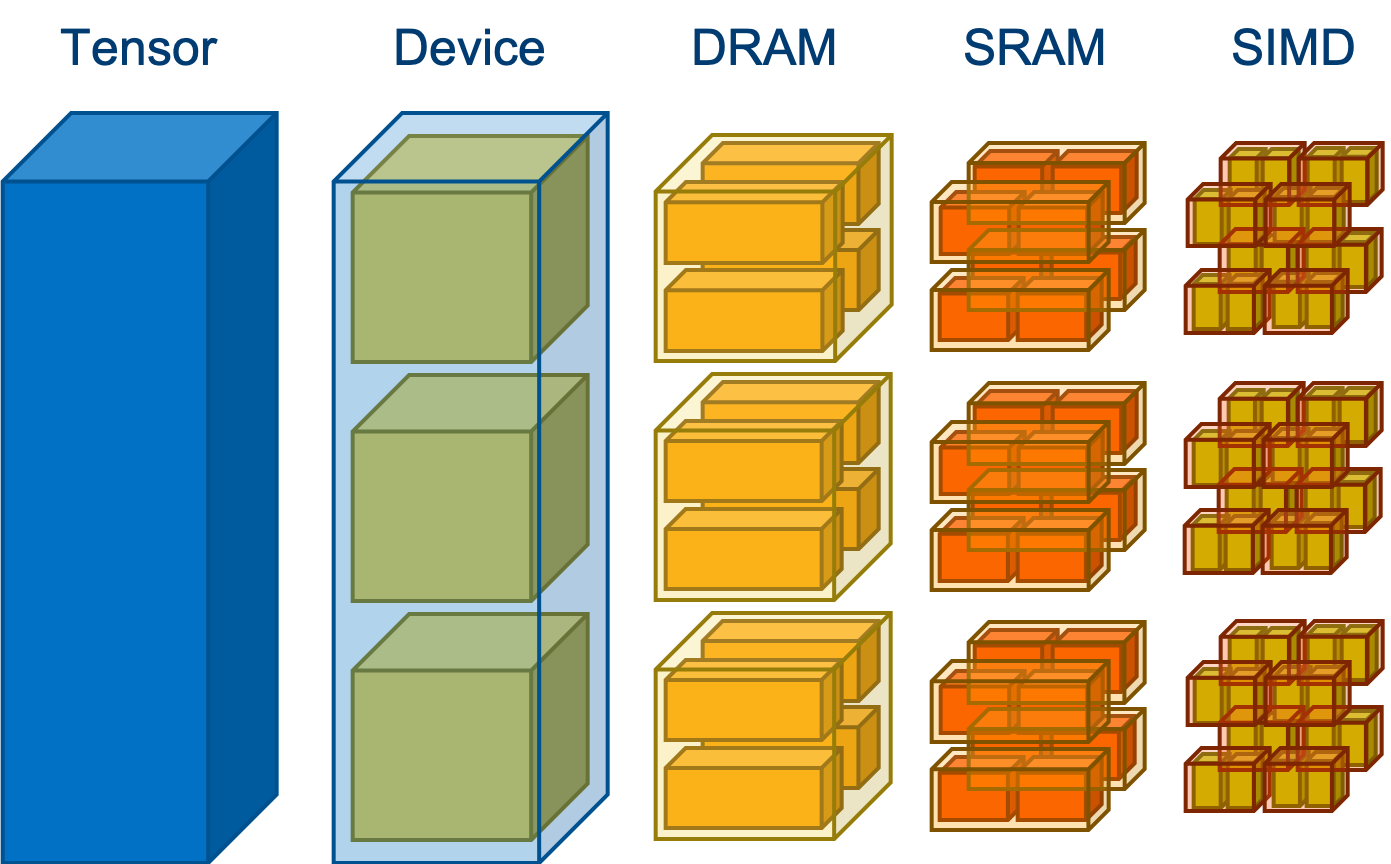

Stripe’s nested block structure readily allows for multiple tiled layers. This is useful not only for cases like tensorization, as alluded to above, but also for more general use cases like hardware topologies with multiple layers of memory, or when generally partitioning work amongst multiple units.

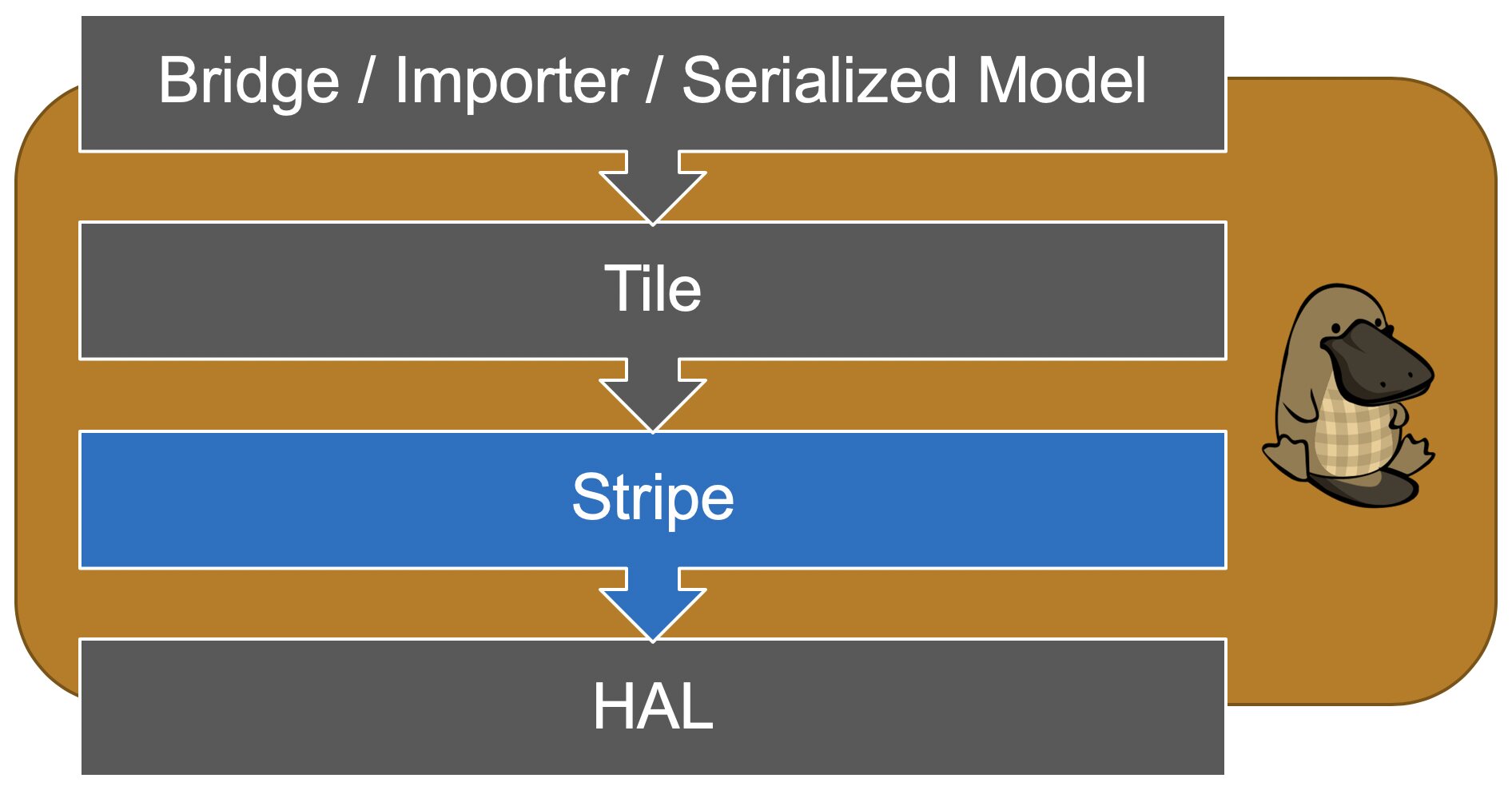

3.4 Stripe in PlaidML
, Keras, or ONNX  into Tile, which is PlaidML’s high-level IR representing ML operations in a form reminiscent of Einstein notation. Gradients are computed in Tile if desired, and this Tile code is lowered to Stripe in a general, hardware-agnostic form. Stripe code is then compiled via a series of optimization passes targeting the desired hardware, and the resultant code is lowered to a hardware abstraction layer, accelerator runtime, or other hardware-appropriate code.
4 Future Work
The most crucial future work will be to verify the performance of a variety networks compiled through Stripe on a variety of hardware targets. We are eager to share our approach with the broader community, and we believe that performance for various GPU targets with our pre-Stripe, fixed compilation pass technology demonstrates that Stripe is well-positioned to automatically generate high performance ML kernels. Nonetheless, producing benchmarks for full, modern networks on state-of-the-art hardware is critical. We are actively working on such benchmarks and will be publishing them.
We will also continue to release Stripe on the open source PlaidML GitHub repository. Most notably, while we have released preliminary versions of Stripe already, we do not yet have a release that uses Stripe as part of the main PlaidML compilation pipeline. Producing such a release will be key to making the Stripe IR useful to the open source community.
MLIR  is an upcoming compiler infrastructure providing an IR with multiple “dialects”. This allows IRs of various forms to all be embedded as dialects within a broader MLIR infrastructure, improving inter-operability and optimization pass reuse. From our current understanding of MLIR we believe that both Stripe and MLIR would benefit from adding Stripe as an MLIR dialect. In particular, we expect this would provide better integration of Stripe with other stages of the machine learning code generation and execution pipeline, and would enable greater sharing of optimization passes between Stripe and other compilers.
We hope the extensible nature of Stripe’s optimization passes will enable new optimization techniques expressed in the Nested Polyhedral Model to be added to Stripe.
In this paper, we introduced a domain-specific IR called Stripe that uses the Nested Polyhedral Model to enable automatic generation of machine learning kernels for a variety of hardware targets. We presented the mathematical underpinnings of the Nested Polyhedral Model, and discussed how it restricts legal schedules that model the extreme parallelism available in machine learning, and how it uses a nesting structure analogous to patterns common in loop nest optimizations and accelerator topologies. We described how a compiler based on Stripe enables powerful, extensible, and configurable optimizations to be developed independently of the machine learning operations and algorithms being optimized.
We would like to gratefully acknowledge the contributions and feedback of a number of people without whom this paper would not have been possible. Particular thanks to Leona Cook for editing, and thanks to Madhur Amilkanthwar, Priya Arora, Mikaël Bourges-Sévenier, Cormac Brick, Diego Caballero, Namrata Choudhury, Rob Earhart, Frank Laub, Alessandro Palla, Brian Retford, Mars Saxman, Yao Shi, and Matt Westervelt.
