Streaming End-to-End ASR based on Blockwise Non-Autoregressive Models

07/20/2021 ∙ by Tianzi Wang, et al. ∙ yahoo Johns Hopkins University Carnegie Mellon University 0

Non-autoregressive (NAR) modeling has gained more and more attention in speech processing. With recent state-of-the-art attention-based automatic speech recognition (ASR) structure, NAR can realize promising real-time factor (RTF) improvement with only small degradation of accuracy compared to the autoregressive (AR) models. However, the recognition inference needs to wait for the completion of a full speech utterance, which limits their applications on low latency scenarios. To address this issue, we propose a novel end-to-end streaming NAR speech recognition system by combining blockwise-attention and connectionist temporal classification with mask-predict (Mask-CTC) NAR. During inference, the input audio is separated into small blocks and then processed in a blockwise streaming way. To address the insertion and deletion error at the edge of the output of each block, we apply an overlapping decoding strategy with a dynamic mapping trick that can produce more coherent sentences. Experimental results show that the proposed method improves online ASR recognition in low latency conditions compared to vanilla Mask-CTC. Moreover, it can achieve a much faster inference speed compared to the AR attention-based models. All of our codes will be publicly available at https://github.com/espnet/espnet.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Over the past years, the advances in deep learning have dramatically boosted the performance of end-to-end (E2E) automatic speech recognition (ASR)

[graves2006connectionist, graves2012sequence, chorowski2014end]. Most of these E2E-ASR studies were based on autoregressive (AR) models and they achieved state-of-the-art performance [gulati2020Conformer]. However, there is a disadvantage of the AR models in that the inference time linearly increases with the output length. Recently, non-autoregressive (NAR) models has gained more and more attention in sequence-to-sequence tasks, including machine translation [gu2017non, libovicky2018end, ghazvininejad2019mask], speech recognition (ASR) [graves2006connectionist, chan2020imputer, fujita2020insertion, chi2020align, fan2020cass], and speech translation [inaguma2020orthros]. In contrast to the AR modeling, NAR modeling can predict the output tokens concurrently, the inference speed of which is dramatically faster than AR modeling. Especially, connectionist temporal classification (CTC) is a popular and simple NAR modeling [graves2006connectionist, libovicky2018end]. However, CTC makes a strong conditional independent assumptions between the predicted tokens, leading to an inferior performance compared to the AR attention-based models [battenberg2017exploring].

To overcome this issue, several NAR studies have been proposed in the ASR field. A-FMLM[chen2019listen]

is designed to predict the masked tokens conditioning on the unmasked ones and the input speech. However, it needs to first predict the output length, which is difficult and easily leads to a long output sequence. Imputer

[chan2020imputer] directly used the length of input feature sequence to address the issue and achieves comparable performance with AR models, but the computational cost can be very large. ST-NAR [tian2020spike] used CTC to predict the target length and to guide the decoding. It is fast but suffers from large accuracy degradation compared with AR models. Different from previous methods, Mask-CTC [higuchi2020mask] first generates the output tokens with greedy decode of a CTC, and then refines the tokens which have low confidence by a mask-predict decoder [ghazvininejad2019mask]. Mask-CTC usually predicts sequences with reasonable length and can achieve a fast inference speed, 7x faster than the AR attention-based model.

In addition to fast inference, latency is an important factor to be considered for the ASR system used in a real-time speech interface. There have been a lot of prior studies for low-latency E2E ASR based on Recurrent Neural Networks Transducer (RNN-T)

[graves2012sequence, battenberg2017exploring, tripathi2020transformer, jain2019rnn] and online attention-based encoder decoder (AED) with AR models, such as monotonic chunkwise attention (MoChA) [chiu2017monotonic, inaguma2020enhancing], triggered attention [moritz2020streaming], and blockwise-attention [miao2020transformer, tsunoo2020streaming].

Motivated by such online AR AED studies and emergent NAR research trends, we propose a novel end-to-end streaming NAR speech recognition system, by combining the blockwise-attention and Mask-CTC models. During inference, the input audio is first separated into small blocks with overlap between consecutive blocks. CTC firstly predicts the preliminary tokens per block with an efficient greedy forward pass based on the output of a blockwise-attention encoder. To address the insertion and deletion error of CTC outputs frequently appeared at the boundary of each block, we apply a dynamic overlapping strategy [chiu2019comparison] to produce coherent sentences. Then, low-confidence tokens are masked and re-predicted by a mask-predict NAR decoder [higuchi2020improved] conditioning on the rest tokens. The greedy CTC, dynamic overlapping decoding, and mask-prediction all perform very fast, thus can achieve quite low RTF. We evaluated our approach on TEDLIUM2 [rousseau2014enhancing] and AISHELL1 [bu2017aishell]. Compared to vanilla full-attention Mask-CTC, our proposed method decreases the online ASR recognition error rate in a low latency condition, with very fast inference speed. To the best of our knowledge, this is the first work that extending the NAR mechanism into streaming ASR.

1.1 Relationship with other streaming ASR studies

The most important success of streaming ASR recently is RNN-T and its variants. RNN-T based systems achieve state-of-the-art ASR performance for streaming applications and are successfully deployed in production systems[tripathi2020transformer, jain2019rnn, li2020towards, mahadeokar2021alignment]. However, the recurrent mechanism predicts the token of the current input frame based on all previous tokens using recurrent layers, to which NAR cannot be easily applied. Besides, several ideas in this paper are inspired from online AR AED architectures[chiu2019comparison, miao2020transformer, tsunoo2020streaming], since they have more technical connections with NAR models based on the similar encoder-decoder framework.

2 Mask-CTC

Mask-CTC is a non-autoregressive model trained with both CTC objective and mask-prediction objective [higuchi2020mask]

, where the mask-predict decoder predicts the masked tokens based on CTC output tokens and encoder output. CTC predicts a frame-level input-output alignment based on conditional independence assumption between frames. It models the probability

of output sequence by summing up all possible alignments, where denotes the sequence of output and denotes the input audio. However, due to the conditional independence assumption, CTC loses the ability of modeling correlations between output tokens and consequently loses performance.

Mask-CTC was designed to mitigate this issue by adopting an attention-based decoder as a masked language model (MLM) [ghazvininejad2019mask, chen2019nonautoregressive], and iterative refining the output of CTC greedy decoding. During training, the tokens in the ground-truth are randomly selected and replaced by a special token. Then the decoder is trained to predict the actual tokens at the masked positions, , conditioning on the rest unmasked tokens, , and attention-based encoder output. .

(1)
(2)

where the denotes a multi-headed self-attention based encoder. The Mask-CTC model is optimized by a weighted sum of the CTC and MLM objectives:

(3)

where is a tunable hyper-parameter.

3 Streaming NAR

The overall architecture of the proposed E2E streaming NAR speech recognition system is shown in Figure 1. The main difference compared with Mask-CTC is that the normal MHSA-based encoder (e.g. Transformer/Conformer) as shown in Eq. (1) is replaced by a blockwise-attention encoder to make the model streamable.

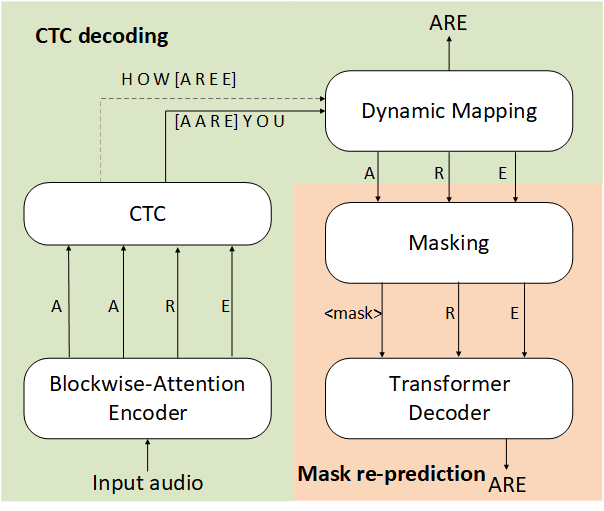

Figure 1: Architecture of proposed streaming NAR
