1 Introduction

Text is widely present in different design and scene images. It contains important information for the readers. However, if any alteration is required in a text present in an image, it becomes extremely difficult for several reasons. In one hand, a limited observation of character samples makes it difficult to predict the other characters that might be required for the editing; on the other hand, different real world conditions, like scene lighting, perspective distortions, background information, font etc., make a direct replacement of known or unknown characters even harder. The main motivation of this work is to design an algorithm for editing text information present in images that can work simply like conventional text editors, like notepad or MS Word.

Earlier, researchers have proposed font synthesis algorithms based on different geometrical features of fonts [1, 2, 3]

. These geometrical models neither generalize the wide variety of available fonts, nor can be applied directly to an image for character synthesis. Later, researchers have addressed the problem of generating unobserved characters of a particular font from some defined or random set of observations using deep learning algorithms

[4, 5, 6]. With the rise of generative adversarial networks (GAN), the problem of character synthesis has also been addressed using GAN-based algorithms [7, 8]

. Though GAN based font synthesis could be used to estimate the target character, there are several challenges that make direct implementation of font synthesis for scene images difficult. First of all, most of GAN-based font synthesis models demand an explicit recognition of the source character. As recognition of text in scene images is itself a challenging problem, it is preferable if the target characters can be generated without a recognition step. Otherwise, any error in recognition process would accumulate, and make the entire text editing process unstable. Secondly, it is often observed that a particular word in an image may have mixture of different font types, sizes, colors, widths etc. Even depending on the relative location of the camera and the texts in the scene, each character may experience different amount of perspective distortions. Some GAN based models

[7, 8] require multiple observations of a font-type to faithfully generate the other unobserved characters. A multiple observation based generation of target characters requires a rigorous distortion removal before the application of a generative algorithm. Thus, rather than a word-level generation, we follow a character-level generative model to accommodate maximum flexibility.

Figure 1: Examples of text editing results using STEFANN: (a) Original images from ICDAR2013 dataset; (b) Edited images. It can be observed that STEFANN can edit multiple characters in a word (top row) as well as an entire word (bottom row) in a text region.

1.1 Main contributions

To the best of our knowledge, this is the first work that attempts to modify texts in scene images. For this purpose we design a generative network that adapts the font features from single character and generates other necessary character(s). We also propose a model to transfer color of the source character to generated target character. The entire process works without any explicit recognition of the characters. Like conventional text editors, the method requires minimum user inputs to edit a text in the image. To restrict the complexity of our problem, we limit our discussion to the scene texts with upper-case non-overlapping characters. However, we demonstrate that the proposed method can also be applied for lower-case characters.

2 Related Works

Because of its large potential, character synthesis from a few examples is a well-known problem. Previously, several Pieces of work tried to address the problem using geometrical modeling of fonts [1, 2, 3]. Different synthesis models are also proposed by researchers explicitly for Chinese font generation [8, 9]. Along with statistical models [2] and bilinear factorization [10]

, machine learning algorithms are used to transfer font features. Recently, deep learning techniques also become popular in font synthesis problem. Supervised

[6] and definite samples [4] of observations are used to generate the unknown samples using deep neural architecture. Recently, GAN-based generative models are found to be effective in different image synthesis problems. GAN can be used in image style transfer [11], structure generation [12] or in both [7]. Some of these algorithms achieved promising results in generating font structures [5, 8], whereas some exhibits the potential to generate complex fonts with color [7]. To the best of our knowledge, these generative algorithms work with text images that are produced using design softwares, and their applicability to edit real scene images are unknown. Moreover, most of the algorithms [7, 4] require explicit recognition of the source characters to generate the unseen character set. This may create difficulty in our problem as text recognition in scene images is itself a challenging problem [13, 14, 15], and any error in recognition step may ruin the entire generative process. Character generation from multiple observations is also challenging for scene images as the observations may have different fonts, or may simply have different scaling and perspective distortions.

Convolutional neural network (CNN) is proved to be effective in style transfer in generative models [11, 16, 17]. Recently, CNN models are used to generate style and structure with different visual features [18]. We propose a CNN based character generation network that works without any explicit recognition of the source characters. For a natural looking generation, it is important that the color of the source character can be transferred faithfully to the generated character. Color transfer is a popular topic in image processing [19, 20, 21]. Though these traditional approaches are good for transferring colors in images, most of them are inappropriate for transferring colors in character images. Recently GAN based models are also deployed in color transfer models [7, 22]. In this work, we include a CNN based color transfer model that takes the color information present in the source character, and transfer it to the generated target character. The proposed color transfer model not only transfers solid colors from source to target character, it can also transfer gradient colors keeping visual consistency.

3 Methodology

The flow of the proposed method can be broadly classified into following steps: (1) Selection of the character(s) to be replaced, (2) Generation of the binary target character(s), (3) Colorization, and (4) Placement of generated characters. In the first step, we select the text area that requires to be modified, and detect the bounding boxes of each character in the selected region. Next, the user selects the bounding box around the characters to be modified. The user also specifies the target characters that need to be placed. According to the user inputs, target characters are generated, colorized and placed in inpainted regions.

3.1 Selection of source character

Let us assume that is an image that has multiple text regions, and is the domain of a text region that requires modification. The region can be selected using any text detection algorithm [23, 24, 25]. Alternatively, an user can select the corner points of a polygon that bounds a word to define . In this work, we use EAST [26] to tentatively mark the text regions, followed by a quadrilateral corner selection to define . After selecting the text region, we apply MSER algorithm [27] to detect the binary masks of individual characters present in region

. However, MSER alone cannot generate a sharp mask for most of the characters. Thus, we calculate the final binarized image

defined as,

where is the binarized output of the MSER algorithm [27] applied on , is the binarized image of and denotes element-wise product of matrices. The image contains the binarized characters in the selected region . If the color of the source character is darker than its background, we apply image inversion on before generating .

Assuming the characters are non-overlapping, we apply a connected component analysis, and compute the minimum bounding rectangles of each connected component. If there are number of connected components present in a scene, denotes the connected area where . The bounding boxes contain the same indices of the connected areas that they are bounding. User specifies the indices that they wish to edit. We define as the set of indices that require modification, such that , where denotes cardinality of a set. The binarized images associated with components ,

are the source characters, and with proper padding (discussed in the following section), they individually act as the input of the font generative network. Each

has the same dimension with the bounding box .

3.2 Generation of target character

Conventionally, most of the neural networks take square images as input. However, as may have different aspect ratios depending on several factors like source character, font type, font size etc., a direct resizing of would distort the actual font features present in the character. Rather, we pad maintaining its aspect ratio to generate a square binary image of size such that , where and are the height and width of bounding box respectively, and is a mathematical operation that finds the maximum value. We pad both sides of along and axes with and respectively to generate such that,

3.2.1 Font Adaptive Neural Network (FANnet)

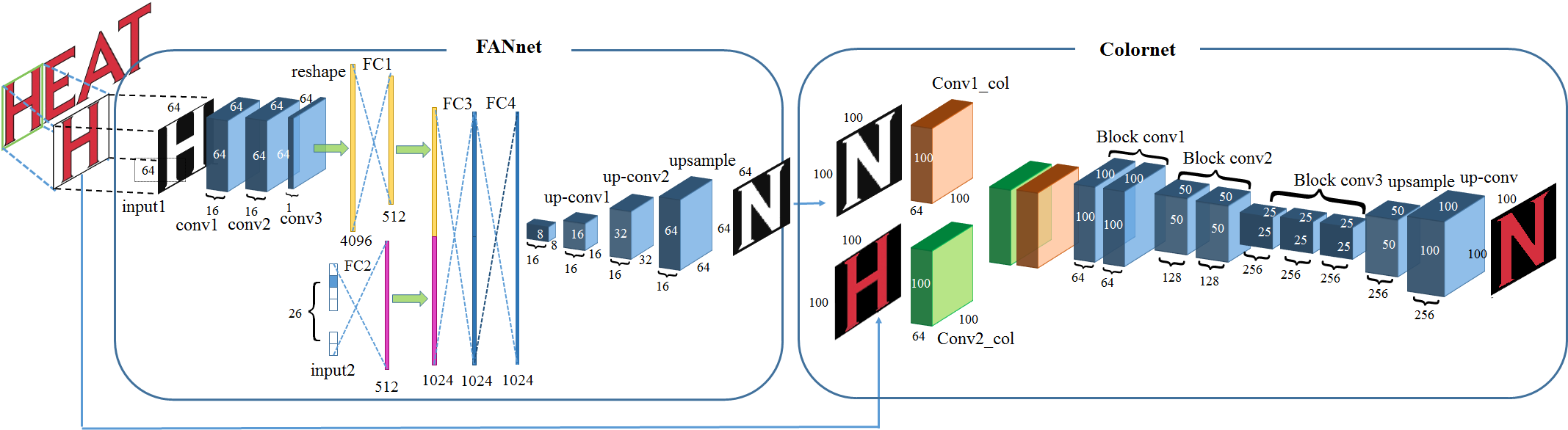

Figure 2: Architecture of STEFANN consisting of FANnet and Colornet to generate colored target character from colored source character. The figure shows how a source character (here ‘H’) is first used to generate a binary target character (here ‘N’), and how the color transfer takes place from source character to target character. Layer names in the figures are: conv (2D convlution), FC (fully connected), up-conv (upsampling + convolution).

Our generative font adaptive neural network (FANnet) takes two different input information. It takes an input image of dimension

. The other input indicates a one-hot encoded vector

of size where the index of the target character is encoded. For example, if our target character is ‘B’, then has the value 1 at the second position and zero in every other location. The input image passes through three convolution layers followed by a reshaping and a fully connected (FC) layer FC1. The encoded vector

also connects with a FC layer FC2. The outputs of FC1 and FC2 give a higher dimensional representation of the inputs. Outputs of FC1 and FC2 are concatenated and followed by two FC layers of 1024 neurons each. The expanding part of the representation contains two ‘upconv’ layers with 16 filters. Each ‘upconv’ layer contains a upsampling followed by a 2D convolution. The final layer contains an upconv layer with 1 filter. All the convolution layers have ReLU activation with kernel size

. The architecture of FANnet is depicted in Fig. 2. The network minimizes the mean absolute error (MAE) while training with Adam optimizer [28] with momentum parameters , and regularization parameter .

We train FANnet with 1000 fonts with all 26 uppercase character images as source images, and 26 different one-hot encoded vectors for each source images. It implies that for 1000 fonts, we train the model to generate any of the 26 uppercase target character images from any of the 26 uppercase source character images depending on the user preference. Thus, our training dataset has total 0.676 million input tuples. The validation set contains 0.202 million input tuples generated from 300 fonts. We select all the fonts from Google font database 111https://fonts.google.com/. We save the weights of the network layers where the MAE loss is minimum over the validation set. The output of FANnet is a grayscale image on which we apply Otsu thresholding to get binary target character image.

3.3 Color transfer

It is important to have a faithful transfer of color from source character for a visually consistent generation of target character. We propose a CNN based architecture, named Colornet, that takes two images as inputs – one source character image with color, and another image with binary target character, and generates target character image with transferred color.

3.3.1 Colornet

Each input image goes through 2D convolution layer with 64 filers of size . The convolution layers (layers Conv1_col and Conv2_col) have leaky-ReLU activation with

. The outputs of Conv1_col and Conv2_col are batch-normalized and concatenated, which is followed by three block convolution layers with two max-pooling layers in between. The expanding part of Colornet contains one upsampling layer and one upconv layer with 3 filters of size

. The architecture of Colornet is shown in Fig. 2. The network minimizes the mean absolute error (MAE) while training with Adam optimizer that has the same parameter settings as FANnet. We train it with synthetically generated image pairs. The color source image and the binary target image both are generated using same font type randomly selected from 1300 fonts. The source color image contains both solid and gradient colors so that the network can learn to transfer wide variety of color variation present in source images. Our training dataset has total 0.6 million input tuples and the validation set contains 0.2 million input tuples. We save the weights of the network layers where the MAE loss is minimum over the validation set. We perform an element-wise multiplication of the output of Colornet with the binary target image to get the final colorized target character image.

3.4 Character placement

Even after generation of target character, placement of it requires several careful operations. First we need to remove the source character from so that the generated target character can be placed. We use inpainting [29] using as mask to remove the character that needs to be edited, where is the dilation operation on any binary image using the structural element . In our experiments, we consider . To begin the target character placement, first the output of Colornet is resized to the dimension of . We consider that the resized color target character is with minimum rectangular bounding box . If is smaller (larger) than , then we need to remove (add) the region so that we have the space to position with proper inter-character spacing. We apply content aware seam carving technique [30] to manipulate the non-overlapping region. It is important to mention that if is smaller than then after seam carving, the entire text region will shrink to a region , and we also need to inpaint the region for consistency. However, both the regions and are considerably small, and are easy to inpaint for uppercase characters. Finally, we place the generated target character on seam curved image such that the centroid of overlaps with the centroid of .

4 Results

We tested our algorithm on well-known ICDAR dataset. The images in the dataset are scene images with texts written in different unknown fonts. In Figs. 3 and 4, we show some of the images from ICDAR dataset that are edited using STEFAAN. In each image pair, the left image is the original image and the right image is the edited image. In some of the images, several characters are edited in a particular text region, whereas in some images, several text regions are edited in a particular image. It can be observed that not only the font features and colors are transferred successfully to the target characters, but also the inter-character spacing is maintained in most of the cases. Though, all the images are natural scene images and contain different lighting conditions, fonts, perspective, backgrounds etc., in all the case STEFANN edited the images without almost any visible distortion.

Figure 3: Text editing results on ICDAR images using STEFANN. In each image pair, the left image is the original image and the right image is the edited image [Best viewed with 300% zoom in the digital version].
Figure 4: More images that are edited using STEFANN. In each image pair, the left image is the original image and the right image is the edited image [Best viewed with 300% zoom in the digital version].

To evaluate the performance of the proposed FANnet model, we give a particular source image and generate all the other characters for different fonts. The output for some randomly selected font-types are shown in Fig. 5. In this figure, we provide only the character image of ‘A’, and generate all the other characters successfully. It can be observed that the model is able to generate the characters maintaining the features of the input font. To quantify the generation quality of FANnet, we give only one source character at a time, and measure the average structural similarity index (SSIM) [31] of all 26 generated target characters for 300 test fonts. In Fig. 6, we show the average SSIM of the generated characters with respect to the index of the source characters. It can be seen that in overall generation, some characters, like ‘I’ and ‘L’, are less informative, whereas characters, like ‘B’ and ‘M’, are more informative in generative process. To further analyze the robustness of the generative model, we build another model with same architecture as described before, and train it with lower-case character images of same font database. The output of the model is shown in Fig. 7 (a) when only a lower-case character (character ‘a’) is given as the source image, and all the lower-case characters are generated. We also observe that the model can transfer some font features even when a lower-case (upper-case) character is provided as source character, and we try to generate the upper-case (lower-case) characters.

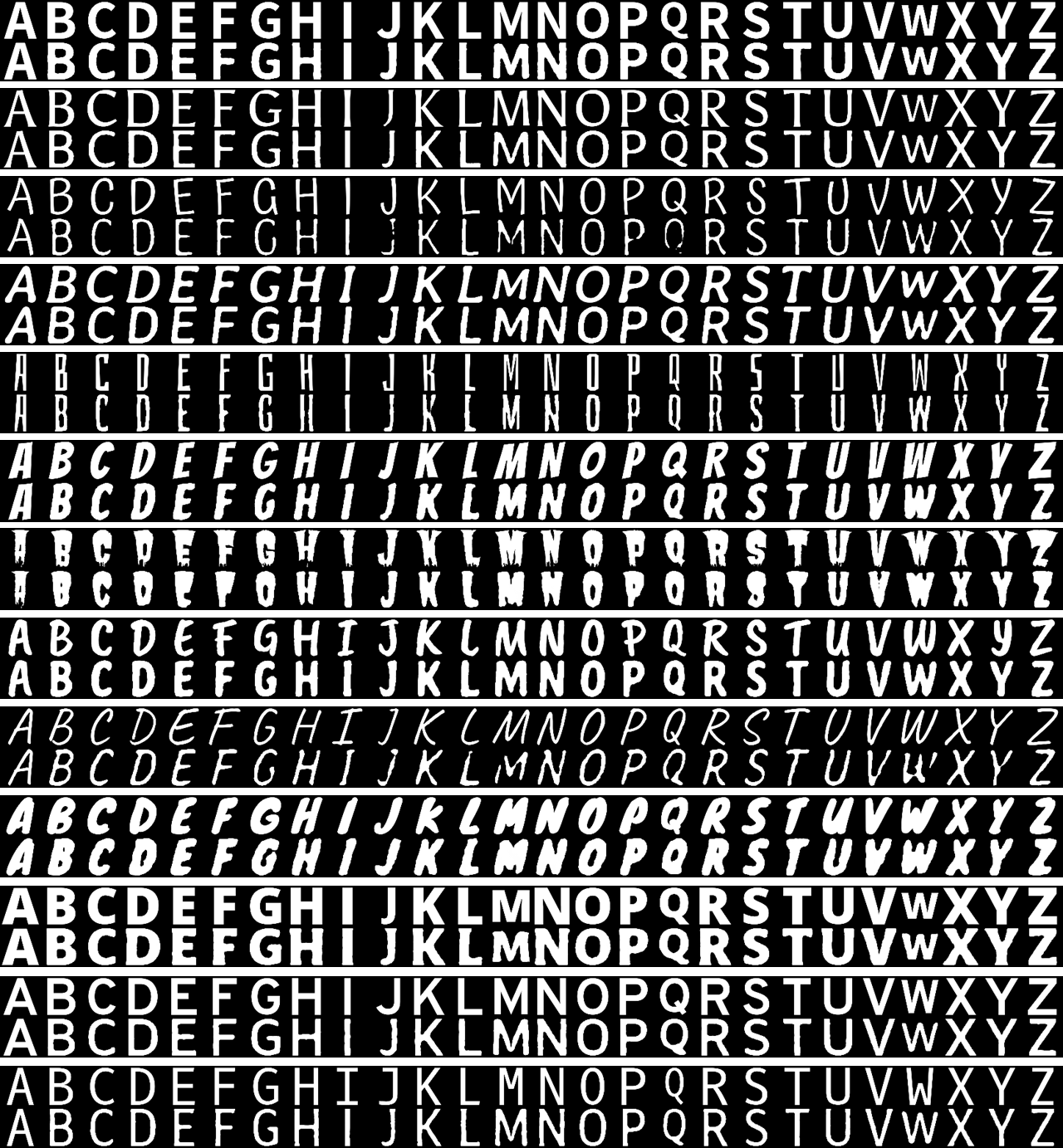

Figure 5: Generation of target characters using FANnet. In each image block, the upper row shows the ground truth and the lower row shows the generated characters when the network has observed one particular source character (character ‘A’) in each case.

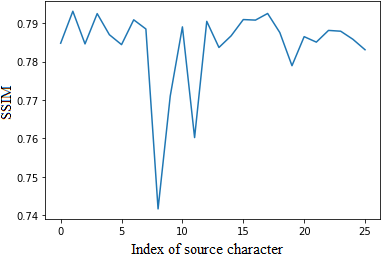

Figure 6: Average SSIM with respect to the index of source character.

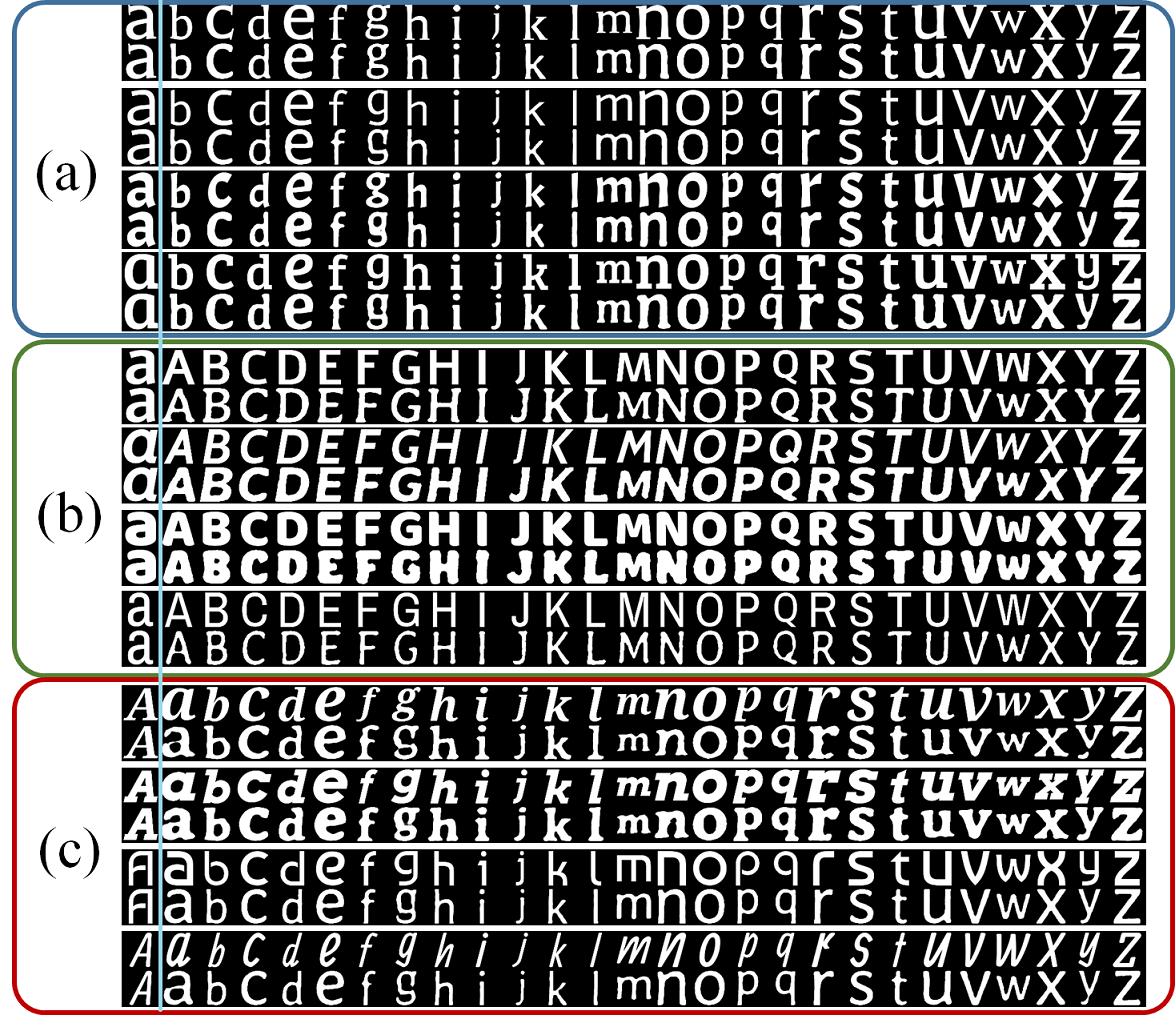

Figure 7: Additional generation results of target characters using FANnet: In each image block, the upper row shows the ground truth, and the lower row shows the generated characters when the network has observed only one particular (a) lower-case source character (character ‘a’); (b) lower-case source character (character ‘a’), and it tries to generate upper-case target characters; (c) upper-case source character (character ‘A’), and it tries to generate lower-case target characters.

The performance of Colornet is shown in Fig. 8 for both solid colors and gradient colors. It can be observed that in both cases, Colornet can transfer the color of the source characters to the respective generated target characters faithfully. The model works equally well for all alphanumeric characters including lower-case texts. To understand the functionality of the layers in Colornet, we perform an ablation study, and select the best model architecture that faithfully transfers the color. Along with proposed Colornet architecture, we compare a modified architecture Colornet-l where we remove the Block conv3 layer along with one upsampling layer, and another architecture Colornet-f that has the same architecture with the proposed Colornet model but with 16 filters in both Conv1_col and Conv2_col layers. The results of color transfer for some input tuples are shown in Fig.9 for these three models. It can be observed that Colornet-l produces visible color distortion in the generated images, whereas some of the color information are not present in the images generated by Colornet-f.

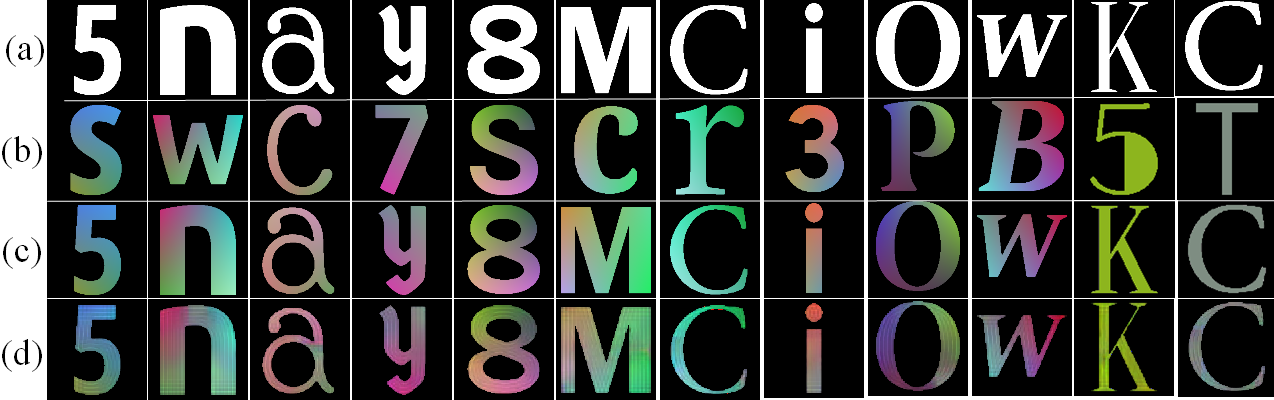

Figure 8: Color transfer using Colornet: (a) binary target character image; (b) Color source character image; (c) Ground truth; (d) color transferred image. It can be observed that Colornet can successfully transfer gradient color as well as flat color.

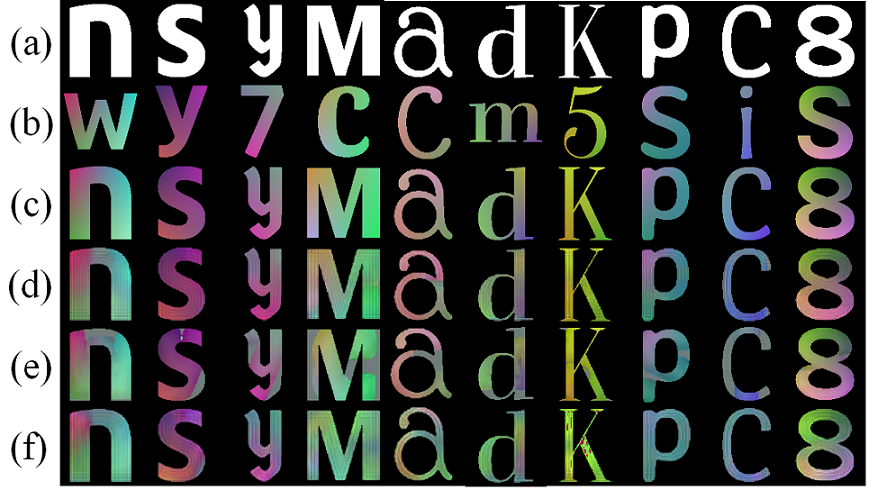

Figure 9: Colornet ablation study with for different models: (a) and (b) input tuples; (c) ground truth; (d) output of proposed Colornet model; (e) output of Colornet-l; (f) Output of Colornet-f.

Automatic seam carving of the text region is one of the important steps to perform perceptually consistent modifications maintaining the inter-character distance. Seam carving is particularly required when the target character is ‘I’. It can be observed from Fig. 10 that the edited images with seam carving looks visually more consistent than the edited images without seam carving.

Figure 10: Effectiveness of seam carving. In each block, original image is in top, edited image without seaming operation is in middle, and edited image with seaming operation is in bottom [Best viewed with 300% zoom in the digital version].

5 Discussion and Conclusion

To the best of our knowledge, this is the first attempt to develop a unified platform that can edit text in images as a normal text editor with consistent font features. The proposed FANnet architecture can also be used to generate lower-case target characters. However, after the color transfer process, it is difficult to predict the size of the lower-case target character just from the lower-case source character. It is mainly because lower-case characters are placed in different ‘text zones’ [32], and the generated target character may not be replaced directly if the source character and the target character are not from same text zone. In Fig. 11, we show some images where we edit the lowercase characters with STEFANN. In Fig. 12, we also show some cases where STEFANN fails to edit the text faithfully. The major reason behind the failed cases are the inappropriate generation of target characters. In some cases, the generated characters are not consistent with the same characters present in the scenes (Fig. 11(a)), whereas in some cases the font features are not transferred properly into the generated texts (Fig. 11(b)). In all the images that are edited and shown in this paper, the number of characters in a text region is not changed. The main limitation of the present methodology is that the font generative model FANnet generates images with dimension

. While editing high resolution text regions, a rigourous upsamling is often required to match the size of source character. This may include sever distortion in shape of the upsampled target character due to interpolation. In future, we plan to integrate super-resolution after generating the colored target character to generate very high resolution character images that are necessary to edit many design files.

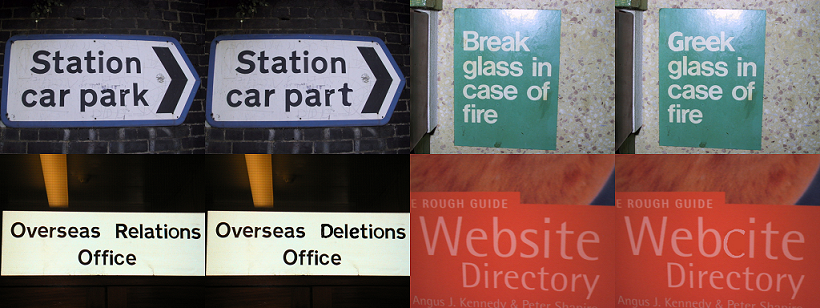

Figure 11: Some images where lower-case characters are edited using STEFANN [Best viewed with 300% zoom in the digital version].
Figure 12: Some images where STEFANN fails to edit text with visual consistency [Best viewed with 300% zoom in the digital version].
