State-switching control of the second-order chained form system

05/22/2020
by   Masahide Ito, et al.
0

This paper addresses a motion planning problem of the second-order chained form system. The author presents a novel control approach based on switching a state. The second-order chained form system is composed of three subsystems including two double integrators and a nonlinear system. Switching a single state of the double integrators can modify the nature of the nonlinear system. Such state-switching and sinusoidal control construct the basis of the proposed control approach. The effectiveness is validated by a simulation result.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

11/30/2017

Strategic Topology Switching for Security-Part I: Consensus & Switching Times

This two-part paper considers strategic topology switching for the secon...
04/24/2018

Feedback Synthesis For Underactuated Systems Using Sequential Second-Order Needle Variations

This paper derives nonlinear feedback control synthesis for general cont...
04/27/2021

An Event-based Parameter Switching Method for Controlling Cybersecurity Dynamics

This paper proposes a new event-based parameter switching method for the...
07/18/2016

Evaluation of binomial double sums involving absolute values

We show that double sums of the form ∑_i,j=-n ^n |i^sj^t(i^k-j^k)^β| 2n...
11/30/2017

Strategic Topology Switching for Security-Part II: Detection & Switching Topologies

This two-part paper considers strategic topology switching for the secon...
08/20/2020

Switching Model Predictive Control for Online Structural Reformations of a Foldable Quadrotor

The aim of this article is the formulation of a switching model predicti...
09/04/2017

Consensus of second order multi-agents with actuator saturation and asynchronous time-delays

This article presents the consensus of a saturated second order multi-ag...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Nonlinear dynamical systems with non-integrable differential constraints, the so-called nonholonomic systems, have been attracting many researchers and engineers for the last three decades. A theorem in Brockett (1983) gave a challenging and negative fact that there does not exist any smooth time-invariant feedback control law to be able to stabilize nonholonomic systems. The applications include various types of robotic vehicles and manipulation. Some of them have been often used as a kind of benchmark platform to demonstrate the performance of a proposed controller for not only a control problem of a single robotic system and also a distributed control problem of multiagent robotic systems.

A V/STOL aircraft without gravity (Hauser et al. (1992)), an underactuated manipulator (Arai et al. (1998)), and an underactuated hovercraft (He et al. (2016)) belong to a class of dynamic nonholonomic systems which are subject to acceleration constraints. The mathematical representation of these systems can be transformed to the second-order chained form by a coordinate and input transformation. The second-order chained form is a canonical form for dynamic nonholonomic systems.

Several control approaches to the second-order chained-form system have been developed so far. Most of them focuses on avoiding the theorem of Brockett (1983). Ge et al. (2001) and He et al. (2016) exploit discontinuity in their stabilizing controllers; De Luca and Oriolo (2002) and Aneke et al. (2003) reduce the control problem into a trajectory tracking problem. Other than those, Yoshikawa et al. (2000) and Ito (2019) consider a motion planning problem (in other words, a feedforward control problem).

For motion planning of the second-order chained form system, this paper presents a novel control approach based on switching a state. The second-order chained form system is divided into three subsystems. Two of them are the so-called double integrators; the other subsystem is a nonlinear system depending on one of the double integrators. In other words, the input matrix of the latter subsystem depends on a single state of the double integrators. The double integrator is linearly controllable, which enables to switch the value of the position state in order to modify the nature of the nonlinear subsystem. Steering the value into one corresponds to modifying the nonlinear subsystem into the double integrator; steering the value into zero corresponds to modifying the nonlinear subsystem into a linear autonomous system. This nature is the basis of the proposed control approach. The proposed approach is composed of such state-switching and also sinusoidal control inputs. Its effectiveness is validated by a simulation result.

2 Subsystem Decomposition of the Second-Order Chained Form System

Consider the following second-order chained form system:

(1)

where and

. By defining a state vector as

, the system (1) is described as

(2)

This affine nonlinear system (2) has equilibrium points at with . By using the theorem of Sussmann (1987), we can easily confirm that the system (2) (or (1)) is small-time local controllable at .

From the viewpoint to separate the control inputs, the system (1) is divided into the following two subsystems:

(3a)
(3b)

The subsystem (3a) is a second-order linear system—the so-called double integrator; the subsystem (3b) looks a four-order linear system but its input matrix  depends on a state . The subsystem (3b) is furthermore decomposed to the following subsystems:

(4a)
(4b)

The next section introduces the proposed control approach based on the above-mentioned subsystem decomposition.

3 State-Switching Control Approach

The section addresses a motion planning problem between equilibrium points of the second-order chained form system (1).

The author presents a control approach based on the subsystem decomposition that divides the second-order chained form system (1) into the three subsystems (3a), (4a), and (4b). The input matrix of the subsystem (4b) depends on a state of the subsystem (3a), . The state can be constant by a control input because the subsystem (3a) is linear controllable.

Now let us consider that between and is switched. When is equivalent to , the subsystems (4a) and (4b) are completely same under a shared control input

. The shared control input brings that the state differences between those controlled subsystems then depend on their values at the moment when

just becomes In meanwhile, when is equivalent to , the subsystem (4a) can be controlled independently of another subsystem (4b).

From this perspective, the author conceived the following basic maneuver for the above-mentioned motion planning problem:

  1. [ label=Step 0),leftmargin=5em,labelsep=.5em,itemsep=0em]

  2. Steer from any initial value to by using ;

  3. Steer from any initial value to any desired value (in conjunction with it, is also driven) by using ;

  4. Steer from to by using ;

  5. Steer from a value to any desired value by using ;

  6. Steer from to any desired value by using ,

where is an appropriate sinusoidal function in the -th phase (). Note that sinusoidal steering is inspired by the result of Ito (2019).

Some conventional approaches such as in Aneke et al. (2003) and Hably and Marchand (2014) also exploit similar (but different) subsystem decomposition. Note that those approaches focus on not motion planning but stabilizing (via trajectory tracking).

4 Numerical Example

A numerical example is shown to demonstrate the effectiveness of the proposed control approach.

Consider a motion planning problem between and . The basic maneuver is adjusted as follows:

  1. [ label=Step 0),leftmargin=5em,labelsep=.5em,itemsep=0em]

  2. Steer using from to ;

  3. Steer from to ;

  4. Steer from to ;

  5. Steer from a resultant value in Step 2 to .

To execute this procedure, the following control inputs were adopted:

(5)

Figure 1 depicts a simulation result with , , , , and . It is obvious that the desired motion is successfully planned. The proposed control approach, therefore, was confirmed to be useful for motion planning. The results of the conventional approaches such as in Aneke et al. (2003) and Hably and Marchand (2014) imply that the proposed approach can be (partially) combined with stabilization and trajectory tracking.

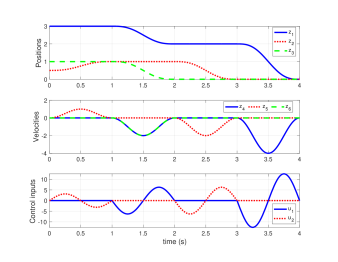

Figure 1: Time plots.
