Digital image processing arose from the recognition that handcrafted linear filters applied convolutionally to pixelated imagery may subserve a large variety of applications gonzalez2002digital . The success of digital image processing as well as biological considerations fukushima1980neocognitron ; fukushima1988neocognitron
inspired early practitioners of neural networks to exploit convolutional representations in order to provide parameter-efficient architectures for learning representations on imageslecun1989backpropagation ; lecun1998gradient .
made convolution neural networks (CNNs) the backbone for many computer vision applicationskrizhevsky2009learning ; krizhevsky2012imagenet ; lecun2015deep
. The field of deep learning has in turn largely shifted toward the design of architectures of CNNs for improving the performance on image recognitionszegedy2015going ; szegedy2016rethinking ; identity-mappings ; xie2016aggregated ; he2015deep ; zoph2018learning , object detection lin2016feature ; lin2017focal ; faster_rcnn and image segmentation chen2018deeplab ; chen2018searching ; he2017mask . The translation equivariance property of convolutions has provided a strong motivation for adopting them as a building block for operating on images simoncelli2001natural ; ruderman1994statistics . However, capturing long range interactions for convolutions is challenging because of their poor scaling properties with respect to large receptive fields.
The problem of long range interactions has been tackled in sequence modeling through the use of attention. Attention has enjoyed rich success in tasks such as language modeling vaswani2017attention ; wu2016google , speech recognition chorowski2015attention ; chan2016listen and neural captioning xu2015show . Recently, attention modules have been employed in discriminative computer vision models to boost the performance of traditional CNNs. Most notably, a channel-based attention mechanism termed Squeeze-Excite may be applied to selectively modulate the scale of CNN channels hu2017squeeze ; tan2018mnasnet . Likewise, spatially-aware attention mechanisms have been used to augment CNN architectures to provide contextual information for improving object detection wang2018non and image classification bello2019 ; hu2018gather ; hu2019local . These works have used global attention layers as an add-on to existing convolutional models. This global form attends to all spatial locations of an input, limiting its usage to small inputs which typically require significant downsampling of the original image.
In this work, we ask the question if content-based interactions can serve as the primary primitive of vision models instead of acting as an augmentation to convolution. To this end, we develop a simple local self-attention layer that can be used for both small and large inputs. We leverage this stand-alone attention layer to build a fully attentional vision model that outperforms the convolutional baseline for both image classification and object detection while being parameter and compute efficient. Furthermore, we conduct a number of ablations to better understand stand-alone attention. We hope that this result will spur new research directions focused on exploring content-based interactions as a mechanism for improving vision models.
Convolutional neural networks (CNNs) are typically employed with small neighborhoods (i.e. kernel sizes) to encourage the network to learn local correlation structures within a particular layer. Given an input with height , width , and input channels , a local neighborhood around a pixel is extracted with spatial extent , resulting in a region with shape (see Figure 2).

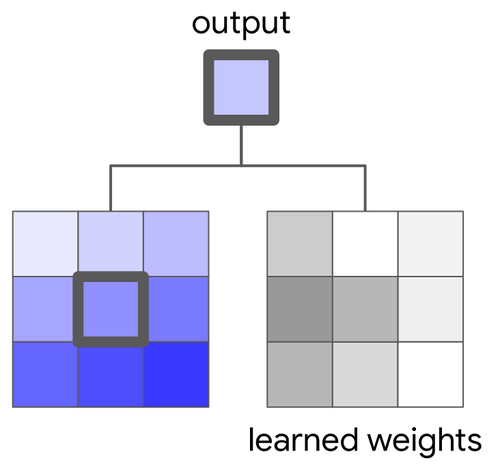

Given a learned weight matrix , the output for position is defined by spatially summing the product of depthwise matrix multiplications of the input values:
where (see Figure 2). Importantly, CNNs employ weight sharing, where is reused for generating the output for all pixel positions . Weight sharing enforces translation equivariance in the learned representation and consequently decouples the parameter count of the convolution from the input size.
A wide array of machine learning applications have leveraged convolutions to achieve competitive results including text-to-speechoord2016wavenet and generative sequence models salimans2017pixelcnn++ ; convseq2seq . Several efforts have reformulated convolutions to improve the predictive performance or the computational efficiency of a model. Notably, depthwise-separable convolutions provide a low-rank factorization of spatial and channel interactions sifre2014rigid ; BatchNorm ; chollet2016xception . Such factorizations have allowed for the deployment of modern CNNs on mobile and edge computing devices howard2017mobilenets ; sandler2018mobilenetv2 . Likewise, relaxing translation equivariance has been explored in locally connected networks for various vision applications bartunov2018assessing .
Attention was introduced by bahdanau2014neural for the encoder-decoder in a neural sequence transduction model to allow for content-based summarization of information from a variable length source sentence. The ability of attention to learn to focus on important regions within a context has made it a critical component in neural transduction models for several modalities wu2016google ; xu2015show ; chorowski2015attention . Using attention as a primary mechanism for representation learning has seen widespread adoption in deep learning after vaswani2017attention , which entirely replaced recurrence with self-attention. Self-attention is defined as attention applied to a single context instead of across multiple contexts (in other words, the query, keys, and values, as defined later in this section, are all extracted from the same context). The ability of self-attention to directly model long-distance interactions and its parallelizability, which leverages the strengths of modern hardware, has led to state-of-the-art models for various tasks huang2018improved ; radford2019language ; devlin2018bert ; parmar2018image ; shazeer2018mesh ; shaw2018self .
An emerging theme of augmenting convolution models with self-attention has yielded gains in several vision tasks. wang2018non show that self-attention is an instantiation of non-local means Buades:2005:NAI:1068508.1069066 and use it to achieve gains in video classification and object detection. chen20182 also show improvements on image classification and achieve state-of-the-art results on video action recognition tasks with a variant of non-local means. Concurrently, bello2019 also see significant gains in object detection and image classification through augmenting convolutional features with global self-attention features. This paper goes beyond bello2019 by removing convolutions and employing local self-attention across the entirety of the network. Another concurrent work hu2019local explores a similar line of thinking by proposing a new content-based layer to be used across the model. This approach is complementary to our focus on directly leveraging existing forms of self-attention for use across the vision model.
We now describe a stand-alone self-attention layer that can be used to replace spatial convolutions and build a fully attentional model. The attention layer is developed with a focus on simplicity by reusing innovations explored in prior works, and we leave it up to future work to develop novel attentional forms.

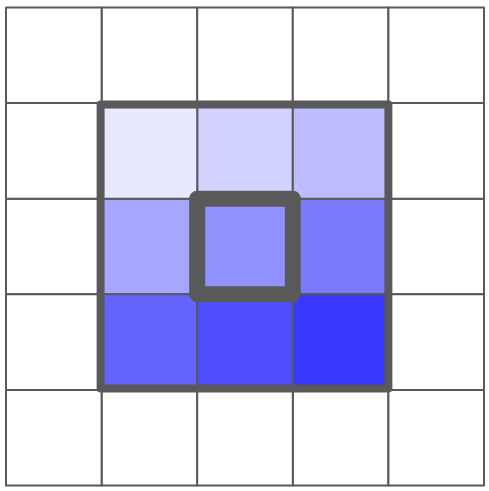

Similar to a convolution, given a pixel , we first extract a local region of pixels in positions with spatial extent centered around , which we call the memory block. This form of local attention differs from prior work exploring attention in vision which have performed global (i.e., all-to-all) attention between all pixels wang2018non ; bello2019 . Global attention can only be used after significant spatial downsampling has been applied to the input because it is computationally expensive, which prevents its usage across all layers in a fully attentional model.

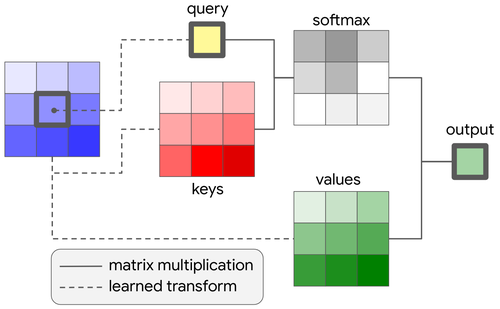

Single-headed attention for computing the pixel output is then computed as follows (see Figure 4):
where the queries , keys , and values
are linear transformations of the pixel in positionand the neighborhood pixels.
denotes a softmax applied to all logits computed in the neighborhood of. are all learned transforms. While local self-attention aggregates spatial information over neighborhoods similar to convolutions (Equation 1
), the aggregation is done with a convex combination of value vectors with mixing weights () parametrized by content interactions. This computation is repeated for every pixel . In practice, multiple attention heads are used to learn multiple distinct representations of the input. It works by partitioning the pixel features depthwise into groups , computing single-headed attention on each group separately as above with different transforms per head, and then concatenating the output representations into the final output .

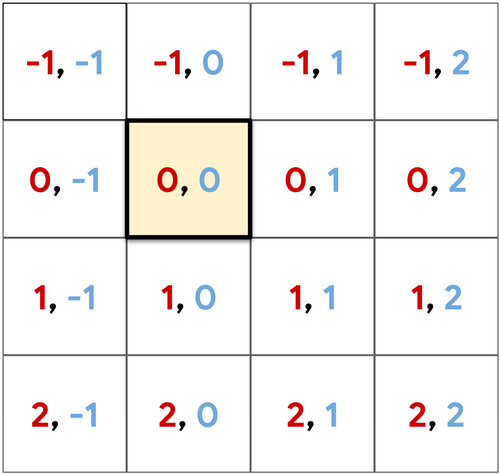

As currently framed, no positional information is encoded in attention, which makes it permutation equivariant, limiting expressivity for vision tasks. Sinusoidal embeddings based on the absolute position of pixels in an image () can be used vaswani2017attention , but early experimentation suggested that using relative positional embeddings shaw2018self ; huang2018improved results in significantly better accuracies. Instead, attention with 2D relative position embeddings, relative attention, is used. Relative attention starts by defining the relative distance of to each position . The relative distance is factorized across dimensions, so each element receives two distances: a row offset and column offset (see Figure 4). The row and column offsets are associated with an embedding and respectively each with dimension . The row and column offset embeddings are concatenated to form . This spatial-relative attention is now defined as
Thus, the logit measuring the similarity between the query and an element in is modulated both by the content of the element and the relative distance of the element from the query. Note that by infusing relative position information, self-attention also enjoys translation equivariance, similar to convolutions.
The parameter count of attention is independent of the size of spatial extent, whereas the parameter count for convolution grows quadratically with spatial extent. The computational cost of attention also grows slower with spatial extent compared to convolution with typical values of and . For example, if , a convolution layer with has the same computational cost as an attention layer with .
3 Fully Attentional Vision Models
Given a local attention layer as a primitive, the question is how to construct a fully attentional architecture. We achieve this in two steps:
3.1 Replacing Spatial Convolutions
A spatial convolution is defined as a convolution with spatial extent . This definition excludes convolutions, which may be viewed as a standard fully connected layer applied to each pixel independently.111Many deep learning libraries internally translate a convolution to a simple matrix multiplication. This work explores the straightforward strategy of creating a fully attentional vision model: take an existing convolutional architecture and replace every instance of a spatial convolution with an attention layer. A
average pooling with strideoperation follows the attention layer whenever spatial downsampling is required.
This work applies the transform on the ResNet family of architectures he2015deep . The core building block of a ResNet is a bottleneck block with a structure of a down-projection convolution, a spatial convolution, and a
up-projection convolution, followed by a residual connection between the input of the block and the output of the last convolution in the block. The bottleneck block is repeated multiple times to form the ResNet, with the output of one bottleneck block being the input of the next bottleneck block. The proposed transform swaps thespatial convolution with a self-attention layer as defined in Equation 3. All other structure, including the number of layers and when spatial downsampling is applied, is preserved. This transformation strategy is simple but possibly suboptimal. Crafting the architecture with attention as a core component, such as with architecture search zoph2017neural , holds the promise of deriving better architectures.
3.2 Replacing the Convolutional Stem
The initial layers of a CNN, sometimes referred to as the stem, play a critical role in learning local features such as edges, which later layers use to identify global objects. Due to input images being large, the stem typically differs from the core block, focusing on lightweight operations with spatial downsampling szegedy2015going ; he2015deep . For example, in a ResNet, the stem is a convolution with stride followed by max pooling with stride .
At the stem layer, the content is comprised of RGB pixels that are individually uninformative and heavily spatially correlated. This property makes learning useful features such as edge detectors difficult for content-based mechanisms such as self-attention. Our early experiments verify that using self-attention form described in Equation 3 in the stem underperforms compared to using the convolution stem of ResNet.
The distance based weight parametrization of convolutions allows them to easily learn edge dectectors and other local features necessary for higher layers. To bridge the gap between convolutions and self-attention while not significantly increasing computation, we inject distance based information in the pointwise convolution () through spatially-varying linear transformations. The new value transformation is where multiple value matrices are combined through a convex combination of factors that are a function of the position of the pixel in its neighborhood . The position dependent factors are similar to convolutions, which learn scalar weights dependent on the pixel location in a neighborhood. The stem is then comprised of the attention layer with spatially aware value features followed by max pooling. For simplicity, the attention receptive field aligns with the max pooling window. More details on the exact formulation of is given in the appendix.
4.1 ImageNet Classification
We perform experiments on ImageNet classification task russakovsky2014imagenet which contains 1.28 million training images and 50000 test images. The procedure described in Section 3.1 of replacing the spatial convolution layer with a self-attention layer from inside each bottleneck block of a ResNet-50 he2015deep model is used to create the attention model. The multi-head self-attention layer uses a spatial extent of and attention heads. The position-aware attention stem as described above is used. The stem performs self-attention within each
spatial block of the original image, followed by batch normalization and a
max pool operation. Exact hyperparameters can be found in the appendix.
To study the behavior of these models with different computational budgets, we scale the model either by width or depth. For width scaling, the base width is linearly multiplied by a given factor across all layers. For depth scaling, a given number of layers are removed from each layer group. There are 4 layer groups, each with multiple layers operating on the same spatial dimensions. Groups are delineated by spatial downsampling. The and layer models remove and layers respectively from each layer group compared to the layer model.
|Conv-stem + Attention||4.5||10.3||75.8||5.7||14.1||77.1||7.0||18.0||77.4|
Table 1 and Figure 5 shows the results of the full attention variant compared with the convolution baseline. Compared to the ResNet-50 baseline, the full attention variant achieves higher classification accuracy while having fewer floating point operations (FLOPS)222Some prior works define a FLOP as a single atomic Multiply-Add, whereas we treat the Multiply and Add as FLOPS. This causes a discrepancy in the reported number. and fewer parameters. Furthermore, this performance gain is consistent across most model variations generated by both depth and width scaling.
4.2 COCO Object Detection
In this section, we evaluate attention models on the COCO object detection task lin2014microsoft using the RetinaNet architecture lin2017focal . RetinaNet is an object detection model that consists of a backbone image classification network followed by a Feature Pyramid Network (FPN) lin2017feature and two output networks known as detection heads. We experiment with making the backbone and/or the FPN and detection heads fully attentional. The backbone models are the same models described in Section 4.1. The details of how the FPN and detection heads are made fully attentional are provided in the appendix.
|Convolution||Baseline||182||33.4||36.5 / 54.3 / 39.0||18.3 / 40.6 / 51.7|
|Conv-stem + Attention||173||25.9||36.8 / 54.6 / 39.3||18.4 / 41.1 / 51.7|
|Full Attention||173||25.9||36.2 / 54.0 / 38.7||17.5 / 40.3 / 51.7|
|Attention||Conv-stem + Attention||111||22.0||36.6 / 54.3 / 39.1||19.0 / 40.7 / 51.1|
|Full Attention||110||22.0||36.6 / 54.5 / 39.2||18.5 / 40.6 / 51.6|
Table 2 shows the object detection results. Using an attention-based backbone in the RetinaNet matches the mAP of using the convolutional backbone but contains fewer parameters. Furthermore, employing attention across all parts of the model including the backbone, FPN, and detection heads matches the mAP of the baseline RetinaNet while using fewer parameters and fewer FLOPS. These results demonstrate the efficacy of stand-alone attention across multiple vision tasks.
4.3 Where is stand-alone attention most useful?
The impressive performance of fully attentional models verifies that stand-alone attention is a viable primitive for vision models. In this section, we study which parts of the network benefit the most from stand-alone attention.
First, we compare the performance of the attention stem against the convolution stem used in ResNet. All other spatial convolutions are replaced with stand-alone attention. Tables 1 and 2 and Figure 5 show the results on ImageNet classification and COCO object detection. For classification, the convolution stem consistently matches or outperforms the attention stem. For object detection, the convolution stem performs better when a the detection heads and FPN are also convolutional, but performs similarly when the entire rest of the network is fully attentional. These results suggest that convolutions consistently perform well when used in the stem.
Next, we experiment with using convolution and stand-alone attention in different layer groups in a ResNet with a convolution stem. Table 4 shows that the best performing models use convolutions in the early groups and attention in the later groups. These models are also similar in terms of FLOPS and parameters to the fully attentional model. In contrast, when attention is used in the early groups and convolutions are used in the later groups, the performance degrades despite a large increase in the parameter count. This suggests that convolutions may better capture low level features while stand-alone attention layers may better integrate global information.
Taken together, these results suggest that vision practitioners should focus on developing strategies of designing architectures that combine the comparative advantages of convolution and stand-alone attention.
4.4 Which components are important in attention?
This section presents ablations designed to understand the contributions of the various components in the local attention layer. Unless specified, all attention models in the ablations use the convolution stem.
4.4.1 Effect of spatial extent of self-attention
The value of the spatial extent controls the size of the region each pixel can attend to. Table 4 studies the effect of varying the spatial extent. While using small , such as , has a large negative impact on performance, the improvements of using a larger plateau around . The exact plateau value likely depends on specific settings of hyperparameters such as the feature size and number of attention heads used.
4.4.2 Importance of positional information
Table 6 ablates the different types of positional encodings that can be used: no positional encoding, a sinusodial encoding dependent on the absolute position of a pixel vaswani2017attention , and relative position encodings. Using any notion of positional encoding is beneficial over using none, but the type of positional encoding is also important. Relative position encodings perform better than absolute encodings. Furthermore, Table 6 demonstrates the important role of the content-relative interactions () in attention. Removing the content-content ( interactions and just using the content-relative interactions drops the accuracy by only . The importance of positional information suggests that future work may improve attention by exploring different parameterizations and usages of positional information.
4.4.3 Importance of spatially-aware attention stem
Table 7 compares using stand-alone attention in the stem with the attention stem with spatially-aware values proposed in Section 3.2. The proposed attention stem outperforms stand-alone attention by despite having a similar number of FLOPS, validating the utility of modifying attention for use in the stem. Furthermore, applying a spatial convolution to the values instead of a spatially-aware mixture of point-wise transformations proposed in Section 3.2 incurs more FLOPS and performs slightly worse. Future work can focus on unifying the spatially-aware attention used in the stem with the attention used in the main trunk of the network.
|spatial convolution for values||7.4||77.2|
|spatially aware values||7.2||77.6|
In this work, we verified that content-based interactions can indeed serve as the primary primitive of vision models. A fully attentional network based off of the proposed stand-alone local self-attention layer achieves competitive predictive performance on ImageNet classification and COCO object detection tasks while requiring fewer parameters and floating point operations than the corresponding convolution baselines. Furthermore, ablations show that attention is especially effective in the later parts of the network.
We see several opportunities for improving the performance of these networks. First, the attention mechanism may be improved by developing better methods for capturing geometries cohen2018spherical ; cohen2019gauge . Second, the architectures employed for image classification and object detection were developed by applying a simple transformation to models designed for the convolutional primitive identity-mappings ; faster_rcnn . It may be possible to achieve improvements by specifically searching for the architecture with an attention layer as a component in the design search space tan2018mnasnet ; zoph2018learning ; chen2018searching ; ghiasi2019fpn . Finally, additional work on proposing new attention forms that can capture low level features can make attention effective in the early layers of networks wu2019pay ; zhu2019empirical .
Although the training efficiency and computational demand of an attention based architecture is favorable to a traditional convolution, the resulting network is slower in wall-clock time. The reason for this discrepancy is the lack of optimized kernels available on various hardware accelerators. In principle, depending on the degree to which the field deems that attention provides a viable path, it may be possible to significantly speed up the wall-clock time for training and inference accordingly.
While this work primarily focuses on content-based interactions to establish their virtue for vision tasks, in the future, we hope to unify convolution and self-attention to best combine their unique advantages. Given the success of content-based interactions on core computer vision tasks, we expect that future work may explore how attention could be applied to other vision tasks such as semantic segmentation chen2017deeplab , instance segmentation chen2018masklab , keypoint detection detone2018superpoint
, human pose estimationtoshev2014deeppose ; newell2016stacked and other tasks currently addressed with convolutional neural networks.
We thank Blake Hechtman, Justin Gilmer, Pieter-jan Kindermans, Quoc Le, Samy Bengio, and Shibo Wang for fruitful discussions and assistance with implementations as well as the larger Google Brain team for support and assistance.
- (1) R. C. Gonzalez, R. E. Woods, et al., “Digital image processing [m],” Publishing house of electronics industry, vol. 141, no. 7, 2002.
K. Fukushima, “Neocognitron: A self-organizing neural network model for a mechanism of pattern recognition unaffected by shift in position,”Biological cybernetics, vol. 36, no. 4, pp. 193–202, 1980.
- (3) K. Fukushima, “Neocognitron: A hierarchical neural network capable of visual pattern recognition,” Neural networks, vol. 1, no. 2, pp. 119–130, 1988.
Y. LeCun, B. Boser, J. S. Denker, D. Henderson, R. E. Howard, W. Hubbard, and L. D. Jackel, “Backpropagation applied to handwritten zip code recognition,”Neural computation, vol. 1, no. 4, pp. 541–551, 1989.
- (5) Y. LeCun, L. Bottou, Y. Bengio, and P. Haffner, “Gradient-based learning applied to document recognition,” Proceedings of the IEEE, 1998.
- (6) J. Deng, W. Dong, R. Socher, L.-J. Li, K. Li, and L. Fei-Fei, “Imagenet: A large-scale hierarchical image database,” in IEEE Conference on Computer Vision and Pattern Recognition, IEEE, 2009.
- (7) J. Nickolls and W. J. Dally, “The gpu computing era,” IEEE micro, vol. 30, no. 2, pp. 56–69, 2010.
- (8) A. Krizhevsky, “Learning multiple layers of features from tiny images,” tech. rep., University of Toronto, 2009.
- (9) A. Krizhevsky, I. Sutskever, and G. E. Hinton, “Imagenet classification with deep convolutional neural networks,” in Advances in Neural Information Processing System, 2012.
- (10) Y. LeCun, Y. Bengio, and G. Hinton, “Deep learning,” nature, vol. 521, no. 7553, p. 436, 2015.
- (11) C. Szegedy, W. Liu, Y. Jia, P. Sermanet, S. Reed, D. Anguelov, D. Erhan, V. Vanhoucke, and A. Rabinovich, “Going deeper with convolutions,” in IEEE Conference on Computer Vision and Pattern Recognition, 2015.
- (12) C. Szegedy, V. Vanhoucke, S. Ioffe, J. Shlens, and Z. Wojna, “Rethinking the Inception architecture for computer vision,” in IEEE Conference on Computer Vision and Pattern Recognition, 2016.
- (13) K. He, X. Zhang, S. Ren, and J. Sun, “Identity mappings in deep residual networks,” in European Conference on Computer Vision, 2016.
- (14) S. Xie, R. Girshick, P. Dollár, Z. Tu, and K. He, “Aggregated residual transformations for deep neural networks,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2017.
- (15) K. He, X. Zhang, S. Ren, and J. Sun, “Deep residual learning for image recognition,” in IEEE Conference on Computer Vision and Pattern Recognition, 2016.
- (16) B. Zoph, V. Vasudevan, J. Shlens, and Q. V. Le, “Learning transferable architectures for scalable image recognition,” in Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 8697–8710, 2018.
- (17) T.-Y. Lin, P. Dollár, R. Girshick, K. He, B. Hariharan, and S. Belongie, “Feature pyramid networks for object detection,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2017.
- (18) T.-Y. Lin, P. Goyal, R. Girshick, K. He, and P. Dollár, “Focal loss for dense object detection,” in Proceedings of the IEEE international conference on computer vision, pp. 2980–2988, 2017.
- (19) S. Ren, K. He, R. Girshick, and J. Sun, “Faster R-CNN: Towards real-time object detection with region proposal networks,” in Advances in Neural Information Processing Systems, pp. 91–99, 2015.
- (20) L.-C. Chen, G. Papandreou, I. Kokkinos, K. Murphy, and A. L. Yuille, “Deeplab: Semantic image segmentation with deep convolutional nets, atrous convolution, and fully connected crfs,” IEEE transactions on pattern analysis and machine intelligence, vol. 40, no. 4, pp. 834–848, 2018.
- (21) L.-C. Chen, M. Collins, Y. Zhu, G. Papandreou, B. Zoph, F. Schroff, H. Adam, and J. Shlens, “Searching for efficient multi-scale architectures for dense image prediction,” in Advances in Neural Information Processing Systems, pp. 8713–8724, 2018.
- (22) K. He, G. Gkioxari, P. Dollár, and R. Girshick, “Mask r-cnn,” in Proceedings of the IEEE international conference on computer vision, pp. 2961–2969, 2017.
- (23) E. P. Simoncelli and B. A. Olshausen, “Natural image statistics and neural representation,” Annual review of neuroscience, vol. 24, no. 1, pp. 1193–1216, 2001.
- (24) D. L. Ruderman and W. Bialek, “Statistics of natural images: Scaling in the woods,” in Advances in neural information processing systems, pp. 551–558, 1994.
- (25) A. Vaswani, N. Shazeer, N. Parmar, J. Uszkoreit, L. Jones, A. N. Gomez, Ł. Kaiser, and I. Polosukhin, “Attention is all you need,” in Advances in Neural Information Processing Systems, pp. 5998–6008, 2017.
- (26) Y. Wu, M. Schuster, Z. Chen, Q. V. Le, M. Norouzi, W. Macherey, M. Krikun, Y. Cao, Q. Gao, K. Macherey, et al., “Google’s neural machine translation system: Bridging the gap between human and machine translation,” arXiv preprint arXiv:1609.08144, 2016.
- (27) J. K. Chorowski, D. Bahdanau, D. Serdyuk, K. Cho, and Y. Bengio, “Attention-based models for speech recognition,” in Advances in neural information processing systems, pp. 577–585, 2015.
- (28) W. Chan, N. Jaitly, Q. Le, and O. Vinyals, “Listen, attend and spell: A neural network for large vocabulary conversational speech recognition,” in 2016 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), pp. 4960–4964, IEEE, 2016.
- (29) K. Xu, J. Ba, R. Kiros, K. Cho, A. Courville, R. Salakhudinov, R. Zemel, and Y. Bengio, “Show, attend and tell: Neural image caption generation with visual attention,” in International conference on machine learning, pp. 2048–2057, 2015.
- (30) J. Hu, L. Shen, and G. Sun, “Squeeze-and-excitation networks,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2018.
- (31) M. Tan, B. Chen, R. Pang, V. Vasudevan, and Q. V. Le, “Mnasnet: Platform-aware neural architecture search for mobile,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2018.
- (32) X. Wang, R. Girshick, A. Gupta, and K. He, “Non-local neural networks,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 7794–7803, 2018.
- (33) I. Bello, B. Zoph, A. Vaswani, J. Shlens, and Q. V. Le, “Attention augmented convolutional networks,” CoRR, vol. abs/1904.09925, 2019.
- (34) J. Hu, L. Shen, S. Albanie, G. Sun, and A. Vedaldi, “Gather-excite: Exploiting feature context in convolutional neural networks,” in Advances in Neural Information Processing Systems, pp. 9423–9433, 2018.
- (35) H. Hu, Z. Zhang, Z. Xie, and S. Lin, “Local relation networks for image recognition,” arXiv preprint arXiv:1904.11491, 2019.
- (36) A. v. d. Oord, S. Dieleman, H. Zen, K. Simonyan, O. Vinyals, A. Graves, N. Kalchbrenner, A. Senior, and K. Kavukcuoglu, “Wavenet: A generative model for raw audio,” arXiv preprint arXiv:1609.03499, 2016.
- (37) T. Salimans, A. Karpathy, X. Chen, and D. P. Kingma, “PixelCNN++: Improving the PixelCNN with discretized logistic mixture likelihood and other modifications,” arXiv preprint arXiv:1701.05517, 2017.
- (38) J. Gehring, M. Auli, D. Grangier, D. Yarats, and Y. N. Dauphin, “Convolutional sequence to sequence learning,” CoRR, vol. abs/1705.03122, 2017.
- (39) L. Sifre and S. Mallat, “Rigid-motion scattering for image classification,” PhD thesis, Ph. D. thesis, vol. 1, p. 3, 2014.
- (40) S. Ioffe and C. Szegedy, “Batch normalization: Accelerating deep network training by reducing internal covariate shift,” in International Conference on Learning Representations, 2015.
- (41) F. Chollet, “Xception: Deep learning with depthwise separable convolutions,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2017.
- (42) A. G. Howard, M. Zhu, B. Chen, D. Kalenichenko, W. Wang, T. Weyand, M. Andreetto, and H. Adam, “Mobilenets: Efficient convolutional neural networks for mobile vision applications,” arXiv preprint arXiv:1704.04861, 2017.
- (43) M. Sandler, A. Howard, M. Zhu, A. Zhmoginov, and L.-C. Chen, “Mobilenetv2: Inverted residuals and linear bottlenecks,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 4510–4520, 2018.
- (44) S. Bartunov, A. Santoro, B. Richards, L. Marris, G. E. Hinton, and T. Lillicrap, “Assessing the scalability of biologically-motivated deep learning algorithms and architectures,” in Advances in Neural Information Processing Systems, pp. 9368–9378, 2018.
D. Bahdanau, K. Cho, and Y. Bengio, “Neural machine translation by jointly learning to align and translate,” inInternational Conference on Learning Representations, 2015.
- (46) C.-Z. A. Huang, A. Vaswani, J. Uszkoreit, N. Shazeer, C. Hawthorne, A. M. Dai, M. D. Hoffman, and D. Eck, “Music transformer,” in Advances in Neural Processing Systems, 2018.
- (47) A. Radford, J. Wu, R. Child, D. Luan, D. Amodei, and I. Sutskever, “Language models are unsupervised multitask learners,” OpenAI Blog, vol. 1, p. 8, 2019.
- (48) J. Devlin, M. Chang, K. Lee, and K. Toutanova, “BERT: pre-training of deep bidirectional transformers for language understanding,” CoRR, vol. abs/1810.04805, 2018.
- (49) N. Parmar, A. Vaswani, J. Uszkoreit, Ł. Kaiser, N. Shazeer, A. Ku, and D. Tran, “Image transformer,” in International Conference on Machine Learning, 2018.
- (50) N. Shazeer, Y. Cheng, N. Parmar, D. Tran, A. Vaswani, P. Koanantakool, P. Hawkins, H. Lee, M. Hong, C. Young, R. Sepassi, and B. A. Hechtman, “Mesh-tensorflow: Deep learning for supercomputers,” CoRR, vol. abs/1811.02084, 2018.
- (51) P. Shaw, J. Uszkoreit, and A. Vaswani, “Self-attention with relative position representations,” arXiv preprint arXiv:1803.02155, 2018.
- (52) A. Buades, B. Coll, and J.-M. Morel, “A non-local algorithm for image denoising,” in Proceedings of the 2005 IEEE Computer Society Conference on Computer Vision and Pattern Recognition (CVPR’05) - Volume 2 - Volume 02, CVPR ’05, (Washington, DC, USA), pp. 60–65, IEEE Computer Society, 2005.
- (53) Y. Chen, Y. Kalantidis, J. Li, S. Yan, and J. Feng, “A^ 2-nets: Double attention networks,” in Advances in Neural Information Processing Systems, pp. 352–361, 2018.
B. Zoph and Q. V. Le, “Neural architecture search with reinforcement learning,” inInternational Conference on Learning Representations, 2017.
- (55) O. Russakovsky, J. Deng, H. Su, J. Krause, S. Satheesh, S. Ma, Z. Huang, A. Karpathy, A. Khosla, M. S. Bernstein, A. C. Berg, and F. Li, “Imagenet large scale visual recognition challenge,” CoRR, vol. abs/1409.0575, 2014.
- (56) T.-Y. Lin, M. Maire, S. Belongie, J. Hays, P. Perona, D. Ramanan, P. Dollár, and C. L. Zitnick, “Microsoft coco: Common objects in context,” in European Conference on Computer Vision, pp. 740–755, Springer, 2014.
- (57) T.-Y. Lin, P. Dollár, R. Girshick, K. He, B. Hariharan, and S. Belongie, “Feature pyramid networks for object detection,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 2117–2125, 2017.
- (58) T. S. Cohen, M. Geiger, J. Köhler, and M. Welling, “Spherical cnns,” arXiv preprint arXiv:1801.10130, 2018.
- (59) T. S. Cohen, M. Weiler, B. Kicanaoglu, and M. Welling, “Gauge equivariant convolutional networks and the icosahedral cnn,” arXiv preprint arXiv:1902.04615, 2019.
- (60) G. Ghiasi, T.-Y. Lin, R. Pang, and Q. V. Le, “Nas-fpn: Learning scalable feature pyramid architecture for object detection,” arXiv preprint arXiv:1904.07392, 2019.
- (61) F. Wu, A. Fan, A. Baevski, Y. N. Dauphin, and M. Auli, “Pay less attention with lightweight and dynamic convolutions,” arXiv preprint arXiv:1901.10430, 2019.
- (62) X. Zhu, D. Cheng, Z. Zhang, S. Lin, and J. Dai, “An empirical study of spatial attention mechanisms in deep networks,” arXiv preprint arXiv:1904.05873, 2019.
- (63) L.-C. Chen, G. Papandreou, I. Kokkinos, K. Murphy, and A. L. Yuille, “Deeplab: Semantic image segmentation with deep convolutional nets, atrous convolution, and fully connected crfs,” IEEE transactions on pattern analysis and machine intelligence, vol. 40, no. 4, pp. 834–848, 2017.
- (64) L.-C. Chen, A. Hermans, G. Papandreou, F. Schroff, P. Wang, and H. Adam, “Masklab: Instance segmentation by refining object detection with semantic and direction features,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 4013–4022, 2018.
- (65) D. DeTone, T. Malisiewicz, and A. Rabinovich, “Superpoint: Self-supervised interest point detection and description,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition Workshops, pp. 224–236, 2018.
- (66) A. Toshev and C. Szegedy, “Deeppose: Human pose estimation via deep neural networks,” in Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 1653–1660, 2014.
- (67) A. Newell, K. Yang, and J. Deng, “Stacked hourglass networks for human pose estimation,” in European Conference on Computer Vision, pp. 483–499, Springer, 2016.
- (68) Y. E. NESTEROV, “A method for solving the convex programming problem with convergence rate ,” Dokl. Akad. Nauk SSSR, vol. 269, pp. 543–547, 1983.
- (69) I. Sutskever, J. Martens, G. Dahl, and G. Hinton, “On the importance of initialization and momentum in deep learning,” in International Conference on Machine Learning, 2013.
- (70) I. Loshchilov and F. Hutter, “SGDR: Stochastic gradient descent with warm restarts,” arXiv preprint arXiv:1608.03983, 2016.
N. P. Jouppi, C. Young, N. Patil, D. Patterson, G. Agrawal, R. Bajwa, S. Bates, S. Bhatia, N. Boden, A. Borchers, R. Boyle, P.-l. Cantin, C. Chao, C. Clark, J. Coriell, M. Daley, M. Dau, J. Dean, B. Gelb, T. V. Ghaemmaghami, R. Gottipati, W. Gulland, R. Hagmann, C. R. Ho, D. Hogberg, J. Hu, R. Hundt, D. Hurt, J. Ibarz, A. Jaffey, A. Jaworski, A. Kaplan, H. Khaitan, D. Killebrew, A. Koch, N. Kumar, S. Lacy, J. Laudon, J. Law, D. Le, C. Leary, Z. Liu, K. Lucke, A. Lundin, G. MacKean, A. Maggiore, M. Mahony, K. Miller, R. Nagarajan, R. Narayanaswami, R. Ni, K. Nix, T. Norrie, M. Omernick, N. Penukonda, A. Phelps, J. Ross, M. Ross, A. Salek, E. Samadiani, C. Severn, G. Sizikov, M. Snelham, J. Souter, D. Steinberg, A. Swing, M. Tan, G. Thorson, B. Tian, H. Toma, E. Tuttle, V. Vasudevan, R. Walter, W. Wang, E. Wilcox, and D. H. Yoon, “In-datacenter performance analysis of a tensor processing unit,”SIGARCH Comput. Archit. News, vol. 45, pp. 1–12, June 2017.
- (72) B. Polyak and A. Juditsky, “Acceleration of stochastic approximation by averaging,” SIAM Journal on Control and Optimization, vol. 30, no. 4, pp. 838–855, 1992.
- (73) C. Szegedy, W. Liu, Y. Jia, P. Sermanet, S. Reed, D. Anguelov, D. Erhan, V. Vanhoucke, and A. Rabinovich, “Going deeper with convolutions,” in Computer Vision and Pattern Recognition (CVPR), 2015.
Appendix A Appendix
a.1 Attention Stem
In this section, we first describe the standard self-attention layer followed by the spatially-aware mixtures in the attention stem.
For an input with we define a standard single-headed self-attention layer as
where and the neighborhood yielding the intermediate per-pixel queries, keys, and values and the final output .
The attention stem replaces the pointwise values by spatially-aware linear transformations. For simplicity, we align the query, key and value receptive field with the max-pooling receptive field of . Then to inject distance aware value features, we use a convex combination of multiple value matrices where the combination weights are a function of the absolute position of the value in the pooling window. The functional form is defined in Equation 9 which computes the logit between the absolute embedding and the mixture embedding .
Where and are pooling-window aligned row and column embeddings and is a per-mixture embedding. The resulting are shared across the attention heads for the mixture stem layer.
a.2 ImageNet Training Details
For tuning, a validation set containing a random subset of the training set is used. Training is performed for epochs using Nesterov’s Accelerated Gradient nesterov1983 ; icml2013_sutskever13 with a learning rate of which is linearly warmed up for epochs followed by cosine decay cosine . A total batch size of is spread across Cloud TPUv3 cores jouppiTPU . The setup uses batch normalization BatchNorm with decay and exponential moving average with weight over trainable parameters polyak ; originalinception .
a.3 Object Detection Training Details
The fully attentional object detection architecture uses the fully attentional classification models detailed in Section 4.1 as its backbone network. The rest of the architecture is obtained by replacing the convolutions in the original RetinaNet architecture with self-attention layers of the same width (). We additionally apply average pooling with stride 2 when replacing a strided convolution. The classification and regression heads share weights across all levels and theiras in the original RetinaNet architecture lin2017focal . Finally, we add an extra pointwise convolution at the end of the classification and box regression heads to mix the attentional heads. All self-attention layers use a spatial extent of and 8 heads as for the image classification experiments.
. All networks are trained for 150 epochs with a batch size of 64. The learning rate is warmed up linearly from 0 to 0.12 for one epoch and then decayed using a cosine schedule. We apply multiscale jitter, crop to a max dimension of 640 during training and randomly flip images horizontally with 50% probability.
