Stabilizing Transformers for Reinforcement Learning

1 Introduction

It has been argued that self-attention architectures (Vaswani2017)

deal better with longer temporal horizons than recurrent neural networks (RNNs): by construction, they avoid compressing the whole past into a fixed-size hidden state and they do not suffer from vanishing or exploding gradients in the same way as RNNs. Recent work has empirically validated these claims, demonstrating that self-attention architectures can provide significant gains in performance over the more traditional recurrent architectures such as the LSTM

(dai2019transformer; radford2019language; devlin2019bert; yang2019xlnet). In particular, the Transformer architecture (Vaswani2017) has had breakthrough success in a wide variety of domains: language modeling (dai2019transformer; radford2019language; yang2019xlnet), machine translation (Vaswani2017; edunov2018understanding), summarization (liu2019textsummarization), question answering (dehghani2018universal; yang2019xlnet), multi-task representation learning for NLP (devlin2019bert; radford2019language; yang2019xlnet), and algorithmic tasks (dehghani2018universal).

The repeated success of the transformer architecture in domains where sequential information processing is critical to performance makes it an ideal candidate for partially observable RL problems, where episodes can extend to thousands of steps and the critical observations for any decision often span the entire episode. Yet, the RL literature is dominated by the use of LSTMs as the main mechanism for providing memory to the agent (espeholt2018impala; kapturowski2019recurrent; mnih2016asynchronous). Despite progress at designing more expressive memory architectures (graves2016hybrid; wayne2018unsupervised; santoro2018relational)

that perform better than LSTMs in memory-based tasks and partially-observable environments, they have not seen widespread adoption in RL agents perhaps due to their complex implementation, with the LSTM being seen as the go-to solution for environments where memory is required. In contrast to these other memory architectures, the transformer is well-tested in many challenging domains and has seen several open-source implementations in a variety of deep learning frameworks

¹¹1e.g. https://github.com/kimiyoung/transformer-xl, https://github.com/tensorflow/tensor2tensor.

Motivated by the transformer’s superior performance over LSTMs and the widespread availability of implementations, in this work we investigate the transformer architecture in the RL setting. In particular, we find that the canonical transformer is significantly difficult to optimize, often resulting in performance comparable to a random policy. This difficulty in training transformers exists in the supervised case as well. Typically a complex learning rate schedule is required (e.g., linear warmup or cosine decay) in order to train (Vaswani2017; dai2019transformer), or specialized weight initialization schemes are used to improve performance (radford2019language). These measures do not seem to be sufficient for RL. In Mishra2018 (Mishra2018

), for example, transformers could not solve even simple bandit tasks and tabular Markov Decision Processes (MDPs), leading the authors to hypothesize that the transformer architecture was not suitable for processing sequential information.

However in this work we succeed in stabilizing training with a reordering of the layer normalization coupled with the addition of a new gating mechanism to key points in the submodules of the transformer. Our novel gated architecture, the Gated Transformer-XL (GTrXL) (shown in Figure 1, Right), is able to learn much faster and more reliably and exhibit significantly better final performance than the canonical transformer. We further demonstrate that the GTrXL achieves state-of-the-art results when compared to the external memory architecture MERLIN (wayne2018unsupervised) on the multitask DMLab-30 suite (beattie2016deepmind)

. Additionally, we surpass LSTMs significantly on memory-based DMLab-30 levels while matching performance on the reactive set, as well as significantly outperforming LSTMs on memory-based continuous control and navigation environments. We perform extensive ablations on the GTrXL in challenging environments with both continuous actions and high-dimensional observations, testing the final performance of the various components as well as the GTrXL’s robustness to seed and hyperparameter sensitivity compared to LSTMs and the canonical transformer. We demonstrate a consistent superior performance while matching the stability of LSTMs, providing evidence that the GTrXL architecture can function as a drop-in replacement to the LSTM networks ubiquitously used in RL.

2 Transformer Architecture and Variants

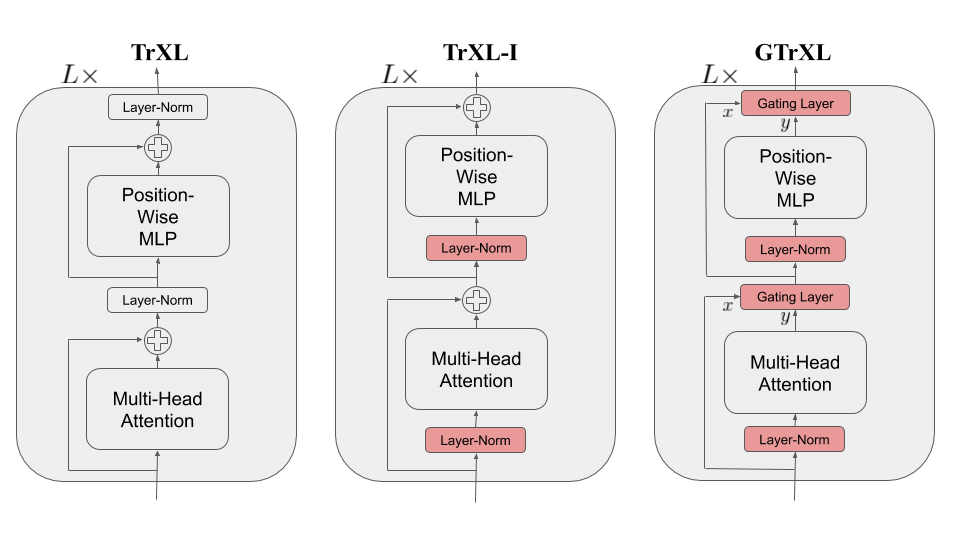

Figure 1: Transformer variants, showing just a single layer block (there are $L$ layers total). Left: Canonical Transformer(-XL) block with multi-head attention and position-wise MLP submodules and the standard layer normalization (ba2016layer)
placement with respect to the residual connection
(he2016deep). Center: TrXL-I moves the layer normalization to the input stream of the submodules. Coupled with the residual connections, there is a gradient path that flows from output to input without any transformations. Right: The GTrXL block, which additionally adds a gating layer in place of the residual connection of the TrXL-I.

The transformer network consists of several stacked blocks that repeatedly apply self-attention to the input sequence. The transformer layer block itself has remained relatively constant since its original introduction

(Vaswani2017; liu2018generating; radford2019language). Each layer consists of two submodules: an attention operation followed by a position-wise multi-layer network (see Figure 1 (left)). The input to the transformer block is an embedding from the previous layer

E^{(l - 1)} \in R^{T \times D}

, where

T

is the number of time steps,

D

is the hidden dimension, and

l \in [0, L]

is the layer index with

L

being the total number of layers. We assume

E^{(0)}

is an arbitrarily-obtained input embedding of dimension

[T, D]

, e.g. a word embedding in the case of language modeling or an embedding of the per-timestep observations in an RL environment.

Multi-Head Attention: The Multi-Head Attention (MHA) submodule computes in parallel $H$ soft-attention operations for every time step. A residual connection (he2016deep) and layer normalization (ba2016layer) are then applied to the output (see Appendix C for more details):

{¯ ¯¯ ¯ Y}^{(l)} = MultiHeadAttention (E^{(l - 1)}),^Y^{(l)} = E^{(l - 1)} + {¯ ¯¯ ¯ Y}^{(l)}, Y^{(l)} = LayerNorm ({^Y}^{(l)}),

(1)

Multi-Layer Perceptron:

The Multi-Layer Perceptron (MLP) submodule applies a

1 \times 1

temporal convolutional network

f^{(l)}

(i.e., kernel size 1, stride 1) over every step in the sequence, producing a new embedding tensor

E^{(l)} \in R^{T \times D}

. As in dai2019transformer

, the network output does not include an activation function. After the MLP, there is a residual update followed by layer normalization:

{¯ ¯¯ ¯ E}^{(l)} = f^{(l)} (Y^{(l)}), {^E}^{(l)} = Y^{(l)} + {¯ ¯¯ ¯ E}^{(l)}, E^{(l)} = LayerNorm ({^E}^{(l)}) .

(2)

Relative Position Encodings: The basic MHA operation does not take sequence order into account explicitly because it is permutation invariant. Positional encodings are a widely used solution in domains like language where order is an important semantic cue, appearing in the original transformer architecture (Vaswani2017). To enable a much larger contextual horizon than would otherwise be possible, we use the relative position encodings and memory scheme used in dai2019transformer. In this setting, there is an additional $T$ -step memory tensor $M^{(l)} \in R^{T \times D}$ , which is treated as constant during weight updates. The MHA submodule then becomes:

	${¯ ¯¯ ¯ Y}^{(l)}$	$= RelativeMultiHeadAttention (StopGrad (M^{(l - 1)}), E^{(l - 1)})$		(3)
	${^Y}^{(l)}$	$= E^{(l - 1)} + {¯ ¯¯ ¯ Y}^{(l)}, Y^{(l)} = LayerNorm ({^Y}^{(l)})$		(4)

where StopGrad

is a stop-gradient function that prevents gradients flowing backwards during backpropagation. We refer to Appendix

C for a more detailed description.

3 Gated Transformer Architectures

While the transformer architecture has achieved breakthrough results in modeling sequences for supervised learning tasks (Vaswani2017; liu2018generating; dai2019transformer), a demonstration of the transformer as a useful RL memory has been notably absent. Previous work has highlighted training difficulties and poor performance (Mishra2018). When transformers have not been used for temporal memory but instead as a mechanism for attention over the input space, they have had success—notably in the challenging multi-agent Starcraft 2 environment (alphastarblog). Here, the transformer was applied solely across Starcraft units and not over time.

Multiplicative interactions have been successful at stabilizing learning across a wide variety of architectures (hochreiter1997long; srivastava2015highway; cho2014gru). Motivated by this, we propose the introduction of powerful gating mechanisms in place of the residual connections within the transformer block, coupled with changes to the order of layer normalization in the submodules. As will be empirically demonstrated, the “Identity Map Reordering” and gating mechanisms are critical for stabilizing learning and improving performance.

3.1 Identity Map Reordering

Our first change is to place the layer normalization on only the input stream of the submodules, a modification described in several previous works (he2016identity; radford2019language; baevski2018adaptive). The model using this Identity Map Reordering is termed TrXL-I in the following, and is depicted visually in Figure 1

(center). A key benefit to this reordering is that it now enables an identity map from the input of the transformer at the first layer to the output of the transformer after the last layer. This is in contrast to the canonical transformer, where there are a series of layer normalization operations that non-linearly transform the state encoding. Because the layer norm reordering causes a path where two linear layers are applied in sequence, we apply a ReLU activation to each sub-module output before the residual connection (see Appendix

C for equations).

The TrXL-I already exhibits a large improvement in stability and performance over TrXL (see Section 4.3.1). One hypothesis as to why the Identity Map Reordering improves results is as follows: assuming that the submodules at initialization produce values that are in expectation near zero, the state encoding is passed un-transformed to the policy and value heads, enabling the agent to learn a Markovian policy at the start of training (i.e., the network is initialized such that $π (\cdot | s_{t}, \dots, s_{1}) \approx π (\cdot | s_{t})$ and $V^{π} (s_{t} | s_{t - 1}, \dots, s_{1}) \approx V^{π} (s_{t} | s_{t - 1})$ ). In many environments, reactive behaviours need to be learned before memory-based ones can be effectively utilized, i.e., an agent needs to learn how to walk before it can learn how to remember where it has walked.

3.2 Gating Layers

We further improve performance and optimization stability by replacing the residual connections in Equations 4 and 2 with gating layers. We call the gated architecture with the identity map reordering the Gated Transformer(-XL) (GTrXL). The final GTrXL layer block is written below:

${¯ ¯¯ ¯ Y}^{(l)}$	$= RelativeMultiHeadAttention (LayerNorm ([% StopGrad (M^{(l - 1)}), E^{(l - 1)}]))$	(5)
$Y^{(l)}$	$= g_{MHA}^{(l)} (E^{(l - 1)}, ReLU ({¯ ¯¯ ¯ Y}^{(l)}))$	(6)
${¯ ¯¯ ¯ E}^{(l)}$	$= f^{(l)} (LayerNorm (Y^{(l)}))$	(7)
$E^{(l)}$	$= g_{MLP}^{(l)} (Y^{(l)}, ReLU ({¯ ¯¯ ¯ E}^{(l)}))$	(8)

where $g$ is a gating layer function. A visualization of our final architecture is shown in Figure 1 (right), with the modifications from the canonical transformer highlighted in red. In our experiments we ablate a variety of gating layers with increasing expressivity:

Input: The gated input connection has a sigmoid modulation on the input stream, similar to the short-cut-only gating from he2016identity:

g^{(l)} (x, y) = σ (W_{g}^{(l)} x) ⊙ x + y

Output: The gated output connection has a sigmoid modulation on the output stream:

g^{(l)} (x, y) = x + σ (W_{g}^{(l)} x - b_{g}^{(l)}) ⊙ y

Highway: The highway connection (srivastava2015highway) modulates both streams with a sigmoid:

g^{(l)} (x, y) = σ (W_{g}^{(l)} x + b_{g}^{(l)}) ⊙ x + (1 - σ (W_{g}^{(l)} x + b_{g}^{(l)})) ⊙ y

Sigmoid-Tanh: The sigmoid-tanh (SigTanh) gate (van2016conditional) is similar to the Output gate but with an additional tanh activation on the output stream:

g^{(l)} (x, y) = x + σ (W_{g}^{(l)} y - b) ⊙ tanh (U_{g}^{(l)} y)

Gated-Recurrent-Unit-type gating:

The Gated Recurrent Unit (GRU)

(chung2014empirical) is a recurrent network that performs similarly to an LSTM (hochreiter1997long) but has fewer parameters. We adapt its powerful gating mechanism as an untied activation function in depth:

	$r = σ (W_{r}^{(l)} y + U_{r}^{(l)} x),$	$z = σ (W_{z}^{(l)} y + U_{z}^{(l)} x - b_{g}^{(l)}),^h = tanh (W_{g}^{(l)} y + U_{g}^{(l)} (r ⊙ x)),$
		$g^{(l)} (x, y) = (1 - z) ⊙ x + z ⊙^h .$

Gated Identity Initialization: We have claimed that the Identity Map Reordering aids policy optimization because it initializes the agent close to a Markovian policy / value function. If this is indeed the cause of improved stability, we can explicitly initialize the various gating mechanisms to be close to the identity map. This is the purpose of the bias $b_{g}^{(l)}$ in the applicable gating layers. We later demonstrate in an ablation that initially setting $b_{g}^{(l)} > 0$ can greatly improve learning speed.

4 Experiments

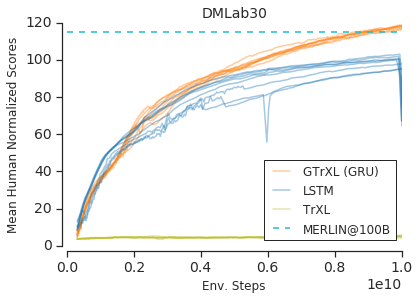

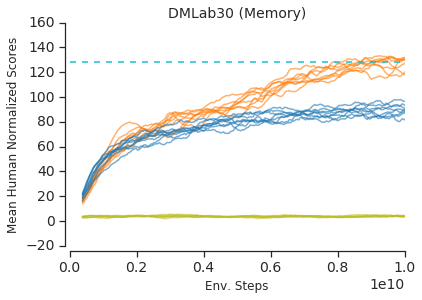

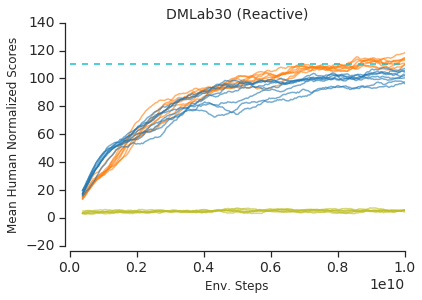

Figure 2: Average return on DMLab-30, re-scaled such that a human has mean 100 score on each level and a random policy has 0. Left: Results averaged over the full DMLab-30 suite. Right: DMLab-30 partitioned into a “Memory” and “Reactive” split (described in Appendix D). The GTrXL has a substantial gain over LSTM in memory-based environments, while even slightly surpassing performance on the reactive set. We plot 6-8 hyperparameter settings per architecture (see Appendix B). MERLIN scores obtained from personal communication with the authors.

In this section, we provide experiments on a variety of challenging single and multi-task RL domains: DMLab-30 (beattie2016deepmind), Numpad and Memory Maze (see Fig. 8). Crucially we demonstrate that the proposed Gated Transformer-XL (GTrXL) not only shows substantial improvements over LSTMs on memory-based environments, but suffers no degradation of performance on reactive environments. The GTrXL also exceeds MERLIN (wayne2018unsupervised), an external memory architecture which used a Differentiable Neural Computer (graves2016hybrid) coupled with auxiliary losses, surpassing its performance on both memory and reactive tasks.

For all transformer architectures except when otherwise stated, we train relatively deep 12-layer networks with embedding size 256 and memory size 512. These networks are comparable to the state-of-the-art networks in use for small language modeling datasets (see enwik8 results in (dai2019transformer)). We chose to train deep networks in order to demonstrate that our results do not necessarily sacrifice complexity for stability, i.e. we are not making transformers stable for RL simply by making them shallow. Our networks have receptive fields that can potentially span any episode in the environments tested, with an upper bound on the receptive field of 6144 ( $12 layers \times 512 memory$ (dai2019transformer)). Future work will look at scaling transformers in RL even further, e.g. towards the 52-layer network in radford2019language. See App. B for experimental details.

For all experiments, we used V-MPO (Song2019), an on-policy adaptation of Maximum a Posteriori Policy Optimization (MPO) (Abdolmaleki2018a; Abdolmaleki2018) that performs approximate policy iteration based on a learned state-value function $V (s)$

instead of the state-action value function used in MPO. Rather than directly updating the parameters in the direction of the policy gradient, V-MPO uses the estimated advantages to first construct a target distribution for the policy update subject to a sample-based KL constraint, then calculates the gradient that partially moves the parameters toward that target, again subject to a KL constraint. V-MPO was shown to achieve state-of-the-art results for LSTM-based agents on the multi-task DMLab-30 benchmark suite.

4.1 Transformer as Effective RL Memory Architecture

We first present results of the best performing GTrXL variant, the GRU-type gating, against a competitive LSTM baseline, demonstrating a substantial improvement on the multi-task DMLab-30 domain (beattie2016deepmind). Figure 2 shows mean return over all levels as training progresses, where the return is human normalized as done in previous work (meaning a human has a per-level mean score of 100 and a random policy has a score of 0), while Table 1 has the final performance at 10 billion environment steps. The GTrXL has a significant gap over a 3-layer LSTM baseline trained using the same V-MPO algorithm. Furthermore, we included the final results of a previously-published external memory architecture, MERLIN (wayne2018unsupervised). Because MERLIN was trained for 100 billion environment steps with a different algorithm, IMPALA (espeholt2018impala), and also involved an auxiliary loss critical for the memory component to function, the learning curves are not directly comparable and we only report the final performance of the architecture as a dotted line. Despite the differences, our results demonstrate that the GTrXL can match the state-of-the-art on DMLab-30. An informative split between a set of memory-based levels and more reactive ones (listed in Appendix D) reveals that our model specifically has large improvements in environments where memory plays a critical role. Meanwhile, GTrXL also shows improvement over LSTMs on the set of reactive levels, as memory can still be effectively utilized in some of these levels.

4.2 Scaling with Memory Horizon

We next demonstrate that the GTrXL scales better compared to an LSTM when an environment’s temporal horizon is increased, using the “Numpad” continuous control task of Humplik2019

which allows an easy combinatorial increase in the temporal horizon. In Numpad, a robotic agent is situated on a platform resembling the 3x3 number pad of a telephone (generalizable to

N \times N

pads). The agent can interact with the pads by colliding with them, causing them to be activated (visualized in the environment state as the number pad glowing). The goal of the agent is to activate a specific sequence of up to

N^{2}

numbers, but without knowing this sequence a priori. The only feedback the agent gets is by activating numbers: if the pad is the next one in the sequence, the agent gains a reward of +1, otherwise all activated pads are cleared and the agent must restart the sequence. Each correct number in the sequence only provides reward once, i.e. each subsequent activation of that number will no longer provide rewards. Therefore the agent must explicitly develop a search strategy to determine the correct pad sequence. Once the agent completes the full sequence, all pads are reset and the agent gets a chance to repeat the sequence again for more reward. This means higher reward directly translates into how well the pad sequence has been memorized. An image of the scenario is provided in Figure 3. There is the restriction that contiguous pads in the sequence must be contiguous in space, i.e. the next pad in the sequence can only be in the Moore neighborhood of the previous pad. Furthermore, no pad can be pressed twice in the sequence.

We present two results in this environment in Figure 3. The first measures the final performance of the trained models as a function of the pad size. We can see that LSTM performs badly on all 3 pad sizes, and performs worse as the pad size increases from 2 to 4. The GTrXL performs much better, and almost instantly solves the environment with its much more expressive memory. On the center and right images, we provide learning curves for the $2 \times 2$ and $4 \times 4$ Numpad environments, and show that even when the LSTM is trained twice as long it does not reach GTrXL’s performance.

Figure 3: Numpad results demonstrating that the GTrXL has much better memory scaling properties than LSTM. Left:
As the Numpad environment’s memory requirement increases (because of larger pad size), the GTrXL suffers much less than LSTM. However, because of the combinatorial nature of Numpad, the GTrXL eventually also starts dropping in performance at 4x4. We plot mean and standard error of the last 200 episodes after training each model for 0.15B, 1.0B and 2.0B environment steps for Numpad size 2, 3 and 4, respectively.
Center, Right: Learning curves for the GTrXL on $2 \times 2$ and $4 \times 4$ Numpad. Even when the LSTM is trained for twice as long, the GTrXL still has a substantial improvement over it. We plot 5 hyperparameter settings per model for learning curves.

Model

Mean Human Norm.

Mean Human Norm., 100-capped

LSTM

99.3

\pm

1.0

84.0

\pm

0.4

TrXL

5.0

\pm

0.2

5.0

\pm

0.2

TrXL-I

107.0

\pm

1.2

87.4

\pm

0.3

MERLIN@100B

115.2

89.4

GTrXL (GRU)

117.6

\pm

0.3

89.1

\pm

0.2

GTrXL (Input)

51.2

\pm

13.2

47.6

\pm

12.1

GTrXL (Output)

112.8

\pm

0.8

87.8

\pm

0.3

GTrXL (Highway)

90.9

\pm

12.9

75.2

\pm

10.4

GTrXL (SigTanh)

101.0

\pm

1.3

83.9

\pm

0.7

Table 1: Final human-normalized return averaged across all 30 DMLab levels for baselines and GTrXL variants. We also include the 100-capped score where the per-level mean score is clipped at 100, providing a metric that is proportional to the percentage of levels that the agent is superhuman. We see that the GTrXL (GRU) surpasses LSTM by a significant gap and exceeds the performance of MERLIN (wayne2018unsupervised) trained for 100 billion environment steps. The GTrXL (Output) and the proposed reordered TrXL-I also surpass LSTM but perform slightly worse than MERLIN and are not as robust as GTrXL (GRU) (see Sec. 4.3.2). We sample 6-8 hyperparameters per model. We include standard error over runs.

4.3 Gating Variants + Identity Map Reordering

We demonstrated that the GRU-type-gated GTrXL can achieve state-of-the-art results on DMLab-30, surpassing both a deep LSTM and an external memory architecture, and also that the GTrXL has a memory which scales better with the memory horizon of the environment. However, the question remains whether the expressive gating mechanisms of the GRU could be replaced by simpler alternatives. In this section, we perform extensive ablations on the gating variants described in Section 3.2, and show that the GTrXL (GRU) has improvements in learning speed, final performance and optimization stability over all other models, even when controlling for the number of parameters.

4.3.1 Performance Ablation

Figure 4: Learning curves for the gating mechanisms, along with MERLIN score at 100 billion frames as a reference point. We can see that the GRU performs as well as any other gating mechanism on the reactive set of tasks. On the memory environments, the GRU gating has a significant gain in learning speed and attains the highest final performance at the fastest rate. We plot both mean (bold) and the individual 6-8 hyperparameter samples per model (light).

We first report the performance of the gating variants in DMLab-30. Table 1 and Figure 4 show the final performance and training curves of the various gating types in both the memory / reactive split, respectively. The canonical TrXL completely fails to learn, while the TrXL-I improves over the LSTM. Of the gating varieties, the GTrXL (Output) can recover a large amount of the performance of the GTrXL (GRU), especially in the reactive set, but as shown in Sec. 4.3.2 is generally far less stable. The GTrXL (Input) performs worse than even the TrXL-I, reinforcing the identity map path hypothesis. Finally, the GTrXL (Highway) and GTrXL (SigTanh) are more sensitive to the hyperparameter settings compared to the alternatives, with some settings doing worse than TrXL-I.

4.3.2 Hyperparameter and Seed Sensitivity

Figure 5: Sensitivity analysis of GTrXL variants versus TrXL and LSTM baselines. We sample 25 different hyperparameter sets and seeds and plot the ranked average return at 3 points during training (0.5B, 1.0B and 2.0B environment steps). Higher and flatter lines indicate more robust architectures. The same hyperparameter sampling distributions were used across models (see Appendix B). We plot human performance as a dotted line.

Model Mean Human Norm. Score # Param. LSTM 99.3

\pm

1.0 9.25M TrXL 5.0

\pm

0.2 28.6M TrXL-I 107.0

\pm

1.2 28.6M Thin GTrXL (GRU) 111.5

\pm

0.6 22.4M GTrXL (GRU) 117.6

\pm

0.3 66.4M GTrXL (Input) 51.2

\pm

13.2 34.9M GTrXL (Output) 112.8

\pm

0.8 34.9M GTrXL (Highway) 90.9

\pm

12.9 34.9M GTrXL (SigTanh) 101.0

\pm

1.3 41.2M

Table 2: Parameter-Controlled Comparisons. Parameter count given in millions. The standard error of the means of the 6-8 runs per model reported in brackets.

Model % Diverged LSTM 0% TrXL 0% TrXL-I 16% GTrXL (GRU) 0% GTrXL (Output) 12%

Table 3: Percentage of the 25 parameter settings where the training loss diverged at any point within 2 billion environment steps. We do not report numbers for GTrXL gating types that were unstable in DMLab-30. For diverged runs we plot the returns in Figure 5 as 0 afterwards.

Beyond improved performance, we next demonstrate a significant reduction in hyperparameter and seed sensitivity for the GTrXL (GRU) compared to baselines and other GTrXL variants. We use the “Memory Maze” environment, a memory-based navigation task in which the agent must discover the location of an apple randomly placed in a maze of blocks. The agent receives a positive reward for collecting the apple and is then teleported to a random location in the maze, with the apple’s position held fixed. The agent can make use of landmarks situated around the room to return as quickly as possible to the apple for subsequent rewards. Therefore, an effective mapping of the environment results in more frequent returns to the apple and higher reward.

We chose to perform the sensitivity ablation on Memory Maze because (1) it requires the use of long-range memory to be effective and (2) it includes both continuous and discrete action sets (details in Appendix A) which makes optimization more difficult. In Figure 5, we sample 25 independent V-MPO hyperparameter settings from a wide range of values and train the networks to 2 billion environment steps (see Appendix B). Then, at various points in training (0.5B, 1.0B and 2.0B), we rank all runs by their mean return and plot this ranking. Models with curves which are both higher and flatter are thus more robust to hyperparameters and random seeds. Our results demonstrate that (1) the GTrXL (GRU) can learn this challenging memory environment in much fewer environment steps than LSTM, and (2) that GTrXL (GRU) beats the other gating variants in stability by a large margin, thereby offering a substantial reduction in necessary hyperparameter tuning. The values in Table 3 list what percentage of the 25 runs per model had losses that diverged to infinity. We can see that the only model reaching human performance in 2 billion environment steps is the GTrXL (GRU), with 10 runs having a mean score 8 and above.

4.3.3 Parameter Count-Controlled Comparisons

For the final gating ablation, we compare transformer variants while tracking their total parameter count to control for the increase in capacity caused by the introduction of additional parameters in the gating mechanisms. To demonstrate that the advantages of the GTrXL (GRU) are not due solely to an increase in parameter count, we halve the number of attention heads (which also effectively halves the embedding dimension due to the convention that the embedding size is the number of heads multiplied by the attention head dimension). The effect is a substantial reduction in parameter count, resulting in less parameters than even the canonical TrXL. Fig. 6 and Tab. 3 compare the different models to the “Thin” GTrXL (GRU), with Tab. 3

listing the parameter counts. The Thin GTrXL (GRU) matches every other model (within variance) except the GTrXL (GRU), even matching the next best-performing model, the GTrXL (Output), with over 10 million less parameters.

4.3.4 Gated Identity Initialization Ablation

Figure 6: Learning curves comparing a thinner GTrXL (GRU) with half the embedding dimension of the other presented gated variants and TrXL baselines. The Thin GTrXL (GRU) has fewer parameters than any other model presented but still matches the performance of the best performing counterpart, the GTrXL (Output), which has over 10 million more parameters. We plot both mean (bold) and 6-8 hyperparameter settings (light) per model.

Figure 7: Ablation of the gated identity initialization on Memory Maze by comparing 10 runs of a model run with the bias initialization and 10 runs of a model without. Every run has independently sampled hyperparameters from a distribution. We plot the ranked mean return of the 10 runs of each model at 1, 2, and 4 billion environment steps. Each mean return is the average of the past 200 episodes at the point of the model snapshot. We plot human performance as a dotted line.

All applicable gating variants in the previous sections were trained with the gated identity initialization (initial experiments found values $b_{g}^{(l)} = 2$ for GRU-type gating and $b_{g}^{(l)} = 1$ for other gating types to work well). We observed in initial Memory Maze results that the gated identity initialization significantly improved optimization stability and learning speed. Figure 7 compares an otherwise identical 4-layer GTrXL (GRU) trained with ( $b_{g}^{(l)} = 2$ ) and without ( $b_{g}^{(l)} = 0$ ) the gated identity initialization, with 10 hyperparameter samples per initial bias setting. Similarly to the previous sensitivity plots, we plot the ranked mean return of all 10 runs at various times during training. As can be seen from Fig. 7, there is a significant gap caused by the bias initialization, suggesting that preconditioning the transformer to be close to Markovian results in large learning speed gains.

5 Related Work

Gating has been shown to be effective to address the vanishing gradient problem and thus improve the learnability of recurrent models. LSTM networks

(hochreiter1997long; graves2013generating) rely on an input, forget and output gate that protect the update of the cell. GRU (chung2014empirical; cho2014gru) is another popular gated recurrent architecture that simplifies the LSTM cell, reducing the number of gates to two. Finding an optimal gating mechanism remains an active area of research, with other existing proposals (krause2016multiplicative; gridlstm; wu2016multiplicative), as well as works trying to discover optimal gating by neural architecture search (neuroCellsearch) More generally, gating and multiplicative interactions have a long history (rumelhart1986pdpframework). Gating has been investigated previously for improving the representational power of feedforward and recurrent models (van2016conditional; dauphin2017language), as well as learnability (srivastava2015highway; zilly2017recurrent). Initialization has also played a crucial role in making deep models trainable (LeCun:1998:EB:645754.668382; Glorot10understandingthe; pmlr-v28-sutskever13).

There has been a wide variety of work looking at improving memory in reinforcement learning agents. External memory approaches typically have a regular feedforward or recurrent policy interact with a memory database through read and write operations. Priors are induced through the design of the specific read/write operations, such as those resembling a digital computer (wayne2018unsupervised; graves2016hybrid) or an environment map (parisotto2017neural; gupta2017cognitive). An alternative non-parametric perspective to memory stores an entire replay buffer of the agent’s past observations, which is made available for the agent to itself reason over either through fixed rules (blundell2016model) or an attention operation (pritzel2017neural). Others have looked at improving performance of LSTM agents by extending the architecture with stacked hierarchical connections / multiple temporal scales and auxiliary losses (jaderberg2019human; stookeperception) or allowing an inner-loop update to the RNN weights (miconi2018differentiable). Other work has examined self-attention in the context of exploiting relational structure within the input-space (zambaldi2018deep) or within recurrent memories (santoro2018relational).

6 Conclusion

In this paper we provided evidence that confirms previous observations in the literature that standard transformer models, despite the recent successes in supervised learning (devlin2019bert; dai2019transformer; yang2019xlnet; radford2019language), are too unstable to train in the RL setting and often fail to learn completely (Mishra2018). We presented a new architectural variant of the transformer model, the GTrXL, which has increased performance, more stable optimization, and greater robustness to initial seed and hyperparameters than the canonical architecture. The key contributions of the GTrXL are reordered layer normalization modules, enabling an initially Markov regime of training, and a gating layer instead of the standard residual connections. We performed extensive ablation experiments testing the robustness, ease of optimization and final performance of the gating layer variations, as well as the effect of the reordered layer normalization. These results empirically demonstrate that the GRU-type gating performs best across all metrics, exhibiting comparable robustness to hyperparameters and random seeds as an LSTM while still maintaining a performance improvement. Furthermore, the GTrXL (GRU) learns faster, more stably and achieves a higher final performance (even when controlled for parameters) than the other gating variants on the challenging multitask DMLab-30 benchmark suite.

Having demonstrated substantial and consistent improvement in DMLab-30, Numpad and Memory Maze over the ubiquitous LSTM architectures currently in use, the GTrXL makes the case for wider adoption of transformers in RL. A core benefit of the transformer architecture is its ability to scale to very large and deep models, and to effectively utilize this additional capacity in larger datasets. In future work, we hope to test the limits of the GTrXL’s ability to scale in the RL setting by providing it with a large and varied set of training environments.

Acknowledgments

We thank Alexander Pritzel, Chloe Hillier, Vicky Langston and many others at DeepMind for discussions, feedback and support during the preparation of the manuscript.

References

Appendix

Appendix A Environment Details

Figure 8: Left: The Numpad environment, showing the controllable “sphere” robot and a full 3x3 pad. Pads are activated when the robot collides with their center. The robot can move on the plane as well as jump to avoid pressing numbers. Right: Top down view of “Memory Maze”: (1) Central chamber, (2) blocks among which the apple is placed, (3) landmarks the agent can use to locate the apple, (4) one of the possible location of the apple.

Numpad: Numpad has three actions, two of which move the sphere towards some direction in the x,y plane and the third allows the agent to jump in order to get over a pad faster. The observation consists of a variety of proprioceptive information (e.g. position, velocity, acceleration) as well as which pads in the sequence have been correctly activated (these will shut off if an incorrect pad is later hit), and the previous action and reward. Episodes last a fixed 500 steps and the agent can repeat the correct sequence any number of times to receive reward. Observations were processed using a simple 2-layer MLP with tanh activations to produce the transformer’s input embedding.

DMLab-30: Ignoring the “jump” and “crouch” actions which we do not use, an action in the native DMLab action space consists of 5 integers whose meaning and allowed values are given in Table 4. Following previous work on DMLab (Hessel2018), we used the reduced action set given in Table 5 with an action repeat of 4. Observations are $72 \times 96$ RGB images. Some levels require a language input, and for that all models use an additional 64-dimension LSTM to process the sentence.

In wayne2018unsupervised, the DMLab Arbitrary Visuomotor Mapping task was specifically used to highlight the MERLIN architecture’s ability to utilize memory. In Figure 9 we show that, given a similarly reduced action set as used in wayne2018unsupervised, see Table 6, the GTrXL architecture can also reliably attain human-level performance on this task.

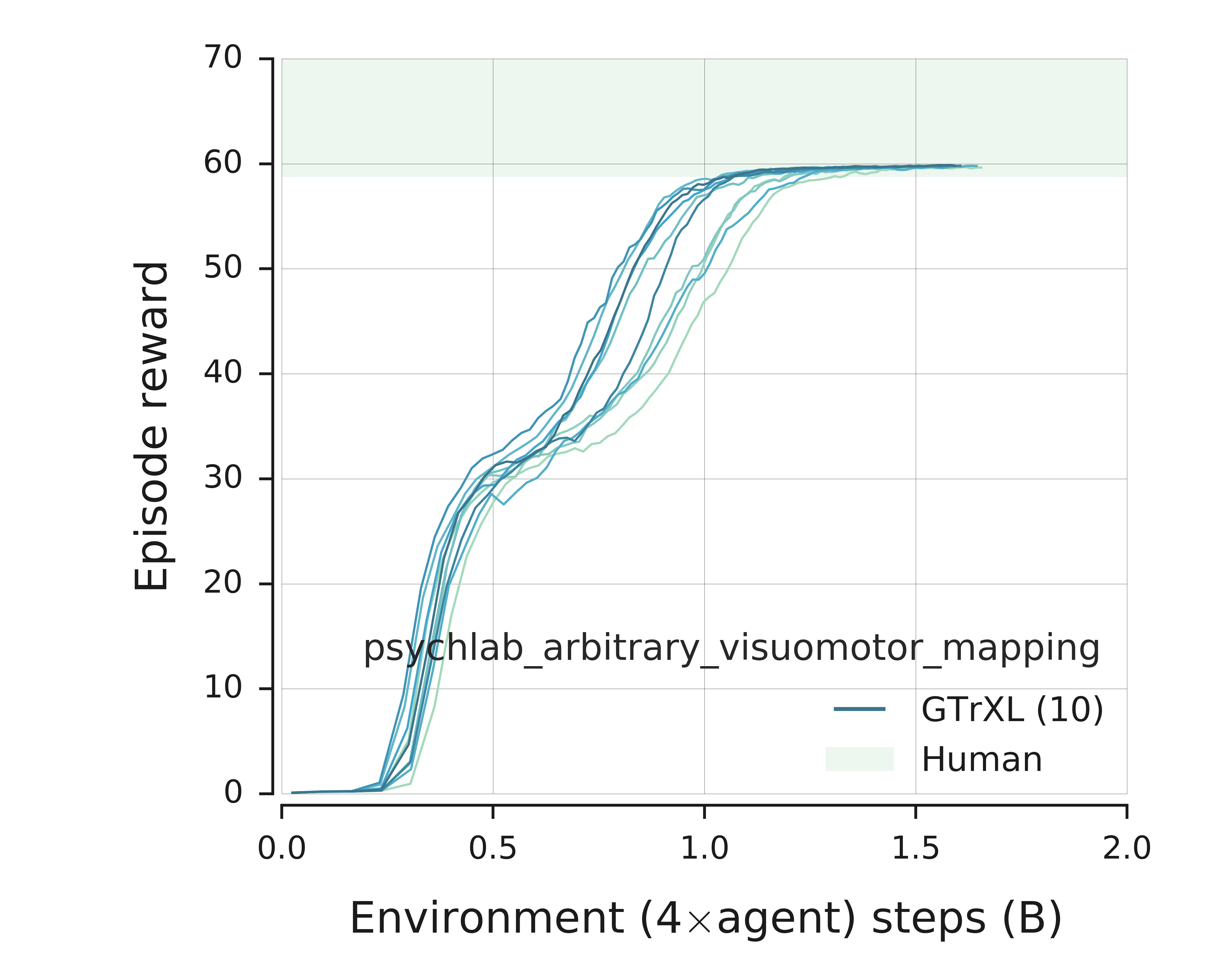

Figure 9: Learning curves for the DMLab Arbitrary Visuomotor Mapping task using a reduced action set.

Action name	Range
LOOK_LEFT_RIGHT_PIXELS_PER_FRAME	[-512, 512]
LOOK_DOWN_UP_PIXELS_PER_FRAME	[-512, 512]
STRAFE_LEFT_RIGHT	[-1, 1]
MOVE_BACK_FORWARD	[-1, 1]
FIRE	[0, 1]

Table 4: Native action space for DMLab. See https://github.com/deepmind/lab/blob/master/docs/users/actions.md for more details.

Action	Native DMLab action
Forward (FW)	[ 0, 0, 0, 1, 0]
Backward (BW)	[ 0, 0, 0, -1, 0]
Strafe left	[ 0, 0, -1, 0, 0]
Strafe right	[ 0, 0, 1, 0, 0]
Small look left (LL)	[-10, 0, 0, 0, 0]
Small look right (LR)	[ 10, 0, 0, 0, 0]
Large look left (LL )	[-60, 0, 0, 0, 0]
Large look right (LR)	[ 60, 0, 0, 0, 0]
Look down	[ 0, 10, 0, 0, 0]
Look up	[ 0, -10, 0, 0, 0]
FW + small LL	[-10, 0, 0, 1, 0]
FW + small LR	[ 10, 0, 0, 1, 0]
FW + large LL	[-60, 0, 0, 1, 0]
FW + large LR	[ 60, 0, 0, 1, 0]
Fire	[ 0, 0, 0, 0, 1]

Table 5: Simplified action set for DMLab from Hessel2018 (Hessel2018).

Action	Native DMLab action
Small look left (LL)	[-10, 0, 0, 0, 0]
Small look right (LR)	[ 10, 0, 0, 0, 0]
Look down	[ 0, 10, 0, 0, 0]
Look up	[ 0, -10, 0, 0, 0]
No-op	[ 0, 0, 0, 0, 0]

Table 6: Simplified action set for DMLab Arbitrary Visuomotor Mapping (AVM). This action set is the same as the one used for AVM in wayne2018unsupervised but with an additional no-op, which may also be replaced with the Fire action.

Memory Maze: An action in the native Memory Maze action space consists of 8 continuous actions and a single discrete action whose meaning and allowed values are given in Table 7. Unlike for DMLab, we used a hybrid continuous-discrete distribution (Neunert2019) to directly output policies in the game’s native action space. Observations are $72 \times 96$ RGB images.

Action name	Range
LOOK_LEFT_RIGHT	[-1.0, 1.0]
LOOK_DOWN_UP	[-1.0, 1.0]
STRAFE_LEFT_RIGHT	[-1.0, 1.0]
MOVE_BACK_FORWARD	[-1.0, 1.0]
HAND_ROTATE_AROUND_RIGHT	[-1.0, 1.0]
HAND_ROTATE_AROUND_UP	[-1.0, 1.0]
HAND_ROTATE_AROUND_FORWARD	[-1.0, 1.0]
HAND_PUSH_PULL	[-10.0, 10.0]
HAND_GRIP	{0, 1}

Table 7: Hybrid action set for Memory Maze, consisting of 8 continuous actions and a single discrete action.

Image Encoder: For DMLab-30 and Memory Maze, we used the same image encoder as in (Song2019) for multitask DMLab-30. The ResNet was adapted from Hessel2018 (Hessel2018) and each of its layer blocks consists of a ( $3 \times 3$ , stride 1) convolution, followed by ( $3 \times 3$

, stride 2) max-pooling, followed by 2

3 \times 3

residual blocks with ReLU non-linearities.

Agent Output: As in (Song2019)

, in all cases we use a 256-unit MLP with a linear output to get the policy logits (for discrete actions), Gaussian distribution parameters (for continuous actions) or value function estimates.

Appendix B Experimental details

For all experiments, beyond sampling independent random seeds, each run also has V-MPO hyperparameters sampled from a distribution (see Table 8). The sampled hyperparameters are kept fixed across all models for a specific experiment, meaning that if one of the $ϵ_{α}$ sampled is 0.002, then all models will have 1 run with $ϵ_{α} = 0.002$ and so on for the rest of the samples. The exception is for the DMLab-30 LSTM, where a more constrained range was found to perform better in preliminary experiments. Each model had 8 seeds started, but not all runs ran to completion due to compute issues. These hyperparameter settings were dropped randomly and not due to poor environment performance. We report how many seeds ran to completion for all models. At least 6 seeds finished for every model tested. We list architecture details by section below.

Hyperparameter

Environment

DMLab-30

Numpad

Memory Maze

Batch Size

128

Unroll Length

Discount

0.99

Action Repeat

Pixel Control Cost

2 \times 10^{- 3}

Target Update Period

Initial

η

1.0

10.0

1.0

Initial

α

5.0

Initial

α_{μ}

1.0

Initial

α_{Σ}

1.0

ϵ_{η}

0.1

ϵ_{α}

(log-uniform)

LSTM [0.001, 0.025)

TrXL Variants [0.001, 0.1)

[0.001, 0.1)

ϵ_{α_{μ}}

(log-uniform)

[0.005, 0.01)

[0.005,0.01)

ϵ_{α_{Σ}}

(log-uniform)

[

5 \times 10^{- 6}

4 \times 10^{- 4}

)

[

5 \times 10^{- 6}

4 \times 10^{- 5}

)

Table 8: V-MPO hyperparameters per environment.

Model

# Layers

Head Dim.

# Heads

Hidden

Dim.

Memory Size

Runs

Completed

LSTM

256

TrXL

256

512

TrXL-I

256

512

GTrXL (GRU)

256

512

GTrXL (Input)

256

512

GTrXL (Output)

256

512

GTrXL (Highway)

256

512

GTrXL (SigTanh)

256

512

Thin GTrXL (GRU)

128

512

Table 9: DMLab-30 Ablation Architecture Details. We report the number of runs per model that ran to completion (i.e. 10 billion environment steps). We follow the standard convention that the hidden/embedding dimension of transformers is equal to the head dimension multiplied by the number of heads. (Sec. 4.1 & Sec. 4.3).

Model

# Layers

Head Dim.

# Heads

Hidden

Dim.

Memory Size

Runs

Completed

LSTM

256

GTrXL (GRU)

256

512

Table 10: Numpad Architecture Details. (Sec. 4.2).

Model

# Layers

Head Dim.

# Heads

Hidden

Dim.

Memory Size

LSTM

256

TrXL

256

512

TrXL-I

256

512

GTrXL (GRU)

256

512

GTrXL (Output)

256

512

Table 11: Sensitivity ablation architecture details (Sec. 4.3.2).

Model

# Layers

Head Dim.

# Heads

Hidden

Dim.

Memory Size

Runs

Completed

GTrXL (GRU)

256

512

Table 12: Gated identity initialization ablation architecture details (Sec. 4.3.4).

Figure 10: The 25 hyperparameter settings sampled for the sensitivity ablation (Sec. 4.3.2). X-axis is in log scale and values are sampled from the corresponding ranges given in Table 8.

b.1 Training setup

All experiments in this work were carried out in an actor-learner framework (espeholt2018impala) that utilizes TF-Replicator (Buchlovsky2019) for distributed training on TPUs in the 16-core configuration (Google2018). “Actors” running on CPUs performed network inference and interactions with the environment, and transmitted the resulting trajectories to the centralised “learner“.

Appendix C Multi-Head Attention Details

c.1 Multi-Head Attention

The Multi-Head Attention (MHA) submodule computes in parallel $H$ soft-attention operations for every time step, producing an output tensor $Y^{(l)} \in R^{T \times D}$ . MHA operates by first calculating the query $Q^{(l)} \in R^{H \times T \times d}$ , keys $K^{(l)} \in R^{H \times T \times d}$ , and values $V^{(l)} \in R^{H \times T \times d}$ (where $d = D / H$ ) through trainable linear projections $W_{Q}^{(l)}$ , $W_{K}^{(l)}$ , and $W_{V}^{(l)}$ , respectively, and then using the combined $Q$ , $K$ , $V$ , tensors to compute the soft attention. A residual connection (he2016deep) to the resulting embedding $E^{(l)}$ is then applied and finally layer normalization (ba2016layer).

$\bf MultiHeadAttention(E(l−1))$ :

$Q^{(l)}, K^{(l)}, V^{(l)}$	$= W_{Q}^{(l)} E^{(l - 1)}, W_{K}^{(l)} E^{(l - 1)}, W_{V}^{(l)} E^{(l - 1)}$	(9)
$α_{h t m}^{(l)}$	$= Q_{h t d} K_{h m d}$	(10)
$W_{h t m}^{(l)}$	$= MaskedSoftmax (α^{(l)}, axis= m)$	(11)
${¯ ¯¯ ¯ Y}_{h t d}^{(l)}$	$= W_{h t m}^{(l)} V_{h m d}^{(l)}$	(12)
${^Y}^{(l)}$	$= E^{(l - 1)} + Linear ({¯ ¯¯ ¯ Y}^{(l)})$	(13)
$Y^{(l)}$	$= LayerNorm ({^Y}^{(l)})$	(14)

where we used Einstein summation notation to denote the tensor multiplications, MaskedSoftmax is a causally-masked softmax to prevent addressing future information, Linear is a linear layer applied per time-step and we omit reshaping operations for simplicity.

c.2 Relative Multi-Head Attention

The basic MHA operation does not take sequence order into account explicitly because it is permutation invariant, so positional encodings are a widely used solution in domains like language where order is an important semantic cue, appearing in the original transformer architecture (Vaswani2017). To enable a much larger contextual horizon than would otherwise be possible, we use the relative position encodings and memory scheme described in dai2019transformer. In this setting, there is an additional $T$ -step memory tensor $M^{(l)} \in R^{T \times D}$ , which is treated as constant during weight updates.

$\bf RelativeMultiHeadAttention(M(l−1),E(l−1))$ :

${˜ E}^{(l - 1)}$	$= [M^{(l - 1)}, E^{(l - 1)}]$	(15)
$Q^{(l)}, K^{(l)}, V^{(l)}$	$= W_{Q}^{(l)} E^{(l - 1)}, W_{K}^{(l)} {˜ E}^{(l - 1)}, W_{V}^{(l)} {˜ E}^{(l - 1)}$	(16)
$R$	$= W_{R}^{(l)} Φ$	(17)
$α_{h t m}^{(l)}$	$= Q_{h t d} K_{h m d} + Q_{h t d} R_{h m d} + u_{h * d} K_{h t m} + v_{h * d} R_{h m d}$	(18)
$W_{h t m}^{(l)}$	$= MaskedSoftmax (α^{(l)}, axis= m)$	(19)
${¯ ¯¯ ¯ Y}_{h t d}^{(l)}$	$= W_{h t m}^{(l)} V_{h m d}^{(l)}$	(20)
${^Y}^{(l)}$	$= E^{(l - 1)} + Linear ({¯ ¯¯ ¯ Y}^{(l)})$	(21)
$Y^{(l)}$	$= LayerNorm ({^Y}^{(l)})$	(22)

where $Φ$ is the standard sinusoid encoding matrix, $u^{(l)}, v^{(l)} \in R^{H \times d}$ are trainable parameters, the $*$ represents the broadcast operation, and $W_{R}$ is a linear projection used to produce the relative location-based keys (see dai2019transformer for a detailed derivation).

c.3 Identity Map Reordering

The Identity Map Reordering modifies the standard transformer formulation as follows: the layer norm operations are applied only to the input of the sub-module and a non-linear ReLU activation is applied to the output stream.

${¯ ¯¯ ¯ Y}^{(l)}$	$= RelativeMultiHeadAttention (LayerNorm ([% StopGrad (M^{(l - 1)}), E^{(l - 1)}]))$	(23)
$Y^{(l)}$	$= E^{(l - 1)} + ReLU ({¯ ¯¯ ¯ Y}^{(l)})$	(24)
${¯ ¯¯ ¯ E}^{(l)}$	$= f^{(l)} (LayerNorm (Y^{(l)}))$	(25)
$E^{(l)}$	$= Y^{(l)} + ReLU ({¯ ¯¯ ¯ E}^{(l)})$	(26)

See Figure 1 (Center) for a visual depiction of the TrXL-I.

Appendix D DMLab-30 Memory/Reactive Partition

Memory

Reactive

[label=,leftmargin=*]
rooms_select_nonmatching_object
rooms_watermaze
explore_obstructed_goals_small
explore_goal_locations_small
explore_object_rewards_few
explore_obstructed_goals_large
explore_goal_locations_large
explore_object_rewards_many

[label=,leftmargin=*]
rooms_collect_good_objects_train
rooms_exploit_deferred_effects_train
rooms_keys_doors_puzzle
language_select_described_object
language_select_located_object
language_execute_random_task
language_answer_quantitative_question
lasertag_one_opponent_large
lasertag_three_opponents_large
lasertag_one_opponent_small
lasertag_three_opponents_small
natlab_fixed_large_map
natlab_varying_map_regrowth
natlab_varying_map_randomized
skymaze_irreversible_path_hard
skymaze_irreversible_path_varied
psychlab_arbitrary_visuomotor_mapping
psychlab_continuous_recognition
psychlab_sequential_comparison
psychlab_visual_search
explore_object_locations_small
explore_object_locations_large

Table 13: Partition of DMLab-30 levels into a memory-based and reactive split of levels.
