1 Introduction

The package rcosmo was developed to offer the functionality needed to handle and analyse Hierarchical Equal Area isoLatitude Pixelation (HEALPix) and Cosmic Microwave Background (CMB) radiation data. Comprehensive software packages for working with HEALPix data are available in Python and MATLAB, see, for example, [8], [9] and [10]. The main aim of rcosmo was to provide a convenient access to big CMB data and HEALPix functionality for R users.

The package has more than 100 functions. They can be broadly divided into four groups:

  • CMB and HEALPix data holding, subsetting and visualization,

  • HEALPix structure operations,

  • geometric methods,

  • statistical methods.

The detailed summary of rcosmo structure, HEALPix, geometric and statistical functionality is provided in [6]. Technical description and examples of the core rcosmo functions can be found in the package documentation on CRAN [5]. This paper addresses a different important problem of using rcosmo for spherical-type data in non-HEALPix formats.

rcosmo was initially developed for CMB data that are HEALPix indexed and can be represented as GIS (geographic information system) raster images and modelled as random fields. However, there are other spherical coordinate systems and statistical models. Spherical data are of main interest for geosciences, environmetric and biological studies, but most of researches in these fields are not aware about advantages of the HEALPix data structure or do not have ready-to-use R code to transform their data into HEALPix formats. The aim of this publication is to demonstrate how to deal with three different types of non-CMB/non-HEALPix data. First, we consider continuous geo-referenced observations that are modelled by random fields. The second type of data are discrete spherical data that can be given as realisations of spatial point processes. Finally, the analysis of irregularly star-shaped geometric bodies is presented. Real data examples and illustrations of basic rcosmo statistical functions are given for each of the three types.

To reproduce the results of this paper the current version of the package rcosmo can be installed from CRAN. A development release is available from GitHub (https://github.com/frycast/rcosmo). A reproducible version of the code and the data used in this paper are available in the folder ”Research materials” from the website https://sites.google.com/site/olenkoandriy/.

2 Coordinate systems for spherical data representation

The HEALPix format has numerous advantages, compared to other spherical data representations: equal area pixels, hierarchical tessellations of the sphere and iso-latitude rings of pixels. It is used for an efficient organization of spherical data in a computer memory and providing fast spherical harmonic transforms, search and numerical analysis of spherical data.

The HEALPix representation is the key element for indexing spherical data in rcosmo . This section recalls the main spherical coordinate systems and introduces basics of HEALPix. The following sections will demonstrate conversion from different data representations into the HEALPix format.

To index locations of observations the vast majority of spatial applications dealing with spherical data use one of the following coordinate system: Cartesian, geographic, spherical or HEALPix. The Cartesian and spherical coordinate systems often appear in mathematical description of models. The geographic coordinates are the main indexing tools in GIS, Earth and planetary sciences, while HEALPix has become very popular in recent cosmological research dealing with CMB data.

For simplicity, this section considers the unit sphere with radius 1. Using the Cartesian coordinate system a location on the sphere is specified by a triplet where and . The spherical coordinates of a point are obtained from by inverting the three equations

where and

For a point with the spherical coordinates its geographic coordinates will be written as Geographic coordinates are obtained from spherical coordinates by setting

Thus and . When representing Earth’s surface in any of the above coordinate systems we align the -axis with the Earth’s Prime Meridian, and have the -axis pointing north. Commonly is referred to as longitude and is referred to as latitude and the both are often measured in degrees instead of radians.

HEALPix is a Hierarchical Equal Area Isolatitude Pixelation of the sphere. Detailed derivations of the HEALPix coordinates can be found in [7]. First, the unit sphere is divided into 12 equatorial base pixels. A planar projection of the base pixels is given in Figure 1. The base pixelation divides the sphere into one equatorial and two polar regions. Referring to the indices shown in Figure 1, pixels and are “equatorial”; pixels and are “north polar”; and pixels and are “south polar.”

5

9

1

6

10

2

7

11

3

8

12

4
Figure 1: HEALPix base pixel planar projection as 12 squares.

The base pixelation is defined to have the resolution parameter . For resolution each base pixel is subdivided into 4 equiareal child pixels. This process is repeated for higher resolutions with each pixel at resolution being one of 4 child pixels from the subdivision of its parent pixel in resolution . At any resolution , the number of pixels per base pixel edge is and the total number of pixels is .

During this subdivision, pixel boundary and centre locations are chosen in such a way that all pixel centres lie on

rings of constant latitude, making it easy to implement various mathematical methods, in particular Fourier transforms with spherical harmonics. Pixel indices are then assigned to child pixels in one of two ways, known as the “ring” and “nested”

ordering schemes. In the ring ordering scheme, indices are assigned in the increasing order from east to west along isolatitude rings, and then increasing north to south, as in the example shown in Figure 2. In the nested ordering scheme the children of base pixel are labelled with consecutive labels as shown in Figure 3. This nested ordering scheme allows efficient implementation of local operations such as nearest-neighbour searches.

1

5

6

14

2

7

8

16

3

9

10

18

4

11

12

20

13

21

22

29

15

23

24

31

17

25

26

33

19

27

28

35

30

37

38

45

32

39

40

46

34

41

42

47

36

43

44

48
Figure 2: HEALPix pixelation at resolution in ring ordering scheme.

20

19

18

17

36

35

34

33

4

3

2

1

24

23

22

21

40

39

38

37

8

7

6

5

28

27

26

25

44

43

42

41

12

11

10

9

32

31

30

29

48

47

46

45

16

15

14

13
Figure 3: HEALPix pixelation at resolution in nested ordering scheme.

3 Continuous geographic data

In this section we demonstrate how rcosmo

 can be applied to handle continuous geo-references observations. Such observations are usually collected over dense geographic grids or obtained as results of spatial interpolation or smoothing. Continuous geographic data are common in meteorology, for example, maps with temperature, precipitation, wind direction, or atmospheric pressure values. Other examples of continuous data are land elevations, heights above mean sea level, and ground-level ozone measurements. There are also other numerous environmetrics examples. These data are usually represented and visualised as topographic/contour maps or GIS raster images. In geographic applications it is often assumed that the Earth has a spherical shape with a radius about 6378 km, but with an elevation that departs from this sphere in a very irregular manner. Therefore, most applied methods for the above data are based on spherical statistical models.

Traditionally theoretical models that are used for the continuous type of data are called random fields in statistics or spatially dependent variables in geostatistics. Below we introduce basic notations and background by reviewing some results about spherical random fields, see more details in [14] and [16].

We will denote a 3d sphere with radius 1 by

A spherical random field on a probability space

, denoted by

or is a stochastic function defined on the sphere

The field is called isotropic (in the weak sense) on the sphere if

and its first and second-order moments are invariant with respect to the group

of rotations in i.e.

for every and This means that the mean and that the covariance function depends only on the angular distance between the points and on A wide class of non-isotropic random field models can be obtained by adding a deterministic component to the field

As an example of a spherical random field we use the total column ozone data from the Nimbus-7 polar orbiting satellite, see more details in [3]. This data set provides measurements of the total amount of atmospheric ozone in a given column of a latitude by longitude grid. The CSV file available from the website https://hpc.niasra.uow.edu.au/ckan/dataset/tco contains 173405 rows with the measurements recorded on the 1st of October, 1988. We will be using the fields lon: longitude, lat: latitude and ozone: TCO level 2 data.

First we demonstrate how to use rcosmo to transform the geographic referenced ozone data to the HEALPix representation. The R code below loads the ozone data from the file toms881001.csv into R. Then geographic coordinates are transformed to spherical ones in radians. Finally, the function HPDataFrame creates an rcosmo object at the resolution 2048, i.e. on the 50,331,648 nodes grid.

> library(rcosmo)
> library(celestial)
> totalozone <- read.csv("toms881001.csv")
> sph <- geo2sph(data.frame(lon = pi/180*totalozone$lon,  lat =
  pi/180*totalozone$lat))
> df1 <- data.frame(phi = sph$phi, theta = sph$theta,
  I = totalozone$ozone)
> hp <- HPDataFrame(df1, auto.spix = TRUE, delete.duplicates
  = TRUE, nside = 2048)

Now we transform the result to an object of the CMBDataFrame class, which is the main class for statistical and geometric analysis in rcosmo .

> cmb <- as.CMBDataFrame(hp)

To visualise the data we first centre them by subtracting the mean and then rescale to use the rcosmo colour scheme.

> cmb$I1 <- (cmb$I-mean(cmb$I))/100000
> plot(cmb, intensities = "I1", back.col = "white", size = 10)

Now we add the coastline of Australia to the obtained 3d plot. We use the R package map to extract longitude and latitude coordinates of the Australian boarder. Then, similarly to the above code we transform the border coordinates to a CMBDataFrame object and plot it on the ozone map.

> library(maps)
> library(mapdata)
> aus<-map("worldHires", "Australia", mar=c(0,0,0,0), plot =FALSE)
> aus1 <- data.frame(aus$x,aus$y)
> aus1 <- aus1[complete.cases(aus1),]
> sph1 <- geo2sph(data.frame(lon = pi/180*(aus1[,1]+180),
  lat = pi/180*(aus1[,2])))
> df2 <- data.frame(phi = sph1$phi,theta = sph1$theta, I = 1)
> hp1 <- HPDataFrame(df2, auto.spix = TRUE, delete.duplicates
  = TRUE, nside = 2048)
> cmb1 <- as.CMBDataFrame(hp1)
> plot(cmb1,  size = 10, col = "black", add=TRUE)

Setting the country to China

> chi <- map("worldHires", "China", mar=c(0,0,0,0), plot =FALSE)

and repeating the above commands will add the boundaries of China to the plot. The result is shown in Figure 4.

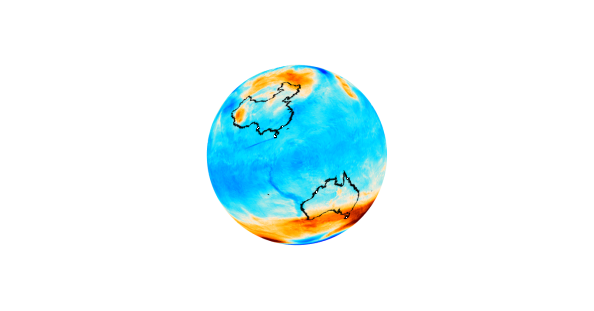

Figure 4: Total column ozone map with Australia and China boundaries.

Now the data are in the HEALPix format and rcosmo functions can be used to analyse them. For example, the following code first computes the sample mean alpha of the total column ozone data. Then rcosmo commands exprob and extrCMBestimate the exceedance probability above the level alpha and get three largest ozone values and their locations within the spherical window win1.

> alpha <- mean(cmb[,"I", drop = TRUE])
> alpha
[1] 298.4333
> win1 <- CMBWindow(theta = c(0,pi/2,pi/2), phi = c(0,0,pi/2))
> exprob(cmb, win1, alpha,intensities = "I")
[1] 0.3557902
> extrCMB(cmb, win1, 3, intensities = "I")
A CMBDataFrame
# A tibble: 3 x 4
      I theta   phi       I1
  <dbl> <dbl> <dbl>    <dbl>
1  179.  3.07  3.32 -0.00119
2  180.  2.96  4.21 -0.00119
3  180.  2.94  4.27 -0.00118

To compute the estimated entropy for the ozone measurements within the region win1 one can use

> entropyCMB(cmb, win1)
[1] 2.214391

4 Point pattern data

In this section we demonstrate rcosmo

 handling of geographic point pattern data. Comparing to continuous geographic data these points are not densely regularly spaced and often have random spatial locations. Some classical examples include studies of settlement distributions, locations of trees, seismological events, data aggregated over a set of zones to specific ”central” locations. Spatial point data are also common in geographical epidemiology studies that deal with disease mapping, clustering and finding locations of possible sources. These data are usually represented and visualised as GIS vector images.

In statistical applications random spatial patterns of points are often modelled by spatial point processes. Points usually represent locations of objects and the associated marks are used to record properties of these objects.

A spatial point process is a random countable subset of the sphere This process is a measurable mapping defined on the probability space and taking values in finite/countable sets of points from For every Borel subset

the corresponding random variable

denotes the number of points in this subset. For simplicity we restrict our consideration to simple point processes that have realizations with no coincident points.

The distribution of a point process

is defined by the joint distributions of the numbers of points

in the subsets A point process on is isotropic if its distribution is invariant under the group The mean measure of a point process assigns to every subset the expected number of points in this subset.

The most popular point processes in applications are Poisson and Cox point processes. More details on the theory and applications of spatial point processes can be found in [1], [4] and the references therein.

As an example we use the Integrated Global Radiosonde Archive (IGRA) measurements. They were collected from radiosondes and pilot balloons at over 2700 stations, [11]. Observations include locations of stations, temperature, pressure, wind direction and speed, etc. For the following analysis we used latitudes and longitudes of stations and their elevations above sea level. The TXT file igra2-station-list.txt with IGRA stations data was downloaded from the website https://www1.ncdc.noaa.gov/pub/data/igra/ and saved as a CSV file.

First, the records with missing information and values ”-9999” were removed. Then the longitude was recorded using the range

> x <- read.csv("igra2-station-list.csv", header=FALSE)
> x1 <- x[,c("V2","V3","V4")]
> x1 <- x1[complete.cases(x1),]
> x1 <- x1[x1$V3>-300,]
> x1$V3 <- x1$V3 + 180

Similar to Section 3, data were transformed to the CMBDataFrame class with the variable ”I” denoting stations’ elevation above sea level.

> sph <- geo2sph(data.frame(lon = pi/180*x1$V3, lat =
  pi/180*x1$V2))
> df1 <- data.frame(phi = sph$phi, theta = sph$theta, I = x1$V4)
> cmb <- as.CMBDataFrame(hp)

After a rescaling the locations of IGRA stations were plotted with darker colours corresponding to higher elevated stations.

> cmb$I1 <- (cmb$I-mean(cmb$I))/1000000
> plot(cmb,intensities = "I1", size = 3, back.col = "white",
  add=TRUE)

Similar to Section 3 the boundaries of Australia and China were added to reference stations positions, see the resulting Figure 5

. The figure suggests that the stations are not uniformly distributed over the globe and much higher elevated in China than in Australia.

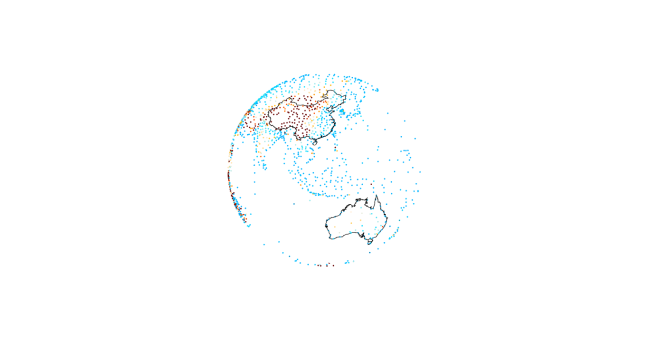

Figure 5: Locations of IGRA stations and Australia and China boundaries.

As the data are in the HEALPix format a few rcosmo functions were employed to analyse them. For example, the first Minkowski functional fmf can be used to estimate a relative area of HEALPix locations with the elevation above sea level.

> fmf(cmb, 0, intensities = "I")/(dim(cmb)[1]*pixelArea(cmb))
[1] 0.9869792

The minimum angular geodesic distance between IGRA stations was computed by

> minDist(cmb)
[1] 0.00049973

The marginal distribution plots in Figure 6 show that elevation departs from the uniform distribution with respect to geographic coordinates.

> plotAngDis(cmb, intensities = "I")
Figure 6: Distribution of the elevation with respect to spherical angles.

5 Directional data

This section demonstrates how to use rcosmo with directional and shape data. In this publication we restrict our consideration only to star-shaped data. More details on other models and methods in statistical directional and shape analysis can be found in [13] and [15].

In contrast to geographic data in Sections 3 and 4, directional data are not necessarily located on a sphere, but rather are observed in radial directions from a common centre. However, they are usually indexed by points of the unit sphere. Directional and shape data are common in various fields. For example, in geo-sciences (direction of the Earth’s magnetic pole, epicentres of earthquakes, directions of remnant rock magnetism), biology (movement directions of birds and fish, animal orientation), in physics (optical axes of crystals, molecular links, sources of cosmic rays), etc.

The main statistical tools to model and investigate directional data are circular and spherical distributions and statistics, see, for example, [13]. Probably the simplest spherical distribution is the uniform one with the constant density for all This is the only distribution that is invariant under both rotations and reflections. An important directional statistic is the sample mean direction, which is computed as the direction of the sum of the observed set of unit vectors

Many of directional methods can be translated from spheres to star-shaped surfaces, with additional marks representing radial distances to observations. A body in is called star-shaped if there is a point such that for every the segment joining and belongs to The corresponding body’s surface is also called star-shaped. The marks containing radial distances can be used to statistically investigate and compare various geometric properties of star-shaped data. For example, to estimate the mean directional asymmetry in a solid spherical angle one can use the excess from the overall mean distance

where denotes a number of cases.

In this section we consider the shape data of the brain substructure amygdala studied in [2]. Structural abnormalities of amygdala are related to functional impairment in autism. The data consist of amygdala MRI measurements of 46 control and autistic persons and contain their group identifiers, age, left and right amygdala surface coordinates. The MATLAB file chung.2010.NI.mat available from the website http://pages.stat.wisc.edu/~mchung/research/amygdala/ includes 2562 surface points for each person.

First we load the full data set into R

> library(R.matlab)
> mat <- R.matlab::readMat("chung.2010.NI.mat")

Then we select two persons 10 and 13 (control and autistic) of the same age 17. Cartesian coordinates of left amygdala sampled points of person 10 were transformed by first centring them and then converting to spherical coordinates. The corresponding 3d plot is shown in the first Figure 7.

> p1 <- data.frame(mat$left.surf[10,,])
> p1 <- apply(p1, 2, function(y) y - mean(y))
> library(rgl)
> plot3d(p1)
> library(sphereplot)
> p1s <- as.data.frame(car2sph(p1, deg = FALSE))
> names(p1s) <- c("theta", "phi", "I")

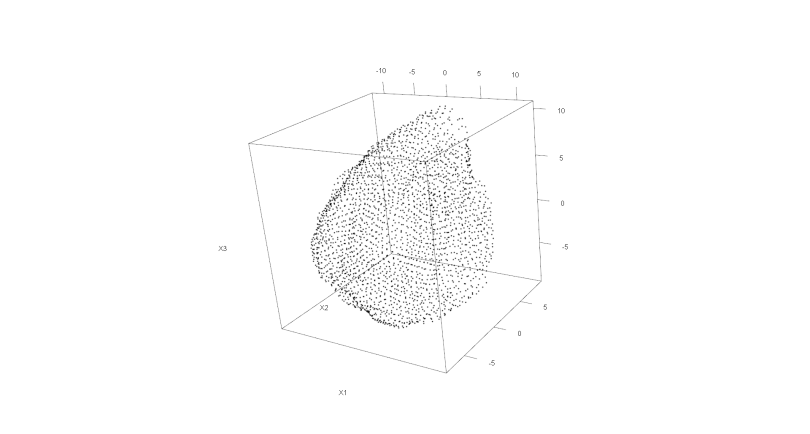

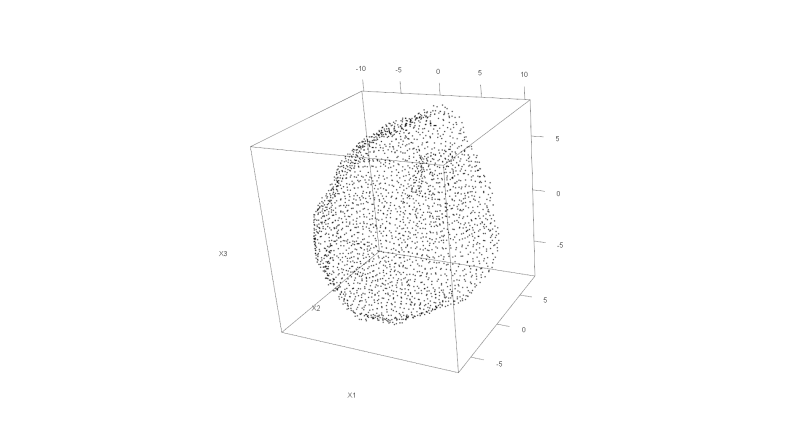

Figure 7: Sampled points of left amygdala surfaces of persons 10 and 13.

In contrast to Sections 3 and 4, now we let rcosmo to find an nside resolution that separates points so that each belongs to a unique pixel. Then we save the data as a CMBDataFrame and create a new variable I1 with rescaled distances to use the rcosmo colour scheme.

> hp1 <- HPDataFrame(p1s, auto.spix = TRUE)
> cmb1 <- as.CMBDataFrame(hp1)
> cmb1
A CMBDataFrame
# A tibble: 2,562 x 3
I theta     phi
<dbl> <dbl>   <dbl>
1  7.82 0.470 0.0289
2  8.24 0.474 3.05
3  8.87 2.65  0.00577
4  8.15 2.67  3.10
...
> pix(cmb1) <- pix(hp1)
> cmb1$I1 <- (cmb1$I-mean(cmb1$I))/1000
> plot(cmb1,intensities = "I1",back.col = "white", size = 3,
  xlab = ’’, ylab = ’’, zlab = ’’)

We repeat the same steps for the left amygdala of person 13. The second Figure 7 shows sampled points of the left amygdala of this person. The spherical plots in Figure 8 use colours to represent the values of in the corresponding directions for each person.

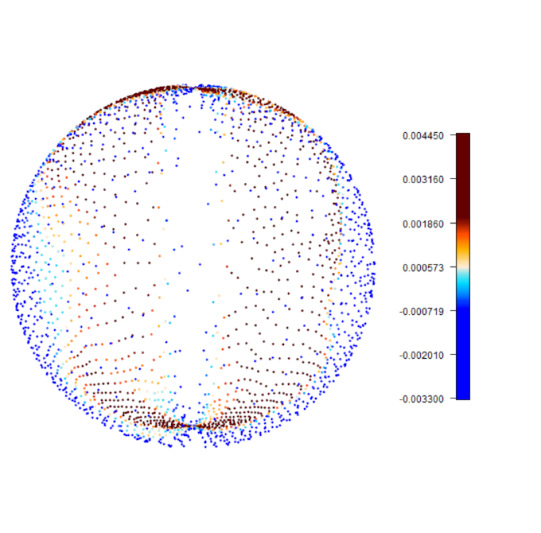

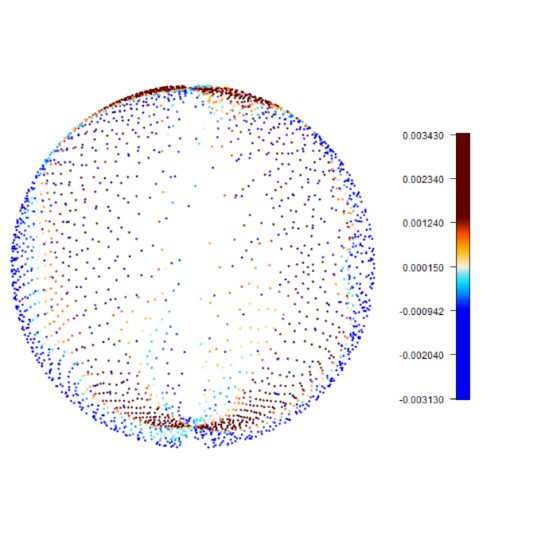

Figure 8: Heat maps of for persons 10 and 13.

To analyse and compare shapes of the amygdalae we first use directional histograms. For example, Figure 9 suggests that directional distributions of sampled points with respect to may not significantly differ. Similar results were obtained for directions. Thus, directional sampling rates of amygdalae for persons 10 and 13 look very similar.

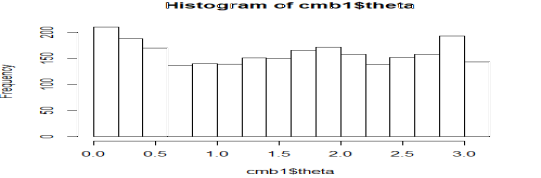

Figure 9: Distributions of sampled points with respect to for persons 10 and 13.

However, basic statistical analysis of the variable I containing values of the sampled radial distances shows differences in the shapes of the control and autistic cases:

Person Mean First Minkowski functional
10 7.525838 0.0003348093
13 8.396525 0.0004266883
Table 1: Basic statistics of the sampled radial distances for persons 10 and 13.

Person 13 has larger amygdala. The area where the observed values of the distances exceed the mean value mean(cmb1$I) for person 13 is larger by more than 27% than for person 10.

To confirm that the difference between two subjects is not only in the amygdalae’ sizes, but also in their shapes, one can study relative asymmetries. The rcosmo command CMBWindow was used to select a spherical angle. Then, means of 10 largest values of in this angle were computed by the function extrCMB and normalised by the overall mean values.

> win1 <- CMBWindow(theta = c(pi/2,pi,pi/2), phi = c(0,0,pi/2))
> mean(extrCMB(cmb1, win1, 10)$I)/mean(cmb1$I)
[1] 0.6875167
> mean(extrCMB(cmb2, win1, 10)$I)/mean(cmb2$I)
[1] 0.75863

The results suggest that not only absolute but also relative asymmetries of amygdalae for the control and autistic persons 10 and 13 are different.

6 Discussion

This paper complements the detailed description of the structure and functionality of the package rcosmo in [6]. Here we only focus on potential applications of rcosmo to non-CMB data recorded in non-HEALPix formats.

It is demonstrated how radial or 3d spatial data in geographic or Cartesian coordinates can be transformed into the HEALPix format and analysed with the package rcosmo . As one can use a very detailed HEALPix resolution (for example, the current CMB maps use Nside=2048 with more than 50 millions pixels) the impact of approximation errors of the coarseness of the HEALPix tessellation on statistical analyses can be made negligible.

Applications are shown for the three different classes of non-HEALPix data that are often occur in practice: continuous geo-referenced fields, spatial points and star-shaped measurements. It would be important to prepare a similar guideline and analysis for another common spatial data type, spherical curves.

The presented results should serve as a demonstration and guideline of bridging between data-types and formats rather than detailed rigorous statistical analyses of the considered data. The readers can find further information on the scope of the package and implemented methods in [6].

7 Acknowledgements

We would like to thank V.V. Anh, P. Broadbridge, N. Leonenko, M. Li, I. Sloan, and Y. Wang for their discussions of CMB and spherical statistical methods, and J. Ryan for developing and extending the mmap package. The authors are also grateful for the referees’ comments, which helped to improve the style of the presentation.
