1 Introduction
The deep neural network (DNN) based acoustic models have been widely used in automatic speech recognition (ASR) and have achieved extraordinary performance improvement [1, 2]. However, the performance of a speakerindependent (SI) acoustic model trained with speech data from a large number of speakers is still affected by the spectral variations in each speech unit caused by the interspeaker variability. Therefore, speaker adaptation methods are widely used to boost the recognition system performance [3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13].
Recently, adversarial learning has captured great attention of deep learning community given its remarkable success in estimating generative models
[14]. In speech, it has been applied to noiserobust [15, 16, 17, 18, 19] and conversational ASR [20] using gradient reversal layer [21] or domain separation network [22]. Inspired by this, we propose speakerinvariant training (SIT) via adversarial learning to reduce the effect of speaker variability in acoustic modeling. In SIT, a DNN acoustic model and a DNN speaker classifier are jointly trained to simultaneously optimize the primary task of minimizing the senone classification loss and the secondary task of minimaximizing the speaker classification loss. Through this adversarial multitask learning procedure, a feature extractor is learned as the bottom layers of the DNN acoustic model that maps the input speech frames from different speakers into speakerinvariant and senonediscriminative deep hidden features, so that further senone classification is based on representations with the speaker factor already normalized out. The DNN acoustic model with SIT can be directly used to generate word transcription for unseen test speakers through onepass online decoding. On top of the SIT DNN, further adaptation can be performed to adjust the model towards the test speakers, achieving even higher ASR accuracy.We evaluate SIT with ASR experiments on CHiME3 dataset, the SIT DNN acoustic model achieves 4.99% relative WER improvement over the baseline SI DNN. Further, SIT achieves 4.86% relative WER gain over the SI DNN when the same unsupervised speaker adaptation process is performed on both models. With tdistributed stochastic neighbor embedding (tSNE) [23] visualization, we show that, after SIT, the deep feature distributions of different speakers are well aligned with each other, which demonstrates the strong capability of SIT in reducing speakervariability.
2 Related Work
Speakeradaptive training (SAT) is proposed to generate canonical acoustic models coupled with speaker adaptation. For Gaussian mixture model (GMM)hidden Markov model (HMM) acoustic model, SAT applies unconstrained
[24] or constrained [25]modelspace linear transformations that separately model the speakerspecific characteristics and are jointly estimated with the GMMHMM parameters to maximize the likelihood of the training data. Clusteradaptive training (CAT)
[26]is then proposed to use a linear interpolation of all the cluster means as the mean of the particular speaker instead of a single cluster as representative of a particular speaker. However, SAT of GMMHMM needs to have two sets of models, the SI model and canonical model. During testing, the SI model is used to generate the first pass decoding transcription, and the canonical model is combined with speakerspecific transformation to adapt to the new speaker.
For DNNHMM acoustic model, CAT [12] and multibasis adaptive neural networks [7] are proposed to represent the weight and/or the bias of the speakerdependent (SD) affine transformation in each hidden layer of a DNN acoustic model as a linear combination of SI bases, where the combination weights are lowdimensional SD speaker representations. The canonical SI bases with reduced variances are jointly optimized with the SD speaker representations during the SAT to minimize the crossentropy loss. During unsupervised adaptation, the test speaker representations are reestimated using alignments from the firstpass decoding of the test data with SI DNN as the supervisions and are used in the secondpass decoding to generate the transcription. Factorized hidden layer [13] is similar to [12, 7], but includes SI DNN weights as part of the linear combination. In [5], SD speaker codes are transformed by a set of SI matrices and then directly added to the biases of the hiddenlayer affine transformations. The speaker codes and SI transformations are jointly estimated during SAT. For these methods, two passes of decoding are required to generate the final transcription in unsupervised adaption setup, which increases the computational complexity of the system.
, an SI adaptation network is learned to derive speakernormalized features from ivectors to train the canonical DNN acoustic model. The ivectors for the test speakers are then estimated and used for decoding after going through the SI adaptation network. In
[20], a reconstruction network is trained to predict the input ivector given the speech feature and its corresponding ivector are at the input of the acoustic model. The meansquared error loss of the ivector reconstruction and the crossentropy loss of the DNN acoustic model are jointly optimized through adversarial multitask learning. Although these methods generate the final transcription with onepass of decoding, they need to go through the entire test utterances in order to estimate the ivectors, making it impossible to perform online decoding. Moreover, the accuracy of ivectors estimation are limited by the duration of the test utterances. The estimation of ivector for each utterance also increases the computational complexity of the system.SIT directly minimizes the speaker variations by optimizing an adversarial multitask objective other than the most basic cross entropy object as in SAT. It forgoes the need of estimating any additional SI bases or speaker representations during training or testing. The direct use of SIT DNN acoustic model in testing enables the generation of word transcription for unseen test speakers through onepass online decoding. Moreover, it effectively suppresses the interspeaker variability via a lightweight system with much reduced training parameters and computational complexity. To achieve additional gain, unsupervised speaker adaptation can also be further conducted on the SIT model with one extra pass of decoding.
3 SpeakerInvariant Training
To perform SIT, we need a sequence of speech frames , a sequence of senone labels aligned with and a sequence of speaker labels aligned with . The goal of SIT is to reduce the variances of hidden and output units distributions of the DNN acoustic model that are caused by the inherent interspeaker variability in the speech signal. To achieve speakerrobustness, we learn a speakerinvariant and senonediscriminative
deep hidden feature in the DNN acoustic model through adversarial multitask learning and make senone posterior predictions based on the learned deep feature. In order to do so, we view the first few layers of the acoustic model as a feature extractor network

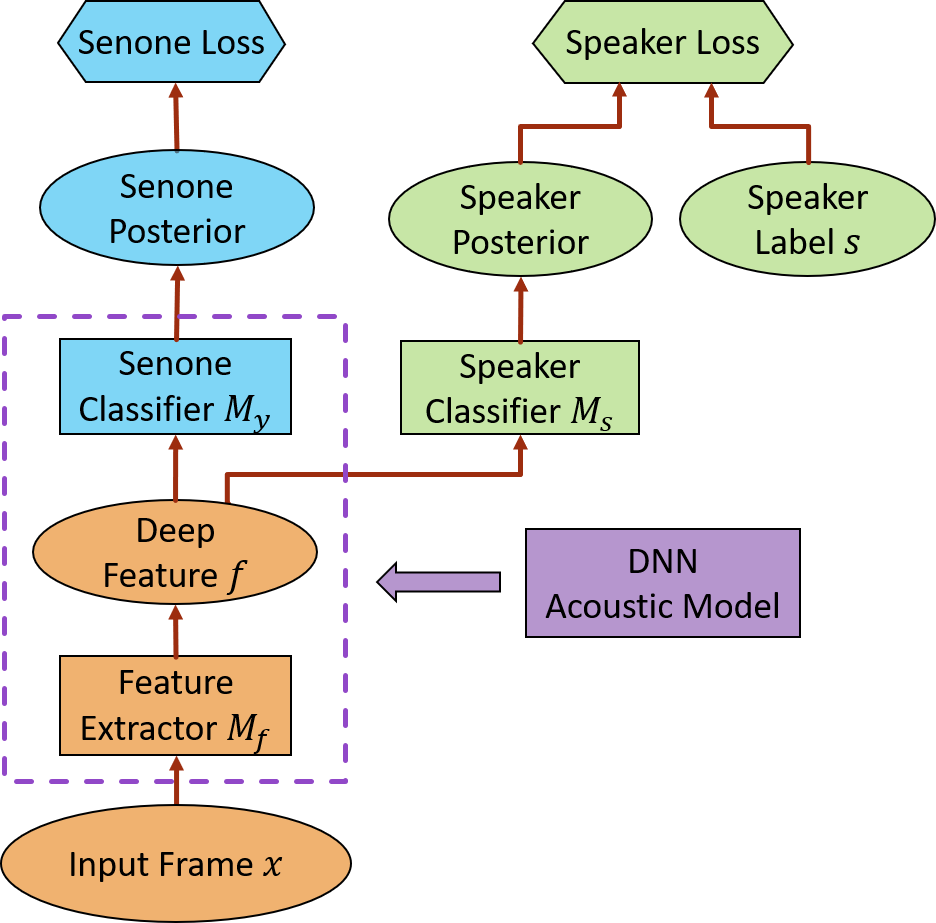

with parameters that maps from different speakers to deep hidden features (see Fig. 1) and the upper layers of the acoustic model as a senone classifier with parameters that maps the intermediate features to the senone posteriors as follows:(1)
where is the set of all senones modeled by the acoustic model.
We further introduce a speaker classifier network which maps the deep features to the speaker posteriors as follows:
(2)
where is one speaker in the set of all speakers .
To make the deep features speakerinvariant, the distributions of the features from different speakers should be as close to each other as possible. Therefore, the and are jointly trained with an adversarial objective, in which is adjusted to maximize the framelevel speaker classification loss while is adjusted to minimize below:
(3)
where denote the speaker label for the input frame .
This minimax competition will first increase the discriminativity of and the speakerinvariance of the features generated by , and will eventually converge to the point where generates extremely confusing features that is unable to distinguish.
At the same time, we want to make the deep features senonediscriminative by minimizing the crossentropy loss between the predicted senone posteriors and the senone labels as follows:
(4)
In SIT, the acoustic model network and the condition classifier network are trained to jointly optimize the primary task of senone classification and the secondary task of speaker classification with an adversarial objective function. Therefore, the total loss is constructed as
(5)
where controls the tradeoff between the senone loss and the speaker classification loss in Eq.(4) and Eq.(3) respectively.
We need to find the optimal parameters and such that
(6)
(7)
The parameters are updated as follows via back propagation with stochastic gradient descent (SGD):
(8)
(9)
(10)
where is the learning rate.
Note that the negative coefficient in Eq. (8) induces reversed gradient that maximizes in Eq. (3) and makes the deep feature speakerinvariant. For easy implementation, gradient reversal layer is introduced in [21], which acts as an identity transform in the forward propagation and multiplies the gradient by during the backward propagation.
The optimized network consisting of and is used as the SIT acoustic model for ASR on test data.
4 Experiments
In this work, we perform SIT on a DNNhidden Markov model (HMM) acoustic model for ASR on CHiME3 dataset.
4.1 CHiME3 Dataset
The CHiME3 dataset is released with the 3rd CHiME speech Separation and Recognition Challenge [27], which incorporates the Wall Street Journal corpus sentences spoken in challenging noisy environments, recorded using a 6channel tablet based microphone array. CHiME3 dataset consists of both real and simulated data. The real speech data was recorded in five real noisy environments (on buses (BUS), in cafés (CAF), in pedestrian areas (PED), at street junctions (STR) and in booth (BTH)). To generate the simulated data, the clean speech is first convolved with the estimated impulse response of the environment and then mixed with the background noise separately recorded in that environment [28]. The noisy training data consists of 1999 real noisy utterances from 4 speakers, and 7138 simulated noisy utterances from 83 speakers in the WSJ0 SI84 training set recorded in 4 noisy environments. There are 3280 utterances in the development set including 410 real and 410 simulated utterances for each of the 4 environments. There are 2640 utterances in the test set including 330 real and 330 simulated utterances for each of the 4 environments. The speakers in training set, development set and the test set are mutually different (i.e., 12 different speakers in the CHiME3 dataset). The training, development and test data sets are all recorded in 6 different channels.
In the experiments, we use 9137 noisy training utterances in the CHiME3 dataset as the training data. The real and simulated development data in CHiME3 are used as the test data. Both the training and test data are farfield speech from the 5th microphone channel. The WSJ 5K word 3gram language model (LM) is used for decoding.
4.2 Baseline System
In the baseline system, we first train an SI DNNHMM acoustic model using 9137 noisy training utterances with crossentropy criterion.
The 29dimensional log Mel filterbank features together with 1st and 2nd order delta features (totally 87dimensional) for both the clean and noisy utterances are extracted by following the process in [29]. Each frame is spliced together with 5 left and 5 right context frames to form a 957dimensional feature. The spliced features are fed as the input of the feedforward DNN after global mean and variance normalization. The DNN has 7 hidden layers with 2048 hidden units for each layer. The output layer of the DNN has 3012 output units corresponding to 3012 senone labels. Senonelevel forced alignment of the clean data is generated using a Gaussian mixture modelHMM system. As shown in Table 1
, the WERs for the SI DNN are 17.84% and 17.72% respectively on real and simulated test data respectively. Note that our experimental setup does not achieve the stateoftheart performance on CHiME3 dataset (e.g., we did not perform beamforming, sequence training or use recurrent neural network language model for decoding.) since our goal is to simply verify the effectiveness of SIT in reducing interspeaker variability.
4.3 SpeakerInvariant Training for Robust Speech Recognition
We further perform SIT on the baseline noisy DNN acoustic model with 9137 noisy training utterances in CHiME3. The feature extractor is initialized with the first layers of the DNN and the senone classifier is initialized with the rest hidden layers plus the output layer. indicates the position of the deep hidden feature in the acoustic model. The speaker classifier is a feedforward DNN with 2 hidden layers and 512 hidden units for each layer. The output layer of has 87 units predicting the posteriors of 87 speakers in the training set. , and are jointly trained with an adversarial multitask objective as described in Section 3. and are fixed at and in our experiments. The SIT DNN acoustic model achieves 16.95% and 16.54% WER on the real and simulated test data respectively, which are 4.99% and 6.66% relative improvements over the SI DNN baseline.
System  Data  BUS  CAF  PED  STR  Avg.

Real  24.77  16.12  13.39  17.27  17.84
Simu  18.07  21.44  14.68  16.70  17.72

Real  22.91  15.63  12.77  16.66  16.95
Simu  16.64  20.23  13.53  15.96  16.54
4.4 Visualization of Deep Features

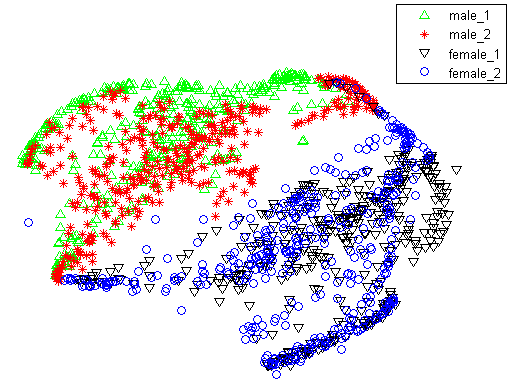

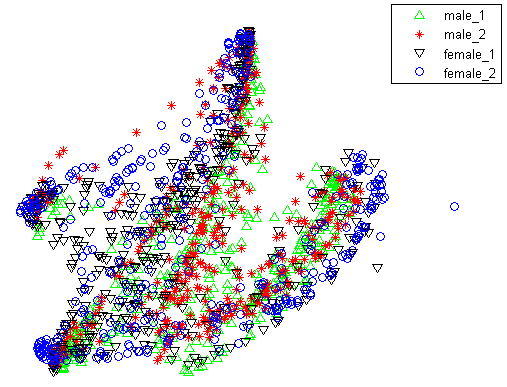

We randomly select two male speakers and two female speakers from the noisy training set and extract speech frames aligned with the phoneme “ah” for each of the four speakers. In Figs. 2 and 3, we visualize the deep features generated by the SI and SIT DNN acoustic models when the “ah” frames of the four speakers are given as the input using tSNE. In Fig. 2, the deep feature distributions in the SI model for the male (in red and green) and female speakers (in back and blue) are far away from each other and even the distributions for the speakers of the same gender are separated from each other. While after SIT, the deep feature distributions for all the male and female speakers are well aligned with each other as shown in Fig. 3. The significant increase in the overlap among distributions of different speakers justifies that the SIT remarkably enhances the speakerinvariance of the deep features . The adversarial optimization of the speaker classification loss does not just serve as a regularization term to achieve better generalization on the test data.
4.5 Unsupervised Speaker Adaptation
SIT aims at suppressing the effect of interspeaker variability on DNN acoustic model so that the acoustic model is more compact and has stronger discriminative power. When adapted to the same test speakers, the SIT DNN is expected to achieve higher ASR performance than the baseline SI DNN due to the smaller overlaps among the distributions of different speech units.
In our experiment, we adapt the SI and SIT DNNs to each of the 4 speakers in the test set in an unsupervised fashion. The constrained retraining (CRT) [30] method is used for adaptation, where we reestimate the DNN parameters of only a subset of layers while holding the remaining parameters fixed during crossentropy training. The adaptation target (1best alignment) is obtained through the firstpass decoding of the test data, and the secondpass decoding is performed using the SA SI and SI DNNs.
The WER results for unsupervised speaker adaptation is shown in Table 2, in which only the bottom 2 layers of the SI and SIT DNNs are adapted during CRT. The speakeradapted (SA) SIT DNN achieves 15.46% WER which is 4.86% relatively higher than the SA SI DNN. The CRT adaptation provides 8.91% and 8.79% relative WER gains over the unadapted SI and SIT models respectively. The lower WER after speaker adaptation indicates that SIT has effectively reduced the high variance and overlap in an SI acoustic model caused by the interspeaker variability.
System  BUS  CAF  PED  STR  Avg.


22.76  15.56  11.52  15.37  16.25

21.42  14.79  11.11  14.70  15.46
5 Conclusions and Future Works
In this work, SIT is proposed to suppress the effect of interspeaker variability on the SI DNN acoustic model. In SIT, a DNN acoustic model and a speaker classifier network are jointly optimized to minimize the senone classification loss, and simultaneously minimaximize the speaker classification loss. Through this adversarial multitask learning procedure, a feature extractor network is learned to map the input frames from different speakers to deep hidden features that are both speakerinvariant and senonediscriminative.
Evaluated on CHiME3 dataset, the SIT DNN acoustic model achieves 4.99% relative WER improvement over the baseline SI DNN. With the unsupervised adaptation towards the test speakers using CRT, the SA SIT DNN achieves additional 8.79% relative WER gain, which is 4.86% relatively improved over the SA SI DNN. With tSNE visualization, we show that, after SIT, the deep feature distributions of different speakers are well aligned with each other, which verifies the strong capability of SIT in reducing speakervariability.
SIT forgoes the need of estimating any additional SI bases or speaker representations which are necessary in other conventional approaches such as SAT. The SIT trained DNN acoustic model can be directly used to generate the transcription for unseen test speakers through onepass online decoding. It enables a lightweight speakerinvariant ASR system with reduced number of parameters for both training and testing. Additional gains are achievable by performing further unsupervised speaker adaptation on top of the SIT model.
In the future, we will evaluate the performance of the ivector based speakeradversarial multitask learning [20] on CHiME3 dataset and compare it with the proposed SIT. Moreover, we will perform SIT on thousands of hours of data to verify the its scalability to large dataset.
References
 [1] G. Hinton, L. Deng, D. Yu, et al., “Deep neural networks for acoustic modeling in speech recognition: The shared views of four research groups,” IEEE Signal Processing Magazine, vol. 29, no. 6, pp. 82–97, 2012.
 [2] Dong Yu and Jinyu Li, “Recent progresses in deep learning based acoustic models,” IEEE/CAA Journal of Automatica Sinica, vol. 4, no. 3, pp. 396–409, 2017.
 [3] G. Saon, H. Soltau, D. Nahamoo, and M. Picheny, “Speaker adaptation of neural network acoustic models using ivectors,” in 2013 IEEE Workshop on Automatic Speech Recognition and Understanding, Dec 2013, pp. 55–59.

[4]
J. Xue, J. Li, D. Yu, M. Seltzer, and Y. Gong,
“Singular value decomposition based lowfootprint speaker adaptation and personalization for deep neural network,”
in ICASSP, 2014, pp. 6359–6363.  [5] S. Xue, O. AbdelHamid, H. Jiang, L. Dai, and Q. Liu, “Fast adaptation of deep neural network based on discriminant codes for speech recognition,” IEEE/ACM Transactions on Audio, Speech, and Language Processing, vol. 22, no. 12, pp. 1713–1725, Dec 2014.
 [6] Y. Miao, H. Zhang, and F. Metze, “Speaker adaptive training of deep neural network acoustic models using ivectors,” IEEE/ACM Transactions on Audio, Speech, and Language Processing, vol. 23, no. 11, pp. 1938–1949, Nov 2015.
 [7] C. Wu and M. J. F. Gales, “Multibasis adaptive neural network for rapid adaptation in speech recognition,” in Proc. ICASSP, April 2015, pp. 4315–4319.
 [8] Y. Zhao, J. Li, and Y. Gong, “Lowrank plus diagonal adaptation for deep neural networks,” in Proc.ICASSP, 2016, pp. 5005–5009.
 [9] Z. Huang, S. Siniscalchi, I. Chen, et al., “Maximum a posteriori adaptation of network parameters in deep models,” in Proc. Interspeech, 2015.
 [10] Z. Huang, J. Li, S. Siniscalchi, et al., “Rapid adaptation for deep neural networks through multitask learning,” in Interspeech, 2015.
 [11] P. Swietojanski, J. Li, and S. Renals, “Learning hidden unit contributions for unsupervised acoustic model adaptation,” IEEE/ACM Transactions on Audio, Speech, and Language Processing, vol. 24, no. 8, pp. 1450–1463, Aug 2016.
 [12] T. Tan, Y. Qian, and K. Yu, “Cluster adaptive training for deep neural network based acoustic model,” IEEE/ACM Transactions on Audio, Speech, and Language Processing, vol. 24, no. 3, pp. 459–468, March 2016.
 [13] L. Samarakoon and K. C. Sim, “Factorized hidden layer adaptation for deep neural network based acoustic modeling,” IEEE/ACM Transactions on Audio, Speech, and Language Processing, vol. 24, no. 12, pp. 2241–2250, Dec 2016.
 [14] Ian Goodfellow, Jean PougetAbadie, Mehdi Mirza, Bing Xu, David WardeFarley, Sherjil Ozair, Aaron Courville, and Yoshua Bengio, “Generative adversarial nets,” in NIPS, pp. 2672–2680. 2014.
 [15] Yusuke Shinohara, “Adversarial multitask learning of deep neural networks for robust speech recognition.,” in INTERSPEECH, 2016, pp. 2369–2372.
 [16] Dmitriy Serdyuk, Kartik Audhkhasi, Philémon Brakel, Bhuvana Ramabhadran, Samuel Thomas, and Yoshua Bengio, “Invariant representations for noisy speech recognition,” in NIPS Workshop, 2016.
 [17] Sining Sun, Binbin Zhang, Lei Xie, and Yanning Zhang, “An unsupervised deep domain adaptation approach for robust speech recognition,” Neurocomputing, vol. 257, pp. 79 – 87, 2017, Machine Learning and Signal Processing for Big Multimedia Analysis.
 [18] Z. Meng, Z. Chen, V. Mazalov, J. Li, and Y. Gong, “Unsupervised adaptation with domain separation networks for robust speech recognition,” in Proceeding of ASRU, Dec 2017.
 [19] Zhong Meng, Jinyu Li, Yifan Gong, and BiingHwang (Fred) Juang, “Adversarial teacherstudent learning for unsupervised domain adaptation,” in Proc.ICASSP. IEEE, 2018.
 [20] George Saon, Gakuto Kurata, Tom Sercu, et al., “English conversational telephone speech recognition by humans and machines,” Proc. Interspeech, 2017.

[21]
Yaroslav Ganin and Victor Lempitsky,
“Unsupervised domain adaptation by backpropagation,”
in Proc. ICML, Lille, France, 2015, vol. 37, pp. 1180–1189, PMLR.  [22] Konstantinos Bousmalis, George Trigeorgis, Nathan Silberman, Dilip Krishnan, and Dumitru Erhan, “Domain separation networks,” in Proc. NIPS, D. D. Lee, M. Sugiyama, U. V. Luxburg, I. Guyon, and R. Garnett, Eds., pp. 343–351. Curran Associates, Inc., 2016.
 [23] Laurens van der Maaten and Geoffrey Hinton, “Visualizing data using tsne,” Journal of Machine Learning Research, vol. 9, no. Nov, pp. 2579–2605, 2008.
 [24] Tasos Anastasakos, John McDonough, Richard Schwartz, and John Makhoul, “A compact model for speakeradaptive training,” in Spoken Language, 1996. ICSLP 96. Proceedings., Fourth International Conference on. IEEE, 1996, vol. 2, pp. 1137–1140.
 [25] M.J.F. Gales, “Maximum likelihood linear transformations for hmmbased speech recognition,” Computer Speech & Language, vol. 12, no. 2, pp. 75 – 98, 1998.
 [26] M. J. F. Gales, “Cluster adaptive training of hidden markov models,” IEEE Transactions on Speech and Audio Processing, vol. 8, no. 4, pp. 417–428, Jul 2000.
 [27] J. Barker, R. Marxer, E. Vincent, and S. Watanabe, “The third chime speech separation and recognition challenge: Dataset, task and baselines,” in Proc.ASRU, Dec 2015, pp. 504–511.

[28]
T. Hori, Z. Chen, H. Erdogan, et al.,
“The merl/sri system for the 3rd chime challenge using beamforming, robust feature extraction, and advanced speech recognition,”
in Proc.ASRU, Dec 2015, pp. 475–481.  [29] J. Li, D. Yu, J.T. Huang, and Y. Gong, “Improving wideband speech recognition using mixedbandwidth training data in CDDNNHMM,” in Proc. SLT. IEEE, 2012, pp. 131–136.
 [30] Hakan Erdogan, Tomoki Hayashi, John R Hershey, Takaaki Hori, Chiori Hori, WeiNing Hsu, Suyoun Kim, Jonathan Le Roux, Zhong Meng, and Shinji Watanabe, “Multichannel speech recognition: Lstms all the way through,” in CHiME4 workshop, 2016.
