1 Introduction

In the vision-and-language navigation task anderson2018cvpr , an agent is placed in a realistic environment, and provided a natural language instruction such as “Go down the stairs, go slight left at the bottom and go through door, take an immediate left and enter the bathroom, stop just inside in front of the sink”. The agent must follow this instruction to navigate from its starting location to a goal location, as shown in Figure 1 (left). To accomplish this task the agent must learn to relate the language instructions to the visual environment. Moreover, it should be able to carry out new instructions in unseen environments.

Even simple navigation tasks require nontrivial reasoning: the agent must resolve ambiguous references to landmarks, perform a counterfactual evaluation of alternative routes, and identify incompletely specified destinations. While a number of approaches Mei16Instructions ; misra2017instructions ; wang2018look have been proposed for the various navigation benchmarks, they generally employ a single model that learns to map directly from instructions to actions from a limited corpus of annotated trajectories.

In this paper we treat the vision-and-language navigation task as a trajectory search problem, where the agent needs to find (based on the instruction) the best trajectory in the environment to navigate from the start location to the goal location. Our model involves an instruction interpretation (follower) module, mapping instructions to action sequences; and an instruction generation (speaker) module, mapping action sequences to instructions (Figure 1), both implemented with standard sequence-to-sequence architectures. The speaker learns to give textual instructions for visual routes, while the follower learns to follow routes (predict navigation actions) for provided textual instructions. Though explicit probabilistic reasoning combining speaker and follower agents is a staple of the literature on computational pragmatics frank2012predicting , application of these models has largely been limited to extremely simple decision-making tasks like single forced choices.

We incorporate the speaker both at training time and at test time, where it works together with the learned instruction follower model to solve the navigation task (see Figure 2

for an overview of our approach). At training time, we perform speaker-driven data augmentation where the speaker helps the follower by synthesizing additional route-instruction pairs to expand the limited training data. At test time, the follower improves its chances of success by looking ahead at possible future routes and pragmatically choosing the best route by scoring them according to the probability that the speaker would generate the correct instruction for each route. This procedure, using the external speaker model, improves upon planning using only the follower model. We construct both the speaker and the follower on top of a panoramic action space that efficiently encodes high-level behavior, moving directly between adjacent locations rather than making low-level visuomotor decisions like the number of degrees to rotate (see Figure

3).

To summarize our contributions: We propose a novel approach to vision-and-language navigation incorporating a visually grounded speaker–follower model, and introduce a panoramic representation to efficiently represent high-level actions. We evaluate this speaker–follower model on the Room-to-Room (R2R) dataset anderson2018cvpr , and show that each component in our model improves performance at the instruction following task. Our model obtains a final success rate of 53.5% on the unseen test environment, an absolute improvement of 30% over existing approaches. Our code and data are available at http://ronghanghu.com/speaker_follower.

2 Related Work

Natural language instruction following. Systems that learn to carry out natural language instructions in an interactive environment include approaches based on intermediate structured and executable representations of language tellex2011understanding ; chen2012grounded ; artzi2013instructions ; long2016simpler ; guu2017bridging and approaches that map directly from language and world state observations to actions Branavan09PG ; Andreas15Instructions ; Mei16Instructions ; misra2017instructions . The embodied vision-and-language navigation task studied in this paper anderson2018cvpr differs from past situated instruction following tasks by introducing rich visual contexts. Recent work wang2018look

has applied techniques from model-based and model-free reinforcement learning

weber2017imagination to the vision-and-language navigation problem. Specifically, an environment model is used to predict a representation of the state resulting from an action, and planning is performed with respect to this environment model. Our work differs from this prior work by reasoning not just about state transitions, but also about the relationship between states and the language that describes them—specifically, using an external speaker model to predict how well a given sequence of states explains an instruction.

Figure 1: The task of vision-and-language navigation is to perform a sequence of actions (navigate through the environment) according to human natural language instructions. Our approach consists of an instruction follower model (left) and a speaker model (right).

Pragmatic language understanding.

A long line of work in linguistics, natural language processing, and cognitive science has studied

pragmatics: how linguistic meaning is affected by context and communicative goals Grice75 . Our work here makes use of the Rational Speech Acts framework frank2012predicting ; goodman2013knowledge , which models the interaction between speakers and listeners as a process where each agent reasons probabilistically about the other to maximize the chances of successful communicative outcomes. This framework has been applied to model human use of language Frank09PragmaticExperiments , and to improve the performance of systems that generate andreas2016reasoning ; mao2016generation ; vedantam2017context ; cohn2018pragmatically and interpret yu2017joint ; luo17cvpr ; vasudevan2018referring referential language. Similar modeling tools have recently been applied to generation and interpretation of language about sequential decision-making fried2017unified . The present work makes use of a pragmatic instruction follower in the same spirit. Here, however, we integrate this with a more complex visual pipeline and use it not only at inference time but also at training time to improve the quality of a base listener model.

Semi- and self-supervision. The semi-supervised approach we use is related to model bootstrapping techniques such as self-training scudder1965probability ; mcclosky2006effective and co-training blum1998combining

at a high-level. Recent work has used monolingual corpora to improve the performance of neural machine translation models structurally similar to the sequence-to-sequence models we use

gulcehre2015using ; he2016deep ; sennrich2016mt . In a grounded navigation context, hermann2017grounded use a word-prediction task as training time supervision for a reinforcement learning agent. The approach most relevant to our work is the SEQ4 model kovcisky2016semisupervised

, which applies semi-supervision to a navigation task by sampling new environments and maps (in synthetic domains without vision), and training an autoencoder to reconstruct routes, using language as a latent variable. The approach used here is much simpler, as it does not require constructing a differentiable surrogate to the decoding objective.

Semi-supervised data augmentation has also been widely used in computer vision tasks. In Data Distillation

radosavovic2017data , additional annotation for object and key-point detection is obtained by ensembling and refining a pretrained model’s prediction on unannotated images. Self-play in adversarial groups of agents is common in multi-agent reinforcement learning silver2017mastering ; sukhbaatar2017intrinsic . In actor-critic approaches sutton1998reinforcement ; sutton2000policy in reinforcement learning, a critic learns the value of a state and is used to provide supervision to the actor’s policy during training. In this work, we use a speaker to synthesize additional navigation instructions on unlabeled new routes, and use this synthetic data from the speaker to train the follower.

Grounding language in vision. Existing work in visual grounding plummer15iccv ; mao2016generation ; hu16cvpr ; rohrbach16eccv ; nagaraja16eccv has addressed the problem of passively perceiving a static image and mapping a referential expression to a bounding box plummer15iccv ; mao2016generation ; hu16cvpr or a segmentation mask hu16eccv ; liu2017recurrent ; yu2018mattnet , exploring various techniques including proposal generation chen2017query and relationship handling wang16eccv ; nagaraja16eccv ; hu17cvpr ; cirik2018using . In our work, the vision-and-language navigation task requires the agent to actively interact with the environment to find a path to the goal following the natural language instruction. This can be seen as a grounding problem in linguistics where the language instruction is grounded into a trajectory in the environment but requires more reasoning and planning skills than referential expression grounding.

3 Instruction Following with Speaker-Follower Models

To address the task of following natural language instructions, we rely on two models: an instruction-follower model of the kind considered in previous work, and a speaker model—a learned instruction generator that models how humans describe routes in navigation tasks.

Specifically, we base our follower model on the sequence-to-sequence model anderson2018cvpr , computing a distribution over routes (state and action sequences) given route descriptions . The follower encodes the sequence of words in the route description with an LSTM hochreiter1997long , and outputs route actions sequentially, using an attention mechanism bahdanau2014neural over the description. Our speaker model is symmetric, producing a distribution by encoding the sequence of visual observations and actions in the route using an LSTM, and then outputting an instruction word-by-word with an LSTM decoder using attention over the encoded input route (Figure 1).

We combine these two base models into a speaker-follower system, where the speaker supports the follower both at training time and at test time. An overview of our approach is presented in Figure 2. First, we train a speaker model on the available ground-truth navigation routes and instructions. (Figure 2 (a)). Before training the follower, the speaker produces synthetic navigation instructions for novel sampled routes in the training environments, which are then used as additional supervision for the follower, as described in Sec. 3.1 (Figure 2 (b)). At follower test time, the follower generates possible routes as interpretations of a given instruction and starting context, and the speaker pragmatically ranks these, choosing one that provides a good explanation of the instruction in context (Sec. 3.2 and Figure 2 (c)). Both follower and speaker are supported by the panoramic action space in Sec. 3.3 that reflects the high-level granularity of the navigational instructions (Figure 3).

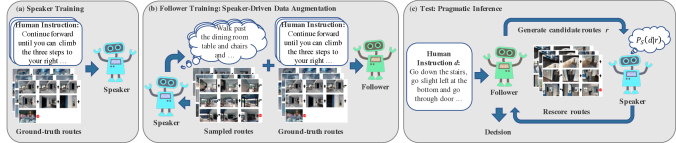

Figure 2: Our approach combines an instruction follower model and a speaker model. (a) The speaker model is trained on the ground-truth routes with human-generated descriptions; (b) it provides the follower with additional synthetic instruction data to bootstrap training; (c) it also helps the follower interpret ambiguous instructions and choose the best route during inference. See Sec. 3 for details.

3.1 Speaker-Driven Data Augmentation

The training data only covers a limited number of navigation instruction and route pairs, . To allow the agent to generalize better to new routes, we use the speaker to generate synthetic instructions on sampled new routes in the training environments. To create a synthetic training set, we sample a collection of routes through the training environments, using the same shortest-path approach used to generate the routes in the original training set anderson2018cvpr . We then generate a human-like textual instruction for each instruction by performing greedy prediction in the speaker model to approximate .

These synthetic navigation routes and instructions are combined with the original training data into an augmented training set (Figure 2(b)). During training, the follower is first trained on this augmented training set, and then further fine-tuned on the original training set . This speaker-driven data augmentation aims to overcome data scarcity issue, allowing the follower to learn how to navigate on new routes following the synthetic instructions.

3.2 Speaker-Driven Route Selection

We use the base speaker () and follower () models described above to define a pragmatic follower model. Drawing on the Rational Speech Acts framework frank2012predicting ; goodman2013knowledge , a pragmatic follower model should choose a route through the environment that has high probability of having caused the speaker model to produce the given description : (corresponding to a rational Bayesian follower with a uniform prior over routes). Such a follower chooses a route that provides a good explanation of the observed description, allowing counterfactual reasoning about instructions, or using global context to correct errors in the follower’s path, which we call pragmatic inference.

Given the sequence-to-sequence models that we use, exactly solving the maximization problem above is infeasible; and may not even be desirable, as these models are trained discriminatively and may be poorly calibrated for inputs dissimilar to those seen during training. Following previous work on pragmatic language generation and interpretation smith2013learning ; andreas2016reasoning ; monroe2017colors ; fried2017unified , we use a rescoring procedure: produce candidate route interpretations for a given instruction using the base follower model, and then rescore these routes using the base speaker model (Figure 2(c)).

Our pragmatic follower produces a route for a given instruction by obtaining candidate paths from the base follower using a search procedure described below, then chooses the highest scoring path under a combination of the follower and speaker model probabilities:

(1)

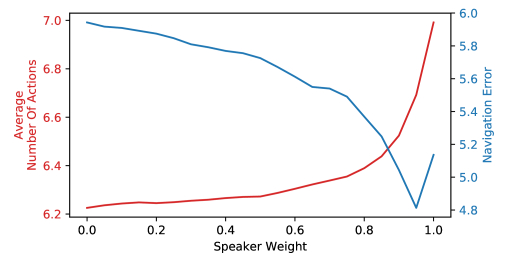

where is a hyper-parameter in the range which we tune on validation data to maximize the accuracy of the follower.111In practice, we found best performance with values of close to 1, relying mostly on the score of the speaker to select routes. Using only the speaker score (which corresponds to the standard RSA pragmatic follower) did not substantially reduce performance compared to using a combination with the follower score, and both improved substantially upon using only the follower score (corresponding to the base follower).

Candidate route generation. To generate candidate routes from the base follower model, we perform a search procedure where candidate routes are produced incrementally, action-by-action, and scored using the probabilities given by . Standard beam search in sequence-to-sequence models (e.g. sutskever2014sequence ) forces partial routes to compete based on the number of actions taken. We obtain better performance by instead using a state-factored search procedure, where partial output sequences compete at the level of states in the environment, where each state consists of the agent’s location and discretized heading, keeping only the highest-scoring path found so far to each state. At a high-level, this search procedure resembles graph search with a closed list, but since action probabilities are non-stationary (potentially depend on the entire sequence of actions taken in the route), it is only approximate, and so we allow re-expanding states if a higher-scoring route to that state is found.

At each point in our state-factored search for searching and generating candidates in the follower model, we store the highest-probability route (as scored by the follower model) found so far to each state. States contain the follower’s discrete location and heading (direction it is facing) in the environment, and whether the route has been completed (had the Stop action predicted). The highest-scoring route, which has not yet been expanded (had successors produced), is selected and expanded using each possible action from the state, producing routes to the neighboring states. For each of these routes with final state , if has not yet been reached by the search, or if is higher-scoring under the model than the current best path to , is stored as the best route to . We continue the search procedure until routes ending in distinct states have predicted the Stop action, or there are no remaining unexpanded routes. See Sec. B in the supplementary material for pseudocode.

Since route scores are products of conditional probabilities, route scores are non-increasing, and so this search procedure generates routes that do not pass through the same state twice—which we found to improve accuracy both for the base follower model and the pragmatic rescoring procedure, since instructions typically describe acyclic routes.

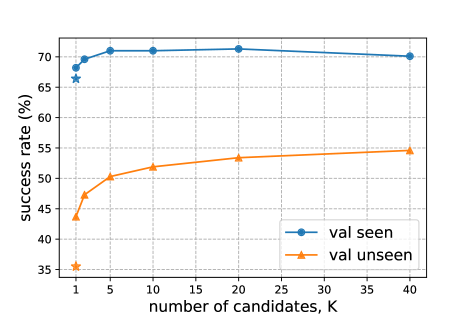

We generate up to candidate routes for each instruction using this procedure, and rescore using Eq. 1. In addition to enabling pragmatic inference, this state-factored search procedure improves the performance of the follower model on its own (taking the candidate route with highest score under the follower model), when compared to standard greedy search (see Sec. C and Figure C.2 of the supplementary material for details).

3.3 Panoramic Action Space

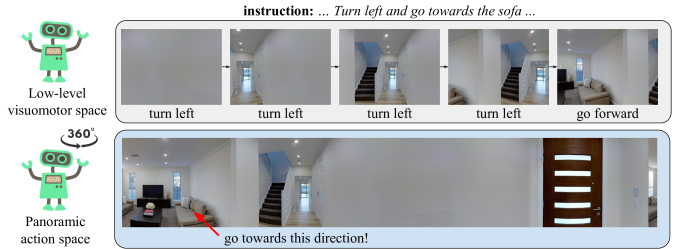

Figure 3: Compared with low-level visuomotor space, our panoramic action space (Sec. 3.3) allows the agents to have a complete perception of the scene, and to directly perform high-level actions.

The sequence-to-sequence agent in anderson2018cvpr uses low-level visuomotor control (such as turning left or right by 30 degrees), and only perceives frontal visual sensory input. Such fine-grained visuomotor control and restricted visual signal introduce challenges for instruction following. For example in Figure 3, to “turn left and go towards the sofa”, the agent needs to perform a series of turning actions until it sees a sofa in the center of its view, and then perform a “go forward” action. This requires strong skills of planning and memorization of visual inputs. While a possible way to address this challenge is to learn a hierarchical policy such as in das2017embodied , in our work we directly allow the agent to reason about high-level actions, using a panoramic action space with panoramic representation, converted with built-in mapping from low-level visuomotor control.

As shown in Figure 3, in our panoramic representation, the agent first “looks around” and perceives a 360-degree panoramic view of its surrounding scene from its current location, which is discretized into 36 view angles (12 headings 3 elevations with 30 degree intervals – in our implementation). Each view angle

is represented by an encoding vector

. At each location, the agent can only move towards a few navigable directions (provided by the navigation environment) as other directions can be physically obstructed (e.g. blocked by a table). Here, in our action space the agent only needs to make high-level decisions as to which navigable direction to go to next, with each navigable direction represented by an encoding vector . The encoding vectors and

of each view angle and navigable direction are obtained by concatenating an appearance feature (ConvNet feature extracted from the local image patch around that view angle or direction) and a 4-dimensional orientation feature

, where and are the heading and elevation angles respectively. Also, we introduce a Stop action encoded by . The agent can take this Stop action when it decides it has reached the goal location (to end the episode).

To make a decision on which direction to go, the agent first performs one-hop visual attention to look at all of the surrounding view angles, based on its memory vector . The attention weight of each view angle is computed as and .

The attended feature representation from the panoramic scene is then used as visual-sensory input to the sequence-to-sequence model (replacing the 60-degree frontal appearance vector in anderson2018cvpr ) to update the agent’s memory. Then, a bilinear dot product is used to obtain the probability of each navigable direction : and .

The agent then chooses a navigable direction (with probability ) to go to the adjacent location along that direction (or to stop and end the episode). We use a built-in mapping that seamlessly translates our panoramic perception and action into visuomotor control such as turning and moving.

4 Experiments

4.1 Experimental Setup

Dataset. We use the Room-to-Room (R2R) vision-and-language navigation dataset anderson2018cvpr for our experimental evaluation. In this task, the agent starts at a certain location in an environment and is provided with a human-generated navigation instruction, that describes a path to a goal location. The agent needs to follow the instruction by taking multiple discrete actions (e.g. turning, moving) to navigate to the goal location, and executing a “stop” action to end the episode. Note that differently from some robotic navigation settings pathak2018zero , here the agent is not provided with a goal image, but must identify from the textual description and environment whether it has reached the goal.

The dataset consists of 7,189 paths sampled from the Matterport3D Matterport3D navigation graphs, where each path consists of 5 to 7 discrete viewpoints and the average physical path length is 10m. Each path has three instructions written by humans, giving 21.5k instructions in total, with an average of 29 words per instruction. The dataset is split into training, validation, and test sets. The validation set is split into two parts: seen, where routes are sampled from environments seen during training, and unseen with environments that are not seen during training. All the test set routes belong to new environments unseen in the training and validation sets.

Evaluation metrics.

Following previous work on the R2R task, our primary evaluation metrics are navigation error (NE), measuring the average distance between the end-location predicted by the follower agent and the true route’s end-location, and success rate (SR), the percentage of predicted end-locations within 3m of the true location. As in previous work, we also report the oracle success rate (OSR), measuring success rate at the closest point to the goal that the follower has visited along the route, allowing the agent to overshoot the goal without being penalized.

Implementation details. Following anderson2018cvpr and wang2018look , we produce visual feature vectors using the output from the final convolutional layer of a ResNet he2016deep

trained on the ImageNet

russakovsky2015imagenet classification dataset. These visual features are fixed, and the ResNet is not updated during training. To better generalize to novel words in the vocabulary, we also experiment with using GloVe embeddings pennington2014glove , to initialize the word-embedding vectors in the speaker and follower.

In the baseline without using synthetic instructions, we train follower and speaker models using the human-generated instructions for routes present in the training set. The training procedure for the follower model follows anderson2018cvpr by training with student-forcing (sampling actions from the model during training, and supervising using a shortest-path action to reach the goal state). We use the training split in the R2R dataset to train our speaker model, using standard maximum likelihood training with a cross-entropy loss.

In speaker-driven data augmentation (Sec. 3.1), we augment the data used to train the follower model by sampling routes from the training environments. Instructions for these routes are generated using greedy inference in the speaker model (which is trained only on human-produced instructions). The follower model is trained using student-forcing on this augmented data for iterations, and then fine-tuned on the the original human-produced data for iterations. For all experiments using pragmatic inference, we use a speaker weight of , which we found to produce the best results on both the seen and unseen validation environments.

4.2 Results and Analysis

We first examine the contribution from each of our model’s components on the validation splits. Then, we compare the performance of our model with previous work on the unseen test split.

4.2.1 Component Contributions

We begin with a baseline (Row 1 of Table 1), which uses only a follower model with a non-panoramic action space at both training and test time, which is equivalent to the student-forcing model in anderson2018cvpr .222Note that our results for this baseline are slightly higher on val-seen and slightly lower on val-unseen than those reported by anderson2018cvpr , due to differences in implementation details and hyper-parameter choices.

Data Pragmatic Panoramic Validation-Seen Validation-Unseen
# Augmentation Inference Space NE SR OSR NE SR OSR
1 6.08 40.3 51.6 7.90 19.9 26.1
2 5.05 46.8 59.9 7.30 24.6 33.2
3 5.23 51.5 60.8 6.62 34.5 43.1
4 4.86 52.1 63.3 7.07 31.2 41.3
5 4.28 57.2 63.9 5.75 39.3 47.0
6 3.36 66.4 73.8 6.62 35.5 45.0
7 3.88 63.3 71.0 5.24 49.5 63.4
8 3.08 70.1 78.3 4.83 54.6 65.2
Table 1: Ablations showing the effect of each component in our model. Rows 2-4 show the effects of adding a single component to the baseline system (Row 1); Rows 5-7 show the effects of removing a single component from the full system (Row 8). NE is navigation error (in meters); lower is better. SR and OSR are success rate and oracle success rate (%); higher is better. See Sec. 4.2.1 for details.

Speaker-driven data augmentation. We first introduce the speaker at training time for data augmentation (Sec. 3.1). Comparing Row 1 (the baseline follower model trained only with the original training data) against Row 2 (training this model on augmented data) in Table 1, we see that adding the augmented data improves success rate (SR) from 40.3% to 46.8% on validation seen and from 19.9% to 24.6% on validation unseen, respectively. This higher relative gain on unseen environments shows that the follower can learn from the speaker-annotated routes to better generalize to new scenes.

Note that given the noise in our augmented data, we fine-tune our model on the original training data at the end of training as mentioned in Sec. 3.1. We find that increasing the amount of augmented data is helpful in general. For example, when using 25% of the augmented data, the success rate improves to 22.8% on validation unseen, while with all the augmented data the success rate reaches 24.6% on validation unseen, which is a good balance between performance and computation overhead.

Pragmatic inference. We then incorporate the speaker at test time for pragmatic inference (Sec. 3.2), using the speaker to rescore the route candidates produced by the follower. Adding this technique brings a further improvement in success rate on both environments (compare Row 2, the data-augmented follower without pragmatic inference, to Row 5, adding pragmatic inference). This shows that when reasoning about navigational directions, large improvements in accuracy can be obtained by scoring how well the route explains the direction using a speaker model. Importantly, when using only the follower model to score candidates produced in search, the success rate is 49.0% on val-seen and 30.5% on val-unseen, showing the importance of using the speaker model to choose among candidates (which increases success rates to 57.2% and 39.3%, respectively).

Panoramic action space. Finally, we replace the visuomotor control space with the panoramic representation (Sec. 3.3). Adding this to the previous system (compare Row 5 and Row 8) shows that the new representation leads to a substantially higher success rate, achieving 70.1% and 54.6% success rate on validation seen and validation unseen, respectively. This suggests that directly acting in a higher-level representation space makes it easier to accurately carry out instructions. Our final model (Row 8) has over twice the success rate of the baseline follower in the unseen environments.

Importance of all components. Above we have shown the gain from each component, after being added incrementally. Moreover, comparing Rows 2-4 (adding each component independently to the base model) to the baseline (Row 1) shows that each component in isolation provides large improvements in success rates, and decreases the navigation error. Ablating each component (Rows 5-7) from the full model (Row 8) shows that each of them is important for the final performance.

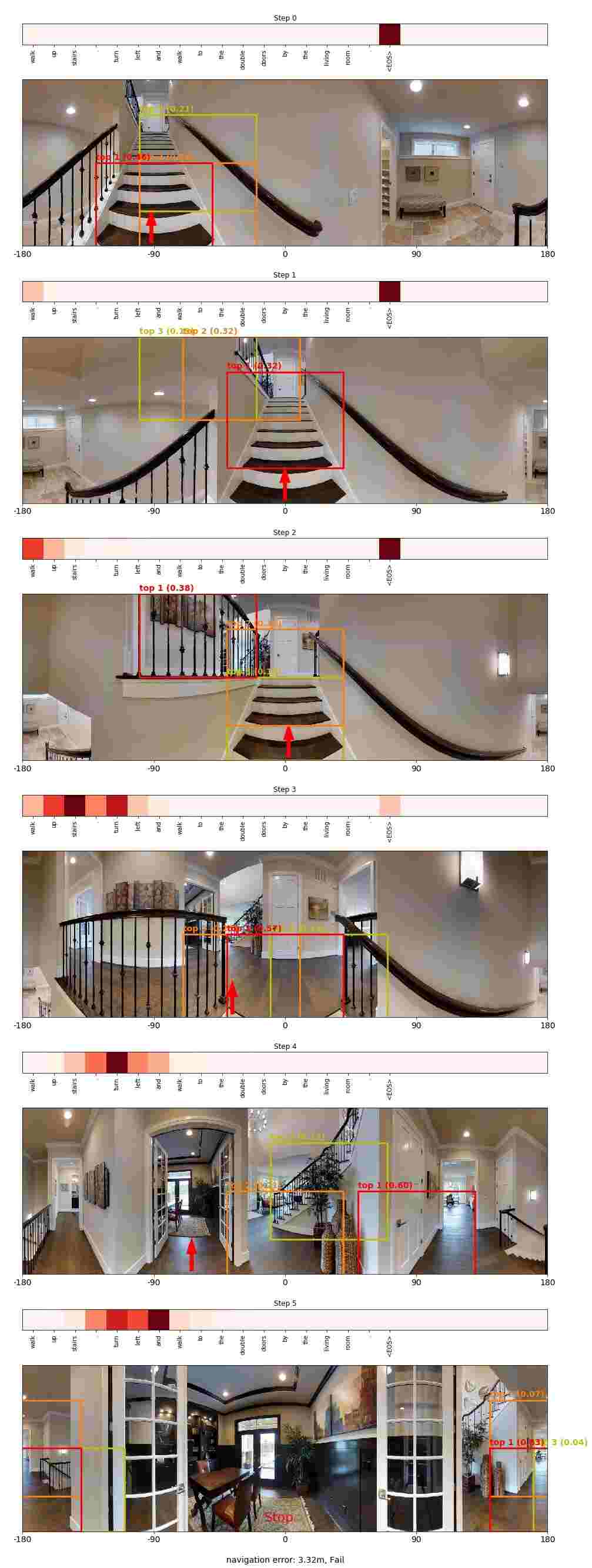

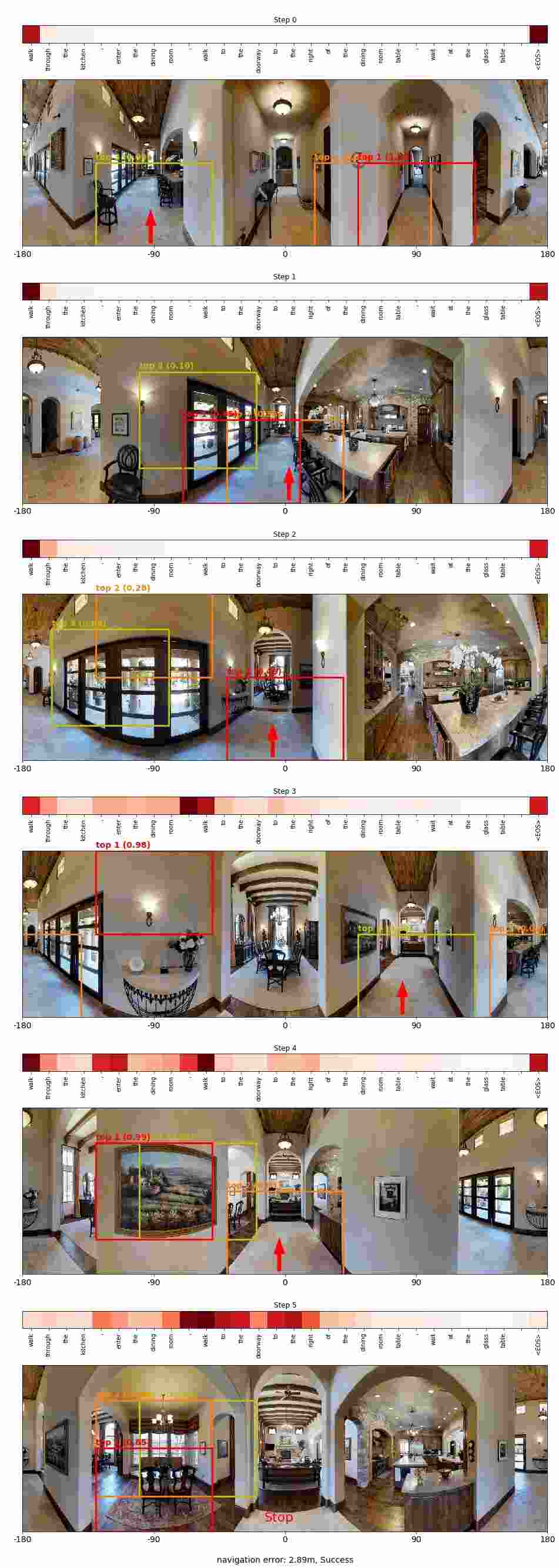

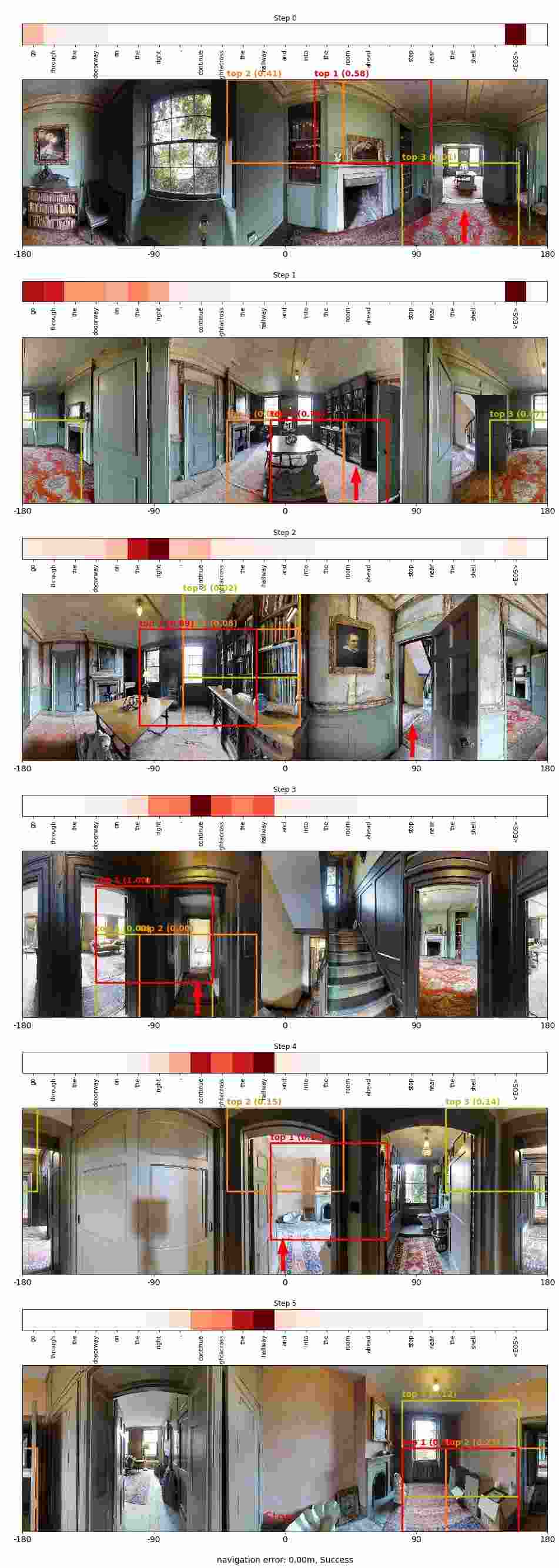

Qualitative results. Here we provide qualitative examples further explaining how our model improves over the baseline (more qualitative results in the supplementary material). The intuition behind the speaker model is that it should help the agent more accurately interpret instructions specifically in ambiguous situations. Figure 4 shows how the introduction of a speaker model helps the follower with pragmatic inference.

4.2.2 Comparison to Prior Work

We compare the performance of our final model to previous approaches on the R2R held-out splits, including the test split which contains 18 new environments that do not overlap with any training or validation splits, and are only seen once at test time.

The results are shown in Table 2. In the table, “Random” is randomly picking a direction and going towards that direction for 5 steps. “Student-forcing” is the best performing method in anderson2018cvpr , using exploration during training of the sequence-to-sequence follower model. “RPA” wang2018look is a combination of model-based and model-free reinforcement learning (see also Sec. 2 for details). “ours” shows our performance using the route selected by our pragmatic inference procedure, while “ours (challenge participation)” uses a modified inference procedure for submission to the Vision-and-Language Navigation Challenge (See Sec. E in the supplementary material for details). Prior work has reported higher performance on the seen rather than unseen environments anderson2018cvpr ; wang2018look , illustrating the issue of generalizing to new environments. Our method more than doubles the success rate of the state-of-the-art RPA approach, and on the test set achieves a final success rate of 53.5%. This represents a large reduction in the gap between machine and human performance on this task.

Validation-Seen Validation-Unseen Test (unseen)
Method NE SR OSR NE SR OSR NE SR OSR TL
Random 9.45 15.9 21.4 9.23 16.3 22.0 9.77 13.2 18.3 9.89
Student-forcing anderson2018cvpr 6.01 38.6 52.9 7.81 21.8 28.4 7.85 20.4 26.6 8.13
RPA wang2018look 5.56 42.9 52.6 7.65 24.6 31.8 7.53 25.3 32.5 9.15
ours 3.08 70.1 78.3 4.83 54.6 65.2 4.87 53.5 63.9 11.63
ours (challenge participation)* 4.87 53.5 96.0 1257.38
Human 1.61 86.4 90.2 11.90
Table 2: Performance comparison of our method to previous work. NE is navigation error (in meters); lower is better. SR and OSR are success rate and oracle success rate (%) respectively (higher is better). Trajectory length (TL) on the test set is reported for completeness. *: When submitting to the Vision-and-Language Navigation Challenge, we modified our search procedure to maintain physical plausibility and to comply with the challenge guidelines. The resulting trajectory has higher oracle success rate while being very long. See Sec. E in the supplementary material for details.
Step 1
Step 2
Step 3
Step 4

(a) navigation steps without pragmatic inference; red arrow: direction to go next

Step 1
Step 2
Step 3
Step 4

(b) navigation steps with pragmatic inference; red arrow: direction to go next

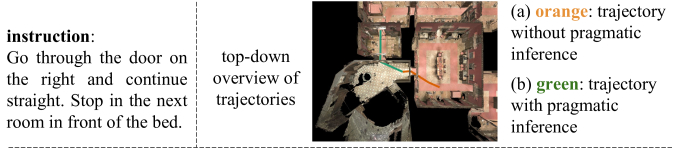

Figure 4: Navigation examples on unseen environments with and without pragmatic inference from the speaker model (best visualized in color). (a) The follower without pragmatic inference misinterpreted the instruction and went through a wrong door into a room with no bed. It then stopped at a table (which resembles a bed). (b) With the help of a speaker for pragmatic inference, the follower selected the correct route that enters the right door and stopped at the bed.

5 Conclusions

The language-and-vision navigation task presents a pair of challenging reasoning problems: in language, because agents must interpret instructions in a changing environmental context; and in vision, because of the tight coupling between local perception and long-term decision-making. The comparatively poor performance of the baseline sequence-to-sequence model for instruction following suggests that more powerful modeling tools are needed to meet these challenges. In this work, we have introduced such a tool, showing that a follower model for vision-and-language navigation is substantially improved by carefully structuring the action space and integrating an explicit model of a speaker that predicts how navigation routes are described. We believe that these results point toward further opportunities for improvements in instruction following by modeling the global structure of navigation behaviors and the pragmatic contexts in which they occur.
