Introduction
Flow prediction, as one of the most crucial problems in today’s smart city research, has drawn increasing attention in AI research field. With a boosted number of population, effective prediction of flow (e.g., crowd flow, traffic flow) becomes more and more critical for firsttier cities. Practically, the performance of various applications, such as intelligent service allocation and dynamic traffic management, benefit from higher prediction accuracies in crowd flow prediction and traffic flow prediction [WuT16]. On the other hand, a more substantial amount of available data has been driving the AI researches on flow prediction as well.
Specifically, flow refers to the number of people or vehicles arriving in (inflow) or departing from (outflow) the observed regions at each time interval. The goal of flow prediction is to predict the flow of future times by deriving spatialtemporal patterns from historical data. Before the era of deep learning, flow prediction has been heavily relying on methods from time series analysis community. Traditional statistic methods such as AutoRegressive Integrated Moving Average (ARIMA), Kalmen filtering, and Vector AutoRegressive (VAR) models are widely employed in flow prediction
[chandra_2009, Li2012, MoreiraMatias, Shekhar]. Although they are straightforward and easy to deploy, the incapabilities of traditional methods on measuring complicated spatial dependencies limit their performance.Recently, deep learningbased methods have shown significant advantages in modeling both spatial and temporal dependencies in flow prediction [Zhang:2017:DSR:3298239.3298479]. However, the existing methods still suffer from incomprehensive measurements of longterm and shortterm temporal dependencies. Besides, they also ignore the complicated correlation between the spatial and temporal dependencies as capturing them independently. To be specific, the above problems result from the fundamental structures employed by the current methods. Generally, their structures can be categorized as (1) deep residual convolutional network [ZHANG_TKDE] and (2) convolutional recurrent network [stdn]. Although they all consider both spatial and temporal dependencies, each kind of networks has structural problems that intrinsically limit their performances.
For the deep residual convolutional methods, the spatial dependencies of different time intervals are independently measured by multiple deep residual convolutional neural networks
[Kaiming_He_2015]. Without any recurrent structures, they try to handle the temporal dependencies by applying deeper and more nested residual networks. However, as the convolutional results of different time intervals are uniformly measured, this kind of structures overlooks the distinctive impacts of shortterm and longterm temporal dependencies.For those who employ convolutional recurrent structure, they apply recurrent networks such as LSTM [doi:10.1162/neco.1997.9.8.1735] on the convolutional results of different time intervals. However, as the longterm temporal dependencies vanish rapidly via passing through the recurrent networks, it is overwhelmed by the shortterm temporal dependencies, which causes the incomprehensive measurement of temporal dependencies. Moreover, the computation of the recurrent structure is very inefficient [NIPS2017_7181], which deters the convolutional recurrent networks to further improve their performance by applying deeper and more nested structures.
Additionally, both of the structures handle the spatial and temporal dependencies asynchronously, which relies on a false assumption that the correlations between the two factors are weak. However, the assumption ignores the fact that the spatial and temporal dependencies have complicated mutual influences, which is very critical for flow prediction under complex situations.
To overcome these challenges, we propose a SpatialTemporal SelfAttention Network (STSAN), which adopts an innovative spatialtemporal selfattention mechanism. Given its shorter pathlength to attend the longterm dependency in the selfattention mechanism, our model avoids the vanishing of longterm temporal dependencies. Besides, since it is merely based on attention mechanisms, STSAN captures all dependencies simultaneously and thus are more effective as the spatial and temporal dependencies can interrelate to each other. Moreover, without any recurrent or deep convolutional structures, STSAN is very computationally efficient.
The contributions of our work can be summarized as follows:

A spatialtemporal selfattention mechanism is developed to handle sophisticated and dynamic spatial and temporal dependencies simultaneously. To the best of our knowledge, the proposed mechanism is the first method that can measure both dependencies synchronously.

Our model prevents the vanishing of longterm temporal dependencies with the selfattention mechanism, which can attend to both shortterm and longterm dependencies through equallength paths.

A SpatialTemporal SelfAttention Network is proposed, which is computationally efficient as eschewing recurrent and deep convolutional structures. To the best of our knowledge, STSAN is the first deeplearningbased flow prediction methods without both of these two structures.

We evaluate our model on three realworld, largescale datasets and demonstrate its significant advantages over stateoftheart baselines.
Related Work
Deep Learning for Flow Prediction
Recently, various works based on deep learning have achieved significant improvement in flow prediction. Firstly, the LSTM [doi:10.1162/neco.1997.9.8.1735] based methods demonstrates excellent performance on capturing temporal dependencies when predicting spatialtemporal flow [DBLP:cui_ke_wang]. Then, convolutional structures were investigated on capturing spatial dependencies in flow prediction tasks [Zhang:2016:DPM:2996913.2997016]. After the deep residual convolutional network is proposed [Kaiming_He_2015], several works based on deep residual structure achieve significant improvement in capturing spatialtemporal dependencies in flow prediction [zhang_zheng_qi]. Lately, after Convolutional LSTM achieved tremendous success in processing spatialtemporal information [NIPS2015_5955], several researches employ such convolutional recurrent structure to learn spatial and temporal dependencies and further improve the performance of predicting flow [ke_zheng_yang, Zhou:2018:PMC:3159652.3159682, a98d8116a2684b17bdabc50c1e1713b3, stdn]. However, these works fail to comprehensively measure the temporal dependencies and also overlook the complicated correlations between spatial and temporal dependencies. Convolutional LSTM achieved tremendous success in processing spatialtemporal information [NIPS2015_5955], several researches employ such convolutional recurrent structure to learn spatial and temporal dependencies and further improve the performance of predicting flow [ke_zheng_yang, Zhou:2018:PMC:3159652.3159682, a98d8116a2684b17bdabc50c1e1713b3, stdn]. However, these works fail to comprehensively measure the temporal dependencies and also overlook the complicated correlations between spatial and temporal dependencies. Convolutional LSTM achieved tremendous success in processing spatialtemporal information [NIPS2015_5955], several researches employ such convolutional recurrent structure to learn spatial and temporal dependencies and further improve the performance of predicting flow [ke_zheng_yang, Zhou:2018:PMC:3159652.3159682, a98d8116a2684b17bdabc50c1e1713b3, stdn]. However, these works fail to comprehensively measure the temporal dependencies and also overlook the complicated correlations between spatial and temporal dependencies. Convolutional LSTM achieved tremendous success in processing spatialtemporal information [NIPS2015_5955], several researches employ such convolutional recurrent structure to learn spatial and temporal dependencies and further improve the performance of predicting flow [ke_zheng_yang, Zhou:2018:PMC:3159652.3159682, a98d8116a2684b17bdabc50c1e1713b3, stdn]. However, these works fail to comprehensively measure the temporal dependencies and also overlook the complicated correlations between spatial and temporal dependencies.
SelfAttention
Recently, selfattention has drawn an enormous amount of attention in natural language processing (NLP). Transformer
[NIPS2017_7181], a fully selfattention framework, has been widely adopted in many stateoftheart pretraining language models [devlin_2018, radford2019language, xlnet].The selfattention mechanism has three advantages over traditional convolutional and recurrent structures. First, impacts of distant series can affect each other’s output without passing through recurrent steps, or convolution layers. Second, it can learn longterm dependencies effectively. Third, its layer outputs can be calculated in parallel, which is much faster than a series like the RNN [NIPS2017_7181]. However, we observe that directly applying Transformer on flow prediction does not result in the expected improvement. The possible reason may be that it is initially designed for modeling dependencies among a sequence of words, which inherently lacks the consideration of spatial information.
Notations and Problem Formulation

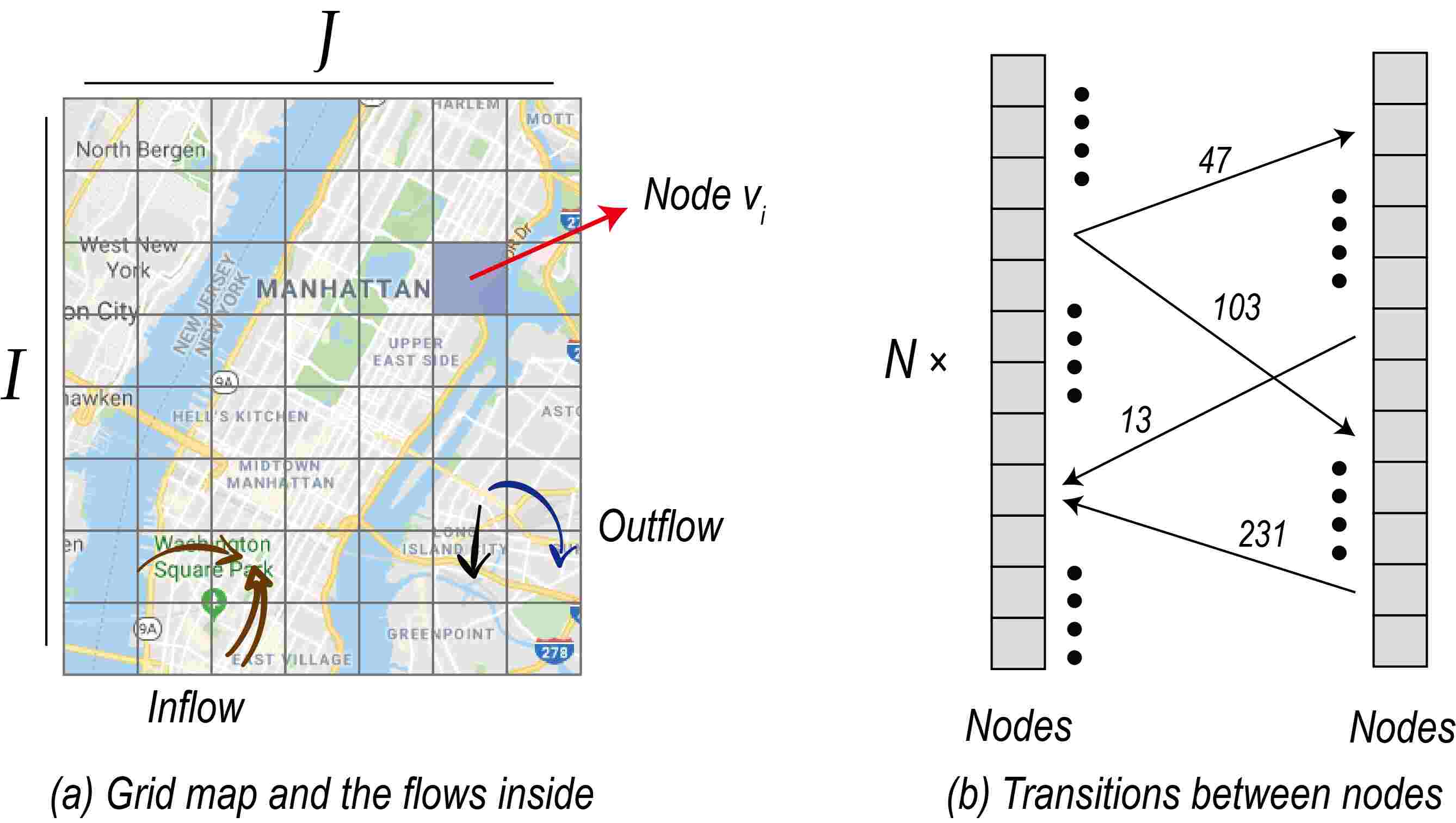

As shown in Figure 1, the spatial area is divided into a grid map with N grids in total (N = ). Each grid represents a node (region) in the spatial map, denoted as {, , …, }. T stands for the number of all available time intervals equally divided from the whole period. In each time interval, w types of flows (e.g., inflow and outflow) are included in each node, their volumes are determined based on the historical records of object trajectories. Specifically, take inflow and outflow as example, when an object (e.g., person, vehicle) was in at time and appeared in at time ( , ), it contributed one volume to each of ’s outflow and ’s inflow. The overall volumes of inflow and outflow of at time t are denoted as and . At the meantime, the transitions between nodes are extracted, denoted as for transitions arrive in from and for transitions depart from to . Notice that, since the transitions may span across multiple time intervals, we discard those with duration longer than a threshold m as they have less effect on flow prediction in the next time interval. After obtaining the historical flow and transition data with length T
alongside the time axis, we constitute tensors
and .Problem Statement Given historical flow and transition data , as inputs, the task of prediction problem is to learn a function that maps the inputs to the predicted values of all nodes at the next time:
(1)
where and stands for the learnable parameters.
Model Architecture

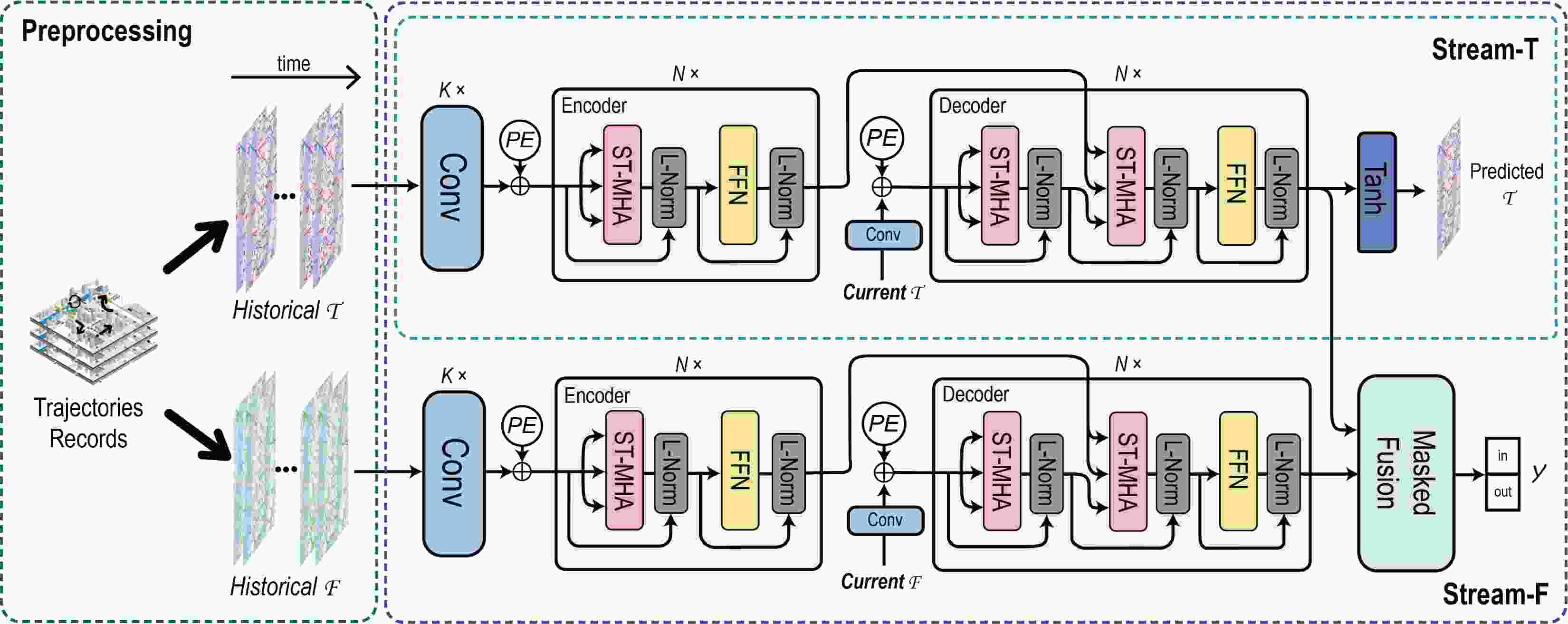

Figure 2 shows the architecture of STSAN, which consists of 2 streams of selfattention networks – StreamT and StreamF. Each of them contains a stack of convolutional layers, an encoder, and a decode. The StreamT is trained independently on capturing features of transition before merging with StreamF by a masked fusion mechanism. The detail of each component is described in the following subsections.
Encoder and Decoder
We employ the encoderdecoder architecture as in most competitive neural sequence transduction models [NIPS2017_7181]. Here, the encoder maps an inputs sequence of historical flow or transition data ( or ) to a sequence of continuous representations Z. Given Z and the current flow or transition data ( or ), the decoder then generates an output y as the predicted output of the next time interval.
The encoder contains a stack of N
= 4 identical layers, whose sublayers includes a spatialtemporal multihead selfattention mechanism and a positionwise fully connected feedforward network. We also employ the residual connection
[Kaiming_He_2015] and layer normalization [ba2016layer] around each of the two sublayers. To be specific, the output of each sublayers is , where Sublayer(x) is the function implemented by the sublayer itself. The dimension of outputs produced by all sublayers is set to = 64, in order to facilitate the residual connections.The decoder consists of a stack of N = 4 identical layers as well. Besides the two sublayers in each encoder layer, an additional sublayer is inserted to performs spatialtemporal multihead attention over the output of the encoder stack. Also, residual connections followed by layer normalizations are implemented around each sublayers.
SpatialTemporal SelfAttention
Compared to ordinary selfattention mechanism adopted in language models, the feature space of the spatialtemporal selfattention mechanism has two more axes inserted to hold the domain of spatial map. As the computation of selfattention can be parallelized [NIPS2017_7181], an enlarged feature space does not result in longer training time.
In spatialtemporal selfattention, the scaled dotproduct attention [NIPS2017_7181] is used as the attention kernel (Figure 3 (a)):
(2)
The inputs consist of queries, keys and values, as Q, K, V , where is the size of spatial maps and h, stand for sequence length and feature dimension. The transpose of K is performed between the last 2 axes where . Also, the matrix multiplication between Q, is over the last two axes. Then a multihead attention is constructed upon the scaled dotproduct attention:
(3)
where are the learned projection parameter matrices and is the number of attention head. In this work, we employ u = 8 parallel attention layers, or heads. As the concepts of scaled dotproduct attention and multihead attention have been widely adopted in AI researches, here we exclude their comprehensive descriptions and refer readers to [NIPS2017_7181].
Local Convolution and Area of Interest
Before passing the spatialtemporal data into the spatialtemporal selfattention mechanism, they go through a stack of convolutional neural networks (CNN) with = 3 layers inside (Figure 2). The w types of flows will be projected to a representation space with dimension = 64, and the spatial dependencies are further interrelated via the CNN stack. Previous works have shown that when predicting the flow of , instead of measuring the whole spatial map, focusing on local dependencies is more helpful for the prediction [zhang_zheng_qi]. Therefore, we also adopt the idea of local convolution, which focuses on an area of interest (AoI) surrounding . Specifically, the historical flow input is sampled from all AoIs in historical spatialtemporal data. Similarly, when generating historical transition input , only the transitions between and the other nodes in the AoIs are sampled. In this work, we set a = b = 7.
The output of each layer in the CNN stack is computed as:
(4)
where is a slice of or , and is the convolutional result of on the pth channel. is the weight of the pth filter of convolution kernal , whose filter size is . All constitute a joint kernal , and the final output of each layer in the CNN stack is as:
(5)
where is or , and is the projected spatialtemporal representation of the input data.
represent the slicewise joint convolutional operation. We employ padding with the same value for each convolutional layer to maintain the same tensor shape.
Periodic Shifting and SlidingWindow Sampling

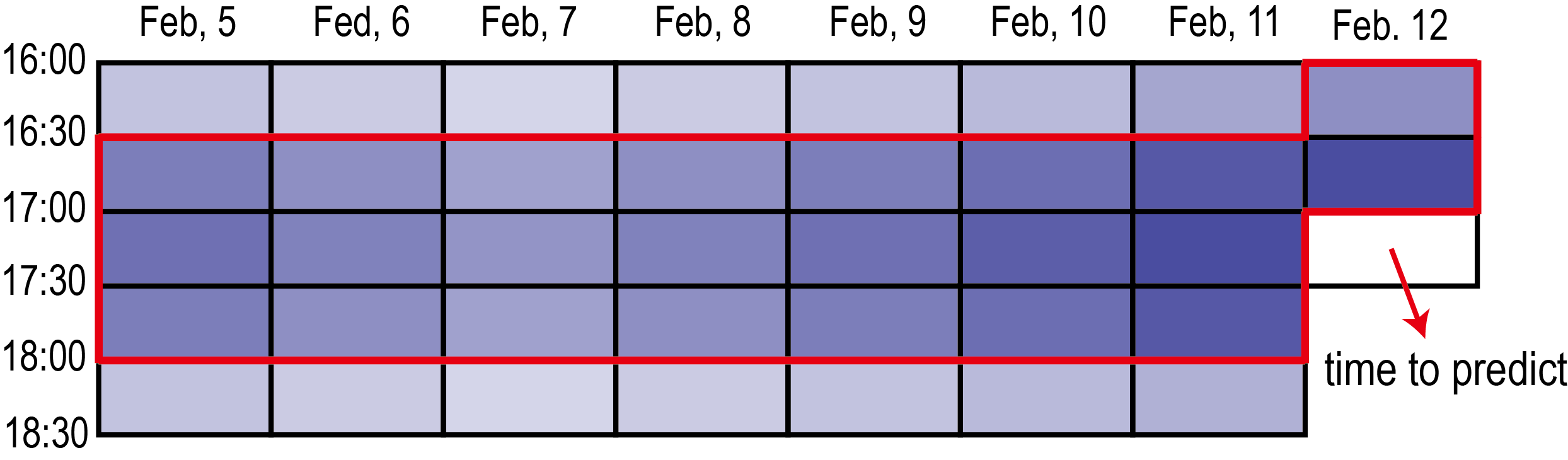

Previous work [stdn] demonstrated that the flows in periodic windows have strong similarities. As shown in Figure 4, the same periods of different days are more similar to each other than those in the previous periods on the same day. Besides, the pattern of flow will shift periodically. For example, the peak hours of traffic flow may vary from 16:30 to 18:00 on different days. Thus, we adopt slidingwindow sampling to generate inputs of flow and transition from and to form . Specifically, is the concatenation of spatial matrices from the same periods of the previous = 7 days and the previous twotime intervals of the current day (area with red boundary in Figure 4). Then, data in the time interval before the future time is used as the current data fed in the decoder stack while the remained are used as input of the encoder stack.
Positional Encoding
Positional encoding is employed as the positional information is missed without the recurrent structures. Here, to encode the nonconsecutive positional information, we add learned positional encodings to the output of the convolution stack. First, we represent the time information of as a onehot vector , where g is the number of time intervals in one day. We use the first seven elements of to represent the day in a week and the last g elements to represent the index of time interval in that day. The positional encoding () of is as:
(6)
where are the learned parameters, and is the sigmoid function. Then the whole positional encoding matrix is formed and summed with before fed in the encoder and decoder stacks. The broadcast of to the same shape of is performed before the adding.
2Stream Structure
Previous works demonstrate that transitions between nodes have significant impacts in flow prediction [a98d8116a2684b17bdabc50c1e1713b3]. Therefore, STSAN is designed as a 2stream framework with two spatialtemporal selfattention networks (StreamT, StreamF) to measure flow and transition independently. We first train the StreamT on predicting the transitions in AoI. Here the output of the StreamT is as:
(7)
where . are learned parameters and is the output from the decoder stack.
Then, the trainable parameters of StreamT will be locked and merged with StreamF by a masked fusion mechanism to form the STSAN for further training. The independent training is necessary since we observe that the StreamT will be ambiguously trained if only loss between the output and the true flow is calculated. Hence, independent training sets a more definite target for StreamT, which enhances the measurement of transition. The experimental results also show the advantages of employing independent training.
Masked Fusion Mechanism
A masked fusion mechanism is proposed to merge the two streams and generate the final output. As shown in Figure 3 (b), the outputs of StreamT () and StreamF () are fed in a stack of = 2 hybrid convolutional layers, where its th layer’s output is computed as:
(8)
where are the convolutional kernels and learned bias. The function converts the transition features to a weight mask. Then the mask is applied on the convolutional result of to intensify the influence of more relative nodes. To be specific, if two nodes have many transitions between, consequently their connection and mutual influences should be stronger. Here, padding is not employed in the CNN layers.
After the output of the hybrid layer is flattened, the final output is then computed:
(9)
where is the flattened output.
The predicted outputs of all nodes {} constitute the predicted values of the whole spatial map (grid map) .
Loss
We use MSE loss function on both the training of StreamT and the unified STSAN:
(10)
(11)
where are the ground truths of flows and AoI transitions of and and are the learnable parameters of StreamT and STSAN.
Model  TaxiNYC  BikeNYC  Mobile M

inflow  outflow  inflow  outflow  user number
RMSE  MAE  RMSE  MAE  RMSE  MAE  RMSE  MAE  RMSE  MAE
HA  90.19  50.10  109.36  65.91  30.25  20.35  29.63  19.96  421.39  273.18
ARIMA  33.54  18.62  40.70  23.61  17.14  10.83  18.03  11.28  194.92  150.95
VAR  48.04  23.21  128.67  29.84  27.37  14.29  27.67  15.09  254.37  157.71
MLP  27.13  16.91  32.93  20.80  25.77  32.57  15.92  19.85  130.01  106.44
LSTM  24.35  15.07  30.41  19.18  24.79  32.06  15.61  20.62  111.70  93.80
GRU  24.37  15.17  30.25  19.14  24.62  31.37  15.22  19.77  114.23  93.89
ConvLSTM  22.25  14.13  27.39  17.38  9.71  7.07  11.09  7.78  85.97  67.12
STResNet  20.34  12.90  25.54  16.21  9.32  6.79  10.45  7.33  74.30  55.03
DMVSTNet  18.99  12.24  24.07  15.39  8.95  6.52  9.75  6.84  68.09  50.50
STDN  17.91  11.37  23.47  14.89  8.58  6.25  9.44  6.62  62.59  43.22
STSAN  16.39  10.63  22.94  13.48  7.82  5.68  9.02  6.17  57.13  40.20
Experiment
Datasets
We evaluate our model on three realworld datasets – TaxiNYC, BikeNYC, and Mobile M. Their details are showed in Table 2.

TaxiNYC and BikeNYC: TaxiNYC and BikeNYC both contain 60 days of trip records. Each record includes the locations and times of the start and the end of a trip. We use the first 40 days as training data, and the remained 20 days as testing data.

Mobile M: Mobile M includes 158,742,004 service records that contain the approximate locations of mobile phone users during the service periods. The whole 92day dataset is split to 60 and 32 days for training and testing.
Evaluation Metric & Baselines
We measure the performance of different methods by two widely adopted metrics: (1) Rooted Mean Square Error (RMSE); (2) Mean Absolute Error (MAE).
Datasets  TaxiNYC  BikeNYC  Modile M

Grid map size
Time interval  30 mins  30 mins  15 mins
Time Span  1/1/2016   8/1/2016   10/1/2018
2/29/2016  9/29/2016  12/31/2018
Total records  22,437,649  9,194,087  158,742,004
Baselines

HA: Historical average.

ARIMA: Autoregressive integrated moving average model.

VAR: Vector autoregressive model.

MLP
: Multilayer perceptron.

ConvLSTM: Convolutional LSTM [NIPS2015_5955].

STResNet: SpatialTemporal Residual Convolutional Network [Zhang:2017:DSR:3298239.3298479].

DMVSTNet: Deep MultiView SpatialTemporal Network[DBLP:journals/corr/abs180208714].

STDN: SpatialTemporal Dynamic Network [stdn].
Preprocessing
The grid sizes of TaxiNYC, BikeNYC, and Mobile M are , , and respectively. The length of the time interval is set as 30 minutes and 15 minutes, whereas the number of time interval in every day is 48 and 96. We randomly select 20% of data of training dataset for validation and the remained for training. We use MinMax normalization to convert all traffic flow data to scale of [0, 1], and convert them back during the evaluation. We also filter out all regions with real flow volume less than ten in the evaluation, which is a common criterion used in flow prediction research area [Zhang:2017:DSR:3298239.3298479].
Hyperparameters
In TaxiNYC and BikeNYC, = 2 types of flow – inflow and outflow, are processed. In Mobile M, only user number of each area is considered ( = 1). We set threshold m = 2 to filter out longspan transitions. The stack of convolutional layers contains = 3 layers of CNN, each of which includes = 64 filters with kernel size = . We set the dimension of FeedForward layer to 128 and the number of attention head to 8. The dropout rate is 0.1, and the epsilon offset in layer normalization is 1e6.
Optimizer
We used the Adam optimizer [adam] with = 0.9, = 0.98 and . We adopted warmup to adjust the learning rate:
(12)
where = 4000.
Results
We evaluated our methods and ten baselines on all three datasets and obtained the average results of each method after ten executions. Table 1 demonstrates the results of RMSE and MAE.
Noticeably, traditional statistic timeseries prediction methods (HA, ARIMA, and VAR) are significantly less effective. It exposes the weakness of methods of exclusively considering the relation of historical statistic values and ignoring the complicated spatialtemporal dependency. For MLP, it barely learned the linear mapping from historical data to the predicted results, the spatialtemporal dependencies are insufficiently measured. LSTM and GRU achieved nontrivial improvement compared to MLP and traditional timeseries methods given their effectiveness on modeling temporal dependency. Nonetheless, without a sophisticated mechanism to integrate spatial dependencies, their performance failed to improve further.
Deeplearning based methods showed their advantage of capturing complicated spatialtemporal dependencies. As shown in the comparison result, STSAN has outperformed the other deep learning frameworks. For STResNet, despite it employs deep residual networks to capture spatialtemporal dependencies, the convolutional results are linearly merged, which overlooks the distinctive impacts of shortterm and longterm temporal dependencies. ConvLSTM, DMVSTNet, and STDN showed the remarkable capability of modeling both the spatial and temporal dependencies. However, the LSTM employed limits their efficiencies on reaching longterm temporal dependencies. Besides, independent modeling of spatial and temporal dependencies also limits their capacity of capturing complicate spatialtemporal correlations. STSAN shows significant improvement compared to previous deep learning methods. In details, taking the prediction on TaxiNYC data as an example, the RMSE is reduced by 9% for inflow prediction and 4% for outflow prediction.
Model Variants
Evaluation on the Effectiveness of SpatialTemporal SelfAttention Mechanism
In this section, we empirically demonstrate the effectiveness of the spatialtemporal selfattention mechanism. There are three variants of the selfattention networks:
Variants  RMSE/MAE

inflow  outflow
SAN  22.38/13.98  28.17/16.44
STSANS  19.38/12.98  24.97/16.44
STSAND  16.73/10.91  23.34/14.07
STSAND IT  16.39/10.63  22.94/13.48

SAN: Original selfattention network. The spatial maps are embedded into vectors by fully connected layers. Except for the input and output layers, SAN is identical to the Transformer.

STSANS: Singlestream STSAN employing spatialtemporal selfattention network.

STSAND: Dualstream (2stream) STSAN without independent training on StreamT.
As shown in Table 3, STSAND outperforms other variants based on RMSE and MAE. SAN obtains poor performance as it merely employs the structure of Transformer ignoring the complicated spatial dependencies. STSANS applies the spatialtemporal selfattention mechanism, but the transition information between nodes is missed, which leads to the uniform measurement of influences of other nodes and overlooks their dynamic dependencies.
Evaluation on Effectiveness of Independent Training
To demonstrate the effectiveness of independent training on StreamT, we evaluate the performance of 2 variants:

STSAND

STSAND IT: STSAN with independent training on StreamT.
The results demonstrated in Table 3 show that STSAND MT achieves reasonable improvement compared to other variants. As mentioned above, if STSAN is only trained toward predicting flow, the target of StreamT is ambiguous. Therefore, independent training of StreamT reduces the ambiguity, leading to more accurate modeling of connectivity between nodes. Consequently, the final training on flow prediction task benefits from the pretraining.
Conclusion and Future Work
In this work, we present the spatialtemporal selfattention network. We introduce a spatialtemporal selfattention mechanism that simultaneously captures spatial and temporal dependencies while measuring longterm dependencies more efficiently. In addition, we proposed an independent training scheme to enhance the network’s ability to measure the connectivities of nodes. Experiment results demonstrate the significant improvement achieved by STSAN. In future work, we will focus on improving the performance of outflow prediction. During the experiment, we observed that STSAN achieved much fewer improvement on outflow prediction compared to inflow prediction. To find out the reason is one of the main tasks of our future works.
