1. Introduction

The overwhelming impact of the built environment on a wide range of global issues such as climate change, energy use, and economic development and activity, is hard to overstate. Buildings consume 60% of the world’s energy, more than 50% of the world’s population lives in cities, which are responsible for 70% of GHG emissions and 80% of economic output globally (Polly et al., 2016). As such, realistic models of the evolution of the spatial distribution of the urban built environment, and its dependence on key socio-economic factors, are of high relevance for urban planning, energy management, and infrastructure investments. However, the tools to study urban form at a global scale have to date been largely based on simplified, bottom-up models (Rybski et al., 2013) that fail to capture the complexity observed in real data and to produce realistic predictions of the spatio-temporal dynamics of land use. Further key limitations of traditional urban development models are i) their inability to effectively leverage the vast, ever-increasing amount of observational data on urban built areas, and ii) their dependence on detailed, local socio-economic data that are not available in the vast majority of cities.

Specific examples of applications where urbanization forecasts are needed, but on-the-ground data is not available or is difficult to obtain that we have identified with partners such as the World Bank include i) the management and inclusion of large refugees camps within the urbanization plans of cities in Africa; ii) the economic evaluation and forecasting of necessary future urban investments in central Africa; and iii) informing carbon emission, energy use, and water consumption forecasting for Asian and African regions.

In this paper, our goal is to build a machine learning simulation model of the spatial structure of the urban built land use that i) produces predictions (in a comparative statics sense, of the next time step) that are realistic, both qualitatively, and quantitatively, ii) can naturally incorporate physical constraints, and iii) can easily be used to perform sensitivity analysis, at a large scale, of key underlying socio-economic factors affecting urbanization such as population density and (proxies for) economic activity. The model would generate simulations, or“synthetic" cities, in a controlled way, to be used in scenario analyses and urbanization forecasts.

For this, we developed our earlier work (Albert et al., 2018b) and propose a conditional generative adversarial network (GAN) (Goodfellow et al., 2014) model that formulates our task - a spatial regression - as an image-to-image translation problem, inspired by (Isola et al., 2016). We develop our GAN model to predict the spatial distribution of built-up urbanized land starting from either i) random noise and input maps encoding physical constraints such as water areas (where nothing can be built), and, in addition, ii) maps of population density and luminosity levels (a rough proxy for economic development (Weidmann and Schutte, 2017)

). This formulation allows to naturally incorporate constraints such as the inability to develop over water bodies by adding appropriate penalty terms in the GAN loss function. To measure the quality of generated maps, we compare real and generated built-up patterns maps using domain-inspired spatial statistics routinely used in urban analysis, economic geography, and “urban science" literature

(Makse et al., 1995), such as built-up area density and fractal dimension of built-up patterns. We note that the spatial sensitivity of urban built land use density to underlying factors such as population density and economic activity are practically spatial derivatives obtained as a by-product of the backpropagation algorithm used for training.

To train our model, we use a novel, global-scale dataset of remote-sensing data products as detailed in (Albert et al., 2018a). This dataset includes a unique data layer on built-up areas at global scale obtained from the German Aerospace Center (DLR) (Esch et al., 2013). Further, the dataset incorporates remote-sensing data on population density from the LandScan project (Oak Ridge National Laboratory, 2014), and on nightlights as proxy for local economic activity, e.g., (Henderson et al., 2011), and of energy use (Fragkias et al., 2017) from NASA’s VIIRS mission (NASA EOSDIS Land Processes DAAC, USGS Earth Resources Observation and Science Center, Sioux Falls, SD, 2013) (see Section 4).

The paper is organized as follows: in Section 2 we review related literature and current urban modeling approaches. Section 3 describes the GAN model. Section 4 discusses our experimental setup and data. We discuss results in Section 5.1, and conclude in Section 6. All the code and data will be made available shortly.

2. Related literature

2.1. Modeling urbanization and built land use

Traditional spatial explicit urban evolutionary models can be categorized in two main classes: agent based modeling (ABM) and complex systems modeling (CSM) (Batty, 2005). Both of them, as reported repeatedly in the urban growth modeling literature, are not effective tools for decision making (Landis, 2011). The reason of their failure can be summarized as follows.

The ABM approach is based on a probabilistic model that assigns to a non-urban area the probability to become urban after a period of time. This probability is calibrated with a wide and detailed variety of spatial co-variants such as population density, price of the land, mobility, population demographic profiles, etc. Collecting spatial co-variants (typically through on-the-ground surveys) is a painstaking, long, difficult and expensive process and most of the time, by the end of the survey process, the area of interest is already changed. Moreover, in the very the areas where cities will growth more in next decades, such as African cities, this kind of spatial and

in-situ information, critical to inform such models, are minimal or even absent. Thus, the ABM approaches need highly-granular data on urban development that are either very expensive or simply impossible to collect at scale. More agile and adaptable models are necessary to impact decision making processes.

The CSM framework employs a physics-like approach that needs no in-situ spatial and economic co-variants apart of urban footprints at a reference point in time. Then it assigns new urbanized areas based on simple assumptions such as bigger cities are more attractive than small ones (gravity law). This approach is much faster and simple than ABM, however, while it reproduces macroscopic urban characteristics such fractality (Batty and Longley, 1994) and scale-free behaviour (Gabaix and Ioannides, 2004), it is not able to reproduce realistic urban forms, i.e., the complex spatial patterns of land cover observed in cities. In a way, since CSM searches for universal laws of urbanization, its level of abstractions reproduces urban prototypes that are are too abstract and unrealistic and cannot be used in real-world scenarios.

In short, both types of traditional models (ABM and CSM) are impractical for forecasting real-world urbanization in a low-data regime such as the African continent. As such, there is a pronounced disconnect between the current urban science academic literature and the practical needs of policymakers who have to allocate resources based on urbanization forecasts. Moreover, the forecasting models work at very low resolution (500m to 1km), thus being unable to provide enough granularity to be useful for on-the-ground operational decision making.

2.2. GANs for urban science applications

Since their introduction in 2014, GANs (Goodfellow et al., 2014)

have proven to be very effective at addressing long-standing challenges in computer vision (e.g., natural image generation, image super-resolution), speech synthesis, and language translation, among others. Overviews of early techniques used for assessing model quality of different architectural choices are given e.g., in

(Salimans et al., 2016). GANs have been recently shown to excel at generating data across a variety of disciplines, including, close to our topic of interest, land use modeling (Albert et al., 2018b), remote sensing data processing, and climate modeling (Wu et al., 2018). As such, there is now a consistent body of evidence that GANs excel at implicitly sampling from highly complex, analytically-unknown distributions in a great number of contexts.

In previous research (Albert et al., 2018b), we have shown the effectiveness of a unconstrained, unconditional GAN model at generating realistic built land use maps. There, we show that model-generated “cities” (that is, maps of built land use) display a high degree of similarity on several statistics used in the urban modeling literature with real cities. The conditional GAN approach we develop in this paper builds upon the work in (Albert et al., 2018b)

, in addition incorporating (soft) physical constraints such as water areas and the ability to predict land use maps from underlying socio-economic factors. Our model is superior to traditional models in several key aspects. First, it is trained on satellite data products available at a large scale and in most cases globally, making the data collection much faster, objective and scalable than extensive in-situ surveys. Second, it allows an easy, principled way to perform sensitivity analysis and scenario simulation. Third, it casts urbanization modeling as a machine learning problem, which allows us to leverage the tremendous advances in AI models, software frameworks (e.g., PyTorch and Tensorflow), and hardware (GPUs and TPUs).

3. Model

3.1. Comparative statics and sensitivity analysis

Consider the spatial process of urbanization at a given instant in time as a function of several inter-related variables , among which population density and the amount of “economic development" (of which nighttime luminosity is a noisy proxy (Henderson et al., 2011)). Assume that the urban built land use change process can be expressed in closed form as . For small changes in both and , it is easy to see that the change of (its total derivative) can then be modeled as a linear combination of a time-dependent part (with no spatial variation) and a space-dependent part (with no temporal variation). Here we focus only on the short-term spatial variation at a given time instant . In econometrics, this procedure of analyzing how endogenous factors change in response to changes in dependent variables is termed comparative statics, because it is agnostic of the time-path of the change process, and only focuses on before-and-after comparisons. A typical spatial regression (e.g., (Arsanjani et al., 2013)) would model this as:

(1)

where , the and subscripts refer to nighttime luminance and population density, refers to regression coefficients, i.e., , and is the noise term.

Typical spatial statistics methods make assumptions about the structure of the noise term , e.g., modeling it as a Gaussian process with a covariance that depends on features computed locally (Datta et al., 2016). Moreover, the optimization typically is formulated via local loss terms, which average over statistics computed around a given location. Here, we make no assumptions about the form of or about how and might interact, only that these (i.e.,

) can be modeled by a neural network.

3.2. GANs for image-to-image translation

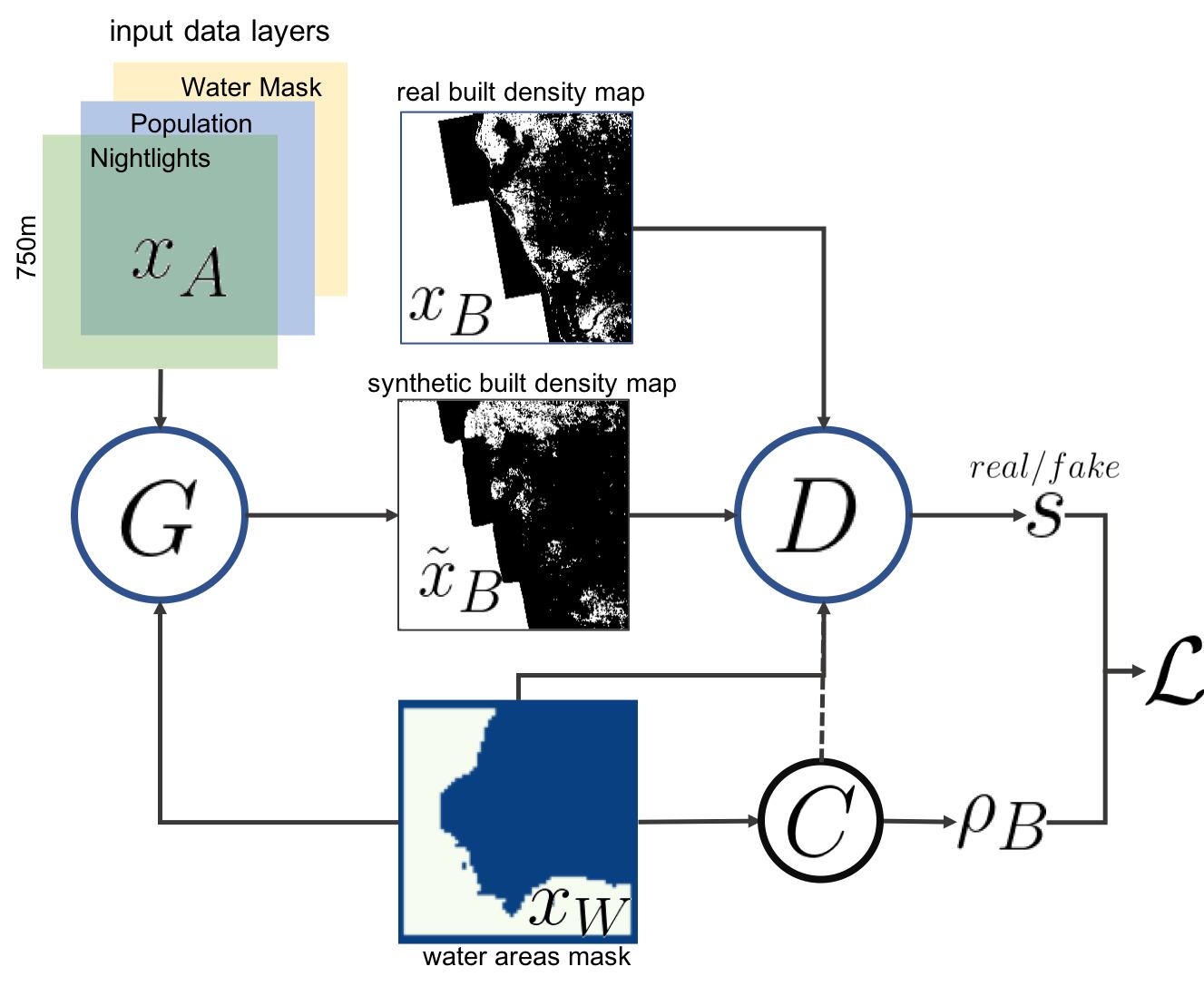

Figure 1. Model architecture for spatial regression with physics-informed conditional GANs. We modify the image-to-image translation architecture in (Isola et al., 2016) by adding an additional constraint-enforcing model , whose purpose is to guide training towards physically-sound solutions.

Generative adversarial networks (GANs) (Goodfellow et al., 2014) learn unsupervised representations of input data by training two networks (a generator and a discriminator) against each other. In the original formulation (Goodfellow et al., 2014), the generator

receives as input a random noise vector

, which it transforms in a deterministic way (e.g., by passing it through successive deconvolutional layers if is a deep CNN) to output a sample . When is optimal, is implicitly sampled from the data distribution that seeks to emulate. The discriminator takes an input (which can be either real, from an empirical dataset, or synthetically generated by ), and outputs the source probability that is either sampled from the real distribution (), or produced by ().

The noise input is unstructured for basic GANs, which makes difficult controlling the generation process for more complex tasks such as simulating urban form with specific properties. In the context of image-to-image translation problems it has been proposed (Isola et al., 2016) to replace and with structured input (images). The task here is to transform an image from domain (here, population and luminosity data layers) to domain (here, maps of built areas density). GAN-based methods that have recently been proposed achieve this via paired samples from the two domains (Isola et al., 2016). For paired data, the optimization objective function is of the form (Isola et al., 2016):

is the typical GAN objective ensuring that the generated images are realistic (i.e., sampled from the real image manifold). The term

is a reconstruction error that enforces visual similarity of the generated image

with the real image .

3.3. Conditional physics-constrained GANs

The structure of our final model architecture is shown in Figure 1. Our first modeling goal is to control the generation process as to simulate realistic scenarios of the effect of changes in the input maps (nightlights, population density) to the output map of built areas . The “pix2pix" architecture (Isola et al., 2016) that we build on trains a generator that can produce realistic renderings of samples from input domain into domain . As in (Isola et al., 2016), the form of noise that we allow is via dropout (with ).

Our second modeling goal is to incorporate physical constraints into GAN model training. For this, we modify the pix2pix architecture to include a constraint-enforcing module . This module itself can be a complex model such as a neural network performing a more complicated task. However, here we opt for a simple computation of a error term that penalizes the model whenever it generates urbanized land patches over water areas through . Information on water areas is encoded in a water mask that is passed both to the generator as well as the discriminator and the constraint-enforcing model . This is simple way to impose a soft constraint that does not guarantee the desired solutions by design; however, in practice, we found it is very effective at enforcing the basic physical constraint we are interested in (water areas). Our final optimization objective is:

(2)
(3)

where is a penalty term that we chose to have a large value (here, ) as to ensure the model has an incentive not to generate urbanized land over water areas.

3.4. Conditional GANs as regression models

In effect, this formulation amounts to a regression of the output built map , with additional regularization provided by and . The GAN term forces the generator to output samples from the manifold of empirically-observed built maps , which ensures the realism of the regression predictions . The penalty term ensures compliance with the imposed physical constraint. These two loss terms are structured, as they penalize either the whole output map (in the case of ) or global geometric properties of the output (in the case of ). In addition to these two key points, this framework allows to model critical spatial regression components:

Coefficients and standard errors.

The deterministic input-output transformations are much simpler in standard regressions formulations (e.g., a linear transformation). This allows for straightforward interpretability and statistical tests on the properties of coefficients (gradients of dependent variable with respect to the input covariates). Here the dependence of the output to the input is modeled via a highly-complex neural network. However, this transformation being a composition of simple, differentiable functions, the gradient is readily available as a by-product of the backpropagation algorithm used to train the network. Standard errors on the coefficients may then be estimated via the inverse of the Hessian, which is available readily in certain computational frameworks.

Structure of noise term. Instead of the typical spatial regression formulation in 1, where the structure in the noise term

is explicitly and analytically modelled, our formulation incorporates noise implicitly through dropout operations and leaky ReLU activation functions. Note that if one would wish to impose an explicitly-modelled structure on the noise

, with a vector of parameters, it would be possible to estimate in the same end-to-end process via backpropagation, as long as is differentiable in and is part of the computational graph of the model.

4. Experimental setup

4.1. Global remote-sensing urban data layers

Figure 2. Geographical distribution of the world-wide urban data on urban areas used in this paper.
Figure 3. Samples from the CityNet dataset (Albert et al., 2018a) (cities on columns, data sources on rows). Example major cities, with water areas in white and city bounds gray-shaded.

Data layers. We observe spatial maps for cities, with , where is the number of data sources, as well as corresponding binary masks , with if the land from city at location can be developed (here, water areas), and , representing best-available administrative boundaries for each city , with if location is within the city boundary. refers to the number of data sources, which are assumed distinct, if not independent, in the sense that each brings additional, interpretable information. Here, we represent a city by data sources: population density , nighttime luminosity , and building density . We thus represent a city by the data layers .

The “CityNet” world cities dataset. We used a dataset that was recently introduced in (Albert et al., 2018a) that contains the spatial maps as defined above on world-wide cities with at least inhabitants, i.e., world-wide. For each of these cities, the dataset in (Albert et al., 2018a) contains sample spatial maps as square windows of width around a city center111The maximum distance from the city center that most people would be willing to commute for work (a one-hour commute driving at ) (Dash Nelson and Rae, 2016). Fixing a spatial scale of results in different image sizes (in pixels) for cities at different latitudes on Earth. For simplicity, we resize all images to pixels. from four sources:

Built land areas density. The “Global Urban Footprint” (GUF)(Esch et al., 2013) is a novel dataset produced by the German Aerospace Center (DLR) that maps the distribution of human settlements for the entire planet at an unprecedented (here we aggregate to ).

Population density data. The LandScan data (Oak Ridge National Laboratory, 2014) consists of population density estimates available worldwide at a resolution. It has been produced yearly since 2000 at the Oak Ridge National Laboratory using remote-sensing imagery and census surveys.

Nighttime luminosity data. NASA’s Visible Infrared Imaging Radiometer Suite (VIIRS) (NASA EOSDIS Land Processes DAAC, USGS Earth Resources Observation and Science Center, Sioux Falls, SD, 2013) satellite mission provides data on relative luminance values between 20:00 and 22:00 local time at a resolution and on a scale from 0 (no lights) to 180.

City boundaries. Data on boundaries at a municipality level was integrated from the Global Administrative Boundaries project (GADM) (Robert Hijmans et al., 2016) (compiled from open source and census surveys).

We further removed those cities for which the amount of signal in the built up layer (fraction of image pixels with non-zero values) was below 2%, which resulted in a final training dataset of almost

world-wide cities. The largest, spatially uniformly-distributed

such cities are shown in Figure 2.

Several examples of our training set are presented in Figure 3. For each city (column), we present the data sources used, from bottom to top: built areas, luminosity, and population density (the latter two on log-scale). In the left panel, we show several major cities, where the white areas represent the water mask applied to each map layer, and the regions outside official city boundaries () are gray-shaded.

4.2. Model validation via spatial statistics

Following typical analysis in statistical geography and urban development (Makse et al., 1995), we compute several spatial statistics on the built areas of all our samples, either real or synthetic. The simplest such measure for a given map is the percentage of built area in a fixed window (here ) around the city center, . Next, as a simple extension, we compute the distribution of the sizes of of built agglomerations (contiguous patches) for a given input image 222For this, we use the morphology.label algorithm in skimage package in Python that extracts the connected components of a given image at the pixel level.. In the top row in Figure 4 we illustrate this computation for Paris. The top-right panel shows the top 20 such contiguous patches, including the large urban core. The top-left panel shows the log-log distribution of the patch size.

Another commonly-used statistic in “urban physics" is the fractal dimension of a spatial distribution, which we illustrate in the two rightmost panels in Figure 4. To compute , we use the classic “box-counting" algorithm (Gonzato, 1998). This algorithm divides up a give input image into a successively finer grid (boxes of sizes ) and calculates the number of boxes at each scale that cover at least a threshold amount of non-zero pixels. This procedure is illustrated in the bottom row in Figure 4 for “Sierpinski’s triangle", a classic fractal shape consisting of self-similar triangles. Then is computed as the slope of the logarithm of the number of boxes containing enough non-zero pixels with the logarithm of the box size.

Figure 4. Spatial statistics for urban form analysis. From left to right: top 20 patches for Paris at a resolution; log-log distribution of number of built patches with their sizes; illustration of the box counting algorithm (Gonzato, 1998) for computing fractal dimension ; computing for Paris.

5. Results

5.1. Producing synthetic cities

Figure 5. Real (left) and synthetic (right) cities. For visualization purposes we display population and built areas density maps as green and blue channels. Note the complex, realistic-looking synthetic spatial patterns in the right panel and their qualitative similarity to the real urban patterns on the right.

We trained our model from Section 3 using the data from Section 4. We validate the and components of the model as follows.

Simulating urban forms using . In Figure 7 (left panel) we show examples of synthetic spatial maps generated by our model that sees only water masks as inputs. To enhance the visualization of the generated patterns, we display population and built areas density maps as green and blue channels. For comparison, we show real, randomly-selected cities on the left panel in the same figure. Note that is able to generate crisp, realistically-looking urban forms that are virtually undistinguishable from the real cities.

Next, we use our GAN-based spatial regression framework to predict built maps on the test set. To validate the global structure of the generated built density maps, we compare model-estimated spatial statistics with ground-truth statistics as discussed in Section 4. We show the results of this comparison in Figure 9. Note that the synthetic built density maps are very close to the real built density map, as indicated by values of Pearson’s of (for ) and (for ). While these domain statistics are relatively simple, more complex ones (e.g., the distribution of the urbanized areas in Figure 4) can be similarly incorporated.

Figure 6. Comparing the ground truth and estimated statistics: the fraction of built area ( vs , left) and the fractal dimension ( vs , right).

Comparing cities using features learned by .

A second experiment we performed was to extract autoencoder bottleneck layer representations

for all cities . As in (Albert et al., 2017)

, we build a simple classifier (a

KD-Tree) that allows to efficiently compare cities by performing nearest-neighbor queries in feature space. This is illustrated in the right panel in Figure 7, where we show the top “most similar” cities to Paris, San Francisco, Boston, and Lagos. For example, for San Francisco, the model identifies other elongated, coastal towns with complex morphology as top neighbors, whereas for Paris the model returns other circular-shaped cities. This measure of similarity can provide a way to identify “classes” of cities by their urban development.

Figure 7. Validating by using its bottleneck features to assess city similarity. The most similar cities to each query city are displayed () are stacked for display.

5.2. Scenario and sensitivity analysis via GANs

We present examples results in Figure 8 for Paris. The first three columns (from left to right) show input population and nightlights map (a multi-channel image), true built map , and predicted built map . The last two panels show the spatial gradient structure for the two components (population density and luminosity). As it is not feasible (or necessary) to compute a full gradient matrix for every one of the elements in , we compute the spatial gradient for a given local region of interest (highlighted in gray over the true built map , second column in the figure) by averaging over all pixels in that region. We simulate two scenarios: i) is the main urban core, and ii) consists of the top 3 secondary area patches. Note how a “spillover" effect can be qualitatively observed - in particular for the secondary urbanized areas - where non-zero gradient values appear outside of the areas over which the gradient is computed. This suggests that (static) local changes in the population density (or luminosity) propagate beyond the immediate locality. We next set to characterize the spatial properties of this effect.

Figure 8. Left: GAN spatial regression example for Paris. The first three columns (from left to right) show the input maps , ground truth built areas map , model-generated built map . The last two columns show the gradients and . Right: fraction of gradient outside of a local region of interest produced by a unit change in luminosity in .

Figure 9. Left: sampling rays out of a local region of interest (red outline); right: example gradient dependence with distance from selected region for Paris.

5.3. Spatial gradient structure and “spillover"

Next, we study how a local change in factors related to urban form - population density and economic development (luminosity) - can propagate in space and lead to changes in urban form potentially relatively far away from where the change originated. Specifically, we compute the dependence of the magnitude of the gradient due to a change in a given local region with the distance from that region. We use the following sampling procedure (see Figure 9):

  1. [leftmargin=*,topsep=0pt,itemsep=-1ex,partopsep=0.5ex,parsep=0.5ex]

  2. For a local region of interest (circled with a red line in the figure, the second-larges urban patch around Paris), generate (here ) sampling directions (rays) uniformly at random;

  3. Compute the magnitude of the gradient as a function of distance from the center of , by averaging along each over bins, and then averaging over the s.

An example scenario of applying this sampling method is shown in the rightmost panel in Figure 9. There, we characterize the “action at a distance" (spatial dependence of the gradient magnitude) of a unit change in either population density (blue curve) or luminosity (green curve) in the second-largest urban region around Paris. Again, we observe that the “effects" of changes in these factors in the distribution of built environment propagate spatially outward. Next, to quantify this effect at a global level, we apply the same sampling technique over the computed gradient maps with respect to local changes in luminosity and population density over the test dataset of largest metropolitan regions worldwide. This analysis is shown in Figure 10. First, we compute the percentage of gradient magnitude outside of the originating region (here we used the top 3 secondary contiguous urban regions outside of the urban core) - what we term “gradient spillover". The left panel in the figure shows this calculation for cities in four major geographical regions in the case of luminosity. The distributions indicate that spatial gradient “spillover", while relatively small, is still present.

Finally, in the right panel in Figure 10 we present the distance dependence of the average (log-scale, normalized) gradient magnitude, again in the same scenario where a change occurs in the top 3 secondary urban regions outside the urban core, for the case of population density. For each of the intervals, we show the distribution over the global city sample as box plots, broken down by major geographical region. While there are visible differences across regions, a trend is apparent in that changes propagate, on average, over more than before they contribute less than to the spatial gradient at that distance.


Figure 10. Spatial propagation of gradients: (log-normalized) gradient magnitude with distance from .

6. Discussion and conclusions

To the best of our knowledge, this is the first study in both the machine learning and in the urban analysis literature on a model of urban forms derived from data at a planetary scale. Prior literature on urban analysis almost entirely focuses on cities in developed countries, due to data availability. However, projections show that most of the urbanization in the next 30 years will take place in developing countries, with more than a doubling of the amount of land used in cities in the absence of data-informed regulatory policies. However, in many such places, socio-demographic and economic data is either extremely limited, unreliably reported, or difficult to collect. Together with the poor predictive performance of traditional urban models, this calls for developing better predictive methods, calibrated using a globally-consistent dataset, and is of interest to international planning agencies, real estate markets, and national regulatory agencies.

A flexible generative model such as a GAN is needed because existing models of urban form are not able to reproduce the richness in the spatial distribution of key macroeconomic indicators (building density, population density, economic activity) observed in real data, and require extensive design and calibration to incorporate heterogeneous data. This paper is the first application of a top-down approach to modeling urban spatial maps, where long-range connections between macroeconomic factors are implicitly modeled via a map-to-map regression, without the need of hand-engineering of features. As such, we can uncover the type of global dependencies that we highlight in our analysis of sensitivity (gradient) profiles in a completely non-parametric way. We see this as key differentiator for the task of scenario analysis, and as first step towards a realistic simulator of urban form.

Lastly, we caution that the opacity of GANs (and deep networks more generally) is a common problem in applying these types of models to real decision-making. In absence of ground truth labels of any kind, interpretation is certainly very hard. Clearly, the simple spatial statistics that we use to validate model output do not take into account all of the richness in spatial maps; however they serve as first proof of concept of a GAN-based methodology. Learning disentangled, interpretable representations is certainly an important step towards interpretability and usability. We recognize that, in contrast with other problems typically studied in machine learning (e.g., image classification), in our application there are no straightforward labels to guide training, or, in fact, to allow for validating algorithm output. In future work, we intend to add the capability of conditioning the generation process on any available ancillary information, e.g., macro-economic and geographical regions and city-level data of economic output, diversity etc.
