Spatial Poisson Processes for Fatigue Crack Initiation

05/09/2018 ∙ by Ivo Babuska, et al. ∙ King Abdullah University of Science and Technology The University of Texas at Austin Washington University in St Louis 0

In this work we propose a stochastic model for estimating the occurrence of crack initiations on the surface of metallic specimens in fatigue problems that can be applied to a general class of geometries. The stochastic model is based on spatial Poisson processes with intensity function that combines stress-life (S-N) curves with averaged effective stress, σ_eff^Δ (x), which is computed after solving numerically the linear elasticity equations on the specimen domains using finite element methods. Here, Δ is a parameter that characterizes the size of the neighbors covering the domain boundary. The averaged effective stress, parameterized by Δ, maps the stress tensor to a scalar field upon the specimen domain. Data from fatigue experiments on notched and unnotched sheet specimens of 75S-T6 aluminum alloys are used to calibrate the model parameters for the individual data sets and for their combination. Bayesian and classical approaches are applied to estimate the survival-probability function for any specimen tested under a prescribed fatigue experimental setup. Our proposed model can predict the remaining life of specimens from the same material with new geometries.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 5

page 6

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Predicting fatigue in mechanical components is extremely important for preventing hazardous situations. Fatigue starts with crack initiation, then the small crack propagates to become a complete fracture. To model the fatigue of real mechanical objects, the geometry of the objects must be considered in the mathematical formulation to compute the stress or strain field. In this work, we are only concerned with crack initiation and use survival analysis to model the time until the first crack occurs. As such, survival means that no cracks are initiated and failure means the initiation of cracks. We focus only on stress-based approaches that model fatigue crack initiation under high cycle fatigue.

Our goal is to construct a stochastic model that can estimate the survival probability of any mechanical component given data of fatigue experiments on specimens made of the same material. Statistical S-N models are usually used for survival prediction in uniaxial-fatigue experiments with cyclic loadings fatigue1 ; leonetti2017fitting . There are also several generalizations of S-N models for fatigue of notched specimens (see szabo and the references therein). In these generalizations, the stress tensor field is computed around the notch and mapped into a stress predictor characterized by some parameters. Instead, we consider an effective stress field over the full domain and assume the existence of a material parameter that define a local neighbor to average the effective stress locally following the theory of critical distances (TCD). There are many versions of the TCD involving additional material parameters susmel2007novel ; taylor ; taylor2010 . Considering the limited amount of available data and the goal of this study, the most simple TCD using only the averages was used and calibrated.

In this work, we develop a general approach, following the ideas in banff , to modeling crack initiation on the surface of metallic specimens based on simple assumptions. Our model transforms the stress tensor field into a spatial stress function named the averaged effective stress function, . We combine with a chosen S-N model to build a rate function for the spatial Poisson process. The rate function is scaled by the highly stressed volume that is parameterized by a threshold parameter, . The choices of , the S-N model and the parameterization of the highly stressed volume are subject to user preference. The resulting model is independent of the shape of the specimen and can fit fatigue data from both notched and unnotched specimens. The Poisson process has been used similarly with a local strain field for low cycle fatigue with unnotched specimens in schmitz2013probabilistic and recently with notched specimens in made2018combined . We underline that references schmitz2013probabilistic and made2018combined are concerned with low cycle fatigue whereas the present paper is concerned with high cycle fatigue.

Following our previous work fatigue1 , we first calibrate the model parameters by means of the maximum likelihood (ML) method, and we consider Bayesian analysis to provide a better understanding of the results obtained by classical methods. The Bayesian analysis has become a primary part of studying fatigue life prediction. For example, Bayesian methods were used to analyze a new S-N model with fatigue tests on welded cover-plate steel-beam specimens leonetti2017fitting and low-cycle fatigue models for turbine disks wang2017zone . In faghihi2018probabilistic , the Bayesian framework was used to assess the uncertainty of a continuum damage model. A hierarchical Bayesian approach was also used in liu2017hierarchical , which allowed general prior models to be considered.

The rest of the paper is organized as follows. In Section 2, we analyze available data from fatigue experiments to determine their utility in calibrating crack-initiation models. Section 3 includes a description of the linear elasticity equations used to compute the stress tensor. Then, we consider a map that transforms the stress tensor into a real-valued spatial function (the averaged effective stress). In Section 4, we recall a simple S-N model and calibrate it to the data introduced in Section 2 by assuming that the first crack will initiate at the spatial position with the highest effective stress. We introduce our novel spatial Poisson model in Section 5 and derive the exact form of the log-likelihood function. This new model is extensively applied to estimate the survival-probability for each specimen in the data. Finally, we analyze our Poisson model via a Bayesian framework in Section 6 where the survival functions computed by posterior estimates for the entire set of data (hereafter referred to as pooled posterior estimates) are compared with the reference ML estimate of each data set.

2 Data sets from experiments on aluminum-sheet specimens

We extract three data sets from the National Advisory Committee for Aeronautics (NACA) technical notes 2324 TN2324 , 2639 TN2639 and 2390 TN2390 , which correspond to fatigue experiments conducted on three sheets of 75S-T6 aluminum (Figure 1). Specimen 1 is an unnotched, dogbone-shaped specimen, while specimens 2 and 3 are notched with blunt and sharp notches, respectively.

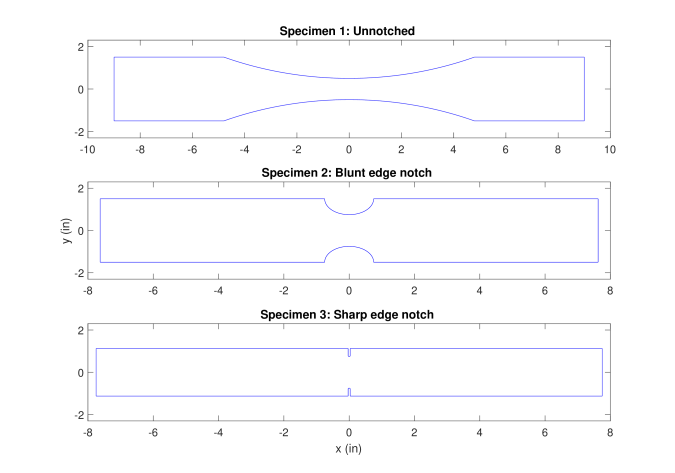

Figure 1: Three different types of 75S-T6 aluminum specimens (TN2324 ; TN2639 ; TN2390 ).

The first data set consists of fatigue experiments applied to specimen 1 (TN2324, , table 3, pp.22–24). In each experiment, the following data are recorded:

  • The maximum stress, , measured in ksi units.

  • The cycle ratio, , defined as the minimum to maximum stress ratio.

  • The number of load/stress cycles at which fatigue failure occurred.

  • A binary variable (0/1) denoting whether or not the experiment was stopped prior to failure (run-out).

The other data sets contain fatigue experiments applied to the notched specimens (see (TN2639, , table 3, p.9) and (TN2390, , table 3, p.8)). We consider only experiments with high cycle fatigue; that is, . In these data sets, the following data are recorded:

  • The nominal maximum stress , defined as the maximum applied force divided by the smallest cross-sectional area of the test specimen.

  • the nominal mean stress, , the stress ratio is then given by .

  • The number of load/stress cycles at which fatigue failure occurred.

  • A binary variable (0/1) denoting whether or not the experiment was stopped prior to failure (run-out).

Remark.

The fatigue data obtained for particular cycle ratios must be generalized to arbitrary cycle ratios. For this purpose, the equivalent stress is defined as

(1)

where is a fitting parameter fatigue1 ; faa ; walker . The load force, or normal traction, is then given by , where is the maximum width of the specimen and is the minimum width.

Data set Specimen Source Radius (in) Number of experiments
1 1 (Unnotched) NACA TN 2324 TN2324 12 85 (73)
2 2 (Blunt edge notch) NACA TN 2639 TN2639 0.76 31 (29)
3 3 (Sharp edge notch) NACA TN 2390 TN2390 0.03125 28 (22)
Table 2: Fatigue data for 75S-T6 aluminum alloys.

Table 2 summarizes the properties of each specimen shown in Figure 1. The total number of experiments is also given with the number of observed failures provided in parentheses. The thickness of all three specimens is in, which is relatively small. Therefore, we can reduce the dimension of the problem to two. However, we note that for specimen 3, the radius of the notch is smaller than the specimen thickness; therefore, the three-dimensional (3D) model might not be sufficiently approximated by a two-dimensional (2D) model.

Remark.

In the aforementioned experimental data, we assume that crack propagation is instantaneous as crack initiation occurs; that is, crack initiation is equivalent to fatigue failure. We validate this assumption by Paris’ law for some experiments. The number of cycles spent on crack propagation is negligible compared with the number of cycles until crack initiation. The life of the specimen is thus defined as the number of stress cycles until the first crack initiates. This assumption allows us to calibrate fatigue crack-initiation models to the available data. In general, we would need the number of stress cycles when the first crack appears.

3 Numerical computation of

3.1 Linear elasticity

The stress field in the specimens is defined by the linear elasticity theory. The mathematical model of linear elasticity is based on strain-displacement equations, stress-strain equations, and equilibrium equations FEM . We let be the domain shown in Figure 2. Then, the displacement field satisfies the equations of two-dimensional elasticity (plane stress) timoshenko1970theory :

where is the modulus of elasticity, is Poisson’s ratio, and is the shear modulus. Equivalently, the two-dimensional elasticity equations can be written in terms of the stress as follows:

(2)

where the normal stresses in the x-axis and y-axis, and , respectively, and the shear stress, , are given by:

The boundary conditions for the domain shown in Figure 2 are on boundary segment , free boundary condition are prescribed on and , and symmetry boundary conditions are prescribed on and .

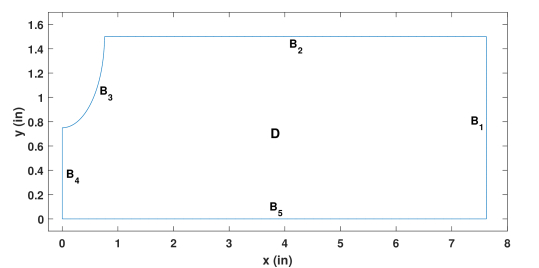

Figure 2: Physical domain of quarter of specimen 2.

The numerical solution for the system (2) was obtained by the Finite Element Method FEM . Figures 3 and 4 show the computed values of over the right upper quarter of specimens 1 and 2, respectively. The mesh of the right upper quarter of specimen 3 is shown in Figure 5. The adaptive PDE solver ADAPTMESH in MATLAB was used. For specimen 3, we also computed three-dimensional stress field using the MATLAB function SOLVEPDE with unstructured mesh generated by COMSOL. The stress is shown in Figure 6. We refer the reader to (FEM, , Chapter 3) for the details of the three-dimensional elasticity equations.

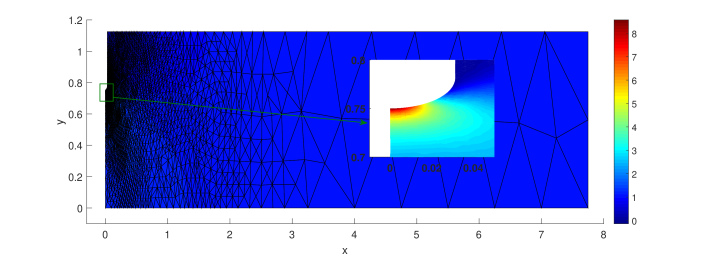

Figure 3: Distribution of for the unnotched specimen used in NACA TN 2324 (specimen 1).

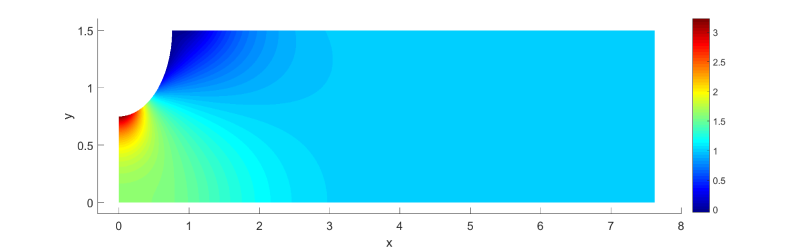

Figure 4: Distribution of for the notched specimen used in NACA TN 2639 (specimen 2).
Figure 5: Distribution of in the plane of symmetry of the notched specimen used in NACA TN 2390 (specimen 3).

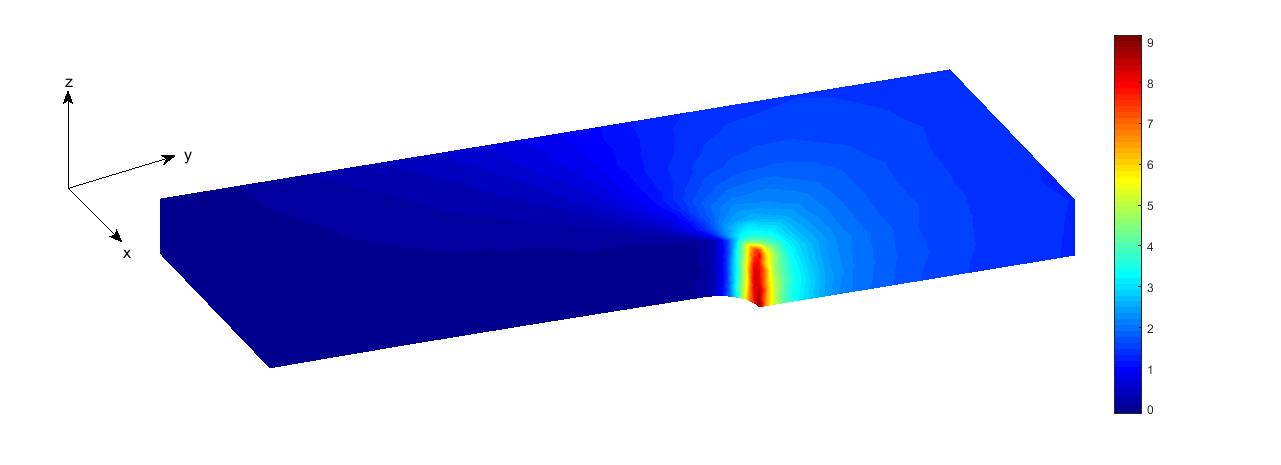

Figure 6: Three-dimensional of specimen 3; the bottom plane is the plane of symmetry displayed in Figure 5.
Remark.

Due to the linearity of the problem, it is sufficient to compute the stress tensor with a unit load force, denoted by , , for a given specimen. Then, the stress tensor that corresponds to a specific experiment is given by

(3)

where is the equivalent stress that characterizes the stress cycle of the experiment as defined in (1). Thus, we need to run a MATLAB PDE solver only once for each specimen.

In the rest of this section, we will denote the stress tensor at by , where depends on the stress ratio and the parameter through equation (3).

3.2 Averaged effective stress

There are several proposals for the definition of effective stress szabo ; banff . In this work, we define the effective stress by the maximum principal stress. The two-dimensional maximum principal stress is given by stressformulas :

Then, we obtain the averaged effective stress by averaging the effective stress locally:

(4)

where is a cube (square) of length centered at banff in the 3D (2D) model. In general, there are different ways to define , as in the theory of critical distances taylor . As converges to zero, the averaged effective stress converges to the effective stress.

4 Preliminary calibration

In our initial attempt to model fatigue crack initiation, we assume that the crack formation is determined by . This assumption reduces the stress field to a scalar value that can be used with S-N models. We consider the fatigue-limit model (Model Ia) from fatigue1 . The fatigue life, , is modeled by means of a lognormal distribution with mean and standard deviation , where

and is the fatigue-limit parameter. When , we assume cracks will never initiate and the survival probability will be constant equals . The likelihood function for the S-N curve based on experiments is given by

(5)

where , , is the cumulative distribution function of the standard normal distribution, and

Data set Maximum log-likelihood AIC
1 7.40 -2.01 35.91 0.5627 0.5274 -950.16 1910.32
2 8.24 -2.39 38.98 0.5790 0.4216 -396.55 803.10
3 (2D) 8.78 -2.46 46.41 0.6470 0.5441 -303.44 616.88
3 (3D) 8.86 -2.47 48.94 0.6470 0.5439 -303.44 616.88
1, 2 & 3 (2D) 7.77 -1.96 35.58 0.5780 0.7909 -1710.68 3431.36
1, 2 & 3 (3D) 7.50 -1.75 36.11 0.5755 0.8199 -1715.12 3440.24
Table 3: ML estimates of from Model Ia using(5) where .

Before calibrating , we estimate under the restriction that . Table 3 shows the corresponding ML estimates of obtained using each data set individually and the pooled ML estimates that are obtained from the combined data set. Figures 7 and 8

show the corresponding quantile functions with the data used to fit the model. In these figures, the observations are plotted with respect to the maximum effective stress in the y-axis not the applied traction. The notched specimens are subjected to much smaller traction forces but the effective stress will include the notch effect. We notice that the ML estimates of

differ considerably with each data set and the variance is increased when fitting the same S-N model to the combined data set. To reduce the variance, more parameters need to be introduced. However, for predicting the life of new specimens, it is preferable to have large variability in the model.

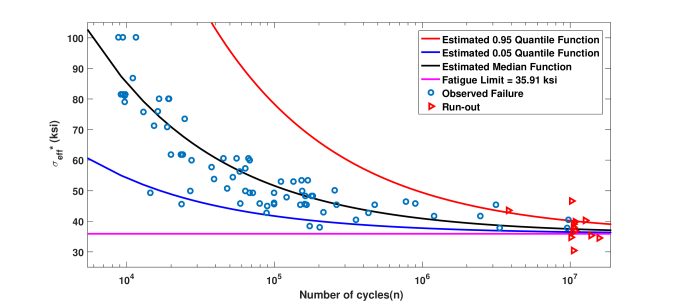

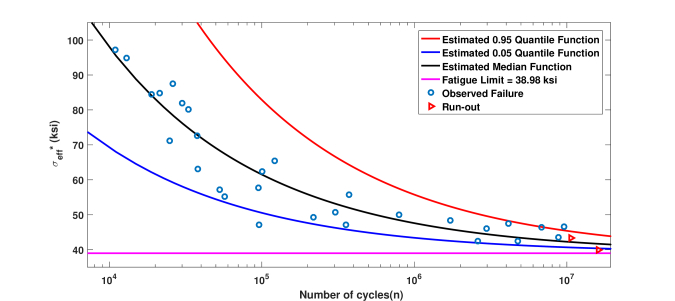

Figure 7: Fitting Model Ia to data set 1 (upper panel) and data set 2 (bottom panel) where .

Figure 8: Fitting Model Ia to data set 3 (2D) (upper panel) and the combined data set (bottom panel) where .

For specimen 3, we consider both 2D and 3D models and show the calibrated parameters for each case in Table 3. When calibrating the specimen 3 data set only, the 2D and 3D models produce the same fit with only a small change in the fatigue-limit parameter. Moreover, the pooled estimates for the combined data sets are very similar, though the 2D model provides a better fit by underestimating the maximum effective stress, which makes it more similar to the maximum effective stress of specimens 1 and 2.

Data set (in) Maximum log-likelihood AIC
1, 2 & 3 (2D) 8.16 -2.38 34.65 0.5774 0.6006 0.025 -1673.56 3359.12
Table 4: ML estimate of and from Model Ia using (5).

Now, we incorporate the parameter to average the effective stress locally. By maximizing the likelihood function (5) using the combined data, we obtain a pooled ML estimate of and in Table 4. We present this fitting in Figure 9. The incorporation of unifies the range of for the three specimens, and therefore, improves the fitting of the data.

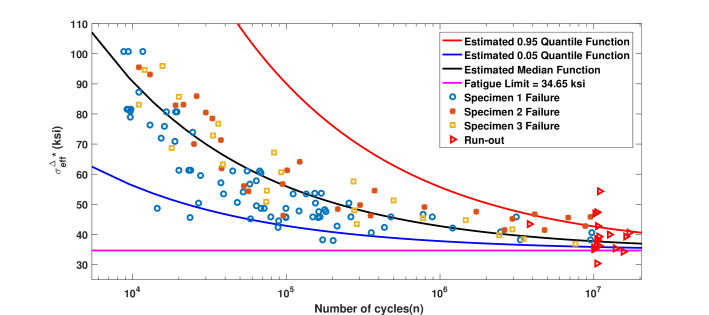

Figure 9: Fitting Model Ia to the combined data set where .

Figure 10 shows the log of the profile likelihood function for where the confidence interval is approximately . We compare the fitting of the combined data set when and by means of the Akaike information criterion (AIC) aic in Table 5. We recall that the AIC is define as where is the number of parameters and is the maximum likelihood value. The smaller AIC value corresponds to the better fit. In the rest of the paper, we will use AIC to compare different models with different number of parameters.

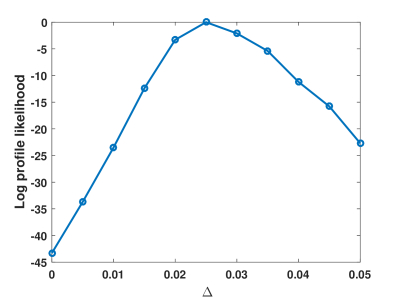

Figure 10: The estimated log profile likelihood function for the parameter derived from (5) and the combined data sets.
Model Ia given data sets 1, 2 & 3 (2D)
Maximum log-likelihood -1710.68 -1673.56
Akaike information criterion (AIC) 3431.36 3359.12
Table 5: Comparison between two different specifications of Model Ia using (5).
Remark.

The parameter smooths the effective stress locally and acts as a scaling parameter for a given non-uniform stress field. Therefore, must be calibrated using combined data from fatigue experiments on specimens with different geometries.

Because it was experimentally observed that the crack was not always at the point where the notch is deepest, in the next section, we introduce a tailored stochastic model for the occurrence of crack initiations.

5 Spatial Poisson process to model crack initiation

For a given S-N model that depends on parameters , we consider the following notations:

  • The failure density function is denoted by ,

  • The cumulative distribution function is denoted by ,

  • The failure/hazard rate function is denoted by ,

where is a generic symbol for the stress. To construct a spatial Poisson process for crack initiation in a domain , we assume that

  1. The (averaged) effective stress at determines the crack formation at .

  2. Different cracks initiate independently.

The spatial Poisson process is governed by the intensity function , which relates the spatial location to the number of cycles, . This intensity function depends on the effective stress, , where is a failure-rate function. The number of cracks occurring inside any surface region, , can be modeled as a Poisson counting process with the associated rate function . Then, the number of crack initiations in the region after performing stress cycles is modeled as a Poisson random variable, , whose distribution is

with .

We are interested in the number of stress cycles, , when the first crack initiates on . The random variable is related to the counting process by the equivalence relation , which corresponds to the survival event. Similarly, the failure event, , is equivalent to . Therefore, the survival probability after cycles is

(6)

and the density function of is

To parameterize the rate function , we relate it to a given S-N model as follows:

(7)

where is the size of the highly stressed volume. Thus, the spatial Poisson model is fully characterized by , and , where depends on the selected S-N model.

From (7), the survival probability can be simplified to

(8)
Remark.

In the case of uniform stress, and . Thus, the survival probability (8) becomes

which means that the parameterization of in (7) ensures the consistency of the model for uniform and non-uniform stresses.

The highly stressed volume (area), , depends on the specimen geometry. We re-parametrize the survival probability by defining the highly stressed volume.

Definition 1.

Highly stressed volume
We let , where is the effective stress that corresponds to a unity traction and is an unknown parameter. The highly stressed volume is given by

(9)

Under the assumption of independent experiments, the log-likelihood function is

(10)

5.1 Calibration of the spatial Poisson model

Again, we consider Model Ia and calibrate the likelihood (10) under the assumption that . We replace the averaged effective stress, in the log-likelihood function (10) with the effective stress, . The results of the maximization of the log-likelihood with respect to and are summarized in Table 6. The overall fit in Table 6 is better than the fit in Table 3. When moving from 2D to 3D modeling, we did not obtain any significant gain concerning the goodness of fit (therefore, at this stage, 2D modeling is recommended). We still notice variations in the estimated parameters with each data set as in Table 3. However, the standard deviation is reduced considerably in all cases. Also, the difference between the calibrated fatigue-limit parameters from the 2D and 3D models of specimen 3 is small in this case. Therefore, we use only the 2D model for all three specimens from now on. We try to improve the fitting by incorporating .

Data set Maximum log-likelihood AIC
1 5.88 -1.32 35.88 0.5640 0.3011 1.16 -938.90 1889.80
2 6.00 -1.22 40.98 0.5965 0.2299 1.95 -391.45 794.90
3 (2D) 7.62 -2.18 45.35 0.6504 0.2692 2.54 -301.82 615.64
3 (3D) 7.62 -2.16 44.62 0.6504 0.2903 2.90 -302.03 616.06
1, 2 & 3 (2D) 6.28 -1.47 35.99 0.5676 0.3804 1.83 -1650.05 3312.10
1, 2 & 3 (3D) 6.30 -1.47 35.78 0.5646 0.3718 1.83 -1649.97 3311.94
Table 6: ML estimates of and from Model Ia using (10) where .
Data set
Maximum
log-likelihood
AIC
1, 2 & 3 (2D) 6.29 -1.47 35.99 0.5664 0.3453 1.83 0.0125 -1648.16 3310.32
Table 7: ML estimate of , and from Model Ia using (10).

The pooled ML estimates of , , and is presented in Table 7. Figure 11 shows the log profile likelihood function for . We compare the case when is neglected with the case when is incorporated in terms of their AIC in Table 8. Slight preference is given to Model Ia when is calibrated with the other parameters. This slight preference may not justify the extra computations needed to estimate . However, it should pointed out that for specimens with diverse geometries, it is expected that will play a role in the fitting process. Therefore, must be calibrated given the available data to take into account the microstructural features. We further study this comparison using a Bayesian framework in the next section.

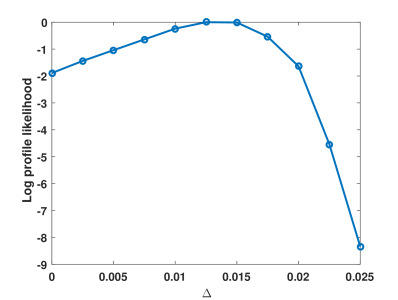

Figure 11: The estimated log profile likelihood function for the parameter derived from (10) and the combined data sets.

Comparing AIC in Tables 5 and 8, we see that the spatial Poisson process provides much better fit than the model introduced in 4, whether or . Although both models are generalizations using simple assumptions of the same S-N model (Model Ia), the spatial Poisson model incorporates the complete stress field and accounts for the highly stressed volume. We emphasize that we adopted the same resolution for both models in sections 4 and 5. A detailed mesh sensitivity analysis for the Poisson model is provided in Subsection 5.3.

Model Ia given data sets 1, 2 & 3 (2D)
Maximum log-likelihood -1650.05 -1648.16
Akaike information criterion (AIC) 3312.10 3310.32
Table 8: Comparison between two different specifications of Model Ia using (10).

5.2 Survival functions

We compare the survival-probability functions for each specimen using model parameters estimated from each of their individual data sets as well as using the combined data set. The pooled ML estimates can be used to predict the survival probability of new specimens but with larger variability. The ML estimates obtained from the three data sets and the combined data set are provided in Table 6. The survival-probability could be expressed as a function of the traction and the number of cycles . We plot the contour lines of the survival-probability surface for each specimen together with its fatigue experiment data. Figures 12, 13, and 14 provide analog representations of the S-N curves computed using the Poisson model with the individual data sets estimates and the pooled estimates. In this case, the survival probability depends on the complete stress field of the specimen, and therefore, there are no unique S-N curves for the three specimens jointly.

Figure 12: Contour plots of the survival-probability functions for specimen 1 computed using (8) with data set 1 ML estimates (dashed line) and pooled ML estimates (solid line); yellow is 0.95 probability, green is 0.5, and blue is 0.05.
Figure 13: Contour plots of the survival-probability functions for specimen 2 computed using (8) with data set 2 ML estimates (dashed line) and pooled ML estimates (solid line); yellow is 0.95 probability, green is 0.5, and blue is 0.05.
Figure 14: Contour plots of the survival-probability functions for specimen 3 computed using (8) with data set 3 ML estimates (dashed line) and pooled ML estimates (solid line); yellow is 0.95 probability, green is 0.5, and blue is 0.05.

In Figure 12, we observe that the survival-probability functions computed from data set 1 estimates and the pooled estimates are similar. In Figure 13, we notice a small increase in variability of the survival-probability function obtained by the pooled estimates compared. This variability increases considerably for specimen 3 in Figure 14. However, the variability introduced by the pooled estimates provide more conservative survival functions that could be used for predictions and making design rules szabo2017formulation . The variability increased with the pooled estimates because we assume spatial independence. In a single data set case, the spatial correlation influences all the estimated parameters, and therefore, the variance is reduced. We also compare the survival-probability functions for specific values of with and in Figures 15, 16 and 17.

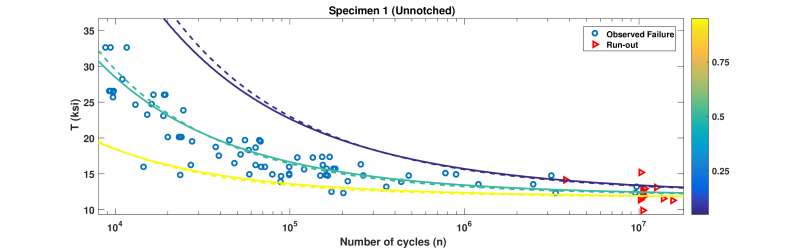

Figure 15: Survival-probability functions for specimen 1 obtained using different ML estimates; ksi.

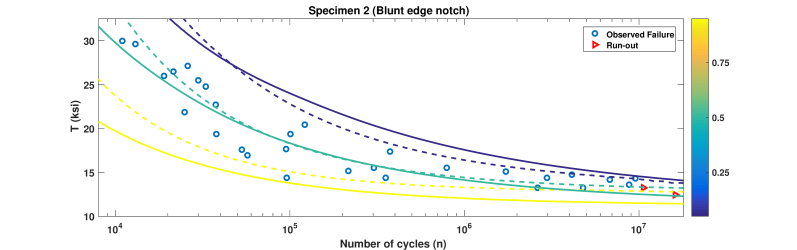

Figure 16: Survival-probability functions for specimen 2 obtained using different ML estimates; ksi.

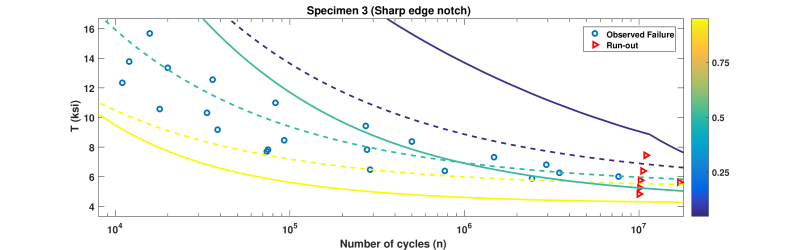

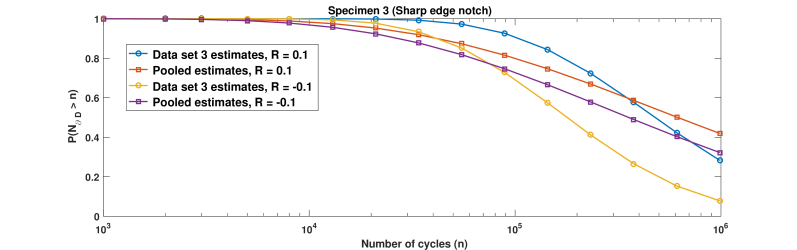

Figure 17: Survival-probability functions for specimen 3 obtained using different ML estimates; ksi.

Figure 15 shows the survival-probability functions for specimen 1, assuming ksi. The survival-probability functions produced by the pooled estimates are very similar to the ones produced from estimates obtained using only the dataset 1. Including fatigue data from the notched specimens has only a small effect on the survival probability of the unnotched specimen. Figures 16 and 17 show the survival-probability functions for specimens 2 and 3 using ksi and ksi, respectively. The estimated survival of specimen 2 computed using the pooled estimates is more pessimistic than the estimated survival of specimen 2 using the data set 2 estimates. For specimen 3, the survival functions using the pooled estimates are initially smaller (more pessimistic) than the survival functions using the data set 3 estimates. However, the estimated survival functions from the data set 3 decay much faster with the number of cycles than those of the pooled estimates. Thus, the effect of pooling data sets is substantial for specimens 2 and 3. One possible reason is that data sets 2 and 3 are much smaller than data set 1.

5.3 Convergence analysis

In this subsection, we study the effect of finite element triangulation on the estimated parameters and analyze the convergence of the ML estimates with respect to the mesh. To simplify the analysis, we consider the case of . In Tables 9, 10 and 11, we present the ML estimates of and for specimens 1, 2 and 3, respectively, under different meshes.

# triangles Maximum log-likelihood
60 5.77 -1.23 35.54 0.5611 0.3112 1.16 -939.07
593 5.88 -1.32 35.84 0.5631 0.2975 1.14 -939.08
1275 5.88 -1.31 35.87 0.5636 0.3004 1.16 -938.90
2852 5.88 -1.32 35.87 0.5646 0.3020 1.16 -938.92
9948 5.88 -1.32 35.88 0.5640 0.3011 1.16 -938.90
Table 9: ML estimates for Model Ia given data set 1 with different meshes for specimen 1.
# triangles Maximum log-likelihood
74 5.39 -0.0514 24.98 0.5496 0.5640 1.7 -395.50
611 6.00 -1.25 39.48 0.5890 0.2395 1.83 -391.62
1294 6.00 -1.21 40.54 0.5994 0.2358 1.98 -391.62
2580 6.00 -1.23 40.79 0.5926 0.2241 1.91 -391.24
6508 6.00 -1.22 40.98 0.5965 0.2299 1.95 -391.45
Table 10: ML estimates for Model Ia given data set 2 with different meshes for specimen 2.
# triangles Maximum log-likelihood
352 7.14 -1.83 37.15 0.6445 0.4134 3.66 -301.50
3840 7.40 -2.04 44.60 0.6538 0.2797 2.62 -302.03
6664 7.5 -2.10 45.11 0.6504 0.2680 2.53 -301.83
15649 7.62 -2.18 45.41 0.6524 0.2729 2.59 -301.87
26544 7.62 -2.18 45.35 0.6504 0.2692 2.54 -301.82
Table 11: ML estimates for Model Ia given data set 3 with different meshes for specimen 3 (2D).

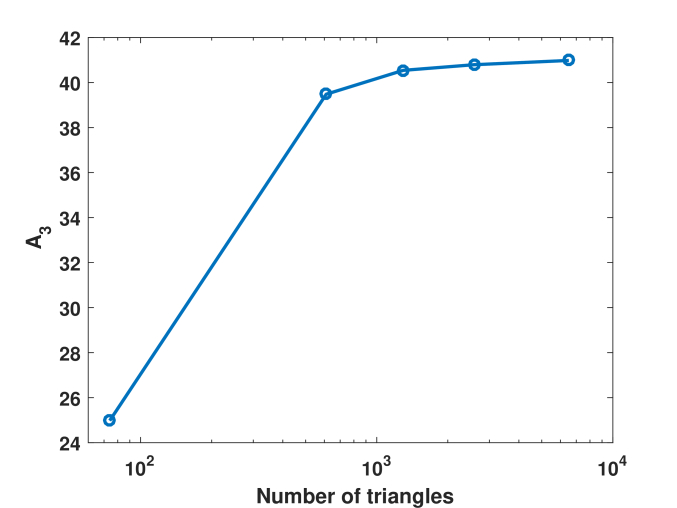

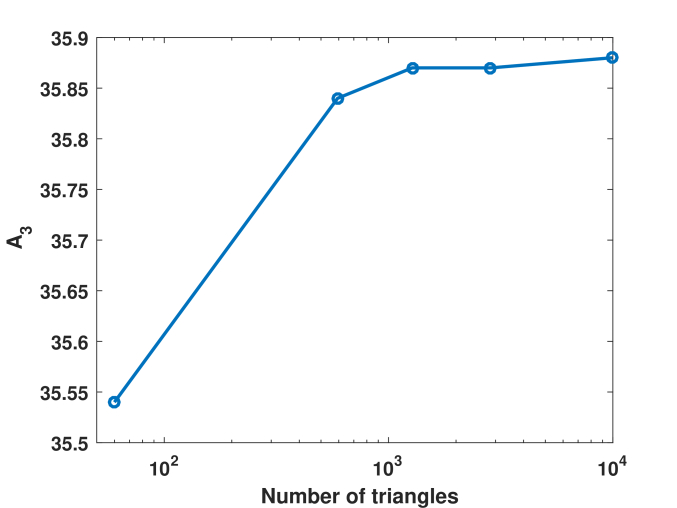

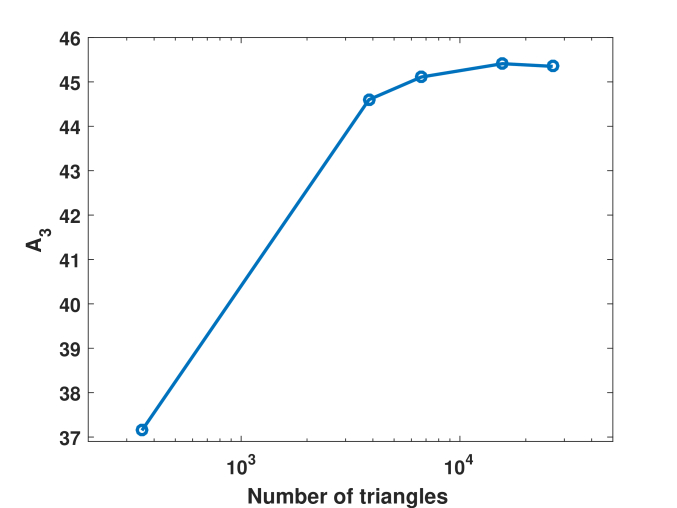

Figure 18: Convergence of the ML estimates of the fatigue-limit parameter with the number of triangles used for specimen 1 (left panel), specimen 2 (middle panel), and specimen 3 (right panel).

Figure 18 shows the convergence of the estimated fatigue-limit parameter, with respect to the number of triangles used in the finite element triangulation. The other estimated parameters exhibit similar behavior. This analysis also ensures the robustness of the estimated survival functions in 5.2.

6 Bayesian analysis

So far, we have analyzed the spatial Poisson model following a classical statistical approach. Now, we consider a Bayesian framework and infer the Model Ia parameters under the two scenarios of and . We assume the following uniform priors:

We run Markov chain Monte Carlo (MCMC) algorithm to generate samples from the joint posterior distribution using the combined data sets. We plot the marginal posterior distributions and compare the results of the two scenarios using the Bayes factor (log marginal likelihood) and the deviance information criterion (DIC). We refer the reader to

fatigue1 for the details of the MCMC algorithm and the Bayesian comparison tools.

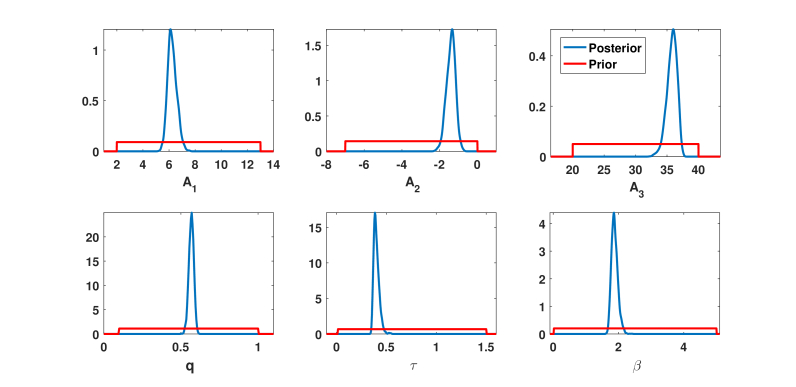

Figure 19: The estimated marginal posteriors for the parameters , where .
-0.98
-0.85 0.82
-0.43 0.42 0.41
0.27 -0.23 -0.25 -0.17
0.43 -0.30 -0.19 -0.20 0.51
Table 12: The estimated correlation coefficients of each pair of the parameters , where .

Figure 19 shows the estimated marginal posterior distributions of the Model Ia parameters using the combined data sets and assuming . We see that the data sets used are informative for all the parameters. The correlation coefficients are presented in Table 12. The parameters and are highly correlated, and both are also correlated with the fatigue-limit parameter . In general, the results obtained here are similar to the results obtained in fatigue1 using only the simple uniaxial Model Ia and data set 1.

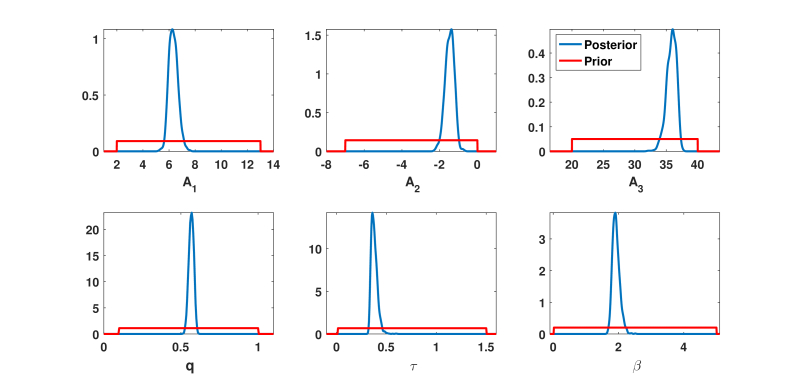

Figure 20: The estimated marginal posteriors for the parameters where .
-0.97
-0.86 0.84
-0.44 0.44 0.41
0.16 -0.08 -0.16 -0.06
0.37 -0.22 -0.14 -0.10 0.57
Table 13: The estimated correlation coefficients of each pair of the parameters , where .
Model Ia given data sets 1, 2 & 3 (2D)
Log marginal likelihood -1660.24 -1658.48
Deviance information criterion (DIC) 3311.33 3308.27
Table 14: Bayesian comparison between two different specifications of Model Ia using (10).

Figure 20 and Table 13 show the estimated marginal posterior distributions and the correlation coefficients, respectively, when . The results are almost identical to the previous case, except for the parameter , which now has a slightly smaller mode. We approximate the log marginal likelihood by the Laplace-Metropolis estimator lewraf and compute DIC using the MCMC posterior samples. Table 14 shows that Model Ia performs better with than with . However, the small difference between the two cases suggests that conclusions cannot be generalized to other S-N models.

6.1 Survival functions

In this subsection, we compute some of the survival functions presented in 5.2, this time using the MCMC posterior samples of the model parameters obtained in the previous section with , instead of the pooled ML estimates. Also, we consider a “reference” survival function that is obtained from the ML estimate of each data set.

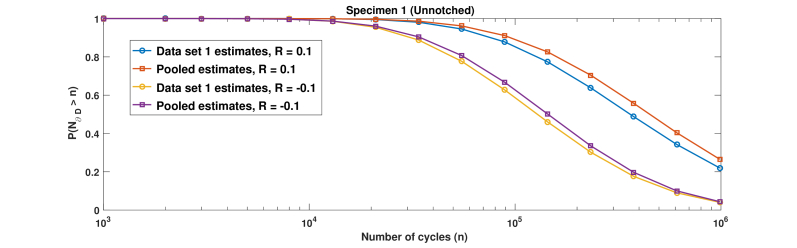

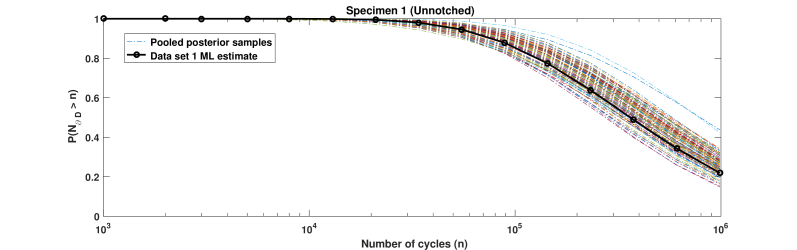

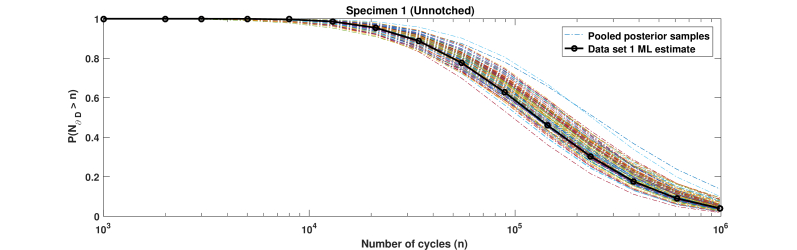

Figure 21: Survival-probability functions for specimen 1 when ksi and , given different posterior samples of the parameters .
Figure 22: Survival-probability functions for specimen 1 when ksi and , given different posterior samples of the parameters .

Figures 21 and 22 show the survival functions for specimen 1 when and , respectively, and . The reference survival function falls within the cloud of survival functions obtained from the pooled posterior samples. Figures 23 and 24 show the survival functions for specimen 2 when . The pooled posterior samples produce more conservative survival functions than the reference function. However, the difference between the survival functions cloud and the reference function is not significant.

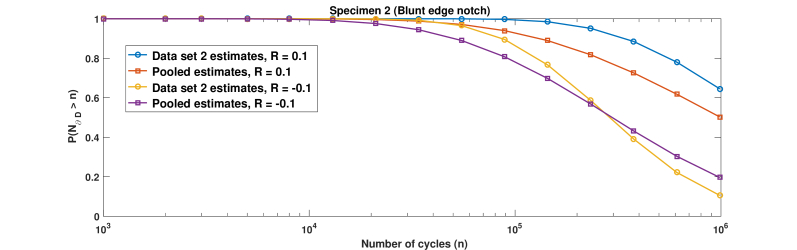

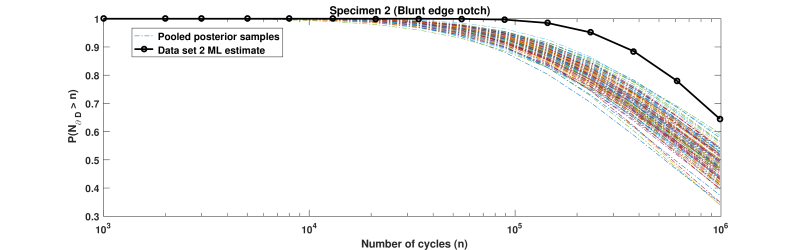

Figure 23: Survival-probability functions for specimen 2 when ksi and , given different posterior samples of the parameters .

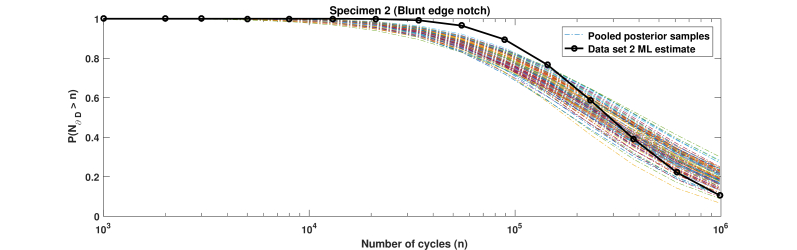

Figure 24: Survival-probability functions for specimen 2 when ksi and , given different posterior samples of the parameters .

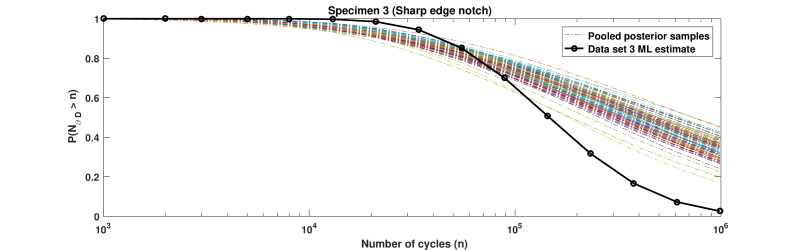

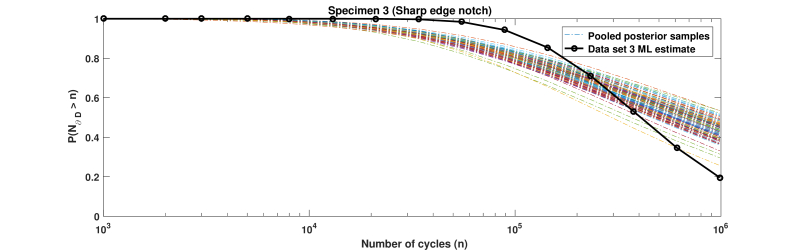

Figure 25: Survival-probability functions for specimen 3 when ksi and , given different posterior samples of the parameters .
Figure 26: Survival-probability functions for specimen 3 when ksi and , given different posterior samples of the parameters .

For specimen 3, we show the survival functions when in Figures 25 and 26. For , the pooled posterior samples provide more conservative survival probability than the reference function, especially when . For , the survival functions from the pooled sample are more optimistic than the reference function when . In general, we notice that the survival functions are concentrated at high probability levels and that the dispersion increases at low probability levels.

7 Summary and conclusions

The stress tensor is computed from the solution of the linear elasticity equations. A spatial stress function, , is defined by the maximum principal stress (where ) or by the local average of the maximum principal stress. The stress function can be combined with any statistical S-N curve without prior knowledge of the spatial correlation, under two “extreme” assumptions. The first assumption is the full spatial dependence on the global maximum value of the effective stress. Implicitly, this assumption means that the first crack will initiate at the position with the highest stress. The second assumption is complete spatial independence, which is modeled by the spatial Poisson process. For both assumptions, we calibrate the model parameters using the ML approach, given the data from the fatigue experiments. The simplifying assumptions are needed because we lack information about the spatial correlation. It is expected then to increase the variance when calibrating different data sets.

For simplicity, we first fit the models to the fatigue experiments on each specimen separately, assuming . Then, we fit the models to the combined data set when and . When calibrating , specimens with different geometries must be used for the parameter to be identifiable. With the available data, the effect of was limited. However, is a fundamental parameter that must be calibrated. For specimen 3, we compare the effects of using biaxial stress (2D) and triaxial stress (3D) on fitting data set 3. When the likelihood function is given by (10) and the highly stressed volume is given by (9), the difference is negligible. For more complicated geometries such as v-notched specimens, the 3D effect might be more prominent.

By classical model comparison tools, the spatial Poisson model is superior to the full spatial dependence assumption. Also, we find that the spatial Poisson model with provides the best fit for the combined data sets. In the Bayesian framework, the estimated posteriors of the parameters are similar to the results obtained in fatigue1 with data set 1 except for the variance parameter that is reduced because we improved the model and added the new threshold parameter in the highly stressed volume. The deviance information criterion suggests that non-zero improves slightly the fit of the combined data sets for Model Ia. To draw general conclusions, several S-N models must be studied and compared.

The spatial Poisson process provides a systematic approach to generalize uniaxial S-N models and calibrate fatigue experiments on different specimens without special treatments for notches. Given a sufficient number of fatigue experiments for specimens with diverse geometries, our proposed approach could be used to predict the life of any mechanical component made from the same material and having the same surface finish.

Acknowledgements

Z. Sawlan, M. Scavino and R. Tempone are members of the KAUST SRI Center for Uncertainty Quantification in Computational Science and Engineering. R. Tempone received support from the KAUST CRG3 Award Ref: 2281 and the KAUST CRG4 Award Ref: 2584.

Appendix A Matlab PDE solver

The MATLAB function ADAPTMESH is used to solve the elliptic system PDE problem in 2D:

with user-supplied boundary conditions.

In our case, , and the coefficient tensor where

Appendix B Numerical computations

In this appendix, we show how to approximate the integrals that appear in (10). The averaged effective stress is computed in two-dimensional domain and assumed constant along the thickness dimension. Let be the curve boundary of the specimen and be the projection of the specimen domain D into . Then, the integral is given by

where is the specimen thickness. We use the trapezoidal rule to approximate the line integral where the discretization of is induced from the adaptive PDE solver. The second integral, is also approximated by trapezoidal rule using the FEM triangulation. In this case, the integral over the triangle with nodes and is simply

References

  • (1)

    I. Babuska, Z. Sawlan, M. Scavino, B. Szabó, R. Tempone, Bayesian inference and model comparison for metallic fatigue data, Computer Methods in Applied Mechanics and Engineering 304 (2016) 171–196.

  • (2) D. Leonetti, J. Maljaars, H. B. Snijder, Fitting fatigue test data with a novel S-N curve using frequentist and Bayesian inference, International Journal of Fatigue 105 (2017) 128–143.
  • (3) B. Szabó, R. Actis, D. Rusk, Predictors of fatigue damage accumulation in the neighborhood of small notches, International Journal of Fatigue 92 (2016) 52–60.
  • (4) L. Susmel, D. Taylor, A novel formulation of the theory of critical distances to estimate lifetime of notched components in the medium-cycle fatigue regime, Fatigue & Fracture of Engineering Materials & Structures 30 (7) (2007) 567–581.
  • (5) D. Taylor, The theory of critical distances, Engineering Fracture Mechanics 75 (7) (2008) 1696–1705.
  • (6) D. Taylor, The theory of critical distances: a new perspective in fracture mechanics, Elsevier, 2010.
  • (7) R. Tempone, Validation for fatigue problems in perturbed domains, MITACS Workshop on Methodology of V & V, Banff, Alberta, Canada (2008).
  • (8) S. Schmitz, T. Seibel, T. Beck, G. Rollmann, R. Krause, H. Gottschalk, A probabilistic model for LCF, Computational Materials Science 79 (2013) 584–590.
  • (9) L. Mäde, S. Schmitz, H. Gottschalk, T. Beck, Combined notch and size effect modeling in a local probabilistic approach for LCF, Computational Materials Science 142 (2018) 377–388.
  • (10) R. Wang, X. Liu, D. Hu, F. Meng, D. Li, B. Li, Zone-based reliability analysis on fatigue life of GH720Li turbine disk concerning uncertainty quantification, Aerospace Science and Technology 70 (2017) 300–309.
  • (11) D. Faghihi, S. Sarkar, M. Naderi, J. E. Rankin, L. Hackel, N. Iyyer, A probabilistic design method for fatigue life of metallic component, ASCE-ASME Journal of Risk and Uncertainty in Engineering Systems, Part B: Mechanical Engineering 4 (3) (2018) 031005.
  • (12) X.-W. Liu, D.-G. Lu, P. C. Hoogenboom, Hierarchical Bayesian fatigue data analysis, International Journal of Fatigue 100 (2017) 418–428.
  • (13) H. J. Grover, S. M. Bishop, L. R. Jackson, Fatigue Strengths of Aircraft Materials. Axial-Load Fatigue Tests on Unnotched Sheet Specimens of 24S-T3 and 75S-T6 Aluminum Alloys and of SAE 4130 Steel NACA TN 2324, National Advisory Committee on Aeronautics (March 1951).
  • (14) H. J. Grover, W. S. Hyler, L. R. Jackson, Fatigue Strengths of Aircraft Materials. Axial-Load Fatigue Tests on Notched Sheet Specimens of 24S-T3 and 75S-T6 Aluminum Alloys and of SAE 4130 Steel with Stress-Concentration Factor of 1.5 NACA TN 2639, National Advisory Committee on Aeronautics (February 1952).
  • (15) H. J. Grover, S. M. Bishop, L. R. Jackson, Fatigue Strengths of Aircraft Materials. Axial-Load Fatigue Tests on Notched Sheet Specimens of 24S-T3 and 75S-T6 Aluminum Alloys and of SAE 4130 Steel with Stress-Concentration Factor of 5.0 NACA TN 2390, National Advisory Committee on Aeronautics (June 1951).
  • (16) R. C. Rice, J. L. Jackson, J. Bakuckas, S. Thompson, Metallic Materials Properties Development and Standardization (MMPDS-01) Handbook.
  • (17) K. Walker, The effect of stress ratio during crack propagation and fatigue for 2024-t3 and 7075-t6 aluminum, Effects of environment and complex load history on fatigue life 462 (1970) 1–14.
  • (18) B. Szabó, I. Babuška, Introduction to Finite Element Analysis: Formulation, Verification and Validation, Vol. 35, John Wiley & Sons, 2011.
  • (19) S. P. Timoshenko, J. N. Goodier, Theory of elasticity, McGraw-Hill, New York, 1970.
  • (20) W. D. Pilkey, Formulas for stress, strain, and structural matrices, John Wiley & Sons, 1994.
  • (21) H. Akaike, Information theory and an extension of the maximum likelihood principle, in: Breakthroughs in Statistics, Volume I, Springer, 1992, pp. 610–624.
  • (22) B. Szabó, R. Actis, D. Rusk, On the formulation and application of design rules, Computers & Mathematics with Applications 74 (9) (2017) 2191–2202.
  • (23) S. M. Lewis, A. E. Raftery, Estimating Bayes factors via posterior simulation with the Laplace–Metropolis estimator, Journal of the American Statistical Association 92 (438) (1997) 648–655.
