Few-shot learning (Lake et al., 2011)
has emerged as an alternative to supervised learning to simulate more realistic settings that mimic the human capabilities. It consists of measuring the learner’s ability to rapidly and efficiently adapt novel tasks. In this paper, we tackle the problem of few-shot image classification, which aims to equip a learner with the ability to learn novel visual concepts and recognize unseen classes with limited supervision.
A popular paradigm to solve this problem is meta-learning (Thrun, 1998; Naik & Mammone, 1992) consisting of two disjoint stages, meta-training and meta-testing. During meta-training, the goal is to acquire transferable knowledge from a set of tasks sampled from the meta-training tasks so that the learner is equipped with the ability to adapt to novel tasks quickly. This fast adaptability of the learner to unseen classes is evaluated at test time by the average test accuracy over several meta-testing tasks. Such transferable knowledge can be acquired from the meta-training tasks with optimization-based methods (Ravi & Larochelle, 2017; Finn et al., 2017) or metric-based methods (Vinyals et al., 2016; Snell et al., 2017; Sung et al., 2018).
Recently, a growing line of work (Chen et al., 2019; Dhillon et al., 2020; Tian et al., 2020b) shows that learning good representations results in fast adaptability at test time, suggesting that feature reuse (Raghu et al., 2019)
plays a more important role in few-shot classification than the meta-learning aspect of existing algorithms. Such methods consider an extremely simple transfer learning baseline, in which the model is first pre-trained using the standard cross-entropy (CE) loss on the meta-training set. Then, at test time, a linear classifier is trained on the meta-testing set on top of the pre-trained model. The pre-trained model can either be fine-tuned(Dhillon et al., 2020; Afrasiyabi et al., 2020) together with the classifier, or fixed and used as a feature extractor (Chen et al., 2019; Tian et al., 2020b). While promising, we argue that using the CE loss during the pre-training stage hinders the quality of the learned representations since the model only acquires the necessary knowledge to solve the classification task over seen classes at train time. As a result, the learned visual features are excessively discriminative against the training classes, rendering them sub-optimal for test time classification tasks constructed from an arbitrary set of unseen classes.
In this paper, we leverage contrastive representation learning (Wu et al., 2018b; He et al., 2020; Chen et al., 2020) as an auxiliary objective to alleviate this problem. Instead of simply mapping the inputs to fixed targets, we also optimize the features, pulling together semantically similar (i.e., positive) samples in the embedding space, while pushing apart dissimilar (i.e., negative) samples. Specifically, to leverage the provided label information, we adopt the supervised formulation (Khosla et al., 2020) of the contrastive loss to utilize the labels when constructing the positive and negative samples. By integrating the contrastive loss into the learning objective, we give rise to discriminative representations between dissimilar instances while maintaining an invariance towards visual similarities. Subsequently, the learned representations are more transferable and capture more prevalent patterns that are effective outside of the seen classes. Specifically, in addition to the CE loss, we propose a novel attention-based spatial contrastive loss (see Fig. 1) to be used as an auxiliary loss to further promote class-agnostic visual features and avoid suppressing local discriminative patterns. It consists of measuring the local similarity between the spatial features of a given pair of samples after an attention-based spatial alignment mechanism, as opposed to the global features (i.e., avg. pooled spatial features) used in the standard contrastive loss. By combining both losses, we leverage the stability of the CE loss and its effectiveness on small datasets and small batch sizes, in addition to taking benefit of the contrastive loss as a data-dependent regularizer promoting more general-purpose embeddings.
However, directly optimizing the features and promoting the formation of clusters of similar instances in the embedding space might result in extremely disentangled representations. Such an outcome can be undesirable for few-shot learning, where the testing tasks can be notably different from the tasks encountered during training, e.g., training on generic categories, and testing on fine-grained sub-categories. To solve this, we propose contrastive distillation to relax the placement of the features in the embedding space and provide additional refinement of the embeddings.
Contributions. To summarize, our contributions are:
We explore contrastive learning as an auxiliary pre-training objective to learn more transferable features.
We propose a novel Spatial Contrastive (SC) loss with an attention-based alignment mechanism to spatially compare a pair of features, further promoting class-independent discriminative patterns.
We employ contrastive distillation to avoid excessive disentanglement of the learned embeddings and improve the performances.
We demonstrate the proposed method’s effectiveness with extensive experiments on standard and cross-domain few-shot classification benchmarks, achieving state-of-the-art performances.
We show the universality of the proposed method by applying it to a standard metric learning approach, resulting in a notable performance boost.
Following a similar notation as (Tian et al., 2020b; Lee et al., 2019), we start by introducing the meta-learning formulation and the standard transfer learning baseline of (Tian et al., 2020b) in Section 2.1 and Section 2.2. Then, in Section 2.3, we analyze the quality of the learned features in such a setting, motivating the need for an alternative pre-training objective in order to learn more transferable embeddings.
2.1 Problem Definition
Few-shot classification usually involves a meta-training set and a meta-testing set with disjoint label spaces, in which the meta-training set discerns seen classes, while the meta-testing set discerns novel and unseen classes. Each one of the meta sets consists of a number of classification tasks where each task describes a pair of training (i.e., support) and testing (i.e., query) dataset with few examples, i.e., and , with each dataset containing pairs of images and their ground-truth labels .
The goal of few-shot classification is to learn a classifier parametrized by capable of exploiting the few training examples provided by the dataset in order to correctly predict the labels of the test examples from . However, given the high dimensionality of the inputs and the limited number of training examples, the classifier
suffers from high variance. As such, the training and testing inputs are replaced with their corresponding features, which are produced by an embedding modelparametrized by and then used as inputs to the classifier .
To this end, the objective of meta-training algorithms is to learn a good embedding model so that the average test error of the classifier is minimized. This usually involves two stages, a first meta-training stage that consists of inferring the parameters of the embedding model using the meta-training set , followed by a meta-testing stage in which the performance of the embedding model is evaluated on the meta-testing set .
2.2 Transfer Learning Baseline
In this work, we consider the extremely simple transfer learning baseline of (Tian et al., 2020b), in which the embedding model is first pre-trained on the merged tasks from the meta-training set using the standard CE loss. Then, the model is carried over to the meta-testing stage and fixed during evaluation.
Concretely, we start by merging all of the meta-training tasks from into a single training set of seen classes:
Then, during the meta-training stage, the embedding model can be pre-trained on the constructed set of seen classes using the standard CE loss :
The pre-trained model is then fixed (i.e., no fine-tuning is performed) and leveraged as a feature extractor during the meta-testing stage. For a given task sampled from the meta-testing set , a linear classifier is first trained on top of the extracted features to recognize the unseen classes using the training dataset :
where the parameters consist of a weight term and a bias term and with as the regularization term. The predictor can then be used on the features of the test dataset to obtain the class predictions and evaluate .
2.3 Quality of the Learned Representations
Despite the impressive results obtained with the baseline in Section 2.2, the usage of the CE loss as a pre-training objective during the meta-training stage induces sub-optimal embeddings tailored for solving the classification task over the seen classes. As such, the resulting representations lack general discriminative visual features, which in turn reduces the transferability of the embedding model to novel domains with unseen classes at the meta-testing stage, especially if the domain gap between the two stages is significant.

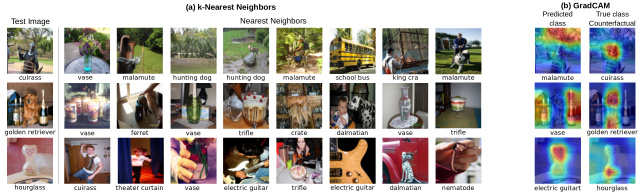

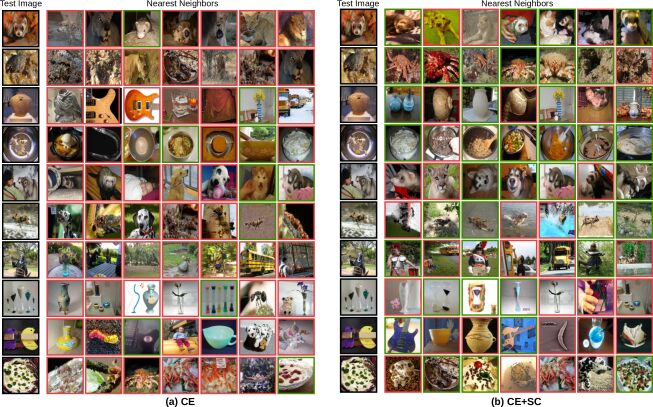

To empirically validate such a hypothesis, we conduct a -nearest neighbor search (Johnson et al., 2017) on the learned embedding space. First, we train a model with the CE loss on the meta-training set of miniVinyals et al., 2016) as in Eq. 2. Then, for a given test image, we search for its neighbors from the meta-testing set. The results are shown in Fig. 2. For a fast test-time adaptation of the predictor , the desired outcome is to have visually and semantically similar images adjacent in the embedding space. However, we observe that the neighboring images are semantically dissimilar, and by using Grad-CAM (Selvaraju et al., 2017), we notice that dominant discriminative features acquired during training might not be useful for discriminating between unseen classes at test time. In the case of mini-ImageNet, this observation is reinforced by the fact that the meta-training and meta-testing sets are closely related, in which a better adaptability of the learned features in expected when compared to other benchmarks. We note that similar behavior was also observed by (Doersch et al., 2020) for metric-learning based approaches.

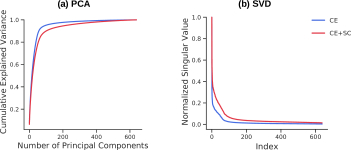

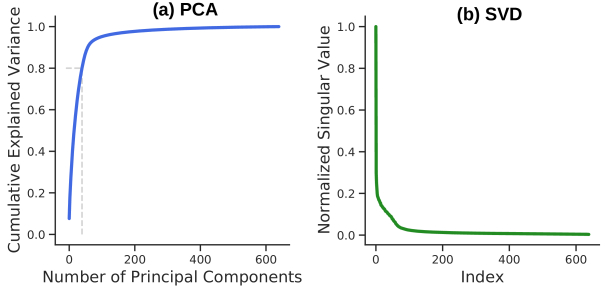

To further investigate this behavior, we conduct a spectral analysis of the learned features. As shown in Fig. 3
, we inspect the variance explained by a varying number of principal components, and notice that almost all of the variance can be captured with a limited number of components, indicating that the CE loss only preserves the minimal amount of information required to solve the classification task. Similarity, by applying singular value decomposition to compute the eigen values of the feature matrix, we observe that the maximal singular values are significantly larger than the remaining ones, diminishing the amount of informative signal that can be captured.
Based on the observations presented in Section 2.3, in this section, we explore an alternative pre-training objective in order to learn a more transferable embedding model . First, in Section 3.1, we present the standard supervised contrastive loss. Then, in Section 3.2, we introduce a novel spatial contrastive learning objective followed by the pre-training objective in Section 3.3. Finally, an optional contrastive distillation step in Section 3.4.
3.1 Contrastive Learning
To learn general-purpose visual embeddings capturing discriminative features that are usable outside of the meta-training set, and thus facilitating the test time recognition of unseen classes, we explore contrastive learning as an auxiliary pre-training objective, which consists of maximizing the agreement between semantically similar (i.e., positive) instances. Specifically, given that in a few-shot classification setting we are provided with the class labels, we examine the usage of the supervised formulation (Khosla et al., 2020) of the contrastive loss, which leverages the provided label information to construct the positive and negative samples.
Formally, let be an embedding model mapping the inputs to spatial features , followed by an average pooling operation to obtain the global features , which are then mapped into a lower dimensional space using a projection head , i.e., with , and let the global similarity function
be denoted as the cosine similarity between a pair of projected global featuresand (i.e., dot product between the normalized features). First, we sample a batch of pairs of images and labels from the merged meta-training set and augment each example in the batch, resulting in data points. Then, the supervised contrastive loss (Khosla et al., 2020), which we refer to as the Global Contrastive (GC) loss, can be computed as follows:
with as an indicator function evaluating to iff is satisfied, as the total number of images with the same label , and as a scalar temperature parameter. By using the GC loss in Eq. 4 as an additional pre-training objective with the CE loss, we push the embedding model to learn the visual similarities between instances of the same class, instead of simply maintaining the useful features for the classification task over the seen classes, which results in more useful and transferable embeddings.

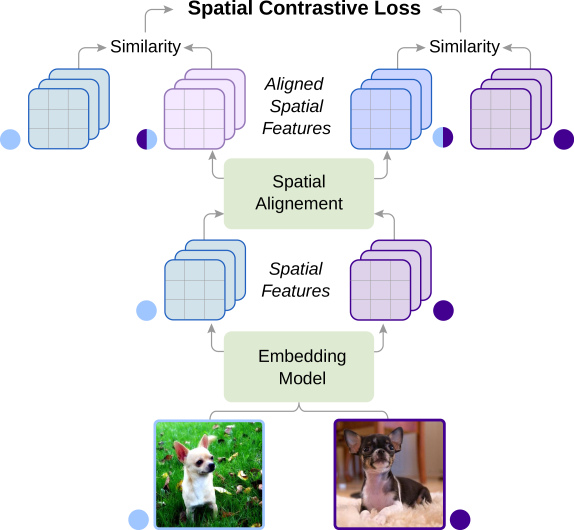

3.2 Spatial Contrastive Learning
Although the GC loss is capable of producing good embeddings, contrasting the global features might suppress some local discriminative features that can be informative for down-stream tasks (e.g., suppressing object specific features while overemphasizing the irrelevant background features). In this section, we propose a novel Spatial Contrastive (SC) loss that leverages the spatial features to compute the similarity between a given pair of examples. However, in order to locally compare a pair of spatial features and , we first need to define a mechanism to align them spatially. To this end, we employ the attention mechanism (Vaswani et al., 2017) to compute the spatial attention weights to align the features with respect to and vice-versa, to then measure the one-to-one spatial similarity as illustrated in Fig. 4, and finally, the SC loss.
Attention-based Spatial Alignment. Let , and denote the value, query and key projection heads, taking as input the spatial features and outputting the value , query and key with of -dimensional features. Given a pair of spatial features and of two instances and , we want to compute the aligned value of with respect to , denoted as . Such an alignment can be obtained using the query and the key to compute the attention weights , which can then be applied to to obtain . Concretely, this can be computed as follows:
Similarly, we compute aligning the value of with respect to .
Time Complexity. The spatial alignment mechanism has a time complexity of , which varies with the batch size, the size of the spatial features and the dimensionality of the values . To avoid excessive cost, for large input images, we apply an adaptive average pooling to reduce the size of the spatial features, in addition to using a small dimensionality and relatively small batches.
Spatial Similarity. Given a pair of values and , together with their two aligned values and computed using the attention mechanism detailed above, and with
denoting a feature vector at a spatial location. We first perform an normalization step of the values at each spatial location . Then, we compute the spatial similarity between a pair of spatial features and as follows:
3.3 Pre-training Objective
Based on the contrastive objectives in Eq. 4 and Eq. 7, the pre-training objective can take different forms. We mainly consider the case where the pre-training objective is the summation of the CE and SC losses, with and as scaling weights to control the contribution of each term:
However, we also explore other alternatives such as replacing with or training with both and as auxiliary losses with their corresponding weighting terms. Additionally, we also consider the self-supervised formulations of the GC and SC losses, where the label information is discarded and the only positives considered are the augmented versions of each example (i.e., ), which we refer to as SS-GC and SS-SC (Self-Supervised Global and Spatial Contrastive losses) respectively.
Using the total loss , the embedding model can be trained together with the projection head and the attention modules during the meta-training stage. Specifically, let represent the parameters of the projection head and the attention modules , and . The parameters are obtained as follows:
After the pre-training stage, the parameters are discarded, and the embedding model is then fixed and carried over from meta-training to meta-testing.
3.4 Avoiding Excessive Disentanglement
Since the contrastive objectives encourage closely aligned embeddings of instances of the same class while distributing all of the normalized features uniformly on the hypersphere (Wang & Isola, 2020), an important outcome needs to be considered, i.e., a possible over-clustering of the features of the same class (see Fig. 5). Such an outcome can be desired for closed-set recognition, but in a few-shot setting, in which the discrepancy between the meta-training and meta-testing domain might differ greatly from one case to the other (e.g., training on coarse seen categories, and testing on fine-grained unseen sub-categories), this might lead to sub-optimal performances. As such, to avoid an excessive disentanglement of the learned features and to further improve the generalization of the embedding model, we propose Contrastive Distillation (CD) to relax the placement of the features in embeddings space.
Contrastive Distillation. Given a teacher model pre-trained with the objective in Eq. 8, we transfer its knowledge to a student model using the standard knowledge distillation (Hinton et al., 2015) objective, i.e
., the Kullback-Leibler divergence (KL) between the student’s predictions and the soft targets predicted by the teacher, but with an additional contrastive distillation loss. This loss consists of maximizing the inner dot product between the normalized global features of the teacher and that of the student , which corresponds to minimizing the squared Euclidean distance, formally:
To summarize, the student’s parameters are learned as follows:
This way, by only optimizing , we relax both the alignment and the uniformity objectives of the contrastive loss.
For the experimental section, we base our implementation on the publicly available code of (Tian et al., 2020b) and conduct experiments on four popular few-shot classification benchmarks: mini-ImageNet (Vinyals et al., 2016), tiered-ImageNet (Ren et al., 2018)
, CIFAR-CS(Bertinetto et al., 2019) and FC100 (Oreshkin et al., 2018). Additionally, we present experiments on cross-domain few-shot benchmarks introduced by (Tseng et al., 2020).
4.1 Experimental Details

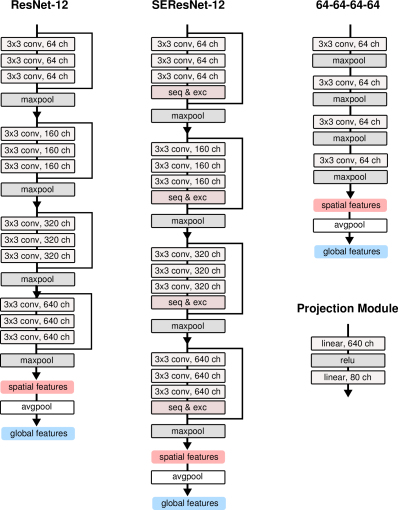

Architecture. For the embedding model , we follow (Tian et al., 2020b) and use a ResNet-12 consisting of 4 residual blocks with Dropblock as a regularizer and 640-dimensional output features (i.e.,
640). For the projection head and the attention modules, we use an MLP with one hidden layer and a ReLU non-linearity similar to SimCLR, outputting 80-dimensional features (i.e., 80).
Training Setup. For optimization, we use SGD with a momentum of 0.9, a weight decay of , a learning rate of and a batch size of
. For the loss functions, we set the temperature parametersand to and the scaling weights , , and to 1.0, except for CIFAR-FS where we set them to 0.5. For distillation, we set to 10.0 and to 1.0 and use a temperature of 4.0 for the KL loss.
Data Augmentation. During meta-training, for a given augmented batch of examples, and consistent with other approaches (Tian et al., 2020b; Lee et al., 2019), the first instances are obtained using standard augmentations, i.e., random crop, color jittering and random horizontal flip. The remaining instances are obtained with SimCLR type augmentations, i.e., random resized crop, color jittering, random horizontal flip and random grayscale conversion. During the meta-testing stage, we follow (Tian et al., 2020b) and create 5 augmented versions of each training image to overcome the problem of data insufficiency and train the linear classifier .
Testing Setup. During meta-testing, and given a pre-trained embedding model , we follow (Tian et al., 2020b) and consider a linear classifier as the predictor , implemented in scikit-learn (Pedregosa et al., 2011) and trained on the normalized features produced by .
Evaluation Setup. To evaluate the embedding model on the meta-testing set, we sample a number of -way -shot testing classification tasks construed from the unseen classes of the meta-testing set, with as the number of classes and as the number of training examples per class. After training
on the train set, the predictor is then applied to the features of the test set to obtain the prediction and compute the accuracy. Particularly, we evaluate the model over 600 randomly sampled tasks and report the median accuracy over 3 runs with 95% confidence intervals, where in each run, the accuracy is the mean accuracy of the 600 sampled tasks.
4.2 Ablation Studies
|Loss Function||Aug.||mini-ImageNet, 5-way||CIFAR-CS, 5-way|
|CE||61.8 0.7||79.7 0.6||71.3 0.9||86.1 0.6|
|CE||61.8 0.8||78.6 0.5||71.9 0.9||86.3 0.5|
|CE + SS-GC||62.7 0.7||81.0 0.6||70.9 0.9||84.5 0.6|
|CE + SS-SC||64.0 0.8||81.5 0.5||72.1 0.8||86.2 0.6|
|CE + SS-GC + SS-SC||62.8 0.8||81.1 0.6||69.0 0.9||85.0 0.6|
|CE + GC||65.0 0.8||81.6 0.5||74.0 0.8||87.3 0.6|
|CE + SC||65.7 0.8||82.5 0.5||75.0 0.9||87.4 0.6|
|CE + GC + SC||65.0 0.8||81.3 0.5||76.0 0.7||87.5 0.5|
|Augmentation||mini-ImageNet, 5-way||CIFAR-CS, 5-way|
|Standard||64.3 0.7||80.6 0.5||74.9 0.8||86.3 0.6|
|SimCLR||65.7 0.8||82.5 0.5||75.0 0.9||87.4 0.6|
|AutoAugment||65.2 0.7||82.1 0.5||74.0 0.9||86.7 0.6|
|Stacked RandAug.||64.9 0.8||81.6 0.6||75.0 0.9||87.6 0.6|
|Aggregation||mini-ImageNet, 5-way||CIFAR-CS, 5-way|
|Sum||65.2 0.8||81.2 0.5||75.3 0.8||87.3 0.5|
|Mean||65.7 0.8||82.5 0.5||75.0 0.9||87.4 0.6|
|Maximum||65.5 0.7||82.0 0.5||73.4 0.8||86.4 0.6|
|LogSumExp||64.8 0.8||81.7 0.6||74.2 0.8||87.0 0.6|
|Features Used||mini-ImageNet, 5-way||CIFAR-CS, 5-way|
|Spatial||64.5 0.8||82.1 0.5||75.0 0.9||87.1 0.6|
|Global||65.7 0.8||82.5 0.5||75.0 0.9||87.4 0.6|
|Glo. & Spa. (Max)||65.6 0.8||82.1 0.5||74.2 0.8||87.3 0.5|
|Glo. & Spa. (Sum)||65.7 0.8||83.1 0.5||75.6 0.9||87.6 0.6|
|Loss Function||mini-ImageNet, 5-way||CIFAR-CS, 5-way|
|Teacher||65.7 0.8||82.5 0.5||75.0 0.9||87.4 0.6|
|KL||66.0 0.8||82.5 0.5||75.9 0.9||87.4 0.6|
|KL+CD||67.4 0.8||82.7 0.5||76.5 0.9||87.6 0.6|
|mini-ImageNet, 5-way||tiered-ImageNet, 5-way|
|MAML (Finn et al., 2017)||32-32-32-32||48.70 1.84||63.11 0.92||51.67 1.81||70.30 1.75|
|Matching Networks (Vinyals et al., 2016)||64-64-64-64||43.56 0.84||55.31 0.73||-||-|
|Prototypical Networks (Snell et al., 2017)||64-64-64-64||49.42 0.78||68.20 0.66||53.31 0.89||72.69 0.74|
|Relation Networks (Sung et al., 2018)||64-96-128-256||50.44 0.82||65.32 0.70||54.48 0.93||71.32 0.78|
|SNAIL (Mishra et al., 2018)||ResNet-12||55.71 0.99||68.88 0.92||-||-|
|TADAM (Oreshkin et al., 2018)||ResNet-12||58.50 0.30||76.70 0.30||-||-|
|Shot-Free (Ravichandran et al., 2019)||ResNet-12||59.04 n/a||77.64 n/a||63.52 n/a||82.59 n/a|
|MetaOptNet (Lee et al., 2019)||ResNet-12||62.64 0.61||78.63 0.46||65.99 0.72||81.56 0.53|
|Diversity w/ Coop. (Dvornik et al., 2019)||ResNet-18||59.48 0.65||75.62 0.48||-||-|
|Boosting (Gidaris et al., 2019)||WRN-28-10||63.77 0.45||80.70 0.33||70.53 0.51||84.98 0.36|
|Fine-tuning (Dhillon et al., 2020)||WRN-28-10||57.73 0.62||78.17 0.49||66.58 0.70||85.55 0.48|
|LEO-trainval (Rusu et al., 2019)||WRN-28-10||61.76 0.08||77.59 0.12||66.33 0.05||81.44 0.09|
|RFS (Tian et al., 2020b)||ResNet-12||62.02 0.63||79.64 0.44||69.74 0.72||84.41 0.55|
|RFS-Distill (Tian et al., 2020b)||ResNet-12||64.82 0.60||82.14 0.43||71.52 0.69||86.03 0.49|
|Ours||ResNet-12||65.69 0.81||83.10 0.52||71.48 0.89||86.88 0.53|
|Ours-Distill||ResNet-12||67.40 0.76||83.19 0.54||71.98 0.91||86.19 0.59|
|CIFAR-FS, 5-way||FC100, 5-way|
|MAML (Finn et al., 2017)||32-32-32-32||58.9 1.9||71.5 1.0||-||-|
|Relation Networks (Sung et al., 2018)||64-96-128-256||55.0 1.0||69.3 0.8||-||-|
|R2D2 (Bertinetto et al., 2019)||96-192-384-512||65.3 0.2||79.4 0.1||-||-|
|TADAM (Oreshkin et al., 2018)||ResNet-12||-||-||40.1 0.4||56.1 0.4|
|Shot-Free (Ravichandran et al., 2019)||ResNet-12||69.2 n/a||84.7 n/a||-||-|
|TEWAM (Qiao et al., 2019)||ResNet-12||70.4 n/a||81.3 n/a||-||-|
|Prototypical Networks (Snell et al., 2017)||ResNet-12||72.2 0.7||83.5 0.5||37.5 0.6||52.5 0.6|
|Boosting (Gidaris et al., 2019)||WRN-28-10||73.6 0.3||86.0 0.2||-||-|
|MetaOptNet (Lee et al., 2019)||ResNet-12||72.6 0.7||84.3 0.5||41.1 0.6||55.5 0.6|
|RFS (Tian et al., 2020b)||ResNet-12||71.5 0.8||86.0 0.5||42.6 0.7||59.1 0.6|
|RFS-Distill (Tian et al., 2020b)||ResNet-12||73.9 0.8||86.9 0.5||44.6 0.7||60.9 0.6|
|Ours||ResNet-12||75.6 0.9||87.6 0.6||44.4 0.8||60.8 0.8|
|Ours-Distill||ResNet-12||76.5 0.9||88.0 0.6||44.8 0.7||61.4 0.7|
|Matching networks (Vinyals et al., 2016)||17.31 0.22|
|Meta-LSTM (Ravi & Larochelle, 2017)||16.70 0.23|
|MAML (Finn et al., 2017)||16.49 0.58|
|Meta-SGD (Li et al., 2017)||17.56 0.64|
|LGM-Net (Li et al., 2019)||26.14 0.34|
|Method||CUB, 5-way||Cars, 5-way||Places, 5-way||Plantae, 5-way|
|MatchingNet (Vinyals et al., 2016)||35.89 0.5||51.37 0.7||30.77 0.5||38.99 0.6||49.86 0.8||63.16 0.8||32.70 0.6||46.53 0.6|
|MatchingNet w/ FT (Tseng et al., 2020)||36.61 0.6||55.23 0.8||29.82 0.4||41.24 0.6||51.07 0.7||64.55 0.7||34.48 0.5||41.69 0.6|
|RelationNet (Sung et al., 2018)||42.44 0.7||57.77 0.7||29.11 0.6||37.33 0.7||48.64 0.8||63.32 0.8||33.17 0.6||44.00 0.6|
|RelationNet w/ FT (Tseng et al., 2020)||44.07 0.7||59.46 0.7||28.63 0.6||39.91 0.7||50.68 0.9||66.28 0.7||33.14 0.6||45.08 0.6|
|GNN (Garcia & Bruna, 2018)||45.69 0.7||62.25 0.6||31.79 0.5||44.28 0.6||53.10 0.8||70.84 0.6||35.60 0.5||52.53 0.6|
|GNN w/ FT (Tseng et al., 2020)||47.47 0.6||66.98 0.7||31.61 0.5||44.90 0.6||55.77 0.8||73.94 0.7||35.95 0.5||53.85 0.6|
|Ours||49.58 0.7||67.64 0.7||34.46 0.6||52.22 0.7||59.37 0.7||76.46 0.6||40.23 0.6||59.38 0.6|
|Ours-Distill||50.09 0.7||68.81 0.6||34.93 0.6||51.72 0.7||60.32 0.8||76.51 0.6||39.75 0.8||59.91 0.6|
We start by conducting detailed ablation studies to analyze the contribution of each component of the proposed method, from the choices of the loss function to the hyperparameters of the SC loss.
Loss Functions. To investigate the effect of the contrastive losses when used as auxiliary training objectives, we evaluate the performances obtained with various loss functions as detailed in Section 3.3. The results are shown in Table 1. We observe a notable gain in performance when adopting auxiliary contrastive losses, be it supervised or self-supervised, with better gains when using the supervised formulation, highlighting the benefits of using the label information when constructing the positives and negatives samples. More importantly, the SC contrastive loss outperforms the standard GC loss, confirming the effectiveness of contrasting the spatial features rather than the global features. Additionally, using both the SC and GC losses does not result in distinct gains over the SC loss. Thus, for the rest of this section, we adopt the SC as a sole auxiliary loss.
Spatial Contrastive Loss. In this section, we examine different variations and hyperparameters of the SC loss when used as an auxiliary objective along the CE loss. In particular, we consider the following variations:
- Hyperparameters. To inspect the SC loss’s hyperparameter stability, we conduct experiments with different batch sizes and temperature values. As seen in Fig. 6, by combining the CE and the SC losses, we leverage the stability of the CE and obtain consistent results across several batch sizes, circumventing the need for very large batches when training with only the contrastive losses as it is the case in the unsupervised representation learning setting. As for the temperatures, disregarding the low temperatures in which the SC loss is dominated by the small distances, rendering the actual distances between widely separated representations almost irrelevant, we see comparable performances for temperatures above 0.05, further confirming the stability of the approach.
- Augmentations. Although we mainly use SimCLR type augmentations to produce the additional augmented examples within a given batch, other augmentations can also be used. Specifically, we consider the standard augmentations used when training with only the CE loss, AutoAugment (Cubuk et al., 2019) and Stacked RandAugment (Tian et al., 2020a). Table 2 shows that the SimCLR type augmentations yield the best results overall. We speculate that for the standard augmentation, without any novel transformations that the model is forced to be invariant under, the gains are minimal. As for strong augmentations (i.e., AutoAugment and Stacked RandAugment), the augmented inputs might be substantially deformed, making the spatial alignment insufficient and reducing the effect of the SC loss.
- Aggregation Function. Table 3 presents the results obtained with various aggregation functions used to aggregate the one-to-one spatial similarities into an overall measure. We observe that when using the mean as the aggregate, we obtain overall better performances across the different datasets and settings.
To improve the generalization of the embedding model, we investigate the effect of knowledge distillation by training a new (i.e., student) model using a pre-trained (i.e., teacher) network with various training objectives and observe the obtained performance of downstream few-shot classification in Table 5. We see a clear performance gain with the proposed CD objective as an additional loss term, confirming the benefits of optimizing the learned features and relaxing their conditional placement in the embedding space.
Additionally, we explore sequential self-distillation similar to Born-again networks (Furlanello et al., 2018), where we consider the student model as the teacher and repeat the distillation process. As detailed in Fig. 7, we notice a clear drop in performances beyond a single distillation step. We suspect this might be a result of an over disentanglement of the features induced by the CD loss. As such, for the rest of the paper, we only apply a single distillation step to refine the features further while preserving the learned structures.
Evaluation. Up until now, we primarily trained a linear classifier on top of the global features during the meta-testing stage. Nonetheless, given that we explicitly optimize the spatial features during training, which increases their discriminability, we investigate their usage of as inputs to the linear classifier.
To this end, we compare the performance when training over the global features, the spatial features, or both, where we train two classifiers and aggregate their predictions. Table 4 shows the evaluation results. Overall, using the global features to train the linear classifier offers slightly better results when compared to the spatial features. We suspect this might result from slight overfitting of the classifier given that the spatial features increases the number of parameters to be learned, which negatively impacts the performances. However, when leveraging both the spatial and global features, we obtain better results confirming the usefulness of the spatial feature even during the meta-testing stage.
4.3 Few-shot Classification
In this section, based on the results of the ablation studies, we fix the training objective as SC+CE during the meta-training stage and use both the spatial and global feature during the meta-testing stage with a sum aggregate, and compare our approach with other popular few-shot classification methods.
ImageNet derivatives. The mini-ImageNet benchmark is a standard dataset used for few-shot image classification. It consists of 100 randomly selected classes from ImageNet (Russakovsky et al., 2015). Following (Ravi & Larochelle, 2017), the classes are split into 64, 16, and 20 classes for meta-training, meta-validation, and meta-testing respectively. Each class contains 600 images of size 8484. The tiered-ImageNet (Ren et al., 2018) benchmark presents a larger subset of ImageNet, with 608 classes and images of size 8484 assembled into 34 super-categories. These are split into 20 categories for meta-training and 6 categories for both meta-validation and meta-testing aiming to minimize the semantic similarity between the split.
CIFAR derivatives. CIFAR-CS (Bertinetto et al., 2019) and FC100 (Oreshkin et al., 2018) are both CIFAR-100 (Krizhevsky et al., 2010) derivatives, containing 100 classes and images of size 3232. For CIFAR-CS, the classes are divided into 64, 16 and 20 classes for meta-training, meta-validation, and meta-testing respectively. As for FC100, the classes are grouped into 20 super-categories, which are split into 12 categories for meta-training and 4 categories for both meta-validation and meta-testing.
Results. The results of 5-way classification are summarized in Table 6 and Table 7 for ImageNet and CIFAR derivatives respectively, in addition to 20-way classification results on mini-ImageNet in Table 8. Our method outperforms previous works and achieves state-of-the-art performances across different datasets and evaluation settings. This suggests that simply adding the proposed SC loss as an auxiliary training objective is sufficient to improve the transferability of the learned embeddings without any meta-learning techniques, with additional improvements with a contrastive distillation step. These results also show the potential of integrating contrastive losses as auxiliary objectives for various few-shot learning scenarios.
4.4 Cross-Domain Few-shot Classification
To further affirm the improved transferability of the learned embedding when trained using the SC loss as an auxiliary objective, we explore the effects of an increased domain difference between the seen and unseen classes, i.e., the discrepancy between the meta-training and meta-testing stages. Specifically, we follow the same procedure as (Tseng et al., 2020) where we first train on the whole mini-ImageNet dataset using the same setting as detailed above. Then, we evaluate the embeddings model on four different domains: CUB (Welinder et al., 2010), Cars (Krause et al., 2013), Places (Zhou et al., 2017), and Plantae (Van Horn et al., 2018). We show the obtained results in Table 9, and see a notable gain in performance using the proposed method, from 2% gain on CUB dataset, up to 7% gain on Cars dataset, indicating a clear enhancement in terms of the generalization of the embedding model.
5 ProtoNet Experiments
|Method||Image Size||Backbone||Aux. Loss||Acc. (%)|
To demonstrate the generality of the proposed approach and its applicability in different settings, in this section, we provide additional metric-learning based experiments in which we integrate the contrastive losses into the ProtoNet (Snell et al., 2017) framework. ProtoNet is a distance-based learner trained in an episodic manner, so that both the meta-training and meta-testing stages have matching conditions. During meta-training, for a -way -shot setting, we construct a meta-training set where each given task depicts randomly chosen classes from the seen classes, with images per class for the training (i.e., support) set , and images per classes for the test (i.e., query) set . At each training iteration, after sampling a given task from , we first compute the class prototypes for classification using the support set. Then, the embeddings model is trained to minimize the CE loss where each query example is classified based on the distances to the class prototypes. In order to add the contrastive objectives as auxiliary losses to the ProtoNet training objective, we simply merge the query and support set, augment each exampled within it, and compute the contrastive losses detailed in Section 3 over this merged and augmented set.
Experimental Details. For the experimentation, we follow (Chen et al., 2019) and base our implementation on their few-shot learning code base. In particular, we use a ResNet-18 network as the embedding model with 512-dimensional output features. We train on ImagetNet derivatives using ADAM optimizer with a learning rate of for 60,000 episodes and use 5-way (classes) 5-shot (examples per-class) with 16 query images. For contrastive learning, similar to Section 4, we use and a two-layer MLP for the projection head and the attention modules with an output dimensionality of , and set to , and and to . For meta-testing, we report the mean accuracy and 95% confidence interval over 600 randomly sampled tasks, where each class consists of 5 support images and 16 query images.

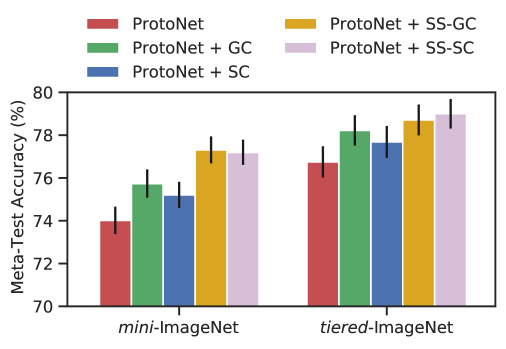

Results. To investigate the impact of the contrastive losses on the performances of ProtoNet. In Fig. 8, we show the mean acc. for 5-way 5-shot classification on ImageNet derivatives with different training objectives. The results show a notable performance gain over the ProtoNet baseline. Surprisingly, when disregarding the labels and training with the self-supervised formulation of the contrastive objectives, we obtain better results where the SS-SC and SS-GC losses perform comparatively on mini-ImageNet with a 3.2% gain, and with the SS-SC loss performing slightly better on tiered-ImageNet with a 2.2% gain. We suspect that the obtained gain when using the self-supervised formulation might be a results of a larger number of negatives as opposed to the supervised formulation, since each batch of example only contains unique classes. Additionally, we also compare the performances of our approach with other self-supervised auxiliary losses, i.e., rotation prediction (Gidaris et al., 2018) and jigsaw puzzle (Noroozi & Favaro, 2016), for which (Su et al., 2020) provided their integration into the ProtoNet framework. As shown in Table 10, we observe that a larger performance gain can be obtained with the contrastive objectives as auxiliary losses compared to other self-supervised objectives, especially when using both the SS-SC and SS-GC losses with a 3.6% gain over the baseline, which also confirms the effectiveness of the proposed SC loss.
6 Related Work
Few-Shot Classification. In few-shot classification, the objective is to learn to recognize unseen novel classes with few labeled example in each class. Meta-learning remains the most popular paradigm to tackle this problem. Roughly, such approaches can be divided into two categories. Optimization-based, or learning to learn methods (Ravi & Larochelle, 2017; Andrychowicz et al., 2016; Wang & Hebert, 2016; Finn et al., 2017; Sun et al., 2019; Lee et al., 2019; Rusu et al., 2019), that integrate the fine-tuning process in the meta-training algorithm to rapidly adapt to model to the unseen classes with limited supervision. And metric-based, or learning to compare methods (Vinyals et al., 2016; Snell et al., 2017; Sung et al., 2018; Oreshkin et al., 2018; Scott et al., 2018; Doersch et al., 2020), that learn a common embedding space in which the similarities between the data can help distinguish between different novel categories with a given distance metric. Most relevant to our work are the methods that follow the standard transfer learning strategy (Chen et al., 2019; Dhillon et al., 2020; Tian et al., 2020b; Afrasiyabi et al., 2020). Consisting of two stages, a pre-training stage with the CE loss on the meta-training set, then a fine-tuning stage on the meta-testing set. Despite their apparent simplicity, (Tian et al., 2020b) showed that such a strategy yields state-of-the-art results on standard benchmarks.
Cross-Entropy Loss. The CE loss continues to be the prominent supervised learning objective used for training deep networks, in which the model is trained to predict the corresponding class label in the form of a one-hot vector. However, despite its success, some works showed many possible drawbacks (Khosla et al., 2020), e.g., noise sensitivity (Sukhbaatar et al., 2014; Zhang & Sabuncu, 2018), adversarial examples (Nar et al., 2019), and suboptimal margins (Elsayed et al., 2018; Cao et al., 2019). While other works proposed some alternative approaches, such as changing the label distribution (Szegedy et al., 2016; Yun et al., 2019; Müller et al., 2019; Zhang et al., 2018) or leveraging the contrastive losses (Khosla et al., 2020).
Contrastive Learning. Instead of training the network to match to the input to a fixed target. Contrastive learning acts directly on the low-dimensional representations with contrastive losses (Hadsell et al., 2006; Gutmann & Hyvärinen, 2010; Salakhutdinov & Hinton, 2007), that measure the similarities of different samples in the embedding space. Recently, contrastive learning based methods have emerged as the state-of-the-art approaches for self-supervised representation learning. The main difference between them is the way they construct and choose the positive samples. In this work, we differentiate between self-supervised contrastive methods (Oord et al., 2018; Wu et al., 2018b; Hjelm et al., 2018; Henaff, 2020; Tian et al., 2019; He et al., 2020; Chen et al., 2020) that leverage data augmentations to construct the positive pairs, and supervised contrastive methods (Salakhutdinov & Hinton, 2007; Wu et al., 2018a; Kamnitsas et al., 2018; Khosla et al., 2020) that leverage the provided labels to sample the positive examples.
Self-Supervised Learning and Few-Shot Classification. Albeit self-supervised learning is mainly used for unsupervised representation learning, recent works (Gidaris et al., 2019; Su et al., 2020; Doersch et al., 2020) explored its usage to improve few-shot classification. Most related to our work is (Doersch et al., 2020) that integrates SimCLR (Chen et al., 2020) into episodic training to learn transferable features for metric-based few-shot classification.
In this paper, we investigated the effect of adding contrastive losses as training auxiliary objectives along the standard CE loss in order to compensate for its drawbacks and learn richer and more transferable features. With extensive experiments, we show that integrating contrastive learning into existing few-shot learning frameworks, either transfer learning or metric-learning based methods, results in a notable boost in performances, especially with the proposed spatial contrastive learning objective. We note that whilst we only considered the task of few-shot classification in this paper, future work could investigate the application of the presented spatial contrastive learning method in other few-shot learning scenarios, and even adapted it for other visual tasks such as unsupervised representation learning.
The first author is supported by Randstad corporate research chair in coloboration with CentraleSupélec, Université Paris-Saclay. This work was performed using HPC resources from the Mésocentre computing center of CentraleSupélec and École NormaleSupérieure Paris-Saclay supported by CNRS and Région Île-de-France (http://mesocentre.centralesupelec.fr/).
Afrasiyabi et al. (2020)
Afrasiyabi, A., Lalonde, J.-F., and Gagné, C.
Associative alignment for few-shot image classification.
European Conference on Computer Vision, pp. 18–35. Springer, 2020.
- Andrychowicz et al. (2016) Andrychowicz, M., Denil, M., Gomez, S., Hoffman, M. W., Pfau, D., Schaul, T., Shillingford, B., and De Freitas, N. Learning to learn by gradient descent by gradient descent. In Advances in neural information processing systems, pp. 3981–3989, 2016.
- Bertinetto et al. (2019) Bertinetto, L., Henriques, J. F., Torr, P. H., and Vedaldi, A. Meta-learning with differentiable closed-form solvers. In International Conference on Learning Representations, 2019.
- Cao et al. (2019) Cao, K., Wei, C., Gaidon, A., Arechiga, N., and Ma, T. Learning imbalanced datasets with label-distribution-aware margin loss. In Advances in Neural Information Processing Systems, pp. 1567–1578, 2019.
Chen et al. (2020)
Chen, T., Kornblith, S., Norouzi, M., and Hinton, G.
A simple framework for contrastive learning of visual
Proceedings of the 37th International Conference on Machine Learning, 2020.
- Chen et al. (2019) Chen, W.-Y., Liu, Y.-C., Kira, Z., Wang, Y.-C. F., and Huang, J.-B. A closer look at few-shot classification. In International Conference on Learning Representations, 2019.
Cubuk et al. (2019)
Cubuk, E. D., Zoph, B., Mane, D., Vasudevan, V., and Le, Q. V.
Autoaugment: Learning augmentation strategies from data.
Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), June 2019.
- Davies & Bouldin (1979) Davies, D. L. and Bouldin, D. W. A cluster separation measure. IEEE transactions on pattern analysis and machine intelligence, (2):224–227, 1979.
- Dhillon et al. (2020) Dhillon, G. S., Chaudhari, P., Ravichandran, A., and Soatto, S. A baseline for few-shot image classification. In International Conference on Learning Representations, 2020.
- Doersch et al. (2020) Doersch, C., Gupta, A., and Zisserman, A. Crosstransformers: spatially-aware few-shot transfer. In Advances in Neural Information Processing Systems, 2020.
- Dvornik et al. (2019) Dvornik, N., Schmid, C., and Mairal, J. Diversity with cooperation: Ensemble methods for few-shot classification. In IEEE International Conference on Computer Vision, 2019.
- Elsayed et al. (2018) Elsayed, G., Krishnan, D., Mobahi, H., Regan, K., and Bengio, S. Large margin deep networks for classification. In Advances in neural information processing systems, pp. 842–852, 2018.
- Finn et al. (2017) Finn, C., Abbeel, P., and Levine, S. Model-agnostic meta-learning for fast adaptation of deep networks. In Precup, D. and Teh, Y. W. (eds.), Proceedings of the 34th International Conference on Machine Learning, volume 70 of Proceedings of Machine Learning Research, pp. 1126–1135. PMLR, 06–11 Aug 2017.
Furlanello et al. (2018)
Furlanello, T., Lipton, Z. C., Tschannen, M., Itti, L., and Anandkumar, A.
Born again neural networks.2018.
- Garcia & Bruna (2018) Garcia, V. and Bruna, J. Few-shot learning with graph neural networks. In International Conference on Learning Representations, 2018.
- Gidaris et al. (2018) Gidaris, S., Singh, P., and Komodakis, N. Unsupervised representation learning by predicting image rotations. 2018.
- Gidaris et al. (2019) Gidaris, S., Bursuc, A., Komodakis, N., Pérez, P., and Cord, M. Boosting few-shot visual learning with self-supervision. In Proceedings of the IEEE International Conference on Computer Vision, pp. 8059–8068, 2019.
Gutmann & Hyvärinen (2010)
Gutmann, M. and Hyvärinen, A.
Noise-contrastive estimation: A new estimation principle for
unnormalized statistical models.
Proceedings of the Thirteenth International Conference on Artificial Intelligence and Statistics, pp. 297–304, 2010.
- Hadsell et al. (2006) Hadsell, R., Chopra, S., and LeCun, Y. Dimensionality reduction by learning an invariant mapping. In 2006 IEEE Computer Society Conference on Computer Vision and Pattern Recognition (CVPR’06), volume 2, pp. 1735–1742. IEEE, 2006.
- He et al. (2020) He, K., Fan, H., Wu, Y., Xie, S., and Girshick, R. Momentum contrast for unsupervised visual representation learning. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, pp. 9729–9738, 2020.
- Henaff (2020) Henaff, O. Data-efficient image recognition with contrastive predictive coding. In Proceedings of the 37th International Conference on Machine Learning, volume 119 of Proceedings of Machine Learning Research, pp. 4182–4192. PMLR, 13–18 Jul 2020.
- Hilliard et al. (2018) Hilliard, N., Phillips, L., Howland, S., Yankov, A., Corley, C. D., and Hodas, N. O. Few-shot learning with metric-agnostic conditional embeddings. arXiv preprint arXiv:1802.04376, 2018.
- Hinton et al. (2015) Hinton, G., Vinyals, O., and Dean, J. Distilling the knowledge in a neural network. arXiv preprint arXiv:1503.02531, 2015.
- Hjelm et al. (2018) Hjelm, R. D., Fedorov, A., Lavoie-Marchildon, S., Grewal, K., Bachman, P., Trischler, A., and Bengio, Y. Learning deep representations by mutual information estimation and maximization. In International Conference on Learning Representations, 2018.
- Hu et al. (2018) Hu, J., Shen, L., and Sun, G. Squeeze-and-excitation networks. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 7132–7141, 2018.
- Johnson et al. (2017) Johnson, J., Douze, M., and Jégou, H. Billion-scale similarity search with gpus. arXiv preprint arXiv:1702.08734, 2017.
- Kamnitsas et al. (2018) Kamnitsas, K., Castro, D. C., Folgoc, L. L., Walker, I., Tanno, R., Rueckert, D., Glocker, B., Criminisi, A., and Nori, A. Semi-supervised learning via compact latent space clustering. arXiv preprint arXiv:1806.02679, 2018.
- Khosla et al. (2020) Khosla, P., Teterwak, P., Wang, C., Sarna, A., Tian, Y., Isola, P., Maschinot, A., Liu, C., and Krishnan, D. Supervised contrastive learning. In Advances in Neural Information Processing Systems, 2020.
- Krause et al. (2013) Krause, J., Stark, M., Deng, J., and Fei-Fei, L. 3d object representations for fine-grained categorization. In Proceedings of the IEEE international conference on computer vision workshops, pp. 554–561, 2013.
- Krizhevsky et al. (2010) Krizhevsky, A., Nair, V., and Hinton, G. Cifar-10 (canadian institute for advanced research). URL http://www. cs. toronto. edu/kriz/cifar. html, 5, 2010.
- Lake et al. (2011) Lake, B., Salakhutdinov, R., Gross, J., and Tenenbaum, J. One shot learning of simple visual concepts. In Proceedings of the annual meeting of the cognitive science society, volume 33, 2011.
- Lee et al. (2019) Lee, K., Maji, S., Ravichandran, A., and Soatto, S. Meta-learning with differentiable convex optimization. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 10657–10665, 2019.
- Li et al. (2019) Li, H., Dong, W., Mei, X., Ma, C., Huang, F., and Hu, B.-G. LGM-net: Learning to generate matching networks for few-shot learning. In Chaudhuri, K. and Salakhutdinov, R. (eds.), Proceedings of the 36th International Conference on Machine Learning, volume 97 of Proceedings of Machine Learning Research, pp. 3825–3834. PMLR, 09–15 Jun 2019.
- Li et al. (2017) Li, Z., Zhou, F., Chen, F., and Li, H. Meta-sgd: Learning to learn quickly for few-shot learning. arXiv preprint arXiv:1707.09835, 2017.
- Mishra et al. (2018) Mishra, N., Rohaninejad, M., Chen, X., and Abbeel, P. A simple neural attentive meta-learner. In International Conference on Learning Representations, 2018.
- Müller et al. (2019) Müller, R., Kornblith, S., and Hinton, G. E. When does label smoothing help? In Advances in Neural Information Processing Systems, pp. 4694–4703, 2019.
- Naik & Mammone (1992) Naik, D. K. and Mammone, R. J. Meta-neural networks that learn by learning. In [Proceedings 1992] IJCNN International Joint Conference on Neural Networks, volume 1, pp. 437–442. IEEE, 1992.
- Nar et al. (2019) Nar, K., Ocal, O., Sastry, S. S., and Ramchandran, K. Cross-entropy loss and low-rank features have responsibility for adversarial examples. arXiv preprint arXiv:1901.08360, 2019.
- Noroozi & Favaro (2016) Noroozi, M. and Favaro, P. Unsupervised learning of visual representations by solving jigsaw puzzles. In European Conference on Computer Vision, pp. 69–84. Springer, 2016.
- Oord et al. (2018) Oord, A. v. d., Li, Y., and Vinyals, O. Representation learning with contrastive predictive coding. arXiv preprint arXiv:1807.03748, 2018.
- Oreshkin et al. (2018) Oreshkin, B., López, P. R., and Lacoste, A. Tadam: Task dependent adaptive metric for improved few-shot learning. In Advances in Neural Information Processing Systems, pp. 721–731, 2018.
- Pedregosa et al. (2011) Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V., Thirion, B., Grisel, O., Blondel, M., Prettenhofer, P., Weiss, R., Dubourg, V., et al. Scikit-learn: Machine learning in python. the Journal of machine Learning research, 12:2825–2830, 2011.
- Qi et al. (2018) Qi, H., Brown, M., and Lowe, D. G. Low-shot learning with imprinted weights. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 5822–5830, 2018.
- Qiao et al. (2019) Qiao, L., Shi, Y., Li, J., Wang, Y., Huang, T., and Tian, Y. Transductive episodic-wise adaptive metric for few-shot learning. In IEEE International Conference on Computer Vision, 2019.
- Raghu et al. (2019) Raghu, A., Raghu, M., Bengio, S., and Vinyals, O. Rapid learning or feature reuse? towards understanding the effectiveness of maml. In International Conference on Learning Representations, 2019.
- Ravi & Larochelle (2017) Ravi, S. and Larochelle, H. Optimization as a model for few-shot learning. In International Conference on Learning Representations, 2017.
- Ravichandran et al. (2019) Ravichandran, A., Bhotika, R., and Soatto, S. Few-shot learning with embedded class models and shot-free meta training. In Proceedings of the IEEE International Conference on Computer Vision, pp. 331–339, 2019.
- Ren et al. (2018) Ren, M., Ravi, S., Triantafillou, E., Snell, J., Swersky, K., Tenenbaum, J. B., Larochelle, H., and Zemel, R. S. Meta-learning for semi-supervised few-shot classification. In International Conference on Learning Representations, 2018.
- Russakovsky et al. (2015) Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S., Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bernstein, M., et al. Imagenet large scale visual recognition challenge. International journal of computer vision, 115(3):211–252, 2015.
- Rusu et al. (2019) Rusu, A. A., Rao, D., Sygnowski, J., Vinyals, O., Pascanu, R., Osindero, S., and Hadsell, R. Meta-learning with latent embedding optimization. In International Conference on Learning Representations, 2019.
- Salakhutdinov & Hinton (2007) Salakhutdinov, R. and Hinton, G. Learning a nonlinear embedding by preserving class neighbourhood structure. In Artificial Intelligence and Statistics, pp. 412–419, 2007.
- Scott et al. (2018) Scott, T., Ridgeway, K., and Mozer, M. C. Adapted deep embeddings: A synthesis of methods for k-shot inductive transfer learning. In Advances in Neural Information Processing Systems, pp. 76–85, 2018.
- Selvaraju et al. (2017) Selvaraju, R. R., Cogswell, M., Das, A., Vedantam, R., Parikh, D., and Batra, D. Grad-cam: Visual explanations from deep networks via gradient-based localization. In Proceedings of the IEEE international conference on computer vision, pp. 618–626, 2017.
- Snell et al. (2017) Snell, J., Swersky, K., and Zemel, R. Prototypical networks for few-shot learning. In Advances in neural information processing systems, pp. 4077–4087, 2017.
- Su et al. (2020) Su, J.-C., Maji, S., and Hariharan, B. When does self-supervision improve few-shot learning? In European Conference on Computer Vision, pp. 645–666. Springer, 2020.
- Sukhbaatar et al. (2014) Sukhbaatar, S., Bruna, J., Paluri, M., Bourdev, L., and Fergus, R. Training convolutional networks with noisy labels. arXiv preprint arXiv:1406.2080, 2014.
- Sun et al. (2019) Sun, Q., Liu, Y., Chua, T.-S., and Schiele, B. Meta-transfer learning for few-shot learning. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 403–412, 2019.
- Sung et al. (2018) Sung, F., Yang, Y., Zhang, L., Xiang, T., Torr, P. H., and Hospedales, T. M. Learning to compare: Relation network for few-shot learning. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 1199–1208, 2018.
- Szegedy et al. (2016) Szegedy, C., Vanhoucke, V., Ioffe, S., Shlens, J., and Wojna, Z. Rethinking the inception architecture for computer vision. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 2818–2826, 2016.
- Thrun (1998) Thrun, S. Lifelong learning algorithms. In Learning to learn, pp. 181–209. Springer, 1998.
- Tian et al. (2019) Tian, Y., Krishnan, D., and Isola, P. Contrastive multiview coding. In International Conference on Learning Representations, 2019.
- Tian et al. (2020a) Tian, Y., Sun, C., Poole, B., Krishnan, D., Schmid, C., and Isola, P. What makes for good views for contrastive learning. In Advances in Neural Information Processing Systems, 2020a.
- Tian et al. (2020b) Tian, Y., Wang, Y., Krishnan, D., Tenenbaum, J. B., and Isola, P. Rethinking few-shot image classification: a good embedding is all you need? In European Conference on Computer Vision. Springer, 2020b.
- Tseng et al. (2020) Tseng, H.-Y., Lee, H.-Y., Huang, J.-B., and Yang, M.-H. Cross-domain few-shot classification via learned feature-wise transformation. In International Conference on Learning Representations, 2020.
- Van Horn et al. (2018) Van Horn, G., Mac Aodha, O., Song, Y., Cui, Y., Sun, C., Shepard, A., Adam, H., Perona, P., and Belongie, S. The inaturalist species classification and detection dataset. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 8769–8778, 2018.
- Vaswani et al. (2017) Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones, L., Gomez, A. N., Kaiser, Ł., and Polosukhin, I. Attention is all you need. In Advances in neural information processing systems, pp. 5998–6008, 2017.
- Vinyals et al. (2016) Vinyals, O., Blundell, C., Lillicrap, T., Wierstra, D., et al. Matching networks for one shot learning. In Advances in neural information processing systems, pp. 3630–3638, 2016.
- Wang & Isola (2020) Wang, T. and Isola, P. Understanding contrastive representation learning through alignment and uniformity on the hypersphere. In Proceedings of the 37th International Conference on Machine Learning, 2020.
- Wang & Hebert (2016) Wang, Y.-X. and Hebert, M. Learning to learn: Model regression networks for easy small sample learning. In European Conference on Computer Vision, pp. 616–634. Springer, 2016.
- Welinder et al. (2010) Welinder, P., Branson, S., Mita, T., Wah, C., Schroff, F., Belongie, S., and Perona, P. Caltech-ucsd birds 200. 2010.
- Wu et al. (2018a) Wu, Z., Efros, A. A., and Yu, S. X. Improving generalization via scalable neighborhood component analysis. In Proceedings of the European Conference on Computer Vision (ECCV), pp. 685–701, 2018a.
- Wu et al. (2018b) Wu, Z., Xiong, Y., Yu, S. X., and Lin, D. Unsupervised feature learning via non-parametric instance discrimination. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 3733–3742, 2018b.
- Yun et al. (2019) Yun, S., Han, D., Oh, S. J., Chun, S., Choe, J., and Yoo, Y. Cutmix: Regularization strategy to train strong classifiers with localizable features. In Proceedings of the IEEE International Conference on Computer Vision, pp. 6023–6032, 2019.
- Zhang et al. (2018) Zhang, H., Cisse, M., Dauphin, Y. N., and Lopez-Paz, D. mixup: Beyond empirical risk minimization. In International Conference on Learning Representations, 2018.
- Zhang & Sabuncu (2018) Zhang, Z. and Sabuncu, M. Generalized cross entropy loss for training deep neural networks with noisy labels. In Advances in neural information processing systems, pp. 8778–8788, 2018.
Zhou et al. (2017)
Zhou, B., Lapedriza, A., Khosla, A., Oliva, A., and Torralba, A.
Places: A 10 million image database for scene recognition.IEEE transactions on pattern analysis and machine intelligence, 40(6):1452–1464, 2017.
Appendix A Datasets
In this paper, we experimented with different datasets used for various few-shot classification settings. For the standard few-shot classification setting, we used the four popular benchmarks: mini-ImageNet, tiered-ImageNet, CIFAR-FS and FC100. As for cross-domain few-shot classification, following (Tseng et al., 2020), we train on the whole mini-ImageNet (i.e., train, val and test sets), and then we evaluate on one of the following datasets: CUB, Cars, Places or Plantae. The details about each dataset are presented in Table A.1.
|Datasets||Source||Nbr. of train classes||Nbr. of val classes||Nbr. of test classes||Split setting|
|mini-ImageNet||(Vinyals et al., 2016)||64||16||20||(Ravi & Larochelle, 2017)|
|tiered-ImageNet||(Ren et al., 2018)||351||97||160||Original|
|CIFAR-FS||(Bertinetto et al., 2019)||64||16||20||Original|
|FC100||(Oreshkin et al., 2018)||60||20||20||Original|
|CUB||(Welinder et al., 2010)||100||50||50||(Hilliard et al., 2018)|
|Cars||(Krause et al., 2013)||98||49||49||Random|
|Places||(Zhou et al., 2017)||183||91||91||Random|
|Plantae||(Van Horn et al., 2018)||100||50||50||Random|
Appendix B Additional Experiments
|mini-ImageNet, 5-way||CIFAR-FS, 5-way||FC100, 5-way|
|Ours||64-64-64-64||50.45 0.83||67.88 0.61||60.31 0.92||77.15 0.66||38.45 0.72||52.15 0.77|
|Ours-Distill||64-64-64-64||52.18 0.89||68.45 0.68||60.8 0.88||77.25 0.67||38.31 0.75||52.06 0.77|
|Ours-Trainval||64-64-64-64||51.74 0.76||68.69 0.74||60.75 0.92||77.56 0.72||42.07 0.74||55.97 0.73|
|Ours-Distill-Trainval||64-64-64-64||52.64 0.84||69.46 0.61||62.02 0.93||77.88 0.76||41.73 0.75||56.16 0.75|
|Ours||ResNet-12||65.66 0.76||82.52 0.50||75.01 0.91||87.44 0.58||44.30 0.70||59.80 0.70|
|Ours-Distill||ResNet-12||67.40 0.76||82.70 0.52||76.46 0.87||87.62 0.59||44.80 0.70||61.40 0.70|
|Ours-Trainval||ResNet-12||67.02 0.81||84.01 0.53||76.08 0.87||87.69 0.62||50.89 0.79||67.57 0.75|
|Ours-Distill-Trainval||ResNet-12||68.54 0.84||84.50 0.50||77.88 0.81||88.57 0.61||51.12 0.81||67.96 0.69|
|Ours||SEResNet-12||65.83 0.76||81.66 0.58||74.70 0.92||86.90 0.59||42.45 0.71||59.72 0.71|
|Ours-Distill||SEResNet-12||66.38 0.81||83.25 0.50||76.41 0.88||87.44 0.62||43.00 0.73||60.84 0.76|
|Ours-Trainval||SEResNet-12||67.84 0.72||83.38 0.55||75.54 0.87||87.27 0.60||51.70 0.78||68.19 0.73|
|Ours-Distill-Trainval||SEResNet-12||69.28 0.84||83.92 0.52||76.72 0.82||87.86 0.59||51.06 0.83||68.28 0.73|
|mini-ImageNet, 5-way||CIFAR-FS, 5-way||FC100, 5-way|
|Features Used||Weight Imp.||1-shot||5-shot||1-shot||5-shot||1-shot||5-shot|
|Spatial||63.40 0.86||81.42 0.52||74.56 0.89||86.83 0.64||42.92 0.71||59.49 0.74|
|Global||64.49 0.85||81.87 0.58||74.96 0.89||87.65 0.59||43.90 0.77||60.61 0.76|
|Glo. & Spa. (Max)||64.94 0.78||82.18 0.50||74.40 0.87||87.18 0.58||43.56 0.75||60.78 0.71|
|Glo. & Spa. (Sum)||65.30 0.77||81.53 0.55||74.30 0.85||87.72 0.58||43.18 0.73||60.11 0.70|
|Spatial||64.12 0.82||81.98 0.53||74.93 0.81||87.30 0.59||43.87 0.71||60.64 0.82|
|Global||65.14 0.81||82.72 0.58||75.43 0.88||87.18 0.56||43.21 0.77||59.53 0.72|
|Glo. & Spa. (Max)||64.91 0.79||81.60 0.57||74.39 0.84||87.22 0.60||43.54 0.72||59.44 0.77|
|Glo. & Spa. (Sum)||65.56 0.84||82.43 0.54||75.08 0.87||87.30 0.57||43.56 0.68||60.04 0.70|
Comparison of different evaluation setups. We train a linear classifier on either the spatial or the global features, or both, where two classifiers are used and their predictions are aggregated by either taking their sum or maximum per class. We also investigate the effect of weight imprinting to improve the initialization of the classifier at test time. Note that the presented results use a PyTorch implementation of the classifiers instead of scikit-learn, resulting in slight decrease in performances.
|mini-ImageNet, 5-way||CIFAR-FS, 5-way||FC100, 5-way|
|Teacher||65.7 0.8||82.5 0.5||75.0 0.9||87.4 0.6||44.4 0.8||60.8 0.9|
|Global ()||67.4 0.8||83.2 0.5||76.5 0.9||88.0 0.6||44.8 0.7||61.4 0.7|
|Spatial ()||66.0 0.8||83.2 0.5||76.0 0.8||80.0 0.5||44.4 0.7||61.0 0.7|
|Global & Spatial||65.6 0.8||83.1 0.5||75.4 0.9||87.3 0.6||44.3 0.8||61.2 0.8|
b.1 Embedding Model
In the transfer learning experiments, we mainly used a ResNet-12 backbone as the embedding model. Since the backbone also has a significant impact on the quality of the produced embedding, we experiment with various backbones. In particular, we compare ResNet-12 to two other alternative: 4 layer convolution network (i.e., 64-64-64-64) and ResNet-12 with sequeeze-and-excitation (Hu et al., 2018) layers that play the role of a channel-wise attention module. See Fig. D.1 for an illustration of these backbones. The results are presented in Table B.1, where we train the models either on the meta-training set only or on both the meta-training and the meta-validation set. In both cases with and without a contrastive distillation step. As expected, we observe that, (1) better models improve the performances, and (2) more training data yield better results, further emphasizing the importance of learning a well performing and transferable embedding model for an effective few-shot classification.
b.2 Weight Imprinting
During the ablation experiments, and when training a base classifier on top of the spatial features, a case that requires a larger classifier, we observed a slight decrease in the performances, which we suspect might be due to the overfitting of the model, especially at low shot setting. To overcome this, we investigate using imprinted weights (Qi et al., 2018) to initialize the base classifier and help stabilize the convergence. Weight imprinting consists of directly setting the base classifier’s weights from novel training examples during low-shot learning i.e., the normalized class prototypes constructed from the training (i.e., support) features. This process is called weight imprinting since it directly sets the weights of the base classifier based on an the scaled features produced by the embedding model for a given training example at test time. Table B.2 summarizes the results, although the weight imprinting does slightly help the performances, the results are not conclusive and need further investigation.
b.3 Contrastive Distillation
As detailed in the paper, in order to relax the placement of the embeddings when applying a distillation step, we also optimize a contrastive loss loss in addition to the standard KL loss. The loss consists of aligning the global features of the teacher and the student by reducing their cosine similarity. However, we can also align the spatial features rather than the global features, or both. In this case, the contrastive loss is written as follows:
The results are shown in Table B.3. We observe while contrasting only the global features works slightly better, the obtained results are overall similar.
Appendix C Additional Experimental Details
Training. As stated in the paper, during training, we reduce the learning rate with a factor of 0.1 at different training iterations. For mini
-ImageNet, we train for 90 epochs and we decay the learning rate at 60 and 80 epochs, fortiered-ImageNet, we train for 60 epochs and decay the learning rate rate three times, at 30, 40 and 50 epochs. As for CIFAR-100 derivatives, we train for 90 epochs and decay the learning rate three times at 45, 60 and 75 epochs for CIFAR-FS, while for FC-100, we train for 65 epochs with single learning decay step at 60 epochs. For distillation, we change to learning rate to and train with similar settings.
For the weights of the loss functions, while the weight of the cross-entropy loss is always set to 1, when training with only one contrastive loss as an auxiliary loss, we set its weight to 1, i.e., , be it the supervised of self-supervised formulations, except for CIFAR-FS where we set . Additionally, when training with both objectives, we set .
For transfer learning experiments, we train on either 8484 sized images for ImageNet derivatives, resulting in spatial features of spatial dimensions of 55, or 3232 sized images for CIFAR-100 derivatives, resulting in spatial features of spatial dimensions of 22. For ProtoNet experiments, we train on 224224 sized images with ResNet-18 backbone, resulting in spatial features of spatial dimensions of 77. Thus, in order to reduce the computational requirement when applying the attention based spatial alignment, we apply an adaptive average pooling, reducing the dimensions to 33 instead of 77 resulting in both better results and faster training time.
During evaluation, we use a multivariate logistic regression implemented in scikit-learn(Pedregosa et al., 2011) trained on the
normalized global features. Additionally, when using the spatial features during evaluation, and in order to reduce the number of parameters of the linear classifier and avoid overfitting, we first apply a max pooling operation over these features, reducing their spatial dimensions to, and then feed them to the linear classifier. As for cross-domain experiments, we found that augmenting each training (i.e., support) samples 10 times instead of 5 produces slightly better results.
When conducting ablation studies with weight imprinting (i.e., Table B.2), we use our own implementation of the multivariate logistic regression with an L-BFGS optimizer and an
penalty. While the performances are overall similar, this gives us more degrees of freedom when implementing the base classifier. Specifically, when using the spatial features as input to the base classifier, we implement the classifier as a convolutional layer, in which the filter size matches the dimensions of the spatial features.
Appendix D Architectures
Appendix E Quality of the Learned Representations
In this section, and similar to the analysis conducted in the paper, we conduct an empirical analysis of the embeddings to assess the quality of the learned features in two cases: (1) when the model is trained with only the CE loss, and (2) when adding the SC as an additional auxiliary objective. Figs. E.2 and E.1 show the results. We observe a clear improvement in terms of the obtained nearest neighbors when using the SC loss and also an increase in terms of the amount of informative signal retrained within the embedding matrix, both indicating an enhancement in the quality of the learned embeddings.
