In the last few decades, scientists started to look at cities as evolving systems that exhibit global order built from local-level decisions Batty1995 . Cities bring people together to interact, leading to the emergence of self-organization Batty1999 ; Portugali2000 ; Batty2012 ; Batty2008 . Though local-level processes and decisions seem disordered, cities exhibit remarkable regularities that are argued to result from their propensity to expand and to develop Batty2008 ; Batty2013b ; Bettencourt2007b ; Batty2008b ; Samaniego2008 ; DeLong2015 ; Schiff2015 ; Bettencourt2016 ; Youn2016 ; VanRaan2016 ; Batty2012 . Indeed, evidence of nonlinear growth in urban indicators (e.g., wages, serious crime) with city size has motivated scholars to envision cities as complex systems Batty2013 ; Bettencourt2010a ; Gomez-Lievano2012 ; Bettencourt2007 . From this perspective, researchers have unveiled scaling relationships in criminal activity Bettencourt2007 ; Bettencourt2010 ; Gomez-Lievano2012 ; Alves2013 ; Hanley2016 which hints at regularities in crime Oliveira2015a ; Caminha2017 ; Oliveira2017 ; Oliveira2018 .
The existence of scaling suggests general processes behind urban development Bettencourt2013hyp . It indicates a general mechanism underlying urbanization and implies that regularities exist in cities regardless of their idiosyncrasies. The study of urban scaling has provided the means to understand urban growth and its impact on indicators such as employment, patent, wage, and crime Bettencourt2007 ; Bettencourt2010 ; Bettencourt2013 ; Gomez-Lievano2016
. Most of these analyses, however, neglect details of the indicators such as spatial distribution across the city, probably because of the lack of fine-grained dataOliveira2017 . In the case of crime, researchers have taken advantage of the availability of data to study the phenomenon White2015 ; PachecoOM17 ; Kadar2018 ; DaCunha2018 and to describe its regularities Davies2015 ; Oliveira2015a ; Alves2015 ; Caminha2017 ; Oliveira2017 ; Oliveira2018 .
Evidence of regularities in crime traces back to the nineteenth century. Almost simultaneously, Adolphe Quetelet and André-Michel Guerry were the first to describe regularities in criminal activity friendly2007 ; quetelet1842treatise ; BalbiGuerry:1829 ; quetelet1833recherches . For almost two centuries, crime in cities has been known to exhibit seasonality and to be unevenly distributed BalbiGuerry:1829 ; quetelet1833recherches . With these findings, Quetelet and Guerry pioneered the viewpoint of physical laws governing human populations friendly2007 . Though distinct socio-economic factors influence crime, remarkable regularities exist in its dynamics. In this chapter, we discuss regularities in crime concerning its spatial distribution and its temporal dynamics.
In the case of spatial regularities, researchers have found that criminal events tend to cluster spatially Weisburd2015 . Offenses concentrate in such a way that most of the occurrences happen at very few places. This concentration has been confirmed regardless of spatial granularity levels in a myriad of studies. The overwhelming amount of evidence makes us expect that, in any city, some areas will have disproportionately more crime than others Weisburd2015 . Such ubiquity has brought to this observation the status of a law, namely the law of crime concentration, which states that a small number of micro-geographic units account for most of the offenses in a neighborhood or city Weisburd2015 . In Section 2, we discuss the characteristics of crime concentration in cities and its relationship with the type of crime and city size.
In addition to displaying spatial regularities, crime is known to depend on time constraints and to exhibit temporal regularities Cheatwood2009 . Much research has been devoted to describing periodic changes in crime rates such as annually and weekly. Adolphe Quetelet linked weather variations to aggression to explain criminal seasonality quetelet1842treatise ; Cheatwood2009 . From his perspective, the heat would cause the stress needed to turn people more likely to offend. His so-called “thermic law” of crime, however, has been since replaced by an understanding of indirect relevant effects Harries1984 ; Cheatwood2009 . For instance, fluctuations in social dynamics may affect three requirements for crime: offender, target, and opportunity Cohen1979 ; Cheatwood2009 . In Section 3, we discuss the temporal regularities in crime when we account for both spatial heterogeneity and non-stationarity in cities.
The regularities as mentioned earlier have a direct impact on how we see cities. With the their characterization, we provide a pathway for researchers to create realistic models of crime and present the grounds to understand the impact of local activities on global patterns of cities. In the last section of this chapter, we discuss such aspects and the implication to policymaking.
2 Spatial concentration
The spatial concentration of crime has been confirmed in different cities using various spatial aggregation units including street and area level (e.g., census tracts, street segments) EckE.2007 ; Johnson2010 ; Braga2010 ; PrietoCuriel2017 . For instance, Fig. 1A depicts the spatial distribution of thefts in Chicago, IL. In this example, we can see some regions of the city having disproportionately more criminal activity than others. We want to characterize the phenomenon over different cities to further study this spatial regularity. For this, first, we need a general approach to analyze the city. With a general method, we avoid biases due to cities’ particularities (e.g., blocks size, length of the street segments) Oliveira2017 . We can achieve this by building spatial aggregation units based on the population distribution across the city. Specifically, we divide the area of a city into regions with equal population size (i.e., number of residents), then we aggregate offenses that happened within the same regions.

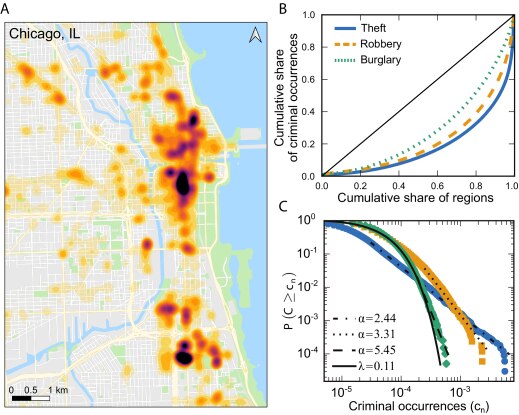

With these counts, we can now analyze the empirical distribution of crime in cities. Fig. 1B shows the Lorenz curves of the crime distribution in Chicago for burglaries, robberies, and thefts. The Lorenz curves help us to assess the concentration of crime. The curves in Fig. 1B indicate the tendency of crime to concentrate spatially regardless of the offense type. However, note that the level of concentration seems to depend on the offense type. A similar tendency also occurs in other locations from the United States and the United Kingdom: theft concentrates more than robbery, and robbery more than burglary (see Fig. 2A).
To describe these quantities statistically, we can fit the distribution of crime with different distributions and then compare them using the likelihood ratio test Oliveira2017 . In the majority of the
cities, the probability distribution of crime across a city can be described by a power lawwhere the exponent relates to the type of crime. The different types of crime present distinct levels of concentration which manifests on the range of the power-law exponent: for thefts, is between and ; whereas the exponents for burglaries and robberies vary in wider ranges with within and , and between and . The different dynamics of each type of crime might be the cause of the distinct exponent intervals and thus the level of concentration. Note that, in some cases that exhibits large values (e.g., burglary), the exponential and the power-law distributions are both good descriptions of the data Oliveira2017 .
We also need to study the stability of the concentration, since such a high level of concentration could indicate a somehow static city Oliveira2017 . To examine the stability, we can measure the uncertainty of the positions in the rank of criminal spots over time. Precisely, we calculate the Shannon entropy of each position in the criminal ranks of regions which are created using the number of offenses weekly aggregated Oliveira2017 . Using data from cities of the U.S., the mean normalized entropy (i.e., the sample mean over the positions in the rank) is around , indicating that criminal spots are likely to vary across regions over time. The hottest spots (i.e., the first positions in the rank), however, present distinct dynamics with the entropy increasing quickly with the position . This result means that the regions with the most criminal activity tend to be the same ones. Similarly, the places with the least criminal activity (i.e., the last positions in the rank) are usually the same regions. This analysis also reveals that the rank of thefts presents lower entropy in the first rank positions in comparison to the other types of crime Oliveira2017 . In other words, we have more certainty about the whereabouts of the hottest spots of theft than the hottest spots of robbery and burglary.
These findings indicate the level of spatial crime concentration as a regularity that occurs regardless of idiosyncrasies of the city. In particular, this is an intriguing finding because of the allometric scaling of crime in cities. Fig. 2B shows the relationship between of some U.S. cities and their population size. On the one hand, crime numbers relate to city size; on the other hand, crime concentration (i.e., the exponent) seems to be independent of city size. We can study the statistical dependence of this relationship using the Hoeffding’s test of independence nsm . Specifically, we can test the relationship between the population size of the cities and the average power-law exponent . With data from the considered U.S. cities, we could not reject the hypothesis that the size of the city and the level of crime concentration are independent with the 95% confidence Oliveira2017 . This result suggests crime concentration as an attribute of criminal phenomena which occurs regardless of the population size of the city.
3 Criminal rhythms
Much effort has been devoted to studying temporal regularities in crime since Quetelet’s seminal work on crime seasonality BAUMER1996 . Researchers have confirmed annual seasonality in several cities and studied other regularities related to different temporal conditionals such as the day of the week, the hour of the day, and the presence of holidays BAUMER1996 . Most of the studies in the literature, however, assume a temporal regularity of crime activity limited within fixed regional localities Oliveira2018 . From the perspective of cities as complex systems, this assumption neglects the continuous process of organization in cities Batty1995 ; Batty2008 . Such stationary assumption implies that the urban dynamics in all regions across the city remain constant over time Oliveira2018 .
To study crime from the viewpoint of dynamic cities, we have to consider the possibility of non-stationarity and spatial heterogeneity. For this task, we can use wavelet analysis to track the periodicity of a criminal time series. With wavelet analysis, we can evaluate the statistical significance of a component (e.g., annual, biannual) in a time series over time. If we account the spatial heterogeneity, we are also able to describe how the rhythms of crime are distributed across the city and how they vary over time.
In our case, a time series is a discrete sequence with observations of uniform time step in which represents the processed number of thefts (i.e., without long-term trends) at the week . Here we denote as the city-level time series of city , whereas represents the time series of the region in the city . For instance, Fig. 3A depicts of selected cities from the United States.
First we study the temporal regularities (i.e., periodicity) in using its wavelet transform . This transform gives us the contribution of a periodicity (scale)
at different momentsin the time series. The local wavelet spectrum, defined as , enables us to identify temporal regularities in a series. For this, we average the spectrum across either time or period . To identify cycles in the entire series, we average over , known as the global wavelet spectrum and denoted as , which provides us an averaged picture of the periods in the time series Percival1995 . Fig. 3B shows the global spectrum of some cities in the United States. The peak around indicates the existence of a statistically significant annual periodicity of crime. This analysis confirms previously well-documented evidence that crime exhibits circannual cycles BAUMER1996 .
Note that is an average over time and thus neglects any temporal dynamics such as non-stationarity. To test the stationarity in these regularities, we average over scale , yielding the scale-averaged wavelet power. It enables us to analyze the temporal evolution of a periodic signal in terms of a given band . In our case, we want to examine the circannual stationarity, so we evaluate the scale-averaged wavelet power with and for each city and test this periodicity against a null model. Fig. 4A shows the scale-averaged wavelet power for some cities. Most of them exhibit stationary time series; that is, the circannual component is present throughout the series. In fact, this stationarity is already evident in Fig. 3A where the circannual component stays the same over time.

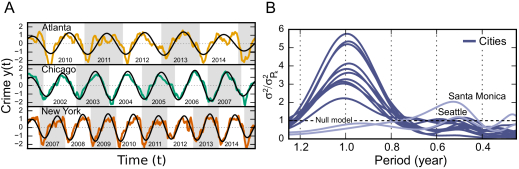

At such a city level, crime has a striking temporal regularity that offers the impression of cities as stationary objects. This analysis, however, neglects spatial heterogeneity. The continuous organization process in cities suggests local-level dynamics changing across the city. We expect variations that result from changes in human dynamics at the local and global levels of the city (e.g., an influx of new residents, closing establishments, new subway stations). To have a local-level view of cities, we can examine the time series from smaller spatial aggregation units. Similarly to Section 2, we divide each city into regions of similar population size and build the time series for each region .

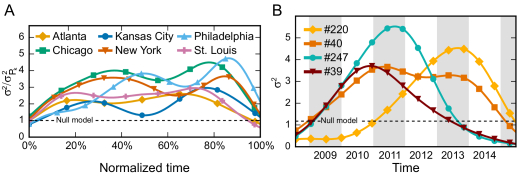

Now we can examine the stationarity of crime at the local level. Fig. 4B shows the scale-averaged power of three regions in Chicago regarding the circannual component. Though they all exhibited a circannual cycle at some interval, they have distinct dynamics. For example, region #40 presents stationarity while region #247 loses its circannual periodicity in 2014. Though at the city level crime exhibits stationarity, circannual rhythms change over time at the local level. The aggregated data hide local dynamics. In fact, other periodicities take place at lower spatial granularity such as biannual and triannual but disappear at city level Oliveira2018 .
With all the time series of a city, now we can examine crime from bottom to up. We can study the non-stationarity in cities at the local level from a holistic perspective. For this, we count the number of regions that significantly show the circannual period at each time step. Specifically, the composed scale-averaged power is defined as the number of regions that exhibit a statistically significant band at the time step Oliveira2018 . With data from cities in the U.S., we can show that exhibits a typical value without much variability over time; that is, cities stay with a similar number of regions with 1-year cycle over time. This result is intriguing: though the time series are non-stationarity, the number of time series with a circannual period remains somewhat the same throughout the series.
Yet, note that considers only the number of regions and neglects the regions themselves. We do not know if the number of regions stays the same because of the same set of regions. To understand better , we are also interested in the amount of time that a region exhibits a significant circannual periodicity. Precisely, we count the number of weeks that each region keeps the circannual band significant continuously. From all the considered cities, decays much earlier than the total time of the criminal series. That is, in general, the amount of time that a region has a circannual cycle is shorter than the entire time series. This result coupled with the form of implies waves of crime traveling across the city—a finding that agrees with the notion of cities continuously changing over time.
Cities are evolving systems that exhibit global phenomena emerging from local-level actions, presenting messy but ordered patterns at different levels Batty2008 ; Oliveira2018 . From this perspective, we expect to find regularities in crime which transcend cultural and socio-economic particularities of cities. With the description of these regularities, we move towards better models to understand cities. In this chapter, we considered regularities present in two fundamental aspects of crime: space and time.
The spatial concentration of crime is not only ubiquitous in cities but also independent of the city size. The concentration level, however, depends on the type of crime—perhaps because of different kinds of crime exhibit particular dynamics. Such concentration coexists with the continuous displacement of crime spots in cities. That is, crime constantly flows across the city while maintaining the system organization in a way that its dynamics and regularities appear to be scale-invariant. These features suggest an understanding of crime from a complex-system perspective.
The well-documented seasonality in crime has a different picture when we admit cities as dynamic and continually organizing processes. When we account for spatial heterogeneity, we find that the circannual cycles of crime are unevenly distributed across the city. When we also consider non-stationarity, we observe features that agree with complex cities. On the one hand, the seasonality is stationary at the city level, but on the other hand, the criminal waves are non-stationary at the local level—they travel across the city. These findings support analyzing crime under the perspective of dynamic cities.
The complex-system perspective of crime asks for tools and analyses that cover the system as a whole in order to understand crime dynamics. Indeed, the connectedness of the city rejects studies focusing on the hotspots of crime and neglecting the “cold” areas. In this scenario, network-based approaches might be essential to handle such mezzo level White2015 ; Oliveira2015a ; Davies2015 ; DaCunha2018 .
The regularities discussed in this chapter have impacts on policy-making. The independence of crime concentration with city size implies that high crime regions are expected to exist as the city grows, urging for proper government policies. Still, cities continuously change over time; thus policy-making needs evolving approaches and a constant assessment of the city. In this regard, policy-makers need tools and up-to-date data to assess the changes happening in cities. With the proper tools, we can learn more about cities and help to improve them.
- (1) Batty, M. New ways of looking at cities. Nature 377, 574–574 (1995).
- (2) Batty, M. & Xie, Y. Self-organized criticality and urban development. Discrete Dynamics in Nature and Society 3, 109–124 (1999).
- (3) Portugali, J. Self-Organization and the City. Springer Series in Synergetics (Springer Berlin Heidelberg, Berlin, Heidelberg, 2000).
- (4) Batty, M. Building a science of cities. Cities 29, S9–S16 (2012).
- (5) Batty, M. The size, scale, and shape of cities. Science 319, 769–771 (2008).
- (6) Batty, M. The New Science of Cities (MIT Press, 2013).
- (7) Bettencourt, L. M. A., Lobo, J. & Strumsky, D. Invention in the city: Increasing returns to patenting as a scaling function of metropolitan size. Research Policy 36, 107–120 (2007).
- (8) Batty, M. et al. Scaling and allometry in the building geometries of Greater London. The European Physical Journal B 63, 303–314 (2008).
- (9) Samaniego, H. & Moses, M. E. Cities as Organisms: Allometric Scaling of Urban Road Networks. Journal of Transport and Land Use 1, 21–39 (2008).
- (10) De Long, J. P. & Burger, O. Socio-economic instability and the scaling of energy use with population size. PLoS ONE 10, 1–12 (2015).
- (11) Schiff, N. Cities and product variety: evidence from restaurants. Journal of Economic Geography 15, 1085–1123 (2015).
- (12) Bettencourt, L. M. A. & Lobo, J. Urban scaling in Europe. Journal of The Royal Society Interface 13, 20160005 (2016).
- (13) Youn, H. et al. Scaling and universality in urban economic diversification. Journal of the Royal Society, Interface / the Royal Society 13, 20150937– (2016).
- (14) Van Raan, A. F. J., Van Der Meulen, G. & Goedhart, W. Urban scaling of cities in the Netherlands. PLoS ONE 11, 1–16 (2016).
- (15) Batty, M. A Theory of City Size. Science 340, 1418–1419 (2013).
- (16) Bettencourt, L. M. A. & West, G. A unified theory of urban living. Nature 467, 912–913 (2010).
- (17) Gomez-Lievano, A., Youn, H. & Bettencourt, L. M. A. The Statistics of Urban Scaling and Their Connection to Zipf’s Law. PLoS ONE 7, e40393 (2012).
- (18) Bettencourt, L. M. A., Lobo, J., Helbing, D., Kuhnert, C. & West, G. B. Growth, innovation, scaling, and the pace of life in cities. Proceedings of the National Academy of Sciences 104, 7301–7306 (2007).
- (19) Bettencourt, L. M. A., Lobo, J., Strumsky, D. & West, G. B. Urban Scaling and Its Deviations: Revealing the Structure of Wealth, Innovation and Crime across Cities. PLoS ONE 5, e13541 (2010).
- (20) Alves, L. G. A., Ribeiro, H. V. & Mendes, R. S. Scaling laws in the dynamics of crime growth rate. Physica A: Statistical Mechanics and its Applications 392, 2672–2679 (2013).
- (21) Hanley, Q. S., Lewis, D. & Ribeiro, H. V. Rural to Urban Population Density Scaling of Crime and Property Transactions in English and Welsh Parliamentary Constituencies. PLOS ONE 11, e0149546 (2016).
- (22) Oliveira, M., Barbosa-Filho, H., Yehle, T., White, S. & Menezes, R. From Criminal Spheres of Familiarity to Crime Networks. In Studies in Computational Intelligence, vol. 597, 219–230 (2015).
- (23) Caminha, C. et al. Human mobility in large cities as a proxy for crime. PLOS ONE 12, e0171609 (2017). eprint 1610.09936.
- (24) Oliveira, M., Bastos-Filho, C. & Menezes, R. The scaling of crime concentration in cities. PLOS ONE 12, e0183110 (2017).
Oliveira, M., Ribeiro, E.,
Bastos-Filho, C. & Menezes, R.
Spatio-temporal variations in the urban rhythm: the
travelling waves of crime.
EPJ Data Science7, 29 (2018).
- (26) Bettencourt, L. M. A., Lobo, J. & Youn, H. The hypothesis of urban scaling: formalization, implications and challenges (2013).
- (27) Bettencourt, L. M. A. The origins of scaling in cities. Science 340, 1438–1441 (2013).
Gomez-Lievano, A., Patterson-Lomba, O. &
Explaining the prevalence, scaling and variance of urban phenomena.Nature Human Behaviour 1, 0012 (2016).
White, S., Yehle, T.,
Serrano, H., Oliveira, M. &
The Spatial Structure of Crime in Urban
Lecture Notes in Computer Science (including subseries Lecture Notes in Artificial Intelligence and Lecture Notes in Bioinformatics), vol. 8852, 102–111 (2015).
- (30) Pacheco, D. F., Oliveira, M. & Menezes, R. Using social media to assess neighborhood social disorganization: A case study in the united kingdom. In Proceedings of the Thirtieth International Florida Artificial Intelligence Research Society Conference, FLAIRS 2017, Marco Island, Florida, USA, May 22-24, 2017., 341–346 (2017).
- (31) Kadar, C. & Pletikosa, I. Mining large-scale human mobility data for long-term crime prediction. EPJ Data Science 7, 26 (2018).
- (32) da Cunha, B. R. & Gonçalves, S. Topology, robustness, and structural controllability of the Brazilian Federal Police criminal intelligence network. Applied Network Science 3, 36 (2018).
- (33) Davies, T. & Marchione, E. Event Networks and the Identification of Crime Pattern Motifs. PLOS ONE 10, e0143638 (2015).
- (34) Alves, L. G. A., Lenzi, E. K., Mendes, R. S. & Ribeiro, H. V. Spatial correlations, clustering and percolation-like transitions in homicide crimes. EPL (Europhysics Letters) 111, 18002 (2015).
- (35) Friendly, M. A.-M. Guerry’s moral statistics of france : Challenges for multivariable spatial analysis. Statist. Sci. 22, 368–399 (2007).
- (36) Quetelet, A. A Treatise on Man and the Development of His Faculties (William and Robert Chambers, Edinburgh, 1842), 1 edn.
- (37) Balbi, A. & Guerry, A.-M. Statistique comparée de l’état de l’instruction et du nombre des crimes dans les divers arrondissements des académies et des cours royales de France. Jules Renouard, Paris (1829).
- (38) Quetelet, A. Recherches sur le penchant au crime aux différens âges (M. Hayez, Brussels, 1833).
- (39) Weisburd, D. The law of crime concentration and the criminology of place. Criminology 53, 133–157 (2015).
- (40) Cheatwood, D. Weather and Crime. In 21st Century Criminology: A Reference Handbook 21st Century criminology: A reference handbook, 51–58 (SAGE Publications, Inc., 2455 Teller Road, Thousand Oaks California 91320 United States, 2009).
- (41) Harries, K. D., Stadler, S. J. & Zdorkowski, R. T. Seasonality and Assault: Explorations in Inter-Neighborhood Variation, Dallas 1980. Annals of the Association of American Geographers 74, 590–604 (1984).
- (42) Cohen, L. E. & Felson, M. Social Change and Crime Rate Trends: A Routine Activity Approach. American Sociological Review 44, 588 (1979).
- (43) Eck E., J., Clarke, R. V. & Guerette, R. T. Risky Facilities: Crime Concentration in Homogeneous Sets of Establishments and Facilities. In Farrell, G., Bowers, K. J., Johnson, S. D. & Townsley, M. (eds.) Imagination for Crime Prevention: Essays in honour of Ken Pease, vol. 21, chap. 12, 225–264 (Criminal Justice Press, Monsey, NY, USA, 2007).
- (44) Johnson, S. D. A brief history of the analysis of crime concentration. European Journal of Applied Mathematics 21, 349–370 (2010).
- (45) Braga, A. A., Papachristos, A. V. & Hureau, D. M. The Concentration and Stability of Gun Violence at Micro Places in Boston, 1980–2008. Journal of Quantitative Criminology 26, 33–53 (2010). eprint 0507464v2.
- (46) Prieto Curiel, R., Collignon Delmar, S. & Bishop, S. R. Measuring the Distribution of Crime and Its Concentration. Journal of Quantitative Criminology 34, 775–803 (2018).
- (47) Myles Hollander, E. C., Douglas A. Wolfe. Nonparametric Statistical Methods. Wiley Series in Probability and Statistics (John Wiley & Sons, 2014), 3rd edn.
- (48) Baumer, E. & Wright, R. Crime Seasonality and Serious Scholarship: A Comment on Farrell and Pease. British Journal of Criminology 36, 579–581 (1996).
Percival, D. P.
On estimation of the wavelet variance.Biometrika 82, 619–631 (1995).
