Sparse Matrix Code Dependence Analysis Simplification at Compile Time

Analyzing array-based computations to determine data dependences is useful for many applications including automatic parallelization, race detection, computation and communication overlap, verification, and shape analysis. For sparse matrix codes, array data dependence analysis is made more difficult by the use of index arrays that make it possible to store only the nonzero entries of the matrix (e.g., in A[B[i]], B is an index array). Here, dependence analysis is often stymied by such indirect array accesses due to the values of the index array not being available at compile time. Consequently, many dependences cannot be proven unsatisfiable or determined until runtime. Nonetheless, index arrays in sparse matrix codes often have properties such as monotonicity of index array elements that can be exploited to reduce the amount of runtime analysis needed. In this paper, we contribute a formulation of array data dependence analysis that includes encoding index array properties as universally quantified constraints. This makes it possible to leverage existing SMT solvers to determine whether such dependences are unsatisfiable and significantly reduces the number of dependences that require runtime analysis in a set of eight sparse matrix kernels. Another contribution is an algorithm for simplifying the remaining satisfiable data dependences by discovering equalities and/or subset relationships. These simplifications are essential to make a runtime-inspection-based approach feasible.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

05/01/2017

Thinned Coprime Arrays for DOA Estimation

Sparse arrays can generate a larger aperture than traditional uniform li...
11/13/2019

Compile-time Parallelization of Subscripted Subscript Patterns

An increasing number of scientific applications are making use of irregu...
06/27/2019

Array Codes with Local Properties

In general, array codes consist of m× n arrays and in many cases, the ar...
05/31/2019

Reference Capabilities for Safe Parallel Array Programming

The array is a fundamental data structure that provides an efficient way...
10/05/2021

RASA: Efficient Register-Aware Systolic Array Matrix Engine for CPU

As AI-based applications become pervasive, CPU vendors are starting to i...
07/12/2017

Verifying Array Manipulating Programs by Tiling

Formally verifying properties of programs that manipulate arrays in loop...
05/09/2020

Time complexity of in-memory solution of linear systems

In-memory computing with crosspoint resistive memory arrays has been sho...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1. Introduction

Data dependence analysis answers questions about which memory accesses in which loop iterations access the same memory location thus creating a partial ordering (or dependence) between loop iterations. Determining this information enables iteration space slicing (Pugh and Rosser, 1997), provides input to race detection, makes automatic parallelization and associated optimizations such as tiling or communication/computation overlap possible, and enables more precise data-flow analysis, or abstract interpretation. A data dependence exists between two array accesses that (1) access the same array element with at least one access being a write and (2) that access occurs within the loop bounds for each of the accesses’ statement(s). These conditions for a data dependence has been posed as a constraint-based decision problem (Banerjee et al., 1993), a data-flow analysis with polyhedral set information (Feautrier, 1991), and linear memory access descriptors (Paek et al., 2002). However, such approaches require a runtime component when analyzing codes with indirect memory accesses (e.g., A[B[i]], B being an index array) such as those that occur in sparse matrix codes. In this paper, we present an approach to improve the precision of compile-time dependence analysis for sparse matrix codes and simplification techniques for decreasing the complexity of any remaining runtime checks.

Sparse matrix computations occur in many codes, such as graph analysis, partial differential equation solvers, and molecular dynamics solvers. Sparse matrices save on storage and computation by only storing the nonzero values in a matrix. Figure

1

illustrates one example of how the sparse matrix vector multiplication (

) can be written to use a common sparse matrix format called compressed sparse row (CSR). In CSR, the nonzeros are organized by row, and for each nonzero, the column for that nonzero is explicitly stored. Since the percentage of nonzeros in a matrix can be less than 1%, sparse matrix formats are critical for many computations to fit into memory and execute in a reasonable amount of time. Unfortunately, the advantage sparse matrices have on saving storage compared to dense matrices comes with the cost of complicating program analysis. Compile-time only approaches resort to conservative approximation (Barthou et al., 1997; Paek et al., 2002). Some approaches use runtime dependence tests to complement compile time analysis and obtain more precise answers (Pugh and Wonnacott, 1995; Rus et al., 2003; Oancea and Rauchwerger, 2012). Runtime dependence information is also used to detect task-graph or wavefront parallelism that arises due to the sparsity of dependences (Saltz et al., 1991; Rauchwerger et al., 1995a; Streit et al., 2015).

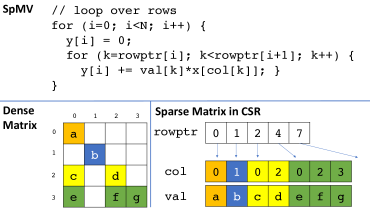

Figure 1. Compressed Sparse Row (CSR) sparse matrix format. The val array stores the nonzeros by packing each row in contiguous locations. The rowptr array points to the start of each row in the val array. The col array is parallel to val and maps each nonzero to the corresponding column.

The data dependence analysis approach presented here is constraint-based. Some constraint-based data dependence analysis approaches (Pugh and Wonnacott, 1994, 1995, 1998; Venkat et al., 2016) represent the index arrays in sparse matrix computations as uninterpreted functions in the data dependence relations. For example, the loop bounds for the k loop in Figure 1 can be represented as . Previous work by others generates simplified constraints at compile time that can then be checked at runtime with the goal of finding fully parallel loops (Pugh and Wonnacott, 1995). We build on the previous work of (Venkat et al., 2016). In that work, dependences in a couple of sparse matrix codes were determined unsatisfiable manually, simplified using equalities found through a partial ordering of uninterpreted function terms, or approximated by removing enough constraints to ensure a reasonable runtime analysis complexity. In this paper, we automate the determination of unsatisfactory data dependences, find equalities using the Integer Set Library (ISL) (Verdoolaege, 2010), have developed ways to detect data dependence subsets for simplifying runtime analysis, and perform an evaluation with eight popular sparse kernels.

In this paper, we have two main goals: (1) prove as many data dependences as possible to be unsatisfiable, thus reducing the number of dependences that require runtime tests; and (2) simplify the satisfiable data dependences so that a runtime inspector for them has complexity less than or equal to the original code. Figure 2 shows an overview of our approach. We use the ISL library (Verdoolaege, 2018) like an SMT solver to determine which data dependences are unsatisfiable. Next, we manipulate any remaining dependence relations using IEGenLib (Strout et al., 2016) and ISL libraries to discover equalities that lead to simplification.

Fortunately, much is known about the index arrays that represent sparse matrices as well as the assumptions made by the numerical algorithms that operate on those matrices. For example, in the CSR representation shown in Figure 1, the rowptr index array is monotonically strictly increasing. In Section 3.1 we explain how such information can be used to add more inequality and equality constraints to a dependence relation. The new added constraints in some cases cause conflicts, and hence we can detect that those relations are unsatisfiable.

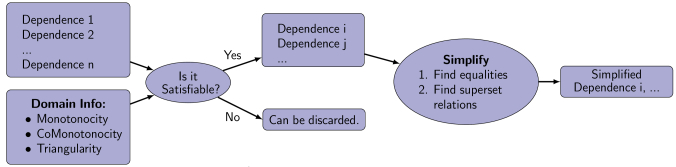

Figure 2. This figure shows the overview of our approach to eliminate or simplify dependences from sparse computation utilizing domain information.

The dependences that cannot be shown as unsatisfiable at compile time, still require runtime tests. For those dependences, the goal is to simplify the constraints and reduce the overhead of any runtime test. Sometimes index array properties can be useful for reducing the complexity of runtime inspector by finding equalities that are implied by the dependence constraints in combination with assertions about the index arrays. The equalities such as can help us remove a loop level from the inspector, in the example. Since some equality constraint would allow us deduce value of an iterator in the inspector from another one, e.g, we can deduce values from values using . Another simplification involves determining when data dependence relations for a code are involved in a subset relationship. When this occurs, runtime analysis need only occur for the superset.

This paper makes the following contributions:

  1. An automated approach for the determination of unsatisfiable dependences in sparse codes.

  2. An implementation of an instantiation-based decision procedure that discovers equality relationships in satisfiable dependences.

  3. An approach that discovers subset relationships in satisfiable dependences thus reducing run-time analysis complexity further.

  4. A description of common properties of index arrays arising in sparse matrix computations, expressed as universally quantified constraints.

  5. Evaluation of the utility of these properties for determining unsatisfiability or simplifying dependences from a suite of real-world sparse matrix codes.

2. Background: Data Dependence Analysis

Data dependence analysis of a loop nest is a common code analysis that is used in different applications, such as automatic parallelization (Brandes, 1988) and data race detection (Atzeni et al., 2016a). This section reviews the data dependence analysis process and how that process differs when analyzing sparse matrix codes. Then, we review some of the applications of data dependence analysis including an example of its use for finding wavefront parallelism in sparse codes.

2.1. Data Dependence Analysis

A data dependence occurs between two iterations of a loop when both of the iterations access the same memory location and at least one of the accesses is a write. Data dependence constraints are of the following form:

where and are iteration vector instances from the same loop nest, and are array index expressions to the same array with at least one of the accesses being a write, and expands to the loop nest bounds for the iteration vectors. In this paper, the term dependence relation is used interchangeably with dependence constraints by viewing them as a relation between and .

1// forward solve assuming a lower triangular matrix.
2for(i=0; i<N; i++) {
3   tmp = f[i];
4   for(j=0; j<i; j++) {
5S1:   tmp -= A[i][j]*u[j];
6   }
7S2:u[i] = tmp / A[i][i];
8}
Figure 3. Forward solve for a dense matrix.

For example, consider the dense matrix implementation for forward solve in Figure 3. Forward solve solves for the vector in the equation assuming that the matrix is lower triangular (i.e., nonzeros are only on the diagonals or below as shown in the example in Figure 1). The dense forward solve code has the following dependences for the outermost loop i:

  • A loop-carried dependence due to the scalar tmp variable. However, since tmp is written before being read in each iteration of the i loop, it is privatizable, which means each processor in a potential parallelization of the i loop can be given its own private copy of tmp.

  • A loop-carried dependence between the write u[i] in Statement S2 and the read u[j] in Statement S1 with constraints

The iterators and are different instances of and . This dependence due to the writes and reads to array u is satisfiable because the computation for any row depends on all previous rows . This means that the outer loop in dense forward solve is fully ordered due to data dependences and therefore not parallelizable.

2.2. Sparse Codes and Runtime Parallelism

For sparse codes, after compile time dependence analysis, some remaining dependences may involve index arrays as subscript expressions. The data dependence constraints can use uninterpreted functions to represent the index arrays at compile time. Because the values of the index arrays are unknown until run time, proving such dependences are unsatisfiable may require runtime dependence testing. However, even when dependences arise at runtime, it still may be possible to implement a sparse parallelization called wavefront parallelization. Identifying wavefront parallelizable loops combines compile time and runtime analyses. The compiler generates inspector code to find the data dependence graph at runtime.

We now consider the sparse forward solve with Compressed Sparse Row CSR format in Figure 4. We are interested in detecting loop-carried dependences of the outermost loop. There are two pairs of accesses on array u in S1 and S2 that can potentially cause loop-carried dependences: u[col[k]] (read), u[i] (write); and u[i] (write), u[i] (write). The constraints for the two dependence tests are shown in the following.

1// Forward solve assuming a lower triangular matrix.
2for(i=0; i<N; i++) {
3   tmp = f[i];
4   for(k=rowptr[i]; k<rowptr[i+1]-1; k++) {
5S1:   tmp -= val[k]*u[col[k]];
6   }
7S2:u[i] = tmp / val[rowptr[i+1]-1];
8}
Figure 4. Forward solve for a sparse matrix in compressed sparse row (CSR).

Dependences for the write/write u[i] in S2:

Dependences for read u[col[k]] and write u[i] in S1, and S2:

These dependences can be tested at runtime when concrete interpretations for the index arrays (contents of arrays rowptr and col) are available. The runtime dependence analyzers, called inspectors (Saltz et al., 1991), may be generated from the dependence constraints (Venkat et al., 2016).

Suppose the matrix in the forward solve code in Figure 4 had the nonzero pattern as in Figure 1. The runtime check would create the dependence graph for this example based on the four dependences above as shown in Figure 5. Once the dependence graph is constructed a breadth-first traversal of the dependence graph can derive sets of iterations that may be safely scheduled in parallel without a dependence violations, with each level set being called a wavefront as shown in Figure 5.

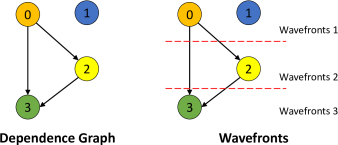

Figure 5. Dependence graph for forward solve for sparse matrix in Figure 1.

2.3. Applications of the Sparse Data Dependence Analysis

Besides wavefront parallelism, there are many other uses for sparse data dependence analysis. Any application of sparse data dependence analysis would benefit from a reduction in the number of data dependences that need to be inspected at runtime and from any complexity reduction of data dependences that do require runtime inspection. Here we summarize some of those applications.

Race detection: Dynamic race detection is an essential prerequisite to the parallelization of existing sequential codes. While the front-end static analysis methods employed in these checkers (Atzeni et al., 2016b) can often suppress race checks on provably race-free loops, they fail to do so when presented with non-affine access patterns that occur in sparse matrix codes. In addition to significantly increasing runtimes, the shadow memory cells employed by dynamic race checkers also increases memory pressure, often by a factor of four. The techniques presented in this paper can help suppress race checks when we can prove the independence of loop iterations.

Dynamic program slicing: Pugh and Rosser introduced the concept of iteration space slicing where program slicing is done on a loop iteration basis using Presburger representations (Pugh and Rosser, 1997). Similar dynamic approaches for tiling across loops in sparse codes were presented by various groups (Douglas et al., 2000; Strout et al., 2004). All of these techniques would require runtime data dependence analysis, thus disproving dependences or reducing the complexity of inspecting dependences at runtime would be applicable.

High-level synthesis: Optimizations in high-level synthesis (HLS) uses runtime dependence checks. In HLS, it is important to pipeline the innermost loops to get efficient hardware. Alle et al. have proposed using runtime dependence checks to dynamically check if an iteration is in conflict with those currently in the pipeline, and add delays only when necessary (Alle et al., 2013).

Distributed memory parallelization: Another possible application of our work can be found in the work by (Ravishankar et al., 2015). The authors produce distributed parallel code that uses MPI for loops where there might be indirect loop bounds, and/or array accesses. The read and write sets/data elements of each process are computed via an inspector where indirect accesses are involved to determine if each process is reading/writing data that is owned by other processes. Basumallik and Eigenmann use run-time inspection of data dependences to determine how to reorder a loop to perform computation and communication overlap (Basumallik and Eigenmann, 2006).

3. Automating (UN)Satisfiability Analysis for Sparse Data Dependences

For any application of data dependence analysis for sparse codes, the best outcome is to determine that a potential data dependence is unsatisfiable. Any dependence that is unsatisfiable does not for runtime analysis. Previous work used domain-specific knowledge about the index arrays used to represent sparse matrices to guide manual determination of unsatisfactory data dependences (Venkat et al., 2016). In this paper, we show how to automate this process by specifying the domain-specific knowledge as universally quantified constraints on uninterpreted functions and then using instantiation methods similar to those used by SMT solvers to produce more constraints that can cause conflicts.

3.1. Detecting Unsatisfiable Dependences Using Domain Information

As an example of how domain information can be used to show dependences are unsatisfiable consider the following constraints from a dependence relation:

Some relevant domain information is that the rowptr index array is strictly monotonically increasing:

Since the dependence relation in question has the constraints . Then, using the above strict monotonicity information would result in adding . But, considering the constraint, , , and we know that, . This leads to a conflict,

This conflict would indicate the dependence in question was unsatisfiable and therefore does not require any runtime analysis.

3.2. Universally Quantified Assertions about Index Arrays

Even if a formula that includes uninterpreted function calls is satisfiable in its original form, additional constraints about the uninterpreted functions may make it unsatisfiable. This has been exploited abundantly in program verification community to obtain more precise results (Bradley et al., 2006; Habermehl et al., 2008; Ge and de Moura, 2009). A common approach to express such additional constraints is to formulate them as universally quantified assertions. For instance, (Bradley et al., 2006) use following to indicate that array is sorted within a certain domain:

There are several methods that SMT solvers use to reason about quantified formulas, the most common one being quantifier instantiation (Bradley et al., 2006; Ge and de Moura, 2009; Moura and Bjørner, 2007; Reynolds et al., 2014; Reynolds et al., 2015; Löding et al., 2017). In quantifier instantiation, instances of universally quantified assertions, where the universally quantified variables are replaced with ground terms, are added to the original formula. Any of the added constraints might contradict constraint(s) in the formula that would show the original formula is unsatisfiable. For the general case of quantified first order logic, there is no complete instantiations procedure. That means the instantiation can go on forever not exactly knowing whether the formula is satisfiable or unsatisfiable. In some limited cases, the quantified assertions can be completely replaced by a set of quantifier instances to construct an equisatisfiable quantifier-free formula (Bradley et al., 2006; Ge and de Moura, 2009).

Combining the constraints from dependences with arbitrary universally quantified assertions would create a first order logic theory that in general is undecidable. Undecidability would imply that we cannot implement an algorithm for deciding the formulas that would always terminate. Numerous works such as (Bradley et al., 2006; Habermehl et al., 2008; Ge and de Moura, 2009) present different decidable fragments of first order logic. The approach that these works use to make decidable fragments is to put restrictions what type of universally quantified assertions can be used. The restriction are usually on on syntax of the allowed assertions (Bradley et al., 2006; Habermehl et al., 2008), and sometimes specific properties that a specific instantiation procedure for assertions must have (Ge and de Moura, 2009). We perform a terminating instantiation that is sound but incomplete. In other words, the dependences we determine unsatisfiable are in fact unsatisfiable, but we may characterize some unsatisfiable constraints as may satisfiable.

3.3. Domain Information about Index Arrays

We represent domain information about index arrays as universally quantified assertions. In this section, we illustrate some assertions relevant to numerical benchmarks and relate the corresponding assertions to the existing theory fragments. Table 2 in Section 7 lists all the assertions we use in the evaluation. Below are some example properties.

For the forward solve with compressed sparse row (CSR) code in Figure 4, we know the following:

  • Monotonic index arrays: The row index array values increase monotonically. This property of index arrays can be expressed with an assertion about the uninterpreted function symbol that represents the index array. For instance, in the example the function is monotonically increasing. If we assume that all the sparse matrix rows have at least one nonzero, then is strictly monotonically increasing. This assertion can be encoded as follows:

  • Lower Triangular Matrix: The forward solve algorithm shown in Figure 4 operates on lower triangular matrices. For the CSR format that leads to the following domain-specific assertion:

    This indicates that nonzeros of rows before row have columns less than .

The domain information in Table 2 in Section 7 can be represented with following general forms:

Where and can be 0 or 1. The first and second assertions fit the decidable LIA fragment that is presented by (Habermehl et al., 2008). However, to the best of our knowledge the third assertion form does not fit any previously presented decidable fragment, and its decidability remains open.

Modern SMT solvers are equipped with heuristic-based quantifier instantiations to reason about quantified formulas. Existing techniques for quantifier instantiation can construct the set of instantiations for deciding some of our assertions, e.g., non-strict monotonicity, but not for all of them. For unsatisfiable formulas with universal quantifiers where the solver only needs a small set of relevant instances to find contradicting constraints, the existing heuristics can work well. For all our examples, both Z3 and CVC4 were able to identify all unsatisfiable dependences. The solvers also time out for satisfiable ones given a small timeout (5 seconds). This is as expected, since specific instances of universally quantified formulas usually do not help in proving that the quantified formula is satisfiable.

Nonetheless, we cannot just use a conventional SMT solver like Z3 in our context. The key reason is that we are not just interested in satisfiability of the dependence constraints. If unsatisfiability cannot be proven statically, runtime checks will be generated. It is important for these runtime checks to be as fast as possible, and hence we are also interested in using the assertions to decrease the cost of runtime checks. For example, additional equalities means the data dependence inspector iteration space has lower dimensionality, thus reducing the algorithmic complexity of runtime checks. We illustrate the complexity reduction through instantiation of assertions with two examples in Section 4.

3.4. Detecting Unsatisfiable Sparse Dependences

Instantiation-based quantifier elimination is a natural choice for our context, since we seek to either prove unsatisfiability or find additional constraints that simplifies runtime checks. Unfortunately, our assertions are not fully covered by decidable fragments (Bradley et al., 2006; Ge and de Moura, 2009) where equisatisfiable quantifier-free formulas can always be obtained. Nonetheless, using inspiration from the decidable fragments (Bradley et al., 2006; Ge and de Moura, 2009) we have a procedure that detects all unsatisfiable examples from our benchmark suite that represent a wide range of numerical analysis codes.

Note that we can show our general assertions (1), (2), and (3), presented in Section 3.3 as:

Where denotes vector of quantified variables, denotes antecedent of the assertion, and denotes consequent of the assertion. Then the following definitions define our procedure to instantiate quantified variables, and potentially use a SMT to detect their unsatisfiability.

Definition 1 (E) We define E to be the set of expressions used as arguments to all uninterpreted function calls in the original set of constraints. We use this set to instantiate quantified assertions.

Definition 2 ()

  1. The inference rules for turning the universally quantified predicates into quantifier-free predicates is as follows:
    [forall] ψ[ ∀→x,  φ_I(→x) ⟹φ_V(→x) ] ψ[ _→x ∈E^n (φ_I(→x) ⟹φ_V(→x)) ]
    where is the set of vectors of size produced as Cartesian product of .

  2. Solve the quantifier-free formula output of step with an SMT solver that decide union of quantifier-free theories of uninterpreted functions with equality and Presburger Arithmetics.

Correctness: Although the above procedure is incomplete, we do have soundness. This means if a dependence is determined unsatisfiable, it in fact is not a dependence. However, if a dependence is determined satisfiable at compile time, it could be that at runtime the actual values of index arrays lead to the dependence not being satisfiable. Since our procedure is conservatively correct, it is sound.

To show that the decidability procedure is sound, we need to show that if the original formula is satisfiable, then so is the unquantified formula ,

This is equivalent to

Since universal quantification is being replaced with specific expression instantiations to create , is a potentially weaker set of constraints than . This means that is a conservative approximation of . As such, if is not satisfiable, then is not satisfiable.

4. Simplifying the Dependences utilizing equalities

The finite instantiation proposed in Section 3.4 can prove many of the dependence relations to be unsatisfiable. However, some of the relations remain satisfiable, thus requiring runtime checks. It is then important to minimize the runtime cost by simplifying the dependence relations as much as possible. In this section, we discuss one of such simplifications utilizing additional equalities after finite instantiations.

4.1. Discovering New Equality Constraints and Their Usefulness

Sometimes index array properties can help reduce the complexity of runtime inspectors through introducing equalities to the dependence’s constraints. The new equalities are discoverable after instantiating the universally quantified assertions and combining those with other inequality and equality relationships. For instance, consider the following set of constraints; it is a satisfiable dependence that needs a runtime inspector with complexity of to traverse the space of values for and :

And assume we also know following universally quantified rule about the uninterpreted function (strict monotonicity):

With any universally quantified implication, if the left side of the implication is true, then the right side must be true to satisfy the assertion (i.e., ). It is also the case that the contrapositive is true (i.e., ). For this example, the negation of the right-hand side of the implication is , which matches one of the constraints in the dependence. Thus the negation of the left-hand side must be true and therefore . With matching and matching , we find . Thus an equality has been found:

Using this equality we can iterate over either or in the inspector and calculate the other by taking advantage the equality. The runtime inspection would have complexity of only .

1for(int colNo = 0; colNo < n; ++colNo) {
2   std::fill_n(f,n,0); //Zero initialization
3   for(int nzNo = c[colNo]; nzNo < c[colNo + 1]; ++nzNo)
4      f[r[nzNo]] = values[nzNo];
5   for(int i = prunePtr[colNo], sw=0; i < prunePtr[colNo + 1]; ++i){
6      for (int l = lC[pruneSet[i]], bool sw=false;; l < lC[pruneSet[i] + 1]; ++l){
7          if (lR[l] == colNo && !sw) {
8              tmp = lValues[l];
9              sw=true;
10          }
11          if(sw){
12S1:           f[lR[l]] -= lValues[l] * tmp;
13          }
14      }
15   }
16   if (f[colNo] <= 0) return false; //The matrix is not SPD
17   lValues[lC[colNo]] = sqrt(f[colNo]);
18   for(int j = lC[colNo] + 1; j < lC[colNo + 1]; ++j)
19S2:   Values[j] = f[lR[j]] / sqrt(f[colNo]);
20}
Figure 6. Static Left Cholesky code, which is a modified version of Left Cholesky code (Cheshmi et al., 2017).

4.2. Finding Equalities Example: Left Cholesky

For a more realistic example from one of the benchmarks used in the evaluation, consider a maybe satisfiable dependence from our Static Left Cholesky shown in Figure 6. Following dependence is coming from a read in S1 (lValues[l]), and a write in S2 (lValues[j]):

An inspector for this dependence is shown in Figure 6(a). We do not need loops for and in the inspector, because they can be projected out. Note, index array prunePtr points to nonzeros in the sparse matrix, ranging from 0 to number of nonzeros, , and denotes the number of column. The two loops, colNop and ip, combined are traversing all the nonzero values and hence have a combined complexity of , followed by the colNo loop traversing over columns, . Consequently, the complexity of this inspector is .

The equality is found using the additional knowledge that lcolptr is strictly monotonically increasing as demonstrated in the following.

We have the following constraints in the original dependence:

which gives the following through transitivity:

We have the following assertion:

where two instances and give new constraints:

The optimized inspector based on new discoveries is shown in Figure  6(b). We do not need loop for , since we can get its values from based on . This simplified inspector has a complexity of , which is significantly better than the original .

1for(colNop = 0; colNop <n ; colNop++)
2   for(ip = prunePtr(colNop);
3      ip < prunePtr(colNop+1); ip++) {
4      for(colNo=0; colNo<n; colNo++) {
5         if(lcolptr(colNo) < lcolptr(colNo+1) && ...)
6            // Add a flow dependence between colNo and ColNop
7    }
8  }
(a) Inspector with the original dependence constraints.
1for(colNop = 0; colNop <n ; colNop++)
2   for(ip = prunePtr(colNop);
3      ip < prunePtr(colNop+1); ip++) {
4      colNo = pruneSet(ip);
5      if(lcolptr(colNo) < lcolptr(colNo+1) && ...)
6         // Add a flow dependence between colNo and ColNop
7
8  }
(b) Inspector with an additional equality: .
Figure 7. Inspector pseudo-code for dependence constraints in Section 4.2, before and after utilizing index array properties to add new equalities. We obtain the equality using the properties as described in Section 4.2. Notice how this equality is used to remove loop iterating over i in Line 3.

5. Simplifying the Dependences Utilizing Superset Relationship

Another way to deal with data dependence relations that cause complex runtime analysis is to remove it from consideration by determining it is a subset of a less expensive relation. Consider two dependence relations and , and two iterations of the outermost loop and . If we can show that for all and that are dependent according to , the same pairs of and are also dependent according to , then it is sufficient to only test . We say that is a superset of , written , in such cases, and remove from runtime check. Note that in the above definition, may have more pairs of outermost iterators that are dependent than .

Taking advantage of this redundancy can result in lower complexity runtime analysis. As an example, consider the Incomple Cholesky code shown in Figure 8. In section, we refer to an array access at statement as for brevity. One of the dependence tests is between the write val[k]@S3 and the read val[m]@S3. This test is redundant with the test between the write val[k]@S3 and the read val[m]@S2. This is because an iteration of the i loop that make the read from val[m] in S3 is guaranteed to access the same memory location while executing the loop surrounding S2. Thus, the more expensive check between accesses in S3 can be removed.

1for (i = 0; i < n; i++) {
2S1: val[colPtr[i]] = sqrt(val[colPtr[i]]);
3
4   for (m = colPtr[i] + 1; m < colPtr[i+1]; m++)
5S2:    val[m] = val[m] / val[colPtr[i]];
6
7   for (m = colPtr[i] + 1; m < colPtr[i+1]; m++)
8      for (k = colPtr[rowIdx[m]] ; k < colPtr[rowIdx[m]+1]; k++)
9         for ( l = m; l < colPtr[i+1] ; l++)
10            if (rowIdx[l] == rowIdx[k] && rowIdx[l+1] <= rowIdx[k])
11S3:            val[k] -= val[m]* val[l];
12}
Figure 8. Incomplete Cholesky0 code from SparseLib++ (Pozo et al., 1996). Some variable names have been changed. The arrays col and row are to represent common colPtr, and rowIdx in CSC format.

In this section, we describe our approach to identify redundant dependence relations. The key challenge is to determine superset relations between two dependence tests involving uninterpreted functions. We present two approaches that cover important cases, and discuss possible extensions.

5.1. Trivial Superset Relations

Given a polyhedral dependence relation, it is easy to characterize the pairs of loop iterations that are dependent. All the indices that do not correspond to the loop iterators in question can be projected out to obtain the set of dependent iterations. These sets can be compared to determine if a dependence test is subsumed by another. In principle, this is what we do to check if a dependence relation is redundant with another. However, dependence relations from sparse codes may have variables passed as parameters to uninterpreted functions. Such variables cannot be projected out. Thus, we employ an approach based on similarities in the constraint systems. The trivial case is when the dependence relation is expressed with a subset of constraints in another relation . If this is the case, then can be said to be superset equal to .

We illustrate this approach with the earlier example from Incomplete Cholesky. We take two dependence relations, between val[k]@S3 and val[m]@S2, and between val[k]@S3 and val[m]@S3. The relations—omitting the obviously common constraints for val[k]@S3—are:

Since is expressed with a subset of constraints in , we may conclude that .

5.2. Superset Relation due to Overlapped Accesses

The trivial check is sufficient for many pairs of relations. However, some relations require a more involved process. We use a different dependence relation from Incomplete Cholesky (Figure 8) as an example of such cases. We consider the dependence relation between val[k]@S3 and val[l]@S3 that is redundant with . This can be intuitively observed from the code structure: the set of memory locations that may be accessed by the read of val[l] when , i.e., the first iteration of the loop, is exactly the same as the reads by val[m]@S2. This guarantees that even if the guard on S3 always evaluated to true, the dependence between iterations of the i loop would be redundant with that imposed by S2.

The constraints for (omitting those for val[k]@S3) are as follows:

  1. We first identify that in is not a constraint in .

  2. The equality has a similar (one side of the equality is the same) equation in .

  3. The bounds on and are collected from the respective constraints.

  4. Because the bound on subsumes that of , and since was the only constraint that was not in , we may conclude that .

It is important to note that the bounds on —the set of values accessed in the subset relation—can be conservative, i.e., may accesses, but the bounds on —the set of values accessed in the superset relation—must be exact. If both bounds represent may accesses, then the superset relation does not hold. This is important for situations as illustrated in the example above, where statements have data-dependent guards.

5.3. Limitations and Extensions

Although the approach presented above was able to cover all the important cases we encountered, it is by no means complete. The difficulty of manipulating integer sets with uninterpreted function symbols have led us to work directly on the constraints. This may cause our approach to miss some superset relations, since the same relation can be expressed in many different ways. Adding some form of normalization to the constraint system will help us avoid such pitfalls.

The overlapped iterator approach to finding a superset in Section 5.2 was developed specifically for the problematic data dependence relation R3. Future work includes developing a more general simplification approach based on this overlapping iterator concept.

In terms of scaling, there is potentially a problem of selecting the pairs of dependence relations to test for redundancy. We currently try all possible candidate pairs, which does not pose a problem since a large number of dependence relations are filtered out through unsatisfiability test described in Section 3.4. However, selecting promising pairs to limit the number of tests would be an useful extension.

6. Implementation

The data dependence analysis and simplification have been automated except for the superset simplification. This section summarizes the software packages the implementation relies on, discusses some important optimization to make our implementation scalable, and compares the ISL-based implementation with that of an SMT solver.

6.1. Software Description

The artifact for reproducing the results presented in this article can be found at the following public github repository: https://github.com/CompOpt4Apps/Artifact-datadepsimplify-arXiv-July2018

We use three software packages to automate applying methods described in this paper: IEGenLib library (Strout et al., 2016), ISL library (Verdoolaege, 2018), and CHILL compiler framework (chi, 2018). CHiLL is a source-to-source compiler framework for composing and applying high level loop transformations to improve the performance of nested loop written in C. We utilize CHILL to extracted the dependence relations from the benchmarks. ISL is a library for manipulating integer sets and relations that only contain affine constraints. It can act as a constraint solver by testing the emptiness of integer sets. It is also equipped with a function for detecting equalities in sets and relations. ISL does not support uninterpreted functions, and thus cannot directly represent the dependence constraints in sparse matrix code. IEGenLib is a set manipulation library that can manipulate integer sets/relations that contain uninterpreted function symbols. The IEGenLib library utilizes ISL for some of its fundamental functionalities. We have implemented detecting unsatisfiable dependences and finding the equalities utilizing the IEGenLib and ISL libraries.

The following briefly describes how the automation works. First, we extract the dependence relations utilizing CHILL, and store them in IEGenLib. The user defined index array properties are also stored in IEGenLib. Next, the instantiation procedure is carried out in IEGenLib. Then inside IEGenLib, the uninterpreted functions are removed by replacing each call with a fresh variable, and adding constraints that encode functional consistency (Kroening and Strichman, 2016, Chapter 4). Next, ISL can be utilized by IEGenLib to find the empty sets, i.e, unsatisfiable relations. Additionally, equality detection is available as one of many operations supported by ISL The finite instantiations described in Section 3.4 are intersections of the assertions with the dependence relation.

6.2. Optimization

A straightforward approach to implementing the procedure in Section 3.4 would be to take the quantifier-free formula resulting from instantiation, replace the uninterpreted functions, and directly pass it to ISL. However, this approach does not scale to large numbers of instantiations. An instantiated assertion is encoded as a union of two constraints (). Given instantiations, this approach introduces disjunctions to the original relation, although many of the clauses may be empty. In some of our dependence relations, the value of may exceed , resulting in a prohibitively high number of disjunctions. We have observed that having more than 100 instantiations causes ISL to start having scalability problems.

We apply an optimization to avoid introducing disjunctions when possible. Given a set of instantiations, the optimization adds the instantiations to the dependence relation in two phases. The first phase only instantiates those that do not introduce disjunctions to the dependence relation. During this phase, we check if the antecedent is already part of the dependence constraint, and thus is always true. If this is the case, then can be directly added to the dependence relation. We also perform the same for and add to the dependence relation if is always true. The second phase adds the remaining instantiations that introduce disjunctions. This optimization helps reducing the cost of dependence testing in two ways: (1) if the relation is unsatisfiable after the first phase, disjunctions are completely avoided; and (2) the second phase only instantiates the remainder, reducing the number of disjunctions.

If the dependence relation remains non-empty after the second phase, then the relation is checked at runtime. All equalities in a relation is made explicit before inspector code generation with ISL so that the code generator can take advantage of the equalities to simplify the generated code.

6.3. Contrasting SMT with ISL

SMT solvers are specialized for solving satisfiability problems expressed as a combination of background theories. ISL is a library for manipulating integer sets, and is specialized for the theory of Presburger arithmetic over integers.

The finite instantiation in Section 3.4 is well-suited for SMT solvers. In fact, SMT solvers are equipped with their own instantiation algorithms that also work well for our dependence relations. However, SMT solvers do not provide any equality relationships they might derive while answering the satisfiability question. Although it is possible to use SMT solvers to test if an equation is true for a set of constraints, we cannot search for an equation given the constraints (unless all candidates are enumerated—but there are infinite candidates in general).

For our implementation, the choice was between adding finite instantiation to ISL or adding equality detection to SMT solvers. We have chosen the former option as it seemed simpler to do, and also because we are more familiar with ISL.

7. Evaluation of Unsatisfiability and Simplification Approaches

In this section, we study the impact of our approach of utilizing domain information about index arrays on the data dependence analysis of eight sparse kernels. Our approach may help data dependence analysis in three ways: (1) The runtime check can be completely removed if the dependences are proven unsatisfiable; (2) Deriving equalities from instantiated universally quantified assertions about domain information can simplify dependences and reduce respected runtime check complexity; and (3) Reducing all maybe satisfiable relations of a given code to a set of dependence relations that encompass all potential dependences. We do this by finding relations that are superset equal of other relations. This can discard even more dependence relations that potentially might need expensive runtime checks.

We first describe the suite of numerical kernels that we have compiled to evaluate our approach. Then we evaluate the impact of each step in our approach, from the relevance of the index property assertions to the simplification using superset relations. Finally, we report the complexity of inspectors with and without our proposed simplifications.

7.1. Numerical Algorithms in Benchmark

We have included some of the most popular sparse kernels in a benchmark suite: (1) The Cholesky factorization, Incomplete LU0 and Incomplete Cholesky0, and the sparse triangular solver, which are commonly used in direct solvers and as preconditioners in iterative solvers; (2) sparse matrix vector multiplication, and Gauss-Seidel methods, which are often used in iterative solvers. Table 1 summarizes the benchmarks indicating which library each algorithm came from and how the benchmark compares with the implementations in existing libraries.

Algorithm name Format Library source Mod.
Gauss-Seidel solver CSR Intel MKL (Wang et al., 2014) None
Gauss-Seidel solver BCSR Intel MKL (Wang et al., 2014) None
Incomplete LU CSR Intel MKL (Wang et al., 2014) None
Incomplete Cholesky CSC and CSR SparseLib++ (Pozo et al., 1996) None
Forward solve CSC Sympiler (Cheshmi et al., 2017) None
Forward solve CSR (Vuduc et al., 2002) None
Sparse MV Multiply CSR Common None
Static Left Cholesky CSC Sympiler (Cheshmi et al., 2017) Pa  + Rb
  • Privatization of temporary arrays

  • Removal of dynamic index array updates

Table 1. The benchmark suite used in this paper. The suite includes the fundamental blocks in several applications. The suite is also selected to cover both static index arrays, such as Gauss-Seidel, and dynamic index arrays, such as Left Cholesky. The modification column shows the type of modification applied to the original code.

We modified onr of the benchmarks, left Cholesky, to make temporary arrays privatizable and to remove dynamic index array updates so that the compiler can analyze the sparse code.

Left Cholesky: This code has following changes compared to a more common implementation in CSparse (Davis, 2006): (i) Privatization of temporary arrays: We analyzed dependences between reads and writes to temporary arrays to detect privatizable arrays. This can be challenging for a compiler to do with sparse codes since accesses to these arrays are irregular. We set the values of these arrays to zero at the beginning of each loop so a compiler could identify them as privatizable. (ii) Removal of dynamic index array updates: Previous data dependence analysis work focuses on cases where index arrays are not updated. However, in some numerical codes, updating index arrays is a common optimization. We refer to this as dynamic index array updates, and it usually occurs when the nonzero structure of an output matrix is modified in the sparse code during the computation. This would make dependence analysis very complicated for the compiler. We removed dynamic index arrays by partially decoupling symbolic analysis from the numerical code in these benchmarks. Symbolic analysis here refers to terminology used in the numerical computing community. Symbolic analysis uses the nonzero pattern of the matrix to determine computation patterns and the sparsity of the resulting data. To remove dynamic index array updates, we decouple symbolic analysis from the code similar to the approach used by  (Cheshmi et al., 2017).

Performance Impact: The changes made to Left Cholesky do not have a noticeable effect on the code performance. Based on our experiments using five matrices111Problem1, rdb450l, wang2, ex29, Chebyshev2 from the Florida Sparse Matrix Collection (Davis and Hu, 2011) the performance cost of these modifications is on average less than 10% than the original code.

7.2. Relevance of Index Array Properties

We have extracted the constraints to test for dependences that are carried by the outermost loop for the sparse matrix codes in Table 1. A total of 124 data dependences relations were collected from the benchmarks. Of those 124, only 83 of them were unique, the repetition coming from accesses with same access indices in the same statements, or other situations. Table 2 summarizes the index array assertions relevant to the benchmarks.

Array property
Formulation with examples from Left Cholesky code What codes found in
Monotonocity (). All
Correlated (). Incomplete LU0,
Monotonicity ().
Triangular (). Cholesky’s,
Matrix (). Forward Solves
Table 2. Categorization of index array properties in our evaluation of their utility in detecting unsatisfiability.

We are not claiming to have found all the array properties that exist either in our example suite nor in general. Also, we only consider dependence relations for outermost loops, however, dependence relations can be extracted for other loop levels in a loop nest and can be used for vectorization and in other applications of dependence analysis.

Figure 9. Reduction in the number of different inspectors’ complexities after adding array properties individually and in combination. Please note, is number of non-zeros, and is number of columns or rows in a matrix. The array properties discussed in the paper can help us detect 45 relations as unsatisfiable out of 71 baseline relations. Note, the number of unsatisfiable relations detected with combination of information is not the accumulation of all others. Sometimes combination of information together helps detect unsatisfiability.

7.3. Detecting Unsatisfiability

In this section, we show the impact of using index array properties to detect unsatisfiability for the relations collected from dependences from our benchmark suite. To not conflate the impact of the index array properties that we are evaluating with what traditional methods are capable of, we first apply functional consistency in the theory of Presburger arithmetic combined with uninterpreted functions  (Shostak, 1979). This detects 12 dependences as unsatisfiable. Nevertheless, we must note that, all of the 12 dependences have inconsistencies in their affine parts and functional consistency does not help detect any more unsatisfiable relations; like the first two dependences from the Forward Solve CSR example in Section 2.2. After detecting 12 out of 83 dependences as unsatisfiable we are left with 71 dependences to use in our evaluation. We call these 71 dependences that are satsfiable just by looking at their affine constraints our baseline.

Figure 9 categorizes the complexity of an inspector for each dependence into 7 different classes in total. In this figure, is number of non-zeros, and for simplicity denotes the number of rows or columns of the input matrix. The black bar, “baseline”, in each class shows the baseline number of relations with that complexity in our suite. The bars show how many dependences would remain after we instantiate certain index array properties. The last bar in each class, the red bar, shows the effect of adding all the information in combination.

The main observations from analyzing Figure 9 are as follows: (1) Combining the array properties and non-domain information has the biggest impact and helps detect significantly more unsatisfiable dependences than any single property. Combining all the index array properties helped us detect 45 out of 71 relations as unsatisfiable, with 26 remaining as maybe satisfiable. (2) Monotonicity has the highest impact on detecting unsatisfiable relations when array properties are applied independently. (3) The Triangular Matrix property helped detect 3 relations when applied independently and 11 more in combination with Monotonicity (not obvious in the figure). This property helped us detect unsatisfiability in cases where Monotonicity was completely handicapped; see the and classes in Figure 9.

7.4. Simplifying Inspector Complexity Utilizing Equalities

As stated in the previous section, instantiating index array properties results in 45 out of 71 dependence relations being detected as unsatisfiable. At this point, without any further simplification, to perform a partial parallelism transformation, inspectors are needed for the remaining 26 dependences. One question we can ask about those 26 inspector is whether their complexity is even reasonable. We consider a runtime dependence analysis complexity reasonable, if it is bound by the complexity of the original computation. The computations would certainly do much more operations compared to the analysis as numerical algorithms usually call these computations several time for the same sparse matrix nonzero structure. Thus runtime data dependence analysis is reasonable if it is the same complexity as the original computation. Nonetheless, for numerical algorithms, it is common to aim for a runtime data dependence analysis that is of , where is the number of nonezeros in the input.

By instantiating index array properties with expressions from the data dependences, it is also possible to derive equalities between some of the iterators in the dependence. These new useful equalities can be used to eliminate extra loops in the runtime inspector. Table 3 shows that the additional equalities increases the number of dependence relations with reasonable complexities (). For instance, the Left Cholesky code have 4 high complexity dependence relation left. As illustrated in Section 4.2, the additional equalities can be used to reduce the complexity of all those relations. Finding equalities also help reduce the complexity of 4 dependences for Incomplete Cholesky0 and 2 dependences of Incomplete LU0 to become reasonable.

We should also mention that in addition to these 10 complexity reductions, the complexity of another 4 dependence relations were reduced. However, the complexity after simplification is still higher than the kernel, and hence these simplifications are not visible in Table 3.

Kernel name Remaining satisfiables Equality Impact Superset Impact
kernel Total kernel Total kernel Total

Gauss-Seidel CSR
2 2 2 2 2 2
Gauss-Seidel BCSR 4 4 4 4 2 2
Incomplete LU 0 4 2 4 2 4
Incomplete Cholesky 1 9 5 9 2 2
Forward solve CSR 1 1 1 1 1 1
Forward solve CSC 2 2 2 2 1 1
Sparse MV Mul. 0 0 0 0 0 0
Left Cholesky 0 4 4 4 2 2
Table 3. Effect of simplifications based additional equalities (Section 4) and redundancy elimination (Section 5) on the remaining 26 maybe satisfiable dependences for each code in the benchmark. The Total columns show the number of dependence relations that needs to be checked at runtime. The columns show the number of such tests that have the same or lower complexity than the kernel. Equality Impact is the numbers after using additional equalities, reducing the number of high complexity checks. Supserset Impact is the composed effect of using supserset relations after adding equalities, reducing the total number of checks.

7.5. Impact of Utilizing Superset Relationship

The superset relations we identify uncovers dependence relations that are redundant. We can discard the dependence relations that are found to be subsets of another and only generate runtime inspectors for remaining relations. As shown in Table 3, this results in fewer dependence relations to be checked at runtime. Most notably, the number of runtime checks were reduced from 4 to 2 for Left Cholesky, and both of those dependences are less comlex than the original algorithm.

As discussed in Section 5, the superset relation may reveal that a relation is redundant being subset of another relation with lower complexity. The Incomplete Cholesky kernel were left with 4 expensive relations even after adding equalities. As you can see in Table 3, these relations are removed from runtime checks by identifying the superset relations. For Incomplete Cholesky kernel, we have found 2 relations with less than orginal algorithm complexity to be superset of all the dependences that we need to have a runtime check for. The composed effect of our proposed technique reduces the inspector cost to 2 or fewer inexpensive tests for all of our kernels, except for the Incomplete LU.

7.6. Putting It All Together

We have presented a series of techniques to simplify dependence relations with the main motivation being automatic generation of efficient inspector code. Our approach aims to simplify the dependence relations starting from array properties that can be succinctly specified by the experts. We show that the array properties can be used to automatically disprove a large number of potential dependences, as well as reduce the complexity of remaining dependences. Combined with a method for detecting redundancies in dependence tests, we are able to generate efficient inspectors.

Table 4 summarizes the impact of our proposed approach on inspector complexity. It is interesting to note that Incomplete LU0 is the only kernel left with expensive inspector (more complex than kernel). This case is discussed further in Section 7.7.

Kernel name Inspector complexity Simplified inspector Kernel complexity
Gauss-Seidel CSR
Gauss-Seidel BCSR
Incomplete LU CSR
Incomplete Cholesky CSR
Forward solve CSC
Forward solve CSR
Sparse MV Mul. CSR
Left Cholesky CSC
Table 4. The impact of our simplifications on inspector complexity. The baseline inspector complexity is when all possible dependences are tested at runtime, without using any of the simplifications proposed in this paper. The simplified inspector complexity reports the final cost of inspection generated by our approach. The overall complexity of inspectors decreases considerably. The complexity of the kernels are included for comparison; k and K denote constant factors, with K signaling a bigger number.

7.7. Discussion: Limitations

Table 4 demonstrates that our method significantly reduces both the number of runtime checks and their complexity. Nonetheless, our approach is not free of limitations, which are discussed in this section.

Two of the original kernels include dynamic index arrays and temporary arrays that require privatization. As discussed in Section 7.1, these kernels can be preprocessed such that it can be accepted by our compiler. This preprocessing is currently done manually.

Using the associativity of reductions is important for Forward Solve CSC and Incomplete Cholesky0. We do not automate the reduction detection in this paper, as it is a complex task on its own. It is common for compilers and programming models, such as openMP, to provide pragma interfaces for programmers to signal which update should be considered as a reduction. We have followed the same approach.

Incomplete LU0 has two dependence relations that has higher complexity than the kernel, even with domain information. Related work by (Venkat et al., 2016) presents approximation techniques that reduce the inspector complexity for these high complexity relation to . Such approximation can potentially result in loss of some parallelism. Nevertheless,  (Venkat et al., 2016) show that the approximation of dependences does not significantly affect the performance of the partial parallelism for this code. We have not used approximations in our work, but it would be interesting to see how the two approaches can be combined.

8. Related Work

Array data dependence analysis has been used for a variety of applications, including automatic parallelization (Paek et al., 2002), locality optimization (Wolfe, 1989), communication generation, program slicing (Pugh and Rosser, 1997), detecting race conditions (Zheng et al., 2015a), and high-level synthesis (Alle et al., 2013). For sparse matrix codes, this analysis is made more difficult due to indirection through index arrays, such that the source and sink of dependences cannot be resolved until their values are available at runtime. For these and other situations where dependences arise that cannot be resolved until runtime, a number of techniques for compile time and runtime dependence analysis have been developed.

8.1. User-Provided Assertions

(McKinley, 1991) exploit user assertions about index arrays to increase the precision of dependence testing. The assertions certify common properties of index arrays, e.g., an index array can be a permutation array, monotonically increasing, and monotonically decreasing. (Lin and Padua, 2000) present a compile time analysis for determining index array properties, such as monotonicity. They use the analysis results for parallelization of sparse matrix computations.

Our approach also uses these assertions, but in addition we use more domain-specific assertions and provide a way to automate the general use of such assertions. In this paper, the idea of applying constraint instantiation of universally quantified constraints as is done in SMT solvers to find unsatisfactory dependences is novel and the assertions about index arrays we use are more general.

8.2. Proving Index Arrays Satisfy the Assertions

In this work, we assume that the assertions provided by the programmer is correct. It is useful to verify the user-provided assertions by analyzing the code that constructs the sparse matrix data structures. There is a large body of work in abstract interpretation that address this problem.

The major challenge in verifying the assertion about programs that manipulate arrays is the trade-off between scalability and precision. When there is a large number of updates to an array, keeping track of individual elements do not scale, but approximating the whole array as a single summary significantly degrades the precision. Many techniques to verify/infer important properties about array contents from programs have been developed, e.g., (Cousot et al., 2011; Gopan et al., 2005; Halbwachs and Péron, 2008).

In the work by (Henzinger et al., 2010), the authors present an approach for inferring shape invariants for matrices. While their work does not deal with sparse matrices and index arrays, it may help generate domain-specific assertions that we could employ to show that the data dependences are unsatisfiable.

The main subject of our work - dependence tests - does not involve array updates, since all the index arrays, which alter the control-flow and indexing of the data arrays, are not updated. This makes the verification of the assertions a closely related but orthogonal problem, which we do not address in this paper.

8.3. More General Quantifier Elimination Techniques

The area of SMT-solving is advancing at a significant pace; the webpage for SMT-COMP222http://smtcomp.sourceforge.net/2017/ provides a list of virtually all actively developed solvers, and how they fared in each theory category. As these solvers are moving into a variety of domains, quantifier instantiation and elimination has become a topic of central interest. Some of the recent work in this area are: E-matching (Moura and Bjørner, 2007), Model-Based (Ge and de Moura, 2009), Conflict-Based (Reynolds et al., 2014), and Counter-Example Guided (Reynolds et al., 2015).

These efforts make it clear that quantifier instantiation is challenging, and is an area of active development. SMT solvers often rely on heuristic-driven instantiations to show unsat for difficult problems. In this context, our work can be viewed as heuristic instantiation where the heuristic is inspired by decidable fragments of the array theory.

Dependence constraints with universally quantified assertions are related to the first order theory fragments described by (Bradley et al., 2006) as undecidable extensions to their array theory fragment. However,  (Löding et al., 2017) claim that the proofs for undecidability of extension theories by (Bradley et al., 2006) are incorrect, and declare their decidability status as an open problem. Regardless of whether the theory fragment that encompasses our dependence constraints is decidable or not following is true: if we soundly prove that a relation is unsatisfiable just with compile time information, the unsatisfiability applies in general, and having runtime information would not change anything. However, if a dependence detected to be satisfiable just with compile time information, we need to have runtime tests to see if it is actually satisfiable given runtime information, and even if it is, run time tests would determine for what values the dependence holds.

8.4. Dependence Analysis for Full Parallelization

Some compilation techniques have been developed to extend the dependence analysis to sparse, or non-affine programs (Benabderrahmane et al., 2010). These techniques extend to non-affine programs of various forms: while loops, polynomial expressions, function calls, data-dependent conditions, and indirection arrays. The outcome of such analysis is often an approximation, which is quite pessimistic for sparse computations involving indirection arrays. The focus of our work is not to identify (approximated) dependences, but to reduce the cost of runtime dependence checks by disproving potential dependences as much as possible at compile-time.

The work by (Pugh and Wonnacott, 1998) also formulate the problem in the theory of Presburger sets with uninterpreted functions. However, they only allow affine expressions of unquantified variables as indexing expressions to the function symbols, excluding some of the examples in this paper. They propose an analysis to identify conditions for a dependence to exist through the use of gist operator that simplifies the constraint system given its context. The result of this analysis may involve uninterpreted functions, and can be used to query the programmer for their domain knowledge. This is an interesting direction of interaction that complements our work.

Several runtime approaches focus on identifying loops we denoted fully parallel whose iterations are independent and can safely execute in parallel (Barthou et al., 1997; Pugh and Wonnacott, 1998; Moon and Hall, 1999) or speculatively execute in parallel while testing safety (Rauchwerger and Padua, 1999).

8.5. Dependence Analysis for Wavefront Parallelization

For sparse codes, even when loops carry dependences, the dependences themselves may be sparse, and it may be possible to execute some iterations of the loop in parallel (previously denoted partially parallel. The parallelism is captured in a task graph, and typically executed as a parallel wavefront. A number of prior works write specialized code to derive this task graph as part of their application (Saltz et al., 1991; Rauchwerger et al., 1995a; Zhuang et al., 2009; Bell and Garland, 2009; Park et al., 2014a; Park et al., 2014b) or with kernel-specific code generators (Byun et al., 2012). For example, Saltz and Rothbergs worked on manual parallelization of sparse triangular solver codes in the 1990s (Saltz, 1990; Rothberg and Gupta, 1992). There is also more recent work on optimizing sparse triangular solver NVIDIA GPUs and Intel’s multi-core CPUs (Rennich et al., 2016; Wang et al., 2014). Even though these manual optimizations have been successful at achieving high performance in some cases, significant programmer effort has to be invested for each of these codes and automating these parallelization strategies can significantly reduce this effort.

Other approaches automate the generation of inspectors that find task-graph, wavefront or partial parallelism. (Rauchwerger et al., 1995b) and others (Huang et al., 2013) have developed efficient and parallel inspectors that maintain lists of iterations that read and write each memory location. By increasing the number of dependences found unsatisfiable, the approach presented in this paper reduces the number of memory accesses that would need to be tracked. For satisfiable dependences, there is a tradeoff between inspecting iteration space dependences versus maintaining data for each memory access. That choice could be made at runtime. There are also other approaches for automatic generation of inspectors that have looked at simplifying the inspector by finding equalities, using approximation, parallelizing the inspector, and applying point-to-point synchronization to the executor (Venkat et al., 2016).

8.6. Algorithm-Specific Data Dependence Analysis

An algorithm-specific approach to represent data dependences and optimize memory usage of sparse factorization algorithms such as Cholesky  (Pothen and Toledo, 2004) uses an elimination tree, but to the best of our knowledge, this structure is not derived automatically from source code. When factorizing a column of a sparse matrix, in addition to nonzero elements of the input matrix new nonzero elements, called fill-in, might be created. Since the sparse matrices are compressed for efficiency, the additional fills during factorization make memory allocation ahead of factorization difficult. The elimination tree is used to predict the sparsity pattern of the L factor ahead of factorization so the size of the factor can be computed (Coleman et al., 1986) or predicted (Gilbert, 1994; Gilbert and Ng, 1993), and captures a potential parallel schedule of the tasks. Prior work has investigated the applicability of the elimination tree for dependence analysis for parallel implementation  (George et al., 1989; Gilbert and Schreiber, 1992; Pothen and Sun, 1993; Karypis and Kumar, 1995; Schenk and Gärtner, 2002; Hénon et al., 2002; Hogg et al., 2010; Zheng et al., 2015b; Rennich et al., 2016). Some techniques such as (Pothen and Sun, 1993; George et al., 1989; Hénon et al., 2002) use the elimination tree for static scheduling while others use it for runtime scheduling.

9. Conclusion

In this paper, we present an automated approach for showing sparse code data dependences are unsatisfiable or if not reducing the complexity for later runtime analysis. Refuting a data dependence brings benefits to many areas of sparse matrix code analysis, including verification and loop optimizations such as parallelization, pipelining, or tiling by completely eliminating the high runtime costs of deploying runtime dependence checking. Additionally, when a dependence remains satisfiable, our approach of performing constraint instantiation within the context of the Integer Set Library (ISL) enables equalities and subset relationships to be derived that simplify the runtime complexity of inspectors for a case study with wavefront parallelism. Parallelization of these sparse numerical methods is an active research area today, but one where most current approaches require manual parallelization. It is also worth noting that without inspector complexity reduction, most inspectors would timeout, thus underscoring the pivotal role of the work in this paper in enabling parallelization and optimization of sparse codes. Our results are established over 71 dependences extracted from 8 sparse numerical methods.

References

  • (1)
  • chi (2018) 2018. CTOP research group webpage at Utah. (2018). http://ctop.cs.utah.edu/ctop/?page_id=21
  • Alle et al. (2013) Mythri Alle, Antoine Morvan, and Steven Derrien. 2013. Runtime Dependency Analysis for Loop Pipelining in High-level Synthesis. In Proceedings of the 50th Annual Design Automation Conference (DAC ’13). ACM, New York, NY, USA, Article 51, 10 pages. https://doi.org/10.1145/2463209.2488796
  • Atzeni et al. (2016a) Simone Atzeni, Ganesh Gopalakrishnan, Zvonimir Rakamaric, Dong H. Ahn, Ignacio Laguna, Martin Schulz, Gregory L. Lee, Joachim Protze, and Matthias S. Müller. 2016a. ARCHER: Effectively Spotting Data Races in Large OpenMP Applications. In 2016 IEEE International Parallel and Distributed Processing Symposium, IPDPS 2016, Chicago, IL, USA, May 23-27, 2016. 53–62. https://doi.org/10.1109/IPDPS.2016.68
  • Atzeni et al. (2016b) S. Atzeni, G. Gopalakrishnan, Z. Rakamaric, D. H. Ahn, I. Laguna, M. Schulz, G. L. Lee, J. Protze, and M. S. Müller. 2016b. ARCHER: Effectively Spotting Data Races in Large OpenMP Applications. In 2016 IEEE International Parallel and Distributed Processing Symposium (IPDPS). 53–62. https://doi.org/10.1109/IPDPS.2016.68
  • Banerjee et al. (1993) Uptal Banerjee, David Gelernter, Alex Nicolau, and David Padua (Eds.). 1993. An Exact Method for Analysis of Value-based Array Data Dependences. Springer-Verlag, London, UK.
  • Barthou et al. (1997) Denis Barthou, Jean-François Collard, and Paul Feautrier. 1997. Fuzzy Array Dataflow Analysis. J. Parallel and Distrib. Comput. 40, 2 (1997), 210–226.
  • Basumallik and Eigenmann (2006) Ayon Basumallik and Rudolf Eigenmann. 2006. Optimizing irregular shared-memory applications for distributed-memory systems. In Proceedings of the Eleventh ACM SIGPLAN Symposium on Principles and Practice of Parallel Programming. ACM Press, New York, NY, USA, 119–128.
  • Bell and Garland (2009) Nathan Bell and Michael Garland. 2009. Implementing sparse matrix-vector multiplication on throughput-oriented processors. In SC ’09: Proceedings of the Conference on High Performance Computing Networking, Storage and Analysis. ACM, New York, NY, USA, 1–11.
  • Benabderrahmane et al. (2010) Mohamed-Walid Benabderrahmane, Louis-Noël Pouchet, Albert Cohen, and Cédric Bastoul. 2010. The Polyhedral Model Is More Widely Applicable Than You Think. In Compiler Construction, Vol. LNCS 6011. Springer-Verlag, Berlin, Heidelberg.
  • Bradley et al. (2006) Aaron R. Bradley, Zohar Manna, and Henny B. Sipma. 2006. What’s Decidable About Arrays? Springer Berlin Heidelberg, Berlin, Heidelberg, 427–442. https://doi.org/10.1007/11609773_28
  • Brandes (1988) T. Brandes. 1988. The importance of direct dependences for automatic parallelism. In Proceedings of the International Conference on Supercomputing. ACM, New York, NY, USA, 407–417.
  • Byun et al. (2012) Jong-Ho Byun, Richard Lin, Katherine A. Yelick, and James Demmel. 2012. Autotuning Sparse Matrix-Vector Multiplication for Multicore. Technical Report. UCB/EECS-2012-215.
  • Cheshmi et al. (2017) Kazem Cheshmi, Shoaib Kamil, Michelle Mills Strout, and Maryam Mehri Dehnavi. 2017. Sympiler: Transforming Sparse Matrix Codes by Decoupling Symbolic Analysis. In Proceedings of the International Conference for High Performance Computing, Networking, Storage and Analysis (SC ’17). ACM, New York, NY, USA, Article 13, 13 pages. https://doi.org/10.1145/3126908.3126936
  • Coleman et al. (1986) Thomas F Coleman, Anders Edenbrandt, and John R Gilbert. 1986. Predicting fill for sparse orthogonal factorization. Journal of the ACM (JACM) 33, 3 (1986), 517–532.
  • Cousot et al. (2011) Patrick Cousot, Radhia Cousot, and Francesco Logozzo. 2011. A Parametric Segmentation Functor for Fully Automatic and Scalable Array Content Analysis. In Proceedings of the 38th Symposium on Principles of Programming Languages (POPL ’11). 105–118. https://doi.org/10.1145/1926385.1926399
  • Davis (2006) Timothy A Davis. 2006. Direct methods for sparse linear systems. Vol. 2. Siam.
  • Davis and Hu (2011) Timothy A Davis and Yifan Hu. 2011. The University of Florida sparse matrix collection. ACM Transactions on Mathematical Software (TOMS) 38, 1 (2011), 1.
  • Douglas et al. (2000) Craig C. Douglas, Jonathan Hu, Markus Kowarschik, Ulrich Rüde, and Christian Weiß. 2000. Cache Optimization for Structured and Unstructured Grid Multigrid. Electronic Transaction on Numerical Analysis (February 2000), 21–40.
  • Feautrier (1991) Paul Feautrier. 1991. Dataflow Analysis of Array and Scalar References. International Journal of Parallel Programming 20, 1 (February 1991), 23–53.
  • Ge and de Moura (2009) Yeting Ge and Leonardo de Moura. 2009. Complete Instantiation for Quantified Formulas in Satisfiabiliby Modulo Theories. Springer Berlin Heidelberg, Berlin, Heidelberg, 306–320.
  • George et al. (1989) Alan George, Joseph WH Liu, and Esmond Ng. 1989. Communication results for parallel sparse Cholesky factorization on a hypercube. Parallel Comput. 10, 3 (1989), 287–298.
  • Gilbert (1994) John R Gilbert. 1994. Predicting structure in sparse matrix computations. SIAM J. Matrix Anal. Appl. 15, 1 (1994), 62–79.
  • Gilbert and Ng (1993) John R Gilbert and Esmond G Ng. 1993. Predicting structure in nonsymmetric sparse matrix factorizations. In Graph theory and sparse matrix computation. Springer, 107–139.
  • Gilbert and Schreiber (1992) John R Gilbert and Robert Schreiber. 1992. Highly parallel sparse Cholesky factorization. SIAM J. Sci. Statist. Comput. 13, 5 (1992), 1151–1172.
  • Gopan et al. (2005) Denis Gopan, Thomas Reps, and Mooly Sagiv. 2005. A Framework for Numeric Analysis of Array Operations. In Proceedings of the 32nd Symposium on Principles of Programming Languages (POPL ’05). 338–350. https://doi.org/10.1145/1040305.1040333
  • Habermehl et al. (2008) Peter Habermehl, Radu Iosif, and Tomáš Vojnar. 2008. What else is Decidable About Integer Arrays?. In Proceedings of the 11th International Conference on Foundations of Software Science and Computational Structures (FOSSACS’08/ETAPS’08). 474–489.
  • Halbwachs and Péron (2008) Nicolas Halbwachs and Mathias Péron. 2008. Discovering Properties About Arrays in Simple Programs. In Proceedings of the 29th Conference on Programming Language Design and Implementation (PLDI ’08). 339–348. https://doi.org/10.1145/1375581.1375623
  • Hénon et al. (2002) Pascal Hénon, Pierre Ramet, and Jean Roman. 2002. PASTIX: a high-performance parallel direct solver for sparse symmetric positive definite systems. Parallel Comput. 28, 2 (2002), 301–321.
  • Henzinger et al. (2010) Thomas A. Henzinger, Thibaud Hottelier, Laura Kovács, and Andrei Voronkov. 2010. Invariant and Type Inference for Matrices. In Verification, Model Checking, and Abstract Interpretation, 11th International Conference, VMCAI 2010, Madrid, Spain, January 17-19, 2010. Proceedings. 163–179.
  • Hogg et al. (2010) Jonathan D Hogg, John K Reid, and Jennifer A Scott. 2010. Design of a multicore sparse Cholesky factorization using DAGs. SIAM Journal on Scientific Computing 32, 6 (2010), 3627–3649.
  • Huang et al. (2013) Jialu Huang, Thomas B. Jablin, Stephen R. Beard, Nick P. Johnson, and David I. August. 2013. Automatically exploiting cross-invocation parallelism using runtime information. In CGO. 1–11.
  • Karypis and Kumar (1995) George Karypis and Vipin Kumar. 1995. A high performance sparse Cholesky factorization algorithm for scalable parallel computers. In Frontiers of Massively Parallel Computation, 1995. Proceedings. Frontiers’ 95., Fifth Symposium on the. IEEE, 140–147.
  • Kroening and Strichman (2016) Daniel Kroening and Ofer Strichman. 2016. Decision Procedures: An Algorithmic Point of View (2nd ed.). Springer Berlin Heidelberg.
  • Lin and Padua (2000) Yuan Lin and David Padua. 2000. Compiler analysis of irregular memory accesses. In Proceedings of the ACM SIGPLAN Conference on Programming Language Design and Implementation, Vol. 35. ACM, New York, NY, USA, 157–168.
  • Löding et al. (2017) Christof Löding, P. Madhusudan, and Lucas Peña. 2017. Foundations for Natural Proofs and Quantifier Instantiation. Proc. ACM Program. Lang. 2, POPL, Article 10 (Dec. 2017), 30 pages. https://doi.org/10.1145/3158098
  • McKinley (1991) Kathryn McKinley. 1991. Dependence Analysis of Arrays Subscriptecl by Index Arrays. Technical Report TR91187. Rice University.
  • Moon and Hall (1999) Sungdo Moon and Mary W. Hall. 1999. Evaluation of Predicated Array Data-flow Analysis for Automatic Parallelization. In Proceedings of the Seventh ACM SIGPLAN Symposium on Principles and Practice of Parallel Programming (PPoPP ’99). ACM, New York, NY, USA, 84–95. https://doi.org/10.1145/301104.301112
  • Moura and Bjørner (2007) Leonardo Moura and Nikolaj Bjørner. 2007. Efficient E-Matching for SMT Solvers. In Proceedings of the 21st International Conference on Automated Deduction: Automated Deduction (CADE-21). 183–198. https://doi.org/10.1007/978-3-540-73595-3_13
  • Oancea and Rauchwerger (2012) Cosmin E. Oancea and Lawrence Rauchwerger. 2012. Logical inference techniques for loop parallelization. In Proceedings of the 33rd ACM SIGPLAN conference on Programming Language Design and Implementation (PLDI ’12). ACM, New York, NY, USA, 509–520.
  • Paek et al. (2002) Yunheung Paek, Jay Hoeflinger, and David Padua. 2002. Efficient and Precise Array Access Analysis. ACM Trans. Program. Lang. Syst. 24, 1 (Jan. 2002), 65–109.
  • Park et al. (2014a) Jongsoo Park, Mikhail Smelyanskiy, Narayanan Sundaram, and Pradeep Dubey. 2014a. Sparsifying Synchronization for High-Performance Shared-Memory Sparse Triangular Solver. In Proceedings of the 29th International Conference on Supercomputing - Volume 8488 (ISC 2014). Springer-Verlag New York, Inc., New York, NY, USA, 124–140.
  • Park et al. (2014b) Jongsoo Park, Mikhail Smelyanskiy, Karthikeyan Vaidyanathan, Alexander Heinecke, Dhiraj D. Kalamkar, Xing Liu, Md. Mosotofa Ali Patwary, Yutong Lu, and Pradeep Dubey. 2014b. Efficient Shared-memory Implementation of High-performance Conjugate Gradient Benchmark and Its Application to Unstructured Matrices. In Proc. Int. Conf. for High Performance Computing, Networking, Storage and Analysis (SC ’14). IEEE Press, Piscataway, NJ, USA, 945–955.
  • Pothen and Sun (1993) Alex Pothen and Chunguang Sun. 1993. A mapping algorithm for parallel sparse Cholesky factorization. SIAM Journal on Scientific Computing 14, 5 (1993), 1253–1257.
  • Pothen and Toledo (2004) Alex Pothen and Sivan Toledo. 2004. Elimination Structures in Scientific Computing. (2004).
  • Pozo et al. (1996) Roldan Pozo, Karin Remington, and Andrew Lumsdaine. 1996. SparseLib++ v. 1.5 Sparse Matrix Class Library reference guide. NIST Interagency/Internal Report (NISTIR)-5861 (1996).
  • Pugh and Wonnacott (1994) Bill Pugh and David Wonnacott. 1994. Nonlinear Array Dependence Analysis. Technical Report CS-TR-3372. Dept. of Computer Science, Univ. of Maryland.
  • Pugh and Rosser (1997) William Pugh and Evan Rosser. 1997. Iteration space slicing and its application to communication optimization. In Proceedings of the 11th international conference on Supercomputing. ACM Press, 221–228.
  • Pugh and Wonnacott (1995) William Pugh and David Wonnacott. 1995. Nonlinear Array Dependence Analysis. In Third Workshop on Languages, Compilers, and Run-Time Systems for Scalable Computers. Troy, New York.
  • Pugh and Wonnacott (1998) William Pugh and David Wonnacott. 1998. Constraint-Based Array Dependence Analysis. ACM Transactions on Programming Languages and Systems 20, 3 (1 May 1998), 635–678.
  • Rauchwerger et al. (1995a) L. Rauchwerger, N. M. Amato, and D. A. Padua. 1995a. Run-Time Methods for Parallelizing Partially Parallel Loops. In Proceedings of the ACM International Conference on Supercomputing (ICS). ACM, New York, NY, USA, 137–146.
  • Rauchwerger et al. (1995b) Lawrence Rauchwerger, Nancy M. Amato, and David A. Padua. 1995b. A Scalable Method for Run-Time Loop Parallelization. International Journal of Parallel Programming 23, 6 (1995), 537–576.
  • Rauchwerger and Padua (1999) Lawrence Rauchwerger and David A. Padua. 1999. The LRPD Test: Speculative Run-Time Parallelization of Loops with Privatization and Reduction Parallelization. IEEE Trans. Parallel Distrib. Syst. 10, 2 (Feb. 1999), 160–180. https://doi.org/10.1109/71.752782
  • Ravishankar et al. (2015) Mahesh Ravishankar, Roshan Dathathri, Venmugil Elango, Louis-Noël Pouchet, J. Ramanujam, Atanas Rountev, and P. Sadayappan. 2015. Distributed Memory Code Generation for Mixed Irregular/Regular Computations. In Proceedings of the 20th ACM SIGPLAN Symposium on Principles and Practice of Parallel Programming (PPoPP 2015). ACM, New York, NY, USA, 65–75. https://doi.org/10.1145/2688500.2688515
  • Rennich et al. (2016) Steven C Rennich, Darko Stosic, and Timothy A Davis. 2016. Accelerating sparse Cholesky factorization on GPUs. Parallel Comput. 59 (2016), 140–150.
  • Reynolds et al. (2015) Andrew Reynolds, Morgan Deters, Viktor Kuncak, Clark W. Barrett, and Cesare Tinelli. 2015. On Counterexample Guided Quantifier Instantiation for Synthesis in CVC4. CoRR abs/1502.04464 (2015). http://arxiv.org/abs/1502.04464
  • Reynolds et al. (2014) Andrew Reynolds, Cesare Tinelli, and Leonardo de Moura. 2014. Finding Conflicting Instances of Quantified Formulas in SMT. In Proceedings of the 14th Conference on Formal Methods in Computer-Aided Design (FMCAD ’14). Article 31, 8 pages.
  • Rothberg and Gupta (1992) Edward Rothberg and Anoop Gupta. 1992. Parallel ICCG on a hierarchical memory multiprocessor - Addressing the triangular solve bottleneck. Parallel Comput. 18, 7 (1992), 719 – 741. https://doi.org/10.1016/0167-8191(92)90041-5
  • Rus et al. (2003) Silvius Rus, Jay Hoeflinger, and Lawrence Rauchwerger. 2003. Hybrid analysis: static & dynamic memory reference analysis. International Journal Parallel Programming 31, 4 (2003), 251–283.
  • Saltz (1990) Joel H. Saltz. 1990. Aggregation Methods for Solving Sparse Triangular Systems on Multiprocessors. SIAM J. Sci. Stat. Comput. 11, 1 (Jan. 1990), 123–144. https://doi.org/10.1137/0911008
  • Saltz et al. (1991) Joel H. Saltz, Ravi Mirchandaney, and Kay Crowley. 1991. Run-Time Parallelization and Scheduling of Loops. IEEE Trans. Comput. 40, 5 (1991), 603–612.
  • Schenk and Gärtner (2002) Olaf Schenk and Klaus Gärtner. 2002. Two-level dynamic scheduling in PARDISO: Improved scalability on shared memory multiprocessing systems. Parallel Comput. 28, 2 (2002), 187–197.
  • Shostak (1979) Robert E. Shostak. 1979. A Practical Decision Procedure for Arithmetic with Function Symbols. J. ACM 26, 2 (April 1979), 351–360. https://doi.org/10.1145/322123.322137
  • Streit et al. (2015) Kevin Streit, Johannes Doerfert, Clemens Hammacher, Andreas Zeller, and Sebastian Hack. 2015. Generalized Task Parallelism. ACM Trans. Archit. Code Optim. 12, 1, Article 8 (April 2015), 25 pages. https://doi.org/10.1145/2723164
  • Strout et al. (2004) Michelle Mills Strout, Larry Carter, Jeanne Ferrante, and Barbara Kreaseck. 2004. Sparse Tiling for Stationary Iterative Methods. International Journal of High Performance Computing Applications 18, 1 (February 2004), 95–114.
  • Strout et al. (2016) Michelle Mills Strout, Alan LaMielle, Larry Carter, Jeanne Ferrante, Barbara Kreaseck, and Catherine Olschanowsky. 2016. An Approach for Code Generation in the Sparse Polyhedral Framework. Parallel Comput. 53, C (April 2016), 32–57.
  • Venkat et al. (2016) Anand Venkat, Mahdi Soltan Mohammadi, Jongsoo Park, Hongbo Rong, Rajkishore Barik, Michelle Mills Strout, and Mary Hall. 2016. Automating Wavefront Parallelization for Sparse Matrix Computations. In Proceedings of the International Conference for High Performance Computing, Networking, Storage and Analysis (SC ’16). IEEE Press, Piscataway, NJ, USA, Article 41, 12 pages. http://dl.acm.org/citation.cfm?id=3014904.3014959
  • Verdoolaege (2010) Sven Verdoolaege. 2010. isl: An integer set library for the polyhedral model. In Proceedings of the 3rd International Congress on Mathematical Software (ICMS ’10). 299–302.
  • Verdoolaege (2018) Sven Verdoolaege. 2018. Integer Set Library: Manual. http://isl.gforge.inria.fr//manual.pdf
  • Vuduc et al. (2002) Richard Vuduc, Shoaib Kamil, Jen Hsu, Rajesh Nishtala, James W Demmel, and Katherine A Yelick. 2002. Automatic performance tuning and analysis of sparse triangular solve. ICS.
  • Wang et al. (2014) Endong Wang, Qing Zhang, Bo Shen, Guangyong Zhang, Xiaowei Lu, Qing Wu, and Yajuan Wang. 2014. Intel math kernel library. In High-Performance Computing on the Intel® Xeon Phi. Springer, 167–188.
  • Wolfe (1989) M. Wolfe. 1989. More Iteration Space Tiling. In Proceedings of the 1989 ACM/IEEE Conference on Supercomputing (Supercomputing ’89). ACM, New York, NY, USA, 655–664. https://doi.org/10.1145/76263.76337
  • Zheng et al. (2015a) M. Zheng, M. S. Rogers, Z. Luo, M. B. Dwyer, and S. F. Siegel. 2015a. CIVL: Formal Verification of Parallel Programs. In 2015 30th IEEE/ACM International Conference on Automated Software Engineering (ASE). 830–835. https://doi.org/10.1109/ASE.2015.99
  • Zheng et al. (2015b) Ran Zheng, Wei Wang, Hai Jin, Song Wu, Yong Chen, and Han Jiang. 2015b. GPU-based multifrontal optimizing method in sparse Cholesky factorization. In Application-specific Systems, Architectures and Processors (ASAP), 2015 IEEE 26th International Conference on. IEEE, 90–97.
  • Zhuang et al. (2009) Xiaotong Zhuang, A.E. Eichenberger, Yangchun Luo, K. O’Brien, and K. O’Brien. 2009. Exploiting Parallelism with Dependence-Aware Scheduling. In International Conference on Parallel Architectures and Compilation Techniques (PACT). IEEE Computer Society, Los Alamitos, CA, USA, 193–202.
