I Introduction

An airbone hyperspectral imaging sensor is capable of simultaneously acquiring the same spatial scene in a contiguous and multiple narrow (0.01 - 0.02 m) spectral wavelength (color) bands [1, 2, 3]. When all the spectral bands are stacked together, the resulting hyperspectral image (HSI) is a three dimensional data cube; each “pixel” in the HSI is a

-dimensional vector,

, where stands for the total number of spectral bands.
The HSI usually contains both pure and mixed pixels. A pure pixel contains only one single material, whereas a mixed pixel contains multiple materials, with its spectral signature representing the aggregate of all the materials in the corresponding spatial location. The latter situation often arises because hyperspectral images are collected hundred to thousands of meters away from an object, so that the object becomes smaller than the size of a pixel. Other scenarios might involve for example a military target hidden under foliage or covered with camouflage material.

With the rich information afforded by the high spectral dimensionality, hyperspectral imagery has found many applications in various fields such as agriculture [4, 5], mineralogy [6], military [7, 8, 9], and in particular, target detection [1, 2, 10, 11, 7, 12, 13]. Usually, the detection is built using a binary hypothesis test that chooses between the following competing null and alternative hypothesis: target absent (), that is, the test pixel consists only of background; and target present () where may be either fully or partially occupied by the target material.
We can regard each test pixel as being made up of + , where designates the target fill-fraction, is the spectrum of the target, and the spectrum of the background. In case when , the pixel is fully occupied by the target material and is usually referred as full or resolved target pixel. When , the pixel is partially occupied by the target material, and is usually referred as subpixel or unresolved target .

Different Gaussian-based target detectors (e.g. Matched Filter [14, 15], Normalized Matched Filter [16], Kelly detector [17]) have been developed. In these classical detectors, the target of interest to detect is known, that is, its spectral signature is fully provided to the user. However, these detectors present several limitations in real world hyperspectral imagery.

Firstly, they depend on the unknown covariance matrix (of the background surrounding the test pixel) whose entries have to be carefully estimated specially in large dimensions

[18, 19] and to ensure success under different environment [20, 21, 22]

. Secondly, there is always an explicit assumption (specifically, Gaussian) on the statistical distribution characteristics of the observed data. For instance, most materials are treated as Lambertian because their bidirectional reflectance distribution function characterizations are usually not available, but the actual reflection is likely to have both a diffuse and a specular component. This latter component would result in gross corruption of the data. In addition, spectra from multiple materials are usually assumed to interact according to a linear mixing model; nonlinear mixing effects are not represented and will contribute to another source of noise.


Lastly, the use of only a single reference spectrum for the target of interest may be inadequate since in real world hyperspectral imagery, various effects that produce variability to the material spectra (e.g. atmospheric conditions, sensor noise, material composition, etc.) are inevitable. For instance, target signatures are typically measured in laboratories or in the field with hand-held spectrometers that are at most a few inches from the target surface. Hyperspectral images, however, are collected at huge distances away from the target and have significant atmospheric effects present.

To more effectively separate these non-Gaussian noise from signal, and to have a target detector that is invariant to atmospheric effects, dictionaries of target and background have been developed (denoted as and in this paper) and the test signal is then modeled as a sparse linear combination of the prototype signals taken from the dictionaries [23, 24, 25]. This sparse representation approach can alleviate the spectral variability caused by atmospheric effects, and can also better deal with a greater range of noise phenomena. Our work falls under this broad family of dictionary-based approach.
Although these dictionary-based-methods can in principle address all the aforementioned limitations, the main drawback is that they usually lack a sufficiently universal dictionary, especially for the background ; some form of in-scene adaptation would be desirable. Chen et al. [23, 24] have demonstrated in their sparse representation approach, that using an adaptive scheme (a local method) to construct usually yields better target detection results than with a global dictionary generally constructed from some background materials (e.g. trees, grass, road, buildings, vegetation, etc.). This is to be expected since the subspace spanned by the background dictionary becomes adaptive to the local statistics. Zhang et al. [25] were based on the same adaptive scheme in their sparse representation based binary hypothesis (SRBBH) approach.

In fact, the construction of a locally adaptive is a very challenging problem since a contamination of it by the target pixels can potentially affect the target detection performance. Usually, the adaptive scheme is based on a dual concentric window centered on the test pixel (Figure 1), with an inner window region (IWR) centered within an outer window region (OWR), and only the pixels in the OWR will constitute the samples for . In other words, if the size of OWR is and the size of IWR is , where , then the total number of pixels in the OWR that will form is . Clearly, the dimension of IWR is very important and has a strong impact on the target detection performance since it aims to enclose the targets of interests to be detected. It should be set larger than or equal to the size of all the desired targets of interests in the corresponding HSI, so as to exclude the target pixels from erroneously appearing in . However, information about the target size in the image is usually not at our disposal. It is also very unwieldy to set this size parameter when the target could be of irregular shape (e.g. searching for lost plane parts of a missing aircraft). Another tricky situation is when there are multiple targets in close proximity in the image (e.g. military vehicles in long convoy formation).

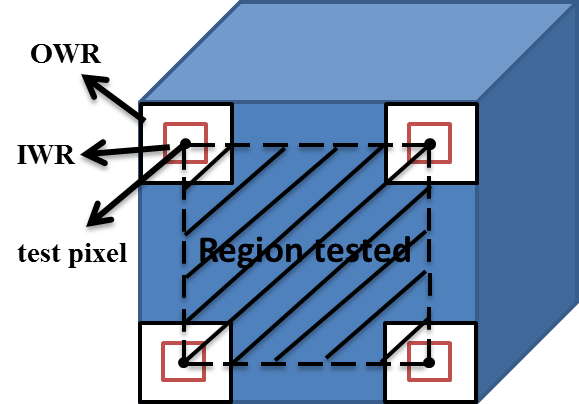

Fig. 1: The sliding dual concentric window across the HSI

In this paper, we handle the aforementioned challenges in constructing by providing a method capable of removing the targets from the background, and hence, avoiding the use of an IWR to construct

as well as dealing with a larger range of target size, shape, number, and placement in the image. Based on a modification of the recently developed Robust Principal Component Analysis (RPCA)

[26], our method decomposes an input HSI into a background HSI (denoted by ) and a sparse target HSI (denoted by ) that contains the targets of interests.
While we do not need to make assumptions about the size, shape, or number of the targets, our method is subject to certain generic constraints that make less specific assumption on the background or target. These constraints are similar to those used in RPCA [26, 27], including: 1) the background is not too heavily cluttered with many different materials with multiple spectra, so that the background signals should span a low-dimensional subspace, a property that can be expressed as the low rank condition of a suitably formulated matrix [28, 29]; 2) the total image area of all the target(s) should be small relative to the whole image (i.e. spatially sparse), e.g., several hundred pixels in a million pixel image, though there is no restriction on target shape or the proximity between targets.

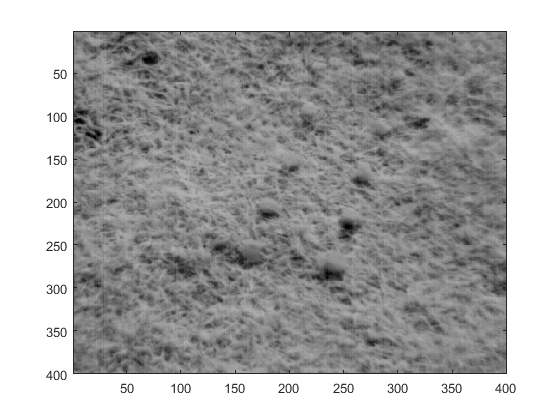

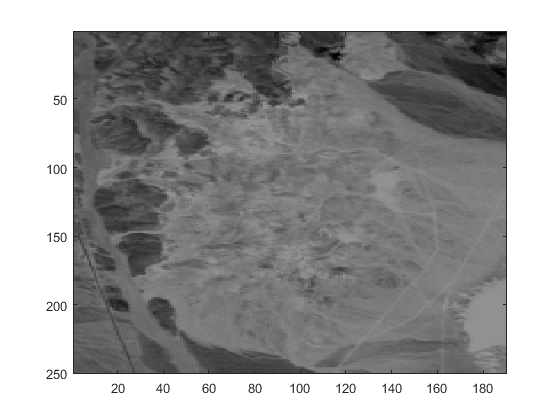

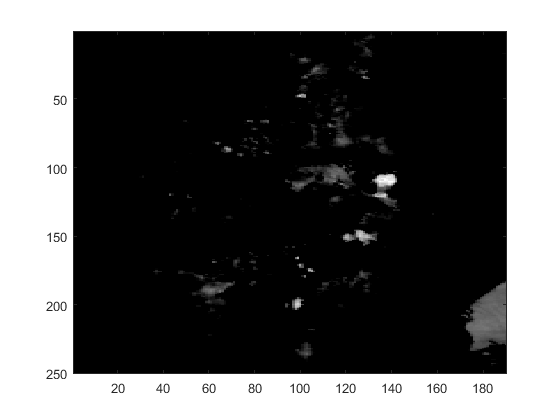

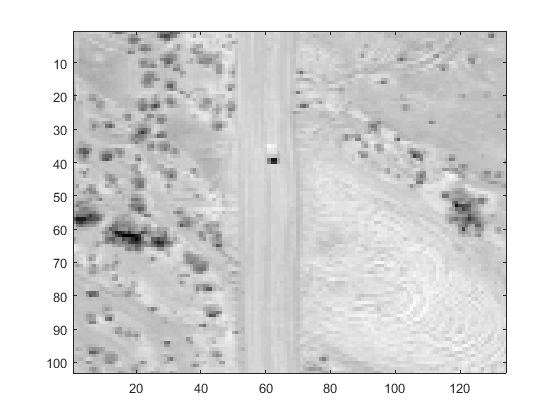

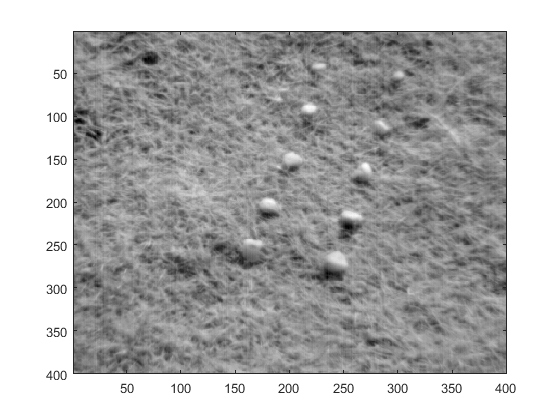

Fig. 2: Columns from left to right: the original HSI (mean power in db), the ground truth image for the target of interest, the low rank background HSI (mean power in db), and the sparse target HSI after some thresholding (mean power in db).

Our method also assumes that the target spectra is available to the user and that the atmospheric influence can be accounted for by the target dictionary . This pre-learned target dictionary is used to cast the general RPCA into a more specific form, specifically, we further factorize the sparse component from RPCA into the product of and a sparse activation matrix

. This modification is essential to disambiguate the true targets from other small objects, as the following discussion will show. In our application, there are often other small, heterogeneous, high contrast regions that are non-targets. These would have been deemed as outliers (targets) under the general RPCA framework. Compounding the decomposition is also the often uniform material present in most targets, which means that they would contribute only a small increase in the rank of the background HSI

if they were to be grouped in the background HSI. Indeed, some other heterogeneous non-target objects or specular highlights may contribute a larger increase in rank and thus they are more liable to be treated as outliers (targets) in the decomposition under general RPCA. In other words, there is a substantial overlap between the and for the general RPCA to be well-posed or work well.

Let us take an example in Figure 2 that uses the RPCA model solved via Stable Principal Component Pursuit [30] on three real hyperspectral images. As can be seen, despite the effort to individually tune the parameters for best separation for each of the three images, it is not possible to obtain a clean separation. The first HSI [31, 29] (first row) is acquired by the Nuance Cri hyperspectral sensor. It covers an area of pixels with 46 spectral bands in wavelengths ranging from 650 to 1100 nm. It contains ten rocks targets in a simple background and thus poses no problem for the general RPCA. However, the other images represent more complex background; for example, the second HSI [32] (second row) which is a image and consisting of 167 spectral bands, depicts a scrubby terrain with small heterogeneous regions comprised of trees and one vehicle, the latter being the target of interest in this case. We observe that both the vehicle and trees are being deposited in the sparse target image. Even with a lot of false alarms in the sparse target image, the background is still not completely cleansed of the target. The third HSI [33, 34] (third row) is a region of the Cuprite mining district area in which are present some Buddingtonite pixels considered as targets. The RPCA model was not able to find this target but instead other small heterogeneous and high contrast regions are preferentially deposited in the sparse target image. A brief details about the third HSI is given in the experiment section. Note that in the experiments, only the third HSI is evaluated since for the first two hyperspectral images, there is no available samples for the targets in the spectral libraries.

In this regard, the incorporation of the target dictionary prior can, we feel, greatly help in identifying the true targets and separate them from the background. From the proposed model, we aim to use the background HSI for a more accurate construction of , following which various dictionary-based-methods can be used to carry out a more elaborate binary hypothesis test. Via the background HSI , a locally adaptive can be constructed without the need of using an IWR, and also avoiding contamination by the target pixels.
An alternative strategy would be to directly use the target HSI (the product of and the sparse activation matrix ) as a detector. That is, we detect the non-zero entries of the sparse target image, and targets are deemed to be present at these non-zero support.

This paper is structured along the following lines. First comes an overview of some related works in section II. In Section III, the proposed decomposition model as well as the two strategies that realize the target detection are briefly outlined. Section IV presents both synthetic and real experiments to gauge the effectiveness of the two outlined strategies. The paper ends with a summary of the work and some directions for future works.

Summary of Main Notations: Throughout this paper, we depict vectors in lowercase boldface letters and matrices in uppercase boldface letters. The notation and stand for the transpose and trace of a matrix, respectively. In addition, is for the rank of a matrix. A variety of norms on matrices will be used. For instance, is a matrix, is the -th column. The matrix , norms are defined by ,

, respectively. The Frobenius norm and the nuclear norm (the sum of singular values of a matrix) are denoted by

and , respectively.

Ii Related works

Whatever the real application may be, somehow the general RPCA model needs to be subject to further assumptions for automatically removing the true target from the background. There have been some recent works that are developed to introduce a subspace basis dictionary in the general RPCA, either in the low rank or sparse component. For example, the generalized model of RPCA, named as the Low-Rank Representation (LRR) [35], uses the low rank part to incorporate a subspace basis dictionary, rather than self-representation, in contrast with ours. The major drawback in LRR is that the incorporated dictionary has to be constructed from the background and be pure from the target samples. This challenge is similar to our background dictionary construction problem.

In the earliest models using low rank matrix to represent background [26, 27, 30], no prior knowledge on the target was considered. In some applications such as Speech enhancement and hyperspectral imagery, we may expect some prior information about the target of interest and which can be provided to the user. Thus, incorporating this information about the target into the separation scheme in the general RPCA model should allow us to potentially improve the target extraction performance. For example, in [36, 37], the authors proposed a Speech enhancement system by exploiting the knowledge about the likely form of the targeted speech. This was accomplished by factorizing the sparse component from RPCA into the product of a dictionary of target speech templates and a sparse activation matrix. The proposed methods in [36] and [37] typically differ on how the fixed target dictionary of speech spectral templates is constructed. Our model separation in section III is very related to [36, 37]. In real world hyperspectral imagery, the prior target information may not be only related to its spatial properties (e.g. size, shape, texture) and which is usually not at our disposal, but to its spectral shape signature. The latter usually hinges on the nature of the given HSI where the spectra of the targets of interests present have been already measured by some laboratories or with some hand-held spectrometers.
In addition, by using physical models and the MORTRAN atmospheric modeling program [38], a number of samples for a specific target can be generated under various atmospheric conditions.

Now we provide a rapid overview of the SRBBH detector that will be used for evaluation throughout the experiments later:

Ii-a An overview of the SRBBH detector [25]

The SRBBH detector is defined as follows:

(1)

with

where , . Both and tend to be a sparse vectors. Actually, and are a given upper bound on the sparsity level [39]. For simplicity, and as in [25], and are set equally to each other. In the experiments later, we set .
In this paper, we solve each of and using the Orthogonal Matching Pursuit [40] greedy algorithm. If with being a prescribed threshold value, then is declared as target; otherwise, will be labeled as background.
In fact, the SRBBH detector was developed very recently to combine the idea of binary hypothesis and sparse representation, obtaining a more complete and realistic model than [23]. More precisely, if the test pixel belongs to , it will be modeled by the background dictionary only; otherwise, it will be modeled by the union of and . This in fact yields a competition between the two hypothesis corresponding to the different pixel class label.

Iii Main contribution

Iii-a Problem formulation

Suppose a HSI of size , where and are the height and width of the image scene, respectively, and is the number of spectral bands. Let us consider that the given HSI contains target pixels, , with , where represents the known target that replaces a fraction of the background (i.e. at the same spatial location). The remaining () pixels in the given HSI, with , are thus only background (). By assuming that all consist of similar materials, thus they should be represented by a linear combination of common target samples , where (the superscript is for target), but weighted with different set of coefficients . Thus, each of the targets is represented as:

(2)

We rearrange the given HSI into a two-dimensional matrix , with (by lexicographically ordering the columns). This matrix , can be decomposed into a low rank matrix representing the pure background, a sparse matrix capturing any spatially small signals residing in the known target subspace, and a noise matrix . More precisely, the model used is

(3)

where is the sparse target matrix, ideally with non-zero rows representing , with target dictionary having columns representing target samples , and coefficient matrix that should be a sparse column matrix, again ideally containing non-zero columns each representing , .

is assumed to be independent and identically distributed Gaussian noise with zero mean and unknown standard deviation.


After reshaping , and back to a cube of size , we call these entities the “low rank background HSI”, “sparse target HSI”, and “noise HSI”, respectively.
In order to recover the low rank matrix and sparse target matrix , we consider the following minimization problem:

(4)

where controls the rank of , and the sparsity level in .

Iii-B Recovering low rank background matrix and sparse target matrix by convex optimization

Problem (4) is NP-hard due to the presence of the rank term and the term. We relax these terms to their convex proxies, specifically, using nuclear norm as a surrogate for the rank term, and the norm for the norm. We now need to solve the following convex minimization problem:

(5)

Problem (5) is solved via an alternating minimization of two subproblems. Specifically, at each iteration :

(6a)
(6b)

The minimization sub-problems (6a) (6b) are convex and each can be solved optimally. (6a) is solved via the Singular Value Thresholding operator [41]. (6b) refers to the Lasso problem (if we reshape the matrix into a vector) which can be solved by various methods, among which we adopt the Alternating Direction Multiplier Method. More precisely, we introduce an auxiliary variable into sub-problem (6b) and recast it into the following form:

(7)

This problem (7) can then be solved via the Augmented Lagrangian Multiplier method [42, 43] as follows:

(8a)
(8b)
(8c)

where is the Lagrangian multiplier matrix, and is a positive scalar. We initialize , and update . The criteria for convergence of problem (7) is .
For Problem (5), we stop the iteration when the following convergence criterion is satisfied:



where is a precision tolerance parameter. In the experiments, we set .

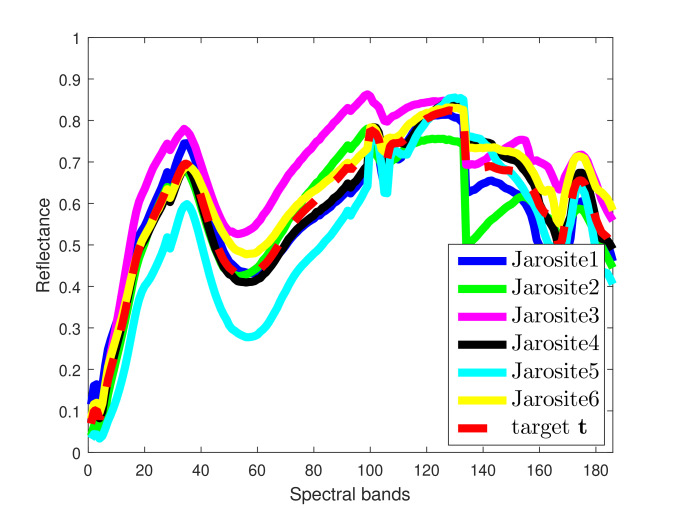

Fig. 3: Plot of the six Jarosite samples taken from the online USGS Spectral library (which will constitue the target dicitonary ), and the target of interest consisting of the mean of the six Jarosite samples.

               =                                  +                         +

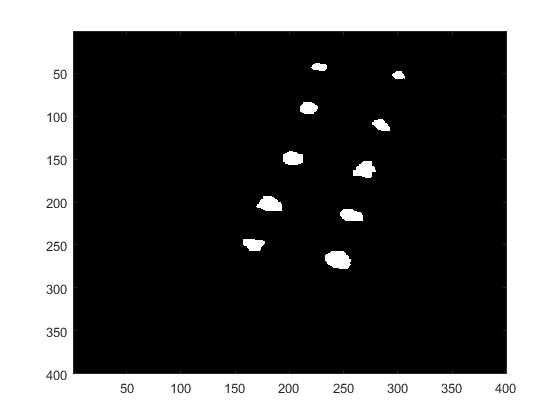

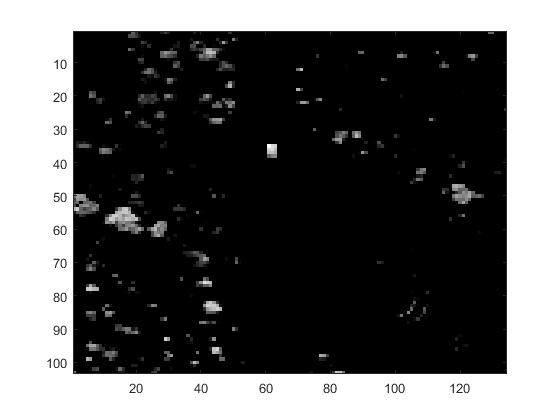

Fig. 4: Visual separation of the 7 targets blocks for : We exhibit the mean power in dB over the 186 bands. Columns from left to right: the original HSI containing the 7 target blocks (), low rank background HSI , target HSI , noise HSI.

Iii-C What after the target and background separation

Two strategies are available to us to realize the target detection.

Strategy one: We use the background HSI for a more accurate construction of . For each test pixel in the original HSI, we create a concentric window of size on the background HSI , and all the pixels within the window (except the center pixel) will each contribute to one column in . Note that this concentric window amounts to an OWR of size with IWR of size . Next, we make use of the SRBBH detector [25] 111The reason why we choose the SRBBH detector instead of [23] is because it combines the idea of binary hypothesis and sparse representation, obtaining a more complete and realistic model than [23]., but with the background dictionary constructed in the preceding manner. Note that for this scheme to work, we do not need a clean separation (by clean separation, we mean that all targets are present in with no false alarms); specifically, we require the entire target fraction to be separated from the background and deposited in the target image, but some of the background objects can also be deposited in the target image. As long as enough signatures of these background objects remain in the background HSI , the constructed will be adequately representative of the background.

It is important to mention that the edges of the HSI are not processed and so the images are trimmed in function of the window size. As a result, we shall call each of the trimmed image as “the region tested”. In fact, by taking a large concentric window, a lot of pixels in the image (near the edges) will not be tested. One can imagine how this can become problematic if these excluded pixels from testing contain some or all the targets of interests. In this regard, after removing the targets from the background by our problem (5), a small concentric window will be sufficient to construct an accurate background dictionary , and hence, almost the entire image will be tested.

Note also that we could have constructed directly from all the pixels in the low rank background HSI (except the pixel that corresponds to the test pixel in the original HSI) without the use of any sliding concentric window. This has the advantage of testing the entire image for the detection (that is, the region tested = the original image). However, we choose not to do this as this would result in a substantially larger and therefore a much increased computational cost.

Strategy two: We use directly as a detector. Note that for this scheme to work, we require as few false alarms as possible to be deposited in the target image, but we do not need the target fraction to be entirely removed from the background (that is, a very weak target separation can suffice). As long as enough of the target fractions are moved to the target image such that non-zero support is detected at the corresponding pixel location, it will be adequate for our detection scheme. From this standpoint, we should choose a that is relatively large, so that the target image is really sparse with zero or little false alarms, and only signals that reside in the target subspace specified by will be deposited there.

Iv Experiments and Analysis

In what follows, we perform both synthetic as well as real experiments to gauge the target detection performances of the two preceding strategies in Subsection III-C.
The evaluations are done on two small zones acquired from a scene formed by a concatenation of two sectors labeled as “f970619t01p02 r02 sc03.a.rf” and “f970619t01p02 r02 sc04.a.rfl” in the online Cuprite HSI data [44]. The Cuprite HSI is a mining district area which is well understood mineralogically [33, 34]. It contains well exposed zones of advanced argillic alteration, consisting principally of kiolinite, alunite, and hydrothermal silica. It was acquired by the Airbone Visible / Infrared Imaging Spectrometer (AVIRIS) in 23 June 1995 at local noon, and under high visibility conditions by a NASAER-2 aircraft flying at an altitude of 20 km. It consists of 224 spectral (color) bands in contiguous (of about 0.01 m) wavelengths ranging exactly from 0.4046 to 2.4573 m. Prior to some analysis of the Cuprite HSI, the spectral bands 1-4, 104-113 and 148-167 are removed due to the water absorption in those bands. As a result, a total of 186 bands are used.

Iv-A Parameters Settings for Strategy one and Strategy two

For Strategy one, we found that the ratios of to should be high to make sure that all of the targets are removed to the target image. We set this ratio to approximately for the synthetic experiments and for the real experiments. The ratio for the latter case must be higher because for the real experiments, we do not really have a comprehensive enough target dictionary to represent the target well and thus we need extra incentive for the target fractions to go to the target image. Now for Strategy two, we found that the ratio of to must be equal to in both synthetic and real experiments.

In fact, the different requirements imposed by the two strategies that lead to our particular choice of the to ratio also dictate how we should set the relative values of the weights between the first two terms and the third term in (5). A lower penalty associated with the third term (that is, by raising the absolute levels of and ) would tolerate more deviation and thus encourage more noise or image clutters (by image clutters we mean the small heterogeneous objects and specular highlights) to be absorbed by this term. This is particularly important for Strategy two when there are a lot of image clutters that do not exactly conform to a low rank background model: Since these clutters do not satisfy the low rank property, they have a propensity to show up in the second term if we do not sufficiently lower the penalty for the third term, and thus, contribute to a lot of false alarms for Strategy two. On the other hand, such a low-penalty setting for the third term may not be a good idea for Strategy one as the third term absorbs too much of the image clutters that actually form the background, causing the background dictionary so constructed to lose representative power.

In sum, for Strategy one, we set and at and in the synthetic experiments, whereas at and in the real experiments. For Strategy two, the and are set at and in the synthetic experiments, whereas at and in the real experiments.

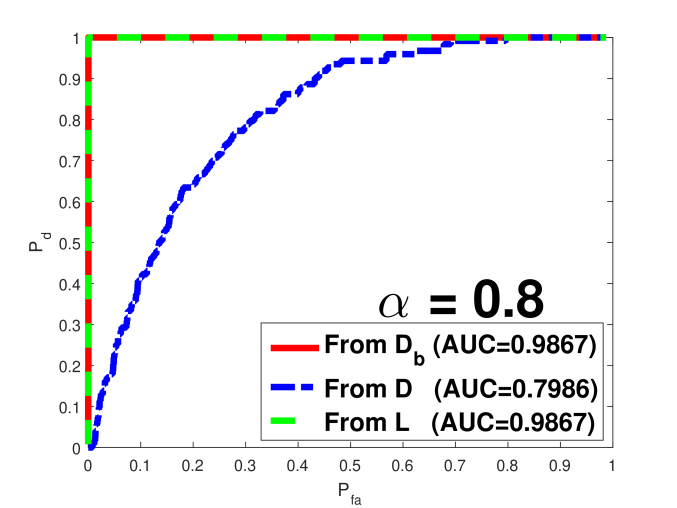

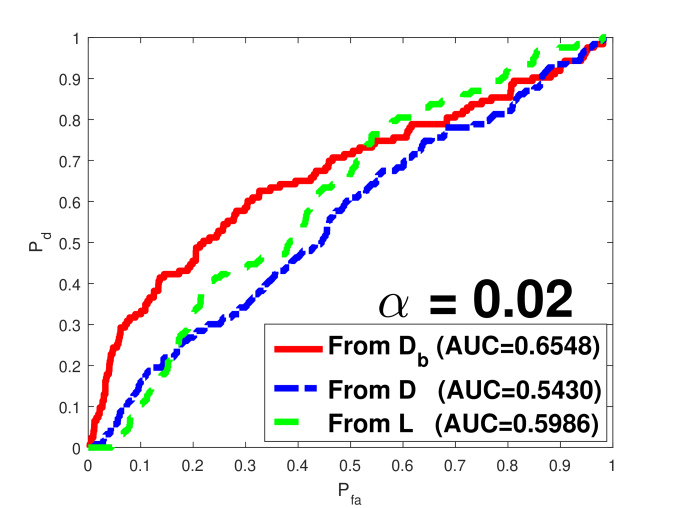

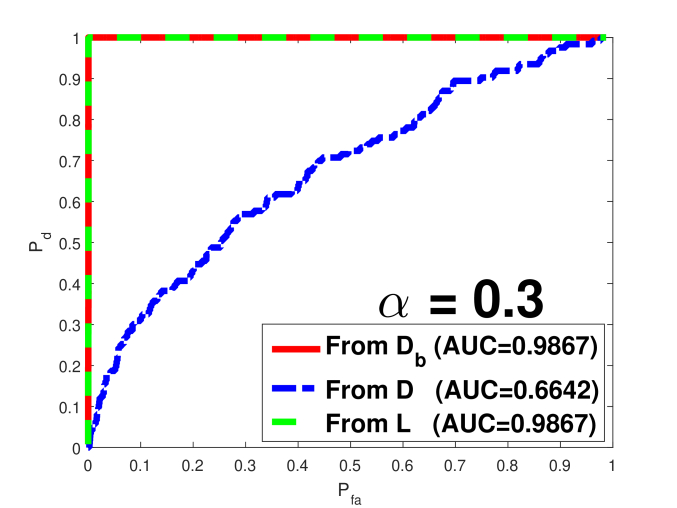

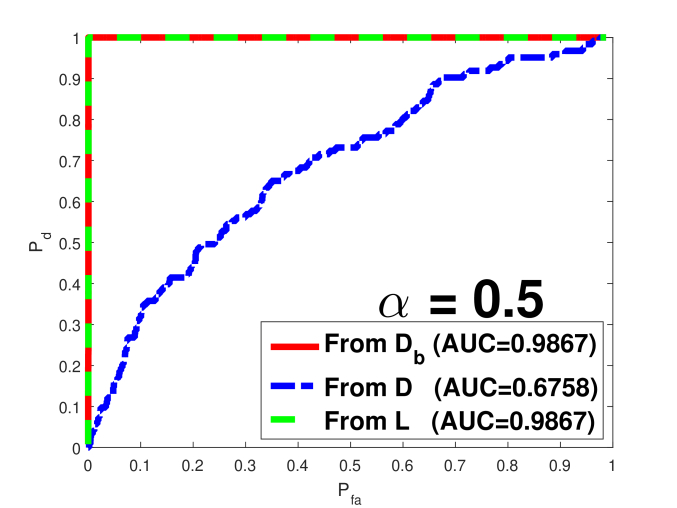

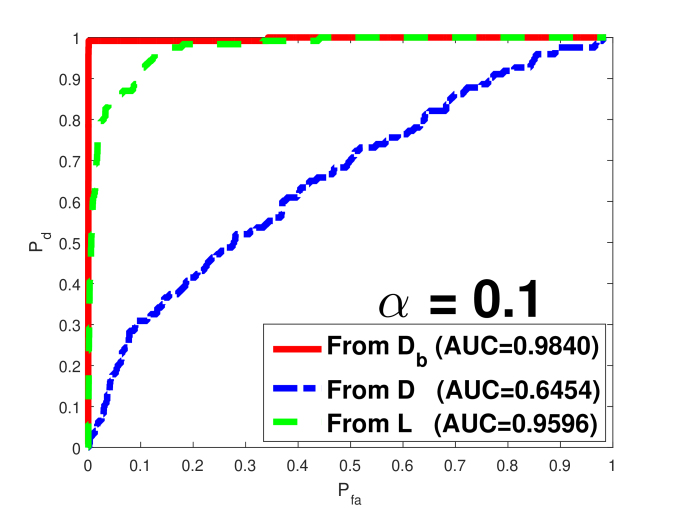

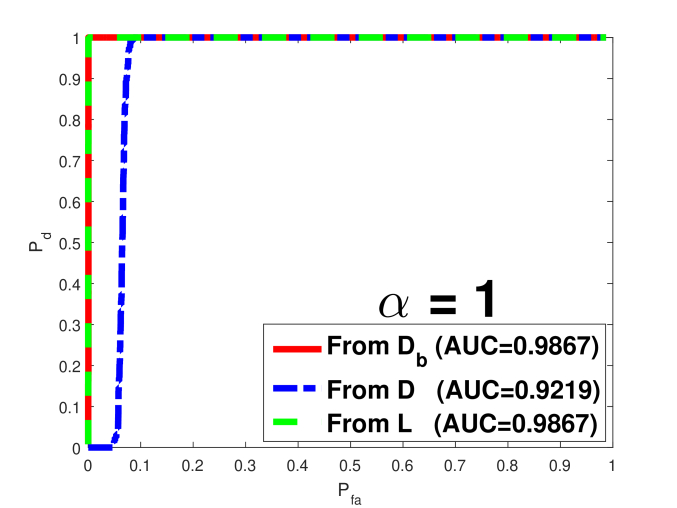

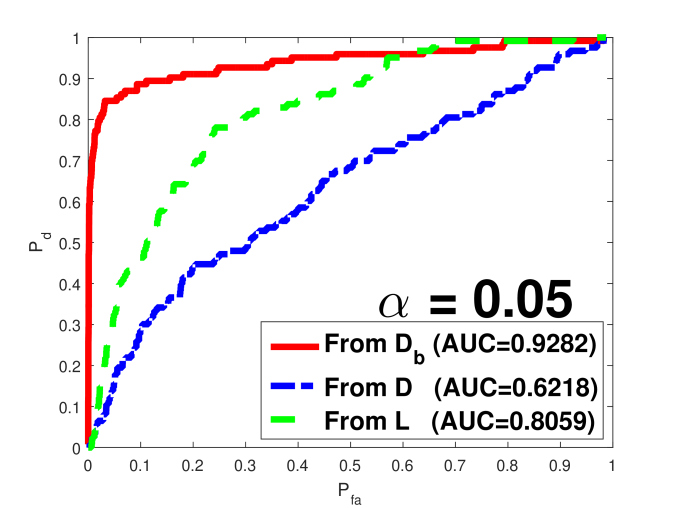

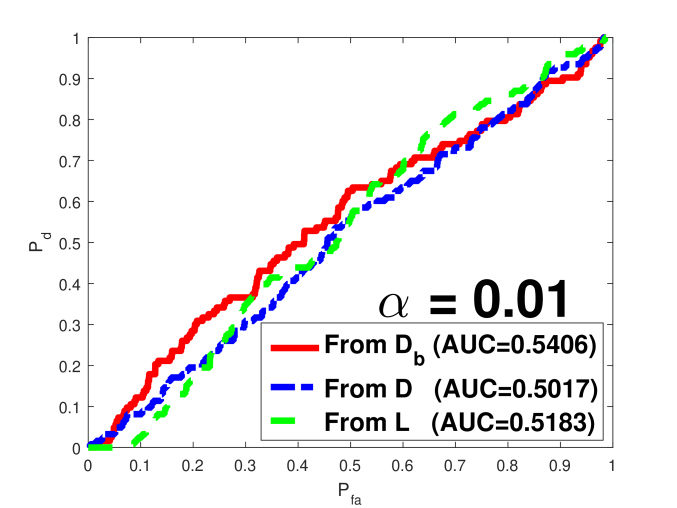

Fig. 5: ROC curves (with their Area Under Curves (AUC) values) for different values of the SRBBH detector when is constructed from , and .

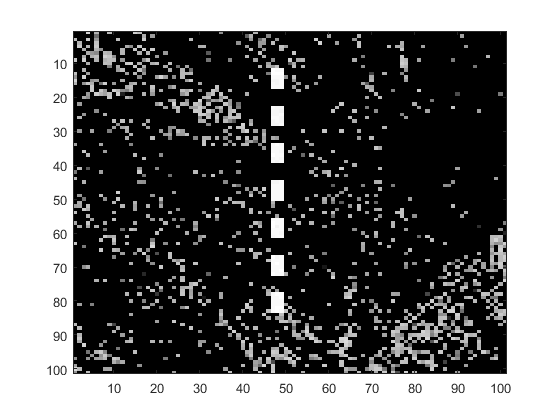

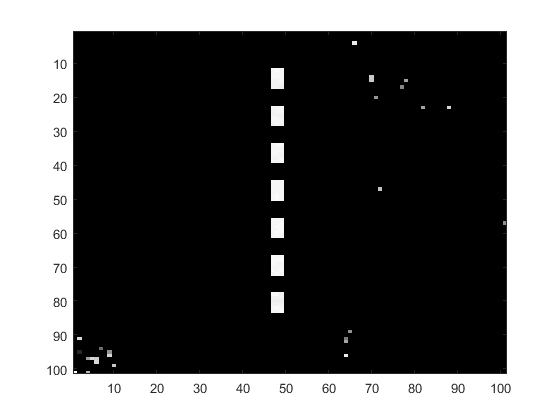

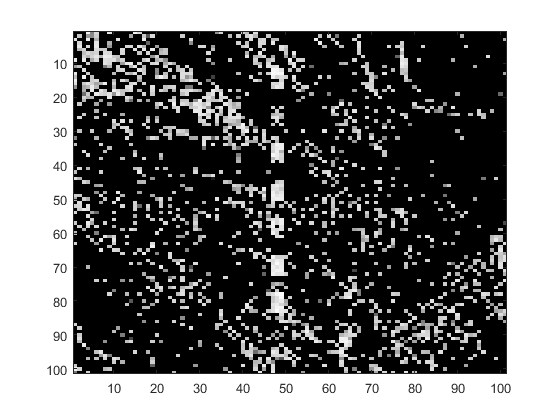

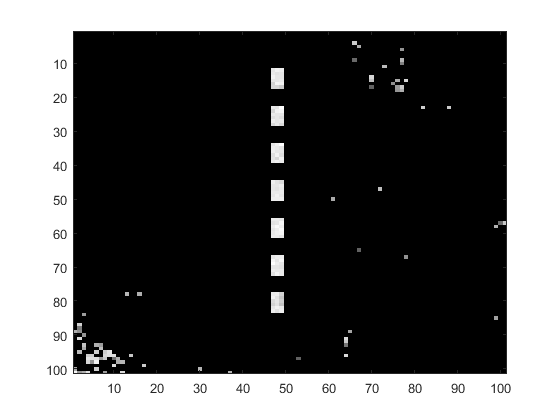

Fig. 6: Visual detections (mean power in dB over the 186 bands) of for the 7 target blocks for different values. From the top left to the bottom right for the values of : 1, 0.8, 0.5, 0.3, 0.1, 0.05, 0.02, 0.01.

Iv-B Synthetic Experiments

The experiments are done on a zone (pixels in rows 389 to 489 and columns 379 to 479) from the acquired Cuprite scene. We incorporate in this zone, 7 target blocks (each of size ) with (all have the same ), placed in long convoy formation all formed by the same synthetic (perfect) target consisting of a sulfate mineral type known as “Jarosite”. We make sure by referring to Figure 5a in [33] that the small zone we consider does not already contain any Jarosite patches. The target that we created actually consists of the mean of the first six Jarosite mineral samples taken from the online United States Geological Survey (USGS - Reston) Spectral Library [45] (see Figure 3). The target replaces a fraction from the background; specifically, the following values of are considered: 0.01, 0.02, 0.05, 0.1, 0.3, 0.5, 0.8, and 1. As for the target dictionary , it is constructed from the six acquired Jarosite samples 222Note that both the HSI and the Jarosite target samples are normalized to values between 0 and 1..

Iv-B1 Using Strategy one for detection

We first provide in Figure 4 a visual evaluation of the separation of the 7 target example above for low . We can observe that our problem (5) successfully discriminates these perceptually invisible targets from the background in and separate them. The 7 darker blocks that appear in correspond to the dimmer fraction of the background that remains after the targets have been removed at the corresponding spatial locations.

Having qualitatively inspect the separation, we now aim to quantitatively evaluate the target detection performances of the SRBBH detector [25] when is constructed using a small concentric window of size . That is, (after excluding the center pixel) and the region tested consists of an image of size .
In what follows, we shall use to represent the HSI that does not contain the 7 target blocks (that is, the pure background image), and to represent the HSI after incorporating the 7 target blocks (that is, it contains the targets) for .
We now consider three scenarios to form the columns in :

  1. For each test pixel in , we create the concentric window on . This represents the ideal case since the is free from the targets.

  2. For each test pixel in , we create the concentric window on .

  3. For each test pixel in , we create the concentric window on the low rank background HSI .

The target detection performances are evaluated quantitatively specifically by the Receiver Operating Characteristics (ROC) curves which describe the probability of detection (

) against the probability of false alarm () as we vary the threshold between the minimal and maximal values of each detector output. A good detector presents high values at low , i.e. , the curve is closer to the upper left corner. More particularly, the can be determined as the ratio of the number of the target pixels determined as target (that is the detector output at each pixel on the target region exceeds the threshold value) and the total number of true target pixels. Whereas the can be calculated by the ratio of the number of false alarms (the detector output at each pixel on the background region that is outside the target region exceeds the threshold value) and the total number of pixels in the region tested.
Figure 5 depicts the quantitative detection results. Clearly, increasing should render the target detection less challenging, and thus, better detection results are being expected. However, this fact can not always be the case for the SRBBH detector when is constructed from (blue curves): It is true that the increase in helps to improve the detection, but at the same time leads to more target contamination in which in turn suppresses the detection improvement that ought be had. That is why the SRBBH detector (blue curves) does not reap full benefits from the increase in , and thus, presents poor detection results even for large values.
By constructing from , which only contains the background with the targets removed after applying problem (5), the SRBBH detector (dashed green curves) can better detect the targets especially for , and has competitive detection results when compared to the ideal case when is constructed from . The detection performances start to deteriorate progressively for very small values and degenerate to the SRBBH level (blue curve) for .
To sum up, the obtained target detection results corroborate our claim that we can handle targets with low fill-fraction and in convoy formation.

Iv-B2 Using Strategy two for detection

Figure 6 depicts the detection results of for different values. The plots correspond to the mean power in dB over the 186 spectral bands. As can be seen, Strategy two detects all the targets with little false alarms until when a lot of false alarms appear.

It is clear from the results of 2) and the preceding experiment, that the value of the fill-fraction impacts the performance substantially:
For Strategy two, this is due to the relaxation of the norm to norm for the term. Instead of counting the number of non-zero terms in , the magnitudes of these non-zero terms play a role too in the relaxed version. When the magnitudes of the target signals are small (for small ), the penalty cost suffered is less. It follows that there is room for non-target signals to appear or even take over in the matrix, resulting in high false alarms and high miss rates.
For Strategy one, this is not only due to the relaxation of the norm to norm for the , but also could be due to the approximation in solving the problem of and in the SRBBH detector in (1) (here the greedy method we used). For example, in Figure 5 for , the green curve has a lower AUC value than that of the red curve (the ideal one). This is mainly because of the relaxation in problem (5). But we can also notice how the detection of the red curve starts to decrease when and degenerates to the blue curve for very small . This could be because of the approximation in solving and in the SRBBH detector in (1).

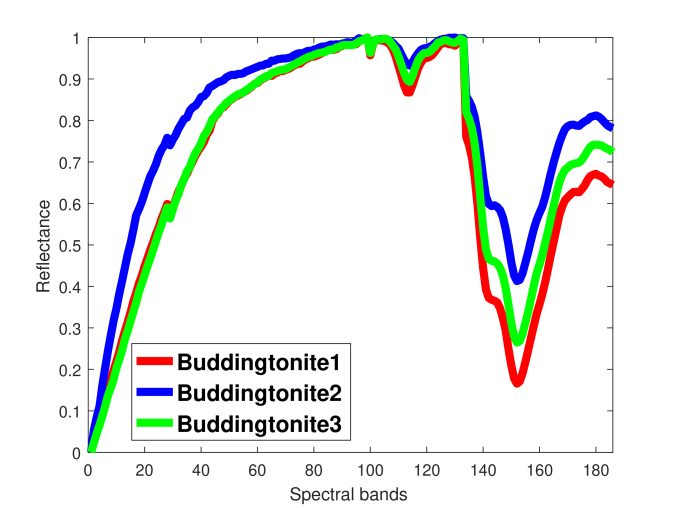

Fig. 7: Plot of the Buddingtonite target samples taken from the online ASTER Spectral library.

Iv-C Real Experiments

This subsection evaluates qualitatively the target detection performances of the SRBBH detector, using a concentric window of size on a region of size 250 291 pixels taken from the acquired Cuprite HSI. We consider this zone specifically to detect the Tectosilicate mineral type target pixels known as Buddingtonite. The mean power in dB over the 186 spectral bands of this zone and the Buddingtonite ground truth are shown in the third row of Figure 2.
There are three Buddingtonite samples available in the online Advanced Spaceborne Thermal Emission and Reflection (ASTER) spectral library - Version 2.0 [46] and they will form our target dictionary . The ASTER Spectral library was released on December 2008 to include data from the USGS Spectral Library, the Johns Hopkins University Spectral Library, and the Jet Propulsion Laboratory Spectral Library.
Both the HSI and the Buddingtonite target samples are normalized to values between 0 and 1. Figure 7 depicts the Buddingtonite target samples taken from the ASTER Spectral library.

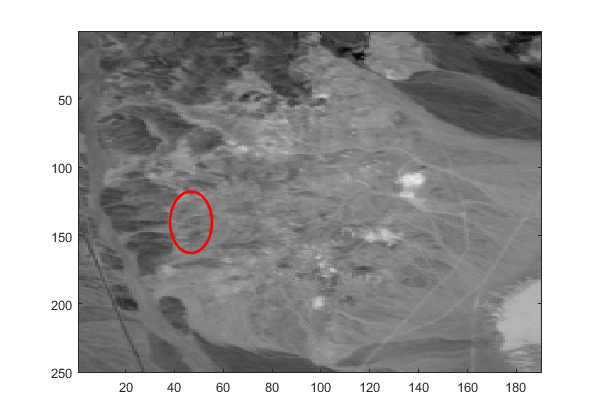

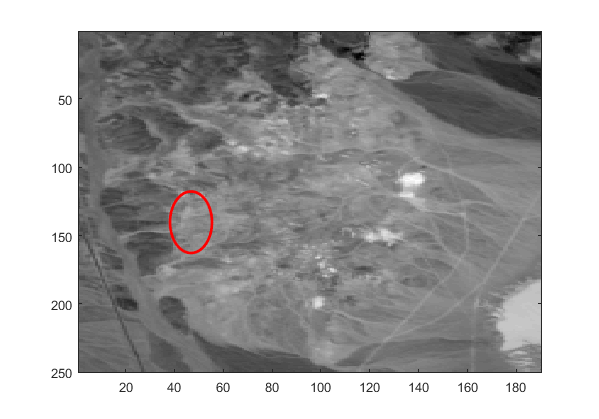

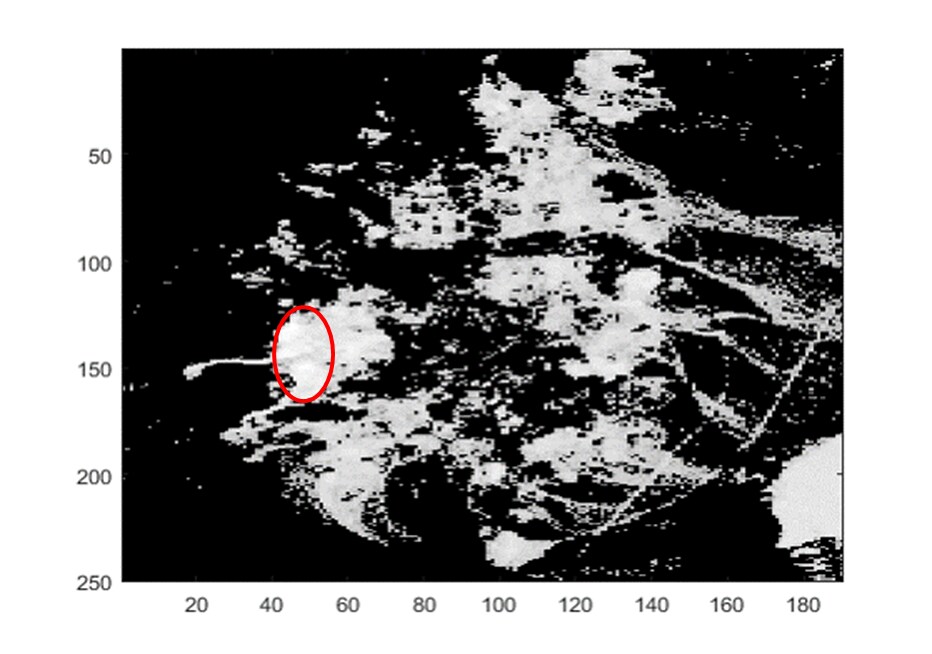

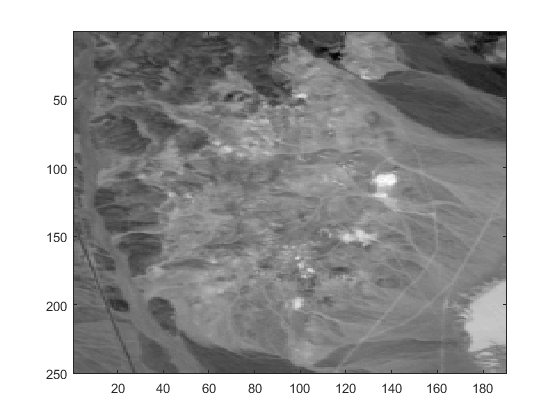

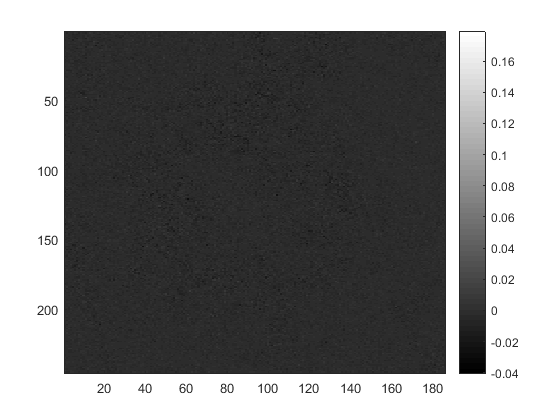

Fig. 8: Visual separation (we exhibit the mean power in dB over the 186 bands) of the Buddingtonite targets using the target dictionary constructed from the ASTER Spectral library. Columns from left to right: original HSI , low rank background HSI , sparse target HSI , sparse target HSI after some thresholding.
(a) (b) (c)

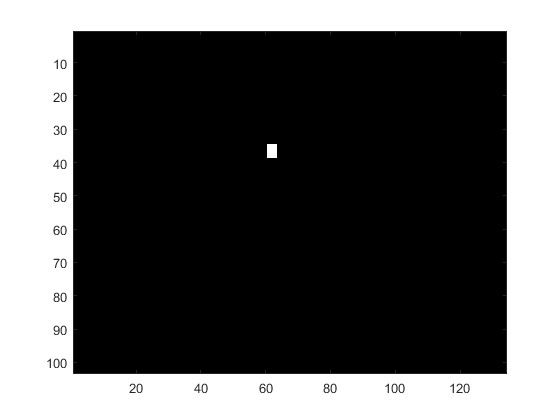

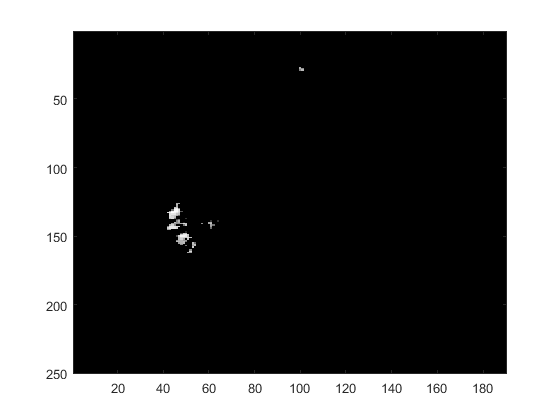

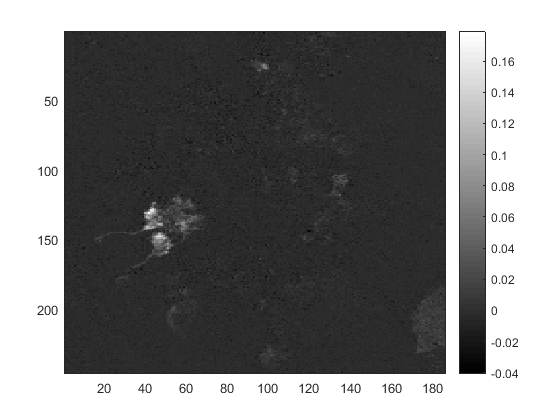

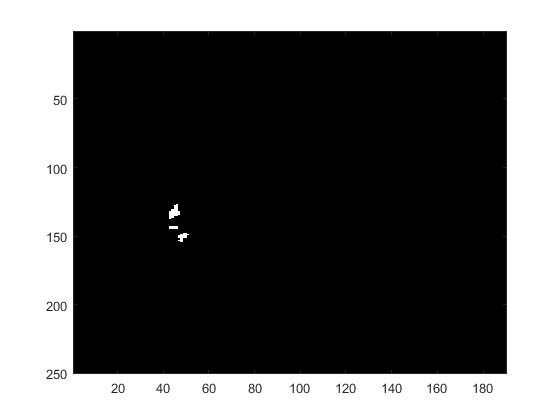

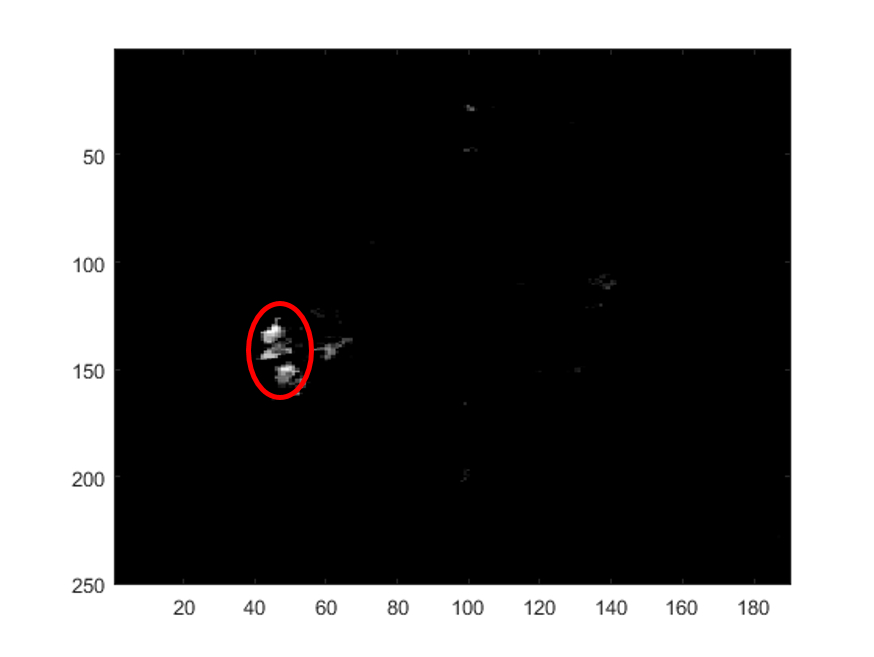

Fig. 9: 2D Visualization of the Buddingtonite target pixels detection. (a): SRBBH detector when is constructed from . (b) SRBBH detector when is constructed from . (c) Detection in for Strategy two (we exhibit the mean power in dB over the 186 bands).

Iv-C1 Using Strategy one for detection

As a consequence of the decomposition depicted in Figure 8, the subspace overlap problem illustrated in Figure 2 (third row) is now much relieved, as can be seen from Figure 9. Figure 9(a) and 9(b) evaluate qualitatively the SRBBH detection results when is constructed from and , respectively, using a concentric window of size . The effectiveness of problem (5) in improving the target detection is evident.

Iv-C2 Using Strategy two for detection

Figure 9(c) depicts the detection of the Buddingtonite targets in . The Buddingtonite targets are detected with very little false alarms.

As can be seen from all the preceding experiments, both strategies can deal with targets of any shapes or targets that occur in close proximity. This is important in many applications, for instance, in the Tectosilicate mineral example above, where it is often not possible to fix the window size required in SRBBH.

V Conclusion and Future work

A method based on a modification of RPCA is proposed to separate known targets of interests from the background in hyperspectral imagery. More precisely, we regard the given hyperspectral image (HSI) as being made up of the sum of low-rank background HSI and a sparse target HSI that should contain the targets of interests. Based on a pre-learned target dicitonary constructed from some online Spectral libraries, we customize the general RPCA by factorizing the sparse component into the product of and a sparse activation matrix . This modification was essential to disambiguate the true targets from other small heterogeneous and high contrast regions.

Following the decomposition, the first outlined strategy (Strategy one) addresses the background dictionary contamination problem suffered by dictionary-based methods such as SRBBH. To do this, the low rank background HSI was exploited to construct . More precisely, for each test pixel in the original HSI, the is constructed from using a small concentric window, and all the pixels within the window (except the center pixel) will each contribute to one column in .
An alternative strategy (Strategy two) was to directly use the component as a detector. Only the signals that reside in the target subspace specified by are deposited at the non-zero entries of . Both strategies are evaluated independently to each other on both synthetic and real experiments, the results of which demonstrate their effectiveness for hyperspectral target detection. In particular, they can deal with targets of any shapes or targets that occur in close proximity, and are resilient to most values of fill-fractions unless they are too small.

As for future enhancements, a likely first step would be to evaluate the proposed method on more real datasets. Other promising avenues for further research include the use of other proxies than the norm (closer to the norm) which can help to alleviate the artifact and probably facilitate the automatic selection of and .

Acknowledgment

The authors would like to thank Yuxiang Zhang, Bo Du, and Liangpei Zhang from the Wuhan University for providing us the Nuance Cri HSI.
