Querying a relational database is often challenging and a natural language interface has long been regarded by many as the most powerful database interface Popescu et al. (2003); Bertomeu et al. (2006); Li and Jagadish (2014). The problem of mapping a natural language utterance into executable SQL queries (text-to-SQL) has attracted increasing attention from the semantic parsing community by virtue of a continuous effort of dataset creation Zelle and Mooney (1996); Iyyer et al. (2017); Zhong et al. (2017); Finegan-Dollak et al. (2018); Yu et al. (2018a) and the modeling innovation that follows it Xu et al. (2017); Wang et al. (2018); Yu et al. (2018b); Shi et al. (2018).
While most of these work focus on precisely mapping stand-alone utterances to SQL queries, generating SQL queries in a context-dependent scenario Miller et al. (1996); Zettlemoyer and Collins (2009); Suhr et al. (2018) has been studied less often. The most prominent context-dependent text-to-SQL benchmark is ATIS111A subset of ATIS is also frequently used in context-independent semantic parsing research Zettlemoyer and Collins (2007); Dong and Lapata (2016)., which is set in the flight-booking domain and contains only one database Hemphill et al. (1990); Dahl et al. (1994).
In a real-world setting, users tend to ask a sequence of thematically related questions to learn about a particular topic or to achieve a complex goal. Previous studies have shown that by allowing questions to be constructed sequentially, users can explore the data in a more flexible manner, which reduces their cognitive burden Hale (2006); Levy (2008); Frank (2013); Iyyer et al. (2017) and increases their involvement when interacting with the system. The phrasing of such questions depends heavily on the interaction history Kato et al. (2004); Chai and Jin (2004); Bertomeu et al. (2006). The users may explicitly refer to or omit previously mentioned entities and constraints, and may introduce refinements, additions or substitutions to what has already been said (Figure 1). This requires a practical text-to-SQL system to effectively process context information to synthesize the correct SQL logic.
To enable modeling advances in context-dependent semantic parsing, we introduce SParC (cross-domain Semantic Parsing in Context), an expert-labeled dataset which contains 4,298 coherent question sequences (12k+ questions paired with SQL queries) querying 200 complex databases in 138 different domains. The dataset is built on top of Spider222The data is available at https://yale-lily.github.io/spider., the largest cross-domain context-independent text-to-SQL dataset available in the field Yu et al. (2018c). The large number of domains provide rich contextual phenomena and thematic relations between the questions, which general-purpose natural language interfaces to databases have to address. In addition, it enables us to test the generalization of the trained systems to unseen databases and domains.
We asked 15 college students with SQL experience to come up with question sequences over the Spider databases (§ 3). Questions in the original Spider dataset were used as guidance to the students for constructing meaningful interactions: each sequence is based on a question in Spider and the student has to ask inter-related questions to obtain information that answers the Spider question. At the same time, the students are encouraged to come up with related questions which do not directly contribute to the Spider question so as to increase data diversity. The questions were subsequently translated to complex SQL queries by the same student. Similar to Spider, the SQL Queries in SParC cover complex syntactic structures and most common SQL keywords.
We split the dataset such that a database appears in only one of the train, development and test sets. We provide detailed data analysis to show the richness of SParC in terms of semantics, contextual phenomena and thematic relations (§ 4). We also experiment with two competitive baseline models to assess the difficulty of SParC (§ 5). The best model achieves only 20.2% exact set matching accuracy333Exact string match ignores ordering discrepancies of SQL components whose order does not matter. Exact set matching is able to consider ordering issues in SQL evaluation. See more evaluation details in section 6.1. on all questions, and demonstrates a decrease in exact set matching accuracy from 38.6% for questions in turn 1 to 1.1% for questions in turns 4 and higher (§ 6). This suggests that there is plenty of room for advancement in modeling and learning on the SParC dataset.
2 Related Work
|ATIS Hemphill et al. (1990); Dahl et al. (1994)||✓||database||SQL||✗|
|Spider Yu et al. (2018c)||✗||database||SQL||✓|
|WikiSQL Zhong et al. (2017)||✗||table||SQL||✓|
|GeoQuery Zelle and Mooney (1996)||✗||database||SQL||✗|
|SequentialQA Iyyer et al. (2017)||✓||table||denotation||✓|
|SCONE Long et al. (2016)||✓||environment||denotation||✗|
Context-independent semantic parsing
Early studies in semantic parsing Zettlemoyer and Collins (2005); Artzi and Zettlemoyer (2013); Berant and Liang (2014); Li and Jagadish (2014); Pasupat and Liang (2015); Dong and Lapata (2016); Iyer et al. (2017) were based on small and single-domain datasets such as ATIS Hemphill et al. (1990); Dahl et al. (1994) and GeoQuery Zelle and Mooney (1996). Recently, an increasing number of neural approaches Zhong et al. (2017); Xu et al. (2017); Yu et al. (2018a); Dong and Lapata (2018); Yu et al. (2018b) have started to use large and cross-domain text-to-SQL datasets such as WikiSQL Zhong et al. (2017) and Spider Yu et al. (2018c). Most of them focus on converting stand-alone natural language questions to executable queries. Table 1 compares SParC with other semantic parsing datasets.
Context-dependent semantic parsing with SQL labels
Only a few datasets have been constructed for the purpose of mapping context-dependent questions to structured queries. Hemphill et al. (1990); Dahl et al. (1994) collected the contextualized version of ATIS that includes series of questions from users interacting with a flight database. Adopted by several works later on Miller et al. (1996); Zettlemoyer and Collins (2009); Suhr et al. (2018), ATIS has only a single domain for flight planning which limits the possible SQL logic it contains. In contrast to ATIS, SParC consists of a large number of complex SQL queries (with most SQL syntax components) inquiring 200 databases in 138 different domains, which contributes to its diversity in query semantics and contextual dependencies. Similar to Spider, the databases in the train, development and test sets of SParC do not overlap.
Context-dependent semantic parsing with denotations
Some datasets used in recovering context-dependent meaning (including SCONE Long et al. (2016) and SequentialQA Iyyer et al. (2017)) contain no logical form annotations but only denotation Berant and Liang (2014) instead. SCONE Long et al. (2016) contains some instructions in limited domains such as chemistry experiments. The formal representations in the dataset are world states representing state changes after each instruction instead of programs or logical forms. SequentialQA Iyyer et al. (2017) was created by asking crowd workers to decompose some complicated questions in WikiTableQuestions Pasupat and Liang (2015) into sequences of inner-related simple questions. As shown in Table 1, neither of the two datasets were annotated with query labels. Thus, to make the tasks feasible, SCONE Long et al. (2016) and SequentialQA Iyyer et al. (2017) exclude many questions with rich semantic and contextual types. For example, Iyyer et al. (2017) requires that the answers to the questions in SequentialQA must appear in the table, and most of them can be solved by simple SQL queries with SELECT and WHERE clauses. Such direct mapping without formal query labels becomes unfeasible for complex questions. Furthermore, SequentialQA contains questions based only on a single Wikipedia tables at a time. In contrast, SParC contains 200 significantly larger databases, and complex query labels with all common SQL key components. This requires a system developed for SParC to handle information needed over larger databases in different domains.
Conversational QA and dialogue system
Language understanding in context is also studied for dialogue and question answering systems. The development in dialogue Henderson et al. (2014); Mrkšić et al. (2017); Zhong et al. (2018) uses predefined ontology and slot-value pairs with limited natural language meaning representation, whereas we focus on general SQL queries that enable more powerful semantic meaning representation. Recently, some conversational question answering datasets have been introduced, such as QuAC Choi et al. (2018) and CoQA Reddy et al. (2018). They differ from SParC in that the answers are free-form text instead of SQL queries. On the other hand, Kato et al. (2004); Chai and Jin (2004); Bertomeu et al. (2006) conduct early studies of the contextual phenomena and thematic relations in database dialogue/QA systems, which we use as references when constructing SParC.
3 Data Collection

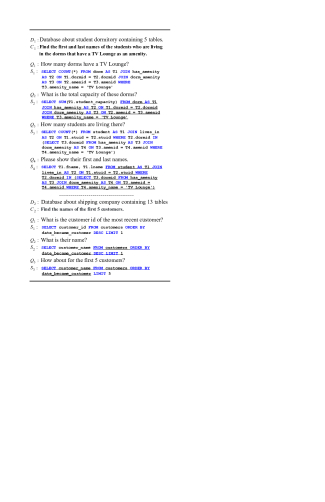

We create the SParC dataset in four stages: selecting interaction goals, creating questions, annotating SQL representations, and reviewing.
|Refinement (constraint refinement)||The current question asks for the same type of entity as a previous question with a different constraint.||Prev_Q: Which major has the fewest students?
Cur_Q: What is the most popular one?
|Theme-entity (topic exploration)||The current question asks for other properties about the same entity as a previous question.||Prev_Q: What is the capacity of Anonymous Donor Hall?
Cur_Q: List all of the amenities which it has.
|Theme-property (participant shift)||The current question asks for the same property about another entity.||Prev_Q: Tell me the rating of the episode named “Double Down”.
Cur_Q: How about for “Keepers”?
|Answer refinement/theme (answer exploration)||The current question asks for a subset of the entities given in a previous answer or asks about a specific entity introduced in a previous answer.||Prev_Q: Please list all the different department names.
Cur_Q: What is the average salary of all instructors in the Statistics department?
. The first three relations hold between a question and a previous question and the last relation holds between a question and a previous answer. We manually classified 102 examples in SParC into one or more of them and show the distribution. The entities (bold), properties (italics) and constraints (underlined) are highlighted in each question.
Interaction goal selection
To ensure thematic relevance within each question sequence, we use questions in the original Spider dataset as the thematic guidance for constructing meaningful query interactions, i.e. the interaction goal. Each sequence is based on a question in Spider and the annotator has to ask inter-related questions to obtain the information demanded by the interaction goal (detailed in the next section). All questions in Spider were stand-alone questions written by 11 college students with SQL background after they had explored the database content, and the question intent conveyed is likely to naturally arise in real-life query scenarios. We selected all Spider examples classified as medium, hard, and extra hard, as it is in general hard to establish context for easy questions. In order to study more diverse information needs, we also included some easy examples (end up with using 12.9% of the easy examples in Spider). As a result, 4,437 questions were selected as the interaction goals for 200 databases.
15 college students with SQL experience were asked to come up with sequences of inter-related questions to obtain the information demanded by the interaction goals444The students were asked to spend time exploring the database using a database visualization tool powered by Sqlite Web https://github.com/coleifer/sqlite-web so as to create a diverse set of thematic relations between the questions.. Previous work Bertomeu et al. (2006) has characterized different thematic relations between the utterances in a database QA system: refinement, theme-entity, theme-property, and answer refinement/theme555We group answer refinement and answer theme, the two thematic relations holding between a question and a previous answer as defined in Bertomeu et al. (2006), into a single answer refinement/theme type., as shown in Table 2. We show these definitions to the students prior to question creation to help them come up with context-dependent questions. We also encourage the formulation of questions that are thematically related to but do not directly contribute to answering the goal question (e.g. in the first example and in the second example in Figure 1. See more examples in Appendix as well). The students do not simply decompose the complex query. Instead, they often explore the data content first and even change their querying focuses. Therefore, all interactive query information in SParC could not be acquired by a single complex SQL query.
We divide the goals evenly among the students and each interaction goal is annotated by one student666The most productive student annotated 13.1% of the goals and the least productive student annotated close to 2%.. We enforce each question sequence to contain at least two questions, and the interaction terminates when the student has obtained enough information to answer the goal question.
After creating the questions, each annotator was asked to translate their own questions to SQL queries. All SQL queries were executed on Sqlite Web to ensure correctness. To make our evaluation more robust, the same annotation protocol as Spider Yu et al. (2018c) was adopted such that all annotators chose the same SQL query pattern when multiple equivalent queries were possible.
Data review and post-process
We asked students who are native English speakers to review the annotated data. Each example was reviewed at least once. The students corrected any grammar errors and rephrased the question in a more natural way if necessary. They also checked if the questions in each sequence were related and the SQL answers matched the semantic meaning of the question. After that, another group of students ran all annotated SQL queries to make sure they were executable. Furthermore, they used the SQL parser777https://github.com/taoyds/spider/blob/master/process_sql.py from Spider to parse all the SQL labels to make sure all queries follow the annotation protocol. Finally, the most experienced annotator conducted a final review on all question-SQL pairs. 139 question sequences were discarded in this final step due to poor question quality or wrong SQL annotations
4 Data Statistics and Analysis
|Avg. Q len||8.1||10.2|
|Avg. turn #||3.0||7.0|
We compute the statistics of SParC and conduct a through data analysis focusing on its contextual dependencies, semantic coverage and cross-domain property. Throughout this section, we compare SParC to ATIS Hemphill et al. (1990); Dahl et al. (1994), the most widely used context-dependent text-to-SQL dataset in the field. In comparison, SParC is significantly different as it (1) contains mode complex contextual dependencies, (2) has greater semantic coverage, and (3) adopts a cross-domain task setting, which make it a new and challenging cross-domain context-dependent text-to-SQL dataset.
Table 3 summarizes the statistics of SParC and ATIS. SParC contains 4,298 unique question sequences, 200 complex databases in 138 different domains, with 12k+ questions annotated with SQL queries. The number of sequences in ATIS is significantly smaller, but it contains a comparable number of individual questions since it has a higher number of turns per sequence888The ATIS dataset is collected under the Wizard-of-Oz setting Bertomeu et al. (2006) (like a task-oriented sequential question answering task). Each user interaction is guided by an abstract, high-level goal such as “plan a trip from city A to city B, stop in another city on the way”. The domain by its nature requires the user to express multiple constraints in separate utterances and the user is intrinsically motivated to interact with the system until the booking is successful. In contrast, the interaction goals formed by Spider questions are for open-domain and general-purpose database querying, which tend to be more specific and can often be stated in a smaller number of turns. We believe these differences contribute to the shorter average question sequence length of SParC compared to that of ATIS.. On the other hand, SParC has overcome the domain limitation of ATIS by covering 200 different databases and has a significantly larger natural language vocabulary.
Contextual dependencies of questions

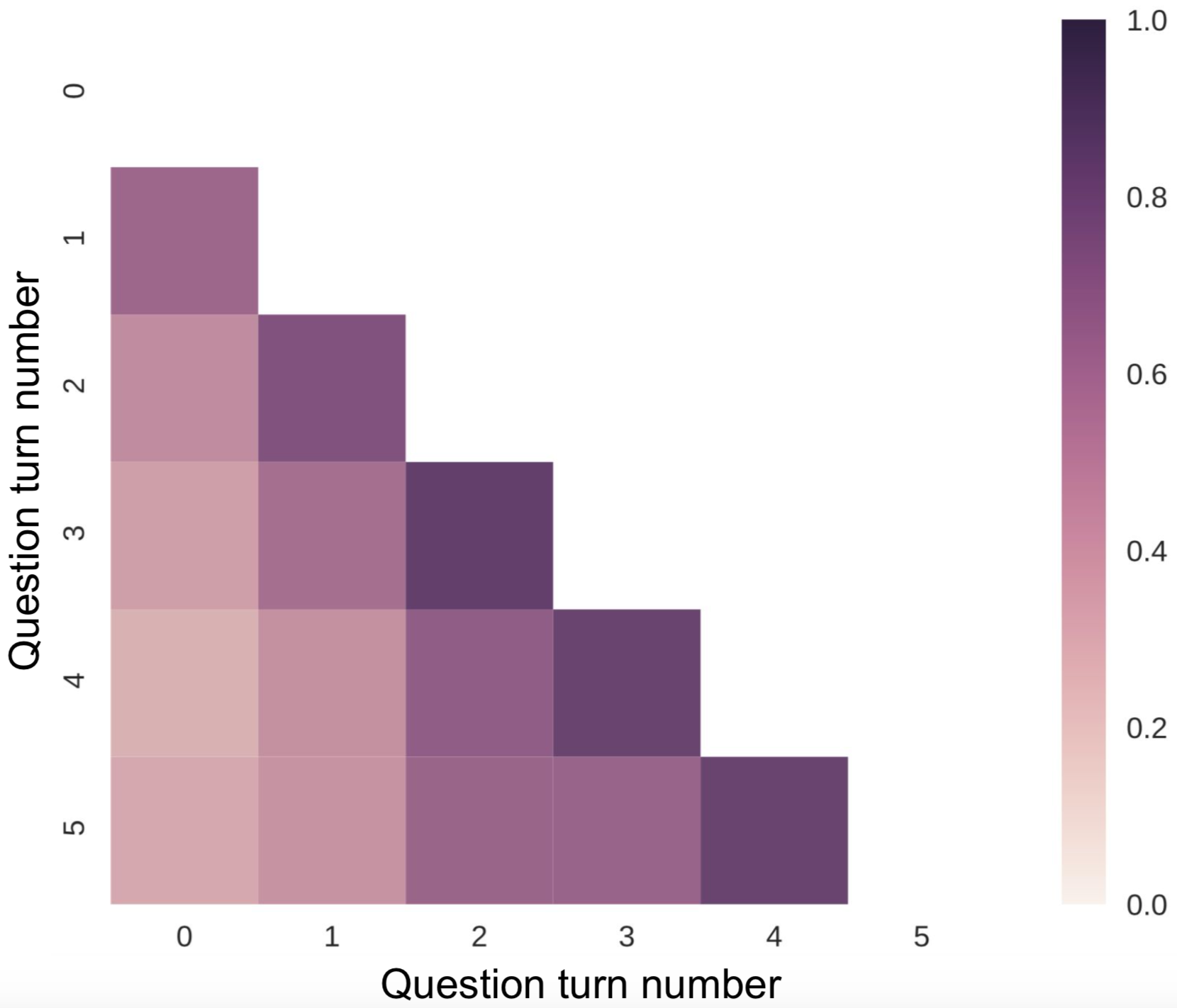

We visualize the percentage of token overlap between the SQL queries (formal semantic representation of the question) at different positions of a question sequence. The heatmap shows that more information is shared between two questions that are closer to each other. This sharing increases among questions in later turns, where users tend to narrow down their questions to very specific needs. This also indicates that resolving context references in our task is important.
Furthermore, the lighter color of the lower left 4 squares in the heatmap of Figure 2 shows that most questions in an interaction have contextual dependencies that span within 3 turns. Reddy et al. (2018) similarly report that the majority of context dependencies on the CoQA conversational question answering dataset are within 2 questions, beyond which coreferences from the current question are likely to be ambiguous with little inherited information. This suggests that 3 turns on average are sufficient to capture most of the contextual dependencies between questions in SParC.
We also plot the trend of common SQL keywords occurring in different question turns for both SParC and ATIS (Figure 3) 999Since the formatting used for the SQL queries are different in SParC and ATIS, the actual percentages of WHERE, JOIN and Nested for ATIS are lower (e.g. the original version of ATIS may be highly nested, but queries could be reformatted to flatten them). Other SQL keywords are directly comparable.. We show the percentage of question sequences that contain a particular SQL keyword at each turn. The upper figure in Figure 3 shows that the occurrences of all SQL keywords do not change much as the question turn increases in ATIS, which indicates that the SQL query logic in different turns are very similar. We examined the data and find that most interactions in ATIS involve changes in the WHERE condition between question turns. This is likely caused by the fact that the questions in ATIS only involve flight booking, which typically triggers the use of the refinement thematic relation. Example user utterances from ATIS are “on american airlines” or “which ones arrive at 7pm” Suhr et al. (2018), which only involves changes to the WHERE condition.
In contrast, the lower figure demonstrates a clear trend that in SParC, the occurrences of nearly all SQL components increase as question turn increases. This suggests that questions in subsequent turns tend to change the logical structures more significantly, which makes our task more interesting and challenging.
Contextual linguistic phenomena
We manually inspected 102 randomly chosen examples from our development set to study the thematic relations between questions. Table 2 shows the relation distribution.
We find that the most frequently occurring relation is theme-entity, in which the current question focuses on the same entity (set) as the previous question but requests for some other property. Consider and of the first example shown in Figure 1. Their corresponding SQL representations ( and ) have the same FROM and WHERE clauses, which harvest the same set of entities – “dorms with a TV lounge”. But their SELECT clauses return different properties of the target entity set (number of the dorms in versus total capacity of the dorms in ). and in this example also have the same relation. The refinement relation is also very common. For example, and in the second example ask about the same entity set – customers of a shipping company. But switches the search constraint from “the most recent” in to “the first 5”.
Fewer questions refer to previous questions by changing the entity (“Double Down” versus “Keepers” in Table 2) but asking for the same property (theme-property). Even less frequently, some questions ask about the answers of previous questions (answer refinement/theme). As in the last example of Table 2, the current question asks about the “Statistics department”, which is one of the answers returned in the previous turn. More examples with different thematic relations are provided in Figure 5 in the Appendix.

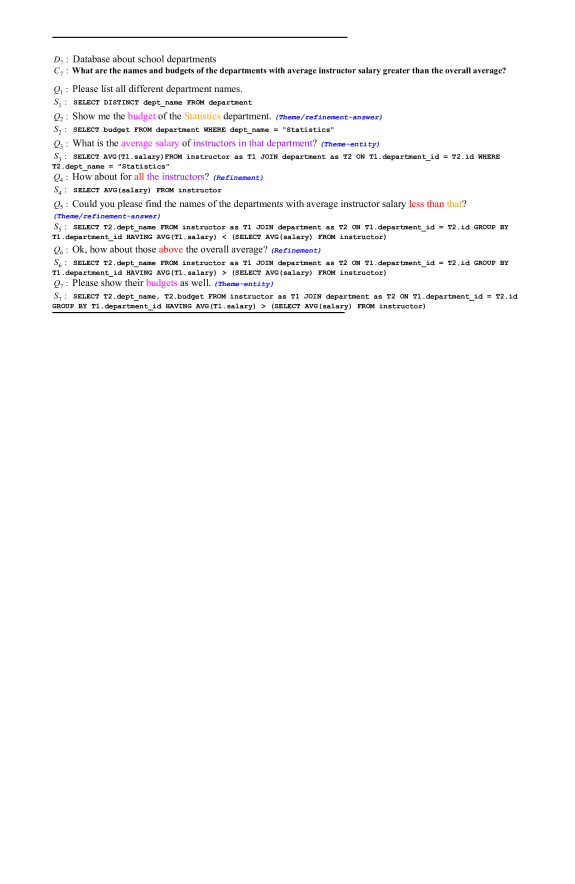

Interestingly, as the examples in Table 2 have shown, many thematic relations are present without explicit linguistic markers. This indicates that information tends to implicitly propagate through the interaction. Moreover, in some cases where the natural language question shares information with the previous question (e.g. and in the first example of Figure 1 form a theme-entity relation), the corresponding SQL representations ( and ) can be very different. One scenario in which this happens is when the property/constraint specification makes reference to additional entities described by separate tables in the database schema.
As shown in Table 3, SParC is larger in terms of number of unique SQL templates, vocabulary size and number of domains compared to ATIS. The smaller number of unique SQL templates and vocabulary size of ATIS is likely due to the domain constraint and presence of many similar questions.
Table 4 further compare the formal semantic representation in these two datasets in terms of SQL syntax component. While almost all questions in ATIS contain joins and nested subqueries, some commonly used SQL components are either absent (ORDER BY, HAVING, SET) or occur very rarely (GROUP BY and AGG). We examined the data and find that many questions in it has complicated syntactic structures mainly because the database schema requires joined tables and nested sub-queries, and the semantic diversity among the questions is in fact smaller.
As shown in Table 1, SParC contains questions over 200 databases (1,020 tables) in 138 different domains. In comparison, ATIS contains only one databases in the flight booking domain, which makes it unsuitable for developing models that generalize across domains. Interactions querying different databases are shown in Figure 1 (also see more examples in Figure 4 in the Appendix). As in Spider, we split SParC such that each database appears in only one of train, development and test sets. Splitting by database requires the models to generalize not only to new SQL queries, but also to new databases and new domains.
|# Q sequences||3034||422||842|
|# Q-SQL pairs||9025||1203||2498|
We extend two state-of-the-art semantic parsing models to the cross-domain, context-dependent setup of SParC and benchmark their performance. At each interaction turn , given the current question , the previously asked questions and the database schema , the model generates the SQL query .
5.1 Seq2Seq with turn-level history encoder (CD-Seq2Seq)
This is a cross-domain Seq2Seq based text-to-SQL model extended with the turn-level history encoder proposed in Suhr et al. (2018).
Turn-level history encoder
Following Suhr et al. (2018), at turn , we encode each user question using an utterance-level bi-LSTM, . The final hidden state of , , is used as the input to the turn-level encoder, , a uni-directional LSTM, to generate the discourse state . The input to at turn is the question word embedding concatenated with the discourse state at turn (), which enables the flow of contextual information.
Database schema encoding
For each column header in the database schema, we concatenate its corresponding table name and column name separated by a special dot token (i.e., table_name.column_name), and use the average word embedding101010We use the 300-dimensional GloVe Pennington et al. (2014) pretrained word embeddings. of tokens in this sequence as the column header embedding .
The decoder is implemented with another LSTM () with attention to the representations of the questions in previous turns (
is a hyperparameter). At each decoding step, the decoder chooses to generate either a SQL keyword (e.g.,select, where, group by
) or a column header. To achieve this, we use separate layers to score SQL keywords and column headers, and finally use the softmax operation to generate the output probability distribution over both categories.
5.2 SyntaxSQLNet with history input (SyntaxSQL-con)
SyntaxSQLNet is a syntax tree based neural model for the complex and cross-domain context-independent text-to-SQL task introduced by Yu et al. (2018b). The model consists of a table-aware column attention encoder and a SQL-specific syntax tree-based decoder. The decoder adopts a set of inter-connected neural modules to generate different SQL syntax components.
We extend this model by providing the decoder with the encoding of the previous question () as additional contextual information. Both and are encoded using bi-LSTMs (of different parameters) with the column attention mechanism proposed by Yu et al. (2018b). We use the same math formulation to inject the representations of and to each syntax module of the decoder.
More details of each baseline model can be found in the Appendix. And we opensource their implementations for reproducibility.
6.1 Evaluation Metrics
Following Yu et al. (2018c), we use the exact set match metric to compute the accuracy between gold and predicted SQL answers.
Instead of simply employing string match, Yu et al. (2018c) decompose predicted queries into different SQL clauses such as SELECT, WHERE, GROUP BY, and ORDER BY and compute scores for each clause using set matching separately111111 Details of the evaluation metrics can be found at
Details of the evaluation metrics can be found athttps://github.com/taoyds/spider/tree/master/evaluation_examples. We report the following two metrics: question match, the exact set matching score over all questions, and interaction match, the exact set matching score over all interactions. The exact set matching score is 1 for each question only if all predicted SQL clauses are correct, and 1 for each interaction only if there is an exact set match for every question in the interaction.
|Model||Question Match||Interaction Match|
We report the overall results of CD-Seq2Seq and SyntaxSQLNet on the development and the test data in Table 6. The context-aware models (CD-Seq2Seq and SyntaxSQL-con) significantly outperforms the context-agnostic SyntaxSQLNet (SyntaxSQL-sta). The last two rows form a controlled ablation study, where without accessing to the previous question, the test set performance of SyntaxSQLNet decreases from 20.2% to 16.9% on question match and from 5.2% to 1.1% on interaction match, which indicates that context is a crucial aspect of the problem.
We note that SyntaxSQL-con scores higher in question match but lower in interaction match compared to CD-Seq2Seq. A closer examination shows that SyntaxSQL-con predicts more questions correctly in the early turns of an interaction (Table 7), which results in its overall higher question match accuracy. A possible reason for this is that SyntaxSQL-con adopts a stronger context-agnostic text-to-SQL module (SyntaxSQLNet vs. Seq2Seq adopted by CD-Seq2Seq). The higher performance of CD-Seq2Seq on interaction match can be attributed to better incorporation of information flow between questions by using turn-level encoders Suhr et al. (2018), which is possible to encode the history of all previous questions comparing to only single one previous question in SyntaxSQL-con. Overall, the lower performance of the two extended context-dependent models shows the difficulty of SParC and that there is ample room for improvement.
Performance stratified by question position
To gain more insight into how question position affects the performance of the two models, we report their performances on questions in different positions in Table 7. Questions in later turns of an interaction in general have greater dependency over previous questions and also greater risk for error propagation. The results show that both CD-Seq2Seq and SyntaxSQL-con consistently perform worse as the question turn increases, suggesting that both models struggle to deal with information flow from previous questions and accumulate errors. Moreover, SyntaxSQL-con significantly outperforms CD-Seq2Seq on questions in the first turn, but the advantage disappears in later turns (starting from the second turn), which is expected because the context encoding mechanism of SyntaxSQL-con is less powerful than the turn-level encoders adopted by CD-Seq2Seq.
|Extra hard (134)||0.8||0.7|
Performance stratified by SQL difficulty
We group individual questions in SParC into different difficulty levels based on the complexity of their corresponding SQL representations using the criteria proposed in Yu et al. (2018c). As shown in Figure 3, the questions turned to get harder as interaction proceeds, more questions with hard and extra hard difficulties appear in late turns. Table 8 shows the performance of the two models across each difficulty level. As we expect, the models perform better when the user request is easy. Both models fail on most hard and extra hard questions. Considering that the size and question types of SParC are very close to Spider, the relatively lower performances of SyntaxSQL-con on medium, hard and extra hard questions in Table 8 comparing to its performances on Spider (17.6%, 16.3%, and 4.9% respectively) indicates that SParC introduces additional challenge by introducing context dependencies, which is absent from Spider.
Performance stratified by thematic relation
Finally, we report the model performances across thematic relations computed over the 102 examples summarized in Table 2. The results (Table 9) show that the models, in particular SyntaxSQL-con, perform the best on the answer refinement/theme relation. A possible reason for this is that questions in the answer theme category can often be interpreted without reference to previous questions since the user tends to state the theme entity explicitly. Consider the example in the bottom row of Table 2. The user explicitly said “Statistics department” in their question, which belongs to the answer set of the previous question 121212As pointed out by one of the anonymous reviewers, there are less than 10 examples of answer refinement/theme relation in the 102 analyzed examples. We need to see more examples before concluding that this phenomenon is general.. The overall low performance for all thematic relations (refinement and theme-property in particular) indicates that the two models still struggle on properly interpreting the question history.
In this paper, we introduced SParC, a large-scale dataset of context-dependent questions over a number of databases in different domains annotated with the corresponding SQL representation. The dataset features wide semantic coverage and a diverse set of contextual dependencies between questions. It also introduces unique challenge in mapping context-dependent questions to SQL queries in unseen domains. We experimented with two competitive context-dependent semantic parsing approaches on SParC. The model accuracy is far from satisfactory and stratifying the performance by question position shows that both models degenerate in later turns of interaction, suggesting the importance of better context modeling. The dataset, baseline implementations and leaderboard are publicly available at https://yale-lily.github.io/sparc.
We thank Tianze Shi for his valuable discussions and feedback. We thank the anonymous reviewers for their thoughtful detailed comments.
Artzi and Zettlemoyer (2013)
Yoav Artzi and Luke Zettlemoyer. 2013.
Weakly supervised learning of semantic parsers for mapping instructions to actions.Transactions of the Association forComputational Linguistics.
- Berant and Liang (2014) Jonathan Berant and Percy Liang. 2014. Semantic parsing via paraphrasing. In Proceedings of the 52nd Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 1415–1425, Baltimore, Maryland. Association for Computational Linguistics.
- Bertomeu et al. (2006) Núria Bertomeu, Hans Uszkoreit, Anette Frank, Hans-Ulrich Krieger, and Brigitte Jörg. 2006. Contextual phenomena and thematic relations in database qa dialogues: results from a wizard-of-oz experiment. In Proceedings of the Interactive Question Answering Workshop at HLT-NAACL 2006, pages 1–8. Association for Computational Linguistics.
- Chai and Jin (2004) Joyce Y. Chai and Rong Jin. 2004. Discourse structure for context question answering. In HLT-NAACL 2004 Workshop on Pragmatics in Question Answering.
Choi et al. (2018)
Eunsol Choi, He He, Mohit Iyyer, Mark Yatskar, Wen-tau Yih, Yejin Choi, Percy
Liang, and Luke Zettlemoyer. 2018.
Quac: Question answering in context.
Proceedings of the 2018 Conference on Empirical Methods in Natural Language Processing, pages 2174–2184. Association for Computational Linguistics.
- Dahl et al. (1994) Deborah A. Dahl, Madeleine Bates, Michael Brown, William Fisher, Kate Hunicke-Smith, David Pallett, Christine Pao, Alexander Rudnicky, and Elizabeth Shriberg. 1994. Expanding the scope of the atis task: The atis-3 corpus. In Proceedings of the Workshop on Human Language Technology, HLT ’94, Stroudsburg, PA, USA. Association for Computational Linguistics.
- Dong and Lapata (2016) Li Dong and Mirella Lapata. 2016. Language to logical form with neural attention. In Proceedings of the 54th Annual Meeting of the Association for Computational Linguistics, ACL 2016, August 7-12, 2016, Berlin, Germany, Volume 1: Long Papers.
- Dong and Lapata (2018) Li Dong and Mirella Lapata. 2018. Coarse-to-fine decoding for neural semantic parsing. In Proceedings of the 56th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 731–742. Association for Computational Linguistics.
- Finegan-Dollak et al. (2018) Catherine Finegan-Dollak, Jonathan K. Kummerfeld, Li Zhang, Karthik Ramanathan Dhanalakshmi Ramanathan, Sesh Sadasivam, Rui Zhang, and Dragomir Radev. 2018. Improving text-to-sql evaluation methodology. In ACL 2018. Association for Computational Linguistics.
- Frank (2013) Stefan L. Frank. 2013. Uncertainty reduction as a measure of cognitive load in sentence comprehension. Topics in cognitive science, 5 3:475–94.
- Hale (2006) John Hale. 2006. Uncertainty about the rest of the sentence. Cognitive science, 30 4:643–72.
- Hemphill et al. (1990) Charles T. Hemphill, John J. Godfrey, and George R. Doddington. 1990. The atis spoken language systems pilot corpus. In Speech and Natural Language: Proceedings of a Workshop Held at Hidden Valley, Pennsylvania, June 24-27,1990.
- Henderson et al. (2014) Matthew Henderson, Blaise Thomson, and Jason D. Williams. 2014. The second dialog state tracking challenge. In SIGDIAL Conference.
- Iyer et al. (2017) Srinivasan Iyer, Ioannis Konstas, Alvin Cheung, Jayant Krishnamurthy, and Luke Zettlemoyer. 2017. Learning a neural semantic parser from user feedback. CoRR, abs/1704.08760.
- Iyyer et al. (2017) Mohit Iyyer, Wen-tau Yih, and Ming-Wei Chang. 2017. Search-based neural structured learning for sequential question answering. In Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 1821–1831. Association for Computational Linguistics.
- Kato et al. (2004) Tsuneaki Kato, Jun’ichi Fukumoto, Fumito Masui, and Noriko Kando. 2004. Handling information access dialogue through qa technologies-a novel challenge for open-domain question answering. In Proceedings of the Workshop on Pragmatics of Question Answering at HLT-NAACL 2004.
- Levy (2008) Roger P. Levy. 2008. Expectation-based syntactic comprehension. Cognition, 106:1126–1177.
- Li and Jagadish (2014) Fei Li and HV Jagadish. 2014. Constructing an interactive natural language interface for relational databases. VLDB.
- Long et al. (2016) Reginald Long, Panupong Pasupat, and Percy Liang. 2016. Simpler context-dependent logical forms via model projections. In Proceedings of the 54th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 1456–1465. Association for Computational Linguistics.
- Miller et al. (1996) Scott Miller, David Stallard, Robert J. Bobrow, and Richard M. Schwartz. 1996. A fully statistical approach to natural language interfaces. In ACL.
- Mrkšić et al. (2017) Nikola Mrkšić, Diarmuid Ó Séaghdha, Tsung-Hsien Wen, Blaise Thomson, and Steve Young. 2017. Neural belief tracker: Data-driven dialogue state tracking. In Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 1777–1788. Association for Computational Linguistics.
- Pasupat and Liang (2015) Panupong Pasupat and Percy Liang. 2015. Compositional semantic parsing on semi-structured tables. In Proceedings of the 53rd Annual Meeting of the Association for Computational Linguistics and the 7th International Joint Conference on Natural Language Processing of the Asian Federation of Natural Language Processing, ACL 2015, July 26-31, 2015, Beijing, China, Volume 1: Long Papers, pages 1470–1480.
Pennington et al. (2014)
Jeffrey Pennington, Richard Socher, and Christopher D. Manning. 2014.
Glove: Global vectors for word representation.In EMNLP, pages 1532–1543. ACL.
- Popescu et al. (2003) Ana-Maria Popescu, Oren Etzioni, and Henry Kautz. 2003. Towards a theory of natural language interfaces to databases. In Proceedings of the 8th international conference on Intelligent user interfaces, pages 149–157. ACM.
- Reddy et al. (2018) Siva Reddy, Danqi Chen, and Christopher D. Manning. 2018. Coqa: A conversational question answering challenge. CoRR, abs/1808.07042.
- Shi et al. (2018) Tianze Shi, Kedar Tatwawadi, Kaushik Chakrabarti, Yi Mao, Oleksandr Polozov, and Weizhu Chen. 2018. Incsql: Training incremental text-to-sql parsers with non-deterministic oracles. arXiv preprint arXiv:1809.05054.
- Suhr et al. (2018) Alane Suhr, Srinivasan Iyer, and Yoav Artzi. 2018. Learning to map context-dependent sentences to executable formal queries. In Proceedings of the Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, pages 2238–2249. Association for Computational Linguistics.
- Wang et al. (2018) Chenglong Wang, Po-Sen Huang, Alex Polozov, Marc Brockschmidt, and Rishabh Singh. 2018. Execution-guided neural program decoding. In ICML workshop on Neural Abstract Machines and Program Induction v2 (NAMPI).
- Xu et al. (2017) Xiaojun Xu, Chang Liu, and Dawn Song. 2017. Sqlnet: Generating structured queries from natural language without reinforcement learning. arXiv preprint arXiv:1711.04436.
- Yu et al. (2018a) Tao Yu, Zifan Li, Zilin Zhang, Rui Zhang, and Dragomir Radev. 2018a. Typesql: Knowledge-based type-aware neural text-to-sql generation. In Proceedings of NAACL. Association for Computational Linguistics.
- Yu et al. (2018b) Tao Yu, Michihiro Yasunaga, Kai Yang, Rui Zhang, Dongxu Wang, Zifan Li, and Dragomir Radev. 2018b. Syntaxsqlnet: Syntax tree networks for complex and cross-domain text-to-sql task. In Proceedings of EMNLP. Association for Computational Linguistics.
- Yu et al. (2018c) Tao Yu, Rui Zhang, Kai Yang, Michihiro Yasunaga, Dongxu Wang, Zifan Li, James Ma, Irene Li, Qingning Yao, Shanelle Roman, Zilin Zhang, and Dragomir Radev. 2018c. Spider: A large-scale human-labeled dataset for complex and cross-domain semantic parsing and text-to-sql task. In EMNLP.
Zelle and Mooney (1996)
John M. Zelle and Raymond J. Mooney. 1996.
Learning to parse database queries using inductive logic programming.In AAAI/IAAI, pages 1050–1055, Portland, OR. AAAI Press/MIT Press.
- Zettlemoyer and Collins (2007) Luke Zettlemoyer and Michael Collins. 2007. Online learning of relaxed ccg grammars for parsing to logical form. In Proceedings of the 2007 Joint Conference on Empirical Methods in Natural Language Processing and Computational Natural Language Learning (EMNLP-CoNLL).
- Zettlemoyer and Collins (2005) Luke S. Zettlemoyer and Michael Collins. 2005. Learning to map sentences to logical form: Structured classification with probabilistic categorial grammars. UAI.
- Zettlemoyer and Collins (2009) Luke S. Zettlemoyer and Michael Collins. 2009. Learning context-dependent mappings from sentences to logical form. In ACL/IJCNLP.
- Zhong et al. (2017) Victor Zhong, Caiming Xiong, and Richard Socher. 2017. Seq2sql: Generating structured queries from natural language using reinforcement learning. CoRR, abs/1709.00103.
- Zhong et al. (2018) Victor Zhong, Caiming Xiong, and Richard Socher. 2018. Global-locally self-attentive encoder for dialogue state tracking. In ACL.
Appendix A Appendices
a.1 Additional Baseline Model Details
We use a bi-LSTM, , to encode the user utterance at each turn. At each step of the utterance, takes as input the word embedding and the discourse state updated for the previous turn :
where is the index of the turn and is the index of the utterance token. The final hidden state is used as the input of a uni-directional LSTM, , which is the interaction level encoder:
For each column header, we concatenate its table name and its column name separated by a special dot token (i.e., table_name.column_name), and the column header embedding is the average embeddings of the words.
The decoder is implemented as another LSTM with hidden state . We use the dot-product based attention mechanism to compute the context vector. At each decoding step , we compute attention scores for all tokens in previous turns (we use ) and normalize them using softmax. Suppose the current turn is , and consider the turns of distance from turn . We use a learned position embedding when computing the attention scores. The context vector is the weighted sum of the concatenation of the token embedding and the position embedding:
At each decoding step, the sequential decoder chooses to generate a SQL keyword (e.g., select, where, group by, order by) or a column header. To achieve this, we use separate layers to score SQL keywords and column headers, and finally use the softmax operation to generate the output probability distribution:
It’s worth mentioning that we experimented with a SQL segment copying model similar to the one proposed in Suhr et al. (2018). We implement our own segment extraction procedure by extracting SELECT, FROM, GROUP BY, ORDER BY clauses as well as different conditions in WHERE clauses. In this way, we can extract 3.9 segments per SQL on average. However, we found that adding segment copying does not significantly improve the performance because of error propagation. Better leveraging previously generated SQL queries remains an interesting future direction for this task.
As in Yu et al. (2018b), the following is defined to compute the conditional embedding of an embedding given another embedding :
Here is a trainable parameter. In addition, a probability distribution from a given score matrix is computed by
where is a trainable parameter. To incorporate the context history, we encode the question right before the current question and add it to each module as an input. For example, the COL module of SyntaxSQLNet is extended as following. denotes the hidden states of LSTM on embeddings of the previous one question and the and terms add history information to prediction of the column number and column value respectively.
