The intention of forums is to provide a platform between the users and administration for resolving issues and grievance redressal. However, there are instances of users posting malicious content and links on these platforms which degrades the core objective of the website. Currently, there is manual moderation for quality check to remove any irrelevant content. Such moderation increases the cost as well as the time required for completion of the objective which can be reduced by automating this process.
There has been ample research in recent years to develop automated spam classification systems using supervised machine learning algorithms. Awad and Elseuofi applied various machine learning techniques for automated classification of emails . Manlangit et al. proposed an intelligent system which could detect fraud transactions using classification algorithms . These systems made use of labelled data to plot a decision boundary based on which a new test case was classified into the appropriate class.
One of the major issues faced for developing such classifier systems for forums is the imbalance in data. Majority of the content posted on forums is in accordance with the intended goal(non spam). As a result, the frequency of spam samples is sparse in comparison to the non spam samples. Conventional Machine Learning algorithms when trained on such data will tend to have a bias towards the majority class which will lead to a new spam sample being accepted as relevant. This inconsistency can be resolved by feeding balanced data to the algorithm. The balance amongst classes can be achieved by either undersampling the majority class or oversampling the minority class. In 2008, Tang et al. presented a hybrid intelligent system based on undersampling of the majority class which could analyze the behaviour of sender . However, undersampling of data poses the risk of losing crucial information especially in cases where the number of minority class samples is extremely small, thus affecting the overall performance of the system. In this paper we propose an approach which involves synthetically oversampling the minority class to solve the imbalance problem. This increases the training size so as to bring uniformity in the data by reducing variation in distribution of classes. This in turn enhances the results achieved by the system.
The rest of the paper is as follows: Section 2 provides an overview of the pre-processing techniques. The proposed approach is described in section 3. Description of the dataset, evaluation metrics and experimental results are provided in section 4. Finally, section 5 draws the conclusion and suggests future direction of the work.
Ii Preprocessing techniques
The data obtained from the forums is in text format and cannot be feeded directly to the machine learning algorithm. Certain preprocessing techniques need to be applied on the data which help in extracting useful information. The text data is converted into feature vectors which are then passed to the classification algorithm. The preprocessing techniques include:
Ii-a Stripping of HTML tags
The text is removed of any html tags and scripts as they are not relevant to the intent of the message. Apart from this special characters like — ,newline and tab characters are also removed. Words with less than 3 characters are removed as they do not provide relevant information and tend to divert the model function.
Ii-B Stop words
Commonly used words like ’are’,’is’,’they’,’this’ etc can be found in both spam as well as non-spam content and thus cannot be a deciding factor for classification. Such words are called stop words and we remove them from our text.
The filtered text is now converted into a sparse matrix of tokens by vectorizing them. The various vectorizer techniques include count vectorizer and Tf-idf vectorizer. Tf-Idf(Term frequency inverse document frequency) vectorizer is used by us in this project. The mathematical equation for Tf-Idf is as follows:
The Tf-Idf weight is composed by two terms: the first computes the normalized Term Frequency (TF), aka. the number of times a word appears in a sample, divided by the total number of words in that sample; the second term is the Inverse Document Frequency (IDF), computed as the logarithm of the number of the samples in the dataset divided by the number of samples where the specific word appears.
The above mentioned preprocessing techniques are implemented using the beautiful soup and scikit learn packages in Python 3.6. After carrying out these techniques, the text data is now converted to a sparse matrix consisting of numbers which can be fed to a classification algorithm. As a part of the evaluation process, we split the data into train and test sets with the model being trained on 80% of the data and results are calculated for the remaining 20% of dataset. For any new test case, the above preprocessing methods still need to be carried out and the class label is predicted for the feature vector of the test case.
Iii Proposed approach
The training dataset initially contains uneven distribution of classes. We propose oversampling the minority class using Synthetic Minority Oversampling Technique(SMOTE) to reduce the variance present in the training dataset. SMOTE was first introduced by Chawlaet al. in 2002 . The technique involves creation of ’synthetic’ samples rather than replacement techniques which are traditionally used for oversampling. The algorithm operates on the feature vectors created earlier by introducing artificial samples along the line joining all of the k minority class nearest neighbors for every minority class sample. It is generally implemented in the training phase so as to remove bias by balancing the data. Synthetically oversampling the test data does not enhance the performance of the classification algorithm. We implement the technique on training data such that the number of minority and majority class samples become equal.

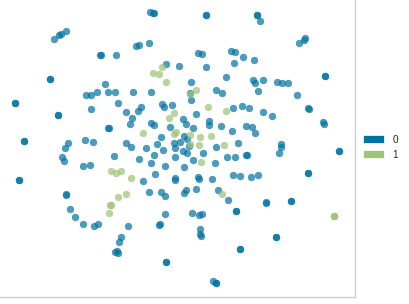

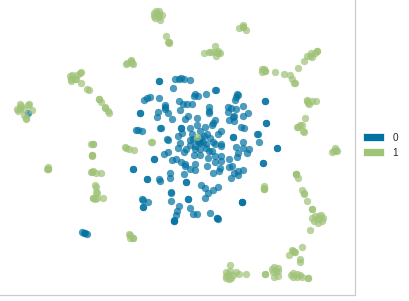

After passing the feature vectors through this algorithm, there is modification in the feature space as observed through figure 1 and 2. It should be noted that the samples in blue indicate the majority class which are comparatively more abundant than the minority class(green) in fig 1. The increase in minority class samples after implementing SMOTE is visible in figure 2. We can also infer that the formation of decision boundary to distinguish the two classes in feature space is now comparatively easier, thus enhancing the performance of the classification algorithm.
The balanced training dataset is now passed through a supervised classification algorithm. The task of the algorithm is to plot a decision boundary which fits the training data such that it precisely partitions the underlying vector space into two sets, one for each class. For a new test case, the previously mentioned preprocessing steps are carried out and its feature vector is plotted in the feature space. The classifier will classify it as the class which is on the same side of the decision boundary as the vector.
Iv-a Dataset description
The dataset for this task was gathered from the forums of Spoken Tutorials project, IIT Bombay. Spoken tutorial project provides tutorials on FOSS available in several Indian languages for the learners. A forum has been setup to address problems of students as well as contributors. The data was collected from the forums which consisted of questions asked by users and the replies given. A label was assigned to each case. Label 0 indicated ’non spam’ or relevant content whereas the label 1 indicated spam content. The dataset comprised of 313 samples-273 non spam samples and 40 spam samples. It was then split into training and testing dataset with the training set consisting of 201 non spam samples and 33 spam samples. The distribution of training data before and after applying SMOTE is shown in table 1.
|Number of majority class samples||Number of minority class samples|
|After applying SMOTE||201||201|
Iv-B Performance metric
Accuracy is usually considered as the performance metric for classification algorithms. It is the ratio of correctly detected samples to the total number of test samples. However, in case of imbalanced datasets the accuracy will provide a wrong perception of the results. For example, a dataset consisting of 95 non-spam and 5 spam samples will produce an accuracy of 95% by predicting all samples as non-spam. The model has failed to recognize the spam class samples and is thus deemed faulty. The performance metrics which provide a better interpretation in such cases are:
F1 Score = 2 *
TP: True positive(no. of outcome where the model correctly predicts the positive class)
FP: False positive(outcome where the model incorrectly predicts the positive class)
FN: False negative(outcome where the model incorrectly predicts the negative class) The reason is that these metrics are more focused on the positive class(Spam) than on the negative class and actually measure the probability of correctly detecting positive values which is crucial in case of spam classification.
Iv-C Evaluation of results

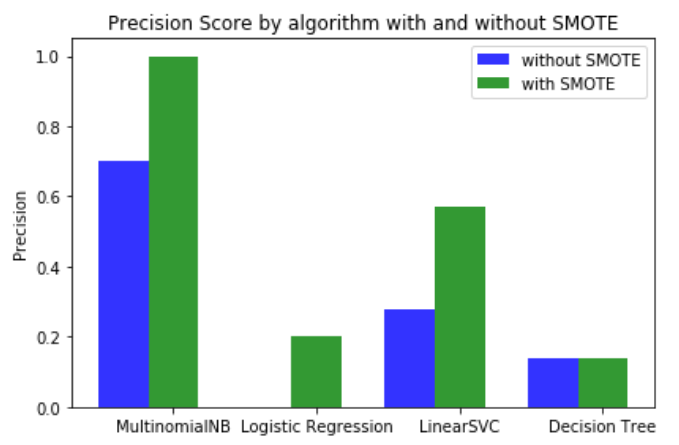

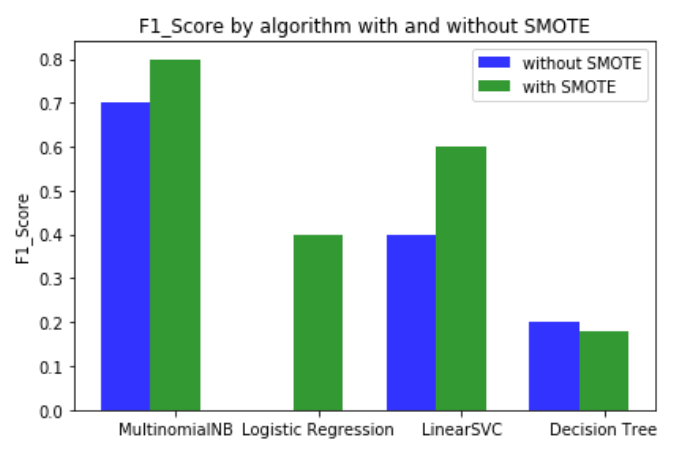

The enhanced training dataset is passed through various classification algorithms namely: Multinomial Naive Bayes, Logistic regression, Linear SVC(Support vector clustering) and decision tree. The performance of each algorithm based on the above mentioned metrics is tabulated in table no 2.
|Metric||Multinomial NB||Logistic Regression||Linear SVC||Decision Tree|
|With SMOTE||Without SMOTE||With SMOTE||Without SMOTE||With SMOTE||Without SMOTE||With SMOTE||Without SMOTE|
It can be observed that applying SMOTE on training data produces better metric performance compared to models trained on imbalanced data for major classification algorithms.
We have observed that algorithms working with SMOTE outperforms algorithms trained on imbalanced data with margins as high as 10%. The effect of uneven class representation is negated by this technique. It can thus prove to be extremely useful for classification of cases in forums. Future work includes modifications in the SMOTE function for better generalization of the minority class. The performance of the technique can be enhanced for decision tree based algorithms through parameter tuning. The technique can also be meshed with deep learning algorithms to enhance the classification result. The idea can be further extended to create automated tagger for contents posted on educational websites which would improve content organization.
We would like to thank Spoken Tutorial Project, IIT Bombay for their assistance in the collection of data used in this project. We would also like to extend our thanks to Prof. Kannan Moudgalya, IIT Bombay for his encouragement and useful critiques for this research work.
-  W.A. Awad and S.M. Elseuofi, ”Machine Learning Methods for spam E-Mail classification”,International Journal of Computer Science & Information Technology (IJCSIT), Vol 3, No 1,Feb 2011
-  Sylvester Manlangit,Sami Azam,Bharanidharan Shanmugam,Krishnan Kannoorpatti,Mirjam Jonkman,Arasu Balasubramaniam,An Efficient Method for Detecting Fraudulent Transactions Using Classification Algorithms on an Anonymized Credit Card Data Set,Intelligent Systems Design and Applications, pp.418-429
-  Yuchun Tang, Sven Krasser, Yuanchen He, Weilai Yang, Dmitri Alperovitch, ,IEEE ”GLOBECOM” 2008
Nitesh V. Chawla,Kevin W. Bowyer,Lawrence O. Hall,W. Philip Kegelmeyer, ”SMOTE: Synthetic Minority Over-sampling Technique”
, Journal of Artificial Intelligence Research 16 (2002) 321–357
-  E.Pedregosa, F. Varoquaux, G.Gramfort, A.Michel, V.Thirion, B.Grisel, O.Blondel, M.Prettenhofer, P.Weiss, R.Dubourg, V.Vanderplas, J.Passos, A.Cournapeau, D.Brucher, M.Perrot, M.Duchesnay,Scikitlearn:Machine Learning in Python,Journal of Machine Learning Research,volume 12,2825–2830,2011
-  Lars Buitinck,Gilles Louppe,Mathieu Blondel,Fabian Pedregosa,Andreas Mueller,Olivier Grisel,Vlad Niculae Peter Prettenhofer,Alexandre Gramfor, Jaques Grobler,Robert Layton ,Jake VanderPlas ,Arnaud Joly,Brian Holt and Gael Varoquaux, design for machine learning software: experiences from the scikit-learn project,ECML PKDD Workshop: Languages for Data Mining and Machine Learning,108–122,2013
-  KM Moudgalya, Spoken tutorial: A collaborative and scalable education technology, CSI Communications 35 (6), 10-12
