I introduction

Future sixth generation (6G) and beyond mobile communications are envisioned to witness a plethora of novel data-demanding applications that will be typically characterized by particularly stringent operational and quality of service requirements. This calls for the development of disruptive technologies that will be capable of catering for all anticipated demanding requirements, such as substantially higher data rates, ultra-low end-to-end latency, massive scale connectivity, increased robustness and expanded capacity, all under the umbrella of secure and energy efficient green communications [6G, 9079587]. A key approach for meeting these requirements is through the radical shift from conventional radio frequency (RF) based communications, to more wideband communications using less occupied or unoccupied bands of the frequency spectrum.

Based on the above, recent advancements in solid state optical technology have facilitated the emergence of visible light communications (VLC), which is considered a promising breakthrough technology candidate for complementing RF wireless communications. In addition, relatively low deployment cost and ease of implementation can be realized in VLC systems by means of exploiting light emitting diodes (LEDs), which are primarily intended for illumination, in order to perform wireless transmission through intensity modulation and direct detection (IM/DD). Yet, despite the superior features of VLC, the performance of such systems is constrained by several factors, such as limited modulation bandwidth and restricted LED peak optical power, as well as by the imposed positive and real valued nature of transmitted signals [Jovicic2013]. Motivated by this, extensive research efforts have been devoted in order to enhance the performance of VLC systems by means of developing efficient optical-based modulation, coding, equalization, VLC cooperative communications, and multiple access (MA) schemes[fath2013, Hussein, MA_VLC]. Additionally, the use of burst-mode receivers is particularly suitable for optical multi-access networks, which are based on packet transmission, as they are capable of enhancing the transmission data [Singh2010]. Finally, due to its high spectrum efficiency, simplified and efficient implementation, as well as inter-symbol interference mitigation capabilities, orthogonal frequency division multiplexing (OFDM) has been also investigated in the context of VLC. The work in [singh]

has considered the performance evaluation of different types of quadrature-amplitude modulation (QAM) and phase-shift keying (PSK) modulation with three different channel estimation methods in OFDM system aiming to improve the overall throughput performance.

It is also recalled that multiple-input multiple output (MIMO) transmission techniques have been comprehensively studied in RF systems and they have been extensively shown to exhibit superior performance in terms of system capacity and reliability, compared to conventional single input single output (SISO) systems. Likewise, two MIMO strategies have been also proposed in the literature for VLC systems, namely, space time block codes (STBCs) and spatial multiplexing (SMP). On the one hand, SMP schemes are applied in VLC systems in order to accommodate the stringent demands for high data rate communications, by utilizing multiple LEDs in order to transmit different signals simultaneously. However, the simultaneous transmission from all LEDs results in a high inter-channel interference (ICI) and increased detection complexity [Elgala, Wolniansky, khan]. On the other hand, STBCs schemes are privileged as they achieve an improved reliability, high data rate, ease of implementation, and reduced decoding complexity features [Tarokh, 9252154]. Existing results in the literature quantified the performance achieved enhancement by applying STBC over SISO systems in indoor VLC networks [ntogari, Amano, Hwang]. For instance, the work in [Biagi2013] has jointly investigated STBCs with pulse position modulation (PPM). Results demonstrated the ability of the proposed scheme to achieve data rates of the order of hundreds of Mb/s in indoor VLC systems, while maintaining good link reliability. Furthermore, the authors in [biagi2020] proposed a quasi-trace-orthogonal-STBC, where the transmitted codewords follow the quasi-trace orthogonal property to provide an enhanced spectral efficiency. Corresponding simulations were experimentally tested for a MIMO L-PPM VLC system. The proposed scheme showed an enhanced spectral efficiency performance of up to four times that of the trace-orthogonal STBC when 8-PPM was used.
Meanwhile, index modulation is considered an efficient modulation scheme for enhancing the spectral and energy efficiency of VLC systems while maintaining a reduced hardware complexity [IndexModulation, Mao, Guo2020]. The key difference in index modulation schemes compared to conventional modulation schemes is that additional data can be conveyed over the indices of the major blocks of the communication system through on/off keying mechanism. These are, for example, the indices of the LEDs, frequency subcarriers, time slots, or a combination of them. Based on this, indexing in the spatial domain has been thoroughly investigated in the field of VLC networks [IndexModulation]. Specifically, different forms of spatial index modulation have been proposed and investigated in the open literature, such as, space shift keying (SSK), generalized space shift keying (GSSK), and spatial modulation (SM) [7405284]. SSK is the simplest form of spatial domain index modulation where a single LED out of LEDs is activated and the data is conveyed over the index of the activated LED. Yet, although SSK has the advantages of providing an interference free communication and simple receiver design, a large number of transmit LEDs is required to achieve higher modulation orders, and hence, high spectral efficiency. So, in the generalized case, i.e. in GSSK, LEDs are activated simultaneously to boost the spectral efficiency at the expense of an incurred spatial interference [Gssk]. In this context, various reported contributions investigated the performance capability of GSSK in VLC systems. For instance, [Zhang2018] derived a closed form expression for the average symbol error rate (ASER) for direct-code GSSK system and showed that with a low complexity power allocation mechanism, the ASER and spectral efficiency can be improved significantly. Moreover, the authors in [Wang2018] investigated the physical layer security of a GSSK-VLC system and proposed an optimal LED pattern selection algorithm to enhance the achievable secrecy performance. A similar analysis was carried out in [su2021], wherein a novel spatial constellation design technique was proposed based on GSSK.

It is recalled that SM was firstly introduced by Mesleh in [Mesleh], as an efficient scheme to reduce the ICI introduced by SMP and overcome the spectral efficiency limitations of SSK and GSSK schemes. To achieve this, the principle of SM is based on conveying information in both the signal and spatial domains. A detailed comparison between SMP, repetition coding (RC) and SM was carried out in [fath2013]. There, it was demonstrated that SM achieves compromised performance between spectral efficiency, error rate, and complexity. Likewise, the authors in [Wang2019] investigated the secrecy rate performance of SM and proposed channel adaptive selection and a greedy selection schemes for choosing the active transmitter in order to enhance the secrecy rate performance. In addition to this, it is also widely known that the performance of SM in VLC is highly affected by the incurred channel correlation. To overcome this issue, the authors in [Tran2019] proposed an alteration of the orientation of the photo-detector (PD), while an LED grouping based SM method was reported in [gao2020]. Subsequently, the authors in [Zheng2020]

proposed an adaptive SM scheme that balances the trade-off between spectral efficiency and link robustness. In this scheme, the modulation size was dynamically changed based on the channel cumulative distribution function (CDF) of the user. Furthermore, additional studies on adaptive SM were also considered in

[Wang_access_2018] and [Wang2018_photo]. Likewise, the integration of SM and non-orthogonal multiple access has been investigated in multi-user MIMO VLC networks as a means of enhancing the overall spectral efficiency of the system [Yang2019, Amna2020, wu2020].
Following the same concept as in SSK, a single LED in SM is activated. However, the activated LED additionally sends a positive real-valued symbol, which ultimately results in an enhanced spectral efficiency compared to SSK modulation. In this context and in order to provide a more flexible system design, the authors in [Lang2015] proposed the activation of LEDs out of the total , while RC was applied in order to transmit the same -ary symbol through the active LEDs. However, this scheme is still limited in terms of the achievable spectral efficiency since the same symbol is transmitted from all active LEDs. Furthermore, the error rate performance of RC-SM is practically degraded at higher spectral efficiency values since higher -ary modulation orders are required in order to maintain a certain high spectral efficiency under the same system setup.
Multiple active SM (MASM) is a more generalized version of conventional SM that highly enhances the spectral efficiency by conveying more information in both spatial and signal domains [Rajesh, Li, Hussein]. It is noted that MASM relies on the activation of LEDs out of , whilst multiple distinct real non-negative -ary symbols are transmitted from each active LED. It was shown in [datta, Nahhal2021] that MASM achieves high spectral efficiency compared to other spatial index modulation schemes. However, its major drawback is the degraded bit error rate (BER) performance, particularly for a large number of activated LEDs and high modulation orders. The mentioned BER performance degradation results in a deterioration in the VLC system’s throughput. In order to tackle this issue, a bit-to-symbol mapping based on the corresponding Euclidean distance (ED) was proposed for MASM in [Tran2019_photon], where it was shown that the proposed MASM with ED-mapping outperforms conventional mapping for MASM. Additionally, the authors in [Xiao2019] utilized multi-color LED (QLEDs) as transmitters in a MASM system. In their scheme, the optimal QLED pattern was selected according to the chromaticity property of the LEDs. However, this scheme exhibits increased complexity, so signal design schemes with reduced complexity are highly essential. Moreover, constellation design algorithms for single-mode and dual-mode joint MASM were proposed in [kumar2018] for the case of highly correlated VLC channels. On the contrary, an iterative combinatorial symbol design algorithm was proposed in [curry2018]. In this context, the achievable symbol error rate (SER) performance was enhanced for a random symbol set by iteratively adding and removing symbols. Finally, the integration of MASM with orthogonal frequency division multiplexing scheme was considered in [kumar2019] and [hussein2019]. Based on this and according to the above discussion, there is an urgent need for the design of efficient modulation schemes in order to ultimately achieve an adequate balance between spectral efficiency enhancement, BER performance, and involved receiver complexity.

I-a Contribution

As already mentioned, several MIMO transmission techniques have been proposed in the open literature to compensate for the spectral loss introduced by LEDs and the constraints imposed by intensity modulation direct detection (IM/DD). In addition, the MASM concept was recently proposed and was found capable of increasing the transmission data rate by means of conveying information in both signal and spatial domains. However, the main drawback of this scheme is the degraded error rate performance at higher spectral efficiency values. Based on this, the present contribution proposes space time block coded-spatial modulation (STBC-SM) for indoor VLC systems. It is worth mentioning here that the integration of STBC with SM is a particularly promising modulation scheme because it can achieve a significant performance enhancement over MASM by exploiting the advantages of both SM and STBC, while maintaining high energy efficiency and reduced complexity [Xiang, Biagi]. However, an STBC-SM based scenario in the context of VLC has not been investigated in the literature so far. Therefore, the core aim of our work is to propose a comprehensive framework for the investigation of STBC-SM and for quantifying the advantages of integrating SM and STBC scheme in indoor VLC environments. In more details. the main contributions of this paper are summarized as follows:

  • We propose an STBC-SM scheme for indoor VLC systems, which offers a trade-off between spectral efficiency, reliability, and receiver complexity.

  • We generalize Alamouti STBC-SM to an arbitrary number of active LEDs. Moreover, we provide a general design for the -ary pulse amplitude modulation (PAM) symbols and their complements.

  • We propose the integration of quasi-orthogonal STBCs (QOSTBCs) with SM to further enhance the system spectral efficiency.

  • We purpose a new receiver design based on two-step maximum likelihood (ML) decoding process to reduce the complexity associated with the conventional joint ML receivers.

  • To corroborate the performance enhancement achieved by STBC-SM, we consider the proposed two-step ML detector to derive the pairwise error probability (PEP) of the active LEDs indices, which is then utilized to derive a union bound for the probability of incorrect index detection.

  • Capitalizing on the derived union bound, we evaluate the probability of incorrect detection of the transmitted symbols, by deriving a tight and tractable bound for the corresponding BER.

  • To compare their spectral efficiency performance, we provide an analysis for the achievable rate of MASM and STBC-SM schemes.

  • Finally, we present extensive analytic and simulation results in order to validate the derived BER bound expression and to corroborate the BER superiority of the proposed scheme compared to the MASM counterpart as well as the achieved throughput enhancement at high -ary PAM.

To the best of the authors’ knowledge, the offered results have not been previously reported in the open technical literature. The remainder of this paper is organized as follows: Section II presents the considered system and channel models, whereas section III proposes the generalized STBCs and the QOSTBC for VLC systems. Section IV presents the proposed ML decoding along with the required steps for the derivation of the BER bound. Capitalizing on this, the corresponding analytic and simulation results are discussed in section V. Finally, the paper is concluded in section VI with some useful comments and suggestions.
Notations:

Throughout the manuscript, unless mentioned otherwise, boldface uppercase and lowercase represent matrices and vectors, respectively. Also,

, , and denote the transpose, the absolute value, and the norm operations, respectively whereas I

denotes the identity matrix. The notations

and represent respectively the binomial coefficient and the largest integer less than or equal x, that is integer power of 2. Finally,

denotes a real-valued Gaussian distribution with zero mean value and variance

.

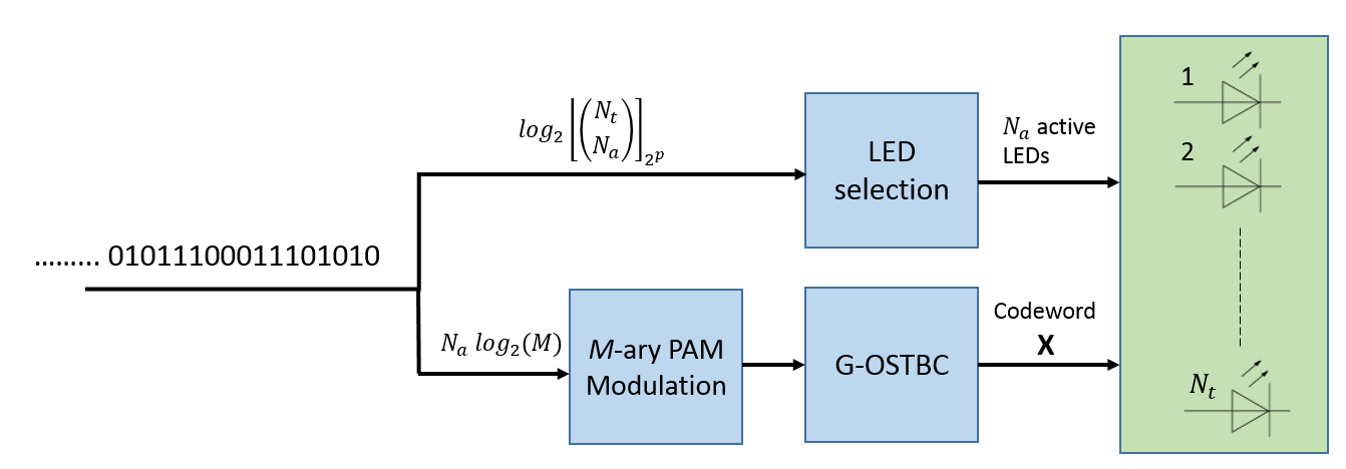

Fig. 1: Generalized STBC-SM transmitter

Ii system and channel models

We consider an indoor VLC multiple-input single-output (MISO) downlink system which consists of transmit LEDs, a single PD user (), and active LEDs. Without loss of generality, the dimensions of the considered room in the present scenario are . The transmitted bit stream is divided into two parts; the first part consists of bits, where denotes the number of combinations of LEDs taken at a time, which is less than or equal to and is power of 2. Those bits are used to select the LEDs’ indices that will be activated. On the contrary, the other bits are modulated using -ary PAM modulation and are then encoded using a STBC with coding rate of . The generalized STBC-SM transmitter is depicted in Fig. 1. Therefore, the received signal can be written as follows

(1)

where is the PD responsivity and is the transmitted codeword, where denotes the number of time slots. It is worth mentioning that the normalization by is performed in order to guarantee fixed illumination in the room. Moreover, represents the additive white Gaussian noise (AWGN) with zero mean and variance , where and denote the variances of the shot noise and thermal noise, respectively. A detailed noise variance calculation was reported in [Ghassem2019]. Additionally, denotes the channel gain vector between the active LEDs and the PD, in which only the line of sight (LoS) component is considered. To this effect, each component of can be expressed as [Komine2004]

(2)

where denotes the PD area, is the distance between the th active LED and the PD, is the angle of transmission from the th active LED to the PD, is the incident angle with respect to the receiver, and is the field of view (FoV) of the PD. Moreover, and denote the gains of the optical filter and concentrator, respectively. The term can be expressed as follows

(3)

where represents the refractive index, and denotes the Lambertian radiant intensity. Further details about can be found in [Ghassem2019].

Iii generalized stbc for vlc Systems

It is recalled that STBCs have attracted considerable attention because of their demonstrated implementation and decoding simplicity, which renders them particularly capable of exploiting the distinct potentials of MIMO systems. In this context, orthogonal STBCs (OSTBCs) constitute special cases of STBCs which allow single-symbol simplified linear decoding. However, it is noted that OSTBCs in VLC systems can achieve a maximum coding rate of one. Therefore, high coding rate STBCs are required in order to provide higher transmission data rates. Thus, in this section we first generalize Alamouti STBC to an arbitrary -ary PAM size. Subsequently, we consider the general case of an arbitrary number of active LEDs in order to develop the codeword for any optical OSTBCs. Finally, we propose a rate-2 QOSTBC that will enable an enhancement on the achievable transmission data rate.

To that end, starting with the well-known Alamouti STBC, the transmitted codeword from two active LEDs can be expressed as

(4)

where and are real and positive PAM symbols. Moreover, denotes the complement of , which for the special case of on-off keying (OOK) is calculated as , where is the mean optical power. Also, and can be generalized into any PAM size , so the intensity levels for the case of -ary PAM are defined as follows

(5)

It is noted here that when the LEDs transmit bits corresponding to the first level (i.e. ), they will be incorrectly decoded as inactive. Therefore, in order to overcome this issue and allow the receiver to distinguish the active LEDs, the intensity levels are modified as follows

(6)

and the complement of the symbol is

Iii-a Optical Orthogonal STBCs

Alamouti STBC can be generalized to produce an OSTBC of rate , which can be expressed as

(8)

where and are the () OSTBC matrices for the first and the last symbols, respectively. The process starts by dividing the matrix into blocks of size . Then, each block is also divided into new sub-blocks until the smallest sub-block, i.e the Alamouti codeword is reached. In the present analysis, and without loss of generality, we consider the special case of an OSTBC matrix. To this end, we fist start by dividing the OSTBC matrix into blocks of size as follows:

(9)

where and are codewords for () and (), respectively. Then, each block is divided into a smaller OSTBC sub-blocks, which yields

(10)

where and are Alamouti codewords for () and (), respectively. On the contrary, and are Alamouti codewords for () and (), respectively. Meanwhile, OSTBC codes for real symbols of rate for 3, 5, 6, and 7 can be obtained by eliminating some of the columns of the square OSTBC matrices defined earlier for and 8 in (10) and (9), respectively. For example, a OSTBC can be generated by eliminating the last column of the OSTBC, yielding

(11)

Importantly, the generated codewords satisfy the orthogonality condition . Therefore, they can be exploited for integrating STBC with SM in order to simplify receiver design and to allow the transmission of higher order modulation, as presented in detail in the following section.

Iii-B Optical Quasi-Orthogonal STBCs

Despite their simplified ML detection, OSTBCs in VLC can achieve maximum coding rate of 1. Therefore, in order to provide higher rates the orthogonality is relaxed in order to transmit more symbols in each time slot through developing QOSTBCs. It is worth mentioning that QOSTBCs allow a trade-off between higher rates and decoding complexity; this is because parallel ML detectors are needed to jointly decode pairs (or more) of the transmitted symbols instead of single-symbol decoding as in OSTBCs. In what follows, we provide an example of a QOSTBC that achieves a rate , which is then utilized to be integrated with SM.

Iii-B1 Rate-2 QOSTBC

A rate-2 QOSTBC for real symbols and two transmit LEDs is expressed as

(12)
(13)

Of note, equation (12) is simply a linear combination of two optical Alamouti STBCs. Moreover, the parameters and need to be carefully chosen in order to maximize the coding gain, while they also satisfy a fixed average transmitted optical power, i.e., . In order to simplify the detection process, we can choose and . Therefore, the multiplication of the effective channel gain matrix and its transpose can be expressed as in (13), at the top of the next page. It is also worth noting that the values of the design parameters and need to be optimized in order to obtain best detection performance. Also, it can be noticed from (13) that the joint ML decoding of the symbols and will be independent of the other two symbols, and .

Iv Proposed ML Decoding for STBC-SM Scheme

In this section, we investigate the integration of STBC with SM in order to enhance the achievable VLC system performance in terms of reliability, throughput and complexity. To this end and by assuming that ML detection is utilized at the receiver side, the detector performs joint detection to deduce the received signals over the space and signal domains. In particular, the receiver will jointly detect the LED index and the transmitted symbol according to the following criterion

(14)

where denotes the index of the transmitting LEDs and is the transmitted codeword. It also recalled here that joint ML detection requires the search over all combinations, which results in a significantly increased receiver complexity. Yet, the orthogonal property of the generated OSTBC codewords and being of rate allows the symbols ’s to be decoded independently. This ultimately reduces the complexity to . To this effect and aiming at reducing receiver complexity, we propose a detection mechanism in which the detection process is broken down into two main stages. The first stage comprises a conditional ML detection, in which conditioned on , the receiver detects only the indices of the transmitting LEDs as follows:

(15)

In the second stage, the orthogonality of the generated STBC codewords is utilized to decouple the transmitted symbols. Based on this and by assuming perfect detection of the LEDs indices, and therefore perfect estimation of the channel matrix, the transmitted codeword can be evaluated as follows:

(16)

where, is the transmitted symbols vector, and is the AWGN vector, in which each component has a zero mean and a variance of . Also, is the effective channel gain matrix for the OSTBC, where denotes the overall number of symbols transmitted in time slots. Finally, in order to detect the transmitted symbols, a conventional signal domain ML detector is utilized to decide on each transmitted symbol separately, namely

(17)

It is also emphasized here that the proposed detector reduces the receiver complexity to . Furthermore, if the QOSTBC defined in (12) is integrated with SM, the complexity is reduced to .

In what follows, we evaluate the BER performance of the proposed receiver for STBC-SM-based indoor VLC system.

Iv-a BER Analysis

The probability of incorrect detection of the transmitted symbols can be evaluated as

(18)

where is the probability of incorrect index detection and and denote the probability of incorrect codeword detection conditioned on correct and incorrect index detection, respectively. Due to mathematical intractability of (18) and given that is rather large, i.e. close to unity, the total error probability can be simplified as

(19)

Therefore, obtaining the BER from (19) requires the derivation of two expressions for and . To this effect and given that is conditioned on , we resort to the corresponding PEP, which represents an accurate metric to quantify the BER performance of a wireless system [Lina2019]. In fact, the derivation of the PEP constitutes the fundamental step for the derivation of a union bound on the BER.

Proposition 1.

The following closed-form expression is valid for the union bound of the BER for :

(20)

where is the number of different bits between two distinct symbols.

Proof.

With the aid of PEP, the upper bound to the probability of a union of all events of decoding as can be represented as

(21)

where is the PEP for index detection, which can be written as

(22)

After substituting the received signal from (15) in (22), the PEP can be written as

(23)

Based on this and after some algebraic manipulations, the PEP can be expressed in closed form in terms of the one dimensional Gaussian function, namely

(24)

Finally, the obtained PEP in (24) can be substituted in (21), which yields the closed form representation in (20), which completes the proof. ∎

By leveraging the orthogonality feature of the STBC codewords defined in III.A, transmitted symbols can be decoded separately using the ML detector in (17). Therefore, the BER expression of M-ary PAM can be utilized in evaluating the probability of incorrectly detecting , namely [Ghassem2019]

(25)

P_e ⩽1N 2N∑_∀ℓ ∑_ℓ≠^ℓ D(ℓ,^ℓ) Q (η24Na2σ2X h_ℓ - ^X_min h_^∥^2 ) + 2 (M-1)M log2(M)Q(η2hl2I2pN2a(M+1)2σ2) ×[1- 1N 2N∑_∀ℓ ∑_ℓ≠^ℓ D(ℓ,^ℓ) Q (η24Na2σ2X h_ℓ - ^X_min h_^∥^2 )].

Therefore, with the aid of (19), (20) and (25), the overall BER upper bound is given by the explicit expression in (IV-A), at the top of the next page.

Iv-B Achievable Rate Analysis for MASM and STBC-SM

Motivated by the advantages of MASM in improving the system’s spectral efficiency, in this section we derive the rate expression for MASM and STBC-SM schemes and compare them in terms of their achievable spectral efficiency. To this end, it is recalled that the spectral efficiency for MASM depends on the activation patterns and the modulation size, namely

(26)

Based on this and given that the rate of correctly detected bits experiences severe degradation for the case of a large number of active LEDs and modulation size, the achievable rate of MASM can be evaluated in terms of the error probability as

(27)

where is the BER for a MASM system, which is expected to be particularly high for large values. Following the same steps, the achievable rate of STBC-SM is given by

(28)

where is the spectral efficiency of STBC-SM, which can be expressed as

(29)

Therefore, it is noted that since STBC-SM scheme achieves a better BER performance for high values compared to MASM and RC-SM, STBC-SM outperforms both schemes in terms of the corresponding BER, and hence the overall achievable rate. In addition, since the proposed QOSTBC in (12) has a rate of 2, when integrated with SM it will require lower modulation size compared to RC-SM to achieve the same spectral efficiency. This will be reflected on the error rate performance at high spectral efficiency values, as it is demonstrated in the next section.

It is noted here that evaluating the error rate performance with respect to the average electrical received signal-to-noise ratio (SNR) would disregard the individual path loss of the different setups and activated LEDs pattern. Therefore, in order to guarantee fair comparison, we opt to evaluate the error rate performance of the proposed scheme with respect to the transmit SNR, which is defined as the ratio of the average symbol energy against the noise power spectral density

[fath2013, fath_20132]. It is also noted that the value of the transmit SNR in VLC systems is considerably higher than the one encountered in typical RF communication systems as it often exceeds 100 dB [He2015]. This is attributed to the small value associated with the noise power spectral density [Yin2016]. Specifically, by neglecting the photodetector dark current, is expressed as , where is the charge of electron and is the background noise current that takes typical values in the order of [Stavridis_2015, Ghassem2019].

V Numerical Results

In this section, we capitalize on the offered results to analyze the achievable performance of the proposed STBC-SM scheme. Hence, the validity of the derived analytic expressions in (IV-A), (27) and (28) is first justified through extensive comparisons with respective results from computer simulations. To that end and without loss of generality, we consider an indoor VLC environment with dimensions of , in which the locations of both the involved LEDs and the user are illustrated in Fig. 2. In addition, it is assumed that the transmit LEDs radiate downward from the ceiling to the floor. On the contrary, the receiver position in the room is considered to be fixed throughout simulations and is assumed to be located at height of 0.8 m from the floor. Based on this, the corresponding channel gain can be also considered fixed. The receiver is also assumed to be oriented upward to the ceiling. Moreover, the LEDs semi-angle at half power and the FoV of the PD are set to , which is a typical value for commercially-available high-brightness LEDs. For convenience, all the parameters involved in our simulations are summarized in Table I.

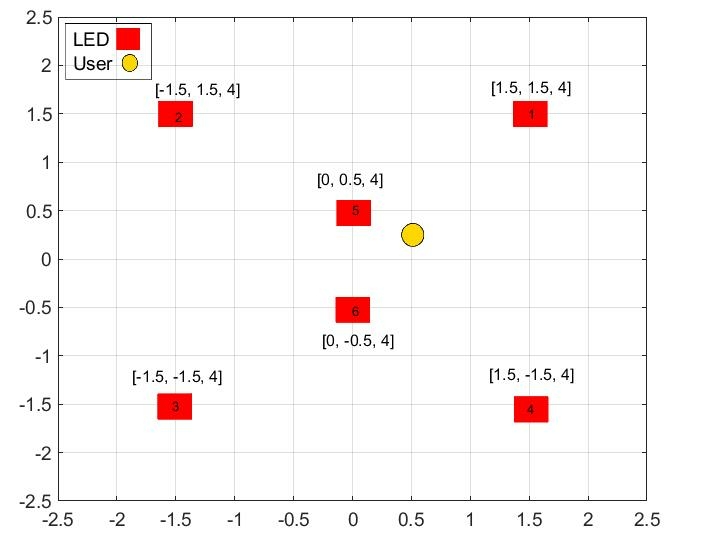

Fig. 2: LEDs and user placements in room.
Parameter Symbol Value
Room dimensions -
LED beam angle
PD area
Refractive index of PD
Gain of optical filter 1
FoV of PD
PD responsitivity
TABLE I: Simulation parameters.

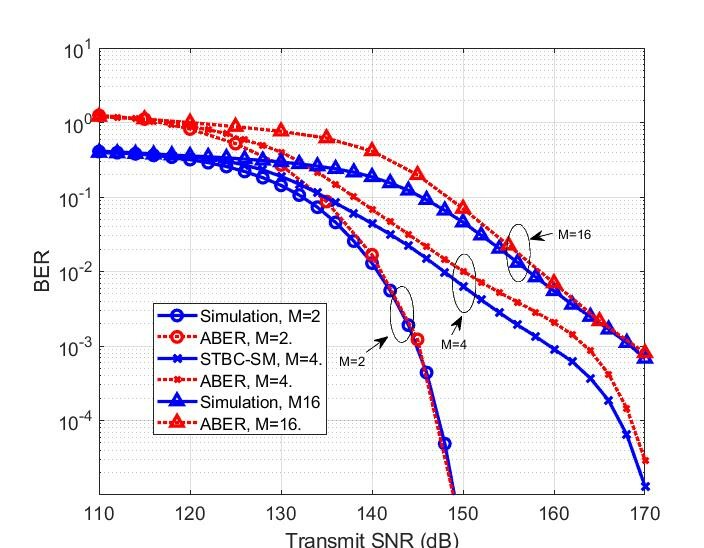

Fig. 3: Comparison between the derived analytical results and simulations. , , and .

Fig. 3 shows the achievable analytic and simulated BER versus the transmit SNR for different modulation size with and . It is noticed that the derived formula in (IV-A) forms an upper bound for the BER, which is tight at high SNR values for various modulation size. Additionally, STBC-SM enjoys a good performance in the range of interest of the transmit SNR for VLC system.

Next, a comparison between MASM and STBC-SM systems is considered in terms of the BER performance. The results are demonstrated in Fig. 4, where it is shown that integrating STBC with SM provides a significant BER improvement for large modulation size . On the contrary, the illustrated performance of the corresponding MASM counterpart exhibits a deteriorated performance at high values. For instance, for the case of , more than 20 dB is required to achieve a BER of using MASM compared to STBC-SM. Additionally, STBC-SM user exhibits a good BER performance in the typical transmit SNR range for VLC system, where the received SNR in this case has an offset of 120 dB, since the channel gain is in the order of .

Fig. 4: BER performance comparison versus transmit SNR. , , and .

For fair comparison, we also consider the BER performance for both schemes for a fixed spectral efficiency of 4 bpcu and 5 bpcu, as depicted in Fig. 5. We observe that, STBC-SM provides a reliability enhancement of the considered VLC systems compared to MASM, in the typical SNR range. For instance, for = 4 bpcu at transmit SNR = 160 dB, the BER performance for STBC-SM and MASM is and , respectively i.e. a difference of around one order of magnitude. Moreover, a comparison in terms of the achievable throughput, as defined in (27) and (28), for both schemes is illustrated in Fig. 6. It is noted that in the typical SNR range, the throughput gap between the two schemes decreases as the modulation size increases, which is due to the high BER that occurs in the case of MASM. Meanwhile, using STBC with SM improves the BER performance, which is reflected on the achievable data rate as seen from (28).

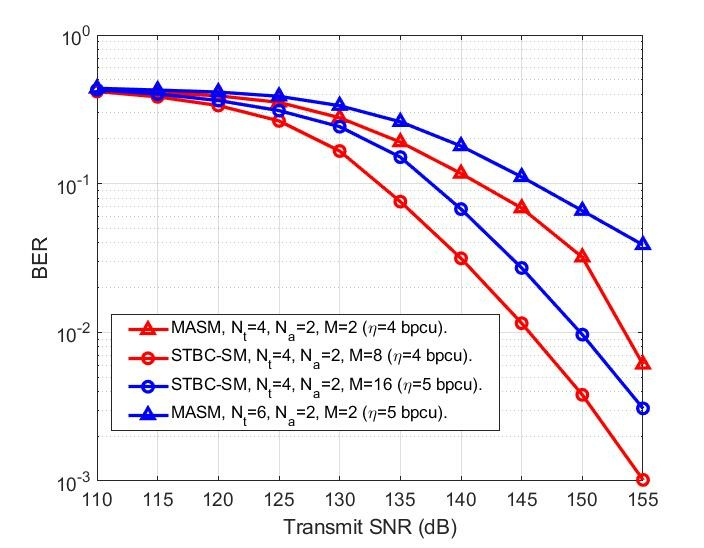

Fig. 5: BER performance comparison between STBC-SM and MASM for spectral efficiencies of 4 bpcu and 5 bpcu. Red lines for 4 bpcu, blue lines for 5 bpcu.

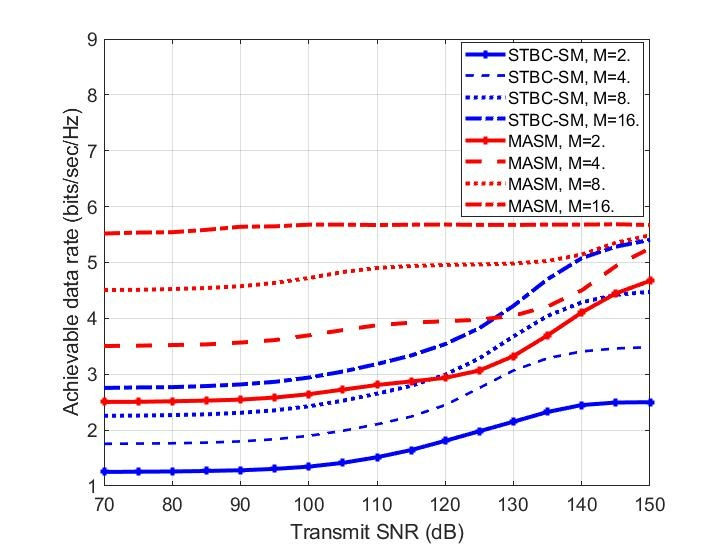

Fig. 6: The achievable rate performance comparison between STBC-SM and MASM versus transmit SNR. , , and .

In order to study the effect of various system parameters, namely and , on the overall system performance we summarize the BER and the throughput performances for both STBC-SM and MASM schemes in Table II. It can be noticed that the proposed scheme provides a significant enhancement on the BER performance compared to MASM for different values of the involved parameters. For instance, for the the case of and , the percentage difference in the BER is almost compared to MASM. Additionally, it is noted that the BER performance of MASM is degraded as increases which is attributed to the increased spatial interference between the active LEDs. Moreover, for fixed and varying , the BER performance for MASM drops noticeably because of the decreased separation and increased correlation between the LEDs. A similar remark can be also made for the case of increasing the modulation order . On the contrary, STBC-SM is more robust to the change in the involved parameters in terms of the achievable BER. An interesting remark can be also concluded from the last two settings, i.e., and . Specifically, even though we obtain the same spectral efficiency from the two configurations for the same values of and , it can be noticed that using lower would results in a lower BER values. This is attributed to the increased separation, and hence, reduced interference between LEDs. However, in terms of throughput, it can be seen that MASM outperforms STBC-SM particularly for low modulation size. For instance, the percentage difference between the two schemes for and is . Therefore, it is concluded that the BER related benefit of the proposed scheme is much greater compared to the throughput loss. Also, even though MASM outperforms STBC-SM in the achieved throughput, it is clear from the setting and that the gap difference in the throughput decreases between both schemes for large modulation orders . For instance, the percentage difference in terms of throughput for this case is relative to the MASM, which is very small compared to the case of and , where the percentage difference is . Therefore, this renders the proposed scheme more suitable for setups where the room has limited number of LEDs and high modulation order . It is also noted here that using high-rate QOSTBC can assist towards reducing the throughput gap if it is integrated with SM.

Involved Parameters BER Throughput
STBC-SM MASM
TABLE II: BER and throughput for different configurations

It is well known that the performance of indoor VLC networks is very sensitive to the placement of the LEDs in the room. Hence, Fig.7 demonstrates the effect of varying the horizontal and the vertical separations between LEDs 1, 2, 3, and 4. It can be seen from the figure that there exists an optimum separation between the LEDs where both schemes achieve the best performance. This is explained as follows: the effect of the correlation is very high when the LEDs are very close to each other, which increases the error rate in the index detection. On the contrary, when the LEDs are placed considerably far from each other, the amount of the received power from each active LED is ultimately reduced. Therefore, an optimum placement of the LEDs which guarantees low correlation of the involved wireless channels and acceptable received amount of power is necessary. It is also noted that the proposed system is more robust to the LEDs’ placement and achieves a good BER performance for various separation values.

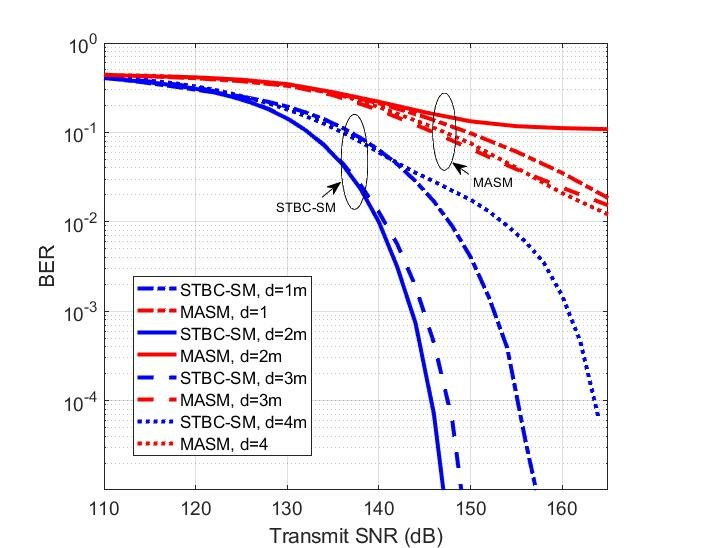

Fig. 7: Effect of varying the horizontal and the vertical separation between LEDs 1, 2, 3, and 4. , , , and .

Beside this, we present the effect of varying the half-power semi-angle () of the LEDs on the BER performance for different values of transmit SNR, while fixing the other parameters. Fig. 8 shows the simulated and analytical BER versus the semi-angle for , , , and SNR values of 130 dB, 135 dB, and 140 dB. As expected, the MIMO system performance in VLC is highly dependent upon the value of of the LEDs. As depicted in the figure, by fixing all other system parameters, the performance ultimately improves as the angle decreases due to the improved channel gains and the reduced correlation between different channels.

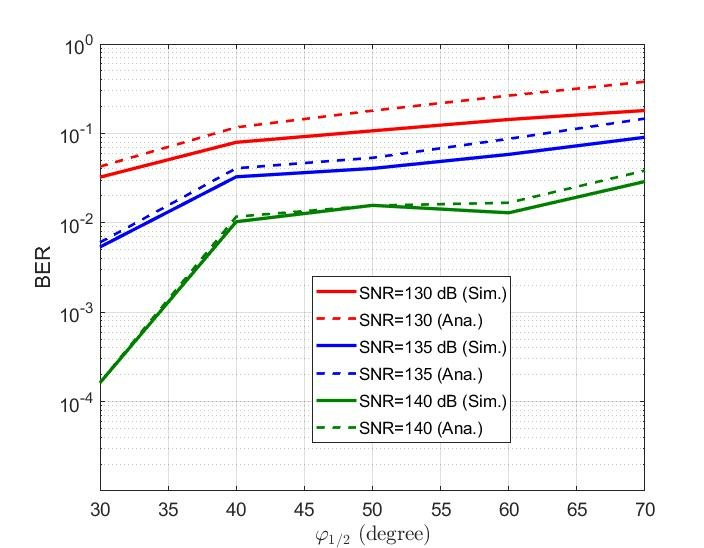

Fig. 8: Effect of varying for different transmit SNR. , , , and .

Finally, we study the BER performance of the proposed high-rate QOSTBC-SM and compare its achievable performance with respect to MASM and RC-SM based schemes for different spectral efficiency values, i.e., = 5 bpcu, 6 bpcu, and 7 bpcu. It can be seen from Fig. 9 that integrating QOSTBCs with SM enhances the system performance in terms of the achievable BER compared to MASM and RC-SM for fixed spectral efficiency values. This performance improvement can be noticed more profoundly at higher spectral efficiency values. For instance, a = 7 bpcu spectral efficiency value was realized through QOSTBC-SM by choosing the system setup as follows: and , whereas the achieved error rate at SNR dB is . On the contrary, in order to achieve the same spectral efficiency using RC-SM, the system setup was chosen as, and . However, the achieved error rate in this case considering the same SNR is . The need for higher -ary modulation values while fixing other system setup parameters explains the error rate performance gap between the two schemes at higher values. However, at lower spectral efficiency values, i.e., 5 bpcu, RC-SM achieves better performance compared to both QOSTBC-SM and MASM. Besides this, since the proposed QOSTBC matrix has a rate of , it provides a spectral efficiency enhancement when integrated with SM compared to OSTBC-SM. Yet, this spectral efficiency enhancement comes at the expense of a slightly increased receiver complexity, which as already mentioned it is tolerable.

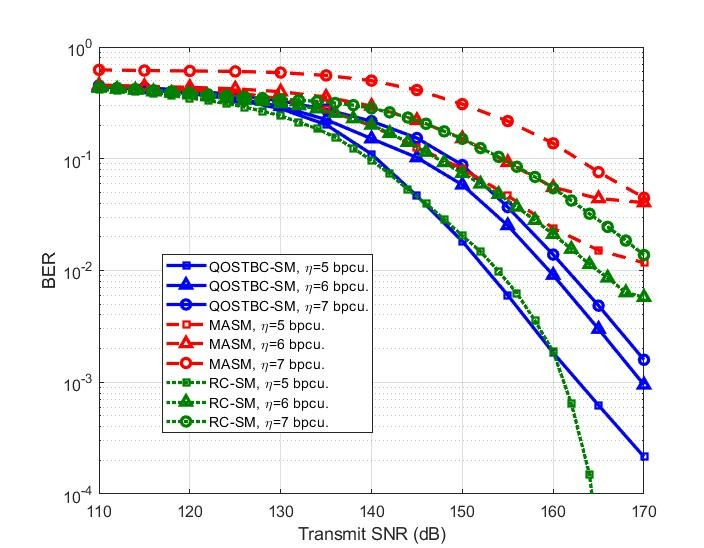

Fig. 9: BER performance comparison between the proposed QOSTBC-SM, MASM, and RC-SM. = 5 bpcu, 6 bpcu, and 7 bpcu.

Vi Conclusion

In this paper, we considered the performance of a high-rate low complexity MIMO transmission STBC-SM scheme for VLC systems. A general technique has been proposed based on constructing any STBC-SM scheme for any -ary PAM size and any number of transmitting LEDs. It has been shown through out simulations and derived upper bounds that STBC-SM is a promising MIMO technique for indoor VLC system as it offers improved system BER performance, throughput and reduced receiver complexity compared to MASM and RC-SM. To achieve that, part of the bit stream was used to activate a group of the available LEDs, while the other part of the bit stream is conveyed through space time coded intensity modulation. Furthermore, it has been shown through extensive simulations that STBC-SM maintains a rather good performance for various setups, whilst an improved throughput is achieved compared to MASM as the modulation size increases.
