I Introduction

Sound event detection (SED) aims to detect what sound events happen in an audio recording and when they occur. SED has many applications in everyday life. For example, SED can be used to monitor “baby cry” sound at home [1], and to detect “typing keyboard”, “door slamming”, “ringing of phones”, “smoke alarms” and “sirens” in the office [2, 3]. For public security, SED can be used to detect “gunshot” and “scream” sounds [4]. Not only is SED complementary to video or image based event detection [5, 6, 7] but also has many advantages over the two modalities. First, sound does not require illumination, so can be used in dark environments. Second, sound can penetrate or move around some obstacles, while objects in video and image are often occluded. Third, some abnormal events such as fire alarms are audio only, so can only be detected by sound. Furthermore, storing and processing sound often consumes less computation resources than video [8], and as a result, longer sound sequences can be stored in a device and faster processing can be obtained using equal computation resources.

Fig. 1: From top to bottom: Waveform of an audio clip containing three sound events: “Tambourine”, “scissors” and “computer keyboard”; Log mel spectrogram of the audio clip; Ideal ratio mask (IRM) [9] of sound events. Strongly labelled onset and offset annotations of sound events; Weak labels. “Silence” is the abbreviated as “sil.”. The signal-to-noise ratio of this audio clip is 0 dB.

Fig. 2: Audio tagging with convolutional neural network. Input log mel spectrogram is presented to a convolutional neural network including convolutional layers, a global pooling layer and fully connected layers to predict the presence probabilities of audio tags.

Many SED algorithms rely on strongly labelled data [10, 11, 12] where the onset and offset times of sound events have been annotated. The segments between the onset and offset labels are used as target events for training, while those outside the onset and offset annotations are used as non-target events [11, 12]. However, collecting strongly labelled data is time consuming because annotating the onset and offset times of sound events takes more time than annotating audio clips for classification, so the sizes of strongly labelled datasets are often limited to minutes or a few hours [12, 13]. At the same time there are large amounts of weakly labelled data (WLD) available, where only the presence of the sound events is labelled, without any onset and offset annotations [14, 15] or the sequence of the sound events. Fig. 1 shows the waveform of an audio clip containing three non-overlapping sound events, the log mel spectrogram of the audio clip, the ideal ratio mask (IRM) [9] of the sound events, the strongly labelled onset and offset annotations and the weak labels. In this paper we will focus on non-overlapping sound events as a starting point.

In the real world, sound events usually happen in real scenes such as a metro station or an urban park. State-of-the-art SED algorithms only detect the onset and the offset of sound events in the time domain but do not separate them from background in the T-F domain. The separation of sound events in the T-F domain can be useful for enhancing and recognizing sound events in audio scenes under low signal-to-noise ratio (SNR). In this paper, we propose a T-F segmentation and sound event detection framework trained using weakly labelled data. This is done by learning T-F segmentation masks implicitly in training with only the clip-level audio tags. It means that T-F masks are not known even for the training set: they are predicted as intermediate results. T-F segmentation masks are equivalent to the ideal ratio masks (IRM) [9]. An IRM is the ratio of the spectrogram of a sound event to the spectrogram of the mixed audio. T-F segmentation masks can be used for SED and sound event separation. In training, a segmentation mapping is applied to the T-F representation such as log mel spectrogram of an audio clip to obtain T-F segmentation masks for sound events. Then a classification mapping is applied to the T-F segmentation masks to output the presence probabilities of sound events. In T-F segmentation, with a T-F representation of an audio clip as input, the trained segmentation mapping is used to obtain the T-F segmentation masks. In SED, onset and offset times can be obtained from the T-F segmentation masks. As a byproduct, separated waveforms of sound events can be obtained from the T-F segmentation masks. This work is an extension of the joint separation-classification model for SED of weakly labelled data [16].

The paper is organized as follows. Section II introduces previous work in SED with WLD. Section III describes the proposed T-F segmentation, sound event detection and separation framework. Section IV describes the implementation details of the proposed framework. Section V shows experimental results. Section VI concludes and forecasts future work.

Ii Weakly supervised sound event detection

Compared to the conventional SED task, where strongly labelled onset and offset annotations for the training set are given, the weakly supervised SED task contains only clip-level labels. That is, only the presence of sound events is known in an audio clip, without knowing the temporal locations of the events. Several approaches for weakly supervised SED have recently been proposed, including multiple instance learning and convolutional neural networks.

Ii-a Multi-instance learning method

One solution to the WLD problem is based on multiple instance learning (MIL) [17, 14]. MIL was first proposed in 1997 for drug activity detection [18]. In MIL for SED, an audio clip is labelled positive for a specified sound event if that sound event occurs at least one time in the audio clip, and labelled negative if that sound event does not occur in the audio clip. For strongly labelled data, the dataset consists of training pairs where is the feature of a frame in an audio clip and is the strong label of the frame, where denotes the number of sound classes. For weakly labelled data, features of all frames in an audio clip constitute a bag where is the number of frames in the audio clip. Multiple instance assumption states that the weak labels of a bag are , where is the strong label of the feature . The weakly labelled data consists of the training pairs .

The problem of SED from WLD now can be cast as learning a classifier to predict the labels of the frames

of a bag . For the general WLD problem, an MIL framework based on a neural network was proposed in [19, 14]. In [20, 14]

a support vector machine (SVM) was used to solve MIL as a maximum margin problem. A negative mining method was proposed in

[21]

that selects negative examples according to intra-class variance criterion. A concept ranking according to negative exemplars (CRANE) algorithm was proposed in

[22]. However, an MIL method tends to underestimate the number of positive instances in an audio clip [23]. Furthermore, the MIL method cannot predict the T-F segmentations from the WLD [14].

Fig. 3: Training stage using weakly labelled data. A segmentation mapping maps from an input T-F representation to the segmentation masks. A classification mapping maps each segmentation mask to the presence probabilities of the corresponding audio tag.

Ii-B Convolutional neural networks for audio tagging and weakly supervised sound event detection

Convolutional neural networks (CNNs) have been successfully used in many areas including image classification [24], object detection [6], image segmentation [25], speech recognition [26, 27] and audio classification [28]. In this section we briefly introduce previous work using convolutional neural network for audio tagging [28] and weakly supervised SED.

Audio tagging [28, 29, 12] aims to predict the presence of sound events in an audio clip. In [30]

, a mel spectrogram of an audio clip is presented to a CNN, where the filters of each convolutional layer capture local patterns of a spectrogram. After a global pooling layer such as global max pooling

[28], global average pooling [31], global weighted rank pooling [23], global attention pooling [32, 33] or other poolings [34, 35], fully connected layers are applied to predict the presence probabilities of audio classes. Fig. 2 shows the framework of audio tagging with convolutional neural network. However, this CNN only predicts the presence probabilities of a sound events in an audio clip, but not the onset and offset times of the sound events.

In [36, 37], a time-distributed CNN with a global max-pooling strategy was proposed to approximate the MIL method to predict the temporal locations of each event. However, the global max-pooling will encourage the model to attend to the most dominant T-F unit contributing to the presence of the sound event and ignore all of other T-F units. That is, the happening time of the sound events is underestimated. A method for localizing the sound events in an audio clip by splitting the input into several segments based on the CNNs was presented in [38]. It splits an audio clip into several segments with the assumption that parts of the segments correspond to the clip-level labels. This assumption may be unreasonable due to the fact that some sound events may only occur at certain frames. Recently, an attention-based global pooling strategy using CNNs was proposed to predict the temporal locations [39] for SED using WLD. However, attention-based global pooling can only predict the time domain segmentation, but not the T-F segmentation which will be firstly addressed in this paper.

Iii Time-frequency segmentation, sound event detection and separation from weakly labelled data

In this section, we present a T-F segmentation, sound event detection and separation framework trained on weakly labelled audio data. Unlike the CNN method for audio tagging, we design a CNN to learn T-F segmentation masks of sound events from the weakly labelled data.

Iii-a Training from weakly labelled data

We use only weakly labelled audio data to train the proposed model. The training stage is shown in Fig. 3. To begin with, the waveform of an audio clip is converted to an input time-frequency (T-F) representation , for example, spectrogram or log mel spectrogram. To simplify the notation, we abbreviate as .

The first part of the training stage is a segmentation mapping which maps the input T-F representation to the T-F segmentation masks , where is the number of T-F segmentation masks and is equal to the number of sound events. Symbol is the abbreviation of which is the T-F segmentation mask of the -th event. Ideally, each T-F segmentation mask is an ideal ratio mask [9] of the -th sound event.

The second part of the training stage is a classification mapping where maps each T-F segmentation mask to the presence probability of the -th event, denoted as . Then the binary crossentropy between the predictions and the targets

is calculated as the loss function:

(1)

where is the binary representation of the weak labels. Both and can be modeled by neural networks. The parameters of and can be trained end-to-end from the input T-F representation to the weak labels of an audio clip.

Fig. 4: Inference stage. An input T-F representation is presented to the segmentation mapping to obtain the T-F segmentation masks. By averaging out the frequency axis of the T-F segmentation masks and post processing, event-wise predictions of sound events can be obtained.

Fig. 5: Sound event separation stage. An input T-F representation is presented to the segmentation mapping

to obtain the T-F segmentation masks. The upsampled segmentation masks are multiplied with the magnitude spectrum of the input audio to obtain the segmented spectrogram of each sound event. Separated sound events are obtained by applying an inverse Fourier transform to the segmented spectrogram.

Fig. 6: Framework of T-F segmentation, sound event detection and sound event separation from WLD. From left to right: Training from WLD; Sound event detection; Sound event separation.

Iii-B Time-frequency segmentation

In inference step, the input T-F representation of an audio clip is presented to the segmentation mapping to obtain the T-F segmentation masks . The T-F segmentation masks indicate which T-F units in the T-F representation contribute to the presence of the sound events (top right of Fig. 4). The learned T-F segmentation masks are affected by the classification mapping and will be discussed in Section IV.

Iii-C Sound event detection

As T-F segmentation masks contain the information about where sound events happen in the T-F domain, the simplest way to obtain the sound event detection score in the time domain is to average out the frequency axis of the T-F segmentation masks (bottom right of Fig. 4):

(2)

where is the number of frequency bins of the segmentation mask . Then is the score of the frame-wise prediction of the sound events. We describe how to convert the frame-wise scores to event-wise sound events in Section IV-C.

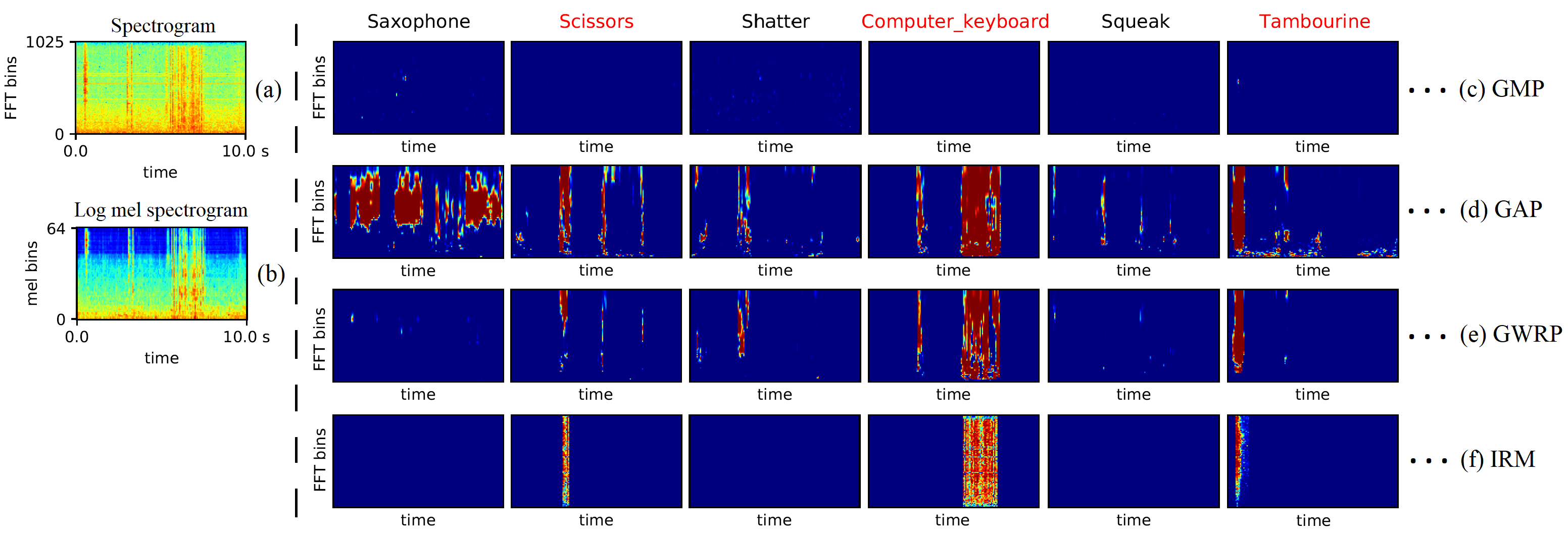

Fig. 7: (a) Spectrogram of an audio clip containing “scissors”, “computer keyboard” and “tambourine” (plotted in log scale); (b) Log mel spectrogram of the audio clip; (c) Upsampled T-F segmentation masks of sound events learned using global max pooling (GMP). Only a few T-F units have high value and the other parts of the T-F segmentation masks are dark; (d) Upsampled T-F segmentation masks of sound events learned using global average pooling (GAP); (e) Upsampled T-F segmentation masks of sound events learned using global weighted rank pooling (GWRP); (f) Ideal ratio mask (IRM) of sound events. Only 6 out of 41 T-F segmentation masks are plotted due to the limited space.

Iii-D Sound event separation

As a byproduct, the T-F segmentation masks can be used to separate sound events from the mixture in the T-F domain. In addition, by applying an inverse Fourier transform on the separated T-F representation of each sound event, separated waveforms of the sound events can be obtained. Separating sound events from the mixture of sound events and background under a low SNR can improve the recognition of sound events in future work. Fig. 5 shows the pipeline of sound event separation. An audio clip is presented to the segmentation mapping to obtain T-F segmentation masks. Meanwhile, the complex spectrum of the audio clip is calculated. We use the tilde on to distinguish the complex spectrum from the input T-F representation because

might not be a spectrum, such as log mel spectrogram. We interpolate the segmentation masks of the input T-F representation

to representing the T-F segmentation masks of the complex spectrum. The reason for performing this interpolation is that may have a size different from , for example, a log mel spectrogram has fewer frequency bins than linear spectrum in the frequency domain. Then we multiply the upsampled T-F segmentation masks with the magnitude of the spectrum to obtain the segmented spectrogram of the -th event:

(3)

where represents the element-wise multiplication and represents the segmented spectrogram of the -th event. Finally, an inverse Fourier transform with overlap add [40] is applied on each segmented spectrogram with the phase from to obtain the separated waveforms :

(4)

We summarize the training, time-frequency segmentation, sound event detection and separation framework in Fig. 6. The training stage, sound event detection stage and sound event separation stage are shown in the left, middle and right column of Fig. 6, respectively.

Iv Proposed segmentation mapping and classification mapping

In this section, we describe the implementation details of the segmentation mapping and the classification mapping proposed in Section III.

Iv-a Segmentation mapping

Segmentation mapping takes a T-F representation of an audio clip as input and outputs segmentation masks of each sound event. We use log mel spectrogram as the input T-F representation, which has been shown to perform well in audio classification [28, 39, 41]. Ideally, the outputs of are ideal ratio masks (IRMs) [42] of sound events in the T-F domain. The segmentation mapping

is modeled by a CNN. Each convolutional layer consists of a linear convolution, a batch normalization (BN)

[43]

and a ReLU

[44] nonlinearity as in [43]. The BN inserted between the convolution and the nonlinearity can stabilize and speed up the training [43]. We do not apply downsampling layers after convolutional layers because we want to retain the resolution of the input T-F segmentation masks. The T-F segmentation masks are obtained from the activations of the last CNN layer using a sigmoid non-linearity to constrain the values of the T-F segmentation masks to be between 0 and 1 to be a valid value of an IRM. The configuration details of the CNN will be described in Section V-D.

The idea of learning the T-F segmentation masks explicitly is inspired by work on weakly labelled image localization [45] and image segmentation [46, 47]. In weakly labelled image localization, saliency maps are learned indicating the locations of the objects in an image [45]. Similarly, the T-F segmentation masks in our work resemble the saliency maps of an image [45], where T-F segmentation masks indicate what time and frequency a sound event occurs in a T-F representation.

Iv-B Classification mapping

As described in Section III, the classification mapping maps each segmentation mask to the presence probability of its corresponding sound event. Modeling the classification mapping in different ways will lead to different representation of the segmentation masks (Fig. 7). We explored global max pooling [28], global average pooling [31] and global rank pooling [23] for modeling the classification mappings .

Iv-B1 Global max pooling

Global max pooling (GMP) applied on feature maps has been used in audio tagging [28]. GMP on each T-F segmentation mask map is depicted as:

(5)

GMP is based on the assumption that an audio clip contains a sound event if at least one T-F unit of the T-F input representation contains a sound event. GMP is invariant to the location of sound event in the T-F domain because whenever a sound event occurs, GMP will only select the maximum value of a T-F segmentation mask which is robust to the time or frequency shifts of the sound event. However, in the training stage, back propagation will only pass through the maximum value, so only a small part of data in the T-F domain are used to update the parameters in the neural network. Because of the maximum selection strategy, GMP encourages only one point in a T-F segmentation mask to be positive, so GMP will underestimate [23] the sound events in the T-F representation. Examples of T-F segmentation masks learned using GMP are shown in Fig. 7(c).

Iv-B2 Global average pooling

Global average pooling (GAP) was first applied in image classification [31]. GAP on each T-F segmentation mask is depicted as:

(6)

GAP corresponds to the collective assumption in MIL [48], which states that all T-F units in a T-F segmentation mask contribute equally to the label of an audio clip. That is, all T-F units in a T-F segmentation mask are assumed to contain the labelled sound events. However, some sound events only last a short time, so GAP usually overestimates the sound events [31]. Examples of T-F segmentation masks learned using GAP are shown in Fig 7(d).

Iv-B3 Global weighted rank pooling

To overcome the limitations of GMP and GAP, which underestimate and overestimate the sound events in the T-F segmentation masks, global weighted rank pooling (GWRP) is proposed in [23]. GWRP can be seen as a generalization of GMP and GAP. The idea of GWRP is to put a descending weight on the values of a T-F segmentation mask sorted in a descending order. Let an index set define the descending order of the values within a T-F segmentation mask , i.e. , where is the number of T-F units in a T-F segmentation mask. Then the GWRP is defined as:

(7)

where is a hyper parameter and is a normalization term. When GWRP becomes GMP and when

GWRP becomes GAP. The hyperparameter

can vary depending on the frequency of occurrence of the sound events. GWAP attends more to the T-F units of high values in a T-F segmentation mask and less to those of low values in a T-F segmentation mask. The T-F segmentation masks learned using GWMP is shown in Fig. 7(e). The ideal binary masks (IBMs) of the sound events are plotted in Fig. 7(f) for comparison with the GMP, GAP and GWRP.

Iv-C Post-processing for sound event detection

In Section III-C we mentioned that the frame-wise scores can be obtained from the T-F segmentation masks using Equation (2). To reduce the number of false alarms, for an audio clip, we only apply sound event detection on the sound classes with positive audio tagging predictions. Then we apply thresholds on the frame-wise predictions to obtain the event-wise predictions. We apply a high threshold of 0.2 to detect the presence of sound events and then extend the boundary of both onset and offset sides until the frame-wise scores drop below threshold of 0.1. This two-step threshold method will produce smooth predictions of sound events. As the duration of sound events in DCASE 2018 Task 2 varies from 300 ms to 30 s, we remove the detected sound events that are shorter than 320 ms (10 frames) to reduce false alarms and join the sound events whose silence gap is shorter than 320 ms (10 frames).

V Experiments

V-a Dataset

We mix the DCASE 2018 Task 1 acoustic scene dataset [49] with the DCASE 2018 Task 2 general-purpose Freesound dataset [50] under different signal-to-noise ratios (SNRs) to evaluate the proposed methods. The reason for this choice is that DCASE 2018 Task 1 provides background sounds recorded from a variety of real world scenes whereas the DCASE 2018 Task 2 provides a variety of foreground sound events. The DCASE 2018 Task 1 contains 8640 10-second audio clips in the development set of subtask A. The audio clips are recorded from 10 different scenes such as “airport”, “metro station” and “urban park”. The DCASE 2018 Task 2 contains 3710 manually verified sound events ranging in length from 300 ms to 30 s depending on the audio classes. There are 41 classes of sound events such as “flute”, “applause” and “cough”. We only use these manually verified audio clips from the DCASE 2018 Task 2 as sound events because the remaining audio clips are unverified and may contain noisy labels. We truncated the sound events to up to 2 seconds and mix them with the 10-second audio clips from the DCASE 2018 Task 1 acoustic scene dataset. The mixed audio clips are single channel with a sampling rate of 32 kHz. Each mixed audio clip contains three non-overlapped sound events. We mixed the sound events with the acoustic scenes for SNRs at 20dB, 10dB and 0dB. For each SNR, the 8000 mixed audio clips are divided into 4 cross-validation folds. Fig. 7(b) shows the log mel spectrogram of a mixed 10-second audio clip. The source code of our work is released111https://github.com/qiuqiangkong/sed_time_freq_segmentation.

V-B Evaluation metrics

We use F-score

[51], area under the curve (AUC) [52] and mean average precision (mAP) [6] in the evaluation of the audio tagging, the frame-wise SED and the T-F segmentation. We also use error rate (ER) for evaluating the event-wise SED.

V-B1 Basic statistics

True positive (TP): Both the reference and the system prediction indicate an event to be active. False negative (FN): The reference indicates an event to be active but the system prediction indicates an event to be inactive. False positive (FP): The system prediction indicates an event to be active but the reference indicates it is not [51].

V-B2 Precision, recall and F-score

Precision (P) and recall (R) are defined as [51]:

(8)

Bigger P and R indicates better performance. F-score is calculated based on P and R [51]:

(9)

Bigger F-score indicates better performance.

V-B3 Area under the curve (AUC)

A receiver operating characteristic (ROC) curve [52] plots true positive rate (TPR) versus false positive rate (FPR). Area under the curve (AUC) score is the area under this ROC curve which summarizes the ROC curve to a single number. Using the AUC does not require manual selection of a threshold. Bigger AUC indicates better performance. A random guess has an AUC of 0.5.

V-B4 Average precision

Average precision (AP) is the average of the precision at different recall values. Similar to AUC, AP does not rely on the threshold. Different to AUC, AP does not count the true negatives and is widely used as a criterion in imbalanced dataset such as object detection [6].

V-B5 Error rate

Error rate (ER) is an event-wise evaluation metric. ER measures the amount of errors in terms of

insertions (I), deletions (D) and substitutions (S) [51]. For an audio clip, the insertions, deletions and substitutions are defined as:

(10)

where FN, FP, FN are event-wise statistics in an audio clip. Lower ER, S, D and I indicate the better performance. When evaluating the event based criterion, we allow some degree of misalignment between a reference and a system output for counting a true positive [51, 53, 12]. Following the default configuration of [51], we adopt an onset collar of 200 ms and an offset collar of 200 ms / 50% to count the true positive of a detection. We used the toolbox [51] for evaluating the performance of the event-based SED.

V-C Feature extraction

We apply a fast Fourier transform (FFT) with a window size of 2048 and an overlap of 1024 between neighbouring windows to extract the spectrogram of audio clips. This configuration that follows [54] offers a good resolution in both time and frequency domain. Then mel filter banks with 64 bands are applied on the spectrogram followed by logarithm operation to obtain log mel spectrogram as the input T-F representation feature. Log mel spectrogram has been widely used in audio classification [28, 54].

Layers
Output size
(feature maps time steps mel bins)
Input log mel spectrogram
Global pooling (GP)
TABLE I: Configuration of CNN.
20 dB 10 dB 0 dB
Algorithms F1 AUC mAP F1 AUC mAP F1 AUC mAP
DNN [55] 0.439 0.885 0.468 0.396 0.861 0.402 0.331 0.810 0.314
WLD CNN [37] 0.498 0.777 0.498 0.524 0.794 0.526 0.528 0.815 0.535
FrameCNN [34] 0.581 0.899 0.587 0.543 0.883 0.526 0.484 0.850 0.439
Attention [39] 0.714 0.922 0.755 0.690 0.907 0.729 0.612 0.875 0.643
GMP 0.435 0.818 0.475 0.406 0.801 0.440 0.373 0.773 0.389
GAP 0.529 0.934 0.623 0.467 0.914 0.555 0.385 0.877 0.442
GWRP 0.635 0.955 0.753 0.604 0.942 0.696 0.534 0.915 0.596
TABLE II: F1-score, AUC and mAP of audio tagging at different SNRs.
Acous. guitar Appla-use Bark Bass drum Burp-ing Bus Cello Chime Clari-net Keybo-ard Cough Cow-bell Double bass Drawer Elec. piano Fart Finger snap Fire-works Flute Glock-enspiel Gong
DNN [55] 0.286 0.873 0.332 0.041 0.344 0.367 0.489 0.546 0.423 0.283 0.075 0.133 0.197 0.083 0.304 0.267 0.389 0.285 0.350 0.464 0.310
WLD CNN [37] 0.633 0.896 0.719 0.547 0.794 0.248 0.610 0.589 0.504 0.390 0.513 0.889 0.436 0.136 0.435 0.384 0.672 0.375 0.270 0.692 0.513
FrameCNN [34] 0.416 0.878 0.719 0.166 0.557 0.385 0.529 0.562 0.448 0.507 0.484 0.668 0.314 0.181 0.392 0.304 0.556 0.474 0.385 0.488 0.465
Attention [39] 0.548 0.893 0.761 0.632 0.866 0.335 0.616 0.607 0.568 0.497 0.565 0.924 0.477 0.160 0.546 0.598 0.823 0.463 0.565 0.901 0.617
GMP 0.458 0.522 0.335 0.183 0.400 0.087 0.299 0.468 0.424 0.422 0.151 0.774 0.281 0.076 0.279 0.284 0.176 0.271 0.315 0.844 0.434
GAP 0.547 0.817 0.409 0.070 0.484 0.205 0.435 0.501 0.354 0.504 0.347 0.314 0.181 0.164 0.218 0.407 0.399 0.346 0.343 0.496 0.305
GWRP 0.552 0.825 0.654 0.204 0.578 0.342 0.416 0.628 0.424 0.573 0.543 0.579 0.333 0.320 0.421 0.618 0.473 0.558 0.427 0.726 0.550
Gunshot Harmo-nica Hi-hat Keys Knock Laugh-ter Meow Micro-wave Oboe Saxo-phone Sciss-ors Shatter Snare drum Squeak Tambo-urine Tear-ing Tele-phone Trumpet Violin Writ-ing Avg.
DNN [55] 0.297 0.672 0.547 0.418 0.276 0.192 0.075 0.121 0.408 0.500 0.411 0.336 0.368 0.097 0.299 0.254 0.270 0.528 0.379 0.293 0.331
WLD CNN [37] 0.538 0.742 0.910 0.643 0.649 0.361 0.359 0.263 0.589 0.636 0.558 0.410 0.599 0.052 0.593 0.436 0.324 0.642 0.755 0.349 0.528
FrameCNN [34] 0.424 0.723 0.688 0.660 0.553 0.390 0.355 0.400 0.490 0.528 0.497 0.481 0.624 0.193 0.733 0.449 0.346 0.526 0.475 0.431 0.484
Attention [39] 0.607 0.759 0.938 0.744 0.738 0.444 0.499 0.441 0.560 0.678 0.660 0.693 0.709 0.113 0.957 0.593 0.434 0.368 0.784 0.400 0.612
GMP 0.398 0.322 0.796 0.141 0.483 0.311 0.275 0.207 0.442 0.474 0.173 0.251 0.465 0.031 0.891 0.504 0.329 0.585 0.567 0.175 0.373
GAP 0.438 0.681 0.641 0.392 0.402 0.480 0.203 0.172 0.372 0.408 0.404 0.392 0.335 0.161 0.412 0.348 0.341 0.579 0.349 0.408 0.385
GWRP 0.523 0.714 0.798 0.606 0.524 0.563 0.547 0.353 0.487 0.534 0.452 0.653 0.585 0.260 0.857 0.583 0.508 0.639 0.516 0.452 0.534
TABLE III: F1-score of audio tagging at 0 dB SNR.
Acous. guitar Appla-use Bark Bass drum Burp-ing Bus Cello Chime Clari-net Keybo-ard Cough Cow-bell Double bass Drawer Elec. piano Fart Finger snap Fire-works Flute Glock-enspiel Gong
DNN [55] 0.191 0.746 0.239 0.009 0.317 0.306 0.373 0.495 0.295 0.202 0.036 0.050 0.123 0.038 0.233 0.207 0.156 0.195 0.214 0.291 0.212
WLD CNN [37] 0.113 0.466 0.159 0.052 0.292 0.044 0.318 0.298 0.223 0.100 0.142 0.111 0.097 0.020 0.078 0.078 0.085 0.085 0.042 0.095 0.037
FrameCNN [34] 0.294 0.741 0.585 0.07 0.411 0.299 0.441 0.480 0.342 0.421 0.370 0.283 0.178 0.102 0.310 0.239 0.236 0.325 0.246 0.315 0.308
Attention [39] 0.062 0.422 0.069 0.020 0.189 0.024 0.242 0.263 0.210 0.019 0.059 0.051 0.045 0.003 0.068 0.050 0.076 0.031 0.159 0.026 0.088
GMP 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000
GAP 0.410 0.661 0.338 0.033 0.341 0.139 0.240 0.429 0.195 0.426 0.269 0.121 0.088 0.108 0.170 0.297 0.102 0.229 0.173 0.214 0.200
GWRP 0.453 0.704 0.507 0.072 0.456 0.188 0.326 0.575 0.341 0.457 0.402 0.222 0.193 0.172 0.351 0.498 0.247 0.355 0.316 0.596 0.418
Gunshot Harmo-nica Hi-hat Keys Knock Laugh-ter Meow Micro-wave Oboe Saxo-phone Sciss-ors Shatter Snare drum Squeak Tambo-urine Tear-ing Tele-phone Trumpet Violin Writ-ing Avg.
DNN [55] 0.155 0.594 0.510 0.367 0.16 0.111 0.022 0.095 0.314 0.317 0.277 0.254 0.290 0.045 0.166 0.144 0.190 0.411 0.166 0.212 0.237
WLD CNN [37] 0.093 0.333 0.135 0.160 0.149 0.086 0.056 0.058 0.132 0.234 0.150 0.075 0.141 0.003 0.195 0.055 0.123 0.287 0.258 0.067 0.140
FrameCNN [34] 0.259 0.595 0.639 0.495 0.354 0.271 0.228 0.284 0.399 0.329 0.379 0.364 0.453 0.111 0.443 0.277 0.237 0.407 0.228 0.299 0.343
Attention [39] 0.029 0.143 0.107 0.096 0.101 0.051 0.034 0.018 0.137 0.353 0.078 0.038 0.054 0.005 0.188 0.046 0.148 0.08 0.156 0.056 0.100
GMP 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000
GAP 0.231 0.528 0.553 0.332 0.233 0.294 0.133 0.121 0.237 0.167 0.146 0.319 0.265 0.114 0.191 0.274 0.172 0.437 0.105 0.313 0.252
GWRP 0.362 0.649 0.696 0.539 0.354 0.429 0.400 0.182 0.404 0.440 0.384 0.471 0.373 0.173 0.591 0.378 0.420 0.528 0.331 0.360 0.398
TABLE IV: F1-score of frame-wise SED at 0 dB SNR.
20 dB 10 dB 0 dB
Algorithms F1 AUC mAP F1 AUC mAP F1 AUC mAP
DNN [55] 0.360 0.722 0.269 0.306 0.702 0.224 0.237 0.666 0.169
WLD CNN [37] 0.168 0.669 0.179 0.182 0.688 0.201 0.140 0.701 0.166
FrameCNN [34] 0.440 0.808 0.369 0.399 0.787 0.329 0.343 0.756 0.275
Attention [39] 0.163 0.827 0.317 0.137 0.807 0.278 0.100 0.773 0.221
GMP 0.000 0.676 0.090 0.000 0.658 0.076 0.000 0.649 0.072
GAP 0.398 0.790 0.400 0.334 0.753 0.328 0.252 0.712 0.245
GWRP 0.511 0.886 0.508 0.472 0.871 0.453 0.398 0.829 0.360
TABLE V: F1-score, AUC and mAP of frame-wise SED at different SNRs.
20 dB 10 dB 0 dB
Algorithms F1 ER D I F1 ER D I F1 ER D I
DNN [55] 0.226 1.91 0.75 1.16 0.178 2.29 0.79 1.50 0.120 2.80 0.84 1.96
WLD CNN [37] 0.010 1.16 0.99 0.17 0.011 1.15 0.99 0.17 0.018 1.12 0.99 0.13
FrameCNN [34] 0.166 2.38 0.79 1.58 0.151 2.49 0.81 1.68 0.141 2.70 0.81 1.88
Attention [39] 0.028 1.10 0.96 0.14 0.021 1.10 0.97 0.13 0.011 1.09 0.98 0.10
GMP 0.000 1.00 1.00 0.00 0.000 1.00 1.00 0.00 0.000 1.00 1.00 0.00
GAP 0.173 2.71 0.78 1.93 0.139 2.95 0.82 2.13 0.098 3.52 0.86 2.66
GWRP 0.254 2.12 0.66 1.45 0.227 2.30 0.69 1.61 0.167 2.55 0.76 1.78
TABLE VI: F1-score, AUC and mAP of event-wise SED at different SNRs.
Acous. guitar Appla-use Bark Bass drum Burp-ing Bus Cello Chime Clari-net Keybo-ard Cough Cow-bell Double bass Drawer Elec. piano Fart Finger snap Fire-works Flute Glock-enspiel Gong
DNN [55] 0.132 0.287 0.083 0.002 0.176 0.233 0.125 0.389 0.041 0.141 0.033 0.007 0.068 0.036 0.141 0.113 0.035 0.113 0.036 0.079 0.159
WLD CNN [37] 0.020 0.013 0.001 0.001 0.110 0.001 0.036 0.067 0.025 0.005 0.001 0.001 0.003 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001
FrameCNN [34] 0.098 0.510 0.187 0.012 0.090 0.180 0.287 0.186 0.157 0.194 0.144 0.005 0.04 0.091 0.168 0.163 0.042 0.133 0.081 0.265 0.098
Attention [39] 0.000 0.051 0.000 0.000 0.052 0.000 0.020 0.018 0.000 0.000 0.000 0.000 0.009 0.000 0.000 0.000 0.000 0.000 0.019 0.000 0.000
GMP 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000
GAP 0.060 0.416 0.141 0.000 0.150 0.035 0.123 0.178 0.085 0.296 0.107 0.016 0.033 0.070 0.025 0.197 0.003 0.078 0.054 0.000 0.032
GWRP 0.131 0.225 0.315 0.002 0.352 0.030 0.086 0.363 0.086 0.211 0.228 0.010 0.089 0.111 0.153 0.312 0.068 0.144 0.060 0.004 0.281
Gunshot Harmo-nica Hi-hat Keys Knock Laugh-ter Meow Micro-wave Oboe Saxo-phone Sciss-ors Shatter Snare drum Squeak Tambo-urine Tear-ing Tele-phone Trumpet Violin Writ-ing Avg.
DNN [55] 0.073 0.455 0.205 0.262 0.095 0.054 0.024 0.047 0.135 0.107 0.128 0.174 0.106 0.020 0.057 0.088 0.100 0.140 0.031 0.173 0.120
WLD CNN [37] 0.001 0.153 0.001 0.003 0.008 0.003 0.001 0.001 0.007 0.043 0.005 0.001 0.011 0.001 0.001 0.001 0.073 0.077 0.063 0.001 0.018
FrameCNN [34] 0.044 0.226 0.409 0.142 0.071 0.113 0.140 0.120 0.223 0.077 0.140 0.134 0.132 0.042 0.031 0.104 0.071 0.241 0.052 0.124 0.141
Attention [39] 0.000 0.000 0.000 0.000 0.106 0.000 0.000 0.000 0.000 0.188 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.011
GMP 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000
GAP 0.035 0.440 0.002 0.103 0.095 0.152 0.062 0.064 0.153 0.024 0.041 0.024 0.075 0.078 0.003 0.078 0.038 0.257 0.013 0.184 0.098
GWRP 0.078 0.519 0.031 0.356 0.206 0.205 0.269 0.118 0.252 0.165 0.167 0.130 0.065 0.067 0.065 0.146 0.238 0.175 0.105 0.243 0.167
TABLE VII: F1-score of event-wise SED at 0 dB SNR.
Acous. guitar Appla-use Bark Bass drum Burp-ing Bus Cello Chime Clari-net Keybo-ard Cough Cow-bell Double bass Drawer Elec. piano Fart Finger snap Fire-works Flute Glock-enspiel Gong
GMP 0.000 0.001 0.001 0.000 0.002 0.000 0.003 0.002 0.002 0.002 0.000 0.005 0.001 0.000 0.001 0.000 0.000 0.001 0.001 0.002 0.002
GAP 0.128 0.391 0.106 0.009 0.155 0.073 0.124 0.187 0.057 0.201 0.143 0.038 0.044 0.068 0.067 0.126 0.029 0.119 0.052 0.081 0.116
GWRP 0.222 0.519 0.226 0.030 0.291 0.095 0.213 0.313 0.114 0.303 0.241 0.125 0.086 0.100 0.127 0.256 0.092 0.204 0.104 0.212 0.237
Gunshot Harmo-nica Hi-hat Keys Knock Laugh-ter Meow Micro-wave Oboe Saxo-phone Sciss-ors Shatter Snare drum Squeak Tambo-urine Tear-ing Tele-phone Trumpet Violin Writ-ing Avg.
GMP 0.001 0.002 0.001 0.002 0.001 0.001 0.000 0.000 0.001 0.001 0.000 0.000 0.002 0.000 0.001 0.001 0.001 0.002 0.003 0.001 0.001
GAP 0.139 0.264 0.212 0.139 0.074 0.135 0.085 0.055 0.077 0.120 0.085 0.144 0.108 0.082 0.057 0.140 0.059 0.166 0.074 0.130 0.114
GWRP 0.283 0.379 0.497 0.311 0.190 0.249 0.185 0.085 0.140 0.257 0.213 0.272 0.196 0.108 0.327 0.237 0.138 0.313 0.222 0.215 0.218
TABLE VIII: F1-score of time-frequency segmentation at 0 dB SNR.
20 dB 10 dB 0 dB
Algorithms F1 AUC mAP F1 AUC mAP F1 AUC mAP
GMP 0.001 0.347 0.008 0.001 0.345 0.007 0.001 0.362 0.005
GAP 0.215 0.889 0.230 0.168 0.880 0.187 0.114 0.861 0.143
GWRP 0.324 0.849 0.268 0.280 0.845 0.227 0.218 0.836 0.175
TABLE IX: F1-score, AUC and mAP of time-frequency segmentation at different SNRs.

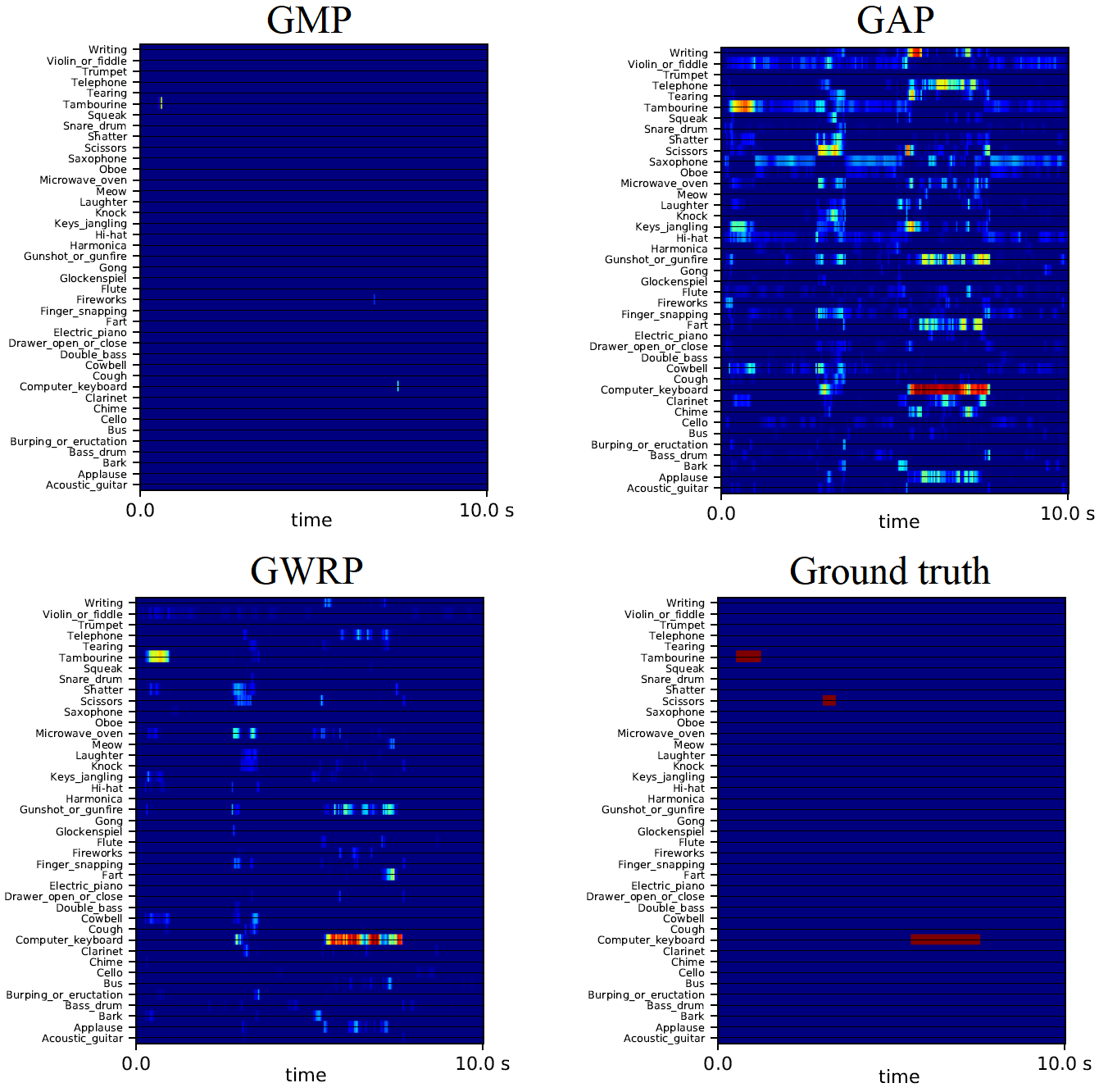

Fig. 8: Frame-wise predictions using GMP, GAP, GWRP with SNR at 0 dB. The ground truth annotation is shown in the bottom right.

V-D Model

In this subsection we give a detailed description of the configuration of the segmentation mapping in Section IV-A and the classification mapping in Section IV-B. We apply a “VGG-like” convolutional neural network [56] with 8 convolutional blocks on the input log mel spectrogram [54]. Each convolutional layer consists of a linear convolution with a filter size of followed by a batch normalization layer [43]

and a ReLU activation function

[44]. We use 4 convolution blocks following the baseline system of DCASE 2018 [54]. The number of feature maps of the convolutional layers are 32, 64, 128 and 128, respectively. This configuration is to fit the model to a single GPU card with 12 GB RAM sufficiently. Then a convolutional layer with sigmoid non-linearity is applied to convert the feature maps to the T-F segmentation masks of sound events. Then a global pooling is used to summarize each T-F segmentation mask to a scalar representing the presence probability of the sound events in an audio clip. We summarize the configuration of the neural network in Table I. In training we use a mini-batch size of 24 to fully utilize the single card GPU with 12 GB RAM. The Adam optimizer [57] with a learning rate 0.001 is used for its fast convergence.

V-E Audio tagging

We compare our method with fully connected neural network [55], CNN trained on weakly labelled data [37], FrameCNN [34]

and the attention model

[39]. We apply GMP, GAP and GWRP as global pooling in our model. Table II shows that for SNR at 20 dB, the attention model [39] achieves the best F1-score of 0.714 and mAP of 0.755 followed by the GWRP of 0.635 and 0.753, respectively. On the other hand, GWRP achieves the best AUC of 0.955. Comparing the performance under different SNRs, the F1-score and mAP drop approximately 0.1 in absolute value for SNR changed from 20 dB to 0 dB. AUC drop approximately 0.04 in absolute value for SNR changed from 20 dB to 0 dB. This result shows that there is a large variance in audio tagging under low SNR. Table III shows the audio tagging results of all sound events under 0 dB SNR. Some sound events such as “hi-hat” and “tambourine” have higher classification accuracy while some sound events such as “microwave” and “squeak” are difficult to recognize. On average, the attention model [39] achieves the best F1-score of 0.612 followed by GWRP of 0.534.

V-F Frame-wise sound event detection

Table IV shows the F1-score of the frame-wise SED for all sound classes under SNR of 0 dB. GWRP achieves the best averaged F1-score of 0.398, followed by the FrameCNN model [34] of 0.343. Some classes such as “applause” and “hi-hat” have higher F1-score by the frame-wise SED, while some classes such as “drawer” and squeak” have lower F1-score by the frame-wise SED. Table V shows the frame-wise SED results under different SNRs. GWRP achieves the best F1-score, AUC and mAP of 0.511, 0.886 and 0.508 under 20 dB SNR. The FrameCNN model [34] achieves a second place with an F1-score of 0.440. GAP overestimates the sound events which is shown in the visualization of the upsampled T-F segmentation masks (Fig. 7). GAP does not perform better than GWRP. GMP underestimates the sound events (Fig. 7) and performs worst in frame-wise SED. In GWRP, the F1-score drops from 0.511 to 0.472 to 0.398 under SNRs of 20 dB, 10 dB and 0 dB. Fig. 8 shows the frame-wise scores of sound events obtained from equation (2) under SNR of 0 dB. Frame-wise scores obtained by using GWRP looks closer to the ground truth than obtained using GMP and GAP. Compared with event-wise SED, frame-wise SED does not depend on post-processing.

V-G Event-wise sound event detection

Although frame-wise SED does not depend on post-processing so is a more objective criterion, it makes more sense to have event-wise predictions. The event-wise predictions are obtained from frame-wise predictions following Section IV-C. Table VI shows that the GWRP achieves the best F1-score of 0.254 in event-wise SED. Although GMP seems to achieve the lowest ER of 1.00, GMP deletes all the events and has a deletion error of 1.00 and an insertion of 0. On the other hand, GWRP has the lowest deletion error of 0.66 and has an insertion error of 1.45. The F1-scores drop from 0.254 to 0.227 to 0.167 under SNRs of 20 dB, 10 dB and 0 dB. Table VII shows the the F1-score of event-wise SED of all sound classes. Some sound classes such as “barks”, “harmonica” have higher detection F1-score. GWRP achieves the best averaged F1-score of 0.167.

V-H Time-frequency segmentation

Table VIII shows the T-F segmentation results of all sound classes under 0 dB. As the T-F segmentation can not be obtained by previous works including the fully connected neural network [55], the CNN trained on weakly labelled data [37], the FrameCNN [34] and the attention model [39], we only report the T-F segmentation results with our proposed methods. GWRP achieves the best F1-score of 0.218 on average. Table IX shows the T-F segmentation results under different SNRs. Table IX shows that GWRP achieves the best F1-score, AUC and mAP of 0.324, 0.849 and 0.268 under 20 dB SNR, respectively. GMP underestimates the T-F segmentation masks and performs the worst in T-F segmentation. GAP overestimates the T-F segmentation masks and performs worse than GWRP in F1-score. The T-F segmentation masks learned by GWRP (Fig. 7(e)) looks closer to the IRM than the T-F segmentation masks learned by using GMP and GAP.

Vi Conclusion

This paper proposes a time-frequency (T-F) segmentation, sound event detection and separation framework trained on weakly labelled data. In training, a segmentation mapping and a classification mapping are trained jointly using the weakly labelled data. In T-F segmentation, we use the trained segmentation mapping to calculate the T-F segmentation masks. Detected sound events can then be obtained from the T-F segmentation masks. As a byproduct, separated waveforms of sound events can be obtained from the T-F segmentation masks. Experiments show that the global weighted rank pooling (GWRP) outperforms the global max pooling, the global average pooling and previously proposed systems in both of T-F segmentation and sound event detection. The limitation of this approach is that the T-F segmentation masks are not perfectly matching the ideal ratio mask (IRM) of the sound events. In future, we will improve the T-F segmentation masks to match the IRM for event separation.

Acknowledgment

This research was supported by EPSRC grant EP/N014111/1 “Making Sense of Sounds” and a Research Scholarship from the China Scholarship Council (CSC) No. 201406150082. Iwona Sobieraj is sponsored by the European Union’s H2020 Framework Programme (H2020-MSCA-ITN-2014) under grant agreement No. 642685 MacSeNet. The authors thank Dominic Ward for helping to improve the paper in the early stage. The authors thank all anonymous reviewers for their effort and suggestions to improve this paper.

References

  • [1] J. Saraswathy, M. Hariharan, S. Yaacob, and W. Khairunizam. Automatic classification of infant cry: A review. In Proceedings of the International Conference on Biomedical Engineering (ICoBE), pages 543–548, 2012.
  • [2] A. Harma, M. F. McKinney, and J. Skowronek. Automatic surveillance of the acoustic activity in our living environment. In Proceedins of the IEEE International Conference on Multimedia and Expo (ICME), pages 634–637, 2005.
  • [3] D. P. W. Ellis. Detecting alarm sounds. In Proceedings of the Consistent & Reliable Acoustic Cues for Sound Analysis Workshop (CRAC ’01), pages 59–62, 2001.
  • [4] G. Valenzise, L. Gerosa, M. Tagliasacchi, F. Antonacci, and A. Sarti. Scream and gunshot detection and localization for audio-surveillance systems. In Proceedings of the IEEE Conference on Advanced Video and Signal Based Surveillance (AVSS), pages 21–26, 2007.
  • [5] Z. Xu, Y. Yang, and A. G. Hauptmann. A discriminative CNN video representation for event detection. In

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR)

    , pages 1798–1807, 2015.
  • [6] R. Girshick, J. Donahue, T. Darrell, and J. Malik. Rich feature hierarchies for accurate object detection and semantic segmentation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), pages 580–587, 2014.
  • [7] A. Borji, M. Cheng, H. Jiang, and J. Li. Salient object detection: A benchmark. IEEE Transactions on Image Processing, 24(12):5706–5722, 2015.
  • [8] Sami Abu-El-Haija, Nisarg Kothari, Joonseok Lee, Paul Natsev, George Toderici, Balakrishnan Varadarajan, and Sudheendra Vijayanarasimhan. YouTube-8M: A large-scale video classification benchmark. arXiv preprint arXiv:1609.08675, 2016.
  • [9] A. Narayanan and D. Wang. Ideal ratio mask estimation using deep neural networks for robust speech recognition. In Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), pages 7092–7096, 2013.
  • [10] D. Stowell, D. Giannoulis, E. Benetos, M. Lagrange, and M. D. Plumbley. Detection and classification of acoustic scenes and events. IEEE Transactions on Multimedia, 17(10):1733–1746, 2015.
  • [11] G. Parascandolo, H. Huttunen, and T. Virtanen. Recurrent neural networks for polyphonic sound event detection in real life recordings. In Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), pages 6440–6444, 2016.
  • [12] A. Mesaros, T. Heittola, and T. Virtanen.

    TUT database for acoustic scene classification and sound event detection.

    In Proceedings of the 24th European Signal Processing Conference (EUSIPCO), pages 1128–1132, 2016.
  • [13] D. Giannoulis, E. Benetos, D. Stowell, M. Rossignol, M. Lagrange, and M. D. Plumbley. Detection and classification of acoustic scenes and events: an IEEE AASP challenge. In Proceedings of the IEEE Workshop on Applications of Signal Processing to Audio and Acoustics (WASPAA), 2013.
  • [14] A. Kumar and B. Raj. Audio event detection using weakly labeled data. In Proceedings of the 2016 ACM on Multimedia Conference, pages 1038–1047, 2016.
  • [15] S. Adavanne and T. Virtanen. Sound event detection using weakly labeled dataset with stacked convolutional and recurrent neural network. Technical report, DCASE2017 Challenge, September 2017.
  • [16] Qiuqiang Kong, Yong Xu, Wenwu Wang, and Mark D Plumbley. A joint separation-classification model for sound event detection of weakly labelled data. In Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), pages 321–325, 2017.
  • [17] O. Maron and T. Lozano-Pérez. A framework for multiple-instance learning. In Proceedings of the Advances in Neural Information Processing Systems (NIPS), volume 10, pages 570–576, 1998.
  • [18] Thomas G Dietterich, Richard H Lathrop, and Tomás Lozano-Pérez. Solving the multiple instance problem with axis-parallel rectangles. Artificial intelligence, 89(1-2):31–71, 1997.
  • [19] Z. Zhou and M. Zhang. Neural networks for multi-instance learning. In Proceedings of the International Conference on Intelligent Information Technology (ICIIT), pages 455–459, 2002.
  • [20] S. Andrews, I. Tsochantaridis, and T. Hofmann. Support vector machines for multiple-instance learning. In Proceedings of the Advances in Neural Information Processing Systems (NIPS), volume 15, pages 577–584, 2003.
  • [21] P. Siva, C. Russell, and T. Xiang. In defence of negative mining for annotating weakly labelled data. In Proceedings of the European Conference on Computer Vision (ECCV), pages 594–608, 2012.
  • [22] K. Tang, R. Sukthankar, J. Yagnik, and L. Fei-Fei. Discriminative segment annotation in weakly labeled video. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), pages 2483–2490, 2013.
  • [23] A. Kolesnikov and C. H. Lampert. Seed, expand and constrain: Three principles for weakly-supervised image segmentation. In Proceedings of the European Conference on Computer Vision (ECCV), pages 695–711, 2016.
  • [24] A. Krizhevsky, I. Sutskever, and G. E. Hinton. ImageNet classification with deep convolutional neural networks. In Proceedings of the Advances in Neural Information Processing Systems (NIPS), volume 25, pages 1097–1105, 2012.
  • [25] J. Long, E. Shelhamer, and T. Darrell. Fully convolutional networks for semantic segmentation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), pages 3431–3440, 2015.
  • [26] G. E. Dahl, D. Yu, L. Deng, and A. Acero. Context-dependent pre-trained deep neural networks for large-vocabulary speech recognition. IEEE Transactions on Audio, Speech, and Language Processing, 20(1):30–42, 2012.
  • [27] O. Abdel-Hamid, A. Mohamed, H. Jiang, L. Deng, G. Penn, and D Yu. Convolutional neural networks for speech recognition. IEEE/ACM Transactions on Audio, Speech, and Language Processing, 22(10):1533–1545, 2014.
  • [28] K. Choi, G. Fazekas, and M. Sandler. Automatic tagging using deep convolutional neural networks. In Proceedings of the 17th International Conference on Music Information Retrieval (ISMIR), pages 805–811, 2016.
  • [29] P. Foster, S. Sigtia, S. Krstulovic, J. Barker, and M. D. Plumbley. CHiME-home: A dataset for sound source recognition in a domestic environment. In IEEE Workshop on Applications of Signal Processing to Audio and Acoustics (WASPAA), 2015.
  • [30] M. D. Zeiler and R. Fergus. Visualizing and understanding convolutional networks. In Proceedings of the European Conference on Computer Vision (ECCV), pages 818–833, 2014.
  • [31] M. Lin, Q. Chen, and S. Yan. Network in network. In Proceedings of the International Conference on Learning Representations (ICLR), 2014.
  • [32] Q. Kong, Y. Xu, W. Wang, and M. D Plumbley. Audio set classification with attention model: A probabilistic perspective. In Proceedings of the International Conference on Acoustics, Speech and Signal Processing (ICASSP), pages 316–320, 2017.
  • [33] Brian McFee, Justin Salamon, and Juan Pablo Bello. Adaptive pooling operators for weakly labeled sound event detection. arXiv preprint arXiv:1804.10070, 2018.
  • [34] S. Chou, J. Jang, and Y. Yang.

    FrameCNN: A weakly-supervised learning framework for frame-wise acoustic event detection and classification.

    Technical report, DCASE2017 Challenge, September 2017.
  • [35] Ting-Wei Su, Jen-Yu Liu, and Yi-Hsuan Yang. Weakly-supervised audio event detection using event-specific gaussian filters and fully convolutional networks. In Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), pages 791–795, 2017.
  • [36] Shao-Yen Tseng, Juncheng Li, Yun Wang, Joseph Szurley, Florian Metze, and Samarjit Das. Multiple instance deep learning for weakly supervised audio event detection. arXiv preprint arXiv:1712.09673, 2017.
  • [37] Anurag Kumar and Bhiksha Raj. Deep CNN framework for audio event recognition using weakly labeled web data. arXiv preprint arXiv:1707.02530, 2017.
  • [38] Donmoon Lee, Subin Lee, Yoonchang Han, and Kyogu Lee. Ensemble of convolutional neural networks for weakly-supervised sound event detection using multiple scale input. In Proceedings of the Detection and Classification of Acoustic Scenes and Events (DCASE) Workshop, pages 74–79, 2017.
  • [39] Y. Xu, Q. Kong, W. Wang, and M. D. Plumbley. Large-scale weakly supervised audio classification using gated convolutional neural network. Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), pages 121–125, 2017.
  • [40] S. A. Raki, S. Makino, H. Sawada, and R. Mukai. Reducing musical noise by a fine-shift overlap-add method applied to source separation using a time-frequency mask. In Proceedings of the IEEE International Conference on Acoustics, Speech, and Signal Processing (ICASSP), volume 3, pages 81–84, 2005.
  • [41] S. Hershey, S. Chaudhuri, D. P. W. Ellis, J. F. Gemmeke, A. Jansen, R. C. Moore, M. Plakal, D. Platt, R. A. Saurous, B. Seybold, et al. CNN architectures for large-scale audio classification. In Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), pages 131–135, 2017.
  • [42] M. H. Radfar and R. M. Dansereau. Single-channel speech separation using soft mask filtering. IEEE Transactions on Audio, Speech, and Language Processing, 15(8):2299–2310, 2007.
  • [43] S. Ioffe and C. Szegedy. Batch normalization: Accelerating deep network training by reducing internal covariate shift. In

    Proceedings of the 32nd International Conference on Machine Learning (ICML)

    , pages 448–456, 2015.
  • [44] V. Nair and G. E. Hinton. Rectified linear units improve restricted Boltzmann machines. In Proceedings of the 27th International Conference on Machine Learning (ICML), pages 807–814, 2010.
  • [45] B. Zhou, A. Khosla, A. Lapedriza, A. Oliva, and A. Torralba.

    Learning deep features for discriminative localization.

    In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), pages 2921–2929, 2016.
  • [46] K. Simonyan, A. Vedaldi, and A. Zisserman. Deep inside convolutional networks: Visualising image classification models and saliency maps. In Proceedings of the International Conference on Learning Representations (ICLR), 2014.
  • [47] D. Pathak, P. Krahenbuhl, and T. Darrell. Constrained convolutional neural networks for weakly supervised segmentation. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), pages 1796–1804, 2015.
  • [48] Jaume Amores. Multiple instance classification: Review, taxonomy and comparative study. Artificial Intelligence, 201:81–105, 2013.
  • [49] Annamaria Mesaros, Toni Heittola, and Tuomas Virtanen. A multi-device dataset for urban acoustic scene classification. arXiv preprint arXiv:1807.09840, 2018.
  • [50] Eduardo Fonseca, Manoj Plakal, Frederic Font, Daniel P. W. Ellis, Xavier Favory, Jordi Pons, and Xavier Serra. General-purpose tagging of freesound audio with audioset labels: Task description, dataset, and baseline. arXiv preprint arXiv:1807.09902, 2018.
  • [51] A. Mesaros, T. Heittola, and T. Virtanen. Metrics for polyphonic sound event detection. Applied Sciences, 6(6):162, 2016.
  • [52] J. A. Hanley and B. J. McNeil. The meaning and use of the area under a receiver operating characteristic (ROC) curve. Radiology, 143(1):29–36, 1982.
  • [53] A. Mesaros, T. Heittola, A. Diment, B. Elizalde, A. Shah, E. Vincent, B. Raj, and T. Virtanen. DCASE2017 challenge setup: Tasks, datasets and baseline system. In Proceedings of the Detection and Classification of Acoustic Scenes and Events (DCASE) Workshop, pages 85–92, 2017.
  • [54] Qiuqiang Kong, Turab Iqbal, Yong Xu, Wenwu Wang, and Mark D Plumbley. DCASE 2018 Challenge baseline with convolutional neural networks. arXiv preprint arXiv:1808.00773, 2018.
  • [55] Q. Kong, I. Sobieraj, W. Wang, and M. D. Plumbley. Deep neural network baseline for DCASE Challenge 2016. Proceedings of the Detection and Classification of Acoustic Scenes and Events (DCASE) Workshop, 2016.
  • [56] Karen Simonyan and Andrew Zisserman. Very deep convolutional networks for large-scale image recognition. In Proceedings of the International Conference on Learning Representations (ICLR), 2014.
  • [57] D. Kingma and J. Ba. Adam: A method for stochastic optimization. In Proceedings of the International Conference on Learning Representations (ICLR), 2015.
