1 Introduction: Measuring agreement in R

Sklar’s (Hughes, 2018) is a model-based alternative to Krippendorff’s (Hayes and Krippendorff, 2007), a well-known nonparametric measure of agreement. Although Krippendorff’s is intuitive, flexible, and subsumes a number of other coefficients of agreement, Sklar’s improves upon in (at least) the following ways. Sklar’s

  • permits practitioners to simultaneously assess intra-coder agreement, inter-coder agreement, agreement with a gold standard, and, in the context of multiple scoring methods, inter-method agreement;

  • identifies the above mentioned types of agreement with intuitive, well-defined population parameters;

  • can accommodate any number of coders, any number of methods, any number of replications (per coder and/or per method), and missing values;

  • allows practitioners to use regression analysis to reveal important predictors of agreement (e.g., coder experience level, or time effects such as learning and fatigue);

  • provides complete inference, i.e., point estimation, interval estimation, diagnostics, model selection;

  • performs more robustly in the presence of unusual coders, units, or scores; and

  • permits Bayesian inference for interval or ratio scores.

In R (Ihaka and Gentleman, 1996), Krippendorff’s can be applied using function kripp.alpha() of package irr (Gamer et al., 2012) and function kripp.boot() of package kripp.boot (Proutskova and Gruszczynski, 2017).

2 The agreement problem

The literature on agreement contains two broad classes of methods. Methods in the first class seek to measure agreement while also explaining disagreement—by, for example, assuming differences among coders (as in Aravind and Nawarathna (2017)). Although our approach permits one to use regression to explain systematic variation away from a gold standard, we are not, in general, interested in explaining disagreement. Our methodology is for measuring agreement, and so we do not typically accommodate (i.e., model) disagreement. For example, we assume that coders are exchangeable (unless multiple scoring methods are being considered, in which case we assume coder exchangeability within each method). This modeling orientation allows disagreement to count fully (up to randomness) against agreement, as desired.

3 Models and software

The statistical model underpinning Sklar’s is a Gaussian copula model (Xue-Kun Song, 2000). We begin by specifying the most general form of the model. Then we consider special cases of the model that speak to the tasks, assumptions, and levels of measurement presented in Section 1.

The stochastic form of the Gaussian copula model is given by

(1)

where is a correlation matrix, is the standard Gaussian cdf, and is the cdf for the th outcome . Note that is a realization of the Gaussian copula, which is to say that the are marginally standard uniform and exhibit the Gaussian correlation structure defined by . Since

is standard uniform, applying the inverse probability integral transform to

produces outcome having the desired marginal distribution .

In the form of Sklar’s that most closely resembles Krippendorff’s , we assume that all of the outcomes share the same marginal distribution . The choice of is then determined by the level of measurement.

While Krippendorff’s typically employs two different metrics for nominal and ordinal outcomes, we assume the categorical distribution

(2)

for both levels of measurement, where is the number of categories. For , (3

) is of course the Bernoulli distribution.

Note that when the marginal distributions are discrete (in our case, categorical), the joint distribution corresponding to (

3

) is uniquely defined only on the support of the marginals, and the dependence between a pair of random variables depends on the marginal distributions as well as on the copula.

Genest and Neslehova (2007) described the implications of this and warned that, for discrete data, “modeling and interpreting dependence through copulas is subject to caution.” But Genest and Neslehova go on to say that copula parameters may still be interpreted as dependence parameters, and estimation of copula parameters is often possible using fully parametric methods. It is precisely such methods that we recommend, and support in package sklarsomega.

For interval outcomes can be practically any continuous distribution. Our package supports the Gaussian, Laplace, Student’s

, and gamma distributions, which we denote as

, , , and , respectively. The Laplace and distributions are useful for accommodating heavier-than-Gaussian tails, and the and gamma distributions can accommodate asymmetry.

Another possibility for continuous outcomes is to first estimate nonparametrically, and then estimate the copula parameters in a second stage. In Section 3.2 we will provide details regarding this approach.

Finally, two natural choices for ratio outcomes are the beta and Kumaraswamy distributions, the two-parameter versions of which are supported by our package. We denote these distributions as and .

Now we turn to the copula correlation matrix , the form of which is determined by the question(s) we seek to answer. If we wish to measure only inter-coder agreement, as is the case for Krippendorff’s , our copula correlation matrix has a very simple structure: block diagonal, where the th block corresponds to the th unit and has a compound symmetry structure. That is,

where

On the scale of the outcomes, ’s interpretation depends on the marginal distribution. If the outcomes are Gaussian, is the Pearson correlation between and , and so the outcomes carry exactly the correlation structure codified in . If the outcomes are non-Gaussian, the interpretation of (still on the scale of the outcomes) is more complicated. For example, if the outcomes are Bernoulli, is often called the tetrachoric correlation between those outcomes. Tetrachoric correlation is constrained by the marginal distributions. Specifically, the maximum correlation for two binary random variables is

where and are the expectations (Prentice, 1988). More generally, the marginal distributions impose bounds, called the Fréchet–Hoeffding bounds, on the achievable correlation (Nelsen, 2006). For most scenarios, the Fréchet–Hoeffding bounds do not pose a problem for Sklar’s because we typically assume that our outcomes are identically distributed, in which case the bounds are and 1. (We do, however, impose our own lower bound of 0 on since we aim to measure agreement.)

In any case, has a uniform and intuitive interpretation for suitably transformed outcomes, irrespective of the marginal distribution. Specifically,

where denotes Pearson’s correlation and the second subscripts index the scores within the th unit ().

By changing the structure of the blocks we can use Sklar’s to measure not only inter-coder agreement but also a number of other types of agreement. For example, should we wish to measure agreement with a gold standard, we might employ

In this scheme captures agreement with the gold standard, and captures inter-coder agreement.

In a more elaborate form of this scenario, we could include a regression component in an attempt to identify important predictors of agreement with the gold standard. This could be accomplished by using a cdf to link coder-specific covariates with . Then the blocks in might look like

where , being a cdf,

being a vector of covariates for coder

, and being regression coefficients.

For our final example we consider a complex study involving a gold standard, multiple scoring methods, multiple coders, and multiple scores per coder. In the interest of concision, suppose we have two methods, two coders per method, two scores per coder for each method, and gold standard measurements for the first method. Then is given by

where the subscript denotes score for coder of method . Thus represents agreement with the gold standard for the first method, represents intra-coder agreement for the first coder of the first method, represents intra-coder agreement for the second coder of the first method, represents inter-coder agreement for the first method, and so on, with representing inter-method agreement.

Note that, for a study involving multiple methods, it may be reasonable to assume a different marginal distribution for each method. In this case, the Fréchet–Hoeffding bounds may be relevant, and, if some marginal distributions are continuous and some are discrete, maximum likelihood inference is infeasible (see the next section for details).

3.1 Classical inference for all levels of measurement

When the response is continuous, i.e., when the level of measurement is interval or ratio, we recommend maximum likelihood (ML) or Bayesian inference for Sklar’s . When the marginal distribution is a categorical distribution (for nominal or ordinal level of measurement), likelihood-based inference is infeasible because the log-likelihood, having terms, is intractable for most datasets. In this case we recommend the distributional transform (DT) approximation or composite marginal likelihood (CML), depending on the number of categories. If the response is binary, composite marginal likelihood is indicated even for large samples since the DT approach tends to perform poorly for binary data. If there are three or four categories, the DT approach may perform at least adequately for larger samples, but we still favor CML for such data. For five or more categories, the DT approach performs well and yields a more accurate estimator than does the CML approach. The DT approach is also more computationally efficient than the CML approach.

3.1.1 The method of maximum likelihood for Sklar’s

For correlation matrix , marginal cdf , and marginal pdf , the log-likelihood of the parameters given observations is

(3)

where and denotes the identity matrix. We obtain by minimizing . For all three approaches to inference—ML, DT, CML—we use the optimization algorithm proposed by Byrd et al. (1995) so that , and perhaps some elements of , can be appropriately constrained. To estimate an asymptotic confidence ellipsoid we of course use the observed Fisher information matrix, i.e., the estimate of the Hessian matrix at :

where denotes the observed information and .

Optimization of is insensitive to the starting value for , but it can be important to choose an initial value for carefully. For example, if the assumed marginal family is , we recommend (Serfling and Mazumder, 2009), where is the noncentrality parameter,

is the degrees of freedom,

is the sample median, and

is the sample median absolute deviation from the median. For the Gaussian and Laplace distributions we use the sample mean and standard deviation. For the gamma distribution we recommend

, where

for sample mean

and sample variance

. Similarly, we provide initial values

when the marginal distribution is beta. For the Kumaraswamy distribution we use and . Finally, for a categorical distribution we use the empirical probabilities.

3.1.2 The distributional transform method

When the marginal distribution is discrete (in our case, categorical), the log-likelihood does not have the simple form given above because is not standard Gaussian (since is not standard uniform if has jumps). In this case the true log-likelihood is intractable unless the sample is rather small. An appealing alternative to the true log-likelihood is an approximation based on the distributional transform.

It is well known that if is continuous,

has a standard uniform distribution. But if

is discrete, tends to be stochastically larger, and tends to be stochastically smaller, than a standard uniform random variable. This can be remedied by stochastically “smoothing” ’s discontinuities. This technique goes at least as far back as Ferguson (1967), who used it in connection with hypothesis tests. More recently, the distributional transform has been applied in a number of other settings—see, e.g., Rüschendorf (1981), Burgert and Rüschendorf (2006), and Rüschendorf (2009).

Let , and suppose that and is independent of . Then the distributional transform

follows a standard uniform distribution, and follows the same distribution as .

Kazianka and Pilz (2010) suggested approximating by replacing it with its expectation with respect to :

To construct the approximate log-likelihood for Sklar’s , we replace in (3) with

If the distribution has integer support, this becomes

This approximation is crude, but it performs well as long as the discrete distribution in question has a sufficiently large variance (Kazianka, 2013). For Sklar’s , we recommend using the DT approach when the scores fall into five or more categories.

Since the DT-based objective function is misspecified, using alone leads to optimistic inference unless the number of categories is large. This can be overcome by using a sandwich estimator (Godambe, 1960) or by doing a bootstrap (Davison and Hinkley, 1997).

3.1.3 Composite marginal likelihood

For nominal or ordinal outcomes falling into a small number of categories, we recommend a composite marginal likelihood (Lindsay, 1988; Varin, 2008) approach to inference. Our objective function comprises pairwise likelihoods (which implies the assumption that any two pairs of outcomes are independent). Specifically, we work with log composite likelihood

where ,

denotes the cdf for the bivariate Gaussian distribution with mean zero and correlation matrix

, and . Since this objective function, too, is misspecified, bootstrapping or sandwich estimation is necessary.

3.1.4 Sandwich estimation for the DT and CML procedures

As we mentioned above, the DT and CML objective functions are misspecified, and so the asymptotic covariance matrices of and have sandwich forms (Godambe, 1960; Geyer, 2013). Specifically, we have

where is the appropriate Fisher information matrix and is the variance of the score:

We recommend that be estimated using a parametric bootstrap, i.e, our estimator of is

where is the bootstrap sample size and the are datasets simulated from our model at . This approach performs well and is considerably more efficient computationally than a “full” bootstrap (it is much faster to approximate the score than to optimize the objective function). What is more, is accurate for small bootstrap sample sizes (100 in our simulations). Package sklarsomega makes the procedure even more efficient through parallelization.

3.2 A two-stage semiparametric approach for continuous measurements

If the sample size is large enough, a two-stage semiparametric method (SMP) may be used. In the first stage one estimates nonparametrically. The empirical distribution function is a natural choice for our estimator of , but other sensible choices exist. For example, one might employ the Winsorized estimator

where is a truncation parameter (Klaassen et al., 1997; Liu et al., 2009). A third possibility is a smoothed empirical distribution function

where is a kernel (Fernholz, 1991).

Armed with an estimate of , say—we compute , where , and optimize

to obtain . This approach is advantageous when the marginal distribution is complicated, but has the drawback that uncertainty regarding the marginal distribution is not reflected in the (ML) estimate of ’s variance. This deficiency can be avoided by using a bootstrap sample , the th element of which can be generated by (1) simulating from the copula at ; (2) computing a new response as , where

is the empirical quantile function; and (3) applying the estimation procedure to

. We compute sample quantiles using the median-unbiased approach recommended by Hyndman and Fan (1996). It is best to compute the bootstrap interval using the Gaussian method since that interval tends to have the desired coverage rate while the quantile method tends to produce an interval that is too narrow. This is because the upper-quantile estimator is inaccurate while the bootstrap estimator of is rather more accurate. To get adequate performance using the quantile method, a much larger sample size is required.

Although this approach may be necessary when the marginal distribution does not appear to take a familiar form, two-stage estimation does have a significant drawback, even for larger samples. If agreement is at least fair (see the introduction to Section 4 for information regarding interpretation of agreement coefficients), dependence may be sufficient to pull the empirical marginal distribution away from the true marginal distribution. In such cases, simultaneous estimation of the marginal distribution and the copula should perform better. Development of such a method will be the aim of a future project.

3.3 Bayesian inference for interval or ratio scores

Since the Sklar’s likelihood is not available in the case of nominal or ordinal scores, true Bayesian inference is infeasible for those levels of measurement. It is possible, however, to do pseudo-Bayesian inference for discrete scores. This entails using the appropriate CML or DT-based objective function in place of the likelihood. Although sound theory supports this approach (Ribatet et al., 2012), package sklarsomega does not support pseudo-Bayesian inference, for two reasons. First, pseudo-Bayesian inference requires a curvature correction because both the CML and the DT-based objective functions have too large a curvature relative to the true likelihood; unfortunately, the curvature adjustment is based on a time-consuming frequentist procedure. Second, we have no reason to suspect that the (curvature-adjusted) pseudo-posterior will have (at least approximately) the same shape as the true posterior.

Via function sklars.omega.bayes(), package sklarsomega does support Bayesian inference for interval or ratio scores. The function’s signature appears below.

sklars.omega.bayes(data, level = c("interval", "ratio"), verbose = FALSE,
  control = list())

As we mentioned above, package sklarsomega currently supports gamma, Gaussian, Laplace, and marginal distributions for interval outcomes; and beta and Kumaraswamy marginals for ratio outcomes.

The Sklar’s posterior is given by

where denotes a prior distribution and

In the interest of striking a sensible balance between flexibility and usability, we do not permit the user to specify . Instead, we assign an independent, noninformative prior to each element of —i.e., . The prior for is standard uniform. Each of , , , , , and is given a prior distribution. And the prior for is Gaussian with mean zero and standard deviation 1,000.

As for sampling, we use a Gaussian random walk for each parameter, and transform when necessary. The user can control the acceptance rates by adjusting the standard deviations of the perturbations, which can be supplied to function sklars.omega.bayes() via argument control. Consider parameter , for example. To generate a proposal for , we begin by drawing , where was obtained during the previous iteration. Then we take , which of course yields a log-normal proposal (necessitating the inclusion of the ratio in the Metropolis–Hastings acceptance probability). The proposal standard deviation can be set using the syntax control = list(sigma.1 = 0.2), for example. This proposal scheme is employed for all of the non-negative parameters, with the tuning parameter for , , and ; and the tuning parameter for , , and . Again, these standard deviations can be set straightforwardly in the function call: control = list(sigma.1 = 0.2, sigma.2 = 0.3); or they can be omitted, in which case they default to the value 0.1.

Updates for the chain take the form of a Gaussian random walk: , where if the marginal distribution is Gaussian or Laplace, or if the marginal distribution is . The acceptance rate can be modulated via control parameter sigma.1 (for a or marginal) or sigma.2 (for a marginal).

Although we propose values for the independently, we accept or reject those proposals jointly so that and need not be computed too frequently. Each proposal begins with a Gaussian random step, . Then we apply the logistic function to map into the unit interval: . This of course requires us to include the Jacobian in the Metropolis–Hastings acceptance probability. The acceptance rates can be adjusted by passing a vector of proposal standard deviations to sklars.omega.bayes(), e.g., control = list(sigma.omega = c(0.1, 0.1, 0.3)) (in the case of ).

The remaining control parameters are dist (for selecting the marginal distribution), minit, maxit, and tol. Function sklars.omega.bayes() draws at least minit posterior samples. We use 1,000 as the default, and minimum, value for minit. Similarly, sklars.omega.bayes() draws at most maxit samples, with 10,000 as the default value.

Since the Markov chain tends to mix well, between 1,000 and 10,000 samples are usually sufficient for obtaining stable estimates (of posterior means and of DIC (Spiegelhalter et al., 2002)). We recommend using the fixed-width method (Flegal et al., 2008) for determining when to stop sampling, and we provide control parameter tol for this purpose. In the fixed-width approach, one chooses a small positive threshold and terminates sampling when all estimated coefficients of variation are smaller than said threshold, where the estimated coefficient of variation for parameter is

, with ‘mcse’ denoting Monte Carlo standard error. That is, sampling terminates when

for all . The user can set the threshold value via control parameter tol, which defaults to 0.1. In the interest of computational efficiency, function sklars.omega.bayes() computes Monte Carlo standard errors (using package mcmcse) only every minit samples.

4 Illustrations

Here we illustrate the use of sklarsomega by applying Sklar’s to a couple of datasets. Although our understanding of the agreement problem aligns with that of Krippendorff’s and other related measures (e.g., Spearman’s , Cohen’s , Scott’s (Spearman, 1904; Cohen, 1960; Scott, 1955)), we shall adopt a subtler interpretation of the results. According to Krippendorff (2012), social scientists often feel justified in relying on data for which agreement is at or above 0.8, drawing tentative conclusions from data for which agreement is at or above 2/3 but less than 0.8, and discarding data for which agreement is less than 2/3. We use the following interpretations instead (Table 1), and suggest—as do Krippendorff and others (Artstein and Poesio, 2008; Landis and Koch, 1977)—that an appropriate reliability threshold may be context dependent.

Range of Agreement Interpretation
Slight Agreement
Fair Agreement
Moderate Agreement
Substantial Agreement
Near-Perfect Agreement
Table 1: Guidelines for interpreting values of an agreement coefficient.

4.1 Nominal data analyzed previously by Krippendorff

Consider the following data, which appear in (Krippendorff, 2013). These are nominal values (in ) for twelve units and four coders. The dots represent missing values.

1 2 3 3 2 1 4 1 2
1 2 3 3 2 2 4 1 2 5 3
3 3 3 2 3 4 2 2 5 1
1 2 3 3 2 4 4 1 2 5 1
Figure 1: Some example nominal outcomes for twelve units and four coders, with seven missing values.

Note that all columns save the sixth are constant or nearly so. This suggests near-perfect agreement, yet a Krippendorff’s analysis of these data leads to a weaker conclusion. Specifically, using the discrete metric yields

and bootstrap 95% confidence interval (0.39, 1.00). (We used a bootstrap sample size of

1,000, which yielded Monte Carlo standard errors (MCSE) (Flegal et al., 2008) smaller than 0.001.) This point estimate indicates merely substantial agreement, and the interval implies that these data are consistent with agreement ranging from moderate to nearly perfect.

Now we apply our methodology, first loading package sklarsomega.

R> library(sklarsomega)

sklarsomega: Measuring Agreement Using Sklar’s Omega Coefficient
Version 2.0 created on 2018-06-18.
Copyright (c) 2018 John Hughes
For citation information, type citation("sklarsomega").
Type help(package = sklarsomega) to get started.

Now we create the dataset as a matrix. Then we supply appropriate column names. This is a necessary step since package function build.R() uses the column names to create the copula correlation matrix (which we denoted as above but is denoted as in the package documentation).

R> data = matrix(c(1,2,3,3,2,1,4,1,2,NA,NA,NA,
+                  1,2,3,3,2,2,4,1,2,5,NA,3,
+                  NA,3,3,3,2,3,4,2,2,5,1,NA,
+                  1,2,3,3,2,4,4,1,2,5,1,NA), 12, 4)
R> colnames(data) = c("c.1.1", "c.2.1", "c.3.1", "c.4.1")
R> data

      c.1.1 c.2.1 c.3.1 c.4.1
 [1,]     1     1    NA     1
 [2,]     2     2     3     2
 [3,]     3     3     3     3
 [4,]     3     3     3     3
 [5,]     2     2     2     2
 [6,]     1     2     3     4
 [7,]     4     4     4     4
 [8,]     1     1     2     1
 [9,]     2     2     2     2
[10,]    NA     5     5     5
[11,]    NA    NA     1     1
[12,]    NA     3    NA    NA

Function check.colnames() can be used to perform a (rudimentary) check of the column names. This function returns a list comprising exactly two elements, success and cols. The former is a boolean that indicates appropriateness or inappropriateness of the column names. If the column names are appropriate, element cols is equal to NULL. Otherwise, col contains the numbers of the columns that failed the check.

R> (check.colnames(data))

$success
[1] TRUE

$cols
NULL

In the next example we introduce errors for columns 1 and 4. Then we provide column names that pass the check but are illogical. Finally, we revert to the correct names.

R> colnames(data) = c("c.a.1", "c.2.1", "c.3.1", "C.4.1")
R> (check.colnames(data))

$success
[1] FALSE

$cols
[1] 1 4

R> colnames(data) = c("g", "c.2.1", "c.1.47", "c.2.1")
R> (check.colnames(data))

$success
[1] TRUE

$cols
NULL

R> colnames(data) = c("c.1.1", "c.2.1", "c.3.1", "c.4.1")

Now we create the copula correlation matrix, display the portion of the matrix that corresponds to the first two units, and verify that the matrix contains exactly one parameter, namely, the inter-coder agreement coefficient (which has the dummy value 0.1).

R> temp = build.R(data)
R> names(temp)

[1] "R"      "onames"

R> R = temp$R
R> R[1:7, 1:7]

     [,1] [,2] [,3] [,4] [,5] [,6] [,7]
[1,]  1.0  0.1  0.1  0.0  0.0  0.0  0.0
[2,]  0.1  1.0  0.1  0.0  0.0  0.0  0.0
[3,]  0.1  0.1  1.0  0.0  0.0  0.0  0.0
[4,]  0.0  0.0  0.0  1.0  0.1  0.1  0.1
[5,]  0.0  0.0  0.0  0.1  1.0  0.1  0.1
[6,]  0.0  0.0  0.0  0.1  0.1  1.0  0.1
[7,]  0.0  0.0  0.0  0.1  0.1  0.1  1.0

R> temp$onames

[1] "inter"

Next we apply Sklar’s for nominal data. Since there are five categories, function sklars.omega() automatically selects the DT approach. We do a full bootstrap with sample size 1,000. We do the bootstrapping in embarrassingly parallel fashion, using six CPU cores on the local machine (hence type is equal to "SOCK"). Since we set verbose equal to TRUE, a progress bar is shown. The computation took 19 minutes and 21 seconds.

R> set.seed(99)
R> fit = sklars.omega(data, level = "nominal", confint = "bootstrap",
+                     verbose = TRUE, control = list(bootit = 1000,
+                     parallel = TRUE, nodes = 6))

Control parameter ’type’ must be "SOCK", "PVM", "MPI", or "NWS". Setting it to "SOCK".

   |++++++++++++++++++++++++++++++++++++++++++++++++++| 100% elapsed = 19m 21s

One can view a summary by passing the fit object to function summary.sklarsomega().

R> summary(fit)

Call:

sklars.omega(data = data, level = "nominal", confint = "bootstrap",
    verbose = TRUE, control = list(bootit = 1000, parallel = TRUE,
        nodes = 6))

Convergence:

Optimization converged at -40.42 after 31 iterations.

Control parameters:

bootit   1000
parallel TRUE
nodes    6
dist     categorical
type     SOCK

Coefficients:

      Estimate    Lower  Upper
inter  0.89420  0.77530 1.0130
p1     0.25170  0.02420 0.4792
p2     0.24070  0.09078 0.3907
p3     0.22740  0.07583 0.3790
p4     0.18880  0.03522 0.3424
p5     0.09136 -0.06572 0.2484

Our method produced and , which indicate near-perfect agreement and at least substantial agreement, respectively. And our approach, being model based, furnishes us with estimated probabilities for the marginal categorical distribution of the response:

Because we estimated and simultaneously, our estimate of differs substantially from the empirical probabilities, which are 0.22, 0.32, 0.27, 0.12, and 0.07, respectively.

Now we compute asymptotic (sandwich) intervals. This requires a much shorter running time.

R> set.seed(12)
R> fit = sklars.omega(data, level = "nominal", confint = "asymptotic",
+                     verbose = TRUE, control = list(bootit = 1000,
+                     parallel = TRUE, nodes = 6))

Control parameter ’type’ must be "SOCK", "PVM", "MPI", or "NWS". Setting it to "SOCK".

   |++++++++++++++++++++++++++++++++++++++++++++++++++| 100% elapsed = 02m 03s

R> summary(fit)

Call:

sklars.omega(data = data, level = "nominal", confint = "asymptotic",
    verbose = TRUE, control = list(bootit = 1000, parallel = TRUE,
        nodes = 6))

Convergence:

Optimization converged at -40.42 after 31 iterations.

Control parameters:

bootit   1000
parallel TRUE
nodes    6
dist     categorical
type     SOCK

Coefficients:

      Estimate    Lower  Upper
inter  0.89420  0.76270 1.0260
p1     0.25170  0.01703 0.4864
p2     0.24070  0.01796 0.4635
p3     0.22740  0.04792 0.4069
p4     0.18880 -0.06715 0.4447
p5     0.09136 -0.16860 0.3513

The marked difference between our results and those obtained for Krippendorff’s can be attributed largely to the codes for the sixth unit. The relevant influence statistics are

and

where the notation “” indicates that all rows are retained and column 6 is left out. And so we see that column 6 exerts 2/3 more influence on than it does on . Since , inclusion of column 6 draws us away from what seems to be the correct conclusion for these data.

Influence (DFBETA (Young, 2017)) statistics can be obtained using the package’s influence() function, as illustrated below. Here we investigate the influence of units 6 and 11, and of coders 2 and 3.

R> (inf = influence(fit, units = c(6, 11), coders = c(2, 3)))

$dfbeta.units
         inter         p1           p2          p3          p4           p5
6  -0.07914843 0.03438538  0.052599491 -0.05540904 -0.05820757  0.026631732
11  0.01096758 0.04546670 -0.007630807 -0.01626192 -0.01514173 -0.006432246

$dfbeta.coders
          inter           p1           p2          p3         p4          p5
2  0.0579843781 -0.002743713  0.002974195 -0.02730064 0.01105672  0.01601343
3 -0.0008664934 -0.006572821 -0.048168128  0.05659853 0.02149364 -0.02335122

We conclude this illustration by simulating a dataset from the fitted model and then converting the resulting vector to matrix form for display. Note that row 12 was removed since, having only one score, it carries no information about .

R> sim = simulate(fit, seed = 42)
R> data.sim = t(fit$data)
R> data.sim[! is.na(data.sim)] = sim[, 1]
R> data.sim = t(data.sim)
R> data.sim

      c.1.1 c.2.1 c.3.1 c.4.1
 [1,]     3     4    NA     3
 [2,]     3     2     2     2
 [3,]     3     3     3     3
 [4,]     1     1     1     2
 [5,]     3     4     3     4
 [6,]     5     4     4     4
 [7,]     2     2     1     2
 [8,]     4     4     4     4
 [9,]     1     2     1     1
[10,]    NA     1     2     2
[11,]    NA    NA     2     2

4.2 Interval data from an imaging study of hip cartilage

The data for this example, some of which appear in Figure 2, are 323 pairs of T2* relaxation times (a magnetic resonance quantity) for femoral cartilage (Nissi et al., 2015) in patients with femoroacetabular impingement (Figure 3), a hip condition that can lead to osteoarthritis. One measurement was taken when a contrast agent was present in the tissue, and the other measurement was taken in the absence of the agent. The aim of the study was to determine whether raw and contrast-enhanced T2* measurements agree closely enough to be interchangeable for the purpose of quantitatively assessing cartilage health.

27.3 28.5 29.1 31.2 33.0 19.7 21.9 17.7 22.0 19.5
27.8 25.9 19.5 27.8 26.6 18.3 23.1 18.0 25.7 21.7
Figure 2: Raw and contrast-enhanced T2* values for femoral cartilage.

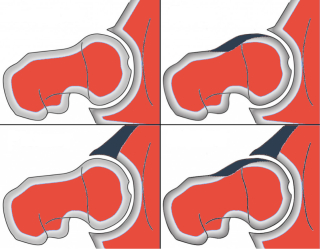

Figure 3: An illustration of femoroacetabular impingement (FAI). Top left: normal hip joint. Top right: cam type FAI. Bottom left: pincer type FAI. Bottom right: mixed type.

We will carry out both maximum likelihood and Bayesian analyses for (a subset of) these data, assuming and marginal distributions.

First we load the cartilage data, which are included in the package, and apply the method of maximum likelihood for a Laplace marginal distribution. The running time is just over one second.

R> data(cartilage)
R> data = as.matrix(cartilage)[1:100, ]
R> colnames(data) = c("c.1.1", "c.2.1")
R> fit1 = sklars.omega(data, level = "interval", confint = "asymptotic",
+                      control = list(dist = "laplace"))
R> summary(fit1)

Call:

sklars.omega(data = data, level = "interval", confint = "asymptotic",
    control = list(dist = "laplace"))

Convergence:

Optimization converged at -593.5 after 18 iterations.

Control parameters:

dist laplace

Coefficients:

      Estimate   Lower   Upper
inter   0.8077  0.7379  0.8776
mu     26.5100 26.3500 26.6700
sigma   4.7090  3.8630  5.5550

AIC: 1193
BIC: 1203

We see that . This suggests that the contrast-enhanced T2* values agree nearly perfectly with their raw counterparts.

Now we repeat the analysis for a marginal distribution.

R> fit2 = sklars.omega(data, level = "interval", confint = "asymptotic",
+                      control = list(dist = "t"))
R> summary(fit2)

Call:

sklars.omega(data = data, level = "interval", confint = "asymptotic",
    control = list(dist = "t"))

Convergence:

Optimization converged at -608.7 after 18 iterations.

Control parameters:

dist t

Coefficients:

      Estimate   Lower   Upper
inter   0.8701  0.8224  0.9179
nu      7.0280  5.2130  8.8430
mu     23.4400 22.2400 24.6400

AIC: 1223
BIC: 1233

This led to a considerably larger value for and, given the two confidence intervals, a stronger conclusion for these data. But we must select the Laplace model since that model yielded much smaller values of AIC and BIC. In fact, the model probability (Burnham et al., 2011) is near zero.

R> aic = c(AIC(fit1), AIC(fit2))
R> (pr = exp((min(aic) - max(aic)) / 2))

[1] 2.516706e-07

Finally, we apply the Bayesian methodology described in Section 3.3. We begin by assuming a Laplace marginal model once again.

R> set.seed(111111)
R> fit1 = sklars.omega.bayes(data, verbose = FALSE,
+                            control = list(dist = "laplace", minit = 1000,
+                            maxit = 5000, tol = 0.01, sigma.1 = 1, sigma.2 = 0.1,
+                            sigma.omega = 0.2))
R> summary(fit1)

Call:

sklars.omega.bayes(data = data, verbose = FALSE, control = list(dist = "laplace",
    minit = 1000, maxit = 5000, tol = 0.01, sigma.1 = 1, sigma.2 = 0.1,
    sigma.omega = 0.2))

Number of posterior samples: 4000

Control parameters:

dist        laplace
minit       1000
maxit       5000
tol         0.01
sigma.1     1
sigma.2     0.1
sigma.omega 0.2

Coefficients:

      Estimate   Lower   Upper     MCSE
inter   0.8079  0.7366  0.8695 0.002111
mu     26.4600 25.7100 27.1400 0.011310
sigma   4.7990  3.9730  5.6970 0.025410

DIC: 1193

We see that sampling terminated when 4,000 samples had been drawn, since that sample size yielded for . As a second check we examine the plot given in Figure 4, which shows the estimated posterior mean for as a function of sample size. The estimate evidently stabilized after approximately 2,500 samples had been drawn.

Figure 4: A plot of estimated posterior mean versus sample size for , having assumed a Laplace marginal distribution.

The proposal standard deviations (1 for , 0.1 for , and 0.2 for ) led to sensible acceptance rates of 40%, 60%, and 67%.

R> fit1$accept

    inter        mu     sigma
0.6694174 0.4013503 0.5951488

For a marginal distribution only 3,000 samples were required.

R> set.seed(4565)
R> fit2 = sklars.omega.bayes(data, verbose = FALSE,
+                            control = list(dist = "t", minit = 1000,
+                            maxit = 5000, tol = 0.01, sigma.1 = 0.2,
+                            sigma.2 = 2, sigma.omega = 0.2))
R> summary(fit2)

Call:

sklars.omega.bayes(data = data, verbose = FALSE, control = list(dist = "t",
    minit = 1000, maxit = 5000, tol = 0.01, sigma.1 = 0.2, sigma.2 = 2,
    sigma.omega = 0.2))

Number of posterior samples: 3000

Control parameters:

dist        t
minit       1000
maxit       5000
tol         0.01
sigma.1     0.2
sigma.2     2
sigma.omega 0.2

Coefficients:

      Estimate   Lower  Upper     MCSE
inter    0.874  0.8283  0.919 0.002054
nu       6.720  5.0210  8.424 0.053200
mu      23.450 22.2600 24.690 0.028070

DIC: 1224

Note that the Laplace model yielded a much smaller value of DIC, and hence a very small relative likelihood for the model.

R> dic = c(fit1$DIC, fit2$DIC)
R> (pr = exp((min(dic) - max(dic)) / 2))

[1] 1.852924e-07

5 Summary and discussion

Sklar’s offers a flexible, principled, complete framework for doing statistical inference regarding agreement. In this article we described three frequentist approaches to inference for Sklar’s as well as a Bayesian methodology for interval or ratio outcomes. All of these approaches are supported by R package sklarsomega, version 2.0 of which is available from the Comprehensive R Archive Network. As illustrated in the preceding section, package sklarsomega also offers much useful related functionality.

Computational details

The results in this paper were obtained using R 3.3.3 with the extraDistr 1.8.9 package, the hash 2.2.6 package, the LaplacesDemon 16.0.1 package, the Matrix 1.2.8 package, the mcmcse 1.3.2 package, the numDeriv 2014.2.1 package, the spam 1.3.0 package, and the pbapply 1.3.2 package. R itself and all packages used are available from the Comprehensive R Archive Network (CRAN) at http://CRAN.R-project.org.

References

  • Aravind and Nawarathna (2017) Aravind, K. R. and Nawarathna, L. S. (2017).

    A statistical method for assessing agreement between two methods of heteroscedastic clinical measurements using the copula method.

    Journal of Medical Statistics and Informatics, 5(1):3.
  • Artstein and Poesio (2008) Artstein, R. and Poesio, M. (2008). Inter-coder agreement for computational linguistics. Computational Linguistics, 34(4):555–596.
  • Burgert and Rüschendorf (2006) Burgert, C. and Rüschendorf, L. (2006). On the optimal risk allocation problem. Statistics & Decisions, 24(1/2006):153–171.
  • Burnham et al. (2011) Burnham, K. P., Anderson, D. R., and Huyvaert, K. P. (2011). AIC model selection and multimodel inference in behavioral ecology: Some background, observations, and comparisons. Behavioral Ecology and Sociobiology, 65(1):23–35.
  • Byrd et al. (1995) Byrd, R., Lu, P., Nocedal, J., and Zhu, C. (1995). A limited memory algorithm for bound constrained optimization. SIAM Journal on Scientific Computing, 16(5):1190–1208.
  • Cohen (1960) Cohen, J. (1960). A coefficient of agreement for nominal scales. Educational and Psychological Measurement, 20(1):37–46.
  • Davison and Hinkley (1997) Davison, A. C. and Hinkley, D. V. (1997). Bootstrap Methods and their Application, volume 1. Cambridge University Press.
  • Ferguson (1967) Ferguson, T. S. (1967). Mathematical Statistics: A Decision Theoretic Approach. Academic Press, New York.
  • Fernholz (1991) Fernholz, L. T. (1991). Almost sure convergence of smoothed empirical distribution functions. Scandinavian Journal of Statistics, 18(3):255–262.
  • Flegal et al. (2008) Flegal, J., Haran, M., and Jones, G. (2008). Markov chain Monte Carlo: Can we trust the third significant figure? Statistical Science, 23(2):250–260.
  • Gamer et al. (2012) Gamer, M., Lemon, J., and Singh, I. F. P. (2012). irr: Various Coefficients of Interrater Reliability and Agreement. R package version 0.84.
  • Genest and Neslehova (2007) Genest, C. and Neslehova, J. (2007). A primer on copulas for count data. Astin Bulletin, 37(2):475.
  • Geyer (2013) Geyer, C. J. (2013). Le Cam made simple: Asymptotics of maximum likelihood without the LLN or CLT or sample size going to infinity. In Jones, G. L. and Shen, X., editors, Advances in Modern Statistical Theory and Applications: A Festschrift in honor of Morris L. Eaton. Institute of Mathematical Statistics, Beachwood, Ohio, USA.
  • Godambe (1960) Godambe, V. (1960). An optimum property of regular maximum likelihood estimation. The Annals of Mathematical Statistics, pages 1208–1211.
  • Hayes and Krippendorff (2007) Hayes, A. F. and Krippendorff, K. (2007). Answering the call for a standard reliability measure for coding data. Communication Methods and Measures, 1(1):77–89.
  • Hughes (2018) Hughes, J. (2018). Sklar’s Omega: A Gaussian copula-based framework for assessing agreement. ArXiv e-prints.
  • Hyndman and Fan (1996) Hyndman, R. J. and Fan, Y. (1996). Sample quantiles in statistical packages. American Statistician, 50:361–365.
  • Ihaka and Gentleman (1996) Ihaka, R. and Gentleman, R. (1996). R: A language for data analysis and graphics. Journal of Computational and Graphical Statistics, 5:299–314.
  • Kazianka (2013) Kazianka, H. (2013). Approximate copula-based estimation and prediction of discrete spatial data. Stochastic Environmental Research and Risk Assessment, 27(8):2015–2026.
  • Kazianka and Pilz (2010) Kazianka, H. and Pilz, J. (2010). Copula-based geostatistical modeling of continuous and discrete data including covariates. Stochastic Environmental Research and Risk Assessment, 24(5):661–673.
  • Klaassen et al. (1997) Klaassen, C. A., Wellner, J. A., et al. (1997). Efficient estimation in the bivariate normal copula model: Normal margins are least favourable. Bernoulli, 3(1):55–77.
  • Krippendorff (2012) Krippendorff, K. (2012). Content Analysis: An Introduction to Its Methodology. Sage.
  • Krippendorff (2013) Krippendorff, K. (2013). Computing Krippendorff’s alpha-reliability. Technical report, University of Pennsylvania.
  • Landis and Koch (1977) Landis, J. R. and Koch, G. G. (1977). The measurement of observer agreement for categorical data. Biometrics, pages 159–174.
  • Lindsay (1988) Lindsay, B. (1988). Composite likelihood methods. Contemporary Mathematics, 80(1):221–239.
  • Liu et al. (2009) Liu, H., Lafferty, J., and Wasserman, L. (2009). The nonparanormal: Semiparametric estimation of high dimensional undirected graphs.

    Journal of Machine Learning Research

    , 10(Oct):2295–2328.
  • Nelsen (2006) Nelsen, R. B. (2006). An Introduction to Copulas. Springer, New York.
  • Nissi et al. (2015) Nissi, M. J., Mortazavi, S., Hughes, J., Morgan, P., and Ellermann, J. (2015). T2* relaxation time of acetabular and femoral cartilage with and without intra-articular Gd-DTPA2 in patients with femoroacetabular impingement. American Journal of Roentgenology, 204(6):W695.
  • Prentice (1988) Prentice, R. L. (1988). Correlated binary regression with covariates specific to each binary observation. Biometrics, pages 1033–1048.
  • Proutskova and Gruszczynski (2017) Proutskova, P. and Gruszczynski, M. (2017). kripp.boot: Bootstrap Krippendorff’s Alpha Intercoder Reliability Statistic. R package version 1.0.0.
  • Ribatet et al. (2012) Ribatet, M., Cooley, D., and Davison, A. C. (2012). Bayesian inference from composite likelihoods, with an application to spatial extremes. Statistica Sinica, pages 813–845.
  • Rüschendorf (1981) Rüschendorf, L. (1981). Stochastically ordered distributions and monotonicity of the OC-function of sequential probability ratio tests. Statistics, 12(3):327–338.
  • Rüschendorf (2009) Rüschendorf, L. (2009). On the distributional transform, Sklar’s theorem, and the empirical copula process. Journal of Statistical Planning and Inference, 139(11):3921–3927.
  • Scott (1955) Scott, W. A. (1955). Reliability of content analysis: The case of nominal scale coding. Public Opinion Quarterly, pages 321–325.
  • Serfling and Mazumder (2009) Serfling, R. and Mazumder, S. (2009). Exponential probability inequality and convergence results for the median absolute deviation and its modifications. Statistics & Probability Letters, 79(16):1767–1773.
  • Spearman (1904) Spearman, C. (1904). The proof and measurement of association between two things. The American Journal of Psychology, 15(1):72–101.
  • Spiegelhalter et al. (2002) Spiegelhalter, D. J., Best, N. G., Carlin, B. P., and Van Der Linde, A. (2002). Bayesian measures of model complexity and fit. Journal of the Royal Statistical Society: Series B (Statistical Methodology), 64(4):583–639.
  • Varin (2008) Varin, C. (2008). On composite marginal likelihoods. AStA Advances in Statistical Analysis, 92(1):1–28.
  • Xue-Kun Song (2000) Xue-Kun Song, P. (2000). Multivariate dispersion models generated from Gaussian copula. Scandinavian Journal of Statistics, 27(2):305–320.
  • Young (2017) Young, D. S. (2017). Handbook of Regression Methods. CRC Press.
