Simplified Eigenvalue Analysis for Turbomachinery Aerodynamics with Cyclic Symmetry

12/18/2019
by   Shenren Xu, et al.
0

Eigenvalue analysis is widely used for linear instability analysis in both external and internal aerodynamics. It typically involves finding the steady state, linearizing around it to obtain the Jacobian, and then solving for its eigenvalues and eigenvectors. When the flow is modelled with Reynolds-averaged Navier–Stokes equations with a large boundary-layer-resolving mesh, the resulting eigenvalue problem can be of very high dimensions, and is thus computationally very challenging. To reduce the computational cost, a simplified approach is proposed to compute the eigenvalues and eigenvectors, by exploiting the cyclic symmetric nature of annular fluid domain for typical compressors. It is shown that via a rotational transformation, the Jacobian can be reduced to a block circulant matrix, whose eigenvalues and eigenvectors then can be computed using only one sector of the entire domain. This simplified approach significantly lowers the memory overhead and the CPU time of the eigenvalue analysis without compromising on the accuracy. The proposed method is applied to the eigenvalue analysis of an annular compressor cascade with 22 repeated sectors and it is shown the spectrum of the whole annulus can be obtained by using the information of 1 sector only, demonstrating the effectiveness of the proposed method.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 10

08/07/2020

Solving two-parameter eigenvalue problems using an alternating method

We present a new approach to compute selected eigenvalues and eigenvecto...
03/18/2020

Computation of Tight Enclosures for Laplacian Eigenvalues

Recently, there has been interest in high-precision approximations of th...
03/01/2021

Computation of transmission eigenvalues by the regularized Schur complement for the boundary integral operators

This paper is devoted to the computation of transmission eigenvalues in ...
10/22/2020

One-shot Distributed Algorithm for Generalized Eigenvalue Problem

Nowadays, more and more datasets are stored in a distributed way for the...
02/02/2020

Variational projector-augmented wave method: a full-potential approach for electronic structure calculations in solid-state physics

In solid-state physics, energies of crystals are usually computed with a...
04/04/2022

Learning Linear Symmetries in Data Using Moment Matching

It is common in machine learning and statistics to use symmetries derive...
12/01/2020

Enhancing Scalability of a Matrix-Free Eigensolver for Studying Many-Body Localization

In [Van Beeumen, et. al, HPC Asia 2020, https://www.doi.org/10.1145/3368...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

Nomenclature

 = Jacobian matrix for the whole annulus
 = circulant matrix
 = entries of a circulant matrix
 =

basis vector of the original and rotated references

 = residual vector
 = rotational transformation matrix
 = flow field vector
 = eigenvectors
 = th complex roots of 1
 = pitch angle between two neighboring sectors
 = eigenvalue
 =

1 Introduction

Eigenvalue analysis based on the Reynolds-averaged Navier–Stokes (RANS) equations is a widely used approach to study the linear instability of external flow problems [theofilis2011global] such as the transonic shock buffet for airfoil [Crouch2007Predicting, Crouch2009Origin] and for wings [2018arXivTimme, paladini2019transonic, crouch2019global]. In those works, the RANS equations are linearized about the steady state and an eigenvalue problem is solved for the resulting large sparse linear system of equations. The stability of the system is then determined by the existence of eigenvalues with positive real parts. This approach is shown to be capable of determining the stability boundary that is consistent with unsteady RANS approach, but at orders-of-magnitude lower a cost.

Eigenvalue-based linear instability analysis has also been used for turbomachinery applications, mainly regarding the flow-instability inception towards the stall boundary of compressors. A general approach to predict the onset of such instability using the eigenvalue method is proposed in [Sun2013A] and has been successfully applied to both axial and centrifugal compressors [liu2014basic, sun2016flow]. Different from the application on airfoil and wing aerodynamics where the flow is modelled with three-dimensional RANS equations, these works on compressor stability study use a simplified approach by modelling the effect of the blades with body forces and ignoring the circumferential variation of the flow field. With such simplification, a small eigenvalue problem can be formulated and solved in the meridional plane to predict the linear instability of the system. Although the method is shown to predict the turbomachinery flow-instability onset with plausible accuracy, ignoring the three-dimensional details naturally brings error that is not known a priori. Besides, modern compressors are designed with increasingly higher loading and exhibit strong three-dimensional effect, which needs to be accounted for when studying the flow instability [pullan2015origins]. Furthermore, three-dimensional RANS calculation has become routine practice for turbomachinery industry and consequently the flow-instability inception prediction needs to be based on RANS equations as well in order to retain the same modelling capability.

One key factor limiting the application of the RANS-based eigenvalue analysis to turbomachinery is its high computational cost. Although the steady state performance of compressors can be computed using a single passage mesh, which typically has grid points on the order of one million, whole annulus domain needs to be employed in order to capture the instability onset. Consequently, a computational mesh one to three orders of magnitude larger than typical airfoil/wing applications is needed, and therefore computing eigenvalue (even a small subset of it) based on RANS equations for compressors is computationally much more demanding.

Turbomachinery components usually assume cyclic symmetric shape and so is the flow field inside, and the cyclic symmetry can be exploited in order to simplify the computation. It is in fact established practice for computing the natural frequencies and vibrational mode shapes of periodic structures with cyclic structure [thomas1979dynamics]. One first meshes one sector of the entire structure and specifies the nodal diameter and the natural frequencies and mode shapes for the specifies nodal diameters can be computed. Looping over all possible nodal diameters allows one to obtain all natural frequencies and mode shapes for the entire structure. Throughout the whole process, all computations are performed based on one sector of the domain, thus requires much less computational resource and much shorter CPU time, compared to the whole-annulus computation. Such simplification approach was revisited in [Schmid2017Stability] for flow problems with translational periodicity and was successfully demonstrated on linear cascade type of problems. However, the methodology proposed therein is not directly applicable to cases with rotational periodicity, which are representative of real compressors. Therefore, it is desirable to extend the methodology to flow problems with rotational periodicity in order to significantly simplify the eigenvalue computation in order to study the whole annulus compressor flow instability.

In this work, an extension of the method proposed in [Schmid2017Stability] is developed so that it can be directly applied to the eigenvalue calculation for cyclic symmetric domains using one sector of the geometry only. In the remaining part of the paper, the theoretical basis for the simplification of the eigenvalue computation is first reviewed in Sec. 2 with particular focus on the linearized RANS equations. The application of the proposed method is then applied to the eigenvalue calculation for an annular compressor cascade case to demonstrate its effectiveness in reducing the computational cost and results are discussed in Sec. 3. Conclusions are given in Sec. 4.

2 Theoretical framework

2.1 Eigenvalue analysis of block circulant matrices

A circulant matrix has the form as follows

Due to its cyclic symmetric nature, it can be verified that matrix has the following eigenvalues and eigenvectors

and

where

are the th complex roots of 1, and j is the imaginary unit. It can easily be verified that all eigenvectors are orthogonal to each other, i.e.,

Matrix becomes a block circulant matrix when each is an square matrix. It has long been discovered that the computation of the eigenvalue and eigenvectors of a block circulant matrix can also be simplified by exploiting its cyclic symmetric nature[Friedman1961Eigenvalues]. It can be shown that all the eigenvector of the block circulant matrix can be divided into groups, with each group containing vectors. The th eigenvector in the th group, denoted as , should be of the following form

where is a vector of length . In order for to be an eigenvector, the following equation has to be satisfied

which can be expanded as follows

It can be verified that any two equations in the linear system above are equivalent. Therefore and can be found by solving the first equation only. That is, they are the th eigenvalue and eigenvector of the matrix

Therefore, the eigen analysis of the large matrix of dimension can be obtained via the eigen analysis of smaller matrix of dimension , significantly simplifying the computation.

2.2 Jacobian matrix of the linearized RANS equations

For a typical finite volume solver based on the RANS equations, the vector that satisfies

is the steady state solution. The time-dependent behavior of the flow solution is governed by the unsteady form

To study its linear stability, one could linearize the nonlinear residual vector about the steady state with respect to the flow solution vector to obtain the Jacobian matrix

and compute its eigenvalues and eigenvectors.

To facilitate the discussion, it is assumed that the computational mesh is cyclic symmetric with -periodicity. Consequently, the full-annulus mesh can be divided into non-overlapping zones, each of which containing grid points, as illustrated in Fig. 1. In addition, the grid points in each zone is arranged in such a way that the th point in zone is the th point in zone rotated by an angle of .

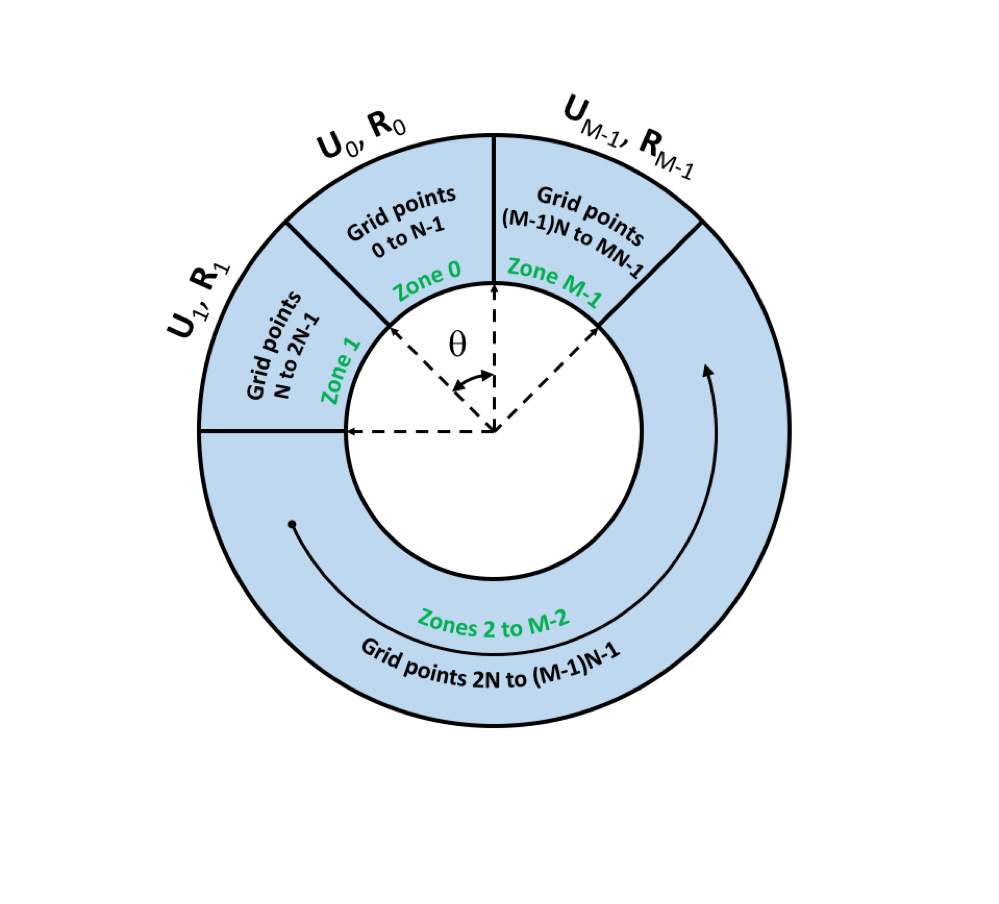

Figure 1: Arrangement of the computational meshes in the cyclic symmetric circular domain.

Due to the cyclic symmetry of the mesh, the Jacobian matrix can be partitioned as a block matrix as follows

where and are the vectors of the flow variables and the nonlinear residual for the grid points in the th zone, each being a vector of length for Euler/laminar or for turbulent flow with a one-equation turbulence model, and each block is a or matrix.

Note that block matrices

are second-order tensors that are invariant to the coordinate system used, and can be expressed using tensor product as

(1)

where are the basis vectors in the coordinate frame fixed to the computational mesh and is short for the tensor product . and are the matrix representation of the second-order tensor in the coordinate systems and respectively. Let be a coordinate system that is obtained by rotating by , as shown in Fig. 2

Figure 2: Arrangement of the computational meshes in the cyclic symmetric circular domain.

The basis vectors of the two coordinate systems can linked via the transformation matrix via

where the matrix denotes the rotational transform of . Substitute the in Eq. (1) yields

In addition, it is straightforward to see that viewed in is identical to viewed in . This means the matrix representation of the former in is that of the latter in , i.e.,

and hence

or equivalently,

The Jacobian matrix becomes

Further more, change of variable is used for

so that

The Jacobian matrix can be further rewritten to be

with matrices and defined as

Therefore, the Jacobian matrix is similar to a block-circulant matrix and thus they have the same eigenvalues. To compute the eigenvalues and eigenvectors of the matrix , we first compute and , th eigenvalue and eigenvector of the matrix

and the eigenvectors of , , can be computed as

Finally, the eigenvectors of the Jacobian matrix are , which can be calculated as follows

It can be seen that for any of the eigenvectors of , , the corresponding eigenvectors of , are modes with different nodal diameters. Same as for the circulant block matrix, to compute the eigenvalues and eigenvectors of the Jacobian matrix , one only needs to solve the eigenvalue problem of dimension , significantly reducing the computational cost, especially for large CFD analysis.

3 Results

The test case used to demonstrate the usefulness of the proposed method is an annulus compressor cascade case. The cascade is produced by taking the surface of revolution at the 50% height of the NASA Rotor 67 [strazisar1989laser]. The three-dimensional mesh has one cell in the radial direction and the subsequent analysis is thus a quasi-3D one. The compressor cascade rotates at 16,043 Revolutions per minute. The annular cascade has 22 passages in total. The mesh for the whole annulus is produced by meshing a single passage first and then copying the mesh to the whole annulus. The mesh for the entire domain has 126,808 grid points, with an average of 5,764 per zone.

3.0.1 Steady state calculation

The turbomachinery nonlinear flow solver NutsCFD is used to compute the performance of the cascade. The speedline, computed by gradually raising the back pressure until the steady state can no long converge, is shown in Fig. 3. The fully-converged steady state flow solution corresponding to the condition marked in red in Fig. 3 (to be called condition ‘A’ in the remainder of the paper) is visualized in Fig. 4, where the shock/boundary layer interaction can clearly be seen. All steady state calculations are performed using a single passage. The visualized flow fields are produced by copying the solution in the single passage to the whole annulus.

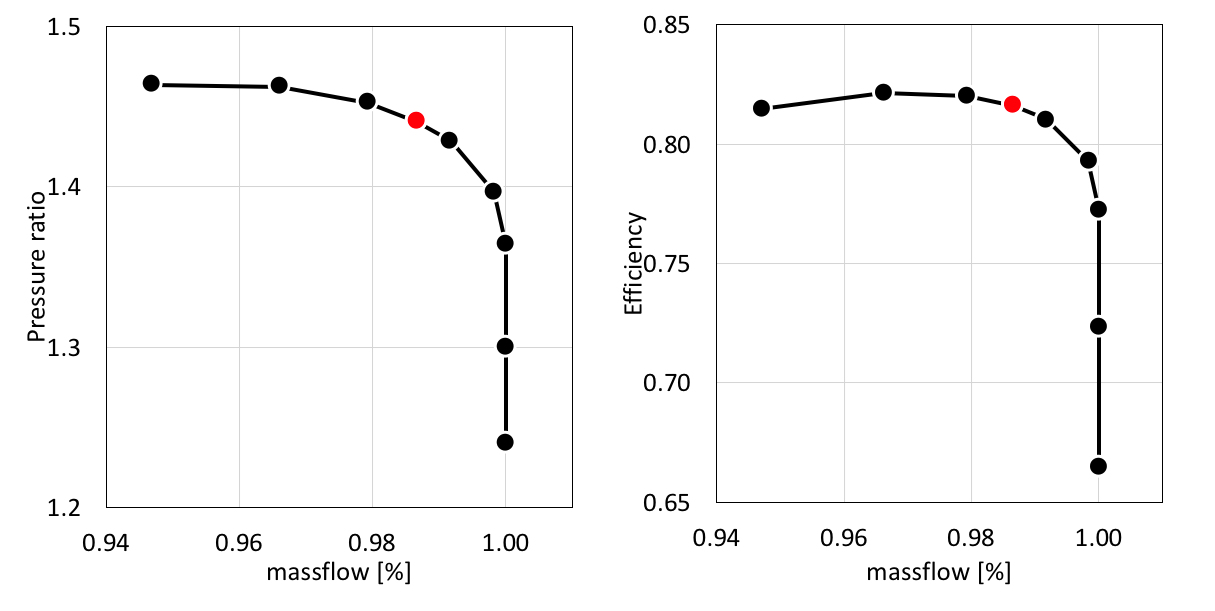

Figure 3: Total pressure ratio and isentropic efficiency of the cascade with the red circle denoting the condition for which eigenvalue analysis is performed.
