Similarity based hierarchical clustering of physiological parameters for the identification of health states - a feasibility study

03/26/2018 ∙ by Fabian Schrumpf, et al. ∙ 0

This paper introduces a new unsupervised method for the clustering of physiological data into health states based on their similarity. We propose an iterative hierarchical clustering approach that combines health states according to a similarity constraint to new arbitrary health states. We applied method to experimental data in which the physical strain of subjects was systematically varied. We derived health states based on parameters extracted from ECG data. The occurrence of health states shows a high temporal correlation to the experimental phases of the physical exercise. We compared our method to other clustering algorithms and found a significantly higher accuracy with respect to the identification of health states.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 3

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Wearable sensor technologies are becoming more and more sophisticated. Nowadays it is possible to conduct recordings of a multitude of physiological signals (e.g. electrocardiogram, ECG) over several days by means of extremely miniaturized battery-driven systems. These systems are the basis for new clinical applications as, for instance, vital parameter monitoring in patients long before and long after surgical interventions. However, recording such data is useless without appropriate processing and analyzing methods along with suitable visualization and alerting strategies in case of relevant medical events. More precisely, it is necessary to (1) extract relevant physiological parameters, (2) to assess them not only according to some thresholds but also regarding their medical importance for the individual patient (that means with respect to the particular disease of the patient), and (3) to derive some sort of classification of the current arbitrary health state of a patient. Note that the health state should be understood as a certain combination of vital parameters such as the heart rate (HR) and oxygen saturation. It does not describe a particular condition of a patient (suffering from a certain disease or a certain degree of illness).

Recent advances in machine learning led to various applications of data mining approaches for the prediction of adverse clinical events

[1]. These approaches commonly rely on the definition and automated adoption of thresholds. They are based on the extraction of vital paramters from physiological signals and their subsequent classification according to predefined thresholds [2]. However, it is often difficult to define appropriate absolute thresholds, not least since labelled training data is still limited and only available for certain diseases (e.g. specific heart conditions) [3]. Hence, the general assessment of a patient’s health state during his/her daily routine still remains an issue to be addressed.

It is very likely that similar health states can be described by a similar set of physiological parameters. It might be useful to assess the similarity between these parameter sets in order to identify similar health states as well as changes from one health state to another. We propose an iterative hierarchical clustering method which is based on a similarity measure. If at least two parameter sets are found to be similar according to this measure, they are assigned to the same health state. The similarity can be assessed using various techniques. We utilized a rather straightforward approach, i.e. the Mahalanobis distance. Our method is unsupervised as it only relies on unlabelled data and does not need any a priori assumptions on the expected number of health states. It is particularly suited for the analysis of data which arises, for instance, in a clinical setting.

Here, we present an experimental study to demonstrate the ability of our method to identify correlates between a set of physiological parameters and an arbitrary health state. Subjects were asked to perform physical exercises in order to modulate their physical strain. We recorded ECG data and extracted several parameters (e.g., respiratory rate). The automated clustering of health states based on our approach revealed an excellent correspondence with the labelled reference data, particularly in comparison to several other methods. The method could thus be helpful in a clinical setting, where doctors are confronted with a great variety of vital parameters gathered over long periods by providing alerts to the staff when a multitude of vital parameters take unusual values. It could be used to construct graphs that describe the alteration of health states over time. From a medical perspective, this provides the opportunity to easily asses the development oF a patients condition. It might also be possible to identify patterns of health states which inidcate a particular disease. The evalutation of our method in a clinical setting is part of our current research.

Ii Methods

Ii-a Similarity based hierarchical clustering

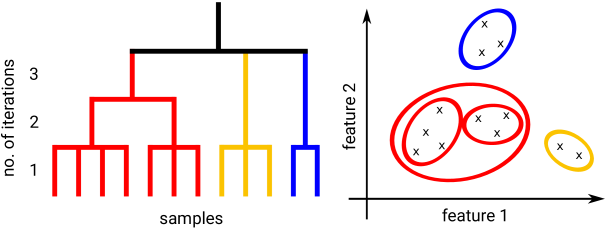

Fig. 1: Left: Example of the similarity based hierarchical clustering approach. A set of 12 samples is clustered into 3 health states. Right: The samples are combined based on their Mahalanobis distance.

Our method identifies biophysiological states by successively dividing a data set into clusters based on their similarity. Given is the parameter , which contains physiological parameters (i.e. features) that are representative for sample (i.e. time point) of the data set consisting of N samples. We regard each of the samples in the data set as a health state

. The basic idea of our approach is to combine different health states which are similar according to some constraint to a new health state. We expect that this leads to a small number of potential health states because certain physical conditions can be characterized by a distinct set of parameter values. More importantly, we believe that the variation of the similarity constraint allows the identification of meaningful health states as, for instance, sleep phases of a subject. We utilized the Mahalanobis distance as a similarity measure since it allows to account for potential correlations between the features. This is often the case in multinomial clustering problems where features can differ in scale and variance among themselves

[4]

. Given two feature vectors

and and the covariance matrix of the underlying sample set , the Mahalanobis distance is defined as:

(1)

Note that, in the case of , would be the ordinary Euclidean distance between samples and .

The first step is the calculation of the pairwise Mahalanobis distance between all samples of the data set. Second, samples and their nearest neighbours for which the distance is lower than a certain threshold are assigned to the same cluster (i.e., health state). Note that this means that not all samples in the resulting cluster fulfill the pairwise similarity criterion. A small threshold value represents a restrictive similarity constraint and prevents the generation of large clusters in the first iteration step. The selection of this threshold is essential for the ability to distingish particular states in the data set. Third, the centroids of all different clusters are computed. Each centroid serves as a representative for the corresponding cluster and is used for subsequent iterations. Fourth, the threshold (i.e., the similarity criterion) is relaxed by an amount of 5 percent in order to enable the clusters to grow. These steps are repeated until an optimization criterion – for instance a certain compactness of the clusters – is reached. In our feasibility study, however, we did not use such an optimization criterion. For the sake of simplicity, we repeated this procedure until a predefined number of iterations was reached.

The proposed algorithm combines the data into a tree-like structure and is therefore related to classical agglomerative clustering. The main difference is that the resulting tree is not binary. This can be seen in Fig. 1.

Ii-B Experimental study

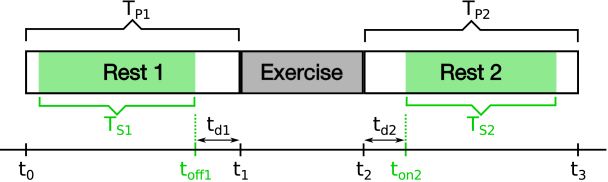

Fig. 2: The experimental procedure consists of two resting phases (5 minutes each)) and a phase of physical strain (3 minutes). The end of each phase is indicated by means of a trigger button (, , , ). The following measures where derived: The duration of each detected resting state (, ), the duration of each true resting phase (, ). Offset of the first resting state (), onset of the second resting state .
Fig. 3: Clustering result by means of the ECG-based features (respiration frequency, respiration depth, HRV, Q-TE duration) using a) Euclidean distance based fuzzy clustering (FCeucl); b) Mahalanobis distance based fuzzy clustering (FCmahal); c) binary hierarchical clustering (BiTree)); d) similarity based hierarchical clustering (Htree). Each line in the plots corresponds to the clustering results of a single subject.

We carried out an experimental study in order to examine the feasibility of our approach. The aim was to identify different phases of physical strain by means of the proposed clustering approach. We recruited 32 healthy subjects among the employees and students of our research group. Their mean age was 26.8 years (SD = 5.5 years). The experiment consists of three different phases which are illustrated in Fig. 2. The subjects remained in a supine position and where told to relax during the resting phases. They were asked to perform squats in order to raise their respiratory frequency and heart rate during the exercise phase. Single channel ECG data was recorded using a PLUX biosignals researcher measurement system (PLUX wireless biosignals, Lisbon, Portugal). The phases were labelled by means of a trigger button.

The ECG recordings were used to extract features to distinguish between different states of physical strain. For instance, increased respiratory rates and shortened Q-TE durations are known to be correlated to physical strain [5]. In a preprocessing step, baseline removal was applied and the 50 Hz powerline interference was removed [6]. The signal was then subdivided into windows of 30 s length and an overlap of 29 s between adjacent windows. The following features were extracted in each window: (i) respiration rate, (ii) respiration depth, (iii) heart rate variability (HRV) and (iv) timing lag between the onset of the QRS-wave and the offset of the T-wave (Q-TE) [5]

. In order to estimate the HRV, the QRS complexes including their on- and offsets were extracted

[7, 8]

. The respiratory signal was estimated by interpolating the amplitudes of the R-peak

[9]. The depth of respiration was then calculated as the root mean square value of the respiratory signal. The respiratory rate was extracted by means of the autocorrelation function of the respiratory signal [10]. The T-wave detection was performed according to the algorithm described in [11].

These four features were the basis for the subsequent hierarchical clustering of each individual data set. We used a total of 35 iterations. The threshold was set to for the first iteration. This value was increased by 5% before each iteration.

We compared our method to three other clustering algorithms. First, a fuzzy clustering method based on the Gustafson-Kessel-Algorithm (FCeucl) was used [12]

. This is a top down approach which optimizes the probability distribution of each sample to belong to a certain cluster. The algorithm is based on the

a priori definition of the number of expected clusters. The probability estimation is based on the Euclidean distance between the sample and the centres of the clusters. The second method is a variation of the first one. It uses Mahalanobis distances (FCmahal) rather than Euclidean distances [13]. The third method is a classical hierarchical clustering approach that groups samples over a variety of distances by building a binary tree (BiTree).

Finally, the resulting clusters and their occurrences during the experiment were evaluated to extract the duration of the three different phases from the individual data sets. We expected to find two major health states that coincide with the physical strain during the three experimental phases. First, a resting state during the first relaxation phase, a stress state during physical exercise, and another resting state in the second relaxation phase. We identified the dominant cluster in each phase and computed its start and end time. We compared these times with those obtained on the basis of the trigger button. We calculated the time difference (Eq. 2) between the end of the dominant cluster and the time of the first button press at time (see also figure 2). This indicates how accurately the algorithm detects changes in physical strain. For the same reason, the duration (Eq. 3) between the beginning of the second resting state and the second button press at time was determined. Additionally, the duration of the resting phases based on the clustering approaches and based on the trigger channel were compared ( and see Eq. 4 and 5).

(2)
(3)
(4)
(5)

Ii-C Sensitivity Analysis

We performed a sensitivity analysis in order to evaluate the influence of the threshold parameter on the clustering results obtained with the HTree method. The threshold parameter was varied in a range from . The times and durations of the major phases extracted using these different thresholds were compared to results obtained by the setup () described in section II-B. This particular threshold value was empirically determined and leads to the best clustering results of the data sets.

Iii Results

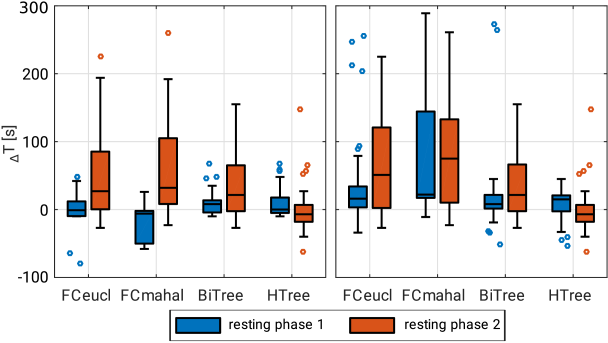

Fig. 4: Left: Delay between resting state offset and first button press during resting phase 1 ( blue) and third button press and resting state onset during resting phase 2 ( orange); Right: duration difference between first resting state and resting phase 1 ( blue) and between second resting phase and resting phase 2 ( orange)

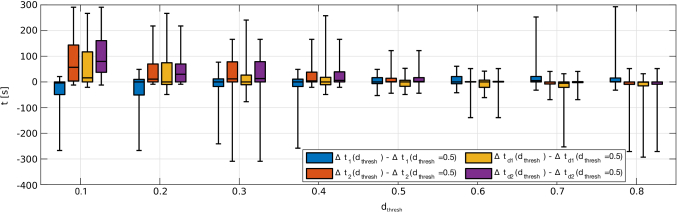

Fig. 5: Results of the sensitivity analysis in order to investigate the influence of on the clustering results. The threshold parameter was varied in a range of and the delay times(Eq. 2 and 3) as well as the phase durations (Eq. 4 and 5) were compared to the ones obtained with .

Fig. 3 shows the identified clusters (color-coded) over time for all methods and subjects. Each black marker represents a button press and indicates the true end of a particular experimental phase (cmp. Fig. 2). It can be seen that all methods establish an initial state (denoted in red) during the first resting phase almost consistently for all subjects. This can be explained with the fact that the subjects lie in a supine position and are relaxed which leads to a low variation of the underlying physiological parameters. During the exercise phase the human body reacts to the increased physical strain with an increased respiration frequency and respiration depth, a stronger HRV and shorter Q-TE-durations. It can be seen that the algorithms consistently detect a change of the health state in a high temporal correlation to the first button press. That means that the beginning of the exercise phase is detected correctly. However, the states are much less stable and even additional states are introduced. After the exercise phase is completed (second black marker) the subjects relax during the second resting phase. We expected that the resulting health state resembles the state from the first resting phase. The results for the clustering methods BiTree and HTree clearly confirm our expectations for most subjects. However, there are some subjects (e.g. subject 3) for which the health state in the second resting phase is not equivalent to the state in the first resting phase. Instead, an additional state is introduced which seems to be in temporal correlation with the duration of the second resting phase. This effect occurs even more frequent in the clustering methods FCeucl and FCmahal.

Next, a quantitative evaluation of the results was carried out. We analysed the temporal consistency between the clustering results and the experimental procedure. In particular, we compared the time of the end of the first resting state obtained by means of the button press () and on the basis of the clustering approaches (see Fig. 4 left). Likewise, we compared the times of the beginning of the second resting state (see Fig. 4 left). Furthermore we calculated the duration of the resting states obtained using the clustering methods and compared them as well (Fig. 4, right). These values serve as a measure of how accurately the methods follow the changes in physical activity.

The results indicate that most of the algorithms detect a health state change in temporal proximity to a true change of the physical activity. It can be seen in Fig. 4 (left panel) that the time differences obtained for method HTree are particularly small. In other words, the method provides a relatively good detection of the beginning and the end of the exercise phase. Likewise, the methods FCeucl and BiTree provide a good detection of the beginning of the exercise phase but clearly perform weaker regarding the correct detection of the beginning of the second resting phase. The time differences obtained for method FCmahal are large compared to all other methods.

The results obtained from analyzing the duration of the resting phases are depicted in Fig. 4 (right panel). It can be seen that the durations obtained for algorithm HTree are very similar to the true duration of the experimental phases. The methods FCeucl and BiTree provide a good estimation for the duration of the first resting phase. However, the difference between the true and the estimated duration of the second resting phase is rather large for these two methods. Likewise to the previous analysis, method FCmahal provides the weakest performance and leads to large time differences.

We performed two-sample Kolmogorov-Smirnov tests to check whether the results obtained by the HTree method are significantly different from the ones obtained from the other methods. The results can be seen in table I. It can be concluded that the HTree method performs significantly better regarding the detection of the onset and duration of the second resting state compared to other approaches.

FCeucl FCmahal HTree
0,36 0.14
0,21 0,15
TABLE I: p-values of the two-sample KS-Test checking whether the times obtained with the BiTree method are significantly different from the times obtained by the other methods

We conducted a sensitivity analysis to investigate how a particular threshold parameter influences the clustering results. The parameter was systematically varied and the clustering results (eg. , , and ) were compared to the results obtained for . Figure 5 shows that a small value leads to huge deviations from the optimum . A larger threshold value would be less problematic.

Iv Discussion

We have introduced a new method for the identification of discrete individual health states. Our approach is based on determining the similarity between a certain set of physiological parameters at different time points. This leads to an iterative hierarchical clustering procedure in which existing health states are combined into new health states. We proposed to use the Mahalanobis distance to estimate similarities but different measures might be applied as well. We have proven the general feasibility of our approach by applying the method to experimental data. We conducted an experimental study in which subjects underwent different levels of physical strain. The clustering of health states was performed using our proposed approach and three reference methods.

The results obtained with our proposed procedure revealed a high temporal correlation between the derived health states and the true experimental phases. More importantly, we identified phases with stable health states before and after the exercise phase consistently over subjects. These two states were identical in most of the subjects. There are different reasons why this was not the case in some subjects. First, we did not account for the particular physical condition when recruiting the subjects. Some subjects might need a particularly long recovery time which can lead to different health states after exercise. Likewise, the absence of a resting phase prior to the experiment might cause a higher initial level of physical stress at the beginning of the experiment and, therefore, a different health state.

We have shown that our method shows a significantly better performance compared to the reference methods, particularly regarding the and the measure. The measures and , though, only provide a significantly better performance when compared to the FCmahal method. We conclude that all considered methods are able to detect a transition from a resting state to an exercise state more or less precisely. However, only the method proposed here leads to a similar classification of the health states before and after the experimental phase consistently across nearly all subjects. It should be noted that our experimental design is simple in a sense that it allowed us to distinguish between two very different states of physical strain very clearly. It is not in the scope of the present work to discriminate between different levels of physical exercise.

It is straightforward to extend our method in several ways. An important issue is the selection of a criterion to stop the iterative procedure. The utilization of a more specific criterion (e.g. cluster compactness or a certain cost function that is being optimized) might lead to better clustering results. Another important issue is the selection of the features as a basis for clustering.

It is obvious that the parameters that were selected here are sufficiently suited to explain the subjects health states during the conducted experiment. However, other applications might need additional information. This can be drawn, for example, from alternative physiological parameters or even from non-physiological features as, for instance, behavioural data. Another aspect worth investigating is the performance of our method in a typical machine learning setting where a defined subset of subjects serves as a training set and the learned cluster parameters are applied to a different set of subjects. This would also require additional information on the subject (e.g. body mass, stature).

Our final conclusion is that our method is applicable for the identification of health states based on physiological data. Apart from the detection of physical strain, there are other relevant application scenarios as, for example, the detection of pain from physiological and behavioural data.

Acknowledgments

This work was funded by the German Federal Ministry of Education and Research (BMBF) (FKZ 03FH032IX5).

References

  • [1] R. K. Kher, “Mobile and E-Healthcare: Recent Trends and Future Directions,” J. of Health & Med. Econ., vol. 2, no. 3, pp. 1–8, 2016.
  • [2] A. R. M. Forkan et al., “ViSiBiD: A learning model for early discovery and real-time prediction of severe clinical events using vital signs as big data,” Comp. Networks, vol. 113, pp. 244–257, 2017.
  • [3] A. L. Goldberger et al., “PhysioBank, PhysioToolkit, and PhysioNet: Components of a New Research Resource for Complex Physiologic Signals,” Circulation, vol. 101, no. 23, pp. e215–e220, 2000.
  • [4] P. Mahalanobis, “On the generalized distance in statistics,” Proc. of the Nat. Inst. of Sci., vol. 2, pp. 49–55, 1936.
  • [5] T. Hijzen et al., “The electrocardiogram during emotional and physical stress.” Int. J. of Psychophysiology, vol. 2, no. 4, pp. 273–279, 1985.
  • [6] F. Zhang et al., “Bioelectric signal detrending using smoothness prior approach,” Med. Eng. & Physics, vol. 36, no. 8, pp. 1007–1013, 2014.
  • [7] Cuiwei Li et al., “Detection of ECG characteristic points using wavelet transforms,” IEEE Trans. Bio-Med. Eng., vol. 42, no. 1, pp. 21–28, 1995.
  • [8] A. I. Manriquez et al., “An algorithm for QRS onset and offset detection in single lead electrocardiogram records,” in 2007 29th Annu. Int. Conf. of the IEEE Eng. in Med. and Biology Soc., no. 2, 2007, pp. 541–544.
  • [9] Y. Zhao et al., “Derivation of respiratory signals from single-lead ECG,” Proceedings - 2008 International Seminar on Future BioMedical Information Engineering, FBIE 2008, vol. 12, pp. 15–18, 2008.
  • [10] F. Schrumpf et al., “Derivation of the respiratory rate from directly and indirectly measured respiratory signals using autocorrelation,” Current Directions in Biomed. Eng., vol. 2, no. 1, pp. 241–245, 2016.
  • [11] H. Chatterjee et al., “Real Time P and T Wave Detection from Ecg using Fpga,” 2nd Int. Conf. on Comput., Commun., Control and Inform. Technol., vol. 4., pp. 840–844, 2012.
  • [12] D. Gustafson et al., “Fuzzy clustering with a fuzzy covariance matrix,” in 1978 IEEE Conf. on Decision and Control, no. 2, 1978, pp. 761–766.
  • [13] X. Zhao et al., “Mahalanobis distance based on fuzzy clustering algorithm for image segmentation,” Digital Signal Process., vol. 43, pp. 8–16, 2015.
